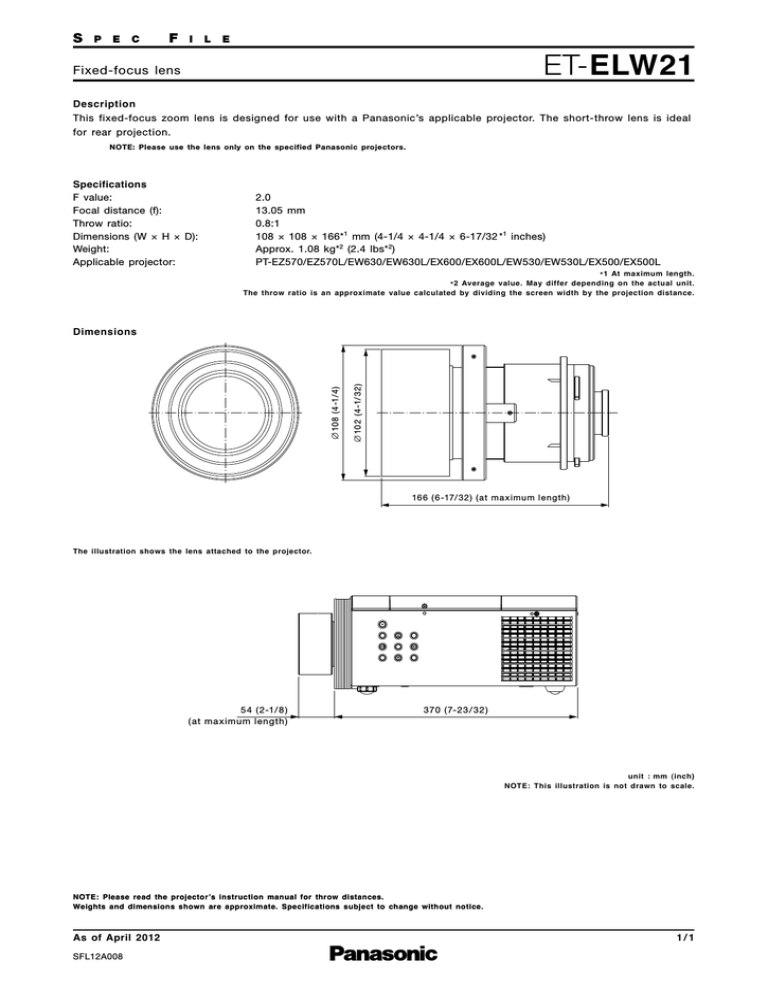

ET-ELW21
Fixed-focus lens
Description
This fixed-focus zoom lens is designed for use with a Panasonic’s applicable projector. The short-throw lens is ideal
for rear projection.
NOTE: Please use the lens only on the specified Panasonic projectors.
Specifications
F value:
Focal distance (f):
Throw ratio:
Dimensions (W × H × D):
Weight:
Applicable projector:
2.0
13.05 mm
0.8:1
108 × 108 × 166*1 mm (4-1/4 × 4-1/4 × 6-17/32 *1 inches)
Approx. 1.08 kg*2 (2.4 lbs*2)
PT-EZ570/EZ570L/EW630/EW630L/EX600/EX600L/EW530/EW530L/EX500/EX500L
* 1 At maximum length.
* 2 Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅ 102 (4-1/ 32 )
∅ 108 (4-1/4 )
Dimensions
166 ( 6 -17/ 32 ) ( at ma ximum length )
The illustration shows the lens attached to the projector.
54 ( 2-1/ 8 )
( at ma ximum length )
370 (7-23 / 32 )
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFL12A008
1/1
