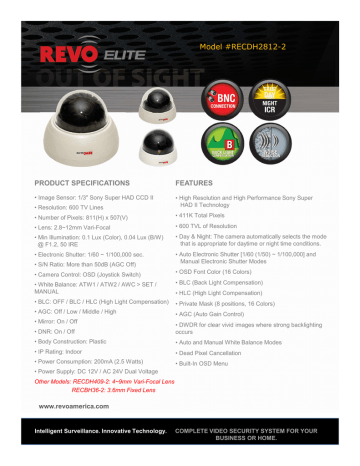

Revo RECDH2812-2 Datasheet

Revo RECDH2812-2 Datasheet
Model #RECDH2812-2
PRODUCT SPECIFICATIONS
FEATURES
• Image Sensor: 1/3" Sony Super HAD CCD II
• Resolution: 600 TV Lines
• High Resolution and High Performance Sony Super
HAD II Technology
• Number of Pixels: 811(H) x 507(V)
• 411K Total Pixels
• Lens: 2.8~12mm Vari-Focal
• 600 TVL of Resolution
• Min Illumination: 0.1 Lux (Color), 0.04 Lux (B/W)
@ F1.2, 50 IRE
• Day & Night: The camera automatically selects the mode
that is appropriate for daytime or night time conditions.
• Electronic Shutter: 1/60 ~ 1/100,000 sec.
• Auto Electronic Shutter [1/60 (1/50) ~ 1/100,000] and
Manual Electronic Shutter Modes
• S/N Ratio: More than 50dB (AGC Off)
• Camera Control: OSD (Joystick Switch)
• OSD Font Color (16 Colors)
• White Balance: ATW1 / ATW2 / AWC > SET /
MANUAL
• BLC (Back Light Compensation)
• BLC: OFF / BLC / HLC (High Light Compensation)
• Private Mask (8 positions, 16 Colors)
• AGC: Off / Low / Middle / High
• AGC (Auto Gain Control)
• Mirror: On / Off
• HLC (High Light Compensation)
• DNR: On / Off
• DWDR for clear vivid images where strong backlighting
occurs
• Body Construction: Plastic
• Auto and Manual White Balance Modes
• IP Rating: Indoor
• Dead Pixel Cancellation
• Power Consumption: 200mA (2.5 Watts)
• Built-In OSD Menu
• Power Supply: DC 12V / AC 24V Dual Voltage
Other Models: RECDH409-2: 4~9mm Vari-Focal Lens
RECBH36-2: 3.6mm Fixed Lens
www.revoamerica.com
Intelligent Surveillance. Innovative Technology.
COMPLETE VIDEO SECURITY SYSTEM FOR YOUR
BUSINESS OR HOME.
