Panasonic ET-D75LE20, ET-D75LE10 Datasheet

Panasonic ET-D75LE20, ET-D75LE10 Datasheet
S
P
E
C
F
I
L
E

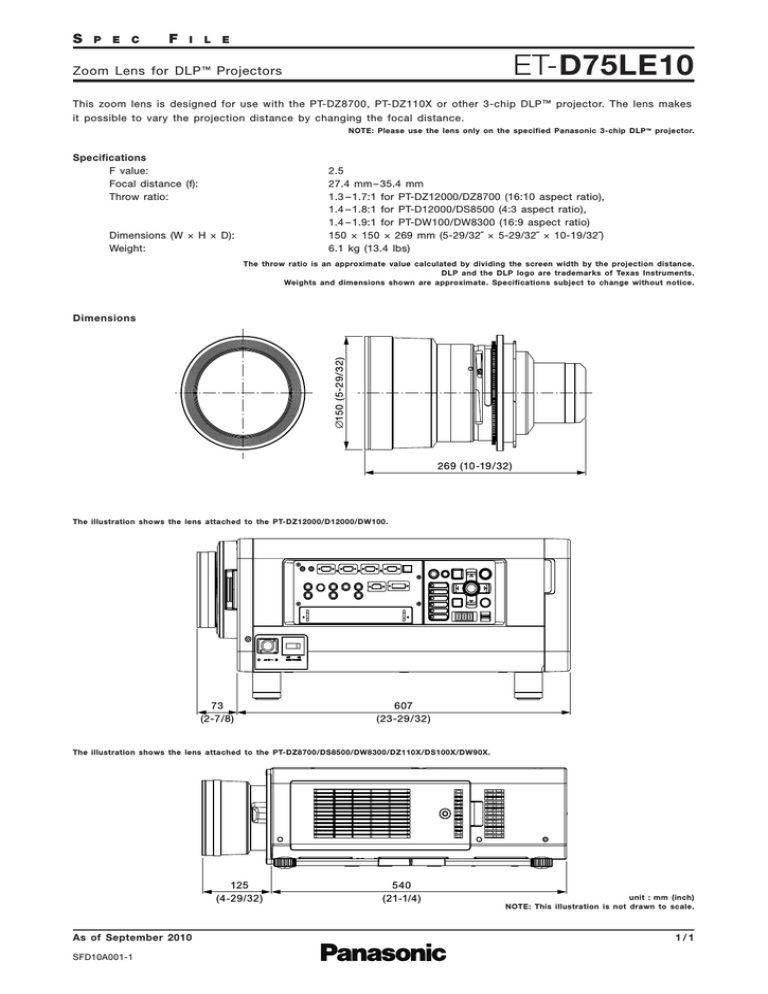

ET-D75LE10
Zoom Lens for DLP ™ Projectors
This zoom lens is designed for use with the PT-DZ8700, PT-DZ110X or other 3-chip DLP ™ projector. The lens makes
it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic 3-chip DLP ™ projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
27.4 mm – 35.4 mm
1.3 – 1.7:1 for PT-DZ12000/DZ8700 (16:10 aspect ratio),
1.4 – 1.8:1 for PT-D12000/DS8500 (4:3 aspect ratio),
1.4 – 1.9:1 for PT-DW100/DW8300 (16:9 aspect ratio)
150 × 150 × 269 mm (5-29/32˝ × 5-29/32˝ × 10-19/32˝)
6.1 kg (13.4 lbs)
Dimensions (W × H × D):
Weight:
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
DLP and the DLP logo are trademarks of Texas Instruments.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
∅150 ( 5-29/32)
Dimensions
269 (10-19/32)
The illustration shows the lens attached to the PT-DZ12000/D12000/DW100.
73
(2-7/8)
607
(23-29/32)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
125
(4-29/32)
As of September 2010
SFD10A001-1
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
S
P
E
C
F
I
L
E
ET-D75LE20
Zoom Lens for DLP ™ Projectors
This zoom lens is designed for use with the PT-DZ8700, PT-DZ110X or other 3-chip DLP ™ projector. The lens makes
it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic 3-chip DLP ™ projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
35.0 mm – 50.9 mm
1.7 – 2.4:1 for PT-DZ12000/DZ8700 (16:10 aspect ratio),
1.8 – 2.6:1 for PT-D12000/DS8500 (4:3 aspect ratio),
1.8 – 2.7:1 for PT-DW100/DW8300 (16:9 aspect ratio)
134 × 134 × 265 mm (5-9/32˝ × 5-9/32˝ × 10-7/16˝)
5.2 kg (11.5 lbs)
Dimensions (W × H × D):
Weight:
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
DLP and the DLP logo are trademarks of Texas Instruments.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
∅134 ( 5-9/32)
Dimensions
265 (10-7/16 )
The illustration shows the lens attached to the PT-DZ12000/D12000/DW100.
69
(2-23/32)
607
(23-29/32)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
121
(4-3/4)
As of September 2010
SFD10A002-1
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
S
P
E
C
F
I
L
E
ET-D75LE30
Zoom Lens for DLP ™ Projectors
This zoom lens is designed for use with the PT-DZ8700, PT-DZ110X or other 3-chip DLP ™ projector. The lens makes
it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic 3-chip DLP ™ projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
50.5 mm – 97.9 mm
2.4 – 4.7:1 for PT-DZ12000/DZ8700 (16:10 aspect ratio),
2.6 – 5.1:1 for PT-D12000/DS8500 (4:3 aspect ratio),
2.7 – 5.2:1 for PT-DW100/DW8300 (16:9 aspect ratio)
134 × 134 × 265 mm (5-9/32˝ × 5-9/32˝ × 10-7/16˝)
5.2 kg (11.5 lbs)
Dimensions (W × H × D):
Weight:
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
DLP and the DLP logo are trademarks of Texas Instruments.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
∅134 ( 5-9/32)
Dimensions
265 (10-7/16 )
The illustration shows the lens attached to the PT-DZ12000/D12000/DW100.
69
(2-23/32)
607
(23-29/32)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
121
(4-3/4)
As of September 2010
SFD10A003-1
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
S
P
E
C
F
I
L
E
ET-D75LE40
Zoom Lens
This zoom lens is designed for use with Panasonic’s applicable projectors. The lens makes it possible to vary the
projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
96.6 – 154.1 mm
4.6 – 7.4:1 for PT-DZ21K/DZ8700/DZ110X (16:10 aspect ratio),
5.0 – 8.0:1 for PT-DS20K/DS8500/DS100X (4:3 aspect ratio),
5.1– 8.2:1 for PT-DW17K/DW8300/DW90X (16:9 aspect atio)
130 × 130 × 268 mm (5-1/8 × 5-1/8 × 10-9/16 inches)
Approximately 5.0 kg* (11.0 lbs*)
PT-DZ21K/DS20K/DW17K/DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X
Dimensions (W × H × D):
Weight:
Applicable projector:
* Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅130 ( 5-1/8 )
Dimensions
268 (10-9/16 )
The illustration shows the lens attached to the PT-DZ21K/DS21K/DW17K.
124
(4-7/8 )
730
(28-7/8 )
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
124
(4-7/8 )
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFD12A008
1/1
S
P
E
C
F
I
L
E
ET-D75LE50
Fixed-Focus Lens
This fixed-focus lens is designed for use with Panasonic’s applicable projectors. The short-throw lens is ideal
for rear projection.
NOTE: Please use the lens only on the specified Panasonic projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
14.8 mm
0.7:1 for PT-DZ21K/DZ8700/DZ110X (16:10 aspect ratio),
0.8:1 for PT-DS20K/DS8500/DS100X (4:3 aspect ratio),
0.8:1 for PT-DW17K/DW8300/DW90X (16:9 aspect atio)
160 × 160 × 347 mm (6-5/16 × 6-5/16 × 13-21/32 inches)
Approximately 7.1 kg* (15.7 lbs*)
PT-DZ21K/DS20K/DW17K/DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X
Dimensions (W × H × D):
Weight:
Applicable projector:
* Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅160 ( 6-5/16 )
Dimensions
347 (13-21/32)
The illustration shows the lens attached to the PT-DZ21K/DS21K/DW17K.
203
(8)
730
(28-3/4)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
203
(8)
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFD12A009
1/1
S
P
E
C
F
I
L
E
ET-D75LE6
Zoom Lens for DLP ™ Projectors
This zoom lens is designed for use with the PT-DZ8700, PT-DZ110X or other 3-chip DLP ™ projector. The lens makes
it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic 3-chip DLP ™ projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
19.63 mm – 23.54 mm
0.9 – 1.1:1 for PT-DZ12000/DZ8700 (16:10 aspect ratio),
1.0 – 1.2:1 for PT-D12000/DS8500 (4:3 aspect ratio),
1.0 – 1.2:1 for PT-DW100/DW8300 (16:9 aspect ratio)
160 × 160 × 356.5 mm (6-5/16˝ × 6-5/16˝ × 14-1/32˝)
8.7 kg (19.2 lbs)
Dimensions (W × H × D):
Weight:
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
DLP and the DLP logo are trademarks of Texas Instruments.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
∅160 ( 6-5/16 )
Dimensions
356.5 (14-1/32)
The illustration shows the lens attached to the PT-DZ12000/D12000/DW100.
OUT
IN
REMOTE 1
R/PR
OUT
VIDEO
160
( 6-5/16 )
RS-232C IN
REMOTE 2 IN
IN
G/Y
SYNC/HD
S-VIDEO IN
RGB 1 IN
RS-422 IN
SERIAL
RS-422 OUT
LAN
B/PB
VD
RGB 2 IN
DVI-D IN
607
(23-29/32)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
212
( 8-11/32)
As of September 2010
SFD10A006-1
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
S
P
E
C
F
I
L
E
ET-D75LE8
Zoom Lens for DLP ™ Projectors
This zoom lens is designed for use with the PT-DZ8700, PT-DZ110X or other 3-chip DLP ™ projector. The lens makes
it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic 3-chip DLP ™ projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5 – 2.7
154 mm – 289 mm
7.3 – 13.8:1 for PT-DZ12000/DZ8700 (16:10 aspect ratio),
7.9 – 15.0:1 for PT-D12000/DS8500 (4:3 aspect ratio),
8.2 – 15.4:1 for PT-DW100/DW8300 (16:9 aspect ratio)
150 × 150 × 404 mm (5-29/32˝ × 5-29/32˝ × 15-29/32˝)
8.5 kg (18.7 lbs)
Dimensions (W × H × D):
Weight:
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
DLP and the DLP logo are trademarks of Texas Instruments.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
∅150 ( 5-29/32)
Dimensions
404 (15-29/32)
The illustration shows the lens attached to the PT-DZ12000/D12000/DW100.
IN
OUT
REMOTE 1
R/PR
OUT
VIDEO
202.5
(7-31/32)
RS-232C IN
REMOTE 2 IN
IN
G/Y
SYNC/HD
S-VIDEO IN
RGB 1 IN
RS-422 IN
SERIAL
RS-422 OUT
LAN
B/PB
VD
RGB 2 IN
DVI-D IN
607
(23-29/32)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
254
(10)
As of September 2010
SFD10A007-1
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
