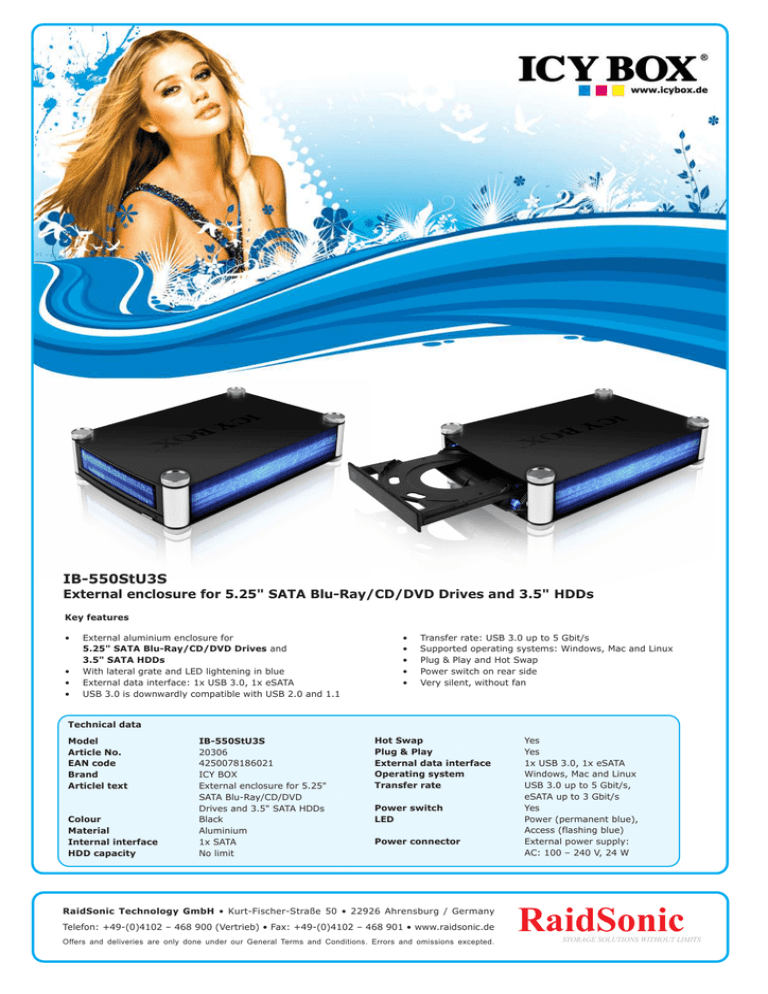

RaidSonic IB-550STU3S Datasheet

RaidSonic IB-550STU3S Datasheet
IB-550StU3S
External enclosure for 5.25" SATA Blu-Ray/CD/DVD Drives and 3.5" HDDs
Key features
•
•
•
•
External aluminium enclosure for
5.25" SATA Blu-Ray/CD/DVD Drives and
3.5" SATA HDDs
With lateral grate and LED lightening in blue
External data interface: 1x USB 3.0, 1x eSATA
USB 3.0 is downwardly compatible with USB 2.0 and 1.1
•
•
•
•
•
Transfer rate: USB 3.0 up to 5 Gbit/s
Supported operating systems: Windows, Mac and Linux
Plug & Play and Hot Swap
Power switch on rear side
Very silent, without fan
Technical data
Model
Article No.
EAN code
Brand
Articlel text
Colour
Material
Internal interface
HDD capacity
IB-550StU3S
20306
4250078186021
ICY BOX
External enclosure for 5.25"
SATA Blu-Ray/CD/DVD
Drives and 3.5" SATA HDDs
Black
Aluminium
1x SATA
No limit
Hot Swap
Plug & Play
External data interface
Operating system
Transfer rate
Power switch
LED
Power connector
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Yes
Yes
1x USB 3.0, 1x eSATA
Windows, Mac and Linux
USB 3.0 up to 5 Gbit/s,
eSATA up to 3 Gbit/s
Yes
Power (permanent blue),
Access (flashing blue)
External power supply:
AC: 100 – 240 V, 24 W
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Rear view
USB 3.0
eSATA
Power
connector
Power switch
Packing content
1x IB-550StU3S, 1x power supply and power cord, 1x USB cable, 1x eSATA cable, 1x manual
Logistical Data
Packing unit:
4 pcs./carton
Total weight:
5.5 kg/carton
Gross weight (incl. packing): 1.2 kg
Net weight:
0.9 kg
Dimension/carton:
Dimension of packing box:
Dimension of article:
Country of origin:
450x320x290 mm
300x255x105 mm
261x180x60 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
