Panasonic PLUGTHA54 Datasheet

Panasonic PLUGTHA54 Datasheet

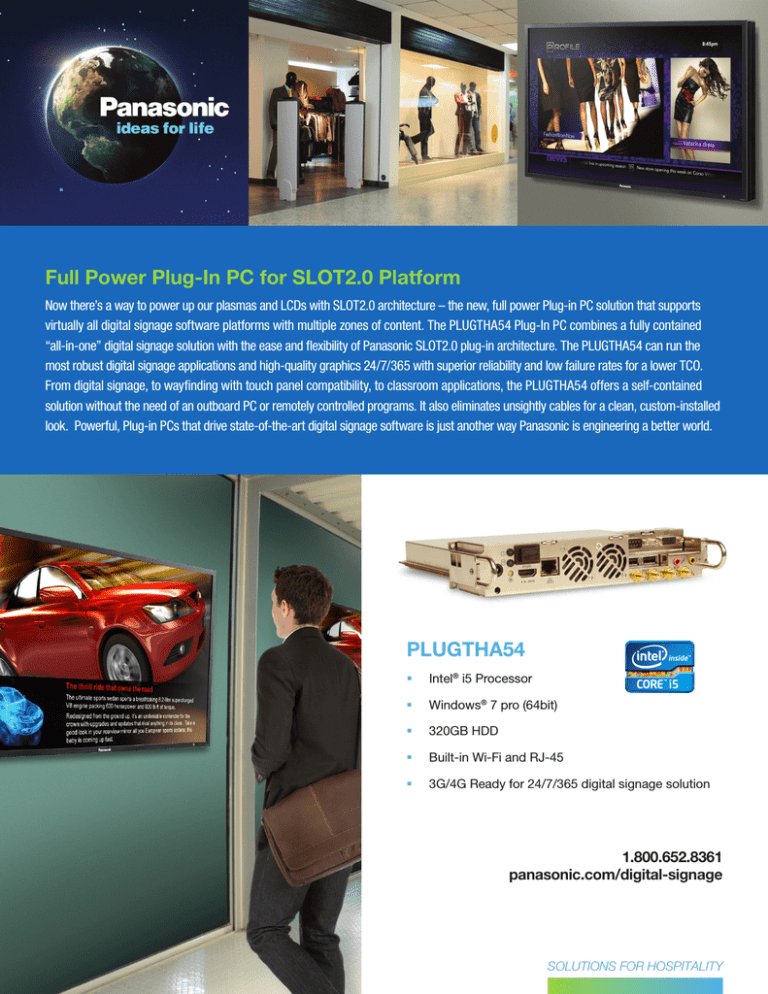

Full Power Plug-In PC for SLOT2.0 Platform
Now there’s a way to power up our plasmas and LCDs with SLOT2.0 architecture – the new, full power Plug-in PC solution that supports
virtually all digital signage software platforms with multiple zones of content. The PLUGTHA54 Plug-In PC combines a fully contained
“all-in-one” digital signage solution with the ease and flexibility of Panasonic SLOT2.0 plug-in architecture. The PLUGTHA54 can run the
most robust digital signage applications and high-quality graphics 24/7/365 with superior reliability and low failure rates for a lower TCO.
From digital signage, to wayfinding with touch panel compatibility, to classroom applications, the PLUGTHA54 offers a self-contained
solution without the need of an outboard PC or remotely controlled programs. It also eliminates unsightly cables for a clean, custom-installed
look. Powerful, Plug-in PCs that drive state-of-the-art digital signage software is just another way Panasonic is engineering a better world.
PLUGTHA54
§§
Intel® i5 Processor
§§
Windows® 7 pro (64bit)
§§
320GB HDD
§§
Built-in Wi-Fi and RJ-45
§§
3G/4G Ready for 24/7/365 digital signage solution
1.800.652.8361
panasonic.com/digital-signage
SOLUTIONS FOR HOSPITALITY
Panasonic Plug in PC (i5 model) OVERVIEW
Power button
D-sub RS-232 port
Power LED
VGA OUT port
HDD LED
Audio input jack
DC-IN jack
Audio output jack
Reset button
WLAN antenna (2)
HDMI OUT connector
WWAN antenna (2) optional
Ethernet
USB 2.0 connector (2)
SUPPORTED BY PROFESSIONAL DISPLAYS WITH SLOT2.0 PLATFORM:
TH-65PF30U
TH-60PF30U
TH-47LF30U
TH-42PF30U
TH-42LF30U
TH-50PF30U
FEATURES
SPECIFICATIONS
FEATURES
SPECIFICATIONS
Model Number
PLUGTHA54
Power
Management
Default power management matches corresponding connected
display.
CPU
Intel i5 2520MHM65
Graphic
Embedded Graphic Intel HD Graphic 100/200
Wake LAN
Support Wake on LAN ( S3 S4, S5 mode )
Optional Slot
Memory
4GB, DDR-III 800-1333 MHz, (up to 8GB)
Hard Drive
2.5” SATA150, 7200RPM, 320GB
Operating
System
Windows 7 pro (64bit)
Windows XP embedded driver ready
Network
Integrated Gigabit bps Ethernet
Wireless
Network
Intel mini express Wireless LAN 802.11a/b/g/n WiFi Link
6205 series Magnetic mount WiFi antenna included (2)
I/O Ports
(x2) USB 2.0 connectors, ( Retreat 10mm from the I/O panel)
Two Mini PCI-express (one slot used for Wifi)
SIM card socket for optional 3G/4G module
Power Supply
AC power Input: 100V-240V, 50Hz-60Hz, 110W
Ouput: 15.6V
Dimensions
209.1mm (W) x 176.4mm (D) x 38.5mm (H)
Weight
Approx 1180g (w/o GPvU)
(x1) Line out 3.5mm audio jack
(x1) Mic-in 3.5mm audio jack
(x1) RJ-45 jack for internal 10/100/1000M bit Ethernet
(x1) DC-In jack with retention bracket
(x1) 15 pin D-sub VGA port for ext. monitor/projector
(Retreat 25mm from the I/O panel)
(x1) HDMI out for ext. Monitor/projector
(x1) 9 pin D-sub RS-232 port (Retreat 25mm from the I/O panel)
(x2) Xternal connector for optional WWAN antennas
(x1) SLOT2.0 connector
