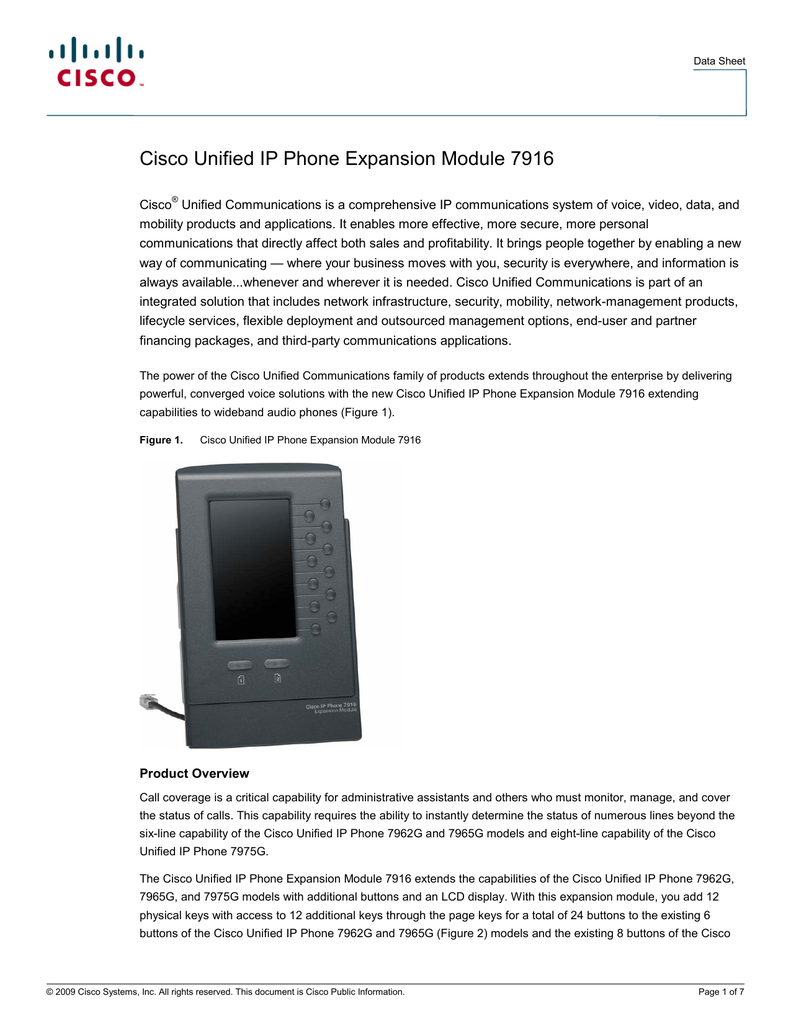

Cisco Unified IP Phone Expansion 7916 Module Datasheet

Data Sheet
Cisco Unified IP Phone Expansion Module 7916
®
Cisco Unified Communications is a comprehensive IP communications system of voice, video, data, and
mobility products and applications. It enables more effective, more secure, more personal
communications that directly affect both sales and profitability. It brings people together by enabling a new
way of communicating — where your business moves with you, security is everywhere, and information is
always available...whenever and wherever it is needed. Cisco Unified Communications is part of an
integrated solution that includes network infrastructure, security, mobility, network-management products,
lifecycle services, flexible deployment and outsourced management options, end-user and partner
financing packages, and third-party communications applications.
The power of the Cisco Unified Communications family of products extends throughout the enterprise by delivering
powerful, converged voice solutions with the new Cisco Unified IP Phone Expansion Module 7916 extending
capabilities to wideband audio phones (Figure 1).
Figure 1.
Cisco Unified IP Phone Expansion Module 7916
Product Overview
Call coverage is a critical capability for administrative assistants and others who must monitor, manage, and cover
the status of calls. This capability requires the ability to instantly determine the status of numerous lines beyond the
six-line capability of the Cisco Unified IP Phone 7962G and 7965G models and eight-line capability of the Cisco
Unified IP Phone 7975G.
The Cisco Unified IP Phone Expansion Module 7916 extends the capabilities of the Cisco Unified IP Phone 7962G,
7965G, and 7975G models with additional buttons and an LCD display. With this expansion module, you add 12
physical keys with access to 12 additional keys through the page keys for a total of 24 buttons to the existing 6
buttons of the Cisco Unified IP Phone 7962G and 7965G (Figure 2) models and the existing 8 buttons of the Cisco
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 1 of 7
Data Sheet
Unified IP Phone 7975G. You can use up to two Cisco Unified IP Phone Expansion Module 7916 modules (Figure 3)
with the Cisco Unified IP Phone 7962G, 7965G, and 7975G models.
Figure 2.
Cisco Unified IP Phone 7975G with One Cisco Unified IP Phone Expansion Module 7916
Figure 3.
Cisco Unified IP Phone 7975G with Two Cisco Unified IP Phone Expansion Module 7916 Modules
Features and Benefits
The large LCD display of the Cisco Unified IP Phone Expansion Module 7916 allows for quick and easy identification
of associated buttons. Using the Settings menu of the Cisco Unified IP Phone 7962G, 7965G, and 7975G models,
you can adjust the brightness of the individual LCDs for these phones and the Cisco Unified IP Phone Expansion
Module 7916 according to your preference. You can program the buttons on each Cisco Unified IP Phone Expansion
Module 7916 as a directory number, line key, or speed-dial key, much like on the Cisco Unified IP Phone 7962G,
7965G, and 7975G models. Buttons used as a directory-number (DN) or shared line keys are illuminated, allowing
easy identification of call state (Table 1).
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 2 of 7
Data Sheet
Table 1.
Illuminated Buttons
Button
Line Status
Off (dark)
Line available
Green, steady
Line in use
Red, steady
Line in use by someone else
Amber, flashing
Line ringing
Green, flashing
Call is on hold
These capabilities provide features that are similar to typical Direct Station Selection/Busy Lamp Field (DSS/BLF)
modules but are not intended to be directly comperable to traditional DSS/BLF modules. The Cisco Unified IP Phone
Expansion Module 7916 is not an operator or attendant console. The primary function of this module is to provide the
Cisco Unified IP Phone 7962G, 7965G, and 7975G models with additional keys for features such as speed dial or
directory numbers. The illuminated buttons provide ease of line status, making the Cisco Unified IP Phone
Expansion Module 7916 an ideal call-coverage tool.
The two illuminated page buttons beneath the display of the Cisco Unified IP Phone Expansion Module 7916 allow
you to shift between the first and second pages of 12 buttons, providing access to all 24 keys, 12 at a time (Table 2).
Table 3 lists the features of the Cisco Unified IP Phone Expansion Module 7916.
Table 2.
Illuminated Page Buttons
Button
Page Status
Off (dark)
Page not in focus
Green, steady
Page in focus
Amber, flashing
Page not in focus with one or more alerting or on-hold calls present on page
Table 3.
Features and Description
Feature
Description
Graphical display
4.3” graphical (TFT) color display, 16-bit color depth, 480 x 272 effective pixel resolution, with backlight.
The display also supports localization requiring double-byte Unicode encoding for fonts.
Directory-number and feature buttons
The module has 12 physical buttons (24 with page key).
Page buttons
The two Page buttons are used to access each page of 12 buttons and provide phone status.
Sleep or inactivity mode
When Cisco Unified IP Phone 7965G or 7975G models are in power-saving sleep or inactivity mode, the
Cisco Unified IP Phone Expansion Module 7916 is also in sleep or inactivity mode. In addition to the
Display button, any button on the Cisco Unified IP Phone Expansion Module 7916 that is pressed will
cause the displays to awaken. The inactivity period is configured by the system administrator.
Software Requirements
Table 4 lists the software requirements for the Cisco Unified IP Phone Expansion Module 7916.
Table 4.
Cisco Unified IP Phone Expansion Module 7916 Software Requirements
Specification
Description
Phone software requirements
8.3(5) and later
Call-control compatibility
Cisco Unified Communications Manager 4.2(3) SR3a, 4.3(2), 5.1(3)b, 6.1(1), 7.0, 7.1 and later; Cisco Unified
Communications Manager Express 4.3/7.0 and later. Cisco Unified Survivable Remote Site Telephony
(Unified SRST) 4.1 (IOS 12.4.15T) and later.
Signaling protocols
Skinny Client Control Protocol (SCCP) Software 8.3(5) and later
Session Initiated Protocol (SIP) Software 8.4(1) and later
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 3 of 7
Data Sheet
The Cisco Unified IP Phone Expansion Module 7916 allows for 48 additional buttons (with two modules), but the
number of buttons depends on the Cisco Unified Communications Manager and Cisco Unified Communications
Manager Express Release, as listed in Table’s 5 and 6.
Table 5.
Cisco Unified IP Phone Expansion Module 7916 Button Support (SCCP)
Call-Control Release
Total Number of Buttons Supported
Cisco Unified IP Phone
7962G and 7965G Models
Cisco Unified IP Phone
7975G
Cisco Unified Communications Manager 4.2(3)SR3a, 4.3(2), 5.1(3)b, and 6.1(1)
42
42
Cisco Unified Communications Manager 7.1(3) / Cisco IP Phone Firmware 8.5(3)
and later
54
56
Cisco Unified Communications Manager Express 4.3/7.0 and later
54
56
Table 6.
Cisco Unified IP Phone Expansion Module 7916 Button Support (SIP)
Call-Control Release
Total Number of Buttons Supported
Cisco Unified IP Phone
7962G and 7965G Models
Cisco Unified IP Phone
7975G
Cisco Unified Communications Manager 7.0 and 7.1
36
36
Cisco Unified Communications Manager 7.1(3) / Cisco IP Phone Firmware 8.5(3)
and later
54
56
Cisco Unified Communications Manager Express 4.3/7.0 and later
54
56
Hardware Requirements
●
Cisco Unified IP Phone 7962G, 7965G, and 7975G models
●
Cisco Unified IP Phone Expansion Module 7916 (CP-7916=)
◦
The maximum is two modules (connecting cable supplied with each Cisco Unified IP Phone Expansion
Module 7916)
●
Footstand is required; single (CP-SINGLFOOTSTAND=) or double (CP-DOUBLFOOTSTAND=) (required
items for double Cisco Unified Expansion Module installation shown in Figure 4).
◦
Replacement of the standard Cisco Unified IP phone footstand is required. The standard footstand is
replaced with a two-piece footstand specifically designed to support the Cisco Unified IP Phone Expansion
Module 7916. Two footstands are available: a single footstand when one Cisco Unified IP Phone
Expansion Module 7916 is used and a double footstand when two Cisco Unified IP Phone Expansion
Module 7916 modules are used.
◦
The only tool required for installation of the Cisco Unified IP Phone Expansion Module 7916 is a flat-blade
screwdriver or other appropriate tool to unlatch the pins securing the footstand to the Cisco Unified IP
Phone 7962G, 7965G, and 7975G models.
●
Power cube (CP-PWR-CUBE-3=) and cord (CP-PWR-CORD-xx=) to supply local power
Table 6 gives power options for the Cisco Unified IP Phone Expansion Module 7916.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 4 of 7
Data Sheet
Figure 4.
Required Items for Double Cisco Unified IP Phone Expansion Module Installation
Table 7.
Power Requirements
Number of Cisco Unified IP Phone
Expansion Module 7916 Modules
Cisco Unified IP Phone 7962G, 7965G,
and 7975G Models Power Source
Items to Order
1
In-line
1 Cisco Unified IP Phone Expansion Module 7916
1 single footstand
1 power cube
1 country cord
1
Local power (cube)*
1 Cisco Unified IP Phone Expansion Module 7916
1 single footstand
2
In-line or local**
2 Cisco Unified IP Phone Expansion Module 7916s
1 double footstand
1 power cube
1 country cord
* A single Cisco Unified IP Phone Expansion Module 7916 can receive power from a locally powered Cisco Unified IP phone.
** Local power must be connected to the first Cisco Unified IP Phone Expansion Module 7916 to supply power to both Cisco Unified
IP Phone Expansion Module 7916 modules.
Tables 7 and 8 give specifications and temperature ratings, respectively, for the Cisco Unified IP Phone Expansion
Module 7916.
Table 8.
Cisco Unified IP Phone Expansion Module 7916 Technical Specifications
Specification
Description
Dimensions (H x W x D)
8.0 x 4.84 x 2.0 in.
(203 x 123 x 51 mm)
Weight
0.83 lb (376g)
Power
48 VDC, 58 mA maximum
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 5 of 7
Data Sheet
Table 9.
Temperature Ratings
Temperature Variable
Description
Operating temperature
32 to 104°F (0 to 40°C)
Relative humidity
10 to 95%
Storage temperature
12 to 140°F (–10 to 60°C)
Certifications-Compliance and Safety
For information about certifications, visit:
http://www.cisco.com/univercd/cc/td/doc/product/voice/c_ipphon/english/ipp7960/iphrcsi3.htm.
Ordering Information
To place an order, visit the Cisco Ordering Home Page and refer to Tables 9 and 10. To download software, visit the
Cisco Software Center.
Table 10.
Ordering Information
Product Number
Description
CP-7916=
Cisco Unified IP Phone Expansion 7916 Module
CP-SINGLFOOTSTAND=
Single module footstand
CP-DOUBLFOOTSTAND=
Double module footstand
CP-PWR-CUBE-3=
Cisco Unified IP Phone Power Cube
CP-PWR-CORD-xx=
Cisco Unified IP Phone Power Cube Country Cord
Table 11.
Ordering Information — AC Country Power Cords
Product Number
Description
CP-PWR-CORD-AP=
Asia Pacific
CP-PWR-CORD-AR=
Argentina
CP-PWR-CORD-AU=
Australia
CP-PWR-CORD-CE=
European Community
CP-PWR-CORD-CN=
China
CP-PWR-CORD-JP=
Japan
CP-PWR-CORD-NA=
North America
CP-PWR-CORD-SW=
Switzerland
CP-PWR-CORD-UK=
United Kingdom
Warranty
Cisco Unified IP phones are covered by a Cisco standard 1-year replacement warranty.
For More Information
For more information about the Cisco IP Phone Expansion Module 7916, visit
http://www.cisco.com/en/US/products/hw/phones/ps379/ps1851/index.html or contact your local Cisco account
representative.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 6 of 7
Data Sheet
Printed in USA
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
C78-468673-05
09/09
Page 7 of 7
