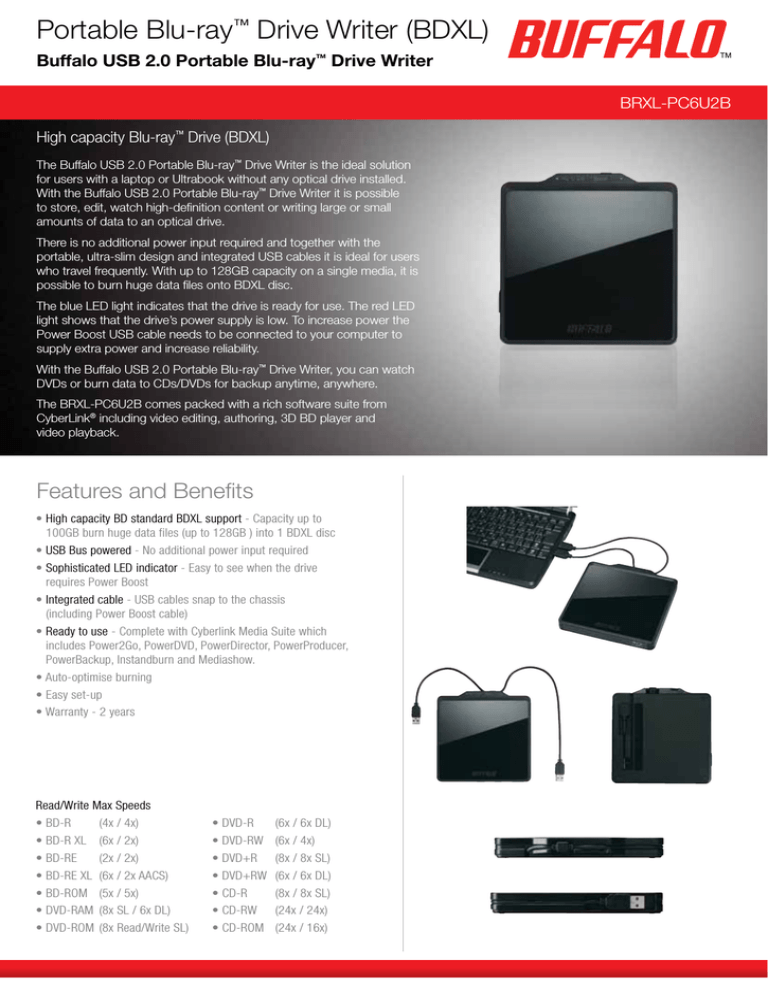

Buffalo BRXL-PC6U2B-EU Datasheet

Buffalo BRXL-PC6U2B-EU Datasheet
Portable Blu-ray™ Drive Writer (BDXL)
Buffalo USB 2.0 Portable Blu-ray™ Drive Writer
BRXL-PC6U2B
High capacity Blu-ray™ Drive (BDXL)
The Buffalo USB 2.0 Portable Blu-ray™ Drive Writer is the ideal solution
for users with a laptop or Ultrabook without any optical drive installed.
With the Buffalo USB 2.0 Portable Blu-ray™ Drive Writer it is possible
to store, edit, watch high-definition content or writing large or small
amounts of data to an optical drive.
There is no additional power input required and together with the
portable, ultra-slim design and integrated USB cables it is ideal for users
who travel frequently. With up to 128GB capacity on a single media, it is
possible to burn huge data files onto BDXL disc.
The blue LED light indicates that the drive is ready for use. The red LED
light shows that the drive’s power supply is low. To increase power the
Power Boost USB cable needs to be connected to your computer to
supply extra power and increase reliability.
With the Buffalo USB 2.0 Portable Blu-ray™ Drive Writer, you can watch
DVDs or burn data to CDs/DVDs for backup anytime, anywhere.
The BRXL-PC6U2B comes packed with a rich software suite from
CyberLink® including video editing, authoring, 3D BD player and
video playback.
Features and Benefits
• High capacity BD standard BDXL support - Capacity up to
100GB burn huge data files (up to 128GB ) into 1 BDXL disc
• USB Bus powered - No additional power input required
• Sophisticated LED indicator - Easy to see when the drive
requires Power Boost
• Integrated cable - USB cables snap to the chassis
(including Power Boost cable)
• Ready to use - Complete with Cyberlink Media Suite which
includes Power2Go, PowerDVD, PowerDirector, PowerProducer,
PowerBackup, Instandburn and Mediashow.
• Auto-optimise burning
• Easy set-up
• Warranty - 2 years
Read/Write Max Speeds
• BD-R
(4x / 4x)
• BD-R XL (6x / 2x)
• BD-RE (2x / 2x)
• BD-RE XL (6x / 2x AACS)
• BD-ROM (5x / 5x)
• DVD-RAM (8x SL / 6x DL)
• DVD-ROM (8x Read/Write SL)
• DVD-R
• DVD-RW
• DVD+R
• DVD+RW
• CD-R
• CD-RW
• CD-ROM
(6x / 6x DL)
(6x / 4x)
(8x / 8x SL)
(6x / 6x DL)
(8x / 8x SL)
(24x / 24x)
(24x / 16x)
Portable Blu-ray™ Drive Writer (BDXL)
Buffalo USB 2.0 Portable Blu-ray™ Drive Writer
BRXL-PC6U2B
Specifications
Interfaces
USB
Standard Compliance
USB 2.0
Number of Ports
1
Other
Set-up Utility OS Support
Windows®7 (64/32-bit), Windows Vista® (64/32-bit), Windows® XP (SP2 or later)
Dimensions (WxDxH)
145 x 19 x 153mm
Weight
340 g
Operating Environment
5-35˚C
Power Consumption
Max. 7.5W
Blu-ray Playback Requirements
™
CPU
PentiumD 3.2GHz or faster, Athlon Turion 64 x 2 (1.8GHz) or faster recommended
Main Memory
512MB (1GB or above is recommended)
Graphics Card
Nvidia GeForce 7600GT/7900GT 256MB nforceware 92.92 or later
ATI x1800/ x1900 256MB, Catalyst 6.7 or later
Display
HDCP (High-Bandwidth Digital Content Protection) compliant display for digital output.
There are no restrictions using D-sub analogue connection.
Buffalo Technology is a leading global provider of award-winning storage, networking, memory and multimedia solutions for home use and small business environments as well as for system builders and
integrators. With more than three decades of networking and computer peripheral experience, Buffalo has proven its commitment to delivering innovative solutions that have put the company at the forefront of
infrastructure technology.
© Buffalo Inc. 2012. BUFFALO logo, AirStation, Nfiniti, AOSS, TeraStation, LinkStation, DriveStation, DriveStation 2Share, MiniStation, Dualie and LinkTheater are either trademarks or registered trademarks of
Melco Holdings Inc. or Buffalo Inc. Microsoft Windows and Microsoft logo are either registered trademarks or trademarks of Microsoft corporation in United States and/or other countries. The names and logos of
other companies mentioned herein belong to their respective owners. The information within this datasheet is subject to change without notice. All rights reserved. E & OE.
www.buffalo-technology.com
May 12 # 2032
