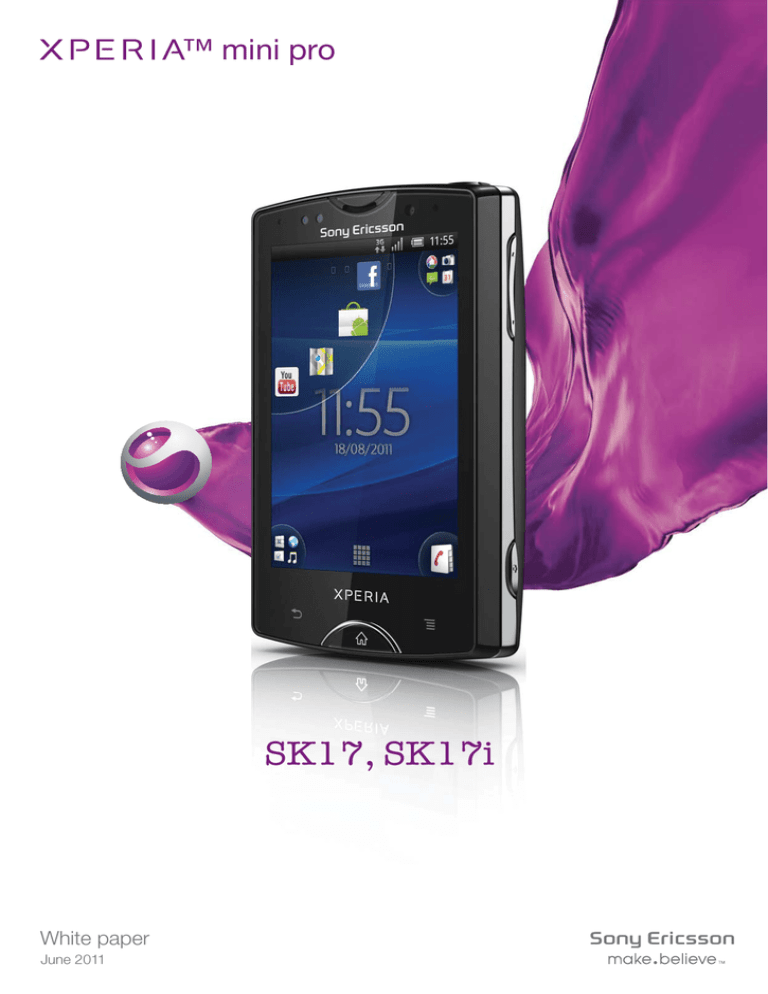

™ mini pro
™ mini pro
SK17,
SK17i
SK17,
SK17i
Whitepaper
paper
White
June 2011
May 2011
White paper | Xperia™ mini pro
Purpose of this document
Sony Ericsson product White papers are intended to give an overview of a product and provide details in
relevant areas of technology.
Document history
Version
June 2011
Second released version
Version 2
Sony Ericsson Developer World
For the latest Sony Ericsson technical documentation and development tools, go to
www.sonyericsson.com/developer.
This document is published by Sony Ericsson
Mobile Communications AB, without any
warranty*. Improvements and changes to this
text necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Ericsson Mobile
Communications AB at any time and without
notice. Such changes will, however, be
incorporated into new editions of this document.
Printed versions are to be regarded as temporary
reference copies only.
This White paper is published by:
Sony Ericsson Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonyericsson.com
© Sony Ericsson Mobile Communications AB,
2009-2011. All rights reserved. You are hereby
granted a license to download and/or print a
copy of this document.
Any rights not expressly granted herein are
reserved.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall
Sony Ericsson or its licensors be liable for
incidental or consequential damages of any
nature, including but not limited to lost profits or
commercial loss, arising out of the use of the
information in this document.
Second released version (June 2011)
Publication number: 1249-3432.1
2
June 2011
White paper | Xperia™ mini pro
Table of Contents
Product overview ........................................................................................................4
Xperia™ mini pro – Start spreading the news .......................................................4
Facts – dimensions, weight, performance and networks ......................................5
Application overview list ........................................................................................7
Full feature list .......................................................................................................8
1. Signature features ...........................................................................................8
2. Categorised features.......................................................................................9
Technologies in detail ...............................................................................................11
Device-to-device communications (local) ...........................................................11
Bluetooth wireless technology ..........................................................................11
Wi-Fi® ...............................................................................................................12
DLNA (Digital Living Home Alliance) Certified™ ...............................................13
Messaging ...........................................................................................................14
MMS (Multimedia Messaging Service)..............................................................14
Email .................................................................................................................14
Positioning – location based services .................................................................15
Provisioning (OMA CP) ........................................................................................15
Multimedia (audio, image and video) ...................................................................16
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................18
Web browser .......................................................................................................18
Trademarks and acknowledgements ..................................................................19
3
June 2011
White paper | Xperia™ mini pro
Product overview
Xperia™ mini pro – Start spreading the news
Finally off on that New York weekend? You want to write about it, right? It’s fast and easy too. Just slide
out the keyboard and start typing. The Type & Send widget takes care of the rest without you opening
masses of apps. The Smart Keyboard feature knows where you’re at. Read a mail? Slide out and reply
direct. Looking for answers? Type directly in Google™ search.
Shoot the video in HD. Share it. Then bask in the limelight
Capture the volley in sharp HD. Shoot the player with the 5 megapixel auto focus camera. Getting dark?
The photo flash catches those beautiful details. Now show your masterpieces in high contrast on the
Reality Display with Mobile BRAVIA® ENGINE. Life looks brighter through a large, 3-inch scratch-resistant
multi-touch mineral glass screen.
Do the business. From everywhere
On the move? On call? Or on the beach? Sync your email and calendar on the fly with Exchange ActiveSync®. And with OfficeSuite loaded as standard, you’ll look smooth over your smoothie as you prepare
for that perfect pitch. With the powerful 1 GHz processor you can thumb your way through everything
lightning fast.
One touch to everything
Get to where you want to in a flash. Take your favourite apps. Group four of them in each of the four corners of your Home screen. Then use what you want with one hand while you fix your hair with the other.
Xperia™ mini pro is loaded with lots of goodies from Google™ with a whole lot more on Android Market™. Over 150,000 more actually.
Facebook™ inside Xperia™
Don’t forget anyone’s birthday. With Facebook™ inside Xperia™, you get all your friends’ birthdays
directly in your calendar. Share status, likes, recommendations and more from the music player and photo
gallery. Put the Music and Video Discovery widget on your Home screen and see all your Facebook™
friends’ latest music and video recommendations. View the video. Then “like” it. Instant enjoyment.
4
June 2011
White paper | Xperia™ mini pro
Facts – dimensions, weight, performance and
networks
Operating system
Google™ Android™ 2.3 (Gingerbread)
Processor
1 GHz Qualcomm Snapdragon™ MSM8255
Size
92 x 53 x 18 mm
Weight
136 grams
Available colours
Black/Turquoise
White/Pink
Main screen
Colours
16,777,216 colour TFT
Resolution
480x320 pixels
Size (diagonal)
3 inches
Scratch resistant
Yes – Mineral glass
Input mechanisms
QWERTY keyboard
4x11
Text input
Quick text (Zi), On-screen QWERTY keyboard
Touch screen
Capacitive (multi-touch, 4-point)
Touch gesture
Yes – Multi-touch
Handwriting recognition
Yes – Chinese input only
Memory
Internal phone storage
Up to 320 MB user-free memory
RAM
512 MB
Expansion slot
microSD™, up to 32 GB
Camera
Camera resolution
5 megapixel
Front-facing camera
Yes
Digital zoom
8x
Photo flash
Yes – LED
Video recording
Yes – HD 720p
Sensors
Accelerometer
Yes
Ambient light sensor
Yes
Magnetometer
Yes
5
June 2011
White paper | Xperia™ mini pro
Proximity sensor
Yes
Networks
SK17
UMTS HSPA 850 (Band V), 1900 (Band II), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
SK17i
UMTS HSPA 900 (Band VIII), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
Data transfer speeds
GSM GPRS
Up to 80 kbps (download). Up to 20 kbps (upload)
GSM EDGE
Up to 237 kbps (download). Up to 59 kbps (upload)
UMTS HSPA cat 6 (upload)
Up to 5.76 Mbps
UMTS HSPA cat 8 (download)
Up to 7.2 Mbps
Talk time (GSM)
5 hours 40 min*
Standby time (GSM)
331 hours*
Talk time (UMTS)
5 hours 25 min*
Standby time (UMTS)
340 hours*
Music listening time
29 hours
Video playback time
5 hours 45 min
Battery
1200 mAh
* Values are according to GSM Association Battery Life Measurement Technique.
Note: Battery performance may vary depending on network conditions and configurations, and phone
usage.
6
June 2011
White paper | Xperia™ mini pro
Application overview list
Sony Ericsson signature applications
Sony Ericsson Home screen application
Sony Ericsson Music Player
Sony Ericsson Timescape™
Sony Ericsson services
PlayNow™ service*
TrackID™ application
Sony Ericsson Sync
Other applications
Facebook™*
Microsoft® Exchange ActiveSync® support with Moxier client
Wisepilot™*
* The service is not available in all markets.
7
June 2011
White paper | Xperia™ mini pro
Full feature list
1. Signature features
Sony Ericsson Timescape™
The place to meet your friends
The Timescape™ application manages all your communication with one person in one place. Browse
through your conversations the bright way to check out your Facebook™, Twitter™, photos, emails, and
texts. Now they’re all kept together so you don't have to open loads of different applications to see what's
going on.
Infinite button
Everything you want – from everywhere
Find out all about your friends in a flash. Press the infinite button in the Timescape™ application and
smart filter everything that’s going on with each person.
Sony Ericsson Sync
Make your mobile life available on the web
Synchronise your phone data with Sony Ericsson Sync. Match your phone contacts with your contacts on
Facebook™. All your synchronised phone data is right at your fingertips – in your account on www.sonyericsson.com.
Sony Ericsson Local connectivity
A great experience for transfering media files
Transfer your media files in an easy way. Using Sony Ericsson Local connectivity, you can choose
between USB mass-storage device class (MSC) mode and Media Transfer Protocol (MTP) mode. Choose
MSC mode if you want to have absolute control of the storage or choose MTP mode if you want to transfer media files without risk of data corruption. Experience more with MTP using a USB cable.
Sony Ericsson Home screen application
Your Home screen – just like home
Where’s best for you? Email top right? Music player bottom left? You decide. Put your favourites within
thumb’s reach. Messages. Calls. Web. Music. YouTube™**. Your favourite apps from Android Market™*
or from the PlayNow™ service**. What you want, where you want.
* Applications from Android Market™ vary widely in size, from less than 100 KB for small utilities to 3-4 MB
for full games, music player applications, or other major offerings. The average size, if a representative
selection of useful and fun applications is selected, is about 1 MB. This means that, on average, more than
100 applications can be downloaded and used on your device without negatively impacting performance.
With the ready availability of the Android Market™ application in the phone, it is also very easy to delete
and later reinstall infrequently used applications.
** This service is not available in all markets.
8
June 2011
White paper | Xperia™ mini pro
2. Categorised features
Camera
Music
Internet
5 megapixel camera
8x digital zoom
Auto focus
Face detection
Face recognition
Flash/LED
Front-facing camera (VGA)
Geo tagging
HD video recording (720p)
Image stabiliser
Red-eye reduction
Scene detection
Self-timer
Send to web
Smile detection
Touch capture
Touch focus
Video light
Video recording
Video stabiliser
Album art
Bluetooth™ stereo (A2DP)
Music tones (MP3/AAC)
*PlayNow™ service**
Sony Ericsson Music Player
TrackID™ music recognition
xLOUD™
*Android Market™**
Bookmarks
Google™ search
Google Voice™ Search**
NeoReader™ barcode scanner
Pan & zoom
Web browser (WebKit)
Communication
Messaging
Design
Call list
Conference calls
Facebook™ application**
Google Talk™
Noise Shield
Polyphonic ringtones
Sony Ericsson Timescape™
Speakerphone
Twitter™ (Timescape™ integration)**
Vibrating alert
Video chat ready
Conversations
Email
Google Mail™
Handwriting recognition****
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Type & Send widget
Auto rotate
Four-corner Home screen
Keyboard (on-screen, 12-key)
Keyboard (Hardware, QWERTY)
Keyboard (on-screen, QWERTY)
Picture wallpaper
Reality Display with Mobile
BRAVIA® ENGINE
Smart Keyboard
Touchscreen
Live wallpaper
* Applications from Android Market™ vary widely in size, from less than 100 KB for small utilities to 3-4 MB
for full games, music player applications, or other major offerings. The average size, if a representative
selection of useful and fun applications is selected, is about 1 MB. This means that, on average, more than
100 applications can be downloaded and used on your device without negatively impacting performance.
With the ready availability of Android Market™ application in the phone, it is also very easy to delete and
later reinstall infrequently used applications.
** This service is not available in all markets.
**** Chinese input only
9
June 2011
White paper | Xperia™ mini pro
Entertainment
Organiser
Connectivity
3D games
Media browser
Radio (FM radio with RDS)
Video streaming
YouTube™*
Alarm clock
Calculator
Calendar
Document readers
Emanual
Flight mode
Google Calendar™
Google Gallery™ 3D
Infinite button
Phonebook
Setup guide
Widget manager
3.5 mm audio jack
aGPS*
Bluetooth™ technology
DLNA Certified™
Google Latitude™*
Google Maps™ with Street View*
Media Transfer Protocol support
Micro USB support
Modem
Native USB tethering
Synchronisation via Facebook™*
Synchronisation via Google™
Sync*
Synchronisation via Sony Ericsson Sync
Synchronisation: Microsoft®
Exchange ActiveSync®
Synchronisation: Microsoft®
Exchange ActiveSync® via Moxier
client*
USB mass storage
USB High speed 2.0 support
Wisepilot™*
Wi-Fi®
Wi-Fi® Hotspot functionallity
* This service is not available in all markets.
10
June 2011
White paper | Xperia™ mini pro
Technologies in detail
NOTE: The information outlined below is general, and levels of compliance to standards and
specifications may vary between products and markets. For more information, contact Sony Ericsson
Developer World or your Sony Ericsson contact person where applicable.
Device-to-device communications (local)
Bluetooth wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v.1.0
Handsfree Profile v1.5
Headset Profile v1.1
Object Push Profile v1.1
Phonebook Access Profile v1.0
Core version and supported
core features
Advanced Audio 2.1 + EDR
Connectable devices
Products supporting at least one of the profiles above
More information:
www.sonyericsson.com/developer
www.bluetooth.com
11
June 2011
White paper | Xperia™ mini pro
Wi-Fi®
Supported standards
IEEE 802.11b/g/n and Wi-Fi®
Connectable devices
Wi-Fi® access points
Frequency band
2.4 GHz
Data transfer rate
Up to 72 Mbps
Security
WEP 64 bit
WEP 128 bit
TKIP
CCMP (AES)
Open Authentication
Shared Authentication
EAP-TLS
EAP-TTLS/MSCHAPv2
PEAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
Encryption
WEP, TKIP and AES
Power save
WMM-UAPSD
QoS, WMM
12
June 2011
White paper | Xperia™ mini pro
DLNA (Digital Living Home Alliance) Certified™
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: Images
Summary: The digital media server exposes the media
files in your phone to a Wi-Fi® network. The media files
can then be accessed from other DLNA Certified™ clients.
Supported Bearers
Wi-Fi®
DRM Support
The Sony Ericsson DLNA Certified™ implementation does
not support DRM-protected content
13
June 2011
White paper | Xperia™ mini pro
Messaging
MMS (Multimedia Messaging Service)
MMS 1.0 is supported.
Email
Bearer type (IP)
GPRS, EGPRS, UMTS
Character sets
BIG5 Traditional Chinese
GB2312 Simplified Chinese
ISO-2022-JP Japanese
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
USASCII
UTF-16
UTF-8
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
Protocols
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and STARTTLS
HTML mail
Yes (read only)
More information:
www.sonyericsson.com/developer
www.openmobilealliance.org
14
June 2011
White paper | Xperia™ mini pro
Positioning – location based services
Supported standards:
OMA Secure User Plane Location (SUPL) v1.0
3GPP™ Control Plane location (incl. Emergency location)
Qualcomm® GPSOneXtra
Provisioning (OMA CP)
OMA CP version 1.1
15
June 2011
White paper | Xperia™ mini pro
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Image Playback
Image Capture
Video Playback
Decoder format
Supported in file format
Audio decoding MPEG-1/2/2.5,
audio layer 3
MP3 (.mp3) , 3GPP (.3gp); MP4
(.mp4, .m4a)
AAC, AAC+, eAAC+
3GPP (.3gp) MP4 (.mp4)
AMR-NB, AMR-WB
3GPP (.3gp) MP4 (.mp4)
General MIDI (GM)
SMF (.mid)
Linear PCM 16bit
WAV (.wav)
OTA
OTA (.ota)
Ogg vorbis
Ogg vorbis (.ogg)
Encoder format
Supported in file format
AMR-NB, AMR-WB
3GPP (.3gp), MP4 (.mp4),
AMR(.amr)
AMR-NB, AMR-WB, AAC-LC
stereo, sample rate 48 kHz bit rate
128 kbps
3GPP (.3gp), MP4 (.mp4)
Decoder format
Supported in file format
1, 4, 8, 16, 24 and 32 bpp and RLE
encoded formats
BMP (.bmp)
Single and multi-frame, bitmap
mask support (GIF87a format and
GIF89a format)
GIF (.gif)
Joint Photographic Experts Group
JPEG (.jpg)
Portable Network Graphics Bitmap
mask support
PNG (.png)
Wireless Bitmap
WBMP (.wbmp)
Encoder format
Supported in file format
Joint Photographic Experts Group
JPEG (.jpg)
Decoder format
Supported in file format
MPEG-4 Visual Simple Profile,
Advanced Simple Profile Level 6
3GPP (.3gp); MP4 (.mp4)
H.264 High Profile Level 3.1
3GPP (.3gp); MP4 (.mp4)
H.263 Profile 0, Profile 3 Level 70
3GPP (.3gp)
16
June 2011
White paper | Xperia™ mini pro
Video Recording
Encoder format
Supported in file format
Video H.263 Profile 0, H.264 Baseline Profile
Audio: AAC-LC stereo, sample rate
48 kHz bit rate 128 kbps, AMR-NB
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming
Streaming transportF
RTSP according to 3GPP™
HTTP streaming
DRM
DRM (Digital Rights Management) –
features the rights and copy protection of downloaded content
OMA DRM 1.0
17
June 2011
White paper | Xperia™ mini pro
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2.
OMA Data Formats: vCard 2.1, vCalendar 1.0.
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
Google Sync™
Related information:
www.sonyericsson.com/developer
Web browser
Browser version
Android 2.3 Browser (Based on WebKit)
Navigation/rendering
Pan & Zoom
Landscape/portrait rendering
Full page PC rendering
Adobe™ Flash™ 10.1*
Search
Internet Search
Browser compliancy
HTML version 4.0
HTML version 5.0
XHTML Basic version 1.0
XHTML 1.1
CSS 2.0
CSS 2.1
CSS 3.0
JavaScript 1.7/ECMA-script 262 3rd edition
DOM 2.0
DOM 3.0
Supported Device API
Geo-location API
Protocol compliancy
HTTP/1.1
TLS 1.0 and SSL 3.0
Gzip
OMA Download 1.0
* Updates are distributed via Android market.
Related information:
www.sonyericsson.com/developer
18
June 2011
White paper | Xperia™ mini pro
Trademarks and acknowledgements
The Liquid Identity and Liquid Energy logos, PlayNow, TrackID, Xperia and Timescape are trademarks or
registered trademarks of Sony Ericsson Mobile Communications AB. Sony, "make.believe", Exmor R,
xLOUD and Sony Mobile BRAVIA engine are trademarks or registered trademarks of Sony Corporation.
Ericsson is a trademark of Telefonaktiebolaget LM Ericsson.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Ericsson is under licence. TrackID is powered by Gracenote Mobile MusicID. Gracenote and
Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Google, Google Calendar, Google Gallery 3D, Google Latitude, Google Maps, Google Places, Google
Talk, Google Search, Google Sync, Google Mail, Picasa, YouTube, Google Voice, Android and Android
Market are trademarks or registered trademarks of Google, Inc. Facebook is a trademark or registered
trademark of Facebook, Inc. Twitter is a trademark or a registered trademark of Twitter, Inc.
Wi-Fi is a trademark or registered trademark of the Wi-Fi Alliance. DLNA Certified is a trademark or
registered trademark of the Digital Living Network Alliance. MicroSD is a trademark or registered
trademark of SanDisk Corporation. XHTML is a registered trademark of the W3C.
Microsoft, Windows, and Exchange ActiveSync are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Adobe Flash is a trademark or registered trademark of Adobe Systems Incorporated in the United States
and/or other countries. 3GPP™ is a trademark of ETSI.
Wisepilot™ is a trademark of Appello Systems AB.
Qualcom is a trademark or registered trademark of Qualcomm, Inc.
All other trademarks and copyrights are the property of their respective owners.
Some features described herein require supporting services. Usage charges may apply for such services.
19
June 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
