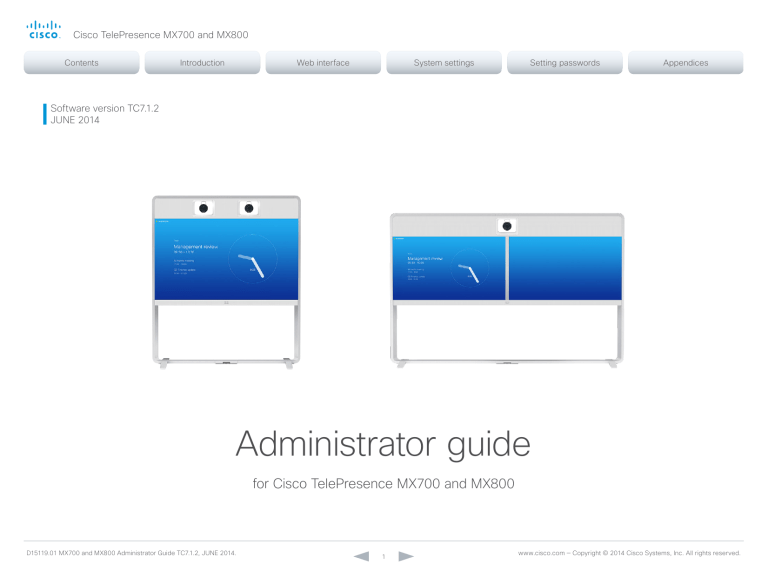

Cisco TelePresence MX700 and MX800 Administrator Guide

Cisco TelePresence MX700 and MX800
Contents
Introduction
Web interface
System settings
Setting passwords
Appendices
Software version TC7.1.2
JUNE 2014
Administrator guide
for Cisco TelePresence MX700 and MX800
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
1
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Thank you for choosing Cisco!
Your Cisco product has been designed to give you many
years of safe, reliable operation.
This part of the product documentation is aimed at
administrators working with the setup of the MX700 and
MX800.
Our main objective with this Administrator guide is to address
your goals and needs. Please let us know how well we
succeeded!
May we recommend that you visit the Cisco web site
regularly for updated versions of this guide.
The user documentation can be found on
► http://www.cisco.com/go/mx-docs
How to use this guide
The top menu bar and the entries in the Table of contents are
all hyperlinks. You can click on them to go to the topic.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Table of contents
Introduction............................................................................. 4
User documentation................................................................. 5
Software................................................................................... 5
MX700 and MX800 at a glance................................................ 6
Web interface........................................................................11
Accessing the web interface.................................................. 12
Changing the system password............................................. 13
The interactive menu.............................................................. 14
System information................................................................. 15
Placing a call........................................................................... 16
Sharing content....................................................................... 17
Controlling and monitoring a call............................................ 18
Controlling your camera.......................................................... 19
Local layout control................................................................. 20
Capturing snapshots............................................................... 21
Controlling the far end camera............................................... 22
Accessing call information...................................................... 23
System configuration.............................................................. 24
Changing system settings...................................................... 25
System status......................................................................... 26
Managing the favorites list...................................................... 27
Favorite list folders.................................................................. 28
Choosing a wallpaper............................................................. 29
Choosing a ringtone................................................................ 30
Peripherals overview.............................................................. 31
User administration................................................................. 32
Adding a sign in banner.......................................................... 36
Managing the video system’s certificates.............................. 37
Managing the list of trusted certificate authorities................. 38
Adding audit certificates......................................................... 39
Managing pre-installed certificates for Edge provisioning..... 40
Setting strong security mode................................................. 41
Changing the persistency mode............................................. 42
Deleting trust lists (CUCM only).............................................. 43
2
Troubleshooting...................................................................... 44
Downloading log files.............................................................. 45
Starting extended logging...................................................... 46
Upgrading the system software............................................. 47
Backup and restore................................................................. 48
Reverting to the previously used software version................ 49
Factory reset........................................................................... 50
Remote support user.............................................................. 51
Restarting the system............................................................. 52
System settings.................................................................... 53
Overview of the system settings............................................ 54
Audio settings......................................................................... 57
Cameras settings.................................................................... 63
Conference settings............................................................... 66
FacilityService settings........................................................... 70
GPIO settings.......................................................................... 71
H323 settings.......................................................................... 72
Logging settings..................................................................... 75
Network settings..................................................................... 76
NetworkServices settings....................................................... 83
Phonebook settings................................................................ 87
Provisioning settings............................................................... 88
RTP settings............................................................................ 90
Security settings..................................................................... 91
SerialPort settings.................................................................. 93
SIP settings............................................................................. 94
Standby settings..................................................................... 98
SystemUnit settings................................................................ 99
Time settings........................................................................ 100
UserInterface settings.......................................................... 101
Video settings....................................................................... 103
Experimental settings............................................................113
Setting passwords...............................................................114
Setting the system password................................................115
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices..........................................................................116
Cisco VCS provisioning.........................................................117
LED indicators........................................................................118
Connecting an external monitor to MX700............................119
Connecting external monitors to MX800.............................. 120
Connecting a computer........................................................ 121
Advanced customization of video......................................... 122
Optimal definition profiles..................................................... 123
ClearPath — Packet loss resilience....................................... 124
Factory resetting the system................................................ 125
Factory resetting the Touch 10 user interface...................... 126
Technical specification for MX700 and MX800.................... 127
Supported RFCs................................................................... 130
User documentation on the Cisco web site.......................... 131
Cisco contacts.................................................................... 132
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
3
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Chapter 1
Introduction
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
4
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
This document provides you with the information required to
administrate your product at an advanced level.
How to install the product and the initial configurations
required are described in the Installation guide and Getting
started guide, respectively.
Products covered in this guide
• Cisco TelePresence MX700
• Cisco TelePresence MX800
These products comes with either a single camera, or with a
dual camera assembly. The systems are either mounted on
a free standing floor stand, mounted on a floor stand that is
secured to the wall, or wall mounted. This guide covers all
options.
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
User documentation
The user documentation for the Cisco TelePresence systems
running the TC software includes several guides suitable for
various user groups.
• Installation guide:
How to install the product
Downloading the user documentation
We recommend you visit the Cisco web site regularly for
updated versions of the user documentation. Go to:
► http://www.cisco.com/go/mx-docs
• Getting started guide:
Initial configurations required to get the system up and
running
• Administering TC Endpoints on CUCM:
Tasks to perform to start using the product with the Cisco
Unified Communications Manager (CUCM)
• Administrator guide (this guide):
Information required to administer your product
• Quick reference guides:
How to use the product
Guidelines how to find the documentation
on the Cisco web site are included in the
► User documentation on the Cisco web site appendix.
Software
You can download the software for your product from the
Cisco web site, go to:
► http://www.cisco.com/cisco/software/navigator.html
• User guides:
How to use the product
We recommend reading the Software Release Notes (TC7),
go to:
• API reference guide:
How to use the Application Programmer Interface (API),
and reference guide for the command line commands
► http://www.cisco.com/c/en/us/support/collaborationendpoints/telepresence-mx-series/tsd-productssupport-series-home.html
• Video conferencing room primer:
General guidelines for room design and best practice
• Video conference room acoustics guidelines:
Things to do to improve the perceived audio quality
• Software release notes
• Regulatory compliance and safety information guide
• Legal & license information
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
5
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
MX700 and MX800 at a glance
Cisco TelePresence MX700 and MX800 represent the
performance line within Cisco’s portfolio of integrated
video collaboration room systems. These systems integrate
powerful functionality into an all-in-one solution for mediumto-large meeting rooms. The MX700 has two 55” LED
monitors, while the MX800 has one 70” LED monitor.
The MX700 and MX800 systems come standard with a builtin amplifier and speaker system for high fidelity sound. You
can choose from a single camera or a dual camera speakertracking solution; both cameras deliver the best possible
video imaging with up to 20x zoom and 1080p60 resolution.
Premium resolution and dual display are also standard
features on the MX700 and MX800. The Cisco TelePresence
Touch 10 provides an easy-to-use interface for both MX700
and MX800 systems.
Industry standards compliance lets the MX700 and MX800
support calls with any third party, standards-based system,
including software-based video conferencing solutions. And,
as the industry’s only H.265-ready systems, the MX700 and
MX800 lay the foundation for future bandwidth efficiencies
made possible by the new standard.
MX700 with dual camera assembly
MX800 with single camera
Features and benefits
• Powerful and feature-rich video systems with ultimate
video and audio quality
• Four simultaneous video inputs
• High performance video collaboration codec
• One button to push (OBTP) to start a meeting
• High-definition pan-tilt-zoom camera
• Everything you need in one unit: screen(s), speakers,
codec, camera, microphones
• 1080p60 main video and 1080p30 content
• Ideal for team-based collaboration, boardrooms, meeting
rooms and video centric rooms
• Three mounting options: wall mount, free standing
floorstand, floorstand secured to the wall
• Dual presentation outside of a call (e.g. use the
MX700 dual screens to compare two presentations or
documents)
• Built-in speaker tracking system as option
• Optimal definition up to 1080p60
• Five-way embedded 1080p30 HD multipoint solution
(Cisco TelePresence MultiSite) with individual transcoding
• H.323/SIP up to 6 Mbps point-to-point
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
• Ability to connect up to four HD input sources and eight
microphones directly to the codec
• Full duplex audio with high-quality stereo sound
• Cisco TelePresence ClearPath packet loss protection
technology
• Native support for Cisco Unified Communications
Manager (requires Cisco Unified Communications
Manager version 8.6 or higher)
• Up to 10 Mbps total MultiSite bandwidth
6
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
MX700 with single camera at a glance
Mounting options
Camera
(20x zoom, 1080p60)
Loudspeakers
(full range multichannel and bass)
Two 55” monitors
Free standing floor stand
Embedded codec
Floor stand secured to the wall
Microphones
(default: two; maximum: eight)
Touch 10 user interface
Wall mount
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
7
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
MX700 with dual camera at a glance
Mounting options
Dual camera assembly
(speaker-track, 20x zoom, 1080p60)
Loudspeakers
(full range multichannel and bass)
Two 55” monitors
Free standing floor stand
Embedded codec
Floor stand secured to the wall
Microphones
(default: two; maximum: eight)
Touch 10 user interface
Wall mount
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
8
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
MX800 with single camera at a glance
Camera
Mounting options
(20x zoom, 1080p60)
Loudspeakers
(full range multichannel and bass)
70” monitor
Free standing floor stand
Embedded codec
Floor stand secured to the wall
Microphones
(default: two; maximum: eight)
Touch 10 user interface
Wall mount
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
9
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
MX800 with dual camera at a glance
Dual camera assembly
Mounting options
(speaker-track, 20x zoom, 1080p60)
Loudspeakers
(full range multichannel and bass)
70” monitor
Free standing floor stand
Embedded codec
Floor stand secured to the wall
Microphones
(default: two; maximum: eight)
Touch 10 user interface
Wall mount
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
10
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Chapter 2
Web interface
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
11
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Accessing the web interface
The web interface provides full configuration access to the
video conference system.
You can connect from a computer and administer the system
remotely.
In this chapter you will find information how to use the web
interface for system configuration and maintenance.
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
1. Connect to the video system
Open a web browser and enter the IP address of
the video system in the address bar.
To find the IP address (IPv4 or IPv6),
open the Settings* menu on the Touch
controller and tap System Information.
We recommend that you use the latest release of one of the
major web browsers.
2. Sign in
Enter the user name and password for your
video system and click Sign In.
The system is delivered with a default
user named admin with no password.
Leave the Password field blank when
signing in for the first time.
It is mandatory to set a password for
the admin user, see the next page.
Signing out
*
Hover the mouse
over the user
name and choose
Sign out from the
drop-down list.
You can access the Settings menu from the drop down window
that appears when you tap the contact information in the upper, left
corner of the Touch controller.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
12
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Changing the system password
It is mandatory to set a password for a user with
ADMIN rights in order to restrict access to system
configuration. This includes the default admin user.
A warning, saying that the system password is not set, is
shown on screen until you set a password.
You can read more about passwords in the
► Setting passwords chapter.
1. Open the Change Password dialog
Hover the mouse over your the name, and
choose Change password in the drop-down list.
2. Set the new password
Enter your current and new passwords as
requested, and click Change password for the
change to take effect.
If the password currently is not set, leave
the Current password field blank.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
13
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
The interactive menu
The web interface provides access to tasks and
configurations. They are available from the main menu, which
appears near the top of the page when you have signed in.
When you hover the mouse over an item in the main menu,
you can navigate to its related sub-pages.
Main menu
Hover the mouse over a main menu item in
order to see the titles of the related sub-pages.
Click a sub-page’s title to open it. Click the
main menu item itself if there are no sub-pages.
Only pages that the user has access rights for
are shown*.
Click Home to return to the System Information
page.
Sub-pages
Call Control
Configuration
Diagnostics
Maintenance
System Configuration
Troubleshooting
Software Upgrade
System Status
Call History
Backup and Restore
Local Contents Management
Log Files
System Recovery
Personalization
Restart
Peripherals
User Administration
Sign In Banner
Startup Scripts
API
Security
*
You can read more about user administration, user roles and access
rights in the ► User administration section.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
14
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
System information
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Home
The video system’s Home page shows an overview of the
basic set-up and status of the system*.
This includes information like system name and product type,
which software version the system runs, its IP address, etc.
Also the registration status for the video networks (SIP and
H.323) is included, as well as the number/URI to use when
making a call to the system.
Note that the video system cannot be registered to
H.323 and SIP simultaneously.
*
The system information shown in the illustration serve as an
example. Your system may be different.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
15
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Placing a call
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
You can use the Call Control page to place a call.
Even if the web interface is used to initiate the call,
it is the video system (display, microphones and
loudspeakers) that is used for the call; it is not the PC
running the web interface.
Calling
You can call someone either by choosing a contact name
in the Favorites, Directory or Recents lists, or by typing a
complete URI or number in the Search or Dial field. Then click
Call in the associated contact card.
Searching the contact lists
Enter one or more characters in the Search or Dial field.
Matching entries from the Favorites, Directory and Recents
lists will be listed as you type.
Select the correct entry in the list and click Call.
Calling more than one
A point-to-point video call (a call involving two parties only)
may be expanded to include more participants.
If your system supports the optional built-in MultiSite feature,
up to five participants, yourself included, can join the video
call (conference).
Follow the same procedure to call the next conference
participant as you did when calling the first participant.
Calling someone
Click a contact name, either in the
Favorites, Directory or Recents lists.
Then click Call in the contact card.
Alternatively, enter the complete URI
or number in the Search and Dial field.
Then click the Call button that appears
next to the URI or number.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
16
Holding and resuming
Ending a call
button next
Use the
to the participant’s name
to put him on hold.
If you want to terminate a
call or conference, click End
all. Confirm your choice in
the dialog that appears.
To resume the call,
use the
button
that is present when a
participant is on hold.
To disconnect just one
participant in a conference,
click the
button for that
participant.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Sharing content
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
You can connect a presentation source to one of the external
inputs of your video system. Most often a PC is used as
presentation source, but other options may be available
depending on your system setup.
While in a call you can share content with the far end, that is
the other participant(s) in the call.
If you are not in a call, the content is shared locally on your
display.
Sharing content
1. Choose a Presentation source from the
drop-down list.
2. Click Start Presentation.
Stop content sharing:
Click the Stop Presentation button that is present
while sharing.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
17
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Controlling and monitoring a call
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
You can control and monitor several call features using the
Call Control page.
Volume down
Volume up
Microphone
mute
Click the button
to mute the
microphone.
Then the text
changes to
Microphone: Off.
Click again to
unmute.
Show/hide
call details
Click the
information button
to show details
about the call.
Click the button
again to hide the
information.
Call details
If necessary,
scroll your browser to
see the call details.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
18
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Controlling your camera
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
You can control the camera from the Call Control page.
The camera controls (pan, tilt, zoom) are available when
the cursor is placed in the Main Source video area. Live
snapshots are automatically taken during this period.
Choose which camera to control
Note that the camera controls are not available if the system
is in standby mode.
Click the arrow to open the
drop-down list. Then choose the
camera you want to control.
Zoom
Use + and - to zoom in and out.
Pan and tilt
Use the left and right arrows
to pan the camera, and the up
and down arrows to tilt it.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
19
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Local layout control
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
You can choose a local layout using the Call Control page.
The term layout is used to describe the various ways the
videos from the conference participants and a presentation
can appear on the screen. Different types of meetings may
require different layouts.
Change the layout
Click Change layout, and choose your preferred
layout in the window that opens.
You may change the layout while in a call.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
20
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Capturing snapshots
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
The snapshot feature, which is disabled by default, allows
snapshots captured by the video system to be displayed
on the Call Control page. Captures from the video system’s
camera as well as from its presentation channel will be
displayed.
This feature might come in handy when administering the
video system from a remote location, e.g. to check the
camera view.
To use web snapshots you have to sign in with ADMIN
credentials.
Enabling the snapshot feature
The snapshot feature is disabled by default. The feature must
be enabled using the Touch controller.
• Open the Settings* menu on the Touch controller and tap
Administrator. You have to log in with an administrator
user name and password to get access to the
Administrator menu.
• Tap Web Snapshots and choose ON.
Far end snapshots while in a call
While in a call, snapshots of the remote participant’s main
camera and presentation channel (far end) will be captured
and displayed as shown in the illustration. The snapshots are
updated approximately every 30 seconds.
Far end snapshots are captured even if web
snapshots are disallowed on the far end video
system. Web snapshots are prohibited only for
encrypted calls.
Far end snapshots
Take live snapshots
Click the snapshot in order
to see a larger image.
While the Live snapshots box is checked,
snapshots are captured by the video
system (main source and presentation
source) approximately every two seconds.
*
The Settings menu can be accessed from the drop down window
that appears when you tap the contact information in the upper, left
corner of the Touch controller.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Snapshots from the video system
21
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Controlling the far end camera
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Call Control
While in a call, you can control the remote participant’s
camera (far end) provided that:
• The Conference FarEndControl Mode setting is switched
On on the far end video system.
• The far end camera has pan, tilt or zoom functionality.
Only the relevant controls will appear.
Control the remote participant’s camera
1. Click the snapshot to show it in a larger window.
2. Place the cursor in the image to enable the controls.
3. Use the left and right arrows to pan the camera; the up and
down arrows to tilt it; and + and - to zoom in and out.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
22
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Accessing call information
A call state indicator is available in the top bar in the web
interface. It shows whether the system is in a call or not, and
how many calls it is engaged in. You may also be notified
about incoming calls.
Call state indicator
The call state indicator is
available on all pages except
the Call Control page.
The badge indicates the number
of active calls. If the system is
idle, there is no badge.
Click the indicator to get more
details about connected calls.
Call control
Use these buttons to:
• Show call details
• Put the call on hold
• Disconnect the call
Incoming call notification
As default, a notification is given when the
system receives a call.
Check this box, if you do not want to receive
such notifications.
Opening the Call Control page
Click Open Call Control to go straight to the Call Control page.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
23
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
System configuration
Administrator Guide
Web
Web interface
interface
System settings
Navigate to: Configuration > System Configuration
The system settings are grouped in several categories. When
you choose a category in the left pane all related settings
appear to the right*.
Setting passwords
Appendices
Searching for settings
Enter as many letters as needed in the search field.
All settings (value space included) containing these letters will be highlighted.
Each system setting is further described in the
► System settings chapter.
Selecting a category
*
The configuration shown in the illustration serve as an example.
Your system may be configured differently.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
The system settings are structured in categories.
Choose a category in order to display the related settings.
24
Expanding and collapsing lists
Use these buttons to expand and
collapse all or individual lists.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Changing system settings
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > System Configuration
All system settings can be changed from the System
Configuration page*. The value space for a setting is specified
either in a drop-down list or by text following the input field.
Drop-down list
Click the arrow to open the drop-down
list. Choose the preferred value and click
Save for the change to take effect.
Different settings may require different user credentials. In
order to be sure that an administrator is able to change all
system settings, an administrator user must possess all user
roles.
You can read more about user administration and user roles
in the ► User administration chapter.
Text input field
*
Enter text in the input field and click
Save for the change to take effect.
The configuration shown in the illustration serve as an example.
Your system may be configured differently.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
25
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
System status
Administrator Guide
Web
Web interface
interface
System settings
Appendices
Navigate to: Configuration > System Status
The system status is grouped in several categories. When
you choose a category in the left column, the related status
appears in the window to the right*.
Searching for status entries
Enter as many letters as needed in the search field.
All entries (value space included) containing these letters will be highlighted.
Selecting a category
The system status is structured in
categories. Choose a category in order
to display the related status information.
*
Setting passwords
Expanding and collapsing lists
Use these buttons to expand and
collapse all or individual lists.
The status shown in the illustration serve as an example. The status
of your system may be different.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
26
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Managing the favorites list
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Favorites Management
The entries in the favorites list can be accessed from the
Touch controller and the Web interface.
Adding a contact
Click Add contact and fill in
the form that pops up. Then
click Save to store the contact
in the favorites list.
Editing contact details
Click a contacts name
followed by Edit contact.
Change the details in the form
as appropriate and click Save.
Deleting a contact
Storing a contact in a folder
Choose the appropriate folder
from the drop down list.
No folder means that the contact
will be stored at the top level.
Click a contacts name
followed by Edit contact. Then
click Delete to remove the
entry from the favorites list.
Adding a contact method*
You can store more than one
contact method for each contact,
e.g. video, telephone and mobile.
*
Note that only the first contact method will appear in the Favorites
list on the Touch controller.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
27
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Favorite list folders
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Favorites Management
The entries in the favorites list can be organized in folders.
Adding a folder
Click Add folder and fill in the
form that pops up. Then click
Save to create the folder.
Opening a folder
Click the folder
name to open the
folder and show its
list of contacts.
Changing or Deleting a folder
Click Edit folder and update the
information in the form that pops up.
Then click Save to store the changes
Click Delete to remove the folder
and all its contacts and sub-folders.
Confirm your choice in the dialog that
pops up.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
28
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Choosing a wallpaper
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Personalization
If you want the company logo or another custom picture as
background on the main display, you may upload and use a
custom wallpaper.
The custom wallpaper applies to only the main display and
will not appear on the Touch controller.
Uploading a custom wallpaper file
Activate/deactivate a wallpaper
Click Browse... and locate your custom wallpaper
image file.
If you have uploaded a custom wallpaper, it will
appear in the list.
Click Upload to save the file on the video system.
Click the miniature to switch to the corresponding
wallpaper. Choose None if you do not want a
wallpaper.
Supported file formats: BMP, GIF, JPEG, PNG
Maximum file size:
2 MByte
The custom wallpaper will be automatically
activated once uploaded.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
29
The chosen option is highlighted.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Choosing a ringtone
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Personalization
You can choose from a set of predefined ringtones. The
chosen ringtone can be played back from this page.
The ringtone will be played back on the video system
itself, and not through the web interface.
Choosing a ringtone
Choose a ringtone from the drop-down list,
and click Save to make it the active ringtone.
Playing back a ringtone
Click the play button ( ► ) to play back the
ringtone.
Use the stop button (  ) to end the playback.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
30
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Peripherals overview
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Peripherals
This page shows an overview of devices that are connected
to the video system, like video inputs and outputs, cameras,
microphones and Touch controllers*.
*
The peripherals shown in the illustration serve as examples. Your
system may have different peripherals and video input/output
configurations.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
31
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
User administration
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > User Administration
You can manage your video conference system’s user
accounts from this page.
The default user account
The system comes with a default administrator user account
with full access rights. The user name is admin and no
password is set.
It is mandatory to set a password for the admin user.
Default user account
The system comes with
admin as the default user
account. This user has
full access rights.
Read more about passwords in the ► Setting passwords
chapter.
About user roles
A user account must hold one or a combination of several
user roles.
The following three user roles, with non-overlapping rights,
exist:
• ADMIN: A user holding this role can create new users and
change most settings. The user neither can upload audit
certificates nor change the security audit settings.
• USER: A user holding this role can make calls and search
the phone book. The user can modify a few settings, e.g.
adjusting the ringtone volume and setting the time and
date format.
• AUDIT: A user holding this role can change the security
audit configurations and upload audit certificates.
An administrator user account with full access rights,
like the default admin user, must possess all the three
roles.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
32
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
User administration, continued
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > User Administration
Creating a new user account
Follow these steps in order to create a new user account:
1. Click Add new user....
2. Fill in the Username and Password*, and check the
appropriate user roles check boxes.
As a default the user has to change the password when
signing in for the first time.
Do not fill in the Client Certificate DN (Distinguished
Name) field unless you want to use certificate login on
HTTPS.
3. Set the Status to Active to activate the user.
4. Click Create User to save the changes.
Use the Back button to leave without making any
changes.
*
The password is used with the web interface and command line
interface.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
33
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
User administration, continued
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > User Administration
Changing user privileges
Follow these steps in order to change the user privileges:
1. Click the name of an existing user to open the Editing
user window.
2. Check the appropriate user roles check boxes, decide if
the user has to change the password on the next sign in,
and fill in the Client Certificate DN field if using certificate
login on HTTPS.
3. Click Update User to save the changes.
Use the Back button to leave without making any
changes.
Changing the password
Follow these steps in order to change the password*:
1. Click the name of an existing user to open the Editing
user window.
2. Enter the new password in the appropriate input field.
3. Click Change Password to save the change.
Use the Back button to leave without making any
changes.
*
The password is used with the web interface and command line
interface.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
34
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
User administration, continued
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > User Administration
Deactivating a user account
Follow these steps in order to deactivate a user account:
1. Click the name of an existing user to open the Editing
user window.
2. Set the Status to Inactive.
3. Click Update User to save the changes.
Use the Back button to leave without making any
changes.
Deleting a user account
Follow these steps in order to delete a user account:
1. Click the name of an existing user to open the Editing
user window.
2. Click Delete <user name>... and confirm when prompted.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
35
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Adding a sign in banner
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Sign In Banner
If a system administrator wants to provide initial information
to all users, he can create a sign in banner. The message will
be shown when the user signs in to the web interface or the
command line interface.
Adding a sign in banner
Enter the message that you
want to present to the user
when signing in, and click
Save to activate the banner.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
36
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Managing the video system’s
certificates
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: Certificates tab
Certificate validation may be required when using TLS
(Transport Layer Security).
A server or client may require that your video system
presents a valid certificate to them before communication can
be set up.
The video system’s certificates are text files that verify the
authenticity of the system. These certificates may be issued
by a certificate authority (CA).
The certificates are listed as shown in the illustration to the
right*. They can be used for the following services: HTTPS,
SIP and IEEE 802.1X.
You can store several certificates on the system, but only one
certificate can be used for each service at a time.
If authentication fails, the connection will not be established.
Contact your system administrator to obtain the
following file(s):
• Certificate (file format: .PEM)
• Private key, either as a separate file or
included in the same file as the certificate
(file format: .PEM format)
• Password (required only if the private key is
encrypted)
The certificate and the private key will be stored in
the same file on the video system.
Adding a certificate
1. Click Browse... and find the Certificate and
Private key file(s) on your computer.
2. Fill in the Password if required.
3. Click Add certificate... to store the certificate
on your system.
*
Enabling and disabling certificates
Use the buttons to switch a certificate on or off for
the different services.
You can also view a certificate, and delete a
certificate using the corresponding buttons.
The certificates and certificate issuers shown in the illustration
serve as examples. Your system may have other certificate(s).
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
37
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Managing the list of trusted
certificate authorities
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: CAs tab
Certificate validation may be required when using TLS
(Transport Layer Security).
Your video system may be set up to require that a server
or client presents its certificate to the video system before
communication can be set up.
The certificates are text files that verify the authenticity of the
server or client. The certificates must be signed by a trusted
certificate authority (CA).
To be able to verify the signature of the certificates, a list of
trusted CAs must reside on the video system. The certificates
of the CAs are listed as shown in the illustration to the right*.
The list must include all CAs needed in order to verify
certificates for HTTPS, SIP and IEEE 802.1X connections.
If the server cannot be authenticated, the connection will not
be established.
Uploading a list of certificate authorities
The entries in a new file with CA certificates
will be appended to the existing list, so that
the previously stored certificates will not be
deleted.
Viewing and deleting certificates
You can view a certificate, and
delete a certificate using the
corresponding buttons.
i. Click Browse... and find the file containing a
list of CA certificates (file format: .PEM) on
your computer.
ii. Click the Add certificate authority... to store
the new CA certificate(s) on your system.
Contact your system administrator to obtain
the CA certificate list (file format: .PEM).
*
The certificate and certificate issuers shown in the illustration serve
as examples. Your system will have other certificate(s).
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
38
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Adding audit certificates
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: CAs tab / Configuration > System Configuration
Audit logging records all sign in activity and configuration
changes on your video system.
1. Upload a list of audit server certificates
The entries in a new file with CA
certificates will overwrite the existing
list, so that any previously stored audit
certificates will be lost when you add a
new file.
Audit logging is disabled by default, but you can enable it
using the Security > Audit > Logging > Mode setting.
In ExternalSecure audit logging mode the video system
sends encrypted audit logs to an external audit server
(syslog server), which identity must be verified by a signed
certificate.
i. Click Browse... and find the file containing the
list of audit CA certificates (.PEM format) on
your computer.
To be able to verify the signature of the audit server
certificates, a list of trusted audit certificate authorities (CAs)
must reside on the video system.
ii. Click Add audit certificate to store the
certificate(s) on your video system.
If the audit server cannot be authenticated, the logs will not
be sent.
Contact your system administrator to
obtain the Audit CA list (file format: .PEM).
Always upload the audit certificate list before enabling
secure audit logging.
2. Enable secure audit
logging
i. Go to the System
Configuration page and
choose the Security
category.
ii. Enter the Address of
the audit server. If
you choose Manual
PortAssignment, you
must also enter a Port
number for the audit
server. Click Save for the
changes to take effect.
iii
ii
iii. Choose ExternalSecure
from the Logging Mode
drop-down list. Click
Save for the change to
take effect.
i
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
39
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Managing pre-installed certificates
for Edge provisioning
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: Preinstalled CAs tab
The list of pre-installed certificates that is shown on this
page in the web interface*, contains certificates that will be
used when the video system is provisioned by Cisco Unified
Communications Manager (CUCM) via Expressway (Edge).
Only Edge infrastructure certificates will be checked against
this list.
If the Edge infrastructure certificate validation fails, the video
system will not receive the provisioning and not be registered.
Factory resetting the video system will not delete the list of
pre-installed certificates.
Viewing or disabling certificates
You can view a certificate, and
disable a certificate using the
corresponding buttons.
You can disable all the preinstalled certificates, and use
a manually uploaded list of
certificates for verification instead.
See the Configuration > Security:
CAs page how to upload trusted
certificates to the video system
manually.
*
The certificate and certificate issuers shown in the illustration serve
as examples. Your system will have other certificate(s).
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
40
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Setting strong security mode
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: Strong Security Mode tab
Strong security mode should be used only when compliance
with DoD JITC regulations is required.
Read the provided information carefully before setting
strong security mode.
Setting strong security mode
Read carefully about the consequences of
strong security mode before you continue.
Strong security mode sets very strict password requirements,
and requires all users to change their password on the next
sign in.
1. If you want to use strong security mode,
click Enable strong security mode....
Confirm your choice in the dialog box
that appears.
Software upload from TMS, web snapshots and calling from
the web interface are prohibited in strong security mode.
The system will restart automatically.
2. Change the password when you are
prompted. The new password must meet
the strict criteria as described.
How to change the system password is
described in the ► Setting passwords
section.
Return to normal mode
When in strong security mode, the system
can be restored to normal mode by clicking
Disable strong security mode.... Confirm your
choice in the dialog box that appears
The system will restart automatically.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
41
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Changing the persistency mode
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: Non-persistent Mode tab
By default, all persistency settings are set to Persistent. This
means that configurations, call history, internal logs, local
phonebook / favorites list and IP connectivity information
are stored as normal. A system restart does not delete
information.
As a general rule, we recommend NOT to change the
default settings for persistency. But in the case were a
new user is not supposed to see or trace back to any kind
of logged information from the previous session, Nonpersistent mode must be used.
In order to clear/delete information that was stored
before changing to Non-persistent mode, you should
consider to factory reset the video system.
There is more information about performing a factory
reset in the ► Factory resetting appendix.
When in Non-persistent mode, the following information will
be lost/cleared each time the system restarts:
• System Configuration changes that have been made
since the last system restart.
• Information about calls that are placed or received since
the last system restart (call history).
• Internal log files that has been made since the last system
restart.
• Changes that are made to the local phonebook / favorites
list since the last system restart.
• All IP related information (DHCP) from the last session.
Checking the persistency status
The radio buttons that are active when you open the Security
page and go to the Non-persistent Mode tab, shows the
current persistency status of the video system.
Changing the persistency settings
1. Set the persistency settings for the five
categories as desired.
2. Click Save and reboot....
The system will restart. After the
restart, behavior according to the new
persistency settings will start.
Note that logs, configurations etc. that
was stored before you switch to Nonpersistent mode, will not be cleared or
deleted.
You can also see the status by checking Security >
Persistency on the Configuration > System Status page.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
42
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Deleting trust lists (CUCM only)
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Configuration > Security: CUCM tab
The information on this page is only relevant for
video systems that are registered to a Cisco Unified
Communications Manager (CUCM).
The web interface can be used to delete existing trust lists
(CTL and ITL) that are stored on the video system. Normally,
you will not delete the old CTL and ITL files, but there are a
few cases when you will need to delete them.
For more information about CUCM and trust lists, read the
Administering TC Endpoints on CUCM guide available on the
Cisco web site.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
43
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Troubleshooting
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Diagnostics > Troubleshooting
The troubleshooting page lists the status for some common
sources of errors. The list may be different for different
products and installations*.
Run diagnostics
Note that critical issues and errors are clearly marked in red
color; warnings are yellow.
Click Re-run diagnostics to make sure
the information in the list is up-to-date.
Leave standby mode
This button is only visible when the
system is in standby mode. If in
standby mode, click Deactivate standby
to wake up the system.
*
The messages shown in the illustration serve as examples. Your
system may show other information.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
44
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Downloading log files
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Diagnostics > Log Files
The log files* are Cisco specific debug files which may be
requested by the Cisco support organization if you need
technical support.
The current log files are time stamped event log files.
All current log files are archived in a time stamped historical
log file each time the system restarts. If the maximum
number of historical log files is reached, the oldest one will be
overwritten.
Downloading all log files
Click Download logs archive and follow
the instructions.
Use the drop down list if you want to
include the call history in the archive.
You can choose whether to include the
full call history or to make the caller/
callee anonymous.
Open/save one log file
Refresh the list of log files
Click the file name to open the log file in
the web browser; right click to save the
file on the computer.
*
The log files shown in the illustration serve as examples. Your
system may have other files.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
45
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Starting extended logging
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Diagnostics > Log Files
Extended logging mode may be switched on to help diagnose
network issues and problems during call setup. While in this
mode more information is stored in the log files.
Note that extended logging uses more of your video system’s
resources, and may cause your video system to underperform. You should only use extended logging mode when
troubleshooting an issue.
Start extended logging
Click Start extended logging.
Extended logging lasts for 10 minutes. You can stop
the extended logging before it times out by clicking
the Stop extended logging button that appears when
extended logging is on.
As default, the network traffic is not captured. Use the
drop down menu if you want to include a full or partial
capture of the network traffic.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
46
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Upgrading the system software
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > Software Upgrade
This video conference system is using TC software. The
version described in this document is TC7.1.2.
Contact your system administrator if you have
questions about the software version.
Software release notes
For a complete overview of the news and changes, we
recommend reading the Software Release Notes (TC7).
Go to: ► http://www.cisco.com/c/en/us/support/
collaboration-endpoints/telepresence-mx-series/tsdproducts-support-series-home.html
New software
For software download, go to the
Cisco Download Software web page:
► http://www.cisco.com/cisco/software/navigator.html.
Then navigate to your product.
The format of the file name is “s52020tc7_1_0.pkg” (each
software version has a unique file name).
Adding option keys
Installing new software
An option key is required to activate optional functionality.
You may have several option keys in your system. If the keys
are already installed, you can skip this point and continue
with the software installation.
Download the appropriate software package from the Cisco
Software Download web page (see link to the left) and store
it on your local computer. This is a .pkg file.
If you do not have the required key(s), contact your Cisco
representative to obtain them.
i. Enter an Option Key in the appropriate text input field
and click Add.
If you have more than one option key, repeat this step
for all keys.
Each system has unique keys, for example:
i. Click Browse... and find the downloaded .pkg file that
contains the new software.
ii. Check the Upgrade automatically after upload check
box, then click Upload to start the installation process
straight away.
Keep the check box unchecked if you want to upload
the software now and do the installation later.
The complete installation may take up to 30 minutes. You
can follow the progress on the web page. The system
restarts automatically after the installation.
• 1R000-1-AA7A4A09
You must sign in anew in order to continue working
with the web interface after the restart.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
47
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Backup and restore
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > Backup and Restore
All the system settings, which are available on the System
configuration page, can be listed on-screen or stored as a
text file.
The text file can be loaded back onto the system, thereby
restoring the configuration.
Backing up or showing the current configuration
Click Preview backup to display the current
settings on-screen.
Click Take backup to store the configuration
as a text file.
Restoring an earlier configuration
Click Browse... and find the file with the
configuration you want to restore.
Click Restore to reconfigure the system as
defined in the file.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
48
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Reverting to the previously used
software version
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > System Recovery : Backup tab and Software Recovery Swap tab
If there is a severe problem with the video system, switching
to the previously used software version may help solving the
problem.
If the system has not been factory reset since the last
software upgrade, the previously used software image still
resides on the system; you do not have to download the
software again.
Reverting to the previously used software version should only
be done by a system administrator or in contact with Cisco
technical support.
We strongly recommend that you backup your system’s log
files and configuration before you swap to the other software
image.
1. Backing up log files and
system configuration
2. Reverting to the previously used
software version
We recommend that you backup your
system’s log files and configuration before
you swap to the other software image.
Click Download Logs and Download
Configuration Backup and follow the
instructions to save the files on your
computer.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
49
1. Revert to the previously used software
version by clicking Switch to software
TCx.y.z..., where x.y.z indicates the
software version.
2. Click Yes to confirm your choice, or
Cancel if you have changed your mind.
Wait while the system resets. The
system will restart automatically when
finished.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Factory reset
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > System Recovery : Backup tab and Factory Reset tab
If there is a severe problem with the video system, the last
resort may be to reset it to its default factory settings. Always
consider reverting to the previously used software image
before performing a factory reset. In many situations this will
recover the system*.
A factory reset should only be performed by a system
administrator or in contact with Cisco technical support.
When factory resetting the video system the following
happens:
• The call logs will be deleted.
• Passwords will be reset to default.
• All system parameters will be reset to default values.
• All files that have been uploaded to the system will be
deleted. This includes, but is not limited to, custom
wallpapers, certificates and the favorites list.
• The previous (inactive) software image will be deleted.
• Option keys will not be affected.
The system restarts automatically after the reset. It is using
the same software image as before.
We strongly recommend that you backup your system’s log
files and configuration before you perform a factory reset.
It is not possible to undo a factory reset.
There is more information about performing a factory reset in
the ► Factory resetting appendix.
1. Backing up log files and
system configuration
2. Performing a factory reset
We strongly recommend that you backup
your system’s log files and configuration
before you perform a factory reset;
otherwise these data will be lost.
Click Download Logs and Download
Configuration Backup and follow the
instructions to save the files on your
computer.
*
Read the provided information carefully
before you click Perform a factory reset....
Click Yes to confirm your choice, or Cancel if
you have changed your mind.
Wait while the system resets. The system
will restart automatically when finished.
Read about software swapping in the ► Reverting to the previously
used software version section.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
50
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Remote support user
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > System Recovery: Remote Support User tab
In cases where you need to diagnose problems on the
TelePresence device you can create a remote support user.
The remote support user will be granted read access to the
system and will have access to a limited set of commands
that can aid troubleshooting.
You will need assistance from Cisco Technical Assistance
Center (TAC) to acquire the password for the remote
support user.
The remote support user should only be enabled
for troubleshooting reasons when instructed by
Cisco TAC.
Create remote support user
1. Open a case with Cisco TAC.
Delete remote support user
Click Delete user.
2. Click Create user.
3. Copy the text in the Token field and
send to Cisco TAC.
4. Cisco TAC will generate a password.
The remote support user is valid for seven
days, or until it is deleted.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
51
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Restarting the system
Administrator Guide
Web
Web interface
interface
System settings
Setting passwords
Appendices
Navigate to: Maintenance > Restart
The system can be shut down or restarted remotely using the
web interface.
Restarting the system
Click Restart TelePresence device... to
restart the system.
It will take a few minutes before
the system is ready for use.
Shutting down the system
Click Shutdown TelePresence device...
to shut down the system.
The system cannot be turned on
again remotely; you must press
its power button physically to
turn it on.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
52
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Chapter 3
System settings
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
53
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Overview of the system settings
In the following pages you will find a complete list of the
system settings which are configured from the System
Configuration page on the web interface. The examples show
either the default value or an example of a value.
Open a web browser and enter the IP address of the video
system then sign in.
To find the IP address (IPv4 or IPv6), open the
Settings* menu on the Touch controller and tap
System Information.
*
Audio settings....................................................................... 57
Audio DefaultVolume.............................................................. 62
Audio Input HDMI [n] Level...................................................... 57
Audio Input HDMI [n] Mode..................................................... 57
Audio Input HDMI [n] VideoAssociation
MuteOnInactiveVideo.............................................................. 57
Audio Input HDMI [n] VideoAssociation VideoInputSource..... 57
Audio Input Line [1..4] Channel............................................... 58
Audio Input Line [1..4] Equalizer ID.......................................... 57
Audio Input Line [1..4] Equalizer Mode.................................... 58
Audio Input Line [1..4] Level.................................................... 58
Audio Input Line [1..4] Mode................................................... 58
Audio Input Line [1..4] VideoAssociation
MuteOnInactiveVideo.............................................................. 58
Audio Input Line [1..4] VideoAssociation VideoInputSource... 58
Audio Input Microphone [1..8] EchoControl Dereverberation. 59
Audio Input Microphone [1..8] EchoControl Mode.................. 59
Audio Input Microphone [1..8] EchoControl NoiseReduction.. 59
Audio Input Microphone [1..8] Equalizer ID.............................. 59
Audio Input Microphone [1..8] Equalizer Mode........................ 59
Audio Input Microphone [1..8] Level........................................ 60
Audio Input Microphone [1..8] Mode....................................... 60
Audio Input Microphone [1..8] Type........................................ 60
Audio Input Microphone [1..8] VideoAssociation
MuteOnInactiveVideo.............................................................. 59
Audio Input Microphone [1..8] VideoAssociation
VideoInputSource................................................................... 59
Audio Microphones Mute Enabled.......................................... 61
Audio Output HDMI [2] Level................................................... 60
Audio Output HDMI [2] Mode.................................................. 60
Audio Output Line [1..6] Channel............................................ 60
Audio Output Line [1..6] Equalizer ID....................................... 61
Audio Output Line [1..6] Equalizer Mode................................. 61
Audio Output Line [1..6] Level................................................. 61
Audio Output Line [1..6] Mode................................................ 61
Audio SoundsAndAlerts KeyTones Mode............................... 61
Audio SoundsAndAlerts RingTone.......................................... 61
Audio SoundsAndAlerts RingVolume..................................... 62
Cameras settings.................................................................. 63
Cameras Camera [1..7] Backlight............................................ 63
Cameras Camera [1..7] Brightness Level................................ 63
Cameras Camera [1..7] Brightness Mode............................... 63
Cameras Camera [1..7] DHCP................................................. 65
Cameras Camera [1..7] Gamma Level..................................... 64
Cameras Camera [1..7] Gamma Mode.................................... 64
Cameras Camera [1..7] IrSensor............................................. 64
Cameras Camera [1..7] MotorMoveDetection......................... 64
Cameras Camera [1..7] Whitebalance Level........................... 65
Cameras Camera [1..7] Whitebalance Mode.......................... 65
Cameras Camera [n..7] Flip..................................................... 63
Cameras Camera [n..7] Focus Mode...................................... 64
Cameras Camera [n..7] Mirror................................................. 64
Cameras PowerLine Frequency.............................................. 63
Conference settings............................................................. 66
Conference [1..1] ActiveControl Mode.................................... 66
Conference [1..1] AutoAnswer Delay....................................... 66
Conference [1..1] AutoAnswer Mode...................................... 66
Conference [1..1] AutoAnswer Mute........................................ 66
Conference [1..1] CallProtocolIPStack..................................... 66
Conference [1..1] DefaultCall Rate........................................... 67
Conference [1..1] DoNotDisturb DefaultTimeout..................... 67
Conference [1..1] Encryption Mode......................................... 67
Conference [1..1] FarEndControl Mode................................... 67
Conference [1..1] FarEndControl SignalCapability................... 67
Conference [1..1] IncomingMultisiteCall Mode........................ 69
Conference [1..1] MaxReceiveCallRate................................... 68
Conference [1..1] MaxTotalReceiveCallRate............................ 68
Conference [1..1] MaxTotalTransmitCallRate........................... 68
Conference [1..1] MaxTransmitCallRate................................... 67
The Settings menu can be accessed from the drop down window
that appears when you tap the contact information in the upper, left
corner of the Touch controller.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
54
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Conference [1..1] MicUnmuteOnDisconnect Mode................. 66
Conference [1..1] Multipoint Mode.......................................... 69
Conference [1..1] Presentation OnPlacedOnHold................... 69
Conference [1..1] Presentation RelayQuality........................... 69
Conference [1..1] VideoBandwidth MainChannel Weight........ 68
Conference [1..1] VideoBandwidth Mode................................ 68
Conference [1..1] VideoBandwidth PresentationChannel
Weight..................................................................................... 69
FacilityService settings......................................................... 70
FacilityService Service [1..5] CallType.................................... 70
FacilityService Service [1..5] Name........................................ 70
FacilityService Service [1..5] Number..................................... 70
FacilityService Service [1..5] Type.......................................... 70
GPIO settings........................................................................ 71
GPIO Pin [1..4] Mode............................................................... 71
H323 settings........................................................................ 72
H323 NAT Address................................................................. 72
H323 NAT Mode..................................................................... 72
H323 Profile [1..1] Authentication LoginName......................... 72
H323 Profile [1..1] Authentication Mode.................................. 72
H323 Profile [1..1] Authentication Password........................... 73
H323 Profile [1..1] CallSetup Mode.......................................... 73
H323 Profile [1..1] Gatekeeper Address.................................. 73
H323 Profile [1..1] Gatekeeper Discovery................................ 73
H323 Profile [1..1] H323Alias E164.......................................... 73
H323 Profile [1..1] H323Alias ID............................................... 73
H323 Profile [1..1] PortAllocation............................................. 74
Logging settings................................................................... 75
Logging Mode......................................................................... 75
Network settings................................................................... 76
Network [1..1] DHCP RequestTFTPServerAddress................. 77
Network [1..1] DNS Domain Name........................................... 77
Network [1..1] DNS Server [1..3] Address................................ 77
Network [1..1] IEEE8021X AnonymousIdentity......................... 80
Network [1..1] IEEE8021X Eap Md5......................................... 80
Network [1..1] IEEE8021X Eap Peap........................................ 81
Network [1..1] IEEE8021X Eap Tls............................................ 81
Network [1..1] IEEE8021X Eap Ttls........................................... 81
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Administrator Guide
System
System settings
settings
Web interface
Network [1..1] IEEE8021X Identity............................................ 80
Network [1..1] IEEE8021X Mode.............................................. 79
Network [1..1] IEEE8021X Password........................................ 80
Network [1..1] IEEE8021X TlsVerify.......................................... 80
Network [1..1] IEEE8021X UseClientCertificate....................... 80
Network [1..1] IPStack.............................................................. 76
Network [1..1] IPv4 Address.................................................... 76
Network [1..1] IPv4 Assignment............................................... 76
Network [1..1] IPv4 Gateway.................................................... 76
Network [1..1] IPv4 SubnetMask.............................................. 76
Network [1..1] IPv6 Address.................................................... 77
Network [1..1] IPv6 Assignment............................................... 76
Network [1..1] IPv6 DHCPOptions........................................... 77
Network [1..1] IPv6 Gateway.................................................... 77
Network [1..1] MTU.................................................................. 81
Network [1..1] QoS Diffserv Audio........................................... 78
Network [1..1] QoS Diffserv Data............................................. 78
Network [1..1] QoS Diffserv ICMPv6....................................... 79
Network [1..1] QoS Diffserv NTP............................................. 79
Network [1..1] QoS Diffserv Signalling..................................... 79
Network [1..1] QoS Diffserv Video........................................... 78
Network [1..1] QoS Mode........................................................ 78
Network [1..1] RemoteAccess Allow........................................ 82
Network [1..1] Speed............................................................... 81
Network [1..1] TrafficControl Mode.......................................... 81
Network [1..1] VLAN Voice Mode............................................ 82
Network [1..1] VLAN Voice VlanId........................................... 82
NetworkServices settings..................................................... 83
NetworkServices H323 Mode................................................ 83
NetworkServices HTTP Mode................................................ 83
NetworkServices HTTPS Mode.............................................. 84
NetworkServices HTTPS OCSP Mode................................... 84
NetworkServices HTTPS OCSP URL..................................... 84
NetworkServices HTTPS VerifyClientCertificate.................... 84
NetworkServices HTTPS VerifyServerCertificate.................. 84
NetworkServices NTP Address.............................................. 85
NetworkServices NTP Mode.................................................. 85
NetworkServices SIP Mode.................................................... 83
NetworkServices SNMP CommunityName............................ 85
NetworkServices SNMP Host [1..3] Address.......................... 85
55
Setting passwords
Appendices
NetworkServices SNMP Mode............................................... 85
NetworkServices SNMP SystemContact............................... 86
NetworkServices SNMP SystemLocation.............................. 86
NetworkServices SSH AllowPublicKey................................... 86
NetworkServices SSH Mode.................................................. 86
NetworkServices Telnet Mode............................................... 83
NetworkServices WelcomeText.............................................. 83
NetworkServices XMLAPI Mode............................................ 83
Phonebook settings.............................................................. 87
Phonebook Server [1..1] ID...................................................... 87
Phonebook Server [1..1] Type................................................. 87
Phonebook Server [1..1] URL.................................................. 87
Provisioning settings............................................................. 88
Provisioning Connectivity....................................................... 88
Provisioning ExternalManager Address.................................. 89
Provisioning ExternalManager AlternateAddress................... 89
Provisioning ExternalManager Domain................................... 89
Provisioning ExternalManager Path........................................ 89
Provisioning ExternalManager Protocol.................................. 89
Provisioning HttpMethod........................................................ 88
Provisioning LoginName......................................................... 88
Provisioning Mode.................................................................. 88
Provisioning Password............................................................ 88
RTP settings.......................................................................... 90
RTP Ports Range Start............................................................ 90
RTP Ports Range Stop............................................................ 90
Security settings................................................................... 91
Security Audit Logging Mode................................................. 91
Security Audit OnError Action................................................. 91
Security Audit Server Address............................................... 91
Security Audit Server Port...................................................... 91
Security Audit Server PortAssignment................................... 91
Security Session InactivityTimeout......................................... 92
Security Session ShowLastLogon.......................................... 92
SerialPort settings................................................................ 93
SerialPort BaudRate................................................................ 93
SerialPort LoginRequired........................................................ 93
SerialPort Mode...................................................................... 93
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
SIP settings........................................................................... 94
SIP ANAT................................................................................ 94
SIP AuthenticateTransferror.................................................... 94
SIP ListenPort......................................................................... 94
SIP OCSP DefaultResponder.................................................. 94
SIP OCSP Mode..................................................................... 94
SIP PreferredIPMedia.............................................................. 94
SIP PreferredIPSignaling......................................................... 94
SIP Profile [1..1] Authentication [1..1] LoginName.................... 96
SIP Profile [1..1] Authentication [1..1] Password....................... 96
SIP Profile [1..1] DefaultTransport............................................ 96
SIP Profile [1..1] DisplayName................................................. 96
SIP Profile [1..1] Ice DefaultCandidate..................................... 95
SIP Profile [1..1] Ice Mode........................................................ 95
SIP Profile [1..1] Line................................................................ 97
SIP Profile [1..1] Mailbox.......................................................... 97
SIP Profile [1..1] Outbound....................................................... 97
SIP Profile [1..1] Proxy [1..4] Address....................................... 97
SIP Profile [1..1] Proxy [1..4] Discovery.................................... 97
SIP Profile [1..1] TlsVerify......................................................... 96
SIP Profile [1..1] Turn BandwidthProbe.................................... 95
SIP Profile [1..1] Turn DiscoverMode....................................... 95
SIP Profile [1..1] Turn DropRflx................................................. 95
SIP Profile [1..1] Turn Password............................................... 96
SIP Profile [1..1] Turn Server.................................................... 95
SIP Profile [1..1] Turn UserName............................................. 95
SIP Profile [1..1] Type............................................................... 97
SIP Profile [1..1] URI................................................................. 96
Standby settings................................................................... 98
Standby BootAction................................................................ 98
Standby Control...................................................................... 98
Standby Delay......................................................................... 98
Standby StandbyAction.......................................................... 98
Standby WakeupAction........................................................... 98
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Administrator Guide
System
System settings
settings
Web interface
SystemUnit settings.............................................................. 99
SystemUnit CallLogging Mode............................................... 99
SystemUnit ContactInfo Type................................................. 99
SystemUnit IrSensor............................................................... 99
SystemUnit MenuLanguage.................................................... 99
SystemUnit Name................................................................... 99
Time settings...................................................................... 100
Time DateFormat.................................................................. 100
Time TimeFormat.................................................................. 100
Time Zone............................................................................. 100
UserInterface settings......................................................... 101
UserInterface Language....................................................... 101
UserInterface OSD EncryptionIndicator................................ 101
UserInterface OSD LanguageSelection................................ 101
UserInterface OSD LoginRequired....................................... 101
UserInterface OSD Output.................................................... 101
UserInterface TouchPanel DefaultPanel............................... 102
UserInterface UserPreferences............................................ 102
UserInterface Wallpaper....................................................... 101
Video settings..................................................................... 103
Video AllowWebSnapshots................................................... 103
Video CamCtrlPip CallSetup Duration.................................. 103
Video CamCtrlPip CallSetup Mode....................................... 103
Video DefaultPresentationSource......................................... 103
Video Input Connector [1..4] PresentationSelection............. 105
Video Input Connector [1..4] RGBQuantizationRange........... 106
Video Input Connector [1..5] CameraControl CameraId....... 104
Video Input Connector [1..5] CameraControl Mode.............. 104
Video Input Connector [1..5] InputSourceType..................... 103
Video Input Connector [1..5] Name....................................... 103
Video Input Connector [1..5] OptimalDefinition Profile.......... 105
Video Input Connector [1..5] OptimalDefinition
Threshold60fps..................................................................... 105
56
Setting passwords
Appendices
Video Input Connector [1..5] Quality..................................... 104
Video Input Connector [1..5] Visibility................................... 104
Video Input Connector [4] DviType....................................... 106
Video Input Connector [5] SignalType.................................. 106
Video Layout DisableDisconnectedLocalOutputs................. 106
Video Layout LocalLayoutFamily.......................................... 107
Video Layout PresentationDefault View................................ 107
Video Layout RemoteLayoutFamily....................................... 107
Video Layout ScaleToFrame................................................. 108
Video Layout ScaleToFrameThreshold.................................. 108
Video Layout Scaling............................................................ 107
Video Monitors.......................................................................110
Video OSD EncryptionIndicator.............................................110
Video OSD LanguageSelection.............................................110
Video OSD LoginRequired.....................................................110
Video Output Connector [1..3] Location HorizontalOffset......111
Video Output Connector [1..3] Location VerticalOffset..........111
Video Output Connector [2] CEC Mode.................................110
Video Output Connector [n] Resolution.................................112
Video Output Connector [n] RGBQuantizatonRange..............112
Video PIP ActiveSpeaker DefaultValue Position................... 108
Video PIP Presentation DefaultValue Position...................... 108
Video SelfviewDefault FullscreenMode................................ 109
Video SelfviewDefault Mode................................................. 109
Video SelfviewDefault OnMonitorRole.................................. 109
Video SelfviewDefault PIPPosition........................................ 109
Video WallPaper....................................................................112
Experimental settings..........................................................113
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Audio settings
Audio Input HDMI [n] Mode
Audio Input HDMI [n] VideoAssociation MuteOnInactiveVideo
This setting applies to HDMI [2..3] for single camera systems, and to HDMI [3] for dual camera
systems.
This setting applies to HDMI [2..3] for single camera systems, and to HDMI [3] for dual camera
systems.
Determine if the audio channels on the HDMI input shall be enabled. The HDMI input has two
audio channels.
Enable association of a video source to an HDMI audio input.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <Off/On>
Off: No video source is associated.
Off: Disable audio on the HDMI input.
On: A video source is associated, and the audio will be muted if the associated video source
is not displayed.
On: Enable audio on the HDMI input.
Example: Audio Input HDMI 3 Mode: On
Example: Audio Input HDMI 3 VideoAssociation MuteOnInactiveVideo: Off
Audio Input HDMI [n] Level
Audio Input HDMI [n] VideoAssociation VideoInputSource
This setting applies to HDMI [2..3] for single camera systems, and to HDMI [3] for dual camera
systems.
This setting applies to HDMI [2..3] for single camera systems, and to HDMI [3] for dual camera
systems.
Define the audio level of the HDMI input connector, in steps of 1 dB.
Select the associated video input source.
See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete
overview of the menu values represented in dB.
Requires user role: ADMIN
Value space: <1/2/3/4>
Requires user role: ADMIN
Range: Select one of the video input sources.
Value space: <-24..0>
Example: Audio Input HDMI 3 VideoAssociation VideoInputSource: 1
Range: Select a value from -24 to 0 dB.
Example: Audio Input HDMI 3 Level: 0
Audio Input Line [1..4] Equalizer ID
Select the audio input line equalizer ID.
Requires user role: ADMIN
Value space: <1..8>
Range: Select EqualizerID 1 to 8.
Example: Audio Input Line 1 Equalizer ID: 1
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
57
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Audio Input Line [1..4] Equalizer Mode
Audio Input Line [1..4] Channel
Set the audio input line equalizer mode.
Define whether the Audio Line input is a mono signal or part of a multichannel signal.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <Right/Left/Mono>
Off: No equalizer.
Right: The Audio Line input signal is the right channel of a stereo signal.
On: Enable the equalizer for the audio input line.
Left: The Audio Line input signal is the left channel of a stereo signal.
Mono: The Audio Line input signal is a mono signal.
Example: Audio Input Line 1 Equalizer Mode: Off
Example: Audio Input 1 Channel: Left
Audio Input Line [1..4] VideoAssociation MuteOnInactiveVideo
Enable association of a video source to a Line audio input.
Audio Input Line [1..4] Level
Requires user role: ADMIN
Define the audio level of the Line input connector, in steps of 1 dB.
See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete
overview of the menu values represented in dB.
Value space: <Off/On>
Off: No video source is associated.
Requires user role: ADMIN
On: A video source is associated, and the audio will be muted if the associated video source
is not displayed.
Value space: <0..24>
Range: Select a value from 0 to 24 dB.
Example: Audio Input Line 1 VideoAssociation MuteOnInactiveVideo: Off
Example: Audio Input Line 1 Level: 10
Audio Input Line [1..4] VideoAssociation VideoInputSource
Select the associated video input source.
Audio Input Line [1..4] Mode
Requires user role: ADMIN
Set the audio input line mode.
Value space: <1/2/3>
Requires user role: ADMIN
Value space: <Off/On>
Range: Select one of the video input sources.
Off: Disable the Audio Line input.
Example: Audio Input Line 1 VideoAssociation VideoInputSource: 1
On: Enable the Audio Line input.
Example: Audio Input Line 1 Mode: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
58
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Audio Input Microphone [1..8] EchoControl Mode
Audio Input Microphone [1..8] Equalizer ID
The echo canceller continuously adjusts itself to the audio characteristics of the room and
compensate for any changes it detects in the audio environment. If the changes in the audio
conditions are very significant the echo canceller may take a second or two to re-adjust.
Select the audio input microphone equalizer ID.
Requires user role: ADMIN
Value space: <1..8>
Appendices
Requires user role: ADMIN
Range: Select Equalizer ID 1 to 8.
Value space: <Off/On>
Example: Audio Input Microphone 1 Equalizer ID: 1
Off: Echo Control should be switched Off if external echo cancellation or playback
equipment is used.
On: Echo Control is normally set to On to prevent the far end from hearing their own audio.
Once selected, echo cancellation is active at all times.
Audio Input Microphone [1..8] Equalizer Mode
Set the audio input microphone equalizer mode.
Example: Audio Input Microphone 1 EchoControl Mode: On
Requires user role: ADMIN
Value space: <Off/On>
Audio Input Microphone [1..8] EchoControl NoiseReduction
Off: No equalizer.
The system has a built-in noise reduction which reduces constant background noise (for
example noise from air-conditioning systems, cooling fans etc.). In addition, a high pass filter
(Humfilter) reduces very low frequency noise. Requires the Echo Control Mode to be enabled
for the microphone.
On: Enable the equalizer for the audio input microphone.
Example: Audio Input Microphone 1 Equalizer Mode: Off
Requires user role: ADMIN
Audio Input Microphone [1..8] VideoAssociation MuteOnInactiveVideo
Value space: <Off/On>
Enable association of a video source to a microphone audio input.
Off: Turn off the Noise Reduction.
Requires user role: ADMIN
On: The Noise Reduction should be enabled in the presence of low frequency noise.
Value space: <Off/On>
Example: Audio Input Microphone 1 EchoControl NoiseReduction: On
Off: No video source is associated.
On: A video source is associated, and the audio will be muted if the associated video source
is not displayed.
Audio Input Microphone [1..8] EchoControl Dereverberation
The system has built-in signal processing to reduce the effect of room reverberation. Requires
the Echo Control Mode to be enabled for the microphone.
Example: Audio Input Microphone 1 VideoAssociation MuteOnInactiveVideo: On
Requires user role: ADMIN
Audio Input Microphone [1..8] VideoAssociation VideoInputSource
Value space: <Off/On>
Select the associated video input source.
Off: Turn off the dereverberation.
Requires user role: ADMIN
On: Turn on the dereverberation.
Value space: <1/2/3>
Example: Audio Input Microphone 1 EchoControl Dereverberation: On
Range: Select one of the video input sources.
Example: Audio Input Microphone 1 VideoAssociation VideoInputSource: 1
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
59
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Audio Input Microphone [1..8] Level
Audio Output HDMI [2] Level
Define the audio level of the Microphone input connector, in steps of 1dB.
This setting only applies to MX800.
See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete
overview of the menu values represented in dB.
Define the output level of the HDMI output connector, in steps of 1 dB.
Appendices
Requires user role: ADMIN
See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete
overview of the menu values represented in dB.
Value space: <0..70>
Requires user role: ADMIN
Value space: <-24..0>
Range: Select a value between 0 and 70 dB.
Range: Select a value from -24 to 0 dB.
Example: Audio Input Microphone 1 Level: 58
Example: Audio Output HDMI 2 Level: 0
Audio Input Microphone [1..8] Mode
Set the audio input microphone mode.
Audio Output HDMI [2] Mode
Requires user role: ADMIN
This setting only applies to MX800.
Determine if the audio channel on the HDMI output connector shall be enabled.
Value space: <Off/On>
Off: Disable the microphone connector.
Requires user role: ADMIN
On: Enable the microphone connector.
Value space: <Off/On>
Off: Disable the audio channel on the HDMI output.
Example: Audio Input Microphone 1 Mode: On
On: Enable the audio channel on the HDMI output.
Audio Input Microphone [1..8] Type
Example: Audio Output HDMI 2 Mode: Off
The microphone connectors are intended for electret type microphones. The microphone
connector can be set to line or microphone mode.
Audio Output Line [1..6] Channel
Requires user role: ADMIN
Define whether the Audio Line output is a mono signal or part of a multichannel signal.
Value space: <Microphone/Line>
Requires user role: ADMIN
Microphone: Select Microphone when you have 48 V Phantom voltage and the preamplification is On.
Value space: <Right/Left/Mono>
Right: The Audio Line output signal is the right channel of a stereo signal.
Line: Select Line when you have a standard balanced line input. The phantom voltage and
pre-amplification is Off.
Left: The Audio Line output signal is the left channel of a stereo signal.
Mono: The Audio Line output signal is a mono signal.
Example: Audio Input Microphone 1 Type: Line
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Example: Audio Output Line 1 Channel: left
60
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Audio Output Line [1..6] Equalizer ID
Audio Microphones Mute Enabled
Select the audio output line equalizer ID.
Determine whether audio-mute is allowed or not. The default value is True.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <1..8>
Value space: <True/InCallOnly>
Range: Select EqualizerID 1 to 8.
Appendices
True: Muting of audio is always available.
InCallOnly: Muting of audio is only available when the device is in a call. When Idle it is not
possible to mute the microphone. This is useful when an external telephone service/audio
system is connected via the codec and is to be available when the codec is not in a call.
When set to InCallOnly this will prevent the audio-system from being muted by mistake.
Example: Audio Output Line 1 Equalizer ID: 1
Audio Output Line [1..6] Equalizer Mode
Example: Audio Microphones Mute Enabled: True
Set the audio output line equalizer mode.
Requires user role: ADMIN
Audio SoundsAndAlerts KeyTones Mode
Value space: <Off/On>
The system can be configured to make a keyboard click sound effect (key tone) when typing
text or numbers on the Touch controller.
Off: No equalizer.
On: Enable the equalizer for the audio output line.
Requires user role: USER
Example: Audio Output Line 1 Equalizer Mode: Off
Value space: <Off/On>
Off: No key tones will be played when you type.
Audio Output Line [1..6] Level
On: You will hear key tones when you type.
Define the output level of the Audio Output Line connector, in steps of 1 dB.
Example: Audio SoundsAndAlerts KeyTones Mode: Off
See the Audio Level tables in the Physical Interfaces Guide for the codec for a complete
overview of the menu values represented in dB.
Requires user role: ADMIN
Audio SoundsAndAlerts RingTone
Value space: <-24..0>
This setting defines which ringtone to use for incoming calls. You need to enter the exact name
of the ringtone. You can find the available ringtones the following ways.
Range: Select a value from -24 to 0 dB.
Web interface: On the Configuration > Personalization page.
Example: Audio Output Line 1 Level: -10
Touch controller: On the Ringtone & Sound panel of the Settings menu. This panel is either
in the open part of the Settings menu, or included in the password protected Administrator
menu. The UserInterface UserPreference setting defines which panels will be in the password
protected area.
Audio Output Line [1..6] Mode
Set the audio output line mode.
Requires user role: USER
Requires user role: ADMIN
Value space: <S: 1, 100>
Value space: <Off/On>
Format: String with a maximum of 100 characters.
Off: Disable the Audio Line output.
Example: Audio SoundsAndAlerts RingTone: "Sunrise"
On: Enable the Audio Line output.
Example: Audio Output Line 1 Mode: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
61
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Audio SoundsAndAlerts RingVolume
Sets the ring volume for an incoming call.
Requires user role: USER
Value space: <0..100>
Range: The value goes in steps of 5 from 0 to 100 (from -34.5 dB to 15 dB). Volume 0 = Off.
Example: Audio SoundsAndAlerts RingVolume: 50
Audio DefaultVolume
Set the default speaker volume. The volume returns to this value when you switch on or restart
the video system. You can also run the following API command to return to the default value:
xCommand Audio Volume SetToDefault. Run the xCommand Audio Volume commands or use
the Touch controller to change the volume while the video system is running.
Requires user role: USER
Value space: <0..100>
Range: The value must be between 0 and 100. The values from 1 to 100 correspond to the
range from -34.5 dB to 15 dB (0.5 dB steps). The value 0 means that the audio is switched
off.
Example: Audio DefaultVolume: 70
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
62
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Cameras settings
Cameras PowerLine Frequency
Cameras Camera [1..7] Brightness Mode
If your camera supports power line frequency anti-flickering, the camera is able to compensate
for any flicker noise from the electrical power supply. You should set this camera configuration
based on your power line frequency. If your camera supports auto detection of line frequency,
you can select the Auto option in the configuration.
Set the camera brightness mode.
Requires user role: ADMIN
Value space: <Auto/Manual>
All Cisco Precision cameras support both anti-flickering and auto detection of line frequency.
Auto is the default value, so you should change this setting if you have a camera that does not
support auto detection.
Auto: The camera brightness is automatically set by the system.
Manual: Enable manual control of the camera brightness. The brightness level is set using
the Cameras Camera Brightness Level setting.
Requires user role: ADMIN
Example: Cameras Camera 1 Brightness Mode: Auto
Value space: <Auto/50Hz/60Hz>
Auto: Allow the camera to detect the power frequency automatically.
Cameras Camera [1..7] Brightness Level
50Hz: Use this value when the power line frequency is 50 Hz.
Set the brightness level. Requires the Camera Brightness Mode to be set to Manual.
60Hz: Use this value when the power line frequency is 60 Hz.
Requires user role: ADMIN
Example: Cameras PowerLine Frequency: Auto
Value space: <1..31>
Range: Select a value from 1 to 31.
Cameras Camera [1..7] Backlight
Example: Cameras Camera 1 Brightness Level: 20
This configuration turns backlight compensation on or off. Backlight compensation is useful
when there is much light behind the persons in the room. Without compensation the persons
will easily appear very dark to the far end.
Cameras Camera [n..7] Flip
Requires user role: ADMIN
This setting applies to Camera [2..7] for single camera systems, and to HDMI [3..7] for dual
camera systems.
Value space: <Off/On>
Off: Turn off the camera backlight compensation.
With Flip mode (vertical flip) you can flip the image upside down.
On: Turn on the camera backlight compensation.
Requires user role: ADMIN
Example: Cameras Camera 1 Backlight: Off
Value space: <Auto/Off/On>
Auto: When the camera is placed upside down the image is automatically flipped upside
down. This setting will only take effect for a camera that automatically detects which way it is
mounted.
Off: Display the video on screen the normal way.
On: When enabled the video on screen is flipped. This setting is used when a camera is
mounted upside down, but cannot automatically detect which way it is mounted.
Example: Cameras Camera 3 Flip: Auto
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
63
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Cameras Camera [n..7] Focus Mode
Cameras Camera [1..7] IrSensor
This setting applies to Camera [2..7] for single camera systems, and to HDMI [3..7] for dual
camera systems.
Not applicable in this version.
Set the camera focus mode.
Appendices
Cameras Camera [n..7] Mirror
Requires user role: ADMIN
This setting applies to Camera [2..7] for single camera systems, and to HDMI [3..7] for dual
camera systems.
Value space: <Auto/Manual>
Auto: The camera will auto focus once a call is connected, as well as after moving the
camera (pan, tilt, zoom). The system will use auto focus only for a few seconds to set the
right focus; then auto focus is turned off to prevent continuous focus adjustments of the
camera.
With Mirror mode (horizontal flip) you can mirror the image on screen.
Requires user role: ADMIN
Value space: <Auto/Off/On>
Manual: Turn the autofocus off and adjust the camera focus manually.
Example: Cameras Camera 3 Focus Mode: Auto
Auto: When the camera is placed upside down the image is automatically mirrored. Use this
setting with cameras that can be mounted upside down, and that can auto detect that the
camera is mounted upside down.
Cameras Camera [1..7] Gamma Mode
Off: See the self-view in normal mode, that is the experience of self-view is as seeing
yourself as other people see you.
On: See the self-view in mirror mode, that is the self-view is reversed and the experience of
self-view is as seeing yourself in a mirror.
This setting enables gamma corrections, and applies only to cameras which support gamma
mode. Gamma describes the nonlinear relationship between image pixels and monitor
brightness.
Example: Cameras Camera 3 Mirror: Auto
Requires user role: ADMIN
Cameras Camera [1..7] MotorMoveDetection
Value space: <Auto/Manual>
Auto: Auto is the default and the recommended setting.
This setting applies only when using a Cisco TelePresence PrecisionHD 1080p12x camera.
Manual: In manual mode the gamma value is changed with the gamma level setting, ref:
Cameras Camera [1..n] Gamma Level.
If adjusting the camera position by hand you can configure whether the camera should keep its
new position or return to the preset or position it had before.
Example: Cameras Camera 1 Gamma Mode: Auto
Requires user role: ADMIN
Value space: <Off/On>
Cameras Camera [1..7] Gamma Level
Off: When the camera position is adjusted manually the camera will keep this position until
adjusted again. WARNING: If moving the camera by hand, the camera will not register the
new pan and tilt values since there is no position feedback. This will result in wrong pan and
tilt values when recalling the camera presets subsequently.
By setting the Gamma Level you can select which gamma correction table to use. This setting
may be useful in difficult lighting conditions, where changes to the brightness setting does not
provide satisfactory results. Requires the Gamma Mode to be set to Manual.
On: When the camera position is adjusted manually, or the camera detects that the motors
have moved, it will first re-initialize (i.e. go to default position) then return to the preset/
position it had before the camera was adjusted.
Requires user role: ADMIN
Value space: <0..7>
Example: Cameras Camera 1 MotorMoveDetection: Off
Range: Select a value from 0 to 7.
Example: Cameras Camera 1 Gamma Level: 0
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
64
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Cameras Camera [1..7] Whitebalance Mode
Set the camera white balance mode.
Requires user role: ADMIN
Value space: <Auto/Manual>
Auto: The camera will continuously adjust the white balance depending on the camera view.
Manual: Enables manual control of the camera white balance. The white balance level is set
using the Cameras Camera Whitebalance Level setting.
Example: Cameras Camera 1 Whitebalance Mode: Auto
Cameras Camera [1..7] Whitebalance Level
Set the white balance level. Requires the Camera Whitebalance Mode to be set to manual.
Requires user role: ADMIN
Value space: <1..16>
Range: Select a value from 1 to 16.
Example: Cameras Camera 1 Whitebalance Level: 1
Cameras Camera [1..7] DHCP
Not applicable for this product.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
65
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Conference settings
Conference [1..1] ActiveControl Mode
Conference [1..1] AutoAnswer Mute
Active control is a feature that allows conference participants to administer a conference
on Cisco TelePresence Server using the video system's interfaces. Each user can see the
participant list, change video layout, disconnect participants, etc. from the interface. The active
control feature is enabled by default, provided that it is supported by the infrastructure (Cisco
Unified Communications Manager (CUCM) version 9.1.2 or newer, Cisco TelePresence Video
Communication Server (VCS) version X8.1 or newer). Change this setting if you want to disable
the active control features.
Determine if the microphone shall be muted when an incoming call is automatically answered.
Requires that AutoAnswer Mode is switched on.
Requires user role: ADMIN
Value space: <Off/On>
Off: The incoming call will not be muted.
On: The incoming call will be muted when automatically answered.
Requires user role: ADMIN
Example: Conference 1 AutoAnswer Mute: Off
Value space: <Auto/Off>
Auto: Active control is enabled when supported by the infrastructure.
Conference [1..1] AutoAnswer Delay
Off: Active control is disabled.
Define how long (in seconds) an incoming call has to wait before it is answered automatically by
the system. Requires that AutoAnswer Mode is switched on.
Example: Conference ActiveControl Mode: Auto
Requires user role: ADMIN
Conference [1..1] CallProtocolIPStack
Value space: <0..50>
Select if the system should enable IPv4, IPv6, or dual IP stack on the call protocol (SIP, H323).
Range: Select a value from 0 to 50 seconds.
Requires user role: ADMIN
Example: Conference 1 AutoAnswer Delay: 0
Value space: <Dual/IPv4/IPv6>
Dual: Enables both IPv4 and IPv6 for the call protocol.
Conference [1..1] MicUnmuteOnDisconnect Mode
IPv4: When set to IPv4, the call protocol will use IPv4.
Determine if the microphones shall be unmuted automatically when all calls are disconnected.
In a meeting room or other shared resources this may be done to prepare the system for the
next user.
IPv6: When set to IPv6, the call protocol will use IPv6.
Example: Conference 1 CallProtocolIPStack: Dual
Requires user role: ADMIN
Conference [1..1] AutoAnswer Mode
Value space: <Off/On>
Set the auto answer mode.
Off: If muted during a call, let the microphones remain muted after the call is disconnected.
Requires user role: ADMIN
On: Unmute the microphones after the call is disconnected.
Example: Conference 1 MicUnmuteOnDisconnect Mode: On
Value space: <Off/On>
Off: An incoming call must be answered manually by tapping the Accept key on the Touch
controller.
On: Enable auto answer to let the system automatically answer all incoming calls.
Example: Conference 1 AutoAnswer Mode: Off
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
66
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Conference [1..1] DoNotDisturb DefaultTimeout
Conference [1..1] Encryption Mode
This setting determines the default duration of a Do Not Disturb session, i.e. the period when
incoming calls are rejected and registered as missed calls. The session can be terminated
earlier by using the user interface (Touch controller). The default value is 60 minutes.
Set the conference encryption mode. A padlock with the text "Encryption On" or "Encryption
Off" displays on screen for a few seconds when the conference starts.
Requires user role: ADMIN
NOTE: Requires the Encryption Option Key to be installed. When the Encryption Option Key is
not installed the encryption mode is set to Off.
Value space: <0..1440>
Requires user role: ADMIN
Value space: <Off/On/BestEffort>
Range: Select the number of minutes (between 0 and 1440, i.e. 24 hours) before the Do Not
Disturb session times out automatically.
Off: The system will not use encryption.
Example: Conference 1 DoNotDisturb DefaultTimeOut: 60
On: The system will only allow calls that are encrypted.
Conference [1..1] FarEndControl Mode
> In Point to point calls: If the far end system supports encryption (AES-128), the call will be
encrypted. If not, the call will proceed without encryption.
BestEffort: The system will use encryption whenever possible.
Lets you decide if the remote side (far end) should be allowed to select your video sources and
control your local camera (pan, tilt, zoom).
> In MultiSite calls: In order to have encrypted MultiSite conferences, all sites must support
encryption. If not, the conference will be unencrypted.
Requires user role: ADMIN
Example: Conference 1 Encryption Mode: BestEffort
Value space: <Off/On>
Off: The far end is not allowed to select your video sources or to control your local camera
(pan, tilt, zoom).
Conference [1..1] DefaultCall Rate
On: Allows the far end to be able to select your video sources and control your local camera
(pan, tilt, zoom). You will still be able to control your camera and select your video sources
as normal.
Requires user role: ADMIN
Set the Default Call Rate to be used when placing calls from the system.
Value space: <64..6000>
Example: Conference 1 FarEndControl Mode: On
Range: Select a value between 64 and 6000 kbps.
Example: Conference 1 DefaultCall Rate: 1920
Conference [1..1] FarEndControl SignalCapability
Set the far end control (H.224) signal capability mode.
Conference [1..1] MaxTransmitCallRate
Requires user role: ADMIN
Off: Disable the far end control signal capability.
Specify the maximum transmit bit rate to be used when placing or receiving calls. Note that this
is the maximum bit rate for each individual call; use the Conference MaxTotalTransmitCallRate
setting to set the aggregated maximum for all simultaneous active calls.
On: Enable the far end control signal capability.
Requires user role: ADMIN
Value space: <Off/On>
Example: Conference 1 FarEndControl SignalCapability: On
Value space: <64..6000>
Range: Select a value between 64 and 6000 kbps.
Example: Conference 1 MaxTransmitCallRate: 6000
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
67
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Conference [1..1] MaxReceiveCallRate
Conference [1..1] MaxTotalReceiveCallRate
Specify the maximum receive bit rate to be used when placing or receiving calls. Note that this
is the maximum bit rate for each individual call; use the Conference MaxTotalReceiveCallRate
setting to set the aggregated maximum for all simultaneous active calls.
This configuration applies when using a video system's built-in MultiSite feature (optional) to
host a multipoint video conference.
Specify the maximum overall receive bit rate allowed. The bit rate will be divided fairly among
all active calls at any time. This means that the individual calls will be up-speeded or downspeeded as appropriate when someone leaves or enters a multipoint conference, or when a call
is put on hold (suspended) or resumed.
Requires user role: ADMIN
Value space: <64..6000>
Range: Select a value between 64 and 6000 kbps.
The maximum receive bit rate for each individual call is defined in the Conference
MaxReceiveCallRate setting.
Example: Conference 1 MaxReceiveCallRate: 6000
Requires user role: ADMIN
Value space: <64..10000>
Conference [1..1] MaxTotalTransmitCallRate
Range: Select a value between 64 and 10000.
This configuration applies when using a video system's built-in MultiSite feature (optional) to
host a multipoint video conference.
Example: Conference 1 MaxTotalReceiveCallRate: 10000
Specify the maximum overall transmit bit rate allowed. The bit rate will be divided fairly among
all active calls at any time. This means that the individual calls will be up-speeded or downspeeded as appropriate when someone leaves or enters a multipoint conference, or when a call
is put on hold (suspended) or resumed.
Conference [1..1] VideoBandwidth Mode
Set the conference video bandwidth mode.
The maximum transmit bit rate for each individual call is defined in the Conference
MaxTransmitCallRate setting.
Requires user role: ADMIN
Value space: <Dynamic/Static>
Requires user role: ADMIN
Dynamic: The available transmit bandwidth for the video channels are distributed among the
currently active channels. If there is no presentation, the main video channels will use the
bandwidth of the presentation channel.
Value space: <64..10000>
Range: Select a value between 64 and 10000.
Static: The available transmit bandwidth is assigned to each video channel, even if it is not
active.
Example: Conference 1 MaxTotalTransmitCallRate: 10000
Example: Conference 1 VideoBandwidth Mode: Dynamic
Conference [1..1] VideoBandwidth MainChannel Weight
The available transmit video bandwidth is distributed on the main channel and presentation
channel according to "MainChannel Weight" and "PresentationChannel Weight". If the main
channel weight is 2 and the presentation channel weight is 1, then the main channel will use
twice as much bandwidth as the presentation channel.
Requires user role: ADMIN
Value space: <1..10>
Range: 1 to 10.
Example: Conference 1 VideoBandwidth MainChannel Weight: 5
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
68
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Conference [1..1] VideoBandwidth PresentationChannel Weight
Conference [1..1] Multipoint Mode
The available transmit video bandwidth is distributed on the main channel and presentation
channel according to "MainChannel Weight" and "PresentationChannel Weight". If the main
channel weight is 2 and the presentation channel weight is 1, then the main channel will use
twice as much bandwidth as the presentation channel.
Define how the video system handles multiparty video conferences.
Appendices
Value space: <1..10>
If registered to a Cisco TelePresence Video Communication Server (VCS), the video system
can use its built-in MultiSite feature. If registered to a Cisco Unified Communications Manager
(CUCM) version 8.6.2 or newer, the video system can use either the CUCM conference bridge,
or the video system's built-in MultiSite feature. Which one to use is set-up by CUCM. The
CUCM conference bridge allows you to set up conferences with many participants; MultiSite
allows up to five participants (yourself included).
Range: 1 to 10.
Note that the built-in MultiSite feature is optional and may not be available on all video systems.
Requires user role: ADMIN
Example: Conference 1 VideoBandwidth PresentationChannel Weight: 5
Requires user role: ADMIN
Value space: <Auto/Off/MultiSite/CUCMMediaResourceGroupList>
Conference [1..1] Presentation RelayQuality
Auto: The multipoint method available will be choosen automatically; if none are available the
Multipoint Mode will automatically be set to Off.
This configuration applies to video systems that are using the built-in MultiSite feature (optional)
to host a multipoint video conference. When a remote user shares a presentation, the video
system (codec) will transcode the presentation and send it to the other participants in the
multipoint conference. The RelayQuality setting specifies whether to give priority to high frame
rate or to high resolution for the presentation source.
Off: Multiparty conferences are not allowed.
MultiSite: Multiparty conferences are set up using the built-in MultiSite feature. If MultiSite is
chosen when the MultiSite feature is not available, the Multipoint Mode will automatically be
set to Off.
CUCMMediaResourceGroupList: Multiparty conferences (ad hoc conferences) are hosted by
the CUCM configured conference bridge. This setting is provisioned by CUCM in a CUCM
environment and should never be set manually by the user.
Requires user role: ADMIN
Value space: <Motion/Sharpness>
Motion: Gives the highest possible frame rate. Used when there is a need for higher frame
rates, typically when there is a lot of motion in the picture.
Example: Conference 1 Multipoint Mode: Auto
Sharpness: Gives the highest possible resolution. Used when you want the highest quality of
detailed images and graphics.
Conference [1..1] IncomingMultisiteCall Mode
Example: Conference 1 Presentation RelayQuality: Sharpness
Select whether or not to allow incoming calls when already in a call/conference.
Requires user role: ADMIN
Conference [1..1] Presentation OnPlacedOnHold
Value space: <Allow/Deny>
Allow: You will be notified when someone calls you while you are already in a call. You can
accept the incoming call or not. The ongoing call may be put on hold while answering the
incoming call; or you may merge the calls (requires MultiSite support).
Define whether or not to continue sharing a presentation after the remote site has put you on
hold.
Requires user role: ADMIN
Deny: An incoming call will be rejected if you are already in a call. You will not be notified
about the incoming call. However, the call will appear as a missed call in the call history list.
Value space: <Stop/NoAction>
Stop: The video system stops the presentation sharing when the remote site puts you on
hold. The presentation will not continue when the call is resumed.
Example: Conference 1 IncomingMultisiteCall Mode: Allow
NoAction: The video system will not stop the presentation sharing when put on hold. The
presentation will not be shared while you are on hold, but it will continue automatically when
the call is resumed.
Example: Conference 1 Presentation OnPlacedOnHold: NoAction
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
69
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
FacilityService settings
FacilityService Service [1..5] Type
FacilityService Service [1..5] Number
Up to five different facility services can be supported simultaneously. With this setting you
can select what kind of services they are. A facility service is not available unless both the
FacilityService Service Name and the FacilityService Service Number settings are properly set.
Only FacilityService Service 1 with Type Helpdesk is available on the Touch controller; the other
options are available for system integrators using the API (Application Programming Interface)
command set.
Enter the number (URI or phone number) of the facility service. Up to five different facility
services are supported. A facility service is not available unless both the FacilityService Service
Name and the FacilityService Service Number settings are properly set. Only FacilityService
Service 1 is available on the Touch controller; the other options are available for system
integrators using the API (Application Programming Interface) command set.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <S: 0, 255>
Value space: <Other/Concierge/Helpdesk/Emergency/Security/Catering/Transportation>
Format: String with a maximum of 255 characters.
Other: Select this option for services not covered by the other options.
Example: FacilityService Service 1 Number: ""
Concierge: Select this option for concierge services.
Helpdesk: Select this option for helpdesk services.
FacilityService Service [1..5] CallType
Emergency: Select this option for emergency services.
Security: Select this option for security services.
Set the call type for each facility service. Up to five different facility services are supported.
A facility service is not available unless both the FacilityService Service Name and the
FacilityService Service Number settings are properly set. Only FacilityService Service 1 is
available on the Touch controller; the other options are available for system integrators using
the API (Application Programming Interface) command set.
Catering: Select this option for catering services.
Transportation: Select this option for transportation services.
Example: FacilityService Service 1 Type: Helpdesk
Requires user role: ADMIN
FacilityService Service [1..5] Name
Value space: <Video/Audio>
Video: Select this option for video calls.
Enter the name of the facility service. Up to five different facility services are supported.
A facility service is not available unless both the FacilityService Service Name and the
FacilityService Service Number settings are properly set. Only FacilityService Service 1 is
available on the Touch controller, and the name will show on the facility service call button.
The other services are available for system integrators using the API (Application Programming
Interface) command set.
Audio: Select this option for audio calls.
Example: FacilityService Service 1 CallType: Video
Requires user role: ADMIN
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
Example: FacilityService Service 1 Name: ""
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
70
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
GPIO settings
GPIO Pin [1..4] Mode
The four GPIO pins are configured individually. The state can be retrieved by "xStatus GPIO Pin
[1..4] State". The default pin state is High (+12 V). When activated as output, they are set to 0 V.
To activate them as input, they must be pulled down to 0 V.
Requires user role: ADMIN
Value space: <InputNoAction/OutputManualState/OutputInCall/OutputMicrophonesMuted/
OutputPresentationOn/OutputAllCallsEncrypted/OutputStandbyActive/InputMuteMicrophones>
InputNoAction: The pin state can be set, but no operation is performed.
OutputManualState: The pin state can be set by "xCommand GPIO ManualState Set PinX:
<High/Low>" (to +12 V or 0 V, respectively).
OutputInCall: The pin is activated when in call, deactivated when not in call.
OutputMicrophonesMuted: The pin is activated when microphones are muted, deactivated
when not muted.
OutputPresentationOn: The pin is activated when presentation is active, deactivated when
presentation is not active.
OutputAllCallsEncrypted: The pin is activated when all calls are encrypted, deactivated when
one or more calls are not encrypted.
OutputStandbyActive: The pin is activated when the system is in standby mode, deactivated
when no longer in standby.
InputMuteMicrophones: When the pin is activated (0 V), the microphones will be muted.
When deactivated (+ 12 V), the microphones are unmuted.
Example: GPIO Pin 1 Mode: InputNoAction
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
71
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
H323 settings
H323 NAT Mode
H323 Profile [1..1] Authentication Mode
The firewall traversal technology creates a secure path through the firewall barrier, and enables
proper exchange of audio/video data when connected to an external video conferencing
system (when the IP traffic goes through a NAT router). NOTE: NAT does not work in
conjunction with gatekeepers.
Set the authenticatin mode for the H.323 profile.
Requires user role: ADMIN
Value space: <Off/On>
Off: If the H.323 Gatekeeper Authentication Mode is set to Off the system will not try to
authenticate itself to a H.323 Gatekeeper, but will still try a normal registration.
Requires user role: ADMIN
Value space: <Auto/Off/On>
On: If the H.323 Gatekeeper Authentication Mode is set to On and a H.323 Gatekeeper
indicates that it requires authentication, the system will try to authenticate itself to the
gatekeeper. Requires the Authentication LoginName and Authentication Password to be
defined on both the codec and the Gatekeeper.
Auto: The system will determine if the H323 NAT Address or the real IP address should be
used in signaling. This makes it possible to place calls to endpoints on the LAN as well as
endpoints on the WAN. If the H323 NAT Address is wrong or not set, the real IP address will
be used.
Off: The system will signal the real IP address.
Example: H323 Profile 1 Authentication Mode: Off
On: The system will signal the configured H323 NAT Address instead of its real IP address
in Q.931 and H.245. The NAT Server Address will be shown in the startup-menu as: "My IP
Address: 10.0.2.1". If the H323 NAT Address is wrong or not set, H.323 calls cannot be set
up.
H323 Profile [1..1] Authentication LoginName
The system sends the Authentication Login Name and the Authentication Password to a H.323
Gatekeeper for authentication. The authentication is a one way authentication from the codec
to the H.323 Gatekeeper, i.e. the system is authenticated to the gatekeeper. If the H.323
Gatekeeper indicates that no authentication is required, the system will still try to register.
Requires the H.323 Gatekeeper Authentication Mode to be enabled.
Example: H323 NAT Mode: Off
H323 NAT Address
Requires user role: ADMIN
Enter the external/global IP address to the router with NAT support. Packets sent to the
router will then be routed to the system. Note that NAT cannot be used when registered to a
gatekeeper.
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
In the router, the following ports must be routed to the system's IP address:
Example: H323 Profile 1 Authentication LoginName: ""
* Port 1720
* Port 5555-6555
* Port 2326-2487
Requires user role: ADMIN
Value space: <S: 0, 64>
Format: A valid IPv4 address or IPv6 address.
Example: H323 NAT Address: ""
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
72
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
H323 Profile [1..1] Authentication Password
H323 Profile [1..1] Gatekeeper Address
The system sends the Authentication Login Name and the Authentication Password to a H.323
Gatekeeper for authentication. The authentication is a one way authentication from the codec
to the H.323 Gatekeeper, i.e. the system is authenticated to the gatekeeper. If the H.323
Gatekeeper indicates that no authentication is required, the system will still try to register.
Requires the H.323 Gatekeeper Authentication Mode to be enabled.
Enter the IP address of the Gatekeeper. Requires the H.323 Call Setup Mode to be set to
Gatekeeper and the Gatekeeper Discovery to be set to Manual.
Requires user role: ADMIN
Value space: <S: 0, 255>
Format: A valid IPv4 address, IPv6 address or DNS name.
Requires user role: ADMIN
Example: H323 Profile 1 Gatekeeper Address: "192.0.2.0"
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
Example: H323 Profile 1 Authentication Password: ""
H323 Profile [1..1] H323Alias E164
H323 Profile [1..1] CallSetup Mode
The H.323 Alias E.164 defines the address of the system, according to the numbering plan
implemented in the H.323 Gatekeeper. The E.164 alias is equivalent to a telephone number,
sometimes combined with access codes.
The H.323 Call Setup Mode defines whether to use a Gatekeeper or Direct calling when
establishing H323 calls.
Requires user role: ADMIN
NOTE: Direct H.323 calls can be made even though the H.323 Call Setup Mode is set to
Gatekeeper.
Value space: <S: 0, 30>
Requires user role: ADMIN
Example: H323 Profile 1 H323Alias E164: "90550092"
Format: Compact string with a maximum of 30 characters. Valid characters are 0-9, * and #.
Value space: <Direct/Gatekeeper>
Direct: An IP address must be used when dialing in order to make the H323 call.
H323 Profile [1..1] H323Alias ID
Gatekeeper: The system will use a Gatekeeper to make a H.323 call. When selecting this
option the H323 Profile Gatekeeper Address and H323 Profile Gatekeeper Discovery
settings must also be configured.
Lets you specify the H.323 Alias ID which is used to address the system on a H.323 Gatekeeper
and will be displayed in the call lists. Example: "[email protected]", "My H.323
Alias ID"
Example: H323 Profile 1 CallSetup Mode: Gatekeeper
Requires user role: ADMIN
Value space: <S: 0, 49>
H323 Profile [1..1] Gatekeeper Discovery
Format: String with a maximum of 49 characters.
Determine how the system shall register to a H.323 Gatekeeper.
Example: H323 Profile 1 H323Alias ID: "[email protected]"
Requires user role: ADMIN
Value space: <Manual/Auto>
Manual: The system will use a specific Gatekeeper identified by the Gatekeeper's IP address.
Auto: The system will automatically try to register to any available Gatekeeper. If a
Gatekeeper responds to the request sent from the codec within 30 seconds this specific
Gatekeeper will be used. This requires that the Gatekeeper is in auto discovery mode as
well. If no Gatekeeper responds, the system will not use a Gatekeeper for making H.323
calls and hence an IP address must be specified manually.
Example: H323 Profile 1 Gatekeeper Discovery: Manual
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
73
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
H323 Profile [1..1] PortAllocation
The H.323 Port Allocation setting affects the H.245 port numbers used for H.323 call signalling.
Requires user role: ADMIN
Value space: <Dynamic/Static>
Dynamic: The system will allocate which ports to use when opening a TCP connection. The
reason for doing this is to avoid using the same ports for subsequent calls, as some firewalls
consider this as a sign of attack. When Dynamic is selected, the H.323 ports used are from
11000 to 20999. Once 20999 is reached they restart again at 11000. For RTP and RTCP
media data, the system is using UDP ports in the range 2326 to 2487. Each media channel
is using two adjacent ports, ie 2330 and 2331 for RTP and RTCP respectively. The ports are
automatically selected by the system within the given range. Firewall administrators should
not try to deduce which ports are used when, as the allocation schema within the mentioned
range may change without any further notice.
Static: When set to Static the ports are given within a static predefined range [5555-6555].
Example: H323 Profile 1 PortAllocation: Dynamic
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
74
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Logging settings
Logging Mode
Not applicable in this version.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
75
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Network settings
Network [1..1] IPStack
Network [1..1] IPv4 Gateway
Select if the system should use IPv4, IPv6, or dual IP stack, on the network interface. NOTE:
After changing this setting you may have to wait up to 30 seconds before it takes effect.
Define the IPv4 network gateway. This setting is only applicable when the Network Assignment
is set to Static.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Dual/IPv4/IPv6>
Value space: <S: 0, 64>
Dual: When set to Dual, the network interface can operate on both IP versions at the same
time, and can have both an IPv4 and an IPv6 address at the same time.
Format: A valid IPv4 address.
Example: Network 1 IPv4 Gateway: "192.0.2.1"
IPv4: When set to IPv4, the system will use IPv4 on the network interface.
IPv6: When set to IPv6, the system will use IPv6 on the network interface.
Network [1..1] IPv4 SubnetMask
Example: Network 1 IPStack: Dual
Define the IPv4 network subnet mask. This setting is only applicable when the Network
Assignment is set to Static.
Network [1..1] IPv4 Assignment
Requires user role: ADMIN
Define how the system will obtain its IPv4 address, subnet mask and gateway address. This
setting only applies to systems on IPv4 networks.
Value space: <S: 0, 64>
Format: The valid IPv4 address format.
Requires user role: ADMIN
Example: Network 1 IPv4 SubnetMask: "255.255.255.0"
Value space: <Static/DHCP>
Static: The addresses must be configured manually using the Network IPv4 Address,
Network IPv4 Gateway and Network IPv4 SubnetMask settings (static addresses).
Network [1..1] IPv6 Assignment
DHCP: The system addresses are automatically assigned by the DHCP server.
Define how the system will obtain its IPv6 address and the default gateway address. This
setting only applies to systems on IPv6 networks.
Example: Network 1 IPv4 Assignment: DHCP
Requires user role: ADMIN
Network [1..1] IPv4 Address
Value space: <Static/DHCPv6/Autoconf>
Static: The codec and gateway IP addresses must be configured manually using the Network
IPv6 Address and Network IPv6 Gateway settings. The options, for example NTP and DNS
server addresses, must either be set manually or obtained from a DHCPv6 server. The
Network IPv6 DHCPOptions setting determines which method to use.
Enter the static IPv4 network address for the system. This setting is only applicable when
Network Assignment is set to Static.
Requires user role: ADMIN
DHCPv6: All IPv6 addresses, including options, will be obtained from a DHCPv6 server. See
RFC 3315 for a detailed description. The Network IPv6 DHCPOptions setting will be ignored.
Value space: <S: 0, 64>
Format: A valid IPv4 address.
Autoconf: Enable IPv6 stateless autoconfiguration of the IPv6 network interface. See RFC
4862 for a detailed description. The options, for example NTP and DNS server addresses,
must either be set manually or obtained from a DHCPv6 server. The Network IPv6
DHCPOptions setting determines which method to use.
Example: Network 1 IPv4 Address: "192.0.2.2"
Example: Network 1 IPv6 Assignment: Autoconf
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
76
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Network [1..1] IPv6 Address
Network [1..1] DHCP RequestTFTPServerAddress
Enter the static IPv6 network address for the system. This setting is only applicable when the
Network IPv6 Assignment is set to Static.
This setting is used only for video systems that are registered to a Cisco Unified
Communications Manager (CUCM).
Requires user role: ADMIN
The setting determines whether the endpoint should ask the DHCP server for DHCP option 150,
so that it can discover the address of the TFTP server (provisioning server) automatically.
Value space: <S: 0, 64>
If this setting is Off or the DHCP server does not support option 150, the TFTP server address
must be set manually using the Provisioning ExternalManager Address setting.
Format: A valid IPv6 address.
Example: Network 1 IPv6 Address: "2001:0DB8:0000:0000:0000:0000:0000:0002"
If the Network VLAN Voice Mode setting is Auto and the Cisco Discovery Protocol (CDP)
assigns an ID to the voice VLAN, then a request for option 150 will always be sent. That is, the
Network DHCP RequestTFTFServerAddress setting will be ignored.
Network [1..1] IPv6 Gateway
Requires user role: ADMIN
Define the IPv6 network gateway address. This setting is only applicable when the Network
IPv6 Assignment is set to Static.
Value space: <Off/On>
Requires user role: ADMIN
Off: The video system will not send a request for DHCP option 150 and the address of the
TFTP server must be set manually. See the note above for any exception to this rule.
Value space: <S: 0, 64>
On: The video system will send a request for option 150 to the DHCP server so that it can
automatically discover the address of the TFTP server.
Format: A valid IPv6 address.
Example: Network 1 DHCP RequestTFTPServerAddress: On
Example: Network 1 IPv6 Gateway: "2001:0DB8:0000:0000:0000:0000:0000:0001"
Network [1..1] DNS Domain Name
Network [1..1] IPv6 DHCPOptions
DNS Domain Name is the default domain name suffix which is added to unqualified names.
Retrieve a set of DHCP options, for example NTP and DNS server addresses, from a DHCPv6
server.
Example: If the DNS Domain Name is "company.com" and the name to lookup is
"MyVideoSystem", this will result in the DNS lookup "MyVideoSystem.company.com".
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <S: 0, 64>
Off: Disable the retrieval of DHCP options from a DHCPv6 server.
Format: String with a maximum of 64 characters.
On: Enable the retrieval of a selected set of DHCP options from a DHCPv6 server.
Example: Network 1 DNS Domain Name: ""
Example: Network 1 IPv6 DHCPOptions: On
Network [1..1] DNS Server [1..3] Address
Define the network addresses for DNS servers. Up to 3 addresses may be specified. If the
network addresses are unknown, contact your administrator or Internet Service Provider.
Requires user role: ADMIN
Value space: <S: 0, 64>
Format: A valid IPv4 address or IPv6 address.
Example: Network 1 DNS Server 1 Address: ""
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
77
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Network [1..1] QoS Mode
Network [1..1] QoS Diffserv Video
The QoS (Quality of Service) is a method which handles the priority of audio, video and data in
the network. The QoS settings must be supported by the infrastructure. Diffserv (Differentiated
Services) is a computer networking architecture that specifies a simple, scalable and coarsegrained mechanism for classifying, managing network traffic and providing QoS priorities on
modern IP networks.
This setting will only take effect if Network QoS Mode is set to Diffserv.
Appendices
Define which priority Video packets should have in the IP network. The packets on the
presentation channel (shared content) are also in the Video packet category. The priority for the
packets ranges from 0 to 63 - the higher the number, the higher the priority. The recommended
class for Video is CS4, which equals the decimal value 32. If in doubt, contact your network
administrator.
Requires user role: ADMIN
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
Value space: <Off/Diffserv>
Off: No QoS method is used.
Requires user role: ADMIN
Diffserv: When you set the QoS Mode to Diffserv, the Network QoS Diffserv Audio, Network
QoS Diffserv Video, Network QoS Diffserv Data, Network QoS Diffserv Signalling, Network
QoS Diffserv ICMPv6 and Network QoS Diffserv NTP settings are used to prioritize packets.
Value space: <0..63>
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Example: Network 1 QoS Mode: Diffserv
Example: Network 1 QoS Diffserv Video: 0
Network [1..1] QoS Diffserv Audio
This setting will only take effect if Network QoS Mode is set to Diffserv.
Network [1..1] QoS Diffserv Data
Define which priority Audio packets should have in the IP network.
This setting will only take effect if Network QoS Mode is set to Diffserv.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.
The recommended class for Audio is CS4, which equals the decimal value 32. If in doubt,
contact your network administrator.
Define which priority Data packets should have in the IP network.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.
The recommended value for Data is 0, which means best effort. If in doubt, contact your
network administrator.
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
Requires user role: ADMIN
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
Value space: <0..63>
Requires user role: ADMIN
Value space: <0..63>
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Example: Network 1 QoS Diffserv Audio: 0
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Example: Network 1 QoS Diffserv Data: 0
78
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Network [1..1] QoS Diffserv Signalling
Network [1..1] QoS Diffserv NTP
This setting will only take effect if Network QoS Mode is set to Diffserv.
This setting will only take effect if Network QoS Mode is set to Diffserv.
Define which priority Signalling packets that are deemed critical (time-sensitive) for the realtime operation should have in the IP network.
Define which priority NTP packets should have in the IP network.
Appendices
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.
The recommended value for NTP is 0, which means best effort. If in doubt, contact your
network administrator.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.
The recommended class for Signalling is CS3, which equals the decimal value 24. If in doubt,
contact your network administrator.
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <0..63>
Value space: <0..63>
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Example: Network 1 QoS Diffserv NTP: 0
Example: Network 1 QoS Diffserv Signalling: 0
Network [1..1] IEEE8021X Mode
Network [1..1] QoS Diffserv ICMPv6
This setting will only take effect if Network QoS Mode is set to Diffserv.
The system can be connected to an IEEE 802.1X LAN network, with a port-based network
access control that is used to provide authenticated network access for Ethernet networks.
Define which priority ICMPv6 packets should have in the IP network.
Requires user role: ADMIN
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the priority.
The recommended value for ICMPv6 is 0, which means best effort. If in doubt, contact your
network administrator.
Value space: <Off/On>
Off: The 802.1X authentication is disabled (default).
On: The 802.1X authentication is enabled.
The priority set here might be overridden when packets are leaving the network controlled by
the local network administrator.
Example: Network 1 IEEE8021X Mode: Off
Requires user role: ADMIN
Value space: <0..63>
Range: Select a value between 0 to 63 - the higher the number, the higher the priority. The
default value is 0 (best effort).
Example: Network 1 QoS Diffserv ICMPv6: 0
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
79
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Network [1..1] IEEE8021X TlsVerify
Network [1..1] IEEE8021X Password
Verification of the server-side certificate of an IEEE802.1x connection against the certificates in
the local CA-list when TLS is used. The CA-list must be uploaded to the video system. This can
be done from the web interface.
The 802.1X Password is the password needed for 802.1X authentication.
This setting takes effect only when Network [1..1] IEEE8021X Eap Tls is enabled (On).
Value space: <S: 0, 32>
Appendices
Requires user role: ADMIN
Format: String with a maximum of 32 characters.
Requires user role: ADMIN
Example: Network 1 IEEE8021X Password: ""
Value space: <Off/On>
Off: When set to Off, TLS connections are allowed without verifying the server-side X.509
certificate against the local CA-list. This should typically be selected if no CA-list has been
uploaded to the codec.
Network [1..1] IEEE8021X AnonymousIdentity
The 802.1X Anonymous ID string is to be used as unencrypted identity with EAP (Extensible
Authentication Protocol) types that support different tunneled identity, like EAP-PEAP and EAPTTLS. If set, the anonymous ID will be used for the initial (unencrypted) EAP Identity Request.
On: When set to On, the server-side X.509 certificate will be validated against the local CAlist for all TLS connections. Only servers with a valid certificate will be allowed.
Example: Network 1 IEEE8021X TlsVerify: Off
Requires user role: ADMIN
Value space: <S: 0, 64>
Network [1..1] IEEE8021X UseClientCertificate
Format: String with a maximum of 64 characters.
Authentication using a private key/certificate pair during an IEEE802.1x connection. The
authentication X.509 certificate must be uploaded to the video system. This can be done from
the web interface.
Example: Network 1 IEEE8021X AnonymousIdentity: ""
Requires user role: ADMIN
Network [1..1] IEEE8021X Eap Md5
Value space: <Off/On>
Set the Md5 (Message-Digest Algorithm 5) mode. This is a Challenge Handshake
Authentication Protocol that relies on a shared secret. Md5 is a Weak security.
Off: When set to Off client-side authentication is not used (only server-side).
Requires user role: ADMIN
On: When set to On the client (video system) will perform a mutual authentication TLS
handshake with the server.
Value space: <Off/On>
Example: Network 1 IEEE8021X UseClientCertificate: Off
Off: The EAP-MD5 protocol is disabled.
On: The EAP-MD5 protocol is enabled (default).
Network [1..1] IEEE8021X Identity
Example: Network 1 IEEE8021X Eap Md5: On
The 802.1X Identity is the user name needed for 802.1X authentication.
Requires user role: ADMIN
Value space: <S: 0, 64>
Format: String with a maximum of 64 characters.
Example: Network 1 IEEE8021X Identity: ""
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
80
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Network [1..1] IEEE8021X Eap Ttls
Network [1..1] MTU
Set the TTLS (Tunneled Transport Layer Security) mode. Authenticates LAN clients without the
need for client certificates. Developed by Funk Software and Certicom. Usually supported by
Agere Systems, Proxim and Avaya.
Set the Ethernet MTU (Maximum Transmission Unit).
Requires user role: ADMIN
Value space: <576..1500>
Appendices
Requires user role: ADMIN
Range: Select a value from 576 to 1500 bytes.
Value space: <Off/On>
Example: Network 1 MTU: 1500
Off: The EAP-TTLS protocol is disabled.
On: The EAP-TTLS protocol is enabled (default).
Example: Network 1 IEEE8021X Eap Ttls: On
Network [1..1] Speed
Network [1..1] IEEE8021X Eap Tls
Requires user role: ADMIN
Enable or disable the use of EAP-TLS (Transport Layer Security) for IEEE802.1x connections.
The EAP-TLS protocol, defined in RFC 5216, is considered one of the most secure EAP
standards. LAN clients are authenticated using client certificates.
Value space: <Auto/10half/10full/100half/100full/1000full>
Set the Ethernet link speed.
Auto: Autonegotiate link speed.
10half: Force link to 10 Mbps half-duplex.
Requires user role: ADMIN
10full: Force link to 10 Mbps full-duplex.
Value space: <Off/On>
100half: Force link to 100 Mbps half-duplex.
Off: The EAP-TLS protocol is disabled.
100full: Force link to 100 Mbps full-duplex.
On: The EAP-TLS protocol is enabled (default).
1000full: Force link to 1 Gbps full-duplex.
Example: Network 1 IEEE8021X Eap Tls: On
Example: Network 1 Speed: Auto
Network [1..1] IEEE8021X Eap Peap
Network [1..1] TrafficControl Mode
Set the Peap (Protected Extensible Authentication Protocol) mode. Authenticates LAN clients
without the need for client certificates. Developed by Microsoft, Cisco and RSA Security.
Set the network traffic control mode to decide how to control the video packets transmission
speed.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <Off/On>
Off: The EAP-PEAP protocol is disabled.
Off: Transmit video packets at link speed.
On: The EAP-PEAP protocol is enabled (default).
On: Transmit video packets at maximum 20 Mbps. Can be used to smooth out bursts in the
outgoing network traffic.
Example: Network 1 IEEE8021X Eap Peap: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Example: Network 1 TrafficControl: On
81
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Network [1..1] RemoteAccess Allow
Filter IP addresses for access to ssh/telnet/HTTP/HTTPS.
Requires user role: ADMIN
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters, comma separated IP addresses or IP
range.
Example: Network 1 RemoteAccess Allow: "192.168.1.231, 192.168.1.182"
Network [1..1] VLAN Voice Mode
Set the VLAN voice mode. The VLAN Voice Mode will be set to Auto automatically if you
choose Cisco UCM (Cisco Unified Communications Manager) as provisioning infrastructure via
the Provisioning Wizard on the Touch controller.
Requires user role: ADMIN
Value space: <Auto/Manual/Off>
Auto: The Cisco Discovery Protocol (CDP), if available, assigns an id to the voice VLAN. If
CDP is not available, VLAN is not enabled.
Manual: The VLAN ID is set manually using the Network VLAN Voice VlanId setting. If CDP is
available, the manually set value will be overruled by the value assigned by CDP.
Off: VLAN is not enabled.
Example: Network 1 VLAN Voice Mode: Auto
Network [1..1] VLAN Voice VlanId
Set the VLAN voice ID. This setting will only take effect if VLAN Voice Mode is set to Manual.
Requires user role: ADMIN
Value space: <1..4094>
Range: Select a value from 1 to 4094.
Example: Network 1 VLAN Voice VlanId: 1
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
82
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
NetworkServices settings
NetworkServices H323 Mode
NetworkServices Telnet Mode
Determine whether the system should be able to place and receive H.323 calls or not.
Telnet is a network protocol used on the Internet or Local Area Network (LAN) connections.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <Off/On>
Off: Disable the possibility to place and receive H.323 calls.
Off: The Telnet protocol is disabled. This is the factory setting.
On: Enable the possibility to place and receive H.323 calls (default).
On: The Telnet protocol is enabled.
Example: NetworkServices H323 Mode: On
Example: NetworkServices Telnet Mode: Off
NetworkServices HTTP Mode
NetworkServices WelcomeText
Set the HTTP mode to enable/disable access to the system through a web browser. The web
interface is used for system management, call management such as call transfer, diagnostics
and software uploads.
Choose which information the user should see when logging on to the codec through Telnet/
SSH.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <Off/On>
Off: The welcome text is: Login successful
Off: The HTTP protocol is disabled.
On: The welcome text is: Welcome to <system name>; Software version; Software release
date; Login successful.
On: The HTTP protocol is enabled.
Example: NetworkServices HTTP Mode: On
Example: NetworkServices WelcomeText: On
NetworkServices SIP Mode
NetworkServices XMLAPI Mode
Determine whether the system should be able to place and receive SIP calls or not.
Requires user role: ADMIN
Enable or disable the video system's XML API. For security reasons this may be disabled.
Disabling the XML API will limit the remote manageability with for example TMS, which no
longer will be able to connect to the video system.
Value space: <Off/On>
Requires user role: ADMIN
Off: Disable the possibility to place and receive SIP calls.
Value space: <Off/On>
On: Enable the possibility to place and receive SIP calls (default).
Off: The XML API is disabled.
Example: NetworkServices SIP Mode: On
On: The XML API is enabled (default).
Example: NetworkServices XMLAPI Mode: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
83
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
NetworkServices HTTPS Mode
NetworkServices HTTPS OCSP Mode
HTTPS is a web protocol that encrypts and decrypts user page requests as well as the pages
that are returned by the web server.
Define the support for OCSP (Online Certificate Status Protocol) responder services. The OCSP
feature allows users to enable OCSP instead of certificate revocation lists (CRLs) to check the
certificate status.
Requires user role: ADMIN
For any outgoing HTTPS connection, the OCSP responder is queried of the status. If the
corresponding certificate has been revoked, then the HTTPS connection will not be used.
Value space: <Off/On>
Off: The HTTPS protocol is disabled.
Requires user role: ADMIN
On: The HTTPS protocol is enabled.
Value space: <Off/On>
Example: NetworkServices HTTPS Mode: On
Off: Disable OCSP support.
On: Enable OCSP support.
NetworkServices HTTPS VerifyServerCertificate
Example: NetworkServices HTTPS OCSP Mode: Off
When the video system connects to an external HTTPS server (like a phone book server or an
external manager), this server will present a certificate to the video system to identify itself.
NetworkServices HTTPS OCSP URL
Requires user role: ADMIN
Specify the URL of the OCSP responder (server) that will be used to check the certificate
status.
Value space: <Off/On>
Off: Do not verify server certificates.
Requires user role: ADMIN
On: Requires the system to verify that the server certificate is signed by a trusted Certificate
Authority (CA). This requires that a list of trusted CAs are uploaded to the system in advance.
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
Example: NetworkServices HTTPS VerifyServerCertificate: Off
Example: NetworkServices HTTPS OCSP URL: "http://ocspserver.company.com:81"
NetworkServices HTTPS VerifyClientCertificate
When the video system connects to a HTTPS client (like a web browser), the client can be
asked to present a certificate to the video system to identify itself.
Requires user role: ADMIN
Value space: <Off/On>
Off: Do not verify client certificates.
On: Requires the client to present a certificate that is signed by a trusted Certificate
Authority (CA). This requires that a list of trusted CAs are uploaded to the system in advance.
Example: NetworkServices HTTPS VerifyClientCertificate: Off
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
84
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
NetworkServices NTP Mode
NetworkServices SNMP Mode
The Network Time Protocol (NTP) is used to synchronize the time of the system to a reference
time server. The time server will subsequently be queried every 24th hour for time updates.
The time will be displayed on the top of the screen. The system will use the time to timestamp
messages transmitted to Gatekeepers or Border Controllers requiring H.235 authentication.
The system will use the time to timestamp messages transmitted to Gatekeepers or Border
Controllers that requires H.235 authentication. It is also used for timestamping Placed Calls,
Missed Calls and Received Calls.
SNMP (Simple Network Management Protocol) is used in network management systems to
monitor network-attached devices (routers, servers, switches, projectors, etc) for conditions
that warrant administrative attention. SNMP exposes management data in the form of variables
on the managed systems, which describe the system configuration. These variables can then
be queried (set to ReadOnly) and sometimes set (set to ReadWrite) by managing applications.
Requires user role: ADMIN
Value space: <Off/ReadOnly/ReadWrite>
Requires user role: ADMIN
Off: Disable the SNMP network service.
Value space: <Auto/Off/Manual>
ReadOnly: Enable the SNMP network service for queries only.
Auto: The system will use the NTP server, by which address is supplied from the DHCP
server in the network. If no DHCP server is used, or the DHCP server does not provide
the system with a NTP server address, the system will use the static defined NTP server
address specified by the user.
ReadWrite: Enable the SNMP network service for both queries and commands.
Example: NetworkServices SNMP Mode: ReadOnly
Off: The system will not use an NTP server.
NetworkServices SNMP Host [1..3] Address
Manual: The system will always use the static defined NTP server address specified by the
user.
Enter the address of up to three SNMP Managers.
Example: NetworkServices NTP Mode: Auto
The system's SNMP Agent (in the codec) responds to requests from SNMP Managers (a PC
program etc.), for example about system location and system contact. SNMP traps are not
supported.
NetworkServices NTP Address
Requires user role: ADMIN
Enter the NTP Address to define the network time protocol server address. This address will
be used if NTP Mode is set to Manual, or if set to Auto and no address is supplied by a DHCP
server.
Value space: <S: 0, 64>
Format: A valid IPv4 address, IPv6 address or DNS name.
Example: NetworkServices SNMP Host 1 Address: ""
Requires user role: ADMIN
Value space: <S: 0, 64>
NetworkServices SNMP CommunityName
Format: A valid IPv4 address, IPv6 address or DNS name.
Example: NetworkServices NTP Address: "1.ntp.tandberg.com"
Enter the name of the Network Services SNMP Community. SNMP Community names are used
to authenticate SNMP requests. SNMP requests must have a password (case sensitive) in order
to receive a response from the SNMP Agent in the codec. The default password is "public".
If you have the Cisco TelePresence Management Suite (TMS) you must make sure the same
SNMP Community is configured there too. NOTE: The SNMP Community password is case
sensitive.
Requires user role: ADMIN
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
Example: NetworkServices SNMP CommunityName: "public"
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
85
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
NetworkServices SNMP SystemContact
Enter the name of the Network Services SNMP System Contact.
Requires user role: ADMIN
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
Example: NetworkServices SNMP SystemContact: ""
NetworkServices SNMP SystemLocation
Enter the name of the Network Services SNMP System Location.
Requires user role: ADMIN
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
Example: NetworkServices SNMP SystemLocation: ""
NetworkServices SSH Mode
SSH (or Secure Shell) protocol can provide secure encrypted communication between the
codec and your local computer.
Requires user role: ADMIN
Value space: <Off/On>
Off: The SSH protocol is disabled.
On: The SSH protocol is enabled.
Example: NetworkServices SSH Mode: On
NetworkServices SSH AllowPublicKey
Secure Shell (SSH) public key authentication can be used to access the codec.
Requires user role: ADMIN
Value space: <Off/On>
Off: The SSH public key is not allowed.
On: The SSH public key is allowed.
Example: NetworkServices SSH AllowPublicKey: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
86
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Phonebook settings
Phonebook Server [1..1] ID
Enter a name for the external phone book.
Requires user role: ADMIN
Value space: <S: 0, 64>
Format: String with a maximum of 64 characters.
Example: Phonebook Server 1 ID: ""
Phonebook Server [1..1] Type
Select the phonebook server type.
Requires user role: ADMIN
Value space: <VCS/TMS/Callway/CUCM>
VCS: Select VCS if the phonebook is located on the Cisco TelePresence Video
Communication Server.
TMS: Select TMS if the phonebook is located on the Cisco TelePresence Management Suite
server.
Callway: Select Callway if the phonebook is to be provided by the WebEx TelePresence
subscription service (formerly called CallWay). Contact your WebEx TelePresence provider
for more information.
CUCM: Select CUCM if the phonebook is located on the Cisco Unified Communications
Manager.
Example: Phonebook Server 1 Type: TMS
Phonebook Server [1..1] URL
Enter the address (URL) to the external phone book server.
Requires user role: ADMIN
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
Example: Phonebook Server 1 URL: "http://tms.company.com/tms/public/external/
phonebook/phonebookservice.asmx"
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
87
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Provisioning settings
Provisioning Connectivity
Provisioning LoginName
This setting controls how the device discovers whether it should request an internal or external
configuration from the provisioning server.
This is the user name part of the credentials used to authenticate the video system with the
provisioning server. This setting must be used when required by the provisioning server. If
Provisioning Mode is Callway (WebEx TelePresence), enter the video number.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Internal/External/Auto>
Value space: <S: 0, 80>
Internal: Request internal configuration.
Format: String with a maximum of 80 characters.
External: Request external configuration.
Example: Provisioning LoginName: ""
Auto: Automatically discover using NAPTR queries whether internal or external configurations
should be requested. If the NAPTR responses have the "e" flag, external configurations will
be requested. Otherwise internal configurations will be requested.
Provisioning Password
Example: Provisioning Connectivity: Auto
This is the password part of the credentials used to authenticate the video system with the
provisioning server. This setting must be used when required by the provisioning server. If
Provisioning Mode is Callway (WebEx TelePresence), enter the activation code.
Provisioning Mode
Requires user role: ADMIN
It is possible to configure a video system using a provisioning system (external manager).
This allows video conferencing network administrators to manage many video systems
simultaneously. With this setting you choose which type of provisioning system to use.
Provisioning can also be switched off. Contact your provisioning system provider/representative
for more information.
Value space: <S: 0, 64>
Format: String with a maximum of 64 characters.
Example: Provisioning Password: ""
Requires user role: ADMIN
Value space: <Off/TMS/VCS/CallWay/CUCM/Auto/Edge>
Provisioning HttpMethod
Off: The video system will not be configured by a provisioning system.
Select the HTTP method to be used for the provisioning.
Auto: The provisioning server will automatically be selected by the video system.
Requires user role: ADMIN
TMS: The video system will be configured using TMS (Cisco TelePresence Management
System).
Value space: <GET/POST>
VCS: The video system will be configured using VCS (Cisco TelePresence Video
Communication Server).
GET: Select GET when the provisioning server supports GET.
POST: Select POST when the provisioning server supports POST.
Callway: The video system will be configured using the WebEx TelePresence subscription
service (formerly named Callway).
Example: Provisioning HttpMethod: POST
CUCM: The video system will be configured using CUCM (Cisco Unified Communications
Manager).
Edge: The system will connect to CUCM via the Collaboration Edge infrastructure.
Example: Provisioning Mode: Auto
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
88
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Provisioning ExternalManager Address
Provisioning ExternalManager Path
Enter the IP Address or DNS name of the external manager / provisioning system.
Set the Path to the external manager / provisioning system. This setting is required when
several management services reside on the same server, i.e. share the same External Manager
address.
If an External Manager Address (and Path) is configured, the system will send a message to this
address when starting up. When receiving this message the external manager / provisioning
system can return configurations/commands to the unit as a result.
Requires user role: ADMIN
When using CUCM or TMS provisioning, the DHCP server can be set up to provide the external
manager address automatically (DHCP Option 242 for TMS, and DHCP Option 150 for CUCM).
An address set in the Provisioning ExternalManager Address setting will override the address
provided by DHCP.
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
Example: Provisioning ExternalManager Path: "tms/public/external/management/
SystemManagementService.asmx"
Requires user role: ADMIN
Value space: <S: 0, 64>
Provisioning ExternalManager Domain
Format: A valid IPv4 address, IPv6 address or DNS name.
Example: Provisioning ExternalManager Address: ""
Enter the SIP domain for the VCS provisioning server.
Requires user role: ADMIN
Provisioning ExternalManager AlternateAddress
Value space: <S: 0, 64>
Format: String with a maximum of 64 characters.
Only applicable when the endpoint is provisioned by Cisco Unified Communication Manager
(CUCM) and an alternate CUCM is available for redundancy. Enter the address of the alternate
CUCM. If the main CUCM is not available, the endpoint will be provisioned by the alternate
CUCM. When the main CUCM is available again, the endpoint will be provisioned by this CUCM.
Example: Provisioning ExternalManager Domain: "any.domain.com"
Requires user role: ADMIN
Value space: <S: 0, 64>
Format: A valid IPv4 address, IPv6 address or DNS name.
Example: Provisioning ExternalManager AlternateAddress: ""
Provisioning ExternalManager Protocol
Determine whether to use secure management or not.
Requires user role: ADMIN
Value space: <HTTP/HTTPS>
HTTP: Set to HTTP to disable secure management. Requires HTTP to be enabled in the
NetworkServices HTTP Mode setting.
HTTPS: Set to HTTPS to enable secure management. Requires HTTPS to be enabled in the
NetworkServices HTTPS Mode setting.
Example: Provisioning ExternalManager Protocol: HTTP
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
89
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
RTP settings
RTP Ports Range Start
Specify the first port in the range of RTP ports. Also see the H323 Profile [1..1] PortAllocation
setting.
NOTE: Restart the system for any change to this setting to take effect.
Requires user role: ADMIN
Value space: <1024..65438>
Range: Select a value from 1024 to 65438.
Example: RTP Ports Range Start: 2326
RTP Ports Range Stop
Specify the last RTP port in the range. Also see the H323 Profile [1..1] PortAllocation setting.
NOTE: Restart the system for any change to this setting to take effect.
Requires user role: ADMIN
Value space: <1120..65535>
Range: Select a value from 1120 to 65535.
Example: RTP Ports Range Stop: 2486
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
90
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Security settings
Security Audit Logging Mode
Security Audit Server Address
Determine where to record or transmit the audit logs. The audit logs are sent to a syslog server.
The audit logs are sent to a syslog server. Enter the IP address of the syslog server. Only valid
IPv4 or IPv6 address formats are accepted. Host names are not supported. This setting is only
relevant when Security Audit Logging Mode is set to External or ExternalSecure.
When using the External/ExternalSecure modes and setting the port assignment to manual in
the Security Audit Server PortAssignment setting, you must also enter the address and port
number for the audit server in the Security Audit Server Address and Security Audit Server Port
settings.
Requires user role: AUDIT
Value space: <S: 0, 64>
Requires user role: AUDIT
Format: A valid IPv4 address or IPv6 address
Value space: <Off/Internal/External/ExternalSecure>
Off: No audit logging is performed.
Example: Security Audit Server Address: ""
Internal: The system records the audit logs to internal logs, and rotates logs when they are
full.
Security Audit Server Port
External: The system sends the audit logs to an external syslog server. The syslog server
must support UDP.
The audit logs are sent to a syslog server. Enter the port of the syslog server that the system
shall send its audit logs to. This setting is only relevant when Security Audit PortAssignment is
set to Manual.
ExternalSecure: The system sends encrypted audit logs to an external syslog server that is
verified by a certificate in the Audit CA list. The Audit CA list file must be uploaded to the
codec using the web interface. The common_name parameter of a certificate in the CA list
must match the IP address of the syslog server, and the secure TCP server must be set up
to listen for secure (TLS) TCP Syslog messages.
Requires user role: AUDIT
Value space: <0..65535>
Range: Select a value from 0 to 65535.
Example: Security Audit Logging Mode: Off
Example: Security Audit Server Port: 514
Security Audit OnError Action
Security Audit Server PortAssignment
Determine what happens when the connection to the syslog server is lost. This setting is only
relevant when Security Audit Logging Mode is set to ExternalSecure.
The audit logs are sent to a syslog server. You can define how the port number of the external
syslog server will be assigned. This setting is only relevant when Security Audit Logging
Mode is set to External or ExternalSecure. To see which port number is used you can check
the Security Audit Server Port status. Navigate to Configuration > System status on the web
interface or; if on a command line interface, run the command xStatus Security Audit Server
Port.
Requires user role: AUDIT
Value space: <Halt/Ignore>
Halt: If a halt condition is detected the system codec is rebooted and only the auditor is
allowed to operate the unit until the halt condition has passed. When the halt condition has
passed the audit logs are re-spooled to the syslog server. Halt conditions are: A network
breach (no physical link), no syslog server running (or incorrect address or port to the syslog
server), TLS authentication failed (if in use), local backup (re-spooling) log full.
Requires user role: AUDIT
Value space: <Auto/Manual>
Auto: Will use UDP port number 514 when the Security Audit Logging Mode is set to
External. Will use TCP port number 6514 when the Security Audit Logging Mode is set to
ExternalSecure.
Ignore: The system will continue its normal operation, and rotate internal logs when full.
When the connection is restored it will again send its audit logs to the syslog server.
Example: Security Audit OnError Action: Ignore
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Manual: Will use the port value defined in the Security Audit Server Port setting.
Example: Security Audit Server PortAssignment: Auto
91
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Security Session ShowLastLogon
When logging in to the system using SSH or Telnet you will see the UserId, time and date of the
last session that did a successful login.
Requires user role: ADMIN
Value space: <Off/On>
On: Show information about the last session.
Off: Do not show information about the last session.
Example: Security Session ShowLastLogon: Off
Security Session InactivityTimeout
Determine how long the system will accept inactivity from the user before he is automatically
logged out.
Requires user role: ADMIN
Value space: <0..10000>
Range: Select a value between 1 and 10000 seconds; or select 0 when inactivity should not
enforce automatic logout.
Example: Security Session InactivityTimeout: 0
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
92
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
SerialPort settings
SerialPort Mode
Enable/disable the serial port (COM port).
Requires user role: ADMIN
Value space: <Off/On>
Off: Disable the serial port.
On: Enable the serial port.
Example: SerialPort Mode: On
SerialPort BaudRate
Specify the baud rate (data transmission rate, bits per second) for the serial port. The default
value is 115200.
Other connection parameters for the serial port are: Data bits: 8; Parity: None; Stop bits: 1; Flow
control: None.
Requires user role: ADMIN
Value space: <9600/19200/38400/57600/115200>
Range: Select a baud rate from the baud rates listed (bps).
Example: SerialPort BaudRate: 115200
SerialPort LoginRequired
Determine if login shall be required when connecting to the serial port.
Requires user role: ADMIN
Value space: <Off/On>
Off: The user can access the codec via the serial port without any login.
On: Login is required when connecting to the codec via the serial port.
Example: SerialPort LoginRequired: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
93
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
SIP settings
SIP ANAT
SIP PreferredIPMedia
ANAT (Alternative Network Address Types) enables media negotiation for multiple addresses
and address types, as specified in RFC 4091.
Define the preferred IP version for sending and receiving media (audio, video, data). Only
applicable when both Network IPStack and Conference CallProtocolIPStack are set to Dual, and
the network does not have a mechanism for choosing the preferred IP version.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <IPv4/IPv6>
Off: Disable ANAT.
IPv4: The preferred IP version for media is IPv4.
On: Enable ANAT.
IPv6: The preferred IP version for media is IPv6.
Example: SIP ANAT: Off
Example: SIP PreferredIPMedia: IPv4
SIP AuthenticateTransferror
SIP PreferredIPSignaling
Not applicable in this version.
Define the preferred IP version for signaling (audio, video, data). Only applicable when both
Network IPStack and Conference CallProtocolIPStack are set to Dual, and the network does
not have a mechanism for choosing the preferred IP version. It also determines the priority of
the A/AAAA lookups in DNS, so that the preferred IP version is used for registration.
SIP ListenPort
Turn on or off the listening for incoming connections on the SIP TCP/UDP ports. If turned
off, the endpoint will only be reachable through the SIP registrar (CUCM or VCS). It is
recommended to leave this setting at its default value.
Requires user role: ADMIN
Value space: <IPv4/IPv6>
Requires user role: ADMIN
IPv4: The preferred IP version for signaling is IPv4.
IPv6: The preferred IP version for signaling is IPv6.
Value space: <Off/On>
Off: Listening for incoming connections on the SIP TCP/UDP ports is turned off.
Example: SIP PreferredIPSignaling: IPv4
On: Listening for incoming connections on the SIP TCP/UDP ports is turned on.
Example: SIP ListenPort: On
SIP OCSP Mode
Not applicable in this version.
SIP OCSP DefaultResponder
Not applicable in this version.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
94
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
SIP Profile [1..1] Ice Mode
SIP Profile [1..1] Turn BandwidthProbe
ICE (Interactive Connectivity Establishment, RFC 5245) is a NAT traversal solution that the
endpoints can use to discover the optimized media path. Thus the shortest route for audio and
video is always secured between the endpoints. NOTE: ICE is not supported when registered to
CUCM (Cisco Unified Communication Manager).
Not applicable in this version.
Requires user role: ADMIN
DropRflx will make the endpoint force media through the Turn relay, unless the remote endpoint
is on the same network.
SIP Profile [1..1] Turn DropRflx
Value space: <Auto/Off/On>
Requires user role: ADMIN
Auto: When set to Auto, ICE will be enabled if a turn server is provided, otherwise ICE will be
disabled.
Value space: <Off/On>
Off: Set to Off to disable ICE.
Off: Disable DropRflx.
On: Set to On to enable ICE.
On: The system will force media through the Turn relay when the remote endpoint is on
another network.
Example: SIP Profile 1 Ice Mode: Auto
Example: SIP Profile Turn DropRflx: Off
SIP Profile [1..1] Ice DefaultCandidate
SIP Profile [1..1] Turn Server
This is the default IP address that the endpoint will receive media on until ICE has reached a
conclusion about which media route to use (up to the first 5 seconds of a call.
This is the address of the TURN (Traversal Using Relay NAT) server that the endpoints will use.
It is used as a media relay fallback and it is also used to discover the endpoint’s own public IP
address.
Requires user role: ADMIN
Value space: <Host/Rflx/Relay>
Requires user role: ADMIN
Host: The endpoint will receive media on its own IP address.
Value space: <S: 0, 255>
Rflx: The endpoint will receive media on its public IP address as seen by the TURN server.
Format: The preferred format is DNS SRV record (e.g. _turn._udp.<domain>), or it can be a
valid IPv4 or IPv6 address.
Relay: The endpoint will receive media on the IP address and port allocated on the TURN
server, and is used as a fallback until ICE has concluded.
Example: SIP Profile 1 Ice DefaultCandidate: Host
Example: SIP Profile 1 Turn Server: " _ turn. _ udp.example.com"
SIP Profile [1..1] Turn DiscoverMode
SIP Profile [1..1] Turn UserName
Set the discover mode to enable/disable the application to search for available Turn servers in
DNS. Before making calls, the system will test if port allocation is possible.
The user name needed for accessing the TURN server.
Requires user role: ADMIN
Value space: <S: 0, 128>
Requires user role: ADMIN
Value space: <Off/On>
Format: String with a maximum of 128 characters.
Off: Set to Off to disable discovery mode.
Example: SIP Profile 1 Turn UserName: ""
On: When set to On, the system will search for available Turn servers in DNS, and before
making calls the system will test if port allocation is possible.
Example: SIP Profile Turn DiscoverMode: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
95
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
SIP Profile [1..1] Turn Password
SIP Profile [1..1] Authentication [1..1] Password
The password needed for accessing the TURN server.
This is the password part of the credentials used to authenticate towards the SIP proxy.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <S: 0, 128>
Value space: <S: 0, 128>
Format: String with a maximum of 128 characters.
Format: String with a maximum of 128 characters.
Example: SIP Profile 1 Turn Password: ""
Example: SIP Profile 1 Authentication 1 Password: ""
SIP Profile [1..1] URI
SIP Profile [1..1] DefaultTransport
The SIP URI (Uniform Resource Identifier) is the address that is used to identify the video
system. The URI is registered and used by the SIP services to route inbound calls to the
system. The SIP URI syntax is defined in RFC 3261.
Select the transport protocol to be used over the LAN.
Requires user role: ADMIN
Value space: <TCP/UDP/Tls/Auto>
Requires user role: ADMIN
TCP: The system will always use TCP as the default transport method.
Value space: <S: 0, 255>
UDP: The system will always use UDP as the default transport method.
Format: String with maximum 255 characters and compliant with the SIP URI syntax.
Example: SIP Profile 1 URI: "sip:[email protected]"
Tls: The system will always use TLS as the default transport method. For TLS connections
a SIP CA-list can be uploaded to the video system. If no such CA-list is available on the
system then anonymous Diffie Hellman will be used.
SIP Profile [1..1] DisplayName
Auto: The system will try to connect using transport protocols in the following order: TLS,
TCP, UDP.
When configured the incoming call will report the DisplayName instead of the SIP URI.
Example: SIP Profile 1 DefaultTransport: Auto
Requires user role: ADMIN
SIP Profile [1..1] TlsVerify
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
For TLS connections a SIP CA-list can be uploaded to the video system. This can be done from
the web interface.
Example: SIP Profile 1 DisplayName: ""
Requires user role: ADMIN
SIP Profile [1..1] Authentication [1..1] LoginName
Value space: <Off/On>
Off: Set to Off to allow TLS connections without verifying them. The TLS connections are
allowed to be set up without verifying the x.509 certificate received from the server against
the local CA-list. This should typically be selected if no SIP CA-list has been uploaded.
This is the user name part of the credentials used to authenticate towards the SIP proxy.
Requires user role: ADMIN
On: Set to On to verify TLS connections. Only TLS connections to servers, whose x.509
certificate is validated against the CA-list, will be allowed.
Value space: <S: 0, 128>
Format: String with a maximum of 128 characters.
Example: SIP Profile 1 TlsVerify: Off
Example: SIP Profile 1 Authentication 1 LoginName: ""
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
96
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
SIP Profile [1..1] Outbound
SIP Profile [1..1] Type
Turn on or off the client initiated connections mechanism for firewall traversal, connection reuse
and redundancy. The current version supports RFC 5626.
Enables SIP extensions and special behavior for a vendor or provider.
Appendices
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Standard/Cisco>
Value space: <Off/On>
Standard: Use this when registering to standard SIP Proxy (tested with Cisco TelePresence
VCS and Broadsoft)
Off: Connect to the single proxy configured first in Proxy Address list.
On: Set up multiple outbound connections to servers in the Proxy Address list.
Cisco: Use this when registering to Cisco Unified Communication Manager.
Example: SIP Profile 1 Outbound: Off
Example: SIP Profile 1 Type: Standard
SIP Profile [1..1] Proxy [1..4] Address
SIP Profile [1..1] Mailbox
The Proxy Address is the manually configured address for the outbound proxy. It is possible to
use a fully qualified domain name, or an IP address. The default port is 5060 for TCP and UDP
but another one can be provided. If SIP Profile Outbound is enabled, multiple proxies can be
addressed.
When registered to a Cisco Unified Communications Manager (CUCM) you may be offered
the option of having a private voice mailbox. Enter the number (address) of the mailbox in this
setting, or leave the string empty if you do not have a voice mailbox.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <S: 0, 255>>
Value space: <S: 0, 255>
Format: String with a maximum of 255 characters.
Format: A valid IPv4 address, IPv6 address or DNS name.
Example: SIP Profile 1 Mailbox: "12345678"
Example: SIP Profile 1 Proxy 1 Address: ""
SIP Profile [1..1] Line
SIP Profile [1..1] Proxy [1..4] Discovery
When registered to a Cisco Unified Communications Manager (CUCM) the endpoint may be
part of a shared line. This means that several devices share the same directory number. The
different devices sharing the same number receive status from the other appearances on the
line as defined in RFC 4235.
Select if the SIP Proxy address is to be obtained manually or by using Dynamic Host
Configuration Protocol (DHCP).
Requires user role: ADMIN
Note that shared lines are set up by CUCM, not by the endpoint. Therefore do not change this
setting manually; CUCM pushes this information to the endpoint when required.
Value space: <Auto/Manual>
Auto: When Auto is selected, the SIP Proxy address is obtained using Dynamic Host
Configuration Protocol (DHCP).
Requires user role: ADMIN
Value space: <Private/Shared>
Manual: When Manual is selected, the manually configured SIP Proxy address will be used.
Shared: The system is part of a shared line and is therefore sharing its directory number with
other devices.
Example: SIP Profile 1 Proxy 1 Discovery: Manual
Private: This system is not part of a shared line (default).
Example: SIP Profile 1 Line: Private
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
97
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Standby settings
Standby Control
Standby StandbyAction
Determine whether the system should go into standby mode or not.
Define the camera position when going into standby mode.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <None/PrivacyPosition>
Off: The system will not enter standby mode.
None: No action.
On: Enter standby mode when the Standby Delay has timed out. Requires the Standby Delay
to be set to an appropriate value.
PrivacyPosition: Turns the camera to a sideways position for privacy.
Example: Standby StandbyAction: PrivacyPosition
Example: Standby Control: On
Standby WakeupAction
Standby Delay
Define the camera position when leaving standby mode.
Define how long (in minutes) the system shall be in idle mode before it goes into standby mode.
Requires the Standby Control to be enabled.
Requires user role: ADMIN
Value space: <None/Preset1/Preset2/Preset3/Preset4/Preset5/Preset6/Preset7/Preset8/
Preset9/Preset10/Preset11/Preset12/Preset13/Preset14/Preset15/RestoreCameraPosition/
DefaultCameraPosition>
Requires user role: ADMIN
Value space: <1..480>
Range: Select a value from 1 to 480 minutes.
None: No action.
Example: Standby Delay: 10
Preset1 to Preset15: When leaving standby the camera position will be set to the position
defined by the selected preset.
Standby BootAction
RestoreCameraPosition: When leaving standby the camera position will be set to the position
it had before entering standby.
DefaultCameraPosition: When leaving standby the camera position will be set to the factory
default position.
Define the camera position after a restart of the codec.
Requires user role: ADMIN
Example: Standby WakeupAction: RestoreCameraPosition
Value space: <None/Preset1/Preset2/Preset3/Preset4/Preset5/Preset6/Preset7/Preset8/
Preset9/Preset10/Preset11/Preset12/Preset13/Preset14/Preset15/RestoreCameraPosition/
DefaultCameraPosition>
None: No action.
Preset1 to Preset15: After a reboot the camera position will be set to the position defined by
the selected preset.
RestoreCameraPosition: After a reboot the camera position will be set to the position it had
before the last boot.
DefaultCameraPosition: After a reboot the camera position will be set to the factory default
position.
Example: Standby BootAction: DefaultCameraPosition
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
98
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
SystemUnit settings
SystemUnit Name
SystemUnit ContactInfo Type
Enter a System Name to define a name of the system unit. If the H.323 Alias ID is configured
on the system then this ID will be used instead of the system name. The system name will be
displayed:
Choose which type of contact information to show in the status field in the upper left corner
of the main display and Touch controller. The information can also be read with the command
xStatus SystemUnit ContactInfo.
1) When the codec is acting as an SNMP Agent.
Requires user role: ADMIN
2) Towards a DHCP server.
Value space: <Auto/None/IPv4/IPv6/H323Id/E164Alias/H320Number/SipUri/SystemName/
DisplayName>
Requires user role: ADMIN
Auto: Show the address which another system can dial to reach this system. The address
depends on the default call protocol and system registration.
Value space: <S: 0, 50>
Format: String with a maximum of 50 characters.
None: Do not show any contact information in the status field.
Example: SystemUnit Name: "Meeting Room"
IPv4: Show the IPv4 address as contact information.
IPv6: Show the IPv6 address as contact information.
SystemUnit MenuLanguage
H323Id: Show the H.323 ID as contact information (see the H323 Profile [1..1] H323Alias ID
setting).
This has been replaced with the UserInterface Language setting.
E164Alias: Show the H.323 E164 Alias as contact information (see the H323 Profile [1..1]
H323Alias E164 setting).
SystemUnit CallLogging Mode
H320Number: Show the H.320 number as contact information (only applicable if connected
to a Cisco TelePresence ISDN Link gateway).
Set the call logging mode for calls that are received or placed by the system. The call logs may
then be viewed via the web interface or using the xCommand CallHistory Get command.
SipUri: Show the SIP URI as contact information (see the SIP Profile [1..1] URI setting).
SystemName: Show the system name as contact information (see the SystemUnit Name
setting).
Requires user role: ADMIN
Value space: <Off/On>
DisplayName: Show the display name as contact information (see the SIP Profile [1..1]
DisplayName setting).
Off: Disable logging.
Example: SystemUnit ContactInfo Type: Auto
On: Enable logging.
Example: SystemUnit CallLogging Mode: On
SystemUnit IrSensor
Not supported.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
99
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Time settings
Time Zone
Time TimeFormat
Set the time zone where the system is located, using Windows time zone description format.
Set the time format.
Requires user role: USER
Requires user role: USER
Value space: <GMT-12:00 (International Date Line West)/GMT-11:00 (Midway Island, Samoa)/
GMT-10:00 (Hawaii)/GMT-09:00 (Alaska)/GMT-08:00 (Pacific Time (US & Canada); Tijuana)/
GMT-07:00 (Arizona)/GMT-07:00 (Mountain Time (US & Canada))/GMT-07:00 (Chihuahua,
La Paz, Mazatlan)/GMT-06:00 (Central America)/GMT-06:00 (Saskatchewan)/GMT-06:00
(Guadalajara, Mexico City, Monterrey)/GMT-06:00 (Central Time (US & Canada))/GMT-05:00
(Indiana (East))/GMT-05:00 (Bogota, Lima, Quito)/GMT-05:00 (Eastern Time (US & Canada))/
GMT-04:30 (Caracas)/GMT-04:00 (La Paz)/GMT-04:00 (Santiago)/GMT-04:00 (Atlantic Time
(Canada))/GMT-03:30 (Newfoundland)/GMT-03:00 (Buenos Aires, Georgetown, Montevideo)/
GMT-03:00 (Greenland)/GMT-03:00 (Brasilia)/GMT-02:00 (Mid-Atlantic)/GMT-01:00 (Cape
Verde Is.)/GMT-01:00 (Azores)/GMT (Casablanca, Monrovia)/GMT (Coordinated Universal Time)/
GMT (Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London)/GMT+01:00 (West Central
Africa)/GMT+01:00 (Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna)/GMT+01:00 (Brussels,
Copenhagen, Madrid, Paris)/GMT+01:00 (Sarajevo, Skopje, Warsaw, Zagreb)/GMT+01:00
(Belgrade, Bratislava, Budapest, Ljubljana, Prague)/GMT+02:00 (Harare, Pretoria)/GMT+02:00
(Jerusalem)/GMT+02:00 (Athens, Istanbul, Minsk)/GMT+02:00 (Helsinki, Kyiv, Riga, Sofia,
Tallinn, Vilnius)/GMT+02:00 (Cairo)/GMT+02:00 (Bucharest)/GMT+03:00 (Nairobi)/GMT+03:00
(Kuwait, Riyadh)/GMT+04:00 (Moscow, St. Petersburg, Volgograd)/GMT+03:00 (Baghdad)/
GMT+03:30 (Tehran)/GMT+04:00 (Abu Dhabi, Muscat)/GMT+04:00 (Baku, Tbilisi, Yerevan)/
GMT+04:30 (Kabul)/GMT+05:00 (Islamabad, Karachi, Tashkent)/GMT+05:00 (Ekaterinburg)/
GMT+05:30 (Chennai, Kolkata, Mumbai, New Delhi)/GMT+05:45 (Kathmandu)/GMT+06:00 (Sri
Jayawardenepura)/GMT+06:00 (Astana, Dhaka)/GMT+06:00 (Almaty, Novosibirsk)/GMT+06:30
(Rangoon)/GMT+07:00 (Bangkok, Hanoi, Jakarta)/GMT+07:00 (Krasnoyarsk)/GMT+08:00
(Perth)/GMT+08:00 (Taipei)/GMT+08:00 (Kuala Lumpur, Singapore)/GMT+08:00 (Beijing,
Chongqing, Hong Kong, Urumqi)/GMT+08:00 (Ulaan Baataar)/GMT+09:00 (Osaka, Sapporo,
Tokyo)/GMT+09:00 (Seoul)/GMT+09:00 (Irkutsk)/GMT+09:30 (Darwin)/GMT+09:30 (Adelaide)/
GMT+10:00 (Guam, Port Moresby)/GMT+10:00 (Brisbane)/GMT+10:00 (Yakutsk)/GMT+10:00
(Hobart)/GMT+10:00 (Canberra, Melbourne, Sydney)/GMT+11:00 (Magadan, Solomon Is., New
Caledonia)/GMT+11:00 (Vladivostok)/GMT+12:00 (Fiji, Kamchatka, Marshall Is.)/GMT+12:00
(Auckland, Wellington)/GMT+13:00 (Nuku alofa)>
Value space: <24H/12H>
24H: Set the time format to 24 hours.
12H: Set the time format to 12 hours (AM/PM).
Example: Time TimeFormat: 24H
Time DateFormat
Set the date format.
Requires user role: USER
Value space: <DD_MM_YY/MM_DD_YY/YY_MM_DD>
DD_MM_YY: The date January 30th 2010 will be displayed: 30.01.10
MM_DD_YY: The date January 30th 2010 will be displayed: 01.30.10
YY_MM_DD: The date January 30th 2010 will be displayed: 10.01.30
Example: Time DateFormat: DD _ MM _ YY
Range: Select a time zone from the list time zones. If using a command line interface; watch
up for typos.
Example: Time Zone: "GMT (Coordinated Universal Time)"
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
100
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
UserInterface settings
UserInterface Language
UserInterface OSD LanguageSelection
Select the language to be used in menus and messages on the screen and Touch controller.
The default language is English.
In cases where you want to prevent users from easily changing the language settings from
the Settings menu, the language settings can be made available from within the Administrator
Settings menu. The administrator settings can be password protected.
Requires user role: USER
Requires user role: ADMIN
Value space: <English/ChineseSimplified/ChineseTraditional/Catalan/Czech/Danish/
Dutch/Finnish/French/German/Hungarian/Italian/Japanese/Korean/Norwegian/Polish/
PortugueseBrazilian/Russian/Spanish/SpanishLatin/Swedish/Turkish/Arabic/Hebrew>
Value space: <Off/On>
Off: The language is set from the Administrator Settings menu.
Range: Select a language from the list.
On: The language is set from the Settings menu.
Example: UserInterface Language: English
Example: UserInterface OSD LanguageSelection: On
UserInterface OSD EncryptionIndicator
UserInterface OSD LoginRequired
Define for how long the encryption indicator (a padlock) will be shown on screen. The setting
applies to both encrypted and non-encrypted calls, i.e. both to secure and non-secure
conferences. The icon for encrypted calls is a locked padlock, and the icon for non-encrypted
calls is a crossed out locked padlock.
Not applicable in this version.
Requires user role: ADMIN
Not applicable in this version.
UserInterface OSD Output
Value space: <Auto/AlwaysOn/AlwaysOff>
Auto: If the Conference Encryption Mode setting is set to BestEffort and the call is
encrypted, the encryption indicator is shown during the first seconds of a call. If the
Conference Encryption Mode setting is set to BestEffort and the call is non-encrypted, the
crossed out encryption indicator is shown during the entire call. If the Conference Encryption
Mode setting is NOT set to BestEffort, the encryption indicator is not shown at all.
UserInterface Wallpaper
AlwaysOn: The encryption indicator is displayed on screen during the entire call. This applies
to both encrypted and non-encrypted calls for all Conference Encryption Mode settings.
Value space: <None/Custom>
Select a background image (wallpaper) for the video screen when idle.
Requires user role: USER
None: There is no background image on the screen.
AlwaysOff: The encryption indicator is never displayed on screen. This applies to both
encrypted and non-encrypted calls for all Conference Encryption Mode settings.
Custom: Use the custom wallpaper that is stored on the system as background image on the
screen. As default, there is no custom wallpaper stored and the background will be black.
You can upload a custom wallpaper to the system using the web interface. The following file
formats are supported: BMP, GIF, JPEG, PNG. The maximum file size is 2 MByte.
Example: UserInterface OSD EncryptionIndicator: Auto
Example: UserInterface Wallpaper: None
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
101
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
UserInterface TouchPanel DefaultPanel
Define what (contact list, meeting list, or dial pad) the Touch controller will display on wake up.
Requires user role: USER
Value space: <None/LastUsed/ContactList/MeetingList/Dialpad>
None: None of the below options will appear as default on the Touch controller.
LastUsed: The last used (contact list, meeting list, or dial pad) will appear as default on the
Touch controller.
ContactList: The contact list (favorites, directory and history) will appear as default on the
Touch controller.
MeetingList: The list of scheduled meetings will appear as default on the Touch controller.
DialPad: The dial pad will appear as default on the Touch controller.
Example: UserInterface TouchPanel DefaultPanel: None
UserInterface UserPreferences
Some user preferences (ringtone, volume, language, date and time, etc) can be made available
from the Settings menu, or from the Settings > Administrator menu on the Touch controller.
Accessing the Administrator menus requires that the user has admin privileges.
Requires user role: ADMIN
Value space: <Off/On>
Off: The user preferences are available from the Settings > Administrator menu on the Touch
controller, for users with admin privileges.
On: The user preferences are available from the Settings menu on the Touch controller.
Example: UserInterface UserPreferences: On
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
102
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video settings
Video AllowWebSnapshots
Video DefaultPresentationSource
Allow or disallow snapshots being taken of the local input sources, remote sites and
presentation channel. If allowed, the web interface Call Control page will show snapshots both
when idle and in a call.
Not applicable for this product.
Video Input Connector [1..5] Name
NOTE: This feature is disabled by default, and must be enabled from the directly connected
Touch controller, or via the codec's serial port (COM port).
Enter a name for the video input connector.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/On>
Value space: <S: 0, 50>
Off: Capturing web snapshots is not allowed.
Format: String with a maximum of 50 characters.
On: Web snapshots can be captured and displayed on the web interface.
Example: Video Input Connector 1 Name: "Camera 1"Video Input Connector 1 Name: ""
Example: Video AllowWebSnapshots: Off
Video Input Connector [1..5] InputSourceType
Video CamCtrlPip CallSetup Mode
Select which type of input source is connected to the video input.
This setting is used to switch on self-view for a short while when setting up a call. The Video
CamCtrlPip CallSetup Duration setting determines for how long it remains on. This applies when
self-view in general is switched off.
Requires user role: ADMIN
Value space: <other/camera/PC/DVD/document_camera>
Requires user role: ADMIN
Other: When none of the below options do match, set to Other.
Value space: <Off/On>
Camera: Select Camera when you have a camera connected to the video input.
PC: Select PC when you have a PC connected to the video input.
Off: self-view is not shown automatically during call setup.
DVD: Select DVD when you have a DVD player connected to the video input.
On: self-view is shown automatically during call setup.
Document_Camera: Select Document_Camera when you have a document camera
connected to the video input.
Example: Video CamCtrlPip CallSetup Mode: On
Example: Video Input Connector 2 InputSourceType: Camera
Video CamCtrlPip CallSetup Duration
This setting only has an effect when the Video CamCtrlPip CallSetup Mode setting is switched
On. In this case, the number of seconds set here determines for how long self-view is shown
before it is automatically switched off.
Requires user role: ADMIN
Value space: <1..60>
Range: Choose for how long self-view remains on. The valid range is between 1 and 60
seconds.
Example: Video CamCtrlPip CallSetup Duration: 10
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
103
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Input Connector [1..5] Visibility
Video Input Connector [1..5] Quality
Define the visibility of the video input connector in the menus on the user interface.
Requires user role: ADMIN
When encoding and transmitting video there will be a trade-off between high resolution and
high frame rate. For some video sources it is more important to transmit high frame rate than
high resolution and vice versa.
Value space: <Never/Always/IfSignal>
Requires user role: ADMIN
Never: When the input source is not expected to be used as a presentation source, set to
Never.
Value space: <Motion/Sharpness>
Motion: Gives the highest possible frame rate. Used when there is a need for higher frame
rates, typically when a large number of participants are present or when there is a lot of
motion in the picture.
Always: When set to Always, the menu selection for the video input connector will always be
visible on the graphical user interface.
IfSignal: When set to IfSignal, the menu selection for the video input connector will only be
visible when something is connected to the video input.
Sharpness: Gives the highest possible resolution. Used when you want the highest quality of
detailed images and graphics.
Example: Video Input Connector 2 Visibility: IfSignal
Example: Video Input Connector 1 Quality: Motion
Video Input Connector [1..5] CameraControl Mode
Define the camera control mode when a camera is connected to the video input connector.
Note that camera control is not available for Connector 4 (DVI-I) and Connector 5 (S-video/
Composite).
Requires user role: ADMIN
Value space: Connector 1, 2, 3: <Off/On> Connector 4,5: <Off>
Off: Disable camera control.
On: Enable camera control.
Example: Video Input Connector 1 CameraControl Mode: On
Video Input Connector [1..5] CameraControl CameraId
The camera ID is used to identify all cameras that are controlled from the codec. Use the
xStatus Camera API command to see the IDs of the different cameras.
Requires user role: ADMIN
Value space: Connector 1, 2, 3: <1/2/3/4/5/6/7> Connector 4,5: <1>
Range: Select the ID of the camera.
Example: Video Input Connector 1 CameraControl CameraId: 1
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
104
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Administrator Guide
Introduction
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Input Connector [1..5] OptimalDefinition Profile
Video Input Connector [1..5] OptimalDefinition Threshold60fps
This setting will only take effect when the Video Input Source Quality setting is set to Motion.
For each video input, this setting tells the system the lowest resolution where it should transmit
60fps. So for all resolutions lower than this, the maximum transmitted frame rate would be
30fps, while above this resolution 60fps would also be possible, if the available bandwidth is
adequate.
The optimal definition profile reflects the lighting conditions in the video conferencing room and
the quality of the camera. The better lighting conditions and the better quality of the camera,
the higher the profile. In good lighting conditions, the video encoder will provide better quality
(higher resolution or frame rate) for a given call rate. Generally, the Normal or Medium profiles
are recommended. However, when the lighting conditions are very good, the High profile can
be set in order to increase the resolution for a given call rate.
Requires user role: ADMIN
Value space: <512_288/768_448/1024_576/1280_720/1920_1080/Never>
512_288: Set the threshold to 512x288.
Some typical resolutions used for different optimal definition profiles, call rates and transmit
frame rates are shown in the table below. The resolution must be supported by both the calling
and called systems. Use the Video Input Source OptimalDefinition Threshold60fps setting to
decide when to use the 60 fps frame rate.
768_448: Set the threshold to 768x448.
1024_576: Set the threshold to 1024x576.
1280_720: Set the threshold to 1280x720.
Typical resolutions used for different optimal definition profiles, call rates and frame rates
Frame rate
H.265
30 fps
60 fps
H.264
30 fps
60 fps
*
Optimal
Definition
Profile
768 kbps
1152 kbps 1472 kbps 2560 kbps
Normal
1280 × 720
1280 × 720
1920_1080: Set the threshold to 1920x1080.
Call rate
Never: Do not set a threshold for transmitting 60fps.
4 Mbps*
6 Mbps*
Example: Video Input Connector 1 OptimalDefinition Threshold60fps: 1280 _ 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
Medium
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
High
1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Normal
768 × 448
1024 × 576
1280 × 720
1280 × 720
1280 × 720
1280 × 720
Medium
1024 × 576
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
High
1280 × 720
1280 × 720
1280 × 720
Normal
1024 × 576
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
Medium
1280 × 720
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
High
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Normal
640 × 360
768 × 448
1024 × 576
1280 × 720
Medium
768 × 448
1024 × 576
1024 × 576
1280 × 720 1920 × 1080 1920 × 1080
High
1024 × 576
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
Video Input Connector [1..4] PresentationSelection
Define how the video system will behave when a presentation source is connected to the video
input. Note that sharing the presentation with the far end always requires additional action
(press Share on the user interface).
Requires user role: ADMIN
Value space: Connector 1: <Manual> Connector 2: <Manual/Automatic/OnConnect> for
single camera systems, and <Manual> for dual camera systems Other connectors: <Manual/
Automatic/OnConnect>
1280 × 720 1920 × 1080
Manual: In manual mode, the contents of the video input will not be presented on the screen
until you choose it from the user interface.
H.265 is preferred over H.264, and the maximum bit rate for H.265 is 3 Mbps. When the user sets a higher
Automatic: In automatic mode, the contents on the video input will be presented on screen
automatically. If more than one source is set to Automatic, the last connected source will be
used. If any content is active (presented) when a call is disconnected, the content will still be
displayed locally.
. bit rate, the codec will still use H.265 at 3 Mbps as long as all codecs involved supports H.265.
Requires user role: ADMIN
Value space: <Normal/Medium/High>
OnConnect: When in on-connect mode, the content on the video input will be presented on
screen when a cable is connected. Otherwise, the behavior is the same as in manual mode.
Normal: Use this profile for a normally to poorly lit environment. Resolutions will be set rather
conservative.
Example: Video Input Connector 1 PresentationSelection: Manual
Medium: Requires good and stable lighting conditions and a good quality video input. For
some call rates this leads to higher resolution.
High: Requires nearly optimal video conferencing lighting conditions and a good quality video
input in order to achieve a good overall experience. Rather high resolutions will be used.
Example: Video Input Connector 1 OptimalDefinition Profile: Medium
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
105
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Input Connector [1..4] RGBQuantizationRange
Video Input Connector [5] SignalType
The devices connected to the video input should follow the rules for RGB video quantization
range defined in CEA-861. Unfortunately some devices do not follow the standard and this
configuration may be used to override the settings to get a perfect image with any source. The
default value is set to Full because most sources expects full quantization range.
Connector 5 can be used for either S-Video or Composite video input format. Use this setting
to configure which video format the BNC connector(s) are used for.
Requires user role: ADMIN
Value space: <Composite/YC>
Requires user role: ADMIN
Composite: Connector 5 is configured for composite video input. Only the BNC connector
that is labeled "Y" is used.
Value space: <Auto/Full/Limited>
Auto: RGB quantization range is automatically selected based on video format according to
CEA-861-E. CE video formats will use limited quantization range levels. IT video formats will
use full quantization range levels.
YC: Connector 5 is configured for S-Video input. Both BNC connectors ("Y" and "C") are
used.
Example: Video Input Connector 5 SignalType: Composite
Full: Full quantization range. The R, G, B quantization range includes all code values (0 255). This is defined in CEA-861-E.
Limited: Limited Quantization Range. R, G, B quantization range that excludes some code
values at the extremes (16 - 235). This is defined in CEA-861-E.
Video Layout DisableDisconnectedLocalOutputs
This setting is fixed to On.
Example: Video Input Connector 1 RGBQuantizationRange: Auto
Requires user role: ADMIN
Value space: <On>
Video Input Connector [4] DviType
On: The built-in layout engine does only set layout on local outputs having a monitor
connected.
The official DVI standard supports both digital and analog signals. In most cases the default
AutoDetect setting can detect whether the signal is analog RGB or digital. However, in some
rare cases when DVI-I cables are used (these cables can carry both the analog and digital
signals) the auto detection fails. This setting makes it possible to override the AutoDetect and
select the correct DVI video input.
Example: Video Layout DisableDisconnectedLocalOutputs: On
Requires user role: ADMIN
Value space: <AutoDetect/Digital/AnalogRGB/AnalogYPbPr>
AutoDetect: Set to AutoDetect to automatically detect if the signal is analog RGB or digital.
Digital: Set to Digital to force the DVI video input to Digital when using DVI-I cables with both
analog and digital pins and AutoDetect fails.
AnalogRGB: Set to AnalogRGB to force the DVI video input to AnalogRGB when using DVI-I
cables with both analog and digital pins and AutoDetect fails.
AnalogYPbPr: Set to AnalogYPbPr to force the DVI video input to AnalogYPbPr, as the
component (YPbPr) signal cannot be auto detected.
Example: Video Input Connector 4 DviType: AutoDetect
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
106
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Layout LocalLayoutFamily
Video Layout RemoteLayoutFamily
Select which video layout family to use locally.
Select which video layout family to be used for the remote participants.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Auto/FullScreen/Equal/PresentationSmallSpeaker/PresentationLargeSpeaker/
Prominent/Overlay/Single>
Value space: <Auto/FullScreen/Equal/PresentationSmallSpeaker/PresentationLargeSpeaker/
Prominent/Overlay/Single>
Auto: The default layout family, as given in the layout database provided by the system, will
be used as the local layout.
Auto: The default layout family, as given by the local layout database, will be used as the
remote layout.
FullScreen: Do not use this value.
FullScreen: Do not use this value.
Equal: The Equal layout family will be used as the local layout. All videos have equal size, as
long as there is space enough on the screen.
Equal: The Equal layout family will be used as the remote layout. All videos have equal size,
as long as there is space enough on the screen.
PresentationSmallSpeaker: Do not use this value.
PresentationSmallSpeaker: Do not use this value.
PresentationLargeSpeaker: Do not use this value.
PresentationLargeSpeaker: Do not use this value.
Prominent: The Prominent layout family will be used as the local layout. The active speaker,
or the presentation if present, will be a large picture, while the other participants will be small
pictures. Transitions between active speakers are voice switched.
Prominent: The Prominent layout family will be used as the remote layout. The active
speaker, or the presentation if present, will be a large picture, while the other participants will
be small pictures. Transitions between active speakers are voice switched.
Overlay: The Overlay layout family will be used as the local layout. The active speaker, or the
presentation if present, will be shown in full screen, while the other participants will be small
pictures-in-picture (PiP). Transitions between active speakers are voice switched.
Overlay: The Overlay layout family will be used as the remote layout. The active speaker, or
the presentation if present, will be shown in full screen, while the other participants will be
small pictures-in-picture (PiP). Transitions between active speakers are voice switched.
Single: The active speaker, or the presentation if present, will be shown in full screen. The
other participants are not shown. Transitions between active speakers are voice switched.
Single: The active speaker, or the presentation if present, will be shown in full screen. The
other participants are not shown. Transitions between active speakers are voice switched.
Example: Video Layout LocalLayoutFamily: Auto
Example: Video Layout RemoteLayoutFamily: Auto
Video Layout PresentationDefault View
Video Layout Scaling
Determine how the presentation will show on screen when you start sharing a presentation.
Define how the system shall adjust the aspect ratio for images or frames when there is a
difference between the image and the frame it is to be placed in.
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Default/Minimized/Maximized>
Value space: <Off/On>
Default: The presentation is a part of the layout.
Off: No adjustment of the aspect ratio.
Minimized: The presentation starts up in PIP mode.
On: Let the system automatically adjust aspect ratio.
Maximized: The presentation starts up in full screen mode.
Example: Video Layout Scaling: On
Example: Video Layout PresentationDefault View: Default
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
107
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Layout ScaleToFrame
Video PIP ActiveSpeaker DefaultValue Position
Define what to do if the aspect ratio of a video input source doesn't match the aspect ratio of
the corresponding image frame in a composition. For example if you have a 4:3 input source
(like XGA) to be displayed on a 16:9 output (like HD720).
Requires user role: ADMIN
Determine the position on screen of the active speaker picture-in-picture (PiP). The setting only
takes effect when using a video layout where the active speaker is a PiP, i.e. the Overlay layout,
or possibly a Custom layout (see the Video Layout LocalLayoutFamily setting). The setting takes
effect from the next call onwards; if changed during a call, it will have no effect on the current
call.
Value space: <Manual/MaintainAspectRatio/StretchToFit>
Requires user role: ADMIN
Manual: If the difference in aspect ratio between the video input source and the target image
frame is less than the Video Layout ScaleToFrameThreshold setting (in percent), the image is
stretched to fit. If not, the system will maintain the original aspect ratio.
Value space: <Current/UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/
LowerRight>
MaintainAspectRatio: Maintain the aspect ratio of the input source, and fill in black in the rest
of the frame (letter boxing or pillar boxing).
Current: The position of the active speaker PiP will be kept unchanged when leaving a call.
StretchToFit: Stretch (horizontally or vertically) the input source to fit into the image frame.
NOTE: The general limitation is that you cannot upscale in one direction and at the same
time downscale in the other direction. In such situations the codec will apply letterboxing.
UpperCenter: The active speaker PiP will appear in the upper center position.
UpperLeft: The active speaker PiP will appear in the upper left corner of the screen.
UpperRight: The active speaker PiP will appear in the upper right corner of the screen.
CenterLeft: The active speaker PiP will appear in the center left position.
Example: Video Layout ScaleToFrame: MaintainAspectRatio
CentreRight: The active speaker PiP will appear in the center right position.
LowerLeft: The active speaker PiP will appear in the lower left corner of the screen.
Video Layout ScaleToFrameThreshold
LowerRight: The active speaker PiP will appear in the lower right corner of the screen.
Only applicable if the Video Layout ScaleToFrame setting is set to manual. If the difference
in aspect ratio between the video input source and the target image frame is less than the
ScaleToFrameThreshold setting (in percent), the image is stretched to fit. If not, the system will
maintain the original aspect ratio.
Example: Video PIP ActiveSpeaker DefaultValue Position: Current
Requires user role: ADMIN
Determine the position on screen of the presentation picture-in-picture (PiP). The setting only
takes effect when the presentation is explicitly minimized to a PiP, for example using the Touch
controller. The setting takes effect from the next call onwards; if changed during a call, it will
have no effect on the current call.
Video PIP Presentation DefaultValue Position
Value space: <0..100>
Range: Select a value from 0 to 100 percent.
Example: Video Layout ScaleToFrameThreshold: 5
Requires user role: ADMIN
Value space: <Current/UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/
LowerRight>
Current: The position of the presentation PiP will be kept unchanged when leaving a call.
UpperLeft: The presentation PiP will appear in the upper left corner of the screen.
UpperCenter: The presentation PiP will appear in the upper center position.
UpperRight: The presentation PiP will appear in the upper right corner of the screen.
CenterLeft: The presentation PiP will appear in the center left position.
CentreRight: The presentation PiP will appear in the center right position.
LowerLeft: The presentation PiP will appear in the lower left corner of the screen.
LowerRight: The presentation PiP will appear in the lower right corner of the screen.
Example: Video PIP Presentation DefaultValue Position: Current
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
108
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video SelfviewDefault Mode
Video SelfviewDefault PIPPosition
Determine if the main video source (self-view) shall be displayed on screen after a call.
The position and size of the self-view window is determined by the Video SelfviewDefault
PIPPosition and the Video SelfviewDefault FullscreenMode settings respectively.
Determine the position on screen of the small self-view picture-in-picture (PiP) after a call. The
setting only takes effect when self-view is switched on (see the Video SelfviewDefault Mode
setting) and fullscreen view is switched off (see the Video SelfviewDefault FullscreenMode
setting).
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <Off/Current/On>
Value space: <Current/UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/
LowerRight >
Off: self-view is switched off when leaving a call.
Current: self-view is left as is, i.e. if it was on during the call, it remains on after the call; if it
was off during the call, it remains off after the call.
Current: The position of the self-view PiP will be kept unchanged when leaving a call.
UpperLeft: The self-view PiP will appear in the upper left corner of the screen.
On: self-view is switched on when leaving a call.
UpperCenter: The self-view PiP will appear in the upper center position.
Example: Video SelfviewDefault Mode: Current
UpperRight: The self-view PiP will appear in the upper right corner of the screen.
CenterLeft: The self-view PiP will appear in the center left position.
Video SelfviewDefault FullscreenMode
CentreRight: The self-view PiP will appear in the center right position.
LowerLeft: The self-view PiP will appear in the lower left corner of the screen.
Determine if the main video source (self-view) shall be shown in full screen or as a small
picture-in-picture (PiP) after a call. The setting only takes effect when self-view is switched on
(see the Video SelfviewDefault Mode setting).
LowerRight: The self-view PiP will appear in the lower right corner of the screen.
Example: Video SelfviewDefault PIPPosition: Current
Requires user role: ADMIN
Value space: <Off/Current/On>
Video SelfviewDefault OnMonitorRole
Off: self-view will be shown as a PiP.
Determine which monitor/output to display the main video source (self-view) on after a call. The
value reflects the monitor roles set for the different outputs in the Video Output Connector [n]
MonitorRole setting.
Current: The size of the self-view picture will be kept unchanged when leaving a call, i.e. if it
was a PiP during the call, it remains a PiP after the call; if it was fullscreen during the call, it
remains fullscreen after the call.
The setting applies both when self-view is displayed in full screen, and when it is displayed as
picture-in-picture (PiP), but only if the Video Monitors setting is set to Dual or Triple.
On: The self-view picture will be shown in fullscreen.
Example: Video SelfviewDefault FullscreenMode: Current
Requires user role: ADMIN
Value space: <First/Second/Third/Current>
First: The self-view picture will be shown on outputs with the Video Output Connector [n]
MonitorRole set to First.
Second: The self-view picture will be shown on outputs with the Video Output Connector [n]
MonitorRole set to Second.
Third: The self-view picture will be shown on outputs with the Video Output Connector [n]
MonitorRole set to Third.
Current: When leaving a call, the self-view picture will be kept on the same output as it was
during the call.
Example: Video SelfviewDefault OnMonitorRole: Current
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
109
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Monitors
Video Output Connector [2] CEC Mode
Set the monitor layout mode.
This setting only applies to MX800.
Requires user role: ADMIN
This video output (HDMI) supports Consumer Electronics Control (CEC). When this setting is
On (default is Off), the system will use CEC to set the monitor in standby when the system itself
enters standby. Likewise the system will wake up the monitor when the system itself wakes up
from standby. The monitor connected to the HDMI output must be CEC compatible and CEC
must be configured on the monitor for this to happen.
Value space: MX800 <Single/DualPresentationOnly> MX700: <Dual/TriplePresentationOnly>
Single: The same layout is shown on all monitors.
DualPresentationOnly: All participants in the call will be shown on the integrated monitor,
while the presentation (if any) will be shown on the second monitor.
Note that the different manufacturers uses different marketing names for CEC, for example
Anynet+ (Samsung); Aquos Link (Sharp); BRAVIA Sync (Sony); HDMI-CEC (Hitachi); Kuro Link
(Pioneer); CE-Link and Regza Link (Toshiba); RIHD (Onkyo); HDAVI Control, EZ-Sync, VIERA Link
(Panasonic); EasyLink (Philips); and NetCommand for HDMI (Mitsubishi).
Dual: The layout is distributed on the two integrated monitors.
TriplePresentationOnly: All participants in the call will be shown on the integrated monitors,
while the presentation (if any) will be shown on the third monitor.
Requires user role: ADMIN
Example: Video Monitors: Dual
Value space: <Off/On>
Off: Disable CEC control
Video OSD LanguageSelection
On: Enable CEC control
This has been replaced with the UserInterface OSD LanguageSelection setting.
Example: Video Output Connector 2 CEC Mode: Off
Video OSD EncryptionIndicator
This has been replaced with the UserInterface OSD EncryptionIndicator setting.
Video OSD LoginRequired
This has been replaced with the UserInterface OSD LoginRequired setting.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
110
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Output Connector [1..3] Location HorizontalOffset
Video Output Connector [1..3] Location VerticalOffset
HorizontalOffset and VerticalOffset settings are associated with each video output. These
settings are used to signal the relative position of the displays that are connected to these
outputs.
HorizontalOffset and VerticalOffset settings are associated with each video output. These
settings are used to signal the relative position of the displays that are connected to these
outputs.
HorizontalOffset = 0 and VerticalOffset = 0 indicates that the display is positioned in center,
both horizontally and vertically. A negative horizontal offset indicates that the monitor is left of
center, and a positive horizontal offset indicates that the monitor is right of center. A negative
vertical offset indicates that the monitor is below center, and a positive vertical offset indicates
that the monitor is above center. The magnitude of the offset indicates how far the display is
from center (relative to other displays).
HorizontalOffset = 0 and VerticalOffset = 0 indicates that the display is positioned in center,
both horizontally and vertically. A negative horizontal offset indicates that the monitor is left of
center, and a positive horizontal offset indicates that the monitor is right of center. A negative
vertical offset indicates that the monitor is below center, and a positive vertical offset indicates
that the monitor is above center. The magnitude of the offset indicates how far the display is
from center (relative to other displays).
Example: You have three displays side by side, with the left and right displays at equal distance
from center. Then the following settings will apply: HorizontalOffset = 0 for the center display,
HorizontalOffset = -1 for the left display, and HorizontalOffset = 1 for the right display.
Example: You have three displays side by side, with the left and right displays at equal distance
from center. Then the following settings will apply: HorizontalOffset = 0 for the center display,
HorizontalOffset = -1 for the left display, and HorizontalOffset = 1 for the right display.
Example: You have two displays, one in center and one below. Then the following settings will
apply: VerticalOffset = 0 for the center display, Vertical Offset = -1 for the lower display.
Example: You have two displays, one in center and one below. Then the following settings will
apply: VerticalOffset = 0 for the center display, Vertical Offset = -1 for the lower display.
The default values for the different outputs are:
The default values for the different outputs are:
Video Output Connector [1] Location: HorizontalOffset = -1, VerticalOffset = 0
Video Output Connector [1] Location: HorizontalOffset = -1, VerticalOffset = 0
Video Output Connector [2] Location: HorizontalOffset = 0, VerticalOffset = 0
Video Output Connector [2] Location: HorizontalOffset = 0, VerticalOffset = 0
Video Output Connector [3] Location: HorizontalOffset = 1, VerticalOffset = 0
Video Output Connector [3] Location: HorizontalOffset = 1, VerticalOffset = 0
Requires user role: ADMIN
Requires user role: ADMIN
Value space: <-100..100>
Value space: <-100..100>
Range: The value must be between -100 and 100.
Range: The value must be between -100 and 100.
Example: Video Output Connector 2 Location HorizontalOffset: -1
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Example: Video Output Connector 2 Location Vertical Offset: 0
111
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Video Output Connector [n] RGBQuantizatonRange
This setting applies to Connector [2..3] for MX800, and Connector [3] for MX700.
Devices connected to an HDMI output should follow the rules for RGB video quantization
range defined in CEA-861. Unfortunately some devices do not follow the standard and this
configuration may be used to override the settings to get a perfect image with any display. The
default value is set to Full because most HDMI displays expects full quantization range.
Requires user role: ADMIN
Value space: <Auto/Full/Limited>
Auto: RGB quantization range is automatically selected based on the RGB Quantization
Range bits (Q0, Q1) in the AVI infoframe. If no AVI infoframe is available, RGB quantization
range is selected based on video format according to CEA-861-E.
Full: Full quantization range. The R, G, B quantization range includes all code values (0 255). This is defined in CEA-861-E.
Limited: Limited Quantization Range. R, G, B quantization range that excludes some code
values at the extremes (16 - 235). This is defined in CEA-861-E.
Example: Video Output Connector 3 RGBQuantizatonRange: Full
Video Output Connector [n] Resolution
This setting applies to Connector [2..3] for MX800, and Connector [3] for MX700.
Set the resolution and refresh rate for the connected screen.
Requires user role: ADMIN
Value space: <Auto/1280_720_50/1280_720_60/1920_1080_50/1920_1080_60>
Auto: The system will automatically try to set the optimal resolution based on negotiation
with the connected monitor.
1280_720_50: The resolution is 1280 x 720, and the refresh rate is 50 Hz.
1280_720_60: The resolution is 1280 x 720, and the refresh rate is 60 Hz.
1920_1080_50: The resolution is 1920 x 1080, and the refresh rate is 50 Hz.
1920_1080_60: The resolution is 1920 x 1080, and the refresh rate is 60 Hz.
Example: Video Output Connector 3 Resolution: Auto
Video WallPaper
This has been replaced with the UserInterface Wallpaper setting.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
112
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
System
System settings
settings
Web interface
Setting passwords
Appendices
Experimental settings
The Experimental settings are for testing only and should not be used unless agreed with Cisco.
These settings are not documented and WILL change in later releases.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
113
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
Setting
Setting passwords
passwords
System settings
Appendices
Chapter 4
Setting passwords
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
114
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting
Setting passwords
passwords
Appendices
Setting the system password
The system password protects the video system. You have to
sign in to be able to use the web interface, and to get access
to the Administrator settings from the Touch controller.
The admin user
The video system is delivered with a default user account
with full credentials. The user name is admin, and initially, no
password is set for the default user.
Changing your own system password
Changing another user’s system password
Perform the following steps to change the system password.
If you have administrator access rights, you can change all
users’ passwords by performing the following steps:
If a password is currently not set, use a blank Current
password; to remove a password, leave the New password
fields blank.
1. Sign in to the web interface with your user name and
password.
1. Sign in to the web interface with your user name and
current password.
2. Go to the Configuration tab and select User
Administration.
3. Choose the appropriate user from the list.
It is mandatory to set a password for the admin user
in order to restrict access to system configuration.
Also set a password for any other user with similar
credentials.
2. Click your user name in the upper right corner and
choose Change password in the drop down menu.
3. Enter the Current password, the New password, and
repeat the new password in the appropriate input fields.
5. Click Save.
Make sure to keep a copy of the password in a safe
place. You have to factory reset the unit if you have
forgotten the password.
4. Click Change password.
4. Enter a new password and PIN code.
The password format is a string with 0–64 characters.
A warning, saying that the system password is not set, is
shown on screen until a password is set for the admin user.
Other user accounts
You can create as many user accounts as you like for your
video system.
You can read more about how to create and manage user
accounts in the ► User administration section.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
115
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Appendices
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
116
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Cisco VCS provisioning
When using Cisco VCS (Video Communication Server)
provisioning, a template containing all the settings that can be
provisioned must be uploaded to Cisco TMS (TelePresence
Management System). This is called the Cisco TMS
provisioning configuration template.
All the system settings for your video system are included in
this template. All settings except SystemUnit Name and SIP
Profile [1..1] URI can be automatically provisioned to the video
system.
The settings are described in the ► System settings chapter
in this guide. Examples showing either the default value or an
example value are included.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Downloading the provisioning configuration template
You can download the templates here:
► http://www.cisco.com/c/en/us/support/collaborationendpoints/telepresence-mx-series/products-release-noteslist.html
For each software release there is one provisioning
configuration template (XML file) for each video system
model. Take care to use the correct file.
Read the Cisco TMS Provisioning Deployment Guide to find
how to upload the file to Cisco TMS, and how to set the
desired values for the parameters to be provisioned. If not set
by Cisco TMS, the default values will be used.
117
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Appendices
Appendices
Setting passwords
LED indicators
System LED / Camera failure LED
*
This LED operates as both system LED
and camera failure LED for the right
camera in a dual camera assembly.
Camera failure LED
System LED / Camera failure LED
Codec LEDs
Codec LEDs
You must remove the
side cover to be able to
see the codec LEDs.
You must remove the
side cover to be able to
see the codec LEDs.
The side cover is
fastened with magnets.
The side cover is
fastened with magnets.
Sub-system failure LEDs
Sub-system failure LEDs
Sub-system failure LEDs
System LED
Codec LEDs
Camera failure LED
Sub-system failure LEDs
Blinking:
System failure:
Steady red light:
There are four LEDs underneath the
monitor(s). Normally, they are not lit.
The video system is starting up.
Pulsating:
The video system is in standby mode.
*
Lights steady (red) when there is a
serious problem with the codec.
The camera has a serious error.
Power:
Lights steady (white) when the codec
has power.
A steady red light indicates serious error,
and you should contact the Cisco support
organization.
The LEDs mean (numbered from left to right):
The Camera LED and System LED positions for MX700 with a dual camera is the same as ilustrated for MX800 with a dual camera.
The Camera LED and System LED positions for MX800 with a single camera is the same as ilustrated for MX700 with a single camera.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
*
This LED operates as both system
LED and camera failure LED.
118
1. Monitor failure.
2. Power failure for LCD monitor or camera
sub-systems.
3. Power failure for audio sub-system.
4. Power failure for LCD monitor backlight.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Administrator Guide
Introduction
Web interface
System settings
Setting passwords
Appendices
Appendices
Connecting an external monitor to MX700
An external monitor can be used to display content or
presentations (presented locally or received from far-end).
The codec and monitor must be connected and set up as
described below.
For a full description of each settings, refer to the
► System settings chapter.
External monitor
You must remove the video system’s left side cover to
get access to the codec connector panel. The cover
is fastened with magnets.
Connector 3 (DVI-I)
Audio Line
outputs
(Euroblock,
3.5 mm)
Codec connector panel
1. Connect an external monitor
i. Switch off the system.
The power button is located directly below the codec
connector panel.
ii. Connect the monitor as shown in the illustration.
Use Connector 3 (DVI-I) for video and an Audio Line
output for audio.
iii. Switch on the system, and wait while the system starts
up.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
These connectors are used
for the integrated monitors.
Do not disconnect!
2. Define how to use the external monitor
3. Set the monitor resolution and refresh rate
Use the Video > Monitors setting to define what to display on
the external monitor.
The codec will read the native resolution of a monitor and
output this if possible. Typically, this will give the best
possible picture for the connected monitor.
Choose TriplePresentationOnly to allow presentations on the
external monitor.
If the setting is kept at Dual (default), all participants and
content will be distributed on the two integrated monitors,
and nothing will be shown on the external monitor.
If auto-detection of resolution and refresh rate fails, you
have to set resolution manually using the Video > Output >
Connector 3 > Resolution setting.
Do NOT use TriplePresentationOnly if no external monitor is
connected. Presentations will fail to display.
119
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Administrator Guide
Introduction
Web interface
System settings
Setting passwords
Appendices
Appendices
Connecting external monitors to MX800
External monitors can be used to display content or
presentations (presented locally or received from far-end).
You can connect two external monitors to MX800. The same
content will be displayed on both monitors.
The codec and monitor must be connected and set up as
described below.
For a full description of each settings, refer to the
► System settings chapter.
External monitor
Connector 3 (DVI-I)
You must remove the video system’s left side cover
to get access to the codec connector panel. The
cover is fastened with magnets.
Audio Line
outputs
(Euroblock,
3.5 mm)
Connector 2 (HDMI)
External monitor
Codec connector panel
1. Connect external monitors
i. Switch off the system.
The power button is located directly below the codec
connector panel.
ii. Connect the monitors as shown in the illustration.
Use Connector 2 (HDMI); or use Connector 3 (DVI-I) for
video and an Audio Line output for audio.
iii. Switch on the system, and wait while the system starts
up.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
This connector is used for
the integrated monitor.
Do not disconnect!
2. Define how to use the external monitors
3. Set the monitor resolution and refresh rate
Use the Video > Monitors setting to define what to display on
the external monitors.
The codec will read the native resolution of a monitor and
output this if possible. Typically, this will give the best
possible picture for the connected monitor.
Choose DualPresentationOnly to allow presentations on the
external monitors.
If the setting is kept at Single (default), the same content
(participants and presentation) is shown on both the
integrated and the external monitors.
If auto-detection of resolution and refresh rate fails,
you have to set resolution manually using the Video >
Output > Connector 2 > Resolution and Video > Output >
Connector 3 > Resolution settings.
Do NOT use DualPresentationOnly if no external monitor is
connected. Presentations will fail to display.
120
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Connecting a computer
MX700 and MX800 has several input connectors. The
following inputs are available for additional content sources:
• Two HDMI inputs (video systems with a single camera) /
One HDMI input (video systems with a dual camera)
• One DVI-I input
• One S-video
Audio Line
inputs
(Euroblock,
3.5 mm)
• One composite video
You can connect a computer to one of the video inputs in
order to share content locally or with conference participants.
Typically, a computer is connected to an HDMI or DVI-I
input. To get audio when using DVI-I, the computer must
also be connected to one of the codec’s Audio line inputs
(Euroblock) *.
Connector 4 (DVI-I)
Note that the S-video and composite video inputs (BNC
connectors) are disabled when using DVI-I.
Connector 3 (HDMI)
Computer
Connector 2 (HDMI)
You must remove the video system’s left side cover
to get access to the codec connectors. The cover is
fastened with magnets.
Connector 1 (HDMI)
For a full description of the settings, refer to the
► System settings chapter.
*
Cisco offers a presentation cable that connects the
codec's DVI-I input and Audio line in port (Euroblock),
to the computer's VGA and mini jack connectors.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Codec connector panel
These connectors are used
for the integrated cameras
in a dual camera system.
Do not disconnect!
This connector is used for
the integrated camera in a
single camera system.
Do not disconnect!
Video and content quality
Source type and source name
Use the Video > Input > Connector n > Quality setting to
optimize quality with respect to motion or sharpness.
The default source type is Camera for Connector 2, and PC
for Connector 3 and Connector 4.
Sharpness provides the best quality for detailed images and
graphics, while Motion is best when there is a lot of motion
in the picture. Typically, Sharpness is the best choice for
computer content, while Motion is the best choice for video.
Use the Video > Input > Connector n > InputSourceType and
Video > Input > Connector n > Name settings if you want to
modify the naming.
The default value is Motion for Connector 2; and Sharpness
for Connector 3 and Connector 4.
121
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Appendices
Appendices
Setting passwords
Advanced customization of video
The video system supports full customization of the video
layouts/templates allowing support for advanced meeting
room setups and integrations.
The TC Console application, which is a free software tool
that runs on PC/Mac, provides a graphical interface to the
advanced customizable features of the codec. TC Console
includes the following modules:
Video compositor
• Modify the default video compositing behavior of the
codec
• Add new layouts
• Change the automatically chosen layout
• Control what video sources are shown where and when
GPIO
• Change the behavior of the GPIO, i.e. what the codec
should do when pins go high/low
Video compositor
GPIO
For more details about the functionality, see the
user guide included in the TC Console application
itself or download the TC Console user guide from
► http://www.cisco.com/go/mx-docs
How to obtain the TC Console application
Download the TC Console application for free from
the Cisco Developer Network (CDN) web site. Go to:
► http://developer.cisco.com/web/telepresence-developer
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
122
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Administrator Guide
Introduction
Web interface
System settings
Appendices
Appendices
Setting passwords
Optimal definition profiles
Under ideal lighting conditions the bandwidth (call rate)
requirements can be substantially reduced.
The optimal definition profile should reflect the lighting
conditions in your room and the quality of the video input
(camera); the better the lighting conditions and video input,
the higher the profile. Then, in good lighting conditions, the
video encoder will provide better quality (higher resolution or
frame rate) for a given call rate.
In general, we recommend the optimal definition profile
set to Normal. However, if lighting conditions are good we
recommend that you test the endpoint on the various Optimal
Definition Profile settings before deciding on a profile.
Go to System Configuration on the web interface and
navigate to Video > Input > Connector n > OptimalDefinition >
Profile to choose the preferred optimal definition profile.
You can set a resolution threshold to determine when to allow
sending video at 60 fps. For all resolutions lower than this
threshold, the maximum transmitted frame rate will be 30 fps;
for higher resolutions, 60 fps will be possible if the available
bandwidth is adequate.
High
Medium
Normal
Typically used in dedicated video
conferencing rooms. Requires very good
lighting conditions and a good quality
video input to achieve a good overall
experience.
Typically used in rooms with good and
stable lighting conditions and a good
quality video input.
This setting is typically used in office
environments where the room is normally
to poorly lit.
Under ideal conditions the bandwidth
requirements can be reduced by up to
50% compared to Normal.
Typical resolutions used for different optimal definition profiles, call rates and frame rates
Go to System Configuration on the web interface and
navigate to Video > Input > Connector n > OptimalDefinition >
Threshold60fps to set the threshold.
Optimal Definition
Profile
768 kbps
1152 kbps 1472 kbps 2560 kbps
Normal
1280 × 720
1280 × 720
30 fps
Medium
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
High
1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
60 fps
Go to System Configuration on the web interface and
navigate to Video > Input > Connector n > Quality to set the
video quality parameter to Motion.
30 fps
H.264
You can read more about the video settings in the
► System settings chapter.
60 fps
*
Call rate
Frame rate
H.265
The video input quality settings must be set to Motion for the
optimal definition settings to take any effect. With the video
input quality set to Sharpness, the endpoint will transmit the
highest resolution possible, regardless of frame rate.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
The bandwidth requirements can be
reduced by up to 25% compared to
Normal.
4 Mbps*
6 Mbps*
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
Normal
768 × 448
1024 × 576
1280 × 720
1280 × 720
1280 × 720
1280 × 720
Medium
1024 × 576
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
High
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
1280 × 720
Normal
1024 × 576
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
Medium
1280 × 720
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
High
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Normal
640 × 360
768 × 448
1024 × 576
1280 × 720
Medium
768 × 448
1024 × 576
1024 × 576
1280 × 720 1920 × 1080 1920 × 1080
1280 × 720 1920 × 1080
High
1024 × 576
1280 × 720
1280 × 720 1920 × 1080 1920 × 1080 1920 × 1080
H.265 is preferred over H.264, and the maximum bit rate for H.265 is 3 Mbps. When the user sets a higher bit
rate, the codec will still use H.265 at 3 Mbps as long as all codecs involved supports H.265.
123
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
ClearPath — Packet loss resilience
ClearPath introduces advanced packet loss resilience
mechanisms that increase the experienced quality when you
use your video system in an error prone environment.
We recommend that you keep ClearPath enabled on your
video system.
Go to the System Configuration page (web interface):
• Navigate to Conference 1 > PacketLossResilience > Mode
Choose Off to disable ClearPath and On to enable
ClearPath.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
124
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Factory resetting the system
It is not possible to undo a factory reset.
You should always backup the log files and the
current configuration before you factory reset a system.
Open the web interface, sign in, and follow these steps:
• Navigate to Maintenance > System Recovery and
choose the Backup tab.
• Click Download Logs and Download Configuration
Backup and follow the instructions to save the files
on your computer.
If there is a severe problem with the video system, the last
resort may be to reset it to its default factory settings.
Always consider reverting to the previously used software
version before performing a factory reset. In many situations
this will recover the system. Note that both the current and
the previous software images reside on the system. Read
about software swapping in the ► Reverting to the previously
used software version section.
We recommend that you use either a Touch controller or the
web interface to factory reset the system. If these interfaces
are not available, you can use the video system’s power
button.
When factory resetting the video system the following
happens:
• The call logs will be deleted.
• Passwords will be reset to default.
• All system parameters will be reset to default values.
• All files that have been uploaded to the system will be
deleted. This includes, but is not limited to, custom
backgrounds, certificates, and the favorites list (My
contacts).
• The previous (inactive) software image will be deleted.
• Release keys and option keys will not be affected.
The system restarts automatically after the reset. It is using
the same software image as before.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
User interface: Touch
Using the reset button
1. Tap gently on the Touch screen if the unit is in sleep
mode.
2. Open the Settings* menu and navigate to Administrator >
Reset. You have to log in with an administrator user name
and password to access the Administrator menu.
1. Remove the video system’s left
side cover to get access to the
codec connector panel.
The cover snaps to magnets.
3. Tap the Factory Reset button.
The system reverts to the default factory settings and
restarts automatically. This will take a few minutes.
The system confirms the factory reset by displaying a
notification on the main screen when up and running
again. The notification disappears after approximately
10 seconds.
2. Use the tip of a pen (or similar) to press and hold the
recessed reset button until the screen turns black
(approximately 10 seconds). Then release the button.
The system reverts to the default factory settings and
restarts automatically. This will take a few minutes.
The system confirms the factory reset by displaying a
notification on the main screen when up and running
again. The notification disappears after approximately
10 seconds.
User interface: Web
Open the Settings* menu on the Touch controller
and tap System Information to find the system’s IP
address (IPv4 or IPv6).
Reset button
(pin hole)
1. Open a web browser and enter the IP address of the
video system in the address bar.
2. Navigate to Maintenance > System Recovery and choose
the Factory Reset tab.
3. Read the provided information carefully before you click
Perform a factory reset....
4. Click the red Yes button to confirm that you want to
perform a factory reset.
The system reverts to the default factory settings and
restarts automatically. This will take a few minutes.
The system confirms the factory reset by displaying a
notification on the main screen when up and running
again. The notification disappears after approximately
10 seconds.
125
*
The Settings menu can be accessed from the drop down window
that appears when you tap the contact information in the upper, left
corner of the Touch controller.
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Factory resetting the Touch 10
user interface
In an error situation it may be required to factory reset
the Touch 10 user interface to recover connectivity. This
should be done only when in contact with the Cisco support
organization.
Factory resetting Touch 10
1. Locate the Mute and Volume down buttons.
When factory resetting Touch 10 the pairing information is
lost, and the Touch itself (not the video system) is reverted to
factory defaults.
It is not possible to undo a factory reset.
Mute
Volume down
2. Press and hold the Mute button until it starts blinking (red
and green). It takes approximately 10 seconds.
3. Press the Volume down button twice.
Touch 10 automatically reverts to the default factory
settings and restarts.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
126
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Technical specification for MX700 and MX800
Product specification
Software compatibility
Cisco TelePresence Software Version TC7.1.2 or later
Components
Fully integrated unit including:
• Codec
• Display
• Camera (2 cameras as option)
• Loudspeakers
• Cisco TelePresence Table Microphone 60 (two
microphones are included in base package)
• Cables included: DVI-I-to-VGA cable with Euroblock
to 3.5-mm jack audio cable, HDMI to HDMI, LAN
cable, and power cable
Display
Cisco TelePresence MX700:
• 2x 55-in. (1.4m) TFT-LCD monitor, edge-lit LED
• Resolution: 1920 x 1080 (16:9)
• Contrast ratio: Typical 4000:1
• Viewing angle: +/-178 deg
• Response time: Typical 8 ms
• Brightness: Typical 450 cd/m2
Cisco TelePresence MX800:
• 70-inch TFT-LCD monitor, edge-lit LED
• Resolution: 1920 x 1080 (16:9)
• Contrast ratio: Typical 4000:1
• Viewing angle: +/- 176 deg
• Response time: Typical 8 ms
• Brightness: 350 cd/m2
PC and second-source video input
• DVI-I
• Two HDMI (if Dual camera option is installed, only
one HDMI)
• One standard definition (composite or S-video)
Supported PC input resolutions
• SVGA (800 x 600) up to 1080p (1920 x 1080)
System management
Camera overview
• Support for the Cisco TelePresence Management
Suite (TMS)
• Total management via embedded Telnet, SSH, XML
and SOAP
• Remote software upload via web server, SCP, HTTP
and HTTPS
• One RS-232 for local control and diagnostics
• Support for Cisco TelePresence Touch 10
• 20x total zoom (10x optical,2x digital zoom)
• Motorized +12.7°/-14.5° tilt, +58°/-90° pan
• 80° horizontal field of view
• 48.8° vertical field of view
• F 1.5
• Resolutions: 1080p60 and 720p60
• Automatic or manual focus, brightness, and white
balance
• Far-end camera control
• Camera control over Ethernet
• Focus distance 3.28 ft (1m) to infinity
Directory services
• Support for local directories (Favorites / Local
contacts)
• Corporate directory (through CUCM and Cisco TMS)
• Server directory supporting LDAP and H.350
(requires Cisco TMS)
• Call history with received, placed and missed calls
with date and time
Audio system
• 8 balanced microphone inputs with phantom power
• 4 balanced line inputs
• 6 balanced line outputs
• Multichannel loudspeaker array
• Integrated bass speakers
Product dimensions and weight
MX700:
• Width: 99.09” in. (251.7 cm)
• Height Freestand: 64.33” in (163.4 cm)
• Height Wallmount: 42.17” in (107.1 cm)
• Depth Freestand: 4.76” in, 36.22” incl. feet (12.1 cm,
92.0 cm incl. feet)
• Depth Wallmount: 5.83” in (14.8 cm)
• Weight Single Camera: Freestand: 339.51 lbs
(154.0 kg)
• Weight Dual Camera: Freestand: 352.73 lbs
(160.0 kg)
• Weight Single Camera: Wallmount: 357.15 lbs
(162.0 kg)
• Weight Dual Camera: Wallmount: 370.38 lbs
(168.0 kg)
MX700:
• Frequency range: 65 Hz-20 kHz
• Total amplifier power: 400 W
MX800:
• Frequency range: 45 Hz-20 kHz
• Total amplifier power: 200 W
User interface
Cisco TelePresence Touch 10 interface (ref. Touch 10”
DataSheet)
• 10 inch projected capacitive touch screen
• Resolution: 1280 x 800
Language support
• Depends on software version
• English, Arabic, Catalan, Czech, Danish, Dutch,
Finnish, French, German, Hebrew, Hungarian, Italian,
Japanese, Korean, Norwegian, Polish, PortugueseBrazilian, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish (software
version TC7)
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
MX800:
• Width: 62.83” in. (159.6 cm)
• Height Freestand: 71.69” in (182.1 cm)
• Height Wallmount: 49.52” in (125.8 cm)
• Depth Freestand: 4.76” in, 36.22” incl. feet (12.1 cm,
92.0 cm incl. feet)
• Depth Wallmount: 5.87” in (14.9 cm)
• Weight Single Camera: Freestand: 244.71 lbs
(111.0 kg)
127
• Weight Dual Camera: Freestand: 257.94 lbs (117.0 kg)
• Weight Single Camera: Wallmount: 240.30 lbs
(109.0 kg)
• Weight Dual Camera: Wallmount: 253.53 lbs
(115.0 kg)
Packaging dimensions and weight
MX700:
• H: 62.20” in. (158.0 cm)
• D: 30.51” in. (77.5 cm)
• W: 61.69” in. (156.7 cm)
• Weight w/Single Camera: 498.2 lbs (226 kg)
• Weight w/Dual Camera: 511.5 lbs (232 kg)
MX800:
• H: 59.06” in. (150 cm)
• D: 26.38” in. (67 cm)
• W: 72.83” in. (185 cm)
• Weight w/Single Camera: 361.6 lbs (164 kg)
• Weight w/Dual Camera: 374.8 lbs (170 kg)
Power
MX700:
• Auto-sensing power supply
• 100-120/200-240 VAC, 50/60 Hz
• 170 W maximum for codec and main camera
• Standby Power Consumption single cam/dual cam:
129 W/140 W
• Average Power Consumption single cam/dual cam:
504 W/525 W
• Max Power Consumption single cam/dual cam:
548 W/573 W
MX800:
• Auto-sensing power supply
• 100-120/200-240 VAC, 50/60 Hz
• 170 W maximum for codec and main camera
• Standby Power Consumption single cam/dual cam:
106 W/118 W
• Average Power Consumption single cam/dual cam:
297 W/324 W
• Max Power Consumption single cam/dual cam:
327 W/355 W
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Operating temperature and humidity:
• Ambient temperature: 32°F to 104°F
(0°C to 40°C)
• Relative humidity (RH): 10% to 90%
Storage and transport temperature:
• –4°F to 140°F (–20°C to 60°C) at RH 10% to 90%
(non-condensing)
Approvals and compliance
EU/EEC
Directive 2006/95/EC (Low Voltage Directive)
--Standard IEC/EN 60950-1
Directive 2004/108/EC (EMC Directive)
--Standard EN 55022, Class A
--Standard EN 55024
--Standard EN 61000-3-2/-3-3
Directive 2011/65/EU (RoHS)
Warning: This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take
adequate measures.
USA
Approved according to UL 60950-1
Complies with FCC CFR 47 15B, Class A
Note: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.
Canada
Approved according to CAN/CSA C22.2 No. 609501-07
This Class A digital apparatus complies with Canadian
ICES-003
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada
Administrator Guide
Web interface
System settings
One DVI-I input
Product capabilities
Product delivered complete with:
• One mounting option, single or dual camera option,
Cisco Touch 10, codec, complete audio system,
2 × Cisco Microphone 60, two presentation cables.
Bandwidth
• H.323 and SIP up to 6 Mbps point-to-point
• Up to 10 Mpbs total MultiSite bandwidth
Minimum bandwidth for resolution / frame rate (H.264)
• 720p30 from 768 kbps
• 720p60 from 1152 kbps
• 1080p30 from 1472 kpbs
• 1080p60 from 2560 kbps
Firewall traversal
• Cisco TelePresence Expressway technology
• H.460.18 and H.460.19 firewall traversal
• SIP ICE (Interactive Connectivity Establishment)
Video standards
• H.261, H.263, H.263+, H.264 and H.265
Video features
• Advanced screen layouts
• Custom video layouts
• Local auto layout
Video inputs (five inputs)
Three HDMI inputs; support formats up to maximum
1920 × 1200@60fps, including:
• 1920 × 1080@60 and 59.94 Hz (1080p60)
• 1920 × 1080@50 Hz (1080p50)
• 1920 × 1080@30 and 29.97 Hz (1080p30)
• 1920 × 1080@25 Hz (1080p25)
• 1920 × 1080@24, and 23.97 Hz (1080p24)
• 1280 × 720@60, and 59.94 Hz (720p60)
• 1280 × 720@50 Hz (720p50)
• 720 × 480@60, and 59.94 Hz (480p60)
• 640 × 480@60 Hz (480p60)
• 1280 × 1024@60, and 75 Hz (SXGA)
• 1024 × 768@60, 70, 75, and 85 Hz (XGA)
• 800 × 600@56, 60, 72, 75, and 85 Hz (SVGA)
• 1920 × 1200@50 and 60 Hz (WUXGA)
• 1680 × 1050@60 Hz (WSXGA+)
• 1440 × 900@60 Hz (WXGA+)
• 1280 × 768@60 Hz (WXGA)
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
Setting passwords
Video outputs (three outputs)
Analog (VGA or YPbPr); support formats up to
maximum 1920 × 1080@60fps (1080p60), including:
• 1920 × 1080@60 Hz (1080p)
• 1280 × 720@60 Hz (720p)
• 1280 × 1024@60 and 75 Hz (SXGA)
• 1280 × 960@60 Hz
• 1024 × 768@60, 70, 75, and 85 Hz (XGA)
• 1680 × 1050@60 Hz (WSXGA+)
• 1440 × 900@60 Hz (WXGA+)
• 1280 × 800@60 Hz (WXGA)
• 1280 × 768@60 Hz (WXGA)
Two HDMI outputs and one DVI-I output; supports
formats up to maximum 1920 × 1080@60fps
(1080p60), including:
• 1920 × 1080@60 Hz (1080p60)
• 1920 × 1080@50 Hz (1080p50)
• 1280 × 720@60 Hz (720p60)
• 1280 × 720@50 Hz (720p50)
Digital (DVI-D); support formats up to maximum 1920
× 1080@60fps, including:
• 1920 × 1080@60, 59.94 Hz (1080p60)
• 1920 × 1080@50 Hz (1080p50)
• 1920 × 1080@30, 29.97 Hz (1080p30)
• 1920 × 1080@25 Hz (1080p25)
• 1920 × 1080@24, 23.97 Hz (1080p24)
• 1280 × 720@60, 59.94 Hz (720p60)
• 1280 × 720@50 Hz (720p50)
• 720 × 480@60, 59.94 Hz (480p60)
• 640 × 480@60 Hz (480p60)
• 1280 × 1024@60, 75 Hz (SXGA)
• 1024 × 768@60, 70, 75, 85 Hz (XGA)
• 800 × 600@56, 60, 72, 75, 85 Hz (SVGA)
• 1680 × 1050@60 Hz (WSXGA+)
• 1440 × 900@60 Hz (WXGA+)
• 1280 × 768@60 Hz (WXGA)
VESA Monitor Power Management
One Composite/S-Video Input (BNC Connectors)
• PAL/NTSC
HDMI input 1 is used for Main Camera (included in base
package)
HDMI input 2 is used in addition if Speaker Track Option
(2nd camera) is installed
Extended Display Identification Data (EDID)
128
Appendices
Appendices
MX700: HDMI output 1 and 2 are in use for the two
integrated screens
MX800: HDMI output 1 is in use for the integrated
screen
Extended Display Identification Data (EDID)
Enccode/decode video formats
Supports encode/decode video formats up to maximum
1920 × 1080@60fps (HD1080p60), including:
• 176 × 144@30 frames per second (fps) (QCIF)
• 352 × 288@30 fps (CIF)
• 512 × 288@30 fps (w288p)
• 576 × 448@30 fps (448p)
• 768 × 448@30 fps (w448p)
• 704 × 576@30 fps (4CIF)
• 1024 × 576@30 fps (w576p)
• 1280 × 720@30 fps (720p30)
• 1920 × 1080@30 fps (1080p30)
• 640 × 480@30 fps (VGA)
• 800 × 600@30 fps (SVGA)
• 1024 × 768@30 fps (XGA)
• 1280 × 1024@30 fps (SXGA)
• 1280 × 768@30 fps (WXGA)
• 1440 × 900@30 fps (WXGA+)
• 1680 × 1050@30 fps (WSXGA+)
• 512 × 288@60 fps (w288p60)
• 768 × 448@60 fps (w448p60)
• 1024 × 576@60 fps (w576p60)
• 1280 × 720@60 fps (720p60)
• 1920 × 1080@60 fps (1080p60)
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Audio standards
• 64 kbps and 128 kbps AAC-LD, G.722, G.722.1,
G.711, G.729AB
Audio features
• High quality 20 kHz audio
• Eight separate acoustic echo cancellers
• Eight-port audio mixer
• Automatic gain control (AGC)
• Automatic noise reduction
• Active lip synchronization
Audio inputs (fifteen inputs)
• Eight microphones, 48V phantom powered,
Euroblock connector, each with separate echo
cancellers and noise reduction; all microphones can
be set for balanced line level
• Four balanced line level inputs, Euroblock connector
• Three HDMI inputs, digital, stereo (from PC/DVD)
Audio outputs (eight outputs)
• Six balanced line level outputs, Euroblock connector
• Two HDMI outputs (MX700: Both HDMI audio outputs
are used for the two integrated screens. MX800: One
HDMI audio output is used for the integrated screen)
Dual stream
• H.239 (H.323) dual stream
• BFCP (SIP) dual stream
• Support for resolutions up to 1080p30, independent
of main stream resolution
Administrator Guide
Web interface
System settings
Setting passwords
Cisco Unified Communications Manager
IP network features
Multipoint support
• DNS lookup for service configuration
• Differentiated services (QoS)
• IP adaptive bandwidth management (including flow
control)
• Auto gatekeeper discovery
• Dynamic playout and lip-sync buffering
• H.245 DTMF tones in H.323
• RFC 4733 DTMF tones in SIP
• Date and time support via NTP
• Packet loss based downspeeding
• URI dialing
• TCP/IP
• DHCP (Dynamic Host Configuration Protocol)
• IEEE 802.1x network authentication
• IEEE 802.1q VLAN
• IEEE 802.1p QoS and class of service
• ClearPath
• Medianet: Mediatrace and Metadata
• Five-way embedded SIP/H.323 MultiPoint, ref.
MultiSite
• Cisco Ad-Hoc Conferencing (requires Cisco
Unified Communications Manager (CUCM), Cisco
TelePresence Server and Conductor)
• Cisco Conferencing Active Control
MultiSite features
(embedded multipoint)
• Five-way 720p30, three-way and four-way 1080p30
• Full individual audio and video transcoding
• Individual layouts in MultiSite continuous presence
• H.323/SIP/VoIP in the same conference
• Support for Presentation (H.239/BFCP) from any
participant at resolutions up to 1080p15
• H.264, encryption and dual stream from any site
• IP downspeeding
• Dial in and dial out
• Conference rates up to 10 Mbps
IPv6 network support
• Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP,
HTTPS, DNS and DiffServ
• Support for both static, autoconfiguration (stateless
address autoconfiguration) and DHCPv6
Protocols
• H.323
• SIP
• Single call stack support, either H.323 or SIP
registration
• ISDN (requires Cisco TelePresence ISDN Link)
Appendices
Appendices
(requires Cisco UCM version 8.6 or later)
• Native registration with Cisco Unified
Communications Manager (CUCM)
• Basic CUCM provisioning
• Firmware upgrade from CUCM
• Cisco Discovery Protocol and DHCP option 150
support
• Basic telephony features such as hold, resume,
transfer, and corporate directory lookup
Security features
• Management using HTTPS and SSH
• IP administration password
• Administration menu password
• Disable IP services
• Network settings protection
Network interfaces
• One LAN/Ethernet (RJ-45) 10/100/1000 Mbps
• Two LAN/Ethernet (RJ-45) interfaces to be used for
Cisco TelePresence peripherals
Other interfaces
• Two USB host for future use
• GPIO
Embedded encryption
• H.323 and SIP point-to-point and MultiSite
• Standards-based: H.235 v3 and Advanced
Encryption Standard (AES)
• Automatic key generation and exchange
• Supported in dual stream
All specifications are subject to change without notice, system specifics may vary.
All images in these materials are for representational purposes only, actual products may differ.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other
countries. A listing of Cisco’s trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks
mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company.
June 2014
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
129
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
Supported RFCs
The RFC (Request for Comments) series contains technical
and organizational documents about the Internet, including
the technical specifications and policy documents produced
by the Internet Engineering Task Force (IETF).
Current RFCs and drafts supported
• RFC 4629 RTP Payload Format for ITU-T Rec. H.263
Video
• RFC 2190 RTP Payload Format for H.263 Video Streams
• RFC 3891 The SIP “Replaces” Header
• RFC 2460 Internet protocol, version 6 (IPv6) specification
• RFC 3892 Referred-By Mechanism
• RFC 2617 Digest Authentication
• RFC 3960 Early Media
• RFC 2782 DNS RR for specifying the location of services
(DNS SRV)
• RFC 3986 Uniform Resource Identifier (URI): Generic
Syntax
• RFC 2976 The SIP INFO Method
• RFC 4028 Session Timers in SIP
• RFC 4862 IPv6 stateless address autoconfiguration
• RFC 3016 RTP Payload Format for MPEG-4 Audio/Visual
Streams
• RFC 4091 The Alternative Network Address Types
(ANAT) Semantics for the Session Description Protocol
(SDP) Grouping Framework
• RFC 5104 Codec Control Messages in the RTP AudioVisual Profile with Feedback (AVPF)
• RFC 5168 XML Schema for Media Control
• RFC 4092 Usage of the Session Description Protocol
(SDP) Alternative Network Address Types (ANAT)
Semantics in the Session Initiation Protocol (SIP)
• RFC 5245 Interactive Connectivity Establishment (ICE): A
Protocol for Network Address Translator (NAT) Traversal
for Offer/Answer Protocols
• RFC 4145 TCP-Based Media Transport in the SDP
• RFC 5389 Session Traversal Utilities for NAT (STUN)
• RFC 3361 DHCP Option for SIP Servers
• RFC 4235 An INVITE-Initiated Dialog Event Package for
the Session Initiation Protocol (SIP)
• RFC 5577 RTP Payload Format for ITU-T
Recommendation G.722.1
• RFC 3388 Grouping of Media Lines in the Session
Description Protocol (SDP)
• RFC 4566 SDP: Session Description Protocol
• RFC 5589: SIP Call Control Transfer
• RFC 3420 Internet Media Type message/sipfrag
• RFC 4568 SDP: Security Descriptions for Media Streams
• RFC 5626 Managing Client-Initiated Connections in the
Session Initiation Protocol (SIP)
• RFC 3515 Refer method
• RFC 4574 The Session Description Protocol (SDP) Label
Attribute
• RFC 3550 RTP: A Transport Protocol for Real-Time
Applications
• RFC 4582 The Binary Floor Control Protocol
• RFC 3261 SIP: Session Initiation Protocol
• RFC 3262 Reliability of Provisional Responses in SIP
• RFC 3263 Locating SIP Servers
• RFC 3264 An Offer/Answer Model with SDP
• RFC 3311 UPDATE method
• RFC 3551 RTP Profile for Audio and Video Conferences
with Minimal Control
• RFC 3581 Symmetric Response Routing
• RFC 3605 RTCP attribute in SDP
• RFC 3711 The Secure Real-time Transport Protocol
(SRTP)
• RFC 3840 Indicating User Agent Capabilities in SIP
• RFC 3890 A Transport Independent Bandwidth Modifier
for SDP
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
draft-ietf-bfcpbis-rfc4582bis-00 Revision of the Binary
Floor Control Protocol (BFCP) for use over an unreliable
transport
• RFC 4583 Session Description Protocol (SDP) Format for
Binary Floor Control Protocol (BFCP) Streams
draft-ietf-bfcpbis-rfc4583bis-00 Session Description
Protocol (SDP) Format for Binary Floor Control Protocol
(BFCP) Streams
• RFC 4585 Extended RTP Profile for RTCP-Based
Feedback
• RFC 4733 RTP Payload for DTMF Digits, Telephony Tones
and Telephony Signals
• RFC 4796 The SDP Content Attribute
• RFC 5766 Traversal Using Relays around NAT (TURN):
Relay Extensions to Session Traversal Utilities for NAT
(STUN)
• RFC 5768 Indicating Support for Interactive Connectivity
Establishment (ICE) in the Session Initiation Protocol (SIP)
• RFC 5905 Network Time Protocol Version 4: Protocol and
Algorithms Specification
• RFC 6156 Traversal Using Relays around NAT (TURN)
Extension for IPv6
• RFC 6184 RTP Payload Format for H.264 Video
• draft-ietf-payload-rtp-h265-02 RTP Payload Format for
High Efficiency Video Coding
• RFC 4587 RTP Payload Format for H.261 Video Streams
130
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Appendices
User documentation on the Cisco web site
In general, user documentation for the Cisco TelePresence products is available here:
The documents are organized in the following categories:
Installation guides:
► http://www.cisco.com/go/telepresence/docs
Install and Upgrade > Install and Upgrade Guides
You have to choose your product category in the right pane until you find your product.
Getting started guide:
Collaboration Room Endpoints >
Install and Upgrade > Install and Upgrade Guides
Cisco TelePresence MX Series >
Maintain and Operate > Maintain and Operate Guides
Cisco TelePresence MX Series
Administrator guides:
Maintain and Operate > Maintain and Operate Guides
Alternatively, you can use the following short-link to find the documentation:
► http://www.cisco.com/go/mx-docs
User guides and Quick reference guides:
Maintain and Operate > End-User Guides
Knowledge base articles and frequently asked questions:
Troubleshoot and Alerts > Troubleshooting Guides
CAD drawings:
Reference Guides > Technical References
Video conferencing room guidelines:
Design > Design Guides
Software licensing information:
Software Downloads, Release and General Information > Licensing Information
Regulatory compliance and safety information:
Install and Upgrade > Install and Upgrade Guides
Software release notes:
Software Downloads, Release and General Information > Release Notes
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
131
www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
Cisco TelePresence MX700 and MX800
Contents
Introduction
Administrator Guide
Web interface
System settings
Setting passwords
Appendices
Intellectual property rights
THE SPECIFICATIONS AND INFORMATION REGARDING THE
PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE
ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE
INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE
TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an
adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX
operating system. All rights reserved. Copyright © 1981, Regents of
the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL
DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVENAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING,
USAGE, OR TRADE PRACTICE.
Cisco contacts
On our web site you will find an overview of the worldwide Cisco contacts.
Go to: ► http://www.cisco.com/go/offices
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Dr.
San Jose, CA 95134 USA
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY
INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES,
INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR
DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO
USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/
or its affiliates in the U.S. and other countries. A listing of Cisco’s
trademarks can be found at www.cisco.com/go/trademarks. Third
party trademarks mentioned are the property of their respective
owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1005R)
Any Internet Protocol (IP) addresses and phone numbers used in
this document are not intended to be actual addresses and phone
numbers. Any examples, command display output, network topology
diagrams, and other figures included in the document are shown for
illustrative purposes only. Any use of actual IP addresses or phone
numbers in illustrative content is unintentional and coincidental.
TANDBERG is now a part of Cisco. TANDBERG® is a registered
trademark belonging to Tandberg ASA.
D15119.01 MX700 and MX800 Administrator Guide TC7.1.2, JUNE 2014.
132
