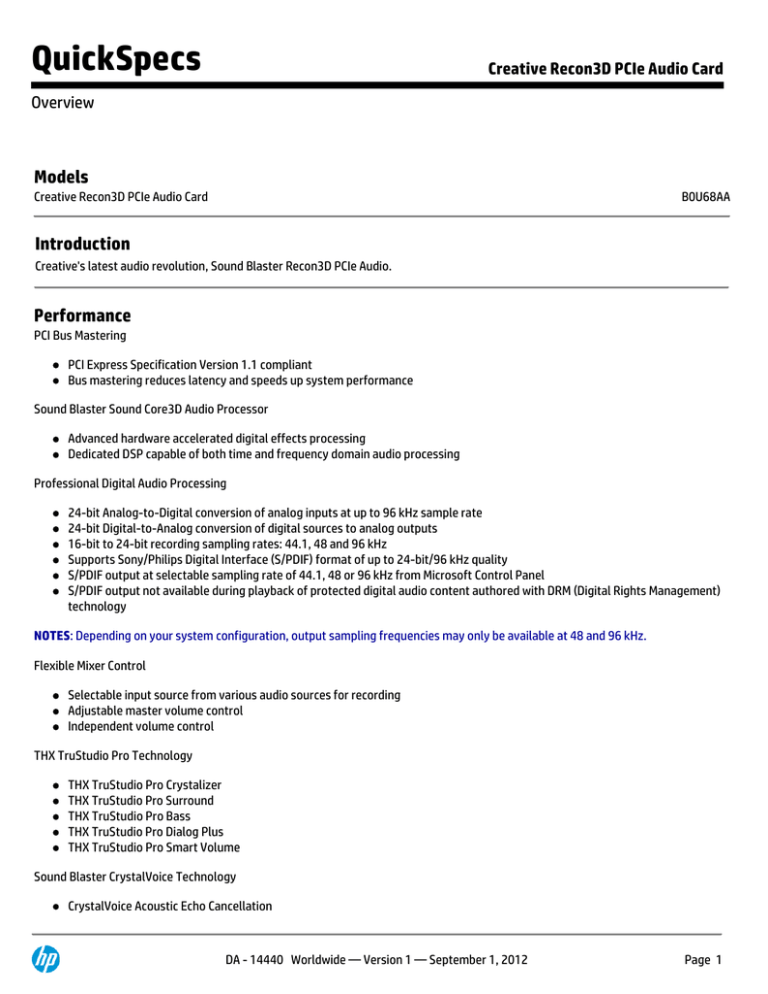

HP B0U68AA Datasheet
Creative Recon3D PCIe Audio Card
Creative Recon3D PCIe Audio Card
Creative's latest audio revolution, Sound Blaster Recon3D PCIe Audio.
PCI Bus Mastering
PCI Express Specification Version 1.1 compliant
Bus mastering reduces latency and speeds up system performance
Sound Blaster Sound Core3D Audio Processor
Advanced hardware accelerated digital effects processing
Dedicated DSP capable of both time and frequency domain audio processing
Professional Digital Audio Processing
24-bit Analog-to-Digital conversion of analog inputs at up to 96 kHz sample rate
24-bit Digital-to-Analog conversion of digital sources to analog outputs
16-bit to 24-bit recording sampling rates: 44.1, 48 and 96 kHz
Supports Sony/Philips Digital Interface (S/PDIF) format of up to 24-bit/96 kHz quality
S/PDIF output at selectable sampling rate of 44.1, 48 or 96 kHz from Microsoft Control Panel
S/PDIF output not available during playback of protected digital audio content authored with DRM (Digital Rights Management)
NOTES: Depending on your system configuration, output sampling frequencies may only be available at 48 and 96 kHz.
Flexible Mixer Control
Selectable input source from various audio sources for recording
Adjustable master volume control
Independent volume control
THX TruStudio Pro Technology
THX TruStudio Pro Crystalizer
THX TruStudio Pro Surround
THX TruStudio Pro Bass
THX TruStudio Pro Dialog Plus
THX TruStudio Pro Smart Volume
Sound Blaster CrystalVoice Technology
CrystalVoice Acoustic Echo Cancellation
DA - 14440 Worldwide — Version 1 — September 1, 2012
Page 1
Creative Recon3D PCIe Audio Card
CrystalVoice Noise Reduction
CrystalVoice Smart Volume
CrystalVoice FX
CrystalVoice Focus
Key Benefits
Audio Inputs
One 3.50 mm (1/8-inch) Line In jack for Analog Line In or Microphone In
One Optical S/PDIF jack for Digital In
Audio Outputs
Four 3.50 mm (1/8-inch) Line Out jacks for four channel Analog Line Out:
Front Left, Front Right, Front Center, Subwoofer, Rear Left and Rear Right channels
One Optical S/PDIF jack for Digital Out
One 2 x 5 pin Front Panel Header for connection with Intel HD Front Panel Audio standard header
One 2 x 6 pin Header for connection with Sound Blaster I/O Drive
One 2 x 10 pin Header for connection with Sound Blaster I/O Drive
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. The information contained herein is subject to change without notice.
DA - 14440 Worldwide — Version 1 — September 1, 2012
Page 2
