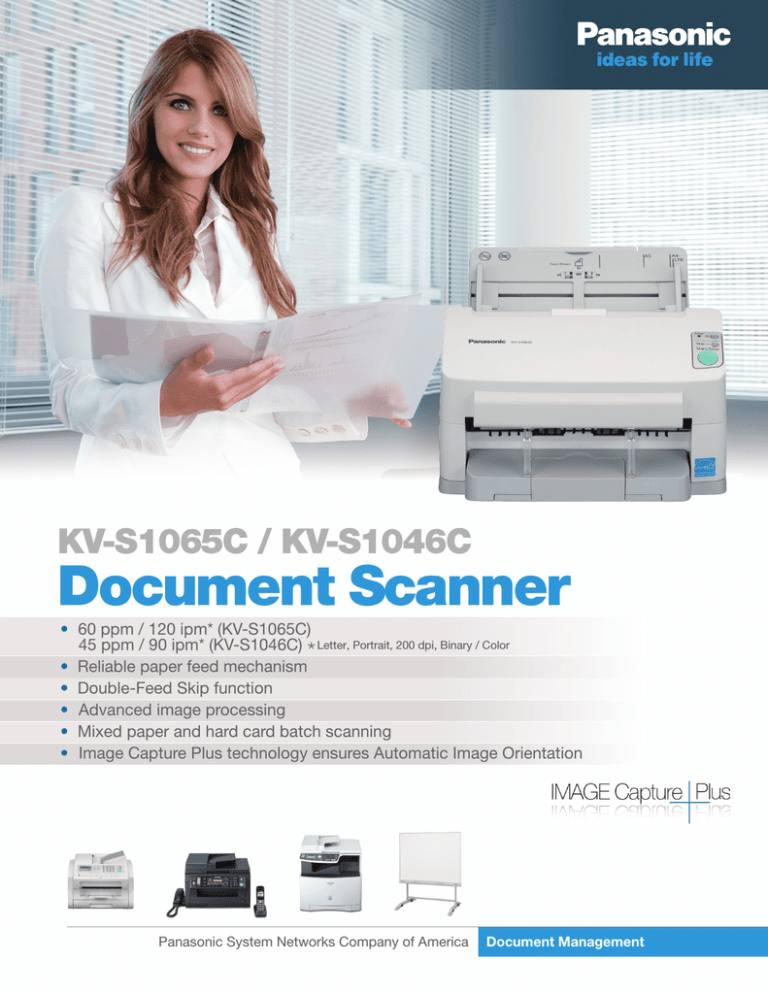

KV-S1065C / KV-S1046C
Document Scanner
• 60 ppm / 120 ipm* (KV-S1065C)
45 ppm / 90 ipm* (KV-S1046C) Letter, Portrait, 200 dpi, Binary / Color
*
• Reliable paper feed mechanism
• Double-Feed Skip function
• Advanced image processing
• Mixed paper and hard card batch scanning
• Image Capture Plus technology ensures Automatic Image Orientation
Panasonic System Networks Company of America
Document Management
A Compact Body Packed
with Advanced Functions
Even with its compact body, the KV-S1065C / KV-S1046C
has a fast scanning speed of 60 ppm* (for the KV-S1065C)
or 45 ppm* (for the KV-S1046C). And it's capable of
scanning a variety of documents, including long, small,
thick and thin sheets. Normally complicated settings have
been automated, and images that require re-scanning
are automatically detected by hardware process to
provide both easy use and fast scanning.
This advanced document scanner will greatly boost
the efficiency of your office.
* Letter, Portrait, 200 dpi.
Reception
The KV-S1065C / KV-S1046C's small footprint allows it to
conveniently fit into small spaces, such as reception counters.
Placing it at the reception area of a bank or hospital allows
customer or patient ID cards and other documents to be quickly
scanned. This enables real-time information sharing to help
provide fast, accurate service.
Office
The KV-S1065C / KV-S1046C can quickly convert a large
number of documents into electronic data, so it provides
smooth usage even in offices with many users. Scanning
documents into data makes it possible to consolidate
information, which improves work efficiency. And it lowers the
cost of handling documents and reduces the space needed to
store them.
Power Saving
Easy Maintenance
LED lighting
Sleep mode
Power Auto Off function
The scanning section uses
LEDs for its light source to lower
power consumption while
scanning.
Power consumption is suppressed
to 1 watt maximum during sleep
mode to save energy while the
scanner is not being used.
The power automatically turns off at
a preset time to cut down on
wasted electricity.*
* Approximately 0.3 W of electricity is consumed
when the power is off.
Power
OFF
1W
Time
The clamshell design allows full, easy
access to the entire paper path, so
you can clear paper jams, clean the
unit, or replace a roller easily without
having to call a service technician.
Reliable Paper Feed Mechanism
Accurate processing of documents with various thicknesses
The paper feed rollers rotate independently left and right to reduce
document skewing during scanning. In addition, the Active Double-Feed
Prevention Roller reverses rotation the instant that the leading document
leaves the paper feed section to prevent the double-feeding of
documents that are stuck together. These functions enable documents
with thicknesses from 5.4 to 55 lbs.* (20 to 209 g/m2) to be accurately
transported at high scanning speeds of 60 ppm.**
Active Double-Feed Prevention Roller
Double
feeding
is prevented.
* Weight of 500 sheets (17 x 22 in. / 432 x 559 mm).
** For the KV-S1065C only. Letter, Portrait, 200 dpi.
Exit Guides
Document output control
Exit Guides
The output speed is automatically lowered for
documents that are 5.82 inches or shorter, and
the exit guides keep the document from slipping.
This stops longer documents from sliding under
shorter ones to prevent the output order from
changing.
First
Second
Second
First
The document direction is face down.
Scanning of Various Documents
Manual Feed
Selector
Compound paper scanning
A Double-Feed Prevention Roller
release mechanism is provided. By
lifting the manual feed selector,
compound paper such as carbonless
copy paper can also be fed.*
* When the Double-Feed Prevention Roller is
released by the Manual Feed Selector, the
Double-Feed Detection function must be
cancelled by a software setting. When
scanning a document manually, feed the
document one set at a time.
Mixed paper and hard card batch scanning
These scanners were designed
to be able to combine paper
documents along with a hard ID
card, such as a driver's license,
in a single batch by using the
mixed card batch guide. You
can even scan embossed cards
smoothly.
Scanning ordinary
paper and an ID
card together.
Compound paper being fed
Compound paper being fed
without releasing the
by releasing the Double-Feed
Double-Feed Prevention Roller. Prevention Roller.
Double-Feed Skip Function
Easy double-feed skipping
< Ultrasonic Sensor >
Double-feeding is detected by a highly
reliable, ultrasonic sensor to prevent feeding
problems. When scanning stops due to
documents that include things like envelopes
or that have sticky notes attached, simply
press the Skip key to cancel the error and
resume scanning.
Transmitter
Documents for which scanning shouldn't be
stopped even when double-feeding is detected
Receiver
Documents with
sticky notes attached
Envelopes
Feed direction
Advanced Image Processing
Improved scanning quality
Missing image detection and prevention
The Automatic Brightness Adjustment function automatically adjusts the
brightness and contrast of scanned images, even on documents with
varying paper colors and text hues, to produce scanned images with
suitable brightness. The Automatic Image Emphasis function emphasizes
the edges of characters and lines to sharpen them and softens the
appearance of other parts of the image. Noise (black spots) is also reduced.
When a scanned image is missing due to an inadvertently folded corner
(dog-ear) or a document that is extremely skewed, the Dog-Ear
Detection function automatically and temporarily stops the scanning.
The user can then decide to rescan, or to continue scanning as is.
When the dog-ear
image is acceptable
Automatic Brightness Adjustment
Original
Document
Scanned
Data
Press
“Skip” Key
When the dog-ear
image is not acceptable
Rescan
Original Document
Scanned Data*
* Combined with Background Removal.
Pause
A Wealth of Image Processing Functions
from Image Capture Plus Software
Easy-to-use data formats
Automatic Image Orientation
OCR Zone function
Images can be saved in various data formats,
such as PDF, JPEG, TIFF and Bitmap. Scanned
data can be moved and saved in a selected
folder all at once. Plus, text-searchable PDF and
searchable PDF/A data can be generated.
Even when documents are set in different
directions, this function detects the direction of
the scanned text in documents and automatically
rotates it into the correct direction.*
When you use the OCR Zone function, text will be
recognized while scanning and acquired as an OCR
result that is used in the file name and Output Log.*
* The Output Log is available only in Job Scan mode.
* The orientation of documents with many characters using text decorations,
such as outlining, drop shadows, underlines, etc., may not be correct.
Documents
Output Files
TEST Document
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
Date : 2011.4.4
No.00001
Product
Product A
Number
Open Price
3
$
3.99
11.98
Product B
2
99
1.98
TEST Document
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
Date : 2011.4.4
No.00002
Product
TEST Document
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
Number
Product A
Open Price
$
Date : 2011.4.4
No.00001
Product
3
3.99
11.98
99
1.98
Product A
Number
3
Open Price
$
3.99
11.98
Product B
2
Product B
2
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
13.96
Product A
1.98
Output
Date : 2011.4.4
Total
13.96
[OCR]-20110516-001
No.00003
Product
99
Scan
TEST Document
Total
TEST Document
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
Number
Open Price
3
3.99
11.98
2
99
1.98
$
Date : 2011.4.4
No.00002
Product
Product A
Number
Open Price
3
3.99
11.98
2
99
$
1.98
Product B
Product B
Total
Total
13.96
13.96
[OCR]-20110516-002
TEST Document
E-MAIL: [email protected]
TEL: xxxx-xxxx-xxxx
Date : 2011.4.4
No.00003
Product
Product A
Number
Open Price
3
3.99
11.98
2
99
$
1.98
Product B
Total
Select PDF (Searchable).
Text-searchable data is generated.
Without this function
Part of the document text is
reflected in the filename.
13.96
With this function
KV-S1065C / KV-S1046C Specifications
Dimensions
Duplex
Color CIS (600 dpi)
Background: Black
100 – 600 dpi (1 dpi step)
Resolution
Optical: 300 dpi / 600 dpi (Automatic switch)
Binary / Color
Scanning Speed
Simplex KV-S1065C: Up to 60 ppm / KV-S1046C: Up to 45 ppm
Letter size 200 dpi Duplex KV-S1065C: Up to 120 ipm / KV-S1046C: Up to 90 ipm
Ultrasonic double-feed detection (1 position), Dog-ear detection
Automatic Detection
JPEG (color, grayscale)
Compression
Binary, Grayscale, Color, MultiStream: Binary & Grayscale, Binary & Color
Tonal Gradation
Dither, Error diffusion
Binary Mode Halftone
Automatic Brightness Adjustment, Automatic Image Emphasis,
Image Control
Multi Color Drop Out, Dynamic Threshold, White Level From Paper,
Image Emphasis, Gamma Correction, Automatic Separation,
Noise Reduction, Mirror Image, Monochrome Reversing and much more.
Length Control, Patchcode Detection (Type 2, 3, T), Control Sheet,
Other Functions
Long Paper Mode, Double Feed Skip, Dog-ear Skip
Size
1.9 in. x 2.8 in. (48 mm x 70 mm) - 8.5 in. x 100 in. (216 mm x 2540 mm)
Paper
Documents
Thickness
1.6 mils - 7.9 mils (0.04 mm - 0.2 mm) Note: 1 mil = 0.001 in.
Weight*1
5.4 lbs. - 55 lbs. (20 g/m2 - 209 g/m2)
Size
Card
3.4 in. x 2.1 in. (85.6 mm x 54 mm) (ISO 7810 ID-1)
Thickness
0.03 in. (0.76 mm)
Feed tray Capacity*1
Up to 75 sheets (20 lbs., 80 g/m2), 3 hard cards (ISO 7810 ID-1)
Supported Operating System
Windows® XP SP3 or later(32-bit), Windows Vista® SP2
or later(32 / 64-bit), Windows® 7(32 / 64-bit)
USB 2.0
Interface
12.5 in. x 8.2 in. x 7.7 in. (317 mm x 209 mm x 196 mm)
External Dimensions (W x D x H)
(When the exit tray is closed and without the feed tray)
8.8 lbs. (4.0 kg)
Weight
External power supply (AC adaptor)
Power Requirement
AC 100 V – 240 V, 50 / 60 Hz
Maximum (Scanning)
Power Consumption
25 W
Minimum (Standby)
8W
Sleep mode
1.0 W or less
When the power key is OFF 0.3 W or less (While the AC adaptor is connected to the AC outlet)
59 °F – 86 °F (15 °C – 30 °C)
Operating Environment Temperature
Humidity
20 % RH – 80 % RH
Temperature
32 °F – 104 °F (0 °C – 40 °C)
Storage Environment
Humidity
10 % RH – 80 % RH
Accessories
CD-ROM:
Device driver software, ISIS® driver software, TWAIN driver software,
Image Capture Plus application software*2, User Utility software,
Installation manual, Operation manual, Control sheet
Installation Manual, Feed Tray, Mixed batch card guide (Pre-installed),
AC adaptor & Power cord, USB cable
Roller exchange kit
Consumables
KV-SS058 (Double feed prevention roller x 1, Paper feed roller x 1)
Roller cleaning paper
Options
KV-SS03
Flatbed Scanner*3
KV-SS080*3
KV-S1065C / KV-S1046C
Scanning Face
Scanning Method
Trademarks and registered trademarks
- ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
- ABBYY and FineReader are registered trade marks of ABBYY Software House.
- ISIS is a registered trademark or trademark of EMC Corporation in the United States and other countries.
- Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- All other brand or product names are the property of their respective holders.
Panasonic System Networks Company of America
panasonic.com/scanners
9.3 in.
(237 mm)
7.7 in.
(196 mm)
8.2 in. (209 mm)
12.5 in.
(317 mm)
As an ENERGY STAR® Partner, Panasonic has determined that this
product meets the ENERGY STAR guidelines for energy efficiency.
*1: “Weight in pounds” of paper represents the weight of 500
sheets (17 x 22 in. / 432 x 559 mm).
*2: The supported file types are PDF, PDF/A, Searchable PDF,
Searchable PDF/A, JPEG, JPEG2000, TIFF and Bitmap.
Searchable PDF and Searchable PDF/A documents can be
created for English, French, German, Italian, Spanish,
Brazilian Portuguese, Japanese, Korean, Simplified Chinese,
and Traditional Chinese. Searchable PDF and Searchable
PDF/A documents for Japanese, Korean, Simplified Chinese,
and Traditional Chinese can be created when using Operating
Systems of the respective languages.
*3: The KV-S1065C or KV-S1046C is required to operate the
KV-SS080.
Important
- Safety Precaution: carefully read the operating instructions and
installation manual before using this product.
• The scanning speed differs depending on the host computer,
the operating system, the application, the measuring method,
the quantity of data in the image, and the paper type. The
scanning speed is as determined by Panasonic methods of
speed measurement.
• Dimensions and weights are approximate.
• Design and specifications are subject to change without notice.
Document Management
This product is designed to reduce hazardous chemical substances in accordance with the RoHS directive.
MG-C547US-2 1203 Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
