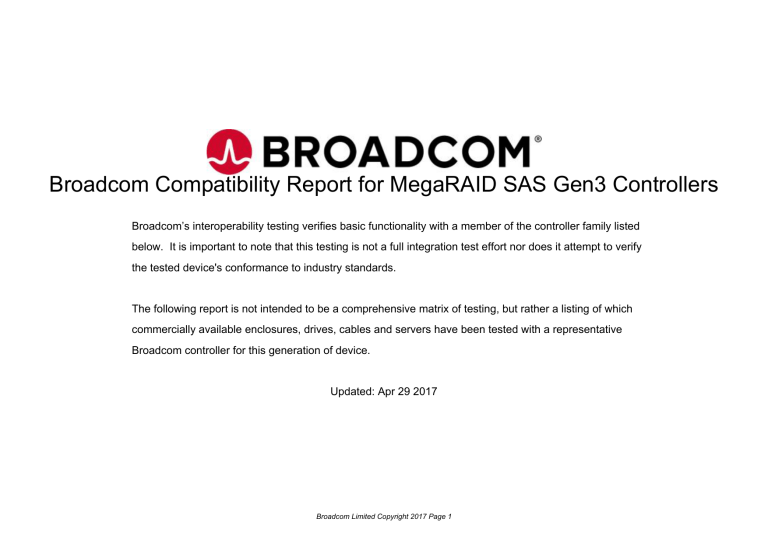

Broadcom Compatibility Report for MegaRAID SAS Gen3 Controllers
Broadcom’s interoperability testing verifies basic functionality with a member of the controller family listed
below. It is important to note that this testing is not a full integration test effort nor does it attempt to verify
the tested device's conformance to industry standards.
The following report is not intended to be a comprehensive matrix of testing, but rather a listing of which
commercially available enclosures, drives, cables and servers have been tested with a representative
Broadcom controller for this generation of device.
Updated: Apr 29 2017
Broadcom Limited Copyright 2017 Page 1
Controller Family:
Manufacturer Model
Part Number
Broadcom
MegaRAID SAS9361-4i
C0
Broadcom
MegaRAID SAS9361-8i
C0
Broadcom
MegaRAID SAS9361-8i
03-25420-01C
Broadcom
MegaRAID SAS9380-8e
02-25528-011
Broadcom
MegaRAID SAS9380-8eCC
02-25528-021
Broadcom
MegaRAID SAS9380-8e
03-25528-02C
Broadcom
MegaRaid SAS9361-8i
03-25420-18A
Broadcom
SAS9380-4i4e
03-25190-02
Broadcom
PRAID EP420e
SV43126126-02C
AVAGO MegaRAID SAS
Broadcom
9380-8e
SV52877957
Broadcom
LSI MegaRAID SAS 9380-8e
SV43126126-02C
Compatible Drives:
Manufacturer Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Fujitsu
HDD
SAS
6Gb/s
MBE2147RC
0103
147GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS726060ALS640
A1E2
6TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724040ALS641
B152
4TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724030ALS641
B152
3TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724020ALS641
B152
2TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724040ALS640
A152
4TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724030ALS640
A152
3TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS724020ALS640
A152
2TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUC101212CSS600
A35A
1.20TB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC109090CSS600
A2D0
900GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC109060CSS600
A2D0
600GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC109045CSS600
A2D0
450GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC109030CSS600
A2D0
300GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUS723030ALS640
A220
3TB
3.5"
7200
512
No
HGST
HDD
SAS
6Gb/s
HUS723020ALS640
A220
2TB
3.5"
7200
512
No
Broadcom Limited Copyright 2017 Page 2
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
HGST
HDD
SAS
6Gb/s
HUC106060CSS600
A202
600GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106045CSS600
A202
450GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106030CSS600
A202
300GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106060CSS601
B2A0
600GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106045CSS601
B2A0
450GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106030CSS601
B2A0
300GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC106060CSS600
A150
600GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUS156030VLS600
A5D0
300GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS156060VLS600
A5D0
600GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS156045VLS600
A5D0
450GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS156030VLS600
A5D0
300GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC151473CSS600
A5D0
73GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC151414CSS600
A5D0
147GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC151414CSS600
A370
147GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC103014CSS600
A5D0
147GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC103030CSS600
A5D0
300GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC151414CSS600
A5D0
147GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC151473CSS600
A330
73GB
2.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUC103030CSS600
A120
300GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUC103014CSS600
A120
147GB
2.5"
10K
512
No
HGST
HDD
SAS
6Gb/s
HUS156060VLS600
A202
600GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS156045VLS600
A202
450GB
3.5"
15K
512
No
HGST
HDD
SAS
6Gb/s
HUS156030VLS600
A202
300GB
3.5"
15K
512
No
HGST
HDD
SATA
6Gb/s
MegaScale DC 4000.B, HMS5C4040BLE640
A5D0
4TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
Ultrastar HE6, HUS726060ALA640
T1E2
6TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUS724040ALA640
A8B0
4TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUS724030ALA640
A8B0
3TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUS724020ALA640
A8B0
2TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUS724040ALE640
A390
4TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS724030ALE640
A390
3TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS724020ALE640
A390
2TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUA723030ALA640
A580
3TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUA723020ALA640
A580
2TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUA723030ALA641
A5C0
3TB
3.5"
15K
512
No
Broadcom Limited Copyright 2017 Page 3
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
HGST
HDD
SATA
6Gb/s
HUA723020ALA641
A5C0
2TB
3.5"
15K
512
No
HGST
HDD
SATA
6Gb/s
HDS723030ALA640
A5C0
3TB
3.5"
7200
512
No
HGST
SSD
SAS
12Gb/s
HUSMH8080ASS200
A831
800GB
2.5"
NA
512
No
HGST
SSD
SAS
12Gb/s
HUSMH8040ASS200
A831
400GB
2.5"
NA
512
No
HGST
SSD
SAS
12Gb/s
HUSMH8020ASS200
A831
200GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4040BSS600
A831
400GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4020BSS600
A831
200GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4010BSS600
A831
100GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4040ASS600
A831
400GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4020ASS600
A831
200GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSSL4010ASS600
A831
100GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSML4020ASS600
A831
200GB
2.5"
NA
512
No
HGST
SSD
SAS
6Gb/s
HUSML4040ASS600
A831
400GB
2.5"
NA
512
No
HGST
HDD
SAS
12Gb/s
HUC156060CS4201
B12B
600GB
2.5"
15K
4k
Yes
HGST
HDD
SAS
12Gb/s
HUC156060CS4200
A12B
600GB
2.5"
15K
4k
No
HGST
HDD
SAS
12Gb/s
HUC156060CSS201
B210
600GB
2.5"
15K
512
No
HGST
HDD
SAS
12Gb/s
HUC156060CSS200
a210
600GB
2.5"
15K
512
No
HGST
HDD
SAS
12Gb/s
HUC101812CSS200
A380
1.20TB
2.5"
10K
512
No
HGST
HDD
SAS
12Gb/s
HUC101818CS4201
B380
1.80TB
2.5"
10K
4k
No
HGST
HDD
SAS
6Gb/s
HUS724040ALS640
A280
4TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUH728080ALN600
544
8TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUH728060ALN600
544
6TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUS726060AL4210
519
6TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUS726050AL4210
519
5TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUS726040AL4210
519
4TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUS726020AL4210
519
2TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUS726060AL4211
519
6TB
3.5"
7200
4k
Yes
HGST
HDD
SAS
12Gb/s
HUS726050AL4211
519
5TB
3.5"
7200
4k
Yes
HGST
HDD
SAS
12Gb/s
HUS726040AL4211
519
4TB
3.5"
7200
4k
Yes
HGST
HDD
SAS
12Gb/s
HUS726020AL4211
519
2TB
3.5"
7200
4k
Yes
HGST
HDD
SATA
6Gb/s
HUH728080ALE600
514
8TB
3.5"
7200
512e
No
HGST
HDD
SAS
6Gb/s
HUC721010ASS600
A680
1TB
2.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
HUH728060ALE600
514
6TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726060ALN611
544
6TB
3.5"
7200
4k
No
Broadcom Limited Copyright 2017 Page 4
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
HGST
HDD
SATA
6Gb/s
HUS726050ALN611
544
5TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726040ALN611
544
4TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726020ALN611
544
2TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUH728080ALN601
544
8TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUH728060ALN601
544
6TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726060ALN610
544
6TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726050ALN610
544
5TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726040ALN610
544
4TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726020ALN610
544
2TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726060ALE611
517
6TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726050ALE611
517
5TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726040ALE611
517
4TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726020ALE611
517
2TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HUH728080AL4200
515
8TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HUH728060AL4200
515
6TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HUS726060ALE610
517
6TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726050ALE610
517
5TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726040ALE610
517
4TB
3.5"
7200
512e
No
HGST
HDD
SATA
6Gb/s
HUS726020ALE610
517
2TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HUH728080AL4201
515
8TB
3.5"
7200
4k
Yes
HGST
HDD
SAS
12Gb/s
HUH728060AL4201
515
6TB
3.5"
7200
4k
Yes
HGST
HDD
SAS
12Gb/s
HUS726050AL5210
519
5TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HUS726060AL5210
519
6TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HUS726040AL5210
519
4TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HUS726020AL5210
519
2TB
3.5"
7200
512e
No
HGST
SSD
SAS
12Gb/s
HUSMM1616ASS200
A100
1.60TB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSSMM1616ASS201
B100
1.60TB
2.5"
NA
512e
Yes
HGST
SSD
SAS
12Gb/s
HUSMR1616ASS200
A100
1.60TB
2.5"
NA
512e
No
HGST
HDD
SATA
6Gb/s
HUS726060ALA640
T1EN
6TB
3.5"
7200
512
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721010AL5200
A21D
10TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721008AL5200
A21D
8TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721008AL5204
A21D
8TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721010AL5204
A21D
10TB
3.5"
7200
512e
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721010AL4200
A21D
10TB
3.5"
7200
4k
No
Broadcom Limited Copyright 2017 Page 5
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721010AL4204
A21D
10TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721008AL4200
A21D
8TB
3.5"
7200
4k
No
HGST
HDD
SAS
12Gb/s
HGST Ultrastar He10 - HUH721008AL4204
A21D
8TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
Ultrastar 7K2 - HUS722T2TALA604
A05
2TB
3.5"
7200
512
No
HGST
HDD
SATA
6Gb/s
Ultrastar 7K2 - HUS722T1TALA604
A05
1TB
3.5"
7200
512
No
HGST
HDD
SAS
12Gb/s
husmm1616ass201
B300
1.60TB
2.5"
NA
512e
Yes
HGST
SSD
SAS
12Gb/s
HUSMR1616ASS200
A300
1.60TB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSMR1610ASS200
A300
1TB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSMR1680ASS200
A300
800GB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSMR1650ASS200
A300
500GB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSMR1640ASS200
A300
400GB
2.5"
NA
512e
No
HGST
SSD
SAS
12Gb/s
HUSMR1625ASS200
A300
250GB
2.5"
NA
512e
No
HGST
HDD
SAS
12Gb/s
HUSMM1680ASS201
B300
800GB
2.5"
NA
512e
Yes
HGST
HDD
SAS
12Gb/s
HUSMM1640ASS201
B300
400GB
2.5"
NA
512e
Yes
HGST
HDD
SAS
12Gb/s
HUSMM1620ASS201
B300
200GB
2.5"
NA
512e
Yes
HGST
HDD
SATA
6Gb/s
HGST Ultrastar He10 - HUH721010ALN600
T21D
10TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HGST Ultrastar He10 - HUH721008ALN600
T21D
8TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HGST Ultrastar He10 - HUH721010ALN604
T21D
10TB
3.5"
7200
4k
No
HGST
HDD
SATA
6Gb/s
HGST Ultrastar He10 - HUH721008ALN604
T21D
8TB
3.5"
7200
4k
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB080G4
A831
80GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB120G4
A831
120GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB160G4
A831
160GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB240G4
A831
240GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB300G4
A831
300GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3500 Series, SSDSC2BB480G4
A831
480GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3700 Series, SSDSC2BA100G3
A831
100GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3700 Series, SSDSC2BA200G3
A831
200GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3700 Series, SSDSC2BA400G3
A831
400GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
DC S3700 Series, SSDSC2BA800G3
A831
800GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
520 series, SSDSC2BW060A3
A831
60GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
520 series, SSDSC2BW120A3
A831
120GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
520 series, SSDSC2BW180A3
A831
180GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
520 series, SSDSC2BW240A3
A831
240GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
520 series, SSDSC2BW480A3
A831
480GB
2.5"
NA
512
No
Broadcom Limited Copyright 2017 Page 6
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Intel
SSD
SATA
6Gb/s
510 series, SSDSC2MH250A2xx
A831
250GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
510 series, SSDSC2MH120A2xx
A831
120GB
2.5"
NA
512
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX016T4, DC S3610
G2010140
1.60TB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
Intel SSD DC S3510 - DC S3510
G2010140
1.60TB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
Intel SSD DC S3710 - DC S3710
G2010140
1.20TB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX012T401, DC S3610
G2010140
1.20TB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX800G401, DC S3610
G2010140
800GB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX480G401, DC S3610
G2010140
480GB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX400G401, DC S3610
G2010140
400GB
2.5"
NA
512e
No
Intel
SSD
SATA
6Gb/s
SSDSC2BX200G401, DC S3610
G2010140
200GB
2.5"
NA
512e
No
Kingston
SSD
SATA
6Gb/s
E50, SE50S37/480G
A831
480GB
2.5"
NA
512
No
Kingston
SSD
SATA
6Gb/s
E50, SE50S37/240G
A831
240GB
2.5"
NA
512
No
Kingston
SSD
SATA
6Gb/s
E50, SE50S37/100G
A831
100GB
2.5"
NA
512
No
Kingston
SSD
SATA
6Gb/s
SE100S37/100GB
A831
100GB
2.5"
NA
512
No
Kingston
SSD
SATA
6Gb/s
SE100S37/200GB
A831
200GB
2.5"
NA
512
No
Kingston
SSD
SATA
6Gb/s
SE100S37/400GB
A831
400GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK800MBB
A831
800GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK480MBB
A831
480GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK240MBB
A831
240GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK120MBB
A831
120GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500, MTFDDAK960MAV
A831
960GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
P410m, MTFDEAK400MAS
A831
400GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
P410m, MTFDEAK200MAS
A831
200GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
P410m, MTFDEAK100MAS
A831
100GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC100SAL-1N1AA
A831
200GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC200SAL-1N1AA
A831
100GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC50SAL-1N1AA
A831
50GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAK064MAG-1G1
A831
64GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAK128MAG-1G1
A831
128GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAK256MAG-1G1
A831
256GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC128MAM-1J1
A831
128GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC256MAM-1K1
A831
256GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
MTFDDAC512MAM-1K1
A831
512GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK480MBB-1AE1ZABYY
134
480GB
2.5"
NA
512e
No
Broadcom Limited Copyright 2017 Page 7
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK120MBB-1AE1ZABYY
134
120GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK240MBB-1AE1ZABYY
134
240GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK800MBB-1AE1ZABYY
134
800GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK480MBB-1AE1ZABYY
144
480GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK120MBB-1AE1ZABYY
144
120GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK240MBB-1AE1ZABYY
144
240GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M500DC, MTFDDAK800MBB-1AE1ZABYY
144
800GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
M510DC MTFDDAK120MBP-1AN1ZABYY
0005
120GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M510DC MTFDDAK240MBP-1AN1ZABYY
0005
240GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M510DC MTFDDAK480MBP-1AN1ZABYY
0005
480GB
2.5"
NA
512
No
Micron
SSD
SATA
6Gb/s
M510DC MTFDDAK960MBP-1AN1ZABYY
0005
960GB
2.5"
NA
512
No
0005
120GB
2.5"
NA
512
Yes
0005
240GB
2.5"
NA
512
Yes
0005
480GB
2.5"
NA
512
Yes
0005
960GB
2.5"
NA
512
Yes
144.01
120GB
2.5"
NA
512
Yes
144.01
240GB
2.5"
NA
512
Yes
M510DC TCG-E
Micron
SSD
SATA
6Gb/s
Micron
SSD
SATA
6Gb/s
Micron
SSD
SATA
6Gb/s
Micron
SSD
SATA
6Gb/s
Micron
SSD
SATA
6Gb/s
Micron
SSD
SATA
6Gb/s
MTFDDAK120MBP-1AN16ABYY
M510DC TCG-E
MTFDDAK240MBP-1AN16ABYY
M510DC TCG-E
MTFDDAK480MBP-1AN16ABYY
M510DC TCG-E
MTFDDAK960MBP-1AN16ABYY
M500DC TCG-E
MTFDDAK120MBB-1AE16ABYY
M500DC TCG-E
MTFDDAK240MBB-1AE16ABYY
M500DC TCG-E
Micron
SSD
SATA
6Gb/s
MTFDDAK480MBB-1AE16ABYY
144.01
480GB
2.5"
NA
512
Yes
Micron
SSD
SATA
6Gb/s
MTFDDAK1T0MBF-1AN1ZABYY
MU03
1TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK512MBF-1AN1ZABYY
MU03
512GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK256MBF-1AN1ZABYY
MU03
256GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK128MBF-1AN1ZABYY
MU03
128GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL3T2MBS-2AN16ABYY
MA10
3.20TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S610DC - MTFDJAL1T9MBU-2AN16ABYY
MA10
1.92TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S610DC - MTFDJAL3T8MBU-2AN16ABYY
MA10
3.84TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK400MBT-2AN16ABYY
MA10
400GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK800MBT-2AN16ABYY
MA10
800GB
2.5"
NA
512e
Yes
Broadcom Limited Copyright 2017 Page 8
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL1T6MBT-2AN16ABYY
MA10
1.60TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL3T2MBT-2AN16ABYY
MA10
3.20TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK480MBT-2AN16ABYY
MA10
480GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK960MBT-2AN16ABYY
MA10
960GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL1T9MBT-2AN16ABYY
MA10
1.92TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL3T8MBT-2AN16ABYY
MA10
3.84TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK400MBS-2AN16ABYY
MA10
400GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK400MBS-2AN16FCYY
MA10
400GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK800MBS-2AN16ABYY
MA10
800GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK800MBS-2AN16FCYY
MA10
800GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL1T6MBS-2AN16ABYY
MA10
1.60TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL1T6MBS-2AN16FCYY
MA10
1.60TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL3T2MBS-2AN16FCYY
MA10
3.20TB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAA400MBS-1AN16ABYY
MA10
400GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAA800MBS-1AN16ABYY
MA10
800GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S655DC - MTFDJAK200MBW-2AN16ABYY
MA10
200GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S655DC - MTFDJAK400MBW-2AN16ABYY
MA10
400GB
2.5"
NA
512e
Yes
Micron
SSD
SATA
6Gb/s
MTFDDAK1T0MBF-1AN12ABYY
MU03
1TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK128MBF-1AN12ABYY
MU03
128GB
2.5"
NA
512e
Yes
Micron
SSD
SATA
6Gb/s
MTFDDAK256MBF-1AN12ABYY
MU03
256GB
2.5"
NA
512e
Yes
Micron
HDD
SAS
6Gb/s
MTFDDAK512MBF-1AN12ABYY
MU03
512GB
2.5"
NA
512e
Yes
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL3T2MBS-2AN1ZABYY
M013
3.20TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S610DC - MTFDJAL1T9MBU-2AN1ZABYY
M013
1.92TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S610DC - MTFDJAL3T8MBU-2AN1ZABYY
M013
3.84TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK400MBT-2AN1ZABYY
M013
400GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK800MBT-2AN1ZABYY
M013
800GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL1T6MBT-2AN1ZABYY
M013
1.60TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL3T2MBT-2AN1ZABYY
M013
3.20TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK480MBT-2AN1ZABYY
M013
480GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAK960MBT-2AN1ZABYY
M013
960GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL1T9MBT-2AN1ZABYY
M013
1.92TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S630DC - MTFDJAL3T8MBT-2AN1ZABYY
M013
3.84TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK400MBS-2AN1ZABYY
M013
400GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAK800MBS-2AN1ZABYY
M013
800GB
2.5"
NA
512e
No
Broadcom Limited Copyright 2017 Page 9
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAL1T6MBS-2AN1ZABYY
M013
1.60TB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAA400MBS-1AN1ZABYY
M013
400GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S650DC - MTFDJAA800MBS-1AN1ZABYY
M013
800GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S655DC - MTFDJAK200MBW-2AN1ZABYY
M013
200GB
2.5"
NA
512e
No
Micron
SSD
SAS
12Gb/s
S655DC - MTFDJAK400MBW-2AN1ZABYY
M013
400GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK1T9TBY-1AR1ZABYY
D0MU000
1.92TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK480TBY-1AR1ZABYY
D0MU000
480GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK960TBY-1AR1ZABYY
D0MU000
960GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK3T8TBY-1AR1ZABYY
D0MU000
3.84TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK7T6TBY-1AR1ZABYY
D0MU000
7.68TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK240TCB-1AR1ZABYY
D0MU000
240GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK480TCB-1AR1ZABYY
D0MU000
480GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK960TCB-1AR1ZABYY
D0MU000
960GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK1T9TCB-1AR1ZABYY
D0MU000
1.92TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK3T8TCB-1AR1ZABYY
D0MU000
3.84TB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK240TCC-1AR1ZABYY
D0MU000
240GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK480TCC-1AR1ZABYY
D0MU000
480GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK960TCC-1AR1ZABYY
D0MU000
960GB
2.5"
NA
512e
No
Micron
SSD
SATA
6Gb/s
MTFDDAK1T9TCC-1AR1ZABYY
D0MU000
1.92TB
2.5"
NA
512e
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3800 - IT3RSK41ET350-0800
1.4.6.0
800GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3800 - IT3RSK41ET340-0400
1.4.6.0
400GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3800 - IT3RSK41ET330-0200
1.4.6.0
200GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3800 - IT3RSK41ET330-0100
1.4.6.0
100GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3600 - IT3RSK41MT320-0800
1.4.6.0
800GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3600 - IT3RSK41MT300-0200
1.4.6.0
200GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3600 - IT3RSK41MT300-0100
1.4.6.0
100GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3600 - IT3RSK41MT310-0400
1.4.6.0
400GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3700 - IT3RSK41ET5F0-0240
1.4.6.0
240GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3700 - IT3RSK41ET5G0-0480
1.4.6.0
480GB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3700 - IT3RSK41ET5H0-1920
1.4.6.0
1.92TB
2.5"
NA
512
No
OCZ
SSD
SATA
6Gb/s
Intrepid 3700 - IT3RSK41ET5G0-0960
1.4.6.0
960GB
2.5"
NA
512
No
PLDS
SSD
SATA
6Gb/s
ECE-200NAS
A831
200GB
2.5"
NA
512
No
PNY
SSD
SATA
6Gb/s
EP701101
480GB
2.5"
NA
512
No
PNY EP7011 2.5 SATA Enterprise SSD EP7011
Broadcom Limited Copyright 2017 Page 10
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Samsung
SSD
SAS
6Gb/s
SM1625, MZ6ER800HAGL-00003
A831
800GB
2.5"
NA
512
No
Samsung
SSD
SAS
6Gb/s
SM1625, MZ6ER400HAGL-00003
A831
400GB
2.5"
NA
512
No
Samsung
SSD
SAS
6Gb/s
SM1625, MZ6ER200HAGM-00003
A831
200GB
2.5"
NA
512
No
Samsung
SSD
SAS
6Gb/s
SM1625, MZ6ER100HAFV-00003
A831
100GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
845DC EVO, MZ-7GE960
A831
960GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
845DC EVO, MZ-7GE480
A831
480GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
845DC EVO, MZ-7GE240
A831
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 EVO, MZ-7TE1T0
A831
1TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 EVO, MZ-7TE750
A831
750GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 EVO, MZ-7TE500
A831
500GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 EVO, MZ-7TE250
A831
250GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 EVO, MZ-7TE120
A831
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 Pro, MZ-7PD512
A831
512GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 Pro, MZ-7PD256
A831
256GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
840 Pro, MZ-7PD128
A831
128GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM843, MZ7TD480HAGM-000DA
A831
480GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM843, MZ7TD240HAFV-000DA
A831
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM843, MZ7TD120HAFV-000DA
A831
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843T, MZ7WD480HAGM-00003
A831
480GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843T, MZ7WD240HAFV-00003
A831
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843T, MZ7WD120HAFV-00003
A831
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843, MZ7PD480HAGM-000DA
A831
480GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843, MZ7PD240HAFV-000DA
A831
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM843, MZ7PD120HAFV-000DA
A831
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM830, MZ7PC128HAFU-00000
A831
128GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM830, MZ7PC256HAFU-000DA
A831
256GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
MZ7WD800HMHP
X3Q
800GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
MZ7WD400HMHP
X3Q
400GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
MZ-7GE480EW
3X3Q
480GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
845DC EVO, MZ-7GE960
3X3Q
960GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
MZ-7KE128HMGA
2B6Q
128GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
845DC EVO, MZ-7GE240
3X3Q
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 EV0 MZ-75E1T0
1B6Q
1TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 EVO MZ-75E500
1B6Q
500GB
2.5"
NA
512
No
Broadcom Limited Copyright 2017 Page 11
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Samsung
SSD
SATA
6Gb/s
850 EVO MZ-75E250
1B6Q
250GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 EVO MZ-75E120
1B6Q
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 PRO, MZ7KE1T0HMJB
2B6Q
1TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 PRO, MZ7KE512HMHA
2B6Q
512GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 PRO, MZ7KE256HMHA
2B6Q
256GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
850 PRO, MZ7KE128HMGA
2B6Q
128GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM863 - MZ7KM240HAGR-00005
GXM1003Q
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM863 - MZ7KM960HAHP-00005
GXM1003Q
960GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM863 - MZ7LM480HCHP-0003
GXT3003Q
480GB
2.5"
7200
512
No
Samsung
SSD
SATA
6Gb/s
PM863 - MZ7LM3T8HCJM-00003
GXT3003Q
3.80TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM863 - MZ7KM120HAFD-00005
GXM1003Q
120GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM863 - MZ7LM1T9HCJM-00003
GXT3003Q
1.92TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
SM863 - MZ7KM480HAHP-00005
GXM1003Q
480GB
2.5"
NA
512
No
Samsung
SSD
SAS
12Gb/s
PM1633
GQP1_v02
960GB
2.5"
NA
512e
No
Samsung
SSD
SATA
6Gb/s
SM863 - MZ7KM1T9HAJM-00005
GXM1003Q
1.92TB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
MZ7LM960HCHP-00003
NA
960GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM863 - MZ7LM240HCGR-00003
GXT3003Q
240GB
2.5"
NA
512
No
Samsung
SSD
SATA
6Gb/s
PM863 - MZ7LM120HCFD-0003
GXT3003Q
120GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB206S
A831
200GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB406S
A831
400GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB206M
A831
200GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB406M
A831
400GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB806M
A831
800GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB406R
A831
400GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB806R
A831
800GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
LB1606R
A831
1.60TB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X210, SD6SB2M-512G
A831
512GB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X210, SD6SB2M-256G
A831
256GB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X210, SD6SB2M-128G
A831
128GB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X110, SD6SB1M-256G
A831
256GB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X110, SD6SB1M-128G
A831
128GB
2.5"
NA
512
No
Sandisk
SSD
SATA
6Gb/s
X110, SD6SB1M-64G
A831
64GB
2.5"
NA
512
No
Sandisk
SSD
SAS
6Gb/s
F910
1.60TB
2.5"
NA
512e
No
Optimus Eco E3 SSD SDLLOCDR-016T-5CA1
Broadcom Limited Copyright 2017 Page 12
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Sandisk
SSD
SAS
6Gb/s
Optimus MAX - SDLLOCDR-038T-5CA1
AM70
4TB
2.5"
NA
512e
No
Sandisk
SSD
SATA
6Gb/s
Cloudspeed Gen II - SDLF1DAR-960G-1HA2
ZH06
960GB
2.5"
NA
512e
No
Sandisk
SSD
SATA
6Gb/s
Cloudspeed Gen II - SDLF1DAR-960G-1HA1
ZR04
960GB
2.5"
NA
512e
No
Seagate
HDD
SAS
6Gb/s
ST9300653SS
0004
300GB
2.5"
15K
512
No
Seagate
HDD
SAS
6Gb/s
ST33000650SS
0002
3TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST32000645SS
0002
2TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST2000NM0001
0001
2TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST1000NM0001
0001
1TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST500NM0001
0001
500GB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST33000650SS
F901
3TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST9450404SS
0004
450GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST31000424SS
0004
1TB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST3500414SS
0004
500GB
3.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST9500431SS
DSF0
500GB
2.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST973452SS
B623
73GB
2.5"
15K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146852SS
B623
146GB
2.5"
15K
512
No
Seagate
HDD
SAS
6Gb/s
ST3300657SS
0006
300GB
3.5"
15K
512
No
Seagate
HDD
SAS
6Gb/s
ST3450857SS
0005
450GB
3.5"
15K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146803SS
0002
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146803SS
B235
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146803SS
004
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146802SS
MSB0
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9300603SS
B248
300GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9500430SS
0001
500GB
2.5"
7200
512
No
Seagate
HDD
SAS
6Gb/s
ST9146703SS
MSB3
147GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9146802SS
MSB03
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST336754SS
0004
146GB
2.5"
10K
512
No
Seagate
HDD
SAS
6Gb/s
ST9300503SS
FT00
300GB
2.5"
10K
512
Yes
Seagate
HDD
SAS
6Gb/s
ST3450802SS
0004
450GB
3.5"
10K
512
No
Seagate
HDD
SATA
6Gb/s
ST6000NM0024
SN01
6TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST5000NM0024
SN01
5TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST4000NM0024
SN01
4TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NM0024
SN01
2TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST4000NC001
CN02
4TB
3.5"
5900
512e
No
Broadcom Limited Copyright 2017 Page 13
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Seagate
HDD
SATA
6Gb/s
ST4000NC000
CE02
4TB
3.5"
5900
512e
No
Seagate
HDD
SATA
6Gb/s
ST4000NM0053
0001
4TB
3.5"
7200
512
Yes
Seagate
HDD
SATA
6Gb/s
ST3000NM0053
0001
3TB
3.5"
7200
512
Yes
Seagate
HDD
SATA
6Gb/s
ST2000NM0053
0001
2TB
3.5"
7200
512
Yes
Seagate
HDD
SATA
6Gb/s
ST1000NM0053
0001
1TB
3.5"
7200
512
Yes
Seagate
HDD
SATA
6Gb/s
ST4000NM0033
0001
4TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST3000NM0033
0001
3TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST2000NM0033
0001
2TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST1000NM0033
0001
1TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST3000NC000
CE02
3TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NC000
CE02
2TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST3100NC000
CE02
1TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST3000NC002
SNZ1
3TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NC001
SNZ1
2TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST1000NC001
SNZ1
1TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST91000640NS
SN01
1TB
2.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST9500620NS
SN01
500GB
2.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST9250610NS
SN01
250GB
2.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST33000650NS
0001
3TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST32000645NS
0001
2TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST2000NM0011
SN03
2TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST1000NM0011
SN03
1TB
3.5"
7200
512
No
Seagate
HDD
SATA
6Gb/s
ST500NM0011
SN03
500GB
3.5"
7200
512
No
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST200FM0013
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST400FM0013
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST800FM0013
A831
800GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST200FM0053
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST400FM0053
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST800FM0043
A831
800GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST100FM0093
A831
100GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST200FM0093
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST400FM0093
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST100FM0113
A831
100GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200SSD, ST200FM0113
A831
200GB
2.5"
NA
512
No
Broadcom Limited Copyright 2017 Page 14
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Seagate
SSD
SAS
12Gb/s
1200SSD, ST400FM0113
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST200FM0033
A831
200GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST400FM0033
A831
400GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST800FM0023
A831
800GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST200FM0073
A831
200GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST400FM0073
A831
400GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200 SSD, ST800FM0053
A831
800GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST100FM0103
A831
100GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST200FM0103
A831
200GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST400FM0103
A831
400GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST100FM0123
A831
100GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST200FM0123
A831
200GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
12Gb/s
1200SSD, ST400FM0123
A831
400GB
2.5"
NA
512
Yes
Seagate
SSD
SAS
6Gb/s
ST100FM0002
A831
100GB
2.5"
NA
512
No
Seagate
SSD
SAS
6Gb/s
ST200FM0002
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SAS
6Gb/s
ST400FM0002
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SAS
6Gb/s
ST800FM0002
A831
800GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST480FP0021
A831
480GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST400FP0021
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST240FP0021
A831
240GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST200FP0021
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST120FP0021
A831
120GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 Pro SSD, ST100FP0021
A831
100GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST480HM000
A831
480GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST240HM000
A831
240GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST120HM000
A831
120GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST480HM001
A831
480GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST240HM001
A831
240GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
600 SSD, ST120HM000
A831
120GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST400FN0021
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST240FN0021
A831
240GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST200FN0021
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST120FN0021
A831
120GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST100FN0021
A831
100GB
2.5"
NA
512
No
Broadcom Limited Copyright 2017 Page 15
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Seagate
SSD
SATA
6Gb/s
ST100FM0012
A831
100GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST200FM0012
A831
200GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST400FM0012
A831
400GB
2.5"
NA
512
No
Seagate
SSD
SATA
6Gb/s
ST800FM0012
A831
800GB
2.5"
NA
512
No
Seagate
HDD
SAS
12Gb/s
ST600MM0008
K002
600GB
2.5"
10K
4k
No
Seagate
HDD
SAS
12Gb/s
ST600MM0018
E002
600GB
2.5"
10K
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NX0243
NN01
2TB
2.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST2000NX0273
E001
2TB
2.5"
15K
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NX0253
SN01
2TB
2.5"
7200
512e
No
Seagate
HDD
SAS
12Gb/s
ST2000NX0263
K001
2TB
2.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST300MP0005
N001
300GB
2.5"
15K
512
No
Seagate
HDD
SAS
12Gb/s
ST300MP0035
22A2
300GB
2.5"
15K
512e
No
Seagate
HDD
SAS
12Gb/s
ST300MP0065
K001
300GB
2.5"
15K
4k
No
Seagate
SSHD
SAS
12Gb/s
ST300MX0012
2A2
300GB
2.5"
15K
512e
No
Seagate
SSHD
SAS
12Gb/s
ST300MX0032
42A2
300GB
2.5"
15K
4k
No
Seagate
HDD
SAS
12Gb/s
ST2000NM0014
E001
2TB
3.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST2000NM0034
E001
2TB
3.5"
7200
512e
No
Seagate
HDD
SAS
12Gb/s
ST2000NX0273
E001
2TB
2.5"
7200
512e
No
Seagate
HDD
SAS
12Gb/s
ST4000NM0014
E001
4TB
3.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST6000NM0014
E001
6TB
3.5"
7200
4k
No
Seagate
HDD
SATA
6Gb/s
ST8000AS0002
AR13
8TB
3.5"
5900
512e
No
Seagate
HDD
SATA
6Gb/s
ST1000NX0303
NN01
1TB
2.5"
7200
4k
No
Seagate
HDD
SATA
6Gb/s
ST2000NX0243
NN01
2TB
2.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST600MX0092
KT03
600GB
2.5"
15K
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST300MX0042
KT03
300GB
2.5"
15K
4k
Yes
Seagate
HDD
SATA
6Gb/s
ST2000NX0303
SS02
2TB
2.5"
7200
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST1000NX0353
SS02
1TB
2.5"
7200
512e
Yes
Seagate
HDD
SAS
12Gb/s
ST600MP0015
NT03
600GB
2.5"
15K
512
Yes
Seagate
HDD
SAS
12Gb/s
ST450MP0015
NT03
450GB
2.5"
15K
512
Yes
Seagate
HDD
SAS
12Gb/s
ST300MP0015
NT03
300GB
2.5"
15K
512
Yes
Seagate
HDD
SAS
12Gb/s
ST600MX0062
ET03
600GB
2.5"
15K
512e
Yes
Seagate
HDD
SAS
12Gb/s
ST300MX0022
ET03
300GB
2.5"
15K
512e
Yes
Seagate
HDD
SAS
12Gb/s
ST600MP0045
ET03
600GB
2.5"
15K
512e
Yes
Seagate
HDD
SAS
12Gb/s
ST450MP0045
ET03
450GB
2.5"
15K
512e
Yes
Broadcom Limited Copyright 2017 Page 16
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Seagate
HDD
SAS
12Gb/s
ST300MP0045
ET03
300GB
2.5"
15K
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST1000NX0313
SN01
1TB
2.5"
7200
512e
No
Seagate
HDD
SAS
12Gb/s
ST1000NX0323
K001
1TB
2.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST2000NX0323
KT02
2TB
2.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST1000NX0363
KT02
1TB
2.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST2000NX0343
ET02
2TB
2.5"
7200
512e
Yes
Seagate
HDD
SAS
12Gb/s
ST1000NX0373
ET02
1TB
2.5"
7200
512e
Yes
NN01
8TB
3.5"
7200
4k
No
Seagate Enterprise Capacity 3.5 HDD v5 Seagate
HDD
SATA
6Gb/s
ST8000NM0045
Seagate Enterprise Capacity 3.5 HDD v5 -
Seagate
HDD
SATA
6Gb/s
ST6000NM0055
NN01
6TB
3.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST600MP0075
KT03
600GB
2.5"
15K
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST450MP0075
NA
450GB
2.5"
15K
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST300MP0075
NA
300GB
2.5"
15K
4k
Yes
E001
8TB
3.5"
7200
512e
No
E001
6TB
3.5"
7200
512e
No
A002
3.84TB
2.5"
NA
512e
No
A002
3.20TB
2.5"
NA
512e
No
A002
1.92TB
2.5"
NA
512e
No
A002
1.60TB
2.5"
NA
512e
No
A002
960GB
2.5"
NA
512e
No
A002
800GB
2.5"
NA
512e
No
A002
480GB
2.5"
NA
512e
No
A002
400GB
2.5"
NA
512e
No
Seagate Enterprise Capacity 3.5 HDD v5 Seagate
HDD
SAS
12Gb/s
ST8000NM0075
Seagate Enterprise Capacity 3.5 HDD v5 -
Seagate
HDD
SAS
12Gb/s
ST6000NM0085
Seagate 1200.2 SAS SSD (STD) -
Seagate
SSD
SAS
12Gb/s
ST3840FM0003
Seagate 1200.2 SAS SSD (STD) -
Seagate
SSD
SAS
12Gb/s
ST3200FM0063
Seagate 1200.2 SAS SSD (STD) -
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
ST1920FM0003
Seagate 1200.2 SAS SSD (STD) ST1600FM0073
Seagate 1200.2 SAS SSD (STD) ST960FM0003
Seagate 1200.2 SAS SSD (STD) ST800FM0233
Seagate 1200.2 SAS SSD (STD) ST480FM0003
Seagate 1200.2 SAS SSD (STD) ST400FM0303
Broadcom Limited Copyright 2017 Page 17
Manufacturer
Type
Protocol
Link Speed
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Seagate
SSD
SAS
12Gb/s
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
A002
3.84TB
2.5"
NA
512e
No
A002
1.92TB
2.5"
NA
512e
No
A002
400GB
2.5"
NA
512e
No
A002
200GB
2.5"
NA
512e
No
A002
3.20TB
2.5"
NA
512e
No
A002
1.60TB
2.5"
NA
512e
No
A002
800GB
2.5"
NA
512e
No
A002
400GB
2.5"
NA
512e
No
SN01
8TB
3.5"
7200
512e
No
Seagate 1200.2 SAS SSD (STD) ST3840FM0043
Seagate 1200.2 SAS SSD (STD) ST1920FM0043
Seagate 1200.2 SAS SSD (STD) ST400FM0323
Seagate 1200.2 SAS SSD (STD) ST200FM0133
Seagate 1200.2 SAS SSD (STD) ST3200FM0023
Seagate 1200.2 SAS SSD (STD) ST1600FM0003
Seagate 1200.2 SAS SSD (STD) Seagate
SSD
SAS
12Gb/s
ST800FM0173
Seagate 1200.2 SAS SSD (STD) -
Seagate
SSD
SAS
12Gb/s
ST400FM0233
Seagate Enterprise Capacity 3.5 HDD v5 -
Seagate
HDD
SATA
6Gb/s
ST8000NM0055
Seagate Enterprise Capacity 3.5 HDD v5 -
Seagate
HDD
SATA
6Gb/s
ST6000NM0065
SN01
6TB
3.5"
7200
512e
No
Seagate
HDD
SAS
12Gb/s
ST6000NM0074
KT01
6TB
3.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST4000NM0074
KT01
4TB
3.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST2000NM0074
KT01
2TB
3.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST6000NM0054
ET01
6TB
3.5"
7200
512e
Yes
Seagate
HDD
SAS
6Gb/s
ST4000NM0054
ET01
4TB
3.5"
7200
512e
Yes
Seagate
HDD
SAS
6Gb/s
ST2000NM0054
ET01
2TB
3.5"
7200
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST6000NM0044
SSA2
6TB
3.5"
7200
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST4000NM0044
SSA2
4TB
3.5"
7200
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST2000NM0044
SSA2
2TB
3.5"
7200
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST2000NX0283
NS02
2TB
2.5"
7200
4k
No
Seagate
HDD
SATA
6Gb/s
ST1000NX0343
NA
1TB
2.5"
7200
4k
Yes
Seagate
HDD
SATA
6Gb/s
ST6000NM0064
NS02
6TB
3.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST4000NM0064
NS02
4TB
2.5"
7200
4k
Yes
Seagate
HDD
SAS
12Gb/s
ST2000NM0064
NS02
2TB
2.5"
7200
4k
Yes
Broadcom Limited Copyright 2017 Page 18
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Seagate
HDD
SATA
6Gb/s
ST6000NM0124
PN02
6TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST6000VN001
AN02
6TB
3.5"
7200
512e
No
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST3200FM0033
A105
3.20TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST400FM0333
A105
400GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST200FM0143
A105
200GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST1600FM0013
A105
1.60TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST800FM0183
A105
800GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST400FM0243
A105
400GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST3200FM0043
A105
3.20TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST1600FM0023
A105
1.60TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST800FM0213
A105
800GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST400FM0293
A105
400GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST3840FM0023
A105
3.84TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST3200FM0073
A105
3.20TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST1920FM0023
A105
1.92TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST1600FM0083
A105
1.60TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST960FM0013
A105
960GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST800FM0243
A105
800GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST480FM0013
A105
480GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST400FM0343
A105
400GB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST3840FM0053
A105
3.84TB
2.5"
NA
512e
Yes
Seagate
SSD
SAS
12Gb/s
1200.2 SAS SSD (SED) - ST1920FM0053
A105
1.92TB
2.5"
NA
512e
Yes
Seagate
HDD
SATA
6Gb/s
ST6000AS0002
AR13
6TB
3.5"
5900
512e
No
Seagate
HDD
SATA
6Gb/s
ST5000AS0011
AR13
5TB
3.5"
5900
512e
No
Seagate
HDD
SATA
6Gb/s
ST6000NM0115
SN03
6TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST4000NM0115
SN03
6TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
ST2000NM0125
SN03
5TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
Tatsu - ST10000NM016
SNC0
10TB
3.5"
7200
512e
No
Seagate
HDD
SATA
6Gb/s
Seagate ArchiveHDD - ST5000AS0001
CC71
5TB
3.5"
5900
512e
No
Seagate
HDD
SAS
6Gb/s
ST1800MM0018
E004
1.80TB
2.5"
10K
512e
No
Seagate
HDD
SAS
6Gb/s
ST1200MM0018
E004
1.20TB
2.5"
10K
512e
No
Seagate
HDD
SAS
6Gb/s
ST600MM0018
E004
600GB
2.5"
10K
512e
No
Seagate
HDD
SATA
6Gb/s
NN02
10TB
3.5"
7200
4k
No
Seagate Enterprise Capactity 3.5 HDD v6
SATA - ST10000NM0146
Broadcom Limited Copyright 2017 Page 19
Manufacturer
Type
Protocol
Link Speed
Seagate
HDD
SATA
6Gb/s
Seagate
HDD
SAS
Seagate
HDD
SAS
Seagate
HDD
Seagate
HDD
Seagate
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
SATA - ST8000NM0136
NN02
800GB
3.5"
7200
4k
No
12Gb/s
ST1800MM0088
002
1.80TB
2.5"
10.5K
4k
No
12Gb/s
ST1200MM0118
002
1.20TB
2.5"
10.5K
4k
No
SAS
12Gb/s
ST900MM0088
002
900GB
2.5"
10.5K
4k
No
SAS
12Gb/s
ST600MM0118
002
600GB
2.5"
10.5K
4k
No
HDD
SAS
12Gb/s
ST900MP0146
C001
960GB
2.5"
15K
512e
No
Seagate
HDD
SAS
12Gb/s
ST8000NM0065
K001
8TB
3.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
ST6000NM0075
K001
6TB
3.5"
7200
4k
No
Seagate
HDD
SAS
12Gb/s
C001
600GB
2.5"
15K
512e
No
Seagate Enterprise Capactity 3.5 HDD v6
Enterprise Performance 15K HDD v6 SAS -
Enterprise Performance 15K HDD v6 SAS ST600MP0136
Enterprise Performance 15K HDD v6 SAS Seagate
HDD
SAS
12Gb/s
ST300MP0106
C001
300GB
2.5"
15K
512e
No
Seagate
HDD
SAS
12Gb/s
ST1800MM0128
E002
1.80TB
2.5"
10K
512e
No
Seagate
HDD
SAS
12Gb/s
ST1200MM0158
E002
1.20TB
2.5"
10K
512e
No
Seagate
HDD
SAS
12Gb/s
ST900MM0128
E002
900GB
2.5"
10K
512e
No
Seagate
HDD
SAS
12Gb/s
ST600MM0158
E002
600GB
2.5"
10K
512e
No
Seagate
HDD
SAS
12Gb/s
ST1800MM0008
K001
1.80TB
2.5"
10K
4k
No
Seagate
HDD
SAS
12Gb/s
ST1200MM0008
K001
1.20TB
2.5"
10K
4k
No
Seagate
HDD
SAS
12Gb/s
ST900MM0008
K001
900GB
2.5"
10K
4k
No
Seagate
HDD
SAS
12Gb/s
ST600MM0008
K001
600GB
2.5"
10K
4k
No
Seagate
HDD
SATA
6Gb/s
ST10000NM0086
SN02
10TB
3.5"
7200
512e
No
STEC
SSD
SAS
6Gb/s
s840, S842E2000M2
A831
2TB
2.5"
NA
512
No
STEC
SSD
SAS
6Gb/s
s840, S842E800M2
A831
800GB
2.5"
NA
512
No
STEC
SSD
SAS
6Gb/s
s840, S842E400M2
A831
400GB
2.5"
NA
512
No
STEC
SSD
SAS
6Gb/s
Z16IZF2E-200UCV
A831
200GB
2.5"
NA
512
No
STEC
SSD
SAS
6Gb/s
Z16IZF2E-200UC
A831
200GB
2.5"
NA
512
No
STEC
SSD
SAS
6Gb/s
Z16IZF2D-200UC
A831
200GB
2.5"
NA
512
No
Toshiba
HDD
SAS
6Gb/s
MG03SCA100
0108
1TB
3.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
MG03SCA200
0108
2TB
3.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
MG03SCA300
0108
3TB
3.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
MG03SCA400
0108
4TB
3.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
AL13SEB300
0101
300GB
2.5"
10K
512
No
Broadcom Limited Copyright 2017 Page 20
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Toshiba
HDD
SAS
6Gb/s
AL13SEB450
0101
450GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
AL13SEB600
0101
600GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
AL13SEB900
0101
900GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2600RE
0101
600GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2450RE
0101
450GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2300RE
0101
300GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2600RC
0107
600GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2450RC
0107
450GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBF2300RC
0107
300GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MK2001TRKB
0105
2TB
3.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
MK1001TRKB
0105
1TB
2.5"
7200
512
No
Toshiba
HDD
SAS
6Gb/s
MK3001GRRB
0102
300GB
2.5"
15K
512
No
Toshiba
HDD
SAS
6Gb/s
MK1401GRRB
0102
147GB
2.5"
15K
512
No
Toshiba
HDD
SAS
6Gb/s
MBE2073RC
103
73GB
2.5"
15K
512
No
Toshiba
HDD
SAS
6Gb/s
MBD2300RC
D807
300GB
2.5"
10K
512
No
Toshiba
HDD
SAS
6Gb/s
MBD2147RC
0102
147GB
2.5"
10K
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA100
FL1A
1TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA200
FL1A
2TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA300
FL1A
3TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA400
FL1A
4TB
3.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK5061GSYB
ME0A
500GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK2561GSYB
ME0A
250GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK1661GSYB
ME0A
160GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK8061GSYB
ME0A
80GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK2002TSKB
MT1A
2TB
3.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK1002TSKB
MT2A
1TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA100
FL1A
1TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA200
FL1A
2TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA300
FL1A
3TB
3.5"
7200
512
No
Toshiba
HDD
SATA
6Gb/s
MG03ACA400
FL1A
4TB
3.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK5061GSYB
ME0A
500GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK2561GSYB
ME0A
250GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK1661GSYB
ME0A
160GB
2.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK8061GSYB
ME0A
80GB
2.5"
7200
512
No
Broadcom Limited Copyright 2017 Page 21
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Toshiba
HDD
SATA
3Gb/s
MK2002TSKB
MT1A
2TB
3.5"
7200
512
No
Toshiba
HDD
SATA
3Gb/s
MK1002TSKB
MT2A
1TB
3.5"
7200
512
No
Toshiba
SSD
SAS
12Gb/s
PX02SMF020
A831
200GB
2.5"
NA
512
No
Toshiba
SSD
SAS
12Gb/s
PX02SMF040
A831
400GB
2.5"
NA
512
No
Toshiba
SSD
SAS
12Gb/s
PX02SMF080
A831
800GB
2.5"
NA
512
No
Toshiba
SSD
SAS
12Gb/s
PX02SMF160
A831
1.60TB
2.5"
NA
512
No
Toshiba
SSD
SAS
6Gb/s
MK4001GRZB
A831
400GB
2.5"
NA
512
No
Toshiba
SSD
SAS
6Gb/s
MK2001GRZB
A831
200GB
2.5"
NA
512
No
Toshiba
SSD
SAS
6Gb/s
MK1001GRZB
A831
100GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK3R Series, THNSNJ480PCS3
A831
480GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK3R Series, THNSNJ240PCS3
A831
240GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK3R Series, THNSNJ120PCS3
A831
120GB
2.5"
NA
512
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA500A
102
5TB
3.5"
7200
4k
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA500E
FP1B
5TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA500E
0102
5TB
3.5"
7200
512e
No
Toshiba
SSD
SATA
6Gb/s
HK3R2 Series, THNSNJ960PCSZ
JZET6102
960GB
2.5"
NA
512
No
Toshiba
HDD
SAS
6Gb/s
AL13SXB600N
0101
600GB
2.5"
15K
512
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA60EE
101
6TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA50EE
101
5TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA40EE
101
4TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA20EE
101
2TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA400A
102
4TB
3.5"
7200
4k
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA300A
102
3TB
3.5"
7200
4k
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA200A
102
2TB
3.5"
7200
4k
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA400E
FP1B
4TB
3.5"
7200
512e
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA300E
FP1B
3TB
3.5"
7200
512e
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA200E
FP1B
2TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA400E
0102
4TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA300E
0102
3TB
3.5"
7200
512e
No
Toshiba
HDD
SAS
6Gb/s
MG04SCA200E
0102
2TB
3.5"
7200
512e
No
Toshiba
SSD
SATA
6Gb/s
HK3R2 Series, THNSNJ480PCSZ
JZET6102
480GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK3R2 Series, THNSNJ240PCSZ
JZET6102
240GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK3R2 Series, THNSNJ120PCSZ
JZET6102
120GB
2.5"
NA
512
No
Toshiba
HDD
SAS
6Gb/s
AL13SXB450N
0101
450GB
2.5"
15K
512
No
Broadcom Limited Copyright 2017 Page 22
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Toshiba
HDD
SAS
6Gb/s
AL13SXB300N
0101
300GB
2.5"
15K
512
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA60EA
101
6TB
3.5"
7200
4k
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA50EA
101
5TB
3.5"
7200
4k
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA40EA
101
4TB
3.5"
7200
4k
No
Toshiba
HDD
SAS
12Gb/s
MG04SCA20EA
101
2TB
3.5"
7200
4k
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA600E
FS2B
6TB
3.5"
7200
512e
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA50DE
FS2B
5TB
3.5"
7200
512e
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA600A
FS2B
6TB
3.5"
7200
4k
No
Toshiba
HDD
SATA
6Gb/s
MG04ACA50DA
FS2B
5TB
3.5"
7200
4k
No
102
1.20TB
2.5"
10K
512
No
102
300GB
2.5"
10K
512
No
102
450GB
2.5"
10K
512
No
102
600GB
2.5"
10K
512
No
Enterprise Performance HDD Toshiba
HDD
SAS
12Gb/s
AL14SEB120N
Enterprise Performance HDD -
Toshiba
HDD
SAS
12Gb/s
AL14SEB030N
Toshiba
HDD
SAS
12Gb/s
Toshiba
HDD
SAS
12Gb/s
Toshiba
HDD
SAS
12Gb/s
AL14SEB090N
102
900GB
2.5"
10K
512
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SRB384
0104
3.84TB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SRB048
0104
480GB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SRB096
0104
960GB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SRB192
0104
1.92TB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SHB160
104
1.60TB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SHB020
104
200GB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SHB040
104
400GB
2.5"
NA
512e
No
Toshiba
SSD
SAS
12Gb/s
PX04S - PX04SHB080
104
800GB
2.5"
NA
512e
No
Toshiba
SSD
SATA
6Gb/s
HK4R - THNSN8960PCSE
8EET6101
960GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4R - THNSN81Q92CSE
8EET6101
1.92TB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4R - THNSN8480PCSE
8EET6101
960GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4R - THNSN8240PCSE
8EET6101
240GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4E - THNSN81Q60CSE
8EET6101
1.60TB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4E - THNSN8800PCSE
8EET6101
800GB
2.5"
NA
512
No
Toshiba
SSD
SATA
6Gb/s
HK4E - THNSN8400PCSE
8EET6101
400GB
2.5"
NA
512
No
Enterprise Performance HDD AL14SEB045N
Enterprise Performance HDD AL14SEB060N
Enterprise Performance HDD -
Broadcom Limited Copyright 2017 Page 23
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
Toshiba
SSD
SAS
6Gb/s
HK4E - THNSN8200PCSE
8EET6101
200GB
2.5"
NA
512
No
WD
HDD
SAS
6Gb/s
WD4001FYYG
VR07
4TB
3.5"
7200
512
No
WD
HDD
SAS
6Gb/s
WD3001FYYG
VR07
3TB
3.5"
7200
512
No
WD
HDD
SAS
6Gb/s
WD2001FYYG
VR07
2TB
3.5"
7200
512
No
WD
HDD
SAS
6Gb/s
WD1001FYYG
VR07
1TB
3.5"
7200
512
No
WD
HDD
SAS
6Gb/s
WD9001HKHG
SR04
900GB
3.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD6001HKHG
SR04
600GB
3.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD4501HKHG
SR04
450GB
3.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD3001HKHG
SR04
300GB
3.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD9001BKHG
SR02
900GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD6001BKHG
SR02
600GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD4501BKHG
SR02
450GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD3001BKHG
SR02
300GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD9001BKHG
RG00
146GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD3000BKFG-02P2V0
RG00
300GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD6000BKHG
VG03
600GB
2.5"
10K
512
No
WD
HDD
SAS
6Gb/s
WD4500BKHG
VG03
450GB
2.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD1002F9YZ
1M02
1TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD4000F9YZ
1AX1/1A01
4TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD3000F9YZ
1AX1/1A01
3TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD2000F9YZ
1AX1/1A01
2TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD1000DHTZ
6A00
1TB
3.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD5000HHTZ
6A00
500GB
3.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD2500HHTZ
6A00
250GB
3.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD1000CHTZ
6A00
1TB
2.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD5000BHTZ
6A00
500GB
2.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD25000BHTZ
6A00
250GB
2.5"
10K
512e
No
WD
HDD
SATA
6Gb/s
WD4000FYYZ
1K01
4TB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD3000FYYZ
1K01
3TB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD2000FYYZ
1K01
2TB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD6000HLHX
5G04
600GB
3.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD4500HLHX
5G04
450GB
3.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD3000HLHX
5G04
300GB
3.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD1500HLHX
5G04
150GB
3.5"
10K
512
No
Broadcom Limited Copyright 2017 Page 24
Manufacturer
Type
Protocol
Link Speed
Model
FW Version
Capacity
Size
RPM
SectorSize
Self-Encrypting
WD
HDD
SATA
6Gb/s
WD1003FBYX-01Y7B0
1V01
1TB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD6000BLHX
5G04
600GB
2.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD4500BLHX
5G04
450GB
2.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD3000BLHX
5G04
300GB
2.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD1500BLHX
5G04
150GB
2.5"
10K
512
No
WD
HDD
SATA
6Gb/s
WD5003ABYX-01WERA0
1S01
500GB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD600PF4PZ
01.0RAE1
6TB
3.5"
5760
512e
No
WD
HDD
SATA
6Gb/s
WD600FRPZ
RRE1
6TB
3.5"
5760
512e
No
WD
HDD
SATA
6Gb/s
PurpleNV 4TB - WD4NPURX
80.00A80
4TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD6001FSYZ
ERX1
6TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD5001FSYZ
ERX1
5TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD2004FBYZ
RR02
2TB
3.5"
7200
512
No
WD
HDD
SATA
6Gb/s
WD Gold - WD6002FRYZ
1M02
6TB
3.5"
7200
512e
No
WD
HDD
SATA
6Gb/s
WD Black Mobile - WD10JPLX
1H01
1TB
2.5"
NA
512e
No
WD
HDD
SATA
6Gb/s
WD Gold - WD4002FYYZ
01.01M02
4TB
3.5"
7200
512
No
Compatible Servers:
Number of
Manufacturer Model
System Bios
CPU Information
Motherboard CPUs
Memory
ASUS
Q87M-E/CSM
0906
Intel Core i5-4570, @ 3.20GHz
Intel Q87
1
1
ASUS
Z87-PRO (rev 1.02)
1504
Intel Core i5-4570
Intel Z87
1
1
ASUS
Z9PE-D8 WS (rev 1.04)
3206
Intel Xeon E5-2603, @ 1.80 GHz
Intel C602
1
1
AMD
ASUS
Sabertooth 990FX (rev 1.01)
0901
AMD FX6100, @ 3.30GHz
990FX/SB950 1
1
Dell
PowerEdge R820
1.5.0
Intel Xeon E5-4640, @ 2.4GHz
Intel C600
1
1
Dell
PowerEdge R815
3.2.1
AMD Opteron 2350, @2.0GHz
670
1
1
Dell
PowerEdge R620
1.2.6
Intel Xeon E5-2620, @ 2.00GHz
Intel C600
1
1
Dell
Power Edge R720
1.3.6
Intel Xeon E5-2643, @ 3.30GHz
Intel C600
1
1
Dell
PowerEdge R710
6.1.0
Intel Xeon E5502, @ 1.86GHz
Intel 5520
1
1
Dell
PowerEdge T410
1.12.0
Intel Xeon E5504 @ 2.00GHz
Intell 5500
1
1
Dell
R730XD
1.2.10
NA
1
96
SR5650/SR5
Intel(R) Xenon(R) CPU E5-2620v3
@2.40GHZ
Broadcom Limited Copyright 2017 Page 25
Number of
Manufacturer
Model
System Bios
CPU Information
Motherboard
CPUs
Memory
SE5C600.86B
Echostreams
FlacheSAN2
.01.06.0001
Intel Xeon E5-2650, @ 2.00GHz
Intel C600
1
1
Fujitsu
Primergy RX300 S7
V4.6.5.3
Intel Xeon E5-2690, @2 .90GHz
Intel C600
1
1
Gigabyte
GA-Z87X-UD3H (rev 1.0)
F7
Intel Core i5-4570, @ 3.20GHz
1
1
Gigabyte
GA-Z87X-UD5H (rev 1.0)
F7
Intel Core i5-4570, @ 3.20GHz
1
1
Gigabyte
GA-X79-UP4 (rev 1.0)
F3m
Intel Core i7-3820, @ 3.60 GHz
1
1
Gigabyte
GA-990FXA-UD7 (rev 1.1)
F7
AMD FX6100, @3.30GHz
990FX/SB950 1
1
IBM
xSeries 3750 M4
1.1
Intel Xeon E5-4600, @ 2.4GHz
Intel C602
1
1
IBM
xSeries 3650 M4
1.51
Intel Xeon E5-2660V2, @ 2.20GHz
Intel C602
1
1
1
1
Intel Z87
Express
Intel Z87
Express
Intel X79
Express
AMD
Intel C600
IBM
xSeries 3630 M4
1.4
Intel Xeon E5-2403, @1.8GHz
series
Intel C600
IBM
xSeries 3530 M4
1.41
Intel Xeon E5-2403, @1.8GHz
series
1
1
IBM
xSeries 3500 M4
1.5
Intel Xeon E5-2600, @2.2GHz
Intel C602J
1
1
IBM
xSeries 3550 M4
1.2
Intel Xeon E5-2600, @2.7GHz
Intel C602
1
1
IBM
xSeries 3550
1.37
Dual Core Xeon, @1.87 GHz
Intel E5520
1
1
Intel
S2600IP
Intel Xeon E5-2650 @ 2GHz
Intel C600
1
1
Intel Xeon E5-2650 @ 2GHz
Intel C600
1
1
SE5C600.86B
.01.06.0001
SE5C600.86B
Intel
S2600CP
.01.08.0003
SE5C600.86B
Intel
S2600G(Z/L)
.99.99.x040
Intel Xeon E5-2670 OC @ 2.6GHz
Intel C602
1
1
Lenovo
TD530
2.03
Intel Xeon E5-2609 @ 2.40 GHz
Intel C602J
1
1
Lenovo
RD430
2.05
Intel Xeon E5-2607 @ 2.2 GHz
Intel C602J
1
1
Lenovo
RD630
2.05
Intel Xeon E5-2609 @ 2.4 GHz
Intel C602
1
1
Lenovo
RD830
.01.02.0015
Intel Xeon E5-2609 @ 2.4 GHz
Intel C602
1
1
Oracle
SUN FIRE X4270 M3
2.14.1219
Intel Xeon E5-2609, @ 2.40GHz
Intel C602
1
1
SuperMicro
CSE113TQ-563CB
3
Intel Xeon E5-2630L v2, @ 2.40 GHz
Intel C602
1
1
SE5C600.86B
Broadcom Limited Copyright 2017 Page 26
Number of
Manufacturer
Model
System Bios
CPU Information
Motherboard
CPUs
Memory
SuperMicro
SYS-7047R-TXRF
3
Intel Xeon E5-2640 @ 2.50GHz
Intel C602
1
1
(Fat-Twin)
3
Intel Xeon-E5 2609 @ 2.40GHz
Intel C602
1
1
SuperMicro
SYS-6027R-3RF4+
2
Intel Xeon E5-2609 @ 2.40 GHz
Intel C606
1
1
SuperMicro
SYS-7047A-T
1.0b
Intel Xeon E5-2603 @ 1.80 GHz
Intel C602
1
1
SuperMicro
6027R-WRF
1.0b
Intel Xeon E5-2667 XC @ 2.9GHz
Intel C602
1
1
SYS-6027TR-DTRF
SuperMicro
Intel C224
SuperMicro
X10SLM-F
1.1a
Intel Xeon E3-1220v3, @ 3.10 GHz
Express
1
1
SuperMicro
X9DRH-7F
3
Intel Xeon E5-2630L v2, @ 2.40 GHz
Intel C602
1
1
SuperMicro
X9DRX+-F
3
Intel Xeon E5-2640 @2.5GHz
Intel C602
1
1
SuperMicro
X9DRT-HF
3
Intel Xeon-E5 2609 @ 2.40GHz
Intel C602
1
1
SuperMicro
X9SRA
3.0a
Intel Xeon E5-2640, @ 2.50GHz
Intel C602
1
1
SuperMicro
X9DRD-7LN4F
2
Intel Xeon E5-2650 @ 2.0 GHz
Intel C602J
1
1
SuperMicro
X9DAi (rev 1.02)
1.0b
Intel Xeon E5-2603 @ 1.80 GHz
Intel C602
1
1
SuperMicro
X9DR3-LN4F+ (rev 1.10)
2
Intel Xeon E5-2609 @ 2.40 GHz
Intel C606
1
1
SuperMicro
X9DRW-3F
3.0a
Intel Xeon E5-2667 XC @ 2.9GHz
Intel C606
1
1
SuperMicro
X9SRE (rev 1.2)
1.0c
Intel Xeon E5-1620 @ 3.60 GHz
Intel C602
1
1
SuperMicro
X9DRW-iF (rev 1.02)
1.0b
Intel Xeon E5-2667 XC @ 2.9GHz
Intel C602
1
1
SuperMicro
X9SCM-F
2.0b
Intel Xeon E3-1220 @ 3.1GHz
Intel C204
1
1
SuperMicro
X8DTN+
2.1c
Intel Xeon E5502, @ 1.86GHz
Intel 5520
1
1
SuperMicro
X8DAi
2.0cc
Intel Xeon® W5580 @3.2GHz
Intel® 5520
1
1
SuperMicro
X8DTU-F
2.0c
Intel Xeon® X5560, @ 2.28Hz
Intel® 5520
1
1
SuperMicro
X8DA3
2.0c
Intel Xeon E5520 @ 2.27GHz
Intel® 5520
1
1
SuperMicro
X8DT6
2.0b
Intel Xeon®[email protected]
Intel® 5520
1
1
SuperMicro
X8DTH-i
2.1a
Intel Xeon® E5620, @ 2.4GHz
Intel® 5520
1
1
SuperMicro
X8DAH
2.0a
Intel Xeon® E5620, @ 2.4GHz
Intel® 5520
1
1
Tyan
S7050GM4NR
V1.02S
Intel Xeon E5 2603, @ 1.80GHz
Intel C602
1
1
Tyan
S7053WGM2NR
V1.03F
Intel Xeon E5 2603, @ 1.80GHz
Intel C602
1
1
Tyan
S7056WGM3NR-B
V 1.01B
Intel Xeon E5 2609, @ 2.40GHz
Intel C602
1
1
Compatible Enclosures:
Broadcom Limited Copyright 2017 Page 27
Manufacturer Model
Type
Expander Manufacturer
FW Rev
Slots
Protocol
Link Speed
AIC
2U Chassis
Broadcom
0B01
12
SAS/SATA
6Gb/s
AIC
0c01
24
SAS
12Gb/s
2U Chassis
Broadcom
1301
24
SAS/SATA
6Gb/s
XJ3000-2123
SSG-JBSA32
AIC
S-2242H-54R 2U Enclosure
PA
RM23524D2-
Chenbro
R820L
RM23512D2-
Chenbro
R820L
2U Chassis
Broadcom
0902
12
SAS/SATA
6Gb/s
Ci Design
CiNSR316
3U Chassis
N/A
N/A
16
SAS/SATA
6Gb/s
Ci Design
CiNSR212
2U Enclosure
N/A
N/A
12
SAS/SATA
6Gb/s
Ci Design
CiNSR524
5U Chassis
N/A
N/A
24
SAS/SATA
6Gb/s
DataON
DNS-1660
4U Enclosure
PMC Sierra
05.06.09
60
SAS/SATA
6Gb/s
DataON
DNS-1600
4U Enclosure
Broadcom
1725
24
SAS/SATA
6Gb/s
DataON
DNS-1640
2U Enclosure
PMC Sierra
A419
24
SAS/SATA
6Gb/s
Dell
MD1200
2U Enclosure
Broadcom
1.01
12
SAS/SATA
6Gb/s
Dell
MD1220
2U Enclosure
Broadcom
1.01
24
SAS/SATA
6Gb/s
Echostreams
DSS3220
3U Chassis
Broadcom
0D00
16
SAS
6Gb/s
eSlim
eSlim 1308
2U Enclosure
Broadcom
0E03
36
SAS/SATA
6Gb/s
MB996SP-6S
ICY Dock
B
1U Backplane N/A
N/A
6
SATA
6Gb/s
ICY Dock
MB998SP-B
1U Backplane N/A
N/A
8
SATA
6Gb/s
ICY Dock
MB994SP-4S
1U Backplane N/A
N/A
4
SAS/SATA
12Gb/s
ICY Dock
MB992SK-B
1U Backplane N/A
N/A
2
SATA
6Gb/s
Backplane
N/A
N/A
12
SAS/SATA
6Gb/s
RS-212(3RA
In-Win
MPD015800
rev4.0)
JBOD2224S2
Intel
DPBPP
2U Enclosure
Broadcom
0D00
24
SAS/SATA
6Gb/s
Intel
RES2CV360
Backplane
Broadcom
0D00
36
SAS/SATA
6Gb/s
Intel
RES2CV240
Backplane
Broadcom
0D00
24
SAS/SATA
6Gb/s
Intel
RES2SV240
Backplane
Broadcom
0D00
24
SAS/SATA
6Gb/s
Intel
B024
12
SAS/SATA
12Gb/s
B024
24
SAS
12Gb/s
JBOD2312S3
Intel
SP
2U Enclosure
Intel
RES3FV288
2U Backplane PMC Sierra
Broadcom Limited Copyright 2017 Page 28
Manufacturer
Model
Type
Intel
RES3TV360
Newisys
NDS-4600
Seagate
SP-3212
Expander Manufacturer
FW Rev
Slots
Protocol
Link Speed
2U Backplane PMC Sierra
B024
24
SAS
12Gb/s
4U Enclosure
PMC Sierra
05.06.09
60
SAS/SATA
6Gb/s
2U Enclosure
Seagate
USM V4 1.13
12
SAS
12Gb/s
Enclosure
N/A
N/A
8
SAS/SATA
12Gb/s
2U Enclosure
SuperMicro
401
12
SAS
12Gb/s
SA-ENC12GSerialCables
01A
CSE-826BE2
SuperMicro
C-R920LPB
Compatible Cables:
Vendor
Model Number
Length (M)
Description
Broadcom
CBL-SFF8643-8087-08M
0.8
SFF8643 to SFF8087 (Internal mini SAS HD to Internal SFF8087 mini SAS)
Broadcom
CBL-SFF8643-8087-10M
1
SFF8643 to SFF8087 (Internal mini SAS HD to Inyernal SFF8087 mini SAS)
Broadcom
CBL-SFF8643-SATASB-05M
0.5
port)
Broadcom
CBL-SFF8643-SATASB-65M
0.65
Internal SFF8643 to x4 SATA HDD (mini SAS HD to SATA data port)
Broadcom
CBL-SFF8643-SATASB-10M
1
Internal SFF8643 to x4 SATA HDD (mini SAS HD to SATA data port)
Broadcom
CBL-RA8643-04M
0.4
HD)
Broadcom
CBL-SFF8643-06M
0.6
SFF8643 to SFF8643 (Internal mini SAS HD to Internal mini SAS HD)
Broadcom
CBL-SFF8643-08M
0.8
SFF8643 to SFF8643 (Internal mini SAS HD to Internal mini SAS HD)
Broadcom
CBL-SFF8643-10M
1
SFF8643 to SFF8643 (Internal mini SAS HD to Internal mini SAS HD)
Broadcom
CBL-SFF8643-SAS8482SB-06M
0.6
SFF8643 to x4 SAS8482 w/power (Internal mini SAS HD to x4 SAS HDD)
ConnPro
RS3D5TD5T20001
2
External Mini SAS HD Cable
ConnPro
RS3D5TD5T60001
6
External Mini SAS HD Cable
ConnPro
RS2D10T7410002
1
4i to 4xSATA INT
ConnPro
RS3D5TD5T10001
1
External SAS HD Cable
ConnPro
RS3D10D1010001
1
4i - 4i 30AWG 1M
12G-HD-4343/.5m
0.5
Internal SFF-8643 mini-SAS HD connector to internal SFF-8643 mini-SAS HD
12G-HD-4343/1m
1
Internal SFF-8643 mini-SAS HD connector to internal SFF-8643 mini-SAS HD
12G-HD-4387/.5m
0.5
Internal SFF-8643 mini-SAS HD connector to internal SFF-8087 mini-SAS
SFF8643 to x4 SATA HDD (Internal mini SAS HD to four Internal SATA data
Internal cable Right Angle SFF8643 to SFF8643 (mini SAS HD to mini SAS
CS
Electronics
CS
Electronics
CS
Electronics
Broadcom Limited Copyright 2017 Page 29
Vendor
Model Number
Length (M)
Description
12G-HD-4387/1m
1
Internal SFF-8643 mini-SAS HD connector to internal SFF-8087 mini-SAS
HD-SAS-437P/.5m
0.5
Internal SFF8643 to x4 SATA HDD (mini SAS HD to SATA data port)
HD-SAS-437P/1m
1
Internal SFF8643 to x4 SATA HDD (mini SAS HD to SATA data port)
HD-SAS-437P/2m
2
Internal SFF8643 to x4 SATA HDD (mini SAS HD to SATA data port)
HD-SAS-4832/.5m
0.5
HD-SAS-4832/1m
1
HDD)
HD-SAS-4387/.3m
0.3
Internal SFF-8643 mini-SAS HD connector to internal SFF-8087 mini-SAS
HD-SAS-4387/.5m
0.5
Internal SFF-8643 mini-SAS HD connector to internal SFF-8087 mini-SAS
HD-SAS-4387/1m
1
Internal SFF-8643 mini-SAS HD connector to internal SFF-8087 mini-SAS
HD-SAS-4343/.3m
0.3
Internal SFF-8643 mini-SAS HD connector to internal SFF-8643 mini-SAS HD
HD-SAS-4343/.5m
0.5
Internal SFF-8643 mini-SAS HD connector to internal SFF-8643 mini-SAS HD
Electronics
HD-SAS-4343/1m
1
Internal SFF-8643 mini-SAS HD connector to internal SFF-8643 mini-SAS HD
SerialCables
SA-4343L-.5M
0.5
HD MiniSAS Int. (SFF-8643) to HD MiniSAS Int. (SFF-8643)
SerialCables
SA-4343L-.6M
0.6
HD MiniSAS Int. (SFF-8643) to HD MiniSAS Int. (SFF-8643)
SerialCables
SA-4343L-.8M
0.8
HD MiniSAS Int. (SFF-8643) to HD MiniSAS Int. (SFF-8643)
SerialCables
SA-4343L-1M
1
HD MiniSAS Int. (SFF-8643) to HD MiniSAS Int. (SFF-8643)
SerialCables
SA-F43S7P-1M
1
Int. HD MiniSAS (SFF-8643) to 4 7-pin SATA breakout
SerialCables
SA-F43S7P-2M
2
Int. HD MiniSAS (SFF-8643) to 4 7-pin SATA breakout
SerialCables
SA-4382-1M
1
Int. HD MiniSAS (SFF-8643) to 4 Single Port SAS Drive (SFF-8482)
CS
Electronics
CS
Electronics
CS
Electronics
CS
Electronics
CS
Electronics
Internal cable SFF8643 to x4 SAS8482 with power (mini SAS HD to SAS
CS
Electronics
HDD)
Internal cable SFF8643 to x4 SAS8482 with power (mini SAS HD to SAS
CS
Electronics
CS
Electronics
CS
Electronics
CS
Electronics
CS
Electronics
CS
Broadcom Limited Copyright 2017 Page 30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
