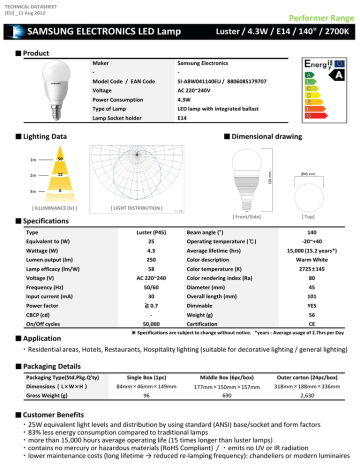

TECHNICAL DATASHEET
[EU] _11 Aug 2012
Performer Range
Luster / 4.3W / E14 / 140° / 2700K
SAMSUNG ELECTRONICS LED Lamp
■ Product
Maker
Samsung Electronics
-
-
Model Code / EAN Code
SI-A8W041140EU / 8806085179707
Voltage
AC 220~240V
Power Consumption
4.3W
Type of Lamp
LED lamp with integrated ballast
Lamp Socket holder
E14
■ Dimensional drawing
1m
50
2m
12
3m
6
[ ILLUMINANCE (lx) ]
101 mm
■ Lighting Data
[ LIGHT DISTRIBUTION ]
[ Front/Side]
■ Specifications
Type
Luster (P45)
Beam angle (°)
Equivalent to (W)
25
Operating temperature (℃)
Wattage (W)
4.3
Average lifetime (hrs)
Lumen output (lm)
250
Color description
Lamp efficacy (lm/W)
58
Color temperature (K)
Voltage (V)
Frequency (Hz)
Input current (mA)
Power factor
AC 220~240
50/60
30
■ Application
[ Top]
140
-20~+40
15,000 (15.2 years*)
Warm White
2725±145
Color rendering index (Ra)
80
Diameter (mm)
45
Overall length (mm)
101
≧ 0.7
Dimmable
YES
-
Weight (g)
56
Certification
CE
CBCP (cd)
On/Off cycles
Ø 45 mm
50,000
※ Specifications are subject to change without notice. *years : Average usage of 2.7hrs per Day
・Residential areas, Hotels, Restaurants, Hospitality lighting (suitable for decorative lighting / general lighting)
■ Packaging Details
Packaging Type(Std.Pkg.Q'ty)
Dimensions(L×W×H)
Gross Weight (g)
Single Box (1pc)
Middle Box (6pc/box)
Outer carton (24pc/box)
84mm×46mm×149mm
177mm×150mm×157mm
690
318mm×188mm×336mm
96
2,630
■ Customer Benefits
・25W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
・83% less energy consumption compared to traditional lamps
・more than 15,000 hours average operating life (15 times longer than luster lamps)
・contains no mercury or hazardous materials (RoHS Compliant) / ・emits no UV or IR radiation
・lower maintenance costs (long lifetime → reduced re-lamping frequency): chandeliers or modern luminaires
Dimmer Compatibility
[EU] _13 Aug 2012
Performer Range
Dimmable Luster _4.3W
SAMSUNG ELECTRONICS LED Lamp
■ Luster (25W Equivalent)
Product Code
SI-A8W041140EU
SI-A8W041141EU
EAN Code
8806085179707
8806085177338
Specification
250lm / 4.3W / 140D / 2700K / E14
250lm / 4.3W / 140D / 2700K / E14
■ Dimmer Compatibility
Dimming Level
@ 1 lamp(Flux%)
Dimmer
Manufacturer
Models
Power
Input
Frequency
Country
Max
Min
BERKER
2873
20~500W
230~240V
50Hz
EU
100%
25%
PEHA
433HAB
20~315W
230V
50Hz
EU
100%
91%
JUNG
266GDE
60~600W
230~240V
50Hz
EU
100%
36%
JUNG
211GDE
100~1000W
230~240V
50Hz
EU
no compatibility
JUNG
225NVDE
20~500W
230~240V
50Hz
EU
100%
25%
BERKER
2866 10
20~500W
230~240V
50/60Hz
EU
100%
30%
BTICINO
A5702
60~500W
230V
50Hz
EU
no compatibility
GIRA
0302 00/I01
60~600W
230~240V
50Hz
EU
100%
19%
BUSCH-JAEGER
2200U-503
60~400W
230V
50Hz
EU
100%
12%
BUSCH-JAEGER
2247U
500W
230V
50Hz
EU
100%
30%
BUSCH-JAEGER
6513U-102
40~420W
230V
50Hz
EU
100%
65%
BUSCH-JAEGER
2250U
600W
230V
50Hz
EU
100%
21%
BUSCH-JAEGER
6591U-101
420W
230V
50/60Hz
EU
no compatibility
GIRA
0307/00
60~400W
230V
50Hz
EU
no compatibility
