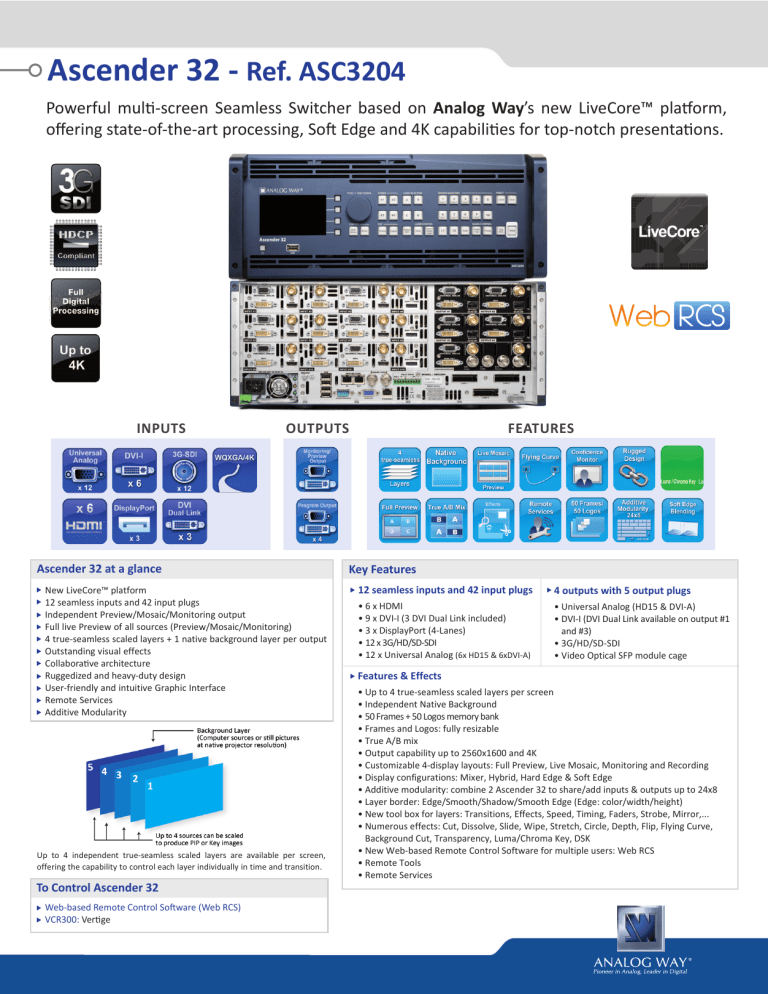

Ascender 32 - Ref. ASC3204
Ascender 32 - Ref. ASC3204
Powerful multi-screen Seamless Switcher based on Analog Way’s new LiveCore™ platform,
offering state-of-the-art processing, Soft Edge and 4K capabilities for top-notch presentations.
Inputs
Outputs
Ascender 32 at a glance
New LiveCore™ platform
12 seamless inputs and 42 input plugs
Independent Preview/Mosaic/Monitoring output
Full live Preview of all sources (Preview/Mosaic/Monitoring)
4 true-seamless scaled layers + 1 native background layer per output
Outstanding visual effects
Collaborative architecture
Ruggedized and heavy-duty design
User-friendly and intuitive Graphic Interface
Remote Services
Additive Modularity
Up to 4 independent true-seamless scaled layers are available per screen,
offering the capability to control each layer individually in time and transition.
To Control Ascender 32
Web-based Remote Control Software (Web RCS)
VCR300: Vertige
Features
Key Features
12 seamless inputs and 42 input plugs
4 outputs with 5 output plugs
• 6 x HDMI
• 9 x DVI-I (3 DVI Dual Link included)
• 3 x DisplayPort (4-Lanes)
• 12 x 3G/HD/SD-SDI
• 12 x UniversaI Analog (6x HD15 & 6xDVI-A)
• Universal Analog (HD15 & DVI-A)
• DVI-I (DVI Dual Link available on output #1
and #3)
• 3G/HD/SD-SDI
• Video Optical SFP module cage
Features & Effects
• Up to 4 true-seamless scaled layers per screen
• Independent Native Background
• 50 Frames + 50 Logos memory bank
• Frames and Logos: fully resizable
• True A/B mix
• Output capability up to 2560x1600 and 4K
• Customizable 4-display layouts: Full Preview, Live Mosaic, Monitoring and Recording
• Display configurations: Mixer, Hybrid, Hard Edge & Soft Edge
• Additive modularity: combine 2 Ascender 32 to share/add inputs & outputs up to 24x8
• Layer border: Edge/Smooth/Shadow/Smooth Edge (Edge: color/width/height)
• New tool box for layers: Transitions, Effects, Speed, Timing, Faders, Strobe, Mirror,...
• Numerous effects: Cut, Dissolve, Slide, Wipe, Stretch, Circle, Depth, Flip, Flying Curve,
Background Cut, Transparency, Luma/Chroma Key, DSK
• New Web-based Remote Control Software for multiple users: Web RCS
• Remote Tools
• Remote Services
Multi-screen configuration
Output #2
Output #1
Hard Edge configuration
4K Display
Output #3
Output #4
Output #3
Soft Edge config. with one output
used as Confidence monitor
Output #4
Output #1
Output #1
Output #4
Web RCS
(Remote Control Software)
to control the Screen #1
Output #4
Live Monitoring of
Screen #1
(Program and Preview)
Live Monitoring of
Screen #1
(Program and Preview)
Sources
Output #3
Sources
Sources
Output #2
Monitoring /
Preview Output
Output #2
Output #3
Output #1
Web RCS
(Remote Control Software)
to control all the screens
Monitoring
/ Preview
Live Monitoring of
Output all screens(Program
and Preview)
Output #2
Sources
Web RCS
(Remote Control Software)
to control the Screen #1
With the Monitoring/Preview
Output, the Program (Screen
#1) Picture is recomposed even
if the Picture is in “Hard Edge
configuration”
Monitoring /
Preview Output
Web RCS
(Remote Control Software)
to control the Screen #1
Display configurations with 4 outputs
Screen #1
Live Monitoring of Screen
#1 and Confidence monitor
(Program and Preview)
Screen #2
Screen #1
Screen #3
Screen #2
Screen #1
Web RCS (Remote Control Software)
to control the Confidence monitor
Screen #4
Screen #3
Screen #2
Screen #1
Several outputs can be declared as a Confidence Monitor
Web RCS
In addition to its four main outputs, Ascender 32 features an independent Dual-Link output for monitoring
purposes.
This output offers versatile and customizable display options, ensuring effective monitoring and flawless
show control. All images are live and can be labeled through the Web Remote Control Software. Additional
information on each source is also available directly on the live video windows.
Full Preview
Live Mosaic
Weight:
 19 Kgs
 41.89 lbs
Supplied with:
 1 x Power Supply Cord
 1 x Web-based Remote Control
Software (Web RCS)
 1 x User Manual*
 1 x Quick Start Guide
Power Supply:
100-240 VAC ; 4.8A ; 50/60Hz ; 285 W
Warranty:
3-year warranty on parts and labor back to factory.
Dimensions:
 D 21.41''x W 17.51'' x H 6.97''
 D 544 mm x W 444.8 mm x H 177 mm
• The Web RCS offers a user-friendly graphic interface
consisting of 3 independent sections: Setup, Edit
and Live. A Preconfig. mode indicates how to easily
configure the device step by step.
• With dynamic snapshots of the connected sources
available in the interface, the intuitive dashboard
allows operators to fully prepare their shows and
control them live during their events.
• An innovative Sequences mode allows easy
organization of presets through drag and drop
operation.
* All User Manuals and Quick Start Guides
are also available on www.analogway.com
Specifications subject to change without prior notice
All technical specifications are available on our website
Europe, Middle East and Africa - ANALOG WAY SAS - Tel: +33 (0)1 81 89 08 60 / Fax: +33 (0)1 57 19 04 54 / Email: [email protected]
The Americas - ANALOG WAY Inc. - Tel: +1 212 269 1902 / Fax: +1 212 269 1943 / Email: [email protected]
Asia Pacific - ANALOG WAY Pte Ltd - Tel: +65 62 92 58 00 / Fax: +65 62 92 52 05 / Email: [email protected]
Follow us
ASC3204-22/05/2013
