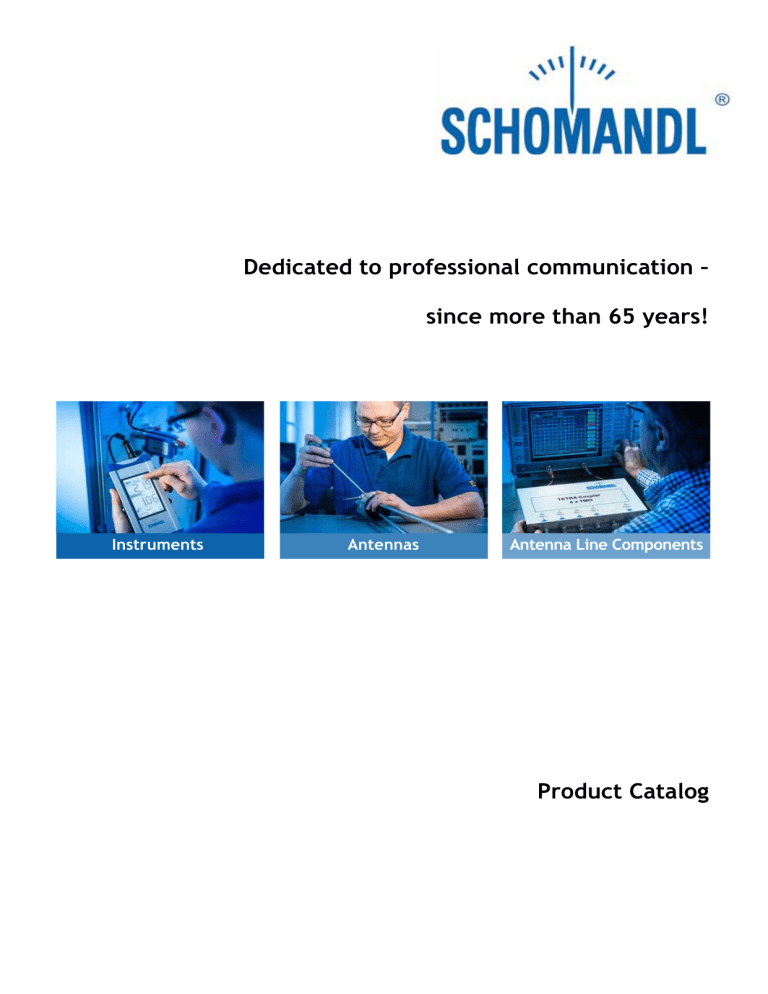

Dedicated to professional communication – since more than 65 years!

Instruments Antennas Antenna Line Components

Product Catalog

Dear valued customer,

founded 1947 in Munich by Artur Schomandl, our company has a long history and a well reputation for its product range of signal generators based on high stability decade oscillators. Between 1983 and 2013 we were part of the Kathrein Group and extended our portfolio with test receivers, power meters and test sets for professional mobile radio.

Independent since 2013, we have acquired Kathrein’s professional antenna portfolio for frequency ranges between 27 and 174 MHz in 2015. Since then we are the new home of a legendary product range of antennas for professional mobile radio applications. Together with our existing products for antenna testing and our filters and couplers for PMR applications, we are offering a competitive portfolio for nearly every demand.

Schomandl is designing and manufacturing all products in Germany and distributing it under its own brand name.

We are now owned and controlled by engineers and managers with decades of experience in professional mobile radio business, especially in public safety, transport & logistics, maritime radio as well as in industrial & utilities applications. On the following pages, we want to provide you a comprehensive overview of our products. If you need more information or are missing any content, please do not hesitate to contact us at [email protected]

Yours sincerely,

Wolfgang Schnoor

CEO

Schomandl GmbH & Co. KG

Georg-Wimmer-Ring 14

85604 Zorneding, Germany

Phone: +49 8106 37725 10

Fax: +49 8106 37725 20 www.Schomandl.com

[email protected]

Product list

Measurement Instruments by SCHNOOR

Vertical Polarization Omnidirectional Antennas page

V pol Groundplane

V pol Groundplane

V pol Groundplane

V pol Groundplane

V pol Omni Sleeve Dipole

V pol Dipole

717 758

K 51 24 72

K 51 26 41 1

K 51 26 42 1

K 55 21 41

K 55 28 41

V pol Dual Band Groundplane K 51 25 42 1

V pol Groundplane

V pol Groundplane

V pol Omni Sleeve Dipole

V pol Omni Sleeve Dipole

V pol Omni Sleeve Dipole

K 51 26 2

711 530

K 55 26 26

K 55 26 27

K 55 26 28

V pol Omni Colinear

V pol Omni Colinear

V pol Omni Colinear

V pol Omni Colinear

V pol Dipole

V pol Dipole Colinear

K 55 16 21 1

K 55 16 22 1

K 55 16 23 1

736 931

K 55 29 21

K 55 31 21

21

21

21

23

25

27

15

17

17

19

19

19

5

7

9

9

11

13

Vertical/Horizontal Polarization Directional

2-Element Yagi

2-Element Yagi

4-Element Yagi

V pol Bidirectional Dipole

2-Element Yagi

3-Element Yagi

11-Element Yagi

Panel - Heavy Duty

K 53 19 41 1

K 53 19 42 1

K 53 17 41

K 53 00 21

K 53 19 21

K 53 18 21

K 52 07 21

K 52 32 21

35

37

39

41

29

29

31

33

3

4

Product list

Measurement Instruments by SCHNOOR

Indoor Power Dividers / Tappers / Filters page

RF Power Divider 3-3dB WIBZ 3-3

RF Power Divider 3-3dB Wilkinson WILK

RF Power Divider 6dB

RF Power Divider 1-10 dB

DIVD

WIBZ 1-10

Active RF Divider 2-Port 6dB

Active RF Divider 3-Port 6dB

AMP 3-2

AMP 3-3

Wideband Low Loss Power Tapper WLPT 10

Programmable Preselection Filter PPSF

47

48

49

51

43

44

45

46

TETRA Multicouplers

TETRA Coupler TMO 2

TETRA Coupler TMO 3

TETRA Coupler TMO 4

TETRA Coupler TMO 1 + DMO 1

TETRA Coupler TMO 2 + DMO 1

TETRA Coupler TMO 3 + DMO 1

TETRA Coupler TMO 4 + DMO 1

TETRA AutoCoupler 2 TMO/DMO

TETRA AutoCoupler 3 TMO/DMO

TETRA AutoCoupler 4 TMO/DMO

Instruments

FIT Fast Installation Tester 30W

FIT Fast Installation Tester 300W

FAT 2710 Fast Antenna Tester

FITUSB-30

FITUSB-300

FAT2710

Soft Bag with Accessories for FAT2710 FATACC1

SI-1000 RF Detector

Belt Pouch for SI-1000

SI-1000

SI-1000ACC

Cross Reference List

58

59

60

61

62

53

54

55

56

57

63

65

67

69

V pol Groundplane Antenna 25 ... 61 MHz

Vertical Polarization

The Schomandl 717758 is a tunable Groundplane antenna for a wide frequency range.

• Entire antenna at DC ground potential to prevent electrostatic noise and to improve lightning protection

• Wide frequency range achievable by cutting radials to desired length

• Variable mounting configurations allow feeder cable to be run inside or outside the support pipe.

• Stainless steel ground radials,hardware, and fastenings.

Type No.

Input

Frequency range

Gain (bez. λ /

2

-dipole)

Impedance

Polarization

Max. power

Weight*

Wind load*

Max. wind velocity

Packing size

Radiator length

Length of radials

Order No.

* for max. antenna length

Material:

Mounting:

Radials:

Tuning:

Grounding:

717758

N female

25 ... 61 MHz

0 dB

50 Ω

Vertical

500 W (at 50 °C ambient temperature)

1.8 kg

120 N (at 150 km/h)

120 km/h

3000 x ∅ 120 mm max. 2510 mm max. 2910 mm

80000855

Radiator and radials: Fiberglass with imbedded stranded copper wire.

Base: Aluminum.

Mounting U-bolt, all screws and nuts:

Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of

40 – 54 mm diameter (connecting cable runs inside the mast).

2. Laterally at the tip of a tubular mast of

20 – 54 mm diameter (connecting cable runs outside the mast).

Tightening torque 25 Nm

By cutting radiator and radials to length in

accordance to the mounting instructions.

All metal parts of the antenna including the

mounting kit are DC grounded.

On the tip of a tubular mast

Measurement Instruments by SCHNOOR

Laterally at the tip of a tubular mast

10

3

0

Vertical Pattern

78°

2,2

1,8

1,4

1,0

Standing Wave Ratio (VSWR)

Examples of matching at various frequencies

VSWR

2,2

1,8

1,4

1,0

27 27,6 34 34,6 41 41,6

VSWR

49 50 51 59 60 61

5

V pol Groundplane Antenna 25 ... 61 MHz

Vertical Polarization

Measurement Instruments by SCHNOOR

L

2

A: for pipes of 20 – 54 mm ∅

B: for pipes of 40 – 54 mm ∅

2500

2000

1500

1000

30

6

L

1

L

2

2600

2400

2200

2000

L

2

L

1

26 28 30 f / MHz

35 40 45 50 55 f / MHz

60

V pol Groundplane Antenna 27 ... 61 MHz

Vertical Polarization

The Schomandl K512472 is a tunable

Groundplane antenna for a wide frequency range.

Measurement Instruments by SCHNOOR

• Entire antenna at DC ground potential to prevent electrostatic noise and to improve lightning protection

• Wide frequency range achievable by cutting radials to desired length

• Variable mounting configurations allow feeder cable to be run inside or outside the support pipe.

• Stainless steel ground radials,hardware, and fastenings.

Type No. Antenna

Spare radials

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

Max. power per input

Order No.

K 51 24 72

K5124701

27 ... 61 MHz

Vertical

0 dB

50 Ω

500 W (at 50 °C ambient temperature)

8000008

Material:

Mounting:

Radials:

Tuning:

Grounding:

Radiator and radials: Fiberglass with imbedded stranded copper wire.

Base: Aluminum.

Mounting U-bolt, all screws and nuts:

Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of 40–54 mm

[1.6–2.1 inches] diameter (connecting cable runs inside the mast).

2. Laterally at the tip of a tubular mast of

20–54 mm [0.8–2.1 inches] diameter

(connecting cable runs outside the mast).

Tightening torque 25 Nm

By cutting radiator and radials to length in accordance to the mounting instructions.

All metal parts of the antenna including the mounting kit are DC grounded.

78°

10

3

0

Vertical Pattern

2,2

1,8

1,4

1,0

Standing Wave Ratio (VSWR)

Examples of matching at various frequencies

VSWR

2,2

1,8

1,4

1,0

27 27,6 34 34,6 41 41,6

VSWR

49 50 51 59 60 61

On the tip of a tubular mast

Laterally at the tip of a tubular mast

Mechanical specifications

Input

Wind load (N)

(at 150 km/h) [lbf]

Max. wind (km/h) velocity [mph]

Radiator length

(mm)

[inches]

Length (mm) of radials [inches]

Weight * (kg)

[lb]

Packing size (mm)

[inches]

* for max. antenna length

UHF female

100

[25]

135

[84] max. 2510

[98.8] max. 2510

[98.8]

1.6

[3.5]

2704 x 136 x 100

[106.5 x 5.4 x 3.9]

7

V pol Groundplane Antenna 27 ... 61 MHz

Vertical Polarization

Measurement Instruments by SCHNOOR

L

2

A: for pipes of 20–54 mm

[0.8–2.1 inches] ∅

B: for pipes of 40–54 mm

[1.6–2.1 inches] ∅

2000

1500

8

1000

30 35

L

1

L

2

2400

2200

2000

27 28 29 30 f / MHz

40 45 50 55 f / MHz

60

L

2

L

1

V pol Groundplane Antennas 68 ... 87.5 MHz

Vertical Polarization

The Schomandl K5126411 and 5126421 have been deployed many times worldwide and are designed based on decades of proven reliability.

Measurement Instruments by SCHNOOR

• Available in two frequency ranges to avoid tuning by cutting radials on site

• Rugged antenna with fiberglass radials

• Variable mounting configurations allow feeder cable to be run inside or outside the support pipe.

Type No.

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

VSWR

Max. power per input

Order No.

Antenna

Spare radials

K 51 26 411

K51264012

K 51 26 421

K51264022

68 – 80 MHz 74 – 87.5 MHz

Vertical

0 dB

50 Ω

80000010

< 1.5

300 W

(at 50 °C ambient

75 W temperature) ffffffffff

80000011

Material:

Mounting:

Radials:

Grounding:

Radiator: Stainless steel.

Radials: Fiberglass with imbedded stranded copper wire.

Base: Aluminum.

Mounting U-bolt, all screws and nuts:

Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of 40–54 mm

[1.6–2.1 inches] diameter (connecting cable runs inside the mast).

2. Laterally at the tip of a tubular mast of

20–40 mm [0.8–1.6 inches] diameter

(connecting cable runs outside the mast).

Tightening torque 25 Nm

All metal parts of the antenna including the mounting kit are DC grounded.

10

3

0

Horizontal Pattern

10

3

0

Vertical Pattern

78°

On the tip of a tubular mast

Laterally at the tip of a tubular mast

Mechanical

­specifications

Input

Wind load (N)

(at 150 km/h) [lbf]

Max. wind (km/h) velocity [mph]

Radiator length

(mm)

[inches]

Length (mm) of radials [inches]

Weight (kg)

[lb]

Packing size (mm)

[inches]

K5126411

N female

K5126421

70

[16]

65

[15]

200

[125]

747

[29.5]

1053

[41.5]

680

[26.8]

970

[38.2]

1.8

[4.0]

1.6

[3.5]

1114 x 132 x 112

[43.9 x 5.2 x 4.4]

9

V pol Omnidirectional Sleeve Dipole Antenna

Vertical Polarization 68 ... 87.5 MHz

The Schomandl sleeve dipole antennas are based on a dipole and a matching cavity. This construction helps to provide highest performance at a limited space: The narrow bandwidth of sleeve dipoles can provide an effcient pre-selection and suppress out of band emissions.

• Hot-dip galvanized steel antenna with aluminum base

• Broadband omnidirectional half-wave dipole for entire band

• Antenna is mounted with 190mm standard flange

Measurement Instruments by SCHNOOR

Type No.

K 55 21 41

Input

Frequency range

VSWR

N female

68 – 87.5 MHz

< 1.5

Gain (ref. λ/2 dipole)

Impedance

0 dB

50 Ω

Polarization Vertical

Max. power 260 Watt (at 50 °C ambient temperature)

Weight

Wind load

Max. wind velocity

Packing size

Antenna diameter

Height

10 kg

200 N (at 150 km/h)

200 km/h

2210 x 210 x 210 mm

70 / 100 mm approx. 1980 mm

Order No. 80000856

Material:

Mounting:

Grounding:

Radiator: Hot-dip galvanized steel.

Base: Aluminum.

All screws and nuts: Stainless steel.

Standard flange 190 mm diameter.

All metal parts of the antenna including the mounting kit are DC grounded.

The inner conductor is capacitively coupled.

10

3

0

Horizontal Pattern

10

3

0

Vertical Pattern

78°

Ø 18 mm

Ø

150 mm

Ø 190 mm

11

V pol Dipole Antenna 68 ... 87.5 MHz

Vertical Polarization

The Schomandl K552841 is a robust dipole antenna intended for use in professional fixed-station applications in the

68–87.5 MHz band with highest performance and stability requirements.

Measurement Instruments by SCHNOOR

• Hot-dip galvanized steel construction

• Entire antenna at DC ground potential

• Mounting position determines preferred direction

Type No.

Frequency range

Gain

Impedance

VSWR

Polarization

Maximum input power

H-plane beamwidth

E-plane beamwidth

Connector

Weight

Dimensions (approx.)

Wind load

Wind survival rating*

Shipping dimensions

Shipping weight

Mounting

Order No.

K 55 28 41

68–87.5 MHz

4 dBi

50 ohms

<1.5:1

Vertical

230 watts (at 50°C)

180° (half-power)

78° (half-power)

N female

9 kg (19.8 lb)

1750 x 870 mm

(68.9 x 34.3 inches) at 150 km/h (93 mph)

165 N (38 lbf)

200 km/h (120 mph)

1800 x 948 x 107 mm

(70.9 x 37.3 x 4.2 inches)

11 kg (24.3 lb)

For masts of 60 to 115 mm

(2.375 to 4.5 inches) OD.

80000012

* Mechanical design is based on environmental conditions as stipulated in TIA-222-G-2

(December 2009) and/or ETS 300 019-1-4 which include the static mechanical load imposed on an antenna by wind at maximum velocity.

°

°

°

°

°

°

°

°

Horizontal pattern

°

Vertical pattern

13

V pol Dipole Antenna 68 ... 87.5 MHz

Vertical Polarization

≈870 mm

(≈34.3 inches)

Measurement Instruments by SCHNOOR

≈1750 mm

(≈68.9 inches)

14

V pol Dual Band Groundplane Antenna

74.2 ... 87.5 MHz/ 167.5 – 174 MHz

The Schomandl K5125421 covers two of the most important PMR frequency bands within one compact antenna.

Measurement Instruments by SCHNOOR

• Rugged two-range groundplane antenna with fiberglass radials

• Stainless steel, hardware and fastenings.

• Possibility to fold the radials into different directions to decrease space requirements

• Feed via two separate N female connectors

Type No. Antenna

Spare radials

K 51 25 42 1

K 51 25 40 2

Input

Frequency range

2 x N female

74.2 – 77.7 MHz and 167.5 – 174 MHz

84.0 – 87.5 MHz

Gain (ref. l/2 dipole) 0 dB 0.5 dB

VSWR

Impedance

Polarization

Max. power

< 1.5

50 Ω

Vertical

10 Watt (at 50 °C ambient temperature)

Decoupling

Weight

Wind load

Max. wind velocity

Packing size

Radiator length

Diameter

Length of radials

Order No.

< 30 dB between 2 m band and 4 m band

2.7 kg

90 N (at 150 km/h)

180 km/h

1160 x 120 x 110 mm

1121 mm

50 mm

1003 mm

80000009

Material:

Mounting:

Special features:

Grounding:

Radiator: Weather-resistant aluminum in fiberglass radome.

Radials: Fiberglass with imbedded stranded copper wire.

Base: Aluminum.

Mounting U-bolt and all screws and nuts:

Stainless steel.

Mounting: To pipes of 30 – 54 mm diameter by means

To pipes of 30 – 54 mm diameter by means of mounting kit (supplied). The antenna must be mounted in such a manner, that the feeder cables runs outside the mast.

The radials can be folded up.

All metal parts of the antenna including the mounting kit are DC grounded.

10

3

0

Horizontal Pattern

10

3

0

Vertical Pattern

78°

15

Material:

Mounting:

Grounding:

V pol Groundplane Antenna 146 - 174 MHz

Vertical Polarization

The Schomandl 711 530 and K51262 omni-directional

Measurement Instruments by SCHNOOR

• Design based on decades of proven reliability. groundplane antennas are intended for use in professional fixed-station applications in the 146–174 MHz band.

• Easy installation, no cutting of radials on site necessary.

• Variable mounting configurations allow feeder cable to be run inside or outside the support pipe.

• Stainless steel ground radials, hardware, and fastenings.

Type No. Antenna

Spare radials

K 51 26 2 711 530

K 51 26 20 2

K 51 26 20 2

Input

Frequency range

Gain (ref. l/2 dipole)

VSWR

Impedance

Polarization

Max. power

Weight

Wind load

Max. wind velocity

Packing size

Radiator length

Length of radials

Order No.

By means of a cable N female

RG-213/U

with termination

inside antenna.

146 – 174 MHz

0 dB

< 1.5

50 Ω

Vertical

170 Watt 700 Watt

(at 50 °C ambient temperature)

1.2 kg

25 N (at 150 km/h)

200 km/h

654 x 112 x 97 mm

422 mm

617 mm

80000013 80000014

617 mm

Radiator and radials: Weather-resistant aluminum.

Mounting U-bolt and all screws and nuts:

Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of

40 – 54 mm diameter (connecting cable

runs inside the mast).

2. Laterally at the tip of a tubular mast of

20 – 54 mm diameter (connecting cable

runs outside the mast).

- Entire antenna at DC ground potential to prevent

electrostatic noise and to improve lightning

protection

The inner conductor is capacitively coupled.

78°

10

3

0

Horizontal Pattern

10

3

0

Vertical Pattern On the tip of a tubular mast

Laterally at the tip of a tubular mast

17

V pol Groundplane Antenna 146 - 174 MHz

Vertical Polarization

Mounting Instructions

Measurement Instruments by SCHNOOR

18

1: for pipes of 40 – 54 mm Ø

2: for pipes of 20 – 54 mm Ø

For antennas with N-female connector (jack) we recommend using cable connectors (male plug) with captive inner conductor to avoid damages to the jack-center conductor.

V pol Omni Sleeve Dipole Antennas

Vertical Polarization 146 ... 174 MHz

The Schomandl sleeve dipole antennas are based on a dipole and a matching cavity. This construction helps to provide highest performance at a limited space: The narrow bandwidth of sleeve dipoles can provide an effcient pre-selection and suppress out of band emissions.

• Aluminum omnidirectional antenna

• Direct cable connection without connector.

• Three separate models for the 146-174 MHz band available

Type No.

Frequency range

Gain (ref. λ/2 dipole)

VSWR

Impedance

Polarization

Max. power

Order No.

K 55 26 26

K 55 26 27 K 55 26 28

146 – 156 MHz 155 – 165 MHz

0 dB

< 1.6

50 Ω

Vertical

164 – 174 MHz

130 W (at 50 °C ambient temperature)

80000015 80000016 80000017

Measurement Instruments by SCHNOOR

Radiation Pattern (at mid-band)

10

3

0

Horizontal Pattern

10

3

0

Vertical Pattern

78°

K552626

Mechanical specifications

Input

Cable needed

Weight

Wind load

Max. wind velocity

Packing size

Height

K552626 K552627 K552628

Via terminals inside antenna.

RG-213/U

1.3 kg

50 N (at 150 km/h)

200 km/h

1254 x 112 x 97 mm

1085 mm 1042 mm 993 mm

19

V pol Omnidirectional Colinear Antenna

Vertical Polarization 146 ... 174 MHz

Measurement Instruments by SCHNOOR

The Schomandl K 55 16 21 1/2/3 are omnidirectional gain antennas for many professional fixed-station applications. With their aluminum alloy base, the products can be easily mounted in nearly any situation.

• Colinear Antennas with stacked design for flat vertical pattern

• Rugged grey fiberglass radome for enduring performance

• For superior VSWR performance, the products are available in three different frequency ranges covering the full VHF band

Type No.

Frequency range

Input

VSWR

Gain (ref. l

/

2

dipole)

Impedance

Polarization

Max. power

Weight

Wind load

Max. wind velocity

Packing size (l)

Packing size (w x d)

Antenna height

Diameter

Order no.

Material:

Mounting:

Grounding:

K 55 16 21 1 K 55 16 22 1 K 55 16 23 1

146 – 155 MHz

7 kg

220 N

155 – 164 MHz

N female

< 1.5

4 dB

164 – 174 MHz

50 Ω

Vertical

500 W (at 50 °C ambient temperature)

6,5 kg

210 N

6,5 kg

200 N

4850 mm

4780 mm

(at 150 km/h)

150 km/h

4600 mm

160 x 160 mm

4530 mm max. 52 mm

4350 mm

4275 mm

80000857 80000858 80000859

Radiator: Brass.

Radome: Fiberglass, colour:Grey.

Base: Aluminum.

Mounting U-bolt and all screws and nuts: Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of

65 – 105 mm diameter (connecting cable runs

inside the mast).

2. Laterally at the tip of a tubular mast of

30 – 90 mm diameter (connecting cable runs

outside the mast).

All metal parts of the antenna including the mounting kit are DC grounded.

10

3

0

Horizontal Pattern

10

0

3

Vertical Pattern

21°

On the tip of a tubular mast Laterally at the tip of a tubular mast

21

V pol Omnidirectional Colinear Antenna

161 ... 162 MHz / 169 - 170 MHz

The Schomandl 736931 VHF antenna is intended for digital

POCSAG paging networks for public safety applications

• Colinear Antennas with stacked design for flat vertical pattern

• Rugged grey fiberglass radome for enduring performance

• Optimized for POCSAG paging frequencies

Type No.

Input

Frequency range

VSWR

Gain (ref. l

/

2

dipole)

Impedance

Polarization

Max. power

Weight

Wind load

Max. wind velocity

Packing size

Antenna height

Diameter

Order no.

Material:

Mounting:

Grounding:

736 931

7 - 16 female

161 – 162 MHz / 169 - 170 MHz

< 1.5

1.5 dB

50 Ω

Vertical

600 W (at 25 °C ambient temperature)

500 W (at 50 °C ambient temperature)

6 kg

170 N (at 150 km/h)

200 km/h

2340 x 183 x 137 mm

2159 mm

51 mm

80000860

Radiator: Copper and brass.

Radome: Fiberglass, colour: Grey.

Base: Aluminum.

Mounting U-bolt and all screws and nuts:

Stainless steel.

The antenna can be attached in two ways with the supplied mounting kit:

1. On the tip of a tubular mast of

65 – 105 mm diameter (connecting cable

runs inside the mast).

2. Laterally at the tip of a tubular mast of

30 – 90 mm diameter (connecting cable

runs outside the mast).

All metal parts of the antenna including the mounting kit are DC grounded.

Grounding cross-section: 28 mm 2 copper.

Measurement Instruments by SCHNOOR

10

3

0

Vertical Pattern

169 - 170 MHz

42°

On the tip of a tubular mast Laterally at the tip of a tubular mast

23

V pol Dipole Antenna 146 ... 174 MHz

Vertical Polarization

The Schomandl K552921 is a robust dipole antenna intended for use in professional fixed-station applications in the in the

146-174 MHz band with highest performance and stability requirements.

Measurement Instruments by SCHNOOR

• Hot-dip galvanized steel construction

• Entire antenna at DC ground potential

• Mounting position determines preferred direction

Type No.

Input

Frequency range

VSWR

Gain (ref. l

/

2

dipole)

Impedance

Polarization

Max. power

Radiation Pattern

Weight

Wind load

Max. wind velocity

Mast diameter

Packing size

Dipole length

Distance dipole/mast

Order no.

Material:

Mounting:

Grounding:

K 55 29 21

N female

146 – 174 MHz

< 1.4

2 dB

50 Ω

Vertical

440 W (at 50 °C ambient temperature)

Preferred direction: Mast to radiator

4.5 kg

90 N (at 150 km/h)

200 km/h

60 – 125 mm

864 x 598 x 87 mm

840 mm

500 mm

80000019

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

On masts of 60 – 125 mm diameter clamp supplied.

All metal parts of the antenna including the mounting kit are DC grounded.

Radiation Pattern with different mast diameters:

10

3 dB

0

Horizontal Pattern

60 mm diameter

78°

10

3 dB

0

Vertical Pattern

60 mm diameter

10

3 dB

0

Horizontal Pattern

115 mm diameter

78°

10

3 dB

0

Vertical Pattern

115 mm diameter

For antennas with N female connector (jack) we recommend using cable connectors (male plug) with captive inner conductor to avoid damages to the jack center conductor.

25

V pol Dipole Colinear Antenna

Vertical Polarization 146 ... 174 MHz

Schomandl’s K 55 31 21 combines two dipoles in a colinear order to an antenna with unique performance:

• Main direction determined by dipole position towards the mast

• Very flat and vertical pattern with high gain

• Hot-dip galvanized steel construction

• Entire antenna at DC ground potential

Type No.

Input

Frequency range

VSWR

Gain (bez.

λ

/

2

-dipole)

Impedance

Polarization

Max. power

Weight

Wind load

Max. wind velocity

Packing size

Order No.

Material:

Mounting:

Special features:

Grounding:

K 55 31 21

N female

141 – 180 MHz but preferred range 146 - 174 MHz

< 1.3

5 dB

50 Ω

Vertical

110 W (at 50 °C ambient temperature)

13 kg

Frontal: 200 N (at 150 km/h)

Lateral: 250 N (at 150 km/h)

200 km/h

2400 x 420 x 150 mm

80000861

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

Via standard flange 130 mm diameter.

Preferred direction: Mast to radiator

(see diagram).

Cable connection: The jack is mounted inside the mast near the flange.

All metal parts of the antenna including the inner conductor and the supplied mounting hardware are

DC grounded.

Measurement Instruments by SCHNOOR

300 mm

10

3

0

Horizontal

78

10

3

0

Vertical

40°

100 mm

130 mm

14 mm

27

2-Element Yagi Antenna 68 ... 87.5 MHz

Vertical / Horizontal Polarization

The Schomandl K5319411 and K5319421 are robust yagi antennas intended for use in professional fixed-station applications with highest performance and stability requirements in the

68–87.5 MHz band.

Measurement Instruments by SCHNOOR

• 2 Element Yagi with 162° beam width

• Rugged hot-dip galvanized steel construction

• Entire antenna at DC ground potential

• Two separate models for the upper and lower frequency range

Type No.

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

VSWR

Max. power

Order No.

Material:

Mounting:

Grounding:

Special features:

K 53 19 411 K 53 19 421

68 – 80 MHz 74 – 87.5 MHz

Usable for horizontal or vertical polarization

3 dB

50 Ω

< 1.5

1300 W (at 50 °C ambient temperature)

80000001 80000002

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

On masts from 60 – 115 mm [2.4–4.5 inches] diameter, clamps supplied.

All metal parts of the antenna including the mounting kit are DC grounded.

The inner conductor is coupled capacitively.

The antenna will be shipped dismounted.

10

3 dB

0

In E-plane

77°

162°

10

3 dB

0

In H-plane

Mechanical­specifications

Input

Wind load (N)

(at 150 km/h) [lbf]

Max. wind (km/h) velocity [mph]

Height (mm)

[inches]

Distance (mm) dipole/mast [inches]

Weight (kg)

[lb]

Packing size (mm)

[inches]

N female

260

[58]

180

[112] approx. 2100

[82.7] approx. 1200

[47.2]

12

[26.5]

2154 x 798 x 132

[84.8 x 31.4 x 5.2]

29

2-Element Yagi Antenna 68 ... 87.5 MHz

Vertical / Horizontal Polarization

Mounting Instructions

Measurement Instruments by SCHNOOR

30

2

1

1: for vertical polarization

2: for horizontal polarization

For antennas with N-female connector (jack) we recommend using cable connectors (male plug) with captive inner conductor to avoid damages to the jack-center conductor.

4-Element Yagi Antenna 68 ... 87.5 MHz

Vertical Polarization

The Schomandl K531741 yagi antenna is intended for use in professional fixed-station applications in the 68–87.5 MHz band.

Measurement Instruments by SCHNOOR

• 4 Element Yagi with 120° beam width

• Rugged hot-dip galvanized steel construction.

• Entire antenna at DC ground potential.

Type No.

Frequency range

Gain

Impedance

VSWR

Polarization

Maximum input power

H-plane beamwidth

E-plane beamwidth

Connector

Weight

Dimensions (approx.)

Wind load

Wind survival rating*

Shipping dimensions

Shipping weight

Mounting

Order No.

K 53 17 41

68–87.5 MHz

8 dBi

50 ohms

<1.5:1

Vertical

150 watts (at 50°C)

Varies with frequency

Varies with frequency

N female

22 kg (48.5 lb)

2380 x 2030 mm

(93.7 x 79.9 inches) at 150km/h (93 mph)

520 N (117 lbf)

180 km/h (110 mph)

2424 x 2118 x 182 mm

(95.4 x 83.4 x 7.2 inches)

25 kg (55.1 lb)

For masts of 60 to 115 mm

(2.375 to 4.5 inches) OD.

80000003

H-plane

Horizontal Pattern — V-polarization

77 MHz

* Mechanical design is based on environmental conditions as stipulated in

TIA-222-G-2 (December 2009) and/or ETS 300 019-1-4 which include the static mechanical load imposed on an antenna by wind at maximum velocity.

E-plane

Vertical Pattern — V-polarization

77 MHz

31

4-Element Yagi Antenna 68 ... 87.5 MHz

Vertical Polarization

Measurement Instruments by SCHNOOR

≈2030 mm

(≈79.9 inches)

≈2380 mm

(≈93.7 inches)

32

V pol Bidirectional Dipole Antenna

Vertical Polarization 146 ... 174 MHz

The Schomandl K 53 00 21 is a robust bidirectional dipole antenna intended for use in professional fixed-station applications in the in the 146-174 MHz band.

• Horizontal pattern with two main directions, ideal for highways, railroads etc.

• Hot-dip galvanized steel construction

• Entire antenna at DC ground potential

Type No.

Frequency range

Polarization

Gain (ref. l

/

2

dipole)

Radiation Pattern

Impedance

WSWR

Max. power

Order no.

Material:

Mounting:

Grounding:

K 53 00 21

146 – 174 MHz

Vertical

3 dB

The mainbeam direction of the antenna is orthogonal to both dipoles.

50 Ω

< 1.5

340 W (at 50 °C ambient temperature)

80000862

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

On masts from 60 – 125 mm dia., clamps supplied.

The antenna shall be clamped at the mast top.

All metal parts of the antenna including the mounting kit are DC grounded.

Measurement Instruments by SCHNOOR

Antenna

60°

Mast

Antenna

10

3 dB

0

Horizontal

60 mm mast dia.

78°

10

3

0

Vertical

68°

10

3 dB

0

Horizontal

100 mm mast dia.

Mechanical­specifications

Input

Weight

Wind load

Max. wind velocity

Packing size

Dipole length

Distance between the two dipoles

N female

7 kg

175 N (at 150 km/h)

220 km/h

1110 x 910 x 140 mm

892 mm

972 mm

33

2-Element Yagi Antenna 146 ... 174 MHz

Vertical / Horizontal Polarization

The Schomandl K531921 is a robust yagi antenna intended for use in professional fixed-station applications with highest performance and stability requirements in the 146–174 MHz band.

Measurement Instruments by SCHNOOR

• 2 Element Yagi with 170° beam width

• Rugged hot-dip galvanized steel construction.

• Entire antenna at DC ground potential.

Type No.

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

VSWR

Max. power

Order No.

Material:

Mounting:

Grounding:

K 53 19 21

146 – 174 MHz

Usable for horizontal or vertical polarization

3 dB

50 Ω

< 1.4

560 W (at 50 °C ambient temperature)

80000004

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

On masts from 60–125 mm [2.4–4.9 inches] diameter, clamps supplied.

All metal parts of the antenna including the mounting kit are DC grounded.

10

3 dB

0

In E-plane

80°

170°

10

3 dB

0

In H-plane

Mechanical­specifications

Input

Wind load (N)

(at 150 km/h) [lbf]

Max. wind (km/h) velocity [mph]

Height (mm)

[inches]

Yagi length

Weight

(mm)

[inches]

(kg)

[lb]

Packing size (mm)

[inches]

N female

145

[33]

200

[124] approx. 1060

[41.7] approx. 650

[25.6]

6.5

[14.3]

1124 x 816 x 92

[44.3 x 32.1 x 3.6]

35

2-Element Yagi Antenna 146 ... 174 MHz

Vertical / Horizontal Polarization

Measurement Instruments by SCHNOOR

Yagi

41.7 inches

(1060 mm)

2

1

25.6 inches

(650 mm)

Mounting

Mounting Options

:

1.

2.

For vertical polarization

For horizontal polarization

36

2

Mounting

Mounting Options

:

1.

2.

For vertical polarization

For horizontal polarization

1

41.7 inches

(1060 mm)

Yagi

25.6 inches

(650 mm)

3-Element Yagi Antenna 146 ... 174 MHz

Vertical / Horizontal Polarization

The Schomandl K531821 is a robust yagi antenna is intended for use in professional fixed-station applications with highest performance and stability requirements in the 146–174 MHz band.

Measurement Instruments by SCHNOOR

• 3 Element Yagi with 118° beam width

• Rugged hot-dip galvanized steel construction

• Entire antenna at DC ground potential

Type No.

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

VSWR

Max. power

Order No.

Material:

Mounting:

Grounding:

K 53 18 21

146 – 174 MHz

Usable for horizontal or vertical polarization

4 dB

50 Ω

< 1.3

380 W (at 50 °C ambient temperature)

80000005

Hot-dip galvanized steel.

All screws and nuts: Stainless steel.

On masts from 60–125 mm [2.4–4.9 inches] diameter, clamps supplied.

All metal parts of the antenna including the mounting kit are DC grounded.

10

3 dB

0

In E-plane

70°

118°

10

3 dB

0

In H-plane

Mechanical­specifications

Input

Wind load (N)

(at 150 km/h) [lbf]

Max. wind (km/h) velocity [mph]

Height

Yagi length

(mm)

[inches]

(mm)

[inches]

Weight (kg)

[lb]

Packing size (mm)

[inches]

N female

170

[38]

200

[125] approx. 1100

[43.3] approx. 750

[29.5]

7.5

[16.5]

1112 x 92 x 904

[43.8 x 3.6 x 35.6]

37

3-Element Yagi Antenna 146 ... 174 MHz

Vertical / Horizontal Polarization

Mounting Instructions

Measurement Instruments by SCHNOOR

38

2

1

1: for vertical polarization

2: for horizontal polarization

For antennas with N-female connector (jack) we recommend using cable connectors (male plug) with captive inner conductor to avoid damages to the jack-center conductor.

11-Element Yagi Antenna 146 ... 174 MHz

Vertical / Horizontal Polarization

The Schomandl K520721 yagi antenna is intended for use in professional fixed-station applications in the 146–174 MHz band.

Measurement Instruments by SCHNOOR

• High gain at a narrow beam width for directional links

• Weather-resistant aluminum construction.

• Entire antenna at DC ground potential.

Type No.

Frequency range

Polarization

Gain (ref. l/2 dipole)

Impedance

VSWR

Max. power

Order No.

Material:

Mounting:

Grounding:

Shipping:

K 52 07 21

146 – 174 MHz

Usable for horizontal or vertical polarization

8.5 dB

50 Ω

< 1.5

250 W (at 50 °C ambient temperature)

80000006

Antenna: Weather-resistant aluminum.

All screws and nuts: Stainless steel.

On masts from 60–105 mm [2.4–4.1 inches] diameter, by means of supplied mounting kit.

All metal parts of the antenna including the mounting kit are DC grounded.

The inner conductor is coupled capacitively.

The antenna will be shipped dismounted.

10

3 dB

0

In E-plane

53°

10

3 dB

0

In H-plane

63°

Mechanical­specifications

Input

Connector position

Wind load (N) [lbf]

(at

Height

Yagi length

Weight lateral:

150 km/h) frontal:

Max. wind (km/h) velocity [mph]

(mm)

[inches]

(mm)

[inches]

(kg)

[lb]

Packing size (mm)

[inches]

7-16 female

Bottom

Horizontal:

235 [53]

140 [31]

210

[130]

Vertical:

210 [47]

140 [31]

220

[137] approx. 1022

[40.2] approx. 1910

[75.2]

10.0

[22.0]

1954 x 186 x 162

[77.0 x 7.3 x 6.4]

39

Type No.

Frequency range

Gain

Impedance

VSWR

Polarization

Front-to-back ratio

Maximum input power

H-plane beamwidth

E-plane beamwidth

Connector

Weight

Dimensions (approx.)

Wind load

Wind survival rating*

Shipping dimensions

Shipping weight

Mounting

Order No.

Panel Antenna Heavy Duty 146 ... 174 MHz

Vertical / Horizontal Polarization

The Schomandl K523221 directional broadband panel antenna is intended for use in professional fixed-station applications in the 146–174 MHz band.

• Heavy-duty construction.

• Excellent bandwidth, VSWR of 1.15:1 across the band, with no field adjustment.

Measurement Instruments by SCHNOOR

• Hot-dip galvanized steel panel assembly.

• Radiating elements protected with fiberglass radomes.

• Horizontal or vertical polarization.

• Multiple panels may be configured to meet a variety of radiation pattern requirements.

• Stainless steel hardware throughout.

K 52 32 21

146–174 MHz (broadband)

10 dBi

50 ohms

<1.5:1

Horizontal or vertical

>20 dB

1100 watts (at 50°)

65° (half-power)

58° (half-power)

N female

25 kg (55.1 lb)

1320 x 1320 x 510 mm

(52 x 52 x 26.5 inches) at 150 km/h (93 mph)

600 N (135 lbf)

220 km/h (130 mph)

1400 x 1400 x 750 mm

(55.1 x 55.1 x 29.5 inches)

38.6 kg (85 lb)

A mounting kit is available for masts of

60 to 115 mm (2.375 to 4.5 inches) OD.

80000007

* Mechanical design is based on environmental conditions as stipulated in

EIA-222-F (June 1996) and/or ETS 300

019-1-4 which include the static mechanical load imposed on an antenna by wind at maximum velocity.

Horizontal pattern Vertical pattern

41

Panel Antenna Heavy Duty 146 ... 174 MHz

Vertical / Horizontal Polarization

Measurement Instruments by SCHNOOR

1320 mm

(52 inches)

K61120 Mounting Kit

Mounting Options

:

Model

K61120

Description

Mounting kit for 60 to 115 mm

(2.375 to 4.5 inch) OD mast.

1320 mm

(52 inches)

673 mm

(26.5 inches)

(Shown vertically polarized)

42

RF Power Divider 145 - 470 MHz

WIBZ 3-3dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

Measurement Instruments by SCHNOOR

Specifications:

Insertion loss:

Frequency range:

Max RF Power:

VSWR

Ports:

Dimensions:

Order number:

0,2 dB / 0,2 dB

145 - 470 MHz

30 W

< 1,5

50 Ω N-Connectors

100 x 97 x 40 mm

80010293

43

RF Power Divider Wilkinson 146 - 175 MHz

WILK 3-3dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

Measurement Instruments by SCHNOOR

Specifications:

Insertion loss:

Frequency range:

Max RF Power:

VSWR

Ports:

Dimensions:

Order number:

44

0,2 dB

146 - 175 MHz

30 W

< 1,18

50 Ω N-Connectors

100 x 97 x 40 mm

80012613

RF Power Divider 10 - 2500 MHz

DIVD 6dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

Measurement Instruments by SCHNOOR

Specifications:

Insertion loss:

Frequency range:

Max RF Power:

VSWR

Ports:

Dimensions:

Order number:

0,2 dB

10- 2500 MHz

30 W

< 1,10

50 Ω N-Connectors

100 x 97 x 40 mm

80010273

45

RF Power Divider 145 - 470 MHz

WIBZ 1-10dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

Measurement Instruments by SCHNOOR

Specifications:

Insertion loss:

Frequency range:

Max RF Power:

VSWR

Ports:

Dimensions:

Order number:

46

0,1 dB / 0,2 dB

145 - 470 MHz

30 W

< 1,4

50 Ω N-Connectors

100 x 97 x 40 mm

80010299

Active RF Divider 2 Port 50 - 500 MHz

AMP3-2 6dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

• Active wideband amplifier included to compensate coupling loss

Measurement Instruments by SCHNOOR

Specifications:

Frequency range:

Gain:

VSWR

Ports:

Supply voltage:

Current consumption:

Dimensions:

Order number:

50- 500 MHz

max. 6 dB

adjustable internal

< 1,15

50 Ω N-Connectors

1 input, 2 output

+8 ... 15 VDC

150 mA

100 x 97 x 40 mm

80011180

47

Active RF Divider 3 Port 50 - 500 MHz

AMP3-3 6dB

• Cost effective components for many applications like coupler networks or indoor coverage

• Mounting flange already included, no extra parts needed

• Compact and rugged design with a flat frequency response over a wide range

• Active wideband amplifier included to compensate coupling loss

Measurement Instruments by SCHNOOR

Specifications:

Frequency range:

Gain:

VSWR

Ports:

Supply voltage:

Current consumption:

Dimensions:

Order number:

50- 500 MHz

max. 6 dB

adjustable internal

< 1,15

50 Ω N-Connectors

1 input, 3 output

+8 ... 15 VDC

150 mA

100 x 97 x 40 mm

80012617

48

Wideband Low Loss Power Tapper (WLPT 10)

10 dB

Measurement Instruments by SCHNOOR

Tapper

• Ruggedized design for use in antenna systems

• 10 dB decoupling over a wide range

• Simple mounting with attached tools

Radio

System

A Tapper is an unidirectional coupler over a broad bandwidth. It works independently of the signal flow with none directional functionality.

The SCHOMANDL Tapper has a frequency range from 150MHz to 2700MHz. This includes the

PMR, WIFI and Cellular bands.

The use is mainly for decoupling RF-signals from a main coax cable installation which is used in

In-House and tunnel radio systems.

The ruggedized design allows an easy installation in nearly all situations either with included mounting plate or mounting bracket.

Technical Data

Frequency range:

Decoupling:

Insertion loss:

SWR at Input:

Max. Power:

Impedance:

Temperature range:

150 … 2700 MHz

10 dB

< 0,8 dB

≤ 1,4

300 W

50 Ω

-20°C ... + 60°C

Connections: N-female

Dimensions (WxHxD): 138 mm x 45 mm x 55 mm

Weight: 0,25 kg

Art.-no. : 80001074

49

50

Measurement Instruments by SCHNOOR

Programmable Preselection Filter (PPSF)

380-470 MHz 12,5 / 25 kHz BW

Measurement Instruments by SCHNOOR

DATENBLATT

Frequency tunable crystal bandpass filter for preselection of a receiving channel with integrate mikrocontroller for programming and monitoring of the filter system. Additional with optional bypass switching.

Product Features:

• Aktive crystal filter system with 12,5 kHz or 25 kHz BW

• Front-end LNA for low noise figure

• Software programmable frequency in 3,125 kHz steps

• User adjustable gain

• Web-interface for remote controlling and monitoring

• All connectors at the backpanel

• 19‘‘ case, 12 HP

Specification:

Frequency range:

Tunable steps:

380-400 / 410-430 / 450-470 MHz

3,125 kHz

Filter bandwith: 12,5 kHz 25 kHz

Adjacent channel rejection: >36dB @ ±12,5 kHz, >36dB @ ±25 kHz,

>64dB @ ±25 kHz >64dB @ ±50 kHz

Max. gain over all:

Adjustable gain range:

Max. output power Rx:

Max. input power Rx:

Overload RX-Bypass:

Max. VSWR:

Noise figure:

RF connectors:

Programming:

Power DC / current:

Temperature range:

Dimension

28 dB

25 dB

+3 dBm

0 dBm yes, self recovery, optional

1,3 : 1 typ. < 5 dB

QMA – female

Ethernet, remote access

13,5V DC / 700mA

0°C bis 55°C

130 x 61 x 200 mm (110 x 56 x 200 without fitting panel)

Status LED:

- Bypass

- Rx

- MCU aktive

- Vdc

- overload Rx

- Rmt Alarm

Bypass aktive receiving aktive microcontroller works

Power supply voltage OK overload Rx aktive

Remote Alarm

- VCO

- PPSF alarm

- Status

- Remote

- Connected

- DATA

VCO not locked failure at the PPSF

Status message remote access active connect to the Ethernet

Transmit and receive data

51

Programmable Preselection Filter (PPSF)

380-470 MHz 12,5 / 25 kHz BW

Measurement Instruments by SCHNOOR

Passband 12,5 kHz Filter

Adjustment of the filter to 50 Ohm

52

TETRA Coupler TMO2

•­ Two­TMO­radios­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting two TETRA TMO radios together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range 380 - 385 MHz / 390 - 395 MHz

On demand: 4

15 - 420 MHz / 425 - 430 MHz

4

10 - 415 MHz / 420 - 425 MHz

Max. RF power 30 W

Insertion Loss TMO 5 - 7 dB

Isolation TMO > 60 dB

Dimensions

Weight

250 x 210 x 75 mm

5.1 kg

Order number: 80011203

53

TETRA Coupler TMO3

•­ Three­TMO­radios­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting three TETRA TMO radios together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range 380 - 385 MHz / 390 - 395 MHz

On demand: 4

15 - 420 MHz / 425 - 430 MHz

4

10 - 415 MHz / 420 - 425 MHz

Max. RF power 30 W

Insertion Loss

Isolation TMO

Dimensions

Weight

TMO 8 - 10 dB

> 60 dB

350 x 210 x 75 mm

6.3 kg

Order number: 80011262

54

TETRA Coupler TMO4

•­ Four­TMO­radios­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting four TETRA TMO radios together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range 380 - 385 MHz / 390 - 395 MHz

On demand: 4

15 - 420 MHz / 425 - 430 MHz

4

10 - 415 MHz / 420 - 425 MHz

Max. RF power 30 W

Insertion Loss

Isolation TMO

TMO 8 - 10 dB

> 60 dB

Dimensions

Weight

350 x 210 x 75 mm

6.2 kg

Order number: 80011123

55

TETRA Coupler TMO1 + DMO1

•­ One­TMO­radio­and­one­DMO­radio­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting one TETRA TMO radio and one

TETRA DMO radio together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range TMO 380 - 395 MHz

DMO 406 - 410 MHz

Max. RF power

Insertion Loss

30 W

TMO 1.8 dB

DMO 2.1 dB

Isolation TMO & DMO > 60 dB

Dimensions

Weight

140 x 140 x 58 mm

1.2 kg

Order number: 80012265

56

TETRA Coupler TMO2 + DMO1

•­ Two­TMO­radios­and­one­DMO­radio­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting two TETRA TMO radios and one

TETRA DMO radio together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range TMO 380 - 395 MHz

DMO 406 - 410 MHz

Max. RF power 30 W

Insertion Loss TMO 9 - 11 dB

DMO 2.1 dB

Isolation TMO & DMO > 60 dB

Dimensions

Weight

250 x 210 x 58 mm

5.2 kg

Order number: 80012265

57

TETRA Coupler TMO3 + DMO1

•­ Three­TMO­radios­and­one­DMO­radio­connected­to­one­antenna

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

This Schomandl TETRA coupler allows connecting three TETRA TMO radios and one

TETRA DMO radio together to one antenna.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range TMO 380 - 395 MHz

DMO 406 - 410 MHz

Max. RF power 30 W

Insertion Loss TMO 9 - 11 dB

DMO 2.1 dB

Isolation TMO & DMO > 60 dB

Dimensions

Weight

350 x 210 x 75 mm

6.3 kg

Order number: 80012263

58

TETRA Coupler TMO 4 + DMO 1

•­ Two­to­four­radios­connected­to­one­antenna

•­ DMO­port­optional

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

The Schomandl TETRA multicouplers allow connecting two to four TETRA TMO-Radios to one antenna, depending on model.

One additional port can be used for DMO.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to

ETSI EN 300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range: 380 - 385 MHz / 390 - 395 MHz

Optional (on demand): 415 - 420 MHz / 425 - 430 MHz

410 - 415 MHz / 420 - 425 MHz

DMO: 406 - 410 MHz

Max. RF power: 30 W

Insertion Loss

(RX/TX frequency range)

: Typ. 10 - 12 dB

Isolation RX/TX:

Isolation TX/TX:

> 60 dB

> 60 dB

(@ 50 Ohms antenna impedance)

Dimensions: 350 x 210 x 75 mm

Weight: 6.3 kg

Order number: 80011124

59

TETRA AutoCoupler 2 TMO/DMO

•­ Two­radios­connected­to­one­antenna

•­ All­radio­ports­switchable­to­TMO­or­DMO

•­ Automatic­switchover­between­TMO­and­DMO­within­the­multicoupler

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

The Schomandl TETRA multicouplers allow connecting two to four TETRA TMO-Radios to one antenna, depending on model.

The two ports can be switched to either

TMO or DMO. Switching is initiated by the radios connected and an electronic controller module in the multicoupler. One of the four ports can be used for DMO at a given time, only.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to ETSI EN

300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range: 380 - 385 MHz / 390 - 395 MHz

Optional (on demand): 415 - 420 MHz / 425 - 430 MHz

DMO:

410 - 415 MHz / 420 - 425 MHz

406 - 410 MHz

Max. RF power: 30 W

Insertion Loss

(RX/TX frequency range)

: Typ. 9 - 11 dB

Isolation RX/TX: > 60 dB

Isolation TX/TX:

Dimensions:

Weight:

> 60 dB

(@ 50 Ohms antenna impedance)

350 x 210 x 75 mm

5.4 kg

Order number: 80011205

60

TETRA AutoCoupler 3 TMO/DMO

•­ Three­radios­connected­to­one­antenna

•­ All­radio­ports­switchable­to­TMO­or­DMO

•­ Automatic­switchover­between­TMO­and­DMO­within­the­multicoupler

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

The Schomandl TETRA multicouplers allow connecting two to four TETRA TMO-Radios to one antenna, depending on model.

The three ports can be switched to either

TMO or DMO. Switching is initiated by the radios connected and an electronic controller module in the multicoupler. One of the four ports can be used for DMO at a given time, only.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to ETSI EN

300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range: 380 - 385 MHz / 390 - 395 MHz

Optional (on demand): 415 - 420 MHz / 425 - 430 MHz

DMO:

410 - 415 MHz / 420 - 425 MHz

406 - 410 MHz

Max. RF power: 30 W

Insertion Loss

(RX/TX frequency range)

: Typ. 10 - 12 dB

Isolation RX/TX: > 60 dB

Isolation TX/TX:

Dimensions:

Weight:

> 60 dB

(@ 50 Ohms antenna impedance)

350 x 210 x 75 mm

6.6 kg

Order number: 80012264

61

TETRA AutoCoupler 4 TMO/DMO

•­ Four­radios­connected­to­one­antenna

•­ All­radio­ports­switchable­to­TMO­or­DMO

•­ Automatic­switchover­between­TMO­and­DMO­within­the­multicoupler

•­ Precision­model­with­low­Insertion­loss­and­highest­Isolation­ according to ETSI EN 300 392

•­ Rugged­design­with­milled­aluminum­chassis­and­ precision N-connectors

Measurement Instruments by SCHNOOR

The Schomandl TETRA multicouplers allow connecting two to four TETRA TMO-Radios to one antenna, depending on model.

The four ports can be switched to either

TMO or DMO. Switching is initiated by the radios connected and an electronic controller module in the multicoupler. One of the four ports can be used for DMO at a given time, only.

The design based on hybrid couplers assures highest safety of operation at a very low insertion loss for all connected radios.

With these specifications, the multicouplers are the right fit for installation in vehicles as well as in land stations and are enabling a cost effective operation with lowest space requirements.

The >60dB RX/TX-Isolation (according to ETSI EN

300 392) furthermore exceeds most usual parallel antenna configurations.

Specifications

Frequency range: 380 - 385 MHz / 390 - 395 MHz

Optional (on demand): 415 - 420 MHz / 425 - 430 MHz

DMO:

410 - 415 MHz / 420 - 425 MHz

406 - 410 MHz

Max. RF power: 30 W

Insertion Loss

(RX/TX frequency range)

: Typ. 10 - 12 dB

Isolation RX/TX: > 60 dB

Isolation TX/TX:

Dimensions:

Weight:

> 60 dB

(@ 50 Ohms antenna impedance)

350 x 210 x 75 mm

6.6 kg

Order number: 80011128

62

Fast Installation Tester

FIT USB

Through-Line Power Meter for installation tests

Measurement Instruments by SCHNOOR

The new FIT-USB from Schomandl has a large and easy-to-read monochrome graphic display with 240x128 pixel and a touch function.

The new design and compact housing is ideal for a handheld device.

Forward and reverse power (in average or burst mode) or VSWR, by automatic identification­of­CW,­GSM,­TETRA­and­DMR­can­be­ measured simultaneously.

The DC voltmeter with numerical and bargraph display is already built in. So there is no need for an extra instrument

to locate further malfunctions in car installation kits for mobile phones and in the vehicle´s electrical System.

The handheld FIT-Viewer provides easy data exchange and firmware update via USB-Flash

Drive. It is possible to communicate with the

RF-Head via USB from a PC or Notebook – without the handheld FITViewer as well.

The FIT-Viewer is battery operated with long operation and a short charging time and designed to supply the RF-Head, too.

63

Fast Installation Tester

FIT USB

Measurement Instruments by SCHNOOR

Features RF - Head

• Directional Coupler available in the range from 25 MHz to 1000 MHz GSM,

• Power measurement in the range from

0,1mW to 300W

• Simultaneous reading of power and antenna matching

• Measures average power or burst power

• Automatic identification of CW, GSM, TETRA and DMR

• VSWR measurement

• Min. / Max. – hold

• User offset in 0,1 dB steps

• USB connectivity for PC use or FIT – Viewer operation

Features FIT - Viewer

Handheld for battery operation of RF-Head

DC-Voltmeter with history memory

Easy Data exchange and firmware update via

USB-Flash Drive

Technical Data

Parameter

Powermeasurement

Uncertainty

Frequency Range

SWR (50 Ω)

Insertion Loss

Directivity dBm

Watt

VSWR

RF - Head 1G030

1,0 mW to 30 W

0,1 mW to 3 W

< 1,0 dB

0,1 dB

1) 2)

1,10 bis ∞ max. 0,1 dB min. 30dB

3)

0,01 (SWR < 2,0)

0,10 (SWR < 5,0)

25 MHz to 1000 MHz

0,01 W (P < 30,0 W)

0,001 W (P < 10,0 W)

0,50 (SWR < 10,0)

RF - Head 1G300

10,0 mW to 300 W

< 1,0 dB

1) 2)

25 MHz to 1000 MHz

1,10 bis ∞ max. 0,1 dB min. 30dB

0,1 dB

0,1 W (P ≥ 100,0 W)

0,01 W (P < 100,0 W)

0,001 W (P < 10,0 W)

0,01 (SWR < 2,0)

0,10 (SWR < 5,0)

0,50 (SWR < 10,0)

1) Temperature range 20°C bis 25°C 2) Power 1,0 W (+30 dBm) 3) Only in 2->1 mode

Parameter FIT - Viewer Handheld

Voltage Range

Uncertainty

Operation time

Charging time

10V – 20V – 50V

< 1,0 % of voltage range

Up to 8 hours

< 4 hours

64

Fast Antenna Tester

FAT 2710

Standalone Antenna

Reflection Tester

Features

• LCD Display works in direct sunlight and with backlight in dark areas.

• Built-in synthesized RF sweeping source.

• Measured results can stored for further analysing and documentation on internal and external storage media

• Time stamp and operator ID is possible

• All in one analysing for antenna tuning and verify

• FAT 2710 measures antenna, frequency,

SWR and bandwidth by sweeping band of interest

• A cost-effective SWR Analyzer covering all major Cellular and mobile radio communication bands

• FAT 2710 gives you quick and reliable trouble-shooting

• 30 - 2700 MHz

A Breakthrough in SWR analysing

Schomandl GmbH & Co. KG

Georg-Wimmer-Ring 14

85604 Zorneding, Germany

Phone: +49 8106 37725 10

Fax: +49 8106 37725 20 www.Schomandl.com

[email protected]

65

Fast Antenna Tester

FAT 2710

Measurement Instruments by SCHNOOR

Specifications

Model

Application

Frequency range

Center Frequency

Span

Frequency stability

Measurement range

Impedance

Generator output

FAT 2710

Measurement of SWR in 50 Ω transmission lines

30->2700 MHz entered as centre and span

30 to 2700 MHz.

0 to 2670 MHz.

±50ppm

1.0<SWR<9.9, 0<dB<-30dB

Nom. 50 Ω

Approx. -4dBm

Max. input on test terminal

100 mW

Tolerance on SWR reading

Storage temperature range

30-650MHz)± 5%; 650-1450MHz ± 10%; and 1450-2700MHz ±15%

Operating temperature 0° C-> + 50° C range

-30°C -> + 50° C

Connectors

Power supply

“N”-female RF test connector.

USB A type for memory key.

USB B type for serial PC communication.

Mini DIN for RS232 communication up to 38400 Baud

4 NiMH type AA rechargeable batteries

Auto Power off

(no failure!)

Normal operating use

Colour

Width

Depth

Height

Weight

EMC

Standards

Accessory

(Batteries, NiMH rechargeable and 230VAC/7.5VDC charger supplied)

For battery economy, FAT 2710 automatically turns off 3 min.

after last entry

Fully charged: More than 10 hours.

Silver/blue

82 mm

31 mm

165 mm

500 gram (incl. Batteries)

Complies with directive 89/336EEC as amended by 92/31EEC and 93/68/EEC

Emissions: EN 61000-6-4: 2001

Immunity: EN 61000-6-2: 2005

Soft carrying bag with RF-adapter set, car charching cable

Order Number:

Order Number for Accessory:

BN: 80008282

BN: 50008286

66

RF Safety Detector

SI 1000+

SI 1000

+

Radio Frequency Safety Detector

Measurement Instruments by SCHNOOR

SI 1000+ measures the strength of electromagnetic­ fields­ from­ mobile­ phones,­ microwave ovens, installations, RF welders etc.

SI 1000+ gives acustic and visual warning, when the limit according to WHO ICNIRP is exceeded.

Features

• Professional exposure limit

• Public exposure limit

• Audible Alarm

• Silent mode

• Liquid crystal display

• Compliant to WHO/ICNIRP

• Battery operated

• LED Alarm

Specifications

• Frequency range: 10MHz - 10GHz

• Professional limit: 10W/m2

• Public limit: 2W/m2

• Temperature range: -10C to +40C

• Current consumption: 110uAh

• Battery type: 2xAAA

• Operation time: > 250 days

• Weight: < 90g incl. batteries

Applications

• Cost effective

• Belt clip

• Light weight

• Rugged design

• Radiation display

• Personal safety

Ready for use

When SI 1000+ is made ready for use; the batteries must be installed and the functions tested.

Unscrew the battery cover on the back.

Install two pieces of AAA

Alkaline batteries

67

RF Safety Detector

SI 1000+

Operating

Operating

SI 1000+

SI 1000+

has 3 alarm functions and two alarm levels.

All functions are controlled by pressing the SELECT pushbutton. When SELECT is pushed there is audio and visual feedback.

Changing of alarm level

SI 1000+

can be set to two alarm levels. The lower level is named PUBLIC and is automatically chosen when

SI 1000+

is taken into service.

To change alarm level press and hold down the SE-

LECT pushbutton for more than 5 seconds, where after the response will be 10 long or 10 short beeps.

The chosen level is indicated by a lit bar, when no electromagnetic fields are present.

Measurement Instruments by SCHNOOR

Selecting of alarm function

By pushing the SELECT button, 3 different alarm functions can be chosen:

Normal (one beep)

In this position the

SI 1000+

will give both audible and visual warning, when the chosen alarm limit is exceeded.

Timer (two beeps)

SI 1000+

will only give visual warning, when the chosen alarm limit is exceeded.

After approximately 5 minutes and return to normal position.

SI 1000+

will beep

Silent (three beeps)

SI 1000+

will only give visual warning, when the chosen alarm limit is exceeded.

1000

100

10

1

0,1

10

I

ICNIRP Public

ICNIRP Occupational

SI 1000+

Professional (Occu)

100 1000

Frequency MHz

10000

Is it dangerous?

High frequency radiation is known from microwave ovens. The Power and the Time determines how quick and how hot the material gets.

Likewise will other types of electromagnetic radiation influence material near by. This again is a question of power and time when ever it is a health hazard.

WHO has given health hazard limits, these limits are accepted i most parts of the world as standards. The limits are divided into two levels, one for PUBLIC and one for persons trained to work in high frequency radiation areas called OCCUPA-

SIONAL/PROFESSIONAL.

SI 1000+

is used to detect if you are in a high frequency radiation field that could be a health hazard.

SI 1000+

can not give an exact value of the radiation strength or determine how long time you can stay in the radiation field.

When

SI 1000+

gives alarm there is a health risk.

If it is a place of work you should contact the

Security Officer. If you have to work nearby antenna installations e. g. on top of buildings or at antenna towers you should contact the operator.

68

Cross Reference Guide

The following products are obsolete and no longer available from Schomandl. But in many cases, we still can offer you a product, which is comparable or nearly identical to the one you are looking for.

Measurement Instruments by SCHNOOR

Those match types can be shipped from our regular portfolio. Please check the following table for differences between obsolete type and match type.

Product no longer available Type No.

V pol Omni Sleeve Dipole K 55 21 47

V pol Groundplane

V pol Groundplane

V pol Dipole

V pol Dipole

V pol Dipole

V pol Dipole

V pol Dipole

V pol Dipole

V pol Dipole Colinear

V pol Dipole Colinear

V pol Dipole Colinear

K 51 26 41 2

K 51 26 42 2

K 55 28 47

K 55 28 47 9

K 55 28 41 9

K 55 29 2

K 55 29 29

K 55 29 19

K 55 31 2

725918

730068A

=>

=>

=>

=>

=>

=>

=>

=>

=>

=>

=>

Comparable product

Use K 55 21 41

(with N Connector instead of 7/16 Connector)

Use K 51 26 41 1

(with N Connector instead of UHF Connector)

Use K 51 26 42 1

(with N Connector instead of UHF Connector)

Use K 55 28 41

(with N Connector instead of 7/16 Connector)

Use K 55 28 41

(with N Connector instead of 7/16 Connector and a different pipe clamp)

Use K 55 28 41 (with a different pipe clamp)

Use K 55 29 21

(with N Connector instead of 7/16 Connector)

Use K 55 29 21

(with N Connector instead of 7/16 Connector and a different pipe clamp)

Use K 55 29 21 (with a different pipe clamp)

Use K 55 31 21

(with N Connector instead of 7/16 Connector)

=> Use K 55 31 21

(with power rating 50W instead of 500W)

Use K 55 31 21

(with N Connector instead of 7/16 Connector and with 50W instead of 500W)

69

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
