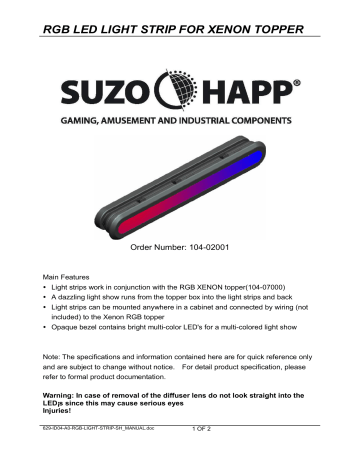

RGB LED LIGHT STRIP FOR XENON TOPPER

RGB LED LIGHT STRIP FOR XENON TOPPER
RGB LED LIGHT STRIP FOR XENON TOPPER
Order Number: 104-02001
Main Features
 Light strips work in conjunction with the RGB XENON topper(104-07000)
 A dazzling light show runs from the topper box into the light strips and back
 Light strips can be mounted anywhere in a cabinet and connected by wiring (not
included) to the Xenon RGB topper
 Opaque bezel contains bright multi-color LED's for a multi-colored light show
Note: The specifications and information contained here are for quick reference only
and are subject to change without notice. For detail product specification, please
refer to formal product documentation.
Warning: In case of removal of the diffuser lens do not look straight into the
LED¡s since this may cause serious eyes
Injuries!
629-ID04-A0-RGB-LIGHT-STRIP-SH_MANUAL.doc
1 OF 2
RGB LED LIGHT STRIP FOR XENON TOPPER
1.11' [28.30] -0.00
+0.20
Light Strip Dimensions
+0.50
9.07' [230.30] -0.00
Panel Opening
Connection Diagrams
Connector type on light strip: Molex 43045-2418
Mate with connector on cable: Molex 43025-2400
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
Function R
B
G
NC
D1
D2
D3
D4
D5
D6
D7
D8
Pin #
14
15
16
17
18
19
20
21
22
23
24
D12
D13 D14 D15
D16
D17 D18 D19
13
Function D9
D10 D11
IMPORTANT:
1. Shut-off power from host machine during installation.
2. Power supply to light strip: 12VDC 1.5A.
629-ID04-A0-RGB-LIGHT-STRIP-SH_MANUAL.doc
2 OF 2
D20
