Panasonic recommends Windows 8.

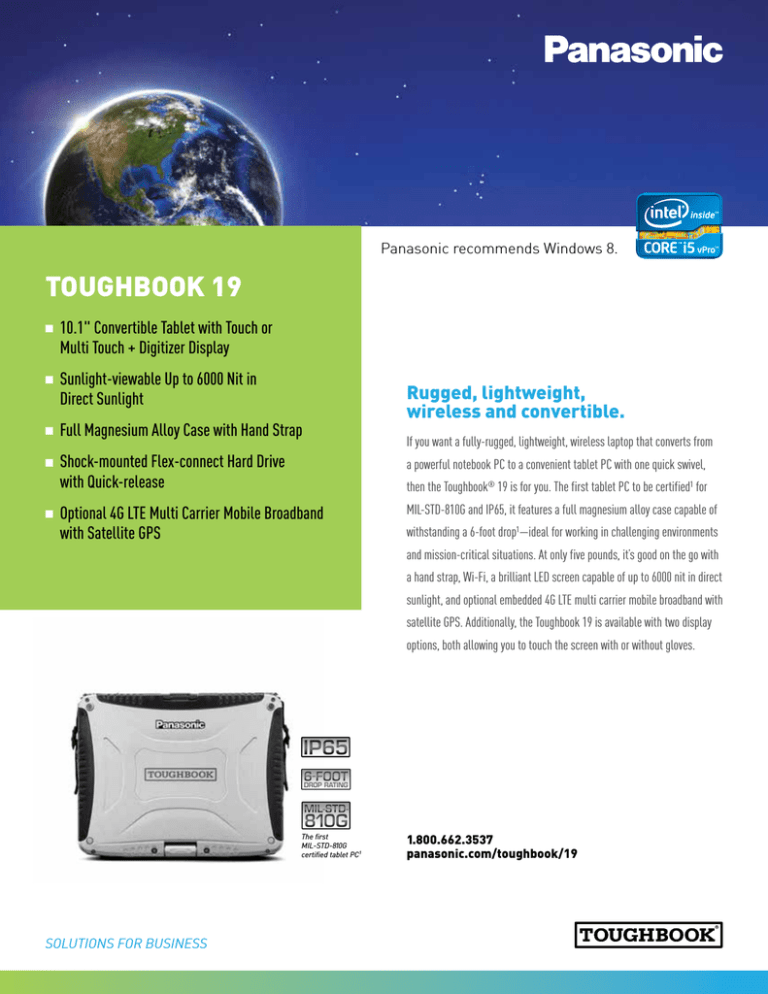

TOUGHBOOK 19
n
n
n
n
n
1 0.1" Convertible Tablet with Touch or
Multi Touch + Digitizer Display
S unlight-viewable Up to 6000 Nit in
Direct Sunlight
Full Magnesium Alloy Case with Hand Strap
Rugged, lightweight,
wireless and convertible.
If you want a fully-rugged, lightweight, wireless laptop that converts from
S hock-mounted Flex-connect Hard Drive
with Quick-release
a powerful notebook PC to a convenient tablet PC with one quick swivel,
O ptional 4G LTE Multi Carrier Mobile Broadband
with Satellite GPS
MIL-STD-810G and IP65, it features a full magnesium alloy case capable of
then the Toughbook® 19 is for you. The first tablet PC to be certified1 for
withstanding a 6-foot drop1—ideal for working in challenging environments
and mission-critical situations. At only five pounds, it’s good on the go with
a hand strap, Wi-Fi, a brilliant LED screen capable of up to 6000 nit in direct
sunlight, and optional embedded 4G LTE multi carrier mobile broadband with
satellite GPS. Additionally, the Toughbook 19 is available with two display
options, both allowing you to touch the screen with or without gloves.
The first
MIL-STD-810G
certified tablet PC1
SOLUTIONS FOR BUSINESS
1.800.662.3537
panasonic.com/toughbook/19
Panasonic recommends Windows 8.
Durability
n
n
n
n
n
n
n
n
software
n
n
CPU2
n
STORAGE & MEMORY
n
n
DISPLAY
Audio
keyboard & input
EXPANSION SLotS
interface
wireless
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
indows® 8 Pro 64-bit (with Windows® 7 downgrade option)
W
Panasonic Utilities, Panasonic Dashboard, Recovery Partition
Intel® Core™ i5-3340M vPro™ Processor
– 2.7GHz with Turbo Boost up to 3.4GHz
– Intel® Smart Cache 3MB
Integrated Options8
4GB or 8GB SDRAM (DDR3L-1333MHz)3,4
hock-mounted flex-connect hard drive with quick-release
S
– 500GB 7200rpm hard drive with heater4
– Optional 128GB and 256GB solid state drives (SSD) with heaters4
n
0.1" XGA sunlight-viewable LED 1024 x 768
1
– Resistive touchscreen
– 5-point resistive multi touch + digitizer
TransflectivePlus and Panasonic CircuLumin™ technology
1-6000 nit (depending on lighting conditions and settings)5
AR, AG and circular polarizer
Ambient light sensor
Intel® QM77 video controller, max. 1545MB shared VRAM with 32-bit3
External video support up to 1280 x 1024 at 16.7 million colors
Concealed mode (configurable)
n
Intel® high-definition audio compliant
Integrated speaker
Keyboard volume and mute controls
n
n
n
n
n
n
n
n
Touchscreen or multi touch + digitizer
Integrated stylus holder
82-key with dedicated Windows® key
Pressure-sensitive touchpad with vertical scrolling support
card type II
PC
SD card (SDXC)
ExpressCard/54
n
n
n
n
n
Docking
connector VGA Headphones/speaker Microphone/line in Serial Ext. antenna conn. (x 2) USB 3.0 (x 1), USB 2.0 (x 1)
IEEE 1394a (FireWire) 10/100/1000 Ethernet 56K Modem Dedicated 100-pin
D-sub 15-pin
Mini-jack stereo
Mini-jack stereo
D-sub 9-pin
50 ohm coaxial
4-pin
4-pin
RJ-45
RJ-11
n
n
n
n
n
n
n
n
n
Lithium ion battery pack (10.65V, typical 5700mAh, minimum 5400mAh)
attery operation: 10 hours (touchscreen), 9.5 hours (multi touch + digitizer)6
B
Battery charging time: 3.5 hours6
AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching
worldwide power supply
n
Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
n
n
Password
Security: Supervisor, User, Hard Disk Lock
Kensington cable lock slot
Trusted platform module (TPM) security chip v.1.2
Computrace® theft protection agent in BIOS7
Intel® Anti-Theft Technology
Optional fingerprint reader
Optional insertable SmartCard reader
warranty
n
3-year limited warranty, parts and labor
dimensions & weight
n
n
8.5"(L) x 10.7"(W) x 1.9"(H)
.1 lbs.
5
n
n
n
n
n
n
n
n
n
n
n
n
n
n
C Adapter (3-prong)
A
CF-AA6503A2M
Battery Pack
CF-VZSU48U
Battery Charger
CF-VCBTB2W
LIND Car Adapter 120W
CF-LNDDC120
LIND Car/AC Adapter 90W
(with USB port)
CF-LNDACDC90
LIND Car Adapter 90W MIL-STD
CF-LNDMLDC90
ToughMate ComUniversal Jr.
Carrying Case
TBCCOMUJR-P
ToughMate Always-on 19 Case
TBC19AOCS-P
ToughMate 19 “X” Hand Strap
TBC19XSTP-P
ToughMate Shoulder Strap
TBCTMSS-P
Memory Card 4GB DDR3
CF-WMBA1204G
Desktop Dock
CF-VEB191AU
Vehicle Docks (no pass-through)
- Gamber-Johnson with LIND power supply
7160-0264-03-P
- Havis with LIND power supply
CF-H-PAN-212-P
Vehicle Docks (dual pass-through)
- Panasonic
CF-WEB194AC
- Gamber-Johnson with LIND power supply
7160-0264-04-P
- Havis with LIND power supply
CF-H-PAN-212-2-P
Zebra 4" Bluetooth Printer
PZ420BT
Zebra 4" Bluetooth Printer with MagStripe Reader PZ420BTMC
PDRC Backlit Keyboard
CF-VKBL03AM
Dual Touch Replacement
Stylus (for Digitizer)
CF-VNP012U
Touchscreen Replacement Stylus
CF-VNP003U
Tether
CF-VNT002U
LCD Protector Film
CF-VPF11U
Optional
integrated 4G LTE multi carrier mobile broadband with satellite GPS
Optional GPS (SiRFstarIII™)
Intel® Centrino® Advanced-N 6235 802.11a/b/g/n
Bluetooth® v4.0 + EDR (Class 1)
Security
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
Dual high-gain antenna pass-through
Slide on/off switch
Security features
n
G LTE multi carrier mobile broadband with satellite GPS
4
GPS (SiRFstarIII™)
3MP camera with auto focus and dual LED light9
Backlit keyboard – sealed rubber or plastic emissive
Insertable SmartCard reader
Fingerprint reader
HDD and battery lock
128GB and 256GB solid state drives (SSD) with heaters
Select Accessories8
n
power Management
n
n
n
Power supply
IL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/
M
thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)1
MIL-STD-461F certified1
IP65 certified sealed all-weather design1
Optional class I division 2, groups ABCD certified model
Hard drive heater
Full magnesium alloy case with hand strap
Shock-mounted flex-connect hard drive with quick-release
Pre-installed replaceable screen film for LCD protection
SOLUTIONS FOR BUSINESS
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners.
©2013 Panasonic Corporation of North America. All rights reserved. Toughbook 19 Spec Sheet_11/13
Please consult your reseller or Panasonic representative before purchasing.
1Tested by national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit drop
test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65.
2An Intel Core i7 processor is also available.
3Total usable memory will be less depending upon actual system configuration. Maximum of 4GB of memory when
equipped with camera. Windows 7 64-bit max. VRAM is 1696MB.
41GB = 1,000,000,000 bytes.
5
1000 nit without ambient light assistance. Up to 6000 nit in clear, sunny conditions under direct sunlight.
6Battery performance features such as charge time and life span can vary according to the conditions under which
the computer and battery are used. Battery operation and recharge times will vary based on many factors, including
screen brightness, applications, features, power management, battery conditioning and other customer preferences.
Battery testing results from MobileMark 2007.
7
Requires software and activation to enable theft protection.
8
Accessories and Integrated Options may vary depending on your notebook configuration. Visit Panasonic website for
more accessories and details.
9
Camera replaces the second memory slot located on the bottom of the PC.
1.800.662.3537
panasonic.com/toughbook/19
