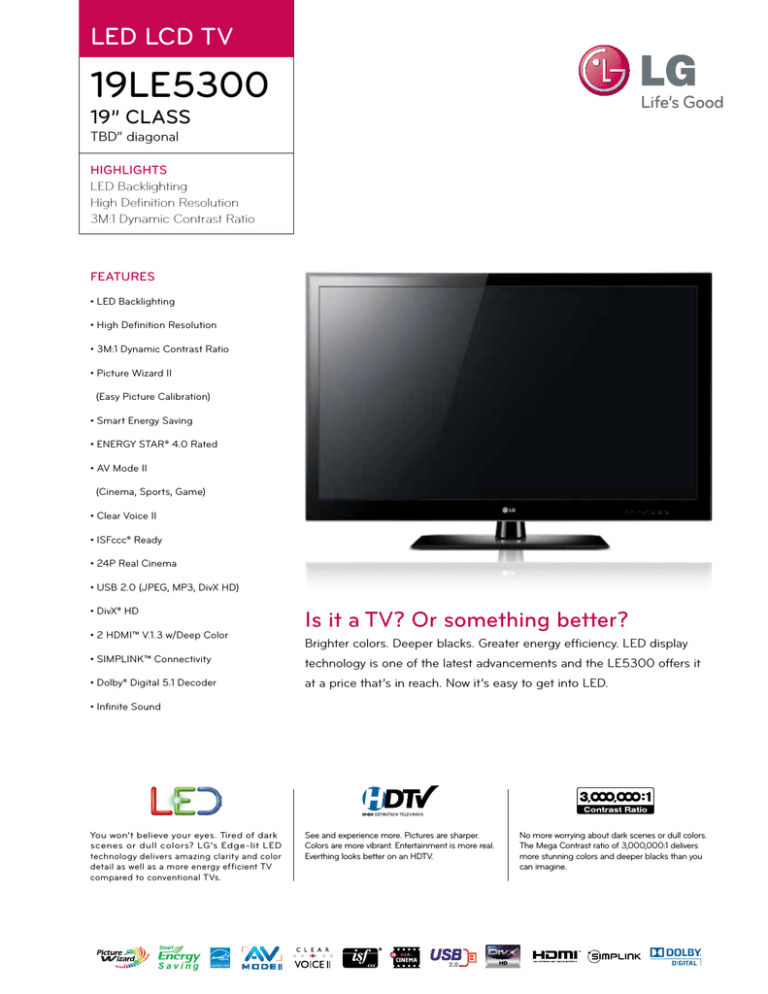

LED LCD TV
19LE5300
19” Class
TBD” diagonal
HIGHLIGHTS
LED Backlighting
High Definition Resolution
3M:1 Dynamic Contrast Ratio
FEATURES
• LED Backlighting
• High Definition Resolution
• 3M:1 Dynamic Contrast Ratio
• Picture Wizard II
(Easy Picture Calibration)
• Smart Energy Saving
• ENERGY STAR® 4.0 Rated
• AV Mode II
(Cinema, Sports, Game)
• Clear Voice II
• ISFccc® Ready
• 24P Real Cinema
• USB 2.0 (JPEG, MP3, DivX HD)
• DivX® HD
• 2 HDMI™ V.1.3 w/Deep Color
Is it a TV? Or something better?
Brighter colors. Deeper blacks. Greater energy efficiency. LED display
• SIMPLINK™ Connectivity
technology is one of the latest advancements and the LE5300 offers it
• Dolby® Digital 5.1 Decoder
at a price that’s in reach. Now it’s easy to get into LED.
• Infinite Sound
You won’t believe your eyes. Tired of dark
scenes or dull colors? LG’s Edge-lit LED
technology delivers amazing clarity and color
detail as well as a more energy efficient TV
compared to conventional TVs.
See and experience more. Pictures are sharper.
Colors are more vibrant. Entertainment is more real.
Everthing looks better on an HDTV.
No more worrying about dark scenes or dull colors.
The Mega Contrast ratio of 3,000,000:1 delivers
more stunning colors and deeper blacks than you
can imagine.
LED LCD TV
19LE5300
PANEL SPECIFICATION
CONVENIENCE FEATURES
Screen Size
19” Class (TBD diagonal)
Language
4 (English/Spanish/French/Korean)
Resolution
1366 x 768p
Auto Tuning/Programming
•
Dynamic Contrast Ratio
3,000,000:1
Channel Add/Delete
•
Brightness(cd/m2)
TBD
Favorite Channel Programming
•
Response Time (GTG)
2.4ms
Auto/Manual Clock
•
Viewing Angle
178º/178º
On/Off Timer
•
Sleep Timer
•
•
VIDEO
Built-In Tuner
ATSC/NTSC/Clear QAM
Auto Off/Auto Sleep (When no video is present)
XD® Engine
•
TV AUDIO/Video Inputs/Outputs
Aspect Ratio
16:9
RF In (Antenna/Cable)
1 (rear)
Aspect Ratio Correction
6 Modes
AV In
1 (rear)
Just Scan (1:1 Pixel Matching)
Component Video In (Y, Pb, Pr) + Audio
1 (rear)
HDMI™
1080p/1080i/720p
Digital Audio Out (Optical)
1 (rear)
Component
1080p/1080i/720p
HDMI™/HDCP Input (V.1.3 w/Deep Color)
2 (rear)
RF
1080i/720p
RGB In (D-Sub 15pin) - PC
1 (rear)
Color Temperature Control
3 Modes
PC Audio Input
1 (rear)
1 (rear)
24p Real Cinema (5:5/2:2 Pulldown)
•
RS-232c In (Control/Service)
3:2 Pulldown
•
USB 2.0 (JPEG, MPEG-4/DivX HD)
1 (side)
Picture Reset
•
Wireless Control
1 (rear)
AV Mode II
3 Modes
Headphone Out
1 (side)
Picture Mode
7 Modes
Cabinet/Accessories
ISFccc® Ready
•
Cabinet Color
Glossy Black/ Silver Grey
x.v.Color™
•
Swivel Stand (Degrees)
+20º/-20º
DTV Signal Strength Indicator
•
AUDIO
VESA® Compliant (WxH)
• (100mm x 100mm)
Remote Control
1 (Universal)
Mono/Stereo/Dual (MTS/SAP)
•
Power
Audio Output Power (Watts - THD 10%)
10W (5W + 5W)
Voltage, Hz
100V ~ 240V, 50/60Hz
Speaker System Details
1 Way/2 Speakers
On Mode (Average)
TBD
Dolby® Digital Decoder
•
Standby Mode
>0.1W
Surround System
Infinite Sound
ENERGY STAR® 4.0 Compliant
•
Bass/Treble/Balance Controls
•
Dimensions & Weight
Clear Voice II
•
TV Without Stand (WxHxD)
18.6” x 12.4” x 1.4”
Auto Volume Leveler II
•
TV With Stand (WxHxD)
18.6” x 14.4” x 6.1”
EZ Sound Mode
5 Modes
Shipping Dimensions (WxHxD)
22.6” x 14.4” x 3.9”
TV Without Stand Weight
6.8 lbs
SPECIAL FEATURES
Picture Wizard II
•
TV With Stand Weight
7.3 lbs
Backlight Control
•
Shipping Weight
11.0 lbs
Smart Energy Saving
•
WARRANTY/UPC
1080p Source Input
Limited Warranty
1 Year Parts & Labor
HDMI™
60p/30p/24p
UPC
719192177048
Component
60p/30p/24p
REMOTE/INPUT/OUTPUTS (Rear/Side)
RGB
60p (WXGA)
A/V Input Navigation
•
Input Labeling
•
Quick View (Flashback)
•
Parental Control w/V-Chip
•
Key Lock
•
Closed Caption
•
SIMPLINK™ (HDMI CEC)
•
LGusa.com
Design, features and specifications are subject to change without notice. Nonmetric weights and measurements are approximate.
LG Electronics U.S.A., Inc.
© 2010 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies. 02/22/10
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
