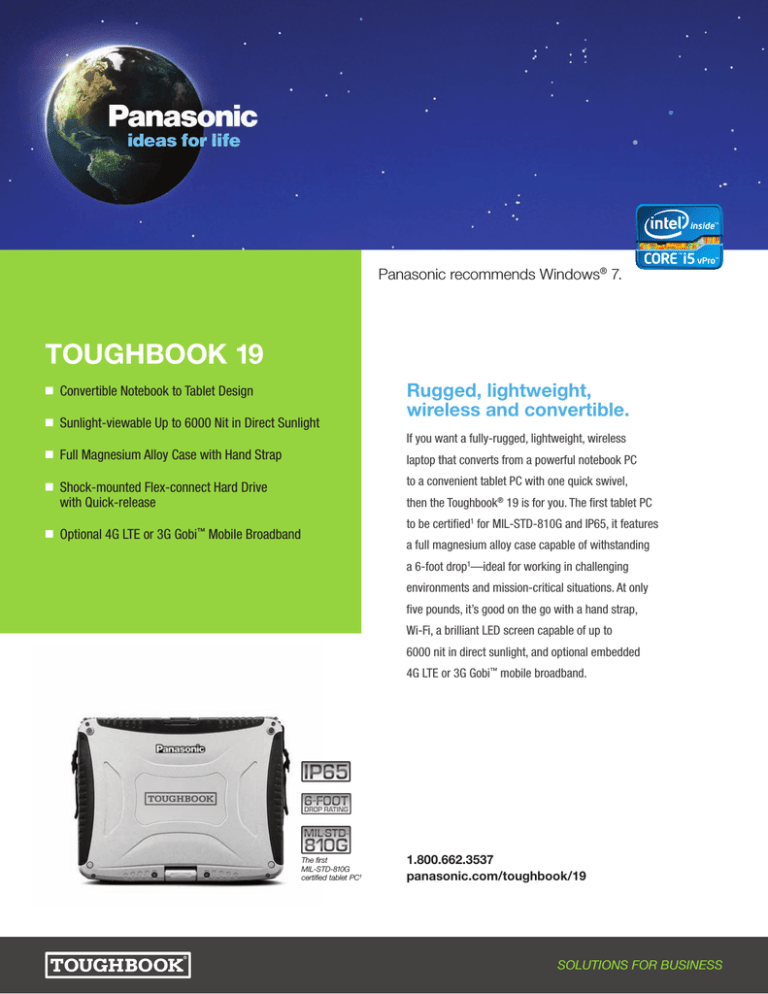

Panasonic recommends Windows® 7.
TOUGHBOOK 19
Rugged, lightweight,
wireless and convertible.
n
Convertible Notebook to Tablet Design
n
Sunlight-viewable Up to 6000 Nit in Direct Sunlight
n
Full Magnesium Alloy Case with Hand Strap
laptop that converts from a powerful notebook PC
n
Shock-mounted Flex-connect Hard Drive
with Quick-release
to a convenient tablet PC with one quick swivel,
If you want a fully-rugged, lightweight, wireless
n
then the Toughbook® 19 is for you. The first tablet PC
to be certified1 for MIL-STD-810G and IP65, it features
Optional 4G LTE or 3G Gobi™ Mobile Broadband
a full magnesium alloy case capable of withstanding
a 6-foot drop1—ideal for working in challenging
environments and mission-critical situations. At only
five pounds, it’s good on the go with a hand strap,
Wi-Fi, a brilliant LED screen capable of up to
6000 nit in direct sunlight, and optional embedded
4G LTE or 3G Gobi™ mobile broadband.
The first
MIL-STD-810G
certified tablet PC1
1.800.662.3537
panasonic.com/toughbook/19
SOLUTIONS FOR BUSINESS
Panasonic recommends Windows® 7.
DURABILITY
n
n
n
n
n
n
n
n
SOFTWARE
n
n
CPU
3
STORAGE & MEMORY
Intel® Core™ i5-3320M vPro™ Processor
– 2.6GHz with Turbo Boost up to 3.3GHz
– Intel® Smart Cache 3MB
n
4GB SDRAM (DDR3L-1333MHz) standard, expandable to 8GB
500GB 7200rpm hard drive (shock-mounted flex-connect with quick-release)5
– Optional 128GB and 256GB reinforced flex-connect solid state drives (SSD)5
n
n
n
n
n
n
n
n
n
n
INTERFACE
n
n
n
n
n
n
n
n
n
n
WIRELESS
n
n
10.1" XGA sunlight-viewable LED 1024 x 768 (touchscreen or optional dual touch)
– TransflectivePlus and Panasonic CircuLumin™ technology
– 1-6000 nit (depending on lighting conditions and settings)6
– AR, AG and circular polarizer
Intel® HD Graphics 4000 video controller, max. 1544MB shared VRAM with 32-bit4
External video support up to 1280 x 1024 at 16.7 million colors
Concealed mode (configurable)
n
n
n
n
n
Intel® high-definition audio compliant
Integrated speaker
Keyboard volume and mute controls
n
Touchscreen or dual touch (touchscreen and digitizer models)
Integrated stylus holder
82-key with dedicated Windows® key
Pressure-sensitive touchpad with vertical scrolling support
n
PC card type II
SD card (SDXC)
ExpressCard/54
n
Docking connector
VGA
Headphones/speaker
Microphone/line in
Serial
Ext. antenna conn. (x 2)
USB 3.0 (x 1), USB 2.0 (x 1)
IEEE 1394a (FireWire)
10/100/1000 Ethernet
56K Modem
n
n
n
n
n
n
n
Dedicated 100-pin
D-sub 15-pin
Mini-jack stereo
Mini-jack stereo
D-sub 9-pin
50 ohm coaxial
4-pin
4-pin
RJ-45
RJ-11
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Optional integrated 4G LTE mobile broadband
Optional integrated 3G Gobi™3000 mobile broadband
Intel® Centrino® Advanced-N 6235 802.11a/b/g/n
Bluetooth® v4.0 + EDR (Class 1)
Security
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
Dual high-gain antenna pass-through
Slide on/off switch
Lithium ion battery pack (10.65V, typical 5700mAh, minimum 5400mAh)
Battery operation: 10 hours (touchscreen), 9.5 hours (dual touch)7
Battery charging time: 3.5 hours7
AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching
worldwide power supply
POWER MANAGEMENT
n
Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
SECURITY FEATURES
n
n
Password Security: Supervisor, User, Hard Disk Lock
Kensington cable lock slot
Trusted platform module (TPM) security chip v.1.2
Computrace® theft protection agent in BIOS8
Intel® Anti-Theft Technology
Optional fingerprint reader
Optional SmartCard reader
WARRANTY
n
3-year limited warranty, parts and labor
DIMENSIONS & WEIGHT
n
n
8.5"(L) x 10.7"(W) x 1.9"(H)
5.1 lbs.
n
n
n
n
n
1.800.662.3537
panasonic.com/toughbook/19
4G LTE mobile broadband
3G Gobi™3000 mobile broadband (EV-DO Rev. A, HSPA)
3MP camera with auto focus and dual LED light10
GPS receiver
Backlit keyboard – sealed rubber or plastic emissive
SmartCard reader
Fingerprint reader
HDD and battery lock
SELECT ACCESSORIES9
n
n
n
POWER SUPPLY
n
n
n
EXPANSION SLOTS
4,5
n
n
n
KEYBOARD & INPUT
INTEGRATED OPTIONS9
n
n
AUDIO
Genuine Windows® 7 Professional 32-bit2 or
Genuine Windows® 7 Professional 64-bit2
Panasonic Utilities, Panasonic Dashboard, Recovery Partition
n
n
DISPLAY
MIL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/
thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)1
MIL-STD-461F certified1
IP65 certified sealed all-weather design1
Optional class I division 2, groups ABCD certified model
Hard drive heater
Full magnesium alloy case with hand strap
Shock-mounted flex-connect hard drive with quick-release
Pre-installed replaceable screen film for LCD protection
AC Adapter (3-prong)
Lithium Ion Battery Pack
Battery Charger
LIND 5-Bay Battery Charger
LIND Car Adapter 120W
LIND Car/AC Adapter 90W
(with USB port)
LIND Car Adapter 90W MIL-STD
ToughMate ComUniversal Jr.
Carrying Case
ToughMate Always-on 19 Case
ToughMate 19 “X” Hand Strap
ToughMate Shoulder Strap
LaCie External USB Multi Drive
Memory Cards
– 4GB DDR3
Desktop Dock
Vehicle Dock
– No pass-through
– Dual pass-through
Zebra 4" Bluetooth Printer
PDRC Backlit Keyboard
iKey Keyboards
Dual Touch Replacement
Stylus (for Digitizer)
Touchscreen Replacement Stylus
Tether
LCD Protector Film for
Touchscreen and Dual Touch
CF-AA6503A2M
CF-VZSU48U
CF-VCBTB2W
PACH518-1858-P
CF-LNDDC120
CF-LNDACDC90
CF-LNDMLDC90
TBCCOMUJR-P
TBC19AOCS-P
TBC19XSTP-P
TBCTMSS-P
TT-DVDRW8XL91U
CF-WMBA1104G
CF-VEB191AU
See Website
CF-WEB194AC
PZ420BT
CF-VKBL03AM
See Website
CF-VNP012U
CF-VNP003U
CF-VNT002U
CF-VPF11U
Please consult your reseller or Panasonic representative before purchasing.
Tested by national independent third party lab following MIL-STD-810G Method 516.6
Procedure IV for transit drop test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3
for IP65.
2
A full set of Windows XP drivers are available at panasonic.com/toughbook/support.
3
An Intel Core i7 processor is also available.
4
Total usable memory will be less depending upon actual system configuration.
Maximum of 4GB of memory when equipped with camera. Windows 7 64-bit max.
VRAM is 1696MB.
5
1GB = 1,000,000,000 bytes.
6
1000 nit without ambient light assistance. Up to 6000 nit in clear, sunny conditions under
direct sunlight.
7
Battery performance features such as charge time and life span can vary according to
the conditions under which the computer and battery are used. Battery operation and
recharge times will vary based on many factors, including screen brightness, applications,
features, power management, battery conditioning and other customer preferences.
Battery testing results from MobileMark 2007.
8
Requires software and activation to enable theft protection.
9
Accessories and Integrated Options may vary depending on your notebook configuration.
Visit Panasonic website for more accessories and details.
10
Camera replaces the second memory slot located on the bottom of the PC.
1
Panasonic is constantly enhancing product specifications and accessories. Specifications subject
to change without notice. Trademarks are property of their respective owners. ©2012 Panasonic
Corporation of North America. All rights reserved. SS_TB19_08/12
