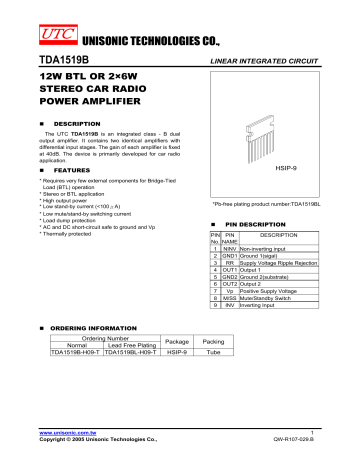

TDA1519B
UNISONIC TECHNOLOGIES CO.,
TDA1519B
LINEAR INTEGRATED CIRCUIT
12W BTL OR 2×6W
STEREO CAR RADIO
POWER AMPLIFIER
DESCRIPTION
The UTC TDA1519B is an integrated class - B dual
output amplifier. It contains two identical amplifiers with
differential input stages. The gain of each amplifier is fixed
at 40dB. The device is primarily developed for car radio
application.
HSIP-9
FEATURES
* Requires very few external components for Bridge-Tied
Load (BTL) operation
* Stereo or BTL application
* High output power
* Low stand-by current (<100μA)
* Low mute/stand-by switching current
* Load dump protection
* AC and DC short-circuit safe to ground and Vp
* Thermally protected
*Pb-free plating product number:TDA1519BL
PIN DESCRIPTION
PIN
No.
1
2
3
4
5
6
7
8
9
PIN
NAME
NINV
GND1
RR
OUT1
GND2
OUT2
Vp
M/SS
INV
DESCRIPTION
Non-inverting input
Ground 1(sigal)
Supply Voltage Ripple Rejection
Output 1
Ground 2(substrate)
Output 2
Positive Supply Voltage
Mute/Standby Switch
Inverting Input
ORDERING INFORMATION
Ordering Number
Normal
Lead Free Plating
TDA1519B-H09-T TDA1519BL-H09-T
www.unisonic.com.tw
Copyright © 2005 Unisonic Technologies Co.,
Package
Packing
HSIP-9
Tube
1
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
PIN CONFIGURATION
UTC TDA1519B
1
2
NINV GND1
3
RR
4
6
OUT1 GND2 OUT2
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5
7
8
9
VP
M/SS
INV
2
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
BLOCK DIAGRAM
NINV
mute switch
1
Cm
VA
4
OUT1
power stage
18.1kΩ
Vp
-
VA
15kΩ
×1
RR
3
15kΩ
8
+
Stand-by
switch
stand-by
reference
voltage
+
+
-
mute
switch
mute
reference
voltage
18.1kΩ
power
stage
6
INV
M/SS
OUT2
VA
9
Cm
input
reference
voltage
mute switch
+
signal
ground
2
GND1
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
7
Vp
power
ground
(substrate)
GND2
3
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Operating
Non-operating
Supply Voltage
Load dump protected
(during 50ms, tr≥2.5ms)
AC and DC Short-circuit Safe Voltage
Reverse Polarity Voltage
Non-Repetitive
Peak Output Current
Repetitive
Power Dissipation
Energy Handling Capability at Outputs (Vp=0V)
Junction Temperature
Storage Temperature
SYMBOL
VP
VPSC
VRP
IOSM
IORM
PD
Eo
TJ
TSTG
RATINGS
18
30
45
UNIT
18
6
6
4
15
200
125
-40 ~ +150
V
V
A
A
W
mJ
℃
℃
V
DC CHARACTERISTICS
(Vp=14.4V, Ta=25℃, measurements taken using Fig.1, unless otherwise specified.)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
Supply
Supply Voltage
VP
Note 1
6.0
DC Output Voltage
Vo
Note 2
DC Output Offset Voltage
∆V4-6
Total Quiescent Current
IQ(tot)
Mute/Stand-By Switch
Switch-On Voltage Level
VSW-ON
8.5
Mute Condition
Mute Voltage Level
VMUTE
3.3
Output Signal in Mute Position
Vo
VI=1V(max.), f=20Hz ~ 15kHz
DC Output Offset Voltage
∆V4-6
Stand-By Condition
Stand-By Voltage Level
VST-BY
0
Stand-By Current
IST-BY
Switch-On Current
ISW-ON
Notes: 1. Tthe circuit is DC adjusted at Vp =6 ~18V and AC operating at Vp =8.5 ~ 18V.
2. At 18V<Vp<30V, the DC output voltage is ≤0.5Vp
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
TYP
MAX
UNIT
14.4
6.95
18.0
V
V
mV
mA
40
250
80
V
12
6.4
20
250
V
mV
mV
2
100
40
V
µA
µA
4
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
AC CHARACTERISTICS (Vp=14.4V, Ta=25℃, f=1kHz, unless otherwise specified.)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX UNIT
Stereo Application (measurements taken using Fig.1), RL=4Ω
ON
Rs=0Ω
150
µV
Noise Output Voltage
Vno(rms)
f=20Hz~20kHz Rs=10kΩ
ON
250
500
µV
(RMS value)
MUTE
Note 6
120
µV
Input Impedance
|Zi|
50
60
75
kΩ
THD=0.5%
4
5
Output Power
Po
Note 1
W
THD=10%
5.5
6.0
THD=0.5%
3.5
Output Power at Vp=13.2V
Po
Note 1
W
THD=10%
4.8
ON
Notes 3, f =100Hz
40
Supply Voltage Ripple
ON
Notes 3, f=1kHz ~ 10kHz
45
dB
RR
Rejection
MUTE
Notes 3, 4, 5
45
dB
STAND-BY
Notes 3, 4, 5
80
dB
Close Loop Voltage Gain
Gv
39
40
41
dB
High Frequency Roll-Off
fH
-1dB
20
kHz
Low Frequency Roll-Off (Note 2)
fL
-3dB
45
Hz
Total Harmonic Distortion
THD
Po=1W
0.1
%
Channel Separation
α
Rs=10kΩ
40
dB
△Gv
Channel Unbalance
0.1
1
dB
BTL Application (measurements taken using Fig.2), RL=8Ω
ON
Rs=0Ω
150
µV
Noise Output Voltage
Vno(rms)
f=20Hz~20kHz Rs=10kΩ
ON
350
700
µV
(RMS value)
MUTE
Note 6
180
µV
Input Impedance
|Zi|
25
30
38
kΩ
THD=0.5%
8
10
Output Power
Po
Note 1
W
THD=10%
11
12
THD=0.5%
7.5
Output Power at Vp=13.2V
Po
Note 1
W
THD=10%
10
ON
Notes 3, f =100Hz
34
dB
Supply Voltage Ripple
ON
Notes 3, f=1kHz ~ 10kHz
48
dB
RR
Rejection
MUTE
Notes 3, 4, 5
48
dB
STAND-BY
Notes 3, 4, 5
80
dB
Close Loop Voltage Gain
Gv
45
46
47
dB
High Frequency Roll-Off
fH
-1dB
20
kHz
Low Frequency Roll-Off (Note 2)
fL
-1dB
45
Hz
Total Harmonic Distortion
THD
Po=1W
0.1
%
THD=0.5%, Po=-1dB
35 ~
Power Bandwidth
BW
Hz
w.r.t 15W
15000
Notes: 1. Output power is measured directly at the output pins of the device.
2. Frequency response externally fixed.
3. Ripple rejection measured at he output with a source impedance of 0Ω(maximum ripple amplitude of 2V).
4. Frequency f =100Hz
5. Frequency between 1kHz and 10kHz
6. Noise output voltage independent of Rs (VI=0V)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
TYPICAL APPLICATION CIRCUIT
Standby
switch
+
100μF
+
8
3
Input
reference
voltage
Non-Inverting
input
+
40dB
4
5
220nF
Inverting
input
6
RL =4Ω
Signal Power
ground ground
9
-
+
2
7
Internal
1/2Vp
40dB
1
VP
2200μF
+
220nF
100nF
RL =4Ω
+
1000uF
Fig.1 For Stereo Application
Standby
switch
100nF
+
3
Input
reference
voltage
8
Internal 1/2Vp
+
40dB
220nF
40dB
-
+
1
2
5
7
+
Non-inverting
input
VP
2200μF
4
6
9
To pin 1
To pin 9
Signal Power
ground ground
RL=8Ω
Fig.2 For BTL Application
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
6
QW-R107-029.B
TDA1519B
LINEAR INTEGRATED CIRCUIT
TYPICAL CHARACTERISTICS
Fig.4 Output Power
As a Function Of The Supply Voltage
Fig.3 Total Quiescent Current
As a Function Of The Supply Voltage
10
stereo application
RL=4Ω, f=1kHz
50
THD=10%
Po (W)
IQ (tot) (mA)
60
5
40
THD=0.5%
30
0
0
4
8
12
Vp (V)
16
20
Fig.5 Total Harmonic Distortion
As a Function Of The Output Power
0.6
stereo application
RL =4Ω, f=1kHz
8
12
Vp (V)
16
20
stereo application
RL=4Ω, Po=1W
0.4
8
4
0
0.1
4
Fig.6 Total Harmonic Distortion
As a Function Of The Operating Frequency
THD (%)
THD (%)
12
0
1
Po (W)
10
0.2
0
10
102
103
f (Hz)
104
105
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
7
