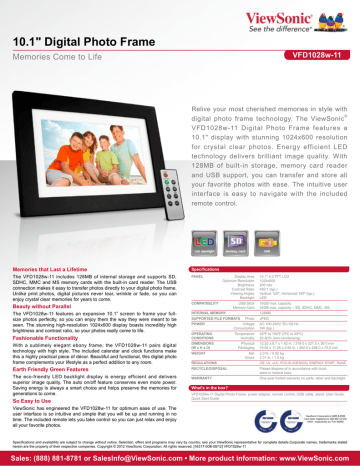

ViewSonic VFD1028w-11 Datasheet

ViewSonic VFD1028w-11 Datasheet
10.1" Digital Photo Frame
VFD1028w-11
Memories Come to Life
Relive your most cherished memories in style with
digital photo frame technology. The ViewSonic ®
VFD1028w-11 Digital Photo Frame features a
10.1" display with stunning 1024x600 resolution
for crystal clear photos. Energy efficient LED
technology delivers brilliant image quality. With
128MB of built-in storage, memory card reader
and USB support, you can transfer and store all
your favorite photos with ease. The intuitive user
interface is easy to navigate with the included
remote control.
Memories that Last a Lifetime
Specifications
The VFD1028w-11 includes 128MB of internal storage and supports SD,
SDHC, MMC and MS memory cards with the built-in card reader. The USB
connection makes it easy to transfer photos directly to your digital photo frame.
Unlike print photos, digital pictures never tear, wrinkle or fade, so you can
enjoy crystal clear memories for years to come.
PANEL
Beauty without Parallel
The VFD1028w-11 features an expansive 10.1” screen to frame your fullsize photos perfectly, so you can enjoy them the way they were meant to be
seen. The stunning high-resolution 1024x600 display boasts incredibly high
brightness and contrast ratio, so your photos really come to life.
Display Area
Optimum Resolution
Brightness
Contrast Ratio
Viewing Angles
Backlight
COMPATIBILITY
USB Stick
Memory Card
10.1" 4:3 TFT LCD
1024x600
200 nits
450:1 (typ.)
Vertical 120º, Horizontal 140º (typ.)
LED
16GB max. capacity
32GB max. capacity – SD, SDHC, MMC, MS
INTERNAL MEMORY128MB
SUPPORTED FILE FORMATS
JPEG
POWER
Voltage
Consumption
AC 100-240V, 50 / 60 Hz
5W (typ.)
OPERATING
CONDITIONS
Temperature
Humidity
32ºF to 104ºF (0ºC to 40ºC)
20-80% (non-condensing)
With a sublimely elegant ebony frame, the VFD1028w-11 pairs digital
technology with high style. The included calendar and clock functions make
this a highly practical piece of décor. Beautiful and functional, this digital photo
frame complements your lifestyle as a perfect addition to any room.
DIMENSIONS
(W x H x D)
Physical
Packaging
REGULATIONS
CE, UL, cUL, FCC-B (ICES003), ENERGY STAR®, RoHS
Earth Friendly Green Features
RECYCLE/DISPOSAL
Please dispose of in accordance with local,
state or federal laws.
WARRANTY
One-year limited warranty on parts, labor and backlight
Fashionable Functionality
The eco-friendly LED backlight display is energy efficient and delivers
superior image quality. The auto on/off feature conserves even more power.
Saving energy is always a smart choice and helps preserve the memories for
generations to come.
So Easy to Use
ViewSonic has engineered the VFD1028w-11 for optimum ease of use. The
user interface is so intuitive and simple that you will be up and running in no
time. The included remote lets you take control so you can just relax and enjoy
all your favorite photos.
WEIGHT
Net
Gross
12.52 x 8.7 x 1.42 in. / 318.0 x 221.0 x 36.0 mm
15.04 x 11.26 x 2.95 in. / 382.0 x 286.0 x 75.0 mm
2.0 lb. / 0.92 kg
3.31 lb. / 1.5 kg
What's in the box?
VFD1028w-11 Digital Photo Frame, power adapter, remote control, USB cable, stand, User Guide,
Quick Start Guide
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated
herein are the property of their respective companies. Copyright © 2012 ViewSonic Corporation. All rights reserved. [16317-00B-08/12] VFD1028w-11
Sales: (888) 881-8781 or [email protected] • More product information: www.ViewSonic.com
