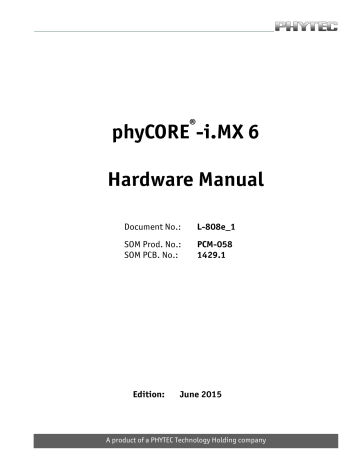

phyCORE -i.MX 6 Hardware Manual

phyCORE -i.MX 6 Hardware Manual

phyCORE

®

-i.MX 6

Hardware Manual

SOM Prod. No.:

PCM-058

SOM PCB. No.:

1429.1

A product of a PHYTEC Technology Holding company

phyCORE

®

-i.MX 6 [PCM-058]

Copyrighted products are not explicitly indicated in this manual. The absence of the trademark (

™, or ®) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is considered to be entirely reliable.

However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik

GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages that might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2015 PHYTEC Messtechnik GmbH, D-55129 Mainz.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without the express written consent from PHYTEC Messtechnik GmbH.

EUROPE

Address:

Ordering

Information:

Technical

Support:

Fax:

PHYTEC Messtechnik GmbH

Robert-Koch-Str. 39

D-55129 Mainz

GERMANY

+49 6131 9221-32 [email protected]

+49 6131 9221-31 [email protected]

+49 6131 9221-33

Web Site: http://www.phytec.de http://www.phytec.eu

INDIA

PHYTEC America LLC

203 Parfitt Way SW

Bainbridge Island, WA 98110

USA

+1 800 278-9913 [email protected]

+1 206 780-9047 [email protected]

+1 206 780-9135 http://www.phytec.com

CHINA

PHYTEC France

17, place Saint-Etienne

F-72140 Sillé-le-Guillaume

FRANCE

+33 2 43 29 22 33 [email protected]

[email protected]

+33 2 43 29 22 34 http://www.phytec.fr

Address:

Ordering

Information:

PHYTEC Embedded Pvt. Ltd.

#16/9C, 3rd Main, 3rd Floor, 8th Block,

Opp. Police Station Koramangala,

Bangalore-560095

INDIA

+91-80-4086 7046/48 [email protected]

Technical

Support:

+91-80-4086 7047 [email protected]

Fax:

Web Site: http://www.phytec.in

PHYTEC Information Technology (Shenzhen) Co. Ltd.

Suite 2611, Floor 26, Anlian Plaza,

4018 Jin Tian Road

Futian District, Shenzhen

CHINA 518026

+86-755-3395-5875 [email protected] [email protected]

+86-755-3395-5999 http://www.phytec.cn

1 st

Edition June 2015

© PHYTEC Messtechnik GmbH 2015 L-808e_1

Contents

List of Figures ............................................................................................................ ii

List of Tables ............................................................................................................ iii

Conventions, Abbreviations and Acronyms .................................................................... iv

Preface ................................................................................................................... vii

1 Introduction ...................................................................................................... 1

1.1

Features of the phyCORE-i.MX 6 ....................................................................... 1

1.2

Block Diagram.............................................................................................. 3

1.3

phyCORE-i.MX 6 Component Placement ............................................................. 4

1.4

Minimum Requirements to operate the phyCORE-i.MX 6 ........................................ 6

2 Pin Description ................................................................................................... 7

3 Jumpers .......................................................................................................... 17

4 Power.............................................................................................................. 21

4.1

Primary System Power (VDD_3V3) ...................................................................21

4.2

Power Management IC (PMIC) (U16) ................................................................21

4.2.1

Power Domains.................................................................................22

4.3

Supply Voltage for external Logic ....................................................................24

5

System Configuration and Booting....................................................................... 25

5.1

Boot Mode Selection ....................................................................................25

5.2

Boot Device Selection and Configuration ..........................................................26

6

System Memory................................................................................................. 28

6.1

DDR3-SDRAM (U4-U7) ..................................................................................28

6.2

NAND Flash Memory (U12) .............................................................................29

6.3

eMMC Flash Memory (U14).............................................................................29

6.4

I²C EEPROM (U11) ........................................................................................29

6.4.1

EEPROM Write Protection Control (J4) ...................................................30

6.5

SPI Flash Memory (U9) ) ................................................................................30

7

SD / MM Card Interfaces ..................................................................................... 31

8

Serial Interfaces ............................................................................................... 32

8.1

Universal Asynchronous Interface ...................................................................33

8.2

USB OTG Interface........................................................................................34

8.3

USB Host Interface.......................................................................................34

8.4

Ethernet Interface .......................................................................................35

8.4.1

Ethernet PHY (U2).............................................................................35

8.4.2

Software Reset of the Ethernet Controller ..............................................36

8.4.3

MAC Address ....................................................................................36

8.4.4

RMII Interface..................................................................................37

8.5

SPI Interface...............................................................................................38

8.6

I

2

C Interface ...............................................................................................39

8.7

I

2

S Audio Interface (SSI)) ..............................................................................39

8.8

CAN Interface..............................................................................................40

8.9

SATA Interface ............................................................................................40

8.10

PCI Express Interface ....................................................................................41

9

General Purpose I/Os ......................................................................................... 42

10

User LED .......................................................................................................... 43

11

Debug Interface ................................................................................................ 44

© PHYTEC Messtechnik GmbH 2015 L-808e_1 i

ii

phyCORE

®

-i.MX 6 [PCM-058]

12

Display Interfaces ............................................................................................. 45

12.1

Parallel Display Interface.............................................................................. 45

12.2

LVDS Display Interface ................................................................................. 46

12.3

Supplementary Signals................................................................................. 46

13

High-Definition Multimedia Interface (HDMI)......................................................... 47

14

Camera Interfaces ............................................................................................. 48

14.1

Parallel 0 Camera Interface (CSI0 of IPU#1)...................................................... 50

14.2

Parallel 1 Camera Interface (CSI1 of IPU#2)...................................................... 51

14.3

MIPI/CSI-2 Camera Interface ......................................................................... 52

14.4

Utilizing the Camera Interfaces on a Carrier Board ............................................. 53

15

Technical Specifications ..................................................................................... 54

16

Hints for Integrating and Handling the phyCORE-i.MX 6.......................................... 57

16.1

Integrating the phyCORE-i.MX 6 ..................................................................... 57

16.2

Handling the phyCORE-i.MX 6 ........................................................................ 59

17

Revision History................................................................................................ 60

Index ...................................................................................................................... 61

List of Figures

Figure 1: Block Diagram of the phyCORE-i.MX 6 .............................................................. 3

Figure 2: phyCORE-i.MX 6 Component Placement (top view) ............................................. 4

Figure 3: phyCORE-i.MX 6 Component Placement (bottom view) ........................................ 5

Figure 4: Pinout of the phyCORE-Connector (top view) .................................................... 8

Figure 5: Typical Jumper Pad Numbering Scheme ......................................................... 17

Figure 6: Jumper Locations (top view) ....................................................................... 18

Figure 7: Jumper Locations (bottom view) .................................................................. 19

Figure 8:

Powering Scheme of the phyCORE- i.MX 6 ....................................................... 23

Figure 9:

Camera Connectivity of the i.MX 6 (Solo/DualLite) ........................................... 48

Figure 10:

Camera Connectivity of the i.MX 6 (Dual Core/Quad Core) .................................. 48

Figure 11: Camera Interfaces at the phyCORE-Connector (Parallel 0(CSI0 of IPU#1),

Parallel 1(CSI1 of IPU#2), and MIPI/CSI-2)..................................................... 49

Figure 12: Use of Parallel 0 (CSI0 of IPU#1) and Parallel 1 (CSI1 of IPU#2)

as phyCAM-P interface................................................................................ 53

Figure 13: Use of Parallel 0 (CSI0 of IPU#1) and Parallel_1 (CSI1 of IPU#2)

as phyCAM-S+ interface .............................................................................. 53

Figure 12:

Physical Dimensions (top view) .................................................................... 54

Figure 13:

Footprint of the phyCORE-i.MX 6................................................................... 58

© PHYTEC Messtechnik GmbH 2015 L-808e_1

List of Tables

Contents

Table 1:

Signal Types used in this Manual .....................................................................v

Table 2:

Abbreviations and Acronyms used in this Manual...............................................vi

Table 3:

Pinout of the phyCORE-Connector X1, Row A ..................................................... 9

Table 4:

Pinout of the phyCORE-Connector X1, Row B....................................................11

Table 5:

Pinout of the phyCORE-Connector X1, Row C ....................................................13

Table 6:

Pinout of the phyCORE-Connector X1, Row D....................................................15

Table 7:

Jumper Settings ........................................................................................20

Table 8:

Boot Modes of the phyCORE-i.MX 6 ................................................................25

Table 9:

Boot Configuration Pins at the phyCORE-Connector...........................................27

Table 10:

EEPROM write protection states via J4 ............................................................30

Table 11:

Location of the SD / MM Card Interface Signals ................................................31

Table 12:

Location of the UART Signals ........................................................................33

Table 13:

Location of the USB OTG Signals....................................................................34

Table 14:

Location of the USB-Host Signals ..................................................................34

Table 15:

Location of the Ethernet Signals ...................................................................35

Table 16:

Location of the RMII Interface Signals............................................................37

Table 17: I

2

C Interface Signal Location ........................................................................39

Table 18:

SPI Interface Signal Location .......................................................................38

Table 19: I

2

S Interface Signal Location ........................................................................39

Table 20:

CAN Interface Signal Location ......................................................................40

Table 21:

SATA Interface Signal Location .....................................................................40

Table 22:

PCIe Interface Signal Location ......................................................................41

Table 23:

Location of GPIO Pins..................................................................................42

Table 24:

Debug Interface Signal Location at phyCORE-Connector X1.................................44

Table 25:

Parallel Display Interface Signal Location .......................................................45

Table 26:

LVDS Display Interface Signal Location...........................................................46

Table 27:

Supplementary Signals to support the Display Connectivity ................................46

Table 28:

HDMI Interface Signal Location ....................................................................47

Table 29:

Camera Interface Parallel 0 (CSI0) Signal Location............................................50

Table 30:

Camera Interface Parallel 1 (CSI1) Signal Location............................................51

Table 31:

Camera Interface MIPI/CSI-2 Signal Location ..................................................52

© PHYTEC Messtechnik GmbH 2015 L-808e_1 iii

phyCORE

®

-i.MX 6 [PCM-058]

Conventions, Abbreviations and Acronyms

This hardware manual describes the PCM-058 System on Module in the following referred to as phyCORE

®

-i.MX 6. The manual specifies the phyCORE

®

-i.MX 6's design and function.

Precise specifications for the Freescale Semiconductor i.MX 6 microcontrollers can be found in the enclosed microcontroller Data Sheet/User's Manual.

Note: We refrain from providing detailed part specific information within this manual, which can be subject to continuous changes, due to part maintenance for our products.

Please read the paragraph "Product Change Management and information in this

manual on parts populated on the SOM" within the

Preface.

Note: The BSP delivered with the phyCORE

®

-i.MX 6 usually includes drivers and/or software for controlling all components such as interfaces, memory, etc. Therefore programming close to hardware at register level is not necessary in most cases. For this reason, this manual contains no detailed description of the controller's registers, or information relevant for software development. Please refer to the i.MX 6 Reference Manual, if such information is needed to connect customer designed applications.

Conventions

The conventions used in this manual are as follows:

ƒ Signals that are preceded by an "n", "/", or “#”character (e.g.: nRD, /RD, or #RD), or that have a dash on top of the signal name (e.g.: RD) are designated as active low signals. That is, their active state is when they are driven low, or are driving low.

ƒ A "0" indicates a logic zero or low-level signal, while a "1" represents a logic one or high-level signal.

ƒ The hex-numbers given for addresses of I

2

C devices always represent the 7 MSB of the address byte. The correct value of the LSB which depends on the desired command

(read (1), or write (0)) must be added to get the complete address byte. E.g. given address in this manual 0x41 => complete address byte = 0x83 to read from the device and 0x82 to write to the device

ƒ Tables which describe jumper settings show the default position in

bold, blue text

.

ƒ Text in

blue italic indicates a hyperlink within, or external to the document. Click these links to quickly jump to the applicable URL, part, chapter, table, or figure.

ƒ References made to the phyCORE-Connector always refer to the high density Samtec connector on the undersides of the phyCORE-i.MX 6 System on Module. iv © PHYTEC Messtechnik GmbH 2015 L-808e_1

Conventions, Abbreviations and Acronyms

Types of Signals

Different types of signals are brought out at the phyCORE-Connector. The following table lists the abbreviations used to specify the type of a signal.

Signal Type

Power

Description

Supply voltage input

Ref-Voltage Reference voltage output

Input

Output

IO

Digital input

Digital output

Bidirectional input/output

OC-Bidir PU Open collector input/output with pull up

OC-Output Open collector output without pull up, requires an external pull up

5V Input PD 5 V tolerant input with pull down

LVDS Input Differential line pairs 100 Ohm LVDS level input

LVDS Output Differential line pairs 100 Ohm LVDS level output

TMDS Output Differential line pairs 100 Ohm TMDS level output

USB IO

ETHERNET

Input input/output

Differential line pairs 100 Ohm Ethernet level input

ETHERNET

Output

Differential line pairs 100 Ohm Ethernet level output

ETHERNET IO Differential line pairs 100 Ohm Ethernet level bidirectional input/output

PCIe Input Differential line pairs 100 Ohm PCIe level input

PCIe Output Differential line pairs 100 Ohm PCIe level output

MIPI CSI-2

Input

Differential line pairs 100 Ohm MIPI CSI-2 level input

Abbr.

PWR_I

REF_O

I

O

I/O

OC-BI

OC

5V_PD

LVDS_I

ETH_I

ETH_O

PCIe_I

PCIe_O

LVDS_O

TMDS_O

USB_I/O

ETH_I/O

CSI-2_I

Table 1: Signal Types used in this Manual

© PHYTEC Messtechnik GmbH 2015 L-808e_1 v

J

JP

PCB

PDI

EMB

GPI

GPIO

GPO

IRAM

phyCORE

®

-i.MX 6 [PCM-058]

Abbreviations and Acronyms

Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar terms used in this document.

Abbreviation Definition

BSP Board Support Package (Software delivered with the Development Kit including an operating system (Windows, or Linux) preinstalled on the module and Development Tools).

CB Carrier Board; used in reference to the phyCORE Development Kit Carrier

Board.

PMIC

PoE

External memory bus.

General purpose input.

General purpose input and output.

General purpose output.

Internal RAM; the internal static RAM on the Freescale Semiconductor i.MX 6 microcontroller.

Solder jumper; these types of jumpers require solder equipment to remove and place.

Solderless jumper; these types of jumpers can be removed and placed by hand with no special tools.

Printed circuit board.

PHYTEC Display Interface; defined to connect PHYTEC display adapter boards, or custom adapters

Power management IC

Power over Ethernet

SMT

SOM

Sx

Sx_y

Table 2:

Surface mount technology.

System on Module; used in reference to the PCM-058 /phyCORE

®

-i.MX 6 module

User button Sx (e.g. S1, S2, etc.) used in reference to the available user buttons, or DIP-Switches on the carrier board.

Switch y of DIP-Switch Sx; used in reference to the DIP-Switch on the carrier board.

Abbreviations and Acronyms used in this Manual

vi © PHYTEC Messtechnik GmbH 2015 L-808e_1

Preface

Preface

As a member of PHYTEC's phyCORE

®

product family the phyCORE-i.MX 6 is one of a series of

PHYTEC System on Modules (SOMs) that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a variety of 8-/16- and 32-bit controllers in two ways:

(1) as the basis for Rapid Development Kits which serve as a reference and evaluation platform

(2) as insert-ready, fully functional phyCORE

®

OEM modules, which can be embedded directly into the user’s peripheral hardware design.

Implementation of an OEM-able SOM subassembly as the "core" of your embedded design allows you to focus on hardware peripherals and firmware without expending resources to

"re-invent" microcontroller circuitry. Furthermore, much of the value of the phyCORE

® module lies in its layout and test.

Production-ready Board Support Packages (BSPs) and Design Services for our hardware will further reduce your development time and risk and allow you to focus on your product expertise. Take advantage of PHYTEC products to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks. With this new innovative full system solution you will be able to bring your new ideas to market in the most timely and cost-efficient manner.

For more information go to: http://www.phytec.de/de/leistungen/entwicklungsunterstuetzung.html

or www.phytec.eu/europe/oem-integration/evaluation-start-up.html

© PHYTEC Messtechnik GmbH 2015 L-808e_1 vii

phyCORE

®

-i.MX 6 [PCM-058]

Ordering Information

The part numbering of the phyCORE has the following structure:

PCM- 058-xxxxxx.A0

Product number (consecutive)

Assembly options (depending on model)

Version number

Product Specific Information and Technical Support

In order to receive product specific information on changes and updates in the best way also in the future, we recommend to register at http://www.phytec.de/de/support/registrierung.html

or http://www.phytec.eu/europe/support/registration.html

For technical support and additional information concerning your product, please visit the support section of our web site which provides product specific information, such as errata sheets, application notes, FAQs, etc. http://www.phytec.de/de/support/faq/faq-phyCORE-i.MX6.html or http://www.phytec.eu/europe/support/faq/faq-phyCORE-i.MX6.html

viii © PHYTEC Messtechnik GmbH 2015 L-808e_1

Preface

Declaration of Electro Magnetic Conformity of the PHYTEC phyCORE

®

-i.MX 6

PHYTEC System on Module (henceforth products) are designed for installation in electrical appliances or as dedicated Evaluation Boards (i.e.: for use as a test and prototype platform for hardware/software development) in laboratory environments.

Caution!

PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be unpacked, handled or operated in environments in which sufficient precautionary measures have been taken in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians, technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be operated without protection circuitry if connections to the product's pin header rows are longer than 3 m.

PHYTEC products fulfill the norms of the European Union’s Directive for Electro Magnetic

Conformity only in accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to the pin header row connectors, power connector and serial interface to a host-PC).

Implementation of PHYTEC products into target devices, as well as user modifications and extensions of PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro Magnetic Directives. Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 ix

phyCORE

®

-i.MX 6 [PCM-058]

Product Change Management and information in this manual on parts populated on the SOM / SBC

When buying a PHYTEC SOM / SBC, you will, in addition to our HW and SW offerings, receive a free obsolescence maintenance service for the HW we provide.

Our PCM (Product Change Management) Team of developers, is continuously processing, all incoming PCN's (Product Change Notifications) from vendors and distributors concerning parts which are being used in our products.

Possible impacts to the functionality of our products, due to changes of functionality or obsolesce of a certain part, are being evaluated in order to take the right masseurs in purchasing or within our HW/SW design.

Our general philosophy here is: We never discontinue a product as long as there is

demand for it.

Therefore we have established a set of methods to fulfill our philosophy:

Avoiding strategies

• Avoid changes by evaluating long-livety of parts during design in phase.

• Ensure availability of equivalent second source parts.

• Stay in close contact with part vendors to be aware of roadmap strategies.

Change management in rare event of an obsolete and non replaceable part

• Ensure long term availability by stocking parts through last time buy management according to product forecasts.

• Offer long term frame contract to customers.

Change management in case of functional changes

• Avoid impacts on product functionality by choosing equivalent replacement parts.

• Avoid impacts on product functionality by compensating changes through HW redesign or backward compatible SW maintenance.

• Provide early change notifications concerning functional relevant changes of our products.

Therefore we refrain from providing detailed part specific information within this manual, which can be subject to continuous changes, due to part maintenance for our products.

In order to receive reliable, up to date and detailed information concerning parts used for our product, please contact our support team through the contact information given within this manual.

x © PHYTEC Messtechnik GmbH 2015 L-808e_1

1 Introduction

Introduction

The phyCORE-i.MX 6 belongs to PHYTEC’s phyCORE System on Module family. The phyCORE SOMs represent the continuous development of PHYTEC System on Module technology. Like its mini-, micro- and nanoMODUL predecessors, the phyCORE boards integrate all core elements of a microcontroller system on a subminiature board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware developments.

As independent research indicates that approximately 70 % of all EMI (Electro Magnetic

Interference) problems stem from insufficient supply voltage grounding of electronic components in high frequency environments approximately 20 % of all pin header connectors on the phyCORE bus are dedicated to Ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCORE boards even in high noise environments. phyCORE boards achieve their small size through modern SMD technology and multi-layer design. In accordance with the complexity of the module, 0402-packaged SMD components and laser-drilled microvias are used on the boards, providing phyCORE users with access to this cutting edge miniaturization technology for integration into their own design.

The phyCORE-i.MX 6 is a subminiature (40 mm x 50 mm) insert-ready System on Module populated with the Freescale Semiconductor i.MX 6 microcontroller. Its universal design enables its insertion in a wide range of embedded applications.

Precise specifications for the controller populating the board can be found in the applicable controller reference manual or datasheet. The descriptions in this manual are microcontroller derivative functions is included, as such functions are not relevant for the basic functioning of the phyCORE-i.MX 6.

1.1 Features of the phyCORE-i.MX 6

The phyCORE-i.MX 6 offers the following features:

• Subminiature System on Module (40 mm x 50 mm) achieved through modern SMD technology

• Populated with the Freescale Semiconductor i.MX 6 microcontroller (BGA624 packaging)

• 1.0 GHz core clock frequency (optional 1.2 GHz)

• Boot from different memory devices (NAND Flash (standard))

• Controller signals and ports extend to two high-density (0.5 mm) Samtec connectors aligning two sides of the board, enabling the phyCORE-i.MX 6 to be plugged like a "big chip" into target application

© PHYTEC Messtechnik GmbH 2015 L-808e_1 1

phyCORE

®

-i.MX 6 [PCM-058]

• Single supply voltage of +3.3 V

• All controller required supplies are generated on board

• Improved interference safety achieved through multi-layer PCB technology and dedicated ground pins

• 1 GB (up to 2 GB

1

) DDR3 SDRAM

• 1 GB (up to 16 GB

1

) on-board NAND Flash

• Alternatively 2 GB (up to 32 GB

1

) on-board eMMC

• 16 MB

1

on-board serial Flash (bootable)

• 4 kB

1

I

2

C EEPROM

• Two serial interfaces (TTL). One with 4 lines allowing simple hardware handshake

• High-Speed USB OTG interface

• High-Speed USB HOST interface

• 10/100/1000 Mbit Ethernet interface

.

Either with Ethernet transceiver on the phyCORE-i.MX 6 allowing for direct connection to an existing Ethernet network, or

• I without on-board transceiver and provision of the RMII signals at TTL-level at the phyCORE-Connector instead

2

C interface

• Two SPI interfaces

• PCIe interface

2

• I

2

S interface

• SPDIF interface

• PWM output

• CAN interface

• Two 4 channel LVDS (24 bit) LCD-interfaces

• Parallel LCD-interface

• HDMI interface

• Up to two parallel camera interfaces

• MIPI CSI camera interface

• Two SD/MMC card interfaces

• SATA interface

• JTAG interface

• One user programmable LEDs

• Several dedicated GPIOs

3

• Power Management IC (PMIC)

• Industrial temperature range (-40 °C to +85 °C) available

1

:

The maximum memory size listed is as of the printing of this manual. Please contact PHYTEC for more information about additional, or new module configurations available.

2

:

Please refer to the order options described in the Preface, or contact PHYTEC for more information about additional module confi- gurations.

3

:

Almost every controller port which connects directly to the phyCORE-Connector may be used as GPIO by using the i.MX 6's pin muxing options.

2 © PHYTEC Messtechnik GmbH 2015 L-808e_1

1.2 Block Diagram

Introduction

Figure 1: Block Diagram of the phyCORE-i.MX 6

4

4

:

The specified direction indicated refers to the standard phyCORE use of the pin.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 3

phyCORE

®

-i.MX 6 [PCM-058]

1.3 phyCORE-i.MX 6 Component Placement

DMC1

R27

R26

Z5

C303

C108

R111

U9

C75

U6

U1

U4

Z2

R29

R28

C317

C318

R124

R125

U8

U11

D1

R109

2

1

J4

C2 R24

C1 R25

R133

U14

C321

XT1

C313

C110

C322

C302

R123

R14

R20

R38

Z4

U12

3 2 1

J3

C65

C301

Q2

Q1

R108

R122 R116

C216

C238

L8

C308

C219

L9

C285

XT2

U16

R136

R140

R139

L2

L3

L5 L4

C292

C293

C298

TP3

C121

C296

Figure 2: phyCORE-i.MX 6 Component Placement (top view)

4 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Introduction

B44

B45

B46

B47

B48

B49

B50

B51

B39

B40

B41

B42

B43

B31

B32

B33

B34

B35

B36

B37

B38

B23

B24

B25

B26

B27

B28

B29

B30

B18

B19

B20

B21

B22

B10

B11

B12

B13

B14

B15

B16

B17

B5

B6

B7

B8

B9

B1

B2

B3

B4

B57

B58

B59

B60

B61

B62

B63

B64

B52

B53

B54

B55

B56

B65

B66

B67

B68

B69

B70

X1

Z1

A44

A45

A46

A47

A48

A49

A50

A51

A39

A40

A41

A42

A43

A31

A32

A33

A34

A35

A36

A37

A38

A23

A24

A25

A26

A27

A28

A29

A30

A18

A19

A20

A21

A22

A10

A11

A12

A13

A14

A15

A16

A17

A5

A6

A7

A8

A9

A1

A2

A3

A4

A57

A58

A59

A60

A61

A62

A63

A64

A52

A53

A54

A55

A56

A65

A66

A67

A68

A69

A70

R99

C47 C39

C46 R36 TP7

TP4

U13

XT3

R134

TP2

C244

R103

C239

C248

U2

R35

R93

C56

C37

TP9

C281

C240

C243

C249

C312 C109

C78

C74

C45 C41

TP5

XT4

R131

C54

R11

C304

C311

R102

C51 C305 R41 R127

TP1

C250

R126

3

C149

C148

R101

U10

R9

C139

C142

C200

2

1

C141

C198

1

2

3

C260

C176

C143

C70

C71

C201

C171

C118

C68

C187

C188

C170

C124

C107 C136

C169

C127 C137

C175 C116

C125

C160

C162

C161

C120

C190

C189

C168 C48

C226

C117

C214

C180

C128

C112

C132

C177

C114

C182

C178

C179

C131

C129

C184

C130

C59

C159

C119

C227

C252 C111

C204

C208

C277

C211

C280

C151

C207

C231

C196 C140

C279

C206

C233

C278

C253

C255

C229

C164

C167

C165

C123

C276

C185

C209

C138

C205

C122

C158

C256

R3

C254

C134 C166

C9

C235

R4

C251

R2

C215

R8

C268

R1

DMC2

C21

C64

C258

TP10

R42

D46

D47

D48

D49

D50

D38

D39

D40

D41

D42

D43

D44

D45

D30

D31

D32

D33

D34

D35

D36

D37

D25

D26

D27

D28

D29

D17

D18

D19

D20

D21

D22

D23

D24

D12

D13

D14

D15

D16

D1

D2

D3

D7

D8

D9

D4

D5

D6

D10

D11

D59

D60

D61

D62

D63

D51

D52

D53

D54

D55

D56

D57

D58

D64

D65

D66

D67

D68

D69

D70

U7 U5

R46

X1

C46

C47

C48

C49

C50

C38

C39

C40

C41

C42

C43

C44

C45

C30

C31

C32

C33

C34

C35

C36

C37

C25

C26

C27

C28

C29

C17

C18

C19

C20

C21

C22

C23

C24

C12

C13

C14

C15

C16

C1

C2

C3

C7

C8

C9

C4

C5

C6

C10

C11

C59

C60

C61

C62

C63

C51

C52

C53

C54

C55

C56

C57

C58

C64

C65

C66

C67

C68

C69

C70

Z3

Figure 3: phyCORE-i.MX 6 Component Placement (bottom view)

© PHYTEC Messtechnik GmbH 2015 L-808e_1 5

6

phyCORE

®

-i.MX 6 [PCM-058]

1.4 Minimum Requirements to operate the phyCORE-i.MX 6

Basic operation of the phyCORE-i.MX 6 only requires supply of a +3.3 V input voltage with typical 2.5 A load and the corresponding GND connection.

These supply pins are located at the phyCORE-Connector X1:

VDD_3V3: X1 A1, A2, A3, A4, B1, B2, B3, B4

Connect all +3.3 V VCC input pins to your power supply and at least the matching number of

GND pins.

Corresponding GND: X1 A6, A11, A16, A21, B6, B12, B17, B22

Please refer to

section 2

for information on additional GND Pins located at the phyCORE-

Connector X1.

Caution!

We recommend connecting all available +3.3 V input pins to the power supply system on a custom carrier board housing the phyCORE-i.MX 6 and at least the matching number of

GND pins neighboring the +3.3 V pins.

In addition, proper implementation of the phyCORE-i.MX 6 module into a target application also requires connecting all GND pins.

Please refer to

section 4

for more information.

© PHYTEC Messtechnik GmbH 2015 L-808e_1

Pin

2 Pin Description

Please note that all module connections are not to exceed their expressed maximum voltage or current. Maximum signal input values are indicated in the corresponding controller manuals/data sheets. As damage from improper connections varies according to use and application, it is the user's responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

As

Figure 4

indicates, all controller signals selected extend to surface mount technology

phyCORE-Connector). This allows the phyCORE-i.MX 6 to be plugged into any target application like a "big chip".

The numbering scheme for the phyCORE-Connector is based on a two dimensional matrix in which column positions are identified by a letter and row position by a number. The pin

numbering values increase moving down on the board (refer to

Figure 4

).

The numbered matrix can be aligned with the phyCORE-i.MX 6 (viewed from above; phyCORE-Connector pointing down) or with the socket of the corresponding phyCORE

Carrier Board/user target circuitry. The upper left-hand corner of the numbered matrix

(pin X1C1) is thus covered with the corner of the phyCORE-i.MX 6. The numbering scheme is always in relation to the PCB as viewed from above, even if all connector contacts extend to the bottom of the module.

The numbering scheme is thus consistent for both the module’s phyCORE-Connector as well as the mating connector on the phyCORE Carrier Board or target hardware, thereby considerably reducing the risk of pin identification errors.

Since the pins are exactly defined according to the numbered matrix previously described, the phyCORE- Connector is usually assigned a single designator for its position (X1 for example). In this manner the phyCORE-Connector comprises a single, logical unit regardless of the fact that it could consist of more than one physical socketed connector.

The following figure illustrates the numbered matrix system. It shows a phyCORE-i.MX 6 with both SMT phyCORE-Connectors on its underside (defined as dotted lines) mounted on a carrier board. In order to facilitate understanding of the pin assignment scheme, the diagram presents a cross-view of the phyCORE-i.MX 6 module showing the phyCORE-

Connector mounted on the underside of the module’s PCB.

Table 3

to

Table 6

provide an overview of the pinout of the phyCORE-Connector X1 with signal names and descriptions specific to the phyCORE-i.MX 6. It also provides the appropriate voltage domain, signal type (ST) and a functional grouping of the signals. The

© PHYTEC Messtechnik GmbH 2015 L-808e_1 7

phyCORE

®

-i.MX 6 [PCM-058]

signal type includes also information about the signal direction

5

. A description of the

signal types can be found in

Table 1

.

Figure 4: Pinout of the phyCORE-Connector (top view)

The Freescale Semiconductor i.MX 6 is a multi-voltage operated microcontroller and as such special attention should be paid to the interface voltage levels to avoid unintentional damage to the microcontroller and other on-board components. Please refer to the

Freescale Semiconductor i.MX 6 Reference Manual for details on the functions and features of controller signals and port pins.

Note:

Most of the controller pins have multiple multiplexed functions. As most of these pins are connected directly to the phyCORE-Connector the alternative functions are available by using the i.MX 6's pin muxing options. Signal names and descriptions in

Table 3

to

Table 6

however, are in regard to the specification of the phyCORE-i.MX 6 and the functions defined therein. Please refer to the i.MX 6 Reference Manual, or the schematic to get to know about alternative functions. In order to utilize a specific pin's alternative function the corresponding registers must be configured within the appropriate driver of the BSP.

If the phyCORE-i.MX 6 is delivered with a carrier board (e.g. the phyBOARD-Mira) the pin muxing might be changed within the appropriate BSP in order to support all features of the carrier board. If so, information on the differences from the pinout given in the following tables can be found in the carrier board's documentation.

Caution!

As some of the signals which are brought out on the phyCORE-Connector are used to configure the boot mode for specific boot options, please make sure that these signals are not driven by any device on the baseboard during reset. The signals which may affect the boot configuration are shown in

Table 9

.

5

:

The specified direction indicated refers to the standard phyCORE use of the pin.

8 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Pin

Pin # Signal ST Voltage domain Description

A1 VDD_3V3

A2 VDD_3V3

A3

A4

VDD_3V3

VDD_3V3

A5 VDD_BAT

A6 GND

PWR_I 3.3 V

PWR_I 3.3 V

PWR_I 3.3 V

PWR_I 3.3 V

PWR_I 3.3 V

- -

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

Backup Voltage Supply Input

6

Ground 0 V

A7 X_SD3_CMD O

A8 X_SD3_DATA0

A9 X_SD3_DATA2

A10 X_SD3_DATA5

A11 GND

I/O

I/O

I/O

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

- uSDHC3 data 0 uSDHC3 data 2 uSDHC3 data 5

Ground 0 V

A12 X_SD3_DATA7

A13 X_SD3_RESET

A14 X_SD1_DATA0

I/O VDD_3V3_LOGIC uSDHC3 data 7

O VDD_3V3_LOGIC uSDHC3 reset

I/O VDD_3V3_LOGIC uSDHC1 data 0

A15 X_SD1_DATA2

A16 GND

A17 X_UART2_RX_DATA I

A18 X_UART3_RX_DATA I

A19

A20

X_UART3_CTS_B

X_UART3_RTS_B

I/O VDD_3V3_LOGIC uSDHC data 2

- - Ground 0 V

O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

UART2 serial data receive

UART3 serial data receive

UART3 clear to send output

UART3 request to send input

7

A21 GND

A22 X_ECSPI1_SCLK

- - Ground 0 V

I/O VDD_3V3_LOGIC eCSPI1 clock

A23 X_ECSPI1_MOSI I/O eCSPI1 master output/slave input

A24

X_ECSPI1_SS0 eCSPI1 chip select 0

7

A25

X_EIM_DA13

EIM address/data 13

8,

9

A26

A27

A28

A29

A30

GND

X_CSI1_DATA12

X_CSI1_DATA11

X_CSI1_DATA10

X_CSI1_DATA09

-

I

- Ground 0 V

CSI1 data 12

7

CSI1 data 11

7

VDD_3V3_LOGIC CSI1 data 10

CSI1 data 9

7

A31 GND - - Ground 0 V

A32 X_CSI1_DATA08 I VDD_3V3_LOGIC

7

A33

A34

X_CSI1_DATA03

X_CSI1_DATA02

CSI1 data 3

7

CSI1 data 2

7

A35 X_CSI1_DATA_EN O VDD_3V3_LOGIC

7

A36

GND - - Ground 0 V

Table 3: Pinout of the phyCORE-Connector X1, Row A

6

: connects to PMIC_VBBAT or VDD_MX6_SNVS via J3 (

Table 7

)

© PHYTEC Messtechnik GmbH 2015 L-808e_1 9

phyCORE

®

-i.MX 6 [PCM-058]

Pin # Signal ST

A37

X_CSI1_DATA01 I

A38

X_CSI1_DATA00

A39

X_CSI1_VSYNC

A40

X_CSI1_HSYNC

Voltage Domain Description

VDD_3V3_LOGIC

CSI1 data 1

7

CSI1 data 0

7

CSI1 vertical sync

7

CSI1 horizontal sync

7

A41

A42

GND

X_EIM_BCLK

- - Ground 0 V

EIM burst block

9

A43 X_ECSPI2_MISO I/O eCSPI2 master input/slave output

A44

X_ECSPI2_SS1

I/O VDD_3V3_LOGIC eCSPI2 chip select 1

7

A45

X_ECSPI2_SS0

I/O VDD_3V3_LOGIC eCSPI2 chip select 0

7

A46 GND

A47 X_LCD_DATA22

A48 X_LCD_DATA21

-

O

O

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

Ground 0 V

DISP0 data 22

DISP0 data 21

A49 X_LCD_DATA19

A50 X_LCD_DATA16

A51 GND

A52 X_LCD_DATA14

A53 X_LCD_DATA13

A54 X_LCD_DATA11

A55 X_LCD_DATA08

A56 GND

A57 X_LCD_DATA06

O

O

-

O

O

O

O

-

O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

DISP0 data 19

DISP0 data 16

Ground 0 V

DISP0 data 14

DISP0 data 13

DISP0 data 11

DISP0 data 8

Ground 0 V

DISP0 data 6

A58 X_LCD_DATA05

A59 X_LCD_DATA03

A60 X_LCD_DATA00

A61 GND

O

O

O

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

DISP0 data 5

DISP0 data 3

DISP0 data 0

Ground 0 V

A62 X_LCD_ENABLE O

A63 X_LCD_HSYNC O VDD_3V3_LOGIC DISP0 horizontal sync

A64 X_LCD_RESET O

A65 X_ENET_REFCLK

A66 GND

I

-

VDD_3V3_LOGIC

-

ENET RMII reference clock

Ground 0 V

A67 X_ENET_TXER

A68 X_ENET_RXD0

A69 X_ENET_RXD1

A70 X_ENET_RX_ER

O

I

I

I

VDD_3V3_LOGIC ENET RMII transmit error

VDD_ENET_IO

VDD_ENET_IO

VDD_ENET_IO

ENET RMII receive data 0

ENET RMII receive data 1

ENET RMII receive error

Table 3: Pinout of the phyCORE-Connector X1, Row A (continued)

10 © PHYTEC Messtechnik GmbH 2015 L-808e_1

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B8

B9

B10

B11

B12

B13

B14

B1

B2

B3

B4

B5

B6

B7

Pin

Pin # Signal ST Voltage Domain Description

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

PWR_I 3.3 V

PWR_I 3.3 V

PWR_I 3.3 V

PWR_I 3.3 V

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

3.3 V Primary Voltage Supply Input

B27

B28

B29

B30

B31

B32

GND

X_SD3_DATA1

X_SD3_DATA3

X_SD3_DATA4

X_SD3_DATA6

GND

-

X_SD1_DATA1

X_SD1_DATA3

I/O

I/O

GND -

X_UART3_TX_DATA O

X_ENET_MDC O

X_UART2_TX_DATA O

GND -

I/O

I/O

I/O

I/O

-

- Ground 0 V

VDD_3V3_LOGIC uSDHC3 data 1

VDD_3V3_LOGIC uSDHC3 data 3

VDD_3V3_LOGIC uSDHC3 data 4

VDD_3V3_LOGIC uSDHC3 data 6

- Ground 0 V

VDD_3V3_LOGIC uSDHC1 data 1

VDD_3V3_LOGIC uSDHC1 data 3

- Ground 0 V

VDD_3V3_LOGIC UART3 serial transmit signal

VDD_ENET_IO ENET management data clock

VDD_3V3_LOGIC UART2 serial transmit signal

- Ground 0 V

X_ECSPI1_MISO I/O VDD_3V3_LOGIC eCSPI1 master input/slave output

X_EIM_DA14 I/O VDD_3V3_LOGIC EIM address/data 14

8,

9

X_EIM_DA15 I/O VDD_3V3_LOGIC EIM address/data 15

8,

9

GND - - Ground 0 V

X_CSI1_DATA19 I VDD_3V3_LOGIC CSI1 data 19

7

X_CSI1_DATA18 I VDD_3V3_LOGIC CSI1 data 18

7

X_CSI1_DATA17 I VDD_3V3_LOGIC CSI1 data 17

7

X_CSI1_DATA16 I VDD_3V3_LOGIC CSI1 data 16

7

B33

B34

B35

B36

GND - - Ground 0 V

X_CSI1_DATA15 I VDD_3V3_LOGIC CSI1 data 15

7

X_CSI1_DATA14 I VDD_3V3_LOGIC CSI1 data 14

7

X_CSI1_PIXCLK O VDD_3V3_LOGIC CSI1 pixel clock

7

Table 4: Pinout of the phyCORE-Connector X1, Row B

© PHYTEC Messtechnik GmbH 2015 L-808e_1 11

phyCORE

®

-i.MX 6 [PCM-058]

Pin # Signal ST Voltage Domain Description

B37 X_CSI1_DATA13 I

7

B38 GND - - Ground 0 V

B39 X_CSI1_DATA07 I

7

B40 X_CSI1_DATA06 I

7

B41 X_CSI1_DATA05 I

7

B42 X_CSI1_DATA04 I

7

B43 GND

B44 X_EIM_EB1

- - Ground 0 V

O VDD_3V3_LOGIC EIM enable byte 1

8,

9

B45 X_ECSPI2_SCLK I/O clock

B46 X_ECSPI2_RDY I

B47 X_ECSPI2_MOSI I/O

B48 GND - - Ground 0 V

B49 X_LCD_DATA23

B50 X_LCD_DATA20

B51 X_LCD_DATA18

B52 X_LCD_DATA17

B53 GND

B54

B55

X_LCD_DATA15

X_LCD_DATA12

B56 X_LCD_DATA10

B57 X_LCD_DATA09

B58 GND

O

O

O

O

-

O

O

O

O

-

VDD_3V3_LOGIC DISP0 data 23

VDD_3V3_LOGIC DISP0 data 20

VDD_3V3_LOGIC DISP0 data 18

VDD_3V3_LOGIC DISP0 data 17

- Ground 0 V

VDD_3V3_LOGIC DISP0 data 15

VDD_3V3_LOGIC DISP0 data 12

VDD_3V3_LOGIC DISP0 data 10

VDD_3V3_LOGIC DISP0 data 9

- Ground 0 V

B59 X_LCD_DATA07

B60 X_LCD_DATA04

B61 X_LCD_DATA02

B62 X_LCD_DATA01

O

O

O

O

VDD_3V3_LOGIC DISP0 data 7

VDD_3V3_LOGIC DISP0 data 4

VDD_3V3_LOGIC DISP0 data 2

VDD_3V3_LOGIC DISP0 data 1

B63 GND - - Ground 0 V

B64 X_LCD_CLK O clock

B65 X_LCD_VSYNC

B66 X_ENET_CRS_DV

B67 X_ENET_TX_EN

B68 GND

B69 X_ENET_TXD0

B70 X_ENET_TXD1

O

I

O

-

O

O

VDD_3V3_LOGIC DISP0 vertical sync

VDD_ENET_IO ENET RMII carrier sense/data valid

VDD_ENET_IO ENET RMII TX enable

- Ground 0 V

VDD_ENET_IO ENET RMII transmit data 0

VDD_ENET_IO ENET RMII transmit data 1

Table 4: Pinout of the phyCORE-Connector X1, Row B (continued)

7

: Special care must be taken not to override the device configuration when using this pin as input (

section 5.2

).

8

: Special care must be taken not to override the device configuration when using this pin as input (

section 5.2

,

section 9

).

12 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Pin

Pin # Signal

C1

C2

X_BOOT_MODE0

X_ETH0_A+/TX0+

C3

C4

C5

C6

C7

X_ETH0_A-/TX0-

GND

X_ETH0_C+

X_ETH0_C-

X_ETH0_LED0

ST Voltage Domain Description

I VDD_3V3_LOGIC Boot mode input 0

ETH_O VDD_3V3_LOGIC ETH0 data A+/transmit+

ETH_O VDD_3V3_LOGIC ETH0 data A-/transmit-

- - Ground 0 V

ETH_I/O VDD_3V3_LOGIC ETH0 data C+ (only GbE)

ETH_I/O VDD_3V3_LOGIC ETH0 data C- (only GbE)

OC VDD_3V3_LOGIC ETH0 link LED output

C8

C9

C10

C11

C12

C13

C14

C15

C16

X_SATA_TXP

X_SATA_TXN

GND

X_PCIe0_CLK+

X_PCIe0_CLK-

X_PCIe_RXP

X_PCIe_RXN

GND

X_SPDIF_OUT

LVDS_O i.MX6 internal

LVDS_O i.MX6 internal

- -

PCIe_O i.MX 6 internal

SATA transmit lane+

SATA transmit lane-

Ground 0 V

PCIe clock lane+

PCIe_O

PCIe_I

PCIe_I

- i.MX 6 internal i.MX 6 internal i.MX 6 internal

-

PCIe clock lane-

PCIe receive lane+

PCIe receive lane-

Ground 0 V

SPDIF output

9

PWM1 output

9

I VDD_3V3_LOGIC USB OTG ID Pin

PWR_I 5 V USB OTG VBUS input

C17

C18

C19

C20

C21

C22

C23

C24

C25

X_PWM1_OUT

X_USB_OTG_ID

X_USB_OTG_VBUS

X_USB_OTG_PWR

GND

X_CCM_CLKO2

X_USB_H1_DP

X_USB_H1_DN

GND

O

-

VDD_3V3_LOGIC USB OTG power enable

- Ground 0 V

O VDD_3V3_LOGIC CCM clock output 2

USB_I/O i.MX 6 internal USB Host data+

USB_I/O i.MX 6 internal

- -

VDD_3V3

USB Host data-

Ground 0 V i.MX 6 PMIC standby request C27 X_PMIC_STBY_REQ O VDD_MX6_SNVS

C28

C29

C30 X_CSI_D0P CSI2_I i.MX 6 internal

C31

C32

C33

C34

C35

C36

C37

X_CSI_D0M

GND

X_CSI_D2P

X_CSI_D2M

X_CSI_CLK0P

X_CSI_CLK0M

GND

CSI2_I

-

CSI2_I

- i.MX 6 internal

-

CSI2_I i.MX 6 internal

CSI2_I i.MX 6 internal

CSI2_I i.MX 6 internal i.MX 6 internal

-

MIPI/CSI data0+

MIPI/CSI data0-

Ground 0 V

MIPI/CSI data2+

MIPI/CSI data2-

MIPI/CSI clock+

MIPI/CSI clock-

Ground 0 V

Table 5: Pinout of the phyCORE-Connector X1, Row C

© PHYTEC Messtechnik GmbH 2015 L-808e_1 13

C59

C60

C61

C62

C63

C64

C65

C66

C67

C68

C69

C70

C52

C53

C54

C55

C56

C57

C58

C45

C46

C47

C48

C49

C50

C51

C38

C39

C40

C41

C42

C43

C44

phyCORE

®

-i.MX 6 [PCM-058]

Pin # Signal

X_HDMI_CEC

X_HDMI_CLKP

X_HDMI_CLKM

X_HDMI_D1P

X_HDMI_D1M

GND

X_HDMI_DDC_SDA

X_CSI0_DAT18

X_CSI0_DAT16

X_CSI0_DAT14

GND

X_CSI0_DAT12

X_CSI0_DAT10

X_CSI0_DAT8

X_CSI0_DAT6

X_CSI0_DAT5

GND

X_CSI0_DAT4

X_CSI0_PIXCLK

I

I

I

I

-

I

I

-

I

I

I

O

ST Voltage Domain Description

I/O VDD_3V3_LOGIC HDMI CEC

TDMS_O i.MX 6 internal HDMI clock+

TDMS_O i.MX 6 internal HDMI clock-

TDMS_O i.MX 6 internal HDMI data1+

TDMS_O i.MX 6 internal HDMI data1-

- - Ground 0 V

I/O VDD_3V3_LOGIC HDMI DDC data

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

CSI0 data 18

CSI0 data 16

CSI0 data 14

Ground 0 V

VDD_3V3_LOGIC CSI0 data 12

VDD_3V3_LOGIC CSI0 data 10

VDD_3V3_LOGIC CSI0 data 8

CSI0 data 6

CSI0 data 5

Ground 0 V

CSI0 data 4

CSI0 pixel clock

GND - - Ground 0 V

X_LVDS0_TX1+ LVDS_O i.MX 6 internal LVDS0 data 1+

X_LVDS0_TX1- LVDS_O LVDS0 data 1-

X_LVDS0_TX0+ LVDS_O i.MX 6 internal LVDS0 data 0+

X_LVDS0_TX0- LVDS_O LVDS0 data 0-

GND

X_LVDS0_TX3+

-

LVDS_O

- i.MX 6 internal

Ground 0 V

LVDS0 data 3+

X_LVDS0_TX3- LVDS_O LVDS0 data 3-

X_LVDS1_CLK+

X_LVDS1_CLK-

GND

X_LVDS1_TX0+

LVDS_O

LVDS_O

-

LVDS_O i.MX 6 internal i.MX 6 internal

- i.MX 6 internal

LVDS1 clock+

LVDS1 clock-

Ground 0 V

LVDS1 data 0+

X_LVDS1_TX0- LVDS_O LVDS1 data 0-

Table 5: Pinout of the phyCORE-Connector X1, Row C (continued)

14 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Pin

Pin # Signal ST Voltage Domain Description

D8

D9

D10

D11

D12

D1 X_BOOT_MODE1

D2 X_ETH0_B+/RX0+

D3

D4

X_ETH0_B-/RX0-

X_ETH0_LED1

D5

D6

D7

X_ETH0_D+

X_ETH0_D-

GND

X_SATA_RXP

X_SATA_RXN

X_PCIe_TXP

X_PCIe_TXN

GND

D13 X_KEY_COL2

I

ETH_I

ETH_I

OC

VDD_3V3_LOGIC Boot mode input 1

VDD_3V3_LOGIC ETH0 data B+/receive+

VDD_3V3_LOGIC ETH0 data B-/receive-

VDD_3V3_LOGIC ETH0 traffic LED output

ETH_I/O VDD_3V3_LOGIC ETH0 data D+ (only GbE)

ETH_I/O VDD_3V3_LOGIC ETH0 data D- (only GbE)

- - Ground 0 V

LVDS_I i.MX 6 internal

LVDS_I i.MX 6 internal

PCIe_O i.MX 6 internal

PCIe_O i.MX 6 internal

- -

I

SATA receive lane+

SATA receive lane-

PCIe transmit lane+

PCIe transmit lane-

Ground 0 V

9

D28

D29

D30

D31

D32

D33

D34

D35

D36

D21

D22

D23

D24

D25

D26

D27

D14 X_PMIC_nONKEY I

D15 X_ONOFF I

D16

D17

X_CCM_CLKO1

X_USB_OTG_CHD_B

O

O

D18

D19

D20

GND

X_USB_OTG_DP

X_USB_OTG_DN

-

VDD_3V3

VDD_MX6_SNVS

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

USB_I/O i.MX 6 internal

USB_I/O i.MX 6 internal i.MX 6 on/off input

CCM clock output 1

USB OTG charger detection

Ground 0 V

USB OTG data+

USB OTG data-

X_USB_OTG_OC

X_USB_H1_VBUS

X_JTAG_TCK

GND

X_JTAG_TRSTB

I

-

I VDD_3V3_LOGIC USB OTG overcurrent input

PWR_I 5 V USB Host VBUS input

I

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

JTAG clock input

Ground 0 V

JTAG reset input (low active)

X_CSI_D1P

X_CSI_D1M

X_CSI_D3P

X_CSI_D3M

GND

X_nRESET

X_HDMI_D2P

X_HDMI_D2M

X_HDMI_HPD

GND

I

-

CSI2_I i.MX 6 internal

CSI2_I i.MX 6 internal

CSI2_I i.MX 6 internal

CSI2_I i.MX 6 internal

- -

OC_BI VDD_3V3

TDMS_O i.MX 6 internal

TDMS_O i.MX 6 internal

MIPI/CSI data1+

MIPI/CSI data1-

MIPI/CSI data3+

MIPI/CSI data3-

Ground 0 V

Reset input/output (low active)

HDMI data2+

HDMI data2-

VDD_3V3_LOGIC HDMI hot plug detect

- Ground 0 V

Table 6: Pinout of the phyCORE-Connector X1, Row D

9

: Signal not used by any other interfaces and can be used as GPIO without harming other features of the phyCORE-i.MX 6

(

section 9

).

© PHYTEC Messtechnik GmbH 2015 L-808e_1 15

phyCORE

®

-i.MX 6 [PCM-058]

Pin # Signal

D44

D45

D46

D47

D48

D49

D50

D37

D38

D39

D40

D41

D42

D43

X_HDMI_D0P

X_HDMI_D0M

X_HDMI_DDC_SCL

X_CSI0_DAT19

X_CSI0_DAT17

GND

X_CSI0_DAT15

X_CSI0_DAT13

X_CSI0_DAT11

X_CSI0_DAT9

X_CSI0_DAT7

X_CSI0_VSYNC

GND

X_CSI0_DATA_EN

I

-

O

I

I

I

I

ST Voltage Domain Description

TDMS_O i.MX 6 internal

TDMS_O i.MX 6 internal

HDMI data0+

HDMI data0-

I

-

I/O

I

I

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

-

VDD_3V3_LOGIC

HDMI DDC clock

CSI0 data 19

CSI0 data 17

Ground 0 V

CSI0 data 15

CSI0 data 13

CSI0 data 11

CSI0 data 9

CSI0 data 7

CSI0 vertical sync

Ground 0 V

CSI0 data enable

D51

D52

D53

D54

D55

D56

D57

D58

D59

D60

D61

D62

D63

D64

X_CSI0_HSYNC

X_AUD5_RXD

X_AUD5_TXC

I

I/O

I/O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

CSI0 horizontal sync

AUD5 receive data

AUD5 transmit clock

GND

X_AUD5_TXD

-

I/O

-

VDD_3V3_LOGIC

Ground 0 V

AUD5 transmit data

X_FLEXCAN1_RX I VDD_3V3_LOGIC receive

X_LVDS0_CLK+

X_LVDS0_CLK-

X_LVDS0_TX2+

LVDS_O

LVDS_O

LVDS_O i.MX 6 internal i.MX 6 internal i.MX 6 internal

X_LVDS0_TX2- LVDS_O 6 internal

GND

X_LVDS1_TX2+

-

LVDS_O

- i.MX 6 internal

X_LVDS1_TX2- LVDS_O 6 internal

D65

D66

D67

D68

X_LVDS1_TX1+

GND

X_LVDS1_TX3+

LVDS_O i.MX 6 internal

X_LVDS1_TX1- LVDS_O 6 internal

- -

LVDS_O i.MX 6 internal

D69 X_LVDS1_TX3- LVDS_O

D70 X_TAMPER I

6 internal

LVDS0 clock+

LVDS0 clock-

LVDS0 data 2+

LVDS0 data 2-

Ground 0 V

LVDS1 data 2+

LVDS1 data 2-

LVDS1 data 1+

LVDS1 data 1-

Ground 0 V

LVDS1 data 3+

LVDS1 data 3-

Table 6:

Pinout of the phyCORE-Connector X1, Row D (continued)

16 © PHYTEC Messtechnik GmbH 2015 L-808e_1

3 Jumpers

Jumpers

For configuration purposes, the phyCORE-i.MX 6 has several solder jumpers, some of which have been installed prior to delivery.

Figure 5

illustrates the numbering of the solder

jumper pads, while

Figure 6

and

Figure 7

indicate the location of the solder jumpers on the

board.

Table 7

below provides a functional summary of the solder jumpers which can be changed

to adapt the phyCORE-i.MX 6 to your needs. It shows their default positions, and possible alternative positions and functions. A detailed description of each solder jumper can be found in the applicable chapter listed in the table.

Note:

Jumpers not listed should not be changed as they are installed with regard to the configuration of the phyCORE-i.MX 6. closed e.g.: J4 e.g.: J4 e.g.: J1

Figure 5: Typical Jumper Pad Numbering Scheme

If manual jumper modification is required please ensure that the board as well as surrounding components and sockets remain undamaged while de-soldering. Overheating the board can cause the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to heat and loosen the bonds.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 17

phyCORE

®

-i.MX 6 [PCM-058]

J3

Figure 6: Jumper Locations (top view)

18 © PHYTEC Messtechnik GmbH 2015 L-808e_1

D1

J4

A44

A45

A46

A47

A48

A36

A37

A38

A39

A40

A41

A42

A43

A28

A29

A30

A31

A32

A33

A34

A35

A23

A24

A25

A26

A27

A18

A19

A20

A21

A22

A13

A14

A15

A16

A17

A5

A6

A7

A8

A9

A10

A11

A12

A1

A2

A3

A4

A67

A68

A69

A70

A62

A63

A64

A65

A66

A57

A58

A59

A60

A61

A49

A50

A51

A52

A53

A54

A55

A56

B44

B45

B46

B47

B48

B36

B37

B38

B39

B40

B41

B42

B43

B28

B29

B30

B31

B32

B33

B34

B35

B23

B24

B25

B26

B27

B18

B19

B20

B21

B22

B13

B14

B15

B16

B17

B5

B6

B7

B8

B9

B10

B11

B12

B1

B2

B3

B4

B67

B68

B69

B70

B62

B63

B64

B65

B66

B57

B58

B59

B60

B61

B49

B50

B51

B52

B53

B54

B55

B56

J1

J2

Figure 7: Jumper Locations (bottom view)

© PHYTEC Messtechnik GmbH 2015 L-808e_1

Jumpers

D43

D44

D45

D46

D47

D48

D49

D50

D38

D39

D40

D41

D42

D30

D31

D32

D33

D34

D35

D36

D37

D25

D26

D27

D28

D29

D20

D21

D22

D23

D24

D12

D13

D14

D15

D16

D17

D18

D19

D7

D8

D9

D10

D11

D1

D2

D3

D4

D5

D6

D56

D57

D58

D59

D60

D61

D62

D63

D51

D52

D53

D54

D55

D64

D65

D66

D67

D68

D69

D70

C43

C44

C45

C46

C47

C48

C49

C50

C38

C39

C40

C41

C42

C30

C31

C32

C33

C34

C35

C36

C37

C25

C26

C27

C28

C29

C20

C21

C22

C23

C24

C12

C13

C14

C15

C16

C17

C18

C19

C7

C8

C9

C10

C11

C1

C2

C3

C4

C5

C6

C56

C57

C58

C59

C60

C61

C62

C63

C51

C52

C53

C54

C55

C64

C65

C66

C67

C68

C69

C70

19

phyCORE

®

-i.MX 6 [PCM-058]

Please pay special attention to the “TYPE” column to ensure you are using the correct type of jumper (0 Ohms, 10k Ohms, etc…). The jumpers are 0402 package with a 1/8 W or better power rating.

The jumpers (J = solder jumper) have the following functions:

Jumper Description Type Chapter

J4

J4 connects the write protect input of the on-board

EEPROM with GND. If this jumper is not populated, the EEPROM is write protected.

0R (0402)

6.4

closed EEPROM is not write protected

open EEPROM is write protected. The protection can be changed by the EEPROM_WP signal (GPIO1_13)

J3

J1

J3 defines which backup domain is supplied by the backup voltage input X1A5

0 Ω (0402)

4.2.1

1+2 PMIC backup domain is supplied

2+3 i.MX 6 backup domain is supplied

J1 selects the voltage source for the i.MX 6's power input NVCC_ENET (voltage domain VDD_ENET_IO)

0 Ω (0402)

8.4.4

1+2 VDD_ENET_IO is supplied by VDD_ETH_IO (2.5 V)

Table 7:

2+3 VDD_ENET_IO is supplied by VDD_3V3_LOGIC (3.3 V)

Jumper Settings

10

10

: Default settings are in

bold blue

text

20 © PHYTEC Messtechnik GmbH 2015 L-808e_1

4 Power

Power

The phyCORE-i.MX 6 operates off of a single power supply voltage.

The following sections of this chapter discuss the primary power pins on the phyCORE-Connector X1 in detail.

4.1 Primary System Power (VDD_3V3)

The phyCORE-i.MX 6 operates off of a primary voltage supply with a nominal value of

+3.3 V. On-board switching regulators generate the 2.5 V, 1.375 V, 1.5 V, 0.75 V, 1.2 V and

3 V voltage supplies required by the i.MX 6 MCU and on-board components from the primary 3.3 V supplied to the SOM.

For proper operation the phyCORE-i.MX 6 must be supplied with a voltage source of

3.3 V

±5 % with 2.5 A load at the VCC pins on the phyCORE-Connector X1.

VDD_3V3: X1 A1, A2, A3, A4, B1, B2, B3, B4

Connect all +3.3 V VCC input pins to your power supply and at least the matching number of

GND pins.

Corresponding GND: X1 A6, A11, A16, A21, B6, B12, B17, B22

Please refer to

section 2

for information on additional GND Pins located at the phyCORE-Connector X1.

Caution!

As a general design rule we recommend connecting all GND pins neighboring signals which are being used in the application circuitry. For maximum EMI performance all GND pins should be connected to a solid ground plane.

4.2 Power Management IC (PMIC) (U16)

The phyCORE-i.MX 6 provides an on-board Power Management IC (PMIC) at position U16 to generate different voltages required by the microcontroller and the on-board components.

Figure 8

presents a graphical depiction of the powering scheme.

The PMIC supports many functions like on-chip RTC and different power management functionalities like dynamic voltage control, different low power modes and regulator supervision. It is connected to the i.MX 6 via the on-board I

2

C bus (I2C3). The I

2

C address of the PMIC is 0x58 (page 0 and 1) and 0x59 (page 2 and 3).

© PHYTEC Messtechnik GmbH 2015 L-808e_1 21

phyCORE

®

-i.MX 6 [PCM-058]

4.2.1 Power Domains

External voltages:

• VDD_3V3

• USB0_VBUS

• USB1_VBUS

• VDD_BAT

3.3 V main supply voltage

USB0 Bus voltage, must be supplied with 5 V if USB0 is used

USB1 Bus voltage, must be supplied with 5 V if USB1 is used

Backup supply (connected to PMIC_VBBAT or VDD_MX6_SNVS via

J3 (

Table 7

))

VDD_3V3_LOGIC (3.3 V), VDD_ETH_IO (2.5 V) VDD_MX6_SNVS (3.0 V), VDD_MX6_HIGH

DDR3_VREF (0.75 V)

• VDD_MX6_ARM:

(1.375 V) i.MX 6 core (VDDARM_IN, VDDARM23_IN)

• VDD_MX6_SOC: i.MX 6 SOC (VDDSOC_IN)

(1.375 V)

• VDD_MX6_HIGH:

(3.0 V)

• VDD_MX6_SNVS:

(3.0 V) i.MX 6 internal regulator (VDDHIGH_IN) i.MX 6 backup supply (VDD_SNVS_IN)

• VDD_ETH_IO:

(2.5 V)

• VDD_ETH_1V2:

(1.2 V)

• VDD_DDR3_1V5:

(1.5 V)

• VDD_eMMC_1V8:

(1.8 V)

• DDR3_VREF:

(0.75 V)

• VDD_3V3_LOGIC:

(3.3 V) i.MX 6 RGMII supply (NVCC_RGMII, NVCC_ENET

Ethernet PHY RGMII IO supply

Ethernet PHY core voltage

11

), i.MX 6 DDR interface (NVCC_DRAM), RAM devices

1.8V eMMC supply i.MX 6 DDR3 reference voltage (DRAM_VREF), RAM devices reference voltage i.MX 6 pad supply (NVCC_NANDF, NVCC_JTAG, NVCC_LCD,

NVCC_CSI, NVCC_EIM, NVCC_SD, NVCC_GPIO, (NVCC_ENET

11

I

2

C EEPROM, SPI Flash, NAND Flash, eMMC, Ethernet PHY,

User LED, reference output X1B5

)),

11

: NVCC_ENET is connected via jumper J1 and can alternatively be supplied by VDD_3V3_LOGIC (

section 8.4.4

)

22 © PHYTEC Messtechnik GmbH 2015 L-808e_1

VDD_3V3

Power

Switch

VDD_3V3_LOGIC

DA9062

VDD_MX6_ARM

VDD_MX6_SOC

VDD_DDR3_1V5

VDD_ETH_1V2

VDD_ETH_IO

VDD_MX6_SNVS

VDD_eMMC_1V8

VDD_MX6_HIGH

Figure 8: Powering Scheme of the phyCORE- i.MX 6

Voltage divider

DDR3_VREF

© PHYTEC Messtechnik GmbH 2015 L-808e_1 23

phyCORE

®

-i.MX 6 [PCM-058]

4.3 Supply Voltage for external Logic

The voltage level of the phyCORE’s logic circuitry is VDD_3V3_LOGIC (3.3 V) which is derived from the main input voltage VDD_3V3 of the SOM. In order to follow the power-up and power–down sequencing mandatory for the i.MX 6 external devices have to be supplied by the I/O supply voltage VDD_3V3_LOGIC which is brought out at pin X1B5 of the phyCORE-Connector. Use of VDD_3V3_LOGIC ensures that external components are only supplied when the supply voltages of the i.MX 6 are stable.

Caution!

The current draw for VDD_3V3_LOGIC must not exceed 500 mA. Consequently this voltage should only be used as reference and not for supplying purpose. If devices with a higher power consumption are to be connected to the phyCORE-i.MX 6 they should be switched on and off by use of VDD_3V3_LOGIC. This way the power-up and power–down sequencing will be considered even if the devices are not supplied directly by VDD_3V3_LOGIC.

If used to control, or supply bus switches on the phyCORE side VDD_3V3_LOGIC also serves to strictly separate the supply voltages generated on the phyCORE-i.MX 6 and the supply voltages used on the carrier board/custom application. That way, voltages at the IO pins of the phyCORE-i.MX 6 which are sourced from the supply voltage of peripheral devices attached to the SOM are avoided. These voltages can cause a current flow into the controller especially if peripheral devices attached to the interfaces of the i.MX 6 are supposed to be powered while the phyCORE-i.MX 6 is in suspend mode, or turned off. The bus switches can either be supplied by VDD_3V3_LOGIC on the phyCORE side, or the bus switches' output enable to the SOM can be controlled by VDD_3V3_LOGIC to prevent these voltages from occurring.

Use of level shifters supplied with VDD_3V3_LOGIC allows converting the signals according to the needs on the custom target hardware. Alternatively signals can be connected to an open drain circuitry with a pull-up resistor attached to VDD_3V3_LOGIC.

24 © PHYTEC Messtechnik GmbH 2015 L-808e_1

5 System Configuration and Booting

System Configuration and Booting

Although most features of the i.MX 6 microcontroller are configured and/or programmed during the initialization routine, other features, which impact program execution, must be configured prior to initialization via pin termination.

The system start-up configuration includes:

• Boot mode selection

• Boot device selection

• Boot device configuration

The internal ROM code is the first code executed during the initialization process of the i.MX 6 after POR. The ROM code detects the boot mode by using the boot mode pins, while the boot device is selected and configured by determining the state of the eFUSEs and/or the corresponding GPIO input pins.

5.1 Boot Mode Selection

The boot mode of the i.MX 6 microcontroller is determined by the configuration of two boot mode inputs BOOT_MODE[1:0] during the reset cycle of the operational system. These inputs are brought out at the phyCORE-Connector pins X_BOOT_MODE[1:0] (X1D1, X1C1).

Table 8

shows the possible settings of pins X_BOOT_MODE0 (X1C1) and X_ BOOT_MODE1

(X1D1) and the resulting boot configuration of the i.MX 6.

Boot Mode X_ BOOT_MODE1 X_ BOOT_MODE0 Boot Source

0 0 0 Bootconfig from eFUSEs

1 0 1 Downloader

2 1 0 Boot

12

3 1 1

Table 8: Boot Modes of the phyCORE-i.MX 6

The BOOT_MODE[1:0] lines have 10 kΩ pull-up and pull-down resistors populated on the module. Hence leaving the two pins unconnected sets the controller to boot mode 2, internal boot.

12

: Default boot mode when pins X_BOOT_MODE[1:0] are left unconnected.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 25

phyCORE

®

-i.MX 6 [PCM-058]

For serial boot (boot mode = 1) the ROM code polls the communication interface selected, initiates the download of the code into the internal RAM and triggers its execution from there. Please refer to the i.MX 6 Reference Manual for more information.

In boot mode 0 and 2 the ROM code finds the bootstrap in permanent memories such as

NAND-Flash or SD-Cards and executes it. The selection of the boot device and the configuration of the interface required are accomplished with the help of the eFUSEs and/or the corresponding GPIO input pins.

5.2 Boot Device Selection and Configuration

In normal operation (boot mode 0, or 2), the boot ROM uses the state of BOOT_MODE and eFUSEs to determine the boot device.

During development it is advisable to set the boot type to “Internal boot”

(BOOT_MODE[1:0]=10

12

to allow choosing and configuring the boot device by using GPIO pin inputs. The input pins are sampled at boot, and override the values of the corresponding eFUSEs BOOT_CFGx[7:0], if the BT_FUSE_SEL fuse is not blown.

Table 9

lists the eFUSEs BOOT_CFGx[7:0] and the corresponding input pins.

On the phyCORE-i.MX 6 the GPIOs have 10 kΩ pull-up and pull-down resistors preinstalled to configure eFUSEs BOOT_CFGx[7:0] in accordance with the module features.

However, the specific boot configuration settings, which are set by the on-board configuration resistors, can be changed by modifying the resistors on the module or by connecting a configuration resistor (e.g. 10 kΩ) to the configuration signal. Please consider that any change of the default BCFG configuration can also influence other boot modes, which might result in faulty boot behavior.

Caution!

Please make sure that the signals shown in

Table 9

are not driven by any device on the baseboard during reset, to avoid accidental change of the boot configuration.

Because of this, we recommend to boot from eFUSE for volume production and use only internal boot mode for development process

13

.

Please refer to the i.MX 6 Reference Manual for further information about the eFUSEs and the impact of the settings at the BCFG pins.

13

: For series production Phytec offers to order the phyCORE-i.MX 6 with a costum configuration of the eFUSEs

26 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Configuration

Pin

BCFG1[0]

BCFG1[1]

BCFG1[2]

BCFG1[3]

BCFG1[4]

BCFG1[5]

BCFG1[6]

BCFG1[7]

BCFG2[0]

BCFG2[1]

BCFG2[2]

Pin # Signal

X1A30

X1A32

X1B39

X1B40

X1B41

X1B42

X_CSI1_DATA09

X_CSI1_DATA08

X_CSI1_DATA07

X_CSI1_DATA06

X_CSI1_DATA05

X_CSI1_DATA04

ST

I

I

I

I

I

I

SL

System Configuration and Booting

Description

3.3 V CSI1 data 9

3.3 V CSI1 data 8

3.3 V CSI1 data 7

3.3 V CSI1 data 6

3.3 V CSI1 data 5

3.3 V CSI1 data 4

X1A33 X_CSI1_DATA03 I

X1A34 X_CSI1_DATA02 I

X1A37 X_CSI1_DATA01 I

X1A38 X_CSI1_DATA00 I

3.3 V CSI1 data 3

3.3 V CSI1 data 2

3.3 V CSI1 data 1

3.3 V CSI1 data 0

X1A35 X_CSI1_DATA_EN O 3.3 V CSI1 data enable

BCFG2[4]

BCFG2[5]

BCFG2[6]

BCFG2[7]

BCFG3[0]

BCFG3[1]

BCFG3[2]

BCFG3[3]

BCFG3[4]

BCFG3[5]

BCFG3[6]

BCFG3[7]

BCFG4[0]

BCFG4[1]

BCFG4[2]

BCFG4[3]

BCFG4[4]

BCFG4[5]

BCFG4[6]

BCFG4[7]

Table 9:

X1A39 X_CSI1_VSYNC I 3.3 V CSI1 vertical sync

X1A25 X_EIM_DA13

X1B26 X_EIM_DA14

I/O 3.3 V EIM address/data 13

I/O 3.3 V EIM address/data 14

X1B27 X_EIM_DA15 I/O 3.3 V EIM address/data 15

X1B36 X_CSI1_PIXCLK O 3.3 V CSI1 pixel clock

X1A27 X_CSI1_DATA12 I

X1B37 X_CSI1_DATA13 I

X1B35 X_CSI1_DATA14 I

3.3 V CSI1 data 12

3.3 V CSI1 data 13

3.3 V CSI1 data 14

X1B34 X_CSI1_DATA15 I

X1B32 X_CSI1_DATA16 I

X1B31 X_CSI1_DATA17 I

X1B30 X_CSI1_DATA18 I

3.3 V CSI1 data 15

3.3 V CSI1 data 16

3.3 V CSI1 data 17

3.3 V CSI1 data 18

X1B29 X_CSI1_DATA19 I

EIM_WAIT

X1A44 X_ECSPI2_SS1

3.3 V CSI1 data 19 not available at phyCORE-Connector

14

I/O 3.3 V eCSPI2 chip select 1

X1A28 X_CSI1_DATA11 I

X1B44 X_EIM_EB1 O

3.3 V CSI1 data 11

3.3 V EIM enable byte 1

X1A45 X_ECSPI2_SS0

X1A24 X_ECSPI1_SS0

I/O

I/O

X1A20 X_UART3_RTS_B I

3.3 V eCSPI2 chip select 0

3.3 V eCSPI1 chip select 0

3.3 V UART3 request to send input

Boot Configuration Pins at the phyCORE-Connector

14

: Connected to GND for the standard module configuration

© PHYTEC Messtechnik GmbH 2015 L-808e_1 27

phyCORE

®

-i.MX 6 [PCM-058]

6 System Memory

The phyCORE-i.MX 6 provides three types of on-board memory:

• 1 Bank DDR3 RAM:

1 GB DDR3 SDRAM (up to 2 GB)

15

• NAND Flash (TSOP) :

1 GB (up to 16 GB)

15

, alternatively eMMC 2 GB (up to 32 GB)

• I²C-EEPROM: 4

• SPI Flash: kB

15

16 MB

15

15

The following sections of this chapter detail each memory type used on the phyCORE-i.MX 6.

6.1 DDR3-SDRAM (U4-U7)

The RAM memory of the phyCORE-i.MX 6 is comprised of one 64 bit wide bank with four 16bit wide DDR3-SDRAM chips (U4-U7). The chips are connected to the special DDR interface called Multi Mode DDR Controller (MMDC) of the i.MX 6 microcontroller.

The DDR3 memory is accessible starting at address 0x1000 0000.

Typically the DDR3-SDRAM initialization is performed by a boot loader or operating system following a power-on reset and must not be changed at a later point by any application code. When writing custom code independent of an operating system or boot loader, the

SDRAM must be initialized by accessing the appropriate SDRAM configuration registers on the i.MX 6 controller. Refer to the i.MX 6 Reference Manual for accessing and configuring these registers.

15

:

The maximum memory size listed is as of the printing of this manual. Please contact PHYTEC for more information about additional, or new module configurations available.

28 © PHYTEC Messtechnik GmbH 2015 L-808e_1

System

6.2 NAND Flash Memory (U12)

reprogrammable means of code storage.

The Flash devices are programmable with 3.3 V. No dedicated programming voltage is required.

As of the printing of this manual these NAND Flash devices generally have a life expectancy of at least 100,000 erase/program cycles and a data retention rate of 10 years.

The NAND Flash memories are connected to the External Interface Module (GPMI). /CS0

(NANDF_CS0) of the EIM interface selects the NAND Flash at U12.

Any parts that are footprint (TSOP-48-50-C3) and functionally compatible may be used with the phyCORE-i.MX 6.

6.3 eMMC Flash Memory (U14)

Alternatively to the NAND flash memory at U12, an eMMC can be populated at U14.

The eMMC device is programmable with 3.3 V. No dedicated programming voltage is required.

The eMMC Flash memory is connected to the SD4 interface of the i.MX 6.

Any parts that are footprint (BGA153) and functionally compatible may be used with the phyCORE-i.MX 6.

6.4 I²C EEPROM (U11)

The phyCORE-i.MX 6 is populated with a non-volatile 4 kB I²C

16

EEPROM at U11. This memory can be used to store configuration data or other general purpose data. This device is accessed through I²C port 3 on the i.MX 6. The control registers for I²C port 3 are mapped between addresses 0x021A 8000 and 0x021A BFFF. Please see the i.MX 6 Reference Manual for detailed information on the registers.

The three lower address bits are fixed to zero which means that the EEPROM can be accessed at I

2

C address 0x50.

Write protection to the device is accomplished via jumper J4. Refer to

section 6.4.1

for

further details.

16

: See the manufacturer’s data sheet for interfacing and operation.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 29

phyCORE

®

-i.MX 6 [PCM-058]

6.4.1 EEPROM Write Protection Control (J4)

Jumper J4 controls write access to the EEPROM (U11) device. Closing this jumper allows write access to the device, while removing this jumper will cause the EEPROM to enter write protect mode, thereby disabling write access to the device.

The following configurations are possible:

EEPROM Write Protection State J4

Write access allowed

Write protected

closed

open

Table 10: EEPROM write protection states via J4

17

Note: If the jumper is not set, the write protection signal can also be changed by GPIO1_13 of the i.MX 6 controller.

6.5 SPI Flash Memory (U9) )

The SPI Flash Memory of the phyCORE-i.MX 6 at U9 can be used to store configuration data or any other general purpose data. Beside this it can also be used as boot device recovery boot device

18

18

and

. The device is accessed through eCSPI1 SS1 on the i.MX 6. The control registers for eCSPI1 are mapped between addresses 0x0200 8000 and 0x0200 BFFF.

Please see the i.MX 6 Reference Manual for detailed information on the registers.

The SPI Flash can be write protected. The active low signal SPI_NOR_WP/GPIO1_12 connects to GPIO1_12 of the i.MX 6 and allows to control the SPI Flash's write-protection.

As of the printing of this manual these SPI Flash devices generally have a life expectancy of at least 100,000+ erase/program cycles and a data retention rate of 20 years. This makes the SPI Flash a reliable and secure solution to store the first and second level bootloaders.

17

: Defaults are in

bold blue

text

18

: The standard boot configuration selects the SPI Flash as recovery boot device. To use it as boot device the boot configuration, or the eFUSEs must be changed.

30 © PHYTEC Messtechnik GmbH 2015 L-808e_1

7 SD / MM Card Interfaces

SD / MMC Card Interfaces

The phyCORE bus features two SD / MM Card interface. On the phyCORE-i.MX 6 the interface signals extend from the controllers third and first Ultra Secured Digital (uSDHC3 / uSDHC1) Host Controller to the phyCORE-Connector.

Table 11

shows the location of the different interface signals on the phyCORE-Connector. The MMC/SD/SDIO Host Controller is fully compatible with the SD Memory Card Specification 3.0 and SD I/O Specification, Part

E1, v1.10. SDC / MMC interface SD3 (uSDHC3 of the i.MX 6), supports 8 data channels and

SD1 (uSDHC1 of the i.MX 6) 4 data channels. Both interfaces have a maximum data rate of up to 104 MB/s (refer to the i.MX 6 Reference Manual for more information).

Pin # Signal ST Voltage Domain Description

X1A7 X_SD3_CMD O VDD_3V3_LOGIC SD3

X1A8 X_SD3_DATA0

X1A9 X_SD3_DATA2

X1A10 X_SD3_DATA5

X1A12 X_SD3_DATA7

X1A13 X_SD3_RESET

I/O

I/O

I/O

I/O

O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

SD3 data 0

SD3 data 2

SD3 data 5

SD3 data 7

SD3 reset

X1B7 X_SD3_CLK O VDD_3V3_LOGIC SD3

X1B8 X_SD3_DATA1

X1B9 X_SD3_DATA3

I/O

I/O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

SD3 data 1

SD3 data 3

X1B10 X_SD3_DATA4

X1B11 X_SD3_DATA6

X1A14 X_SD1_DATA0

I/O

I/O

I/O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

SD3 data 4

SD3 data 6

SD1 data 0

X1A15 X_SD1_DATA2

X1B13 X_SD1_CLK

X1B14 X_SD1_CMD

X1B15 X_SD1_DATA1

X1B16 X_SD1_DATA3

I/O

O

O

I/O

I/O

VDD_3V3_LOGIC SD1 data 2

VDD_3V3_LOGIC

VDD_3V3_LOGIC

SD1 data 1

SD1 data 3

Table 11: Location of the SD / MM Card Interface Signals

The interfaces do not provide dedicated card detect or write protect signals.

The card detect and write protect function can be implemented easily by using four GPIOs of the i.MX 6.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 31

phyCORE

®

-i.MX 6 [PCM-058]

8 Serial Interfaces

The phyCORE-i.MX 6 provides numerous dedicated serial interfaces some of which are equipped with a transceiver to allow direct connection to external devices:

1. Two High speed UARTs (TTL, derived from UART2 and UART3 of the i.MX 6) with up to 4

MHz and one with hardware flow control (RTS and CTS signals)

2. High speed USB OTG interface (extended directly from the i.MX 6’s USB OTG PHY

(USB-PHY))

3. High speed USB HOST interface (extended directly from the i.MX 6 USB HOST PHY

(USB-PHY))

4. Auto-MDIX enabled 10/100/1000 Mbit Ethernet interface

5. One I

2

C interface (derived from I

2

C port 1 of the i.MX 6)

6. Two Serial Peripheral Interface (SPI) interface (extended from the first and second

7. I

SPI module (eCSPI1 and eCSPI2) of the i.MX 6)

2

S audio interface (originating from the i.MX 6’s Synchronous Serial Interface (SSI) and muxed through port 5 of the Digital Audio Multiplexer (AUDMUX5))

8. CAN 2.0B interface (extended directly from the i.MX 6 FlexCAN1 module)

9. SATA II, 3.0 Gbps (extended directly from the i.MX 6 SATA PHY)

10. PCI Express Gen. 2.0 (extended directly from the i.MX 6 PCIe PHY)

The following sections of this chapter detail each of these serial interfaces and any applicable configuration jumpers.

32 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Serial

8.1 Universal Asynchronous Interface

The phyCORE-i.MX 6 provides two high speed universal asynchronous interfaces with up to

4 MHz and one with additional hardware flow control (RTS and CTS signals). The following table shows the location of the signals on the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

X1A17 X_UART2_RX_DATA I VDD_3V3_LOGIC UART2 serial data receive

X1B21 X_UART2_TX_DATA O VDD_3V3_LOGIC UART2 serial transmit signal

X1A18 X_UART3_RX_DATA I VDD_3V3_LOGIC UART3 serial data receive

X1A19 X_UART3_CTS_B

X1A20 X_UART3_RTS_B

O VDD_3V3_LOGIC UART3 clear to send output

I VDD_3V3_LOGIC UART3 request to send input

19

X1B18 X_UART3_TX_DATA O VDD_3V3_LOGIC UART3 serial transmit signal

Table 12: Location of the UART Signals

The signals extend from UART2 respectively UART3 of the i.MX 6 directly to the phyCORE-

Connector without conversion to RS-232 level. External RS-232 transceivers must be attached by the user if RS-232 levels are required.

19

: Special care must be taken not to override the device configuration when using this pin as input (

section 5.2

).

© PHYTEC Messtechnik GmbH 2015 L-808e_1 33

phyCORE

®

-i.MX 6 [PCM-058]

8.2 USB OTG Interface

The phyCORE-i.MX 6 provides a high speed USB OTG interface which uses the i.MX 6 embedded HS USB OTG PHY. An external USB Standard-A (for USB host), USB Standard-B

(for USB device), or USB mini-AB (for USB OTG) connector is all that is needed to interface the phyCORE-i.MX 6 USB OTG functionality. The applicable interface signals can be found on the phyCORE-Connector X1 as shown in

Table

13.

Pin # Signal ST Voltage Domain Description

X1C18 X_USB_OTG_ID I VDD_3V3_LOGIC USB OTG ID Pin

X1C19 X_USB_OTG_VBUS PWR_I 5 V USB OTG VBUS input

X1C20 X_USB_OTG_PWR O

X1D17 X_USB_OTG_CHD_B O

X1D19 X_USB_OTG_DP

X1D20 X_USB_OTG_DN

VDD_3V3_LOGIC USB OTG power enable

VDD_3V3_LOGIC USB OTG charger detection

USB_I/O i.MX 6 internal

USB_I/O i.MX 6 internal

USB OTG data+

USB OTG data-

X1D21 X_USB_OTG_OC I VDD_3V3_LOGIC USB OTG overcurrent input

Table 13: Location of the USB OTG Signals

Caution!

Either X_USB_OTG_VBUS must be supplied with 5 V for proper USB functionality.

8.3 USB Host Interface

The phyCORE-i.MX 6 provides a high speed USB Host interface which uses the i.MX 6 embedded HS USB Host PHY.

An external USB Standard-A (for USB host) connector is all that is needed to interface the phyCORE-i.MX 6 USB Host functionality. The applicable interface signals (D+/D- and VBUS) can be found on the phyCORE-Connector X1.

If overcurrent and power enable signals are needed for the USB Host interface, the functionality can be easily implemented with GPIOs.

Pin # Signal ST Voltage Domain Description

X1C23 X_USB_H1_DP

X1C24 X_USB_H1_DN

USB_I/O i.MX 6 internal

USB_I/O i.MX 6 internal

X1D22 X_USB_H1_VBUS PWR_I 5V

USB Host data+

USB Host data-

USB Host VBUS input

Table 14: Location of the USB-Host Signals

Caution!

X_USB_H1_VBUS must be supplied with 5 V for proper USB functionality.

34 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Serial

8.4 Ethernet Interface

Connection of the phyCORE-i.MX 6 to the world wide web or a local area network (LAN) is possible using the on-board GbE PHY at U2. It is connected to the RGMII interface of the i.MX 6. The PHY operates with a data transmission speed of 10 Mbit/s, 100 Mbit/s or

1000 Mbit/s.

Alternatively the RMII (ENET) interface which is available on the phyCORE-Connector can be used to connect an external PHY. In this case, the on-board GbE PHY (U2) must not be populated (

section 8.4.4

).

8.4.1 Ethernet PHY (U2)

With an Ethernet PHY mounted at U2 the phyCORE-i.MX 6 has been designed for use in

10Base-T, 100Base-T and 1000Base-T networks. The 10/100/1000Base-T interface with its

LED signals extends to the phyCORE-Connector X1.

Pin # Signal ST Voltage Domain Description

X1C2 X_ETH0_A+/TX0+ ETH_O VDD_3V3_LOGIC ETH0 data A+/transmit+

X1C3 X_ETH0_A-/TX0- ETH_O VDD_3V3_LOGIC ETH0 data A-/transmit-

X1C5 X_ETH0_C+

X1C6 X_ETH0_C-

X1C7 X_ETH0_LED0

ETH_I/O

ETH_I/O

OC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

ETH0 data C+ (only GbE)

ETH0 data C- (only GbE)

ETH0 link LED output

X1D2 X_ETH0_B+/RX0+ ETH_I

X1D3 X_ETH0_B-/RX0- ETH_I

X1D4 X_ETH0_LED1

X1D5 X_ETH0_D+

X1D6 X_ETH0_D-

OC

ETH_I/O

ETH_I/O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

VDD_3V3_LOGIC

ETH0 data B+/receive+

ETH0 data B-/receive-

ETH0 traffic LED output

ETH0 data D+ (only GbE)

ETH0 data D- (only GbE)

Table 15: Location of the Ethernet Signals

The on-board GbE PHY supports HP Auto-MDIX technology, eliminating the need for the consideration of a direct connect LAN cable, or a cross-over patch cable. It detects the TX and RX pins of the connected device and automatically configures the PHY TX and RX pins accordingly. The Ethernet PHY also features an Auto-negotiation to automatically determine the best speed and duplex mode.

The Ethernet controller is connected to the RGMII interface of the i.MX 6. Please refer to the i.MX 6 Reference Manual for more information about this interface.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 35

phyCORE

®

-i.MX 6 [PCM-058]

In order to connect the module to an existing 10/100/1000Base-T network some external circuitry is required. The required termination resistors on the analog signals (ETH0_A±,

ETH0_B±, ETH0_C±, ETH0_D±) are integrated in the chip, so there is no need to connect external termination resistors to these signals. Connection to an external Ethernet magnetics should be done using very short signal traces. The A+/A-, B+/B-, C+/C- and

D+/D- signals should be routed as 100 Ohm differential pairs. The same applies for the signal lines after the transformer circuit. The carrier board layout should avoid any other signal lines crossing the Ethernet signals.

Caution!

Please see the datasheet of the Ethernet PHY when designing the Ethernet transformer circuitry or request the schematic of the applicable carrier board (phyBOARD-Mira i.MX 6) as reference.

8.4.2 Software Reset of the Ethernet Controller

The Ethernet PHY at U2 can be reset by software. The reset input of the Ethernet PHY is permanently connected to pad SD2_DAT1 (GPIO1_14) of the i.MX 6.

8.4.3 MAC Address

In a computer network such as a local area network (LAN), the MAC (Media Access Control) address is a unique computer hardware number. For a connection to the Internet, a table is used to convert the assigned IP number to the hardware’s MAC address.

In order to guarantee that the MAC address is unique, all addresses are managed in a central location. PHYTEC has acquired a pool of MAC addresses. The MAC address of the phyCORE-i.MX 6 is located on the bar code sticker attached to the module. This number is a

12-digit HEX value.

36 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Serial

8.4.4 RMII Interface

In order to use an external Ethernet PHY instead of the on-board GbE PHY at U2 the RMII interface (ENET) of the i.MX 6 is brought out at the phyCORE-Connector X1.

Caution!

The GbE PHY (U2) must not be populated on the module if the RMII interface is used.

Note:

In order to have the same signal level at all pins when using the RMII interface jumper J1 should be closed at 2+3. Closing jumper J1 at 2+3 connects the i.MX 6's power input

VDD_ETH_IO (2.5 V) (

Table 7

).

Pin # Signal ST Voltage Domain Description

A65 X_ENET_REFCLK I VDD_3V3_LOGIC ENET RMII reference clock

A67 X_ENET_TXER

A68 X_ENET_RXD0

A69 X_ENET_RXD1 I

A70 X_ENET_RX_ER I

O

I

VDD_3V3_LOGIC ENET MII transmit error

VDD_ENET_IO ENET RMII receive data 0

VDD_ENET_IO

VDD_ENET_IO

ENET RMII receive data 1

ENET RMII receive error

B19 X_ENET_MDIO I/O VDD_ENET_IO

B20 X_ENET_MDC O VDD_ENET_IO

B66 X_ENET_CRS_DV I VDD_ENET_IO

ENET management data I/O

ENET management data clock

ENET RMII carrier sense/data valid

B67 X_ENET_TX_EN O

B69 X_ENET_TXD0 O

B70 X_ENET_TXD1 O

VDD_ENET_IO

VDD_ENET_IO

VDD_ENET_IO

ENET RMII TX enable

ENET RMII transmit data 0

ENET RMII transmit data 1

Table 16: Location of the RMII Interface Signals

© PHYTEC Messtechnik GmbH 2015 L-808e_1 37

phyCORE

®

-i.MX 6 [PCM-058]

8.5 SPI Interface

The Serial Peripheral Interface (SPI) interface is a four-wire, bidirectional serial bus that provides a simple and efficient method for data exchange among devices. The phyCORE provides two SPI interfaces on the phyCORE-Connector X1. The SPI interfaces provide one respectively two chip select signals. The Enhanced Configurable SPI (eCSPI) of the i.MX 6 has five separate modules (eCSPI1, eCSPI2, eCSPI3, eCSPI4 and eCSPI5) which support data rates of up to 20 Mbit/s. The interface signals of the first and second module (eCSPI1, eCSPI2) are made available on the phyCORE-Connector. These modules are master/slave configurable. The following table lists the SPI signals on the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

X1A22 X_ECSPI1_SCLK I/O VDD_3V3_LOGIC eCSPI1 clock

X1A23 X_ECSPI1_MOSI I/O VDD_3V3_LOGIC eCSPI1 master output/slave input

X1A24 X_ECSPI1_SS0 I/O VDD_3V3_LOGIC eCSPI1 chip select 0

20

X1B25 X_ECSPI1_MISO I/O VDD_3V3_LOGIC eCSPI1 master input/slave output

X1A43 X_ECSPI2_MISO I/O VDD_3V3_LOGIC eCSPI2 master input/slave output

X1A44 X_ECSPI2_SS1 I/O VDD_3V3_LOGIC eCSPI2 chip select 1

20

X1A45 X_ECSPI2_SS0 I/O VDD_3V3_LOGIC eCSPI2 chip select 0 clock

20

X1B46 X_ECSPI2_RDY I VDD_3V3_LOGIC eCSPI2 data ready

X1B47 X_ECSPI2_MOSI I/O VDD_3V3_LOGIC eCSPI2 master output/slave input

Table 17: SPI Interface Signal Location

Note:

When using the eCSPI1 interface it must be considered that the on-board SPI Flash is connected to this interface, too. The SPI Flash is accessed through SS1 of module eCSPI1

(

section 6.5

).

20

: Special care must be taken not to override the device configuration when using this pin as input (

section 5.2

).

38 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Serial

8.6 I

2

C Interface

The Inter-Integrated Circuit (I

2

C) interface is a two-wire, bidirectional serial bus that provides a simple and efficient method for data exchange among devices. The i.MX 6 contains three identical and independent multimaster fast-mode I

2

C modules. The interface of the first module (I2C1) is available on the phyCORE-Connector.

Note: To ensure the proper functioning of the I

2

C interface external pull resistors matching the load at the interface must be connected. There are no pull up resistors mounted on the module.

The following table lists the I

2

C ports on the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

B23 X_I2C1_SCL OC_BI VDD_3V3_LOGIC I2C1

B24 X_I2C1_SDA OC_BI VDD_3V3_LOGIC I2C1

Table 18: I

2

C Interface Signal Location

The third I

2

C module (I2C3) connects to the on-board EEPROM (

section 6.4

) and to the

PMIC at U16 (

section 4.2

).

8.7 I

2

S Audio Interface (SSI))

The Synchronous Serial Interface (SSI) of the phyCORE-i.MX 6 is a full-duplex, serial interface that allows to communicate with a variety of serial devices, such as standard codecs, digital signal processors (DSPs), microprocessors, peripherals, and popular industry audio codecs that implement the inter-IC sound bus standard (I

2

S) and Intel

AC’97 standard. The i.MX 6 provides three instances of the SSI module. On the phyCORE-i.MX 6 SSI is brought out to the phyCORE-Connector through port 5 of the i.MX 6's Digital Audio Multiplexer (AUDMUX5).

The main purpose of this interface is to connect to an external codec, such as I

2

S. Four signals extend from the i.MX 6 SSI module to the phyCORE-Connector (RXD, TXC, TXFS,

TXD).

Pin # Signal ST Voltage Domain Description

X1D52 X_AUD5_RXD

X1D53 X_AUD5_TXC

I/O

I/O

VDD_3V3_LOGIC

VDD_3V3_LOGIC

AUD5 receive data

AUD5 transmit clock

X1D54 X_AUD5_TXFS

X1D56 X_AUD5_TXD

I/O VDD_3V3_LOGIC

I/O VDD_3V3_LOGIC

AUD5 frame sync

AUD5 transmit data

Table 19: I

2

S Interface Signal Location

© PHYTEC Messtechnik GmbH 2015 L-808e_1 39

phyCORE

®

-i.MX 6 [PCM-058]

8.8 CAN Interface

The CAN interface of the phyCORE-i.MX 6 is connected to the first FlexCAN module

(FlexCAN1) of the i.MX 6 which is a full implementation of the CAN protocol specification

Version 2.0B. It supports standard and extended message frames and programmable bit rates of up to 1 Mb/s.

The signals of the CAN interface are brought out on the phyCORE connector. The following table shows the position of the signals.

Pin # Signal ST Voltage Domain Description

X1C57 X_FLEXCAN1_TX O VDD_3V3_LOGIC FLEXCAN transmit

X1D57 X_FLEXCAN1_RX I VDD_3V3_LOGIC FLEXCAN receive

Table 20: CAN Interface Signal Location

8.9 SATA Interface

The SATA II interface of the phyCORE-i.MX 6 is a high-speed serialized ATA data link interface compliant with SATA Revision 3.0 (physical layer complies with SATA Revision

2.5) which supports data rates of up to 3.0 Gbit/s. The interface includes an internal DMA engine, command layer, transport layer, link layer and the physical layer. The interface itself supports only one SATA device.

The phyCORE-i.MX 6 provides an SATA II Interface at the following pins of the phyCORE-Connector:

Pin # Signal ST Voltage Domain Description

X1C8 X_SATA_TXP LVDS_O i.MX6 internal SATA transmit lane+

X1C9 X_SATA_TXN LVDS_O i.MX6 internal

X1D8 X_SATA_RXP LVDS_I i.MX 6 internal

X1D9 X_SATA_RXN LVDS_I i.MX 6 internal

SATA transmit lane-

SATA receive lane+

SATA receive lane-

Table 21: SATA Interface Signal Location

As the signals extend directly from the i.MX 6's SATA PHY a standard SATA connector is all that is needed to interface the phyCORE-i.MX 6's SATA functionality.

40 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Serial

8.10 PCI Express Interface

functionality which supports 5 Gbit/s operation. Furthermore the interface is fully backwards compatible to the 2.5 Gbit/s Gen. 1.1 specification. Additional control signals which might be required (e.g. “present” and “wake”) can be implemented with GPIOs.

Table 22

shows the position of the PCIe signals on the phyCORE-fix connector X1.

Pin # Signal ST Voltage Domain Description

X1C11 X_PCIe0_CLK+ PCIe_O i.MX 6 internal PCIe clock lane+

X1C12 X_PCIe0_CLK- PCIe_O i.MX 6 internal PCIe clock lane-

X1C13 X_PCIe_RXP

X1C14 X_PCIe_RXN

X1D10 X_PCIe_TXP

X1D11 X_PCIe_TXN

PCIe_I

PCIe_I i.MX 6 internal i.MX 6 internal

PCIe_O i.MX 6 internal

PCIe_O i.MX 6 internal

PCIe receive lane+

PCIe receive lane-

PCIe transmit lane+

PCIe transmit lane-

Table 22: PCIe Interface Signal Location

© PHYTEC Messtechnik GmbH 2015 L-808e_1 41

phyCORE

®

-i.MX 6 [PCM-058]

9 General Purpose I/Os

Table 23

lists all pins not used by any other of the interfaces described explicitly in this

manual and which therefore can be used as GPIO without harming other features of the phyCORE-i.MX 6.

Pin # Signal ST Voltage Domain Description

X1A25 X_EIM_DA13 I/O VDD_3V3_LOGIC EIM address/data 13; GPIO3_13

X1A42 X_EIM_BCLK O VDD_3V3_LOGIC EIM burst block; GPIO6_31

X1B26 X_EIM_DA14 I/O VDD_3V3_LOGIC EIM address/data 14; GPIO3_14

X1B27 X_EIM_DA15 I/O VDD_3V3_LOGIC EIM address/data 15; GPIO3_15

X1B44 X_EIM_EB1 O VDD_3V3_LOGIC EIM enable byte 1; GPIO2_29

X1C16 X_SPDIF_OUT O VDD_3V3_LOGIC SPDIF output; GPIO7_12

X1C17 X_PWM1_OUT O VDD_3V3_LOGIC PWM1 output; GPIO1_09

X1D13 X_KEY_COL2 I VDD_3V3_LOGIC Keypad column 2; GPIO4_10

Table 23: Location of GPIO Pins

Beside these pins, most of the i.MX 6 signals which are connected directly to the module connector can be configured to act as GPIOs, due to the multiplexing functionality of most controller pins.

Caution!

Depending on the boot mode, signals at pins X1A25 (EIM_DA13), X1B26 (EIM_DA14),

X1B27 (EIM_DA15) and X1B44 (EIM_EB1) are latched during boot to determine the device configuration (

section 5

). Because of that special care must be taken not to override the device configuration when using these pins as input. To avoid this danger, the eFUSEs can be used.

42 © PHYTEC Messtechnik GmbH 2015 L-808e_1

General

10 User LED

The phyCORE-i.MX 6 provides one green user LED (D1) on board. It can be controlled by setting GPIO1_04 to the desired output level. A high-level turns the LED on, a low-level turns it off.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 43

phyCORE

®

-i.MX 6 [PCM-058]

11 Debug Interface

The phyCORE-i.MX 6 is equipped with a JTAG interface for downloading program code into the external flash, internal controller RAM or for debugging programs currently executing.

Table 24

shows the location of the JTAG pins on the phyCORE-Connector X1.

Pin # Signal ST Voltage Domain Description

X1C28 X_JTAG_TMS I

X1C29 X_JTAG_TDO O

X1D23 X_JTAG_TCK I

X1D25 X_JTAG_TRSTB I

X1D26 X_JTAG_TDI I

VDD_3V3_LOGIC JTAG reset input (low active)

Table 24: Debug Interface Signal Location at phyCORE-Connector X1

44 © PHYTEC Messtechnik GmbH 2015 L-808e_1

12 Display Interfaces

Display Interfaces

12.1 Parallel Display Interface

The signals from the LCD interface of the i.MX 6 are brought out at the phyCORE-Connector

X1. Thus an LCD interface with up to 24-bit bus width can be connected directly to the phyCORE-i.MX 6. The table below shows the location of the applicable interface signals.

Pin # Signal ST Voltage Domain Description

X1A47 X_LCD_DATA22 O VDD_3V3_LOGIC

X1A48 X_LCD_DATA21 O VDD_3V3_LOGIC

X1A49 X_LCD_DATA19 O VDD_3V3_LOGIC

X1A50 X_LCD_DATA16 O VDD_3V3_LOGIC

X1A52 X_LCD_DATA14 O VDD_3V3_LOGIC

X1A53 X_LCD_DATA13 O VDD_3V3_LOGIC

X1A54 X_LCD_DATA11 O VDD_3V3_LOGIC

X1A55 X_LCD_DATA08 O VDD_3V3_LOGIC

X1A57 X_LCD_DATA06 O VDD_3V3_LOGIC

X1A58 X_LCD_DATA05 O VDD_3V3_LOGIC

X1A59 X_LCD_DATA03 O VDD_3V3_LOGIC

X1A60 X_LCD_DATA00 O VDD_3V3_LOGIC

X1A62 X_LCD_ENABLE O VDD_3V3_LOGIC enable

X1A63 X_LCD_HSYNC

X1A64 X_LCD_RESET

O VDD_3V3_LOGIC DISP0 horizontal sync

O VDD_3V3_LOGIC reset

X1B49 X_LCD_DATA23 O VDD_3V3_LOGIC

X1B50 X_LCD_DATA20 O VDD_3V3_LOGIC

X1B51 X_LCD_DATA18 O VDD_3V3_LOGIC

X1B52 X_LCD_DATA17 O VDD_3V3_LOGIC

X1B54 X_LCD_DATA15 O VDD_3V3_LOGIC

X1B55 X_LCD_DATA12 O VDD_3V3_LOGIC

X1B56 X_LCD_DATA10 O VDD_3V3_LOGIC

X1B57 X_LCD_DATA09 O VDD_3V3_LOGIC

X1B59 X_LCD_DATA07 O VDD_3V3_LOGIC

X1B60 X_LCD_DATA04 O VDD_3V3_LOGIC

X1B61 X_LCD_DATA02 O VDD_3V3_LOGIC

X1B62 X_LCD_DATA01 O VDD_3V3_LOGIC

X1B64 X_LCD_CLK

X1B65 X_LCD_VSYNC

O VDD_3V3_LOGIC clock

O VDD_3V3_LOGIC DISP0 vertical sync

Table 25: Parallel Display Interface Signal Location

© PHYTEC Messtechnik GmbH 2015 L-808e_1 45

phyCORE

®

-i.MX 6 [PCM-058]

12.2 LVDS Display Interface

The LVDS-Signals from both channels of the on-chip LVDS Display Bridge (LDB) on the i.MX 6 are brought out at phyCORE-Connector X1. Thus up to two LVDS-Displays can be connected directly to the phyCORE-i.MX 6. The location of the applicable interface signals can be found in the table below.

Pin # Signal ST Voltage Domain Description

X1C59 X_LVDS0_TX1+ LVDS_O i.MX 6 internal

X1C60 X_LVDS0_TX1- LVDS_O i.MX 6 internal

LVDS0 data 1+

LVDS0 data 1-

X1C61 X_LVDS0_TX0+ LVDS_O i.MX 6 internal

X1C62 X_LVDS0_TX0- LVDS_O i.MX 6 internal

X1C64 X_LVDS0_TX3+ LVDS_O i.MX 6 internal

X1C65 X_LVDS0_TX3- LVDS_O i.MX 6 internal

LVDS0 data 0+

LVDS0 data 0-

LVDS0 data 3+

LVDS0 data 3-

X1D58 X_LVDS0_CLK+ LVDS_O i.MX 6 internal

X1D59 X_LVDS0_CLK- LVDS_O i.MX 6 internal

X1D60 X_LVDS0_TX2+ LVDS_O i.MX 6 internal

X1D61 X_LVDS0_TX2- LVDS_O i.MX 6 internal

X1C66 X_LVDS1_CLK+ LVDS_O i.MX 6 internal

LVDS0 clock+

LVDS0 clock-

LVDS0 data 2+

LVDS0 data 2-

LVDS1 clock+

X1C67 X_LVDS1_CLK- LVDS_O i.MX 6 internal

X1C69 X_LVDS1_TX0+ LVDS_O i.MX 6 internal

X1C70 X_LVDS1_TX0- LVDS_O i.MX 6 internal

X1D63 X_LVDS1_TX2+ LVDS_O i.MX 6 internal

X1D64 X_LVDS1_TX2- LVDS_O i.MX 6 internal

X1D65 X_LVDS1_TX1+ LVDS_O i.MX 6 internal

X1D66 X_LVDS1_TX1- LVDS_O i.MX 6 internal

X1D68 X_LVDS1_TX3+ LVDS_O i.MX 6 internal

X1D69 X_LVDS1_TX3- LVDS_O i.MX 6 internal

LVDS1 clock-

LVDS1 data 0+

LVDS1 data 0-

LVDS1 data 2+

LVDS1 data 2-

LVDS1 data 1+

LVDS1 data 1-

LVDS1 data 3+

LVDS1 data 3-

Table 26: LVDS Display Interface Signal Location

12.3 Supplementary Signals

Pin # Signal ST Voltage Domain Description

X1C17 X_PWM1_OUT O VDD_3V3_LOGIC

PWM1 output (e.g. to control the brightness)

Table 27: Supplementary Signals to support the Display Connectivity

46 © PHYTEC Messtechnik GmbH 2015 L-808e_1

High-Definition Multimedia Interface (HDMI)

13 High-Definition Multimedia Interface (HDMI)

The High-Definition Multimedia Interface (HDMI) of the phyCORE-i.MX 6 is compliant to

HDMI 1.4 and DVI 1.0. It supports a maximum pixel clock of up to 340 MHz for up to 720p at 100 Hz and 720i at 200 Hz, or 1080p at 60 Hz and 1080i/720i at 120 Hz HDTV display resolutions, and a graphic display resolution of up to 2048x1536 (QXGA). Please refer to the i.MX 6 Reference Manual for more information.

The following table shows the location of the HDMI signals on the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

X1C38 X_HDMI_CEC

X1C39 X_HDMI_CLKP

X1C40 X_HDMI_CLKM

I/O

TDMS_O

VDD_3V3_LOGIC

TDMS_O i.MX 6 internal i.MX 6 internal

HDMI CEC

HDMI clock+

HDMI clock-

X1C41 X_HDMI_D1P

X1C42 X_HDMI_D1M

TDMS_O i.MX 6 internal

TDMS_O i.MX 6 internal

HDMI data1+

HDMI data1-

X1C44 X_HDMI_DDC_SDA I/O

X1D33 X_HDMI_D2P TDMS_O

VDD_3V3_LOGIC i.MX 6 internal

HDMI DDC data

HDMI data2+

X1D34 X_HDMI_D2M

X1D35 X_HDMI_HPD

X1D37 X_HDMI_D0P

TDMS_O

I

TDMS_O i.MX 6 internal

VDD_3V3_LOGIC i.MX 6 internal

HDMI data2-

HDMI hot plug detect

HDMI data0+

X1D38 X_HDMI_D0M TDMS_O i.MX 6 internal

X1D39 X_HDMI_DDC_SCL I/O VDD_3V3_LOGIC

HDMI data0-

HDMI DDC clock

Table 28: HDMI Interface Signal Location

As the signals extend directly from the i.MX 6's HDMI PHY a standard HDMI connector, a

5 V level shifter for the DDC and the CEC signals and an optional ESD circuit protection device is all that is needed to interface the phyCORE-i.MX 6's HDMI functionality.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 47

phyCORE

®

-i.MX 6 [PCM-058]

14 Camera Interfaces

The phyCORE-i.MX 6 SOM offers various interfaces to connect digital cameras. Up to two parallel camera interfaces (CSI0 and CSI1

21

) as well as the interface to the MIPI/CSI-2 Host

Controller are supported and brought out in different ways.

The i.MX 6 (Solo), and i.MX 6 (DualLite) microcontrollers are equipped with one parallel camera port (CSI0) and one image processing units (version 3H) (IPU #1) to process the signals from the parallel, or the MIPI camera interface (

Figure 9)

. The i.MX 6D (dual core), and i.MX 6Q (quad core) provide an additional parallel camera port (CSI1) and a second image processing unit (IPU #2

21

) (

Figure 10

). The second, independent image processing

unit of the i.MX 6D (dual core), and the i.MX 6Q (quad core) allows to operate two cameras at the same time.

Figure 9: Camera Connectivity of the i.MX 6 (Solo/DualLite)

Figure 10: Camera Connectivity of the i.MX 6 (Dual Core/Quad Core)

21

: only i.MX 6 with Dual-. or Quad core. i.MX 6 with Solo-, or DualLite core provide only one parallel camera interface and one IPU.

48 © PHYTEC Messtechnik GmbH 2015 L-808e_1

LVDS Camera Interface

On the phyCORE-i.MX 6 SOM camera port CSI0 is brought out as parallel interfaces

(Parallel 0) with 16 data bits, HSYNC, VSYNC and PIXCLK. Camera port CSI1 is also available as parallel interfaces (Parallel 1) with 20 data bits, HSYNC, VSYNC and PIXCLK. The

MIPI/CSI-2 interface connects to the phyCORE-Connector with 5-lanes (

Figure 11

)

Figure 11: Camera Interfaces at the phyCORE-Connector (Parallel 0(CSI0 of IPU#1),

Parallel 1(CSI1 of IPU#2), and MIPI/CSI-2)

The camera interfaces of the phyCORE-i.MX 6 include all signals and are prepared to be used as phyCAM-S(+), phyCAM-P, or MIPI/CSI-2 interface on an appropriate carrier board.

Please refer to

section 14.4 f

or more information on how to use the camera interfaces on a carrier board with different interface options.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 49

phyCORE

®

-i.MX 6 [PCM-058]

14.1 Parallel 0 Camera Interface (CSI0 of IPU#1)

The parallel camera interface CSI0 is available at the pyhCORE-Connector with 16-bit data bus.

The following table shows the location of CSI0 camera signals at the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

X1C45 X_CSI0_DAT18 I VDD_3V3_LOGIC CSI0 18

X1C46 X_CSI0_DAT16 I VDD_3V3_LOGIC CSI0 16

X1C47 X_CSI0_DAT14 I VDD_3V3_LOGIC CSI0 14

X1C49 X_CSI0_DAT12 I VDD_3V3_LOGIC CSI0 12

X1C50 X_CSI0_DAT10 I VDD_3V3_LOGIC CSI0 10

X1C51 X_CSI0_DAT8 I VDD_3V3_LOGIC CSI0 8

X1C52 X_CSI0_DAT6 I VDD_3V3_LOGIC CSI0 6

X1C53 X_CSI0_DAT5 I VDD_3V3_LOGIC CSI0 data 5

X1C55 X_CSI0_DAT4 I VDD_3V3_LOGIC CSI0 data 4

X1C56 X_CSI0_PIXCLK O VDD_3V3_LOGIC CSI0 pixel clock

X1D40 X_CSI0_DAT19 I VDD_3V3_LOGIC CSI0 data 19

X1D41 X_CSI0_DAT17 I VDD_3V3_LOGIC CSI0 data 17

X1D43 X_CSI0_DAT15 I VDD_3V3_LOGIC CSI0 data 15

X1D44 X_CSI0_DAT13 I VDD_3V3_LOGIC CSI0 data 13

X1D45 X_CSI0_DAT11 I VDD_3V3_LOGIC CSI0 data 11

X1D46 X_CSI0_DAT9 I VDD_3V3_LOGIC CSI0 data 9

X1D47 X_CSI0_DAT7 I VDD_3V3_LOGIC CSI0 data 7

X1D48 X_CSI0_VSYNC I VDD_3V3_LOGIC CSI0 vertical sync

X1D51 X_CSI0_HSYNC I VDD_3V3_LOGIC CSI0 horizontal sync

X1D16 X_CCM_CLKO1 O VDD_3V3_LOGIC

CCM clock output 1 (Camera0

MCLK)

Signals that can be optionally used with the camera ports

X1B23 X_I2C1_SCL OC_BI VDD_3V3_LOGIC I2C1 clock

X1B24 X_I2C1_SDA OC_BI VDD_3V3_LOGIC I2C1 data

X1D50 X_CSI0_DATA_EN O VDD_3V3_LOGIC CSI0 data enable

22

X1A38 X_CSI1_DATA00 I VDD_3V3_LOGIC CSI1 data 0 (GPIO3_09)

22,

23

Table 29: Camera Interface Parallel 0 (CSI0) Signal Location

Using the phyCORE's camera interface Parallel 0, together with an I²C bus facilitates easy implementation of a CMOS camera interface, e.g. a phyCAM-P or a phyCAM-S+ interface, on a custom carrier board (

section 14.4

).

22

: Recommended to implement special control features for the camera interface circuitry on the carrier board (e.g. enabling/disabling of the interface, switching between phyCAM-P and phyCAM-S, etc.). Please refer to L-748 or appropriate Phytec CB designs as reference.

50 © PHYTEC Messtechnik GmbH 2015 L-808e_1

14.2 Parallel 1 Camera Interface (CSI1 of IPU#2)

LVDS Camera Interface

The parallel camera interface CSI1 is available at the pyhCORE-Connector with 20-bit data bus.

The following table shows the location of CSI1 camera signals at the phyCORE-Connector.

Pin # Signal ST Voltage Domain Description

X1A27 X_CSI1_DATA12 I VDD_3V3_LOGIC CSI1 12

23

X1A28 X_CSI1_DATA11 I VDD_3V3_LOGIC CSI1 11

23

X1A29 X_CSI1_DATA10 I

X1A30 X_CSI1_DATA09 I

VDD_3V3_LOGIC CSI1

VDD_3V3_LOGIC CSI1

10

9

23

X1A32 X_CSI1_DATA08 I VDD_3V3_LOGIC CSI1 8

X1A33 X_CSI1_DATA03 I VDD_3V3_LOGIC CSI1 3

23

23

X1A34 X_CSI1_DATA02 I

X1A37 X_CSI1_DATA01 I

VDD_3V3_LOGIC CSI1

VDD_3V3_LOGIC

2

CSI1 data 1

X1A38 X_CSI1_DATA00 I VDD_3V3_LOGIC CSI1 data 0

X1A39 X_CSI1_VSYNC I

23

23

23

VDD_3V3_LOGIC CSI1 vertical sync

23

X1A40 X_CSI1_HSYNC I VDD_3V3_LOGIC CSI1 horizontal sync

23

X1B29 X_CSI1_DATA19 I

X1B30 X_CSI1_DATA18 I

VDD_3V3_LOGIC

VDD_3V3_LOGIC

CSI1 data 19

CSI1 data 18

X1B31 X_CSI1_DATA17 I VDD_3V3_LOGIC CSI1 data 17

23

23

23

X1B32 X_CSI1_DATA16 I VDD_3V3_LOGIC CSI1 data 16

23

X1B34 X_CSI1_DATA15 I VDD_3V3_LOGIC CSI1 data 15

23

X1B35 X_CSI1_DATA14 I VDD_3V3_LOGIC CSI1 data 14

23

X1B36 X_CSI1_PIXCLK O VDD_3V3_LOGIC CSI1 pixel clock

23

X1B37 X_CSI1_DATA13 I VDD_3V3_LOGIC CSI1 data 13

23

X1B39 X_CSI1_DATA07 I VDD_3V3_LOGIC CSI1 data 7

23

X1B40 X_CSI1_DATA06 I VDD_3V3_LOGIC CSI1 data 6

X1B41 X_CSI1_DATA05 I VDD_3V3_LOGIC CSI1 data 5

X1B42 X_CSI1_DATA04 I VDD_3V3_LOGIC CSI1 4

23

23

23

X1C22 X_CCM_CLKO2 O VDD_3V3_LOGIC

CCM clock output 2 (Camera2

MCLK)

Signals that can be optionally used with the camera ports

X1B23 X_I2C1_SCL OC_BI VDD_3V3_LOGIC I2C1 clock

X1B24 X_I2C1_SDA OC_BI VDD_3V3_LOGIC I2C1 data

X1A35 X_CSI1_DATA_EN O VDD_3V3_LOGIC CSI1 data enable

23, 24

X1A37 X_CSI1_DATA01 I VDD_3V3_LOGIC CSI1 data 1 (GPIO3_08)

23,24

Table 30: Camera Interface Parallel 1 (CSI1) Signal Location

23

: Special care must be taken not to override the device configuration when using this pin as input (

section 5.2

).

24

: Recommended to implement special control features for the camera interface circuitry on the carrier board (e.g. enabling/disabling of the interface, switching between phyCAM-P and phyCAM-S, etc.). Please refer to L-748 or appropriate Phytec CB designs as reference.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 51

phyCORE

®

-i.MX 6 [PCM-058]

Using the phyCORE's camera interface Parallel 1, together with an I²C bus facilitates easy implementation of a CMOS camera interface, e.g. a phyCAM-P or a phyCAM-S+ interface, on a custom carrier board (

section 14.4

).

14.3 MIPI/CSI-2 Camera Interface

The MIPI/CSI-2 camera interface of the i.MX 6 extends to the phyCORE-Connector X1 with 4 data lanes and one clock lane.

The following table shows the location of the signals.

Pin # Signal ST Voltage Domain Description

X1C30 X_CSI_D0P CSI2_I i.MX 6 internal

X1C31 X_CSI_D0M CSI2_I i.MX 6 internal

MIPI/CSI data0+

MIPI/CSI data0-

X1C33 X_CSI_D2P CSI2_I i.MX 6 internal

X1C34 X_CSI_D2M CSI2_I i.MX 6 internal

X1C35 X_CSI_CLK0P CSI2_I i.MX 6 internal

X1C36 X_CSI_CLK0M CSI2_I i.MX 6 internal

X1D27 X_CSI_D1P CSI2_I i.MX 6 internal

MIPI/CSI data2+

MIPI/CSI data2-

MIPI/CSI clock+

MIPI/CSI clock-

MIPI/CSI data1+

X1D28 X_CSI_D1M CSI2_I i.MX 6 internal

X1D29 X_CSI_D3P CSI2_I i.MX 6 internal

MIPI/CSI data1-

MIPI/CSI data3+

X1D30 X_CSI_D3M CSI2_I i.MX 6 internal

Signals that can be optionally used with the camera ports

MIPI/CSI data3-

X1B23 X_I2C1_SCL OC_BI VDD_3V3_LOGIC I2C1 clock

X1B24 X_I2C1_SDA OC_BI VDD_3V3_LOGIC I2C1 data

X1D16 X_CCM_CLKO1 O VDD_3V3_LOGIC

CCM clock output 1 (Camera0

MCLK)

Table 31: Camera Interface MIPI/CSI-2 Signal Location

Use of the I²C bus and the camera clock signal allows to directly connect a MIPI/CSI-2 camera module.

Note:

It is not possible to use the MIPI/CSI-2 interface and the CSI0 or CSI1 interface at the same time.

52 © PHYTEC Messtechnik GmbH 2015 L-808e_1

14.4 Utilizing the Camera Interfaces on a Carrier Board

LVDS Camera Interface

On Phytec carrier boards the interfaces are used directly as parallel interface according to the phyCAM-P standard (

Figure 12)

and/or by converting the signals with an LVDS

deserializer as serial interface following the phyCAM-S+ standard (

Figure 13

), or as

MIPI/CSI-2 interface.

Figure 12: Use of Parallel 0 (CSI0 of IPU#1) and Parallel 1 (CSI1 of IPU#2) as phyCAM-P interface

Figure 13: Use of Parallel 0 (CSI0 of IPU#1) and Parallel 1 (CSI1 of IPU#2) as phyCAM-S+ interface

More information on the Phytec camera interface standards phyCAM-P and phyCAM-S+ and how to implement them on a custom carrier board can be found in the corresponding manual L-748. The schematics of the phyBOARD-Mira i.MX 6 on which camera interface

Parallel 0 is brought out as phyCAM-S+ interface (LVDS) can also serve as reference design.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 53

phyCORE

®

-i.MX 6 [PCM-058]

15 Technical Specifications

40mm

34mm

3mm

phyCORE-i.MX 6

D2.6mm

3mm

Figure 14: Physical Dimensions (top view)

The physical dimensions of the phyCORE-i.MX 6 are represented in

Figure 14

. The module’s

profile is max. 10 mm thick, with a maximum component height of 3.0 mm on the bottom

(connector) side of the PCB and approximately 5.0 mm on the top (microcontroller) side.

The board itself is approximately 1.4 mm thick.

54 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Technical Specifications

Note:

To facilitate the integration of the phyCORE-i.MX 6 into your design, the footprint of the phyCORE-i.MX 6 is available for download (

section 16.1

).

Additional specifications:

Dimensions:

Weight:

Storage temperature:

Operating temperature:

Humidity:

Operating voltage:

Power consumption:

40 mm x 50 mm

TBD

-40°C to +125°C

0°C to +70°C (commercial)

-40°C to +85°C (industrial)

95% r.F. not condensed

VCC 3.3 V +/- 5%

TBD

These specifications describe the standard configuration of the phyCORE-i.MX 6 as of the printing of this manual.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 55

phyCORE

®

-i.MX 6 [PCM-058]

Connectors on the phyCORE-i.MX 6:

Manufacturer Samtec

Number of pins per contact rows 140 pins (2 rows of 70 pins each)

Samtec part number (lead free) BSH-070-01-L-D-A-K-TR (old part#)

REF-183456-03

Information on the receptacle sockets that correspond to the connectors populating the underside of the phyCORE—i.MX 6 is provided below.

The given connector height indicates the distance between the two connected PCBs when the module is mounted on the corresponding carrier board. In order to get the exact spacing, the maximum component height (3 mm) on the bottom side of the phyCORE must be subtracted.

Mating Connector

Connector height 5 mm

Manufacturer Samtec

Number of pins per contact row 140 pins (2 rows of 70 pins each)

Samtec part number (lead free) BTH-070-01-L-D-A-K-TR (old part#)

REF-183457-03

PHYTEC part number (lead free) VM317

Please refer to the corresponding data sheets and mechanical specifications provided by

Samtec (

www.samtec.com

).

56 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Handling the phyCORE-i.MX 6

16 Hints for Integrating and Handling the phyCORE-i.MX 6

16.1 Integrating the phyCORE-i.MX 6

Besides this hardware manual much information is available to facilitate the integration of the phyCORE-i.MX 6 into customer applications.

1. the design of the phyBOARD-Mira i.MX 6 can be used as a reference for any customer application

2. many answers to common questions can be found at http://www.phytec.de/de/support/faq/faq-phyCORE-i.MX 6.html

,

or http://www.phytec.eu/europe/support/faq/faq-phyCORE-i.MX 6.html

3. the link “Carrier Board” within the category Dimensional Drawing leads to the layout data as shown in

Figure 15.

It is available in different file formats. Use of this data allows to integrate the phyCORE-i.MX 6 SOM as a single component into your design.

4. different support packages are available to support you in all stages of your embedded development. Please visit http://www.phytec.de/de/support/supportpakete.html

,

or http://www.phytec.eu/europe/support/support-packages.html

, or contact our sales team for more details.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 57

phyCORE

®

-i.MX 6 [PCM-058]

3mm

23.61mm

19.15mm

D2.6mm

mounting hole

50mm

47mm

44mm

D5mm

PAD

Ref Des

D1.1mm

A tolerance of +/- 0.1 mm applies to all indicated measures, except for the measures of the outer edges which have a tolerance of +/- 0.2 mm

Figure 15: Footprint of the phyCORE-i.MX 6

58 © PHYTEC Messtechnik GmbH 2015 L-808e_1

16.2 Handling the phyCORE-i.MX 6

Handling the phyCORE-i.MX 6

Modifications on the phyCORE Module

Removal of various components, such as the microcontroller and the standard quartz, is not advisable given the compact nature of the module. Should this nonetheless be necessary, please ensure that the board as well as surrounding components and sockets remain undamaged while de-soldering. Overheating the board can cause the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations, components can be removed with the solder-iron tip.

Alternatively, a hot air gun can be used to heat and loosen the bonds.

Caution!

If any modifications to the module are performed, regardless of their nature, the manufacturer guarantee is voided.

Integrating the phyCORE into a Target Application

Successful integration in user target circuitry greatly depends on the adherence to the layout design rules for the GND connections of the phyCORE module. For maximum EMI performance we recommend as a general design rule to connect all GND pins to a solid ground plane. But at least all GND pins neighboring signals which are being used in the application circuitry should be connected to GND.

© PHYTEC Messtechnik GmbH 2015 L-808e_1 59

phyCORE

®

-i.MX 6 [PCM-058]

17 Revision History

Date Version Changes in this manual numbers

04.06.2015 Manual

L-808e_1

First edition.

Describes the phyCORE-i.MX 6

PCB-Version 1429.1

60 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Index

Index

1

1000Base-T ........................................ 35

100Base-T.......................................... 35

10Base-T ........................................... 35

A

Audio Interface ................................... 39

B

Block Diagram....................................... 3

Boot Configuration .............................. 25

Boot Device ........................................ 26

Boot Mode ......................................... 25

Booting ............................................. 25

C

Camera Interfaces................................ 48

CAN .................................................. 40

D

DDR3 RAM .......................................... 28

DDR3_VREF ........................................ 22

DDR3-SDRAM ...................................... 28

Debug Interface .................................. 44

Dimensions ........................................ 55

Display Interface ................................. 45

E

EEPROM ........................................ 28, 29

EEPROM Write Protection....................... 30

EMC ................................................... ix eMMC Flash ........................................ 29

Ethernet ............................................ 35

F

Features .............................................. 1

G

General Purpose I/Os............................ 42

GND Connection .................................. 59

H

Humidity............................................ 55

© PHYTEC Messtechnik GmbH 2015 L-808e_1

I

I

2

I

2

I²C EEPROM......................................... 29

I

2

C Interface ....................................... 39

C Memory......................................... 20

S .................................................... 39

J

J1 20

J3 20

J4 20, 30

JTAG Interface .................................... 44

L

LAN................................................... 36

LED

D1 43

LVDS Display Interface .......................... 46

M

MAC .................................................. 36

MAC Address ....................................... 36

N

NAND Flash.................................... 28, 29

O

Operating Temperature ......................... 55

Operating Voltage................................ 55

P

Parallel Display Interface ...................... 45 phyCORE-Connector ............................... 7

Physical Dimensions............................. 54

Pin Description...................................... 7

Pinout

X1-A................................................ 9

X1-B.............................................. 11

X1-C .............................................. 13

X1-D.............................................. 15

PMIC ................................................. 21

Power Consumption ............................. 55

Power Domains ................................... 22

Power Management IC .......................... 21

Power Supply ........................................ 6

61

phyCORE

®

-i.MX 6 [PCM-058]

R

RMII Interface..................................... 37

RS-232 Level....................................... 33

S

SATA Interface .................................... 40

SD / MMC Card Interfaces....................... 31

Serial Interfaces .................................. 32

SMT Connector ...................................... 7

SPI Flash ....................................... 28, 30

SPI Interface....................................... 38

Storage Temperature ............................ 55

Supply Voltage .................................... 21

System Configuration ........................... 25

System Memory ................................... 28

System Power...................................... 21

T

Technical Specifications ........................ 54

U

U11................................................... 29

U12................................................... 29

U14................................................... 29

U16................................................... 21

U2 .................................................... 35

U4-U7 ............................................... 28

U9 .................................................... 30

UART ................................................. 33

USB

Host Interface ................................. 34

OTG Interface .................................. 34

USB Device ......................................... 34

USB Host............................................ 34

USB OTG............................................. 34

User LED ............................................ 43

V

VDD_3V3............................................ 21

VDD_DDR3_1V5 ................................... 22

VDD_eMMC_1V8 .................................. 22

Voltage Output .................................... 24

W

Weight............................................... 55

62 © PHYTEC Messtechnik GmbH 2015 L-808e_1

Document: phyCORE

®

-i.MX 6

Document number: L-808e_1, June 2015

How would you improve this manual?

Did you find any mistakes in this manual?

Submitted by:

Customer number

:

Name:

Company:

Address:

Return to:

D-55135 Mainz, Germany

Fax : +49 (6131) 9221-33

Suggestions for Improvement

page

© PHYTEC Messtechnik GmbH 2015 L-808e_1

Published by

© PHYTEC Messtechnik GmbH 2015

Ordering No. L-808e_1

Printed in Germany

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
