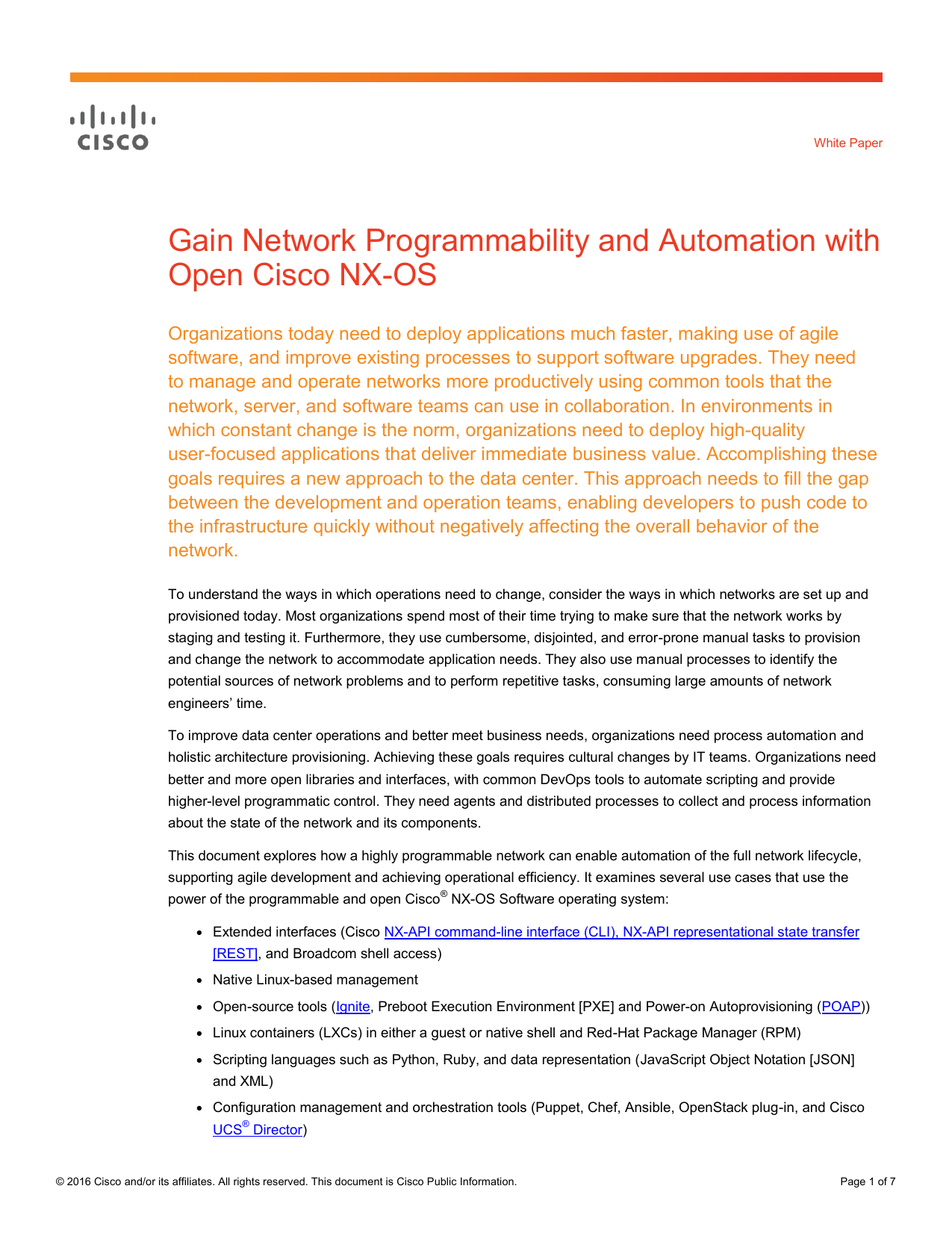

White Paper
Gain Network Programmability and Automation with
Open Cisco NX-OS
Organizations today need to deploy applications much faster, making use of agile
software, and improve existing processes to support software upgrades. They need
to manage and operate networks more productively using common tools that the
network, server, and software teams can use in collaboration. In environments in
which constant change is the norm, organizations need to deploy high-quality
user-focused applications that deliver immediate business value. Accomplishing these
goals requires a new approach to the data center. This approach needs to fill the gap
between the development and operation teams, enabling developers to push code to
the infrastructure quickly without negatively affecting the overall behavior of the
To understand the ways in which operations need to change, consider the ways in which networks are set up and
provisioned today. Most organizations spend most of their time trying to make sure that the network works by
staging and testing it. Furthermore, they use cumbersome, disjointed, and error-prone manual tasks to provision
and change the network to accommodate application needs. They also use manual processes to identify the
potential sources of network problems and to perform repetitive tasks, consuming large amounts of network
engineers’ time.
To improve data center operations and better meet business needs, organizations need process automation and
holistic architecture provisioning. Achieving these goals requires cultural changes by IT teams. Organizations need
better and more open libraries and interfaces, with common DevOps tools to automate scripting and provide
higher-level programmatic control. They need agents and distributed processes to collect and process information
about the state of the network and its components.
This document explores how a highly programmable network can enable automation of the full network lifecycle,
supporting agile development and achieving operational efficiency. It examines several use cases that use the
power of the programmable and open Cisco NX-OS Software operating system:
Extended interfaces (Cisco NX-API command-line interface (CLI), NX-API representational state transfer
[REST], and Broadcom shell access)
Native Linux-based management
Open-source tools (Ignite, Preboot Execution Environment [PXE] and Power-on Autoprovisioning (POAP))
Linux containers (LXCs) in either a guest or native shell and Red-Hat Package Manager (RPM)
Scripting languages such as Python, Ruby, and data representation (JavaScript Object Notation [JSON]
and XML)
Configuration management and orchestration tools (Puppet, Chef, Ansible, OpenStack plug-in, and Cisco
UCS Director)
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 1 of 7
Use Cases
This document explores use cases that reflect day-zero, day-one, and day-two operations (Figure 1) as well as
operations that network IT teams perform every day, such as network troubleshooting, configuration backup,
scaling, and orchestration.
Figure 1.
Network Lifecycle Operation
Day-Zero Operation: Installing New Switches
Challenge: The focus of day zero is on bringing up and discovering new devices as quickly as possible with
features and functions that don’t change much over the lifecycle of the network: the device name, administrator
user name and password, management IP address, console access, out-of-band management and interface, etc.
In a typical environment, the startup process is manual and may take hours or even days. The challenge: How to
reduce this process to minutes?
Solution: Using the open-source Ignite tool to facilitate initial network bootstrapping using POAP (upgrading
software images and installing configuration files on Cisco Nexus switches) and PXE, Cisco Nexus switches can
be automatically discovered and installed in minutes, eliminating human error. Ignite also gives administrators the
capability to define configuration templates, fabric topology, and resource pools.
In addition, POAP and PXE can install agents for configuration management tools such as Puppet and Chef during
switch startup.
Day-One Operation: Configuring and Operating Switches
Challenge: Organizations must be able to rapidly implement changes in the data center environment, quickly
adding and removing virtual machines and creating and setting up VLANs, quality-of-service (QoS) policy, Virtual
Routing and Forwarding (VRF) instances, virtual port channels (vPCs), etc. They must also establish connectivity
between the virtual machines and devices. The ability to make changes quickly and to move away from manual
device-by-device configuration is crucial to help businesses avoid errors, security breaches, and downtime.
Other possible tasks include configuring Border Gateway Protocol (BGP), verifying that a certain version of NX-OS
BGP software is running on the switches in a simplified way, and responding quickly by setting up access control
lists (ACLs) to contain certain attacks on the network. The challenge is for IT to do this all quickly across the entire
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 2 of 7
Solution: Cisco Nexus switches support configuration management tools such as agent-based Puppet and Chef
and agentless Ansible. These tools enable organizations to automate the tasks shown in Figure 2 by building
consistent and repeatable processes to implement and verify changes, as well as to remediate exceptions and
violations that occur in the infrastructure. By creating a centralized repository of configurations that the switches
can periodically employ, these tools allow IT to efficiently and consistently manage the infrastructure with little
effort. For more information, see GitHub.
IT administrators can also use the NX-API REST capability in NX-OS (object model) to configure and check the
status of an object. Objects can be physical ports on the switch or specific features such as BGP, VRF instances,
and VLANs. The use of object models enables a hierarchical and standardized representation of configurations
that eliminates the need to pass CLI commands and scripts.
Figure 2.
Configuring and Operating Switches
Day-Two Operation: Optimizing the Network and Helping Ensure Compliance
Challenge: Ongoing requests to make changes in the network typically take time to plan and implement. These
requests include updating switch images, patching software, and creating security policy to support application
requirements and typically are performed manually. Manual processes tend to cause delays in deployment and the
potential for errors that can lead to security breaches and an inefficient operation model. Furthermore, optimizing
switch behavior to support application needs can be cumbersome, and continuously adding feature upgrades in
safely and simply without breaking the network can be complicated.
Solution: As Figure 3 shows, network administrators can define in a central repository what needs to be changed
and updated, as well as which switches and ports will be affected. Using a configuration management tool such as
Puppet enables rapid integration of applications into the customer’s operational tool chain and triggers
configuration from a central repository. With this process, a large deployment of switches can be updated in
minutes. This updating is performed in the same way as for computing nodes.
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 3 of 7
Figure 3.
Optimizing the Network and Helping Ensure Compliance
Day-N Operation: Software Upgrading, Patching, and Maintenance
Challenge: Most organizations today can’t afford to take devices offline for a period of time to update software. To
avoid disruption, they implement updates during nonpeak hours, leading to a less productive environment.
Solution: At the core of this use case is the extensibility of open NX-OS, which uses standard package
management tools such as RPM and Yum for software management. The same tools can be used for open NX-OS
process patching and for installing external or custom-developed programs on a switch. Organizations can install
native RPM and third-party applications running processes as they would on a Linux server. RPM-based packages
enable organizations to load only the services and packages required, and they can perform patching with RPM
instead of implementing a monolithic upgrade (Figure 4).
The capability to load and unload modules in the kernel as needed; isolate faults in features, services, and user
application; and perform graceful restart and removal of processes reduces maintenance windows and allows the
organization to update specific modules without bringing down the entire switch.
Figure 4.
Software Upgrading, Patching, and Maintenance
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 4 of 7
Visibility, Monitoring, and Troubleshooting
Challenge: Troubleshooting and locating the source of a problem can be a difficult and long process for many
organizations. Device-by-device monitoring, maintenance, and analysis can be cumbersome, especially in large
networks, with organizations typically relying on network test access points (TAPs) to collect data. Production traffic
collected through a TAP and through Cisco Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN) is
valuable to IT, and access to more data in a manageable way can help determine what is happening inside the
Solution: Cisco Nexus Data Broker, supported by Cisco Nexus 3000 and 9000 Series Switches, replaces
traditional purpose-built matrix switches to let you build a scalable TAP and SPAN aggregation infrastructure that
you can interconnect at 1, 10, 40, and 100 Gbps. You can dedicate ports for TAP and for SPAN and for traditional
Ethernet connectivity. IT can access the data broker application through the web-based GUI or REST API. The
data broker offers a simple, scalable, and cost-effective solution for enterprise customers who need to monitor
high-volume and business-critical traffic (Figure 5).
Figure 5.
Visibility, Monitoring, and Troubleshooting
In addition, full access to the ioctl and netdevice interface libraries using Linux Bash allows customers to install
tools such as tcpdump. These tools provide additional device visibility and performance information by tapping into
ports and VLANs and sending the output to a collector port. With this approach, organizations do not need to place
physical TAPs on every device.
Using RPM capabilities, a third-party monitoring application such as Splunk forwarder, Tcollector, or ganglia can be
installed in a secure container and provide further visualization and analysis.
Scalability, Automation, and Orchestration
Challenge: Customers are striving to automate and orchestrate data center resources from open resource tools to
optimize operations and lower costs. In today’s environment, these capabilities are limited by lack of integration
with network devices. In addition, customers are challenged to build an efficient architecture that can help them
scale easily and quickly to match automation and orchestration needs.
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 5 of 7
Solution: Using the OpenStack ML2 network plug-in for Cisco Nexus rather than the CLI, customers can create
and orchestrate network resources from a single location. Customers also have the option to use Cisco UCS
Director for orchestration. The capability to use OpenStack or Cisco UCS Director allows customers to orchestrate
network, computing, and storage resources from a single place (Figure 6).
Figure 6.
Scalability, Automation, and Orchestration
Next-generation Virtual Extensible LAN (VXLAN) fabric using standards-based BGP and Ethernet VPN (EVPN)
overcomes the scaling and workload mobility limitations of flood-and-learn processes. Customers can build
programmable software-defined networking (SDN) overlay networks to deliver multitenancy and transparent host
mobility at cloud scale. In addition, with Puppet and Chef agent and Ansible agentless integration into Cisco Nexus
switches, you can implement VXLAN provisioning and automation with little effort (Figure 7).
Figure 7.
Open VXLAN Fabric
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 6 of 7
With the open-system approach of Cisco Nexus switches, IT can provision the network more quickly, reduce time
to recovery after a failure, and gain flexibility in an environment that is familiar to server administrators (Figure 8).
Figure 8.
Open Cisco NX-OS Infrastructure
