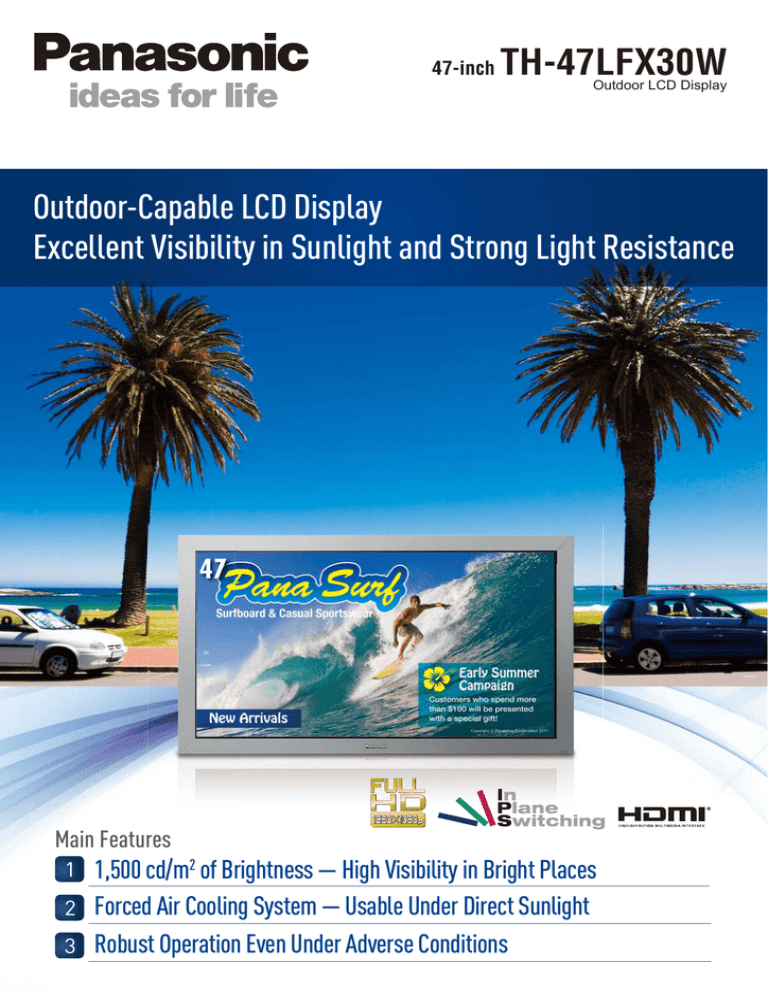

Panasonic | TH-47LFX30W | Datasheet | Panasonic TH-47LFX30W

47-inch
TH-47LFX30W
Outdoor LCD Display
Outdoor-Capable LCD Display
Excellent Visibility in Sunlight and Strong Light Resistance
47
Main Features
1
2
3
1,500 cd/m2 of Brightness — High Visibility in Bright Places
Forced Air Cooling System — Usable Under Direct Sunlight
Robust Operation Even Under Adverse Conditions
High Visibility Even in Bright Places
Usable Even Under Direct Sunlight
A trans-reflective LCD panel is used to
produce bright, clear images, and a backlight
combines with direct external lighting to
enhance visibility. A forced-air cooling system
using outside air allows the panel to withstand
internal temperature rises caused by sunlight,
to extend the ambient operating temperature
range (the operating temperature limit when
the panel is mounted facing direct sunlight*).
Power consumption is lower than panels that
increase brightness by simply raising the
intensity of the backlight, which also
suppresses the internal temperature rise.
*When the panel is mounted facing direct sunlight, the operating temperature
must be under 40 °C instead of 45 °C.
Forced
Air Cooling
System
Trans-reflective
LCD
Film to Prevent
Scattered Reflections
Liquid Crystal Panel
Indirect Light
Outside air is pulled into the cabinet to
create an airflow between the front
glass and the LCD panel, to suppress
internal temperature rises.
Air flow
heat
Trans-reflective Film
Light Aided by
Indirect Light
heat
Backlight passes through,
and external light is
reflected.
Light from
Backlight
heat
Backlight
Visibilityy is excellent even under direct sunlight.
Temperature rises inside the liquid crystal are
suppressed to prevent blackouts.
Robust Operation Even Under Adverse Conditions
Aluminum Cabinet and Tempered
Glass Adoption
The aluminum cabinet adopts a structure that
resists corrosion. In addition, the tempered
glass provides strong resistance to impacts.
Resists corrosion!
A 5-cm-diameter iron
ball weighing 500 g.
Dropped from
a height of 1.3 m.
reen
The sc crack!
n
s
e
o
d 't
Specifications
TH-47LFX30W
IP Rating*1
DISPLAY PANEL
Corresponding to IP53
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number of Pixels (H x V)
16:9
1,039 x 584 mm
1,920 x 1,080 pixels
Brightness (in dark room)
1,000 cd/m2 (Typ)
Brightness (in daylight*2 )
1,500 cd/m2 (Max)
Contrast Ratio
1,000 : 1
Response Time
9 ms (G to G)
Viewing Angle (Horizontal/Vertical)
Orientation
CONNECTION
TERMINAL
47-inch (1,192 mm)
HDMI IN
DVI-D IN
PC IN
AUDIO IN (for DVI-D/PC)
178° / 178°
Landscape / Portrait
HDMI TYPE A Connector x 2 (Deep Colour Compatible)
Power Requirements
220-240 V AC, 50 Hz / 60 Hz
Power Consumption
300 W
On Mode Average Power Consumption*3
250 W
Power Off Condition
0.2 W
D-SUB 9 pin x 1 (EXTERNAL CONTROL TERMINAL),
RS-232C Compatible
Stand-by Condition
Save ON 0.2 W, Save OFF 0.3 W
AUDIO
Speaker Out
8 Ω, 10 W [5 W + 5 W] (10 %THD)
MECHANICAL
Dimensions (W x H x D)
Mounting Method
Operating Environment
denotes the degree of dust-proofing and
What is This
water resistance. IP is an abbreviation of the
IP?
international standard Ingress Protection
IP- 5 3
M3 Jack x 1
ELECTRICAL
ENVIRONMENTAL
“Degree of protection IP53” holds considerable
dust proofing. It can be installed in dusty
environments.
DVI-D 24 pin (HDCP Compatible) x 1
Serial
Cabinet Material/Colour
The dustproof and water resistant
equivalent to IP53
MINI D-SUB 15 pin x1 Plug & Play (VESA DDC 2B)
CONTROL TERMINAL
Weight
Dustproof and Water Resistant for
Outdoor Installation
Dust Proofing
Level of protection from
dust particles
Water Resistance
Level of water resistance
Level
Degree of Protection
Level
Degree of Protection
5
Protection from 4
micron dust particles
3
Protection from
a water spray
1,149 x 694 x 271 mm
Approx. 62 kg
Aluminum/Silver
VESA 400 x 400 mm
Temperature: 0 °C to 45 °C*4
Temperature (Winter Mode): -20 °C to 45 °C*4
Humidity: 20 % to 90 % (Non Condensation)
*1: IP=Ingress Protection *2: Measured under ambient lighting of approximately 80,000lx. *3: Based on IEC62087 Ed.2 measurement method.
*4: When the panel is mounted facing direct sunlight, the operating temperature must be under 40 °C instead of 45 °C.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of October 11, 2011.
(For Europe, Asia, Africa, Middle East)
CR11LFX30_02
