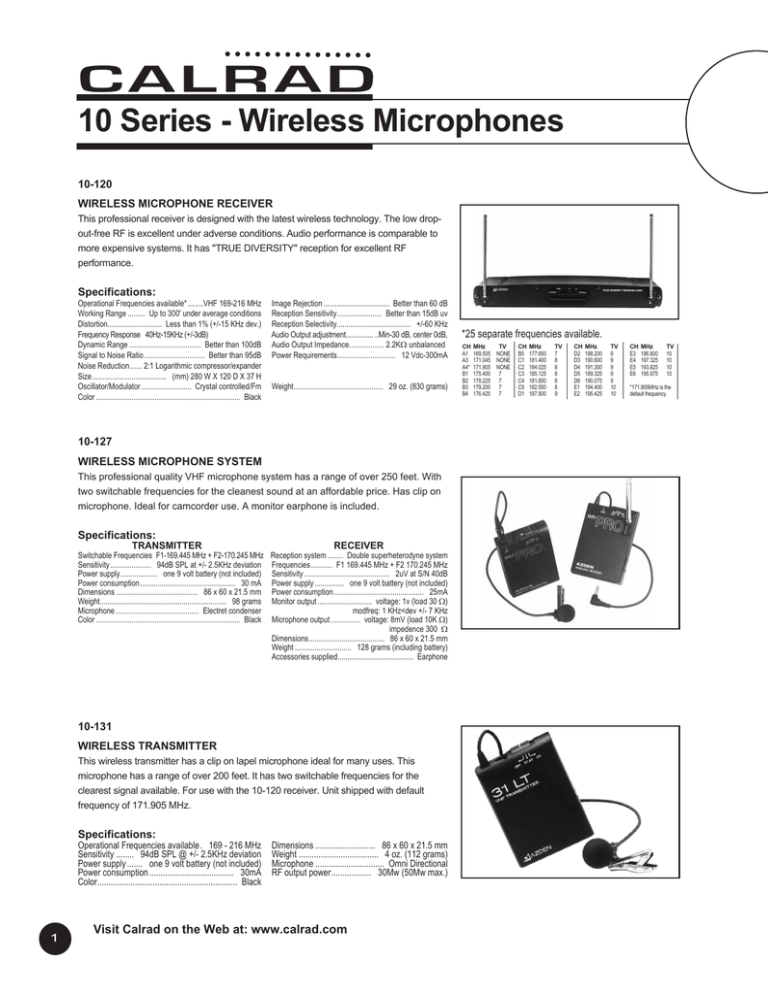

CALRAD
10 Series - Wireless Microphones
10-120
WIRELESS MICROPHONE RECEIVER
This professional receiver is designed with the latest wireless technology. The low dropout-free RF is excellent under adverse conditions. Audio performance is comparable to
more expensive systems. It has "TRUE DIVERSITY" reception for excellent RF
performance.
Specifications:
Operational Frequencies available* ........VHF 169-216 MHz
Working Range ......... Up to 300' under average conditions
Distortion............................ Less than 1% (+/-15 KHz dev.)
Frequency Response 40Hz-15KHz (+/-3dB)
Dynamic Range ..................................... Better than 100dB
Signal to Noise Ratio ............................... Better than 95dB
Noise Reduction ...... 2:1 Logarithmic compressor/expander
Size ...................................... (mm) 280 W X 120 D X 37 H
Oscillator/Modulator.......................... Crystal controlled/Fm
Color .......................................................................... Black
Image Rejection .................................. Better than 60 dB
Reception Sensitivity....................... Better than 15dB uv
Reception Selectivity...................................... +/-60 KHz
Audio Output adjustment............... ..Min-30 dB, center 0dB,
Audio Output Impedance.................. 2.2KW unbalanced
Power Requirements.............................. 12 Vdc-300mA
Weight.............................................. 29 oz. (830 grams)
10-127
WIRELESS MICROPHONE SYSTEM
This professional quality VHF microphone system has a range of over 250 feet. With
two switchable frequencies for the cleanest sound at an affordable price. Has clip on
microphone. Ideal for camcorder use. A monitor earphone is included.
Specifications:
TRANSMITTER
Switchable Frequencies F1-169.445 MHz + F2-170.245 MHz
Sensitivity..................... 94dB SPL at +/- 2.5KHz deviation
Power supply................... one 9 volt battery (not included)
Power consumption................................................. 30 mA
Dimensions .......................................... 86 x 60 x 21.5 mm
Weight................................................................. 98 grams
Microphone ........................................... Electret condenser
Color .......................................................................... Black
RECEIVER
Reception system ........ Double superheterodyne system
Frequencies ........... F1 169.445 MHz + F2 170.245 MHz
Sensitivity ............................................ 2uV at S/N 40dB
Power supply ............... one 9 volt battery (not included)
Power consumption .............................................. 25mA
Monitor output ............................ voltage: 1v (load 30 W)
modfreq: 1 KHz<dev +/- 7 KHz
Microphone output ............... voltage: 8mV (load 10K W)
impedence 300 W
Dimensions....................................... 86 x 60 x 21.5 mm
Weight ............................. 128 grams (including battery)
Accessories supplied....................................... Earphone
10-131
WIRELESS TRANSMITTER
This wireless transmitter has a clip on lapel microphone ideal for many uses. This
microphone has a range of over 200 feet. It has two switchable frequencies for the
clearest signal available. For use with the 10-120 receiver. Unit shipped with default
frequency of 171.905 MHz.
Specifications:
Operational Frequencies available. 169 - 216 MHz
Sensitivity ........ 94dB SPL @ +/- 2.5KHz deviation
Power supply ....... one 9 volt battery (not included)
Power consumption ...................................... 30mA
Color............................................................... Black
1
Dimensions ........................... 86 x 60 x 21.5 mm
Weight .................................... 4 oz. (112 grams)
Microphone ............................... Omni Directional
RF output power.................. 30Mw (50Mw max.)
Visit Calrad on the Web at: www.calrad.com
*25 separate frequencies available.
CH
A1
A3
A4*
B1
B2
B3
B4
MHz
169.505
171.045
171.905
175.400
178.225
179.200
176.425
TV
NONE
NONE
NONE
7
7
7
7
CH
B5
C1
C2
C3
C4
C5
D1
MHz
177.650
181.400
184.025
185.125
181.850
182.550
187.800
TV
7
8
8
8
8
8
9
CH
D2
D3
D4
D5
D6
E1
E2
MHz
188.200
190.600
191.300
189.325
190.075
194.400
195.425
TV
9
9
9
9
9
10
10
CH
E3
E4
E5
E6
MHz
196.800
197.325
193.825
195.975
TV
10
10
10
10
*171.905MHz is the
default frequency.
CALRAD
10 Series - Wireless & Shotgun Microphones
10-130
WIRELESS MICROPHONE
This is a quality microphone for use with the 10-120 receiver. It delivers a 200 foot
range for use with videography and public speaking. Its clean crystal controlled output is
equal to more expensive systems. Unit shipped with default frequency of 171.905 MHz.
See page 1 for frequency chart.
Specifications:
Operational Frequencies available. 169 - 216 MHz
Sensitivity ........ 94dB SPL at +/- 2.5 KHz deviation
Power supply ... one 1.5v AA battery (not included)
Power consumption ...................................... 30mA
Weight ................................. 7.5 oz. (213 grams)
Microphone ...................... unidirectional-dynamic
RF output power.................. 10Mw (50Mw max.)
Color ........................................................... Black
10-126
WIRELESS MICROPHONE SYSTEM
This handheld microphone is ideal for videographers and public speaking. The VHF
system has two switchable frequencies for selecting the cleanest sound and delivers a
crystal clear sound range of more than 200 feet. The transmitter is built into the handle
of the microphone with no wires extending out of the base. The receiver has a cord
terminated by a 3.5mm plug.
Specifications:
TRANSMITTER
Frequencies F1 - 169.445 MHz + F2 - 170.245 MHz
Sensitivity.......................... 94dB spl ± 2.5KHz dev
Microphone ......................... unidirectional-dynamic
Power supply ... one 1.5v AA battery (not included)
Power consumption ..................................... 100mA
Weight ..................... 170 grams (including battery)
Battery Life .................. 6-8 hours (alkaline battery)
Color............................................................... Black
RECEIVER
Frequencies F1 - 169.445 MHz + F2 - 170.245 MHz
Sensitivity ................................ 2µV at S/N 40dB
Reception system ......... double superheterodyne
Power supply......... one 9v battery (not included)
Power consumption................................... 25mA
Weight .................. 128 grams (including battery)
Battery Life............... 6-8 hours (alkaline battery)
Color ........................................................... Black
10-17
SHOTGUN MICROPHONE
This is a high quality sound locating shotgun microphone. It is equipped with a high
quality internal amplifier and earbud type earphones. Can be easily mounted on
camcorders, binoculars, or hand-held. It has an adjustable volume control for clear
output. The supercardioid pattern is designed for medium range frequencies to isolate
and pick up human voices at directional short distances.
Specifications:
Microphone ............................ Electret Condenser
Pattern ..................... Unidirectional Supercardioid
Output Level ............... 5m watts MA at earphone
Acoustic Gain ............................................... 50dB
Frequency Response ....................... 200-15 KHz
Power Source................. 1 AAA Battery Included
Battery Life....... 100 hours (continuous operation)
Weight....... 65 grams (incl. battery & earphones)
Earphones .............. Inner-ear Type Stereo -32 W
Measurements............ 238 (L) X 30 (H) X 17 (W)
Accessories ........ Earbud Headphones, Mounting
Hardware, and Directional Tube, Thread Adapter
Windscreen Color ........................................ Black
Microphone Color ........................................ Black
Visit Calrad on the Web at: www.calrad.com
2
CALRAD
10 Series - Shotgun Microphones
10-10
SUPER CARDIOID SHOTGUN MIC
15”
Super directive use. Can pick up objective sound clearly even in noisy environments.
Shakeproof holder acts as a vibration damping mechanism and helps eliminate
unwanted mechanical and motor noises. Impedance 600W
(1 KHz). Complete with Case and Windscreen, 3.5 mm plug.
Specifications:
Type..................... Electret Condenser Microphone
Directivity.................................... Super Directional
Sensitivity ........... -60 db (1 KHz 0 dB = 1V/u Bar)
Output Impedance............................600W (1 KHz)
Battery type Size "AA" Penlite Cell 1.5Vdc (included)
Frequency Range .................... 50 Hz–10 KHz
Std. Working Voltage ...................... 1.5V (DC)
Current Drain .................................. 1 mA Max
S/N Ratio. 40 dB or more (1 KHz, JISA-curve)
Color ....................................................... Black
10-15A
SUPER CARDIOID SHOTGUN MIC
This microphone is for Super-Directive use with high sensitivity and extremely low noise. It
can pick up clearly and naturally the object's sound even in noisy environment of both short
and long distance. The 10-15 microphone is designed primarily for operational efficiency
and well suited to outdoor sports broadcast, stage, video and movies. Can be hand held,
stand mounted or mounted on video or movie equipment. Terminated to a 3.5mm plug.
Specifications:
Type .............. Super Cardioid Electret Condenser
System Switchable uni-directional system for long
and short distance
11”
Output Impedance ..... For short distance: 520W
For long distance: 2.3KW
Sensitivity: For short distance: -66 dB (1 V/u bar 1 KHz
For long distance: -56 dB (1 V/u bar 1 KHz)
Frequency Response: .............. 80 Hz–12,000 Hz
Power Source 1.5Vdc, AA Size Battery (not included)
Sound Pressure Level ................... 120 dB Max
Signal to Noise Ratio ................. 40 dB or More
Cable............................ coiled with 3.5 mm plug
Accessories.......... Wind Screen and Mic Holder
Color ......................................................... Black
.3”
10-91
MINIATURE TIE CLASP MICROPHONE
5”
1.2
Extra small, only 3/8" diameter. Excellent voice quality makes this lavalier microphone
very versatile. Great for interviews, P.A., radio and T.V. network use, where free use
of hands is necessary. Complete with battery, windscreen, tie clip, terminated to a
3.5 mm plug. 10 ft. cord.
Specifications:
Type Electret Condenser Microphone
Frequency Response.................. 50 Hz–10 KHz
Sensitivity..................................... -60 dB ± 3 dB
Length ........................................................ 1 1/4"
Impedance.................................. 600W at 1 KHz
Package................................ Blister (Hanger Type)
Power Supply .... 1.5V Button Cell (included) LR41
Polar Pattern ................................ Omni-Directional
10-91-BAT replacement battery for 10-91 microphone
2.1
10-90
MICROPHONE
”
Specifications:
Polar Pattern ............................ Omni-Directional
Frequency Response. 50-64 dB / 50-16,000 Hz
Sensitivity................................... -64 dB /01 KHz
Sound Noise Level......................... Max. 130 dB
Impedance..................................... 600W at 1 KHz
Power Supply................. 1.5V LR-44 A-type / 1.5V
Cable with 1/4” mono plug................... 6m (20 feet)
10-90-BAT replacement battery for 10-90 microphone.
3
Visit Calrad on the Web at: www.calrad.com
.73
”
.3”
.3”
Excellent voice quality makes this lavalier microphone very versatile. Great for
interviews, P.A., radio and T.V. network use, where free use of hands is necessary.
Complete with battery, windscreen, tie clip, terminated to a 1/4” mono plug.
CALRAD
10 Series - Microphones
10-12
MINIATURE ELECTRET CONDENSER MICROPHONE
This microphone is designed for all uses. ON/OFF switch enclosed on the belt clip for
easy use. Designed for quality at a low cost. 15ft. cable is terminated with a 3.5 mm
plug.
1”
Specifications:
Impedance ..................................... 1KW (at 1KHz)
Power Supply ........ 1.5 volt AAA battery (included)
Accessories ......... 3.5mm to 1/4" adapter, Battery,
Tie Clasp, Wind Screen
Color .............................................................. Black
Cord to Mic Length ............................................ 38”
.54”
1.8
4”
”
.25
Type ..................................... Electret Condenser
Frequency Response ......................... 50-18KHz
Sensitivity ............................... -65 dB at 1000Hz
Polar Pattern ............................ Omni-Directional
Power Supply Size..... 2.51” L x 1.84” W x .54” H
Microphone Size.......................... .25” L x .54” W
2.5
”
.54
10-20
DUAL IMPEDANCE DYNAMIC MICROPHONE
Features a uni-directional element, built-in pop and noise filter and a 20 ft. cable
terminated in a 1/4 “ phone plug with mic holder.
Specifications:
Type ....................................................... Dynamic
Frequency Response ........................... 80-12KHz
Cord Length............................................ 20 feet
Dual Impedance.............................600W 50 KW
Dual Impedance ...................................600W 50KW
Sensitivity ................................500W -72 dB +/- 3db
Sensitivity .............................50KW -54 dB at 1 KHz
10-22
ECONOMY DYNAMIC MICROPHONE
This uni-directional dynamic microphone has a 10 ft. cable terminated to a 1/4" phone
plug. A windscreen is built into the wire mesh ball head to prevent hiss, pop, and wind
noise.
Specifications:
Impedance .................................................. 500W
Frequency Response ......................... 80–12 KHz
Sensitivity ........................... -72 dB ± 3 dB at 1 KHz
Color ............................................................... Black
10-3
GOOSENECK PAGING MICROPHONE
Uni-directional 18” gooseneck microphone with XLR male socket with push
On/Off talk button.
Specifications:
Low-Z ...............................600W.
Sensitivity:.............. 80dB ± 3dB.
Frequency response: 60-12KHz.
Color:................................ Black.
Visit Calrad on the Web at: www.calrad.com
4
CALRAD
10 Series - Microphones & Accessories
10-19 DESKTOP
MICROPHONE BASE
Push On/Off talk switch with
red L.E.D. indicator,
requires 2 AAA batteries.
Female XLR mic input to
Male XLR output. Sturdy
weighted base. Color is
black.
Front view
30-590 Chrome
30-590-BK Black
Female XLR desktop
mount in black or chrome,
used for quick release style
gooseneck mics.
Removable solder type
Female XLR. Mounts with 3
screws included. Base
diameter. 1.75”, height 2”.
10-50 MICROPHONE
RETRACTABLE COIL
CORD
Excellent for CB or Ham
radio replacment mic cable.
3 conductor shielded cable.
5ft extended or 2ft retracted
10-37 USB PC MICROPHONE
Calrads new professional podcasting PC
microphone is easy to use, simply plug-in the
USB cable to your PC or laptop. Select the
microphone from the list of available devices
under voice recording in windows. 16 bit A/D
converter for low noise and precise audio
reproduction. Great for making digital voice
recordings.
SPECIFICATIONS
Frequency Response: 50hz~18KHz
Polar Pattern: Uni-directional
Mic Element: Output Impedance 600W +/-30%
Output Level: -65db+/-3db
A/D Converter 16 Bit Resolution, 48KHz
Sampling
Cable: 10 ft. USB type 'A' Male to USB mini
Male (Included)
Mike Holder and 3.9" Base-Stand (Included)
Overal Height: From base to the top of the
microphone, 9.5"
Color: Black
10-82 LOW IMPEDANCE OMNIDIRECTIONAL
MICROPHONE
Low impedance, 500 ohm mic with 5 ft. retractable
cable terminated with 3 wires plus shield. Push-to-talk
switching Excellent for CB radios, ham radios and
general communications use.
Specifications:
Frequency Response .......... 300Hz–5KHz
Color ..................................................Black
MULTI-COLOR WINDSCREEN SETS
10-67
21/2" high wind screens
to fit 13/8" to 13/4"
diameter microphones.
1 per pkg. specify color.
10-67-BK....Black
10-67-GN ..Green
10-67-RD......Red
10-67-YL...Yellow
5
10-68
Windscreen for spherical
head microphones
15/8" High to fit over 13/4" to 2"
microphones.
1 per pkg. specify color.
10-68-BK......Black
10-68-BU.......Blue
10-68-GN....Green
10-68-OR..Orange
10-68-RD.......Red
10-68-YL ..Yellow
10-69
7/8" High windscreen fits 1/4” to
1/2" microphone. Designed to
fit lavalier type microphones.
1 per pkg. specify color.
Black, Green, Red, Yellow,
10-69-BK....Black
10-69-GN..Green
10-69-RD......Red
10-69-YL..Yellow
10-9
23/4" High Screen
Universal Type
Fits slim models
from 3/4" to 11/8".
1 per pkg.
Color: Black.
CALRAD
10 Series - Isolation & Line Matching Transformers
10-76
DUAL IMPEDANCE LINE MATCHING
TRANSFORMER
10-86
DUAL IMPEDANCE LINE MATCHING
TRANSFORMER
Comes with built-in High/Low switch. No
wiring necessary. 1/4" Male mono plug with
switchable input between 600W / 50KW to
600W XLR Female output.
Comes with built-in High/Low switch. No
wiring necessary. 1/4" Male mono plug with
switchable input between 600W / 50KW to
600W XLR Male output with
6 inch cable.
10-77
DUAL IMPEDANCE LINE MATCHING
TRANSFORMER
10-87
DUAL IMPEDANCE LINE MATCHING
TRANSFORMER
Comes with built-in High/Low switch. No
wiring necessary. 1/4" Female mono jack
with switchable input between 600W / 50KW
to 600W right angle 1/4” Male mono plug on a
6 inch cable.
Comes with built-in High/Low switch. No
wiring necessary. 1/4” mono Female jack
with switchable input between 600W / 50KW
to 600W XLR Female output.
10-78
TELCO & MULTIMEDIA GROUND
ISOLATION TRANSFORMER
10-88
DUAL IMPEDANCE LINE
MATCHING TRANSFORMER
Audio isolation transformer. 600W to 600W.
Helps prevent ground loop problems. Used
for computer and telephone applications.
Male to Female mono 3.5mm connectors.
Over all length 10 inches.
Comes with High/Low switch built in. No
wiring necessary. XLR Male switchable
input between 600W / 50KW to 600W XLR
Female output.
10-78-RCA
RCA ANALOG & DIGITAL GROUND
ISOLATION TRANSFORMER
10-89
DUAL IMPEDANCE LINE
MATCHING TRANSFORMER
Provides protection from ground loops.
Used for standard low level analog and
digital audio signals. Bandwidth up to
50KHz. 1:1 transformer. One RCA jack to
one RCA plug.
Overall length 10 inches
Two pieces required for stereo use
Comes with High/Low switch built in. No
wiring necessary. 1/4” Female phone jack
switchable input between 600W / 50KW to
600W XLR Male output.
10-79
DUAL IMPEDANCE LINE MATCHING
TRANSFORMER
10-99
DUAL IMPEDANCE LINE
MATCHING TRANSFORMER
Comes with built in High/Low switch. No
wiring necessary. 1/4” Male mono plug
switchable input 600W / 50KW to 600W XLR
Male output.
Comes with High/Low switch built in. No
wiring necessary. 1/4” Male mono plug
switchable input between 600W / 50KW
to 600W XLR Female output on a
9 inch cable.
Visit Calrad on the Web at: www.calrad.com
6
CALRAD
10 Series - Microphone Adapter Cables
10-140-5..............................5 ft.
10-140-10..........................10 ft.
10-140-15..........................15 ft.
Female XLR to 1/4” mono plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground
Pin 2 - hot.
10-141-5.............................5 ft.
10-141-10.........................10 ft.
10-141-15.........................15 ft.
Male XLR to 1/4” mono plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground
Pin 2 - hot
10-142-5..............................5 ft.
10-142-10..........................10 ft.
10-142-15..........................15 ft.
Female XLR to RCA Male plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground
Pin 2 - hot.
10-143-5..............................5 ft.
10-143-10..........................10 ft.
10-143-15..........................15 ft.
Male XLR to RCA Male plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground
Pin 2 - hot
10-144
Female XLR to 3.5mm mono plug, 6 ft.
10-145......................6ft.
10-145-1...................1ft.
10-145RT-1..............1ft. (right angle plug)
Female XLR to 3.5mm stereo plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground / Pin 2 - hot
10-146
Male XLR to 3.5mm mono plug, 6 ft. long.
Black PVC jacketed cable, shielded.
Above wired: Pin 1 & 3 - ground / Pin 2 - hot.
10-147
7
Male XLR to 3.5mm stereo plug, 6 ft. long.
Black PVC jacketed cable, shielded.
Above wired:
3.5mm tip to XLR pin 2
3.5mm sleeve and ring to XLR
Pin 1 & 3 - ground
10-148-3.................................3 ft.
10-148-6.................................6 ft.
10-148-10.............................10 ft.
10-148-15.............................15 ft.
Female XLR to 1/4” stereo plug.
Black PVC jacketed Cable, shielded.
Above wired: Pin 1-ground Pin 2-tip
Pin 3-ring.
10-149-3.................................3 ft.
10-149-6.................................6 ft.
10-149-10.............................10 ft.
10-149-15.............................15 ft.
Male XLR to 1/4” stereo plug.
Black PVC jacketed cable, shielded.
Above wired: Pin 1-ground Pin 2-tip
Pin 3-ring
10-150
XLR “Y” cable, one Male to two Females.
Black PVC jacketed cable, shielded.
Above wired Pin to Pin. Cable length: 3
inches.
10-150A
High quality 8mm “OFC” version of 10-150
cable length: 6.5 inches.
10-151
XLR “Y” cable, one Female to two Males.
Black PVC jacketed cable, shielded.
Above wired Pin to Pin. Cable length is 3
inches
10-151A
High Quality 8mm “OFC” version of 10-151
Cable length: 6.5 inches.
10-152
XLR “Y” cable, two 3-pin XLR Females to
a 3.5 mm stereo plug. 6 ft. long.
Black PVC jacketed cable, shielded.
Above wired Pin to Pin.
3.5mm Male
XLR Female
Tip.................................Pin 2
Ring...............................Pin 3
Sleeve...........................Pin 1
10-153-1
Female XLR to two RCA Male plugs.
Y cable, 1 ft. long. Uses flat style black
PVC jacketed cable, shielded.
Above wired: Pin 1-ground
Pin 2-tip (hot) RCA plug
Pin 3-tip (hot) RCA plug
CALRAD
10 Series - Microphone & Adapter Cables
10-154-1
One Female XLR to two RCA Female inline
jacks. Y cable, 1 ft. long. Uses flat style
black PVC jacketed cable, shielded.
Above wired:
Pin 1-ground
Pin 2-tip (hot) RCA jack
Pin 3-tip (hot) RCA jack
10-155-1
Male XLR to two RCA Male plugs.
Y cable, 1 ft. long. Uses flat style black
PVC jacketed cable, shielded.
Above wired:
Pin 1-ground
Pin 2-tip (hot) RCA plug
Pin 3-tip (hot) RCA plug
10-156-1
Male XLR to two RCA Female inline jacks.
Y cable, 1ft. long. Uses flat style black PVC
jacketed cable, shielded.
Above wired:
Pin 1-ground
Pin 2-tip (hot) RCA jack
Pin 3-tip (hot) RCA jack
10-157-1
3.5mm stereo right angle plug to two XLR
Female inline jacks. Y cable, 1 ft. long. Uses
flat style black PVC jacketed cable, shielded.
Above wired:
#1 XLR:
Pin 1 & 3-ground (sleeve)
Pin 2-tip (hot) of 3.5 mm plug.
#2 XLR:
Pin 1 & 3-ground (sleeve)
Pin 2-ring of 3.5 mm plug.
10-158-6
3.5mm stereo straight plug to two XLR
Male plugs. Y cable, 6 ft. long. Uses flat
style black PVC jacketed cable, shielded.
Above wired:
#1 XLR:
Pin 1 & 3-ground (sleeve)
Pin 2-tip (hot) of 3.5 mm plug.
#2 XLR:
Pin 1 & 3-ground (sleeve)
Pin 2-ring of 3.5 mm plug.
10-45 MICROPHONE CABLE
Professional Series, 3-wire balanced line
with Female XLR type connector on one
end, 1/4” Male mono plug on the other end.
Uses shielded, black rubber jacketed cable.
10-45-20................................. 20 ft.
10-45-25................................. 25 ft.
10-161 MIG HIGH QUALITY 1/4”
MONO MALE TO FEMALE XLR
MICROPHONE CABLES
Designed for most audio applications,
Calrad’s new MIG (mic, instrument & guitar)
cable is constructed with 95% “OFC” braided
copper with 22 gauge center conductors.
High Density filler surrounds the conductors
thereby reducing noise and strengthing
tensile range. A special non-conductive
epoxy is applied to the connection, then
covered with heat shrink tubing. These
cables are both durable and offer superior
service.
10-161-10 ..........................................10 ft.
10-161-25 ..........................................25 ft.
10-95 PROFESSIONAL
MICROPHONE EXTENSION
CABLES
Male to Female XLR connectors, low loss.
Cable with black rubber jacket, 22 gauge
2 conductor, shielded. Custom lengths
available upon request.
10-95-1 ............................................. 1 ft.
10-95-1.5 .........................................1.5 ft.
10-95-2 ...............................................2 ft.
10-95-3 .............................................. 3 ft.
10-95-6 ............................................. 6 ft.
10-95-10 ......................................... 10 ft.
10-95-15 ......................................... 15 ft.
10-95-20 ......................................... 20 ft.
10-95-25 ......................................... 25 ft.
10-95-50 ......................................... 50 ft.
10-95-100 .......................................100 ft.
10-95B-250................. 250 ft. bulk cable
10-160 MIG HIGH QUALITY XLR
MALE TO FEMALE MICROPHONE
CABLES
Designed for most audio applications,
Calrad’s new MIG (mic, instrument &
guitar) cable is constructed with 95%
“OFC” braided copper with 22 gauge
center conductors. High Density filler
surrounds the conductors thereby
reducing noise and strengthing tensile
range. A special non-conductive epoxy is
applied to the connection, then covered
with heat shrink tubing. These cables are
both durable and offer superior service.
10-160-10 ..........................................10 ft.
10-160-15 ..........................................15 ft.
10-160-25 ..........................................25 ft.
10-160-50 ..........................................50 ft.
10-160-100 ......................................100 ft.
10-96 PROFESSIONAL MICROPHONE
EXTENSION CABLES
Female to Female XLR Cable using low-loss
shielded, heavy gauge rubber jacketed cable.
Color is black.
10-96-10 ......................................... 10 ft.
10-96-15 ......................................... 15 ft.
10-96-20 ......................................... 20 ft.
10-96-25 ......................................... 25 ft.
8
CALRAD
10 Series - Microphone Accessories
3
10-83 ( /8" dia.) 2 PIN,
ELECTRET CONDENSER
MICROPHONE ELEMENTS
.36”
Miniature in size, excellent quality.
Working voltage range from 2–10 Vdc.
Output impedence is Low-Z.
P.C. Mount plus Case Tab.
10-36
MICROPHONE GOOSENECKS
5/8" - 27 connecting thread,
ends Male to Female.
CHROME
10-36-6.................................... 6 inches
10-36-13 ................................. 13 inches
10-36-19 ................................. 19 inches
10-36-BK
MICROPHONE GOOSENECKS
5/8" - 27 connecting thread,
ends Male to Female.
BLACK
10-36-6-BK............................. 6 inches
10-36-13-BK............................ 13 inches
10-36-19-BK ........................... 19 inches
10-59
MICROPHONE ATTACHMENT
Fits any floor stand with 5/8" - 27 top end
thread. Accepts 3-microphone holders
with 5/8" - 27 connecting thread.
Microphone spacing is 2 1/2”.
10-59A HOLDS 5 MICS
10-65 HIGH TENSION
MICROPHONE CLAMP
Used to clamp microphones to tables or
fits standard mic stands 5/8”-27 thread
3 rubber pads on the inside of the jaw
provides a strong protective grip. The
Jaw opens to 2.5”. Color: black
10-54
DESK MICROPHONE STAND
5/8” thread
10-55
DESK MICROPHONE STAND
5/8” thread
Mike stand with 5/8" - 27 thread. Black
metal base 4" diameter, rod length is 3"
from top of base.
A beautiful modernistic desk stand. "U"
shaped base finished in black. Supplied
with a polished chrome upright tube,
threaded 5/8”–27 at both ends. Can be
used with the other mic accessories.
10-56
DESK MICROPHONE STAND
Sturdy, lightweight, skidproof folding legs
for portability. Accepts most microphone
holders with 5/8" - 27 thread. Stand
spread 7". Individually packaged for
display racks.
Microphone spacing is 2 1/2”.
9
10-34
GOOSENECK BASE
10-35
GOOSENECK BASE
Surface mounting, die cast base, fits most
gooseneck types with 5/8"-27 thread.
Base has Male threads. 1.75” base
diameter.
Surface mounting, die cast base, fits most
gooseneck types with 5/8"-27 threads.
Base has Female thread. 1.75” base
diameter.
Visit Calrad on the Web at: www.calrad.com
5/8” thread
CALRAD
10 Series - Microphone & Audio Accessories
10-58
VIDEO
CAMERA
MICROPHONE
"Hot Shoe"
Attachment
10-60
UNIVERSAL CLAMPTYPE MICROPHONE
HOLDER
10-97
MICROPHONE
CLIP HOLDER
(Tie Clip)
Fits 7/32" diameter
microphones.
Adjustable holder with brass
insert. Holds microphones
5
3
/8"-1 /8" in diameter.
For attaching
microphone to
video camera,
movie camera, etc.
Has knurled
locking knob to
SLIDE-IN MICROPHONE STAND
hold tightly.
HOLDERS
Made of high impact black plastic.
Tapered design. Fits standard mike stand
5
/8” x 27.
7
10-61A.................... fits /8" dia. mics
10-63A.................... fits 1" dia. mics
1
10-64A.................... fits 1 /4" dia. mics
10-61A
10-63A
10-64A
10-31 MICROPHONE STAND
10-31-BK Black Version
Polished chrome plated or black finish with round black base.
10-32 MICROPHONE STAND
Polished chrome plated finish stem with 3/8" - 16 thread connector and a detachable 5/8" - 27
screw adapter for microphone holder. 3 leg base with tubular legs. Legs braced with non-skid
rubber tips. Weight: 5 lbs. Height: collapsed - 35", extended - 64".
10-33 MICROPHONE STAND
Polished chrome plated finish stem with 3/8" - 16 thread connector and a detachable 5/8" - 27
screw adapter for microphone holder. Heavy duty, compact, extra high elevation adjustment.
3 leg base with foldable tubular legs. Boom sets accessories included with stand for greater
adjustment and versatility. Weight: 7 lbs., Height: collapsed - 33", extended - 63".
10-31
10-32
10-33
10-115
STEREO HEADPHONE AMPLIFIER
2 inputs with individual volume controls. 200mW output at 8W.
Line input: 1V/47K. RCA input jacks, 3.5mm output jack. AC
adapter 12Vdc, 200mA included. Black shielded metal chassis.
Size: 4.3”(W) x 1.7”(H) x 3.4”(D).
10-75
STEREO LINE MIXER
Passive stereo line mixer for camcorders and Hi-Z line level
signals. 2 Hi-Z line level stereo audio inputs to 1 stereo output
with RCA jacks. Individual slide style volume controls.
Black shielded metal chassis.
Size: 5”(W) x 1.7”(H) x 3.4”(D).
10
CALRAD
10 Series - Audio Accessories
80-575-H (HEADPHONE AMP)
80-575-M (MICROPHONE PRE-AMP)
80-575-L (LINE PRE-AMP)
80-575-P (PHONO PRE-AMP)
Select from 4 standard stereo configurations. A few components are easily changed on the PC board
for each preamp. The unit is available in a chassis, or completed circuit board with labeled black face
plate. Includes DC power supply. Specify model and any specific specifications required for your
application. Optional RCA Male to XLR Female adapter cable (Calrad part number 10-142-5).
Specifications:
Input/Output Jacks .............................. RCA Type
Power ........................ 12Vdc, 2.5mm Coax Jack
Input Impedence ....................... Factory Adjusted
Color ........................................................... Black
Output Impedence .......... 5K, Factory Adjusted
Gain .................................................. Adjustable
Frequency Response.. 20HZ - 20KHz, +/ - 3dB
Dimensions .......... 4.75 ” (L) x 3” (W) x 1.5” (H)
REAR VIEW
10-105 STEREO INLINE VARIABLE AUDIO ATTENUATOR
This item can be inserted into any Hi-Z audio path, provides signal attenuation from 0 db to full
signal. Helps to balance audio signals from different pieces of equipment. Low profile design with
easy to read volume control. RCA Male to Female cables are provided for easy Interfacing with
equipment, this allows the unit to be hidden or exposed. Passive design requires no external power
supply.
Specifications:
Frequency Response ................................ 20hz - 20KHz Cable lengths input, output............................ 15” each
Signal Level 0dB - Full input signal level (avg. 200-400mv) Dimensions ....................... 3.1”(W) x 1.3”(H) x 1.1”(D)
Input Connectors: Male RCA plugs (left=white, right=red) Color..................................................................... Black
Output Connectors: Female RCA jacks (left=white, right=red)
10-112-BLANK.................................................Blank Panel / 32 Point Patch Bay
10-112-RCA...............................................with RCA Jacks / 32 Point Patch Bay
10-112-BNC...............................................with BNC Jacks / 32 Point Patch Bay
10-112-I-BNC.....................with ground isolated BNC Jacks / 32 Point Patch Bay
Professional audio series 32 point patch bay. The 10-112 combines high quality construction and
optimum insertion of either BNC, BNC isolated or RCA type connectors (specify which type when
ordering). Its’ steel construction makes the 10-112 ideal for rack mounting in the toughest
environments. The 10-112 comes with 32 labeled patch points.
Specifications:
Dimensions............ 19"(W) x 3.5"(H) x 1.35"(D)
Color ....................................................... Black
10-113
MICROPHONE SPLITTER
Splits input of a single microphone to two different outputs, both input and output signals may be
used to provide separate isolated feeds to both a house and monitor system, P.A. recording system
or similar application where double outputs are required.
Specifications:
Input impedance ....................................... 600W
Output impedance..................................... 600W
Color .......................................................... Black
11
Dimensions...................... 4.75“ x 3.25“ x 1.75“
Frequency Response ...................... 20-20KHz
Visit Calrad on the Web at: www.calrad.com
CALRAD
10 Series - Audio Accessories
10-110 SPDIF* DIGITAL COAXIAL TO TOSLINK OPTICAL SIGNAL CONVERTER
10-119 TOSLINK OPTICAL TO SPDIF* DIGITAL COAXIAL SIGNAL CONVERTER
Designed to bridge the gap between home theater components with differing
input/output formats. These small but important adapters convert digital signals from
coax to optical or vice- versa, ensuring compatibility between TosLink/optical
components and those with coax connections.
10-110 = RCA input to TosLink Female output.
10-119 = Toslink Input to RCA Female output
Size: (L) 2.8” x (W)1.82 x (H ) .88”
AC adapter included, 6Vdc 250mA.
*SPDIF=Sony Phillips Digital Interface Format.
10-117 FIBER OPTIC AMPLIFIER
This unit minimizes optical signal loss when long cable runs are used to connect optical
digital audio devices. Input signal delivery
5 meters, output signal delivery 20 meters.
AC adapter included, 6Vdc 250mA.
Size: 2.8”(L) x 1.82”(W) x .88”(H). Color is light gray.
55-502-5O FT
A 50 foot fiber-optic cable for use with our 10-117 Fiber-Optic amplifier
40-DCT-2 2 WAY DIGITAL AUDIO CONVERTER ,REPEATER
Coaxial / Toslink audio converter, its compact size and convenient features provides
simple solutions for interfacing digital audio gear. It accepts S/PDIF audio signal input
through either Coaxial cable or Toslink cable, and passes the signal (as is) to both its
coaxial and Toslink output ports. With its built-in amplification feature the 40-DCT-2 can
also serve as a signal repeater and extend (double) the transferring distance. The 40DCT-2 Cross-converts digital audio signals between “Toslink” optical and coax-electrical
SPDIF formats transparently converting in either direction, and handling PCM (stereo)
and bitstream (Dolby Digital, DTS) signals. Supports two-way conversion: coaxial to
toslink or toslink to coaxial.
40-DCT-9 UNIVERSAL DIGITAL / ANALOG
AUDIO CONVERTER
The 40-DCT-9 is a comprehensive audio converter that
provides a wide variety of audio formats/interfaces for
users to take advantage of. With three different types
of bidirectional connectors namely optical, coaxial and
L/R, the DCT-9 can convert all three signals into any
preferred format. Analog audio signal input can be
converted into digital output, and digital audio signal
into analog output. L.E.D. Indicators show what signal
type is selected.The conversion process can be done
simultaneously without any signal loss or delay.
Supports sampling frequencies from 16 - 100 kHz.
Size: Length 3.6” x Width 3.6” x Height 1.45”.
12
CALRAD
15 Series - Headphones
15-118
STEREO-MONAURAL HEADPHONE
High-velocity 57 mm mylar diaphragm drive units. Padded adjustable headband and earmuffs.
Independent volume controls and stereo/mono switch with 1/4" phone plug.
Specifications:
Frequency Response ..... 20-20,000 Hz
Impedance .................................... 32W
Maximum Power Input............ 100 mW
Color............................................. Black
Acoustic System................... Closed back
Sensitivity ...................... 102 dB at 1 mW
Cord Length 9 ft. with 1/4" stereo phone plug
Weight.................................... 300 grams
15-122A & 15-123
STEREO-MONAURAL HEADPHONES
Designed for general and educational use. Rugged construction, yet provides excellent listening
comfort. Complete with padded ear cushions. Stereo/Monaural switching.
Specifications for 15-122A:
Frequency Response ................... 30-18,000 Hz
Impedance .................................................... 8W
Cord Length........ 10 ft. w/ stereo 1/4" phone plug
Color........................................................... Black
Specifications for 15-123:
Frequency Response ...................... 30-18,000 Hz
Impedance ................................................... 600W
Cord Length......... 10 ft. w/ stereo 1/4" phone plug
Color.............................................................. Black
15-135 or 15-135-RA
DYNAMIC STEREO-MONAURAL HEADPHONE
Expertly styled, well padded headband and earphones for snug, comfortable fit. Finely finished in
black color. Stereo/Mono switching with individual volume control on each phone for perfect
balance. Also available with right angle 1/4” plug (15-135-RA).
Specifications
Frequency Response ................... 20-20,000 Hz
IImpedance ................................................... 8W
Maximum Power Input .......................... 100 mW
Color........................................................... Black
Cable 10 ft. spiral, 3-cond. with stereo 1/4" phone plug
Sensitivity.................................... 102 dB at 1 mW
Weight................................................... 320 grams
15-144
PROFESSIONAL STEREO HEADPHONE WITH BOOM MICROPHONE
Excellent quality, used for broadcast monitors, switchboard, intercom and VOIP communication,
headphone and microphone can be used simultaneously or independently. 1/4” plugs.
Headset Specifications:
Impedance .................................................. 32W
Frequency Range ......................... 25-20,000 Hz
Max Power Input................................... 100 mW
Sensitivity...................................... 95dB @ 1mV
Cord Length ................................................. 3 ft.
Color........................................................... Black
13
Microphone Specifications:
Impedance.................................................... 300W
Sensitivity....................................... -80db @ 1KHz
Frequency Response.......................... 100-10 KHz
Color .............................................................. Black
Visit Calrad on the Web at: www.calrad.com
CALRAD
15 Series - Headphones
15-110 STETHOSET-TYPE MINI STEREO HEADPHONE
Stethoset type stereo headphones. Has two style ear cushions included. One is foam
style and the other is soft rubber for use when conditions warrant. Supplied with a right
angle 3.5 mm stereo plug and 1/4" stereo adapter.
Specifications
Frequency Response..... 20 - 20,000 Hz
Impedance ...................................... 32W
Power .......................................... 50mW
Sensitivity ...................... 100dB @ 1mW
Cord Length .................................... 4 ft.
Weight.................................... 25 grams
Color.............................................. Black
Color of Ear Pieces ........................ Gray
15-143 MINI STEREO HEADPHONES
Specifications
Frequency Response ........... 20–18,000 Hz
Impedance ................................... 32W ± 3%
Maximum Power Input.................... 100 mW
Color ................................................... Black
Sensitivity........ 96 dB S.P.L. at 1 KHz ± 2%
Cord Length ............................... 1.2 m ± 3%
Plug........................................ 3.5 mm stereo
15-145A (straight plug)
15-145A-RT (right angle plug. Includes 3.5mm to 1/4” adapter 35-550, comes with extra ear
pads)
MINI STEREO HEADPHONES
Ultra lightweight, less than 2 oz, yet high performance with 27mm mini mylar drivers—
excellent replacement for most portable cassette and compact disc players.
Specifications
Frequency Response................ 20–20 KHz
Matching Impedance........................ 4–32W
Color ................................................... Black
DYNAMIC EARPHONES
Earphones for most transistor radios,
cassette recorders, and television private
listening. Most popular types listed below.
Color is ivory.
15-93-20
2.5mm sub-miniature plug with 20 ft. cord
15-95
6 ft. Low impedance–3.5 mm plug
15-96
12 ft. Low impedance–3.5 mm plug
Sensitivity................................ 100 dB 1KHz
Cord Length....... 4 ft. w/ 3.5 mm stereo plug
15-106
REPLACEMENT EARPHONES
Frequency response 50Hz - 4KHz
cps. Ivory colored plastic case, flex
cord with miniature phone plug and
closed circuit jack. Excellent for
transistor radios, etc. Color is ivory.
20 ft. cord, 3.5 mm plug
Visit Calrad on the Web at: www.calrad.com
14
CALRAD
15 Series - Earphones & Headphone Junction Boxes
15-131
STEREO & MONAURAL HEADPHONE JUNCTION BOX
Used with many school teaching systems and language labs, provides private
listening for 8 individual persons. Individual volume control for each channel.
Multiple units can be cascaded. Operates from any 8 W output source to 8W
headphones. Supplied in black crackle finish, 9 ft connecting cable with
standard 1/4"phone plug. Has 4 non-slip rubber feet.
Specifications:
Wattage: 50 watts maximum load
1
1
Size: 8"(L) x 6 /4"(W) x 3 /4"(H). (Individually boxed.)
Color: Black
15-132
PROFESSIONAL HEADPHONE JUNCTION BOX
Provides equal signal output to 6, 1/4” headphone jacks without effecting the
overall input signal. Both XLR and 1/4" inputs are provided for signal delivery.
The side mounted 1/4” output jack allows connection of additional 15-132
headphone boxes in a daisy chain configuration. Designed to operate 8W to
600W headphones. Power handling capacity 50 watts max.
3
3
Size: 4 /4"(L) x 3"(W) x 1 /4"(H)
15-133
1X4 HEADPHONE DISTRIBUTION AMPLIFIER
headphone distribution amplifier allows low or line-level sources to drive up to 4
pairs of stereo headphones. 4 separate amplifiers drive any mix of headphones
from 8W to 600W and each headphone has its own stereo volume control. The
rugged steel metal case with rubber end caps makes this unit durable for any
environment.
Specifications
Input Impedance: 100KW unbalanced
Output Impedance drives 8W, 32W, 600W
Max Input Level: +14 dBV Input
Input\Output Connectors: (5) Stereo 1/4 in. TRS phone jacks.
Max Gain: 20 dB/Channel
S/N Ratio: >90 dB
THD: <.008 IMD (SMPTE) <.008
DC Power: 12Vdc, 300ma (DC Adapter Included)
Weight: 1 lb (.45 kg)
Size: (L) 5” x (W) 3” x (H)1.25”
15
Visit Calrad on the Web at: www.calrad.com
CALRAD
20 Series - Miniature Speakers
MINIATURE SPEAKERS WITH CLEAR PLASTIC CONES
With clear plastic cones for use as emitters, beepers, etc. Impedance. 8W
20-174
20-176
1.57" round,
7
/16" deep,
60-10KHz
frequency
response,
120 mw. Plastic
frame.
20-224A
1.1"
round,
1
/4" deep,
2" round,
11
/16" deep,
200-4,000 Hz
frequency
response,
2 watts power.
Metal frame.
250-25KHz
frequency
response,
200 mw max
power. Plastic
frame.
20-224
20-177
21/2" round, 15/16"
deep,
60-8KHz frequency
response,
2 watts max. power.
Metal frame.
1" round,
.4" deep,
600-10KHz
frequency response,
.1 watts power
rated. Plastic frame.
MINIATURE PRECISION MADE SPEAKERS
Designed for miniature equipment. Amazing tone quality in a small size speaker for transistor and all sub-miniature
applications. Precision made, ideally suited for pocket radio, small amplifiers and most transistorized equipment.
Paper cones. Impedance. 8W
20-225
1
1 /2" Square,
2” mount center,
5
/16" deep,
400-5KHz frequency response,
.1 watt peak power.
20-225R
1
1 /2" Round,
5
/16" deep,
400-5KHz frequency response,
.1 watt peak power.
*20-228
21/2" Round
13
/16" deep,
20-226
2" Round
3
/4" deep,
150-5KHz frequency response,
.5 watt peak power.
150-5KHz frequency response,
.3 watt peak power.
*Special Order Only
20-227
21/4" Round
3
/4" deep,
150-5KHz frequency response,
.4 watt peak power.
20-229
23/4" Round
7
/8" deep,
20-226, 20-227
20-228, 20-229
150-5KHz frequency response,
.5 watt peak power.
Visit Calrad on the Web at: www.calrad.com
16
CALRAD
20 Series - Speakers
20-301
3" 45 ohm 2 watt SPEAKER
Excellent quality, used for many types
of radios and intercoms. Mylar
waterproof cone.
Specifications
Impedance.............................. 45W
Power ................................ 2 watts
Size.............. 3” width, 13/16“ depth
Cone ..................................... Paper
20-218
8" BACKGROUND MUSIC
SPEAKER (with white ceiling
grill)
Ideal for ceilings and wall mounting.
3
Complete with 12 /4" dia. grill and 10
watt, 25 volt line transformer (10 oz.
magnet).
70 volt available upon request.
20-218VC Same as 20-218, with
volume control mounted in center
of grill.
20-231
3" SQUARE FRAME PRECISON
MADE SPEAKER
Superior quality with high efficiency
performance. Will improve tone quality of
most radios or intercoms.
Specifications
Impedance................................ 8W
Power ................................ 2 watts
Frequency Response
. 100-10 KHz
1
1
Size 3” (W), 3 /2“ (mount center) 1 /4“ (D)
Cone ..................................... Paper
*Special Order only
20-232
1
3 /2" SQUARE FRAME PRECISION
MADE SPEAKER
Superior quality with high efficiency. For
general replacement use. Rugged frame
construction, selected cone for fine
reproduction.
Specifications
Impedance................................ 8W
Power ................................ 2 watts
Frequency Response .. 100-10KHz
Size31/2”(W) X 45/16”(mount center)13/16””(D)
*Special Order Only
20-233
4" UNIVERSAL REPLACEMENT
SPEAKER
Heavy duty ceramic type magnet.
Specifications:
Impedance................................ 8W
Power ................................ 2 watts
Size...4” (W) 31/2“ (mount center) 17/16“(D)
Cone ..................................... Paper
17
Visit Calrad on the Web at: www.calrad.com
20-298 BEAUTIFUL WHITE
ENAMEL CEILING GRILL
8-inch speaker mounts to baffle by
four nuts supplied. Mounts directly to
ceiling or wall by wood screws,
toggle bolts or mollys.
Size: 17/8" in diameter
20-250
WHISPER PILLOW SPEAKER
Inaudible except to the user. Low
impedance type employing bone
conduction principle, amazing fidelity
bypassing the ear. Transmits sound
to inner ear by direct contact.
Connects to the voice coil side of
output transformer, 3.5 mm plug. 6
foot cord. White color.
20-280
COMMUNICATION SPEAKER
Used with CB radio, ham and general
purpose communications. Made of high
impact plastic for durability. Comes
with mounting bracket and 6 ft. cord
with molded 3.5mm plug. Color: Black.
Specifications
Impedance................................ 8W
Power.......................... 5 watts max
Frequency Response .... 150-4KHz
CALRAD
20 Series - Speakers & Paging Horns
20-211
8" PUBLIC ADDRESS & PAGING HORN
Designed for all around use, either indoors or outdoors. Fully weatherproof. Locking metal
swivel is provided for ease in mounting and adjustment. Outside edge has rubber sound
dampening ring.
Specifications:
Power ..................................... 25 watts
Frequency Response.. 300 Hz – 7 KHz
Impedance ...................................... 8W
Bell Size .................................. 8 inches round
Color........................................................ Grey
20-215
OUTDOOR PAGING SPEAKER
Used in talk back systems, this weatherproof, trumpet design paging speaker gives
extremely high sound level with low input power. Hams will find this speaker very useful in
their mobile installations. Mounts under the hood or on the dash. Because of its sensitivity
and high degree of intelligibility, it's ideal for paging systems in restaurants, office buildings,
etc. Complete with adjustable mounting bracket.
Specifications:
Impedance........................................... 8W
Power............................................. 3 watts
Size ............................... 25/8" x 33/4" x 23/8"
Color ................................................... White
20-244
ECONOMY 5" PAGING SPEAKER & ALARM HORN
Rugged construction but lightweight. New design to compete in the low cost field.
Completely weatherproof, Black plastic, 180 degree swivel bracket. Excellent for CB,
security or general paging systems.
Specifications:
Impedance........................................... 8W
Power.......................................... 15 watts
Frequency Response...... 400 Hz–12 KHz
Horn Opening .......................................... 5"
Overall Length ..................................... 53/8"
Color .....................................................Black
20-310
OUTDOOR REFLEX HORN
Rugged high impact molded plastic, high power speaker expressly designed for high
power alarm drivers. 30 watt power rating. Response 350-8000 Hz.
Dimensions: 43/4" x 8" x 91/4" deep. Color is white.
20-312
SIREN HORN
Same unit as 20-310 (above) except has built-in siren amplifier. Operates on 30 watts,
6–12 Vdc, our most powerful siren horn, has 3 wire hookup for yelp or steady sound. Horn
Dimensions: 43/4" x 8" x 91/4" deep. Current Draw: 1.2 amps. 120 dB at 6 ft. Color is White.
20-310, 20-312, & 20-313
*20-313
OUTDOOR HORN
Built in switching 25 + 70 volt line transformer.
Specifications:
Input Power 20 watt normal, 30 watt peak
Frequency Response ..... 420 Hz–15 KHz
Color ................................................ White
*Special Order Only
Switching .... 70 volt line–2W, 4W, 8W, 16W
Watts ........ 25 volt line–1W, 2W, 4W, 7.5W
20-311
HIGH POWER PAGING ALARM HORN
Metal swivel brackets provide numerous mounting angles both vertical and horizontal for
ease in mounting. Plastic Horn—11" x 61/2" x 81/2" deep.
Specifications:
Impedance .......................................... 8W
Color ................................................. Ivory
Power................................... 40 watts, max.
18
CALRAD
20 Series - In-Wall Speakers
20-330, 20-335 & 20-337
2-WAY FLUSH-MOUNT, IN-WALL SPEAKERS
Manufactured specifically for the demand of the HiFi sound enthusiast, our 3 Flush-Mount
Speaker Systems are designed for easy installation in walls or ceilings where conventional
box speakers are undesirable. Now you can enjoy incredible sound in any room of your
home or office, without need of additional floor or shelf space. Finished in white, they can
be painted to blend with any wall color.
Sold in pairs, packaged in separate boxes.
Specifications for 20-330:
Woofer................ 51/4" Polypropylene Cone
Tweeter ............................ 9/16" Mylar Dome
Crossover Frequency ........................ 3 KHz
Frequency Response............ 50 Hz-20 KHz
Specifications for 20-335:
Woofer.................... 6" Polypropylene Cone
Tweeter.................................. 1" Soft Dome
Crossover Frequency ..................... 2.5 KHz
Frequency Response............ 40 Hz-20 KHz
Specifications for 20-337:
Woofer.................... 8" Polypropylene Cone
Tweeter.................................. 1" Soft Dome
Crossover Frequency ..................... 2.5 KHz
Frequency Response............ 30 Hz-20 KHz
Wattage .................... 35 + 35 watts, peak
Impedance.............. indicated on speaker
Over-all Dimensions ............... 7 1/2" x 11"
Cut-out Dimensions............. 6 1/4" x 9 3/4"
Wattage .................... 50 + 50 watts, peak
Impedance.............. indicated on speaker
Over-all Dimensions ............... 8 5/8" x 12"
Cut-out Dimensions................ 7 1/2" x 11"
Wattage .................... 60 + 60 watts, peak
Impedance .......................................... 8W
Over-all Dimensions....... 14 1/8" x 10 3/64"
Cut-out Dimensions ......... 12 3/4" x 8 9/16"
20-331
8 INCH ROUND FLUSH MOUNT CEILING SPEAKER
Features a mylar dome tweeter for outstanding performance. Easily mounts in
walls and ceilings with built in retaining clips that automatically adjust to wall
thickness. White finish. Attractive fine mesh grill. Wide frequency Response.
Specifications:
Woofer: 8” (207mm) Polypropylene Cone
Tweeter: 9/16” (13mm) Mylar cone
Depth: 3 1/2” (90mm)
Grill width: 10 1/2” (270mm)
Frequency Response 50Hz -20KHz
Wattage: 60 Watt RMS
Sensitivity: 90 dB
SPEAKER BRACKETS
20-262-BK Black
20-262-W White
2 PIECES PER BOX
Completely adjustable ABS plastic brackets are weather resistant and come
complete with hardware and safety cable. Maximum load is 16 lbs.. Overall
Height of 6.75”. Rotation angle of 360° and a pivot angle of 40-90°. Specify
black or white when ordering.
19
Visit Calrad on the Web at: www.calrad.com
CALRAD
25 Series - Potentiometers
Audio & Linear
SUB-MINIATURE VOLUME CONTROLS
Linear taper, extremely smooth for quiet operation. 1/2" dia. fits into 1/4” hole. Shaft 3/16" dia.
Thread length 7/32", shaft length 9/16", 11/8" length overall. Supplied with mounting hardware.
Specify resistance. .1watt, 20% tolerance, 300° rotation. (One per package.) Solderable
terminals.
*25-290 .......................... 2KW Linear Taper
*25-294 ...................... 100KW Linear Taper
*25-295 ...................... 250KW Linear Taper
VOLUME CONTROL LESS SWITCH
Replacement controls available in the eight most popular values. High quality carbon elements
which have high stability under most conditions. 15/16" dia., 1/2" deep, 1/4” dia. shaft, 1/4"
thread length, 5/16" shaft length, 5/16", bushing, fits in 3/8” hole. 25-324 Long shaft 2” bushing.
1
/2 watt, 20% tolerance, 320° rotation. Supplied with hardware. Solderable terminals.
*25-324 Long Shaft......... 2KW Linear Taper
*25-328......................100KW Linear Taper
*25-325 .............................5KW Linear Taper
25-329.......................250KW Linear Taper
25-326............................10KW Linear Taper
25-330...................... 500KW Audio Taper
*25-327............................50KW Linear Taper
*25-331..........................1 MW Audio Taper
MINIATURE CONTROLS WITH SWITCH
Designed to provide extremely smooth quiet operation. Semi-log (audio) taper. Fits 5/16"
13
hole in panels, 1/4" shaft, /16" long, including threads, size 5/8" dia., 19/16" long. Specify
1
resistance. /2 watt, 20% tolerance, 300° rotation. SPST switch. Switch current 125v @ 3
amps.
*25-316..............................5KW Audio Taper 25-318........................... 50KW Audio Taper
*25-317............................10KW Audio Taper 25-322 ............................1 MW Audio Taper
MINIATURE VOLUME CONTROLS
Replacement control less switch 5/8" dia, fits 9/32" hole. Shaft 1/4" dia., 9/16" long including
thread. Supplied with mounting hardware. Specify resistance. 1/4 watt, 20% tolerance, 300°
rotation. Solderable terminals.
*25-300 .......................... 2KW Linear Taper
25-300A..........................1KW Linear Taper
25-301 ............................5KW Linear Taper
25-302 ......................... 10KW Linear Taper
*25-303 ......................... 50KW Linear Taper
*25-304 ....................... 100KW Linear Taper
25-305 ........................ 250KW Linear Taper
25-306 ......................... 500KW Audio Taper
25-307 ............................1 MW Audio Taper
*25-308........................... 10KW Audio Taper
25-309 ........................... 50KW Audio Taper
*25-310......................... 100KW Audio Taper
MINIATURE DUAL VOLUME CONTROLS
Extremely smooth action control with 11/16" dia., fits into 9/32" hole. Extra long thread 9/16",
shaft 1/4" dia. Circuit board mounting tabs. Shaft length 1/2". 1/4 watt, 20% tolerance, 300°
rotation. 1” overall length. Solderable terminals.
25-395 .............................5KW Audio Taper *25-397............................ 50KW Audio Taper
25-396 ...........................10KW Audio Taper 25-398 ......... 100KW Linear Taper (.01 watt)
MINIATURE MULTI-CLICK RATCHET CONTROLS-P.C. MOUNT 10 step
11
/16" dia. body, 1/4" dia. shaft, 9/16" shaft length, including threads, fits into 9/32" hole. 7/8" long
overall.1/4 watt, 20% tolerance, 300° rotation. Solderable terminals.
25-420 ...............5KW Linear Taper (.1 watt)
25-421 .............10KW Linear Taper (.1 watt)
*25-422 ...........................50KW Linear Taper
25-423..........................100KW Linear Taper
25-424......................... 250KW Linear Taper
*25-428 ......................... 5KW Audio Taper
*25-429 ....................... 10KW Audio Taper
*25-430 ....................... 50KW Audio Taper
*25-431 ..................... 100KW Audio Taper
25-432...................... 250KW Audio Taper
25-433...................... 500KW Audio Taper
MINIATURE MULTI-CLICK DUAL CONTROLS—40 STEP P.C. MOUNT
11
/16" dia., 11/4" long overall, 9/32" hole size, 1/4" dia shaft, 9/16" long shaft including threads.1/4
watt, 20% tolerance, 300° rotation. Solderable terminals.
*25-405 ........................ 10KW Linear Taper *25-410........................ 10KW Audio Taper
*25-406 ........................ 50KW Linear Taper 25-411 ........................ 50KW Audio Taper
25-407....................... 100KW Linear Taper 25-412 ...................... 100KW Audio Taper
POTENTIOMETERS WITH AN *ASTERISK* NEXT TO THE PART NUMBER ARE BY SPECIAL
ORDER ONLY, PLEASE CONTACT CALRAD FOR ORDERING REQUIREMENTS 323-465-2131
20
CALRAD
25 Series - Controls
SLIDE CONTROLS
Modernize your equipment with the use of Slide Controls that have rugged construction and extra smooth
action. 20% tolerance. Solderable terminals.
4 7/16" Mounting Centers, 4 11/16" x 1/2" x 5/8" Including Terminals
25-271.........................25 watt, 50KW Linear Taper
25-276 ..............................0.5 watt, 50KW Audio Taper
25-275............................5 watt, 10KW Audio Taper
25-277...............................5 watt, 100KW Audio Taper
3 5/32" Mounting Centers, 3 7/16" x 1/2" x 5/16" Including Terminals
25-372................................ 0.25 watt, 1KW Linear Taper
25-379............................... 0.125 watt, 100KW Audio Taper
Dual gang slide 2 11/16" Mounting Centers, 2 7/8" x 3/4" x 7/32" P.C. Leads
25-390 .................................10KW Dual Linear Taper 25-391 ...................................25KW Dual Linear Taper
Pro Audio Use
Pro Audio Use
25-341
MONO "L" PAD*
25-342A
STEREO "L" PAD*
Flat frequency response, natural
reproduction is obtained by adjusting for
the difference in efficiency ratios.
Adjustment ±17% of the normal rated
impedance. "L" pads are
8W impedance. Black plastic contour
knob. Mounts in 3/8" hole. Bushing 3/4"
long. 10-25 watts. 0-40dB attenuation.
300° rotation. Solderable terminals.
Single shaft control for maintaining proper
output level . Providing positive equal audio
power to each speaker. Has 3/8" x 32
threaded bushing 7/8" long. Impedance:
8W.10-25 watts. Solderable terminals. See
wiring diagram on page 22.
50 WATT HEAVY DUTY AUDIO LEVEL CONTROLS ("L" PAD)
25-352 MONAURAL* (Body Size: 2" x 2" x 11/16" Hole Size 3/8")
25-352-S, Same as 25-352 but with short shaft.
25-353 STEREO* (Body Size: 2" x 2" x 13/4" Hole Size
3/8")
Specially designed "L-Pads" to be used in high power audio or speaker systems.
Made of rugged high quality materials for neat appearance and smooth operation.1/2"
long threads are provided for ease in mounting in thick cabinets. Complete with knob,
hardware for mounting. Specify monaural or stereo. Impedance: 8W. See wiring diagram
on page 22.
100 WATT HEAVY DUTY AUDIO ATTENUATORS ("L" PAD)
25-452 MONAURAL*
25-453 STEREO*
Controls speaker volume in a remote location. Rated up to 100 watts at 8W. Extra long 3/4"
bushing for mounting in standard 3/8" diameter hole. Complete with front plate and knob.
Heavy solderable terminals. See wiring diagram on page 22.
Dimensions: 5.5”(W) X 3.14”(H) X 3.75”(D)
21
25-353
25-352
CALRAD
25 Series - Speaker Attenuators
*WIRING DIAGRAM
FOR 25-341, 25-342A,
25-352, 25-353, 25-452,
25-453
(-)
Commercial or Residential Use
25-351 10 WATT 70 VOLT AUDIO LINE ATTENUATOR -MONO
25-351A 10 WATT 8W AUDIO LINE ATTENUATOR -MONO
Flush mount auto transformer type. Fits into standard single gang box or ring. Excellent for
use in home, paging and background music systems. Features a 10-position volume selector
switch with 3dB step attenuation and a positive off position. Complete with stainless steel
mounting plate, knob, with terminal block connectors. Depth 21/8". First 2 steps are 6dB,
others are 3dB.
25-339 10 WATT 8W AUDIO LINE ATTENUATOR - STEREO
25-339A 10 WATT 70 VOLT AUDIO LINE ATTENUATOR - STEREO
1
1
Same as 25-351 (Stereo Version). 10 Watt-70 Volt. Dimensions: 2 /2" deep x 2 /2" high x 2" width
(less shaft and knob).
25-357
20 WATT 8W AUDIO LINE ATTENUATOR - STEREO
25-357A 20 WATT 70 VOLT AUDIO LINE ATTENUATOR - STEREO
25-354 25 WATT 8W STEREO ATTENUATOR
Single-gang box mount
25-355 40 WATT 8W STEREO ATTENUATOR
Click type attenuators with isolation transformers. 3 dB (10) step attenuation. Comes with terminal
block connectors. White insert and knob with pointer. Accepts up to 14 awg cable. 2.3” deep.
Single-gang box mount.
25-360
70 WATT 8W AUDIO LINE ATTENUATOR - STEREO
12 step design, each step being 3dB. The last 4 steps are 6dB each. 70 watts per channel, 150
watts peak. White insert and knob with pointer. Accepts up to 14 awg cable. Removable terminal
blocks cable installation. 2.7” deep.
Visit Calrad on the Web at: www.calrad.com
22
CALRAD
25 Series - Speaker Attenuators & Accessories
25-361
8 OHM STEREO MULTIPLE SPEAKER ATTENUATOR
12 step design for a total attenuation of 42dB. Matches impedance to amplifier and allows 1 to 16
attenuators to be used with one amplifier. Selectable index washer under knob for setting attenuation.
Power handling 100 watts, 200 watts peak, 8W output. White insert and knob with pointer. Accepts up to 14
awg cable. Removeable terminal blocks, 2.7” deep.
25-362
30 WATT 70 VOLT MONO ATTENUATOR
Click type 70 volt attenuator with isolation transformers. (10) step 8-3dB, 2-6dB steps for attenuation. Comes
with terminal block connectors. White insert and knob with pointer. Accepts up to 14 awg cable, 2.3” deep.
25-356
10 WATT 70 VOLT MONO ATTENUATOR
10-step attenuation for high level audio signal. Low insertion loss. Controls up to 10 watts of speaker load.
Handles 70 volts RMS input. Stainless steel panel. Easy installation. Comes with terminal block connectors.
White wall plate and knob with pointer.
28-145
COLORED DESIGNER STYLE INSERT COVERS
Designed to be used with the Calrad 25-360, 25-361and 25-362 attenuators. Easy to remove designer
style insert comes with matching colored knob.
28-145-AL............Almond
28-145-BK...............Black
28-145-WH.............White
28-145-IV................Ivory
WHITE AND IVORY KNOBS AND PLATES
For use with 25-351, 25-351A, 25-339, 25-339A, 25-357, and 25-357A. Plates have numbers 0-10. Knob is
1 5/16” in diameter and accepts 1/4” shafts.
85-565-ID
85-565-WD
28-140-W
23
Ivory Designer Style Knob
White Designer Style Knob
White Wall Plate
Visit Calrad on the Web at: www.calrad.com
CALRAD
25 Series -
Desktop Volume Controls & Transformers
25-345
60 WATT STEREO DESKTOP
LOUDSPEAKER CONTROL CENTER
Individual volume controls for each speaker L+R.
Input\Output through 4MM gold plated terminals.
Can be used with CALRAD 30-605 banana plugs.
Accepts 12-18 gauge cable. Sturdy metal chassis
with black finish.
Dimensions: W = 5.5” X H = 3.14” X D = 3.75”.
25-346
60 WATT STEREO DESKTOP
LOUDSPEAKER CONTROL
Heavy duty rocker switches turns On\Off main,
remote speakers. Individual volume controls for
each speaker L+R. Input\Output through 4mm
gold plated terminals. Can be used with CALRAD
30-605 banana plugs. Accepts 12-18 gauge cable.
Sturdy metal chassis with black finish.
Dimensions: W = 8” X H = 3.5” X D = 5”.
25-347
70 WATT STEREO DESKTOP
ATTENUATOR
Transformer designed attenuator. Input\Output
through UV approved screwless, push-type
terminals accepts up to 14 AWG cable. Stereo
headphone jack for private listening, shuts off
speakers when headphone plug is inserted into
jack. Sturdy metal chassis with light grey finish.
Dimensions: W = 7” X H = 1.25” X D = 3”.
Visit Calrad on the Web at: www.calrad.com
24
CALRAD
28 Series - Designer Style Wall Plates
28-100-P
GOLD PLATED
1 PAIR BINDING POSTS
Plastic insert plate. Standard 5 way
binding posts, independently isolated
terminals, with solderable leads. Insert
color is white. Includes mounting
hardware.
28-101-P
GOLD PLATED
2 PAIR BINDING POSTS
Plastic insert plate. Double standard 5
way binding posts, independently
isolated terminals, with solderable
leads. Insert color is white.
With Red & black binding posts.
28-124
GOLD PLATEDFOUR PAIR
FIVE-WAY BINDING POSTS
Metal insert plate. Insert color is
white. Double standard 5 way
binding posts. Independently
isolated terminals, with solderable
leads. Red & black binding posts.
Includes mounting hardware.
28-122
GOLD DESIGNER STYLE
SPEAKER BINDING POSTS
WHITE
IVORY
28-122-2 1 Pair 28-122-IV-2 1 Pair
28-122-4 2 Pair 28-122-IV-4 2 Pair
28-122-6 3 Pair 28-122-IV-6 3 Pair
28-122-8 4 Pair 28-122-IV-8 4 Pair
Perfect for single channel outputs
(L+R), A+B (L+R) or 5.1, 7.1 surround
sound speaker distribution. Solderless
wire termination. Works with single or
dual Male banana plugs or binding post
termination. Accepts up to 14 AWG
cable. Available in 1, 2 or 4 channel
configurations. Easy color coded
speaker polarity markings (red/black)
Available in white or ivory, please
specify color when ordering.
25
SOLDER DESIGNER STYLE INSERTS
FOR AUDIO AND VIDEO WALLPLATES
Designer style inserts provide a wide variety configurations for
most audio or video applications. We are now offering selected
configurations with screw terminals for secure non-solderable
wire connections. Connection points are labeled for easy wire
identification allowing for easy installation and maintenance.
We have also added both single and double HD DB15, DVI-I,
HDMI feedthrus.
28-122-S-2
28-122-S-4
28-122-S-6
28-122-S-8
2 POSTS
4 POSTS NOT SHOWN
6 POSTS NOT SHOWN
8 POSTS
Gold plated binding posts. Push button
connection on rear accepts 14 GA wire.
Front accept single banana plugs or
will screw open to accept inserted wire
up to 14 GA. Color coded Red and
Black on front of plate and White and
Black on the rear. Power handling is
75 watts.
28-132
GOLD PLATED FIVE-WAY AUDIO
SPLITTER
Connect 4 pairs of speakers to the
terminal block, 1 pair to Designer style
wall plate with gold binding posts.
Removable terminal plugs for easy
wiring. Power handling capacity is 75
watts. Rear terminal strips accept up to
16 awg. cable. Insert color is white. Red
& black terminals.
28-102-P
GOLD PLATED
1 PAIR BANANA JACKS
Plastic insert plate. Recessed banana
jacks with isolated terminals and
solderable leads. Insert color is white.
Red/black terminals. Includes mounting
hardware.
Rear
view
CALRAD
28 Series - Designer Style Wall Plates
28-103-P
GOLD PLATED
2 PAIR BANANA JACKS
Plastic insert plate. Recessed
banana jacks with isolated terminal,
with solderable leads. Insert color is
white. Red/black terminals. Includes
mounting hardware.
28-123
FOUR PAIR BANANA JACKS
Metal insert plate. Insert color is
white. Red/black terminals. Includes
mounting hardware.
28-104-P GOLD PLATED
SINGLE RCA JACK
Plastic insert plate. Standard black RCA
type jack with solderable leads. Insert
color is white. Includes mounting
hardware.
28-105-P GOLD PLATED
DOUBLE RCA JACKS
Plastic insert plate. Standard red/white
RCA type jacks with solderable leads.
Insert color is white. Includes mounting
hardware.
28-106-P GOLD PLATED
TRIPLE RCA JACKS
Plastic insert plate. Standard yellow
red/white RCA type jacks with solderable
leads. Insert color is white. Includes
mounting hardware.
28-107-P GOLD PLATED
DOUBLE RCA JACKS WITH
SINGLE COAX
Plastic insert plate. Solderable
red/white RCA jacks, feed-thru F
connector. Insert color is white.
Includes mounting hardware.
28-108-P GOLD PLATED
TRIPLE RCA JACKS WITH
SINGLE COAX
Plastic insert plate. Solderable
yellow red/white RCA jacks, feed-thru
F connector. Insert color is white.
Includes mounting hardware.
28-165
COMPONENT RGB VIDEO RCA
FEED-THRU JACKS
28-165G Gold Version
Supports 480i, 480P, 7200P, 1080i
resolutions. White plastic insert plate. Red,
Green, Blue feed-thru Female to Female
jacks with colored inserts . Nickel body
connectors. Includes mounting hardware.
28-202D PASSIVE
COMPONENT VIDEO BALUN
RJ45 or punchdown termination.
Works with Cat5e UTP or Cat 6
cable. Depth 2.5”, RCA connectors
on front. Single gang wall Plate
included.
Distance capability
480P................................300 feet
720P................................200 feet
1080i................................100 feet
40-YW01D PASSIVE
COMPONENT VIDEO BALUN
WITH DIGITAL AUDIO
Sold in pairs
Supports 480i, 480P, 7200P, 1080i
resolutions. 4 colored RCA jacks.
Terminates to a single RJ45 jack.
480P................................300 feet
720P................................200 feet
1080i................................100 feet
Visit Calrad on the Web at: www.calrad.com
26
CALRAD
28 series - Designer style Wall plates
28-125 siNgLe 50 ohm goLD
pLAteD BNC FemALe JACk
Gold Plated BNC jack in a plastic
insert plate. Color is white. Solderable
leads. Includes mounting hardware.
28-126 DUAL 50 ohm goLD
pLAteD BNC FemALe JACks
Gold Plated BNC jacks in a plastic
insert plate. Color is white.
Solderable leads. Includes mounting
hardware.
28-117-p 1/4” iNCh goLD
pLAteD
steReo JACk
Plastic insert plate. Insert color is
white. Solderable leads. Includes
mounting hardware.
28-127 tWo RCA JACks AND
oNe FemALe BNC JACk,
goLD pLAteD
White metal insert plate. Solderable
leads, includes mounting hardware.
28-170 hDtV - RgB ViDeo BNC
FeeD-thRU JACks
White plastic insert plate. True 75
ohm BNC Female to Female feedthru jacks with eye-catching colored
plastic washers for easy RGB
identification. Nickel body
connectors. Includes mounting
hardware.
28-151 4 pin Version, Nickel
plated
28-151g 4 pin Version, gold
plated
28-153 6 pin Version, Nickel
plated
4 oR 6 piN miNi DiN siNgLe
FeeD thRU JACk
White plastic insert plate. Mini Din
feed thru jack. Includes mounting
hardware.
28-118 goLD pLAteD
XLR mALe
Plastic insert plate. Insert color is
white. Solderable leads. Includes
mounting hardware.
28-119 goLD pLAteD
XLR FemALe
Plastic insert plate. Insert color is
white. Solderable leads. Includes
mounting hardware.
27
Visit Calrad on the Web at: www.calrad.com
DUAL VeRsioN
28-152 4 pin Version, gold
plated
Used for s-Video
28-154 6 pin Version, Nickel
plated
For mouse or keyboard
28-150g Gold
28-150 Nickel
DUAL RCA JACks AND
oNe FemALe sVhs JACk
White plastic insert plate with one
SVHS video and L+R, red/white
audio feed thru jacks. Comes in
either Gold or Nickel plated versions.
Includes mounting hardware.
hDtV
CALRAD
28 series - Designer style Wall plates
28-161 siNgLe high
DeNsitY DB-15 FeeD-thRU
JACk
28-159 3.5mm FeeDthRU JACk
White plastic insert plate with a single
3.5mm Female to Female stereo jack
nickel plated connector. Includes
mounting hardware.
White plastic insert with a single
HD-DB-15 feed-thru jack. Available
in nickel or gold plated versions.
Includes mounting hardware.
28-161.......................Nickel
28-161g......................Gold
28-160 siNgLe high DeNsitY DB15 FeeD-thRU AND DUAL RCA
FeeD-thRU JACks
28-160.........................Nickel
28-160g........................Gold
hDtV
28-109-p siNgLe CoAX JACk
VgA
Single gold plated feed-thru F
connector on a plastic plate. Insert color
is white. Includes mounting hardware.
White plastic insert plate. HD-DB-15
high density Female to Female jack
with red/white RCA Female to Female
jacks. Includes mounting hardware.
28-161-3.5 high DeNsitY DB-15
AND 3.5mm FeeDthRU JACks
VgA
hDtV
28-110-p DoUBLe CoAX
JACks
VgA
White plastic insert plate. with (1) HD-DB15 high density Female to Female jack
and (1) 3.5mm Female to Female stereo
jack. nickel plated connectors. Includes
mounting hardware.
Dual gold plated feed-thru F connector
on a plastic plate. Insert color is white.
Includes mounting hardware.
hDtV
28-162 DUAL high DeNsitY
DB-15
FeeD-thRU JACks
28-111-p tRipLe CoAX JACks
VgA
Triple gold plated feed-thru F connector
on a plastic plate. Insert color is white.
Includes mounting hardware.
White plastic insert plate. with 2 HD-DB15 high density Female to Female
jacks. Comes in either nickel or gold
versions. Includes mounting hardware.
28-162.................................Nickel
28-162g.............................. Gold
28-162-m-2............Metal Plate
hDtV
28-172 hDtV Video Wall plate with hDmi and Component Video
Feed-thru Jacks
Gold plated HDMI F/F and 3 RCA F/F connectors, Color Coded: RED,
GREEN, BLUE allow you to couple two HDMI cables and Component Video
cables together within an in-wall installation. Perfect for HDTV and home
theater needs. Color: White.
hDtV
Visit Calrad on the Web at: www.calrad.com
28
CALRAD
28 series - Designer style Wall plates
28-161-t soLDeRLess VgA
White plastic insert plate with one
15 pin VGA Female to 10 position
terminal block with screws. Nickel
plated. Includes 2 7/16” holes.
Interior depth 1 1/8”. Block is
marked with VGA connection
information. Easy to use.
hDtV
hDtV
Small Slotted
Screw Driver
Required
28-163p DVi-i to DVi-i FeeD-thRU
White plastic insert plate with one DVI-I
Female to Female feedthru. Nickel plated.
Includes mounting hardware Interior depth
0.4 inches.
hDtV
2 x RJ45
Jacks
40-1074 WALL pLAte BALUN,
hDmi oVeR 2 CAt5e/CAt6 CABLes
28-163 LoW pRoFiLe goLD DVi-i to
DVi-i FeeD-thRU
Cable Distance (CAT5e) 1080P, 100 ft., CAT6
Cable 125 ft. 1080I, 200 ft. 720P, 200 ft. 480P,
300 ft. HDMI In\Out Connectors: 19 pin Female
Jacks, 2 x RJ45 Shielded Jacks each unit.
Color: White, Size: Length 4.5" x W idth 2.75" x
hDtV
White plastic insert plate with DVI Female
jacks on both sides. Jacks are mounted on
offset circuit board for a low profile front and
back. Gold plated connectors insure
excellent contact and long life. Total depth 1”
front to back.
Height 1.25".
28-164-m siNgLe DVi-i FeeD thRU
28-164-m-2 DUAL DVi-i FeeD thRU
hDtV
DVi-i FeeD-thRU
Stainless Steel full sized wall plate with either
a single or dual DVI-I Female to Female feedthru. Can only be mounted in a wall bracket
style fixture and not a standard “J” box, due
to extended length of rear connection (see
photo). Needs depth of 3.5 inches.
2 x RJ45
Jacks
hDtV
hDtV
DVi-i pinout
28-166-Lp siNgLe VeRsioN
28-167-Lp DUAL VeRsioN
hDmi to hDmi FeeD-thRU
White plastic insert plate with
single or dual HDMI Female to
Female feed thrus. Comes with
red LED signal indicator. Nickel
plated. Includes mounting
hardware. Color is white. LED
Indicators.
29
hDtV
hDtV
40-1075 WALL pLAte BALUN, hDmi
AND iR oVeR 2 CAt5e/CAt6 CABLes
HDMI 1.3b and IR designer style wall plate balun
system over two Cat5e, Cat 6 cables. Cable
Distance (CAT5e) 1080P, 100 ft., CAT6 Cable
125 ft. 1080I, 200 ft. 720P, 200 ft. 480P, 300 ft.
HDMI In\Out Connectors: 19 pin Female Jacks,
2 x RJ45 Shielded Jacks each unit. Color: White,
External AC power adapter included. Size:
Length 4.15" x W idth 1.75" x Height 1.25".
CALRAD
28 series - Designer style Wall plates
28-166k
keYstoNe hDmi 1.3B
FemALe to FemALe
iNseRt
hDtV
Fits in a standard keystone cut
out, 1.3b Certified Female HDMI
on front and back Keystone is
rotated 90 degrees to insert into
any standard keystone face plate,
Gold-plated Connectors. wall plate
not included. Overall depth 1",
Color: White
hDtV
hDtV
hDtV
40-hW01
hDmi AND iR
WALL pLAte BALUN
hDtV
HDMI 1.3 and IR wall plate balun
system over two Cat5e, Cat 6 cables.
Transmission Distance (CAT5e)
1080P, 100 ft., CAT6 Cable 125 ft.
1080I, 200 ft. 720P, 200 ft. 480P, 300
ft. Color: White. External AC power
adapter included. Sold in pairs.
1 or 2 port wall plates, with 90
degree (Right Angle)
Female/Female HDMI gender
changer module so you can use
standard HDMI cables inside
walls without having to bend your
cables at angles that could
damage them. Includes a single
or double HDMI insert. 1.3b
Certified, Color: White.
eXAmpLe 1A
These plastic inserts come with
Calrad part numbers 28-168-1,-2,
28-169-1,-2 28-171-1,-2. They
provide a simple solution to easily
insert and remove the HDMI
modules to create your own
custom wall plates, Color: White.
28-171-2 (2 poRt)
DUAL poRt hDmi 4" pigtAiL
hDmi FemALe to FemALe
CoUpLeRs
Fits into special plastic wall plates with
inner locking snap-in cut outs,
included, see example 1A. 1.3b
Certified, 1-7/8" depth, Color: White.
1 or 2 port wall plates, with
Female/Female gold plated HDMI
gender changer module so you
can use standard HDMI
cables.1.3b Certified, Color:
White.
28-169-1 (1 port)
28-169-2 (2 port)
pLAstiC WALL pLAte
With 90 DegRee sNAp-iN
hDmi FemALe to FemALe
CoUpLeR
hDtV
Fits into special plastic wall plates with
inner locking snap-in cut outs,
included, see example 1A. 1.3b
Certified, 1-7/8" depth, Color: White.
Decora plate not included
28-168-1 (1 poRt)
28-168-2 (2 poRt)
pLAstiC WALL pLAte
With stRAight sNAp-iN
hDmi FemALe to FemALe
CoUpLeR
28-171-1 (1 port)
siNgLe poRt hDmi 4" pigtAiL
hDmi FemALe to FemALe
CoUpLeR
Rear View
Insert Into hole with
locking tabs
Visit Calrad on the Web at: www.calrad.com
30
CALRAD
28 series - Designer style Wall plates
28-190
BLANk keYstoNe
CUtoUt With tWo 3/8”
hoLes
White plastic blank insert,
with 1 - blank keystone, 2 - Hex
nut cutouts for .375” connectors.
Hex nut size = .445”
28-180
heX hoLe DesigNeR iNseRts
White and Ivory plastic insert plates available in 1, 2, 3, 4, 6, and 8 hole
configurations. Will accept any 3/8” audio & video connectors, RCA, RF, etc.
Works with Calrad 30 and 75 Series 3/8” feed-thru connectors.
please specify hole number and color version when ordering
Hex cutout = .445”, Colors: White or Ivory
iVoRY
28-180-1-iV.................1 hole
28-180-2-iV...................2 holes
28-180-3-iV...................3 holes
28-180-4-iV.................4 holes
28-180-6-iV...................6 holes
28-180-8-iV...................8 holes
White
28-180-1......................1 hole
28-180-2......................2 holes
28-180-3........................3 holes
28-180-4......................4 holes
28-180-6........................6 holes
28-180-8........................8 holes
28-180-hp-Bk...Black hole plug
28-114-p
BLANk iNseRt
White plastic insert plate. Insert
used as a blank or can be drilled
or punched to fit various jacks,
connectors, etc. Includes
mounting hardware.
28-114-iV Ivory Version
28-180-hp-Bk
3/8” blank hole plug.
Insert connectors for the 28-180 series are the 30-410-3/8, 30-410G-3/8, 30424, 30-400, 30-411, 30-394, 30-710, 30-711, 30-712, 30-713, 30-714,
30-715, 75-635A, 75-520 hex connectors.
siNgLe gANg pLAtes
28-112
White steel wall plate
28-113
White Plastic Wall Plate
28-113-iV
DoUBLe AND tRipLe
gANg WALL pLAtes
28-115-p.........double
28-115-iV Ivory Version
28-116-p............triple
28-116-iV Ivory Version
Ivory Plastic Wall Plate
31
Visit Calrad on the Web at: www.calrad.com
4/5/6 gANg WALL
pLAtes
Multi position wall plate allows
you to do clean multiple
installs of Designer plates.
Attractive Ivory color
28-116p-4..............4 Position
28-116p-5..............5 position
28-116p-6..............6 Position
CALRAD
28 series - Designer style Wall plates
28-120
steReo A+B speAkeR sWitCh
White plastic insert plate. Power rating is
50 watts. Common ground switching.
Includes mounting hardware.
single Designer style
speaker selector inserts
28-128
heADphoNe JACk AND speAkeR
sWitCh
White plastic insert plate. Push switch and
1/4” Stereo headphone jack. 100 watts
cont. / 150 watts peak. Includes mounting
hardware. Input and output terminals on
the back. Contains protective dropping
resistor for headphone output jack.
28-129
A/B oR A+B speAkeR sWitCh
White plastic insert plate. Rotary type
switch. Screw-to-connect terminal blocks.
100 watts cont. / 150 watts peak. Includes
mounting hardware.
28-130
speAkeR seLeCtoR FoR 2 pAiRs
oF speAkeRs
White plastic insert plate. Push type switch.
Screw-to-connect terminal blocks. 100
watts cont. / 150 watts peak. Common
ground switching. Includes mounting
hardware.
28-131
A-B seLeCtoR FoR AmpLiFieR
oR speAkeR sWitChiNg With
isoLAteD gRoUNDs
Plastic insert plate fits into single gang
standard electrical junction box.
Removable screw to connect terminal
blocks. Accepts up to 14 awg. wire.
Power handling of 55 watts per
channel/max. Isolated ground terminals
for amplifier protection. Easy to read
terminal identification. Break before
make switching.
Visit Calrad on the web at: www.calrad.com
32
CALRAD
28 series - Designer style Wall plates
28-145
CoLoReD DesigNeR
stYLe iNseRt CoVeRs
Designed to be used with the
Calrad 25-360, 25-361and
25-362 attenuators. Easy to
remove designer style insert
comes with matching colored
knob.
28-145-AL............Almond
28-145-Bk...............Black
28-145-Wh.............White
28-145-iV.................Ivory
White oR iVoRY
kNoBs AND pLAtes
For use with 25-351, 25351A, 25-339, 25-339A, 25357, and 25-357A. Plates
have numbers 0-10. Knob is
1 5/16” in diameter and
accepts 1/4” shafts.
85-565-iD.....................Ivory
Designer Style Knob
85-565-WD.................White
Designer Style Knob
28-140-W................. White
Wall Plate
A\V WiRe DistRiBUtioN
siNgLe gANg WALL
pLAte
28-CeDh1
siNgLe gANg CABLe
DistRiBUtioN WALL pLAte
Angled exit wall plate allows
for inwall cables to be routed
downwards
Hole Dimensions: 1.44” X.35”
28-181-iV ....................Ivory
28-181-Wh ................White
Plastic single gang hood provides a versatile
method of passing multiple cables from behind
the wall to equipment. Hoods may be installed
in our 70-558 or 70-568 low voltage brackets
and are compatible with our 28 series designer
style single and multi gang wall plates. These
hoods may be installed with the scoop facing in
or out of the wall, to suit a variety of needs.
Dimensions:
W 4.13” X L 1.5” X D 1.5”
Cable Opening: W 1.2” X L 2.3”
Color: White
28-CeDh1-Bk
BLACk siNgLe gANg
CABLe DistRiBUtioN
WALL pLAte
28-CeR-1
siNgLe gANg sCoop stYLe
CABLe DistRiBUtioN
WALL pLAte
28-CeR-2
DoUBLe gANg sCoop stYLe
CABLe DistRiBUtioN
WALL pLAte
28-LV1Rp
siNgLe gANg CABLe
DistRiBUtioN moUNtiNg
BRACket
Plastic single gang hood provides a
versatile method of passing multiple
cables from behind the wall to
equipment. Hoods may be installed
in our 70-558 or 70-568 low voltage
brackets and are compatible with
our 28 series designer style single
and multi gang wall plates. These
hoods may be installed with the
scoop facing in or out of the wall, to
suit a variety of needs.
Dimensions:
W 4.13” X L 1.5” X D 1.5”
Cable Opening: W 1.2” X L 2.3”
Color: Black
Plastic single gang hood designed for
post or retrofit cable installations as
well as for cables with large
connectors. The lower portion of this
bulk wire wall plate is removable so
you can install the plate after the
cables have been installed or
connected. Can be used with our
70-558 or 70-568 low voltage
brackets. Squared single port for
maximum cable capacity. This retrofit
plate is reversible so you can have
the scoop inside or outside of the wall
to suit a variety of needs.
Dimensions:
2.87" W X 4.63" L X 1.56" D
Cable Opening: W 1.56” X H .095”
Color: White
Plastic dual gang hood designed for
post or retrofit cable installations as
well as for cables with large
connectors. The lower portion of this
bulk wire wall plate is removable so
you can install the plate after the cables
have been installed or connected. Can
be used with our 70-559 or 70-569 low
voltage brackets. Squared single port
for maximum cable capacity. This
retrofit plate is reversible so you can
have the scoop inside or outside of the
wall to suit a variety of needs.
Dimensions:
4.55" W X 4.55" L X 1.75" D
Cable Opening: W 2.975” X H 1.375”
Color: White
Single gang low voltage bulk cable
mounting bracket designed for easy
installation. Can be installed quickly
using a 3.5” hole saw in 1/4" to 1 1/2"
dry wall. Can also be used with our
28 series designer style wall plates.
Dimensions:
3.8" W x 5.6"H x 2.0" D
Total Internal Depth: 1 7/8" Measured
from the back of flange
Color: White
33
CALRAD
28-70 series - Wall mounting Brackets
28-LV2Rp
DUAL gANg CABLe
DistRiBUtioN moUNtiNg
BRACket
70-558 siNgLe gANg
70-559 DUAL gANg
Dual gang low voltage bulk cable
mounting bracket designed for
easy installation. Can be installed
quickly using a 4.5” hole saw in
1/4" to 1 1/2" dry wall. Can also
be used with our 28 series
designer style wall plates.
Dimensions:
5 3/8" W x 5 1/4"H x 2 1/8" D
Total Internal Depth: 2"
Measured from the back of flange
Color: White
Stainless steel EZ mount plate
Comes with two mounting
screws. Cut opening in the
drywall and bend the tabs
back inside the wall then use
the supplied screws to secure
the front of the plate to the
tabs. (Mounting Hardware
Included).
70-553A
FLUsh moUNt WALL
BRACket
Stainless steel wall bracket
with two bendable tabs for a
standard single gang wall
opening.
28-tVBU505 (White)
28-tVBR505 (BLACk)
ReCesseD tWo gANg
ComBo BoX
70-568
siNgLe gANg FLUsh
moUNt pLAstiC WALL
BRACket
70-569
DUAL gANg FLUsh
moUNt pLAstiC WALL
BRACket
Single gang plastic flush
mount bracket with rotating
adjustable/locking mounting
tabs, provides a large open
area behind the wall plate for
volume controls and other A/V
products to mount in, Color is
black.
Double gang plastic flush
mount bracket with rotating
adjustable/locking mounting
tabs, provides a large open
area behind the wall plate for
volume controls and other A/V
products to mount in, Color is
black.
Allows you to mount LCD and
plasma TVs, and other system
components flush against the
wall. This two-gang box is a
combo box with half 110V for
power and half low voltage for
Class 2 wiring of satellite or
cable TV, speakers, surroundsound, etc. Mounting "wings"
tighten against the wall board or
screwed directly to the stud to
hold the box firmly in place.
There's no wobble. Plugs stay
inside - don't protrude past the
wall! for a secure installation.
Available in a white or black
finish. Material paintable ABS
plastic. All the necessary
mounting hardware is included.
70-556-p Single Gang
70-557-p Double Gang
FLUsh moUNt pLAstiC
WALL BRACket
Single or Double gang
flush mount bracket with
adjustable locking
mounting tabs
28-LVU1W (White)
28-LVU1BL (BLACk)
ReCesseD tWo gANg
ComBo BoX
The 28-LVU1W, LVU1BL series
recesses low voltage box is the
perfect space saver behind
LED/LCD or Plasma TVs. This
single gang, recessed, low
voltage box allows for AV cables
to come out of the wall starting
from behind the sheetrock
surface. The recessed feature
allows connectors to be set back
so flat panel TVs can be placed
closer to the wall. Arlington”s
innovative design not only saves
space but allows for all new
constructions or any retrofit
applications. All the necessary
mounting hardware is included.
Visit Calrad on the Web at: www.calrad.com
34
CALRAD
30 series - Audio Connectors
LoCkiNg RCA pLUgs
Available with
the following
colored iD
bands. please
specify when
ordering
Black...........Bk
Blue.............BU
green..........gN
Red..............RD
White..........Wh
Yellow..........YL
Small Slotted
Screw Driver
Required
Twist to Lock
Barrel
30-607-Bk
30-607-RD
Locking RCA plug for up to
8 mm wire. Locking black
chrome barrel comes with
black or red color ID band.
Teflon insulator. .35” cable
opening.
30-289
30-607s-CoLoR
for 6mm cable.
.22” cable opening.
Solderless locking RCA plug
w/ screw terminals for up to 8
mm wire.Teflon insulator.with
.35” cable opening. Barrel
comes with matte silver finish
Available with black, blue,
green, red, white and
yellow bands. Also available
with black chrome barrel
30-290
for 8mm cable
.324” cable opening
Gold plated 75 ohm
RCA Audio & Video
plug with black
chrome barrel.
soLDeR AND soLDeRLess
LoCkiNg RCA pLUgs
30-291
for 2.8mm cable
.12” cable opening.
30-292
for 4mm cable
.16” cable opening.
Gold plated 75 ohm
RCA Audio & Video
plug with black
chrome barrel.
30-289-CoLoR
Rubber ID bands used to color
code audio and video connectors.
Locking RCA Audio & Video Plugs offer secure connections for
open environments where cables can be accidently
disconnected. Both are gold plated with barrel that scews
down, compressing the contacts onto the jacks. Available in
either solder or solderless models and both accept cable up to
.35”.
Available in black, blue, green, red, white and
yellow. please specify color when ordering. Can
also be used with Calrad parts: 75-533 ps, 75534-ps series
RCA pLUgs With gRoUNDiNg CABLe CLAmp,
Gold plated RCA Audio & Video Plugs. When the barrel is
tightened onto the body of the connector, 6 fingers secure the
outer jacket of the cable to the connector.
30-298-Bk Black
30-298-RD Red
30-298-Wh White
soLDeR VeRsioN
30-293-CoLoR
Solder version for
6mm cable
specify color: black,
blue, green, red,
white and yellow
soLDeRLess VeRsioN
30-293s-CoLoR
Solderless version for
6mm cable. specify
color: black, blue,
green, red, white and
yellow
Barrels are silver matte
with red and white
colored ID bands
30-298g-Bk
30-298g-RD
30-298g-Wh
All gold barrels with
red, white or black
painted ID colored
bands
goLD pLAteD soLDeRLess
RCA pLUg FoR 8mm CABLe.
High quality Audio & Video Plugs. Teflon
insulation with slotted screws for ground and tip
connections.
30-303-CoLoR
Gold plated RCA
Audio & Video Plug
for 5-7mm diameter
wire. Nickel barrel with
easy grip knurling.
.29” cable opening.
Available with Black,
Blue,green,Red, White and
Yellow colored iD bands
for easy identification.
please specify
color when ordering.
30-307
pRo QUALitY RCA pLUgs
30-390 Male
30-391 Female
Shielded RCA
inline Audio
connectors, gold
plated with strain
relief .2” cable
opening.
35
30-427 Male
30-429 Female
Shielded, nickel
plated RCA-type inline
Audio & Video plug,
jack with cable clamp
and strain relief
.21” cable opening.
30-308
Professional quality
RCA Audio Plug
with gold pin and
sleeve. nickel barrel
and .24” cable
opening.
Gold plated sleeve
and pin.
30-309
These Male and Female pro quality Audio & Video Plugs
provide high styled looks combined with superb
craftsmanship and superior materials. They come with
gold plated contacts and chrome barrel with finger grip
knurling. The 30-307 comes with a solid center pin.
Spring strain relief accepts cable sizes up to .25”.
CALRAD
30 series - Audio Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
Cable
tie
holes
30-302-CoLoR
30-387 Gold
plated RCA Audio
30-387-Nk Nickel Gold
& Video Plug with
Heavy duty gold or
teflon insulator
nickel RCA Audio for 6-8mm cable. Black
Plug for use on cable
chrome barrel with
easy grip knurling .35”
up to RG59 coax.
cable opening.
Spring strain relief.
.28” cable opening. Available in black, red,
white, yellow
30-354-Rg59
30-354-Rg6
75 ohm gold RCA Video
Connector. Recessed
barrel provides a low
profile when inserted
into a Female jack.
Solder center pin at
base of connector, fold
shield over PVC, a 2
piece twist type
compression fitting is
used to secure the
shield to the connector.
Available for RG-59 and
RG-6.
30-430
Insulated RCA Audio
Plugs, built-in cable
clamps. Easy slip-on
plastic covers. Pkg'd
10 per pk. Two each
black, blue, red, white
and yellow Available in
Bulk.
.19” cable opening.
30-430-gN
Green available
separately.
30-350 Red
30-352 White
Gold plated RCA
Audio & Video Plug
with color coded
band, knurled barrel
and strain relief .21”
cable opening.
30-426 2 Black 2 Red
30-426-Bk 2 Black
30-426-RD 2 Red
Insulated RCA Audio
pin plugs. In black
and red or separately
.12” cable opening.
Small Slotted
Screw Driver
Required
Rear View with keystone insert
30-486
Molded RCA Video
termination plug,
gold plated.
75 Ohms.
30-294-Rg6
30-299-Rg6
30-294-8218
30-299-8218
30-294-1855A
30-299-1855A
For RG6
New Solderless Keystone & Chassis Mount
RCA Jack. Easily mountable RCA jack for
either 1/2” chassis mount or keystone insert.
Screw terminals provide for a clean solderless
backside termination. For use with 18 to 30
gauge wire. Terminals are marked for easy
identification. Includes cable tie for strain relief.
Colored plastic washer available for enhanced
visual ID.
Gold plated RCA
Audio & Video inline
jack with color coded
band, knurled barrel
and strain relief,
.21” cable opening.
soLDeR
VeRsioN
30-299-Rg59
For RG59
30-308k-s
30-351 Red
30-353 White
CRimp-oN
VeRsioN
30-294-Rg59
30-389
RCA Audio & Video
Male solderless
connector with screw
terminals, cable clamp
and rubber boot. .24”
cable opening.
30-305
L= .95” Short Version
Right angle RCA
Audio & Video plug
with heavy gold
plating, teflon
insulator, for 8mm
cable, short version.
30-306
L=1.3” Long Version.
.37” cable opening
For Belden Style 8218
For Belden Style1855A
For RG-59
For RG-6
For Belden Style 8218
For Belden Style 1855A
75 Ohm RCA Video Plug in either crimp or solder
assembly styles with a bandwidth up to 200Mhz.
Gold plated center pin, contact pin and outer
contact. Finger grip body for easy insertion and
removal. Extra long crimp barrel (crimp version) for
55 lbs. or more of pull torque.
30-446 Red
30-447 Black
RCA Audio Plugs
with screw on plastic
barrel & cable
clamp.
.18” cable opening.
30-448 Red
30-449 Black
RCA Audio Jack
with screw on plastic
barrel & cable clamp
.18” cable opening.
30-250-CoLoRs
Solder type R/A reduced profile
RCA style plugs. Polished nickel
finish. Available with black, blue,
green, orange, red, white,
yellow ID bands. For use with 6mm
O.D. cable. Solid center conductor.
Large 2 finger cable strain relief.
Specify color when ordering.
36
CALRAD
30 series- pro Audio & home theater RCA Connectors
30-384
Right angle RCA
Audio Plug.
Solderless
connector with
cable clamp.
.19” cable
opening.
30-428-CoLoR
30-300-CoLoR
30-425-Bk Black
RCA chassis mount
Nickel
30-425-RD Red
Audio Jack. Gold
RCA-type mini
30-428g-CoLoR
plated with teflon
Audio Jack with hex
Gold
nut grip, hex nut
insulator mount.Fits
Nickel plated RCA
and solder lug.
5/16" hole. Bushing Audio Jack with hex nut
Single
hole mount.
and solder lug. Single
length .43”
hole mount. 1/4” hole. 1/4” hole. 9mm hex
Available with
base. Bushing
Bushing length .25”
black,green,orange,
length .27”.
with black,
red, white and yellow Available
blue, green,orange,
inserts. Please specify
red, white and
color when ordering.
yellow inserts.
30-424-CoLoR
RCA Audio Jack.
Locking nut fits on
front of panel.
Shallow mounting
depth. Mounts in
3/8” hole. Bushing
length .26”Available
with black, red, white
and yellow inserts.
Please specify color
when ordering
30-366
PC Mount RCA
Audio Jack. Closed
Circuit. PCB
footprint available
upon request.
1/2” Connectors
30-368-CoLoR
PC mount Audio
RCA Jack.
30-368g-CoLoR
Gold version.
Available with
black, red or white
insert. please
specify color when
ordering.
3/8” and 1/2”
RCA to RCA
FeeDthRU
JACks FoR
AUDio & ViDeo
pANeLs
3/8” Connectors
30-367 Right angle PC mount
Audio RCA Jack.
Non threaded Versions
30-367g Gold, black insert
30-367-Nk Nickel, black insert
Bushing length .1
threaded Versions
30-367-t Nickel, black
30-410-3/8-CoLoR
NICKEL
30-410g-3/8-CoLoR
GOLD
Mounts in 3/8” hole.
Bushing length .39”
Overall length is 1.14”.
Available in black,
blue, green, orange,
red, white and
yellow inserts.
please specify color
when ordering
30-367g-t-CoLoR
30-410-CoLoR
NICKEL
30-410g-CoLoR
GOLD
Mounts in 1/2” hole.
Bushing length.29”
Overall length 1.3”
Available with black, blue, green,
red, white or yellow inserts.
30-288-CoLoR
1/2” CoLoReD
pLAstiC
WAsheRs
Colored plastic
washers for
bulkhead 1/2”
connectors. Comes
2 per each color
when packaged for
display. Also
available in bulk
30-288-CoLoR-B
30-505 (4 pin)
30-505-6 (6 pin)
30-505-8 (8 pin)
Available in black,
blue, green, orange,
red, white and
yellow
30-608
Pro quality Mini Din
connector for 5-7mm cable.
Metal housing with gold
pins, contacts and strain
relief. .27” cable opening.
Pro quality SVHS
4-pin connector for 8mm
cable. Gold pins. Black
chrome barrel .31” cable
opening.
30-505-RA-6
6mm Cable
30-505-RA-8
8mm Cable
30-505-RA-Rg174
37
RG-174 Cable
High Quality right angle gold
plated mini din connector Front
can pivot 180°. Cable reduction
boots available for 5mm cables
and smaller.
30-611
Same as 30-608 only w/
metalic silver barrel.
Easy access solder cups
with cross hair contact
dividers for easy
soldering
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
Locking sVhs plug
30-618 (4 pin)
30-618-6 (6 pin)
30-618-8 (8 pin)
SVHS inline Female
jack. Solder type
connector. Accepts
5-7mm cable. Black
chrome body with
gold plated
connector.
30-619 (4 pin)
For use with
8mm cable.
30-320 ......3-pin
30-322 ......4-pin
30-324 ......5-pin
30-326 ......6-pin
30-328 ......7-pin
30-330 ......8-pin
Shielded inline mini
Male DIN plugs. Rated
at 12 Vdc, 2A max.
Accepts up to .20”
O.D.
30-322J-4 (4 pin)
30-322J-6 (6 pin)
30-322J-8 (8 pin)
Inline Female mini
din connector.
Solder type inline
Female connector
with strain relief.
Shielded body with
plastic cover.
30-505-Lk
Locking 4 pin
SVHS Male
connector. Spring
strain relief, Black.
Mates with
30-507 chassis
mount jack.
30-507
4 pin Japanese
30-507-t
4 pinTaiwanese
30-507-6
30-506
4-pin SVHS chassis
mount jack with
screws for mounting.
6 pin Taiwanese
30-507-8
8 pin Taiwanese
4, 6, & 8 pin
chassis mount minidin jacks. Mounts in
9/16” hole. Bushing
length .167”.
30-506-L
4 pin SVHS chassis mount
jack with 5, 10 inch colored
wire leads.
Cable Tie Holes
30-321 .........3-pin
30-325 .........5-pin
30-327 .........6-pin
30-329 .........7-pin
30-331 .........8-pin
Female Mini Din
connector, printed
circuit mount socket.
PCB footprint
available upon
request.
30-488 Stereo
30-488g Gold
3.5 mm stereo mini
Audio Plugs with
plastic handle and
molded strain relief.
.16” cable opening.
30-488A
Mono Version.
35-498k-s
30-296-Bk
Solderless Keystone &
Chassis Mount SVHS
Jack. Easily mountable
SHVS jack for either
1/2” chassis mount or
keystone insert. Screw
terminals provide a
clean, solderless,
connectorless backside
termination. Includes
cable tie for strain relief.
Colored plastic washer
available for enhanced
visual ID (Part Number
30-288-Color).
Gold plated locking
inline 3.5mm Male
stereo Audio Plug
with black chrome
body.
30-489
3.5 mm dia.,
stereo Audio Plug
with plastic handle.
No Strain relief
.21” cable opening.
30-416-Bk Black
30-416-RD Red
3.5 mm mono
Audio Plug with
solder terminals &
cable clamp.
.18” cable
opening.
30-297-Bk
Locking inline
3.5mm Female
stereo Jack. Black
chrome body. O.D
.25”. Mates to
30-296-Bk
locking plug.
30-318 Mono
30-319 Stereo
Professional quality
3.5mm mono or
stereo Audio Plugs
with strain relief.
.25” cable opening.
30-255
3.5mm Mono
30-256
3.5mm Stereo
30-257
3.5mm 4 conductor
Solder type R/A reduced
profile 3.5mm style
plugs.For use with 6mm
O.D. cable. Solid center
conductor.Polished
nickel finish.
30-490
3.5 mm, shielded
mini stereo Audio
Plug, black metal
finish with strain
relief. Cable
opening .14”.
30-376 Mono
30-386 Stereo
3.5 mm right
angle stereo or
mono Audio
Plugs. .15” cable
opening.
30-484 Stereo
30-421 Mono
3.5 mm stereo or
mono Audio Plug,
strain relief spring,
solder type, with
metal housing.
.19” cable opening.
38
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
30-487 Stereo
30-487A Mono
Metal 3.5 mm mono 30-487g Gold, Stereo
30-414 Mono
30-417 Stereo
inline Female Audio
Jack .16” cable
opening with strain
relief.
Mini inline 3.5 mm
mono or stereo
Audio Jack, plastic
handle w/strain
relief. .19” cable
opening.
30-492
Mini 3 circuit
shielded stereo
Audio Jack. 3.5 mm
inline black metal
finish and strain
relief. .14” cable
opening.
30-319F
Professional quality
3.5mm stereo inline
Audio Jack with
strain relief .26”
cable opening.
Mates with Calrad
Male 3.5mm
connector 30-319.
30-295 Nickel
30-705
Inline Female 4
30-295g Gold
conductor 3.5mm
3.5mm stereo Female to
Audio & Video
Female bulk head feedJack. Tip, ring 1,
thru Audio or infrared
ring 2, sleeve.
signal Jack. Mounts in
Plastic shell with
strain relief. Mates 1/2” or 3/8” hole. Overall
to 30-700A, 30-701, length 1.43”. Available in
and 30-702 plugs.
gold or nickel.
30-295-1/2
1/2” Nickel Version.
30-295-heX
3.5mm stereo
feedthru with two
Female to Female
jack, 3/8” hex nut
for panel mounting.
Threaded body.
30-423A
2.5 mm sub-mini
Audio Plug with
plastic grip, 2 cond.
Improved solder
points. 7/16" plug
length.
.15” cable opening.
3.5mm VeRsioN
30-710 2 conductor
30-711 3 conductor
30-712 4 conductor
2.5mm VeRsioN
30-713 2 conductor
30-714 3 conductor
30-715 4 conductor
39
30-701 plastic
30-701A all metal
4 conductor 3.5mm
Audio & Video Plug.
Tip, ring 1, ring 2,
sleeve, with strain
relief. Cable opening
.15”.
30-706
4 conductor 2.5mm
right angle Audio &
Video Plug. Tip, ring
1, ring 2, sleeve.
Cable opening .1”.
30-702
4 conductor 3.5mm
right angle Audio &
Video Plug. Tip, ring
1, ring 2, sleeve.
Cable opening .14”.
30-485 Stereo
30-485A Mono
2.5 mm stereo or
mono Audio Plugs
with strain relief
and metal housing.
.13” cable opening.
Small Slotted
Screw Driver
Required
30-479
30-493A, 3.5mm
30-376-2.5 Mono
2.5mm inline
30-494A, 2.5mm
30-386-2.5 Stereo
stereo Audio Jack
Mini or sub mini
2.5 mm right angle
stereo Audio Jack.
with strain relief
stereo or mono
Panel mount.
.13” cable opening.
Audio Plugs.
Mounts in .25”hole.
Plastic
non
.15” cable
conductive insert. Bushing length .165”.
opening.
Non-Conductive
Housing
30-707
4 conductor metal
3.5mm Female to
Female Ground
isolated feed-thru
jack Mounts in
1/2inch opening.
3.5mm or 2.5mm snap-in
chassis mount Audio Jack.
Nickel plated connector with
black molded trim. Isolated
from ground, requires no
hardware, solder style
terminals. Mounts in .375”
hole up to .07” panel
thickness.
30-700A
4 conductor 3.5mm
chassis mount
stereo Audio &
Video Jack.Tip, ring
1, ring 2, sleeve.
Mounts in .28” hole.
30-493A-6 inch
3.5mm Mini stereo audio jack
with 6 inches stripped and tinned
leads. Shielded two conductor
cable with Black shrink tube
strain relief. Red and Black wire
color. Mounts in 1/4 hole. .165”
bushing length.
30-712k-s
Solderless Keystone & Chassis
Mount 3.5mm stereo Jack. 1/2”
chassis mount or keystone insert.
Screw terminals provide a clean
solderless termination. 18 to 30
gauge wire.
30-712k-s-2
2.5mm stereo version
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
30-491
Mini 3 circuit stereo
Audio Jack. 3.5 mm
open circuit, PC-type.
30-364
PC mount 3.5mm
mono miniature
Audio Jack. Normally
closed circuit. PCB
footprint available
upon request.
30-477
30-422
30-365
30-478
3.5mm mini stereo
Audio Jack,. Black
PVC plastic
construction, perfect
for mounting in tight
places. Size: 33”(L) x
.35”(W) x .23”(H) with
solderable leads.
Bushing length .135”.
Mounts in a .25” hole.
3.5 mm miniature
closed circuit mono
Audio Jack mounts
in 1/4" hole, in
panels up to 1/8"
thick. Nickel plated.
Bushing length .17”.
PC Mount 2.5 mm
mono miniature
circuit Audio Jack.
Closed circuit. PCB
footprint available
upon request.
Mono 2.5 mm submini closed or open
circuit Audio Jack,
mounts in panels up
to 1/16" thick.
Comes with nut and
washer. Bushing
length .149”.
30-418 Nickel
30-418g Gold
30-537 Stereo
30-536 Mono
30-404 Nickel
30-404g Gold
30-405 Mono
30-405A Stereo
30-621
30-491t
30-620
Panel mounting
3.5mm stereo jack
with screw terminals
on the back.Depth 1
inch. Height 7/16
inch Width 1/2 inch.
1/4" mono solder
type Audio Plug with
strain relief.
30-317 Stereo
30-316 Mono
Professional quality
1/4" mono or stereo
Audio Plugs with
strain relief. .25”
cable opening.
30-413
Slim 1/4" Stereo
inline Audio Jack.
Mates w/ 30-401.
.3” cable opening.
1/4" Stereo Audio
Plug with strain relief.
.27” cable opening.
1/4" Stereo or mono
Audio plugs with
screw terminals and
spring strain relief.
.25” cable opening.
30-419 Nickel
30-419g Gold
30-401-Bk Black
30-401-RD Red
30-402-Bk Black
30-402-RD Red
30-420
30-415-Bk Black
30-415-RD Red
30-621
Stereo version.
.15” to .3” cable
opening for both.
1/4" mono Audio
Plug. Large barrel
heavy duty type.
Accepts oversize
guage wire. .43”
cable opening.
Same as 30-413 but
with metal housing
and strain relief..26”
cable opening.
1/4" Stereo Audio
Plug with solder
terminals & cable
clamp. No Strain
relief .28” cable
opening.
Slim inline 1/4" mono
Audio Jack. Mates w/
30-402 Black or red
.5” dia. x 111/16" long.
.3” cable opening.
1/4” Mono Audio
Plug w/ solder
terminals & cable
clamp. No strain
relief .28” cable
opening.
1/4" Mono Audio
Plug with strain
relief..28” cable
opening.
30-408A Stereo
30-406 Mono
1/4" stereo or mono
Audio Plug with thick
walled barrel. 8mm
hole for large gauge
wire. .32” cable
opening.
30-409 Stereo
30-407 Mono
Flat right-angle,
shielded 1/4”
3 circuit stereo or
mono Audio Plugs
Solder terminals.
.29” cable opening.
1/4” stereo or
mono right angle
Audio Plugs, black
bakelite. .28” cable
opening.
30-415m
30-394A
Same as
30-415 with metal
housing.
.31” cable opening.
Stereo 1/4" Audio
Jack. One Closed
Circuit. .355” hole
size.
30-400 Stereo
30-411 Mono
3 Circuit 1/4" Open,
Mono or Stereo Audio
Jack. .35” x .29”
bushing. .36” hole
size, will work with 40
standard .375” hole.
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
30-412A
Closed Circuit 1/4"
Mono Audio Jack.
.35” x .29” bushing.
.36” hole size, will
work with standard
.375” hole.
30-337
Coax AC/DC power
plug 2.35mm O.D.,
.7mm I.D.
.17” cable opening
with strain relief.
30-333 2.1mm
30-334 2.5mm
41
30-395
Open Circuit.
30-396
1/4” Audio Jack.
Closed Circuit
2-Conductor.
3/8” bushing,
Mounts in .355” hole.
30-336
Coaxial AC\DC
power plug.
1.0mm I.D.
3.8mm O.D.
.17” cable opening.
30-374
Bakelite Barrel
30-374-p
coax inline Female
connector. Available in
2.1mm and 2.5mm
versions
O.D. = 5.5mm
.15” cable opening.
With Strain Relief.
Coax power plug.
2.5 mm I.D. 5.5 mm
O.D. 9.5 mm long.
.15” cable opening.
30-624-2.1
30-624-2.5
30-616-2.1
30-616-2.5
Chassis mount
locking DC power
coax jack. Mates
with 30-623 plug.
Mounts in panels
up to .07”.
Locking DC power coax
jack with N/C switch on
sleeve side of the
connector. Insert
30-617 plug and twist
clockwise to lock.
30-397
1/4" Audio Jack.
Open Circuit
3-Conductor.
3/8" bushing,
Mounts in
.355” hole.
30-372
Coax power plug.
1.3mm I.D.
3.5mm O.D.
9.5mm long.
.15” cable opening.
30-372-p
With strain relief.
.16” cable opening.
30-617-2.1
30-617-2.5
30-398
1/4" Audio Jack.
3-Circuit,
2 Closed.
3/8" bushing,
Mounts in
.355” hole.
30-635
Coax AC/DC power
plug 4.75mm O.D.,
1.7mm I.D.,9.2mm
long, .17” cable
opening.
30-632
same as 30-635
with O.D. of 4mm.
30-623-2.1
30-623-2.5
Locking DC power
coax plug 5.5 O.D.,
9.5mm long.Insert into
30-616 jack and twist
clockwise to lock.
.14” cable opening.
Locking DC power
coax plug. Mates with
30-624 jack.
Threaded locking
style. Available in
2.1mm or 2.5mm I.D.
.18” cable opening.
30-371
30-370-2.1
Coax power jack,
standard chassis
mount, 2.1mm pin.
Switched circuit.
17mm mount
center.
2.1 mm pin,
30-370-2.5
2.5 mm pin,
PC mount coax
power jack,
switched circuit.
30-399
30-385
1/4" Audio Jack.
3-Circuit,
3 Closed.
3/8" bushing.
Mounts in
.355” hole.
Stereo 1/4" Audio
Jack. with DPDT
normally closed and
normally open
circuits.
30-373
30-373-14mm
30-373-p
30-374-14mm
Bakelite Barrel
2.1mm Version
With Strain Relief.
Coax power plug. 2.1
mm I.D. 5.5 mm O.D.
9.5 mm long.
.15” cable opening.
2.5mm Version 14mm
connector shaft,
plastic body with
strain relief, .15” cable
opening.
30-720-2.1
30-375
DC coax power plug.
3mm I.D.,
6.3mm O.D.,
9.5mm long.
With strain relief. .20”
cable opening.
2.1mm version
30-314
2.1mm I.D. X 5.5mm O.D.
30-315
30-720-2.5
2.5mm version
Chassis mount snap-in
coax power jack. Nickel
plated connector with
black molded trim.
Mounts in .375” hole, up
to .07” panel thickness
2.5mm I.D. X 5.5mm O.D.
Chassis mount coax
power jack. Plastic
housing. Mounts in1/2”
dia. hole. N/C switch.
30-730
2.1mm solderless
inline DC Coax
power plug.
30-731
2.1mm solderless
inline DC Coax
power jack.
CALRAD
30 series - Connectors
30-310 2.1mm
30-311 2.5mm.
Chassis mount coax
power jack. Insulated
housing mounts in
5
/16” hole. N/C switch.
5.5mm O.D.
30-379
3.0mm I.D.
6.3mm O.D.
chassis mount coax
power jack. For 7/16”
dia. hole in panels up
to 3/16” thick.
30-349
Power plug
converter 3.5mm
plug to 2.5mm jack.
30-442 Black
30-443 Red
Insulated banana
plug, 1" molded
bakelite handle,
.2" cable opening.
30-355
Right angle coax
power plug. .3mm
I.D., 3.5mm O.D. with
solder terminals.
.22” x 12”
cable opening.
30-340
Coax power plug
converter. 1.3 mm
plug to 2.1 mm jack.
30-341
2.5 mm jack version
30-363
3.5 mm mini-jack to
DC power plug.
3.0 mm coax plug
I.D.
30-442g Black
30-443g Red
Gold versions of
30-442 and
30-443.
.2” cable opening.
30-356
Right angle coax
power plug. 2.1mm
I.D., 5.5mm O.D.
with solder terminals.
.22” x .12” cable
opening.
30-343
Coax power plug
converter. 2.5mm
plug to 2.1 mm jack
30-344
30-357
30-377 Japan
Right angle coax
30-377-t Taiwan
power plug. 2.5mm
2.1mm I.D.
5.5mm O.D.
I.D., 5.5mm O.D.
chassis mount coax
with solder terminals.
power jack. Mounts
.22” x .12”
7
/16” dia. hole in
cable opening.
panels up to 3/16” thick.
30-348
Power plug
converter 3.5mm
plug to 2.1mm
jack.
2.5mm I.D.
5.5mm O.D.
chassis mount coax
power jack. For 7/16”
dia. hole in panels up
to 3/16” thick.
3.5 mm mono minijack to DC power plug.
30-360
1.3mm coax plug I.D.
30-361
2.1mm coax plug I.D.
30-362
2.5mm coax plug I.D.
30-721
30-602-Bk Black
30-602-RD Red
Sony DC power plug
Banana plug,
with plastic strain relief. solderless with gold
6mm O.D. Center pin
plating, screw
adjustment with black
1.3mm 1.97overall
or red band. .15” cable
length. accepts .17”
opening.
cable O.D.
Banana plug, gold
plated solderless
with Female banana
tap. Black or red.
.22” cable opening.
30-347
2.5 mm jack version
2.5 mm jack version
30-600-Bk Black
30-600-RD Red
30-346
Coax power plug
converter. 3.5mm
plug to 2.1mm jack
30-378 Japan
30-378-t Taiwan
30-600-RB-Bk
30-600-RB-RD
Gold plated with
rubber body. Has 2
set screws to hold
cable. Fits standard
banana jack.
30-605-Bk Black
30-605-RD Red
Solder type banana
plug for large cable.
Gold plated with
black or red bands.
Up to 8 awg wire.
.25” cable opening.
30-604-Bk Black
30-604-RD Red
Dual gold banana
plugs. For up to
8 gauge wire.
.15” cable opening.
0.75” centers.
30-603
Locking banana plug,
can be locked down in
jack, solderless, gold
plated. .34” cable
opening.
30-604-Ct-Bk
30-604-Ct-RD
Dual gold banana
plugs with flexible
body. For up to
8 gauge wire.
.15” cable opening.
0.75” centers.
42
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
Overall
length 1.17”
30-440 Red
30-441 Black
Dual banana plug,
gold plated.
.24” cable opening.
0.75” centers.
30-613-Bk Black
30-613-RD Red
30-613 Red&Black
Spade terminal, gold
plated crimp on
connector, with P.V.C.
cover, black or red.
.15” to .3” cable
opening.
90-799 Black
90-800 Red
30-440-Nk Red
30-441-Nk Black
30-444 Black
30-445 Red
Dual banana plug,
nickel plated.
.24” cable opening.
0.75” centers.
Insulated banana
jack. Supplied with
soldering lug and
nuts.
30-609-RD Red
30-609-Wh White
30-614-Bk Black
30-614-RD Red
Speaker terminals with
solder/solderless
speaker pin. White or
red color band.
Accepts 8-18 awg.
cable. Gold plated with
black chrome finish.
30-612
Gold Speaker
Terminals with hex
5-way binding posts.
set-screw. Pack of 4
Plastic insulation. Has
with Hex wrench
.1875" keyed threaded
Accepts up to 10
mounting shaft. Mounts in
Awg cable.
panels up to .25" thick.
solderless gold
speaker pins
Notched pin design
prevents accidental
push pin removal.
Slotted or hex set
screw. Accepts
10-18 Awg. Cable.
30-438
BNC Female to dual
standard banana
plugs. 0.75” centers.
30-601 1 Red, 1 Black
30-601-Bk 1 Black
30-601-RD 1 Red
Banana/Binding post
Solderless speaker
termination on each end
Accepts banana style
connectors or raw
speaker cable up to
14AWG. Mounts in 3/8”
hole.
30-606-Bk Black
30-606-RD Red
Solderless speaker
pin plug. Accepts up
to 8 awg wire. Gold
plated with red or
black ID band options.
30-439
BNC Male to dual
binding posts
for wire or standard
banana plugs. 0.75”
centers.
Push Button to
Insert Wire”
30-601s-Bk Black
30-601s-RD Red
Gold plated binding
post with push button
on one end and
banana jack on the
other end. threaded
barrel top screws off to
accept 14 Ga wire.
30-615-Bk Black
30-615-RD Red
Spade terminal,
heavy duty gold
plated, screw type
adjustment with black
or red band.
.25” cable opening.
30-610-RB 1 Red, 1 Black
30-610-RBBk 2 Black
30-610-RBRD 2 Red
Rubber Speaker pin plug,
gold plated with P.V.C.
cover, crimp style.
30-460
BNC Male to dual
standard banana
plugs. 0.75”
centers.
30-461
BNC Female to dual
binding posts
for wire or standard
banana plugs. 0.75”
centers.
30-392
30-369
Right angle,
2-pin Male speaker
plug.
.23” x .13” cable
opening.
43
2-pin inline Male
speaker plug.
.23” x .11” cable
opening.
30-393
2-pin inline Female
speaker plug.
.26” x .17” cable
opening.
30-382
30-381
In-line solderless
Motorola type plug.
.26” cable opening.
Antenna-type plug.
To fit Calrad
30-380.
30-383
Motorola type antenna
in-line twist on jack,
no soldering. .3” cable
opening.
30-380
Chassis mount
antenna jack.
Female receptacle.
.4” hole size.
CALRAD
30 series - Connectors
Technical drawings and specifications are available for these connectors. Please ask your Calrad sales representative for details.
.26” cable
opening.
.26” cable
opening.
Female
DIN
Plugs
Male
DIN
Plugs
30-436
30-499
30-495
30-497
5-pin inline 180°
6-pin inline 240°
7-pin inline 270°
8-pin inline 270°
"U" pattern
30-503 8-pin inline 360°
circular pattern
30-433
30-500
30-496
30-498
5-pin inline 180°
30-437
6-pin inline 240° 5-pin Male DIN plug
7-pin inline 270°
and 5-pin inline
8-pin inline 270° Female DIN jack.
“U" pattern
.26” cable opening
30-504 8-pin inline 360° for both. with plastic
circular pattern
strain relief.
30-543
30-546
6-pin (240°) PC
chassis mount DIN
jack.
8-pin (360°) circular
pattern PC chassis
mount DIN jack.
30-457
4-prong Male
interlocking inline DIN
connector.
30-458
5-prong version. .27”
cable opening for
both.
30-453
4 conductor
inline jack. .25”
cable opening.
30-453-m
4 conductor
inline Male plug.
30-510
7 conductor inline
jack. .25” cable
opening.
30-510-m
7 conductor inline
Male plug.
30-454
4 conductor Male
chassis plug.
.62” hole size.
30-501
6-pin (240°) right
angle Male DIN plug.
30-502
5-pin (180°) version.
.18” cable opening
for both with plastic
strain relief.
30-482
30-483
4-pin
5-pin
Interlocking DIN-type
chassis jacks.
Accepts locking ringtype DIN plugs Calrad
30-457 4-pin & 30-458
(5-pin) plugs.
30-518
30-519
30-518-m
5-pin chassis
mount Male
microphone plug.
.62” hole size.
5-pin microphone
inline jack. .25”
cable opening.
5 conductor inline
Male plug.
30-511
7-pin Male
chassis plug.
.62” hole size.
30-512
8-pin inline jack.
.25” cable
opening.
30-512-m
8 conductor inline
Male plug.
30-513
8-pin Male
chassis plug.
.62” hole size.
30-508
5-pin (180°) DIN
Female socket,
chassis mount.
30-509
30-542
5-pin (180°) PC
chassis mount DIN
jack.
6-pin (240°) version.
30-451
30-452
3 conductor
inline jack. .25” cable
opening.
3 conductor Male
chassis plug.
.62” hole size.
30-451-m
3 conductor
Male plug.
30-455
6 conductor inline
jack. .25” cable
opening.
30-455-m
30-456
6 conductor Male
chassis plug.
.62” hole size.
6 conductor inline
Male version.
30-467
30-468
PL259 Coax
chassis connector
(box-type).
PL259 Coax
chassis connector
(bullet-type).
5/8” hole size.
44
CALRAD
30 series - Connectors
30-475
Coax adaptor plug.
Adapts PL 259 type
to 3.5 mm plug.
30-465
Coax cable
connector plug.
PL-259
30-469
Coax universal jack
adaptor. Adapts PL
259 to Motorola-type
auto antenna plug or
RCA-type phone plug.
30-434
Mic connector.
Bright chrome
plated. Knurled
collar. .21” cable
opening.
30-470
30-471
Coax
right angle adapter
SO-239 to PL-259.
Coax "T" connector
adapts 2 Females to
one Male.
30-472
Coax double
Female connector.
45
30-474
Coax cable adaptor
for RG59U.
Black or Silver
Black or Silver
Black or Silver
Black or Silver
30-520-Bk
30-520-sL
30-521-Bk
30-521-sL
30-528-Bk
30-528-sL
30-529-Bk
30-529-sL
XLR 3-pin Male
in line plug.
.25” cable opening.
XLR 3-pin Female
in line plug.
.25” cable opening.
XLR 3-pin Female
plug, twist-on strain
relief. .15” to .3” cable
opening. Internal
compression style
cable strain relief.
30-534
30-534 Silver
30-534-Bk Black
30-473
Coax cable adaptor
for RG58U.
XLR 3-pin Male plug,
twist-on strain relief.
.15” to .3” cable
opening. Internal
compression style
cable strain relief.
30-539
30-630-sL-3 3 pin
30-630-sL-4 4 pin
30-630-sL-5 5 pin
30-631-sL-3 3 pin
30-631-sL-4 4 pin
30-631-sL-5 5 pin
30-630-Bk-3 3 pin
30-630-Bk-4 4 pin
30-630-Bk-5 5 pin
4-pin XLR inline Male
plug in silver or black.
30-535 Silver
4-pin XLR inline
Female jack in silver.
.25” cable opening
Silver inline Male
XLR plug. .15” to .3”
cable opening.
Internal compression
style cable strain
relief.
Silver inline Male XLR
plug. .15” to .3” cable
opening. Internal
compression style
cable strain relief.
Black inline Male XLR
plug. .15” to .3” cable
opening. Internal
compression style
cable strain relief.
Black or Silver
Black or Silver
Black or Silver
Black or Silver
30-526-Bk
30-526-sL
30-527-Bk
30-527-sL
30-522-Bk
30-522-sL
XLR 3-pin Female
right angle plug.
.17” cable opening.
XLR 3-pin Male
right angle plug.
.17” cable opening.
XLR 3-pin Male
chassis plug.
.75” hole size.
30-523-Bk
30-523-sL
XLR 3-pin Female
chassis jack.
15
/16” hole size.
30-631-Bk-3 3 pin
30-631-Bk-4 4 pin
30-631-Bk-5 5 pin
Black inline Male XLR
plug. .15” to .3” cable
opening. Internal
compression style
cable strain relief.
30-539 Silver
30-539-Bk Black
5-pin XLR inline Male
plug in silver or black.
30-540-Bk Black
30-540-sL Sliver
5-pin XLR inline Female
jack in silver or black.
.25” cable opening.
30-515
30-516
Plastic XLR 3-pin
Male chassis plug.
.76” hole size.
Plastic XLR 3-pin
Female chassis
jack. .86” hole size.
CALRAD
30 series - Connectors
on/off switch
30-517
Isolated plastic
Female XLR with
protective cover.
3-pin Female XLR
mounts in 15/16” hole
and requires a
special cut out in
order to mount.
30-522-sL-4 4 Pin
30-522-sL-5 5 Pin
30-523-sL-4
4 or 5 pin Silver Male
XLR chassis plug
mounts in .75” hole
size.
30-523-Bk-4
4 pin Silver
4 Pin Black
30-523-sL-5
5 pin Silver
4 or 5 pin Female XLR
chassis jack mounts in
15
/16” hole size.
30-638
3-Pin XLR inline
Female with labeled
on/off switch. Shorts
pins 2 & 3 to mute
signal voltage with
plastic noiseless
switch. Gold plated
contacts.
30-514-Bk
1/2” plastic XLR
housing. Accepts all
Calrad 1/2” ‘D’ cut
chassis mount
connectors.
MINI XLR FEMALE
30-524
XLR 3 pin Male
to Male coupler.
30-525
30-595
XLR 3 pin Female to
Female coupler.
Single XLR Female
jack on a steel plate.
30-596
Dual XLR Female
jacks on a steel plate.
MINI XLR MALE
30-622-CoLoR
Colored strain reliefs
for 30-620 and 30621. Specify color
when ordering.
Available in black,
blue, green, orange,
red and yellow.
30-641-3 3 pin
30-641-4 4 pin
30-641-5 5 pin
30-641-6 6 pin
Inline Female MINI
XLR jack. Also
available with short
boot. Cable opening
.13”-.17”
30-590 Chrome
30-590-Bk Black
Female XLR desktop
mount in, used for
quick release style
gooseneck mics.
Removable solder
type Female XLR.
Mounts with 3 screws
included. Base dia.
1.75”, height 2”.
MINI XLR FEMALE
30-641m-3
30-641m-4
30-641m-5
30-641m-6
3 pin
4 pin
5 pin
6 pin
Metal inline Female
MINI XLR jack.
Also available with
short boot. Cable
opening .13”-.17”.
Mini XLR Female
Mini XLR Male
30-640-3
30-640-4
30-640-5
30-640-6
3 pin
4 pin
5 pin
6 pin
In line Male MINI
XLR plug. Also
available with short
boot. Cable
opening .17”.
30-554 (Male)
30-555 (Female)
Solder type DB-9,
9 pin Male or Female
with metal hood and
hardware. Accepts cable
up to 11mm, .433”.
30-643-3
30-643-4
30-643-5
30-643-6
3 pin
4 pin
5 pin
6 pin
Chassis mount MINI
Female XLR. Mounts
in 15.20mm, .60 hole.
Nickel plated body.
30-556 (Male)
30-557 (Female)
Solder type HD-15,
15 pin Male or
Female with metal
hood and hardware.
Accepts cable up to
11mm, .433”.
30-642-3
30-642-4
30-642-5
30-642-6
3 pin
4 pin
5 pin
6 pin
Chassis mount MINI
XLR Male. Mounts in
.43” “D” hole. Nickel
plated body.
30-553m-RA
Right angle version of
30-553M.
for 10-11mm cable
30-553m-RA-g
Gold plated right angle
hood and hardware.
30-550
30-551
30-552
9-way
15-way
25-way
30-560
30-561
30-562
"D" solder type
connector plugs
9-way
15-way
25-way
"D" solder type
connector sockets.
ViDeo
ViDeo
30-551-hD
DB-15 high density
Male plug used for
computer monitor
applications, graphic
workstations,
Numbered pins. Gold
plated terminals.
30-561-hD
DB-15 high density
Female jack used for
computer monitor
applications, graphic
workstations,
Numbered pins. Gold
plated terminals.
30-553m (Nickel)
30-553m-g (Gold)
DB9, DB15HD metal
housing for 10-11mm
cable, with hardware.
2-piece construction,
for use with DB9,
DB15 type connectors.
DAtA
30-580
9-pin “D” connector
plug to 9-pin “D”
connector plug mini
version.
46
CALRAD
30 Series -Connectors
DAtA
30-582
DB9 Female to
DB 9 Female
gender changer
mini version.
30-582-mF
DB9 Male to
DB 9 Female
gender change
30-577
25-way "D"
connector socket to
25-way "D"
connector socket
mini version.
ViDeo
ViDeo
PC or HDTV
PC or HDTV
30-587 Nickel
30-587g Gold
30-588
30-588g gold
30-584-m
15 pin gender
changer.
Male-Male.
15-pin Female to
15-pin Male to Male
gender changer.
Female gender changer.
High density “D”
High density “D”
connector plugs for
connector sockets for
inline or panel
inline or panel mounting.
mounting.
30-587mF
30-584-F
30-575
15 pin gender
changer.
Female-Female.
25-way “D”
connector plug to
25-way “D”
connector plug mini
version.
Male to Female
30-579
25-pin Female
socket to 25-pin
Female socket
modem adapter.
30-585
25-pin Male plug to
9-pin “D” Female
socket.
30-586
25-pin Female
socket to 9-pin Male
plug.
30-581
30-576
30-583
25-way “D” Male
plug to 25-way “D”
Male plug.
Male 9-pin “D”
connector plug to 9-pin
“D” connector plug.
Female 9-pin “D”
connector socket to 9pin “D” connector
socket.
30-578
Female to Female
Does Not
Come pRe-WiReD
30-592-6.... RJ12
30-592-8......RJ45
30-592-8-Bk
30-592-8m
30-592-8m-Bk
RJ45 Female DB-9,
D-Sub to either RJ-12
or RJ-45 jacks. grey
or black plastic hood
with long thumb
screws. 30-592-8M
has a metal hood.
30-594 10 position
30-593 6 position
VGA to MAC adapter,
10 position or 6
position Dip Switch
For connecting Apple
DB15 pin to HDDB15
pin. Supports Apple
standard display
modes. Dip switches
select different
display modes.
30-574
30-597 Single Cutout
30-597-2 Dual Cutout
15 pin high density “D”
cutout single or dual
gang stainless steel wall
plate with hardware. For
Male or Female
connectors. Works with
Calrad part numbers 30580, 30-582, 30-587,
30-588.
HDDB 15 pin VGA cutout
and DVI cutout on a single
gang stainless steel wall
plate with hardware. For
Male or Female connectors.
Works with Calrad part
numbers 30-580, 30-582, 30587, 30-588 and 35-710A.
47
30-598 Single Cutout
30-598-2 Dual Cutout
15 pin wide “D” cutout
single or dual gang
stainless steel wall
plate with hardware.
For Male or Female
connectors. Works
with Calrad part
numbers 30-584-M,
30-584-F and 35-710
DVI-I coupler.
30-550-ph.................................. 9-pin plastic
30-550-mh......................9-pin metalized plastic
30-550-m......................................9-pin metal
30-551-ph.................................15-pin plastic
30-551-mh....................15-pin metalized plastic
30-551-m........................ 15-pin D conn. metal
30-552-ph..................................25-pin plastic
30-552-mh.....................25-pin metalized plastic
30-552-m ....................................25-pin metal
30-599
25 pin “D” cutout
single gang stainless
steel wall plate with
hardware. For Male
or Female
connectors. Works
with Calrad part
numbers 30-575,
30-577.
Hoods
CALRAD
35 series - Adapters
Small Slotted
Screw Driver
Required
35-498Bh 4 pin
35-498Bh-6 6 pin
35-498Bh-8 8 pin
35-498k-s
Cable Tie Holes
Bulkhead mini-din connector w/ 2
nut mounting. Panel mount 4 pin
SVHS Female-Female. Mounts in
1/2” single “D” hole
35-498g-Bh Gold 4 pin version
35-498g-Bh-6 Gold 6 pin
version
Colored washers
35-498 4 pin
35-498-6 6 pin
35-498-8 8 pin
Bulkhead SVHS
connector with 2 nut
mounting. Panel
mount 4 pin SVHS
Female to Female.
Mounts in 1/2”
double “D” hole.
35-499-s
SVHS Female to
composite RCA
Male cable adapter.
Converts SVHS
signals to composite
video. Bi-directional.
6” long. molded
connectors and gold
plated contacts.
35-443
Fiber-optic toslink
Male to 3.5mm
Female. bi-directional
signal path.
35-494
35-499
SVHS 4 pin Female
to 2 Female BNC on
circuit board. Panel
mount with screw
holes. Breaks out C
and YC-Y.
35-496-4 4 pin
35-496-6 6 pin
35-496-8 8 pin
Female to Female
mini-din coupler,
plastic body.
35-440
Fiber-optic 3.5mm
Male to toslink
Female bi-directional
signal path.
SVHS Male to RCA
Female adapter.
Converts SVHS
signals to composite
video. Bi-directional.
Gold plated
connectors and
black chrome body.
35-497A (18 in.)
35-497A-6 (6 ft.)
SVHS “Y” adapter.
Molded and
shielded “Y” cable
with 1-Male to 2Females, pin to pin
wiring. Overall
length 12”. For
SVHS signals.
35-444
Right Angle Toslink
Connector 2 piece
construction enables
the 360° rotation of
cable. Female in to
Male out.
35-497
SVHS “Y” adapter.
non-directional pin-topin wiring of
luminance and
chrominance signals.
35-442
Toslink fiber-optic
splitter.
Non directional.
Connects 3 toslink
cables together.
35-499-p
economy
35-499-sF
SVHS Female to RCA
Female adapter.
Converts SVHS signals
to composite video. Bidirectional. .47” long.
Converts SVHS signals
to composite video. Bidirectional. Gold plated
connectors and black
chrome body.
Solderless Keystone or
chassis mount SVHS
jack with screw terminal
connectors. Mounts in
½” hole or standard
keystone insert. Comes
with cable tie for strain
relief. Colored ID
washers available
(30-288-COLOR). Also
available in BNC
(75-686K-S) and RCA
(30-308K-S) versions.
Male SVHS to Female RCA
35-499-sF-p
Female SVHS to Female RCA
35-499-s-p
Female SVHS to Male RCA
35-499-BNC-p
Male SVHS to Female BNC
35-495
Midi coupler.
5 pin DIN coupler
Female-Female.
35-441
Fiber-optic toslink
coupler. Female to
Female. Over all
length .72”.
35-439
Passive 3-way toslink optical switch. Passive
selection knob with a spring loaded lock
mechanism and selection indicator. Bidirectional switching.
48
Size: 5.5”W x 1.3”H x 4.5”D.
CALRAD
35 series - XLR Adapters
35-456
35-457
3 Pin XLR Female
jack to
1/4" stereo plug.
3 Pin XLR Male
plug to 1/4" stereo
plug.
35-462
35-452
35-453
35-451
3 Pin XLR Female
jack to
1/4" mono plug.
3 Pin XLR Male plug
to
1/4" mono plug.
3 Pin XLR Male plug
to 1/4" stereo jack.
35-450
3 Pin XLR Male plug
to 1/4" mono jack.
3 Pin XLR Female
jack to 1/4" mono
jack.
35-455
35-454
35-461
35-460
35-459
35-458
3 Pin XLR Male plug
to
RCA plug.
3 Pin XLR Female
jack to RCA type
plug.
3 Pin XLR Male plug
to Female RCA jack.
3 Pin XLR Female
jack to RCA jack.
3 Pin XLR Male plug
to BNC jack.
3 Pin XLR Female
jack to
BNC jack.
35-464
35-465
30-525
30-524
3 Pin XLR Female
jack to 3 Pin XLR
Male plug. Crossing
wire for pin 2 and 3.
Inline XLR ON/OFF
microphone switch. 3
Pin XLR Male plug to
XLR Female jack
Nickel.
35-465A Brass
Version
XLR 3 pin Female to
Female coupler.
Wired pin to pin.
XLR 3 pin Male
to Male coupler.
Wired pin to pin.
35-469
3.5mm stereo
Female jack to XLR
Male plug.
Wired:
pin 1 = ground
pin 2 = tip
pin 3 = ring.
8” long. Black PVC
jacket.
49
35-463
3 Pin XLR Female
jack to 1/4" stereo
jack.
Visit Calrad on the Web at: www.calrad.com
35-467
3.5mm stereo
Female jack to XLR
Female plug.
Wired:
pin 1 = ground pin
2 = tip
pin 3 = ring.
8” long with Black
PVC jacket.
35-468
3.5mm stereo
Female jack to XLR
Male.
Wired:
pins 1&3 = ground
pin 2 = tip
8” long with Black
PVC jacket.
35-466
3.5mm stereo
Female jack to XLR
Female. Wired:
pin 1 = ground, pin
2 = tip & ring.
8” long with Black
PVC jacket.
CALRAD
35 series - DVi, hDmi, VgA Adapters
35-718
35-713-A
35-714
35-714A
HDMI Female to
Female inline
Coupler with Gold
contacts.
HDMI Female to
Male right angle
adapter.Up 90
degrees Gold
contacts.
HDMI Female to
Male right angle
adapter. Down 270
degrees. Gold
contacts.
35-711A
35-706
35-718,35-718A hDmi Right Angle
Adapter Cables
The 35-718 Series Adapters provide a low profile
cable exit solution for tight spaces Behind video
displays, A/V receivers, switching and amplifier
devices. Length 6”.
35-715
HDMI Female to
DVI-D
Male adapter with
Gold plated contacts.
HDMI Female to DVI-D
Male Cable Adapter. Gold
plated contacts. 6” Length
35-707
HDMI Female to
HDMI Female to mini
HDMI panel mount
35-716
HDMI Male
HDMI Male to DVI-D
Female 6 inch
adapter.Gold plated
Female cable adapter. Gold
length. Hardware not
contacts.
plated contacts.
supplied.
6” Length.
35-726
35-727
HDMI Male to
Display Port Female
adapter.
DVI-D Female to
Male Display Port
Male adapter.
35-712A
HDMI Male to DVI-D
Female adapter with
Gold plated contacts.
35-717
DVI-I Female to
M1DA Male plug.
Length 6” Gold
plated contacts.
35-718A
35-718
Cable exit to top
35-718A
Cable exit to
bottom.
35-709 hDmi m-F
35-728
Low profile right
angle adapter for
HDMI. Unique flat on
side design. Gold
plated.
HDMI Female to Mini
HDMI Type C Male
adapter cable.
35-702
35-701
35-703
Adapter.
DVI-D Female to DFP DVi-A male to VgA
DB-15 Female
20 Pin Male adapter.
This adapter allows
DVI-D Male to DFP 20 you to connect a DVIPin Female adapter.
A display to a VGA
graphics card.
L.e.D power
signal indicator
35-700
DVi-i male to VgA
DB-15 Female
Adapter
Allows you to connect
VGA display to a DVII graphics card. Note,
this adapter does not
provide a digital to
analog signal
conversion. It will not
work with DVI-D.
35-710A
DVi-i to DVi-i Female
to Female Coupler.
Shielded di-cast case
handles 5 pin analog
and 24 pin digital
signals. gold plated
contact pins. Used for
inline or chassis
mount. Overall length
.93” For wall
mounting use Calrad
p/n 30-598.
DVI-I
Male
DVI-D
VGA Male
Female
35-601
DVI-I to DVI-D & VGA
Splitter
Separates DVI-I Male
to DVI-D Female and
VGA
Female. For use with
DVI-I ports that share
analog + digital signals.
35-600
DB 15 VGA “Y”
cable. 1 Male to 2
Females. 1 ft length.
Gold plated.
35-704
35-704A
15 pin VGA
Male to Female
right angle
adapter for
projectors.
Cable exits up
from the jack.
15 pin VGA Male
to Female right
angle adapter for
projectors. Cable
exits down from
the jack.
50
CALRAD
35 series - Audio Video Adapters
Display
port
hDmi
35-723
35-729
‘D’ Style panel mount
Display port panel
HDMI female-female mount feed-thru female
feed-thru. Gold plated to female jack. Mounts
contacts. Mounts in a
in a standard DB9
.917” hole.
cutout. Gold plated
contacts, includes
mounting hardware.
Composite
Video-Audio
35-730
Fixed 3db
Component video
attenuators.
Provides proper
video attenuation for
large distributed
video applications.
35-485
"T" adapter,
RCA jack to two
RCA plugs, heavy
gold plating with
teflon insulator.
35-502g
Triple A\V coupler.
With White, Red and
Yellow gold plated
RCA jacks.
35-482
Right angle
RCA plug to two
RCA jacks, heavy
gold plating with
teflon insulator.
35-722
35-720
55-612-sp
35-721
M1DA Male plug to
DB-15 Female plug.
6 inch cord and Gold
plated contacts.
M1DA Male to
component video
RCA Female
jacks.Color coded
and Gold Plated.
HDDB 15 SVGA
Male to 3 RCA
Plugs Length: 1foot.
6” DB9 Male to 9
Pin Mini Din Sharp
Serial Interface
Cable.
Component
Video
35-510g
Triple RCA coupler
for component
video. With Red,
Green and Blue
gold plated RCA
jacks.
35-486
"T" adapter,
RCA jack to two
RCA jacks, heavy
gold plating with
teflon insulator.
35-480
35-480
35-481
35-511g
Long version of
35-480 Right angle
RCA Male to
Female adapter,
heavy duty gold
plating with teflon
insulator.
Right angle RCA
Male to Female
adapter, gold plating
with teflon insulator.
Plastic RCA plug to
RCA jack right angle,
plastic body with gold
plated contacts.
35-504 Nickel
35-504g Gold
Shielded "Y", RCA
plug to two RCA
jacks in parallel.
35-516g
Shielded"Y", 1/4"
stereo plug to dual
Gold RCA jacks.
35-503 Nickel
35-503g Gold
Shielded "Y",
1/4” mono plug to
dual RCA jacks.
35-483
Right angle
RCA plug to two
RCA jacks, heavy
gold plating with
teflon insulator.
35-554g
Shielded "Y", 1/4"
stereo plug to dual 3.5
mm stereo jacks, gold.
35-574g
Shielded "Y", 1/4"
mono plug to dual 3.5
mm mono jacks, gold.
35-488
35-586g
Shielded "Y",
3.5 mm stereo plug
to dual RCA jacks.
Gold.
35-585g
51
Shielded “Y”, dual
RCA jacks to a
3.5 mm mono plug.
Gold.
35-553g-hg
35-575
High Grade
Shielded "Y"
adapter, 1/4" stereo
plug to dual 1/4"
stereo jacks. Gold.
35-519g
Gold version
Shielded "Y", two 3.5
mm stereo jacks to
single 3.5 mm stereo
plug, gold.
35-587g
Gold version
35-588g
Shielded "Y", 3.5
mm stereo plug to
dual 1/4" stereo
jacks, gold.
35-584g
Shielded "Y", 3.5
mm mono plug to
dual 1/4" mono
jacks, gold.
35-488
3.5 mm mono plug
to right angle RCA
jack, teflon
insulator. Gold
plated.
35-589
Plastic body and
nickel connectors.
35-567
3.5 mm stereo plug
to 1/4" stereo right
angle jack. Gold.
CALRAD
35 series - Audio Adapters
35-487
35-484A
35-566
35-517-Rt
Right angle
stereo 3.5 mm jack to
3.5 mm stereo plug.
Right angle stereo
1/4" plug to stereo
3.5 mm jack.
RCA-type jack to
1/4” mono plug.
Right angle.
1/4" mono plug to
right angle RCA
jack, teflon insulator.
Gold plated.
35-445 Mono
35-446 Stereo
35-580 Mono
35-580A Stereo
35-517 Nickel
35-517g Gold
35-549 Gold
35-549-Nk Nickel
1/4” Male to Male
mono or stereo pin
plug adapter.
Shielded 1/4" barrel
connector, Female
to Female, in either
mono or stereo.
35-564
35-542
Stereo
1/4" plug to mono
3.5 mm jack.
Shielded.
3.5 mm stereo jack
to 1/4" mono plug.
35-544
3.5 mm to
3.5 mm shielded
mono barrel
connector.
RCA-type jack to
1/4” mono plug.
Solid body gold
RCA-type jack to
1/4” mono plug.
35-522
35-543
Stereo 1/4" jack to
3.5 mm mono plug.
Shielded.
35-537
35-551g
1/4" mono jack to
RCA-type plug.
Nickel plated,
shielded.
All Nickel
Stereo mini 3.5 mm
plug to stereo 1/4" jack.
35-568
Right angle 1/4”
stereo plug to 1/4”
stereo jack.
Nickel plated.
35-550
Plastic/Nickel
35-550g
Plastic/Gold
35-550-Nk
All Nickel
Stereo 1/4" plug to
3.5mm stereo mini
jack.
3.5 mm mono plug to
1/4" stereo jack,
shielded.
Metal housing.
35-563
35-551-Nk
3.5mm mono jack to
a mono 1/4” plug.
35-500
1/4" mono jack to
3.5 mm stereo plug.
Plastic/Gold
35-536 All Nickel
35-536-p Plastic
1/4” Stereo jack to
1/4” mono plug.
35-551
Plastic/Nickel
35-479
Mono 1/4" Male to
mono 1/4" Female,
right angle.
35-547
Shielded barrel
connector, RCA
Female to 1/4" mono
Female. Nickel
plated.
35-506 All Nickel
35-506-p Plastic
1/4” mono jack to
3.5mm mono plug.
Shielded. Nickel
plated.
35-581
Shielded barrel
connector,
3.5 mm stereo jack
to 3.5 mm stereo
jack.
52
CALRAD
35 series - Audio Adapters
35-538 Nickel
35-538-p Plastic
RCA-type pin jack to
miniature 3.5 mm
mono plug. Nickel
plated, shielded.
35-552A
3.5 mm mono
plug to 3.5 mm
stereo mini jack.
35-539 Nickel
35-539-p Plastic
3.5 mm mono jack
to RCA-type pin
plug. Shielded.
Nickel plated.
35-512
3.5 mm stereo plug
to RCA Female jack.
35-582 Plastic
35-582-Nk Nickel
35-583
2.5 mm mono plug
to RCA jack.
35-518 Plastic
35-518-m Nickel
35-565
35-552
3.5 mm mono jack
to 3.5 mm stereo
plug.
3.5 mm mono plug
to 3.5 mm stereo
mini jack.
35-540
35-541
3.5 mm mono jack
to 2.5 mm mono
plug. Shielded.
Nickel plated.
2.5 mm mono jack
to 3.5 mm mono
plug. Shielded.
Nickel plated.
35-505 Nickel
35-505g Gold
2.5mm stereo jack to
a 3.5mm stereo
plug.
3.5 mm stereo jack
to 2.5 mm stereo
plug adapter.
35-548
35-546g
35-569
35-546-Nk
Dual Female RCA
barrel jack.
Gold plated.
RCA-type pin plug
adapter. Male to
Male RCA plugs.
Gold.
Gold,
Nickel,
35-545
Female to Female
RCA coupler. Nickel,
plastic barrel.
Shielded "Y", one
RCA Female jack to
two RCA Female
jacks.
Buffered
“Y” Cable
35-525
RCA plug to two
RCA-type pin
jacks, shielded.
10” long.
53
35-525B-mZ
Buffered “Y” Cable
35-525-hg
Shielded 8mm High Grade OFC “Y”
cables with high quality gold plated
connectors. RCA Male to dual RCA
Females. 6” long.
RCA Male to dual RCA Females. MultiZone “Y” adapter. Some A\V receivers
will short the source signals when the unit
is powered off. This adapter prevents this
35-525-hgm
from occuring by using passive circuitry Same as HG Version only with Molded
to prevent distortion and signal loss. 8mm
Connectors
OFC cable w/ high quality gold plated
connectors 6” in length.
35-530-hg
Shielded 8mm High Grade OFC “Y”
cables with high quality gold plated
connectors. RCA Female to dual
RCA Males. 6” long.
35-530-hgm
Same as HG Version only with
Molded Connectors.
CALRAD
35 series - Audio Adapters
35-530
35-526
35-578
Two RCA plugs to
one RCA jack,
shielded. 10” long.
RCA plug to one
RCA plug and one
RCA jack, shielded.
10” long.
One RCA jack to
dual RCA-type jacks,
shielded.
10” long.
35-529
3.5mm mono plug to
two RCA Male
plugs, shielded.
12” long.
steReo miNi "Y"
ADApteR CABLe
3.5 mm stereo plug to 2
molded RCA nickelplated Male plugs
(black). Shielded cable.
55-899-3.............. 3 ft.
55-899-6.............. 6 ft.
55-899-12........... 12 ft.
55-899-25........... 25 ft.
35-527
RCA plug to two
RCA plugs 10” long
shielded.
35-527g-6
35-557
35-478
35-535
One 3.5 mm mono
jack to two RCA
jacks, shielded. 10”
long.
RCA male to two 3.5
mm Female mono
jacks, shielded. 7
1/2” long.
35-475
55-895
3.5mm stereo Y
cable One (1) 3.5mm
Stereo plug to two
(2) 3.5mm Mono
plugs. 6.5 feet long.
35-559
35-572
35-591
3.5 mm stereo plug
to two 3.5 mm mono
jacks, shielded.
10” long.
Two 3.5 mm mono
plugs to one 3.5 mm
mono jack,
shielded. 10” long.
One 1/4” stereo plug
to two 3.5mm stereo
jacks, shielded. 10”
long.
35-558
3.5 mm stereo jack
to two RCA-type
plugs, shielded.
35-558-6
6 ft. version, Gold
plated.
3.5 mm stereo plug
to two RCA jacks,
shielded.
Two 3.5 mm stereo
plugs to one 3.5 mm
stereo jack, shielded.
10” long.
35-562
3.5 mm stereo plug
to dual RCA-type
plugs, shielded.
35-560
3.5 mm stereo plug
to two 3.5 mm mono
plugs, shielded.
10” long.
35-561
1/4" stereo plug to
two 1/4" mono
plugs, shielded.
6 ft. long,
6’ version.
35-573
35-528
3.5 mm mono jack
to two RCA plugs,
shielded. 10” long.
Two RCA jacks to
one 3.5mm mono
plug, shielded.
10” long.
35-531
35-555
Two 3.5mm mono
jacks to one 3.5mm
mono plug. Shielded
cable.
10 1/2” long.
Two 3.5 mm stereo
jacks to single 3.5
mm stereo plug,
shielded.
35-501A
"Y" adapter for dual
stereo listening. 1/4"
stereo plug to two1/4"
stereo jacks. 3 ft. long,
shielded.
35-577
1/4" Male mono to
two RCA Females,
shielded.
54
CALRAD
35 series - Audio Y Cables, passive Video Baluns
35-570
35-571
35-579B
1/4" mono plug to
two 1/4" mono jacks,
shielded.
12” long.
Two 1/4" mono plugs
to one 1/4" mono
jack, shielded.
11 “ long.
Two mono 1/4” plugs
to one 1/4” stereo
jack, shielded.
10” long.
35-532
35-534
Stereo 1/4” plug to
two RCA plugs,
shielded. 10” long.
Stereo 1/4” plug to
two RCA jacks,
shielded.
10” long.
55-902
5 ft. version.
35-593
One 1/4” mono jack
to two RCA plugs,
shielded. 10” long.
55-997
35-533
35-594
Stereo 1/4” plug to
two 3.5mm mono
plugs, shielded.
11” long.
3.5mm stereo jack to
two 1/4” mono plugs,
shielded.
8” long.
35-592
35-576
One 1/4” mono jack
to two RCA jacks,
shielded. 10” long.
1/4" mono plug to
two RCA Male
plugs, shielded. 10”
long.
12” stereo version.
35-610
2.5mm Stereo “Y”
cable. For celluar
telephone interfacing to
mic and headphone
audio, TRS. 2.5mm
R/A Stereo Male to
dual 2.5mm stereo
Females.
35-476
35-556
55-996
35-523
35-524
"Y" cable. 3.5mm
stereo plug to dual 1/4"
mono plugs, shielded.
10” long.
Two stereo 1/4"
jacks to 3.5 mm
stereo plug, shielded.
11” long.
“Y” adapter cable.
1
/4” stereo jack to dual
3.5 mm mono plugs.
Parallel wired.
Shielded. 12” long.
3.5 mm stereo plug
to 1/4" stereo Female
jack, shielded.
12” long.
3.5 mm mono plug to
1/4" stereo jack,
shielded. 16” long.
35-590
3.5mm stereo plug
to two 1/4” mono
jacks, shielded.
11 1/2” long.
35-477
"Y" cable.
1/4" stereo plug to
dual 1/4" mono jacks,
shielded.
6 ft. long.
small-Compact Audio-Video Baluns
Composite Video + stereo Audio
95-1140
RCA Jacks
sold in pairs
RJ45 Jack
supports 480i + stereo Audio
55
Component Video
95-1144
RCA Jacks
sold in pairs
RJ45 Jack
supports 480i, 480p, 720p, 1080i, 1080p
Component Video + Digital Audio
95-1145
RCA Jacks
sold in pairs
RJ45 Jack
supports 480i, 480p, 720p, 1080i, 1080p
95-1140 Composite ViDeo + L, R AUDio
95-1144 CompoNeNt ViDeo
95-1145 CompoNeNt ViDeo + DigitAL AUDio
Calrad’s new line of audio-video baluns provide a
simple low cost method of delivering analog audio,
digital audio + video over UTP cable. 25K Gold
plated jacks, Chassis: ABS Plastic. Size: Length
3.16” x Width 2.55” x Height 1.14”.
CALRAD
40 series - passive Composite-Component Baluns
supports 480i
95-1040 Composite ViDeo BALUN sYstem
Transmit composite video and L+R analog audio up to 1000’ over UTP cat5e or cat6
cable. 3 x RCA female jacks to RJ45 female jack. Units sold individually, 2 pieces
required. Non-directional signal use. Size: Length 3.5” x Width 2.2” x Height 1”.
tecnical Note: Using adapters, the composite video jack can be used to deliver IR as
well. Use Calrad 75- adapter for CCTV use.
75-695
Composite Video + L, R Audio
steel Chassis
supports 480i, 480p, 720p, 1080i, 1080p
Female BNC
to Male RCA
adapter. Not
Included.
95-1044-RCA 95-1044-BNC hDtV ViDeo BALUN sYstem
Video (RGB) balun is designed to transmit Red, Green and Blue (RGB) video signals
over CAT 5E/6 UTP cable. Internal inductors and filters ensure stable video signal
transmission over UTP cable up to 1000 ft. for a 640 X 480 resolution. Units sold
individually, 2 pieces required. Non-directional signal use.
specifications:
RJ45, Component Video Jacks
steel Chassis
supports 480i, 480p, 720p, 1080i, 1080p
Interface video (R) One BNC or RCA Female for RED signal Interface video (G). One
BNC or RCA Female for GREEN signal Interface video (B) .... One BNC or RCA Female
for BLUE signal Interface UTP One RJ45 for RGB signal RJ45 pair 4 (pin 7, 8) RED
signal Impedance video. 75 ohm unbalanced RJ45 pair 3 (pin 3, 6) GREEN signal
impedance RJ45 100 ohm balanced RJ45 pair 2 (pin 1, 2) BLUE signal video bandwidth
DC to 30MHz. Color: black.Size: Length 3.5” x Width 2.2” x Height 1”.
40-40Ye01D CompoNeNt ViDeo & DigitAL AUDio BALUN, iR BALUN
HDTV Balun system is designed to transmit Component video (Y,Pb,Pr), selectable
switch for digital audio or IR signals over a single Cat5E/6 cable up to 1000 ft for a 640
X 480 resolution. Supports 480I/P, 720P and 1080I. Video bandwidth DC to 60MHz.
Two units required, Bi-directional signal system. Passive design with no power required.
4 x RCA Jacks, 1 x removable 2 pin terminal block. Color: black. Size: Length 3.5” x
Width 2.2” x Height 1”.
Component Video + Digital Audio Jacks
Front
steel Chassis
Receiver
transmitter
40-40Ye01D
40-40Ye01D
iR emitter
hDtV Display
DVD player
Rear
iR
Jack
RJ45 spDiF-iR
Jack switch
iR Receiver
Calrad 92-160
iR repeater system, sold
separately.
setup example
56
CALRAD
40 series- hDtV A\V Component Distribution Amplifiers
40-YD02A 1 X 2 hDtV AUDio-ViDeo DistRiBUtioN AmpLiFieR
The 40-YD02A 1 x 2 component video amplifier with stereo audio allows you to
distribute low-noise, low-distortion HDTV component video and analog audio signals
to four destinations. Amplified, broadband circuitry eliminates signal loss and assures
true one-to-one ratio, low noise, low distortion, unity gain audio and video
distribution, and are capable of transmitting signals for cable runs of up to 150 ft.
One additional amplifiers may also be cascaded for system expansion. 12Vdc, 1A
power supply. Front panel L.E.D. indicator. Works well with all active and passive
component balun systems.
specifications:
Video Input Impedance: 75Ώ +-5%. Output Impedance: 75Ώ +-5%
Video Insertion Loss: 50Hz to 10MHz<.40dB.Video Bandwidth: >100MHz
Audio Input Impedance: 47K
Audio Response: >100kHz. Frequency Response: 20Hz to 100kHz
Signal to Noise: 100 [email protected] 2Volts out
Size: Length 4.75” x Width 3.75” x Height 1.5”
40-937B eCoNomY1X4 hDtV AUDio-ViDeo DistRiBUtioN
AmpLiFieR
The 40-937B 1X4 component video amplifier with stereo audio allows you to
distribute low-noise, low-distortion HDTV component video and analog audio signals
to four destinations. Amplified, broadband circuitry eliminates signal loss and assures
true one-to-one ratio, low noise, low distortion, unity gain audio and video distribution,
and are capable of transmitting signals for cable runs of up to 150 ft. One additional
amplifiers may also be cascaded for system expansion. Includes 12Vdc, 500ma
power supply.Tabs with 4x4 mounting holes. Front panel L.E.D. indicator. please
note !this distribution amplifier will not work with passive component balun
systems.
specifications:
Video Input Impedance: 75Ώ +-5%. Output Impedance: 75Ώ +-5%
Video Insertion Loss: 50Hz to 10MHz<.40dB.Video Bandwidth: >100MHz
Audio Input Impedance: 47K
Audio Response: >100kHz. Frequency Response: 20Hz to 100kHz
Signal to Noise: 100 [email protected] 2Volts out
Size: Length 7.5” x Width 3.5” x Height 1.25”
40-939B 1X9 hDtV AUDio-ViDeo DistRiBUtioN AmpLiFieR
The 40-939B is a high quality 1X9 HDTV and analog video distribution amp that can
transmit digital or analog audio as well as component and composite video signals to
five locations up to 150 ft. the Calrad 40-939B has a loop output giving it the ability to
be daisy chained to other units, allowing for longer cable runs and AV distribution to
more than 5 displays or to feed a local monitor. If the digital audio port is not used it
can be used for standard composite video. 9VAc power supply is included. Front
panel L.E.D. power indicator.
specifications:
1 x 9 hDtV+Analog, Digital Audio
Distribution Amplfier
57
Input impedance: 75Ώ + 5% Output impedance: 75Ώ + 5%
Video bandwidth: > 100 MHz Audio response: > 100 KHz
Input impedance: 22k ohm Output impedance: 1k ohm
Frequency response: 20 Hz to 100 KHz Supports standard SPDIF digital audio Power
Supply: [email protected] mA.
Size: Length 9.6” x Width 4.5” x Height 1.25”.
Note: All specifications on this page are subject to change without notice
CALRAD
40 series - Component Distribution Amplifiers
40-844m 1 X 4 hDtV DistRiBUtioN AmpLiFieR
1X4 Component Video and Stereo Audio Distribution
Amplifier. 300MHz for HDTV component video and stereo
L+R audio. AC adapter included.
specifications:
Type of Video:...............HDTV Component DA
Video Input/Output: .......................+1Vpp. 75W
Audio Input/Output: .......... Stereo (R+L) 40KW
Terminals Input/Output ......... RCA connectors
Video Input: ..Component Video YPbPr, YCbCr
Audio Input: ........................Stereo Audio (R/L)
Video Output:.Component Video YPbPr, YCbCr x 4
Audio Output: ..................Stereo Audio (R/L) x
Video Bandwidth:..............................>300MHz
Video Distortion: .......................<1dB (+/- 3dB)
Audio Distortion: ....................<0.6dB (+/- 3dB)
Channel Isolation: ..................................>50dB
Signal to Noise Ratio: ............................>50dB
Dimensions: ....(L) 8.9” x (W) 6.5” x (H) x 1.25”
Power Source: ........................5Vdc @ 500mA
Power Adapter Included
Rear View
40-849m 1 X 8 A\V hDtV DistRiBUtioN AmpLiFieR
1 input to 8 outputs for RGBHV or RGB and L+R audio. L+R audio can also be used
for PCM digital coaxial. Extends audio and RGB video up to 200’. RCA jacks for
RGBHV or L+R audio IN\OUT. The 40-849Mdistributes HDTV or progressive scan
video and analog stereo or digital audio to multiple displays. AC adapter included.
specifications:
typle of Video............hDtV Component DA
Video Input/Output ........................+1Vpp, 75W
Audio Input/Output ...........Stereo (R+L), 40KW
Terminal Input/Output ............RCA connectors
Video Input..............Component Video YPbPr,
YCbCr,RGB
Audio Input ..........AR/AL (H, V, PCM, Coaxial)
Video Output... ..........Component Video YPbPr,
YCbCr, RGB X 8
Audio Output ...AR/AL (H, V, PCM, Coaxial) x 8
Video Bandwidth:..............................>700MHz
Video Distortion: .......................<1dB (+/- 3dB)
Audio Distortion: ....................<0.6dB (+/- 3dB)
Channel Isolation: ..................................>50dB
Signal to Noise Ratio: ............................>50dB
Dimensions:(W) 17.4” x (D) 7.90” x (H) x 1.73”
Power Source: .......................12Vdc @ 1 AMP
Power [email protected] Maximum
Rear View
Front View
40-848m 1 X 8 A\V hDtV
DistRiBUtioN AmpLiFieR 1 ghz
1X8 Component Video and Stereo Audio
Distribution Amplifier.1 GHz for HDTV
component video and stereo L+R audio.
Fits standard 19 inch rack mount for easy
installation. AC adapter included.
specifications:
Video Bandwidth:
>1 GHz
Video Distortion:
<1dB (+/- 3dB)
Audio Distortion:
<0.6dB (+/- 3dB)
Channel isolation:
>50dB
Signal to Noise Ratio: >50dB
Dimensions:
(W) 17.4” x (D) 7.90” x (H) x 1.73”
Power Source:
12Vdc @ 1 AMP
Power Consumed.........900ma Maximum
Rear View
Visit Calrad on the Web at: www.calrad.com
58
CALRAD
40 series - Component Video switchers
40-816m 4 X 2 hDtV CompoNeNt RoUtiNg sWitCheR
IR Remote/Manual controlled 4 inputs to 2 outputs component video
switcher with audio combined. Comes with remote control (batteries
included) A/V input cable and DC power supply. Discrete IR Switching
Control: Via Infra Red Remote Control or Manually from the front panel
buttons.
iR Remote
specifications:
iNpUt:
Video In put:.....Component Video (RCAs) x 12
+1Vpp, 75W
Audio Input: ......................Stereo (R+L), 40KW
RCA jacks (Female) x 4
oUtpUt:
Video Output: ....Component Video (RCAs) x 6
+1Vpp, 75W
Audio R+L Output:.....RCA Jacks (Female) x 4
Stereo (R+L), 40KW
pAsses: 480p, 720p, 1080i, 1080p
Video Bandwidth:
Video Distortion:
Audio Distortion:
Channel Isolation:
Signal to Noise Ratio:
Dimensions:
Power Consumed:
Power Source:
Front View
> 250MHz
< 1.2dB (+/- 3dB)
< 0.6dB (+/- 3dB)
> 50dB
< 50dB
(W) 9” x (D) 5.2” x (H) 1.70”
@350mA Maximum
5Vdc, 500mA
Rear View
40-817m 4 X 2 hDtV CompoNeNt mAtRiX
sWitCheR
40-817m-Rs232
IR Remote/Manual controlled 4 inputs to 2 outputs
Component Video Matrix switchers with audio combined.
Comes with remote control (batteries included) A/V input
cable and DC power supply. Component Video
bandwidth up to 250 Mhz. Discrete IR Switching Control:
Via Infra Red remote control or manually from the front
panel buttons. RS232 adapter, included.
specifications:
iNpUt:
Video Input:.....Component Video (RCAs) x 12
+1Vpp, 75W
Audio Input: ......................Stereo (R+L), 40KW
RCA Jacks (Female) x 4
oUtpUt:
Video Output: ....Component Video (RCAs) x 6
+1Vpp, 75W
Audio R+L Output:.....RCA Jacks (Female) x 4
Stereo (R+L), 40KW
Rs232
Adapter
iR Remote
Front View
pAsses: 480p, 720p, 1080i, 1080p
Video Bandwidth:
Video Distortion:
Audio Distortion:
Channel Isolation:
Signal to Noise Ratio:
Dimensions:
Power Consumed:
Power Source:
AC Adapter included
> 250MHz
< 1.2dB (+/-3dB)
< 0.6dB (+/- 3dB)
> 50dB
< 50dB
(W) 9” x (D) 5.2” x (H) 1.70”
@350mA Maximum
5Vdc, 500mA
Rear View
40-Ys04D 4 iNpUt 2 oUtpUt CompoNeNt ViDeo
sWitCheR With DigitAL/optiCAL AUDio
HDTV Compatible input resolutions of 480I/480P/720P/1080I/1080P.
Connect up to 4 A/V sources to two display monitors. Expands both
Digital/Optical audio and video input. The switcher box is the ideal for all
of your A/V devices, offering both high-definition video and audio
switching capability. Discrete IR Switching Control: Via Infra Red
Remote Control or Manually from the front panel buttons.
specifications:
iNpUt:
Video Input:.....Component Video (RCAs) x 12
+1Vpp, 75W
Digital Audio Input: ....................................75W
RCA Jacks (Female)
x 4, Optical x 4
oUtpUt:
Video Output: ....Component Video (RCAs) x 6
+1Vpp, 75W
Digital Audio Output:..................................75W
RCA Jacks (Female)
x 2, Optical x 2
iR Remote
pAsses: 480p, 720p, 1080i, 1080p
Video Bandwidth:
Video Distortion:
Audio Distortion:
Channel Isolation:
Signal to Noise Ratio:
Dimensions:
Power Consumed:
Power Source:
> 400MHz
< 1.2dB (+/- 3dB)
< 0.6dB (+/- 3dB)
> 50dB
< 50dB
(W) 9” x (D) 5.2” x (H) 1.70”
@350mA Maximum
5Vdc, 500mA
40-814 hDtV 3-iNpUt pAssiVe CompoNeNt ViDeo seLeCtoR
Selectable rotary style switch with 3 inputs to 1 output. Switches PR, PB, Y signals. RCA
Female jacks. 30 MHz bandwidth. Break before make switching. Shielded steel cabinet,
finished in black with white lettering.Size:(W) 7” x (D) 4” x (H) 2.5”.
59
Front View
Note: All specifications on this page are subject to change without notice
Rear View
CALRAD
40 series - Component Video switchers
40-5526 4X2 CompoNeNt ViDeo mAtRiX sWitCheR
Capable of switching HDTV Component Video, PCM, Optical and Stereo Audio
signals between four sources and two displays with compatible inputs. A
maximum bandwidth of 325MHz will support HDTV resolutions of up to 1080P.
Because it is a matrix switcher, it allows any input to be routed to any output; or
the same input to be routed to all outputs. IR remote control or manual push
button controls for switching inputs or programming the switcher. The RS-232
control allows the switcher to be controlled by a PC. 12Vdc power supply and
RS-232 driver CD included.
Front View
specifications:
Video Amplifier Bandwidth: >325MHz Resolutions: 480P, 720P, 1080i, 1080P
Audio/Video Input Connectors:
4 sets of 6-RCA & 1-Optical (Y/Pb/Pr, Al/Ar, PCM, TosLink)
Audio/Video Output Connectors:
2 sets of 6-RCA & 1-Optical (Y/Pb/Pr, Al/Ar, PCM, TosLink)
Net Weight: 2lbsPower Supply: 12VDC; 500mA~3000mA
Dimensions: Length 17.5” X Width 7.8” X Height 1.75”
iR Remote
Rear View
40-963m 6 X 4 CompoNeNt A/V mAtRiX sWitCheR
Capable of switching HDTV Component Video and Stereo Audio signals
between six sources and four displays. A maximum bandwidth of 325MHz will
support HDTV resolutions of up to 1080P. Because it is a matrix switcher, it
allows any input to be routed to any output; or the same input to be routed to all
outputs. IR remote control or manual push button controls for switching inputs
or programming the switcher. The RS-232 control allows the switcher to be
controlled by a PC. 12Vdc power supply and RS-232 driver CD included.
Front View
specifications:
Video Amplifier Bandwidth: >325MHz
Resolutions: 480P, 720P, 1080i, 1080P
Video Input Connectors: 6 sets of 5-RCA (Y/Pb/Pr and Left & Right Audio)
Video Output Connectors: 4 sets of 5-RCA (Y/Pb/Pr and Left & Right Audio)
Power Supply: 12VDC; 500mA~3000mA
Dimensions: Length 17.5" x Width 8” x Height 1.75”
iR Remote
Rear View
40-964m 4X4 CompoNeNt ViDeo mAtRiX sWitCheR
High speed 4X4 Component Video Matrix Switcher with both PCM Digital
Audio and Analog Stereo Audio. The Switch has 8 individually assignable
inputs and outputs. Any input may be switched to any output; or the same input
may be switched to all outputs in any combination. For use with High Definition
LCD Television or Plasma displays. Switching control is accomplished by Front
push buttons with LED read out or IR remote control. A Windows-based control
software package is included to provide complete control of the Switchers by
RS232. IR remote control included. 12Vdc power supply included.
Front View
iR Remote
specifications:
Video Amplifier Bandwidth: >350MHz Resolutions: up to 1080P
Video Input Connectors: 4 sets of 6-RCA (Y/Pb/Pr, Al/Ar, PCM)
Video Output Connectors: 4 sets of 6-RCA (Y/Pb/Pr, Al/Ar, PCM)
Power Supply: 12VDC; 1000mA~3000mA
Dimensions: Length 17.5” x Width 8” x Height 1.75”
Rear View
Visit Calrad on the Web at: www.calrad.com
60
CALRAD
40 series - VgA, hDmi, Component Video Converters/scalers
40-281h CompoNeNt ViDeo to hDmi CoNVeRteR
Rear View
Front View
Convert Y, Pb, Pr component video and analog or digital audio to HDMI 1.2
or DVI 1.0. Supports 480I, 480P, 720P, 1080I and 1080P. The 40-281H has
RCA jacks for Component video inputs, PCM digital audio and 3.5 mm
stereo audio. The audio input select switch allows you to switch between
analog or digital audio in. 5 Volt DC power supply included.
specifications:
Input Component video, 3 x RCA jacks for Y, Pb, Pr 1x 3.5mm stereo jack
for analog audio, 1 x RCA jack for PCM digital audio Output: One HDMI
Female port.
Dimensions: Length 4.2” X Width 3.0” X Height 1.2”
Power: 5 Volt DC
40-283hD hDmi 1.2 to CompoNeNt ViDeo CoNVeRteR
The 40-283HD allows you to switch between two HDMI 1.2 inputs and
convert them to component video (Y, Pb, Pr) and analog or digital audio out.
Supports 480I, 480P, 720P, 1080I and 1080P resolutions. IR remote control
is used for power on/off and selecting between the 2 HDMI inputs. If the
HDMI 1.2 inputs are HDCP encrypted the component video output will be
turned off. 5Volt DC power supply included.
Analog
Audio
input
Analog
Audio
input
input
select
power
hDmi 1
input
Component
Video
output
Analog
Audio
DC
output
power
Coaxial
output
iR
Window
hDmi 2
input
OSD Menu
Buttons
Converts VGA to component video (Y, Pb, Pr). VGA to Converter Box can convert
XGA (VGA /SVGA/XGA /SXGA) to YpbPr video, allowing connection of PC based
devices for viewing on high-definition component video displays. This converter box
provides you with a economic, high-efficient and perfect video converter solution.
Settings include brightness, contrast, color saturation and hue. Select 4:3, 16:9 or
full screen display modes. Both PC and MAC Computer are supported. Standard
resolutions are 480I, 576I, 480P, 576P, 720P, 1080I. Size: Length 5” x Width 3.7” x
Height 1.33”.Includes 5Vdc, 1Amp power supply, 3 ft. VGA and component video
cables.
DC Power
Jack
40-481 CompoNeNt to VgA ViDeo CoNVeRteR With
osD (oN sCReeN DispLAY) setUp meNU
Converts component video (Y, Pb, Pr) to VGA video. YpbPr Video to VGA
Converter Box can convert YpbPr video to XGA (VGA /SVGA/XGA /SXGA),
allowing connection of PS2, PS3, Xbox, Xbox360, Wii, Game Cube, CRT or LCD,
Apple TV, Vudu Box, or Netflix Roku Player to a computer monitor, projector, or
other display that supports VGA, and allowing viewing high-definition DVD and
picture on PC. This converter box provides you with a economic, high-efficient and
perfect video converter solution. Settings include brightness, contrast, color
saturation and hue. Select 4:3, 16:9 or full screen display modes. Both PC and MAC
Computer are supported. Standard resolutions are 480I, 576I, 480P, 576P, 720P,
1080I. Size: Length 5” x Width 3.7” x Height 1.33”. Includes 5Vdc, 1Amp power
supply. Includes 3 ft. M-M component video and M-M audio cables.
VGA
In/Out
Output
RCA Component
Video + Audio
Visit Calrad on the Web at: www.calrad.com
Audio
input
select
Rear View
Front View
40-480 VgA to CompoNeNt ViDeo CoNVeRteR With
osD (oN sCReeN DispLAY) setUp meNU
61
hDmi
DC
Video power
output
iR Remote
specifications:
Output: Three RCA jacks for Y, Pb, Pr. One 3.5mm stereo jack for analog
audio. One RCA jack for PCM digital audio Outputt: Two HDMI Female ports.
Dimensions: Length 4.2” X Width 4.0” X Depth 1.2”, Power: 5Volt DC
Component
Video
input
OSD Menu
Buttons
DC Power
Jack
3.5mm PC Audio,
In/Out
VGA
In/Out
Input
RCA Component
Video + Audio
3.5mm PC Audio,
In/Out
CALRAD
40 series - VgA, Component, Composite Video Converter/scalers
40-482 VgA\ CompoNeNt ViDeo to hDmi CoNVeRteR
Includes 3 ft. VGAM-M video and 3.5mm M-M audio cables. Front panel
L.E.D. power indicator. If you have PC or Laptop with VGA output, or you have
a device like PSP, DVD, Wii, X-box with component output, and you wish to
connect it to an HDTV. The 40-482 has a builtin scaler that up-scales a
standard analog VGA signal or Component Video with audio to a single HDMI
output. The output is fixed at 720p to avoid compatibility problems. Size:
Includes 5Vdc, 2A power supply, 3 ft. VGA M-M, 3.5mm M-M cables.
Accepts these PC VGA resolutions: 640x480 (60Hz, 75Hz, 85Hz),
800x600(60Hz, 75Hz, 85Hz), 1024x768 (60Hz, 75Hz, 85Hz), 1280x720
(60Hz), 1280x768(75Hz), 1280x960(60Hz).
Accepts these Component Video (Y,Pb, Pr) resolutions: 480i (60Hz), 480P
(60Hz),576i (50Hz), 576P(50Hz),720P (50Hz, 60Hz).
40-720phD Composite ViDeo\ s-ViDeo to hDmi
CoNVeRteR
The 40-720PHD converts composite video/s-video/stereo audio to
HDMI. Accepts NTSC 3.58, Pal-M and Pal-N composite video and
S-Video inputs as well as 3.5mm stereo audio and converts the
signals to 720P HDMI with audio. Audio is incorporated into the
HDMI output as well as the 3.5mm stereo output simultaneously.
Video inputs auto detect video source and a front panel L.E.D.
indicates shows Red for S-Video, Green for composite video.
Selectable vertical rates of 50/60Hz. DVI-D compatible with Calrad
adapter 35-712A (Not Included). 5Vdc power supply included. Size:
Length 5.75” x Width 3” x Height 1.25”.
Rear View
Audio
Input
HDMI
Component DC Power
VGA
Video Video Input Video Input
Jack
Output
VGA-Component Video
Input Selection Switch
Front
View
Rear
View
35-712A
HDMI Male to DVID Female Adapter
with Gold plated
contacts.
40-VsRgB Composite ViDeo \ s-ViDeo to CompoNeNt ViDeo
CoNVeRteR / sCALeR
The 40-VSRGB Converts composite video and S-video to component video Y, Pb, Pr or Y, Cb,
Cr. Easy plug and play automatically senses input source system. Will work with NTSC 3.58,
NTSC 4.43, Pal-M, Pal-N and Secam formats. Selectable inputs between RCA composite
video and 4 pin S-video also selectable outputs between Y, Pb, Pr or Y, Cb, Cr. Size: Output
cable and 5Vdc power supply included. L.E.D signal indicator, Green=composite video, Red=
S-Video, Flicker=no synce. Size: Length 4” x Width 2.5” x Height 1”.
40-880A tWo WAY pC \ CompoNeNt oR CompoNeNt \ /pC
CoNVeRteR With osD
This Bi-directional 2 way scaler converts PC VGA to HD component video
or HD component video to PC VGA. Supports HD resolutions of 480P,
720P, 1080i and 1080P and PC resolutions of VGA, SVGA, XGA, SXGA,
UXGA, WXGA, WSXGA and WUXGA. The comprehensive OSD menu
allows users to adjust output resolutions, contrast, brightness, hue,
saturation and sharpness. Loop out for local monitor. 5 Volt DC power
supply and VGA, VGA to Component cables are included.
osD menu Controls
specifications:
Input port: 1 X HDDB15 Female
Output port: 1 X HDDB 15 Female
Loop port: 1 X HDDB15 Female
Power Supply: 5Vdc, 1A
Dimension: Length 5.75” X Width 4” X Height 1”
62
CALRAD
40 series - Component Video Converters/Baluns/Adapters
40-888 VgA, hDtV CompoNeNt ViDeo to s-ViDeo, Composite
ViDeo, 480i CompoNeNt ViDeo CoNVeRteR/sCALeR
Rs232-iR Controlable
The 40-888 allows you to convert VGA or 480i component video to composite video
or S-Video. Supports NTSC 3.58, NTSC 4.43, Pal-M, Pal-N or Secam formats.
Switchable component video or VGA inputs. Manual push button or IR remote
controlled. RS232 for PC control. Easy to use OSD menu allows you to change
output resolution, brightness and contrast. Supports input resolutions of 640X480,
800X600, 1024X768 and 1280X1024. Output resolution 480I or 480P. Includes 3 ft.
VGA cable, 3 Ft., component video cable, 3 ft. composite video cable, 3 ft. s-video
cable, IR remote control, 5Vdc power supply. Size: Length 8” x Width 6” x Height 2”.
Front View
IR Remote
VgA Video Cable
Component
Video Cable
Composite Video
Cable
Rear View
s-Video Cable
28-202D pAssiVe
CompoNeNt ViDeo BALUN
With DesigNeR stYLe
WALLpLAte
35-730
RJ45 or punchdown termination.
Works with Cat 5 or Cat5e UTP
cable Depth 2.5”, works with Calrad
95-1044. RCA desktop Balun unit.
RCA connectors on front. Wall Plate
included.Distance capability
480p................................300 feet
720p................................200 feet
1080i................................100 feet
RJ45
Jack
CompoNeNt ViDeo
AtteNUAtoRs
provides proper video attenuation
for large distributed video
applications, gold plated male to
female adapters, 75 ohm, provides
3db of attenuation. Green, Blue and
Red color coded inserts.
55-612-sp
HDDB 15 SVGA Male to 3 RCA
Male plugs, Length: 1ft..
40-YW01D siNgLe CAt5e oR
CAt6 DesigNeR stYLe
CompoNeNt FLUsh moUNt
BALUN With DigitAL AUDio
40-YW01D HDTV Balun system is
designed to transmit Component
video (Y,Pb,Pr) and digital audio
over a single Cat5E/6 cable.
Supports 480i/p, 720p and 1080i.
Two units required. Bi-directional
signal design. Passive design with
no power required with built in cable
distance equalizer circuit.
Single RJ-45 Jack, 4 x Gold RCA
Jacks. Sturdy White Plastic
Designer Style enclosure. Includes
wallplates and mounting hardware.
63
35-510g
RJ45
Jack
sold in pairs
Visit Calrad on the Web at: www.calrad.com
Gold plated RCA jacks used to
extend component video cables.
Green, Blue and Red colored
inserts. Black plastic molded body
labeled Y, Pb, Pr.
35-720
M1DA Male to component video
RCA Female jacks. Gold plated
connectors. Green, Blue and Red
color coded inserts.
CALRAD
40 series - Baluns/Composite Video Amplifiers
40-DA01 BALANCeD pAssiVe sigNAL CoNVeRteR
40-DA02 BALANCeD pAssiVe sigNAL CoNVeRteR
With 4” WiRe pigtAiL
Small Slotted
Screw Driver
Required
40-DA01
40-DA01
40-DA02
40-DA02
Passive bi-directional signal design using UTP Cat5e or Cat6 cable
pair. Use for Audio\Video\Component\IR signals.
Cable Distance:
Analog Audio, 1000 ft. Digital Audio, 300 ft. IR Signals, 300 ft.
Composite video, 1000 ft., High Definition 480P - 300 ft.,
720P - 200 ft., 1080i -100 ft., 1080P - 50 ft.
Wire termination
40-DA01: 2 Conductor captive screw terminals
40-DA02: 2 conductor locking style punch down blocks for easy wire
specifications
Bandwidth: DC to 50Mhz, DC passive
Connectors: RCA Male Plug
Signal Types: Analog+Digital Audio \ Video \ IR Signals
Housing Material: Plastic, Color: Black
Dimensions: 1.76"(L) x .68"(W) x .68"(H)
Dimensions: Length 1.32” x Width 0.6” x Height 0.6”
40-DA01Male RCA Plug spacing .64 inch center to center
40-804m Composite 1 x 4 ViDeo, steReo AUDio
DistRiBUtioN Amp
The 40-804M 1X4 composite video and stereo audio amplifier gives
you the ability to distribute low-noise, low-distortion signals to either
four or seven destinations if you daisy chain two amplifiers. Amplified,
broadband circuitry eliminates signal loss and assures true one-to-one
ratio, low noise, low distortion, unity gain audio and video distribution.
Video bandwidth 480i. Front panel L.E.D indicator. Includes 5Vdc AC
adaptor. Size: Length 8.8” x Width 6.5” x Height 1.7”.
Front View
Rear View
40-936B Composite-sVhs ViDeo, steReo AUDio
DistRiBUtioN Amp
The 40-936B 1X4 composite-SVHS video and stereo audio amplifier
gives you the ability to distribute low-noise, low-distortion signals to
either four or seven destinations if you daisy chain two amplifiers.
Amplified, broadband circuitry eliminates signal loss and assures true
one-to-one ratio, low noise, low distortion, unity gain audio and video
distribution. Video bandwidth 480i. Includes 12Vdc AC adaptor. Size:
Length 7.5” x Width 3.6” x Height 1.25”.
64
CALRAD
40 series - Composite Video Amplifiers
Front View
Rear View
40-809-8, 8 port Audio\Video DistRiBUtioN AmpLiFieR
1 input to 8 buffered and isolated outputs. L.E.D.power indicator. Extends audio and composite video up to over 200’. RCA jacks IN\OUT.
This product is perfect for multi-TV demo’s, CCD camera feeds, and home theater systems. Front panel power switch, AC adapter included.
specifications:
iNpUt:
Type of Video.............Composite video (V/C) x 1
Video Input..................... +0.3 Vpp: 75W
Audio Input ............ Stereo (R+L): 40KW
Terminals Input RCA x 1 Jack / Audio x 2 RCA
Video Bandwidth ........................ >5Mhz
Video Distortion ...........<1.2dB (+/-) 3dB
Audio Distortion ............<0.6dB (+/-) 3dB
Extension Distance .................... 0-50 M
Dimensions.............. Length: 11.750 x Width 5” x Height 1.75”
Weight........................................1435 gm
Power Supply................... 9Vdc, 300ma
oUtpUt:
Video Output .... 8 x RCA Female Jacks
+.03 Vpp: 75W
Audio R+L Output RCA connectors 16 RCA Female Jacks (8 x 2)
Output Impedance Stereo (R+L) 40KW
40-812 NtsC ViDeo CoNDitioNeR
This unit is used for connecting DVD players to combo NTSC TV/VCR units. Removes
interfering AGC or encoding signals associated with interfacing a DVD player to a VCR.
Usesdigital processing circuitry to maintain AGC and video contrast. RCA In/Out jacks.
Includes video cable and power supply. One input to one output.
40-812 -5
This unit is used for connecting DVD players to combo NTSC TV/VCR units. Removes
interfering AGC or encoding signals associated with interfacing a DVD player to a VCR.
Uses digital processing circuitry to maintain AGC and video contrast. RCA In/Out jacks.
Includes video cable and power supply. One input to five outputs.
40-838-RCA
40-838-BNC (Same as 40-838 only with BNC connectors)
1 X 8 Composite (RCA) ViDeo DistRiBUtioN AmpLiFieR
RCA composite video distribution amplifier with 1 RCA or BNC video in to 8 RCA or BNC
video out. This unit can be used for composite video signals from a DVD or VCR as well as
CCTV cameras. AC adapter included.
specifications:
iNpUt:
Video SystemNTSC/PAL Video (composite)
Video Input .............0.50Vpp~2Vpp, 75w
Input Terminal...........RCA connector x 1
oUtpUt:
Video SystemNTSC/PAL Video (composite)
Video Output ..........................1Vpp, 75w
Output terminals ....RCA connectors X 8
65
Front View
Video Bandwidth.........250MHz (+/- 3dB)
Video Distortion ...........................>1.2dB
Power [email protected] Maximum
Power Source ..............12Vdc, @500mA
AC Power Adapter Included
Visit Calrad on the Web at: www.calrad.com
Rear of RCA Version
Rear of BNC Version
CALRAD
40 series - Composite Video Amplifiers
40-839 1 X 8 s-ViDeo DistRiBUtioN AmpLiFieR
S-Video distribution amplifier with 1 SVHS Female input to 8 SVHS Female
outputs. This unit can be used for composite video signals from a DVD player or
S -Video VCR. AC adapter included.
specifications:
iNpUt:
Video System: NTSC/PAL S-Video (Y/C)
Video Input: .........0.50 Vpp. ~2Vpp, 75W
Input Terminal:S-VHS Mini-Din 4 Pin x 1
FRoNt VieW
oUtpUt;
Video System: NTSC/PAL S-Video (Y/C)
Video Ouput: .........................1 Vpp. 75W
Output Terminals:S-VHS Mini-Din 4 Pin x 8
Video Bandwidth:.......250MHz, (+/- 3dB)
Video Distortion: ..........................>1.2dB
Power Consumed:[email protected] 350mA Maximum
Power Source:12Vdc @ 500mA (included)
ReAR VieW
40-930m 1X8 s-ViDeo DistRiBUtioN AmpLiFieR
The 40-930M 1 X 8 S-Video (Y/C) with Analog Stereo Audio and
Digital Audio Distribution Amplifier has one Input for S-Video
and Gold Plated RCA jacks for composite video and audio.
Eight outputs are also S-Video and RCA composite video and
audio. Front panel on/off switch. Video amplifier bandwidth:
700MHz. Digital audio bandwidth: 110MHZ. Audio frequency
response: 20Hz - 20KHz. Power supply: 12VDC; 1.2A included.
Dimensions: Length 6.4” x Width 17” x Height 1.75”.
FRoNt VieW
ReAR VieW
40-827m 1 X 16 AUDio / ViDeo
DistRiBUtioN AmpLiFieR
Composite Video\Stereo Audio Distribution Amplifier.
Includes AC power adapter.
specifications:
iNpUt:
Type of Video:Composite Video x 1 Output:
Video Input:........................+1 Vpp, 75W
Audio Input: ..............Stereo (R+L) 40KW
Terminals In/Out: ...RCA Jacks (Female)
Dimensions: Length 5.9” x Width 17.32” x Height 2.6”
Power Source 12Vdc, @500ma pos. center
AC Power Adapter Included.
oUtpUt:
Video Output: Composite Video x 16
+1Vpp 75W
Audio R+L Output:RCA jacks (Female) x 16
Stereo (R+L), 40K W
Video Bandwidth: >250 MHz
Video Distortion: <1.2dB (+/- 3dB)
Audio Distortion: <0.6dB (+/- 3dB)
Channel Isolation: >50dB
Signal to Noise Ratio: <50dB
ReAR VieW
Visit Calrad on the Web at: www.calrad.com
66
CALRAD
40 series - Composite-sVhs Video switchers
40-841m 4 X 2 Composite/s-ViDeo mAtRiX sWitCheR
Remote/Manual controlled 4 inputs to 2 outputs composite/S-Video Matrix switchers with
audio combined. Comes with IR remote control (batteries included) A/V input cable and
DC power supply. Composite/S-Video bandwidth up to 100 Mhz. Switching Control: Via
Infra Red Remote Control or front panel manual push buttons. Individual L.E.D. indicators
display Output-A, Output-B input selections. 40-841M-RS232 interface adapter sold
seperately.
specifications:
Video Bandwidth......................>250MHz
iNpUt:
Video Distortion ............<1.2dB (+/- 3dB)
Video Terminals..Composite & SVHS Jacks x 4 Audio Distortion ............<0.6dB (+/- 3dB)
Video Input...........................+1Vpp, 75W
Channel Isolation..........................>50dB
Audio Terminals ........... RCA Jacks x 12
Signal to Noise Ratio ....................<50dB
Audio Input ................Stereo (R+L), 40W
Dimensions ....9”(W) x 5.2”(D) x 1.70”(H)
oUtpUt:
Weight (unit only) ........................580 gm
Video Terminals..Composite & SVHS Jacks x 2 Power [email protected] Maximum
Video Output........................+1Vpp, 75W
Power Source ...................... 5Vdc, @2A
Audio Output ...........Stereo (R+L), 40KW
AC Adapter Included
Front View
Rear View
Rs232 Adapter
IR Remote
40-841m-Rs232
40-948m 8 X 8 AUDio\ViDeo Composite mAtRiX sWitCheR
IR Remote or Manual controlled 8 input to 8 output RCA composite video and L+R
audio Matrix switcher. Comes with IR remote control (batteries included) A/V input
cable and DC power supply. Composite Video bandwidth up to 250 Mhz.
specifications:
iNpUt:
Video Input.............Composite Video x 8
Video Distortion ............<1.2dB (+/- 3dB)
+1Vpp, 75W Audio Distortion ............<0.6dB (+/- 3dB)
Audio Input ..............Stereo (R+L), 40KW
Channel Isolation..........................>50dB
Terminal Input ...............RCA Jacks x 24
Signal to NoiseRatio .....................<50dB
oUtpUt:
Video Crosstalk ............................<60dB
Video Output..........Composite Video x 8
Dimensions17.3(W)x 5.90”(D) x 2.60”(H)
+1Vpp, 75W Weight (unit only) ......................1560 gm
Audio R+L Output......... RCA Jacks x 16
Power [email protected] Maximum
Video Bandwidth......................>250MHz
Power Source .................12Vdc @1Amp
Power Adapter Included
Front View
Rear View
40-940m 8 X 4 Composite Video/s-Video matrix switcher
The 40-940M has eight S-Video, composite video and stereo audio inputs to four S-Video, composite video and stereo audio outputs. A
maximum bandwidth of 250MHz will support 480P and 720P resolutions. IR remote control or manual push button programming allows you
to assign any input to any output. RS232 interface allows you to control and program the switcher with PC controlled software. 12Vdc power
supply included.
specifications:
iNpUt:
Video Terminals..Composite & SVHS Jacks x 8
Video Input...........................+1Vpp, 75W
Audio Terminals ........... RCA Jacks x 16
Audio Input ................Stereo (R+L), 40W
67
oUtpUt:
Video Terminals..Composite & SVHS Jacks x 4
Video Output........................+1Vpp, 75W
Audio Output ...........Stereo (R+L), 40KW
Video Distortion ............<1.2dB (+/- 3dB)
Audio Distortion ............<0.6dB (+/- 3dB)
Channel Isolation..........................>50dB
Signal to NoiseRatio .....................<50dB
Video Crosstalk ............................<60dB
Dimensions17.3(W)x 5.90”(D) x 2.60”(H)
Weight (unit only) ......................1560 gm
Power [email protected] Maximum
Power Source .................12Vdc @1Amp
Power Adapter Included
CALRAD
40 series - Composite-sVhs Video switchers
40-830m 4 X 4 AUDio\ViDeo Composite mAtRiX sWitCheR
IR Remote or Manual controlled 4 input to 4 output RCA composite Video Matrix
switcher with audio combined. Comes with remote control (batteries included) A\V input
cable and AC power adapter. RCA Composite Video bandwidth up to 100 MHz.
specifications:
iNpUt:
Video Input ..............Composite Video x 4
Video Bandwidth......................>100MHz
+1Vpp, 75W
Video Distortion ............<1.2dB (+/- 3dB)
Audio Input ..............Stereo (R+L), 40KW
Audio Distortion ............<0.6dB (+/- 3dB)
Terminals Input..............RCA Jacks x 12
Channel Isolation..........................>50dB
Signal to Noise Ratio ....................<50dB
oUtpUt:
Crosstalk ............................<60dB
Video OutputComposite Video x 4,1Vpp, 75W Video
Dimensions 12”(W) x 5.90”(D) x 1.73”(H)
Audio R+L Output............RCA Jacks x 8
Weight
(unit only) .....................1360 gm
Stereo (R+L), 40KW
Power [email protected] Maximum
Power Source12Vdc, @1Amp
40-803 4 X 2 sVhs ViDeo AND steReo AUDio AUto sWitCheR
Front View
Rear View
Front View
4 inputs, 2 outputs. This device switches between 4 s-video/audio sources automatically.
When a video signal is detected from 1 of the 4 inputs that channel’s video and audio are
switched to the output. To select a different input simply turn on that piece of equipment
and the video and audio signals will override the previous signal and route it to the output.
Switching is automatic with no user interaction. This unit can easily be hidden behind the
equipment and provides a simple solution for switching video devices. A L.E.D. indicator is
provided on the front panel for visual indication of what input is selected. Unit can also be
operated manually. AC Power adapter Included.
specifications:
AV signals Selector 4 SVHS in > 2 out
Video Input SYNC +0.30Vpp, 75Ω
Audio Input Stereo (R+L), 40KΩ
Video Output 1 Vpp ; 75Ω
Audio Output Stereo (R+L), 40KΩ
Audio Input terminals video 10 RCA jacks
Audio Distortion < 0.6dB (+/- 3dB)
Power Supply 12Vdc @300mA
Power Consumption 125mA
Accessories AV cable M-M 3 x RCA
Channel Separation > 50dB
Noise Reduction > 50dBVideo
Bandwidth 5 MHz
Audio Bandwidth 2-Hz-20Khz
Power Consumption 100mA~120mA
Video Distortion video < 1.2dB (+/- 3dB)
Dimensions Length 5.1” x Width 7.9” x
Height 1.6”
Weight 845 gm
40-813 pAssiVe 4 iNpUt sVhs & Composite
ViDeo, steReo AUDio sWitCheR
Rear View
Front View
Used to switch 4 SVHS, composite video and L+R audio input signals to 1 output. Allows you to
switch between DVD, VCR, camcorder, or any other Composite-SVHS, Stereo Analog AudioVideo device.
specifications:
Composite Video
Video level 1Vpp +- 10%
Input impedance 75Ω
Through loss < 5%
Color dark gray
Video connector: Female RCA jacks with
yellow inserts
Audio
Signal distortion audio< 0.6dB
(standard ± 3dB)
Audio input level 0-1Vpp, 10Hz-20KHz
Audio impedance 10k Min
Audio connectors Female Red & White RCA
jacks
sVhs (Y/C)
Y, luminance input level 1Vpp +- 10%
Input impedance 75Ω
Through loss < 5%
C, chrominance input level 1Vpp +- 10%
Size: Length 7.75” x Width 4.5” x Height 1.75”
Rear View
68
CALRAD
40 series - ip Video products
40-CDL-160eth etheRNet AND UsB to hDmi CoNVeRteR
Front View
The Ethernet and USB to HDMI Converter allows you to use a TV as your laptop/desktops
primary display. Simply connect the TV to the device and then plug the device into the
Ethernet network and your TV will instantly become the PC's principal display. This
Converter also has two USB ports, for a mouse and keyboard, allowing you to control any
networked computer. Aside from enabling a TV to be your primary PC display this device
also removes the problem of running expensive audio and video cabling over long
distances, all that is needed is an Ethernet network. Because everyone can access a TV,
they gain the ability to use a computer without being physically connected to it, so they
can perform PC tasks like browsing the internet, use Microsoft Office and access any
music or movies you may have on iTunes, a truly easy and cost effective solution for
sharing AV among computers. Includes software disc and 5 Vdc power supply. Works
with windows 2K SP4, windows XPhome or professional32 bit, windows vista 32 bit.
Rear View
Applications:
Ethernet to HDMI Displays, USB to HDMI Display, Long distance PC display and control,
PC application sharing, Docking stations, Projectors.
Features:
Experience the complete PC environment on a TV from 100 meters
away. Content on the original PC monitor can be different from the
TV content.
Allows a TV to act as the primary PC display, and when using a
keyboard and mouse this allows you to browse the internet, use
Microsoft Office and watch and listen to music/movies, from any
networked computer.
Extend or mirror video through network or USB cable to HDMI
display, including both video and audio output signals.
Share HDMI displays with multiple users through your existing
office or home IP network.
Add an HDMI display to your computer through a USB 2.0 port.
Supports mirror and extended video modes.
specifications:
Input Ports: 1 x Mini USB, Ethernet
Output Port: 1 x HDMI
Extender Ports: 2 x USB
Power Supply: 5VDC/2.6A (US/EU standards, CE/FCC/UL
certified)
Size: Length 4.5” x Width 3.6” x Height 1.2”
69
Note: All specifications on this page are subject to change without notice
example 1A Connection and installation
CALRAD
40 series - Audio-Video/speaker selectors/Audio Converters
40-851VC siX ChANNeL AUtoFoRmeR BAseD steReo speAkeR
seLeCtoR With VoLUme CoNtRoLs
Rating per channel 100W, RMS continuous selectable A/B amplifier input. Multipleposition volume control: 10 position switch - max attenuation 42dB heavy duty. Push
type connectors accept up to 12 awg. cable. Independent channel grounds for safe
connection to all amplifiers (including bridged or floating ground). Load impedance
resistors for amplifier protection. Size: 17”(W) x 3”(H) x 8”(D) front to back including
knobs and terminal. Weight 12.5 lbs.
40-644 steReo 2 WAY AUDio
iNpUt seLeCtoR (A+B)
Size: 17”W x 3.0”H x 8”D
40-647 FoUR positioN steReo
speAkeR sWitCh
Enables 2 audio inputs to be switched to
1 output. Slim metal chassis with black
finish. Mounts with velcro, included or
double stick tape. 2 L+R inputs, Female
RCA jacks. Output cable with L+R Male
RCA plugs, 5’ long.
Designed to switch 4 pairs of stereo
speakers from 1 amplifier. Heavy duty
rocker switches. Push-style terminals
accept up to 14 gauge cable. Black steel
cabinet with white labeling. Rated at 120
watts.
Size: 3”W x 1”H x 2.9”D
Size: 7”W x 2.5”H x 4”D
40-648 FiVe positioN RCA AUDio
steReo sWitCheR
40-649 thRee positioN RCA
ViDeo/steReo AUDio sWitCheR
5 inputs to 1 output device. When more
audio inputs are needed for a
receiver/amplifier, provides switching for
CD players, tape decks, tuners, VCR’s,
etc. Black steel cabinet with white
labeling.
3 position rotary switch selects between 3
audio/video input signals and sends them
to 1 output device. Black steel cabinet
with white labeling.
Size: 7”W x 2.5”H x 4”D
Size: 7”W x 2.5”H x 4”D
40-DCt-1 DigitAL to ANALog CoNVeRteR (LpCm)
LiNeAR pULse CoDe moDULAtioN
The 40-DCT-1 converts a digital audio signal source from a digital
coax RCA jack or optical toslink jack and converts it to an analog
stereo audio signal L+R RCA output jacks. It also includes a digital
coaxial (SPDIF) "loopout" RCA jack, which is ideal if you need to send
a single digital audio signal to both a digital and an analog device at
the same time. Inputs: Coaxial and Optical digital audio ports. Outputs:
Right and Left RCA-type Stereo analog output jacks. Digital audio
format: Two Channel Linear Pulse Code Modulation (LPCM)
Frequency response : 44.1 – 192KHz Sample rate. 24-bit incoming
bitstream on left and right channels. DC Power Supply:12V DC
Included. Size: Length 3.1" x Width 2.5" x Height 1".
Digital Audio In
SPDIF or
Toslink
Digital
Audio
In\Out
Digital Signal
Indicator
Toslink
Output
Stereo Analog
Audio Out
DC Power
Indicator
L+R Audio
Audio
Outputs
stereo Receiver
40-DCt-1
Display
DC Power
Visit Calrad on the Web at: www.calrad.com
70
CALRAD
40 series - Analog/Digital Audio Converters
40-DCt-4 ANALog steReo to DigitAL CoNVeRteR
(LpCm) LiNeAR pULse CoDe moDULAtioN
48Khz, 96Khz Sample
Rate Switch
The 40-DCT-4 converts aanalogl audio signal source to a digital coax
jack or optical toslink jack and converts it to a PCM digital audio
signal, coax, toslink output jacks. Inputs: RCA L+R audio jacks.
Outputs: RCA coax jack, optical toslink jacks. Imput audio impedance:
47K, Digital audio output format: Two Channel Linear Pulse Code
Modulation (LPCM) Frequency response : 48/96Khz Sample rate. DC
Power Supply:12V DC Included. Size: Length 3.1" x Width 2.5" x
Height 1".
Digital Signal Digital Outputs
Indicator Coaxial, Optical
DC Power
Indicator
Digital Audio
Out SPDIF or
Toslink
Stereo Analog
Audio In
40-DCt-4
stereo Receiver
DC Power
Display
40-DCt-2 2 WAY DigitAL AUDio CoNVeRteR, RepeAteR (spDiF to tosLiNk,
tosLiNk to spDiF)
Coaxial / Toslink audio converter, its compact size and convenient features provides simple solutions
for interfacing digital audio gear. It accepts S/PDIF audio signal input through either coaxial cable or
toslink cable, and passes the signal (as is) to both its coaxial and toslink output ports. With its built-in
amplification feature the 40-DCT-2 can also serve as a signal repeater and extend (double) the
transferring distance. The 40-DCT-2 Cross-converts digital audio signals between “Toslink” optical and
coax-electrical SPDIF formats transparently converting in either direction, and handling PCM (stereo)
and bitstream (Dolby Digital, DTS) signals. Supports two-way conversion: coaxial to toslink or toslink to
coaxial. Size: Length 1.75” x Width 1.75” x Height 1”.
40-DCt-2
DVD player
Receiver 1
spDiF out
spDiF in
inputs
outputs
Receiver 2
xBox
toslink-out
40-DCt-9 UNiVeRsAL DigitAL \ ANALog AUDio
CoNVeRteR
71
Analog Stereo
Audio Input
The 40-DCT-9 is a comprehensive audio converter that provides
a wide variety of audio formats/interfaces for users to take
advantage of. With three different types of bidirectional
connectors namely optical, coaxial and L/R, the DCT-9 can
convert all three signals into any preferred format. Analog audio
signal input can be converted into digital output, and digital audio
signal into analog output. L.E.D. Indicators show what signal
type is selected.The conversion process can be done
simultaneously without any signal loss or delay. Supports
sampling frequencies from 16 - 100 kHz. Size: Length 3.6” x
Width 3.6” x Height 1.45”.
toslink in
CALRAD
40 series - Converters/Baluns
40-CW01A Designer style
Composite Video + stereo
Audio Wallplate Balun
1x
RJ45
Jacks
40-VW01
VGA over Cat5e extender
on a designer style insert.
Passive balun wall plate
allows you to send VGA
up to 300 feet over a
single Cat5e UTP cable.
Supports resolutions up to
1280 X 1024 No power
required. Dimensions:
11.5mm X 71mm. Sold in
pairs.
Composite video and stereo audio
over Cat5e extender on a
designer style insert. Passive
balun wall plate allows you to
send composite video and stereo
audio up to 1000 feet over a
single Cat5e UTP cable. No
power required. Dimensions:
11.5mm X 71mm. Sold in pairs.
40-DA01 Balanced passive signal Converter
40-DA02 Balanced passive signal Converter with 4” wire pigtail
1x
RJ45
Jacks
40-DA01
40-DA01
40-DA02
40-DA02
Passive bi-directional signal design using UTP Cat5e or Cat6 cable pair. Use for
Audio\Video\Component\IR signals.
Cable Distance:
Analog Audio, 1000 ft. Digital Audio, 300 ft. IR Signals, 300 ft. Composite video,
1000 ft., High Definition 480P - 300 ft., 720P - 200 ft., 1080i -100 ft., 1080P - 50 ft.
Wire termination
40-DA01: 2 Conductor captive screw terminals
40-DA02: 2 conductor locking style punch down blocks for easy wire
specifications
Bandwidth: DC to 50Mhz, DC passive
Connectors: RCA Male Plug
Signal Types: Analog+Digital Audio \ Video \ IR Signals
Housing Material: Plastic, Color: Black
Dimensions: 1.76"(L) x .68"(W) x .68"(H)
Dimensions: L 1.32” x W 0.6” x H 0.6”
40-DA01Male RCA Plug spacing .64 inch center to center
Small Slotted
Screw Driver
Required
95-1041 ViDeo BALUN CAt-5 CABLe sYstem
Balanced video RJ45 to unbalanced Male BNC adapter. Transmit
a composite video signal up to1000’ using industry CAT-5
networking cables with RJ45 connectors. Includes CAT 5 RJ45
Male to 2 screw terminal adapter. The advantages of this type of
system are clear video signal, fewer cables to manage, lower cost
per connection, centralized wiring for greater control. Video
bandwidth 12MHz. Two units required for transmission and
reception of balanced signals Size: Width .76” x Height .9” x Depth
2”.
1x
RJ45
Jacks
Small Slotted
Screw Driver
Required
95-1046 Composite Video, s-Video, Analog or Digital Audio Balun
1x
RJ45
This passive RCA Audio/Video balun is ideal for corporate A/V, schools or home theater
Jacks
applications. Transmit stereo audio, digital audio, composite video or S-Video over
A single Cat 5/Cat 6 UTP cable up to 1000 feet. Transmission of S-Video requires the
Calrad 55-741 S-video Y adapter cable sold separately.
specifications:
RCA input Connectors: Gold plated RCA jacks X 2
RJ45 Connector : Female RJ45 jack X 1
Signal Input: Stereo Audio, Digital Audio, Composite Video, S-Video
Cable Transmission Distance: Stereo audio 2500 Feet max, Digital audio 1000 feet max
Dimensions: Length: 2.4” X Width: 1.69” X Height .865”
72
CALRAD
40 series - km, kVm / UsB Baluns
40-km01 pC ps2 moUse AND keYBoARD
oVeR CAt5e \ CAt6 BALUN
Receiver
The 40-KM01 PS 2 mouse and keyboard balun
system provides a low cost solution for extending the
transmission signals of the mouse and keyboard over
Cat5e or Cat 6 UTP cable up to 300 feet. Passive
design requires no power. Ideal for corporate
conference rooms and schools. Receiver dimensions:
L- 2.6” x W-1.7” x H-1”, transmitter dimensions: L x 2”
x W- .96” x H-.82 ”, Color: Black. Sold in pairs.
keyboard
RJ45 Jack
mouse
Rear View
6.5”
Leads
transmitter
RJ45 Jack
40-Vkm01 pC VgA ps2 moUse
AND keYBoARD oVeR CAt5e \
CAt6 BALUN
The 40-VKM01 VGA, PS 2 mouse and
keyboard balun system provides a low
cost solution for extending the
transmission signals of the VGA output,
mouse and keyboard over Cat5e or Cat
6 UTP cable up to 300 feet. Passive
design requires no power. Includes 9”
VGA, PS2 keyboard and mouse cables.
Ideal for corporate conference rooms
and schools. Dimensions: Length 2.52”
x Width 4.25” x Height 1.07”. Chassis
material ABS plastic, Color: Black. Sold
in pairs.
this unit does not support pNp devices
2 x RJ45 Jacks
Balun EQ switch for
different distances
Rear View
Video Resolutions:
800 x 600 at 105 Meters
1024 x 768 at 75 Meters
1280 1024 at 60 meters
40-Ue04h UsB 1.1 CAt5e eXteNDeR \ BALUN
With 4 poRt UsB hUB
mouse
keyboard
VgA
RJ45
Jack
Extend 4 USB devices up to 50 meters over CAT5/5e cable. USB 1.1 compliant.
Including local and remote unit. Compact size, easy plug and play. USB
powered Transmitter,5Vdc power supply for receiver included. Size: Receiver,
Length 3.5” x Width 2.5” x Height 1.1”, Transmitter, Length 2” x Width .75” x
Height .6”.
40-Ue02 UsB 2.0 CAt5e eXteNDeR \ BALUN
With 4 poRt UsB 2.0 hUB
Receiver
Transmitter
4 x Type ‘A’
USB Ports
RJ45
Jack
Transmitter
USB 2.0 extender can extend 4 USB 2.0 devices up to 150 meters from the location
of your computer over CAT5/5e/6 UTP cable. It is optimized for applications such
as digital signage, home network integration, industrial control, security, USB
device sharing and KVM extension. Power + transmitter , receiver link L.E.D’s.
specifications
Transmitter supports USB 2.0 high speed and USB 1.1 devices. Receiver supports
4 x USB 2.0 high-speed and USB 1.1 devices, data bit rate 1.5Mb/s, 12Mb/s,
480Mb/s. 5Vdc external power supply for the transmitter included. Plug and play for
easy operation. Size: Transmitter, Length 6.7” x Width 3.3” x Height 1.3”. Receiver
Length 5.5” x Width 3.3” x Height 1.3”.
73
Note: All specifications on this page are subject to change without notice
4 x Type ‘A’
USB Ports
Receiver
CALRAD
40 series DVi \ hDmi Amplifiers & splitters
40-1030 hDCp CompLiANt DVi AmpLiFieR CAsCADe UNits AND
DeLiVeR sigNALs Up to 150 Ft. WoRks With pC oR hDtV
DeViCes
specifications:
Input/Output Connectors.......................DVI Female Jacks Rear and Front
Bandwidth..HDCP....... Compliant, 480i, 480P, 720P, 1080i (25 - 165 Mhz)
Maximum Resolution................................................. 1600 X 1200 at 60 Hz
Distance. (Using High Quality Cables) Total 100 -120 ft.Cascade to 150 ft.
AC Power Supply/Connector..............9VDC 600 mA with 2.1mm coax jack
Dimensions/Color............................4 1/8”W X 3” D X 1 1/8” H Silver Color
Please note! Not all manufacturers are consistent with the specifications issued
by the DDWG DVI 1.0 standard. Some equipment may not be able to achieve
distances of 150 ft. Shorter length may be required, reducing the ability of the
Calrad 40-1030 unit to reach longer distances. It is recommended to test the
amplifier and cables prior to installation.
40-1060-2 hDtV 2 poRt DVi \ hDmi spLitteR
HDCP Compliant. 1 DVI input to 2 HDCP DVI Compliant outputs. Supports HDTV
480P, 720Pand 1080i. The DVI Splitter will ONLY pass DVI-D (DVI Digital) or
HDMI Video Signals. PC up to UXGA (25-165MHz) Use Calrad 35 Series adaptes
for HDMI signals. (Video only)
specifications:
Frequency Bandwidth: .................................................................1.65 GHz
DC Power:..................................................... 7.5VDC, 1500 mA (included)
Supported HD Graphic Resolutions:.........................480P, 720P and 1080I
Supported PC Resolutions VGA, SVGA, SXGA, UXGA(1600 X 1200)60Hz
Connectors:.................................................. 3 Female DVI jacks 24 + 5 pin
Dimensions:........................................ Length: 6.0”, Width: 3.0”, Height: 1.6”
Weight......................................................................................................1 lb
40-1060-4 pC \ hDtV 4 poRt DVi \ hDmi spLitteR
Compact 1 RU size metal case, includes 19” rack mount ears. DVI Connectors, 1
input to 4 HDCP DVI 1.0 Compliant outputs. Cascadeable design for connecting
multiple units.
Supports HDTV 480P,720P and 1080i. The DVI Splitter will ONLY pass DVI-D
(DVI Digital) or HDMI type video signals. PC UXGA (25 - 165MHz)
Use Calrad 35 series adapters for HDMI signals. (Video only)
specifications:
Frequency Bandwidth: ..................................................................1.65 GHz
DC Power: ......................................................................7.5VDC, 1.5 Amps
Supported HD Graphic Resolutions:...............................480P, 720P, 1080I
Supported PC Resolutions: VGA, SVGA, SXGA, UXGA(1600 X 1200) 60Hz
Connectors: .......................................5 Female 24+5 pin DVI Female Jacks
Dimensions........................................ Depth: 6.0”, Width: 10.5”, Height: 1.6”
Weight.......................................................................................................1 lb
40-1060-4 Front
40-1060-4 Rear
74
CALRAD
40 series - DVi Converters
osD setup menu
40-881 DVi-D to VgA CoNVeRteR \ sCALeR
The 40-881 is a Digital DVI-D to analog VGA converter and scaler. DVI-D input
to HDDB15 VGA output. Input resolution is automatically detected while the
output resolution and refresh rate can be selected via the OSD menu. The 40881 has non-volatile memory and memorizes all your settings before the power
is turned off and recalls those settings the next time the power is turned on.
Supports 480P, 720P and 1080i input resolutions and will output 640X480,
800X600, 1024X768, and 1280X1024 PC resolutions. DVI-D cable and 5Vdc
power supply included. Size: Length 5.25” x Width 3” x Height 1.25”.
osD setup menu
40-882 CompoNeNt, s-ViDeo, Composite ViDeo to DVi
CoNVeRteR \ sCALeR
The 40-882 is a composite video and S-Video to DVI converter/scaler.
Composite video and S-Video inputs are converted and scaled up to PC or
HDTV resolutions. All settings are modifyable through the OSD menu. Supports
NTSC 3.58, NTSC 4.43. Pal-M, Pal-N and Secam formats. Output resolutions for
PC are 640X480, 800X600, 1024X768 and 1280X1024. HDTV resolutions are
480P, 720P and 1080i. 5Vdc power supply included. Includes 6 ft.. Includes 3 ft.
DVI M-M, 3 ft. S-Video M-M, 3 ft. Composite video M-M, 6” pigtail component
video adapter. Size: Length 5.75” x Width 3” x Height 1.25”.
osD setup menu
40-883 DVi-hDmi ViDeo pAtteRN geNeRAtoR
The 40-883 DVI test pattern generator provides over 20 of the most-often-used
test patterns for calibration, testing and troubleshooting DVI-D or DVI-I signals. It
is ideal for use with LCD monitors, PC monitors or projectors that are equipped
with DVI-I or DVI-D inputs. Easy to use OSD menu allows you to select a variety
of test patterns. Grey scale and multiburst. Requires 35-711A DVI to HDMI
adapter sold separately. 5Vdc power supply included. Size: Length 5.75” x
Width 3” x Height 1.25”.
35-711A
HDMI Female to DVI-D
Male Adapter with Gold plated contacts.
osD setup menu
40-886 VgA to DVi-D CoNVeRteR \ sCALeR
The Calrad 40-886 converts VGA or Y, Pb, Pr component video to DVI-D. can
interface between analog VGA and digital DVI-D signals while scaling up or
down. The default DVI output resolution is set for 1024 X 768. A backup memory
system saves and recalls the previous settings when power is removed and
reapplied. 5Vdc power supply included. Includes 3ft. DVI, composite video,
componet video dongle cables. Size: Length 5.75” x Width 3” x Height 1.25”.
specifications:
input/output resolutions
VGA 640 x 480
VGA 800 x 600
XGA 1024 x 768
Mac 1152x 864
WXGA 1280 x 768
SXGA 1280 x 1024
75
Note: All specifications on this page are subject to change without notice
1080i ,1920 x 1080
720P,1280 x 720
576P, 720 x 480
480P, 640 x 480
480i, 720 x 480
Weight: 10 oz,
Dimensions: 1.2" x 3" x 5.5"
Power Source 5 Volt DC
CALRAD
28-35 series - DVi/hDmi Adapters
28-163p
DVi-i to DVi-i FeeD-thRU
28-163-pC
White plastic insert plate with DVI
Female jacks on both sides. Jacks are
mounted on offset circuit board for a
low profile front and back. Gold plated
connectors insure excellent contact and
long life. Red L.E.D. 5V signal signal
indicator.Overall depth 1” front to back.
White plastic designer style insert plate
with one DVI-I Female to Female feedthru.
Nickel plated. Includes mounting
hardware.
Color is white
Interior depth 0.4 inches
35-600
28-164-m
28-164m-2
HD-DB15 “Y” shielded low
loss cable. Male HD-DB15
SVGA connector to 2
Female HD-DB15 SVGA
connectors Used to drive
2 monitors from A single
graphics card.
Single or Dual DVI-I feed thru
DVi-i FeeD-thRU
Stainless Steel full sized wall plate with a
single or dual DVI-I Female to Female
feed-thru.
DVi-i pinout
hDtV
DVI-I
Male
DVI-D
VGA Male
Female
35-601
35-700
DVI-I Male to VGA
DVI-I to DVI-D & VGA
DB-15 Female
Splitter
Adapter
Separates DVI-I Male
Allows you to connect
to DVI-D Female and VGA display to a DVI-I
VGA Female. For use graphics card. Note,
with DVI-I ports that
this adapter does not
share analog + digital
provide a digital to
analog signal
signals.
conversion. It will not
work with DVI-D.
35-701
DVI-A Male to VGA
DB-15 Female
Adapter.
This adapter allows
you to connect a
DVI-A display to a
VGA graphics card.
35-702
35-710A
DVI-I to DVI-I Female
to Female Coupler.
Shielded di-cast case
35-703
handles 5 pin analog
DVI-D Male to DFP 20
and 24 pin digital
Pin Female Adapter.
signals. gold plated
contact pins. Used for
inline or chassis
mount. Fits in
standard DB15 d-sub
cutout. Overall length
.93” For wall mounting
use Calrad p/n 30-598.
DVI-D Female to DFP
20 Pin Male Adapter.
35-712A
35-717
HDMI Male to DVI-D
Female Adapter with
Gold plated contacts.
DVI-I Female to M1DA
Male plug. Length 6”
Gold plated contacts.
35-715
HDMI Female to DVI-D Male Cable Adapter
with Gold plated contacts, 6” Length.
35-711A
HDMI Female to
DVI-D
Male Adapter with
Gold plated contacts.
35-727
DVI-D Female to Male
Display Port. Gold
plated contacts.
35-716
HDMI Male to DVI-D Female Cable Adapter
with Gold plated contacts, 6” Length.
Visit Calrad on the Web at: www.calrad.com
76
CALRAD
40 series - hDmi Baluns, extenders
40-1072m hDmi 1.3, 3D eXteNDeR oVeR tWo CAt5e \ CAt6 CABLes
Compact HDMI extender is designed to deliver HDMI 1.3 signal sources over 2x Cat 5e
or Cat 6 UTP cables that can deviver HDTV signals to plasma, LCD and projection
displays. All metal case with ear mounts. These devices are a perfect solution for
replacing costly standard HDMI cables that are difficult to route thru walls and cabinets.
A small class 2 power supply is required on the receiver side. HDTV Resolutions: 480P,
720P, 1080I, 1080P (Max 10.2Gbps, HDMI 1.3), HDCP Compliant.
specifications:
Input TMDS Signal: 5Vpp, Input DDC 5Vpp
HDMI female In\Out Connector Jacks, 2 x RJ45 Shielded Jacks
DC Power Supply: 5V, 1A, Switch mode Regulated, 110-220Vac
Dimensions: Transmitter: L-2.6” x W-1.69” x H-1.0”, Receiver: L-2.4” x W-1.69” x H-1.0”
Cable Distance 1080Pat 100 ft., CAT6 Cable at 125 ft., 1080i at 200 ft.
720P at 200 ft. 480P at 300 ft.
1080p, 3D
2x
RJ45
Jacks
40-1070 hDmi 1.3, 3D eXteNDeR oVeR siNgLe CAt5e \ CAt6 CABLe
Extends an HDMI signal over a single CAT5e or Cat6 cable. HDCP and HDMI 1.3
compliant. EQ rotary switch on the transmitter and receiver for HDMI or DVI mode and
for LPCM 7.1 or stereo audio modes. Sold as a transmitter and receiver set. 5Vdc
power supplies included.
specifications:
HDMI in/out 19 pin Female connectors
2 RJ 45 shielded connectors
Cable Distance 1080P, 100 ft., CAT6 Cable 125 ft.1080i, 200 ft.
720P, 200 ft. 480P, 300 ft.
Dimensions: L 3.25” X W 2.5” X H 1.1”
1080p, 3D
1x
RJ45
Jack
40-1090 hDmi 1.3B \ DVi eXteNDeR\ViDeo BALUN oVeR siNgLe
CAt5e \ CAt6 CABLe
specifications:
HDTV Resolutions: 480P, 720P, 1080i, 1080P (1.65 Gbps, HDMI 1.3b)
Input TMDS Signal: 5Vpp, Input DDC 5Vpp
Vertical Frequency Range: 50/60Hz
HDMI In\Out Connectors: 19 pin Female Jack, 1 Jack each unit
RJ45 Shielded Connectors: 1 Jack, each unit, 2 x L.E.D power indicators
DC Power Supply: 2 x 5V, 2A, Switchmode Regulated, 110-220Vac
Dimensions: Length 3.9" x Width 2.57" x Height 1.1"
Cable Distance
1080P, 150 ft. 1080i, 200 ft. 720P, 250 ft. 480P, 300 ft.
40-1093 hDmi 1.3B \ DVi 48Bit, 3D eXteNDeR \ ViDeo BALUN oVeR
siNgLe CAt5e \ CAt6 CABLe With iR, Rs232
40-1094 1.3B \ DVi 48Bit, 3D eXteNDeR\ViDeo BALUN oVeR siNgLe
CAt5e \ CAt6 CABLe
1080p
RJ45
Jack
100 meter hDmi Balun
transmitter
1080p, 3D
Receiver
Front View
Extends an HDMI signal over a single CAT5e or Cat6 cable. HDCP and HDMI 1.3b
compliant. HDMI or DVI mode, LPCM 7.1, True HD, DTS-HS or stereo audio modes.
Sold as a transmitter and receiver set. 5Vdc power supplies included.
specifications:
77
Video Resolution 480P, 720P, 1080P
Distance: 100 Meters
HDMI In\Out Connectors
RS232 Baud Rate:115,200 bps / Full Duplex
RS232 Connector: DB9 Female
IR Carrier: 38Khz
IR Receiver +-10 degrees, 5 Meters
DC Power Supply: 5Vdc, 2A
Receiver-Transmitter Size: Length 5.125” x Width 3.5” x
Height 1.25”
Bi-Directional IR In\Output Jacks
40-1093-iRA optional
iR Adapters
Use these 3.5mm Male to Female IR
pigtail adapters to interface industry
standard IR connecting blocks and IR
emitters. Sold in pairs, 1 x transmitter, 1
x receiver.
RJ45
Jack
Rs232
hDmi out
transmitter
Receiver
Rs232
hDmi out
Rear View
Power, IR-In\Out,
RJ45 Jacks with L.E.D
Power, Transmitter,
link indicator
iR emitter
iR Receiver
Power, IR-In\Out,
RJ45 Jacks with
L.E.D Power,
Receiver, link
indicator
CALRAD
40 seRies - hDmi Converters-scalers
40-1096 2 input hDmi 1.3B, 1080p-3D oVeR A siNgLe CoAX
CABLe eNCoDiNg-DeCoDiNg sYstem
Extend HDMI 1.3b, 1080P digital signals over a single RG59 or RG6 coax
cable. Advanced chip technolgy enables HDMI to be delivered over new or
existing coax cable available in most homes over long distances with IR
control back to the source and to switch between HDMI inputs on the
transmitter. Include 2 button IR remote, 5Vdc power supply.
specifications
Video amplifier Speed 10.2 Gbps (HDMI 1.3b)
Video Amplifier Bandwidth:340Mhz, up to 12 bit YUV 444 Supported @ 1080p
Power Supply: 5Vdc, 2A
Size: Length 4.75” x Width 3.75” Height 1.2”
iR Remote
hDmi over a single Coax Cable
supports 3D
1080p
Front View
40-1095 hDmi 1.3B, 1080p-3D oVeR FiVe CoAX CABLes
eNCoDiNg-DeCoDiNg sYstem
Extend HDMI 1.3b digital signals over five 75Ω BNC or ‘F’ coaxial cables.
Supports 480I, 480P, 720P, 1080I and 1080P resolutions. HDMI, HDCP and
RoHS compliant. Use existing coaxial cables to extend a 1080P signal up to
300 ft. Includes the HDMI over coaxial transmitter, the HDMI over coaxial
receiver and 5Vdc power supply.
Rear View
specifications
Video Amplifier Bandwidth:3.4 GHz
Video Amplifier Frequency:340 MHz
Vertical Frequency Range: 50 - 85 Hz
Input Connector: HDMI Female X 1
Output Connectors: BNC Female X 5
Power Supply : 5 Vdc
Size: Length 4.29” X Width 2.48” x Height 1.18”
hDmi over Five Coax Cables
75-679
"F" Female to
BNC Male
adapter.
Front View
40-255i mULtipLe ViDeo sigNAL FoRmAt to
hDmi 1.2 DigitAL ViDeo sCALeR pRoCessoR
Upscale composite video, S-video, SVGA or component
video to HDMI 1.2. Also convert digital or analog audio to
HDMI 1.2 combined audio and video or digital coaxial
SPIDIF output. Comprehensive OSD menu allows the user
to select a variety of settings and output resolutions. IR,
RS232 or manual control. Supports 480P, 720P, 1080I and
1080P resolutions.
Rear View
specifications
HDMI 1.2 HDCP compliant
Supports 50/60Hz frame rate conversion
Picture adjustments: Contrast, Brightness, Hue, Saturation,
Sharpness, RGB levels and Aspect ratio. Inputs: Component
Video, Composite Video, S-Video, SVGA and HDMI 1.2+
Aux analog audio for DVI adapter connectivity.
Outputs: HDMI 1.2, RCA SPDIF.
Includes one ea. of a 3 ft. VGA cable, 3 ft. component cable,
3 ft. composite, L+R cable and 5 Vdc power supply.
Size: Length 8.375” x Width 6” x Height 1.25”
IR Remote
VgA Video Cable
Component
Video Cable
Composite Video
Cable
78
CALRAD
40 series -
Composite & Component Video, VgA to hDmi Converters
40-720phD Composite ViDeo \ s-ViDeo to hDmi
CoNVeRteR
The 40-720PHD converts composite video/s-video/stereo audio to HDMI.
Accepts NTSC 3.58, Pal-M and Pal-N composite video and S-Video inputs
as well as 3.5mm stereo audio and converts the signals to 720P HDMI with
audio. Audio is incorporated into the HDMI output as well as the 3.5mm
stereo output simultaneously. Video inputs auto detect video source.
Selectable vertical rates of 50/60Hz. DVI-D compatible with Calrad adapter
35-712A. 5Vdc power supply included. Size: Length 5.75” x Width 3” x
Height 1.25”.
40-40Vh01 VgA to hDmi CoNVeRteR With Loop oUtpUts
Front View
Rear View
Front View
The 40-40VH01 video converter provides a simple method to allow PC users to show their image not
only on their PC's monitor but also on there HD television by converting VGA, RGB+HV into HDMI-HDTV.
Selectable dip switchs for 3.5mm stereo jack R/L audio or digital audio. Convert a VGA signal to HDMI. If
the VGA source is set to 480I, 720P or 1080I, 1080P Then it will convert to HDMI at the same resolution.
1Ft. Male to Male VGA cable included. VGA, Analog and Digital audio pass-thru jacks.
specifications:
Input Signal: VGA (DB15 Jack), (3.5mm Jack) Analog Stereo Audio or (RCA Jack) Digital Audio
Output Signal Loop (VGA, Analog Stereo + Digital Audio)
Output Signal: HDMI 1.3, supports DVI format, adapter not included
Audio Input Impedance: Analog Audio - 10K, Digital Audio - 75 W
DC Power Coax Jack: 5Vdc, 500ma
Size: Length 3.75" x Width 4.75" x Height 1.25"
40-40Vh02 VgA to hDmi CoNVeRteR
Rear View
Rear View
The 40-40VH02 Converts VGA, RGB+HV into an HDMI-HDTV format with stereo audio. The 3.5mm
stereo jack provides R/L audio that mixes with the VGA video to be converted into HDMI video and audio.
The 40-40VH02 converts the VGA signal to HDMI at the resolution of the VGA video source. If the VGA
source is set to 480I, 720P or 1080I, 1080P, then it will convert to HDMI at the same corresponding
resolution. Front panel power and signal L.E.Ds.
specifications:
Input Signal: VGA (HD-DB15 Jack), 1920 x 1080 max, (3.5mm Jack) Analog Stereo Audio
Output Signal: HDMI 1.3 HDCP compliant , supports DVI format, adapter not included
Audio Input Impedance: Analog Audio - 10KW
DC Power Coax Jack: 5Vdc, 500ma
Size: Length 2.75" x Width 4.25" x Height 1"
Front View
40-40Yh01 CompoNeNt ViDeo to hDmi CoNVeRteR
Front View
The 40-40YH01 video converter provides a simple method to convert component video and analog or
digital audio to HDMI. Plug and Play design. The converter uses a selectable dip switch to select either
stereo R/L audio or digital audio. If the component video source is set to 480I, 576I, 576P, 720P,1080I,
1080P, then it will convert to HDMI at the same corresponding resolution. Component video, stereo
analog and digital audio pass-thru jacks are provided for uninterrupted signal to a second display.
specifications:
Input Signal: Component Video (RCA Jacks Y, Pb, Pr), 1920 x 1080P max, Analog Stereo Audio or
Digital Audio (RCA Jacks)
Output Signal Loop (Component Video, Analog Stereo + Digital Audio)
Output Signal: HDMI 1.3, supports DVI format, adapter not included
Video Amplifier Bandwidth: >140MHz
Audio Input Impedance: Analog Audio - 10K, Digital Audio - 75 Ohms
DC Power Coax Jack: 5Vdc, 500ma
Size: Length 3.75" x Width 4.75" x Height 1.25"
79
Note: All specifications on this page are subject to change without notice
Rear View
CALRAD
40 series - hDmi Amplifiers
40-1061-2, 1X2 hDmi 1.3, 3D DistRiBUtioN AmpLiFieR
One input to two outputs HDMI 1.3 distribution amplifier. HDCP and HDMI
1.4a compliant. Supports HDTV resolutions of 108i and 1080P. 5Vdc power
supply included. Length 3.4” X Width 1.85” X Height 1.0”. Color: Black.
supports 1080, 3D
40-1061-4, 1X4 hDmi 1.3, 3D DistRiBUtioN AmpLiFieR
Front View
One input to four outputs HDMI 1.3 distribution amplifier. HDCP and HDMI
1.4a compliant. Supports HDTV resolutions of 108iI and 1080P. Front panel
on/off power switch. Length 10.2” X Width 4.5” X Height 1.0”. 5Vdc power
supply included. Color: Black.
supports 3D
Rear View
40-1061-8, 1X8 hDmi 1.3, 3D
DistRiBUtioN AmpLiFieR
40-1061-16, 1X16 hDmi 1.3, 3D
DistRiBUtioN AmpLiFieR
40-1061-8
One input to eight outputs HDMI 1.3 distribution
amplifier. HDCP and HDMI 1.4a compliant.
Supports HDTV resolutions of 480P, 720P, 1080i
and 1080P.40-1061-8 size: Length 8.9” x Width
6.2” x Height 1.0”. 5Vdc power supply included.
Color: Black. 19” rack mounted design.
supports 3D
Front View
Rear View
40-1061-16
supports 3D
Front View
Rear View
Note: All specifications on this page are subject to change without notice
80
CALRAD
40 series - hDmi switchers
40-991, 2 iNpUts to 1 oUtpUt mANUAL hDmi sWitCheR
Two input to one output manual HDMI switcher with Locking push button switching. Passive
operation does not require power. Supports 1080i and 1080P HDTV and 1600X1200 PC
resolutions. Size: Length 5.25” X Width 4.5” X Height 1.25”.
40-992-1.3 CompACt hDmi 1.3B 3 X 1 sWitCheR
3x1 compact HDMI 1.3 switcher routes high definition video and digital audio from any
one of the three sources to a single video display unit. The 40-992-1.3 can be
manually switched or controlled with the IR remote that is provided. Active operation,
gets power from the HDMI sources or display. IR receiver Cable length: 3 ft.
Dimensions: Length 3" x Width 1.8" x Height .55". Includes external remote IR receiver
and IR remote control.
3 input L.e.D.
indicators
iR Receiver
40-998-hs, 3D hDmi 1.4A, 3D 4 X 1 sWitCheR
4X1 HDMI 1.3b HDCPcompliant switcher. Manual/IR or RS232
control. Plug and play installation. Maintains input memory after
power loss. LED signal selection indicators for inputs. Supports
480P, 720P, 1080I and 1080P resolutions. 5Vdc power supply and
IR remote included.
specifications
IR distance: 30-35 feet
Frequency bandwidth: 1.65 Gbps
Connectors: Gold plated Female HDMI jacks X 5
Power: 5Vdc, 2 Amp
Dimensions: Length 9.5" x Width 4.1" x Height 2"
IR Remote
40-967m 4X2 1080p 3D 1.3B hDmi
Front View
mAtRiX sWitCheR
4 HDMI Inputs to 2 HDMI Outputs HDMI
matrix switcher. Supports HDTV resolutions of
480I, 576i, 480P, 576P, 1080i, 720P and
1080P, deep Color 24/36 Bit, 3D Support.
Fully HDMI and HDCP compliant. Seperate
digital toslink and stereo audio outputs from
HDMI/Out 1. The matrix switcher allows you
to assign any of the 4 HDMI inputs to either of
the 2 HDMI outputs from the manual push
button controls or IR remote control. External
IR reciver input jack for external IR receiver.
Use optional IR interface cable to connect
40-967M-EII
External IR
Iterface Cable
Rear View
directly to IR connecting blocks. 12Vdc power
supply, IR remote control included. Size
Length 12.5” x Width 6.25” x Height 1.25”.
81
External IR
Remote
Receiver
IR Remote
manual
input
selection
CALRAD
40 series - hDmi switchers
40-968m-4 4X4 mAtRiX sWitCheR
40-968m-8 8x8 mAtRiX sWitCheR
supports 1080p 3D
FRoNt
sUppoRts hDmi 1.4A, 1080p, 3D
4, 8 HDMI Inputs to 4, 8 HDMI Outputs
HDMI matrix switcher. Supports HDTV
resolutions of 480i, 576i, 480P, 576P,
1080i, 720P and 1080P 3D. Fully HDMI
and HDCP compliant. The matrix switcher
allows you to assign any of the HDMI
inputs to any of the HDMI outputs through
the manual push button controls or IR
remote control. 12Vdc power supply, IR
remote control included. 40-968M-4 Size:
Length 19” x Width 8” x Height 1.75”,
40-968M-8 Size: Length 19” x Width 8” x
Height 1.75”. 40-IR-KIT sold seperately.
Front panel Buttons
iR Receiver, ext. iR Receiver port
19”
Rack ears
iR emitter ports
40-968m-4
ReAR
Rs232 Control
FRoNt
40-iR-kit
IR Remote
HDMI IR Dongle
Front panel Buttons
iR Receiver, ext. iR Receiver port
19”
Rack ears
iR emitter ports
40-968m-8
IR Emitter
IR Receiver
ReAR
Rs232 Control
IR Ext. Receiver
Included
Use The optional HDMI IR Dongle, IR Emitter, IR Receiver
as a remote IR repeater system from any HDMI output port.
Application Diagram
8 sources to 8 Displays
iR emitter
iR Receiver
hDmi iR Dongle
Displays
40-iR-kit
iR Remote
sources
Note: All specifications on this page are subject to change without notice
82
CALRAD
40 series - UsB pC Video Adapter
40-40AN2420 DVi-D, hDmi to UsB ADApteR
40-40AN2440 DVi-, hDmi to UsB ADApteR (sUppoRts ViDeo Up to 1680X1050 )
Front
This USB Display Adapter enables you to connect one more monitor, LCD or projector to a computer
with a USB 2.0 port. For desktop users adding an extra monitor via USB connection is easier than
ever without having to open the computer chassis to install an internal video card. Once the
installation is done, the USB-attached monitor soon wakes up. No function key hassle to swap a
second monitor.
With this handy adapter, you can enjoy many benefits brought by an add-on monitor. The most
obvious one is that you get more desktop area to have more applications visible at one time. For
example, you may work on one monitor while your family watch video on the other. No more stacking
windows within the confines of a single display. Or you may span an application, e.g. spreadsheets,
across two displays. What's more, the adapter is hot pluggable. If you are not using the extra
monitor, just unplug the adapter at any time; no reboot needed.
specifications:
UsB: Ver 2.0
Video interface: DVI-I
Connectors: Video output: DVI-I 24pin + 5pin Female Connector
host upstream link: USB Mini-B Type Female Connector
Connectivity: Up to 2 adapters on a computer
RAm: 8M x 16 DDR Synchronous DRAM (SDRAM)
power mode: Bus-powered
operation system suppor: Windows 2000 SP4, XP SP2 and Vista 32-bit
supported modes: Extended Desktop (Default), Mirrored Desktop, Primary Display
supported Resolutions: 640x480, 800x600, 1024x768, 1280x960, 1280x1024, 1360x768,
1366x768, 1368x768, 1400x1050, 1440x900, 1600x1200, 1680x1050
housing: Plastic
Dimensions: 84.3 (L) x 54 (W) x17.8 (H) mm
UsB Cable separated from the body: Type: USB A -Type Male to 5pin Mini USB B-Type Male
Color: Black
Length: 1M
operating temperature: 10-40°C
Relative humidity: < 85% non-condensing
EMC FCC Part 15 Class B, IC ICES-003 CE (EN55022, EN61000, EN55024)
Rohs: RoHS compliant
Rear
package Contents
USB Display Adapter x1
Driver CD x1
USB Cable x1
Quick Installation Guide x1
DVI-A male to VGA female Adapter x 1
35-700
DVi-i male to VgA DB-15 Female
Adapter
Allows you to connect VGA display to a
DVI-I graphics card. Note, this adapter
does not provide a digital to analog
signal conversion. It will not work with
DVI-D, Included.
Desktop PC,
Laptop
Display 1
Display 2
40-AN2440
83
Display 3
40-AN2440
40-AN2440
CALRAD
40 series - passive A\V hUm eliminators
Typically 60Hz black or dark to light bars can be
seen as slowly vertically moving horizonal bars
in normal TV video signals, this normally caused
by differnt ground path potentials. Calrads Hum
Eliminator products remove 60hz hum bars from
your video and audio signals to provide a
interference free installation.
40-970 CompoNeNt ViDeo hUm eLimiNAtoR
HDTV component video hum eliminator. Supports 480P, 720P, 1080i and 1080P
resolutions. 75 ohm impedance. 200Mhz video bandwidth. RCA input and output
jacks. Dimensions: Length 8.7” X Width 4.1” X Height 2.1”. Chassis color: Black.
inputs
outputs
40-973 Composite ViDeo AND steReo AUDio hUm eLimiNAtoR
Composite video and stereo audio hum eliminator. 75 ohm impedance.
200Mhz video bandwidth. Audio bandwidth 200-15Khz. RCA input and output jacks.
Dimensions Length 8.7” X Width 4.1” X Height 2.1”. Chassis color: Black.
inputs
outputs
40-975 sDi DigitAL ViDeo hUm eLimiNAtoR
Single channel SDI digital video hum eliminator. 75 ohm impedance 1.5Gb/sec data
rate BNC input and output jacks. Dimensions Length 4.68” X Width 3.68” X Height
2.0”. Chassis color: Black.
40-977 4 ChANNeL sDi DigitAL ViDeo hUm eLimiNAtoR
4 channel SDI digital video hum eliminator. 75 ohm impedance 1.5Gb/sec data rate
BNC input and output jacks. Dimensions: Length 7.40” X Width 4.70” X Height 3.2”.
Chassis color: Black.
input
output
input
output
input
40-979 CAtV DigitAL hUm eLimiNAtoR
output
CATV digital hum eliminator. DC passive design. Low VSWR prevents signal loss.
75 ohm impedance. 2Ghz video bandwidth. RF-81 input and output jacks.
Dimensions: Length 6” X Width 4.7” X Height 3.75”. Chassis color: Black.
Note: All specifications on this page are subject to change without notice
84
CALRAD
40 series - VgA Baluns, extenders
40-1010 VgA oVeR siNgLe CAt 5e eXteNDeR
The 40-1010 allows you to transmit a VGA signal up to 580 ft. over Cat 5e.
Supports PC resolutions up to 1280X1024. HDDB 15 Female input and output.
The receiver has built-in active equalization circuitry providing adjustments of
Gain\EQlevels for different lengths of cable. The transmitter and receiver
requires individual power. 12Vdc power supplies, included. Sold in pairs,
transmitter and receiver. Transmitter, Receiver Size: Length 3.76” x Width 1.3” x
Height 1.2”.
40-7110 VgA \ CompoNeNt ViDeo oVeR siNgLe CAt 5e
eXteNDeR tRANsmitteR AND ReCeiVeR
Adjustable
gain\eQ
RJ45
Jack
Calrad's high-resolution baluns for VGA or Component video over Cat5e/Cat6
can extend stereo audio and video signals up to 1,000 feet using a single Cat5e
or Cat6 cable. The receiver has built-in active equalization circuitry providing
adjustments of Gain\Peak levels for different lengths of cable. This technology is
a perfect and reliable solution for situations where your VGA\HDTV monitor
needs to be located in a separate location from where the VGA\HDTV source is
located. Cat6 UTP cables can be used but may cause skewing of signal pairs at
certain resolutions. This balun does not do any video transcoding only the same
signal type in\out. Sold in pairs. 5Vdc external power supply included. Audio
video adapter cables required for component video, sold separately. Video
Delivery: VGA 1000 ft.,480P 900 ft., 720P 700 ft., XGA 600 ft., 1080i 500 ft.,
SXGA 450 ft., 1080P 250 ft. . Size: Transmitter Length 4.25” x Width 2.6” x
Height 1.1”, Receiver Length 3.5” x Width 1.75” x Height .9”.
Transmit VGA and 3.5 stereo audio up to 1000 ft over a single Cat 5e or Cat 6
cable. Can also be used for component video and audio. 1ft 3.5mm plug to dual
RCA adapter cable and 1ft. HDDB15 Male to 3 RCA Male Y, Pb, Pr, 1 ft. 3.5mm
to stereo RCA audio adapter cables included. The receiver has a RJ45 loop out
jack to daisy chain more receivers and the transmitter has a VGA + stereo audio
loop out for a local monitor. Adjustable video gain and EQ controls. Includes 2 x
5Vdc, 2A power supplies. See example 1A for typical hookup.
example 1A.
VgA Video
Display
40-6220 Receivers
shown daisy chained
5
4
3
2
1
40-6220
transmitter
pC, Laptop or
media pC
85
VgA Video
Displays
Receiver
Transmitter
Adjustable
gain\eQ
RJ45
Jack
40-6220 (tRANsmitteR & ReCeiVeR), 40-6220R (ReCeiVeR
oNLY, soLD sepeRAteLY) ACtiVe VgA \ CompoNeNt ViDeo
oVeR CAt 5e eXteNDeR, tRANsmitteR AND ReCeiVeR
VgA+RJ45 Loop oUtpUts)
Transmitter
RJ45
Jack
Transmitter
Receiver
Receiver
Adjustable
gain\eQ
Front View
Receiver
Rear View
CALRAD
40 series - VgA Coverters
40-888 VgA, hDtV CompoNeNt ViDeo to s-ViDeo, Composite
ViDeo, 480i CompoNeNt ViDeo CoNVeRteR/sCALeR
Rs232-iR Controlable
The 40-888 allows you to convert VGA or 480i component video to composite video or
S-Video. Supports NTSC 3.58, NTSC 4.43, Pal-M, Pal-N or Secam formats. Switchable
component video or VGA inputs. Manual push button or IR remote controlled. RS232 for
PC control. Easy to use OSD menu allows you to change output resolution, brightness
and contrast. Supports input resolutions of 640X480, 800X600, 1024X768 and
1280X1024. Output resolution 480i or 480P. Includes 3 ft. VGA cable, 3 Ft., component
video cable, 3 ft. composite video cable, 3 ft. s-video cable, IR remote control, 5Vdc
power supply. Size: Length 8” x Width 6” x Height 2”.
Front View
IR Remote
VgA Video Cable
Component Video
Cable
Composite Video
Cable
s-Video Cable
Rear View
40-880A tWo WAY pC \ hDtV, hDtV \ pC CoNVeRteR
This Bi-directional 2 way scaler converts PC VGA to HD component video
or HD component video to PC VGA. Supports HD resolutions of 480P,
720P, 1080i and 1080P and PC resolutions of VGA, SVGA, XGA, SXGA,
UXGA, WXGA, WSXGA and WUXGA. The comprehensive OSD menu
allows users to adjust output resolutions, contrast, brightness, hue,
saturation and sharpness. Loop out for local monitor. 5 Volt DC power
supply and VGA, VGA to Component cables are included.
specifications:
Input port: 1 X HDDB15 Female
Output port: 1 X HDDB 15 Female
Loop port: 1 X HDDB15 Female
Power Supply 5 Volt DC-110/220
Dimension: Length 5.75” X Width 4” X Height 1”
40-881 DVi-D to VgA CoNVeRteR \ sCALeR
The 40-881 is a Digital DVI-D to analog VGA converter and scaler. DVI-D input to
HDDB15 VGA output. Input resolution is automatically detected while the output
resolution and refresh rate can be selected via the OSD menu. The 40-881 has nonvolatile memory and memorizes all your settings before the power is turned off and
recalls those settings the next time the power is turned on. Supports 480P, 720P and
1080I input resolutions and will output 640X480, 800X600, 1024X768, and 1280X1024
PC resolutions. DVI-D cable and 5Vdc power supply included. Size: Length 5.25” x
Width 3” x Height 1.25”.
40-884 VgA / hDtV pAtteRN geNeRAtoR
The 40-884 is an easy-to-use handheld video pattern generator that generates a wide
variety of test patterns for comprehensive testing, calibration, and repair of HDTV or PC
monitors, and other display based video equipment. Delivers the quality and
functionality you would expect from an expensive high end HDTV pattern generator with
an easy to understand three button control interfaces and visible OSD. Size: Length
5.25” x Width 3” x Height 1.25”.
86
CALRAD
40 series - VgA Converters
40-885
osD setup menu
Composite ViDeo to VgA CoNVeRteR \ sCALeR
The 40-885 is a composite video and S-Video to VGA converter/scaler. Composite video
and S-Video inputs are scaled up to PC or HDTV resolutions through the OSD menu.
Supports NTSC 3.58, NTSC 4.43. Pal-M, Pal-N and Secam formats. Output resolutions
for PC are 640X480, 800X600, 1024X768 and 1280X1024. HDTV resolutions are 480P,
720P and 1080i. 5Vdc power supply included. Size: Length 5.25” x Width 3” x Height
1.25”.
osD setup menu
40-886
VgA to DVi-D CoNVeRteR \ sCALeR
The Calrad 40-886 converts VGA or Y, Pb, Pr component video to DVI-D.
can interface between analog VGA and digital DVI-D signals while scaling
up or down. The default DVI output resolution is set for 1024 X 768. A
backup memory system saves and recalls the previous settings when
power is applied. 5Vdc power supply included. Size: Length 5.75” x Width
3” x Height 1.25”.
40-40VC01
VgA to Composite ViDeo CoNVeRteR (pAL-NtsC sUppoRt)
osD setup menu
Front View
VGA to composite video converter provides a simple method to view PC based video on
any TV, projector, or any other viewing device that uses standard BNC (RCA) type
composite video connectors. The converter also features a VGA output port that allows
for VGA Loop-Thru. You can simultaneously view video on a VGA monitor while viewing
the video on your CRT ,TV monitor. Simple to use push button controls for video setup.
Includes DC power supply and 6” M-M vga pigtail cable.
osD Features: H-Size, V-Size, Brightness, Contrast, Hue, Saturation, Flicker,
Sharpness, OSD Background.
specifications
Supported video standards: NTSC/NTSC-EIAJ/PAL/PAL-M/PAL-N/SECAM.
Supports Resolutions: 640 x 480 (up to 85 Hz), 800 x 600 (up to 85 Hz) and
1024 x 768 (up to 75 Hz).
Image controls: Horizontal and vertical size, brightness, contrast, hue,
saturation, sharpness and on screen display background.
Input Signal: VGA (HDDB15 Female Jack)
Output Signal VGA Loop-Thru (HDDB15 Female Jack)
Output Signal Converted: (BNC Female Jack, Composite Video)
DC Power Coax Jack: 5Vdc, 500ma
Size: Length 3.75" x Width 4.75" x Height 1.25"
pAL NtsC
selection
Rear View
power
VgA input
VgA output
Composite output
75-547
BNC Male to
RCA Female
adapter, Not
Included.
87
Note: All specifications on this page are subject to change without notice
osD
Controls
CALRAD
40 series - VgA Converters
40-889 Composite ViDeo to VgA CoNVeRteR (640 X 480)
Composite to VGA, (RGB+HV) conversion using 1:1 computer based
displays for CCTV applications. Compact size, plug and play installation.
OSD Video adjustment for Brightness, Contrast, Color, Tint. Note ! Your
VGA display must be able to render 640 x 480 resolutions in order for this
converter to work. Includes 5Vdc, 500ma power supply. See example 1A
for typical hookup.
75-547
BNC Male toRCA Female
adapter, not Included.
specifications:
Video Formats NTSC & PAL, 1Vpp, 75 ohms, BNC Female Jack
VGA Output........................0.7 Volts pp RGB+HV (640 x 480) resolution, 15
Pin D Female Jack
DC Power...........................5Vdc
Current Draw......................200 ma
Size....................................Length: 5.68" (145mm), Width: 2.6" (67mm)
Height: 1.1", (27mm)
Weight: (220g)
example 1A
VgA Display
CCtV Camera
VgA output
Composite
Video input
security DVR
40-889
40-822 series sVgA/hDtV DistRiBUtioN AmpLiFieRs
These amplifier/splitters are perfect for driving multiple (2, 4,or 8) analog monitor
displays. Supports products up to 1GHz, one port is PNP compatible. Typical usage is
200 MHz for PCs and 350 MHz for HDTV. Comes with front panel L.E.D power
indicator. Compatible for use with Calrad 55-612, 55-614, 55-866, 55-620 and 55-621
series cables.
1 DB-15 Female to Female gender changer included.
40-822-200 ......200MHz for computer
40-822-350 ......350MHz for HDTV
40-824-200.......200MHz for computer
40-824-350.......350MHz for HDTV
40-828-200.......200Mhz for computer
40-828-350.......350Mhz for HDTV
(1 in 2 out)
(1 in 2 out)
(1 in 4 out)
(1 in 4 out)
(1 in 8 out)
(1 in 8 out)
specifications:
Supports SVGA, VGA, XGA and Multisync
Max resolution 2048 x 1536 @ 60 Hz
Enhances video signal up to 200 feet
High density DB-15HD Male (input), Female (output) connectors
200 & 350 MHz Operates on 9 Vdc, 600 mA
AC Power Adapter Included
Rugged metal housing
Size: 40-822 and 40-824: (L) 4.75” x (H) 1.75” x (W) 2.75”
40-828: (L) 7.5” x (H) 1.75” x (W) 2.75
40-822 Rear View
40-824 Rear View
40-828 Rear View
88
CALRAD
40, 28 series - hDmi Baluns & Wall plates
28-166k hDmi keYstoNe
iNseRt
28-172 hDmi / CompoNeNt WALL
pLAte
Keystone HDMI 1.3b Female to Female
Insert Fits in a standard keystone
cutout, 1.3b Certified Female HDMI on
front and back Keystone is rotated 90
degrees to insert into any standard
keystone faceplate Gold-plated
connections. Designer style wall plate
not included. Overall depth 1", Color:
White.
Designer style HDTV Video Wall plate with HDMI
and Component Video Feed-Thru Jacks
Gold plated HDMI F/F and 3 RCA F/F connectors,
Color Coded: RED, GREEN, BLUE allow you to
couple two HDMI cables and Component Video
cables together within a in-wall installation. Perfect
for HDTV and home theater needs. Color: White.
hDtV
28-166-Lp single Version
28-167-Lp Dual Version
hDmi to hDmi FeeD-thRU
White plastic designer style insert
plate with single or dual HDMI
Female to Female feedthrus.
Comes with red L.E.D. signal
indicator. Nickel plated. Includes
mounting hardware. Color is
white.
28-166-Lp
28-168-1 (1 port), 28-168-2
(2 port) hDmi DesigNeR
stYLe WALL pLAtes
Designer style Wall plate with
Straight Snap-In HDMI Female to
Female Coupler 1 or 2 port Designer
style wall plates, with Female/Female
gold plated HDMI gender changer
module so you can use standard
HDMI cables.1.3b Certified,
Color: White.
28-169-1 (1 port), 28-169-2
(2 port) hDmi DesigNeR stYLe
WALL pLAtes
Designer style Wall plate with 90
Degree Snap-In HDMI Female to
Female Coupler 1 or 2 port Designer
style wall plates, with 90 degree (Right
Angle) Female/Female HDMI gender
changer module so you can use
standard HDMI cables inside walls
without having to bend your cables at
angles that could damage them.
Includes a single or double Designer
style plate. 1.3b Certified, Color: White.
28-171-1 (1 port), 28-171-2 (2 port)
Designer Style Dual Port HDMl HDMI1.3
Female to Female Couplers Fits into the
designer style wall plates with inner
locking snap-in cutouts, included, Color:
White.
89
28-167-Lp
40-1074 hDmi BALUN
Designer style looking wall
plate HDMI Balun over 2
Cat5e/Cat6 Cables
Cable Distance (CAT5e)
1080P, 100 ft., CAT6 Cable
125 ft. 1080i, 200 ft. 720P,
200 ft. 480P, 300 ft. HDMI
In\Out Connectors: 19 pin
Female Jacks, 2 x RJ45
Shielded Jacks each unit.
Color: White Dimensions:
L-4.5" x W-2.75" x D-1.25".
40-1075 DesigNeR stYLe
WALL pLAte BALUN,
hDmi AND iR oVeR 2
CAt5e/CAt6 CABLes
HDMI 1.3b and IR designer style
wall plate balun system over two
Cat5e, Cat 6 cables. Cable
Distance (CAT5e) 1080P, 100
ft., CAT6 Cable 125 ft. 1080I,
200 ft. 720P, 200 ft. 480P, 300
ft. HDMI In\Out Connectors: 19
pin Female Jacks, 2 x RJ45
Shielded Jacks each unit, 2 x
3.5mm jacks (IR). Includes IR
Receiver, Emitter, External AC
power adapter. Color: White.
Note: Do not use other
manufactures receivers with this
balun, only the included receiver
will work.
sender
hDmi
input
Receiver
hDmi
output
iR
output
iR
input
iR Receiver,
emitter
40-hW01 hDmi AND iR
WALL pLAte BALUN
HDMI 1.3 and IR wall plate balun system over
two Cat5e, Cat 6 cables. Transmission
Distance (CAT5e) 1080P, 100 ft., CAT6 Cable
125 ft. 1080i, 200 ft. 720P, 200 ft. 480P, 300
ft.. External AC power adapter included.
Color: White, Sold in pairs.
Rear View
CALRAD
40 series - VgA switchers
40-829-2, 2 iNpUt 1 oUtpUt mANUAL VgA sWitCheR
2 X 1 Manual VGA switcher. Max Input Video Level 1.5V p-p.
Video Bandwidth 250 MHZ. Video Resolutions up to 1920 x 1440.
Front panel selection buttons, Connectors: Input\Output HD-DB15
Female Jacks. LED selection indicators. DC Power 9Vdc 300ma
Power supply included. Dimensions: Length 3.0" x Width 5.125" x
Height 1.6".
Front View
Rear View
40-829-4, 4 iNpUt 1 oUtpUt mANUAL VgA sWitCheR
4 X 1 Manual VGA switcher. Max Input Video Level 1.5V p-p.
Video Bandwidth 250 MHZ. Video Resolutions up to 1920 x 1440.
Connectors: Input\Output HD-DB15 Female Jacks. LED selection
indicators. DC Power 9Vdc 300ma Power supply included.
Size: Length 3.0" x Width 8.0" x Height 1.6".
40-829R-4, 4 iNpUt 1 oUtpUt mANUAL oR iR VgA
sWitCheR
Front View
Rear View
Front View
Rear View
iR Remote
4 X 1 Manual or IR remote controlled VGA switcher. Max Input Video
Level 1.5V p-p. Video Bandwidth 250 MHZ. Video Resolutions up to
1920 x 1440. Connectors: Input\Output HD-DB15 Female Jacks. LED
selection indicators. Auto-scan Function adjusts input scan from 5 30 seconds. Skips un-active video ports. DC Power 9Vdc 300ma
Power supply included. Remote control included. Size: Length 3.0" x
Width 8.0" x Height 1.6".
40-829-8, 8 iNpUt 1 oUtpUt mANUAL VgA sWitCheR
8 X 1 Manual VGA switcher. Max Input Video Level 1.5V p-p.
Video Bandwidth 250 MHZ. Video Resolutions up to 1920 x 1440.
Connectors: Input\Output HD-DB15 Female Jacks. LED selection
indicators. DC Power 9Vdc 300ma Power supply included.
Size: Length 3.0" x Width 8.0" x Height 1.6".
40-829R-8, 8 iNpUt 1 oUtpUt mANUAL oR iR VgA
sWitCheR
iR Remote
8 X 1 Manual or IR remote controlled VGA switcher. Max Input Video
Level 1.5V p-p. Video Bandwidth 250 MHZ. Video Resolutions up to
1920 x 1440. Connectors: Input\Output HD-DB15 Female Jacks. LED
selection indicators. Auto-scan Function adjusts input scan from 5 30 seconds. Skips un-active video ports.
DC Power 9Vdc 300ma Power supply included.
Remote control included.
Size: Length 3.0" x Width 8.0" x Height 1.6".
Note: All specifications on this page are subject to change without notice
90
CALRAD
40 series - kVm/VgA switchers
40-825-8, 8X1 kVm sWitCheR
Control eight computers with ONE PS/2 Keyboard / PS/2 Mouse /
Monitor. Supports standard PS/2 mouse, Intellimouse, etc. Easy
to operate and install - No software required. Keyboard and
mouse emulation for error free PC booting PC selection via push
button switches or hot key. Auto scan function to monitor PC
operation, scan interval 5-30 seconds. Superior video quality: up
to 1920 x 1440. Controls PC's with one keyboard, mouse and
monitor. Auto skip on PC power off - Hot pluggable. Metal
Chassis, Size: Length 13.5” x Width 4.125” x Height 1.75”.
Includes 9Vdc, 300ma power supply and 19” 1U rack mount ears.
Front View
Rear View
40-4140 4X4 VgA mAtRiX sWitCheR
The 40-4140 is an 4 input 4 output VGA matrix switcher ideally
suited for HDTV or PC applications. Supports XGA, SXGA, UXGA
and WUXGA PC resolutions. 380Mhz video bandwidth supports
1080I HDTV resolution. The matrix switcher allows you to assign
any of the 4 VGA inputs to any of the 4 VGA outputs through the
manual push button controls or IR remote control. RS232 interface
for PC control. 12Vdc power supply, IR remote control and the
windows based software driver included. Size: Length 8.25” x
Width 19” x Height 1.75”.
IR Remote
40-8180 8X8 VgA mAtRiX sWitCheR
The 40-8180 is an 8 input 8 output VGA matrix switcher ideally
suited for HDTV or PC applications. Supports XGA, SXGA, UXGA
and WUXGA PC resolutions. 380Mhz video bandwidth supports
1080i HDTV resolution. The matrix switcher allows you to assign
any of the 8 VGA inputs to any of the 8 VGA outputs through the
manual push button controls or IR remote control. RS232 interface
for PC control. 12Vdc power supply, IR remote control and the
windows based software driver included. Size: Length 8.25” x
Width 19” x Height 1.75”.
IR Remote
40-8188 8X8 VgA mAtRiX sWitCheR With AUDio
The 40-8188 is an 8 input 8 output VGA matrix switcher with 3.5
stereo audio ideally suited for HDTV or PC applications. Supports
XGA, SXGA, UXGA and WUXGA PC resolutions. 380Mhz video
bandwidth supports 1080i HDTV resolution. The matrix switcher
allows you to assign any of the 8 VGA and audio inputs to any of
the 8 VGA and audio outputs through the manual push button
controls or IR remote control. RS232 interface for PC control.
12Vdc power supply, IR remote control and the windows based
software Driver included. Size: Length 8.25” x Width 19” x Height
1.75”.
IR Remote
91
Note: All specifications on this page are subject to change without notice
CALRAD
40 series - VgA Wallplates/Adapters
28-160
siNgLe high DeNsitY DB-15
FeeD-thRU AND DUAL RCA
FeeD-thRU JACks
White plastic designer insert plate. HDDB-15 high density Female to Female
jack with red/white RCA Female to
Female jacks. Includes mounting
hardware.
hDtV
28-160.........................Nickel
28-160g........................Gold
35-700
DVi-i male to VgA
DB-15 Female
Adapter
Allows you to connect
VGA display to a DVI-I
graphics card. note,
this adapter does not
provide a digital to
analog signal
conversion. It will not
work with DVI-D.
28-161-3.5
3.5 high DeNsitY DB-15 AND
3.5mm FeeDthRU JACks
White plastic designer style insert plate.
(1) HD-DB-15 high density Female to
Female jack and (1) 3.5mm Female to
Female stereo jack. nickel plated
connectors. Includes mounting hardware.
hDtV
35-701
DVi-A male to VgA
DB-15 Female
Adapter.
This adapter allows
you to connect a DVI-A
display to a VGA
graphics card.
35-722
m1DA male plug to
DB-15 Female
plug.
6 inch cord and Gold
plated contacts.
VgA ViDeo
VgA ViDeo
pC or hDtV
pC or hDtV
30-587 Nickel
30-587g Gold
30-588
30-588g gold
28-161
siNgLe high DeNsitY DB-15
FeeD-thRU
White plastic designer style insert with
a single HD-DB-15 feed-thru jack.
Available in nickel or gold plated
versions. Includes mounting
hardware.
28-161.......................Nickel
28-161g......................Gold
28-161-t......VGA terminal
hDtV
block with screws.
28-162
DUAL high DeNsitY DB-15
FeeD-thRU
White plastic designer style insert plate.
2 HD-DB-15 high density Female to
Female jacks. Comes in either nickel or
gold versions. Includes mounting
hardware.
28-162..........................Nickel
28-162g........................ Gold
28-162-m-2.........Metal Plate
15-pin Female to
Female gender
changer. High density
“D” connector sockets
for inline or panel
mounting.
VgA ViDeo
15-pin Male to Male
gender changer. High
density “D” connector
plugs for inline or
panel mounting.
VgA ViDeo
hDtV
35-704
15 pin VGA Male to
Female right angle
adapter for projectors.
Cable exits up from
the jack.
35-704A
15 pin VGA Male to
Female right angle
adapter for projectors.
Cable exits down from
the jack.
Visit Calrad on the Web at: www.calrad.com
92
CALRAD
40 series - Audio/Video Balun extenders
40-6920 CAt5e CompoNeNt / Composite ViDeo / DigitAL /
steReo AUDio ReCeiVeR BALUN
The 40-6920 is a CAT 5 based component video, composite video, PCM digital
audio and stereo audio distribution amplifier receiver. Designed to work together
with the transmitter unit 40-6950. The receiver unit can be up to 1000 ft away from
the transmitter unit. The receiver has RCA loop outputs for cascading to another
distribution amplifier. Will support HDTV resolutions of 480P, 720P, 1080i and
1080P. Transmission distance for 480P 1000 feet, 720P 600 feet and 1080i or
1080P 450 feet. 12 Vdc power supply included.
40-6930 CAt5e CompoNeNt / Composite ViDeo/DigitAL /
steReo AUDio ReCeiVeR / RepeAteR BALUN
The 40-6930 is a CAT 5 based component video, composite video, PCM digital
audio and stereo audio distribution amplifier receiver. Designed to work together
with the transmitter unit 40-6950. The receiver unit can be up to 1000 ft away from
the transmitter unit. The receiver has a CAT5 loop output for cascading to another
distribution amplifier. Will support HDTV resolutions of 480P, 720P, 1080i and
1080P. Transmission distance for 480P 1000 feet, 720P 600 feet and 1080i or
1080P 450 feet. 12 Vdc power supply included.
40-6950 CAt5e CompoNeNt / Composite ViDeo / DigitAL /
steReo AUDio tRANsmitteR BALUN
The 40-6950 is a CAT 5 based component video, composite video, PCM digital
audio and stereo audio distribution amplifier transmitter. Designed to work together
with the 40-6920 or 40-6930 receiver units. The receiver unit can be up to 1000 ft
away from the transmitter unit. The transmitter has RCA Inputs and RCA loop
outputs as well as buffered RJ 45 outputs. Will support HDTV resolutions of 480P,
720P, 1080i and 1080P. Transmission distance for 480P 1000 feet, 720P 600 feet
and 1080i or 1080P 450 feet. 12 Vdc power supply included.
This Balun system can provide multiple configurations for large scale Audio-Video signal delivery for standard or HDTV.
Signals from the Transmitter can be sent to a Receiver (40-6920) or a Receiver / Repeater (40-6930) to further extend the
signals to multiple locations.
Large scale hDtV signal
Distribution over Cat5e / Cat6
93
Note: All specifications on this page are subject to change without notice
CALRAD
Video pattern generators
40-884 VgA / CompoNeNt ViDeo hDtV pAtteRN
geNeRAtoR
The 40-884 is an easy-to-use handheld video pattern generator that
generates a wide variety of test patterns for comprehensive testing,
calibration, and repair of HDTV or PC monitors, and other display
based video equipment. Delivers the quality and functionality you
would expect from an expensive high end HDTV pattern generator
with an easy to understand three button control interfaces and
visible OSD, 27 patterns total. 5Vdc power supply included. Size:
Length 5.25” x Width 3” x Height 1.25”.
PC Resolutions: VGA, SVGA, XGA, WXGA, SXGA.
HDTV Resolutions: 480P, 576P, 720P, 1080i.
40-CphD-1 1080p DVi / hDmi hDtV pAtteRN
geNeRAtoR
The 40-CPHD-1 HDMI Pattern Generator is a handy tool for
evaluation and testing of HDMI displays. With the combination of
39 timings, 39 patterns and color spaces, the easy to read front
panel LCD display can provide access for up to 4095 types of
video testing signals. Besides video patterns, the generator also
supports digital and analog audio testing signals. You can use the
front panel buttons or the ir remote control to select different
timings, patterns, color spaces. HDMI output with analog , digital
audio input jacks selectable internal audio sinewave signal or
external audio sources. The 9 pin RS232 control port can be used
with the bundled Windows software application to perform
advanced control, such as timing/pattern programming, EDID
reading and writing. ear panel on/off power switch. 5Vdc power
supply, 3 ft. stereo RCA, digital toslink cables, included. Color:
Beige. Size: Length 11.1” x Width 5.5” x Height 1.75”.
Front View
Rear View
PC Resolutions: VGA, SVGA, XGA, WXGA, SXGA. HDTV
Resolutions: 480P, 576P, 720P, 1080i, 1080P.
IR Remote Control
40-883 DVi-hDmi pC / hDtV ViDeo pAtteRN geNeRAtoR
The 40-883 DVI test pattern generator provides over 20 of the most-often-used test
patterns for calibration, testing and troubleshooting DVI-D or DVI-I signals. It is ideal
for use with LCD monitors, PC monitors or projectors that are equipped with DVI-I or
DVI-D inputs. Easy to use OSD menu allows you to select a variety of test patterns.
Grey scale and multiburst. Includes 3ft. DVI-DVI cable. 35-711A DVI to HDMI
adapter, 35-700 DVI-I to VGA adapters sold separately. 5Vdc power supply included.
Size: Length 5.75” x Width 3” x Height 1.25”.
35-711A
HDMI Female
to DVI-D
Male Adapter with
Gold plated
contacts.
35-700
DVi-i mALe to VgA DB15 FemALe ADApteR
Allows you to connect a VGA
cable to DVI-A sources.
PC Resolutions: VGA, SVGA, XGA, WXGA, SXGA. HDTV
Resolutions: 480P, 576P, 720P, 1080i.
Note: All specifications on this page are subject to change without notice
94
CALRAD
40 series - switches
spst RoCkeR
sWitChes With L.e.D.
L.e.D indicator
(Switch contacts rated 5 AMP-125
VAC) Easy Snap-in mounting. Hole
3
1
size / 4 " x / 2 ". Dropping resistor
required. DC voltage: 6 vdc-270 ohms,
12 vdc-680 ohms, 24 vdc-1.5k.
40-710 ............................ Red LED
40-711 ........................ Green LED
40-712 ...................... Orange LED
40-600, spst
40-601, DpDt
toggLe sWitCh
SPST bakelite case, bat handle with
chrome on/off plate. Solder-type
terminals. Rated 3 Amp, 125 volt.
40-600 Size: 1" x 9/16" x 11/8" deep to
top of 7/16" bushing.
40-601 Size: 11/8" x 3/4" x 11/4" deep to
top of 7/16" bushing.
40-635
spDt iLLUmiNAteD RoCkeR
sWitCh
SPST switch. Rated 10 Amp, 125
volt. Neon bulb operates on 117
AC line. Has built-in resistor,
11/4" x 5/8" top dimensions.
40-635A
12 volt DC version of 40-635.
L.e.D. toggLe sWitChes
3 Amp, 125 Vac, attractive, slim,
cylindrical handle, with built-in
L.E.D indicator light in the tip.
Solder-type terminals. Body size:
3
/ 4" x 1/ 2" x 11/ 16" deep (including
pins). Bushing size: 7/16". Dropping
resistor required. DC voltage: 6 vdc-270
ohms, 12 vdc-680 ohms, 24 vdc-1.5k.
40-593 ............... SPDT Red L.E.D
40-594 ............ SPDT Green L.E.D
heAVY DUtY 20 Amp (125V)
sWitChes
1
15
Mounts in /2" hole. Bushing size: /32"
3
dia. x /8" long. Body size:
11/8" x 5/8" x 1" deep.
40-560 ................... SPST (On-Off)
40-561 SPDT (On-Off-On) Center Off
heAVY DUtY 20 Amp (125V)
sWitChes
1
15
Mounts in /2" hole. Bushing size: /32"
3
dia x /8" long. Body size:
15/16" x 3/4" x 1" deep.
40-562 ................... DPDT (On-On)
40-563 DPDT (On-Off-On) Center Off
heAVY DUtY toggLe
sWitChes
95
Fast snap action toggles. Extremely
smooth operation. Flat chrome handle.
Rate 6 Amps, 250 volts. Silver
contacts. Specify type. Both mount in
1
/2" hole. Bushing size: 15/32” dia x 3/8"
long.
40-605 ....... SPDT 11/8” X 5/8” X 13/16”
40-606 ....... DPDT 11/8” X 3/4” X 13/16”
40-602
heAVY DUtY CeNteR-oFF
toggLe sWitCh
DPDT center-off, rated 6 Amp, 125
volt, bat handle, red and black on/off
plate. Screw terminals.
5
3
3
Size: 1 /16" x /4" x 1 /8" deep, mounts
7
in /16" hole.
L.e.D indicator
40-691
heAVY DUtY toggLe sWitCh
SPST 6 Amp, 125 Vac. Body size:
1 1 / 8 " x 5 / 8 " x 7 / 8 " deep. Screw
1
terminals. Mounts in /2" hole.
40-692
DPDT 6 Amp, 125 Vac. Body size:
1 5/ 16" x 3/ 4" x 3/ 4". Screw terminals.
Mounts in 1/2" hole.
miNiAtURe FLAt toggLe sWitCh seRies
Specially designed for decorative appearance with ease in smooth
switching operation in mind. Specify part number.
specifications
Contact rating: 6 Amp–125 Vac, 3 Amp–250 Vac.
1
5
Bushing: /4". Thread length: /16".
All necessary mounting hardware included.
40-580..... SPDT, On-On
40-581......SPDT, On-On Momentary
40-582......SPDT, On-Off-On
40-583......SPDT, On-Off-On, Mom.
40-584......SPDT,-On-Off-On, Mom.
Body Size 40-580 thru 40-584:
1
/2" x 5/16" x 1/2" deep including terminals
40-585......DPDT, On-On
40-586......DPDT,On-On Momentary
40-587......DPDT, On-Off-On
40-588......DPDT, On-Off-On Mom.
40-589......DPDT, On-Off-On Mom.
Body Size 40-585 thru 40-589:
1
/ 2 " x 1 / 2 " x 1 / 2 " deep including
terminals.
CALRAD
40 series - switches
miNiAtURe CiRCUit BoARD
moUNtiNg sWitChes
Right angle mounting - 5/16" long
threaded bushing. Contact rating 6
Amp, 125 Vac. All mount in 1/4" hole.
40-502 ............................. DPDT On-On
40-503 ....................... DPDT On-Off-On
Body Size: 1/2" x 1/2" x 3/4" deep including
terminals
miNiAtURe CiRCUit BoARD
moUNtiNg sWitChes
Printed circuit mounting - 5/16" long
threaded bushing. Contact rating 6
Amp, 125 Vac. All mount in 1/4" hole.
40-521 ....................... SPDT On-Off-On
Body Size: 1/2" x 5/16" x 5/16" deep including
terminals
40-523 ....................... DPDT On-Off-On
Body Size: 1/2" x 1/2" x 5/16" deep including
terminals
sUB-miNiAtURe toggLe
sWitChes
40-610 SPDT-ON/ON, 10 Amp, 125 volt
(non-inductive load), solder-type terminals.
Body size: 5/16" x 1/2" x 9/16".
40-611 DPDT, 10 amp, 125 volt (noninductive load), solder-type terminals.
Body size: 1/2" x 1/2" x 1/2".
40-612 DPDT, center-off. Contact 5 Amp,
125 volt current cap. AC (non-inductive
load). Body size: 1/2" x 1/2" x 1/2".
ULtRA smALL sUB-miNiAtURe
toggLe sWitChes
3 Amp, 125 Vac. Chrome handle with
red tip for eye-catching indication.
3
/16" dia. Bushing: 7/32" long.
40-608 SPDT-ON/ON
body size: 5/16" x 3/16" x 1/2" deep including terminals
40-609 DPDT-ON/ON
body size: 11/32" x 5/16" x 1/2" deep including terminals
miNiAtURe CiRCUit BoARD
moUNtiNg sWitChes
Vertical mounting - 5 / 16 " long
threaded bushing. Contact rating 6
Amp, 125 Vac. All mount in 1/4" hole.
40-511 ....................... SPDT On-Off-On
Size: 1/ 2" x 5/ 16" x 7/ 8"deep including terminals
40-512 ............................. DPDT On-On
40-513 ....................... DPDT On-Off-On
Size: 1/ 2" x 1/ 2" x 7/ 8" deep including terminals
miNiAtURe eCoNomY toggLe
sWitChes W/ siLVeR pLAteD
CoNtACts
1
3A-125 Vac, mounts in /4" hole size, solder
5
terminals. /16" long threaded bushing.
40-566 ............................. SPDT On-On
40-567 ....................... SPDT On-Off-On
Size: 1/ 2" x 5/ 16" x 9/ 16"deep including
terminals
40-568 ............................. DPDT On-On
40-569 ....................... DPDT On-Off-On
Size: 1/ 2" x 1/ 2" x 9/ 16" deep including
terminals
sUB-miNiAtURe toggLe
sWitChes
Extra small in size, chrome handles with
red tip for quick eye-catching indication, 3
Amp, 125 Vac.
40-613 SPDT-ON/ON
size: 7/16" x 1/4" x 9/16" deep including
terminals
40-614 DPDT-ON/ON
size: 7/16" x 7/16" x 9/16" deep including
1
1
terminals Bushing: /4" dia x /4" long.
sUB-miNiAtURe toggLe sWitCh
6 Amp, 125 Vac, 1/4" mounting
hole. 5/16" thread length.
40-699 SPDT-ON/ON
3
1
5
body size /4" x /2" x /8"
40-700 DPDT-ON/ON
7
1
9
body size /8" x /2" x /16"
LeVeR sWitChes
6 Amp, 125 Vac, mounts in 3 / 4 "
round hole. Lever color is red.
Lever height is .99”
40-705 ................... DPDT-ON/ON
40-706 .................... SPDT-ON/ON
.75”
1.125”
RoCkeR sWitChes
6 Amp, 125 Vac, mounts in 3 / 4 "
round hole. Rocker color is white.
Size is .7”
40-707 .................... SPDT-ON/ON
40-708 ................... DPDT-ON/ON
1.125”
.75”
40-630 spst RoCkeR sWitCh
Molded plastic, encased
with mounting flanges.
Mounting centers: 13/16”
Size: 13/16" x 1/2" x 7/8".
Rating: 3 amps, 125 volts AC.
96
CALRAD
40 series - switches
40-632 spDt-oN/oN
RoCkeR sWitCh
Molded plastic, encased with
mounting3 flanges. Mounting
centers: 1 /8” Size: 111/16" x 5/8" x
1 1/16". Rating:3 amps, 125 volts
AC.
40-616
DpDt miNiAtURe
pUshBUttoN sWitCh
Same as 40-615.
7
/16" x 7/16" x 7/8" L - including
terminal. Body color is green,
button color is black.
RoCkeR sWitChes
6 Amp, 125 Vac, mounts in 3/4"
round hole. Color is black.
40-687 ................... DPDT-ON/ON
40-690 .................... SPDT-ON/ON
40-626
sUB-miNiAtURe
momeNtARY sWitCh spst
pUsh to mAke
0.5 Amp, 125 Vac. Fits 3/16" hole,
1
/4" dia, length 13/16" overall. Button
color is black.
40-620
sLiDe sWitCh
DPDT, positive action. Size 13/8" x
1
/2". Mounting centers: 11/8". Rated
0.5 Amp, 125 volt. Color is black.
40-621
CeNteR-oFF sLiDe sWitCh
Same as the 40-620 except for
center-off position. Color is black.
miNi sLiDe sWitChes
Used where small size is
necessary. Rated 0.25 Amp, 125
volt. Size: 5/16" x 5/8" x 3/8" deep
including terminals.
40-622....... SPDT Mtg. Centers 11/16"
40-623......... DPDT Mtg. Centers 3/4"
heAVY DUtY ChRome
pUshBUttoN sWitCh pUsh
oN/pUsh oFF
10 Amp, 125 Vac. Mounting hole
size: 15/32". Thread length: 1/2"
40-595...... SPDT 11/8" x 5/8" x 3/4"
40-596 ..... DPDT 11/8" x 3/4" x 7/8"
40-615 / 40-615-W (white cap)
spDt miNiAtURe
pUshBUttoN sWitCh
Push-on/push-off, 3 Amp, 125 Vac.
Hole size 1/4". Body Size1/4" x 15/32"
x 7/8" L - including terminals. Body
color is green, button color
available in black or white.
97
Note: All specifications on this page are subject to change without notice
heAVY DUtY
pUshBUttoN sWitCh
SPST momentary, push to make.
Rated 3 Amp, 125 volt. Specify
color. Hole size: 5/8".
40-627 ......Black 40-629-BU Blue
40-628 ......Red 40-629-Wh White
40-629 ...Green 40-629-YL Yellow
miNiAtURe pUshBUttoN
sWitCh
SPST momentary, ideal for panel
mounting.
Rated 1 Amp, 125
volt,
11/8"1overall length, diameter
7
/16", fits /4" hole.
40-636........ Push to Break, Black
40-637...Push to Make, Red, Japan
40-637-s Same as 40-637
but from Taiwan
momeNtARY pUshBUttoN
sWitChes
Rated 3 Amp, 250 Vac. Bushing:
7
/16". Hole size: 1/2".
40-688 .........SPST Push-on—Red
40-689 .....SPST Push-on—Cream
spDt momeNtARY pUsh to
mAke oR BReAk
Rated 3 Amp, 125 Vac. Mounting
hole: 1/4". Body size: 7/16" x 7/16" x
11
/16". Normally open or normally
closed.
40-693 .................................... Red
40-694 ................................. Black
40-697
spst momeNtARY pUsh to
mAke
1 Amp, 125 Vac. Overall length:
11/8". Mounting hole: 1/4". Button
color is black.
CALRAD
40 series - security switches
40-625 iNLiNe pUsh BUttoN
sWitCh
Red N/O momentary push button
switch mounted in a silver XLR
housing. Operating voltage
125Vac, 3Amp max. current.
Accepts up to .30” cable.
40-698 spst momeNtARY
pUsh to mAke sWitCh
1 Amp, 125 Vac. Mounting hole:
1
/2". Overall length: 3/4".
DpDt miNiAtURe Dip stYLe
ReLAYs
40-760 5Vdc - 3.6 Vdc Min, DC
Resistance 167 ohms
40-761 12Vdc - 8.5 Vdc Min, DC
resistance 388 ohms
40-762 24Vdc - 16.8 Vdc Min, DC
Resistance 960 ohms
Small and perfect for low signals in
audio, computer, telcom, and security
products. Fully sealed construction.
Contact rating (resistive) .5A 120Vac,
1Amp, 24 Vdc, .3Amp, 60 Vdc
Diagram for 40-760, 40-761, & 40-762
Wiring Diagram
(bottom view)
40-565 miCRo-miNiAtURe
pUshBUttoN keYBoARD
sWitCh
Drilling Plan (in
mm)
(bottom view)
Rating.....................50 mA at 12
Vdc.Contact resistance.......100 MW
Max. Voltage breakdown..100
Vac/minute
Life expectancy........100,000
cycles
1
1
5
Dimensions....... /4" L X /4" W X /16"
D
40-634 spDt miCRo LeVeR
sWitCh
Leaf-type, normally open or normally closed momentary contact
1
/2 Amp, 125 Vdc; 5 Amps,1/6 h.p.,
125 or 250 Vac. Body size: 11/8" x
5
/8" x 3/8" not including contacts.
40-651 momeNtARY Foot
sWitCh
Push to make, can be reversed.
Used for remote operation. Metal
case has slip-proof bottom, 60inch lead, has 1/4" plug. Size:
31/8" x 33/8" x 1". Ratings: 0.5
amp, 125 volts AC.
40-678 12 VoLt DC spDt
ReLAY
DC resistance 5K. Current 1.5
mA. Contact Rating: 500 mA.
spDt miNiAtURe ReLAYs
Sensitive, lightweight, fully encased.
Pin type terminal leads for easy
connection on printed circuit boards.
3 Amp contacts.
5
3
29
Size: /8" x /4" x /32".
Specify model number.
40-674
40-763 smALL seCURitY
mAgNetiC CoNtACt (White)
Closed circuit switch with magnet in
place.18” white wired leads exit at
the end.Mounts with self addhesive
tape.Size: L-1.1” x W-.371” x H.24”.
40-764 smALL seCURitY
mAgNetiC CoNtACt (White)
Closed circuit switch with magnet in
place. 18” white wired leads exit at
the middle. Size: L-1.1” x W-.371” x
H-.24”.
Small Slotted
Screw Driver
Required
40-765 small security magnetic
Contact (White)
Closed circuit with magnet in
place.Screw terminals accept 22-26
Awg cable. Mounts with self
addhesive tape. Size: L-1.1” x W.371” x H-.24”.
screw terminals
40-715 Bi-piN 6 VoLt
iNCANDesCeNt BULB
6Vdc SPDT, DC resistance 100
ohms, current 60dc mA
40-675
12Vdc SPDT, DC resistance 350
ohms, current 34 mA
98
CALRAD
40 series - security switches
mAgNetiC
CoNtACt sWitChes
40-755
3/8" ReCesseD CoNtACt
sURFACe moUNt
CoNtACts
40-655 WAteR seNsiNg
CoNtACt sWitCh
40-752 WiDe gAp sURFACe
moUNt CoNtACt
40-753-gY
sURFACe
moUNt CoNtACt
Versatile, used in many alarms
sensing for window and door
protection. Specify either normally
open or normally closed. Mounting
center: 21/8" 130V max. 50 mA or 10
watts. Up to .5 Amp max.
40-656........... Normally Closed
40-657 ............. Normally Open
(Both with magnet in place.)
Includes terminal cover. 3/4"
operating gap, Available in white
only. Rated 100mA - 100 Vdc max.
40-750 ............. Normally Closed
40-751................ Normally Open
(Both with magnet in place.)
Used for loose fitting doors and
windows. 23/4" operating gap. Includes
spacers. Normally closed with magnet
in place. Color is gray. Rated 100mA100 Vdc max.
seLF-ADhesiVe CoNtACts
Alarm switches for window and
door protection, with 12" wire leads.
1 1/2 " length , 3 / 8 " Wide. 0.5 a m p ,
125VDC. Rated 100ma-100v max.,
1 amp-10Vdc max., 10 watts max.
Self-adhesive and screw mount.
40-665 Closed Circuit w/ magnet in
place
40-666 Open Circuit w/ magnet in place
ReCesseD mAgNetiC
sWitCh
Complete concealment, positive
action, easy to install, recesses into
/8" hole. 0.5 Amp - 125V. Rated 130
Vdc-30mA. Contact length is 1.19”.
Wire length is 11”.
40-660........... Normally Closed
(white wire) .75” gap
40-661 ............. Normally Open
3
Switch/magnet case with ribs for
securing in holes, 1" operating gap.
Closed circuit with magnet in place.
Available in white only. Rating
100mA-100 Vdc, 1 Amp-10 Vdc.
Contact length is 1.32”. Wire length is
15”.
When the switch senses water (or
any conductive liquid) it acts as a
high resistance N/O contact. This
switch only works with specific
security alarm panels that support
this type of switch.
15" prewired leads. Foam tape
mounting. Closed circuit with
magnet in place. Available in grey
only.
40-668 mAgNetiC FLooR
sWitCh
Extra wide gap. Magnetic contacts
embedded in solid aluminum block.
Switch wires protected in a flexible
steel jacket.Size: 5/8" x 1/4" x 3 1/2”L.
Normally
closed with magnet in
place.21/2" operating distance. Alnico
magnet. UL approved. Rating
100mA-100Vdc max., 1 Amp-10Vdc
max., 10 watts max.
40-658 oVeRheAD DooR
CoNtACt
Heavy duty, wide gap, 24" wire
leads enclosed in stainless steel
cable. Closed circuit with magnet in
place. 1 Amp - 125V, 130Vdc 50mA contact rating. Contact size is
3.47” long x 1.27” wide. Wire length
is 17”.
(green wire) .5” gap
Both with magnet in place.
40-659 FLUsh
moUNt CoNtACt
SPST normally closed with magnet in
place. Circuit opens when magnet is
1
removed. Recesses into /4" hole. Alnico
magnet. 15” leads. Rating 100mA-100
Vdc, 1 Amp-10 Vdc, 10 watts max.
No mounting brackets included
40-756 stUBBY ReCesseD
CoNtACt
5/8" long switch for tight installations.
Normally closed with magnet in
place. Available in off white only. 3/8"
operating gap. Rating 100mA-100
Vdc max., 1 amp-10 Vdc. Contact
length is .78”. Wire length is 17”.
99
40-664
ViBRAtioN sWitCh
Shock switch for protection of window
glass, walls, showcase, etc. Normally
closed circuit. Size: 23/8"(L) x 7/8"(W) x
9/16"(H). Contact rating .5 Amp at 25
Vdc max.
40-667 ReCesseD pLUNgeR
sWitCh
Positive action, easy to install, tapered
body for tight fit, mounts in 3/8" hole.
Normally closed circuit. Adjustable
plunger.
* please note that Calrad’s magnetic switches are for use with alarm systems only and not voltage type
circuits that exceed the contact ratings, doing so may cause the reed swich to arc closed and become defective.
CALRAD
40 series - security switches
pLAstiC BALL pLUNgeR
sWitCh
Completely environmental proof for
window, door protection, etc. Mounts in
3/4" hole. Mounting centers 1 3/16". Rating
100mA-100 Vdc max., 1 Amp-10 Vdc
max., 10 watts max. 30” wired leads.
Overall mounting depth 1.7”.
40-670 ............ Normally Closed
40-671 ....... Normally Open and
Normally Closed contacts
(Both with ball depressed.)
40-676 LoW pRoFiLe pLAstiC
BALL pLUNgeR sWitCh
Completely environmental proof for
window, door protection, etc. Mounts
in 3 /4" hole. Mounting centers 1
5/16". Rating 100mA-100 Vdc max.,
1 Amp-10 Vdc max., 10 watts max.
Normally closed switch with 18”
leads. Overall mounting depth 1”.
Includes .1” plastic spacer.
40-654 tAmpeR sWitCh
SPST momentary contact. Use in
conjunction with most security
devices. Normally closed (with
plunger depressed). Contact rating
.5 Amp-50 Vdc. Size is 1.84” long x
1.09” wide.
Metal Ball
Plastic Ball
40-672 ALUmiNUm Z-BRACket
Needed for extending magnet
greater distances when uneven
surfaces exist. Used for 40-750,
751, 752. Over-all length is 8”.
Long tongue is 5.75” and short
tongue is 2.5”.
40-663A spst DoUBLe siDeD
keY sWitChes
Sometimes called a shunt lock.
Complete with 2 keys and mounting
hardware. Hook up using screw
terminals. Used with most alarm
equipment and with all Calrad
Alarm Modules.125Vac, 4Amp.
250Vac, 2A. Mounts in 1.8” deep
hole. Bushing length to connectors
1.8”, Mounts in .75” hole.
RoUND high seCURitY
keYLoCk sWitChes
Mounts in 3/4" hole. 111/16" deep.
3 Amp - 125V.
40-682 .............SPST Momentary,
Spring Return
40-652 hoLD-Up UNit
Double button operation virtually
eliminates accidental triggering.
Sturdy metal case, silver plated
SPST contacts. Prewired for quick
installation. Color beige, contacts
rated for 1 Amp @25Vdc. Size is
1.99”(W) x .99”(H) x 1.74”(D).
40-758 sURFACe moUNt
toggLe sWitCh
SPST toggle switch mounted in a
white impact housing. Mounting
centers 2.125”. Overall height 2”, 6”
black flying leads, stripped. Chrome
switch position ID label ON/OFF.
Current rating 3Amps @125Vac,
50Vdc.
40-650 emeRgeNCY pANiC
sWitCh
3" long, 7 / 8 " wide , 2 5/8" mounting
centers. Normally open circuit. Screw
terminals on the rear of switch for
connection.
40-683 .......... SPST Shunt On/Off
Solder Terminals
40-768 3/8” stUBBY
ReCesseD CoNtACt With
sCReW teRmiNALs
5/8” long switch for tight
installations with short mounting
areas. Switch/magnet case with
ribs for securing in holes, 5/16”
operating gap. Closed circuit
with magnet in place. Available
in white only. 100mA 100Vdc
max., 1A 10Vdc. Contact length
is .78”.
Small Slotted
Screw Driver
Required
40-769 3/8” ReCesseD
CoNtACt With sCReW
teRmiNALs
Switch/magnet case with ribs for
securing in holes, 5/8” operating
gap. Closed circuit with magnet
in place. Available in white only.
100mA 100Vdc max., 1Amp
10Vdc. Contact length is 1.32”.
40-650A
Same as 40-650 only with normally
open and closed options available.
40-673 pLAstiC NYLoN hoLDeR
Used for recessed mounting of
contacts and magnets on steel doors.
Holds magnet or contact in place
away from frame. For use with our 40659 contact, magnet. Hole size 3/4".
Color: grey.
Visit Calrad on the Web at: www.calrad.com
100
CALRAD
42 Series - iPOD Accessories
42-100-1.5M, -2M
42-107-RT-RT
42-105
42-107-ST-ST-3
42-107-ST-RT-2,-3
42-115
3.5mm iPOD, iPAD
3.5mm iPOD, iPAD CONVEINENT iPOD,
iPOD A\V
3.5mm iPOD, iPAD
iPOD STEREO
STEREO
STEREO
iPAD USB-BASED
STEREO
INTERFACE CABLE INTERFACE CABLE
Connect your iPod to INTERFACE CABLE INTERFACE CABLE INTERFACE CABLE DATA AND POWER
Plug your iPOD into
a TV display. Watch Right angle 3.5mm
your home stereo
Straight 3.5mm
Right angle to straight
ADAPTER
system with this 24K slide shows. Connect stereo audio interface
stereo audio
3.5mm stereo audio Used to transfer files
the A\V Cable to your cable. Connects the
Gold plated Male
interface cable.
interface cable.
or charge your iPOD,
stereo or powered
3.5mm plug to two
headphone out of
Connects the
Connects the
iPAD at home, on the
speakers. The 3 ft. AV your iPOD, iPAD to
L+R RCA Male
headphone out of
headphone out of
road. 6 ft. 24K gold
Cable connects to the the 3.5mm line input
plugs. Available in
your iPOD, iPAD to
your iPOD, iPAD to
plated connectors,
headphone port of the of your PC. Available the 3.5mm line input the 3.5mm line input
1.5 meters and 2
Apple's proprietary
iPod or the line-out
meters.
in 2 feet or 3 feet
of your PC. Available of your PC. Available
30-pin Male dock
port on the iPOD
lengths.
in 2 feet or 3 feet
in 2 feet or 3 feet
plug to type ‘A’ male
Universal Dock.
lengths.
lengths.
USB plug.
42-130
iPod CIGARETTE
LIGHTER CAR
CHARGER
42-AC-1 USB
AC CHARGER
Use this iPod Power
Adapter for home,
office or travel. This
is an USB type ‘A’
Plugs into any
wall charger that is
cigarette lighter jack
and provides charging used to charge your
iPod, iPad, Iphone
of your iPOD player.
Retractable cable with from any 110v outlet
instead of always
Apple's proprietary
having a computer
30-pin Male dock
around.
plug, L.E.D. power
and charging
indicator.
42-CAR-1 USB
SINGLE PORT
CAR CHARGER
42-CAR-2 USB
CAR CHARGER
Power USB 12-24
Power USB 12-24 dc
dc power output,
power output, 5vdc
5vdc
700ma output,
700ma output,
2 usb ports
1 usb port
Type ‘A’ Car
Type ‘A’ Car Charger.
Charger. Charge
Charge USB devices
while in the car. Great USB devices while in
the car. Great for
for charging cell
charging cell phones,
phones, cameras,
cameras, Ipods,
Ipods, iPads.
iPads. L.E.D.
charging/power
indicators.
42-165
101
4 WATT PORTABLE OR WALL
MOUNT iPOD AMPLIFIED SPEAKER
SYSTEM WITH IR REMOTE CONTROL
Slim, lightweight design with an efficient
4 Watt class D stereo amplifier.
Transparent and foldable cover protects
your iPod. Built-in removable dock
inserts for charging and using different
style iPods. Infrared remote control
allows you to operate your iPod for
music selection, play pause, volume,
power on/off. Compatible with iPod, iPod
Mini, iPod Photo, iPod Nano. Rear
3.5mm aux input jack for external
devices. Ac Adapter or 6 x AA batteries
required for battery power.
42-160
iPod Audio\Video, IR Remote Docking Station
The iPod photo dock is an elegant home base for
charging and synching with your computer or for
connecting to your home audio video system.
Includes 6 button slimline IR remote with
play/pause, next/previous track select, power
on/off,volume - up-down, 3 ft. A\V interface cable,
power supply, 5 ft. USB interface cable, docking
station. Composite, S-Video, L+R analog audio
outputs.
Docking Station
Base
Connector View
CALRAD
45 Series - AC Adapters & Power Supplies
Technical drawings and specifications are available for these power supplies. Please ask your Calrad sales representative for details.
All DC adapters with coax power plugs are wired positive center unless specified otherwise.
All DC adapters with 3.5mm power plugs are wired tip positive unless specified otherwise.
AC TO DC ADAPTERS
45-754 multi plugs, 6 ft. cord, UL & CSA app .................Style C............Input 117 Vac, Output 3,4.5,6,7.5,9,12 Vdc, 800 mA
Style
45-754A multi plugs, 6ft. cord , UL & CSA app.........................................Style C......Input 117 Vac, Output 3,4.5,6,7.5,9,12 Vdc, 2.2 Amps
A
45-756 3.5 mm plug, 7 ft. cord, UL & CSA approved ....Style A.......Input 117 Vac, 60 Hz, Output 6 Vdc, 300 mA
45-757 3.5 mm plug, 7 ft. cord, UL & CSA approved ....Style A.......Input 117 Vac, 60 Hz, Output 9 Vdc, 300 mA
45-757-2.1 2.1 mm plug, UL & CSA approved .............Style A.......Input 117 Vac, 60 Hz, Output 9 Vdc, 300 mA
45-757-2.5 2.5 mm plug, UL & CSA approved .............Style A.......Input 117 Vac, 60 Hz, Output 9 Vdc, 300 mA
45-765 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.......Input 117 Vac, 60 Hz, Output 9 Vdc, 500 mA
Cord
45-766 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.....Input 117 Vac, 60 Hz, Output 9 Vdc, 1.0 Amps
45-746 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.....Input 117 Vac, 60 Hz, Output 12 Vdc, 300 mA
Style
45-746-2.1 2.1 mm plug, 6 ft. cord, UL & CSA approved Style A..Input 117 Vac, 60 Hz, Output 12 Vdc, 300 mA
B
45-761 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.....Input 117 Vac, 60 Hz, Output 12 Vdc, 500 mA
45-761-2.1 2.1 mm plug, UL & CSA approved .............Style A.....Input 117 Vac, 60 Hz, Output 12 Vdc, 500 mA
45-763 3.5 mm plug, 6 ft. cord, UL & CSA approved. ...Style A.....Input 117 Vac, 60 Hz, Output 12 Vdc, 800 mA
45-763-2.5 2.5mm coax plug, 6 ft. cord,UL & CSA app ....Style A.....Input 117 Vac, 60 Hz, Output 12 Vdc, 800 mA
45-763-S 2.5 mm coax plug, 6 ft. cord, UL & CSA app....Style A. Input 117/220 Vac,60 Hz,Output 12 Vdc, 800 mA
Screw Terminals
45-751 2.1mm coax plug, 6 ft. cord, UL & CSA app.......Style A..............Input 117 Vac, Output 12 Vdc, 1.2 Amps
45-772 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.....Input 117 Vac, 60 Hz, Output 18 Vdc, 200 mA
Style
45-773 2.1mm coax plug, 6 ft. cord, UL & CSA app.......Style A.................Input 117 Vac, Output 18 Vdc, 500 mA
C
45-767 3.5 mm plug, 6 ft. cord, UL & CSA approved ....Style A.....Input 117 Vac, 60 Hz, Output 24 Vdc, 400 mA
45-767-2.1 2.1 mm plug, 6 ft. cord, UL & CSA approved Style A..Input 117 Vac, 60 Hz, Output 24 Vdc, 400 mA
45-762 2.1mm plug, 6 ft. cord, UL & CSA app...............Style A.................Input 120 Vac, Output 24 Vdc, 600 mA
Please note plug changes are available for most power supplies but this action negates the
UL rating. Please contact your Calrad Representative for details
AC TO AC ADAPTERS
45-776 2.1mm coax plug, 6 ft. cord, UL & CSA approved Style A................Input 117 Vac, Output 9 Vac, 1 Amps
45-776-2.5 2.5mm coax plug, 6 ft. cord, UL & CSA approved Style A.........Input 117 Vac, Output 9 Vac, 1 Amps
45-768 3.5mm plug, 6 ft. cord, UL & CSA app. ..............Style A.................Input 117 Vac, Output 12 Vac, 830 mA
Style
D
45-768-2.5 2.5mm coax plug, 6 ft. cord, UL & CSA app. Style A.................Input 117 Vac, Output 12 Vac, 830 mA
45-775 screw terminals, UL approved ...........................Style B..............Input 117 Vac, Output 12 Vac, 3.3 Amps
45-775-50 screw terminals, UL approved......................StyleB...................Input 117Vac, Output 12 Vac, 2 Amps
45-760 screw terminals, UL approved ...........................Style D.................Input 117 Vac, Output 16 Vac, 700 mA
45-764 2.1mm coax plug, 6 ft. cord, UL & CSA app ......Style A..............Input 117 Vac, Output 16 Vac, 1.1 Amps
45-777 screw terminals, UL approved ...........................Style B..............Input 117 Vac, Output 16 Vac, 2.5 Amps
Screw Terminals
45-774 screw terminals, UL approved ...........................Style B..............Input 117 Vac, Output 24 Vac, 1.6 Amps
45-774-50 screw terminals, UL approved......................Style B. ................Input 117 Vac Output 24 Vac, 2 Amps
Case style may vary on AC adapters
2.1 coax plug
2.5 coax plug
3.5 coax plug
MULTI PLUGS
SCREW TERMINALS
102
CALRAD
45 Series - AC Adapters & Power Supplies
45-752A
12Vdc REGULATED WALL MOUNT
POWER SUPPLY
45-769
11.5 VOLT DC, 1.95 AMP DESK
TOP POWER SUPPLY
For use with personal computers, TV
games, printers, communications, etc.
Input 117Vac (60 Hz). UL and CSA
approved.
AC cord is 5ft. and DC 6ft. cord
Specifications
Dimensions:.....23/4” W x 35/8” H x 25/16” D
Power Plug .................2.1 mm coax
Color...................................... Black
Plugs directly into standard 117Vac wall
outlet. Non-UL approved version of 45752. Comes with screw terminals. 12Vdc,
1.2 Amps regulated.
Specifications
Dimensions ... 25/8" W x 33/4" H x 21/4" D
Color...................................... Black
Screw Terminals
45-753A
117VAC MULTI-VOLTAGE AC
ADAPTER
WALL MOUNT REGULATED
SWITCH MODE POWER SUPPLY
117Vac Switch with (7) Voltage options:
500 mA. output. 117Vac. input. 3V, 4.5V,
6V, 7.5V, 9V, 12V. DC. Polarity
switchable with 6 plug options of 3.5mm,
1.3mm X 3.5mm, 1.7mm x 4.0mm,
2.1mm X 5.5mm, 2.5mm X 5.5mm,
1.75mm X 4.75mm. UL & CSA
approved. 6ft. cord length.
45-601 12Vdc, 1.5A
Operates from 110Vac to 220Vac
automatically switches for each voltage.
Output 12Vdc regulated at 1.5 Amps. 6ft
cord. Short circuit/over, voltage protection.
Specifications:
Dimensions 3” L x W 1.35" W x H 1.76”
Power Plug ..................2.1mm coax
Color...................................... Black
Specifications
Dimensions ...2.1”W x 3.05" H x 2.05”D
Color...................................... Black
DESKTOP REGULATED SWITCH
MODE POWER SUPPLY
45-753
Same as 45-753A but with different plug
options. Comes with 2.5mm, 3.5mm,
9V Battery Snap, 5.5mm x2.5mm,
5mm x 2.1mm, 3.5mm x 1.3mm
coax plugs
These units operate on 110Vac to 220Vac
and automatically switches for each
voltage. 6ft. IEC cord included.
45-753
45-755 UNIVERSAL SWITCHING
ADAPTER REGUALTED DC
POWER SUPPLY
Switching regulator circuit. Light weight
design. Adjustable slide switch voltage
selector with 3, 4.5, 6, 7.5, 9, and 12Vdc.
Over/under voltage protection. Short
circuit protection. Input voltage of 100120Vac. Output current 1A. 6ft cable
length. Color: black. Plug sizes:
2.35x0.7mm mini, 3.5x1.35mm coax,
4x1.75mm coax, 4.74x1.75mm coax,
3.5mm Male, 5.5x2.1mm coax, and
5.5x2.1mm coax.
45-752
12 VOLT DC REGULATED 1.2
AMP ADAPTER–WALL MOUNT
Plugs directly into standard 117Vac wall
outlet, solid state, IC regulated.
6 ft. cord with 2.1 x 5.5mm coax plug, UL
approved.
Specifications
Dimensions ....31/16" W x 43/4" H x 23/16" D
Color...................................... Black
103
Visit Calrad on the Web at: www.calrad.com
45-602 12Vdc, 2.5A
Output 12Vdc regulated at 2.5 Amps. 6ft
cord. Short circuit/over, voltage protection.
45-603
45-603 12Vdc, 4.1A
Output 12Vdc regulated at 4.1 Amps. 6ft
cord. Short circuit/over, voltage protection.
45-611 24Vdc, 1.2A
45-
Output 24Vdc regulated at 1.2 Amps. 6ft
cord. Short circuit/over, voltage protection.
Specifications:
Dimensions ... 2.93”W x 1.25"H x 5.1”L
Power Plug, 2.1mm coax
Color...................................... Black
72-350
KEYSTONE 2.1mm DC
POWER JACK TO SCREW
TERMINALS
Labeled (+, -) screw terminals.
Accepts up to 18 Awg wire.
Overall depth 1.4”.
Color: Black
45-611
CALRAD
45 Series - AC-DC Adapters, Power Supplies
45-840
DC POWER SUPPLY FOR CCTV AND ACCESSORIES
Total maximum supply current at 12Vdc and each channel output
is fused at 1.1 Amps. This DC power supply centralizes the power
sources for multiple DC powered CCTV cameras and/or
accessories. The power input, power transformer, D regulator and
all independently-fused power outputs are enclosed in one heavy
duty easy to install metal enclosure.
Specifications:
Power:
Input: 120Vac, 60Hz,
Adjustable Vdc Output: 9 Outputs @ 6/12/24Vdc
UL Approved Power Transformer
Main Fuse Rated 5.0 Amps @ 250Vac
Spare Fuse Included
6ft Power Cord
45-650 UL LISTED UN-REGULATED MINIATURE POWER ADAPTERS
The mini adapter is available in output voltages from 3Vdc to 24Vdc, 117Vac in. These power
supplies offer high efficiency and are very small for the amount of output current. Short
circuit/over voltage protection. 6ft cord with 2.1mm coax plugs, positive center. Other plug types
and configurations available, ask your Calrad representative for details. Weight 36 grams.
Size: .88”d x 1.8”H x 1.3”W.
45-650-3
45-650-4.5
45-650-6
45-650-7.5
45-650-9
45-650-12
45-650-15
45-650-18
45-650-24
Standard Size
Power
Adapter
3Vdc .................. .6A
4.5Vdc ............... .8A
6Vdc ................... 1A
7.5Vdc ............. 1.2A
9Vdc ................ 1.2A
12Vdc .............. 1.2A
15Vdc .............. 1.2A
18Vdc ................. 1A
24Vdc ................ .8A
Miniature
Power
Adapter
45-606
Universal Laptop
Power Supply
Power your laptop or
LCD monitor. Selectable
power outputs from
12Vdc to 24Vdc. Built in
USB port allows you to
charge your USB
devices. Comes with
8 DC adapter plugs.
LED voltage indicator.
Overload and short circut
protection
45-607
12Vdc version with
cigarette lighter adapter
45-790 & 797
45-796
PORTABLE TRAVEL TRANSFORMERS
Travel transformers for use throughout the world, small and lightweight.
45-790 in 117Vac - 100 Vac, 100 Watts 45-797.....in 220Vac - 110Vac, 55 Watts
45-791 .. in 100Vac - 117 Vac, 60 Watts 45-798.... in 220Vac - 110Vac, 100 Watts
45-795 .. in 220Vac - 110 Vac, 50 Watts 45-799....in 220Vac - 110Vac, 1600 Watts
45-796 .. in 110Vac - 220 Vac, 50 Watts
45-798
45-799
AC PLUG ADAPTERS
Travel plug adapters for use throughout the world. Ask Calrad for a requirements chart for the countries.
45-810
45-811
45-812
45-813
45-815
220Vac to
110Vac AC
polarized USA
Female Plug
110Vac to
220Vac AC
Plug
Australia to
polarized
USA Female
and Europe.
USA to UK,
15 Amp.
Europe.
UK to USA
or Europe.
45-816
German Plug
to USA Jack,
9 1/2" overall.
Grounded.
45-817
UK Plug to
USA Jack,
7 1/2"
overall.
Grounded.
45-818
All countries
input to 2
prong
European
output.
Visit Calrad on the Web at: www.calrad.com
104
CALRAD
45 Series Battery Chargers, Transformers
45-758 3 AMP REGULATED
BATTERY CHARGER & POWER
SUPPLY
For alarm system power and automatic
recharging of back-up batteries. LED
power indicator, 2.5 Amps continous and
3 Amps peak power. Input 16Vac to
programmable output 6/12/24Vdc. Fuse
protected. Comes with battery leads. 6
Position Barrier Strip. Mounts with double
stick tape.
45-759 1.2 AMP REGULATED
CHARGER BOARD ONLY
16Vac in, 12Vdc out. Fuse protected.
4 Position Barrier Strip, for alarm system
power and automatic recharging of backup batteris. Fuse protected. Mounts with
double stick tape.
Size: 3.8” x 2.85” x 1.45”
LxWxH
Size: 3.75” x 3” x 1”
LxWxH
45-728 6-VOLT FILAMENT TRANSFORMER
Primary 117 volts AC, secondary 6.3 Volts C.T. 1.5 Amps. Mounting centers 23/8". Size: 2" x 15/8" x 15/8" high.
With wire leads. Weight is 12.8 oz.
45-716 6-Volt Filament Transformer. Primary 117 Volts AC, secondary 6.3 Volts AC 0.4 Amps
* 45-720 or 45-720L (5-25V) 45-722 or 45-722L (10-25V)
5 AND 10 WATT, 25 VOLT MATCHING LINE TRANSFORMERS
(SPECIFY WITH OR WITHOUT LEADS)
Universal 25 Volt 5 & 10 Watts audio line transformers for chassis or speaker mounting. Can be connected to
an audio amplifier to enable proper line and speaker impedance. Matches 4 to 8 ohm speakers. Taps of 0.312,
0.625, 1.25, 2.5, 5 Watts for the 45-720. Taps of 0.625, 1.25, 2.5, 5, 10 Watts for the 45-722. Weight for 45720 is 6.5 oz. Weight for 45-722 is 10.4 oz.
* 45-721 or 45-721L (5-70V) 45-723 or 45-723L (10-70V)
5 AND 10 WATT, 70 VOLT MATCHING LINE TRANSFORMERS
(SPECIFY WITH OR WITHOUT LEADS)
45-728
45-720, 721, 722, 723, 726,
Universal 70 Volt 5 & 10 Watts audio line transformer for chassis or speaker mounting, can be connected to an & 727 Without leads.
audio amplifier to enable proper line and speaker impedance. Matches 4 to 8 ohm speakers. Taps of 0.31,
0.62, 1.25, 2.5, 5 Watts for the 45-721. Taps of 0.625, 1.25, 2.5, 5, 10 Watts for the 45-723. Weight is 9.6 oz.
* 45-726 or 45-726L 10 WATT, 25 VOLT, 70 VOLT COMBINATION LINE TRANSFORMER
(SPECIFY WITH OR WITHOUT LEADS)
Taps of .65, 5, 10 Watts at 25 Volt. Taps of 0.25, 1.25, 5 Watts at 70 Volt. Weight is 10.5 oz.
* 45-727 or 45-727L 30 WATT MATCHING LINE TRANSFORMER
(SPECIFY WITH OR WITHOUT LEADS)
45-720L, 721L, 722L, 723L,
726L, & 727L With leads.
Taps of 10, 20, 30 Watts at 25 Volt. Taps of 10, 20, 30 Watts at 70 Volt. Weight is 10.2 oz.
MINI TRANSISTOR AUDIO TRANSFORMERS
Ideally suited and selected for building or replacement of transistorized equipment. High vacuum impregnation,
application of a special coating seals the coils. A special core of hydrogen heat-treated alloy is used.
3
5
5
Size /4" x /8" x /8". Frequency Response: +\- 3dB, 20-25KHz. Specify Part No.
Part. No. Type
45-700 Input
45-701 Output
45-703 Mic Input
45-705 Input
45-707 Driver
45-709 Output
45-711 Output
* 45-715 Input
Primary
Ohms
100,000
1200
200,000
20,000
10,000
500 C.T.
1000 C.T.
500W
Primary
DC Res.
2K
60W
2.26K
320W
700W
35W
53.1W
34W
Secondary
Ohms
1000
3.2
1000
1000
2000 C.T.
3.2
8
50 KW
Secondary
DC Res.
70 W
.4W
43W
230W
127W
.27W
.57W
3.17KW
Max Power
Rating
100mW
100mW
100mW
100mW
100mW
100mW
100mW
100mW
Same as above except sub-miniature, type. Size 1/2" x 1/2" x 1/2". Specify Part No.
45-702
45-704
45-706
45-708
45-710
105
Input
Output
Input
Driver
Output
100,000
500 C.T.
200,000
10,000
500 C.T.
1K
35.5W
1.6K
736W
32W
1000
3.2
1000
2000 C.T.
8
110W
.4W
118W
173W
2W
* DENOTES SPECIAL ORDER ONLY
75mW
75mW
75mW
75mW
75mW
CALRAD
45 Series - Transformers, DC Power Adapters
Technical drawings and specifications are available for these power supplies. Please ask your Calrad sales representative for details.
MINI TRANSISTOR AUDIO TRANSFORMERS
FOR PRINTED CIRCUIT BOARD MOUNTING
Ideally suited and selected for building or replacement of transistorized equipment. High vacuum impregnation and
application of a special coating seals the coils. A special core of hydrogen heat treated alloy is used to give high
3
5
5
quality at a low cost. Dimensions /4" x /8" x /8". Frequency Response: +\- 3dB, 20-25KHz.
Part No.
45-712
45-713
45-714
Type
Driver
Output
Output
Primary
Ohms
10,000
500 C.T.
1000 C.T.
Primary
DC Res.
400W
30W
45W
Secondary
Ohms
2000 C.T.
3.2
8
Secondary
DC Res.
100W
.4W
.4W
Max Power
Rating
200mW
200mW
200mW
45-698 TRANSFORMER
600W–600W Isolation Transformer–Wire Leads.
Primary DC Resistance – 47W. Secondary DC Resistance – 60W.
Frequency Response of +\- 3dB, 20-25KHz. Size: 1/2” x 1/2” x 1/2”
Max Power Rating: 75mW.
45-699 TRANSFORMER
600W–600W Isolation Transformer–P.C. Leads.
Primary DC Resistance – 47W. Secondary DC Resistance – 60W
Frequency Response of +\- 3dB, 20-25KHz. Size: 1/2” x 1/2” x 1/2”
Max Power Rating: 75mW
45-748
DC TO DC
MULTI-CONVERTER
FOR CARS
45-698
45-749
DC TO DC
MULTI-CONVERTER
FOR CARS
12 Vdc. input to 3V, 4.5V, 6V, 7.5V,
9V, 12V at 800 mA output. Polarity
switchable with multi plugs.
Regulated. Fuse protected at 2 Amps.
Cigarette lighter plug on 6” cable.
Output cable is 5 ft. Color: black. Plug
sizes: 3.5mm, 1.1x 2.5mm, 2.5 x
5.5mm, 1.35 x 3.5mm, 1.7 x 4.0mm,
2.1 x 5.5mm.
12 Vdc. input to 3V, 4.5V, 6V, 7.5V, 9V,
12V at 2 amp output. Polarity
switchable with multi plugs. Fuse
protected at 2 Amps. Cigarette lighter
plug on 5 ft. cord. Output cable is 1 ft.
Color: black. Plug sizes: 3.5mm,
1.1 x 2.5mm, 2.5 x 5.5mm,
1.35 x 3.5mm, 1.7 x 4.0mm,
2.1 x 5.5mm.
45-820
LIGHTER PLUG
45-821
LIGHTER PLUG
Fused lighter plug with 6 detachable
plugs. 12 ft. coiled cord with multi
plugs on the other end. Fuse
protected at 2 Amps.
Fused lighter plug with LED indicator.
6 ft. cord with 2.1mm right angle coax
plug on the other end. Fuse protected
at 5 Amps. With positive center.
45-824
UL APPROVED
AC POWER CORD
45-822
UL APPROVED
AC POWER CORD
Polarized AC power cord with
square/round end with two slots for
use with many portable audio and
video equipment.
45-699
Polarized AC power cord with
round/round end with two slots for
use with many portable audio and
video equipment. Length 6ft..
106
CALRAD
45 Series - Variacs & AC Power Cords
45-740
VARIABLE OUTPUT VOLTAGE
REGULATOR
Adjustable output from AC line, 0 to 130
Volts. Input 117 Volts, 5 Amps. Current
rating apply over full range of output
voltage.
Specifications:
Dimensions....61/2" diameter (Including Terminals)
51/2" deep (Knob to Base)
Weight...................................................... 9.2 lbs.
45-741
VARIABLE OUTPUT VOLTAGE
REGULATOR
5 amp isolated supply w/ volt meter. Fuse
protected with On/Off switch and AC volt
meter scale 0-150 Vac.
Specifications:
Input Voltage...................... 110-120 Vac
Dimensions............. 5”W x 61/2”H x 63/4”D
Output Voltage ... 0-130 Vac, adjustable
Weight......................................... 10 lbs.
55-780
AC POWER CABLE
3-Prong, extra heavy duty AC cord.
Round 16 gauge wire has stripped
and tinned ends. (6 ft. long—Black).
UL and CSA approved.
AC COMPUTER
POWER CABLES
55-782-1 ..............................1 ft.
55-782-1.5 ........................1.5 ft.
55-782-2 ..............................2 ft.
55-782-3 ..............................3 ft.
55-782-6 ..............................6 ft.
55-782-12 ..........................12 ft.
3-Prong IEC computer cable. Has
grounded AC plug on one end and
computer plug on other end. (18
gauge, Black).
(RIGHT ANGLE)
AC COMPUTER POWER CABLES
55-782RT-1.5..........18 Inches
55-782RT-3 .......................3ft.
55-782RT-6 .......................6ft.
55-782RT-12....................12ft.
3-Prong AC computer cable. Right
Angle, three pin AC plug to computer
jack on other end. 18 gauge, Black.
55-781
3 PRONGED FEMALE
TO IEC AC MALE ADAPTER
UL listed, IEC Male plug to
3 prong grounded Female inline
jack. 6 “ long, Black.
107
55-784
AC POWER CABLE
2-Prong, AC Replacement Cable
Wire. Heavy Insulation.18 gauge,
6 ft. long,color is black.
55-788A
18 INCH DUAL POWER STRIP
TRANSFORMER SPACE
ELIMINATOR CABLE
The Cure for Wall Warts on Electrical
Power Strips. 3-Prong AC extension
cable. Has AC plug on one end and
AC jack on the other end. (UL
listed,18 gauge).
55-788B
POWER STRIP TRANSFORMER
SPACE ELMINATOR WITH A.C.
FEEDTHROUGH PLUG
55-788, 6 Inch
55-788-1, 1 ft.
POWER STRIP
TRANSFORMER SPACE
ELIMINATOR CABLE
The Cure for Wall Warts on Electrical
Power Strips. 3 Prong AC extension
cable. Has AC plug on one end and
AC jack on the other end. (UL
listed,18 gauge). Available in 6 inch
and 1 ft.
55-783
AC EXTENSION CABLE
3-Prong AC computer extension
cable. Has AC plug on one end and
computer jack on other end. (18
gauge, 6 ft. long, Black).
55-785-3............3 ft.
55-785-6............6 ft.
RIGHT ANGLE POWER CABLE
Right angle 3-prong AC computer
cable. Has AC plug on one end and
right angle computer IEC plug. 18
gauge, 6 ft. long, color is black.
55-782RT
WHITE AC CABLES For use with Plasma, LCD, DLP and
Monitors. Shielded design reduces
RFI\EMI interference. Female IEC to
right angle AC Male. 10 Amps
125Vac 18 Gauge 3 conductor. UL
and FT2 approved.
55-782RT-6-SHG............6 ft.
55-782RT-12-SHG.........12 ft.
55-782RT-25-SHG.........25 ft.
CALRAD
45 Series - Power Inverters
DC to AC POWER INVERTERS
Car cigarette plug power inverters. Now you can operate most AC appliances such as camcorders, computers,
fax machines and portable TVs from the DC current of your car’s battery. This unit is fully portable and gives you
a standard AC outlet wherever your car is. These units plug into a cigarette plug and changes your car’s DC into
AC by using a Modified Sine Wave. Grounded AC outlets. Units come with low battery alarm and auto shutdown.
Overload and short circuit protection. Input polarity reverse protection by fuse. High surge current capability
makes it easy to start TV, motors and other inductive loads.
45-900 DC to AC POWER INVERTER 80 WATTS
Changes DC to AC power, cigarette lighter plug style. Comes with illuminated
On/Off switch and single 3 prong AC outlet.
SPECIFICATIONS:
Input: ..........................................................12 Vdc
Output: .................................................... 115 Vac
Continuous Power ................................ 80 Watts
Peak Power:..........................................150 Watts
Efficiency: ......................................................90%
Fuse ........................................................10 Amps
Weight....................................................... .60 lbs
Dimensions ...........4.5” x 2.35” x 1.37” (LxWxH)
45-901 DC to AC POWER INVERTER 100 WATTS
Comes with illuminated On/Off switch, single 3 prong AC outlet and 6 ft. cord.
SPECIFICATIONS:
Input: ..........................................................12 Vdc
Output: .....................................................115 Vac
Continuous Power .............................. 100 Watts
Peak Power:..........................................200 Watts
Efficiency: ......................................................90%
Fuse ........................................................20 Amps
Weight.........................................................1.1 lbs
Dimensions ...........6.9” x 2.95” x 1.57” (LxWxH)
45-902 DC to AC POWER INVERTER 150 WATTS
Comes with illuminated On/Off switch, single 3 prong AC outlet and 6 ft. cord.
SPECIFICATIONS:
Input: ..........................................................12 Vdc
Output: .....................................................115 Vac
Continuous Power .............................. 150 Watts
Peak Power:..........................................300 Watts
Efficiency: ......................................................90%
Fuse ........................................................20 Amps
Weight.........................................................1.1 lbs
Dimensions ...........6.1” x 2.75” x 1.57” (LxWxH)
45-903 DC to AC POWER INVERTER 300 WATTS
Comes with illuminated On/Off switch, dual 3 prong AC outlets and 6 ft. cord.
SPECIFICATIONS
Input: ...........................................................12Vdc
Output: ......................................................115Vac
Continuous Power .............................. 300 Watts
Peak Power:..........................................600 Watts
Efficiency: ......................................................90%
Fuse ........................................................30 Amps
Weight..........................................................0.8 kg
Dimensions ...........5.9” x 4.13” x 1.77” (LxWxH)
45-904 DC to AC POWER INVERTER 500 WATTS
Comes with illuminated On/Off switch, three 3 prong AC outlets and 18 inch
battery terminal leads for both unit and car.
SPECIFICATIONS
Input: ...........................................................12Vdc
Output: ......................................................115Vac
Continuous Power .............................. 500 Watts
Peak Power:........................................1000 Watts
Efficiency: ......................................................90%
Fuse ..................................................30 Amps x 2
Weight..........................................................1.1 kg
Dimensions ...........7.90” x 5.1” x 2.35” (LxWxH)
45-905 DC to AC POWER INVERTER 1000 WATTS
Comes with illuminated On/Off switch, three 3 prong AC outlets and 18 inch
battery terminal leads for both unit and car.
SPECIFICATIONS
Input: ...........................................12Vdc or 24Vdc
Output: ......................................................115Vac
Continuous Power ............................ 1000 Watts
Peak Power:........................................2000 Watts
Efficiency: ......................................................90%
Fuse ..................................................30 Amps x 3
Weight........................................................1.95 kg
Dimensions .........10.45” x 5.9” x 2.35” (LxWxH)
108
CALRAD
45 Series - Transformers, Power Supplies
STEP-UP/ DOWN TRANSFORMERS
PORTABLE STEP-DOWN TRANSFORMERS
Can be reversed for use as step-up transformers. No isolation from primary to secondary.
45-780 ............. 220 Vac - 110 Vac, 50 Watts 45-792............ 117 Vac or 100Vac, 500 Watts
45-781 ........... 220 Vac - 110 Vac, 100 Watts
Cord in on 117 Vac side
45-782 ........... 220 Vac - 110 Vac, 200 Watts 45-793 ............. 117 Vac or 100 Vac, 950 Watts
45-783 ........... 220 Vac - 110 Vac, 300 Watts 45-801..............220 Vac - 110 Vac, 1300 Watts
45-784 ........... 220 Vac - 110 Vac, 500 Watts
220-110 only cord in on 220 side
45-786 ......... 220 Vac - 110 Vac, 2000 Watts
grounded binding post for input and output
45-787 ......... 220 Vac - 110 Vac, 3000 Watts
with binding post for input and output
PORTABLE STEP-DOWN TRANSFORMERS
Size: 13.75” d x 7.5” h x 9” w
Can be reversed for use as step-up transformers. No isolation from primary to secondary.
Switchable - has both 220 & 110 sockets. Comes with grounded socket with an ON/OFF switch
and a 5A, 5mm x 20mm fuse. Weight is 19 lbs.
45-781A......... 220 Vac - 110 Vac, 100 Watts 45-783A .......... 220 Vac - 110 Vac, 300 Watts
45-782A........ 220 Vac - 110 Vac, 200 Watts 45-784A .......... 220 Vac - 110 Vac, 500 Watts
45-785A..............220 Vac - 110 Vac,1000 Watts
45-734 MULTI-VOLTAGE 2 AMP REGULATED POWER SUPPLY
Binding post on the output comes with a 6 ft. cord with six detachable plugs. Comes with
ON/OFF switch.
Specifications:
Size..............................................................................................................3.5" W x 3" H x 5.5" D
Input...................................................................................................................... 120 Vac, 60hz
Fuse ............................................................................................................................... 0.5 Amp
Voltage Out .......................................................................................... 3, 4.5, 6, 7.5, 9, 11.5Vdc
Weight............................................................................................................................... 3.4 lbs.
45-742A 0-30Vdc 5 AMP REGULATED DIGITAL POWER SUPPLY
Both Amps and Volts are variable. Complete with ON/OFF switch. Uses 3 Amp fuse and
is short circuit protected.
Specifications
Load Regulation at 1%................. 20-30V Voltage Regulation ...........1% max, input
Load Regulation at 1.5%............ ..10.20V Output ..................... 115-120V rated load
Load Regulation at 2%................. 0-10V Current Limiter ............................Adjustable
Weight ..................................... 13.4 lbs. Size .................... 9" W x 4.5" H x 10.5" D
45-778 10 AMP REGULATED SWITCHING POWER SUPPLY
This state-of-the-art power supply gives increased power handling. This new technology gives
increased power handling and efficiency at low heat dissipation. Built-in over load and over voltage
protection. 6ft. AC cord.
Specifications:
Size: 5.5” L x 6” W x 3.25” H ........................Ripple.... 75 mV at 80% load; Max output ripple 200 mV
Input .................................................. 105–128 Vac....Switching Frequency .................... Q, 35–40 KHz
Output....................................................... 13.8 Vdc....Line Regulation Output................................... 1%
Output Current............................. 10A (surge 12A)....Operating Temperature.......... 0°C through 50°C
Over Voltage .................... Short Circuit Protection....Weight ....................................................... 3.3 lbs.
45-739 300 WATT ISOLATION TRANSFORMER
Isolation between different electrical circuits. Front panel On/Off switch. Power LED indicator. 6ft. AC cord.
Specifications:
Wattage ..................................300 Watts
Size ................. 4.25”W x 3.5”H x 6.25”D
Weight .........................................7.5 lbs.
2 Output Jacks
109
CALRAD
55 Series - Easy Install HDTV Cables
Technical drawings and specifications are available for these cables. Please ask your Calrad sales representative for details.
350 MHz EZ-HDTV / VGA CABLES
Installing a 15 pin HDTV cable in a wall or conduit just
became much easier. No more on-site cable prep or
connector soldering. Just snake and plug, it’s that EZ.
Supports PC Plug and Play
Protective pin cap to cover
Male HD-DB15
mini-din connector when
fishing the cable
Female HD-DB15
Easy grip thumb
screws with
stainless steel
slotted screwdriver
tips
Ferrite Core for
reduction
of RFI, EMI
interference
85% braided, tin plated
overall shield with 5
miniature shielded coax
cables
Male 8 Pin
Mini-Din
.46 Inch Diameter
Protective pin cap to
cover mini-din
connector when
fishing the cable
Female 8 Pin Mini-Din
ALL PIGTAILS SOLD
SEPARATELY
No heat shrink here, solid
molded strain relief for strong
cable termination
NEW PLUG N PLAY DESIGN EASY INSTALL CABLE
Engineered for video excellence. Our easy install (EI)
cables are suitable for passing the cable through 1/2”
conduit or similar small openings. The specifications of
this cable are ideal for critical or long runs, even with
HDTV signals. Perfect for HDTV, Home Theater PCs,
Video Amplifiers, Scalers and any situation where signal
quality should not be compromised. This cable enables
your equipment to reproduce the best color saturation,
black level, and picture detail possible. Our cable
construction features five tin-plated, individually shielded
75 ohm mini coax cables. This design insures the critical
horizontal and vertical sync timing signals accurately pass
from one end of the cable to the other. Since the signal is
split into red. green and blue primary colors and then
reassembled, the signals must arrive at the same time at
the destination. The more the timing variance, the less
detail can be resolved in the resulting picture. Calrad
guarantees a maximum timing variance of 3 nanoseconds
per 100 feet of cable. Our high quality HD-DB15 and 8 pin
mini din connectors provide solid low resistance pin-pin
signal path terminations. Male to Male and Male to Female
plus RCA and BNC versions available.
Lengths Available
55-614-EI-12-PP.....................12 ft.
55-614-EI-15-PP.....................15 ft.
55-614-EI-25-PP.....................25 ft.
55-614-EI-35-PP.....................35 ft.
55-614-EI-50-PP.....................50 ft.
55-614-EI-75-PP.....................75 ft.
55-614-EI-100-PP.................100 ft.
RCA, BNC OR VGA PIGTAIL ADAPTERS
Need something besides VGA Male to Female. Adapt your
cable to fit your needs with one of three alternative pigtail
ends. Available in either VGA , RCA or BNC Male
configurations, these pigtails give our 55-614-EI-PP the
adaptablity needed in todays complex audio & video
market. All adapters are 1 foot in length with molded ends.
Adapters sold separately
1 Foot Pigtail
55-614-EI-HD15FPP
Female HD-DB15 to 8
Pin Female Mini Din
This Keystone feed-thru jack can be
used to pass HDTV, SVGA etc.
through a decora wall plate using a
single keystone port. Calrad part
number 72-304-8-COLOR, Red,
Black, White, Ivory, Green, Blue,
Yellow, Orange or Purple color
options available. Requires one 55614-EI-Length-PP and one 55-614EI-12-PP cable to work
55-614-EI-HD15P 55-614-EI-RCAPP 55-614-EI-BNCPP
Male HD-DB15 to
5 RCA Molded
5 BNC Molded
8 Pin Female Mini
Males to 8 Pin
Males to 8 Pin
Din
Female Mini Din
Female Mini Din
Easy to align arrow indicators
for proper connector mating
EZ Plenum Version Available 55-614P-EI-Length-PP
Contact Calrad for Details
Use Calrad 30-588
gender changer to convert
the Female HD-DB15
connector on the
55-614-EI-PP cable to a
Male HD-DB15.
(not included)
110
CALRAD
55 Series - Component Video Cables
55-873 SHIELDED RGB VIDEO CABLES
Used to connect HDTV satellite receivers to HDTV with RGB inputs.
Both styles utilize HD15 Male connectors with either RCA or BNC RGB
Male ends. Overall cable O.D. .37”. Mini 75 ohm coax cable O.D. .1”.
Male HD15 to 3 RCA Males
55-612-SP................................................1 ft.
HDTV
55-873-RCA-3....................................3 ft.
55-873-RCA-6....................................6 ft.
55-873-RCA-12 ...............................12 ft.
55-873-RCA-20 ...............................20 ft.
55-873-RCA-25 ...............................25 ft.
55-873-RCA-35 ...............................35 ft.
55-873-RCA-50 ...............................50 ft.
Male HD15 to 3 BNC Males
55-873-BNC-3....................................3 ft.
55-873-BNC-6....................................6 ft.
55-873-BNC-12 ...............................12 ft.
55-873-BNC-20 ...............................20 ft.
55-873-BNC-25 ...............................25 ft.
HDTV
55-612-SP
HDTV
55-873-RCA
55-866 SVGA/HDTV SHIELDED VIDEO COMPUTER CABLE
15 Pin HD Male to (75 Ohm) 5 BNC (Male or Female) or RCA Male nickel plated
connectors. RGB video + Sync. color coded cables. Overall cable O.D. .37”. Mini 75 ohm
coax cable O.D. .1”.
Male HD15 to 5 BNC Males
Male HD15 to 5 RCA Males
55-866-1.............................................1 ft. 55-866-RCA-1....................................1 ft.
55-866-3.............................................3 ft. 55-866-RCA-3....................................3 ft.
55-866-6.............................................6 ft. 55-866-RCA-6....................................6 ft.
55-866-10.........................................10 ft. 55-866-RCA-12 ...............................12 ft.
55-866-12.........................................12 ft. 55-866-RCA-15 ...............................15 ft.
55-866-15.........................................15 ft. 55-866-RCA-20 ...............................20 ft.
55-866-20.........................................20 ft. 55-866-RCA-25 ...............................25 ft.
55-866-25.........................................25 ft. 55-866-RCA-35 ...............................35 ft.
55-866-35.........................................35 ft. 55-866-RCA-50 ...............................50 ft.
55-866-50.........................................50 ft.
55-866-100.....................................100 ft.
Female HD1 5 to 5 BNC Males
55-866F-3...........................................3 ft.
55-866F-6...........................................6 ft.
55-866F-10.......................................10 ft.
55-866F-12.......................................12 ft.
55-866F-25.......................................25 ft.
55-873-BNC
HDTV
55-866
HDTV
55-866-RCA
55-620
DB15HD FEMALE TO 5 BNC
FEMALE RGB/HV CABLE
55-622
SHIELDED RGB/HV CABLE
MOUNTED IN A STAINLESS STEEL
WALL PLATE
DB15HD Female to 5 BNC Females.
Premium breakout cable allows direct
conversion of 5 BNC, RGB+HV cables to
DB15HD connector for HDTV, video
projector applications. True 75 ohm
connectors and cable for accurate video and
sync transfers. Length 1’. Use with Calrad
55-611, 55-612 molded cables or other
RGB+HV cables.
HDTV
Premium signal breakout cable. Allows
direct conversion of a 5 BNC, RGB+HV
cable to DB15HD connector for HDTV,
video projector applications. True 75 ohm
connectors and cable for accurate video
and sync signal transfers. Overall cable
O.D. .37”.
55-620-1.................................1 ft.
55-620-3.................................3 ft.
55-620-6.................................6 ft.
55-621
SHIELDED DB15HD MALE TO 5 BNC FEMALE RGB/HV CABLE
Premium signal breakout cable. Allows direct conversion of a 5 BNC, RGB+HV cable
to DB15HD connector for HDTV, video projector applications. True 75 ohm connectors
and cable for accurate video and sync signal transfers. Overall cable O.D. .37”.
55-621........................... 6 Inches
55-621-1................................ 1 ft.
55-621-3................................ 3 ft.
111
55-621-6................................ 6 ft.
55-621-10............................ 10 ft.
55-621-12............................ 12 ft.
Visit Calrad on the Web at: www.calrad.com
HDTV
HDTV
CALRAD
55 Series - SVGA Cables
55-612 Male to Male
SVGA CABLES
HDTV
55-614 Male to Female
Shielded high quality SVGA HD-DB15 interface cables with ferrite RFI/EMI filters at each
end. Perfect for computer displays. Connectors come with long plastic thumb screws and
protective dust caps. Overall cable O.D. .37”. Specify length when ordering.
Lengths Available
Male to Male
Male to Female
55-612-6”................6 n
55-612-3..................3 ft
55-612-6..................6 ft
55-612-10..............10 ft
55-612-12..............12 ft
55-612-15..............15 ft
55-612-25..............25 ft
55-612-30..............30 ft
55-612-35..............35 ft
55-612-50..............50 ft
55-612-75..............75 ft
55-612-100..........100 ft
55-612-250......Bulk Spool
55-614-3....................................3 ft.
55-614-6....................................6 ft.
55-614-10................................10 ft.
55-614-12................................12 ft.
55-614-25................................25 ft.
55-614-35................................35 ft.
55-614-50................................50 ft.
55-614-75................................75 ft.
55-614-100............................100 ft.
WHITE SVGA CABLES
Shielded high quality SVGA HD-DB15 interface cables with ferrite RFI/EMI filters at each
end. Perfect for computer displays. Connectors come with long plastic thumb screws and
protective dust caps. Overall cable O.D. .37”. Specify length when ordering.
Lengths Available
Male to Male
55-612-3-WH.............................3 ft.
55-612-6-WH.............................6 ft.
55-612-10-WH.........................10 ft.
55-612-12-WH.........................12 ft.
55-612-15-WH.........................15 ft.
55-612-25-WH.........................25 ft.
Supports PC Plug and Play
HDTV
55-612-white series
Supports PC Plug and Play
HDTV HIGH QUALITY SVGA CABLES
55-612-HDTV Male to Male
55-614-HDTV Male to Female
High quality HDTV digital HD-DB15 interface cables with overall shield and 5 miniature
shielded 75 ohm coax cables with tin plating and ferrite RFI/EMI filters at each end.
Connectors come with long plastic thumb screws and protective dust cap. This cable is
manufactured to maintain accurate video and timing signals. Used for HDTV applications.
Overall cable O.D. .44”.
Specify length when ordering.
Lengths Available
Male to Male
Male to Female
55-612-HDTV-3..................................3 ft. 55-614-HDTV-3..................................3 ft.
55-612-HDTV-6..................................6 ft. 55-614-HDTV-6..................................6 ft.
55-612-HDTV-10..............................10 ft. 55-614-HDTV-10..............................10 ft.
55-612-HDTV-12..............................12 ft. 55-614-HDTV-12..............................12 ft.
55-612-HDTV-25..............................25 ft. 55-614-HDTV-25..............................25 ft.
55-612-HDTV-35..............................35 ft. 55-614-HDTV-35..............................35 ft.
55-612-HDTV-50..............................50 ft. 55-614-HDTV-50..............................50 ft
55-612-HDTV-75..............................75 ft. 55-614-HDTV-75..............................75 ft.
55-612-HDTV-100..........................100 ft. 55-614-HDTV-100..........................100 ft.
SVGA CABLES WITH ALL METAL CONNECTORS
55-612-S Male to Male
55-614-S Male to Female
Custom made with metal housings, high quality HDTV digital HD-DB15 interface cables with
overall shield and 5 miniature shielded 75 ohm coax cables with tin plating. Gold plated
connectors with metal. thumb screws. This cable is manufactured to maintain accurate video
and timing signals. Used for HDTV applications. Custom cables lengths available upon
request. Overall cable O.D. .37”. Specify length when ordering.
Lengths Available
Male to Male
Male to Female
55-612-S-3...........................................3 ft. 55-614-S-3............................................3 ft.
55-612-S-6...........................................6 ft. 55-614-S-6............................................6 ft.
55-612-S-10.......................................10 ft 55-614-S-10........................................10 ft.
55-612-S-12.......................................12 ft. 55-614-S-12........................................12 ft.
55-612-S-25.......................................25 ft. 55-614-S-25........................................25 ft.
55-612-S-35.......................................35 ft. 55-614-S-35........................................35 ft.
55-612-S-50.......................................50 ft. 55-614-S-50........................................50 ft.
55-612-S-75.......................................75 ft. 55-614-S-75........................................75 ft.
55-612-S-100...................................100 ft. 55-614-S-100....................................100 ft.
HDTV
Does Not Support PC
Plug and Play
HDTV
Does Not Supports PC
Plug and Play
112
CALRAD
55 Series - SVGA, DVI Cables
55-613M MOLDED SVGA AND 3.5mm STEREO AUDIO CABLE
HDTV
High Quality SVGA cable with audio combined. Comes with gold plated HD15 and
3.5mm stereo male to male ends to provide combined audio and video in one cable.
Lengths Available
55-613M-3 ........................3 ft.
55-613M-6 ........................6 ft. Perfect for Laptop or DFP Use
55-613M-10.....................10 ft
55-613M-15 ....................15 ft.
55-613M-25 ....................25 ft. SVGA and 3.5mm stereo audio
55-613M-35 ....................35 ft.
55-613M-50 ....................50 ft. cable with metal connectors
55-613M-75 ....................75 ft. 55-613-12................................12 ft.
55-613M-100 ................100 ft.
55-624-HDTV VGA to DVI-I Cable
55-613M
HDTV
HDTV
Lengths Available
55-624-HDTV-3............3 ft.
55-624-HDTV-6............6 ft.
55-624-HDTV-12........12 ft.
55-624-HDTV-25........25 ft.
55-624-HDTV-35........35 ft.
55-624-HDTV-50........50 ft.
55-613-12
55-625 DVI MALE TO MALE DIGITAL VIDEO CABLES
Digital Video Interface (DVI) cables support high performance digital and analog signals. Used
to interface PCs and high definition monitors, flat panel displays projectors TVs.
Available in DVI-I and DVI-D.
DVI-I Digital and Analog
HDTV VERSION
Lengths Available
55-625-3.......................3 ft.
55-625-6.......................6 ft.
55-625-10...................10 ft.
55-625-12...................12 ft.
55-625-15...................15 ft.
55-625-20...................20 ft.
55-625-25...................25 ft.
55-625-35...................35 ft.
55-625-50...................50 ft.
55-625-HDTV-3...............3 ft.
55-625-HDTV-6...............6 ft.
55-625-HDTV-10...........10 ft.
55-625-HDTV-12...........12 ft.
55-625-HDTV-15...........15 ft.
55-625-HDTV-25...........25 ft.
55-625-HDTV-35...........35 ft.
55-625-HDTV-50...........50 ft.
DVI-I Digital or Analog
Lengths Available
DVI-D Digital Only
Lengths Available
DVI-D Digital Only
Lengths Available
55-625D-3.....................3 ft.
55-625D-6.....................6 ft.
55-625D-10.................10 ft.
55-625D-12.................12 ft.
55-625D-15.................15 ft.
55-625D-20.................20 ft.
55-625D-25.................25 ft.
55-625D-35.................35 ft.
55-625D-50.................50 ft.
55-625D-HDTV-3............3 ft.
55-625D-HDTV-6............6 ft.
55-625D-HDTV-10........10 ft.
55-625D-HDTV-12........12 ft.
55-625D-HDTV-15........15 ft.
55-625D-HDTV-25........25 ft.
55-625D-HDTV-35........35 ft.
55-625D-HDTV-50........50 ft.
HDTV
DVI
ADAPTERS
Male
DVI-I
DVI-I PINOUT
DVI-D PINOUT
No Analog pins
113
Female
DVI-D
35-601
DVI-I Male to DVID Female and
VGA Female
Adapter 12” Long
35-710
DVI-I Female to
DVI-I Female
Coupler
DVI-D Digital Only White jacket
55-625D-3-WH..............3 ft.
55-625D-6-WH..............6 ft.
55-625D-10-WH..........10 ft.
55-625D-12-WH..........12 ft.
55-625D-25-WH..........25 ft.
Female
VGA
55-625D-WH
CALRAD
55 Series - HDMI High Speed Cables
55-644A HDM High Speed Male
to Female cable with Rotating
Connectors
55-643A HDMI High Speed Male
to Male cable with Rotating
Connectors
24K gold plated Male to Male HDMI
cable with 90 degree vertical rotating
connectors. 28 awg 10.2 Gbps.
Lengths Available
55-643A-HS-1.................................1 ft.
55-643A-HS-3.................................3 ft.
55-643A-HS-6.................................6 ft.
55-643A-HS-10.............................10 ft.
55-643A-HS-12.............................12 ft.
55-643A-HS-15.............................15 ft.
24K gold plated Male to Female HDMI
cable with 90 degree vertical rotating
connectors. 28 awg 10.2 Gbps.
Lengths available
55-644A-HS-6”...............................6 in
55-644A-HS-1.................................1 ft.
55-644A-HS-2.................................2 ft.
55-644A-HS-3.................................3 ft.
55-644A-HS-6.................................6 ft.
55-644A-HS-10.............................10 ft.
55-644A-HS-12.............................12 ft.
55-644A-HS-15.............................15 ft.
HDTV
55-643B HDMI High Speed Male
to Male cables with Rotating
Connectors
55-644B HDMI1.3 Male to
Female cable with Rotating
Connectors
24K gold plated Male to Male HDMI
cable with 90 degree horizontal rotating
connectors. 28 awg
10.2 Gbps.
Lengths Available
55-643B-HS-1.................................1 ft.
55-643B-HS-3.................................3 ft.
55-643B-HS-6.................................6 ft.
55-643B-HS-10.............................10 ft.
55-643B-HS-12.............................12 ft.
55-643B-HS-15.............................15 ft.
24K gold plated Male to Female HDMI
cable with 90 degree horizontal
rotating connectors. 28 awg
10.2 Gbps.
Lengths available
55-644B-HS-6”...............................6 in
55-644B-HS-1.................................1 ft.
55-644B-HS-3.................................3 ft.
55-644B-HS-6.................................6 ft.
55-644B-HS-10.............................10 ft.
55-644B-HS-12.............................12 ft.
55-644B-HS-15.............................15 ft.
HDTV
HDTV
HDTV
HDMI Male to Male1.3 SPEC 1080P
Lengths Available
55-626-HS-50 .......................................50 ft.
55-626-HS-75 .......................................75 ft.
55-626-HS-100...................................100 ft.
HDTV
HDTV
White HDMI 1.2 Male to Male
Lengths Available
55-626A Inline HDMI Pigtail Amp
Full High Def with no power supply
55-626-3-WH ..........................................3 ft.
55-626-6-WH ..........................................6 ft.
55-626-10-WH ......................................10 ft.
55-626-12-WH ......................................12 ft.
55-626-15-WH ......................................15 ft.
55-626-25-WH ......................................25 ft.
HDMI 1.2 compliant. Can extend HDMI up to
150 at resolutions of 1080P or lower. Input
signal 1.2 volts p-p. 6 inch pigtail. Works on
HDMI supplied 5 volts.
55-626A-50...Amplified HDMI cable 50 ft.
HDTV
114
CALRAD
55 Series - HDMI High Speed Cables
HDMI Male to Male
High Speed 1080P with snake skin
Lengths Available
55-636-HS-1.3-3.....................................3 ft.
55-636-HS-1.3-6 .....................................6 ft.
55-636-HS-1.3-10 .................................10 ft.
HDMI Male to Male
High Speed 1080P
Lengths Available
HDMI 1.4 Male to Male
Lengths Available
HDTV
HDMI 1.3b
HDTV
HDMI 1.4 Specifications
HDMI Ethernet Channel, Audio Return Channel, Supports High
Resolution 3D TV Over HDMI. Supports 4K x 2K Resolution.
HDMI 1.3b
New Flat HDMI Series UL Approved HDMI Male to Male
1.3 SPEC 1080P interface cable construction reduces signal noise
and digital jitter. The Oxygen-Free copper (OFC) minimizes signal
loss and attenuation of signals. It’s unique flat cable design provides
added physical benefits of using the cable under carpeting and in
area’s that require a low overall profile.
Lengths Available
115
55-648-1.4-1...............1 ft.
55-648-1.4-3...............3 ft.
55-648-1.4-6...............6 ft.
55-648-1.4-10...........10 ft.
55-648-1.4-15...........15 ft.
55-648-1.4-20...........20 ft.
55-648-1.4-25...........25 ft.
55-648-1.4-30...........30 ft.
55-648-1.4-35...........35 ft.
55-648-1.4-40...........40 ft.
55-648-1.4-45...........45 ft.
55-648-1.4-50...........50 ft.
55-647-1.4-3...............3 ft.
55-647-1.4-6...............6 ft.
55-647-1.4-10...........10 ft.
55-647-1.4-12...........12 ft.
55-647-1.4-25...........25 ft.
55-647-1.4-35...........35 ft.
HDMI 1.4
55-637-HS-1 ...........................................1 ft.
55-637-HS-1.5 .....................................18 in.
55-637-HS-3 ...........................................3 ft.
55-637-HS-6 ...........................................6 ft.
55-637-HS-10.......................................10 ft.
55-637-HS-12 .......................................12 ft.
55-637-HS-15 .......................................15 ft.
55-637-HS-20.......................................20 ft.
55-637-HS-25 .......................................25 ft.
55-637-HS-30.......................................30 ft.
55-637-HS-35.......................................35 ft.
55-627-1......................1 ft.
55-627-2......................2 ft.
55-627-3......................3 ft.
55-627-6......................6 ft.
55-627-10..................10 ft.
55-627-12..................12 ft.
55-627-15..................15 ft.
55-627-20..................20 ft.
55-627-25..................25 ft.
55-627-30..................30 ft.
55-627-35..................35 ft.
55-627-50..................50 ft.
HDTV
Supports Expanded Color Space. Gold plated 19 pin HDMI
Connector (Type A).
HDMI 1.3, CL2 Male to Male
Lengths Available
55-639-1.3-3...............3 ft.
55-639-1.3-6...............6 ft.
55-639-1.3-10...........10 ft.
55-639-1.3-12...........12 ft.
55-639-1.3-25...........25 ft.
55-639-1.3-35...........35 ft.
DVI-D to HDMI Male to Male
Lengths Available
HDTV
HDTV
HDTV
55-628-3...............................3 ft.
55-628-6...............................6 ft.
55-628-10...........................10 ft.
55-628-12...........................12 ft.
55-628-15...........................15 ft.
55-628-25...........................25 ft.
55-628-35...........................35 ft.
55-628-50...........................50 ft.
HDTV
HDMI 1.3 Male to HDMI C Male
Gold-plated Male 19-pin MiniHDMI type C connector to Goldplated Male 19-pin HDMI type A
connector. HDMI 1.3b compliant.
Lengths Available
55-646-HD1.3-1................1 ft.
55-646-HD1.3-3................3 ft.
55-646-HD-1.3-6...............6 ft.
55-646-HD-1.3-10...........10 ft.
55-646-HD-1.3-12...........12 ft.
55-646-HD-1.3-15...........15 ft.
HDTV
CALRAD
55 Series - Component Video Cables
55-615 HIGH QUALITY
COMPONENT VIDEO CABLE
55-872 SHEILDED
COMPONENT VIDEO CABLE
Silver plated, flat, triple shielded 75
Ohm RGB component video cable
with Teflon dielectric. Gold Plated
RCA turbine series connectors with
compression strain relief.
55-615-3.......................................3 ft.
55-615-6.......................................6 ft.
55-615-10...................................10 ft.
55-615-12...................................12 ft.
55-615-15...................................15 ft.
55-615-20...................................20 ft.
55-615-25...................................25 ft.
55-615-330..330 ft. spool, bulk cable.
HDTV
55-871A SERIES COMPONENT
VIDEO CABLE SHIELDED
55-871A-3-WH........................... 3 ft.
55-871A-6-WH........................... 6 ft.
55-871A-10-WH........................10 ft.
55-871A-12-WH........................12 ft.
55-871A-25-WH........................25 ft.
55-871A-35-WH........................35 ft.
55-871A-50-WH........................50 ft.
55-871A-250-WH............250 ft. spool,
bulk cable
55-871 MOLDED COMPONENT
VIDEO CABLE SHIELDED
55-870 COMPONENT CABLES
WITH SPDIF AUDIO
HDTV
55-506 HIGH QUALITY
COMPONENT VIDEO AND
2.2mm TOSLINK FIBEROPTIC CABLE
Fiber-optic cable with shielded low
loss RGB component cable.
Terminated by gold metal
connectors.
Overall cable O.D. .61” x .16”.
Lengths are in Meters
55-506-2.......................2 Meters
55-506-3.......................3 Meters
55-506-4.......................4 Meters
55-506-5.......................5 Meters
55-870-3.....................................3 ft.
55-870-6.....................................6 ft.
55-870-10.................................10 ft.
55-870-12.................................12 ft.
55-870-25.................................25 ft.
55-870-35.................................35 ft.
55-870-50.................................50 ft.
55-870-WH COMPONENT
CABLES WITH SPDIF AUDIO
55-871F MOLDED
COMPONENT VIDEO
CABLE SHIELDED
75 ohm shielded cable with
3 molded RCA gold plated Males to 3
molded “F” gold plated Males. Overall
cable O.D. .485”. Black PVC jacket.
Red, green, blue mini coax cables
.16” O.D.
55-871F-6..................................6 ft.
55-871F-12..............................12 ft.
55-871F-25..............................25 ft.
HDTV
55-871A -WHITE SERIES
COMPONENT CABLES
with premium RCA Plugs
Same specs as 55-871 but with
smaller strain relief
55-871A-3............................. 3 ft.
55-871A-6............................. 6 ft.
55-871A-10...........................10 ft.
55-871A-12...........................12 ft.
55-871A-25...........................25 ft.
55-871A-35...........................35 ft.
55-871A-50...........................50 ft.
75 ohm shielded cable with 3 molded
RCA gold plated Male ends. Overall
cable O.D. .485”. Black PVC jacket.
Red, green, blue mini coax cables
.16” O.D. Heavy Duty Strain Relief.
55-871-3.........................................3 ft.
55-871-6.........................................6 ft.
55-871-10.....................................10 ft
55-871-12.....................................12 ft
55-871-15.....................................15 ft.
55-871-20.....................................20 ft.
55-871-25.....................................25 ft.
55-871-30.....................................30 ft.
55-871-35.................................... 35 ft.
55-871-50.................................... 50 ft.
55-871-55.....................................55 ft.
55-871-100.................................100 ft.
75 ohm shielded cable with high quality
gold plated connectors with chrome
bodies and colored rubber finger grips.
Overall cable O.D. .485”. Black PVC
jacket. Red, Green, Blue mini coax
cables .16” O.D.
55-872-3.........................................3 ft.
55-872-6.........................................6 ft.
55-872-12.....................................12 ft.
55-872-15.....................................15 ft.
55-872-20.....................................20 ft.
55-872-25.....................................25 ft.
55-872-35.....................................35 ft.
55-872-50.....................................50 ft.
55-872-250....250 ft. spool, bulk cable
HDTV
55-870-3-WH........................3ft.
55-870-6-WH.........................6ft.
55-870-10-WH.....................10ft.
55-870-12-WH.....................12ft.
55-870-25-WH.....................25ft.
55-870-35-WH.....................35ft.
55-870-50-WH.....................50ft.
55-870-250-WH.........250ft. spool,
bulk cable
55-505 MOLDED COMPONENT
VIDEO AND 2.2mm TOSLINK
FIBER-OPTIC CABLE
Applications include connecting DVD
players and satellite receivers to A\V
receivers. Fiber-optic cable with shielded
low loss RGB component cable.
Terminated by molded gold connectors.
Overall cable O.D. .61” x .16”.
HDTV 55-505-2...................................2 Meters
55-505-3...................................3 Meters
+ Digital 55-505-4...................................4 Meters
55-505-5...................................5 Meters
Audio
HDTV
116
CALRAD
55 Series - Component, Audio-Video Cables
5 RCA MOLDED MALES TO 5 RCA
MOLDED MALES, SHIELDED, GOLD
PLATED CONNECTORS
55-611-RCA-3 ................................3 ft.
55-611-RCA-6 ................................6 ft.
55-611-RCA-10 ............................10 ft.
55-611-RCA-12 ............................12 ft.
55-611-RCA-15 ............................15 ft.
55-611-RCA-20 ............................20 ft.
55-611-RCA-25 ............................25 ft.
55-611-RCA-35 ............................35 ft.
55-611-RCA-50 ............................50 ft.
55-611-RCA-100 ........................100 ft.
SHIELDED RGB VIDEO CABLES
(3) BNC Males to (3) BNC Males
Comes with 75 ohm nickel plated
connectors. Cable O.D. .525”,
55-610-3..........................................3 ft.
55-610-6......................................6 ft.
55-610-10.....................................10 ft.
55-610-12.....................................12 ft.
55-610-15.....................................15 ft.
55-610-25.....................................25 ft.
55-610-33.....................................33 ft.
55-610-35.....................................35 ft.
55-610-50.....................................50 ft.
55-610-100.................................100 ft.
55-610-500..................................500 ft.
True 75 Ohm RCA Connectors
55-510
SHIELDED RGB + SYNC
HDTV CABLE
HDTV
True 75 Ohm RCA Connectors
This cable is used for HDTV
applications. Terminated with 5
high quality gold plated RCA
connectors with chrome bodies
and color coded rubber finger
grips, specifically designed to
minimize signal loss. For RGB+HV
or RGB + Audio (Y,Pb,Pr + Audio),
signal delivery. Silver plated cable
for accurate signal transfer.
Overall cable O.D. .37”. Individual
cable O.D. .1”.
HDTV
55-510-6......................6 ft.
55-510-10..................10 ft.
55-510-12..................12 ft.
HDTV
SHIELDED RGB VIDEO CABLES
(5) BNC Males to (5) BNC Males Comes with
75 ohm nickel plated connectors. Cable O.D. (.65”).
55-611-3..............................3 ft.
True 75 Ohm BNC Connectors
55-611-6..............................6 ft.
55-611-10..........................10 ft.
55-611-12..........................12 ft.
55-611-15..........................15 ft.
55-611-20..........................20 ft.
55-611-25..........................25 ft.
55-611-50..........................50 ft.
55-611-100......................100 ft.
55-611-250......................250 ft.
55-611-500......................500 ft.
55-618
LOW LOSS MULTICONDUCTOR (RGB+HV,
STEREO AUDIO) SHIELDED
COAX AUDIO\VIDEO CABLE.
SUPPORTS STANDARD
DEFINITION AND HDTV.
7 Individually molded, color coded
cables. 5 x True 75 Ohm BNC’s
(RGB + HV) video Male plugs. 2 x
RCA stereo analog audio Male
plugs (1 ea. Black barrels with Red
& White bands). Overall cable
O.D. .44”, Individual cable O.D.
.12”, individual cable lengths from
strain relief 8”. Available in 6,12 &
25ft. lengths.
HDTV
HDTV
55-509
5.1 SHIELDED DIGITAL AUDIO CABLE for SACD, DVD-AUDIO, and SURROUND SOUND
SYSTEMS
Interface cable between DTS, digital sound processors, digital processor based DVD players to
amplifiers/receivers. Easy to read ID channel labels. 6 RCA plugs both ends. Overall cable O.D. (.435”).
Individual cable O.D. (.103”).
55-509-6.............................6 ft.
55-509-12.........................12 ft.
Left Front
Right Front
Center
Sub Woofer
Right Rear
Left Rear
55-616
LOW LOSS MULTI-CONDUCTOR (COMPONENT VIDEO, COMPOSITE, SVHS,STEREO
ANALOG, DIGITAL AUDIO) SHIELDED COAX AUDIO\VIDEO CABLE. SUPPORTS
STANDARD DEFINITION AND HDTV.
9 Individually molded, color coded cables, grouped & labeled. 1 x RCA composite video Male plug (Yellow), 1
x SVHS molded Male plug, 3 x RCA component video plugs (Y=Green, Pb=Blue, Pr= Red), 4 x each RCA
stereo analog audio Male plugs (2 ea. Red & White, 2 stereo audio channels), 1 x RCA Digital audio Male
plug (Orange). This cable can be used for stand alone audio & video signal delivery or for Calrad’s 40-934B 1
x 5 HDTV distribution amplifiers. Overall cable O.D. 1.0”, Individual cable O.D. (.2”), individual cable lengths
from strain relief 11”.
Lengths Available
117 55-616-6................ 6 ft.
55-616-12.................12 ft.
55-616-25.................. 25 ft.
55-616
Cable I.D.
Tags
HDTV
CALRAD
55 Series - Component, S-Video Cables
55-617 LOW LOSS MULTI-CONDUCTOR (COMPONENT VIDEO, COMPOSITE
VIDEO,STEREO ANALOG AUDIO, RF) SHIELDED COAX AUDIO\VIDEO CABLE.
SUPPORTS STANDARD DEFINITION AND HDTV.
7 Individually molded, color coded cables. 1 x RCA composite video Male plug (Yellow). 3 x RCA
component video Male plugs (Y=Green, Pb=Blue, Pr= Red). 2 x RCA stereo analog audio Male plugs
(1 ea. Red & White), 1 x RCA Digital audio Male plug (Orange). 1 x “F” RF Male plug (Black). Overall
cable O.D. .47”, Individual cable O.D. .12”, individual cable lengths from strain relief 8”.
Lengths Available
55-617-5.........................5 ft.
55-617-7.........................7 ft.
55-617-9.........................9 ft.
55-617-12.....................12 ft.
55-771G High Quality Low Loss SVHS Cable With Gold
SVHS 4 pin Connectors
8mm shielded high quality SVHS cable terminated with Calrad 30-608 4-pin
SVHS gold plated connectors. Miniature shielded 75 ohm video coax cable, 1RED, 1-YELLOW. Cable O.D. 8mm/.315”. Multi-strand tension baring filler for
superb strength. Flexible .042” thick rubber jacket. Individual coax cable diameter
.122”. Individual foamed PE cable dielectric insulation, O.D. .087”. Center
conductor 24 awg. Nominal capacitance 16.9pf/ft. Shielding 95% braided copper.
Dark gray PVC jacket. Custom lengths also available, please ask your Calrad
sales representative for your specific needs.
55-771G-3..................................3 ft.
55-771G-6..................................6 ft.
55-771G-12..............................12 ft.
55-771G-25..............................25 ft.
55-771G-330........Bulk Cable 330 ft.
Custom Lengths Available
55-770GR Round Jacketed SVHS
Cable.
Black jacketed, double shielded,nonmolded, black anodized Male to Male
molded SVHS video cable. 65% ‘OFC’
braided copper over 100% foil shield,
7mm O.D.
55-770GR-3...............................3 ft.
55-770GR-6...............................6 ft.
55-770GR-10...........................10 ft.
55-770GR-12...........................12 ft.
55-770GR-15...........................15 ft.
55-770GR-25...........................25 ft.
55-770GR-50...........................50 ft.
55-770GR-100.......................100 ft.
55-770GR-500.....Bulk Cable 500 ft.
55-772G High Quality, Low Loss SVHS Cable with Gold
SVHS Connectors, Silver Colored
Silver jacketed, triple shielded, High Quality non-molded SVHS
video cable Male to Male. Dual miniature spiral shielded coax
cables with 65% ‘OFC’ braided copper over 100% foil shield
coverage, 8mm O.D.
Metal Connectors with Gold
55-772G-3.................................3 ft.
Contacts & Silver Finish
55-772G-6.................................6 ft.
55-772G-10............................ 10 ft.
55-772G-12.............................12 ft.
55-772G-15.............................15 ft.
55-772G-20.............................20 ft.
55-772G-25.............................25 ft.
55-772G-50.............................50 ft.
55-772G-75.............................75 ft.
55-772G-100.........................100 ft.
55-772G-250.......Bulk Cable 250 ft.
SVHS 4 Pin
Mini Din Pinout
55-770G
Super-VHS Flat Cables. 4-Pin to 4Pin Plug – Gold
Flexible S-VHS Cable. Low loss pro style
cable for running long lengths. 75 ohm
dual flat coax cable. 27 awg wire, spiral
copper shielded with black PVC black
jacket. molded connectors with gold
plated contacts. Capacitance is 55pf/m
(16.8pf/ft). Attenuation is approx.
.06db/m at 10mHz. Shielded.
55-770G-1 ................ 1 ft. flat cable
55-770G-3 ................ 3 ft. flat cable
55-770G-6 ................ 6 ft. flat cable
55-770G-10 ............ 10 ft. flat cable
55-770G-12 ............ 12 ft. flat cable
55-770G-15 ............ 15 ft. flat cable
55-770G-20...............20 ft. flat cable
55-770G-25 ............ 25 ft. flat cable
55-770G-30 ............ 30 ft. flat cable
55-770G-50 ............. 50ft. flat cable
55-770G-75 ............ 75 ft. flat cable
55-770G-100 ........ 100 ft. flat cable
55-770G-1000 1000 ft., spool flat cable .
w/ no ends.
55-740G
Gold Plated SVHS 4-Pin Plug To
Blunt Cut End
6 foot flat, shielded flexible S-VHS cable.
Low loss pros style cable for running long
lengths. 75 ohm dual flat coax cable.
27 awg wire, spiral copper shielded with
black PVC jacket. Capacitance is 55pf/m
(16.6pf/ft). Attenuation is approx. .06db/m
at 10mhz . Gold plated SVHS
connector
Plenum SVHS Cables Available Upon
Request. Call Calrad for Details
118
CALRAD
55 Series - S-VIDEO, Video Cables
55-773G
SVHS 4-Pin Plug to 4-Pin
Jack– Gold Connectors
Flexible S-VHS cable. Low loss pro
style cable for running long lengths.
Gold plated connectors 75 0hm dual
flat coax cable. 27 awg wire, spiral
copper shielded with black PVC
jacket. Capacitance is 55pf/m
(16.8pf/ft). Attenuation is approx.
.06db/m at 100mhz. Shielded.
55-773G-6 ............... 6 ft., flat cable
55-773G-10 ........... 10 ft., flat cable
55-773G-25 ........... 25 ft., flat cable
55-508 6mm MOLDED SVHS
AND 5mm TOSLINK FIBEROPTIC CABLE
Molded interconnect cable
applications include connecting
DVD players and satellite
receivers to A\V receivers.
Shielded low loss S-video cable
terminated by metal gold
connectors. Overall cable O.D.
.465” x .24”. Black PVC jacket.
Lengths are in Meters
55-508-2.............................2 Meters
55-508-3.............................3 Meters
55-508-4.............................4 Meters
55-508-5.............................5 Meters
55-868B SHIELDED SVHS A/V
INTERFACE/ DUBBING CABLE
A/V Dubbing Cable with SVHS
and Dual RCA Molded Plugs
Cable O.D. .51” x .20”.
55-868B-3 ........................3 ft.
55-868B-6 ........................6 ft.
55-868B-12 ....................12 ft.
55-742
SVHS MALE TO 2 BNC
FEMALE SEPARATOR CABLE
One SVHS 4-pin plug to dual (2)
BNC in-line jacks, molded, nickel
plated contacts. flat cable. Shielded.
Overall cable O.D. .24” x .12”. Black
PVC jacket.
White BNC = luminance,
Red BNC = chrominance.
Lengths Available:
55-742............................6 inch.
55-742-1.5....................18 inch.
55-742-3.........................3 ft.
55-742-6.........................6 ft.
55-742F-P SVHS Female to 2 BNC
55-774G
Right Angle SVHS Cable with Varied
Pin Configurations 6 ft.
Right angle gold SVHS cables with 4 pin
Male gold plated SVHS connectors.
Individually shielded 75 ohm coax cables for
luminance and chrominance signals. Cable
allows for low profile hookups. Reversing
the cable provides more connecting options.
Overall cable O.D. .23” x .12”. 27 awg wire,
spiral copper shielded with black PVC
jacket. Capacitance is 55pf/m (16.8pf/ft).
Attenuation is approx. .06db/m at 100mhz.
55-774G-A........ Type 1 to 1
55-774G-B........ Type 2 to 2
55-774G-C........ Type 1 to 2
55-507 MOLDED SVHS AND 5mm
TOSLINK FIBER-OPTIC CABLE
Molded interconnect cable applications
include connecting DVD players and
satellite receivers to A\V
receivers.Shielded low loss S-video
cable terminated by molded connectors
with gold contacts.
55-507-2............................2 Meters
55-507-3............................3 Meters
55-507-4............................4 Meters
55-507-5............................5 Meters
SVHS MALE TO 2 RCA MALE
55-741G.............6 Inches
55-741G-1.5......18 Inches
55-741G-6............6 ft.
SVHS MALE TO 2 RCA FEMALE
SEPARATOR CABLE
55-739 (New)....6 Inches
55-741G
One (1) SVHS 4-pin plug to either 2 RCA
plugs (55-741G) or jacks (55-739). Nickel
plated connectors with shielded, flat cable.
Overall cable O.D. .24” x .12”. Black PVC
jacket.
White RCA = luminance,
Red RCA = chrominance
55-743
SVHS MALE TO DUAL BNC MALE
SEPARAT0R CABLE
55-739
One (1) SVHS 4-pin plug (Gold Plated) to
two (2) BNC plugs. Nickel plated
connectors, shielded flat cable. Overall
cable O.D. .24” x .12”. Black PVC jacket.
White BNC = luminance,
Red BNC = chrominance
Lengths Available
55-743.......................6 inches
55-743-1............................1 ft.
55-743-3............................3 ft.
55-743-6............................6 ft.
55-743-10........................10 ft.
Female panel mount separator cable.
55-744
SVHS MALE TO 2 F-81s SEPARATOR CABLE
Separates SVHS cable signal to 2 F-81 connectors for easy connection using F-F cable to carry
chrominance and luminance signals. Uses 75 ohm shielded miniature coax cable. Black PVC jacket.
Overall cable O.D. .19” x .1”. Individual coax O.D. .19”. Black PVC jacket. Single nickel plated SVHS Male
to dual F-81 Females.
Red F-81=luminance,
Black F-81=chrominance.
119 Lengths Available 55-744......................18 inches
55-744-5.............................5 ft.
Uses 2 RG6 cables to
carry SVHS signals.
CALRAD
55 Series - Toslink Cables, Digital Converter
55-502 5mm FIBER OPTIC
CABLE
Toslink-Toslink Fiber-Optic Cable for
Digital Audio with High Quality
Toslink Connectors
Lengths are in Meters
55-502-1........................1 meter
55-502-2........................2 meters
55-502-3........................3 meters
55-502-4........................4 meters
55-502-5........................5 meters
55-502-50 ....................50 feet.
50 ft cable must be used with
the Calrad 10-117 toslink amplifier.
55-500 2.2mm FIBER-OPTIC
CABLE
Toslink-Toslink for Digital Audio
Lengths are in Meters
55-500-1........................1 meter
55-500-2........................2 meters
55-500-3........................3 meters
55-500-4........................4 meters
55-500-5........................5 meters
55-501 4mm FIBER-OPTIC
CABLE
Toslink-Toslink for Digital Audio
Lengths are in Meters
55-501-1......................1 meter
55-501-2......................2 meters
55-501-3......................3 meters
55-501-4......................4 meters
55-501-5......................5 meters
55-503-S 3.5mm to
TOSLINK 2.2mm FIBEROPTIC AUDIO CABLE
Lengths are in Meters
55-503-S-1 ...................1 meter
55-503-S-2 ...................2 meters
55-503-S-3 ...................3 meters
55-503-S-4 ...................4 meters
55-503-S-5 ...................5 meters
55-504 5mm Spring Loaded
Toslink Fiber-Optic Cable.
Male to Male high performance 5mm
fiber-optic cables offer the best
protection against kinks and breakage
caused by moving equipment. The
cable exhibits tuned spectral
attenuation for optimum signal
admittance. The ends have a black
nickel finish with gold plated precision
polished tips for minimal reflectivity.
Cable color is Grey
Lengths are in Meters
55-504-1........................1 meter
55-504-2........................2 meters
55-504-3........................3 meters
55-504-4........................4 meters
55-504-5........................5 meters
55-520
2.2mm NEON COLORED FIBEROPTIC AUDIO CABLES
2.2mm toslink to toslink, neon
colored, fiber-optic cable available in
green, purple, red and yellow colors.
Lengths are in Meters
Neon Green
55-520-GN-2..............2 meters
55-520-GN-3..............3 meters
55-520-GN-4..............4 meters
55-520-GN-5..............5 meters
Neon Red
55-520-RD-2..............2 meters
55-520-RD-3..............3 meters
55-520-RD-4..............4 meters
55-520-RD-5..............5 meters
Neon Purple
Neon Yellow
55-520 PR-3...............3 meters 55-520-YL-2...............2 meters
55-520 PR-4...............4 meters 55-520-YL-3...............3 meters
55-520-YL-4...............4 meters
55-520-YL-5...............5 meters
55-503 5mm 3.5 TO TOSLINK
FIBER-OPTIC AUDIO CABLE
Toslink to 3.5mm for Digital Audio
Lengths are in Meters
55-503-1 .......................1 meter
55-503-2 .......................2 meters
55-503-3 .......................3 meters
55-503-4 .......................4 meters
55-503-5 .......................5 meters
40-DCT-2 2 WAY DIGITAL AUDIO CONVERTER , REPEATER
Coaxial / Toslink audio converter, its compact size and convenient features provides simple solutions for
interfacing digital audio gear. It accepts S/PDIF audio signal input through either Coaxial cable or Toslink cable,
and passes the signal (as is) to both its coaxial and Toslink output ports. With its built-in amplification feature
the 40-DCT-2 can also serve as a signal repeater and extend (double) the transferring distance. The 40-DCT-2
Cross-converts digital audio signals between “Toslink” optical and coax-electrical SPDIF formats transparently
converting in either direction, and handling PCM (stereo) and bitstream (Dolby Digital, DTS) signals. Supports
two-way conversion: coaxial to toslink or toslink to coaxial.
For other digital audio converters see page 71
120
CALRAD
55 Series - Home Theater Audio\Video Cables
Technical drawings and specifications are available for these cables. Please ask your Calrad sales representative for details.
HIGH RESOLUTION INTERCONNECT CABLES
Designed with the latest technology available today. 99.99% pure oxygen free copper “OFC” cable. Polystyrene foam
insulation, double braided shield to protect against radio frequency interference. Heavy duty zinc alloy plated RCA
connectors, 24 karat gold plating.
SILVER SERIES
Locking RCA
Connectors
55-715 Series
55-715 High Resolution 8mm Double
Shielded Audio/Video Cable with Single
Male to Male Gold Locking RCA Plugs.
High Quality audio or video cable with thick rubber
jacket. 100% foil shield with 95% braided ‘OFC’
oxygen free copper shielding and center conductor.
Cable O.D. 8mm, .315”.
55-715-3............................................3 ft.
55-715-6............................................6 ft.
55-715-10........................................10 ft.
55-715-12........................................12 ft.
55-715-15........................................15 ft.
55-715-20........................................20 ft.
55-715-25........................................25 ft.
55-715-30........................................30 ft.
55-715-50........................................50 ft.
55-715-250....................................250 ft.
55-715-500 (Spool, Blue).................. 500 ft.
55-715-BK-500 (Spool, Black).......... 500 ft
Weight is 25 lbs. per spool for 500 ft spool
55-710 Single Male to Male, Molded,
Gold Plated RCA Plugs Using High
Resolution Cable
55-710-3.........................................3 ft.
55-710-6.........................................6 ft.
55-710-10.....................................10 ft.
55-710-12.....................................12 ft.
55-710-15.....................................15 ft.
55-710-20.....................................20 ft.
55-710-25.....................................25 ft.
121
55-716 SPDIF HIGH QUALITY DIGITAL COAX
AUDIO/VIDEO CABLES WITH 8mm SILVER
CONDUCTOR WITH LOCKING SINGLE MALE
TO MALE RCA PLUGS
Low capacitance, precision 110 ohm construction for
sharp and accurate digital signal transfer. Specially
designed for excellent performance over long runs.
Tightly wound braided shielding resists leakage and
outside interference. Cable O.D. .315”.
55-716-3..........................................................3 ft.
55-716-6................................................6 ft.
55-716-10..........................................................10 ft.
55-716-12......................................................12 ft.
55-716-25......................................................25 ft.
55-716-250....................................Bulk Cable 250 ft.
Weight is 16 lbs. per spool.
CUSTOM LENGTHS AVAILABLE
55-717 DIGITAL AUDIO CABLE
6mm RCA Male to RCA Male molded
plugs, gold plated contacts with foil and
braided shielding. Orange colored molded
ends.
55-717-3 ....................................3 ft.
55-717-6 ....................................6 ft.
55-717-12 ................................12 ft.
55-717-15.................................15 ft.
*55-717-16................................16 ft.
55-717-25 ................................25 ft.
*While quantities last
55-717A DIGITAL AUDIO CABLE
Super quality RCA Male to RCA
Male cable.
UL rated. Made with a superior High
quality RCA Plug with superior strain relief.
Better cable and plug meet UL Standards.
Orange\Black ends.
55-717A-3.................................3 ft.
55-717A-6.................................6 ft.
55-717A-12.............................12 ft.
55-717A-15.............................15 ft.
55-717A-25.............................25 ft.
CALRAD
55 Series - Audio Cables
GOLD PLATED AUDIO CABLE SERIES
18 Kt. Gold Plated RCA-type phono connectors insure against faulty connections. Ultra Low Loss shielded cable provides the
best in audio reproduction. Gold plated Steel Springs provide strain relief and prevent damage to the cable from repeated
flexing.
DUAL RCA MALE PLUGS
Dual RCA plugs at each end.
Separate ground. Gold Plated.
With ground wire.
55-800G ............................ 3 ft.
55-802G ............................ 6 ft.
55-803G .......................... 10 ft.
RCA MALE PLUG TO
FEMALE JACK
RCA Male plug to RCA Female
jack. Gold Plated.
55-812G ............................ 3 ft.
55-814G ............................ 6 ft.
55-815G .......................... 10 ft.
SHIELDED RCA MALE TO
MALE JUMPER
RCA Male plugs at each end.
Gold Plated.
55-806G ............................ 3 ft.
55-808G ............................ 6 ft.
55-809G .......................... 10 ft.
4 RCA PLUGS
4 RCA Male plugs at both ends.
Color-coded. Gold Plated.
55-818G ............................ 3 ft.
55-820G ............................ 6 ft.
55-821G .......................... 10 ft.
SHIELDED AUDIO CABLES
Male RCA molded plugs at each
end.
55-930 ........................... 11/2 ft.
55-931 ............................... 3 ft.
55-932 ............................... 4 ft.
55-933 ............................... 5 ft.
55-934 ............................... 6 ft.
55-935 ............................. 10 ft.
55-915 ............................. 15 ft.
55-916 ............................. 25 ft.
55-916-50...........................50 ft.
55-916-100 .................... 100 ft.
55-860
4 RCA MALE
TO MALE SHIELDED
INTERFACE CABLE
4 RCA Male plugs on each end,
15 ft. long, color-coded. Shielded
cable.
MULTI-COLORED SHIELDED
PATCH CABLE KITS – GOLDPLATED
Molded RCA Male plugs each
end. One each of eight different
colors per pkg.: red, orange,
yellow, green, blue, black, gray &
white.
55-750G .................... 6 in. long
55-751G ..................... 1 ft. long
55-753G ..................... 2 ft. long
55-754G ..................... 3 ft. long
55-755G ..................... 6 ft. long
EXTENSION CABLES
Male RCA plug to Female RCA
jack. Shielded cable.
55-910 AUDIO JUMPER
CABLE KIT
Audio cable kit. Consists of four
36-inch shielded cables with
RCA Male plugs on each end.
Contains 1 each of the following
colors: Gray, Green, Black and
Red. 3 ft. long.
SHIELDED AUDIO CABLES
RCA Male plug with single jacket,
1 conductor shielded cable to
stripped and tinned leads.
55-980 .................................3 ft.
55-981 .................................4 ft.
55-982 .................................5 ft.
55-983 .................................6 ft.
55-984 ...............................10 ft.
55-918 ...............................15 ft.
55-919 ...............................25 ft.
55-925...............................20 in
55-926 ............................... 3 ft.
55-927 ............................... 6 ft.
55-927-RT 6 ft. right angle plug
55-928 ............................. 10 ft.
Visit Calrad on the Web at: www.calrad.com
122
CALRAD
55 Series - Audio Cables
55-705 High Resolution 6mm Dual
Audio Cable,Triple Shielded with
High Quality Gold RCA Male to Male
Metal Plugs
This cable is perfect for any stereo audio
feed for home theater systems. 2 braided
shields and 100% foil coverage. Cable
O.D. .47” x .23”.
55-705-1...........................................1ft.
55-705-3..........................................3 ft.
55-705-6..........................................6 ft.
55-705-10......................................10 ft.
55-705-12......................................12 ft.
55-705-15......................................15 ft.
55-705-20......................................20 ft.
55-705-25......................................25 ft.
55-705-30......................................30 ft.
55-705-50......................................50 ft.
55-705-250..(Spool, Blue) .................250 ft.
55-705-BK-250(Spool, Black)......250 ft.
55-705-330..(Spool).....................330 ft.
55-705-500..(Spool).....................500 ft.
55-705-BK-500(Spool,Black).......500 ft.
55-700 High Resolution 6mm Dual
Audio Cable, Triple Shielded with
Gold RCA Male to Male Plugs
55-700-3.........................................3 ft.
55-700-6.........................................6 ft.
55-700-10.....................................10 ft.
55-700-12.....................................12 ft.
55-700-15.....................................15 ft.
55-700-20.....................................20 ft.
55-700-25.....................................25 ft.
55-700-White High Resolution
6mm Audio Cable, Triple Shielded
with Dual Molded Gold RCA Male
to Male Plugs
55-700-3-WH................................3 ft.
55-700-6-WH................................6 ft.
55-700-10-WH............................10 ft.
55-700-12-WH ...........................12 ft.
55-700-15-WH............................15 ft.
55-700-20-WH............................20 ft.
55-700-25-WH............................25 ft.
55-700-250-WH.(Spool,White).250 ft.
SPEAKER JUMPER CABLES
Polarized with RCA Male plug to
stripped and tinned leads.
2 per pkg.
55-962 ............................... 6 ft.
55-966 ............................. 20 ft.
55-985
MOLDED RCA EXTENSION
(UNSHIELDED) CABLE
Molded RCA Male plug to molded
RCA Female jack. 25 ft. long.
55-967
SPEAKER JUMPER CABLE
Polarized speaker cables with RCA
Male plugs on each end.
2 per pkg. 20 ft. long.
55-979 SPEAKER JUMPER
CABLE
5 ft. Polarized jumper cable with
molded RCA Male plugs each end.
Color is Black.
55-865
SPEAKER JUMPER CABLE 10
FT.
Polarized with molded RCA Male plug
on one end, other end is blunt cut.
1 per package.
123
Visit Calrad on the Web at: www.calrad.com
CALRAD
55 Series - Audio\Video Cables
GOLD-PLATED DUAL
RCA-RCA, SHIELDED STEREO
AUDIO CABLES
Gold-Plated, dual RCA Male
molded plugs at each end.
55-1010G .......................... 3 ft.
55-1011G .......................... 6 ft.
55-1013G ........................ 15 ft.
55-1015G ....................... 25 ft.
SHIELDED STEREO AUDIO
CABLES
Dual right angle RCA Male molded
plugs at each end.
55-1005 ............................. 3 ft.
55-1007 ............................. 6 ft.
55-1008 ........................... 10 ft.
DUAL RCA-RCA, SHIELDED
STEREO AUDIO CABLES
Dual RCA Male molded plugs at
each end. Flat zip style cable
55-924 ..............................1 ft.
55-923 ..............................3 ft.
55-998 ..............................4 ft.
55-999 ..............................6 ft.
55-1000B-9 ......................9 ft.
55-1000 ..........................10 ft.
55-1000B-12 ..................12 ft.
55-1000B-15 ..................15 ft.
55-1001 ..........................20 ft.
55-1002 ..........................25 ft.
55-1000B-35 ..................35 ft.
55-1000B-50 ..................50 ft.
55-1000B-75 ..................75 ft.
55-1000B-100 ..............100 ft.
55-1000B-1000 ..........1000 ft.
RCA DUAL STACKING
SHIELDED PATCH CABLES
Gold-Plated, unique stacking
design allows you to connect
multiple components to one set of
inputs.
55-1003G-3 ....................... 3 ft.
55-1003G-6 ....................... 6 ft.
55-1003G-10 ................... 10 ft.
55-1004G-15 ................... 15 ft.
55-1016G GOLD-PLATED DUAL
RCA-RCA, SHIELDED STEREO
AUDIO CABLES
Gold-Plated, dual RCA Male
molded plugs at each end with
trigger wire.
55-1016G-3 ....................... 3 ft.
55-1016G-6 ....................... 6 ft.
55-1016G-10 ................... 10 ft.
55-1016G-15 ................... 15 ft.
55-1016G-25 ................... 25 ft.
DUAL RCA FEMALE
CONNECTING CABLES
Two polarized RCA Females on
each end. Shielded cable.
55-989 ............................... 4 ft.
55-990 ............................. 10 ft.
SHIELDED STEREO CABLES
Dual RCA Male plugs to dual RCA
Female jacks.
55-988 ............................... 4 ft.
55-988-6 ............................ 6 ft.
55-991 ............................. 10 ft.
55-864B SHIELDED BNC A/V
INTERFACE/ DUBBING CABLE
A/V Dubbing Cable with BNC and
Dual RCA Gold Plated Plugs Both
Ends.
Overall cable O.D. .57” x .20”.
55-864B-3.............................3 ft.
55-864B-6.............................6 ft.
55-864B-12.........................12 ft.
55-862 PROFESSIONAL,
SHIELDED HIGH-QUALITY
VIDEO INTERFACE DUBBING
CABLE
Combines 75 ohm RCA-RCA
video cable and (2) RCA to (2)
RCA plugs, audio dubbing cable.
(Color-coded) Gold plated plugs.
55-862-3 ............................ 3 ft.
55-862-6 ............................ 6 ft.
55-862-12 ........................ 12 ft.
55-862B SHIELDED STEREO
AUDIO VIDEO INTERFACE
DUBBING CABLES WITH
MOLDED & GOLD PLATED
PLUGS
Combines 75 ohm RCA-RCA video
cable and (2) RCA to (2) RCA audio
dubbing cable. Color coded; yellow
is video, red and white are audio.
Overall cable O.D. .49” x .24”.
55-862B-1.5......................1.5 ft.
55-862B-3.......................... 3 ft.
55-862B-6.......................... 6 ft.
55-862B-12...................... 12 ft.
55-862B-15...................... 15 ft.
55-862B-20...................... 20 ft.
55-862B-25...................... 25 ft.
55-862B-50...................... 50 ft.
55-862B-75...................... 75 ft.
55-862B-250 250 ft. bulk cable
55-863B VIDEO/MONO AUDIO
DUBBING CABLE WITH MOLDED
GOLD PLATED RCA MALE
PLUGS
This cable features 75 ohm cord
(both), and strain relief, for video
dubbing between recorders. Color
coded; yellow is video, red is audio.
Overall cable O.D. .37” x .24”.
55-863B-3.......................... 3 ft.
55-863B-6.......................... 6 ft.
55-863B-12...................... 12 ft.
Visit Calrad on the Web at: www.calrad.com
124
CALRAD
55 Series - Video/CCTV Cables
Technical drawings and specifications are available for these cables. Please ask your Calrad sales representative for details.
HIGH QUALITY VIDEO/CCTV RG174 CABLE
Designed for high flexibility and sharp cornered applications,
this 75 ohm cable is perfect for areas where a low profile
cable is needed. This is modeled after the Belden 8218
cable with comparable specifications. Available in three
different configurations. Molded 75 ohm connectors with 95%
shielded coax. Cable OD = 0.151”.
BNC Male to Male
55-630-3.. ...................................3 ft.
55-630-6........ .............................6 ft.
55-630-12..................................12 ft.
55-630-25..................................25 ft.
55-630-50..................................50 ft.
55-630-75..................................75 ft.
55-630-100..............................100 ft.
BNC TO RCA Male to Male
55-631-3......................................3 ft.
55-631-6......................................6 ft.
55-631-12..................................12 ft.
55-631-25..................................25 ft.
55-631-50..................................50 ft.
55-631-75..................................75 ft.
55-631-100..............................100 ft.
RCA Male to Male
55-632-3......................................3 ft.
55-632-6......................................6 ft.
55-632-12..................................12 ft.
55-632-25..................................25 ft.
55-632-50..................................50 ft.
55-632-75..................................75 ft.
55-632-100..............................100 ft.
75 OHM COAX VIDEO/CCTV CABLE RG-59A/U
These 75-ohm RG59 coax interface cables have been
designed for CCTV, broadcast video and any application
where signal continuity needs to remain constant. They come
with molded 75 Ohm BNC Male connectors with strain relief
and a black PVC jacket to enhance wear in high use
situations. The wire is 95% copper shielded.
BNC Male to Male
55-640-1.5 ...........................1.5 ft.
55-640-3 .................................3 ft.
55-640-6 .................................6 ft.
55-640-12 .............................12 ft.
55-640-25 .............................25 ft.
55-640-50 .............................50 ft.
55-640-75 .............................75 ft.
55-640-100 .........................100 ft.
BNC to RCA Male to Male
55-641-1.5 ...........................1.5 ft.
55-641-3 .................................3 ft.
55-641-6 .................................6 ft.
55-641-12 .............................12 ft.
55-641-25 .............................25 ft.
55-641-50 .............................50 ft.
55-641-75 .............................75 ft.
55-641-100 .........................100 ft.
RCA to RCA Male to Male
55-642-1.5 ...........................1.5 ft.
55-642-3 .................................3 ft.
55-642-6 .................................6 ft.
55-642-12 .............................12 ft.
55-642-25 .............................25 ft.
55-642-50 .............................50 ft.
55-642-75 .............................75 ft.
55-642-100.........................100 ft.
HIGH QUALITY VIDEO/CCTV RG174 CABLE
Designed for high flexibility and sharp cornered applications, this 75 ohm cable and connectors are perfect for areas where a low
profile cable is needed. This is also modeled after the Belden 1855A cable with comparable specifications with molded 75
ohm connectors with 95% shielded coax. Cable OD = 0.151” CUL, CL2, CMR RATED
BNC Male to RCA Male
55-634-3......................3 ft.
55-634-6.......................6 ft.
55-634-12...................12 ft.
55-634-25...................25 ft.
125
RCA Male to RCA Male
55-635-3........................3 ft.
55-635-6........................6 ft.
55-635-12....................12 ft.
55-635-25....................25 ft.
BNC Male to BNC Male
55-633-3...............................3 ft.
55-633-6...............................6 ft.
55-633-12...........................12 ft.
55-633-25...........................25 ft.
CALRAD
55 Series - Video/CCTV Cables
55-876
COAX JUMPER CABLE
(75 OHM) RG59U coax cable
with Male F-connector to Male
BNC connector. Shielded.6 ft.
long
55-874
COAX JUMPER CABLE
(75 OHM) RG59U coax cable with
Male RCA connector to Male Fconnector. Shielded. 6 ft. long
BNC COAX CABLES
(75 OHM) RG59U coax cable
with Male-type BNC connectors
each end.
55-879-2 ........................... 2 ft.
55-879-3 ........................... 3 ft.
55-879-6 ........................... 6 ft.
55-879-12 ....................... 12 ft.
55-879-15 ....................... 15 ft.
55-879-20 ........................ 20 ft.
55-879-25 ....................... 25 ft.
55-879-50 ....................... 50 ft.
55-879G-6 ... 6 ft., Gold-Plated
55-880G-10 10 ft., Gold-Plated
55-881G-20 20 ft., Gold-Plated
55-875
COAX JUMPER CABLE
(75 OHM) RG59U coax cable
with BNC Male connector to RCA
Male connector on other end.
Shielded.
55-875-3 ............................ 3 ft.
55-875-6 ............................ 6 ft.
55-875-12 ........................ 12 ft.
55-875-15 ........................ 15 ft.
55-875-20 ........................ 20 ft.
55-878G-2
2 ft. Gold-Plated for RG58 cable
55-878-3
3 ft. Nickel-Plated for RG58
cable
55-878G-3
3 ft. Gold-Plated for RG58 cable
55-877 RCA TO RCA
COAX JUMPER CABLE
(75 OHM) RG59U coax cable
with Yellow molded RCA Male
plug on each end. Low Loss
Cable for video and audio
signals. Shielded.
55-877-3 ........................... 3 ft.
55-877-6 ........................... 6 ft.
*55-877-8 ........................... 8 ft.
*55-877-10 ....................... 10 ft.
55-877-12 ....................... 12 ft.
55-877-15 ....................... 15 ft.
55-877-20..........................20 ft.
55-877-25 ........................ 25 ft.
55-877-50 ....................... 50 ft.
55-877-75..........................75 ft.
55-877G ........ 6 ft. Gold Plated
COAX JUMPER CABLE WITH
PUSH-ON “F” CONNECTORS
(75 OHM) RG59U coax cable
with Male push-type F-connectors
on each end. Solid pin center
conductor.
55-882-2-PO...........................2 ft.
55-882-PO............................ 3 ft.
55-883-PO............................ 6 ft.
55-884-PO.......................... 12 ft.
55-890 DIGITAL RF CABLE
This 75 ohm silver conductor cable
soldered with silver solder, comes
with high quality black chrome
barrels with gold plated
connectors. For use with HDTV
equipment and digital cable
modems. Overall cable O.D.
8mm, .315”
55-890-3................................3 ft.
55-890-6................................6 ft.
55-890-12............................12 ft.
55-890-25............................25 ft.
* While Quantities Last
Visit Calrad on the Web at: www.calrad.com
126
CALRAD
55 Series - RF Cables
COAX JUMPER CABLES
RG59U or RG6 coax cable with molded Male “F” connectors each end.
RG6
Shielding specifications
for RG6 cables:
Conductor:
1.1mm copper
Insulation:
5.0mm foam PE
Brading 60%: 32 x 0.12mm CU
Foil 100%:
0.025mm
O.D. PVC:
6.8mm
UL Approved.
55-790 .................... 3 ft., Black
55-790-W ............... 3 ft., White
55-791 .................... 6 ft., Black
55-791-W ............... 6 ft., White
55-792 .................. 12 ft., Black
55-792-W ............. 12 ft., White
55-793 .................. 15 ft., Black
55-793-W ............. 15 ft., White
55-794 .................. 25 ft., Black
55-794-W ............. 25 ft., White
55-795 .................. 50 ft., Black
55-795-W ............. 50 ft., White
55-796 .................. 75 ft., Black
55-796-W ............. 75 ft., White
55-797 ................ 100 ft., Black
55-797-W ........... 100 ft., White
RG6 COAX JUMPER CABLES WITH PERMA-SEAL
COMPRESSION “F” CONNECTORS
UL Black RG6 cable with 1.1mm center conductor.
60% tin plated braid and 100% foil shielding. These
come with weather resistent Perma-Seal style
compression connectors.
55-790-PS-BK .................3 ft. Black
55-790-PS-WH ................3 ft. White
55-791-PS-BK .................6 ft. Black
55-791-PS-WH ................6 ft. White
55-792-PS-BK ...............12 ft. Black
55-792-PS-WH ..............12 ft. White
55-793-PS-BK ...............15 ft. Black
55-793-PS-WH ..............15 ft. White
55-794-PS-BK ...............25 ft. Black
55-794-PS-WH ..............25 ft. White
55-795-PS-BK ...............50 ft. Black
55-795-PS-WH ..............50 ft. White
55-796-PS-BK ...............75 ft. Black
55-796-PS-WH ..............75 ft. White
55-797-PS-BK .............100 ft. Black
55-797-PS-WH ............100 ft. White
55-798
FLAT RG-6 CABLE
8” white, flat Female to Female “F” jumper
cable. Thickness is 3/32”. Eliminates drilling
through walls and conveniently runs under or
over window and doors. Suitable for DBS
installations in apartment buildings, cabins,
motor homes and condominiums. Mounting
adhesive-taped back. Nickel plated brass “F”
connectors. Soft waterproof white PVC
jacket. Size: .52” Width X .20” Thick
RG59
55-882-1 ................ 1 ft., Black
55-882-2 ................ 2 ft., Black
55-882 .................... 3 ft., Black
55-882-W ............... 3 ft., White
55-883 .................... 6 ft., Black
55-883-W ............... 6 ft., White
55-884 ....................12 ft., Black
55-884-W ............. 12 ft., White
55-885 .................. 25 ft., Black
55-885-W ............. 25 ft., White
55-886 .................. 50 ft., Black
55-886-W ............. 50 ft., White
55-888 .................. 75 ft., Black
55-888-W ............. 75 ft., White
55-887 ................ 100 ft., Black
55-887-W ........... 100 ft., White
These cables are available in
UL approved versions.
Ask your Calrad sales
representative for details.
55-650 RG-6 COAX & MESSENGER CABLE
UL 75 ohm, 18 awg copper covered steel, 0.109” galvanized steel
messenger inner shield PP-aluminum laminated overlapped tape bonded to
dielectric, 67% tinned copper braid. 0.193” nom O.D. CPE dielectric, 0.275”
nom O.D. black PVC jacket. UL AWM style 1354, 80° 300V. SLR 20dB min
at 5-1000MHz. Meets NEC 820-V rating min. Color: black.
55-650-25 .......................25 ft.
55-650-50 .......................50 ft.
55-650-75 .......................75 ft.
55-650-100 ...................100 ft.
55-650-150 ...................150 ft.
55-1050
SHIELDED CAMERA A/V +
POWER 20 METER EXTENSION
CABLES 20 METERS
Provides video, audio, power signal
thru one cable for Calrad or other video
cameras. Used as a stand alone cable
or to extend existing cables. Color
coded cables, red=power, yellow =
video, white=audio. Cable O.D. .217”.
Color is Off white.
55-1050-1
Audio/Video:......Male to Male RCA connectors
Power:...............Male to Female 2.1mm coax power
connectors
55-1050-2
127
Visit Calrad on the Web at: www.calrad.com
Audio/Video:......Male to Female RCA connectors
Power:...............Male to Female 2.1mm coax power connectors
CALRAD
55 Series - Speaker & Hook-Up Wire
55-846 FLAT SPEAKER WIRE
2 conductor speaker wire for
under carpets and anywhere
thickness is a problem. All lengths
come in non-terminated spools.
STRANDED HOOKUP WIRE
Red and black multi-purpose 2
conductor hookup wire.
16 Gauge
55-848-50 .............50 ft. (1.28 lbs)
55-848-100 .........100 ft. (2.64 lbs)
18 Gauge
55-847-50..............50 ft. (0.94 oz)
55-847-100 .........100 ft. (1.84 lbs)
16 Gauge
55-846-2.5-25.........16 Gauge, 25 ft.
55-846-2.5-50.........16 Gauge, 50 ft.
55-846-2.5-100.....16 Gauge, 100 ft.
ULTRAFLEX SPEAKER WIRE
Heavy duty copper speaker 2 conductor
wire, very flexible.
12 Gauge
SPEAKER WIRE
Clear jacket copper speaker
2 conductor wire.
18 Gauge
55-840-25 ..................25 ft. (0.38oz)
55-840-50 .................50 ft. (0.86 oz)
55-840-100................100 ft. (1.7lbs)
55-840-500................500 ft. (8.0lbs)
55-840-1000.............1000 ft. Spools
16 Gauge
55-841-25 .................25 ft. (0.48 oz)
55-841-50.................50 ft. (1.24 lbs)
55-841-100...............100 ft. (2.3 lbs)
55-841-500.............................500 ft.
55-841-1000 ...........1000 ft. (23 lbs)
14 Gauge
55-842-25 .................25 ft. (0.84 oz)
55-842-50.................50 ft. (2.06 lbs)
55-842-100...............100 ft. (3.8 lbs)
55-842-500................500 ft. (20 lbs)
55-842-1000.............1000 ft. (40lbs)
12 Gauge
55-843-50..................50 ft. (3.6 lbs),
55-843-100.............. 100 ft. (5.4 lbs)
55-843-500................500 ft. (26 lbs)
55-844-50.................50 ft. (3.56 lbs)
55-844-100..................100 ft. (9 lbs)
55-844-500.............................500 ft.
10 Gauge
55-845-100................100 ft. (11 lbs)
55-845-500.............................500 ft.
55-655 12 GAUGE ‘OFC’
SPEAKER CABLE
This low inductance and capacitance
speaker cable accurately delivers the
full power and frequency range of your
receiver. Its larger, Oxygen Free
Copper conductors are twisted to
retard signal loss. Dark blue PVC
rubber jacket with heavy gauge gold
plated spade lugs with .25” openings.
Solderable spade lugs available
separately, Calrad part number 30-655.
Lengths Available
55-655-12............................12 ft.
55-655-15............................15 ft.
55-655-25............................25 ft.
55-655-35............................35 ft.
55-655B-100..100 ft. Spool Bulk Cable
CL3 SPEAKER WIRE
55-849-2.....14 gauge, 2 conductor
55-849-4.....14 gauge, 4 conductor
55-850-2.....16 gauge, 2 conductor
55-850-4.....16 gauge, 4 conductor
55-851-2.....18 gauge, 2 conductor
55-851-4......18 gauge, 4 conductor
CL3 speaker wire, UL approved.
Excellent for home or commercial
speaker installations. 500 ft. pull box.
Specify 2 or 4 conductors when
ordering.
Pull Box
Visit Calrad on the Web at: www.calrad.com
128
CALRAD
55 Series - Audio Patch Cables
MIG Professional Series
Instrument Cables
MIG (mic, instrument, guitar) cable
comes with 1/4” to 1/4” Male mono plugs
mated to our low capacitance cable,
designed with 95% “OFC” braided cable,
with a 22 gauge center conductor, special
high density filler surrounds each
conductor to help strengthen the cables
tensile strength. Terminated with
Calrad’s toughest connectors. A special
non-conductive epoxy is applied over the
connector followed by heat shrink tubing
to finish the bonding process.
Non-Molded Connectors
Lengths Available
55-670-10 .......................10 ft.
55-670-18 .......................18 ft.
55-670-25 .......................25 ft.
Molded Connectors
Lengths Available
55-675-15 .......................15 ft.
55-675-20 .......................20 ft.
55-675-25 .......................25 ft.
55-720G MULTI-COLORED
SHIELDED PATCH CABLE
KIT – GOLD-PLATED
1/4” Stereo Male phone plugs at both
ends. 8 different colored ends (red,
orange, yellow, green, blue, black,
gray, white) per pkg. Flexible black
rubber jacket.
Lengths Available
55-720G ...........................
55-720G-1.........................
55-720G-2.........................
55-720G-3.........................
55-720G-6.........................
6 in.
1 ft.
2 ft.
3 ft.
6 ft.
MULTI-COLORED SHIELDED
PATCH CABLE KITS – GOLDPLATED
1/4” Mono Male plug at both ends.
8 different color cables (Red,
Orange, Yellow, Green, Blue,
Black, Gray and White) per pkg.
Lengths Available
55-760G ........................... 6 in.
55-761G ............................ 1 ft.
55-763G ............................ 2 ft.
55-764G ............................ 3 ft.
55-765G ............................ 6 ft.
MIG Professional Series
Speaker Cables
MIG (mic, instrument, guitar) cable,
comes with 1/4” to 1/4” Male mono plugs
at each end. 14 gauge “OFC” center
conductor, special high density filler
surrounds each conductor to help
strengthen the cables tensile strength.
Terminated with Calrad’s Elite series 1/4”
plugs. A special non-conductive epoxy is
applied over the connector followed by
heat shrink tubing to finish the bonding
process.
Lengths Available
14 GAUGE
55-660-10 .......................10 ft.
55-660-25 .......................25 ft.
55-660-50 .......................50 ft.
55-660-100 ...................100 ft.
16 GAUGE
55-661-10 .......................10 ft.
55-661-25 .......................25 ft.
55-661-50 .......................50 ft.
55-661-100 ...................100 ft.
55-721G MULTI-COLORED
SHIELDED PATCH CABLE KITS
GOLD-PLATED
1/4” Mono Male to RCA Male plugs.
8 different colored ends (red, orange,
yellow, green, blue, black, gray, white)
per pkg. Flexible black rubber jacket.
Lengths Available
55-721G-1......................... 1 ft.
55-721G-2......................... 2 ft.
55-721G-3......................... 3 ft.
SHIELDED AUDIO CABLES
RCA Male plug to 1/4" mono plug.
Gold plugs. Professional audio
patch cables. Low-loss dielectric
construction and extra shielding
provide maximum noise protection.
Lengths Available
55-1020G .......................... 1 ft.
55-1021G........................... 3 ft.
55-1022G........................... 6 ft.
RIGHT ANGLE 1/4” AUDIO
CABLES
Shielded cable with right angle
1/4”mono plugs each end.
Lengths Available
55-955 ............................... 6 ft.
55-956 ............................. 10 ft.
55-958 ............................. 25 ft.
55-973
Right angle, 1/4” mono plug to a
1/4” mono inline jack. 6 ft. long
129
Visit Calrad on the Web at: www.calrad.com
CALRAD
55 Series - Audio Cables
55-971 2 CONDUCTOR RIGHT
ANGLE 1/4” CABLE
Right angle1/4” Mono plug to
stripped and tinned leads. 6 ft.
long. Shielded.
55-912
HEADPHONE CABLE
1
/4" Stereo plug to 3.5mm Stereo
jack. Coil cord 6 ft. extended.
3 CONDUCTOR SHIELDED
1/4” STRAIGHT PLUG CABLE
1
/4” Stereo plug to stripped and
tinned leads. Shielded.
55-952 ............................... 6 ft.
55-951 ............................. 12 ft.
55-913
STEREO HEADPHONE
EXTENSION CABLE
3.5mm Stereo plug to 1/4" Stereo
jack. Coil cord 6 ft. extended.
55-914 SHIELDED STEREO
AUDIO CABLE
3.5mm Male Stereo plug to a
1
/4" stereo plug. Shielded.
55-987 RETRACTABLE
STEREO EXTENSION CABLE
20 FT.
1
/4” Stereo plug to 1/4” Stereo
jack. 20 feet length when
extended.
Lengths Available
55-914-3 ............................ 3 ft.
55-914-6 ............................ 6 ft.
55-914-10 ........................ 10 ft.
55-936 3.5mm STEREO TO
1/4” SHIELDED MONO
EXTENSION CABLES
Cables with 3.5 mm Stereo plug
one end to 1/4" Mono plug other
end. Shielded.
Lengths Available
SHIELDED RETRACTABLE
EXTENSION CABLES
Straight 1/4” Mono plug toright
angle 1/4” Mono plug.
55-957 Retracts 3 ft., Extends 15 ft.
55-959 Retracts 4 ft., Extends 25 ft.
55-936-3 ............................ 3 ft.
55-936-6 ............................ 6 ft.
55-936-10 ........................ 10 ft.
3.5mm MONO TO 1/4”
SHIELDED MONO AUDIO
CABLES
3.5 mm Mono plug on one end
and 1/4" Mono plug on other end.
Shielded.
55-948 ............................... 6 ft.
55-964 ............................. 10 ft.
MICROPHONE EXTENSION
CABLES
Shielded heavy duty 1/4” Mono
plug one end to 1/4” Mono jack
other end.
55-969 .................... 10 ft. Grey
55-960 ................... 25 ft. Black
Visit Calrad on the Web at: www.calrad.com
130
CALRAD
55 Series - Audio Cables
3 CONDUCTOR 1/4"
SHIELDED EXTENSION
CABLE
1
/4” Molded stereo plug to
Stereo jack.
1
/4“
55-858 ............................. 12 ft.
55-859 ............................. 25 ft.
55-986
STEREO HEADPHONE
EXTENSION CABLE
1
1
/4” stereo plug to /4” stereo
jack. 20 ft.
55-950
3.5 mm mono plug, 6 ft. long to
standard inline 1/4" Mono jack
(shielded).
3 CONDUCTOR SHIELDED
1/4” PLUG
1/4” Stereo plug each end.
55-852B-3 .................................. 3 ft.
55-853 ........................................ 6 ft.
55-854 ...................................... 12 ft.
55-854A .................................... 15 ft.
55-855 ...................................... 25 ft.
55-853G-6 .................6 ft. gold plated
55-854G ................ 12 ft., gold plated
55-852-RT .... 3 ft., R/A plug one end
55-852-RR ....3 ft., R/A plugs both ends
55-853-RT .... 6 ft., R/A plug one end
55-853-RR ....6 ft., R/A plugs both ends
SHIELDED AUDIO CABLES
Shielded dual 1/4” Mono plug
each end.
55-974-3 ............................ 3 ft.
55-974-6 ............................ 6 ft.
55-974-10 ........................ 10 ft.
SHIELDED AUDIO CABLES
Dual RCA Male plugs to dual 1/4"
Male Mono plugs.
55-1025 ............................. 3 ft.
55-1026 ............................. 6 ft.
55-1027 ........................... 10 ft.
SHIELDED AUDIO CABLES
RCA Male plug to 1/4" Mono plug.
55-922 .................................... 3 ft.
55-976 .................................... 6 ft.
55-978 .................................. 10 ft.
55-922-RT 3 ft., w/ R/A 1/4” plug
55-976-RT 6 ft., w/ R/A 1/4” plug
55-978-RT 10 ft., w/ R/A 1/4” plug
55-970
SHIELDED AUDIO CABLE
Right angle 1/4” Mono plug to
right angle RCA Male plug. 6 ft.
long (shielded).
R/A = Right Angle
55-954-COLOR SHIELDED
RETRACTABLE CABLE
Extends to 20 ft. Comes in
various attractive colors.
Completely shielded with metal
right angle 1/4” plug to a
straight 1/4” metal plug (not
molded). Colors: Black, Blue,
or Yellow. Specify color.
131
Visit Calrad on the Web at: www.calrad.com
PATCH BAY CABLES
1/4” Mono plug on each end.
Shielded.
55-856 ............................... 6 ft.
55-857 ............................. 15 ft.
CALRAD
55 Series - Audio Cables
AUDIO JUMPER CABLES
3.5mm mono plug on each end.
Shielded cable.
55-939 .................................1 ft.
55-940 .................................3 ft.
55-941 .................................6 ft.
55-942 ...............................10 ft.
55-943 ...............................25 ft.
55-943-50 ..........................50 ft.
10 db RECORDING PATCH
CORD, 6 ft. LONG
Built-in resistive 10 db attenuator
prevents overload and impedance
mismatch when recording from
audio device to recorder. 3.5 mm
plugs on each end.
55-909............mono to mono
55-896 ...........stereo to stereo
STEREO MINI
JUMPER CABLES
3.5 mm stereo plug on each end.
Shielded.
55-897-2 ............................ 2 ft.
55-897-3 ............................ 3 ft.
55-897-4 ............................ 4 ft.
55-897-6 ............................ 6 ft.
55-897-12 ........................ 12 ft.
55-897G-15 (gold) ............ 15 ft.
55-897-20 ..........................20 ft.
55-897-25 ........................ 25 ft.
55-897-50 ........................ 50 ft.
55-897-1000 ....bulk cable 1000 ft.
55-897RT-6 .........................6 ft.
55-920 SUB MINI SERIAL LINK,
CONTROL-L EXTENSION
CABLES
Stereo shielded audio and data
control cable. This cable is used
for A\V digital editing and camera
systems. Black rubber PVC
jacket. 2.5mm stereo plug to
2.5mm stereo jack.
55-920-6...............................6 ft.
55-920-12 ..........................12 ft.
55-920-25 ..........................25 ft.
55-920-50 ..........................50 ft.
55-920-100 ......................100 ft.
Right angle plug to straight plug,
55-897G-RT-6 (gold) .......... 6 ft.
Right angle plug to straight plug
55-894 (gold) ........................6 ft.
Right angle plugs both ends
SHIELDED AUDIO CABLES
55-949
3.5 mm mono molded plug to
RCA plug. 6 ft. long.
55-965
12 ft. cable with 3.5mm mono 1/4”
plug to RCA plug.
55-947
SHIELDED AUDIO CABLE
3.5mm mono molded plug to
molded RCA jack. 6 ft. long.
55-938
MINI 3.5mm PLUG TO 2.5mm
PLUG
Molded 3.5 mm mono plug to
molded 2.5 mm sub-miniature
mono plug. Shielded. 3 ft. long.
SHIELDED STEREO
MINI EXTENSION CABLES
Audio cables with nickel-plated
3.5 mm stereo plug to 3.5 mm stereo
jack.
55-921-3 ............................ 3 ft.
55-921-6 ............................ 6 ft.
55-921-10 ........................ 10 ft.
55-921-12 ........................ 12 ft.
55-921-15 ........................ 15 ft.
55-937............................... 20ft.
with 3.5mm to 1/4” adapter
55-921-25..............................25ft.
AUDIO EXTENSION CABLES
3.5 mm mono plug to 3.5 mm
mono jack. Shielded.
55-953 ...............................10 ft.
55-961 ...............................20 ft.
55-898
STEREO MINI EXTENSION
CABLES COILED
Cables with 3.5 mm stereo plug
one end to 3.5 mm stereo jack
other end. 25 ft. in length when
extended.
Visit Calrad on the Web at: www.calrad.com
132
CALRAD
55 Series - Audio\Video Cables
55-869
4 CONDUCTOR SHIELDED
RIGHT ANGLE 3.5mm A/V
CABLE
Right angle Male to Male audio
and video interface cable for
portable A/V devices using 4
conductor 3.5mm input/output
jacks. Carries composite video
and L+R audio signals.
55-869B-3............................3 ft.
55-869B-6............................6 ft.
55-869B-12........................12 ft.
55-867B
CAMCORDER A/V CABLE
Used in most Sony 8mm and
digital camcorders to provide video
and stereo audio signals in/out of
the camera. 4 conductor 3.5mm
right angle Male to 3 RCA plugs;
video and L+R audio. Gold plated.
Overall cable O.D. .34” x .113”.
55-867B-3............................. 3 ft.
55-867B-6..............................6 ft.
55-867B-12..........................12 ft.
STEREO MINI "Y" ADAPTER
CABLE
3.5 mm stereo plug to 2 molded
RCA nickel-plated Male plugs
(black). Shielded cable.
35-562...............................10 in
55-899-1............................. 1 ft.
55-899-3 ............................ 3 ft.
55-899-6 ............................ 6 ft.
55-899-10 ........................ 10 ft.
55-899-12 ........................ 12 ft.
55-899-25 ........................ 25 ft.
55-946
SHIELDED AUDIO CABLE
3.5mm mono molded plug to
stripped and tinned leads. 6 ft.
long in a single jacket.
55-946-RT
Same as 55-946 with 3.5mm
mono right angle plug (inset).
MOLDED MINI/SUB-MINI PLUG
& CABLE
Mono or stereo miniature plug to
stripped and tinned leads, 6 ft.
long shielded cable in a single
jacket.
STRAIGHT PLUG VERSION
55-730 ............2.5 mm Mono Plug
55-731 ..........2.5 mm Stereo Plug
55-732 ..........3.5 mm Stereo Plug
RIGHT ANGLE VERSIONS
55-730-RT ..... 2.5 mm Mono Plug
55-731-RT ....2.5 mm Stereo Plug
133 55-732-RT ....3.5 mm Stereo Plug
55-944-2.5
55-944-3.5
MOLDED PLUG & CABLE (2.5
or 3.5 mm plug)
Plug to stripped and tinned leads,
6 ft. long (unshielded 24 gauge
wire). Color: Black.
55-944-RT
Same as 55-944 with 3.5mm
mono right angle plug (inset).
MOLDED PLUG & CABLE Coax
plug to stripped and t i n n e d
leads, 6 ft. long
(unshielded 20 gauge wire).
Color: Black. White strip equals
positive center.
3.5mm 4
conductor
plug
55-837........... 1.7 mm Coax Plug
55-838........... 2.1 mm Coax Plug
55-838-RT R/A 2.1 mm Coax Plug
55-839........... 2.5 mm Coax Plug
55-839-RT R/A 2.5 mm Coax Plug
R/A = RIGHT ANGLE
MOLDED PLUG & CABLE Coax
plug to stripped and t i n n e d
l e a d s , 3 f t . l o n g (unshielded
22 gauge wire). Color: Black.
White strip equals positive
center.
55-838-3 ....... 2.1 mm Coax Plug
55-895
3.5mm STEREO Y CABLE
One (1) 3.5mm Stereo plug to
two (2) 3.5mm Mono plugs.
78" long.
55-902
Stereo shielded cable assembly,
1
/4” Stereo plug to 2 RCA Male
plugs, 5 ft. long.
35-532
Stereo shielded cable assembly,
1
/4” Stereo plug to 2 RCA Male
plugs, 9-11” long.
55-997
“Y” ADAPTER CABLE
1
/4” Stereo jack to dual RCA Male
plugs, 12 ft..
35-593 10” version
CALRAD
55 Series - Audio \ MIDI \ AC Cables
55-975
Right angle 1/4" mono plug to
pair of alligator clips. 6 ft. long
(unshielded).
STEREO MIDI CABLES
Shielded stereo midi patch
cables with 5-pin DIN plug on
each end, 180° pattern.
55-906 .................................6 ft.
55-906A .............................15 ft.
55-996
“Y” ADAPTER CABLE
1
/4" Stereo jack to dual 3.5 mm
mono plugs. Parallel wired.
Shielded. 12” long.
55-972
Right angle RCA plug to knurled
microphone connector (not standard).
Coupling ring can be screwed back to
convert to Male connector. 6 ft. long
(shielded).
55-782RT White AC Cables. For
use with Plasma, LCD, DLP and
Monitors. Shielded design
reduces RFI\EMI interference.
Female IEC to right angle AC
Male. 10 AMP 125VAC
18 Gauge 3 conductor.
UL and FT2 approved.
55-782RT-6-SHG............6 ft.
55-782RT-12-SHG.........12 ft.
55-782RT-25-SHG.........25 ft.
55-788A
18 INCH DUAL POWER STRIP
TRANSFORMER SPACE
ELIMINATOR CABLE
3-Prong AC extension cable. Has AC
plug on one end and AC jack on the
other end. (UL listed,18 gauge).
55-788B POWER STRIP
TRANSFORMER SPACE
ELMINATOR WITH A.C.
FEEDTHROUGH PLUG
Same function as 55-788 but allows
the AC outlet to be used for two AC
adapters. (UL listed, 18 gauge
3 conductor). 6 inch lead of SVT
cable. Length 10.5 inches overall.
55-904 DIN CABLE
3-pin DIN plug to (1) RCA plug.
6 ft. long.
180° MIDI CABLES –
SHIELDED AUDIO CABLES
5-pin DIN plug to 5-pin DIN jack.
55-908............................6 1/2 ft.
55-908A .............................15 ft.
55-911 DIN CABLE
5-pin DIN Male to four RCA jacks.
6 inches long.
55-830 COMPUTER
INTERCONNECT CABLE
Has (2) 3.5 mm plugs on one end,
and (1) 3.5mm plug and (1) 1/4”
plug other end. Color-coded, 4 ft.
long. Shielded.
55-831 COMPUTER
INTERCONNECT CABLE
Has 5-pin (180°) DIN plug on one
end, and (1) 1/4" plug, (1) 3.5 mm
plug and (1) 2.5 mm plug other
end. Shielded, 4 ft long.
55-834 MIDI INTERFACE
CABLE
5-pin DIN jack to (4) RCA-type
pin plugs, 6 inches long midi
cable.
POWER STRIP
TRANSFORMER SPACE
ELIMINATOR CABLE
55-788, 6 Inch
55-788-1, 1 ft.
55-788-2, 2 ft.
55-788-3, 3 ft.
55-788-6, 6 ft.
3-Prong AC extension cable. Has AC
plug on one end and AC jack on the
other end. (UL listed,18 gauge).
134
CALRAD
55 Series - AC Cables, Bulk Video Cable
55-782
AC \ IEC COMPUTER POWER
CABLE (STRAIGHT)
55-782-1 ..............................1 ft.
55-782-1.5 .........................18 in
55-782-2 ..............................2 ft.
55-782-3 ..............................3 ft.
55-782-6 ..............................6 ft.
55-782-12 ..........................12 ft.
AC \ IEC COMPUTER POWER
CABLE (RIGHT ANGLE)
55-782RT-1.5 .................18 in
55-782RT-3 ......................3 ft.
55-782RT-6 ......................6 ft.
55-782RT-12 ..................12 ft.
UL listed, 3-Prong AC computer
cable. Right Angle, three pin Male AC
plug to computer IEC Female inline
jack. 18 gauge, Black.
55-785
AC \ IEC RIGHT ANGLE
POWER CABLE
UL listed, right angle 3-prong AC
comptuer cable. AC plug on one end
to right angle computer IEC jack. 18
gauge with black jacket. Available in
3ft or 6 ft lengths
55-785-3..............................3 ft.
55-785-6..............................6 ft.
55-781
3 PRONGED FEMALE
TO IEC AC MALE ADAPTER
UL listed, IEC Male plug to 3 prong
grounded Female inline jack. (6 ft.
long, Black)
55-780
AC POWER CABLE
3-Prong, extra heavy duty AC cord.
Round 16 gauge wire has stripped
and tinned ends. (6 ft. long—Black).
UL and CSA approved.
55-784
AC POWER CABLE
UL listed, 2-Prong,
AC Replacement Cable with stripped
and tinned leads. (18 gauge, 6 ft.
long). Heavy Insulation. Color is
Black.
135
55-783
AC IEC
EXTENSION CABLE
UL listed, 3-Prong AC computer
extension cable. AC IEC Male plug
on one end and IEC Female jack on
other end. (18 gauge, 6 ft. long,
Black).
55-786
AC Extension
Cables 16 Gauge,
UL listed, indoor 2 Prong standard
AC extension cord with dual sided
jacks, Color is White.
Lengths Available
55-786-3.......................3 ft.
55-786-6.......................6 ft.
55-786-10...................10 ft.
55-786-12...................12 ft.
55-786-15...................15 ft.
55-786-25...................25 ft.
55-787
AC Extension
Cables 14 Gauge
UL listed, Indoor\Outdoor 3 prong
standard AC extension cord with
tripple sided jacks, Color is Black.
Lengths Available
*55-787-50...................50 ft.
*55-787-75...................75 ft.
*55-787-100...............100 ft.
*While Quantities Last
55-787A Extension Cord
14AWG UL Listed 3 Cond.
SJTW JACKET Rated FT2
55-787A-6...........................6 ft.
55-787A-10.......................10 ft.
55-787A-15.......................15 ft.
55-787A-25.......................25 ft.
55-787A-50.......................50 ft.
55-787A-75.......................75 ft.
55-787A-100...................100 ft.
55-615B FLAT HIGH QUALITY
COMPONENT VIDEO CABLE
Low loss 75 ohm component video
cable. 100% foil, 70% braided
shielding, stranded center conductor.
Silver jacket, 3 color (RGB) foam
dielectric for easy termination.
Capacitance 17pf/ft. jacket O.D. .71” X
.26”. Bandwidth 1Ghz. attenuation
9.3db at 1Ghz per 100 ft. Velocity of
propogation 75%. Available in 330 ft.
spools.
Silver Color Jacket
CALRAD
55 Series - Bulk Audio & Video Cable
COMPONENT, SHIELDED
VIDEO CABLE
55-610B, 3 COAX CABLES
55-611B, 5 COAX CABLES
Oxygen free copper “OFC”. Miniature
shielded 75 ohm video coax cable, red,
green, blue, black, white. Multi-stranded
tension barring filler for superb strength.
Flexible .05” thick black rubber jacket.
Overall cable diameter .65”, individual coax
cable diameter .20”, Individual cable
dielectric insolation O.D. .118”. Nominal
capacitance 17pf/ft. Shielding 93% braided
copper. Nominal attenuation MHZ dB/100’.
100MHz-4.6dB, 400Mhz-9.18dB. Nominal
velocity of propagation 80%. Use Calrad 75607, 75-801G-75 75 ohm BNC connectors,
30-291, 30-427, 30-390 RCA connectors.
55-610 Available in 500’ spools, 55-611
available in 250’ & 500’ spools.
55-612B, 55-866B, SHIELDED HDTV
RGB+SYNC VIDEO CABLE
55-716B
8mm SHIELDED SILVER
PLATED DIGITAL AUDIO VIDEO
CABLE
Bulk cable in 250’ spools.
Low capacitance, precision 110 ohm
construction for sharp and accurate
digital signal transfer. Specially designed
for excellent performance over long
runs. Tightly wound braided shielding
resists leakage and outside interference.
Weight is 16 lbs. per spool. Cable O.D.
.315”.
55-770GB
MOLDED MINIATURE SHIELDED
S-VIDEO CABLE
HDTV RGB+SYNC cable color coded red,
green, blue, black, and white. Tin plated
copper conductors. Low loss miniature 75
ohm coax cables individually shielded and
with overall braided shielding plus multistrand tension baring filler for superb
strength. High strand count for accurate
signal transfer. Cable overall O.D. .37”.
Individual cable O.D. .1”. Flexible black
PVC jacket. Available in spools of 100’ &
250 feet. weight of 8.7 lbs. or 250’ spools
weight of 21.7 lbs. Use Calrad connectors
30-291, 75-801G-75.
Dual miniature 75 ohm low loss SVideo cable. OFC braided shields and
center conductors. Color coded center
conductors for easy signal
identification. Black PVC rubber jacket.
Overall cable O.D. .23” x .12”. Individual
cable O.D. .115”. Available in 1000’
spools.
55-862B
MOLDED COMPOSITE VIDEO/
STEREO AUDIO CABLE
55-771GB
8mm LOW LOSS S-VIDEO
CABLE
Molded video and stereo audio cable
available in spools. This cable provides a
foil over stranded copper, the audio is
copper braided shielding with color coded
center conductors for easy signal
identification. Black PVC jacket. Overall
cable O.D. .49” x .23”. Available in 250’
spools.
Color ID for luminance and
chrominance signals. Red/white
miniature 75 ohm coax cable with thick
PVC jacket. Capacitance per foot
16.9pf. Insulation foamed PE. Available
in 330’ spools. Weight is 19 lbs. per
spool. Overall cable O.D. .315”, individual
cable O.D. .172”.
55-705B
SHIELDED 6mm DUAL MOLDED
AUDIO CABLE
55-868B
MOLDED S-VIDEO & STEREO
AUDIO CABLE
Triple shielded audio cable available in 250’
or 330” spools. This cable is perfect for any
stereo audio feed for home theater
systems. 2 braided shields and 100% foil
coverage. Weight is 19 lbs. per spool.
Cable O.D. .47” x .23”.
Molded S-video and stereo audio
shielded cable available in 250’ spools.
This cable provides 2 miniature 75 ohm
shielded video cables for SVHS
(chrominance, luminance) and
individually shielded cables for L+R audio
signals. Black PVC jacket with 95%
braided shielding. Overall cable O.D.
.517” x .2”.
55-715B
8mm DOUBLE SHIELDED VIDEO
‘OFC’ CABLE
55-897B
MINIATURE SHIELDED DUAL
MOLDED AUDIO CABLE
Audio cable available in 500’ spools. Thick
rubber jacketed audio cable. 100% foil shield
with 95% braided ‘OFC’ oxygen free copper
shielding and center conductor. Weight is 25
lbs. per spool. Cable O.D. 8mm, .315”.
2 Conductor shielded miniature dual
audio cable. Overall cable O.D. .19” x .1”.
Individual cable O.D. .095”. Available in
1000’ spools. Weight 8.6 lbs. per spool.
Calrad Produces Custom Cables. If you can’t find what you need, we can help.
Supply us with a sample or a line drawing of the cable you need, and we will make it for you.
136
CALRAD
55 Series - USB, Firewire Cables, USB Extenders
72-125 VERSION 2.0 USB TYPE A
CABLES
72-126 USB 2.0 TYPE A/B
CABLES
Universal Serial Bus 2.0 (USB 2.0). USB
2.0 increases signal transmission from
standard USB 1.1 topping out at 12Mb/s
up to 480Mb/s for USB 2.0. These
cables are completely backward
compatible with standard USB ports, so
there isn’t any need to worry that you
will not be able to use USB 2.0 cables
on the standard USB products you
already own.
Lengths Available
72-125-6.......................................6 ft.
72-125-10...................................10 ft.
72-125-15...................................15 ft.
Universal Serial Bus 2.0 (USB 2.0) brings
a new standard of speed to the USB
market. These new highspeed USB
cables give more versatility to computers
and peripherals than ever before. USB
2.0 increases signal transmission from
standard USB 1.1 topping out at 12Mb/s
up to 480Mb/s for USB 2.0. The cables
are completely backward compatible with
standard USB ports, so there isn’t any
need to worry that you will not be able to
use USB 2.0 cables on the standard USB
products you already own.
Lengths Available
72-126-6................................... 6 ft.
72-126-10.................................10 ft.
72-126-15.................................15 ft.
FIREWIRE/HAVI CABLES
This type of IEE 1394 cable carries up
to over 400MBps of bandwidth.
Lengths Available
72-120-6 ............... 4-pin/4-pin, 6 ft.
72-120-10 ........... 4-pin/4-pin, 10 ft.
72-120-15 ........... 4-pin/4-pin, 15 ft.
72-121-6 ............... 6-pin/4-pin, 6 ft.
72-121-10 ........... 6-pin/4-pin, 10 ft.
72-121-12 ........... 6-pin/4-pin, 12 ft.
72-121-15 ........... 6-pin/4-pin, 15 ft.
72-122-6 ................ 6-pin/6-pin, 6 ft.
72-122-10 ........... 6-pin/6-pin, 10 ft.
72-122-12 ........... 6-pin/6-pin, 12 ft.
72-122-15 ........... 6-pin/6-pin, 15 ft.
Mini USB Adapter Cables
These mini USB 2.0 cables allow
the user to interface their digital
camera or other products to
standard USB type A or B
connectors. Available in 4 and 5
pin configurations.
72-127 USB 2.0 Type Male to Type
A female extension Cables
Lengths Available
72-127-6”...................................6 Inches
72-126-6.....................................6 ft.
72-126-10.................................10 ft.
72-126-15.................................15 ft.
6 Pin
4 Pin
Firewire Pinouts
72-260
72-261
Versions Available
Mini USB 5 Pin Male to USB Type A
72-260-3............................................3 ft.
72-260-6............................................6 ft.
Mini USB 4 Pin Male to USB Type A
72-261-3............................................3 ft.
Mini USB 4 Pin Male to USB Type B
72-262-3............................................3 ft.
Mini USB 4 Pin Male to Mini USB 4 Pin Male
72-263-3............................................3 ft.
Mini USB 5 Pin Male to Mini USB 5 Pin Male
72-264-3............................................3 ft.
72-264-6............................................6 ft.
USB 1.1 OVER CAT5 EXTENDER
72-131
72-128 USB TYPE A EXTENDER
CABLE
72-128..............................16 ft.
72-128-26.........................26 ft.
Embedded USB transceiver cable
prevents signal loss. Extends the cable
length of any USB device by an
additional 16 feet. Daisy chain up to 4
additional extender cables to increase
your run by up to an additional 80 ft.
Male to Female USB type A connectors.
Available in 16 and 26 foot options.
72-131
USB 1.1 OVER CAT5
EXTENDER CABLE
72-262
72-263
USB Extender, USB Over Ethernet Cat5 /
Cat6.USB over ethernet USB extender.
Connects USB devices up to 50m over a
single Cat 5 or Cat 6 ethernet cable. USB
1.1 Compliant. USB A male to USB A
female connectors. Supports Windows
2000/XP/Vista Mac OS9.x and higher.
No external power required.
72-132
USB 2.0 OVER CAT5
EXTENDER CABLE
5 Pin
4 Pin
Mini USB Pinouts
137
72-264
This cable can be used to extend the
distance between a USB device and a
host computer by up to 150 feet. It
consists of 2 pieces of a local unit with
USB Type A Male (host computer side)
and a remote unit device side) with builtin USB Type A Female connector.
Standard CAT5/5e/6 network cable (UTP
or STP) is used to connect the two units
together. No External power required.
CALRAD
60 series - Analog Panel Meters
60-118 THROUGH 60-133 23/8” FULL VIEW PANEL METERS
Designed for modernistic equipment. Beautiful appearance, easy to read D'Arsonval type movement,
accuracy within 2%. Will mount in panels up to3/8” thick, has zero adjustment screw. Size: 23/8" x 13/4" x
1 /4" deep, including terminals and will mount into 11/2" hole. Illumination Kit available for all of this
series (60-149). Available in bulk or packaged. Comes with meter cut out template and mounting
hardware. 60-200 Mounting hardware only for Calrad meters 60-118 - 60-148.
1
60-118................. 0–1 mA, DC resistance: 1mA/120W
60-121 ... 0–15 Vdc, DC resistance: 1mA/120W+15kW
60-122 ... 0–30 Vdc, DC resistance: 1mA/120W+30kW
60-125 0–150 Vac, DC resistance: 1mA/120W+DiodeBr.150kW
60-127 ........ 50-0-50 µA, DC resistance: 50µA/1200W
60-129............... 0–50 µA, DC resistance: 50µA/2400W
60-130........... 0–100 µA, DC resistance: 100µA/1200W
60-133 VU Meter, DC resistance: 600W+DiodeBr.+3.9kW/120W
60-149 ............................. Illumination Kit, 6vdc at 50ma
60-134 THROUGH 60-148 3" FULL VIEW PANEL METERS
Designed for modernistic equipment. Beautiful appearance, easy to read D'Arsonval type movement,
accuracy within 2%. Will mount in panels up to 5/16”thick, has zero adjustment screw. Size: 31/8" x 21/2"
x 15/8" deep, including terminals and mounts into 125/32" hole. Illumination Kit available for all of this
series (60-149). Available in bulk or packaged. Comes with meter cut out template and mounting
hardware.
60-134 ................. 0–1 mA, DC resistance: 1mA/120W
60-136.... 0–15 Vdc, DC resistance: 1mA/120W+15kW
60-137.... 0–30 Vdc, DC resistance: 1mA/120W+30kW
60-140 ..... 0–150 Vac, DC resistance: 1mA/120W¤DiodeBr.+150kW
60-142 ......... 50-0-50 µA, DC resistance: ±50µA/120W
60-144.............. 0–50 µA, DC resistance: 50µA/2400W
60-148 ............ VU Meter, DC resistance: 600W+DiodeBr.+3.9kW
60-149 .......................... Illumination Kit, 6 Vdc at 50mA
60-150 THROUGH 60-175 13/4” PANEL METERS
Clear plastic face, D'Arsonval type movement, 1.73" square face. Meters fit into 11/2" diameter hole in panel
and are calibrated to be accurate within 2%. Has zero set screw adjustment. Will enhance the looks of any
equipment on which it is used. Listed below are the following sizes. Available in bulk or packaged.
Comes with meter cut out template and mounting hardware. 60-201 Mounting hardware only for
Calrad meters 60-150 - 60-175.
60-150 .......... 0–15 Vac, DC resistance: 1mA/120W+DiodeBr.+15kW
60-151 ...... 0–150 Vac, DC resistance: 1mA/120W+DiodeBr.+150kW
60-152..... 0–15 Vdc, DC resistance: 1mA/120W+15kW
60-153..... 0–30 Vdc, DC resistance: 1mA/120W+30kW
60-154. 0–200 Vdc, DC resistance: 1mA/120W+200kW
60-155. 0–300 Vdc, DC resistance: 1mA/120W+300kW
60-156. 0–500 Vdc, DC resistance: 1mA/120W+500kW
60-158........... 0–1 mA DC, DC resistance: 1mA/120W
60-159............ 0–10 mA DC, DC resistance: 10mA/3W
60-160 ..... 0–100 mA DC, DC resistance: 10mA/3W+par.Shunt 0.2x46
60-161 ... 0–200 mA DC, DC resistance: 10mA/3W+par.Shunt 0.4x55
60-163 .. 0–500 mA DC, DC resistance: 10mA/3W+par.Shunt 0.5x40
60-165 ........ 0–50 µA DC, DC resistance: 50µA/2400W
60-166 .... 0–100 µA DC, DC resistance: 100µA/1200W
60-167 ...... 0–200 µA DC, DC resistance: 200µA/600W
60-168 ...... 0–500 µA DC, DC resistance: 500µA/300W
60-169 50–0–50 µA DC, DC resistance: ±50µA/1200W
60-171 .. 0–10 Amp DC, DC resistance: 10mA/3W+par.Shunt 1.3x19
60-172 .. 0–30 Amp DC, DC resistance: 10mA/3W+par.Shunt 2.3x24
60-175 ....... VU, DC resistance: 600ž+DiodeBr.+3.9kW
60-180 THROUGH 60-182 2" EDGEWISE PANEL METERS
Clearview, precision movements, moving coil nuclear magnetic steel type. Zero set screw
adjustment. Accurate within 2%. Available in bulk or packaged.
60-180 (EW2) "S" ................................................ ±100µA/650W, red pointer. Internal Resistance 150 ohms nominal
60-181 (EW2) Balance ...................................... 200µA/650W, red pointer. Sensitivity 100 µA, Resistance 600 ohms
60-182 (EW2) VU
Specifications
Mounting Centers .................. 115/16"
Overall Depth .......................17/16"
Overall Height...........................11/8"
60-187 AND 60-188 3/4" EDGEWISE PANEL METERS
Compact size, easy to read. Moving coil type with zero set screw adjustment. Used on
most transistorized equipment. Listed below are the following sizes and specifications.
Available in bulk or packaged.
60-187 (EW75) VU 500µA/650W, red pointer. Calibrated and damped in accordance with standard vu meter
practice
60-188 (EW75) Battery ........................ 200µA/650W, red pointer. Sensitivity 130 µA, Internal Resistance 600 ohms
Specifications
Depth...........................................................................1"
Mounting Centers....................................................13/16”
Height.........................................................................3/4"
Back of Panel .............................................................7/8"
60-190 MINI PILOT METER
1
/2" diameter, mounts into 7/16" hole. 1/2" depth behind panel. Moving coil type construction.
Movement: 0–500µA. Internal Resistance: 700W abd 0-1mA/350W red pointer with red to
green face. Red and black wires 4” long. M106-230 “Intensity”. Center sensitivity 375µA.
Resistance 500W. Available in bulk or packaged.
138
CALRAD
65 Series - VOM Multimeters
65-263 DIGITAL MULTIMETER
3.5 digit DMM has 1/2” high LCD display. 20 position rotary switch sits in
compact, shirt pocket size meter. Has diode, transistor and continuity tester. Has
10 amp DC current range and includes temperature probe good from -40 to 1000
C High impact yellow plastic case. Comes with fuse protection and 9 volt battery.
Specifications:
DC Volt......0-200mv -2V-20V-200V-1000V Test Leads.......(Red & Black) 24 “
AC Volt................................0-250V - 750V
Battery..........9V battery(included)
DC Current...0-2000uA -20ma-200ma-10A
Weight................................0.5 lbs
AC Current............No AC Current function
Size....5” L x 2 5/8” W x 7/8” D
Case Color......................................Yellow
Resistance 0 - 200 ohms -2000 -20K-200K -2000K
65-264 MINI DIGITAL MULTIMETER
Pocket portable multi-meter with 5 functions and 19 ranges. Each test position is
quickly and easily selected with a simple turn of the selector switch. 3.5 digit, 7
segment, 0.5” high LCD display with polarity. Diode and transistor tester.
Overload fuse protection and low battery indicator circuitry. 19 position rotary
range switch. High impact resistant protective yellow case.
Specifications:
DC Volt:...........................................................0-200Mv-2000Mv-20V-200V-1000V
AC Volt:....................................100Mv-200V: 1V-750V Max 750V RMS Peak-Peak
DC Current:.........................................................0-200μA-2000μA-20m-200m-10A
Resistance: ..............................................................0-200-2000-20K-200K-2000K
Test Leads: .........................................................................(Red & Black) 18” Long
Weight:.............................................................................................................6 oz.
Dimensions: ............................................................25/8”(W) x 45/8”(L) x 15/16”(D)
Case Color/Material: ...................................................................Yellow and Plastic
65-266 DIGITAL MULTIMETER
3.5 digit adjustable-display DMM with 1” high contrast LCD display. Diode and 50
ohm continuity beeper, transistor tester. Overload fuse protection and low battery
indicator circuitry. 30 position rotary range switch with separate data hold switch.
High impact resistant protective yellow holster.
Specifications:
DC Volt...... 0-200mv-2V-20V-200V-1000V
Test Leads ...................... (Red & Black) 38”
AC Volt.................... 0-2V-20V-200V-700V
Battery ........................ 9V battery (included)
DC Current ........ 0-2ma-20ma-200ma-20A
Weight............................................ 1.25 lbs.
AC Current ................ 0-20ma-200ma-20A
Size ................... 7.75"L x 3.75"W x 1.625"D
Case Color........................................ Black
Capacitance........ 0-2nf-20nf-200nf-2uf-20uf
Resistance 0-200ohms-2K-20K-200K-2M-20M-200M
65-270 HDMI CABLE TESTER
Allows you to test your HDMI cables even if they are installed in the wall. Sold as a
transmitter and receiver pair. The receiver unit has 9 easy to read L.E.D’s. Provides
automatic independent testing forTDMS Red, TDMS Green, TDMS Blue, TDMS Clock,
CEC, 12C Clock, 12C Data, 5Vdc, and Hot Plug. Can be used to test DVI cables by using
the optional Calrad 35-716 DVI to HDMI adapter, sold seperately. Works with all formats of
HDMI and DVI cables. Operates on one 9 volt battery (not included). Dimensions:
Transmitter: H 5.3” X W 2.75” X D 1.1”, Receiver: H 5.3” X W 2.75” X D 1.1”.
35-716
HDMI Male to DVI-D
Female cable adapter.
Gold plated contacts.
6” Length.
139
CALRAD
65 Series - Test Leads
90-767
TEST CLIP SET
Thin wire kit of 10 leads, 15"
long. Miniature insulated
alligator clip each end. 2 each
of 5 colors: White, Black, Red,
Green, Yellow.
90-764
TEST CLIP SET
Same as 90-767, but with
medium weight clips and wire.
Colors: White, Black, Red,
Green, Yellow.
90-770
HEAVY DUTY TEST CLIP SET
Heavy duty, flexible wire,
insulated clips. Four 30" cables.
Colors: Black, Red, Green,
Yellow.
90-781
TEST CLIP SET
Features 5 color-coded leads,
terminated with wire hooks for
hands free testing. Colors:
White, Black, Red, Green,
Yellow.
65-295A
TEST LEADS
Molded, 3 ft. long, extra flexible,
strain relief at each end to
minimize breakage, test prods
both ends.
65-308
TEST LEADS
Same as 65-295A, but molded
banana plugs one end to test
prods. 3 ft. long.
RUBBER INSULATED
ALLIGATOR CLIPS
Sturdy nickel plated jaws with
strong spring and hard bite. 11/2"
long.
RUBBER INSULATED
ALLIGATOR CLIPS
Sturdy nickel plated jaws with
strong spring and hard bite. 11/2"
long.
90-765.....................Black
90-766..........................Red
90-768
ALLIGATOR CLIPS
Kit of 5 alligator clips. Nickel
plated with screw terminals. Also
fits banana plugs.
90-771 2 Black, 2 Red
90-771-BK 2 Black
90-771-RD 2 Red
ALLIGATOR CLIPS WITH
INSULATED HANDLES
Insulated alligator clips. Screw
terminals. Also fits banana
plugs.
Visit Calrad on the Web at: www.calrad.com
140
CALRAD
70 Series - Telephone Accessories
FLUSH MOUNT, SINGLE-JACK
MODULAR WALL PLATES
70-535
SOLID OAK WALL PLATE
For new construction or conversion
to modular instruments. Screw
terminals.
70-403-AL ................4-Wire Almond
70-403-ALS 4-Wire Almond Smooth
70-403-BR.................4-Wire, Brown
70-403-S .......4-Wire, Ivory, Smooth
70-403-WS...4-Wire, White, Smooth
70-426-S .......6-Wire, Ivory, Smooth
70-426-W ...................6-Wire, White
70-426-WS...6-Wire, White, Smooth
70-530-S .......8-Wire, Ivory, Smooth
70-530-W ...................8-Wire, White
70-530-WS...8-Wire, White, Smooth
One 4-wire outlet.
70-536
SOLID OAK WALL PLATE
Two 4-wire outlets.
70-403-WS
70-426-WS
70-530-WS
70-537
SOLID OAK WALL PLATE
Single Gold F-81 connector.
PLASTIC WALL PLATE
75-493 Ivory
75-493-W White
75-493-2 2GHZ Ivory
75-493-2-WH 2GHZ White
75-493-ID Ivory Designer Style
75-493-WD White Designer Style
FLUSH MOUNT, DOUBLE-JACK
MODULAR WALL PLATES
Double jack wall plates designed to accept
two modular plugs. Screw terminals.
70-410-ALS ....4-Wire Almond, Smooth
70-410-ID ......4-wire Ivory Designer
70-410-S ..... 4-Wire, Ivory, Smooth
70-410-WD ..4-Wire White Designer
70-410-WS. 4-Wire, White, Smooth
70-404-W ................. 6-Wire, White
70-404-S ..... 6-Wire, Ivory, Smooth
70-404-WS. 6-Wire, White, Smooth
70-531-S ..... 8-Wire, Ivory, Smooth
70-531-W ................. 8-Wire, White
70-531-WS. 8-Wire, White, Smooth
70-410-WD
70-410-ID
STAINLESS STEEL WALL PLATE
75-493-SS
Single Gold F-81 connector Wall Plate.
DESIGNER STYLE WALL
PLATE WITH SINGLE F-81
CONNECTOR.
FLUSH MOUNT,
DESIGNER STYLE MODULAR
WALL PLATES
Wall plates designed to accept modular
plugs. Screw terminals.
Wall plates with dual F-81
connectors. 1 GHZ
75-489-IV ...............................Ivory
75-489-W..............................White
75-489-ID .................Ivory Designer
75-489-WD .............White Designer
75-489-IV-2 .................2 GHZ Ivory
75-489-W-2................2 GHZ White
70-570-WD .White Designer Single, 4-Wire
70-570-ID Ivory Designer, Single, 4-Wire
70-571-ID Ivory Designer, Single, 6-Wire
PHONE/TV WALL PLATE
75-489-ID
Plastic wall plate that has an
F-81 connector for TV and a
telephone jack all in one plate.
70-534-ALS . . . . . Almond, Smooth
70-534-ID . . . . . . . . Ivory Designer
70-534-S......................Silver
70-534-W . . . . . . . . . . . . . . . . White
70-534-WD . . . . . . White Designer
70-534-WS . . . . . . . . . . . White , Smooth
75-489-W
WALL PHONE MOUNTING
PLATES
For mounting wall phones.
70-427 .........................Single, Ivory
70-427-M ...................Single, Metal
70-427-W ..................Single, White
70-534-WD
70-534-ID
70-552 .....3-way modular wall plate
a modular wall phone jack equipped
with additional jacks allowing you to
connect auxiliary devices or
extension telephones in addition to
mounting a wall plate.
70-427-M
70-552
141
Visit Calrad on the Web at: www.calrad.com
CALRAD
28 Series - Cable Distribution Wall Plates
28-CEDH1-BK
Black Single Gang Cable
Distribution Wall Plate
28-CEDH1
Single Gang Cable
Distribution Wall Plate
28-CER-1
Single Gang Scoop Style
Cable Distribution Wall Plate
28-CER-2
Double Gang Scoop Style
Cable Distribution Wall Plate
Plastic single gang hood provides
a versatile method of passing
multiple cables from behind the
wall to equipment. Hoods may be
installed in our 70-558 or 70-568
low voltage brackets and are
compatible with our 28 series
designer style single and multi
gang wall plates. These hoods
may be installed with the scoop
facing in or out of the wall, to suit
a variety of needs.
Dimensions: W 4.13” X L 1.5” X
D 1.5”
Cable Opening: W 1.2” X L 2.3”
Color: Black
Plastic single gang hood
provides a versatile method of
passing multiple cables from
behind the wall to equipment.
Hoods may be installed in our
70-558 or 70-568 low voltage
brackets and are compatible
with our 28 series designer style
single and multi gang wall
plates. These hoods may be
installed with the scoop facing
in or out of the wall, to suit a
variety of needs.
Dimensions: W 4.13” X L 1.5”
X D 1.5”
Cable Opening: W 1.2” X L 2.3”
Color: White
Plastic single gang hood designed
for post or retrofit cable installations
as well as for cables with large
connectors. The lower portion of this
bulk wire wall plate is removable so
you can install the plate after the
cables have been installed or
connected. Can be used with our
70-558 or 70-568 low voltage
brackets. Squared single port for
maximum cable capacity. This
retrofit plate is reversible so you can
have the scoop inside or outside of
the wall to suit a variety of needs.
Dimensions: 2.87" W X 4.63" L X
1.56" D
Cable Opening: W 1.56” X H .095”
Color: White
Plastic dual gang hood designed
for post or retrofit cable
installations as well as for cables
with large connectors. The lower
portion of this bulk wire wall plate
is removable so you can install the
plate after the cables have been
installed or connected. Can be
used with our 70-559 or 70-569
low voltage brackets. Squared
single port for maximum cable
capacity. This retrofit plate is
reversible so you can have the
scoop inside or outside of the wall
to suit a variety of needs.
Dimensions: 4.55" W X 4.55" L X
1.75" D
Cable Opening: W 2.975” X H
1.375”
Color: White
28-LV1RP
Single Gang Cable Distribution
Mounting Bracket
A\V WIRE DISTRIBUTION
SINGLE GANG WALL
PLATE
28-LV2RP
Dual Gang Cable
Distribution Mounting
Bracket
Dual gang low voltage bulk cable
mounting bracket designed for
easy installation. Can be installed
quickly using a 4.5” hole saw in
1/4" to 1 1/2" dry wall. Can also
be used with our 28 series
designer style wall plates.
Dimensions:
5 3/8" W x 5 1/4"H x 2 1/8" D
Total Internal Depth: 2"
Measured from the back of flange
Color: White
Single gang low voltage bulk cable
mounting bracket designed for easy
installation. Can be installed quickly
using a 3.5” hole saw in 1/4" to 1 1/2"
dry wall. Can also be used with our
28 series designer style wall plates.
Dimensions:
3.8" W x 5.6"H x 2.0" D
Total Internal Depth: 1 7/8" Measured
from the back of flange
Color: White
Angled exit wall plate allows
for inwall cables to be routed
downwards
Hole Dimensions: 1.44” X.35”
28-181-IV ....................Ivory
28-181-WH ................White
Visit Calrad on the Web at: www.calrad.com
142
CALRAD
70 Series - Telephone Accessories
ROUND MODULAR
WALL JACK
For new construction or
conversion to modular
instruments. 4-wire screw
terminals.
70-411.........................Ivory
70-411-W...................White
70-558 SINGLE GANG
70-559 DUAL GANG
EZ MOUNT PLATE
Comes with two
mounting screws.
70-559
SURFACE JACK ASSEMBLY,
STD 4-WIRE
Replacement jack with modular
jack and color-coded lugs.
Complete with connector block.
70-402 ...................4-Wire, Ivory
70-402-W .............4-Wire, White
70-413 ...................6-Wire, Ivory
70-413-W .............6-Wire, White
70-414 ...................8-Wire, Ivory
70-414-W .............8-Wire, White
70-553A
FLUSH MOUNT WALL
BRACKET
Bracket with bendable tabs for
a standard size telephone wall
plate. Standard wall opening.
FLUSH MOUNT PLASTIC
WALL BRACKET
Single or Double gang flush
mount bracket with adjustable
locking mounting tabs.
70-556-P Single Gang
70-557-P Double Gang
Mounting
Tabs
Breakout
MODULAR SURFACE JACK
ASSEMBLIES
Dual surface mount modular jack
assemblies. Color: Ivory
70-564 Dual 4-conductor, 6-position
70-557-P
70-556-P
70-568 FLUSH MOUNT
PLASTIC WALL BRAKET
Single gang, plastic flush
mount bracket with
adjustable/locking mounting
tabs. Color is Black
70-569 Dual Version
Double gang version provides
a large open area behind the
wall plate for volume controls
and other A/V products to
mount in. Color is Black.
70-521
WALL STUD TELEPHONE
TERMINAL BLOCK
For new construction. Attaches
to Wall stud. Color: Ivory.
143
Visit Calrad on the Web at: www.calrad.com
BOTTOM
CABLE PORTS
70-568
70-480
WEATHER RESISTANT
SERVICE ENCLOSURE, UTILITY BOX
This box is perfect for telephone and CATV cable entry point
distribution or other cable management needs. Provides a
secure and protected environment for all types of electronic
devices. 2 piece construction with removable lid. Foam
dielectric wire grommets for easy exterior wire passage,
provides a sealed closure around cables, keeping out
moisture and pests. Construction: high density polyethylene
plastic, padlocked eye for added security, Color is light grey.
Size: 101/2”(H) X 4”(D) X 63/4”(W).
CALRAD
70 Series - Telephone Accessories
MODULAR "T" ADAPTER
Converts single modular jack into two
modular jacks.
70-405.............4-Wire to 4 & 4 Std, Ivory
70-405-W......4-Wire to 4 & 4 Std, White
70-424.Female 8-Wire to 4 & 4 Male, Ivory
70-425.......... 6-Wire to 6 & 6 Male, Ivory
70-423..............................8 wire, Ivory
70-489
TWO LINE SPLITTER
Contains one six-position, four
conductor modular plug, and two
six-position, two conductor modular
jacks. It is used to split two lines
from a single modular jack to two
individual jacks. Color: Ivory.
70-417
THREE-WAY "T" ADAPTER
Three way "T" adapter. 3 phone
devices to same line. Color: Ivory.
70-491
SECURITY VOICE BOX
MODULAR WALL JACK
8-Pin Female modular voice box
connector. For alarm reporting
devices, with 4 shorting bars.
Color: Ivory.
70-493
5-WAY "T" CONNECTOR
Modular line cord with multiple phone
"T" connectors. 1 Male to 5 modular
Females, 4- conductor,
Cable Length = 14 ft.
Color: Ivory.
MODULAR “T”
CONNECTORS
(1) modular Female line cord type to
(2) modular Females for connecting
line cords. Color: Ivory.
70-494 .......................... 4-Wire
70-539
THREE-WAY TEE
Three way "T" adapter for two lines.
Has jacks for line 1&2, and a jack that
combines line 1&2. Color: Ivory.
MODULAR
CORD COUPLERS
Allows two modular line cords to be
connected together.
70-498 ......handset coupler, Ivory
70-408 ...... 4-wire for voice, Ivory
70-408-W. 4-wire for voice, White
70-407 ...... 6-wire for voice, Ivory
70-407-D ......6-wire for data, Ivory
70-532 ...... 8-wire for voice, Ivory
70-532-D......8-wire for data, Ivory
70-554
HANDSET WIRE DETANGLER
Connects to handset for tangle-free
cord use. Overall length 2.25”.
Color: White.
Visit Calrad on the Web at: www.calrad.com
144
CALRAD
70 Series - Telephone Accessories
70-650
DSL SINGLE LINE MICRO FILTER
70-392 "JELLYBEAN"-STYLE
TELEPHONE & ALARM
INTERCONNECTS
Provides uninterrupted DSL service and
crystal clear conversations. Sharing a
DSL connection with analog telephones
may cause interference. 2 Wire DSL
filters eliminate all interference between
DSL line and analog telephone lines. The
result is clear, clean lines for your
telephones, fax machines, answering
machines, caller ID and analog modems.
All 2 Wire DSL filters also ensure that
telephones never cause the DSL modem
to adjust to the charging conditions of
your DSL connection (Called retraining),
which could hinder your internet access
speeds. FCC approved. Male to Female
RJ11. Overall length of 7”.
Color is off-white.
70-651
DSL LINE SPLITTER WITH
SURGE PROTECTION AND
DUAL MICRO FILTERS
Device splits the line to a DSL modem
connectin and a analog telephone
connection. Separate RJ11 female
line, telephone and modem jacks.
Comes with 2 mounting screws.
Size: 3”L x 2.4”W x 1.09”H.
Color is off-white.
70-512
INDOOR/ OUTDOOR
EXTENSION TELEPHONE
RINGER
An alternate to a second phone,
weatherproof ABS plastic casing.
Built-in modular jack for easy
installation. Loud mechanical
ring.Color: Ivory.
70-513
TELEPHONE LINE AND
HANDSET TESTER
For testing line continuity and
handset operation. Uses 9V
battery (not included).
Color :White.
80-566
MINIATURE TELEPHONE
PICK-UP COIL
Suction cup type, attaches to phone
permitting both ends of a telephone
conversation to be recorded with no
wiring necessary. Has 3.5mm
miniature plug.
145
Also known as maggots, Chiclets,
beans, B-wire connectors. By using
wire penetrating teeth you don’t have
to strip off the insulation, making it
easy to splice together several wires.
High-impact polycarbonate housing
with thick .355mm phosphor bronze
contacts. For use with 22-26 awg.
wires.
70-392-25....................... 25 Pcs.
70-392-100.....................100 Pcs.
70-392-1000.................1000 Pcs.
Complete DSL Filtering for the
entire house
70-392J "JELLYBEAN"-STYLE
TELEPHONE & ALARM
INTERCONNECTS
Gel filled type jellybean connectors
also known as maggots, Chiclets,
beans, B-wire connectors. By using
wire penetrating teeth you don’t have
to strip off the insulation, making it
easy to splice together several wires.
High-impact polycarbonate housing
with thick .355mm phosphor bronze
contacts. For use with 22-26 awg.
wires.
70-392J-25.......................25 Pcs.
70-392J-100...................100 Pcs.
70-392J-1000...............1000 Pcs.
UG GEL-FILLED CONNECTOR
70-394-25...........Red, 3 port, 25 Pcs
70-394-100........Red,3 port, 100 Pcs
70-394-1000...Red, 3 port, 1000 Pcs
70-394-YL-25..Yellow ,3 port,25 Pcs
70-394-YL-100..Yellow,3 port,100 Pcs
70-394-YL-1000.Yellow,3 port, 1K Pcs
70-395-25......Yellow, 2 port, 25 Pcs
70-395-100...Yellow, 2 port,100 Pcs
Allows direct bridging onto existing
cable conductor without service
interruption. Water displacing jelly is
used to minimize moisture
penetration that could corrode the
wiring. Available in two or three port
versions. Works with 19-26 awg.
wire. Packaged in 25 or 100 piece
quantities.
70-393
UB GEL-FILLED CONNECTOR
Permits tapping directly into
existing cable conductor without
service interruption. Position and
pre-crimp feature prevents
conductor from slipping prior to
final crimp. Water displacing jelly is
used to minimize moisture
penetration that could corrode the
wiring. Works with 19-26 awg.
wire. Packaged in 25 or 100 piece
quantities.
70-393-25..................25 pcs
70-393-100..............100 pcs.
70-393-1000............1000 pcs.
70-394 3 Port
70-395 2 Port
CALRAD
70 Series - Telephone Accessories
MODULAR PLUGS
Modular plugs to use on end of flat or round modular
cable.
70-495 ....................................... Handset Type (10 pkg.)
70-496 ........................................RJ11 Line Cord Type (10 pkg.)
70-496R .................................... RJ11 4-pin for round cable
70-496R-UL .............................. RJ11 4-pin, round stranded, UL app.
70-497 ....................................... RJ45 8-pin Type (5 pkg.)
70-497R ............................ RJ45 8-cond, round
70-499 ....................................... RJ12 6-pin Type (10 pkg.)
70-499R ............................ RJ12 6-pin, round stranded, UL app.
70-499RS-UL.................... RJ12 6-pin, round solid, UL app.
70-514R .................................... 10 conductor for round cable
72-497R-25...........................RJ45 8-pin for CAT 5e (25 pkg.)
72-497R-100.........................RJ45 8-pin for CAT 5e (100 pkg.)
72-498R-25...........................RJ45 8-pin for CAT 6 (25 pkg.)
72-498R-100.........................RJ45 8-pin for CAT 6 (100 pkg.)
70-505 (623D4)
Modular line cord
Female chassis jack.
6-position, 4 wires
and lugs. For use in
phone base.
70-508 (616PC)
Modular handset
chassis jack. 4position, 4-pin, PC
mount. For use in
phone base.
70-509 (623PC)
Modular line cord
chassis jack. 6position, 4-pin, PC
mount. Use in
phone base.
R = Round stranded
RS = Round Solid
EXTENSION CORD
WITH DUPLEX JACK
Modular plug to double
jack for two phone devices.
70-443................................ 14 ft.
70-444................................ 25 ft.
BOTH IVORY COLOR
MODULAR TELEPHONE
EXTENSION CORD
70-510
Modular Female
chassis jack. 8position, 8-pin,
PC mount.
70-511
Modular Female
chassis jack. 8-position,
8 wires and lugs. For 8
conductor cable
equipment.
Can be used to extend a single
pre-existing modular jack and
permit connection of one
telephone.
70-415..................... 25 ft., Ivory
70-415-W................. 25 ft., White
70-419..................... 14 ft., Ivory
70-419-W................. 14 ft., White
TELEPHONE CABLE
CRIMPING TOOLS
Crimping tools for installation of line
cord plugs on modular cables. Also
strips outer covers.
70-550 ........................... 8-wire
70-551 ..................... 4 & 6-wire
TELEPHONE CABLE
CRIMPING TOOLS
Crimping tools for installation of line
cord plugs on modular cables. Also
strips outer covers.
70-516 4-wire handset & line (plastic)
146
CALRAD
70 Series - Telephone Accessories/Keystone Inserts
STRAIGHT MODULAR
LINE CORDS
Modular plugs on both ends.
Flat cable.
MODULAR HANDSET CORDS
Coil style handset cable with modular plugs at each end.
6' LONG
70-445 ..................................Ivory
70-446 .................................White
70-447 .................................Black
70-448 ....................................Ash
70-449 ................................Brown
12' LONG
70-450 .................................White
70-451 .................................Beige
70-452 .................................Black
70-453 ..................................Ivory
70-454 ....................................Ash
25' LONG
70-406 .............................White
70-460 .............................Beige
70-461 ..............................Black
70-465 ...............................Ivory
70-466 ................................Ash
70-467..............................Silver
70-585 ...............................Grey
50' LONG
70-406-50.........................White
70-462-50 .......................Brown
70-465-50..........................Ivory
70-416-8 ............... 8 inch, 4-Wire
70-416*..................... 7 ft., 4-Wire
*Black,Ivory,Silver,White
70-429*................... 14 ft., 4-Wire
*Black,Ivory,Silver,White
70-397*................... 25 ft., 4-Wire
*Black,Ivory,Silver,Whiter
70-433 ........... 7 ft., 6-Wire, Silver
70-434 ......... 14 ft., 6-Wire, Silver
70-434-IV...... 14 ft., 6-Wire, Ivory
70-435 ......... 25 ft., 6-Wire, Silver
70-440 ........... 7 ft., 8-Wire, Silver
70-441 ......... 14 ft., 8-Wire, Silver
70-442 ......... 25 ft., 8-wire , Silver
*Specify color when ordering.
STRAIGHT MODULAR
LINE CORDS
Modular plug at one end and
spade lugs on other end.Flat
cable.
70-418-IV........ 7 ft., 4-Wire, Ivory
70-428-IV...... 14 ft., 4-Wire, Ivory
70-396 ......... 25 ft., 4-Wire, Silver
70-430 ........... 7 ft., 6-Wire, Silver
70-431 ......... 14 ft., 6-Wire, Silver
70-432 ......... 25 ft., 6-Wire, Silver
72-350
KEYSTONE 2.1mm DC
POWER JACK TO SCREW
TERMINALS
Labeled (+, -) screw terminals.
Accepts up to 18 Awg
wire.Overall depth 1.4”.
Color: BLACK
FLAT MODULAR WIRE
28 gauge wire.
70-540*..............................50 ft.,4-Cond, Black,Ivory,Silver,White
70-541-100*.......................100 ft.,4-Cond, Black,Ivory,Silver,White
70-541-BK-1000 .......................... 1000 ft., 4-Cond, Black
70-541-IV-1000............................ 1000 ft., 4-Cond, Ivory
70-541-SL-1000........................... 1000 ft., 4-Cond, Silver
70-541-W-1000............................ 1000 ft., 4-Cond, White
70-544-IV-100.............................. 100 ft., 6-Cond, Ivory
70-544-IV-1000............................ 1000 ft., 6-Cond, Ivory
70-544-SL-100............................. 100 ft., 6-Cond, Silver
70-544-SL-1000........................... 1000 ft., 6-Cond, Silver
70-547-IV-100.............................. 100 ft., 8-Cond, Ivory
70-547-IV-1000............................ 1000 ft., 8-Cond, Ivory
70-547-SL-100............................. 100 ft., 8-Cond, Silver
70-547-SL-1000........................... 1000 ft., 8-Cond, Silver
*Specify color when ordering.
147
72-100T
KEYSTONE 4 POSITION
FEMALE TELEPHONE
JACK TO SCREW
TERMINALS
RJ11, 4 pin Female JACK.
Accepts up to 18 Awg wire.
Color: White
TELEPHONE
CALRAD
72 - Series Network Products DATA
TELEPHONE
TELEPHONE
72-305-E
8 POSITION FEMALE TO
FEMALE KEYSTONE
FEED-THRU JACK
72-306
6 POSITION FEMALE TO
FEMALE KEYSTONE
FEEDTHRU JACK
6-POSITION UL
KEYSTONE MODULAR
JACK
CAT5e RJ45 Female to Female
feed-thru keystone insert.
Color: Black.
RJ12, 6 pin Female to Female
feed-thru keystone insert.
Color is Black
keystone audio/video
and data keystone
accessories
DATA
CAT 5e
IDC type meets level 3 & 4
requirements. 30 microns gold
platted contacts and ABS
material UL94/A-O. Suitable for
22-26 AWG wire. Will work as a
4 position jack.
72-100-AL................Almond
72-100-BK................ Black
72-100-IV .................. Ivory
72-100-WH .............. White
CAT 5e
UL 350MHz, RJ45
ENHANCED 90°
KEYSTONE JACK
Gold plated 50 microns.
72-102-AL-E90..............Almond
72-102-BK-E90............... Black
72-102-BU-E90 ................ Blue
72-102-GN-E90 ............ Green
72-102-IV-E90................. Ivory
72-102-OR-E90 .......... Orange
72-102-RD-E90 ................. Red
72-102-WH-E90............. White
72-102-YL-E90.............. Yellow
8-POSITION UL
KEYSTONE MODULAR
JACK
IDC type meets level 3 & 4
requirements. 30 microns gold
platted contacts and ABS
material UL94/A-O. Suitable for
22-26 AWG wire.
72-101-BK................ Black
72-101-IV .................. Ivory
72-101-WH .............. White
72-106-WH-E
UL 350MHz, RJ45
ENHANCED KEYSTONE
JACK
Gold plated 50 microns.
72-102-AL-E..................Almond
72-102-BK-E.................. Black
72-102-BU-E .................... Blue
72-102-GN-E ................ Green
72-102-IV-E..................... Ivory
72-102-OR-E .............. Orange
72-102-RD-E ..................... Red
72-102-WH-E................. White
72-102-YL-E.................. Yellow
UL 350MHz, RJ45 ENHANCED
TOOLESS KEYSTONE JACK
Secure self-terminating IDC
mechinism allows for tool free
installation Gold plated 50 microns.
72-103-AL-E.................Almond
72-103-BK-E....................Black
72-103-BU-E.....................Blue
72-103-GN-E...................Green
72-103-IV-E.......................Ivory
72-103-OR-E.................Orange
72-103-RD-E.......................Red
72-103-WH-E...................White
72-103-YL-E...................Yellow
72-106-BK-E.....(Black) Narrow version
72-106-WH-E.....(White) Narrow version
UL 1GHz RJ45
BROADBAND 90° CAT 6
KEYSTONE JACK
Gold plated 50 microns
72-400-AL......................Almond
72-400-BK.........................Black
72-400-BU.........................Blue
72-400-GN........................Green
72-400-IV............................Ivory
72-400-OR......................Orange
72-400-RD............................Red
72-400-WH........................White
72-400-YL........................Yellow
RCA AUDIO/VIDEO FEMALE TO FEMALE
RECESSED KEYSTONE INSERT
UL 1GHz RJ45
BROADBAND CAT 6
TOOLESS, KEYSTONE
JACK
Secure self-terminating IDC
mechanism allows for
tool free installation.
Gold plated 50 microns
72-401-WH.....................White
Recessed RCA Female to Female feed-thru jack. Flush-faced
colored insert provides for easy identification. Comes with either
Gold or Nickel plated connectors.
Please specifiy color and style when ordering
Nickel Version
72-308-BK ...................... Black
72-308-BU ........................ Blue
72-308-GN ..................... Green
72-308-IV ........................ Ivory
72-308-OR .................... Orange
72-308-RD......................... Red
72-308-WH ..................... White
72-308-YL ..................... Yellow
Gold Version
72-308G-BK .......... Black, Gold
72-308G-BU............ Blue, Gold
72-308G-GN......... Green, Gold
72-308G-IV............. Ivory, Gold
72-308G-OR........ Orange, Gold
72-308G-RD ............ Red, Gold
72-308G-WH......... White, Gold
72-308G-YL......... Yellow, Gold
RGB+VIDEO RCA
KEYSTONE INSERT
RCA Female to Female jacks with
colored inserts of Blue, Green,
Ivory, Red, White or Yellow, Nickel
plated. Specify color when
ordering.
72-300-BK........................Black
72-300-BU ........................ Blue
72-300-GN ..................... Green
72-300-IV ........................ Ivory
72-300-OR......................Orange
72-300-RD...........................Red
72-300-WH ..................... White
72-300-YL ..................... Yellow
Gold Version availableexample order
as ” 72-300G-COLOR
148
CALRAD
72 Series - Keystone Inserts
SVHS VIDEO FEMALE TO FEMALE RECESSED FEED-THRU KEYSTONE INSERT
Recessed Female to Female mini din jack, in 4, 6 or 8 pin configurations. Colored insert snaps into
keystone flush-faced and provides for easy identification. Comes in either Gold or Nickel plated connector.
Available in black, blue, green, ivory, orange, purple, red, white, or yellow. Please specifiy color and
style when ordering.
4 Pin Version Nickel Version
72-304-BK. .......................Black
72-304-BU ..........................Blue
72-304-GN .......................Green
72-304-IV ......................... Ivory
72-304-OR .....................Orange
72-304-PU .......................Purple
72-304-RD...........................Red
72-304-WH ..................... White
72-304-YL .......................Yellow
4 Pin Version Gold Version
72-304G-BK ............Black, Gold
72-304G-BU..............Blue, Gold
72-304G-GN...........Green, Gold
72-304G-IV............. Ivory, Gold
72-304G-OR.........Orange, Gold
72-304G-PU...........Purple, Gold
72-304G-RD ..............Red, Gold
72-304G-WH.......... White, Gold
72-304G-YL...........Yellow, Gold
6 Pin Version Nickel Only
72-304-6-BK. ....................Black
72-304-6-BU.......................Blue
72-304-6-GN....................Green
72-304-6-IV ...................... Ivory
72-304-6-OR..................Orange
72-304-6-PU....................Purple
72-304-6-RD .......................Red
72-304-6-WH .................. White
72-304-6-YL ....................Yellow
Gold Version available just order
as sample” 72-304G-6-COLOR
SVHS KEYSTONE CONNECTORS
72-311G............................................... Male to Female Feedthru
72-312G........................................... Female to Female Feedthru
72-314G................................. Recessed Female to Punchdown
New 4 pin SVHS Keystone connectors. Choose from either feedthru or
connector styles. Available in feedthru configurations of Male to
Female or Female to Female. Connector styles come with solder cups
or terminals. Gold plated with white keystone snap-in. Works in
conjunction with Calrad p/n 72-233 four and six port insert plates.
75 OHM BNC FEMALE
TO FEMALE RECESSED
INSERT
Recessed 75 ohm BNC
Female to Female feed-thru
jack. Colored insert snaps
into keystone flush-faced and
provides for easy
identification. Nickel plated
connector.
72-307-BK....................Black
72-307-BU.....................Blue
72-307-GN..................Green
72-307-IV......................Ivory
72-307-RD.....................Red
72-307-WH..................White
72-307-YL.................Yellow
149
‘F’ CONNECTOR
FEMALE TO FEMALE
INSERT
“F-81” RF KEYSTONE
FEED-THRU
Non-Recessed 1/2”
bulkhead standard F-81
jack mounted in a
keystone insert.
72-211-IV................Ivory
72-211-WH.............White
72-211-2GHZ.........White
72-211-3GHZ.........White
50 OHM BNC FEMALE TO
FEMALE INSERT
3/8” “D” bulkhead 50 Ohm BNC
jack mounted in a keystone
insert.
72-210-AL .....................Almond
72-210-IV ...........................Ivory
72-210-WH ...................... White
BANANA JACK
FEMALE TO
FEMALE
RECESSED
INSERT
72-330-BK Black
72-330-RD Red
Isolated banana jack
feed-thru in a
recessed, flush-faced
keystone insert.
Provides a smooth
cosmetic look and
colored insert allows
for easy channel
identification.
Visit Calrad on the Web at: www.calrad.com
72-310
3.5mm STEREO FEMALE
TO FEMALE RECESSED
INSERT
Recessed 3.5mm stereo Female
to Female keystone feed-thru
jack. Colored insert snaps into
keystone flush-faced and
provides for easy identification.
Nickel plated connector.
72-310-BK ........................Black
72-310-BU ..........................Blue
72-310-GN ..................... Green
72-310-IV ...........................Ivory
72-310-RD...........................Red
72-310-WH .......................White
TOSLINK FEMALE TO
FEMALE RECESSED
INSERT
Toslink Female to Female
feed-thru insert. Colored flushfaced insert allows for smooth
appearance and easy
indentification. Available in
Black, Blue, Green, Ivory, Red
or White. Please specify color
when ordering.
72-320-BK..................Black
72-320-BU...................Blue
72-320-GN................Green
72-320-IV....................Ivory
72-320-RD...................Red
72-320-WH................White
72-320-YL...............Yellow
72-320
PANEL MOUNT
TOSLINK FEMALE
TO FEMALE FEEDTHRU
Toslink Female to
Female panel mount
feed-thru. Comes with
mounting hardware or
can be used with the
72-205 colored
keystone insert.
CALRAD
72 Series - Keystone Inserts, Network Products
72-125KS-2
Bi-directional passive UTP Cat5e, Cat6 USB
adapters are perfect for low power low-speed USB
devices like touch screens, printers, RF dongles,
media storage devices. Easy to install cable using a
cable stripper, slotted screw driver. Mounts in a
standard keystone wall plate or can be used as a
stand alone solution. Supports 1.1 and 2.0 devices,
some 2.0 devices will work up to the 65 ft. and
others will not and will be limited to 1.1
specifications. Use standard type ‘A’ to ‘A’ cables for
connecting the transmitter and receiver, the cables
should be as short as possible 1-3’, if you use 6’
cables on each side then they should be considered
in the overall distance calculation. Terminal Set
Screw: Slotted Head, Excepts Wire Size: 20-28
gauge Solid UTP cable, use ( Cat5, Cat5e, Cat6),
Works with USB type 1.1, 2.0 devices, Insulation
resistance: 500M ohms or more @ 500V, Insertion
Loss: <.5db, Connector Type: 4 Pin Gold Female
USB Type A Jack. Distance between connectors 65
ft. maximum (Based on Solid UTP Cable), Color:
Black, Mounting Depth 1.93”.
72-125K
72-126K
72-120K
72-122K
TYPE “A” USB
FEMALE TO
FEMALE &
SOLDERLESS
KEYSTONE
INSERTS
72-125K USB type A
feed-thru
72-125K-W USB type
A feed-thru color white
72-125K-S solderless
Type “A” USB keystone
insert in either
solderless or Female
feed-thru styles.
Solderless version has
individual “U” shaped
screw terminals for a
solid secure wiring
termination.
TYPE “B” USB
FEMALE TO
FEMALE &
SOLDERLESS
KEYSTONE
INSERTS
72-126K feed-thru
72-126K-S solderless
Type “B” USB
keystone insert in
either solderless or
Female feed-thru
styles. Solderless
version has individual
“U” shaped screw
terminals for a solid
secure wiring
termination.
4 PIN RECESSED
FIREWIRE
FEMALE TO
FEMALE &
SOLDERLESS
KEYSTONE
INSERTS
72-120K feed-thru
72-120K-S solderless
4 pin firewire keystone
insert in either
solderless or Female
feed-thru styles.
Solderless version has
individual “U” shaped
screw terminals for a
solid secure wiring
termination.
6 PIN FIREWIRE
FEMALE TO
FEMALE &
SOLDERLESS
KEYSTONE INSERTS
72-122K feed-thru
72-122K-S solderless
6 pin firewire keystone
insert in either
solderless or Female
feed-thru styles.
Solderless version has
individual “U” shaped
screw terminals for a
solid secure wiring
termination.
30-288
WASHERS
75-696K-S BNC
30-308-K-S RCA
35-498K-S SVHS
75-696K-S
35-498K-S
30-308K-S
SOLDERLESS KEYSTONE & CHASSIS MOUNT RCA, BNC AND SVHS JACKS
Our new patent pending connectors provide a solderless and connectorless backside termination solution. These
connectors can mount in a 1/2” hole or be assembled into any of Calrad’s blank keystone inserts or chassis panels
with colored plastic washers (part# 30-288-color) in black, blue, green, ivory, red, orange, violet or white). The
individual “U” shaped screw terminals gives a solid and secure wiring termination. Small slotted screws on the back
of the connector are used to tighten the cable connections. Each terminal is clearly labeled for easy wiring
connection. These connectors work with Calrad’s 55-770G miniature S-Video cable, 55-868B SVHS + audio cable or
55-897B miniature stereo audio cable. To be used as keystone inserts, you must use Calrad 72-205-COLORED
inserts. See Below
RECESSED KEYSTONE
BLANK INSERTS
Blank recessed keystone insert,
Available in Black, Blue, Green,
Ivory, Orange, Purple, Red,
White and Yellow.
72-205-BK.....................Black
72-205-BU......................Blue
72-205-GN...................Green
72-205-IV.......................Ivory
72-205-OR.................Orange
72-205-PU...................Purple
72-205-RD......................Red
72-205-WH...................White
72-205-YL..................Yellow
RJ45 SNAGLESS RUBBER
BOOTS
Available in Black, Blue, Ivory,
Orange, Red, White, Yellow, Green
or Grey. Used with round cable.
72-104-BK ..................... Black
72-104-BU ........................ Blue
72-104-GN .......................Green
72-104-GY .........................Grey
72-104-IV ........................ Ivory
72-104-OR .................. Orange
72-104-RD......................... Red
72-104-WH .................... White
72-104-YL...................... yellow
RJ45 MODULAR PLUG for CAT5e and CAT6
Crimp style connector for use with twisted pair data cables. Gold plated 50
microns of gold.
CAT5e
72-497R-25 ............. pack of 25
72-497R-100 ......... pack of 100
CAT6
72-498R-25 ............. pack of 25
72-498R-100 ......... pack of 100
150
CALRAD
72 Series - Network Products
CAT 5e
FIELD INSTALLABLE 2PIECE SNAP-ON RJ45
SNAGLESS BOOTS
72-105-BK ....................... Black
72-105-BU ..........................Blue
72-105-IV .......................... Ivory
72-105-OR .....................Orange
72-105-RD...........................Red
72-105-WH ...................... White
72-105-YL .......................Yellow
72-230
KEYSTONE PLASTIC
WALL PLATES
Includes mounting hardware.
Available in White, Almond
and Ivory
CAT 5e
72-108-WH
DUPLEX ENHANCED
SURFACE MOUNT JACK
Up to 350MHz PCB surface
mount jack with 110 IDC, allows
for quick and easy installation.
UL certified to meet EIA/TIA
568A or B, TSB 40A
specifications. 2 RJ45 jacks.
Includes mounting hardware.
151
KEYSTONE BLANK
CONNECTOR INSERT
Blank insert with 3/8” hole. For use
with Calrad connectors and Keystone
cavity wall plates. Hex nut cutout on
rear of insert.
72-217-IV ...........................Ivory
72-217-WH .......................White
72-230-1 .............. 1 port, White
72-230-2 ............ 2 ports, White
72-230-3 ............ 3 ports, White
72-230-4 ............ 4 ports, White
72-230-6 ............ 6 ports, White
72-230-1-AL ..... 1 port, Almond
72-230-2-AL ... 2 ports, Almond
72-230-3-AL ... 3 ports, Almond
72-230-4-AL ... 4 ports, Almond
72-230-6-AL ... 6 ports, Almond
72-230-1-IV........... 1 port, Ivory
72-230-2-IV ......... 2 ports, Ivory
72-230-3-IV ......... 3 ports, Ivory
72-230-4-IV ......... 4 ports, Ivory
72-230-6-IV ......... 6 ports, Ivory
CAT 5e
72-107-WH
SINGLE ENHANCED
SURFACE MOUNT JACK
Up to 350MHz PCB surface mount
jack with 110 IDC, allows for quick
and easy installation. UL certified
to meet EIA/TIA 568A or B, TSB
40A specifications. 1 RJ45 jack.
Includes mounting hardware.
Color is white
Visit Calrad on the Web at: www.calrad.com
KEYSTONE BLANK
INSERT
Blank insert for use with Calrad
Keystone cavity wall plates.
72-213-AL .....................Almond
72-213-IV............................Ivory
72-213-WH .......................White
72-231
ANGLED CAVITY
KEYSTONE WALL PLATES
72-231-1 .............. 1 port, White
72-231-2 ............ 2 ports, White
72-231-3 ............ 3 ports, White
72-231-4 ............. 4 ports, White
72-109
CAT-5e INLINE COUPLER
Connect 2 CAT-5, CAT-5e
cables together. Bandwidth up
to 500Mbs. Meets FCC part 68.
Contacts are plated with 50
microns of gold over 100
microns of nickel on phosphor.
Size: 1.02”W x .98”H x 1.88”D..
Color is white.
72-109-CAT6 for Cat-6 inline
coupler version
DESIGNER STYLE CAT-5
KEYSTONE WALL PLATE
INSERTS
Includes mounting screws.
72-233-1 .............. 1 port, White
72-233-2 ............ 2 ports, White
72-233-3 ............ 3 ports, White
72-233-4 ............. 4 ports, White
72-233-6 ............ 6 ports, White
72-233-1-IV........... 1 port, Ivory
72-233-2-IV ......... 2 ports, Ivory
72-233-3-IV ......... 3 ports, Ivory
72-233-4-IV .......... 4 ports, Ivory
72-233-6-IV ......... 6 ports, Ivory
CAT 5e
72-236-WH
PLASTIC CAT-5,
CAT-5e BACK BOX
For use with Calrad 72-229-1,
72-229-2 duplex style Keystone
wall plates. Includes mounting
hardware.
Color is white
72-248 LAN & VOICE
CABLE TESTER
Tests for RJ45 modular
connection with 258A, 568A &
B, 356A wiring and 10 baseT &
BNC coaxial. Includes 2
adapters for USOC RJ12 and
RJ11 test usage. Performs test
of cable continuity, miss wiring
and polarization by the color of
the L.E.D. indicators.
Detachable remote unit for
installed cabling. Powered using
a 9V battery. Includes black
ballistic nylon carrying case.
CALRAD
72 Series - Network Products
72-241
7.3” MODULAR CRIMP
TOOL
72-242
7.6” PRO MODULAR
CRIMP TOOL
Cuts, strips,and crimps two
types of plugs 6P & 8P in one.
For crimping: 8P8C/RJ45,
6P6C/RJ12, 6P4C/ RJ11 and
6P2C plugs. Steel body with
easy grip plastic handles.
For crimping 6P-RJ11 / RJ12 &
8P-RJ45, suitable for both
stranded and solid wire.
Provides precision crimping,
cutting and stripping wire in one
operation. Ratchet style
mechanism.
72-234 ADJUSTABLE
IMPACT PUNCH DOWN
TOOL
72-244
IMPACT PUNCH DOWN
TOOL
Provides consistant action for
seating wire into terminal blocks.
Adjustable impact pressure
control. The back of the handle is
a storage compartment for 1
spare blade. For use with Calrad
72-245, 72-246, 72-247 blades.
Provides consistant action for
seating wire into terminal blocks.
For use with Calrad 72-245, 72246, 72-247 blades.
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
RED
72-110-1-RD............1ft. Red
72-110-3-RD...........3 ft. Red
72-110-5-RD...........5 ft. Red
72-110-7-RD...........7 ft. Red
72-110-10-RD.......10 ft. Red
72-110-14-RD.......14 ft. Red
72-110-25-RD.......25 ft. Red
72-110-50-RD.......50 ft. Red
72-110-100-RD...100 ft. Red
72-240
MULTI-PURPOSE
MODULAR CRIMP TOOL
RJ45 crimping tool cuts, strips
and crimps quickly and easily.
For RJ45 ethernet and RJ11
plugs. Provides repeatability and
reliability of crimp. High impact
plastic construction. Compact
size, easy to handle.
72-239
PLASTIC PUNCH TOOL
Inexpensive disposable punch
down tool with cable stripping
blade for outer PVC jacket.
Suitable for small jobs. Works
with 5-6mm O.D. UTP/STP
cable. Terminates conductors on
110 blocks.
70-550
TELEPHONE CABLE
CRIMPING TOOL
For crimping RJ45 plugs.
Crimping tools for installation of
line cord plugs on modular
cables. Also strips outer covers.
PUNCH DOWN BLADES
FOR 72-234 AND 72-244
PUNCH DOWN TOOLS
72-245 66 punch down blade
72-246 110/88 punch down
blade
72-247 66,110/88 punch down
blade
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
WHITE
72-110-1-WH.........1 ft. White
72-110-3-WH.........3 ft. White
72-110-5-WH.........5 ft. White
72-110-7-WH.........7 ft. White
72-110-10-WH.....10 ft. White
72-110-14-WH.....14 ft. White
72-110-25-WH.....25 ft. White
72-110-50-WH.....50 ft. White
72-110-100-WH.100 ft. White
YELLOW
72-110-1-YL..........1ft. Yellow
72-110-3-YL.........3 ft. Yellow
72-110-5-YL.........5 ft. Yellow
72-110-7-YL.........7 ft. Yellow
72-110-10-YL.....10 ft. Yellow
72-110-14-YL.....14 ft. Yellow
72-110-25-YL.....25 ft. Yellow
72-110-50-YL.....50 ft. Yellow
72-110-100-YL.100 ft. Yellow
UL high performance, stranded
hi-flex conductors for superior
flexibility. Color cable and boot.
Gold plated plugs with 50
microns of plating.
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
72-110
350MHz CAT-5E, RJ45
SNAGLESS CABLES
BLACK
72-110-1-BK...........1 ft. Black
72-110-3-BK...........3 ft. Black
72-110-5-BK...........5 ft. Black
72-110-7-BK...........7 ft. Black
72-110-10-BK.......10 ft. Black
72-110-14-BK.......14 ft. Black
72-110-25-BK.......25 ft. Black
72-110-50-BK.......50 ft. Black
72-110-100-BK...100 ft. Black
BLUE
72-110-1-BU..........1ft. Blue
72-110-3-BU..........3ft. Blue
72-110-5-BU.........5 ft. Blue
72-110-7-BU.........7 ft. Blue
72-110-10-BU.....10 ft. Blue
72-110-14-BU.....14 ft. Blue
72-110-25-BU.....25 ft. Blue
72-110-50-BU.....50 ft. Blue
72-110-100-BU.100 ft. Blue
GREEN
72-110-1-GN..........1ft. Green
72-110-3-GN..........3ft. Green
72-110-5-GN.........5 ft. Green
72-110-7-GN.........7 ft. Green
72-110-10-GN.....10 ft. Green
72-110-14-GN.....14 ft. Green
72-110-25-GN.....25 ft. Green
72-110-50-GN.....50 ft. Green
72-110-100-GN.100 ft. Green
GREY
72-110-1-GY..........1ft. Grey
72-110-3-GY..........3ft. Grey
72-110-5-GY.........5 ft. Grey
72-110-7-GY.........7 ft. Grey
72-110-10-GY.....10 ft. Grey
72-110-14-GY.....14 ft. Grey
72-110-25-GY.....25 ft. Grey
72-110-50-GY.....50 ft. Grey
72-110-100-GY.100 ft. Grey
152
CALRAD
72 series - Cat 6 Cables & Adapters
72-111
1 GHz CAT-6E, RJ45
SNAGLESS CABLES
72-111
1 GHz CAT-6E, RJ45
SNAGLESS CABLES
72-111
1 GHz CAT-6E, RJ45
SNAGLESS CABLES
BLACK
GREY
BLUE
72-111
1 GHz CAT-6E, RJ45
SNAGLESS CABLES
72-111
1 GHz CAT-6E, RJ45
SNAGLESS CABLES
YELLOW
RED
72-111-3-BK ..............3 ft. Black
72-111-5-BK ..............5 ft. Black
72-111-7-BK ..............7 ft. Black
72-111-10-BK ........ 10 ft. Black
72-111-14-BK ........ 14 ft. Black
72-111-15-BK...........15 ft. Black
72-111-25-BK...........25 ft. Black
72-111-50-BK. .........50 ft. Black
72-111-75-BK ..........75 ft. Black
72-111-100-BK ......100 ft. Black
72-111
72-111
1 GHz CAT-6E, RJ45 SNAGLESS 1 GHz CAT-6E, RJ45
SNAGLESS CABLES
CABLES
GREEN
72-111-3-GN...............3 ft. Green
72-111-5-GN...............5 ft. Green
72-111-7-GN...............7 ft. Green
72-111-10-GN...........10 ft. Green
72-111-14-GN......... 14 ft. Green
72-111-25-GN...........25 ft. Green
72-111-50-GN...........50 ft. Green
72-111-75-GN...........75 ft. Green
72-111-100-GN.......100 ft. Green
WHITE
72-111-3-WH..............3 ft. White
72-111-5-WH..............5 ft. White
72-111-7-WH..............7 ft. White
72-111-10-WH..........10 ft. White
72-111-14-WH..........14 ft. White
72-111-25-WH .........25 ft. White
72-111-50-WH..........50 ft. White
72-111-75-WH..........75 ft. White
72-111-100-WH......100 ft. White
72-171, 72-172, 72-173, 72-RJ45-T,
RJ45 to Terminal Block Adapters
For Use With Video Balun
Termination and Point to Point
Cat5e, Cat6 Signal Termination
72-111-3-GY ...............3 ft. Grey
72-111-5-GY ...............5 ft. Grey
72-111-7-GY ...............7 ft. Grey
72-111-10-GY ......... 10 ft. Grey
72-111-14-GY ......... 14 ft. Grey
72-111-15-GY............15 ft. Grey
72-111-25-GY ...........25 ft. Grey
72-111-50-GY ...........50 ft. Grey
72-111-75-GY ...........75 ft. Grey
72-111-100-GY .......100 ft. Grey
72-111-3-YL .............3 ft. Yellow
72-111-5-YL .............5 ft. Yellow
72-111-7-YL .............7 ft. Yellow
72-111-10-YL ....... 10 ft. Yellow
72-111-14-YL ....... 14 ft. Yellow
72-111-25-YL .........25 ft. Yellow
72-111-50-YL .........50 ft. Yellow
72-111-75-YL .........75 ft. Yellow
72-111-100-YL .....100 ft. Yellow
72-111-3-BU................3 ft. Blue
72-111-5-BU................5 ft. Blue
72-111-7-BU................7 ft. Blue
72-111-10-BU.......... 10 ft. Blue
72-111-14-BU.......... 14 ft. Blue
72-111-25-BU............25 ft. Blue
72-111-50-BU............50 ft. Blue
72-111-75-BU............75 ft. Blue
72-111-100-BU........100 ft. Blue
72-111-3-RD ................3 ft. Red
72-111-5-RD ................5 ft. Red
72-111-7-RD ................7 ft. Red
72-111-10-RD .......... 10 ft. Red
72-111-14-RD .......... 14 ft. Red
72-111-25-RD ............25 ft. Red
72-111-50-RD ............50 ft. Red
72-111-75-RD ............75-ft. Red
72-111-100-RD ........100 ft. Red
Small Slotted
Screw Driver
Required
Solderless RJ45 to terminal block adapters provide a reusable
connection solution resulting in a simple and convenient method
of connecting products or devices wih different types of signals
over inexpensive UTP Cat5e, Cat 6 cable without the use of
tedeous RJ45 connectors or crimping tool. If you need to change
or modify your installation for use with different signals, no
problem simply change the wiring with a small slotted screw
driver, no additional connectors are necessary. Labeled terminal
blocks 1-8 positions, Accepts 22 to 24 AWG wire.
RJ45
Female
RJ45 Male
71
72-172
72-173
-1
72
Side Solderless
Terminal Block
153
72-171
RJ45 Male to 8
Position Terminal
Block
Side Solderless
Terminal Block
RJ45 Male
72-172
RJ45 Male to 8 Position
Terminal Block, 6”
Pigtail Cable
Side
Solderless
Terminal
Block
RJ45
Female
72-173
RJ45 Female to 8
Position Terminal
Block, 6” Pigtail Cable
Rear
Solderless
Terminal
Block
72-RJ45-T
RJ45 Male to 8 Position Terminal
Block, 6” Pigtail Cable. Includes
Rubber Strain Relief and Cable Tie
CALRAD
72 Series - Mini USB Cables & Adapters
INLINE USB
ADAPTERS
Adapts USB
configurations Type
A and B and PS2
(6 pin mini din)
72-256
TYPE “A” FEMALE
USB TO TYPE “B”
FEMALE USB
ADAPTER
72-252
MALE TO MALE
TYPE “A” USB
ADAPTER
72-253
FEMALE TO
FEMALE TYPE “A”
USB ADAPTER
72-254
MALE TO MALE
TYPE “B” USB
ADAPTER
72-193
72-258
TYPE “A” MALE
USB TO PS2
FEMALE USB
ADAPTER
72-259
TYPE”A” FEMALE
USB TO RJ45
PLUG
TYPE “A” MALE USB
TO PS2 MOUSE AND
KEYBOARD
ADAPTER
72-255
TYPE “A” MALE USB
TO TYPE “B” FEMALE
USB ADAPTER
72-270
CAT 5E or CAT 6
CROSSOVER ADAPTER
RJ45 Male to Female adapter
turns any standard Cat 5 or
Cat 6 ethernet patch cable
into a crossover cable.
Mini USB Adapter Cables
These mini USB 2.0 cables allow the user to
interface their digital camera or other products to
standard USB type A or B. Available in 4 and 5
pin configurations.
Versions Available
Mini USB 5 Pin Male to USB Type A
72-260-3 ....................................3 ft.
72-260-6 ....................................6 ft.
Mini USB 4 Pin Male to USB Type A
72-261-3 ....................................3 ft.
72-261-6 ....................................6 ft.
Mini USB 4 Pin Male to USB Type B
72-262-3 ....................................3 ft.
Mini USB 4 Pin Male to Mini USB 4 Pin Male
72-263-3 ....................................3 ft.
Mini USB 5 Pin Male to Mini USB 5 Pin Male
72-264-3 ....................................3 ft.
72-264-6 ....................................6 ft.
RS232 TO USB ADAPTER CABLE
72-UC-320
USB to DB9 Serial Adapter provides a simple
connection between USB and RS-232 serial port.
Designed to connect to Cellular phones, PDA’s, digital
cameras, modems, or ISDN terminal adapters. Over
500 kbps data transfer rate. Uses no IRQs so it is
perfect if you need to connect many serial devices to
your PC. USB 1.1 compliant. Pentium 233MHz or
higher. Windows XP, Vista, and Windows 7 also
supports Mac 10.X.
72-260
72-261
72-263
72-264
72-262
72-UC-320
72-FIR USB INTERNET MEDIA PLAYER
Allows you to access more than 25,000 free
internet radio stations, 2,500 free internet TV
stations and over 2,500 free internet games. No
monthly fees or software to download. Simply plug
the USB media player into the USB port of any PC
with internet access for hours of free entertainment.
Easily search for available TV or radio stations
through the navigation map or built in search
engine. The record function allows you to save your
favorite programs on your computers hard drive.
PC ONLY DOES NOT WORK ON MAC
154
CALRAD
72 Series - USB Hubs, USB-PS2 Over Cat 5 Extenders
72-128......16 ft.
72-128-26.....26 ft.
USB TYPE ‘A’ 16 ft.
EXTENSION CABLE
72-131
USB 1.1 CAT5e Extender
72-142
4 Port USB Type ‘A’ 2.0
Hub with 6” Pigtail
40-KM01
PS2 Mouse and Keyboard
over Cat5e/Cat6 Balun
Running out of USB Ports? Look
no further. The Calrad 72-142 is a
portable solution to your USB port
problems. It allows for up to 4
additional USB ports and with
backward compatibility it's a great
and inexpensive way to expand
your connect ability. Compact and
portable, you can move it between
systems or take it with you
A low cost solution for
extending the transmission
signals of the mouse and
keyboard over Cat5e or Cat 6
UTP cable up to 300 feet.
72-191
(KVM) Keyboard, Video,
Mouse Cable
Available lengths
72-191-6...................6 ft.
72-191-10................10 ft.
72-191-15................15 ft.
72-140
ETHERNET OVER AC
Network PC’s using existing AC
wiring. Transmit data rates up to
14Mbps. Easy to install and set up.
Just plug the unit into an AC socket
and connect the ethernet cable to
the 10/100Mb ethernet port of the
PC or laptop. Can not be used with
power strips or UPS power
supplies. PC and Mac compatable.
Embedded USB transceiver
cable prevents signal loss.
Extends the cable length of any
USB device by an additional 16
or 26 feet. Daisy chain up to an
additional 4 cables for a max
extension of 80ft. Male to
Female USB type “A”
connectors.
anywhere you need it.
40-UE02
USB 2.0 CAT5e Extender
USB 2.0 extender can extend 4 USB 2.0 devices up to 150
meters from the location of your computer over CAT5/5e/6
UTP cable.
155
A simple solution for extending
USB 1.1 over Cat 5e or Cat 6
cable up to 150 ft. For use with
USB printers, USB scanners
and USB mouse or keyboards.
Dimensions: L- 2.5” X W-1.5” X
D-.875”.
Transmitter
72-132
USB OVER CAT5
EXTENDER CABLE
Extend the distance between a
USB device and a host
computer by up to 150 feet. It
consists of 2 pieces of a local
unit with USB Type A Male (host
computer side) and a remote
unit device side) with built-in
USB Type A Female connector.
Standard CAT5/5e/6 network
cable (UTP or STP) is used to
connect the two units together.
No External power required.
40-UE04H
USB CAT5e Extender with
4 Port USB 1.1 Hub
Extend four USB devices up to
50 meters over CAT5/5e cable.
USB 1.1 compliant. Including
local and remote unit. Compact
size, easy plug and play. 5Vdc
power supply included.
Receiver
CALRAD
72 Series - USB, Firewire, DB9/Mouse Cables, Bulk Cat5e, 6 Wire
USB SERIAL CABLES
Universal Serial Bus 2.0 (USB 2.0) brings a new standard of speed to the
USB market. These new highspeed USB cables give more versatility to
computers and peripherals than ever before. USB 2.0 increases signal
transmission from standard USB 1.1 topping out at 12Mb/s up to 480Mb/s
for USB 2.0. The cables are completely backward compatible with standard
USB ports, so there isn’t any need to worry that you will not be able to use
USB 2.0 cables on the standard USB products you already own.
VERSION 2.0 USB
TYPE A CABLES
72-195-6 ............................ 6 ft.
72-195-10 ........................ 10 ft.
DB-9 MOUSE/MONITOR
MALE TO FEMALE CABLES
VERSION 3.0 USB
TYPE A CABLES
72-196-6 ............................ 6 ft.
72-196-10 ........................ 10 ft.
Also known as RS232 cables. 9
wire 26-28 awg conductors with
foil shielding. Pin to pin wiring.
Rugged molded construction with
long grip-textured slotted thumb
screws.
72-135-3 ............................ 3 ft.
72-135-6 ............................ 6 ft.
72-135-15 ........................ 15 ft.
VERSION 2.0 USB
TYPE A/B CABLES
Type A
Type B
This type of IEE 1394 cable carries up to
over 400MBps of bandwidth.
72-120-6......4-pin/4-pin, 6 ft.
72-120-10..4-pin/4-pin, 10 ft.
72-120-12 4-pin/4-pin, 12 ft.
72-120-15 4-pin/4-pin, 15 ft.
72-121-6.... 6-pin/4-pin, 6 ft.
72-121-10 6-pin/4-pin, 10 ft.
72-121-12 6-pin/4-pin, 12 ft.
72-121-15 6-pin/4-pin, 15 ft.
72-122-6.... 6-pin/6-pin, 6 ft.
72-122-10 6-pin/6-pin, 10 ft.
72-122-12 6-pin/6-pin, 12 ft.
72-122-15 6-pin/6-pin, 15 ft.
72-119-4 4 Pin
72-119-6 6 Pin
4 pin or 6 pin
Female to
Female firewire
coupler.
72-190
SHIELDED 6 Pin MINI-DIN
EXTENSION CABLE
6-pin mini din Male to Female
extension cable, wired pin to
pin.
72-190-6..............................6 ft.
72-190-10..........................10 ft.
72-127
USB A Male to USB A Female
Extension Cables
72-127-6”.......................... 6 in.
72-127-3 ............................ 3 ft.
72-127-6 ............................ 6 ft.
72-127-10 ........................ 10 ft.
FIREWIRE CABLES
72-123
Firewire
Adapter
6 Pin Male to
4 Pin Female
72-194-6..............................6 ft.
72-194-10..........................10 ft.
DB-9/RS232
MOUSE/MONITOR
MALE TO MALE CABLES
72-125-3 ............................ 3 ft.
72-125-6 ............................ 6 ft.
72-125-10 ........................ 10 ft.
72-125-12 ........................ 12 ft.
72-125-15 ........................ 15 ft.
72-126-3 ............................ 3 ft.
72-126-6 ............................ 6 ft.
72-126-10 ........................ 10 ft.
72-126-12 ......................... 12 ft.
72-126-15 ........................ 15 ft.
72-194
SHIELDED 6 Pin MINI-DIN
MALE TO MALE CABLES
6-pin mini din Male to Male
cable, wired pin to pin.
KEYSTONE BLANK PATCH
PANELS
Numbered prepunched panels with
durable black finish.
72-226-12 ................. 12 ports
19”W x 13/4”H x 3/8”D
72-226-16 ................. 16 ports
19”W x 13/4”H x 3/8”D
72-226-24 ................. 24 ports
19”W x 31/2”H x 3/8”D
72-226-48 ................. 48 ports
19”W x 51/4”H x 3/8”D
72-225 WIRE
MANAGEMENT PANEL
6 Pin
72-124
Firewire
Adapter
6 Pin Female
to 4 Pin Male
4 Pin
4 stand offs for routing cables.
13/4” x 13/4” stand off openings for
cable passage. Size: 19”(W) x
13/4”(H) x 13/4”(D). Durable black finish.
72-250 (Solid)
72-250-S (Stranded)
CAT-5e CABLE 350MHz
1000’ roll solid twisted pair
unshielded UL/CSA, 24 AWG 4
pair, PVC jacket. UL/CSA for fast
ethernet 10/100/350 Base-T. Colors
available Blue, Grey and White.
72-251 (Solid)
CAT-6 CABLE
1000’ pull box of solid twisted pair
unshielded UL/CSA, 24 AWG 4
pair. 100MBps. UL/CSA for fast
ethernet 10/100 Base-T. PVC
jacket. Colors may vary.
CAT- 6
156
CALRAD
75 Series - tV & rf-CatV accessories
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
tHrU tHE WaLL BUSHINGS
fOr COaX CaBLE
Gives your installation a professional
look. Flanges help to secure an protect
cable, 2 pieces per package.
75-498
Ivory for RG59, RG6 cable, max O.D. .31” opening
75-498-BK
Black for RG59, RG6 cable, max O.D. .31” opening
75-498-Q
Clear for Quad RG6 cable, max O.D. .32” opening
75-498-D
Clear for RG59, RG6 dual feed, cable, max O.D. .62”
75-498-D-BK
Black for RG59, RG6 dual feed, cable, max O.D. .62”
75-499
PUSH-ON 75 OHM BaLUN
MatCHING traNSfOrMEr
Convert 300 ohm antenna leads
to 75 ohm Male ‘F’ push-on
connector.
Clips with nail anchors for
various cable mounting.
COaX CLIPS fOr rG 59
75-605-BK-25 ...... 25 per pack, Black
75-605-W-25........ 25 per pack, White
75-605-BK-100 .. 100 per pack, Black
75-605-W-100.... 100 per pack, White
COaX CLIPS fOr rG 6
75-606-BK-25 ...... 25 per pack, Black
75-606-W-25........ 25 per pack, White
75-606-BK-100 .. 100 per pack, Black
75-606-W-100.... 100 per pack, White
Clips with nail anchors for various
cable mounting.
CLIPS fOr MISC. WIrE
75-650-BK-25,-100.......... Round Cable, 25 or 100 pk, Black
75-650-W-25,-100............ Round Cable, 25 or 100 pk, White
75-651-W-25,-100 extra Small Flat Wire, 25 or 100 pk, White
75-652-W-25,-100......... Small Flat Wire, 25 or 100 pk, White
75-653-W-25,-100 .... .Medium Flat Wire, 25 or 100 pk, White
75-654-W-25,-100......... Large Flat Wire, 25 or 100 pk, White
75-655-W-20,-100 extra Large Flat Wire, 20 or 100 pk, White
75-656-BK-25,-100........... RG-8/RG-12, 25 or 100 pk, Black
75-656-W-25,-100............. RG-8/RG-12, 25 or 100 pk, White
75-657-BK-25,-100.................RG6 Dual, 25 or 100 pk, Black
75-500-S
75-480 1 GHz version
75-491
75-480-3 3 GHz version
PUSH-ON 75 OHM CaBLE tO
SINGLE “f” CONNECtOr
300 OHM traNSfOrMEr
GrOUND BLOCK
Convert 300 ohm antenna terminals on
75-500
BaLUN MatCHING
traNSfOrMEr
TV to 75 ohm RF connector.
Frequency range 54-890MHz.
75-500-S Outdoor version with
weather resistant rubber boot.
75-505
75-505G Gold version.
UHf/VHf OUtDOOr 2-WaY
HYBrID SPLIttEr
Built-in grounding block. Protects
against electrical surges.
Specifications
Frequency Range.. 5-900 MHz
Input ................................. 75W
Output .............................. 75W
Insertion Loss UHF-4 dB, VHF-3.5
dB
Size .............................. 2" x 23/8" x 5/8"
157
75-481 1 GHz version
75-481-3 3 GHz version
DOUBLE “f” CONNECtOr
GrOUND BLOCK
Convert 300 ohm antenna leads to
75 ohm Male ‘F’ push-on connector
on a 6 foot cable.
Lighting arrestor/grounding
block intercepts and sends
harmlessly to ground lighting
surges carried by coaxial cable
shield. Protects VCR’s, TV’s,
etc. Inserts into 75 ohm cable
TV or antenna system.
Lighting arrestor/grounding
block intercepts and sends
harmlessly to ground lighting
surges carried by coaxial
cable shield. Protects VCR’s,
TV’s, etc. Inserts into 75 ohm
cable TV or antenna system.
75-508
75-508G Gold version.
UHf/VHf INDOOr
3-WaY HYBrID SPLIttEr
75-509
75-509G Gold version.
UHf/VHf INDOOr
4-WaY HYBrID SPLIttEr
75-503 6-WaY COaXIaL
SPLIttEr
Specifications
Frequency Range.. 5-900 MHz
Input ................................. 75W
Output .............................. 75W
Insertion Loss -7 dB Port 1, 2,
and 3
Size ...................... 3" x 113/16" x 5/8"
Visit Calrad on the Web at: www.calrad.com
Specifications
Frequency Range.. 5-900 MHz
Input ................................. 75W
Output .............................. 75W
Insertion Loss UHF-8 dB,
VHF-7.5 dB
Size........................ 3" x 17/8" x 5/8"
UHF/VHF indoor-outdoor splitter.
75 ohm. 1 input to 6 outputs.
Frequency response of 5 to 900
MHz. Zinc die cast construction
with mounting tabs and screws,
builtin grounding block. Precision
machined threads. Anti-corrosion
plating and epoxy sealed.
CALRAD
75 Series - tV & rf-CatV accessories
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
75-507 8-WaY
COaXIaL SPLIttEr
UHF/VHF indoor-outdoor splitter.
75 W. 1 input to 8 outputs. Frequency
response of 5 to 900 MHz. Zinc die
cast construction with mounting tabs
and screws and cast in grounding
black. Precision machined threads.
Anti-corrosion plating and epoxy
sealed.
75-713-2 2-WaY 1GHZ
DIGItaL SPLIttEr
1GHz, 130dB splitter. Digital ready CATV
splitters designed for hybrid distribution
networks, voice-data, modem and digital
converter applications. Fully water
resistant. Soldered rear cover 130dB
min, EMI-RFI shielding. DC blocked and
IEEE-587 built-in 6kV surge protection at
all ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground block.
Insertion loss 3.5-3.7dB max, isolation
35dB min, isolation 30 dB, 15-50 MHz.
Return loss 22dB min.
75-713-8 8-WaY 1GHZ
DIGItaL SPLIttEr
1GHz, 130dB splitter. Digital ready
CATV splitters designed for hybrid
distribution networks, voice-data,
modem and digital converter
applications. Fully water resistant.
Soldered rear cover 130dB min, EMIRFI shielding. DC blocked and IEEE587 built-in 6kV surge protection at all
ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground block.
Insertion loss 9.5-11dB max, isolation
35dB min, isolation 25dB min 40MHz1GHz. Return loss 22dB min 1540MHz.
75-710 1GHz 90dB isolation
75-715 1GHz 130dB isolation
2-WaY HIGH ISOLatION
SPLIttEr
75-711 1GHz 90dB isolation
75-716 1GHz 130dB isolation
3-WaY HIGH
ISOLatION SPLIttEr
75-712 1GHz 90dB isolation
75-717 1GHz 130dB isolation
4-WaY HIGH ISOLatION
SPLIttEr
5-1000MHz, 75ohm splitters with
precision F connector threads,
anti-corrosion zinc die cast case
and mounting tabs with screws.
Specifications
3-way version of 75-710 & 75-715.
Specifications
1 Port Insertion Loss 3.5 - 4.5dB
2 Port Insertion Loss 6.8 - 8.2dB
Port to port isolation 20 - 25dB
Input return loss ...... 15 - 18dB
75-713-3 3-WaY 1GHZ
DIGItaL SPLIttEr
75-713-4 4-WaY 1GHZ
DIGItaL SPLIttEr
75-713-6 6-WaY 1GHZ
DIGItaL SPLIttEr
75-714-3 3-WaY 1GHZ
DIGItaL SPLIttEr
75-727 DIrECtIONaL LINE
taPS
Insertion Loss ............... 3.4 - 4dB
Port to port isolation.... 21 - 24dB
Input return loss.......... 15 - 20dB
1GHz, 130db splitter. Digital ready
CATV splitters designed for hybrid
distribution networks, voice-data,
modem and digital converter
applications. Fully water resistant.
Soldered rear cover 130dB min, EMIRFI shielding. DC blocked and IEEE587 built-in 6kV surge protection at all
ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground block.
Insertion loss 3.5-3.7dB max, isolation
35dB min, isolation 21dB min 40MHz1GHz. Return loss 22db min 15-40Mhz.
75-713-16 16-WaY 1GHZ
DIGItaL SPLIttEr
1GHz, 130dB splitter. Digital ready
CATV splitters designed for hybrid
distribution networks, voice-data,
modem and digital converter
applications. Fully water resistant.
Soldered rear cover 130dB min, EMIRFI shielding. DC blocked and IEEE587 built-in 6kV surge protection at all
ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground
block. Insertion loss 9.5-11dB max,
isolation 35dB min, isolation 25dB
min 40MHz-1GHz. Return loss 22dB
min 15-40MHz.
1GHz, 130dB splitter. Digital ready CATV
splitters designed for hybrid distribution
networks, voice-data, modem and digital
converter applications. Fully water
resistant. Soldered rear cover 130dB
min, EMI-RFI shielding. DC blocked and
IEEE-587 built-in 6kV surge protection at
all ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground block.
Insertion loss 3.5-3.7dB max, isolation
35dB min, isolation 21dB min 40MHz1GHz. Return loss 22dB min 15-40MHz.
1GHz, 130dB splitter. Digital ready
CATV splitters designed for hybrid
distribution networks, voice-data,
modem and digital converter
applications. Fully water resistant.
Soldered rear cover 130dB min,
EMI-RFI shielding. DC blocked and
IEEE-587 built-in 6kV surge
protection at all ports. High
performance components and
circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing.
Mounting tabs with screws, cast-in
ground block. Insertion loss 5.55.9dB max, isolation 35dB min,
isolation 21dB min 40MHz-1GHz.
Return loss 22dB min 15-40MHz.
4-way version of 75-710 & 75-715.
Specifications
75-712 Insertion Loss 6.8 - 8.2dB
75-717 Insertion Loss 7.0 - 8.2dB
Port to port isolation 20 - 25dB
Input return loss ...... 15 - 18dB
1GHz, 130dB splitter. Digital ready
CATV splitters designed for hybrid
distribution networks, voice-data,
modem and digital converter
applications. Fully water resistant.
Soldered rear cover 130dB min, EMIRFI shielding. DC blocked and IEEE587 built-in 6kV surge protection at all
ports. High performance components
and circuitry. Anti-corrosion tin plated
zinc-alloy, die cast housing. Mounting
tabs with screws, cast-in ground
block. Insertion loss 9.5-11dB max,
isolation 35dB min, isolation 25dB
min 40MHz-1GHz. Return loss 22dB
min 15-40MHz.
High quality directional couplers
with solder back cases for over
125 dB of RFI shielding. Low
thru port insertion loss and
consistent levels of tap loss.
Zinc diecast tin plated housing.
Full 5-900MHz frequency range.
75-727-12 ....................... 12 dB
75-727-16 ....................... 16 dB
75-727-24 ....................... 24 dB
158
CALRAD
75 Series - tV & rf-CatV accessories
Not for Digital Cable Use
Analog Cable
54-890 MHz
75-726
75 Ohm DC BLOCKEr
5-1750MHz, insertion loss
0.3dB, return loss 16dB
typical. Nickel plated
machined brass. Passes RF
and blocks DC from the signal
path. Male ‘F’ connector to F81 style female. Overall length
1.6”.
75-725 16-20dB SLOPED 9502250MHz aMPLIfIEr
High quality satellite RF inline
amplifier suitable for DBS or MMDS
satellite applications. Sloped gain
for long cable runs. Epoxy sealed
back cover plate. Power
requirements 12-18Vdc, 45mA. DC
pass through current 500mA
maximum. Output level 105dBuV
maximum. Low noise 5dB - input
return loss 6dB. Impedance 75
ohms - frequency 40-2250MHz.
High performance SMD board
circuitry. Precision machined Fconnector threads. Nickel plated
zinc alloy diecast housing.
75-479
COaXIaL SUrGE aND
SPIKE PrOtECtOr
Protects cable, TV
converters, decoders,
satellite receivers, access
cards, VCRs and TVs from
incoming surges and
electrical spikes. Uses a
standard Male-Female “F”
connectors. Frequency:
2GHz,
DC passive, Impedance: 75
Ohms, Insertion loss: .2dB.
75-504 DC GrOUND
BLOCKEr & ISOLatION
traNSfOrMEr
75 ohm In/Out, Male ‘F’
connector to Female ‘F’
connector. Eliminates hum bars
or audible hum generated when
A/V components are connected
directly to a cable TV or satellite
system. Isolates ground
potential differences within an
Audio\Video system without
affecting the RF signal.
Frequency range 54-890MHz.
6” long.
75-730-4,
4 WaY 2GHz, 90dB
SatELLItE SPLIttEr
75-730-2,
2-WaY 2GHz, 90dB
SatELLItE SPLIttEr
75-731-2,
2-WaY 2GHz, 90dB
SatELLItE SPLIttEr
Power passive to one port.
Insertion loss 6.6-9dB max.
Port-Port isolation 11-23dB min.
Input return loss 12-15dB min.
Zinc alloy die cast housing.
Power passive to one port.
Insertion loss 3.4-5.5dB max.
Port-Port isolation 11-15dB min.
Input return loss 12-15dB min.
Zinc alloy die cast housing.
Power passive to all ports.
Insertion loss 4-4.5dB max.
Port-Port isolation 12-15dB min.
Input return loss 12-15dB min.
Zinc alloy die cast housing.
75 Ohm INLINE
attENUatOr
0-1750MHz, Female to Male
“F” attenuator. 5% tolerance
with return loss of 20dB. 22
gauge spring steel center. DC
power blocking.
75-720-3 ......... 3dB attenuation
75-720-6 ......... 6dB attenuation
75-720-8 ........ 8dB attenuation
75-720-10 ..... 10dB attenuation
75-720-16 ..... 16dB attenuation
75-720-20 ..... 20dB attenuation
75-731-4
4 WaY 2GHz, 90dB
SatELLItE SPLIttEr
Power passive to all ports.
Insertion loss 6.7-11dB max.
Port-Port isolation 11-15dB min.
Input return loss 12-15dB min.
Zinc alloy die cast housing.
159
Visit Calrad on the Web at: www.calrad.com
75-705-a SatELLItE
DIPLEXEr-MIXEr
Size: 2.25” X 2” X 5/8”(W/D/H)
5-2050MHz satellite splitter-combiner
separates or combines off-air TV
antenna and satellite signals from a
single feed-line. High performance
printed board circuitry. Anti-Corrosion
chromate zinc-alloy die cast housing
90dB min RFI shielding - epoxy
sealed back cover. .5” precision
machined ‘F’ connector threads. DC
pass-through current 500mA max.
Insertion loss VHF-UHF 0.5dB satellite 1.5dB. Isolation VHF 25dB UHF 20dB - satellite 23dB. Return
loss VHF 18dB - UHF 10dB - satellite
12dB.
CALRAD
75 Series - tV & rf-CatV accessories
75-496
a+B tV aNtENNa
VCr & CaBLE SWItCH
40-695a
a/B COaXIaL
PUSHBUttON rf SWItCH
40-696
a/B/C COaXIaL
PUSHBUttON rf SWItCHEr
75 ohm inputs/output for hookup of outdoor TV antenna or
MATV outlet cable TV or VCR
to TV set. 40dB isolation.
High isolation RF A/B pushbutton
switch. Complies with FCC part
15.6. 75 ohm RF “F” Female
connectors. Lets you select from
two inputs. Reversible. 80dB
isolation. Frequency 5-900 MHz.
High isolation RF A/B/C pushbutton
switch. Complies with FCC part
15.6. 75 ohm RF “F” Female
connectors. Lets you select from
three inputs. Reversible. 90dB
isolation. Frequency 5-900 MHz.
75-486
UHf/VHf/fM aMPLIfIEr 20dB
75-488
UHf/VHf/fM aMPLIfIEr 10dB
75-569
fULL CYCLE ratCHEt
CrIMPING tOOL
4 way 10dB RF amplifier.
Strengthen signals from VHF,
FM mid and superband cable
TV. Frequency response of
54MHz to 890MHz.
Full-cycle ratchet crimping tool
for F, BNC, TNC Connectors
RG-58, RG-59, RG-62, Rg-6 &
PIN. Jaw Sizes: .0213”, .256”,
.324”, PIN = .068”.
Amplifier with adjustable gain
control. 20dB amp. Switchable FM
attenuation trap, ON-OFF indicator
light. Frequency response of 5 to
900 MHz. Size: 1.47”(H) x 2.93”(W)
x 5.65” (L).
75-598
COMPrESSION
CrIMPING tOOL
Crimping tool for (CATV) type
weather proof compression
connectors (RG-59, RG-6,
tri/quad shields). For use with
Calrad 75-533-PS, 75-534-PS
series connectors, including
Quad versions.
75-728 analog Meter
75-729 Digital Meter
SatELLItE fINDEr MEtErS
Highly sensitive meters. 75ohm,
frequency range 950-2050MHz
input. Sensitivity 7mV @ 55dB,
LNB Gain 3-Carrier C/N 15dB,
Input level -25dBm to -75 dBm,
LNB gain 52-60dB, power
requirement 13-18Vdc from
existing coax feed. Requires 6dB
attenuator for 60-65dB LNB.
75-728 has a built-in buzzer
75-560
CrIMPING tOOL
Crimping tool for installing F-56,
F-59 connectors and others on
coax cables. Crimper has 2
openings for various diameter
ferrules.
75-599a
COMPrESSION
CrIMPING tOOL
Crimping tool for (CATV) type
weather proof compression
connectors (RG-59, RG-6,
tri/quad shields). Comes with
interchangable dies for RCA, BNC
and ‘F’ Connectors. Dies attach
to tool handle for easy storage
and access. For use with Calrad
75-533-PS, 75-534-PS, series
connectors, including Quad
versions
Visit Calrad on the web at: www.calrad.com
160
CALRAD
75 Series - tools & antennas
75-804
XM SatELLItE raDIO
aDaPtEr rf tO SMB
tELESCOPING
aNtENNaS
75-469 ..................... 6-Section
3 ft. Extended
1
8 /2" Collapsed
90-945
rOtarY COaXIaL
StrIPPING tOOL
75-471
CB tELESCOPING
aNtENNa
Prepares cable for RG-58,
RG-59/62, RG-6. No
replacement cassettes
needed. Includes hex wrench
for adjusting cutting blades.
Stripping distance 4mm, 6mm,
8mm, 12mm.
75-724 SECUrItY SHIELD
tOOL
10-Section, coil loaded.
Excellent CB replacement
antenna. Extends to 471/2",
collapses to 711/16", base
1
diameter is 3/32".
aUtO aNtENNa LEaD
EXtENSIONS
75-724
Use this tool to remove the
security barrel that is placed over
most feedlines from CATV
companies. Works on Calrad
Motorola-type plug to Motorolatype jack. RG59U cable.
75-724-MS
metal screw on shield.
75-724-PO
75-724-MS
metal push on shield.
75-472
fM Or tV fOLDED
DIPOLE aNtENNa
Flexible tabs on end of wire for
easy attachment to back of
cabinet. 300 ohm.
75-502
75 tO 300 OHM BaLUN
WItH UHf/VHf/fM
SPLIttEr
Input 75 ohms, output 300 ohms
UHF/VHF/FM
161
Visit Calrad on the Web at: www.calrad.com
75-450 .......................... 18"
75-451 .......................... 24"
75-452 .......................... 48"
75-453 .......................... 96"
75-454 ........................ 144"
“f” tO MOtOrOLa
aNtENNa CaBLE
“F” Male to Motorola plug
antenna cable, RG-59U cable.
75-452f-3......................3 ft.
75-452f-4......................4 ft.
75-452f-5......................5 ft.
75-452f-6......................6 ft.
tV Wall Plate with Gold f
Connector
75-493 .............................Ivory
75-493-W .......................White
75-493-SS ...Stainless Steel (New)
2 GHz Versions
75-493-2.....................Ivory
75-493-WH-2 ..................white
Blank Single Gang Wall Plates
75-494-W ........................White
75-494-IV ........................Ivory
CALRAD
75 Series - rf Connectors
“f” CONNECtOrS & aDaPtErS
75-493-ID
Ivory Designer
75-493-WD
White Designer
75-493-SS
Stainless steel wall
plate with single
“F” connector.
Wall Plates with
Dual F-81 Connectors.
75-735-IV
75-735-W
Satellite, TV wall
75-489-ID Ivory Designer
plate built-in diplexer
2 GHz Versions with
75-489-IV Ivory
TV ant., satellite
75-489-IV-2 Ivory
and 4 conductor
75-489-W White
telephone jack.
75-489-WD White Designer 75-489-WH-2 White
Available in ivory or
white.
75-510-rG11
75-512
75-529
2-piece crimp
connector for RG11
cable.
F-56 Connector.
2 piece crimp.
Connector fo RG6
cable.
"F" push-on plug.
Crimp style for
RG59 cable.
Gold version
75-511
F-59 connector with
ferrule attached for
RG59 cable.
75-511G
QUaD SHIELDED
VErSION aVaILaBLE
75-736-IV
75-736-W
Combo wall plate
with 2 (F-81) coax
jacks and 1
conductor
telephone jack.
Available in ivory or
white.
QS
75-538
Twist-on F-59
connector for RG-59
75-608
75-608S-rG59
75-608S-rG6
Twist-on connector
Quick one-step push on
for RG-6.
installation connectors
75-538G
75-608G
Gold version.
Gold version.
75-534-WP
Weather proof version
75-534-Q
Quad version
75-510
2-piece crimp
connector for RG59
cable.
75-510G
Gold version.
75-533 - F-59
75-513
F-56 Connector with
ferrule attached.
For RG-6 cable.
Gold version.
QS
F connectors with
long crimping barrel
for RG-6
75-534 - F-56
75-534G
QS =
"F" connector with
long crimping barrel.
75-533G
Gold version. 1/2”
barrel.
QS
75-533-SN59 RG-59
75-534-PL Nickel
75-534-QS Quad RG-6 75-534G-PL Gold
Plenum RG6 “F”
‘F’ snap-n-seal connector is
environmentally sealed to
Connectors.
suitable for coaxial broadband protect drops from harsh
Plenum connectors
environments. Through a
networks used in video and
in
gold or nickel.
unique 360° compression
data. Precision machined
Threaded interior
annealed brass construction.
process. this type of
crimp for secure
Anti-corrosion nickel plated
connector provides
finish. Used with multiple
cable installation.
protection against signal
cable braid and shield types.
leakage, required for
Connector face has
RG59 or RG6 standard, tritoday’s high-bandwidth
waterproof boot to
shield and quad shield cable.
CATV systems. Use with
prevent moisture
Internal neoprene O-ring
Calrad 75-599A or 75-598
from
contaminating
provides a weather sealed
compression tool.
connection. 7mm heavy duty
the connection.
easy-grip nut.
Crimp Ring
Solder Tip
75-755 RG-59
High end solder
type ‘F’ connector
with black chrome
plated barrel, gold
plated 75 ohm
connector with
teflon insert. .255”
cable opening.
75-756 RG-6
High end solder
type ‘F’ connector
with black chrome
plated barrel, gold
plated 75 ohm
connector with
teflon insert. .32”
cable opening.
75-518
Female "F" fitting to
Male RCA type
plug adapter.
75-518G
Gold version.
30-387 gold
30-387-NK nickel
Heavy Duty RCA
Plug for use on
cable up to RG59
coax. Spring strain
relief. Cable
opening = .28”
Comes in gold or
nickel plating.
Water resistant
Compression Style
Connectors
Nickel Version
75-533-PS-rCa RG59
75-534-PS-rCa RG6
Gold Version
75-533G-PS-rCa RG59
75-534G-PS-rCa RG6
75-534Q-PS-rCa
Quad Shield Version RG6
75-537
RCA phone plug
w/ crimping ring for
RG-59/U cable.
75-537G
Gold version RG-59
75-537-rG6
RG-6 Version
162
CALRAD
75 Series - Video & rf Connectors
“f” CONNECtOrS & aDaPtErS . . . continued
75-539
Adapter for TV,
video and cable.
Female F-81 Jack
to Male 3.5 mm
mini plug.
75-604
Chassis mount “F”
Female connector.
Mounts from rear
with hardware.
Mounts in .375”
chassis hole.
75-519
F-61A type chassis
connector. Female
"F" mounts in .375"
chassis hole with
nuts & washer.
75-625
Right angle
PC mount
F connector with
long shaft.
75-626
Right angle
PC mount
‘F’ connector with
short shaft. Mounts
in .375” chassis hole.
75-531
Circuit board mount
"F" Female type.
75-531G
Gold version.
Mounts in .375”
chassis hole.
Hex Style
Bulkhead
75-750
75-520DD-WH
Silver plated
1 & 2 Ghz F-81 Feedthrus.
"F" to "F" 3/8” type
1Ghz for cable, TV, 2 GHz
RF coupler.
for satellite receivers
Double D cut with
75-750-1 (1 GHz, 3/8” )
hardware
75-750G-1 (1 GHz 3/8” Gold)
75-750-2 (2 GHz 3/8”)
75-750G-2 (2 GHz 3/8” Gold)
75-750-1/2-1 (1 GHz 1/2”)
75-750-1/2-2 (2 GHz 1/2”)
75-750G-1/2-1 (1 GHz 1/2” Gold)
75-750G-1/2-2 (2 GHz /2” Gold)
75-750-3 (3 GHz 3/8” )
75-520
75-556
F-81C type coupler.
"F" to "F" type coupler. "F" Female to RCA
Mounts in .375” chassis hole.
Female.
75-520 3/8” standard
75-520G 3/8”gold version
75-520-1D 3/8” single D cut
75-520-2D 3/8” double D cut
75-520-WH with hardware
75-520-1/2 1/2” version
75-520G-1/2 1/2” gold
version
75-635G
Gold Female to RCA
75-635a-COLOr
75-565-PO
“F” Male to Male
Push-on coupler
75-528
BNC Female to
"F" Male.
75-528G
Gold Version.
75-698
75 ohm Version
Female “F” to RCA
Female Same as 75to ‘F’ bulkhead
635 only with hex style
connector. Panel
bulkhead. Available
mount double ‘D’
with colored RCA
connector mounts in dielectric. Specify color
when ordering.
3/8” hole. Overall
Available in Black,
length .95”. ‘F’ thread
Blue, Green, Red,
length .57”. Mounting
Yellow and White.
hardware included.
75-522
75-635aG-COLOr
Female “F” to RCA Female
Same as 75-635A hex style
Gold Version Bulkhead.
Available with colored RCA
dielectric. Specify color
when ordering. available in
black, blue, green, red,
orange, yellow, and white.
75-522
RCA Female to
"F" Male.
75-525
UHF Female to
"F" Male.
75-523
RCA Male to
"F" Male.
75-565
"F" Male to Male
adapter.
75-568HQ
75-567
BNC Female to
Push-on-F Male
connection.
163
75-530
Push-on adapter.
"F" Male (push-on)
to "F" Female.
75-530G
Gold version.
75-532
RCA Female to
"F" push-on
Male.
75-532G
Gold version.
75-535
Right angle
adapter."F" Male
to "F" Female.
75-535-2
2 GHZ Version
75-535-PO
Right angle,
push-on “F” Male
to “F” Female.
75-568
rf terminator
75-568HQ
High Quality Gold Male
rf terminator.
75 Ohm Male terminator.
Easy finger grip design and
solid center pin. Red ID
band labeled 75 Ohm.
CALRAD
75 Series - Video & rf Connectors & accessories
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
****Please Note: for 75-533-PS & 75-534-PS Series, images and specifications are subject to change****
Water resistant Compression Style Connectors.
These easy to use compression style connectors are the perfect solution for your coaxial broadband network
needs. Used in video, data and telephone, Water Resistant Compression Style Connectors offer 360º radial
compression. Water Resistant Compression Style Connectors come fully weather sealed with superior RF shielding
and internal neoprene O-ring weather sealed wide 7mm heavy duty easy grip nut. They are precision machined,
annealed brass construction with anti-corrosion nickel plated or gold finish. Comes in “F”, RCA and BNC versions,
with some models available in right angle and Female configurations. Used in conjunction with Calrad 75-599A
or 75-598 crimping tools. Please note: due to different cable manufacturing specifications, some connectors may
not work with all cable types.
Water resistant Compression
Style Connectors
Water resistant Compression
Style Connectors
Water resistant Compression
Style Connectors
75-533-PS.....................................Nickel
75-533G-PS ....................................Gold
75-533-PS-PO ................Push-on Nickel
75-533G-PS-PO ...............Push-on Gold
75-533-PS-ra ...........Right Angle Nickel
75-533G-PS-ra ..........Right Angle Gold
75-533f-PS ......................Female Nickel
75-533fG-PS .....................Female Gold
75-533-PS-rCa ...........................Nickel
75-533G-PS-rCa ..........................Gold
75-533-PS-rCara ...Right Angle Nickel
75-533G-PSrCara ...Right Angle Gold
75-533-PS-BNC ...........................Nickel
75-533G-PS-BNC ..........................Gold
75-533-PSBNCra ....Right Angle Nickel
75-533G-PSBNCra ...Right Angle Gold
rG-59
rG-6
75-534-PS.....................................Nickel
75-534G-PS ....................................Gold
75-534-PS-PO ................Push-on Nickel
75-534G-PS-PO ...............Push-on Gold
75-534-PS-ra ...........Right Angle Nickel
75-534G-PS-ra ..........Right Angle Gold
75-534f-PS ......................Female Nickel
75-534fG-PS .....................Female Gold
rG-59
rG-6
75-534-PS-rCa .........................Nickel
75-534G-PS-rCa.........................Gold
75-534Q-PS-rCa ...Quad Shield, Nickel
75-534-PSrCara ....Right Angle Nickel
75-534G-PSrCara ...Right Angle Gold
rG-174
75-534-PSrCa-174................Nickel
rG-6
75-534-PS-BNC ...........................Nickel
75-534G-PS-BNC ..........................Gold
75-534Q-PS-BNC ....Quad Sheild, Nickel
75-534-PSBNCra ....Right Angle Nickel
75-534G-PSBNCra ...Right Angle Gold
75-598
75-599a
Water resistant Compression
Style Crimping tools
75-598 and 75-599a
BNC rUBBEr BOOtS
for use with 2 piece BNC
connectors. These boots
can be cut and used for
other cable strain relief
applications. Black PVC
rubber.
75-780-rG-59
Cable O.D. max .28”, connector sleeve O.D. max .35”
1.69” overall length.
75-780-rG-58
Cable O.D. max .22”, connector sleeve O.D. max .35”
1.72” overall length.
75-780-rG-174
rG-59
Cable O.D. max .17”, connector sleeve O.D. max .35”
1.74” overall length.
75-696K-S
Solderless BNC
Keystone & Chassis
Mount Jack
Solderless BNC jack. Mounts
in either ½” hole or keystone
insert. Individual “U” shaped
slotted screw terminals
provide secure termination of
18-30 Ga wires. 30-287
Colored “ID” washers are
available.
75-598
COMPrESSION
CrIMPING tOOL
Crimping tool for
(CATV) type
weather proof
compression
connectors (RG-59,
RG-6, tri/quad
shields). For use
with Calrad 75-533PS, 75-534-PS
series connectors,
including Quad
versions.
75-599a
COMPrESSION
CrIMPING tOOL
Crimping tool for
(CATV) type weather
proof compression
connectors (RG-59,
RG-6, tri/quad
shields). Comes with
interchangable dies
for RCA, BNC and ‘F’
Connectors. Dies
attach to tool handle
for easy storage and
access. For use with
Calrad
75-533-PS, 75-534PS, series
connectors, including
Quad versions
164
CALRAD
75 Series - Video & rf Connectors
BNC CONNECtOrS & aDaPtErS
HIGH QUALITY BNC CONNECTORS
Perfect for HDtV applications
75-800G-50
75-801G-50
50 ohm.
50 ohm. RG-179
solder BNC
connectors gold with
black chrome body
with rubber strain
relief. .12” cable
opening. For use
with Calrad RGB
cable 55-612B.
75-800G-75
75-542
75-542G (Gold)
Gold BNC Male for
RG-58/U and RG55/U cables.
Solder style.
75 ohm.
RG-59 solder BNC
connectors, gold
with black chrome
body. .255” cable
opening.
75-551
BNC Male
connector for
RG-59,
solder style.
75-801G-75
75-549
75-550
Solderless
screw-on BNC
Male for.
RG-59/U.
75-549G
Gold Version
Same as 75-549,
except for
RG-58/U and RG55/U, 8281 cable.
75-555
75-555-20
75-555-tfE
Same as 75-555
except contact pin
accepts 20 guage
center conductor
cable.
BNC crimp on
connector for RG-59
cable. 3 pcs.
Teflon version.
75-681
75 ohm version.
75-686
BNC Male
connector for RG179U coax cable.
75 ohm.
3 pieces. Use with
Calrad 55-612B
cable.
165
75-684
BNC Male
connector for
RG-179U coax
cable. 75 ohm.
2 pieces.
75-802G-75
75 ohm. RG-179
solder BNC
connector, gold with
black chrome body
with rubber strain
relief. .12” cable
opening. For use
with Calrad RGB
cable 55-612B.
75-610
BNC crimp on
connector for RG-6
cable. 3 pcs.
75-680
75 ohm version.
75-612
BNC crimp
connector for
RG-58 cable.
2 piece.
Visit Calrad on the Web at: www.calrad.com
75-609
BNC crimp for RG59 cable. 2 piece.
75-609-tfE
Teflon version.
75-682
For RG-179.
.12” cable opening.
Use with 55-612B
cable
75-803G-75
For RG-59
75 ohm solder
Female BNC
connector, gold
with black chrome
body with rubber
strain relief. Cable
opening is .255”.
75-611
BNC crimp for RG58 cable.
3 piece.
75-607
75 ohm version.
75 ohm version.
75-613
75-614
BNC crimp
connector for RG-6
cable. 2 piece.
BNC dust cap
with chain.
75-683
75 ohm version.
75-687 (8218)
75-687-a (1855a)
BNC Male crimp
connector for
Belden 8218 or
1855A or the
equivalent cable. 75
ohm. 3 pieces.
75-r21
Panel Mount
BNC female to
rCa female
75-r21-rD.......Red
75-r21-WH....White
75-r21-YL...Yellow
CALRAD
75 Series - Video rf Connectors
BNC CONNECtOrS & aDaPtErS . . . continued
right angle Water
resistant Compression
Style Connectors
Nickel Version
75-533-PSBNCra RG59
75-534-PS-BNCra RG-6
Gold Version
75-533G-PSBNCra RG59
75-534G-PSBNCra RG-6
75-559-St-75
75 ohm version
75-559-St
50 ohm version
Solderless BNC Male
connector for use
with RG-59 coax
cable. Cable opening
.24”. Black snap style
plastic body.
Water resistant
Compression Style
Connectors
Nickel Version
75-533-PS-BNC RG59
75-534-PS-BNC RG-6
Gold Version
75-533G-PS-BNC RG59
75-534G-PS-BNC RG-6
75-534Q-PS-BNC
Quad Shield RG-6 Version
75-645
75-646
75-566
50 Ohm BNC
Female inline
connector for RG-59.
3 piece crimp.
RG-59 crimp BNC
Female 2 piece.
Inline BNC Female
solderless screw
on adapter for RG58.
75-554
75-561
75-526
75-527
BNC right angle
crimp connector
for RG-58. 2 pcs.
BNC Male to BNC
Female right angle
adapter.
BNC Female to "F"
Female.
BNC Male to
"F" Male.
75-540
75-541
75-620
BNC "T" with 3
Female BNC
connectors.
4-way BNC "T"
Connector, with 3
Females to
1 Male.
75-690
75-691
75 ohm version.
75 ohm version.
75-624
75-628
Isolated BNC feed
thru. True 75 ohm.
Overall length 1.29”.
Mounts in
.5” D hole.
75-628-50
50 Ohm Version
75-552
BNC feed thru double
Female panel mount.
Mounts in .5” D hole.
Overall length is
1.28”. Bushing length
.33”.
75-696
75 ohm version
75-559-75
75 ohm version
75-559
50 ohm version
Solderless BNC Male
right angle connector
for use with RG-59
coax cable. Cable
opening .24”. Black
snap style plastic
body.
75-517
"F" Female to BNC
Male adapter.
75-517G
Gold version.
75-693
75 ohm version.
"T" adapter, 2 BNC
Females to 1 BNC
Male.
BNC "U" adapter,
with
1 Male to
2 Females.
U shape.
Please Note: for 75-533-PS & 75-534PS Series, images and specifications
are subject to change
75-679
75 ohm version.
75-621
75-622
75-623
3-way BNC "T"
BNC Male
connectors.
3-way BNC "T"
Connector, with 2
Males to
1 Female.
BNC "T"
Connector, with 1
Male to
2 Females.
75-521
75-543
Panel feed thru
connector. BNC Female
to RCA Female.
Bushing dia.: .487”
Bushing length: .33”
Overall length is 1.29”
Mounts in .5” hole. 75
ohm.
BNC Female chassis
connector. Overall
length is 1.08”.
Mounts in .375”
chassis hole. Bushing
length .28”.
50 Ohm version
75 ohm version.
75-521-50
75-543G
Gold version.
75-697
75-521-3/8
Panel feed thru
connector. BNC
Female to RCA Female.
Bushing dia.: .365”
Bushing length: .27”
Overall length is 1.06”
Mounts in .375” hole.
166
CALRAD
75 Series - Video rf Connectors
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
BNC CONNECtOrS & aDaPtErS . . . continued
75-514
BNC Female,
isolated ground
from chassis.
Length is 1.06”.
Mounts in .37”
chassis hole.
Bushing length .38”.
75-548
75-515
BNC Female,
chassis-mount.
Length is 1.08”.
75-685
BNC Female chassis
mount jack for
RG-174U cable. 75 ohm.
Fits in a 1/2” “D” hole.
Bushing length .33”
75-688
75-562
75-553
75-548-S
3.5 mm mini phone
plug to a BNC-type
Female connector.
75-695
75 ohm version
75-548G
Gold version
Nickel body, Gold pin
75 ohm version.
75-563
RCA Male to BNC
Male. Over all
length is 1.55”.
75-546
BNC Female to
BNC Female. Over
all length: 1.29”.
75-629
BNC Female to a
RCA Female.
75-546G
75-692
75 ohm version.
UHf CONNECtOrS & aDaPtErS
75-536
75-536-rG58
UHF Male with long
crimp ring for coax.
For use on RG-59
or RG-58 cable.
75-524
UHF Female to "F"
Female.
167
75-558
Right angle UHF
Male connector
for coax cable.
75-516
F-81 type Female to
PL-259 type Male
adapter.
75-547G
Gold version.
75 ohm version.
Gold version.
75-699
75-547
BNC Male to
RCA Female.
75-694
RG-59 version.
BNC Male to BNC
Male adapter.
Overall length:
1.25”.
BNC Female
to RCA Male.
75-544
UHF Female to
BNC Male.
BNC
tErMINatOrS
75-600 - 50 ohm/5%
75-601 - 75 ohm/5%
75-602 - 93 ohm/5%
75-600-1 - 50 ohm/1%
75-601-1 - 75 ohm/1%
75-602-1 - 93 ohm/1%
75-557
75-545
75-564
RCA Female to
UHF Male.
UHF Male to BNC
Female.
SO-239 Female to
BNC Female.
75-516G
Gold version.
30-469
30-470
30-471
30-472
30-473
UHF universal jack
adaptor. Adapts SO239 to Motorola-type
auto antenna jack or
RCA-type phone jack.
UHF
right angle adapter
SO-239 to PL-259.
UHF "T" connector
adapts 2 Females
to one Male.
UHF double
Female connector.
for RG58U.
30-474
for RG59U.
Coax cable adaptor
Both for use
with 30-465.
CALRAD
75 Series - Video rf Connectors, tNC, PaL
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
30-465
30-467
30-468
30-475
Coax cable
connector plug.
PL-259
S0-239 Coax
chassis connector
(box-type).
S0-239 Coax
chassis connector
(bullet-type).
5/8” hole size.
Coax adaptor plug.
Adapts S0-239
type to
3.5 mm jack.
for New Product
Information
Please Visit Us at:
www.calrad.com
tNC CONNECtOrS & aDaPtErS
75-580
Male TNC
connector, 3 piece
crimp for RG59/62.
75-630
TNC push-on
connector, 3 piece
crimp for RG-59.
75-579
75-583
75-584
75-585
Female TNC
chassis mount 3/8”
connector.
TNC Male
connector to
PL-259 Female
adapter.
Male TNC
connector to
BNC Female.
TNC push-on Male
to TNC Female.
PaL CONNECtOrS & aDaPtErS
75-586
75-587
75-631
Right angle TNC
Male to Female
coupler.
TNC Female
coupler.
Overall length:
1.28”.
TNC, 2 piece crimp
plug for RG-59.
75-593
75-594
75-595
Pal connector.
Female Pal to
Female Pal.
Pal connector.
Male Pal to Male
Pal.
Pal connector.
Female Pal to
Male "F".
75-590
75-591
75-592
Pal connector.
Male Pal solderless
uses RG-59 coax
cable.
Pal connector.
Female Pal
solderless uses
RG-59 coax cable.
Pal connector.
Male Pal to
Female Pal.
75-596
75-588
75-589
Pal connector.
Male Pal to
Female "F".
Mini UHF Male to
TNC Female.
Mini UHF Female
to TNC Male
coupler.
Visit Calrad on the web at: www.calrad.com
168
CALRAD
75 Series - rf Connectors, Mini UHf, N, SMa
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
MINI UHf CONNECtOrS & aDaPtErS
75-615
Mini UHF Male crimp
connector, 3 piece for
RG 58, nickel plated.
75-615-BK
“N” CONNECtOrS & aDaPtErS
75-618
75-616
75-617
Mini UHF Female
coupler. Overall
length: 1.29”.
Mini UHF Male
to Female right
angle coupler.
Mini UHF Male
crimp connector, 2
piece for
RG 58.
75-570
75-571
Male "N" connector
for RG-8/11,
213/214.
Double Female "N"
connector.
Black Version.
75-573
75-572
Chassis mount
Female "N"
connector. Over all
length is 1.09”.
Mounts in chassis
.62” hole.
75-573
BNC Male to "N"
Female.
75-574
75-576
"F" Female to "N"
Male connector.
PL-259 Male to "N"
Female connector.
SMa CONNECtOrS
SMA
169
75-640
Male to Male "N"
connector.
75-575
BNC Female to "N"
Male.
75-641
75-642
Female to Male
right angle "N"
connector.
“T” adapter,
Female "N" to Male
"N" to Female "N".
Male SMA
connector for
RG58A. Nickel
plated brass
construction, gold
plated contacts with
teflon insulator.
SMA
SMA
SMA
Female SMA 3
piece crimp
connector for
RG59/62. Nickel
plated brass
construction, gold
plated contacts
with teflon
insulator.
BNC jack to SMA
plug. Nickel plated
brass construction,
gold plated
contacts with
teflon insulation.
75-765
75-577
UHF Female to
"N" Male.
75-766
75-760
75-767
Male to Female
SMA Right Angle
inline adapter.
SMA
75-761
Male SMA
connector for
RG59/62. Nickel
plated brass
construction, gold
plated contacts with
teflon insulator.
SMA
75-762 RG58A
75-763 RG59/62
Male SMA 3 piece
crimp connector
for. Nickel plated
brass construction,
gold plated
contacts with teflon
insulator.
SMA
75-764
Female SMA 3
piece crimp
connector for
RG58A. Nickel
plated brass
construction, gold
plated contacts
with teflon
insulator.
SMA
75-768
Female to Female
SMA inline adapter.
Nickel plated brass
construction, gold
plated contacts
with teflon
insulator.
Visit Calrad on the web at: www.calrad.com
CALRAD
80 Series - Preamps, Cleaning Products
Technical drawings and specifications are available for these products. Please ask your Calrad sales representative for details.
80-575-H
80-575-M
HEaDPHONE aMP
MICrOPHONE PrE-aMP
80-575-L
80-575-P
LINE PrE-aMP
PHONO PrE-aMP
Select from 4 standard stereo configurations. A few components are easily changed on the PC board
for each preamp. The unit is available in a chassis, or completed circuit board with labeled black face
plate. Includes DC power adapter. Optional RCA to XLR adapter cable 10-142-5 for mic preamp.
Specifications
Input/Output Jacks .............................. RCA Type
Power .......................... 9VDC, 2.5mm Coax Jack
Input Impedance ....................... Factory Adjusted
Size .................................. 4.5” L x 3” W x 1.5” H
10-142-5
Output Impedance ........... 5K, Factory Adjusted
Gain.................................................. Adjustable
Frequency Response . 20HZ - 20KHZ, + - 3 DB
80-507
VIDEO CHaMOIS SWaBS
For cleaning of video tape heads.
51/2 inches in overall length. 10 per
pkg.
REAR VIEW
80-574
StErEO PHONO PrEaMP
Stereo phono preamp with
external low noise DC power
supply. RCA IN/OUT. Input:
5mv/100K ohm / 1khz maximum
input: 30mv. Frequency
response:18-20khz. S/N ratio:
>50db. 12Vdc power supply
included. Shielded metal chassis.
80-510
HEaD CLEaNING
SOLUtION
For video and audio heads, tape
guides and tape rollers. 1/2 oz.
bottle
80-506
WOODEN HaNDLE COttON
SWaBS
Standard round tip for cleaning
audio and video products.
6
inches in overall length.
100
per pkg.
80-508
aNtI-StatIC CLEaNING
SWaBS
For computer equipment. 6 inches
in overall length. 100 per pkg.
80-505
WOODEN HaNDLE
COttON SWaBS
Pointed tip for cleaning audio
and video products. 6 inches in
overall length. 100 per pkg.
80-405
faX/LaSEr PrINtEr
CLEaNING KIt
Comes complete with cleaning
solution, 5 cleaning chamois,
blower brush, special cleaning
paper, and cloth.
Visit Calrad on the web at: www.calrad.com
170
CALRAD
80 Series - audio & Video Cleaning Kits
80-410
MOUSE CLEaNING KIt
Comes complete with cleaning
solution, 5 cleaning chamois, and
circular cleaning brush tool.
80-408
GaME CONSOLE aND
CartrIDGE CLEaNING KIt
Comes complete with cleaning
solution and 3 cleaning cards. For
use with Sega consoles and game
cartridges.
80-412
GaME CLEaNEr
Cleans game cartridges and game
unit slots, removes dirt and
oxidation restoring contact points to
normal operation. Works with
Nintendo®, Gameboy, Nintendo®
NES™, Sega™, NEC™ and more.
Includes cleaning solution and 4
cleaning wands.
80-407
MULtIMEDIa PC CLEaNING
KIt
Comes complete with cleaning
solution, mini electric vacuum with
collection bag with 2 attachments, 5
cotton swabs, monitor lens cleaning
tissue, CD-Rom and 3.5” cleaning
disks.
80-403
DVD LENS CLEaNEr aND a/V
HOME tHEatEr tESt DISC
This disk provides cleaning of the
laser lens assembly and testing for
home theater systems. 5.1 mode,
AC-3, color adjustment test patterns.
Video animation sequences, random
video scenes. Voice guide and music
for each selection.
80-404
DVD/CD-rOM CLEaNING KIt
Comes complete with cleaning solution
and circular cleaning pad. Cleans finger
prints, dust, and minor defects from the
disc.
80-411
CLEaNING WIPES
50 pieces
Used for CD, DVD, VDP, keyboard,
monitor, fax machines, etc. Complete
with sealed storage case.
80-413
MINI DISC HEaD aND LENS
CLEaNEr
Easy and effective way to clean all
mini disc systems, requires only 10-15
seconds for the complete cleaning
cycle.
80-815
HD-CarE SCrEEN CLEaNEr
HD-Care – is a gel based LCD
cleaner, designed to care for all your
LCD components. In its conception
our customers told us that a non
drip, smell good cleaner at a low
price would be a hit. So we listened,
introducing HD-Care screen cleaner,
a 6.76 fl oz spray used to care for
LCD TV’s, plasma flat panel TV’s,
DLP projection TV’s, CRT Tube
TV’s, laptop LCD screens, computer
monitors, digital picture frames,
restaurant ordering screens and
more. each package includes
cleaning cloth.
80-566
MINIatUrE tELEPHONE PICKUP COIL
Suction cup type, attaches to phone
permitting both ends of a telephone
conversation to be recorded with no
wiring necessary. Has 3.5mm
miniature plug.
171
Visit Calrad on the Web at: www.calrad.com
CALRAD
85 Series - Knobs & Dials
MULtI-COLOrED KNOBS
Black base with
color caps available in 15 different
colors, /4" I.D.
brass bushing.
9
/16" DIAMETER
9
/16" HIGH
85-590.............Red
85-591............Grey
85-592.........Yellow
85-593 .........Green
85-594 ............Blue
85-561
Black, bakelite
knob with chrome
insert, fluted grip.
1
/4-inch brass
bushing with
set screw.
3
/4" Diameter,
9
/16" high.
85-567
Chrome-skirted
instrument knob.
Calibrated 0–9.
Fluted ebony grip
with aluminum
1
insert for /4-inch
shaft with
set screw.
(Diameter 13/16")
.68” high.
Black base with
color caps available in 15 different
colors, /4" I.D.
brass bushing.
3
/4" DIAMETER
/8" HIGH
5
85-595.............Red
85-596............Grey
85-597.........Yellow
85-598 .........Green
85-599 ............Blue
85-572
85-559
1 /4-inch, black
1
pointer knob.
/4-inch brass
bushing with
set screw.
.60” high.
1
85-580
Black 1" diameter
9
control knob /16"
high with set screw.
.62” high.
Serrated grip with
attractive chrome edge,
1
/4-inch brass bushing with
set screw.
85-577 9/16" x 7/16" high
85-578 3/4" x 9/16" high
85-579 1" x 11/16"
85-571
Black bakelite
knob. Fluted grip,
1
/4-inch brass
bushing with
set screw.
15
/16" Diameter,
9
/16" high.
85-569
85-574
Black bakelite,
aluminum insert.
Fluted grip,
1
/4-inch brass
bushing with
set screw.
1" Diameter,
1
/2" high.
Black bakelite,
aluminum insert.
Fluted grip,
1
/4-inch brass
bushing with
set screw.
15/16" Diameter,
5
/8" high.
Black, bakelite
knob. Fluted grip,
1
/4-inch brass
bushing with
set screw.
3
/4" Diameter,
7
/16" high.
85-575
85-660
85-663
Calibrated
0–10, chrome
numbers on skirt.
3
3
Size 1 /16" x /4"
1
with /4" brass
bushing.
.75” high.
Black
Easy grip, knurled
control knob. White
number 0–10
imprinted on skirt.
1
/4-inch brass
bushing.
7
/8" high,
1 7/16" diameter.
Grey
Same specs as
85-660,
except without
numbers.
WHItE aND IVOrY KNOBS aND
PLatES
For use with 25-351, 25-351A, 25-339, 25339A, 25-357, and 25-357A. Plates have
5
numbers 0-10. Knob is 1 /16” in diameter
1
and accepts /4” shafts.
Black bakelite with
aluminum insert,
1
fluted grip. /4-inch
brass bushing with
set screw.
1" Diameter,
3
/4" high.
85-560
85-565-IDIvory Designer Style Knob
85-565-WDWhite Designer Style Knob
28-140-W White Wall Plate
172
CALRAD
90 Series - test Lead Clips, alligator Clips & Battery Holders
90-781
tESt LEaD SEt
Features 5 color-coded leads,
terminated with wire hooks for
hands free testing. 5 colors:
Black, Green, Red, White and
Yellow
90-767
tESt CLIP SEt
Thin wire kit of 10 leads, 15" long.
Miniature insulated alligator clip
each end. (2 each of 5 colors:
Black, Green, Red, White and
Yellow) #27 awg wire.
90-764
Same as 90-767, but with medium
weight clips and wire. Colors:
Black, Green, Red, White and
Yellow. #21 awg wire.
90-770
HEaVY DUtY
tESt CLIP LEaDS
Heavy duty, flexible wire, insulated
clips. Four 30" cables Colors:
Black, Green, Red and Yellow.
#18 awg wire.
rUBBEr INSULatED
aLLIGatOr CLIPS
Sturdy nickel plated jaws with
strong spring and hard bite. 11/2"
long. Specify color.
90-765.............................Black
90-766...............................Red
90-768
aLLIGatOr CLIPS
Kit of 5 alligator clips. Nickel plated
with screw terminals. Also fits
banana plugs.
90-771 2 Black, 2 red
90-771-BK 2 Black
90-771-rD 2 red
aLLIGatOr CLIPS WItH
INSULatED HaNDLES
Insulated alligator clips. Screw
terminals. Also fits banana plugs.
90-772
BattErY CONNECtOrS
Completely insulated, snap fastener type
with color-coded leads. Made to fit flat 9volt and miniature 45-volt batteries with
1
/2" connector spacing.
1
1
Available with 2 / 2", 4", 6 / 2", and 8"
leads.
90-772-2.5......................... 2.5” leads
90-772-4............................ 4” leads
90-772-6.5......................... 6.5” leads
90-772-8............................ 8” leads
molded
90-772M
Molded 9-volt battery clip with 6 “ leads.
SNaP-IN “aa”
BattErY HOLDErS
Sturdy, plastic, lightweight
construction. For use with radios,
recorders, school projects and many
transistor applications. Will
accommodate 11/2-volt penlight
batteries.
90-773
90-774
90-775
90-773 2 cell holder (less batteries)
90-774 4 cell holder (less batteries)
90-775 2 cell holder (less batteries)
90-777 8 cell holder (less batteries)
90-779 4 cell holder (less batteries)
90-777
90-779
173
Visit Calrad on the Web at: www.calrad.com
CALRAD
90 Series - Battery & fuse Holders, Speaker terminals
90-745
“aaa” BattErY HOLDErS
Made of durable plastic shell and
nickel plated contacts to stop
corrosion from battery acid. All have 6
inch leads (red and black).
90-745 .1 cell holder (less batteries)
90-746 .2 cell holder (less batteries)
90-747 .4 cell holder (less batteries)
90-780
SafEtY fUSE HOLDEr
Panel mounting for 3AG-type fuses.
3
19
Fits in panels up to /16" thick, /32"
3
mounting hole. Overall length 1 /4"
15
behind panel 1 /16".
Rating 10 amps / 250 Vac
90-783-UL
fUSE HOLDEr
UL VErSION
Panel mounting fuse holder for
3AG fuses. Mounts in .59” hole.
11/4" deep behind panel.
Rating 10 amps / 250 Vac
90-746
90-747
90-811
UNIVErSaL INLINE
fUSE HOLDEr
Consists of insulated plastic fuse
holder and 25"-wire. Handles 3AGtype 10A 125V fuses included.
Excellent for home, auto radios and
tape players. 20 gauge wire.
90-818
HEaVY DUtY INLINE fUSE
HOLDEr
10-gauge wire with 30-Amp fuse
included. Length is 13”.
90-838
CB rEPLaCEMENt
HarNESS
Fits many CB sets on the market
today. Complete with color-coded
wire, fuse holder and 2-Amp fuse
and molded plug.
90-783 NON-UL VErSION.
19
/32" long. Mounts in .59” hole
Rating 15 amps / 125 Vac
90-751
4-PUSH tErMINaL
CONNECtOrS
Push terminal 16 Ga wire connecting
block. 2 red and 2 black push posts.
Just a touch of the finger completes
the circuit. Simple, yet positive action.
Perfect for amplifier and speaker
connections.
11
15
5
Size: 2 /16"(L) x /16"(W) x /8"(D)
3
Mounting centers ........................ 2 /8”
90-732
HEaVY DUtY INLINE fUSE
HOLDEr
Heavy duty ATC/ATO* blade type
fuse holder with 10 gauge wire.
Length 8 inches.
* ® ATC/ATO is a registered
trademark of Little Fuse Company.
90-755
2-PUSH tErMINaL
CONNECtOrS
Push terminal 16 Ga wire connecting
block. 1 red and 1 black push posts.
5
Dimensions ............ 2 /16"W x 1"H
13
Mounting Centers ............... 1 /16"
Visit Calrad on the web at: www.calrad.com
174
CALRAD
90 Series - Speaker terminals & accessories
90-758
Banana Plug & Binding Post
terminal Strip
gold terminals with plastic screw
nut with red and black identification
bands
Size: 21/8” (L) X 15/16”(W)
90-741
SPEaKEr tErMINaL CUP
21/2" x 31/8" size. Has spring
loaded connectors. Red and black
posts. Spade lug or solderable rear
terminals.
90-758G
All Gold Terminal Version
Dual Banana/Speaker Terminal Strip.
Accepts either standard banana plugs
or speaker wire up to 10 AWG.
Solder, spade lug or screw rear
terminal options available. Size: 21/8”
(L) X 15/16”(W).
90-757
Banana Plug & Binding Post
terminal Cup.
Gold terminals with plastic screw nut.
Red and Black colored plastic nuts.
Mounting Holes 21/2” Center to
Center. Mounts in 2” Hole.Outside
Face Dia. 2 7/8”
Mounting hardware not included.
5-WaY BINDING POStS
Plastic insulation. Has /16" keyed
threaded mounting shaft. Will mount
1
in panels up to /4" thick. Colors
shown below.
5
90-799...............................Black
90-800 .................................Red
30-601 1 Red, 1 Black
30-601-BK 1 Black
30-601-rD 1 Red
Banana/Binding Post
Overall
length 1.17”
Solderless speaker termination on
each end Accepts banana style
connectors or raw speaker cable up
to 14AWG. Mounts in 3/8” hole.
90-757G
All Gold Terminal Version
Gold Plated Banana Plug &
Binding Post terminal Cup
All gold terminals. Red and Black
Identification bands. Mounts in 2” hole.
Mounting holes 21/2” Center to
Center. Outside Face Diameter 27/8”.
Mounting hardware not included.
30-601S-BK & rD
Gold plated binding post with push
button on one end and banana
jack on the other end. threaded
barrel top screws off to accept 14
Ga wire.
90-756
PUSHBUttON BINDING POSt
tErMINaL CUP
Ideal for fast connections. Spring
loaded. Just press and insert wires,
release and wires are securely
fastened. Installs easily into most
speaker cabinets. Red and Black
5
posts. Mounts in 2" hole, 2 /16" dia.
mounting centers.
90-740
SPEaKEr tErMINaL CUP
21/4" x 21/4" square. Has spring
loaded connectors. Red and black
posts. Spade lug or solderable rear
terminals
240 Vac @ 5 Amps.
Visit Calrad on the web at: www.calrad.com
175
CALRAD
90 Series - rubber feet, Chassis Boxes & tools
90-794
rUBBEr fEEt
Adhesive-backed molded bumpers
apply instantly. Just peel off backing
and apply to any dry, clean surface. 4
per pkg.
Size: 0.129"(H) x .520"(sq.)
90-795
Same as 90-794 only larger.
Size: 0.300"(H) x .880"(sq.)
90-796
rUBBEr fEEt
Adhesive-backed molded bum-pers
apply instantly. Just peel off backing
and apply to any dry, clean surface. 4
per pkg.
Size............... 0.400" Ht. x .880 dia.
90-797
rUBBEr fEEt
Adhesive-backed molded bum-pers
apply instantly. Just peel off backing
and apply to any dry, clean surface. 4
per pkg.
Size ...............0.320" Ht. x .635" dia.
PLaStIC UtILItY BOXES
Slotted for circuit boards. Grey sturdy
ABS plastic.
90-880 ......2 1/8"L x 4 1/8"W x 1 3/4"H
90-881 ...... 2 1/2"L x 5 1/8"W x 1 3/4"H
90-882 .......3 1/2"L x 5 7/8"W x 2 1/2"H
90-883 ......41/2"L x 7 3/8"W x 2 9/16"H
90-936
fLEXIBLE ratCHEt DrIVEr
SEt
Comfortable ratchet wrench with flexible
neck and ten inter-changeable tips. Flex
neck is detachable. Bits: 3 slotted, 4
phillips, 3 torx.
90-937
17 PIECE OffSEt ratCHEt &
SOCKEt DrIVEr SEt - Metric
Handy ratchet wrench with ten
interchangeable tips or six sockets.
Sockets are in fractions of an inch.
Sockets: 5mm, 6mm, 6.5mm, 8mm, 9mm,
10mm. Bits: 3 slotted, 4 phillips, 3 torx.
90-819
HEaVY DUtY aLUMINUM
UtILItY BOX
90-842
6-PIECE PHILLIPS
SCrEWDrIVEr SEt
Precision made. Ideal for mounting
controls, intercom's and most transistor
switching devices. Box wall thickness
.085”
Size.... 4.65”(L) X 3.65”(W) X 1.36”(H)
Screwdrivers are made of hardened and
tempered molybdemum steel. Black
point blades are against reflection of
light, swivel top is suitable for miniature
work. Contains: 0.5-0.4-0.3-0.2-0-1.2 x
40mm
HaNDY BOXES WItH
aLUMINUM PaNEL
Made of sturdy black ABS plastic,
removable aluminum cover. Perfect for
housing test equipment, experimental
products.
90-784 ... 31/4"L x 21/8"W x 11/8"H
90-785 ..... 4"L x 2 1/8"W x 15/8"H
90-786 ...... 61/4"L x 33/4"W x 2"H
90-843
7-PIECE HEX BaLL DrIVEr SEt
WItH HarDENED tIPS
Screwdrivers are made of hardened and
tempered molybdemum steel. Black
point blades are against reflection of
light, swivel top is suitable for miniature
work. Contains: 0.7-0.9-1.3-1.5-2.02.5-3.0 x 40mm
Visit Calrad on the web at: www.calrad.com
176
CALRAD
90 Series - tools
90-844
7-PIECE COMBO SEt
Screwdrivers are made of hardened
and tempered molybdemum steel.
Black point blades are against
reflection of light, swivel top is
suitable for miniature work..Contains:
slotted; 1.4 - 2.0 - 2.4 - 3.0 x 40mm
& phillips’ 0.3 - 0.2 - 0 x 40mm
90-828
3-PIECE LONG-HaNDLE
SCrEWDrIVEr SEt
Fine sharp point, curved tip, general
point tip, and flat tip. Comes with
carrying pouch.
90-912
4 PIECE CEraMIC NON
CONDUCtIVE tWEEZEr SEt
Screwdrivers are made of hardened
and tempered molybdemum steel.
Black point blades are against
reflection of light, swivel top is
suitable for miniature work. Contains:
slotted; 2.4x75, 3.0x100. phillips; 02x7.
Ideal for handling semiconductors,
silicon chips and delicate wafers.
Static dissipative and conductive ideal
for use with sensitive components
where ESD damage is a concern.
Tweezers are manufactured with
carbon loaded materials. 4 blade
types: duck bill, wide duck bill, 60°
fine tip, and straight fine tip. Heat
resistant up to 180°C (250°F), Acid
resistance. tips do not spread under
pressure. No contamination and non
magnetic. Overall length 4.75”.
90-908
9-PIECE MEtrIC HEX KEYS
SEt WItH HOLDEr
90-927-8
90-927-12
BNC INSErtION aND
rEMOVaL tOOLS
Sizes: 1.5mm, 2mm, 2.5mm, 3mm,
4mm, 5mm, 6mm, 8mm, 10mm.
90-930a
aMErICaN 7-PIECE fOLDUP HEX KEY SEt
Contains: 1/16”, 5/64”, 3/32”, 1/8”,
5/32”, 3/16”, 1/4”. Finish: case
painted in green lacquered finish.
Key fingers sand blasted and then
nickel plated.
90-905
5-PIECE NEEDLE fILE SEt
5 style edges: flat, round,
square, half-round, and triangle.
177
90-906
4-PIECE PrECISION tWEEZEr
SEt
Visit Calrad on the Web at: www.calrad.com
Easy grip handle. Available in 8” and
12” shaft lengths.
90-928-8
COaX CaBLE aSSEMBLY
tOOL
This tool is used to remove ‘F’
connectors in tight areas. Also aids
in the assembly of standard ‘F’
series connectors with a Female
mounted connector to push against.
also used to clear damaged or
stripped threads.
90-803
3 PIECE PrECISION
aLIGNMENt tOOLS
Insulated handles with steel tips.
Antistatic nylon construction.
CALRAD
90 Series - tools
90-804
10 PIECE PLaStIC
aLIGNMENt tOOLS
90-925
SOLDErING IrON StaND
WItH SPONGE
4.5” long molded plastic rods with
various types of tips: slotted,
hexagon, and square. Easy grip
handles.
Works with Calrad soldering irons 90-921
and 90-923
90-850
MICrO fLat NOSE PLIEr
WItH INSULatED GrIP
90-900
tEMPEratUrE CONtrOLLED
SOLDErING StatION
90-853
MICrO LONG NOSE PLIEr
WItH INSULatED GrIP
90-903
BUtaNE GaS tOrCH WItH
CEraMIC HEaD
Comes with different tips for all styles
of work. Unit is refillable. Five
different tips are included.
90-923
aC SOLDErING IrON
40 watt pencil style. 6’ cord.
90-924
rEPLaCEMENt tIP
Replacement tip for 90-923.
90-900r
This electronic temperature control
soldering station uses a sophisticated
electronic circuit enabling the user to
change the temperature from 300°F
(150°C) to 900°F (480°C) without
changing the tip or heating element.
Temperature is maintained within ±10°F of
its preset temperature by a unique
temperature sensor located near the tip
giving rapid response and little
temperature variation. Soldering station
has a digital readout.
90-900t Replacement tip for 90-900.
90-900r Soldering iron replacement.
90-926
60/40 rOSIN
COrE SOLDEr
370 degree melting point, 18 awg,
7 inch dispenser tube.
90-805
CaBLE SLIttING tOOL
Easy grip handle, adjustable cutting blade.
Prepares cables up to 1.75”. This tool can
cut around or slit the length of the cable
jacket.
90-920
ratCHEt CrIMPING tOOL
Designed to produce a solid and uniform
crimp with every use. Crimps spade type
connectors from .5-1mm2, 1.5-2.5mm2,
4.0-6mm2. Handles cable sizes from 10
to 22 gauge wire. Comfortable plastic grip.
90-921
aC SOLDErING IrON
90-945
COaXIaL CaBLE StrIPPEr
30 watt pencil style. 6’ cord.
This coax cable stripper will perform two level
stripping of coaxial cables Stripping the outer
jacket, braided shield and inner dielectric. The
adjustable blade depth works well for different
coaxial cable thicknesses.
RG-58/59/62/6/6QS/3C/4C/5C.
178
CALRAD
90 & 99 Series - tools, tape & Cigarette Lighter Plugs
90-856
PrECISION WOrK HOLDEr
WItH 1.75” MaGNIfYING
GLaSS
90-787
HIGH INSULatION ELECtrICaL
taPE
Plastic electrical tape consists of high
dielectric strength and flexible stretch,
snug wrap, waterproof. Will resist oil,
gasoline, water, salt water, alkalis and
sunlight. 3/4" wide, 60 ft. UL approved.
Adjustable heads with 6 ball joints for
all angles, locks at any angle.
Alligator spring clips for easy use.
Nickel plated fittings with heavy castiron base.
Please specify color when
ordering
90-787 ................................Black
90-787-BU ..........................Blue
90-787-GN .......................Green
90-787-WH........................White
90-600
CIGarEttE LIGHtEr
SOCKEt
DrILL BItS
99-f12f
99-f18f
99-f24f
99-f36f
99-f58f
99-f72f
1/4”
. . . . . 1/4" x 12” Flex Shaft
. . . . . 1/4" x 18” Flex Shaft
. . . . . 1/4" x 24” Flex Shaft
. . . . . 1/4" x 36” Flex Shaft
. . . . . 1/4" x 58” Flex Shaft
. . . . . 1/4" x 72” Flex Shaft
99-1218B
99-1218C
99-1218f
99-1224f
99-1224B
99-1236f
99-1236B
99-1236C
99-1258f
99-1258B
99-1272f
Chassis mount version mounts in
7/8" diameter hole. Over all length:
2.64”. 0.15” diameter post and
0.25” spade.Current rating 15A.
90-600-S
1/2”
Same as the 90-600 except with a
solderable center tab.
. . . . 1/2" x 18” Stiff Shaft
. . . 1/2" x 18” Carbide Bit
. . . . 1/2" x 18” Flex Shaft
. . . . 1/2" x 24” Flex Shaft
. . . . 1/2" x 24” Stiff Shaft
. . . . 1/2" x 36” Flex Shaft
. . . . 1/2" x 36” Stiff Shaft
. 1/2" x 36” Masonary Bit
. . . . 1/2" x 58” Flex Shaft
. . . . 1/2" x 58” Stiff Shaft
. . . . 1/2" x 72” Flex Shaft
90-600-S
90-601
CIGarEttE LIGHtEr JaCK
Cigarette lighter jack for auto
accessories. Rated up to 15 amps.
Accepts up to .25” O.D. cable. Over
all length: 2.7”.
3/8”
99-3812B . . . . 3/8” x 12” Stiff Shaft
99-3812f . . . . 3/8” x 12” Flex Shaft
99-3818B . . . . 3/8” x 18” Stiff Shaft
99-3818C . . . 3/8” x 18” Carbide Bit
99-3818f . . . . 3/8” x 18” Flex Shaft
99-3824f . . . . 3/8” x 24” Flex Shaft
99-3824B . . . . 3/8” x 24” Stiff Shaft
99-3824C . . . 3/8” x 24” Carbide Bit
99-3836f . . . . 3/8” x 36” Flex Shaft
99-3836B . . . . 3/8” x 36” Stiff Shaft
99-3836C . 3/8” x 36” Masonary Bit
99-3848B . . . . 3/8” x 48” Stiff Shaft
99-3858f . . . . 3/8” x 58” Flex Shaft
99-H3858f 3/8" x 58” Flex w/ extra hole
99-3872f . . . . 3/8" x 72” Flex Shaft
90-602
POWEr COrD EXtENSION "Y"
aDaPtEr POWEr CaBLE
3/4”
99-7548B . . . . 3/4” x 48” Stiff Shaft
Auger Bits
99-a10036B 1” x 36” Flex Shaft, Auger
99-a10048B . . . . . . . 1” x 48” Auger
99-a1224B . . . . . . 1/2” x 24” Auger
99-a1236B . . . . . . 1/2” x 36” Auger
99-a1248B . . . . . . 1/2” x 48” Auger
99-a3424B . 3/4” x 24” Stiff Shaft, Auger
99-a3436B . . . . . . 3/4” x 36” Auger
99-a3448B . . . . . . 3/4” x 48” Auger
99-a3472B . . . . . . 3/4” x 72” Auger
99-a3824B . . . . . . 3/8” x 24” Auger
99-a3836B . . . . . . 3/8” x 36” Auger
99-a3848B . . . . . . 3/8” x 48” Auger
99-a3872B . . . . . . 3/8” x 72” Auger
99-a5836B . . . . . . 5/8” x 36” Auger
99-a5848B . . . . . . 5/8” x 48” Auger
179
All drill bits have the hole
at the end of the shaft for
feeding wires thru the
wall or window sill.
Visit Calrad on the Web at: www.calrad.com
Enables two 12 volt units to be
connected to one 12 volt battery pack or
auto accessory outlet. Includes
replaceable 3 amp fuse. Rated up to 15
Amps. 18 awg cable. Black cable.
90-604
CIGarEttE LIGHtEr PLUG
Snap-together case with single screw
nut for fast easy replacement. Easy
access solderless terminals. Single
finger ground system. Accepts up to
18 awg cable. Over all length: 2.86”.
Spring loaded tip.
CALRAD
90 Series 90-610
CIGarEttE LIGHtEr PLUG
Snap-together case with single
screw nut for fast easy replacement.
Easy access solderless terminals.
Single finger ground system.
Accepts up to 16 awg cable. Over
all length: 2.86”. Spring loaded tip.
90-611
CIGarEttE LIGHtEr PLUG
2-ear version for better ground
connection. Fuse protected,
complete with 5 amp fuse. Accepts
up to .25” O.D. cable. Over all length:
3.3”. Rubber strain relief. Color black.
90-612
CIGarEttE LIGHtEr PLUG
2-ear version for better ground
connection, bakelite material.
Accepts up to .25” O.D. cable. Over
all length: 3”. No fuse protection.
Spring loaded tip.
90-613
CIGarEttE LIGHtEr PLUG
Fuse protected, complete with 5
amp fuse. 2-ear version for better
ground. Accepts up to .17” O.D.
cable. Over all length: 3.7”. Rubber
strain relief. Color black. Spring
loaded tip.
90-614
CIGarEttE LIGHtEr PLUG
WItH rED L.E.D.
Same as 90-613 with LED for
power indication. O.D.: 0.19”
Overall length: 3.8”. Rubber strain
relief. Color black. Spring loaded tip.
Cigarette Lighter Plugs,
Jacks & Cable assemblies
90-615
CIGarEttE LIGHtEr PLUG
2-ear version for better ground
connection. Easy grip handle for
removal. O.D.: 0.25”. Overall
length: 3.7”. Rubber strain relief.
Color black. Spring loaded tip.
90-616
rIGHt aNGLE CIGarEttE
LIGHtEr PLUG
Accepts 18-22 gauge wire. Fuse
protected with a 2A fuse. 2 ear
ground system and cable strain
relief. O.D.: 0.25”
Overall length: 2.7”
90-617
CIGarEttE LIGHtEr PLUG
WItH 20 aMP fUSE
Heavy Duty cigarette plug with a 20
Amp fuse. Dual contacts and heavy
duty spring.
90-620
aDJUStaBLE CIGarEttE
LIGHtEr PLUG WItH SWItCH
Ratchet style cigarette lighter plug
with built-in illuminated (L.E.D.)
power switch. 10A fuse protected
(fuse included). 2 finger ground
system. 95° adjustable head.
Accepts up to 16awg. cable.
90-606
CIGarEttE LIGHtEr PLUG
Fits most automotive lighter
sockets. 3 amp / 3 AG fuse. 18 awg
zip cable - red/black. 16” leads and
fused plug.
Visit Calrad on the web at: www.calrad.com
180
CALRAD
90 Series - Cigarette Lighter, Cable assemblies
90-605
15 aMP CIGarEttE
LIGHtEr PLUG WItH
rEtraCtaBLE CaBLE
Black, heavy duty 18 AWG coiled
cable. Extends to 15 ft. Fits most
automotive lighter sockets. Adds
portability to your electronic
equipment either inside or outside of
vehicle. 3 amp fuse. rated up to 15
amps. Black cable. Stripped and
tinned leads.
90-607
CIGarEttE LIGHtEr PLUG
WItH CaBLE
Fits most automotive lighter
sockets. 32” black 18awg. cable.
No fuse protection.
90-617-6
CIGarEttE LIGHtEr PLUG
WItH 20 aMP fUSE
6’ 16 awg. black cable with stripped
and tinned ends. Heavy dute 20A
fuse protected cigarette lighter plug
with power indicator L.E.D. Dual
ear contacts and heavy duty tip
spring. For use with all types of
portable electronics requiring
12Vdc.
90-619
CIGarEttE LIGHtEr CaBLE
WItH 2.5mm COaX PLUG
6’ 20awg. black cable with 2.5mm Male
coax plug to Male 5A fuse protected
cigarette lighter plug with power
indicator L.E.D. for use with all types of
portable electronics requiring 12Vdc.
45-820
LIGHtEr PLUG
Fused lighter plug with 6 detachable
plugs. 12 ft. coiled cord with multi plugs
on the other end. Fuse protected at 2
amps.
45-821
LIGHtEr PLUG
Fused lighter plug with LED indicator. 6
ft. cord with 2.1 coax plug on the other
end. Fuse protected at 5 amps. With
positive center.
90-618
CIGarEttE LIGHtEr CaBLE
WItH 2.1mm COaX PLUG
6’ 20awg. black cable with 2.1mm
Male coax plug to Male 5A fuse
protected cigarette lighter plug with
power indicator L.E.D. for use with
all types of portable electronics
requiring 12Vdc.
90-618-rt right angle
Version on 2.1mm side only
181
Visit Calrad on the Web at: www.calrad.com
Visit Calrad on the web at: www.calrad.com
CALRAD
90 Series - Cable ties, Cable tie tools
CaBLE tIE PrODUCtS
These tie products are manufactured of 100% non-corrosive, Type 6/6 Nylon. They meet MILS-23190, MS 3367, ASTM D4066-82, and are recognized under the component program of the
Underwriter's Laboratories, Inc. (File No. E 37800). All products are Self-Extinguishing UL 94
Flam., Class: V-2. They are stocked in natural and weather-resistant, heat-stabilized black.
Other colors are available upon request as noted on illustrations. The part numbers shown are
for bulk-packaged, natural ties. Order other colors by adding color desired to part number
shown. All cable ties sold in lots of 25, 100 or 1000 .
Minimum
Part
Number
90-830 *
90-831 **
90-832 **
90-833 **
90-860 **
90-861 **
90-862 **
*
**
Cross
Section
STD
MIN
INT
STD
INT
STD
STD
Loop Tensile
Strength
lbs.
(kg)
18
(8.1)
18
(8.1)
40
(18.1)
50
(22.7)
40
(18.1)
50
(22.7)
50
(22.7)
Minimum
in. (mm)
3
/16”
(4.7)
1
/16”
(1.6)
1
/16”
(1.6)
1
/16”
(1.6)
1
/16”
(1.6)
1
/16”
(1.6)
1
/16”
(1.6)
Bundle Diameter
Maximum
in.
(mm)
7
/8
(22.2)
7
/8
(22.2)
11/4
(31.7)
3
1 /4
(44.5)
21/8
(53.9)
3
(76.2)
4
(101.6)
Military
Standard
MS 3368-5
MS3367-4
MS3367-5
MS3367-1
No App. Std
MS3367-7
MS3367-2
Overall
Length
in.
(mm)
4.0 (101.6)
4.0 (101.6)
5.5 (139.7)
7.5 (190.5)
8.0 (203.2)
11.0 (279.4)
14.0 (381.0)
90-830
*
90-831 90-832 90-833
**
**
**
90-860 90-861 90-862
**
**
**
Available in Natural.
Available in Natural and Black.
90-867a CaBLE tIE INStaLLatION tOOL
Designed to combine maximum productivity and speed with operator comfort and safety. Simple to use place tie around bundle and pull hand tight. Apply tool at head of tie and squeeze. Tie is pulled to pre-set
tension and cut off in one simple operation. Adjustable, pre-set tension results in uniform cable tie
application, neater bundles more efficient harnessing. Replacement cutting blades available for extended
life. Short squeeze factor for greater comfort with less fatigue. Lightweight, only 12 ounces. Hand
contoured handle. Positive positioning feature on tension adjustment knob.
90-868 CaBLE tIE
tENSION tOOL
Visit Calrad on the web at: www.calrad.com
182
CALRAD
90 Series - Digital Calipers & Wire Conduit
90-913 0-100MM ELECtrONIC DIGItaL SILVEr CaLIPErS
Measuring range: 0-75mm / 0-3”, 0-100mm / 0-4”, 0-150mm / 0-6”, 0-200mm / 08”, 0-300mm / 0-12”. Resolution: + -0.01mm / 0.0005” Measuring system: Linerar
Capacitive, display LCD, Power 1.5 button cell.An ideal tool for a broad range of
industrial and automotive applications.
features: Internal measuring jaw, locking screw, zero setting and power buttons,
depth measuring blade, metric/inch change over, step measuring faces.
90-914 0-150MM ELECtrONIC DIGItaL BLaCK CaLIPErS
Measuring system: Linerar Capacitive, display LCD, Power 1.5 button cell.
features: Internal measuring jaw, locking screw, zero setting and power putton,
depth measuring blade, metric/inch change over, step measuring faces, data
output port, step measuring face. Tolerance, Hold, ABS selection. An ideal tool for
a broad range of industrial and automotive applications.
features:
•Power: 2 x 1.5V SR44 (silver oxide cell) battery (included)
•Measuring range: 0–150 mm/ 0–6 inch.
•Accuracy: + 0.02 mm/ 0.001 in. (<100 mm), + 0.03 mm/ 0.001 in. (>100 -150 mm)
•Resolution: 0.01mm/ 0.0005 in.
•Zero setting in any position
SPLIt aND SOLID WIrE PVC CONDUIt
Split or Solid PVC, Corrugated Tubing Protects Wiring from Abrasion and sunlight.
Organizes Wire and Eliminates Clutter. Split Allows for Easy Wire Insertion, While
the Solid Insures Secure Blind Insertion.
1/2” to 1” Split Conduit
90-630-BK ............................................ 100 ft.1/2” Black
90-630-GY ............................................ 100 ft. 1/2” Grey
90-631-BK ............................................ 100 ft. 3/4” Black
90-631-GY ............................................ 100 ft. 3/4” Grey
90-632-BK ............................................
50 ft. 1.0” Black
90-632-GY ............................................
50 ft. 1.0” Grey
Solid 2 Inch Conduit
90-635-BK ............................................ 50 ft. 2.0” Black
90-635-BK-150...................................... 150 ft. 2.0” Black
90-635-GY-150...................................... 150 ft. 2.0” Gray
183
90-630
90-631
90-632
90-635
CALRAD
90 & 92 Series - L.E.D. Lighting
90-701-XLr-ra PrO-aUDIO LaMP
WItH 8 L.E.D LIGHtS
90-702 CIGarEttE LIGHtEr
LaMP WItH 8 L.E.D. LIGHtS
Perfect for mixing consoles or desk top,
public address usage. Terminates to a
male XLR connector. Over 50 year Avg.
L.E.D lamp life. Material color: Black.
For use in Car's or truck's. Provides a
bright pure white light for reading.
Never gets hot, easy to handle and
operate. Terminates to a male
cigarette lighter connector with
ON/OFF switch. Over 50 year Avg.
L.E.D lamp life.Fuse protected.
Specifications:
Power 8 L.E.D lamps operates on 12Vdc.
Current consumption ...........250mA.
Gooseneck length.......................12"
Wiring XLR Pin 1=ground, Pin 2=12Vdc
Material color ..........................Black
Specifications:
Power8 L.E.D lamps operates on
12Vdc.
Current consumption ...........250mA.
Gooseneck length.......................12"
Material color ..........................Black
2-WIrE / 4 WIrE12VDC L.E.D.
StrIP LIGHtING
92-300 White 2-Wire LED Strip
Mini LED flashlights
92-203-BK................Black
92-203-BU................Blue
92-203-GY................Grey
92-203-rD.................Red
92-203-WH..............White
Lighting. 16 ft. rools.
92-301 RGB 4-Wire LED Strip
Lighting. 16 ft rolls.
Calrads new line of L.E.D. waterproof strip lighting provides the
unique ability to select each independant color of Red, Green or
Blue or combinations to create(256 shade levels each color, 16
million shades) of lighting in a small thin form factor. The flexible
silicon PCB can be bent to a maximum radius of 2cm. 50 L.E.D's
per meter 4 watts per meter. Cut between every 3 LEDs to create
the size length for your application. Creates stunning visual
effects, Little or no heat, Solid-state, high shock / vibration
resistant, very bright & low power consumption. 16 ft. String
requires a 12Vdc, 1.5 amp power supply.
See page 103 for
12Vdc power supplies
Ir remote
Ir receiver
92-200 6” aVIatOr COMPaCt
fLaSHLIGHt
Shock proof construction, heavy duty
machined Aircraft Aluminium with
high quality black anodized finish.
Fully adjustable focus head. All
weather housing with sealed O-ring
lamp and battery housing. Onehanded tail rubber push button switch.
Shatter proof lense, includes spare
bulb, belt style carring case with
velcro flap and 2 x AA Batteries.
92-201 COMPaCt aVIatOr
fLaSHLIGHt ON a 18”
fLEXIBLE GOOSENECK
92-201
92-340
92-341
90-1000 PErSONaL L.E.D
SafEtY LIGHt
92-324
92-325 & 92-326
92-322
2-WIrE LED StrIP LIGHtING
92-325 LED Strip Lighting Clips With 6” Leads
92-326 LEDStrip Lighting Clips With 6” Leads
92-340 rGB Manual Control Module
92-341 rGB Control Module and Ir remote
92-322 2 Wire LED Strip Lighting Coupler
92-324 4 Wire LED Strip Lighting Coupler
With the mini-flash unit on at
night, you will stay visible to
motorists while walking or jogging
on the road. Clip the mini -flash
either on your hat or clothes.
Momentary push on\off power
switch. Bright flashing red L.E.D. .
Easy to replace 3V lithium battery
CR2032.
90-1000-Bat
3V lithium replacement battery
CR2302.
184
CALRAD
92 series - L.E.D. Lights & Holders
92-111
rECESSED PaNEL MOUNt HOLDEr (BLaCK) fOr 5 MM-LarGE LEDS
Fits into /16" hole with mounting hardware. LED not included. /8” depth overall.
5
5
92-110
PaNEL MOUNt HOLDEr (BLaCK) fOr 5 MM-LarGE LEDS
Fits into /16" hole with mounting hardware. LED not included. /8” depth overall.
5
5
92-115 (red)
92-116 (Green)
PaNEL MOUNt SELf fLaSHING L.E.D’s
Fits into /16" hole with mounting hardware. 36” leads, 5-15V DC, Current draw 20-30ma.
5
fLaSHING LED'S 5 MM SErIES—LarGE
Apply voltage and they turn on and off. Note: Plastic Snap-Type Holders available above for 5
mm LED's.
92-100 ......................Red, Color diffused
92-101 ...................Green, Color diffused
Specifications
a.
b.
c.
d.
92-102 ...................Amber, Color diffused
92-103 ...................Yellow, Color diffused
This diameter is measured 0.05 (0.002) from shoulder.
The contour is not controlled within this region of the leads.
Lead spacing is measured where the leads emerge from the package—2.29 ±0.13 (0.090 ±0.005)
All dimensions are in millimeters (inches).
92-120-BL, BLUE L.E.D.
92-120-GN, GREEN L.E.D.
92-120-rD, RED L.E.D.
92-120-WH, WHITE L.E.D.
92-120-YL, YELLOW L.E.D.
5mm WatEr CLEar SUPEr BrIGHt L.E.D’S
These L.E.D’S provide pure high power illumination. There high performance and long life
properties make them perfect for use as solid state panel indicators and lighting applications,
illumination emitters for all types of new display technologies. Available in five different colors.
Detailed specifications available from Calrad, ask your sales representative for information.
92-125 HEaDBaND L.E.D. fLaSHLIGHt
Contains 7 high intensity LEDs to make your environment ultra bright
wherever you are. The headstrap on the headlight is fully adjustable,
featuring an adjustable incline for customization. Requires 3 AAA
batteries. Typical battery life is around 80 hours, while the LED last
100,000 hours. The headlight is a water resistant design, making it fully
usable under any condition you're in.
185
Visit Calrad on the Web at: www.calrad.com
CALRAD
92 Series - Ir Distribution
92-160 Ir DIStrIBUtION SYStEM
IR Connecting hub with a wired receiver that terminates to a
3.5mm stereo plug. A terminal block is also provided to support
wired type receiver connections if needed. Designed to simplify
the connection of IR receivers and emitters for IR signal
distribution. The 92-160 has the ability to send IR signals to 6
sources using a single emitter or 12 or more sources if double or
triple IR emitters are used.Three colored LED indicators show
power status, IR signal and IR confirmation. Comes with one
receiver and one emitter, 12 VDC supply.
92-160
92-167 6 POrt Ir CONNECtING BLOCK
IR connecting block supports wired type IR receiver connections
and 3.5mm IR emitters for IR signal distribution.
92-169 2 POrt Ir rEPEatEr KIt
Compact 2 port IR repeater kit provides a simple system to
control equipment located in a closet, equipment rack, or behind
you, or even in another room. This kit requires a IR receiver, use
Calrad 92-164keystone IR receiver or 92-165 surface mount IR
receiver, (Not Included) and single or double IR emitters, 92-152
(Single Emitter), 92-152-2 (Double Emitter), (Not Included).
92-152
Single Ir flashing Emitter, 6 ft. cord
92-152-2
Dual Ir flashing Emitter, 6 ft. cord
92-153
triple Ir Emitter array 6 ft. cord
92-165
Ir receiver 6 ft. cord
92-167
92-169
92-165
92-152-2
92-163
92-164
92-153
92-161 Ir Distribution System
92-166 In Wall Ir receiver Plate
Same as 92-160 but with flush mount wall receiver.
Specifications
Includes 1 distribution block, 1 flush mt. receiver, IR emitter.
Includes 12 Vdc 300ma power supply.
DC Power Supply positive center.
6 3.5 mm Mono IR emitter outputs.
1 Detachable, 4 conductor IR receiver input connector
2 3.5mm Stereo Jack IR Receiver input
Dimensions, IR Receiver: L-2.13”, W-.56”, H-.52”
Dimensions, Distribution Block: L-1.95”, W-2.25”, H-.95”
Distribution Block weight: 6 oz.
Power supply input 120 VAC 60 Hrz
Power supply output 12VDC Positive Center
92-161
92-166
92-163
3.5mm Stereo Jack
In a Keystone Insert
Features 3 position spring terminals for
IR Emitters or Stereo Audio. Accepts up
to 22ga. solid wire. Color: White.
92-164
Ir receiver In a Keystone Insert
In a Keystone Insert
Features 3 position spring terminals,
V+, V-, signal. Frequency: up to47KHz,
Voltage 9-12Vdc, Current draw: 22mA,
receiver max distance 30 feet, IR
receiving offset: 120°. Accepts up to
22ga. solid wire. Red LED provides
clear indication of Signal reception.
Color: White.
186
CALRAD
92 series - Ir Distribution
92-170-KIt Ir Distribution Over Coax Injector-Coupler System
92-170 Injector
92-170 Coupler
The 92-170 IR injector and coupler system sends remote control signals to your satellite dish, cable box, or DVD using a standard IR remote,
even if the component you wish to control is located in another room. The Calrad RF/IR Injector delivers your IR signals over a single coaxial
cable up to 300 feet to the actual component. Attach Calrad's IR 92-165 receiver using the 3.5mm stereo mini plug to the RF/IR Injector, which
attaches to your coax cable between the satellite or cable input and the television you'll be watching. The IR Signal Coax Cable Coupler extracts
the IR commands on the other end and delivers them to the satellite dish or other component via a Calrad's 92-152 IR emitter. The IR
Coupler/Injector are sold in pairs and the 1 x 92-165 IR receiver, 2 x 92-152 IR emitters, 1 x 12-Volt DC Power Supply are included. There are
several ways to use the 92-170 system, using coax only for the IR signal itself or with a CATV service or RF modulated system on the coax
cable at the same time. A Calrad DC blocker, (75-726) if required if a splitter is used between the IR Injector and coupler.
Specifications:
IR Receive, Transmit Frequency Range...... 34 khz - 60 khz
Maximum Coax Cable Distance.............. 300 ft.
IR Injector Size: L-1.9" x W-1.42" x H-.835"
IR Injector Connectors: 2 x F81 RF Jacks, 1 x 3.5mm Jack
IR Coupler Size: L-2.2" x W-1.4" x H- 1.0"
IR Coupler Connectors: 2 x F81 RF Jacks, 2 x 3.5mm Jacks, 1 x 2.1 Coax 12Vdc Power Jack.
12Vdc Power Supply, Included
Shielded Chassis Design
187
Visit Calrad on the Web at: www.calrad.com
75-726 75 Ohm DC
BLOCKEr
5-1750MHz, insertion loss
0.3dB, return loss 16dB
typical. Nickel plated
machined brass. Passes
RF and blocks DC from the
signal path. Male ‘F’
connector to F-81 style
female. Overall length 1.6”.
CALRAD
95 Series - alarms & Keypads
95-600 6 ZONE aLarM SYStEM WItH L.E.D. KEYPaD
95-800 8 ZONE aLarM SYStEM WItH L.E.D. KEYPaD
Burglar and Fire Alarm control panels are ideal for light residential and commercial use. The small
keypad with its large, illuminated tactile buttons make entering commands easy in low lighting
conditions. Removable front door on control panel for easy wiring and access. Built-in power supply and
digital communicator. Unit comes with (1) control panel, (1) L.E.D. digital keypad, (1) AC power
transformer. Can use up to seven (95-602) alpha-numeric keypads and four (95-601) L.E.D. keypads. All
options are fully programmable thru the digital keypad. Programmable entry, exit, siren delay times. UL
Compliance Alarm Panel.
Specifications
Power Requirements ...................................................................... 16Vac, 40VA Transformer Supplied
Battery Backup terminals provided for a 12V battery, rechargeable gel type, not supplied (Calrad part #
95-894)
Regulated Switched Auxiliary Power Supply.............................. 500mA - 800mA max, with all devices.
Siren Output: ....................................................................................................................Current 2 Amps
Zones ............................................................................................ Normally Closed and Normally Open
System Capacity.......................................................... 7 alpha-numeric keypads and 4 L.E.D. keypads
Transient & Lightning Protection ....................................................................................................... Yes
Wiring Knockouts .............................................................................................................................. 3/4”
Cabinet Lock.............................................................................................................. Knockout provided
1
Dimensions ..................................................................................................... 11"(H) x 11"(W) x 3 /2"(D)
Weight............................................................................................................................................. 4 lbs.
95-601 L.E.D. KEYPaD
Used with the Calrad 95-600 6 zone
alarm system. 3 wire hookup. LED
keypad size: 6 1/2”(W) x 4 1/2”(H) x 1
1/4”(D).
95-801 L.E.D. KEYPaD
Used with the Calrad 95-800 8 zone
alarm system. 3 wire hookup. LED
keypad size: 6 1/2”(W) x 4 1/2”(H) x 1
1/4”(D).
95-1601 L.E.D. KEYPaD
16 zone L.E.D. keypad 55-130mA
nominal current draw. 3 wire hookup.
Size: 6.5”(W) x 4”(H) x 1.3”(D)
Easy Access
Barrier Terminal Strip
95-602 L.C.D. KEYPaD
Used with the Calrad 95-600 6 zone
alarm system.3 wire hookup. LCD
keypad size: 6 1/2” (W) x 4 1/2”(H) x 1
1/4”(D).
95-802 L.C.D. KEYPaD
Used with the Calrad 95-800 8 zone
alarm system. 3 wire hookup. LCD
keypad size: 6 1/2”(W) x 4 1/2”(H) x 1
1/4”(D).
95-470 SMOKE DEtECtOr
Self diagnostic 4 wire photoelectric
smoke detector with heat sensor,
12/24Vdc. Perfect for home or
commercial use. Works with all Calrad
95-600, 95-800 series security panels.
Alarm Current draw [Nominal] 15.0 mA.
Size: Diameter 6.1”, Depth 1.85”.
Approvals, UL 268, ULC, FM, CSFM,
MEA.
Visit Calrad on the web at: www.calrad.com
188
CALRAD
95 Series - A\V Baluns & Security Accessories
95-1040 RCA Composite Version
95-1045 SVHS Version
AUDiO & ViDEO BALUN CAT-5
CABLE SySTEm
Transmit stereo audio and composite
video up to 1000 ft using CAT-5e cable.
The advantages of the system are: clear
video signal, fewer cables to manage,
lowercost per connection, centralized
wiring for greater control.
Video bandwidth 12MHz,
Audio 20Hz-15KHz.
Two units required for transmission
and reception of balanced signals.
Size: 2.2” (W) x 1” (H) x 3.5” (D).
95-1044-BNC BNC RGB
95-1044-RCA RCA Component
RGB/COmPONENT ViDEO BALUN
CAT-5 CABLE SySTEm
95-1045
Transmit video and power over one
CAT 5 networking cable.
Include 2 units: 1 x RJ45 to BNC
with DC power plug, 1 x RJ45 to
BNC with DC power jack.
Audio L+R
RCA
1 Video
SVHS
95-1044-RCA
Video (RGB) balun is designed to
transmit Red, Green and Blue (RGB)
video signals over CAT-5 UTPcable. Unit
has an internal impedance matching
device and filter for video signal
RJ45 & RCA
transmission over UTP cable up to
Connectors
1000 ft. Use your existing CAT-5 wiring
for all new video installation.
See page 56 for etailed
Color: black. Size: 2.2” (W) x 3.5” (L) x 1”
specifications
(H).
40-1010 VGA OVER CAT5E
BALUN
Transmit a VGA signal up to 580 ft over
Cat 5e. Supports PC resolutions up to
1280X1024. HDDB 15 Female input and
output. Transmitter and receiver requires
power. 12Vdc power supplies included.
Sold as a transmitter and receiver set.
Transmitter, Receiver Size: Length 3.76”
x Width 1.3” x Height 1.2”.
95-1046 Composite Video, S-Video,
Analog or Digital Audio Balun
Passive RCA Audio/Video balun. Transmit
stereo audio, digital audio, composite
video or S-Video over A single Cat 5/Cat 6
UTP cable up to 1000 feet. Transmission
of S-Video requires the Calrad 55-741
cable. Transmission Distance: Stereo
audio 2500 Feet max, Digital audio1000
feet. Dimensions:(L) 2.4” X (W) 1.69” X
(H) 865”.
95-1041 ViDEO BALUN CAT-5
CABLE SySTEm
189
Balanced video RJ45 to unbalanced Male
BNC adapter. Transmit a color video
signal up to 1000’ using industry CAT-5
networking cables with RJ45 connectors.
Includes CAT 5 RJ45 male to 2 screw
terminal adapter. The advantages of this
type of system are clear video signal,
fewer cables to manage, lower cost per
connection, centralized wiring for greater
control. Video bandwidth 12MHz.
Two units required for transmission and
reception of balanced signals. Size:
.76”(W) x .9”(H) x 2”(D).
95-1038 CCTV BALUN +
POWER
95-1039 CCTV BALUN +
POWER, DATA
95-1038
Transmit video, power and RS422
or RS485 Data over one standard
CAT 5 cable.
95-464 DUAL GLASS BREAK
DETECTOR
This sensor is used to protect areas
which conventional sensors that have
to be attached to each window, but this
unit covers a specific area and uses a
dual sensing technology to protect a
larger area. The flex audio technology
is sensitive to different frequencies.
Ultra low end types generated by hard
sharp blows to glass windows. The unit
remains off until flex technology detects
a blow to the glass. For an alarm
condition to occur the audio must first
detect the frequency of breaking glass
within a defined time window. After the
flex detects a blow to the glass,
because both technologies must detect
and verify glass breakage, false alarms
are virtually eliminated. Indicator LED's
provide visual indicators for various
functions. Operates on 12Vdc.
95-455 iNFRARED &
miCROWAVE mOTiON
DETECTOR
Our most advanced motion detector using an
infrared sensor to pickup thermal energy and
a microwave detector to detect physical
motion. This detector incorporates a new
sensing circuit to process both technologies
to provide a reliable triggering sensor for
security systems. Features Microwave/PIR
technology, single edge PIR triggering and
L.E.D. indicators for IR detection, microwave
detection, and alarm triggering. Operates
from 6-15Vdc, current draw 35mA. N/C dry
contacts 28Vdc, 125mA. Protection coverage
35’ long x 35’ wide. Color: white.
95-960 TWiN PHOTOBEAm
DETECTORS
Fixed dual beam infrared pulsed
perimeter detectors. Range 320’
indoors, 160’ outdoors. Excellent
immunity to freezing, snow, rain, fog,
and other bad weather conditions.
Antifrost design, operates with frost or
dew without false alarms. Interruption
time adjustable for nearly all situations.
N/C tamper switch included. Power
input 10-24Vdc.
95-460 iR SENSOR WiTH PULSE
COUNT
Small compact infrared sensor is
perfect for all applications commercial
or residential. Stable circuitry for
reliable operation. Optional brackets for
multi-angle mounting on ceilings or
walls. Available in form C relay for
normally open, normally closed
applications. Tamper switch provided,
35' x 35' coverage. Operates on 12Vdc.
95-1039
CALRAD
95 Series - Security Accessories
95-920
WiNDOW BUG SENSOR
Dry circuit, no power required.
Protects up to 32 square feet.
Adjustable operation for N/O,
N/C circuit. Automatic reset .
Peel and stick mounting.
Available in white and gray.
Provides good visible deterrent.
95-405 iNFRARED DOOR ANNOUNCER
This door announcing device emits a continuous, invisible infrared
beam to the reflector and returns it to the receiver. When this beam
is interrupted it will announce the entrance of the customer by a
pleasant chime or alarm sound (via selector switch). Single-ended
detection technology eliminates the need for a separate transmitter
and receiver. An alignment LED is provided for fast and easy
installation. Features: All parts included for easy, complete
installation. Maximum detection range of 35 feet. Two-chime
maximum hook-up. On-Off switch in-line. U.L. Listed transformer
provided. 35 foot length of AWG #22 wire provided. Operating
voltage of 6 Vdc. Current consumption of 70 mA armed, 1.2 amps
alarmed.
95-906 PRESSURE SECURiTy
mAT
Designed to give faultless service,
extra thin, made of black PVC
plastic, can be placed under
existing rugs, mats, etc. Copper bus
is used to connect each segment
together and is timed for long use.
Size: 29"W x 21"L.Normally open.
95-405-C (EXTRA CHimE SOLD SEPARATELy)
95-898 BURGLAR
ALARm mODULE
Versatile, low cost, solid-state
control module with full relay power
output. Excellent protection for the
home, office, apartments,
condominiums, etc. Easy to install.
Features closed and open circuit
loops. Built-in 3 to 11 minute
adjustment reset timer. Will
automatically reset if protective loop
has been closed. The loops may be
armed or disarmed anytime by a
key switch. Operates on 6–12 Vdc.
Chime Size:
2.55”(W) x 2.75”(H) x 1.37”(D)
Size: 33/4”L x 33/8”W x 11/4"H
Reflector Size:
1.95”(W) x 1.95”(H) x .31”(D)
95-899 DELUXE ALARm
CONTROL mODULE
Same specifications as the 95898, but with the added feature of
entry/exit time delay circuit. Builtin 3–10 min, adjustable reset timer
and sound alert entry reminder.
Entry delay loop can be adjusted
from 15 to 60 sec. Exit delay is
preset at 60 seconds. This entry
time delay circuit saves the cost of
an outside shunt switch. Also adds
to your protection of inside control
switching with added nighttime
protection while at home. Operates
95-403 RETRO-REFLECTiVE PHOTOELECTRiC iR
SENSOR ENTRy ALERT SySTEm
Size: 53/4”L x 33/8”W x 11/4”H
This unist is perfect for monitoring an entrance or use as an entrance
indicator. Uses Retro-reflective photoelectric sensor. When beamin
interrupted a “ding-dong” sound or optional siren sound will occur.
Speaker volume can be adjusted or turned off. When in siren mode,
sounding time is adjustable from 3 to 30 seconds. Range is up to 22
feet or 7 meters. 9Vdc power adapter is included. All components
plug into each other so no hard wiring is needed.
includes the following:
1 Retro-reflective photoelectric sensor
1 Reflector
1 Speaker/electronic chime
1 9Vdc power adapter
Hardware included:
Mounting brackets X 3, Screws X 7, Drywall Anchor X 1
on 6–12 Vdc.
95-914 ELECTRONiC
LATCHiNG RELAy
Momentary input, latching output.
Converts old style shunt panel to
new multi-key system. Use to
shunt an interior loop. Use as a
lock-out on commercial systems.
Programable 6/12/24Vdc, SPDT
relay with two (2) LED indicator
outputs.
Sensor Size:
1.18”(W) x 2.75”(H) x 2.32”(D)
Specifications:
Size: 43/8”L x 21/2”W x 11/4"H
Sensing Range: ..................................22feet
Voltage Supply:................Sensor = 9-15Vdc
Chime = 12Vdc
Total Current Consumption: .....100mA Max.
Standby Current: .................................25mA
Light Source: .....................................IR LED
Control Output: ............. NPN open collector
................................(DC 30V, 100mA Max.)
Speaker Response Time:..~1 sec. for chime
30 sec. for alarm
Alarm Time Range:....Adjustable 3~30sec. for alarm
Speaker Output:..Chime/Off/Alarm (Select by switch)
Visit Calrad on the web at: www.calrad.com
190
CALRAD
95 Series - Security System Timers & modules
Detailed specifications are available for these products upon request.
95-904 24-HOUR PANiC & FiRE
CONTROL mODULE
95-840 LOW CURRENT
RELAy mODULE
This unit switches a set of dry
contacts DPDT rated at 5 amps
@250Vac, 30Vdc. Supply Voltage,
programmable 6/12/24Vdc. Current
draw, 70mA when relay is active
Minimum pull voltage +/- 20% of
operating voltage. LED power
indicator. Mounts with foam tape.
Size: 2.48”(L) x 1.89”(W) x .83"(H)
By adding this module to either the
Calrad 95-898, 95-899 alarms, or any
other standard control center, you can
have a 24-hour panic override switching
circuit, even though your alarm is on or
off. When triggered, this control will
activate either the alarm bell, siren or
another independent alarm device. May
also be used for non-supervised open
circuit heat detection.
Size: 3” x 21/2” x 11/4"
95-847B UNiVERSAL TimER
This unit can be used for many applications such as a dialer trip delay, bell shutdown timer or exit delay. Features:
1 Sec to 15 Min. adjustable. Relay output (N/C/NO). Low power drain. Transient protected. Voltage reversal
protected. Auto reset. Totally enclosed package, small size.
Specifications
Input Voltage ..................................... 11 to 13 Vdc
Program Time.............................. 1 Sec to 15 Min.
Operating Current (Relay activated)...... .040 amp.
Operating Current (Relay de-activated) .010 amp.
Relay Contact Rating - Voltage ............ 50 V ac/dc
Operating Temperature .................... 32° to 100° F.
Dimensions ..................... 1.6" (L) x 2"(W) x 1.5"(H)
Mounting Area ........................................ 3.6 sq. in.
Weight....................................................... 0.15 lbs.
Relay Contact Rating - Current .................. 2 amps
95-849 miNi TimER mODULE
Low-Voltage Miniature Delay Timer Module for Access Control and Security Applications. The 95-849 is a lowvoltage miniature delay timer module which operates on 12 to 24 volts AC or DC. This timer module will extend
the activation time of a momentary contact switch for 1~60 seconds via a field-adjustable rotary pot. It is ideal for
electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a
single-gang box or inside a door frame cavity. The 95-849 timer module is easy to install and useful in both
comercial and home security applications. Specification: Adjustable timer from 1~60 seconds via a pot on board,
N.O./N.C. switch trigger. Compact design: 1.2" X 2.16" X 0.62" (30 x 55 x 16 mm), operating voltage: 12~24
volts AC or DC, Current: 1.8mA (stand-by), 75mA (active). Relay output: Form-C (SPDT) via wires Contact
rating: 3 Amps @ 24VDC, built-in beeper output (150mA @ 24VDC), Includes double-sided foam tape.
Size: 1.2" X 2.16" X 0.62"
95-724A DiGiTAL ONE CHANNEL ANNUAL EVENT TimERS
Highly versatile 24 hour, 365 day, event timer. Designed to support a wide range of
applications. Such applications include: Home and Building Automation, Security,
Access Control etc. Equipped with form “C” relay contacts that provide many latching
and/or momentary operations during a program schedule of your choice. The EE prom
memory allows for programming of unit prior to/or during field installation. Events may
be set for single or multiple operations on a daily and/or weekly schedule. The block
progamming feature enables repeating an event on any combination of consecutive
days. 95-724A will compensate for daylight savings time if desired. It automatically
adjusts for leap year and is Y2K compatible. Individually selected holiday exceptions
can be programmed to over-ride regularly scheduled events.
191
Specifications:
12 to 24 volts AC or DC operation
Standby current: 10mA (relay off) 50mA (relay on)
Battery charging current: 100mA
Form “C” relay contacts are rated 10amp @ 120Vac/28Vdc
EE Prom memory protects against loss of programming due to power failure
Accurate crystal controlled clock
Momentary and/or latching events
50 Individually programmed daily/weekly events
Block programming capacity can accommodate a total of 350 events per week
10 programmable holiday dates
“First man in” option
Alphanumeric LCD display simplifies programming
Standard or daylight savings time settings
Automatic compensation for leap year
Built-in charger for 12Vdc sealed lead acid or gel type batteries (max charge current
100mA)
Lithium battery backup maintains clock (optional)
User friendly programming
Board dimensions: 5.25” (W) x 3” (L) x 1” (D)
Size: 5.25” (W) x 3” (L) x 1” (D)
CALRAD
95 Series - Security Accessories
Detailed specifications are available for these products upon request.
95-848 DiGiTAL
CUT-OFF TimER
This unit can turn off a ringing bell or
siren, can be used as a N/C , N/O
delay relay for use as a dry contact
switch to delay or remove a contact
closure. Requires 6–12 Vdc to
operate.
Specifications
Relay Contacts................3 Amp Max.
Current Drain...........................25 mA
Adjustable Relay Time 1 sec–10 min.
95-894 12 VOLT, 7 AmP
BATTERy
Lead-acid, sealed rechargeable
battery. Replacement battery for
Calrad 95-893 power supply. Weight:
5.8 lbs. Size: 6”(W) x 2.5”(D) x
3.5”(H).
Size: 3” x 21/4” x 11/4"
95-845 mULTimODE PRECiSiON
DiGiTAL TimER
95-908 STAiNLESS STEEL
REmOTE KEy STATiON
Digital timer .01 seconds to 2550
hours (106 days). Operates at 1015Vdc. Dry contact relay output, N/O,
N/C @ 2A. Select timing modes by
dipswitch. Multiple timing operations.
Delay on break, delay on make, single
shot interval timer, ON/OFF recycle.
Remote key station single gang plate,
features key switch, circuit test button
and red, green indicator, LED lights
to be used with 95-898 or 95-899
alarm modules.
Size: 33/8” x 23/8” x 1"
95-909 SiNGLE GANG
STAiNLESS STEEL
95-846 DiGiTAL TimER
For use with security & gate entry
systems, or can be used to control a
set of dry contacts with a momentary
positive or negative trigger. Time is
adjustable from 2-45 sec. Works with
AC or DC power. Built-in LED power
indicator.
Single gang plate with .75” "D" hole
and red, green LED's, 6 Vdc or 12
Vdc operation. Use with Calrad 40663HS, 40-682, or 40-683 key
switches.
Specifications
Operating voltage ..... 12-24 Vac, Vdc
Current consumption relay triggered 50
mA
Dry contact rating................... 3 amps
Size: 31/2” x 11/2” x 11/4"
95-923 PROGRAmABLE TimER
Perfect for use with a variety of timed
security and access control operations such
as door unlock timing, siren, bell timer or
VCR/DVD timer. Auto-sensing of input
voltage and DIP switches for programming
make for easy installation. Time adjustable
from 1 second to 60 minutes. AC/DC usage.
Specifications
Operating voltage ..................... 12- 24 Vdc
Current consumption relay triggered 50 mA
Dry contact rating ........................... 8 amps
Energized ............................................50 mA
Stand by...............................................1 mA
95-893 POWER SUPPLy 12
VDC, 7 AmP HR.
95-821DOOR/GATE ACCESS
DiGiTAL KEy PAD
Size: 27/8” X 21/2” X 5/8”
Battery size:
6”(W) x 2.5”(D) x 3.5”(H)
Complete with charger board, 16Vac
plug-in transformer, 12Vdc LEADACID Rechargeable Battery. Fuse
Protected. Automatic Full Charge
Shutdown. Voltage Reference
Indicator. 12 Volt, 7.8 amp hour
battery available separately.
45-759 1.2 amp
REGULATED CHARGER
BOARD ONLy
16Vac in, 12Vdc out. Fuse protected.
Indoor digital keypad for door entry
and gate access. Stainless steel face
plate. Operating voltage 12-14VDC.
Current consumption 10-60mA. Relay
output 5A at 30Vdc, dry contact. Over
111 million code combinations. Fits in
a single gang opening.
Color: stainless steel finish.
95-820 WATER RESiSTANT
DiGiTAL KEyPAD
Water resistant digital keypad for
door and gate access. Operates on
12Vdc. Dual output dry contact
relays. 2A at 18Vdc, 1A at 120Vac.
Tamper proof switch. EEprom
memory, audible key beep. 1 million
possible codes. Color: white.
Size: 4.6”(L) x 2.9”(W) x .9”(D).
Board size: 3.5” x 3”
Visit Calrad on the web at: www.calrad.com
192
CALRAD
95 Series - Security Accessories
95-823 TRiPLE LATCHiNG
DOOR/GATE ACCESS
DiGiTAL KEy PAD
20-312 SiREN HORN
95-824 Heavy Duty Sealed
Environment Surface mount
Weatherproof Self Contained
Access Control Key pad
6 / 8 / 10 iNCH BELLS
Same unit as 20-310 except features
built-in siren amplifier. 30 Watts,
Operates on 6–12 Vdc, our most
powerful siren horn, has wiring for
both steady and yelp siren operation.
120 dB at 6ft. Horn Dimensions: 43/4"
x 8" x 91/4" (deep), Color: white.
Indoor digital keypad for door entry
and gate access. Stainless steel
face plate. Operating voltage
12-14VDC. Triple latching relays.
Produces loud clear ring, will
overcome most high background
noises. UL approved.
95-882
95-884
95-888
95-911
IEI 232SE Sealed Environment Surface
Mounted Weatherproof Stand Alone
Access Control / Door Shunt / Timered
Flush Mounted Keypad with Expanded
Programming Features. Code flexibility:
Codes can be 4~8 digits.
6 inch, 12 Vdc, 82 dB, .06 amps
6 inch, 24 Vdc, 82 dB, .06 amps
8 inch, 12 Vdc, 85 dB, .06 amps
10 inch, 12 Vdc, 85 dB, .06 amps
95-900 ELECTRONiC DUAL
BEEPER HORN
Illuminated Buttons
95-950 RF REmOTE
CONTROL SySTEm
3 channel RF transmitter and
receiver system with dry contact
relay switching. Receiver requires
12Vdc. Channel 1 & 2 uses 2 amp
relays, channel 3 provides neg.
transistor output 500mA. 100’-150’
range Used for garage door/gate
access or interface with Calrad
home/commercial security systems.
Code encryption with over 1 million
code combinations. Operates on
303MHz.
95-850 ELECTRONiC DOOR
RELEASE UNiT
Operates on 10-14Vdc. Current
draw 800mA. DC coil resistance 14
ohms. Comes with mounting
screws. Mounting plate 6.25” x .99”.
Coil body 3.5”(H) x 8”(W) x 1.1”(H).
Overall depth 1.25”.
95-889 ALARm SiREN
Operated from 6 to 12 Vdc. Siren is
designed to produce a wobble type
sound electrically with amplifier
contained in housing. Output is
approximately 124 dB ±2 dB, 12 Vdc,
with sound pressure meter 10 ft.
away. Rated operating current 1 Amp
±0.2 Amp at 12 Vdc. Color: black.
193
Produces penetrating continuous or
pulsating tone. Will operate on either 6
or 12 Vdc. Used in many alarm
warning devices. Small in size, mounts
into 11/8" hole. Color: black. Size:
1”(H) x 1.5” (dia).
95-902 ELECTRONiC BEEPER
HORN
Lock=1.86” x .65”
Highly advanced, small in size, low in
power consumption. Used in many
alarm warning devices.
Specifications
Voltage............................. 2 to 24 Vdc ....
Power Output........... 93 dB at 12 Vdc
Current............................. 20 mA max .....
Size fits into 11/16" hole or mount 1 5/16"
centers
Starting Voltage.................. 1.0V max
Color.......................................... Black
Size............................ 1”(H) x 1” (dia).
95-890 SELF-CONTAiNED SiREN
SPEAKER
High-powered, compact siren speaker.
Produces loud, ear-piercing warble or
steady tone. Operates on either 6 or 12
volts DC and draws only 400 mA of
current. Easy-mounting and weather
resistant. Color: white. Size: 4”(L) x
4”(W) x 2”(D).
CALRAD
95 Series -- Relays & Amplifiers, Paging Amplifiers
95-925
12 Volt SPDT ALARm
RELAy
30/40A contacts. Current
draw 120mA. Coil
resistance 93 ohms DC.
Can be used with Calrad
95-926 or 95-927 relay
sockets.
95-926
SiNGLE RELAy SOCKET FOR
CAR ALARmS
Mates with 95-925 12V relay.
95-869B
6-WATT AUDiO AmPLiFiER mODULE
Solid-State Audio Amplifier Module with max 5 watt output.
Specifications
Power Supply Voltage ....... 12-15 V
Frequency Response 10 to 25 KHz.
Input Impedance .................. Low Z
Input Sensitivity ..................... 6 mv.
Power Input............ Mono 6 W., 8W
Distortion ............. 1% @ full output
Size: 2.2” x 4” x 1"
95-830
POWER AmPLiFiER
This power amplifier is a very versatile high fidelity amplifier and has many useful applications. A few of these
are as follows: A power amplifier for Walkman or similar type of AM/FM stereo headphone radio, they can be
converted into a high powered stereo system for home use. This can easily be done by connecting the
headphone output from the radio to the input control of the amplifier. As a power amplifier for the auto, van,
camper, trailer and boat, or as a portable system for outdoor use. A public address amplifier for both indoor and
outdoor use.
Specifications
DC Voltage............................................. 12 to 15V
Frequency Response ........................ 10 to 25 kHz
Input Impedance .......................................... Low Z
Input Sensitivity .......................... 0.6V at full output
Power Output ......... Mono: 15W at 8W. Stereo: 6W
Distortion ...................................... 1% @ full output
Size: 3” x 4” x 1"
95-702
15 WATT PUBLiC ADDRESS AmPLiFiER
C o m e s c o m p l e t e w i t h microphone. Has inputs for microphone, auxiliary, phone, and microphone auxiliary.
Also has built-in siren. Chassis size: 6”(W) x 2.75”(H) x 6.5”(D). 45-602 power supply sold separately for AC
use.
Specifications:
Power Source ............................................................................................ DC 12V (11-16V standard 14.4V)
Input impedance .............................................................................. Mic 200-50K ohm adaptable / Aux. 10K
Input Level ................................................................ Mic -50dB ± 1dB / Aux. -22dB ±1 dB (for rated output)
Output Impedance ....................................................................................................................... 4~16 ohmW
Power Consumption .......................................................................................... Less than 3A at max. output
Siren............................................................................................ Electronic operated automatic waving type
Fog-horn........................................................................................................................... Electronic fog-horn
Dimensions ........................................................................................... 155mm(W) x 150mm(D) x 65mm(H)
Weight.................................................................................................................................................. 0.78kg
95-875
60 WATT PAGiNG AmPLiFiER
Rugged and versatile paging amplifier and mixer. One XLR mic input. Two 1/4” mono mic
inputs.Three RCA auxillary inputs. Independent controls for the microphone and auxillary
inputs allows you to mix and amplify the input signals. Front panel on/off power switch with
L.E.D. indicator. Speaker outputs are screw terminals for 4W, 8W, 70 volt or 100 volt
speakers. Inputs for 110 Vac or 12 Vdc. Detacheable IEC electrical cord. Chassis color:
Black. Includes mounting bracket.
Size: 6.1” x 5.9” x 2.55"
Front
Rear
Note: All specifications on this page are subject to change without notice
194
CALRAD
95 Series - Stereo Amplifiers & Preamps
95-2020
45 WATT STEREO AUDiO AmPLiFiER
Small, powerful stereo amplifier is perfect for professional and
consumer audio applications. Front panel mounted left and right
volume controls. Comes with passive heat sink (no fan required)
illuminated On/Off rocker switch. Stand alone unit or fits Calrad 4 X
1/4 rack unit p/n 95-2024A.
REAR VIEW
SPECiFiCATiONS
Inputs:....................... 1/4” Stereo Jack x 1 (rear)
Output:....................... 1/4” Mono Jack x 2 (rear)
Output Power:.......45 Watts per Channel MAX
Input Impeadence: ................................. 50KW
Signal to Noise Ratio: ............................ 95dB
Total Harmonic Distortion: ..................... 003%
Connector ................. 2 Position Male Phoenix
(male connector on power supply)
Power Supply:... 12Vac @4.5 amps (included)
Dimensions: ........ 43/8” (W) X 5”(D) X 111/16”(H)
Case Color ............................................ Black
Left
Right
1/4” Speaker Output Jacks
95-2021
STEREO miCROPHONE & LiNE PREAmP
This low noise preamp is perfect for mixing 2 microphones and 1 line
input signal sources. Front panel volume controls for each input.
illuminated on/off rocker switch. Mono 1/4” mic input jacks rear panel
and 1/4” front panel input jack. 1/4” stereo output jack. Stand alone
unit or can be mounted in Calrad’s 1/4 x 4 19” rack face-plate, part
number 95-2025.
SPECiFiCATiONS
Inputs:
Mic1, Mic 2: ...1/4” Mono Jacks X 2 Rear Panel
Line In:.......... 1/4” Stereo Jack X 1 Rear Panel
Line In:.... 3.5mm Stereo Jack X 1 Front Panel
Line In:......... 1/4” Stereo Jack X 1 Front Panel
Output:............1/4” Stereo Jack X 1Rear
1/4” & 3.5mm
Signal to Noise Ratio: .................. -68dB
Stereo Line
Frequency Response: ..... 25Hz - 25KHz
Inputs
Dynamic Range: .......................... 130dB
Power Supply: 12Vac @150mA (included)
11
3
Dimensions:0........ 4 /8” (W) X 5”(D) X 1 /16”(H)
95-2026 Wall Bracket
Case Color .....................................Black
Designed for wall mounting or
structured wire panel box.
95-2024A
Rack Mount 4 Position 19” Face-Plate
3
Dimensions: ................19”(W) X 1 /4”(H)
Face Plate Color ............................Black
95-2024A Rack
Mountable Face-Plate
195
Visit Calrad on the Web at: www.calrad.com
95-2025
Black Blank insert for 95-2024A FacePlate with Calrad Logo
1/4”
Stereo
Line
Input
REAR VIEW
1/4”
Stereo
Line
Output
1/4”
Stereo
Line
Input
1/4” Mic
Inputs
CALRAD
95 Series - Touchscreens
10.4” TOUCH SCREENS
95-1062-BK (Black USB)
95-1062-BK-KiT (iNWALL KiT, BLACK TRim PANEL)
95-1062-WH (WHiTE USB)
95-1062-WH-KiT (iNWALL KiT, WHiTE TRim PANEL)
95-1062BK-RS232 (BLACK RS232)
95-1062WH-RS232 (WHiTE RS232)
The 95-1062 series touchscreens can be used on a desktop or
in-wall applications. Perfect for use with point of sale products or
home automation control systems. Easy to setup driver
software, available in USB or RS232 interfaces. Adjustable arm
for screen tilt and height. Using the optional in-wall kits the
screen can be located inside a wall. OSD (Onscreen Display) for
Brightness, Contrast, Color, Image settings, Audio. Front panel
power, input selection buttons. Video iputs, VGA, Composite
Video 1, Composite Video 2. Use Calrads 72-130 adapters to
extend RS232 control signals up to 200 ft.. Use USB balun
devices on page155 to extend the USB version. Use Calrad
VGA baluns to extend the video signal over 100 ft., see page 85.
Specifications:
4-wire resistive Touchscreen (optional):USB or RS232 interface
VGA input:15 pin D-SUB analog
RGB interface PAL/NTSC color system
High resolution- up to 1024x768 (H x V) formatted
Automatic display adjustment
High-Brightness CCFL Backlight
2 RCA video inputs, 1 Audio Input, 1 Audio output
On Screen Display menu control (Multi-language)
Full-function infrared remote control
Built-in 2 Watt Amplifier and Speaker
Screen Size:Diagonal 10.4 "
Dot Resolution (RGB):800(H) x600(V) = 1,440,000 (dots)
Viewing Angle: 100 degrees/75 degrees (H/V)
Aspect Ratio:4:3
Contrast:500:1
LCD Brightness:170cd/m2
Viewing Angle:45/60(U/D),65/65(L/R)
Operating Voltage:DC 11-13V
Power Consumption:<10W
Dimension (mm):252W x 185H x267D
Weight (kg):1.5
Colors: Black, White
iR Remote
95-1062 iNWALL BRACKET KiT
72-130 SERiAL CAT5E
ADAPTERS
Connect RS232 devices
using standard UTP Cat5e
cable. Distance's of over
200 ft. at 9600 baud can be
achieved.
Accessories:
VGA Cable: 1 Piece
Audio Signal Cable(Black): 1 Piece
Video Signal Cable(Yellow and Buff): 2 Pieces
12Vdc 1.5 Amp power supply: 1 Piece
Remote Control: 1 Piece
PC Driver Disk: 1 Piece
Operation Manual: 1 Piece
Note: All specifications on this page are subject to change without notice
Visit Calrad on the web at: www.calrad.com
196
CALRAD
95 Series - AC Plugs, Wall Adapters, Splitters
95-790
CHASSiS mOUNT AC
RECEPTACLE
Solder type, 3-prong (grounding type)
jack. Snap-in mounting. UL approved.
15A/125V. Mounts in 1.06”(W) x
.87”(H) hole. Overall depth 1.28”. Black
plastic body.
95-791
CHASSiS mOUNT AC
RECEPTACLE
95-771
FEmALE AC SOCKET
Solder type, recessed female AC
panel jack. 10A at 250Vac. Black
plastic body. US and CSA approved.
Mounts in 1.27”(W) x .96”(H) hole.
Overall depth 1.25” with 1.55”
mounting centers. Black plastic body.
95-772
HEAVy DUTy iNLiNE mALE AC
PLUG
Solder type, 2-prong (polarized) jack.
Snap-in mounting. UL approved.
15A/125V. Mounts in .95”(W) x .48”(H)
hole. Overall depth 1.13”. Black plastic
body.
Solder type, inline 3 conductor male
AC connector. 10A at 250Vac. Black
plastic body.
95-770
mALE AC SOCKET
Solder type, recessed male AC
panel jack. 10A at 250Vac. Black
plastic body. US and CSA
approved. Mounts in 1.1”(W) x
.74”(H) hole. Overall depth 1.25”
with 1.55” mounting centers. Black
plastic body.
95-773
HEAVy DUTy iNLiNE FEmALE
AC PLUG
Solder type,inline 3 conductor
female AC connector. 10A at
250Vac. Black plastic body.
95-770-SNAP
Snap-in version, US and CSA
approved Mounts in 1.025” (W) x
.84”(H) hole. Overall depth .96”.
Black plastic body.
95-777
2 WAy AC SPLiTTER
95-776
2 WAy iEC/AC SPLiTTER
1male AC 3 prong to 2 Females,
Rubber Body, Color is Black.
1 IEC Male to 1 AC 3 prong and 1 IEC
Females, rubber Body.
95-792-GN Green
95-792-OR Orange
95-796
SiNGLE OUTLET SURGE
PROTECTOR
3 Way AC Grounding
Wall tap.
Available in either green or orange
color options. 110/125Vac, 15 amp
rating. UL listed, rubber Body.
197
Visit Calrad on the Web at: www.calrad.com
1-mov, 90-joules. LED power indicator.
120 Vac, 15 amp, 1875 watt rating. UL
listed.
CALRAD
95 Series - AC Adapters, Power Strips
95-795 AC 3 WiRE GROUND
ADAPTER
120 Vac - 20 amp rating. Rubber
body.
95-786
9 OUTLET mODEm/TV
SURGE PROTECTOR
120 Vac - 20 amp rating.
Plastic body.
Child protected slide outlet covers
suitable for DSS dish installation. 3
transformer spaced outlets. 6-mov,
840-joules. 3 Line protection. EMI-RFI
noise filtered. Built-in resettable circuit
breaker. ON-OFF illuminated rocker
switch. LED surge and ground fault
indicator. Surge fail audible alarm alert.
6 ft. 14 awg heavy duty power cord.
UL/CSA listed. High impact ABS plastic
housing.
95-793 3-OUTLET SURGE
PROTECTOR
95-788 8 OUTLET DBS SURGE
PROTECTOR
95-795-UL POLARiZED
AC 3 WiRE GROUND ADAPTER
270-joules. LED surge and ground
fault indicator. UL/CSA listed. 125 Vac,
15 amp rating.
95-794
TRiPLE OUTLET ADAPTER
Converts 1 AC outlet to 3 outlets. 120
Vac - 15 amp rating.
TV-DSS surge protector used for DSS
satellite installations. 3-class 2 transformer
spaced outlets. 5-MOV 1680 joules, 3 line
protection EMI-RFI noised filtered up to 60dB
from 100KHz to 10MHz. Protects
phone/fax/modem, satellite, cable coax
connections. Illuminated breaker switch.
L.E.D. surge and ground fault indicator. Surge
fail audible alarm alert. 6 ft. 14 awg heavy
duty power cord. Max surge voltage of 6500.
5-2250Mhz premium ‘F’ connectors. Child
protected slide outlet covers. High impact
ABS plastic housing. UL/CSA listed. UL497A,
1993, 1449. Size: 4.5”(W) x 1.74”(H) x
11.5”(D). Color is white.
95-785
6 OUTLET mODEm/FAX SURGE
PROTECTOR
Child protected slide outlet covers. 3mov, 270-joules. 3 Line protection. EMIRFI noise filtered. Built-in resettable
circuit breaker. ON-OFF illuminated
rocker switch. LED surge and ground
fault indicator. 6 ft. 14 awg heavy duty
power cord. UL/CSA listed. High impact
ABS plastic housing.
95-783 6 OUTLET ADAPTER
WiTH SURGE PROTECTiON
(mETAL)
1-mov, 90-joules basic protection.
Resettable circuit breaker.
Illuminated ON-OFF rocker switch.
4 ft., 14 awg heavy duty cord.
Baked enamel ivory finish.
95-783-P (Straight AC Plug)
95-783-P-RT (Right Angle AC Plug)
6 OUTLET ADAPTER WiTH
SURGE PROTECTiON
(PLASTiC)
Provides protection against noisy AC
power. MOV circuitry for reducing
harmful power spikes and surges,
reduces, RFI and EMI signals. On\Off
power switch with 15A circuit
breaker. 3 ft. 14 AWG, 3 prong AC
cord. Maximum surge dissipation 59
joules. Maximum surge voltage 6000
volts. Maximum spike current 4500
amps. Response time less than 1
nanosecond. UL/CSA listed. High
impact ABS plastic housing.
95-780
6 OUTLET HEAVy DUTy SURGE
PROTECTOR WiTH CORD
mANAGEmENT
Comes with 6 outlets, 2 configured for
power supplies and 4 standard spaced
outlets. Integrated illuminated breaker
switch. 14 AWG, 6 ft. grounded power
cable. Built in mounting brackets and
heavy duty steel housing UL/CSA
approved. Color is yellow.
95-781
8 OUTLET HEAVy DUTy SURGE
PROTECTOR WiTH CORD
mANAGEmENT
Comes with 8 outlets, 3 configured for
power supplies and 5 standard spaced
outlets. Integrated Illuminated breaker
switch. Built in mounting brackets,
heavy duty steel housing. 14 AWG 6 ft.
grounded power cable. UL/CSA
approved. Color is yellow.
Visit Calrad on the web at: www.calrad.com
198
CALRAD
Numerical Index
10 SERIES
10-3
10-9
10-10
10-12
10-15A
10-17
10-19
10-20
10-22
10-31
10-31-BK
10-32
10-33
10-34
10-35
10-36-6
10-36-13
10-36-19
10-36-6-BK
10-36-13-BK
10-36-19-BK
10-37
10-45-20
10-45-25
10-50
10-54
10-55
10-56
10-58
10-59
10-59A
10-60
10-61A
10-63A
10-64A
10-65
10-67-BK
10-67-GN
10-67-RD
10-67-YL
10-68-BK
10-68-BU
10-68-GN
10-68-OR
10-68-RD
10-68-YL
10-69-BK
10-69-GN
10-69-RD
10-69-YL
10-75
10-76
10-77
10-78
10-78-RCA
10-79
10-82
10-83
10-86
10-87
10-88
10-89
10-90
10-90-BAT
10-91
10-91-BAT
10-91-C
10-95-1
10-95-1-5
10-95-2
10-95-3
10-95-6
10-95-10
10-95-15
10-95-20
10-95-25
10-95-50
10-95-100
10-95B
10-95B-250-HG
10-96-10
10-96-15
10-96-20
10-96-25
10-97
10-99
10-105
10-110
10-112-BLANK
10-112-BNC
10-112-I-BNC
10-112-RCA
10-113
10-115
10-117
10-119
10-120
10-126
199
4
5
3
4
3
2
5
4
4
10
10
10
10
9
9
9
9
9
9
9
9
5
8
8
5
9
9
9
10
9
9
10
10
10
10
9
5
5
5
5
5
5
5
5
5
5
5
5
5
5
10
6
6
6
6
6
5
9
6
6
6
6
3
3
3
3
3
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
6
11
12
11
11
11
11
11
10
12
12
1
2
10-127
10-130
10-131
10-140-5
10-140-10
10-140-15
10-141-5
10-141-10
10-141-15
10-142-5
10-142-10
10-142-15
10-143-5
10-143-10
10-143-15
10-144
10-145
10-145-1
10-145RT-1
10-146
10-147
10-148-3
10-148-6
10-148-10
10-148-15
10-149-3
10-149-6
10-149-10
10-149-15
10-150
10-150A
10-151
10-151A
10-152
10-153-1
10-154-1
10-155-1
10-156-1
10-157-1
10-158-6
10-160-10
10-160-15
10-160-25
10-160-50
10-160-100
10-161-10
10-161-25
1
2
1
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
15-93-20
15-95
15-96
15-106
15-110
15-118
15-122A
15-123
15-131
15-132
15-133
15-135
15-135-RA
15-143
15-144
15-145A
15-145A-RT
14
14
14
14
14
13
13
13
15
15
15
13
13
14
13
14
14
15 SERIES
20 SERIES
20-174
20-176
20-177
20-211
20-215
20-218
20-218VC
20-224
20-224A
20-225
20-225R
20-226
20-227
20-228
20-229
20-231
20-232
20-233
20-244
20-250
20-262-BK
20-262-W
20-280
20-298
20-301
20-310
20-311
20-312
20-313
20-330
20-331
20-335
20-337
16
16
16
18
18
17
17
16
16
16
16
16
16
16
16
17
17
17
18
17
19
19
17
17
17
18
18
18, 193
18
19
19
19
19
25 SERIES
10 Series to 30 Series
25-271
25-275
25-276
25-277
25-290
25-294
25-295
25-300
25-300A
25-301
25-302
25-303
25-304
25-305
25-306
25-307
25-308
25-309
25-310
25-316
25-317
25-318
25-322
25-324
25-325
25-326
25-327
25-328
25-329
25-330
25-331
25-339
25-339A
25-341
25-342A
25-345
25-346
25-347
25-351
25-351A
25-352
25-352-S
25-353
25-354
25-355
25-356
25-357
25-357A
25-360
25-361
25-362
25-372
25-379
25-390
25-391
25-395
25-396
25-397
25-398
25-405
25-406
25-407
25-410
25-411
25-412
25-420
25-421
25-422
25-423
25-424
25-428
25-429
25-430
25-431
25-432
25-433
25-452
25-453
21
21
21
21
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
22
22
21
21
24
24
24
22
22
21
21
21
22
22
23
22
22
22
23
23
21
21
21
21
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
21
21
28-100-P
28-101-P
28-102-P
28-103-P
28-104-P
28-105-P
28-106-P
28-107-P
28-108-P
28-109-P
28-110-P
28-111-P
28-114
28-113
28-113-IV
28-114-IV
28-114-P
28-115-IV
28-115-P
25
25
25
26
26
26
26
26
26
28
28
28
31
31
31
31
31
31
31
28 SERIES
28-116-IV
31
28-116-P
31
28-116P-4
31
28-116P-5
31
28-116P-6
31
28-117-P
27
28-118
27
28-119
27
28-120
32
28-122-2
25
28-122-4
25
28-122-6
25
28-122-8
25
28-122-IV-2
25
28-122-IV-4
25
28-122-IV-6
25
28-122-IV-8
25
28-122-S-2
25
28-122-S-4
25
28-122-S-6
25
28-122-S-8
25
28-123
26
28-124
25
28-125
27
28-126
27
28-127
27
28-128
32
28-129
32
28-131
32
28-130
32
28-132
25
28-140-W 23,33, 172
28-145-AL
23,33
28-145-BK
23,33
28-145-IV
23,33
28-145-WH
23,33
28-150
27
28-150G
27
28-151
27
28-151G
27
28-152
27
28-153
27
28-154
27
28-159
28
28-160
28, 92
28-160G
28
28-161
28, 92
28-161-3.5
28, 92
28-161-T
29, 92
28-161G
28, 92
28-162
28, 92
28-162G
28, 92
28-162-M-2
28, 92
28-163P
29, 76
28-163PC
29, 76
28-164-M
29, 76
28-164-M-2
29, 76
28-165
26
28-165G
26
28-166-LP
29, 89
28-166K
30, 89
28-167-LP
29, 89
28-168-1
30, 89
28-168-2
30
28-169-1
30, 89
28-169-2
30, 89
28-170
27
28-171-1
30, 89
28-171-2
30, 89
28-172
89
28-180-1
31
28-180-1-IV
31
28-180-2
31
28-180-2-IV
31
28-180-3
31
28-180-3-IV
31
28-180-4
31
28-180-4-IV
31
28-180-6
31
28-180-6-IV
31
28-180-8
31
28-180-8-IV
31
28-180-HP-BK
31
28-181-IV
33, 142
28-181-WH
33, 142
28-190
31
28-202D
26, 63
28-CEDH1
33, 142
28-CED1-BK 33, 142
28-CER-1
33, 142
28-CER-2
33, 142
28-LV1RP
33, 142
28-LV2RP
34, 142
28-TVBU505
34
28-TVBR505
34
28-LVU1W
34
28-LVU1BL
34
30 SERIES
30-250-BK
36
30-250-BU
30-250-GN
30-250-OR
30-250-RD
30-250-WH
30-250-YL
30-255
30-256
30-257
30-288-BK
30-288-BU
30-288-GN
30-288-OR
30-288-RD
30-288-WH
30-288-YL
30-289
30-289-BK
30-289-BU
30-289-GN
30-289-RD
30-289-WH
30-289-YL
30-290
30-291
30-292
30-293-BK
30-293-BU
30-293-GN
30-293-RD
30-293-WH
30-293-YL
30-293S-BK
30-293S-BU
30-293S-GN
30-293S-RD
30-293S-WH
30-293S-YL
30-294-1855A
30-294-8218
30-294-RG59
30-294-RG6
30-295
30-295-1/2
30-295-HEX
30-295G
30-296-BK
30-297-BK
30-298-BK
30-298-RD
30-298-WH
30-298G-BK
30-298G-RD
30-298G-WH
30-299-RG59
30-299-RG6
30-299-8218
30-299-1855A
30-300-BK
30-300-GN
30-300-OR
30-300-WH
30-300-YL
30-302-BK
30-302-RD
30-302-WH
30-302-YL
30-303-BK
30-303-BU
30-303-GN
30-303-RD
30-303-WH
30-303-YL
30-305
30-306
30-307
30-308
30-308K-S
30-309
30-310
30-311
30-314
30-315
30-316
30-317
30-318
30-319
30-319-F
30-320
30-321
30-322
30-322J-4
30-322J-6
30-322J-8
30-324
30-325
30-326
30-327
30-328
36
36
36
36
36
36
38
38
38
37
37
37
37
37
37
37
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
36
36
36
36
39
39
39
39
38
38
35
35
35
35
35
35
36
36
36
36
37
37
37
37
37
36
36
36
36
35
35
35
35
35
35
36
36
35
35
36
35
42
42
41
41
40
40
38
38
39
38
38
38
38
38
38
38
38
38
38
38
30-329
38
30-330
38
30-331
38
30-333
41
30-334
41
30-336
41
30-337
41
30-340
42
30-341
42
30-343
42
30-344
42
30-346
42
30-347
42
30-348
42
30-349
42
30-350
36
30-351
36
30-352
36
30-353
36
30-354-RG59
36
30-354-RG6
36
30-355
42
30-356
42
30-357
42
30-360
42
30-361
42
30-362
42
30-363
42
30-364
40
30-365
40
30-366
37
30-367
37
30-367-NK
37
30-367G-T-BK
37
30-367G-T-BU
37
30-367G-T-GN
37
30-367G-T-RD
37
30-367G-T-WH
37
30-367G-T-YL
37
30-368-BK
37
30-368-RD
37
30-368-WH
37
30-368G-BK
37
30-368G-RD
37
30-368G-WH
37
30-369
43
30-370-2-1
41
30-370-2.5
41
30-371
41
30-372
41
30-372-P
41
30-373
41
30-373-14MM
41
30-373-P
41
30-374
41
30-374-14MM
41
30-374-P
41
30-375
41
30-376
38
30-376-2-5
39
30-377
42
30-377T
42
30-378
42
30-378T
42
30-379
42
30-380
43
30-381
43
30-382
43
30-383
43
30-384
37
30-385
41
30-386
38
30-386-2-5
39
30-387
36, 162
30-387-NK
36, 162
30-389
36
30-390
35
30-391
35
30-392
43
30-393
43
30-394-A
40
30-395
41
30-396
41
30-397
41
30-398
41
30-399
41
30-400
40
30-401-BK
40
30-401-RD
40
30-402-BK
40
30-402-RD
40
30-404
40
30-404G
40
30-405
40
30-405A
40
30-406
40
30-407
40
30-408A
40
30-409
40
CALRAD
Numerical Index
30 Series to 40 Series
30-410-3-8-BK
30-410-3-8-BU
30-410-3-8-GN
30-410-3-8-OR
30-410-3-8-RD
30-410-3-8-W
30-410-3-8-YL
30-410-BK
30-410-BU
30-410-GN
30-410-OR
30-410-RD
30-410-YL
30-410G-3-8-BK
30-410G-3-8-BU
30-410G-3-8-GN
30-410G-3-8-OR
30-410G-3-8-RD
30-410G-3-8-WH
30-410G-3-8-YL
30-410G-BK
30-410G-BU
30-410G-GN
30-410G-OR
30-410G-RD
30-410G-WH
30-410G-YL
30-411
30-412-A
30-413
30-414
30-415-BK
30-415-RD
30-415M
30-416
30-416-RD
30-417
30-418
30-418G
30-419
30-419G
30-420
30-421
30-422
30-423A
30-424-BK
30-424-RD
30-424-WH
30-424-YL
30-425-BK
30-425-RD
30-426
30-426-BK
30-426-RD
30-427
30-428-BK
30-428-BU
30-428-GN
30-428-OR
30-428-RD
30-428-W
30-428-YL
30-428G-BK
30-428G-BU
30-428G-GN
30-428G-RD
30-428G-W
30-428G-YL
30-429
30-430-BK
30-430-BU
30-430-GN
30-430-RD
30-430-W
30-430-YL
30-433
30-434
30-436
30-437
30-438
30-439
30-440
30-440-NK
30-441
30-441-NK
30-442
30-442G
30-443
30-443G
30-444
30-445
30-446
30-447
30-448
30-449
30-451
30-451-M
30-452
30-453
30-453-M
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
40
41
40
39
40
40
40
38
38
39
40
40
40
40
40
38
40
39
37
37
37
37
37
37
36
36
36
35
37
37
37
37
37
37
37
37
37
37
37
37
37
35
36
36
36
36
36
36
44
45
44
44
43
43
43
43
43
43
42
42
42
42
43
43
36
36
36
36
44
44
44
44
44
30-454
44
30-455
44
30-455-M
44
30-456
44
30-457
44
30-458
44
30-460
43
30-461
43
30-465
45, 168
30-467
44, 168
30-468
44, 168
30-469
45, 167
30-470
45, 167
30-471
45, 167
30-472
45, 167
30-473
45, 167
30-474
45, 167
30-475
45, 168
30-477
40
30-478
40
30-479
39
30-482
44
30-483
44
30-484
38
30-485
39
30-485A
39
30-486
36
30-487
39
30-487A
39
30-487G
39
30-488
38
30-488A
38
30-488G
38
30-489
38
30-490
38
30-491
40
30-491T
40
30-492
39
30-493A
39
30-493A-6"
39
30-494A
39
30-495
44
30-496
44
30-497
44
30-498
44
30-499
44
30-500
44
30-501
44
30-502
44
30-503
44
30-504
44
30-505
37
30-505-6
37
30-505-8
37
30-505-LK
38
30-505-RA-6
37
30-505-RA-8
37
30-505-RA-RG174 37
30-506
38
30-506-L
38
30-507
38
30-507-6
38
30-507-8
38
30-507T
38
30-508
44
30-509
44
30-510
44
30-510-M
44
30-511
44
30-512
44
30-512-M
44
30-513
44
30-514-BK
46
30-515
45
30-516
45
30-517
46
30-518
44
30-518-M
44
30-519
44
30-520-BK
45
30-520-SL
45
30-521-BK
45
30-521-SL
45
30-522-BK
45
30-522-SL
45
30-522-SL-4
46
30-522-SL-5
46
30-523-BK
45
30-523-BK-4
46
30-523-SL
45
30-523-SL-4
46
30-523-SL-5
46
30-524
46, 49
30-525
46, 49
30-526-BK
45
30-526-SL
45
30-527-BK
45
30-527-SL
45
30-528-BK
45
30-528-SL
45
30-529-BK
45
30-529-SL
45
30-534
45
30-534-BK
45
30-535
45
30-536
40
30-537
40
30-539
45
30-539-BK
45
30-540-BK
45
30-540-SL
45
30-542
44
30-543
44
30-546
44
30-550
46
30-550-M
47
30-550-MH
47
30-550-PH
47
30-551
46
30-551-HD
46
30-551-M
47
30-551-MH
47
30-551-PH
47
30-552
46
30-552-M
47
30-552-MH
47
30-552-PH
47
30-553M
46
30-553M-G
46
30-553M-RA
46
30-553M-RA-G
47
30-554
46
30-555
46
30-556
46
30-557
46
30-560
46
30-561
46
30-561-HD
46
30-562
46
30-574
47
30-575
47
30-576
47
30-577
47
30-578
47
30-579
47
30-580
46
30-581
47
30-582
47
30-582-MF
47
30-583
47
30-584-F
47
30-584-M
47
30-585
47
30-586
47
30-587
47, 92
30-587G
47, 92
30-587-MF
47
30-588
47, 92
30-588G
47, 92
30-590
5, 46
30-590-BK
5, 46
30-592-6
47
30-592-8
47
30-592-8-BK
47
30-592-8M
47
30-592-8M-BK
47
30-593
47
30-594
47
30-595
46
30-596
46
30-597
47
30-597-2
47
30-598
47
30-598-2
47
30-599
47
30-600-BK
42
30-600-RD
42
30-600-RB-BK
42
30-600-RB-RD
42
30-601
43, 175
30-601-BK
43, 175
30-601-RD
43, 175
30-601S-BK 43, 175
30-601S-RD 43, 175
30-602-BK
42
30-602-RD
42
30-603
42
30-604-BK
42
30-604-RD
42
30-604-CT-BK
42
30-604-CT-RD
42
30-605-BK
42
30-605-RD
42
30-606-BK
43
30-606-RD
43
30-607-BK
35
30-607-RD
35
30-607S-BK
35
30-607S-BU
35
30-607S-GN
35
30-607S-RD
30-607S-WH
30-607S-YL
30-608
30-609-RD
30-609-WH
30-610-RB
30-610-RBBK
30-610-RBRD
30-611
30-612
30-613
30-613-BK
30-613-RD
30-614-BK
30-614-RD
30-615-BK
30-615-RD
30-616-2-1
30-616-2-5
30-617-2-1
30-617-2-5
30-618
30-618-6
30-618-8
30-619
30-620
30-621
30-622-BK
30-622-BU
30-622-GN
30-622-OR
30-622-RD
30-622-YL
30-623-2-1
30-623-2-5
30-624-2-1
30-624-2-5
30-630-BK-3
30-630-BK-4
30-630-BK-5
30-630-SL-3
30-630-SL-4
30-630-SL-5
30-631-BK-3
30-631-BK-4
30-631-BK-5
30-631-SL-3
30-631-SL-4
30-631-SL-5
30-632
30-635
30-638
30-640-3
30-640-4
30-640-5
30-640-6
30-641-3
30-641-4
30-641-5
30-641-6
30-641M-3
30-641M-4
30-641M-5
30-641M-6
30-642-3
30-642-4
30-642-5
30-642-6
30-643-3
30-643-4
30-643-5
30-643-6
30-700A
30-701
30-701A
30-702
30-705
30-706
30-707
30-710
30-711
30-712
30-712K-S
30-712K-S-2
30-713
30-714
30-715
30-720-2-1
30-720-2-5
30-721
30-730
30-731
35
35
35
37
43
43
43
43
43
37
43
43
43
43
43
43
43
43
41
41
41
41
38
38
38
38
40
40
46
46
46
46
46
46
41
41
41
41
45
45
45
45
45
45
45
45
45
45
45
45
41
41
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
39
39
39
39
35-439
35-440
35-441
35-442
35-443
35-444
48
48
48
48
48
48
35 SERIES
39
39
39
39
39
39
39
39
39
39
41
41
42
41
41
35-445
52
35-446
52
35-450
49
35-451
49
35-452
49
35-453
49
35-454
49
35-455
49
35-456
49
35-457
49
35-458
49
35-459
49
35-460
49
35-461
49
35-462
49
35-463
49
35-464
49
35-465
49
35-465A
49
35-466
49
35-467
49
35-468
49
35-469
49
35-476
55
35-477
55
35-484-A
52
35-494
48
35-495
48
35-496-4
48
35-496-6
48
35-496-8
48
35-497
48
35-497A
48
35-497A-6
48
35-498
48
35-498-6
48
35-498-8
48
35-498-BH
48
35-498-BH-6
48
35-498-BH-8
48
35-498G-BH
48
35-498G-BH-6
48
35-498K-S
38, 48
35-499
48
35-499-BNC
48
35-499F-BNC
48
35-499-SF
48
35-499-P
48
35-499-SF-P
48
35-499-S-P
48
35-499-BNC-P
48
35-499-S
48
35-501A
54
35-502G
51
35-503G
51
35-504G
51
35-506-P
52
35-510G
63
35-516G
51
35-517
52
35-517G
52
35-518-M
53
35-519G
51
35-523
55
35-524
55
35-525-HG
53
35-525-HGM
53
35-525-MZ
53
35-527G-6
54
35-530-HGM
53
35-532
55, 133
35-533
55
35-534
55
35-536
52
35-536-P
52
35-538-P
53
35-539-P
53
35-544
52
35-545-S
53
35-546-NK
53
35-546G
53
35-549-NK
52
35-550-NK
52
35-550G
52
35-551-NK
52
35-551G
52
35-552A
53
35-553G
51
35-554G
51
35-556
55
35-558-6
54
35-562
133
35-566
52
35-567
51
35-568
52
35-570
55
35-571
55
35-573
54
35-576
55
35-574G
51
35-579B
55
35-580A
52
35-582-NK
53
35-584G
51
35-585G
51
35-586G
51
35-587G
51
35-588G
51
35-590
55
35-591
54
35-592
55
35-593
55
35-594
55
35-600
76
35-601
76
35-610
55
35-700 50,76,83,92,94
35-701
50, 76, 92
35-702
50, 76
35-703
50, 76
35-704
92
35-704-A
92
35-709
50
35-710-A
50, 76
35-711A 50,75,76, 94
35-712A
50, 76
35-713-A
50
35-714
50
35-714A
50
35-715
50, 76
35-716
50, 76
35-717
50, 76
35-718
50
35-718-A
50
35-720
51,63
35-721
51
35-722
92
35-726
50
35-727
76
35-730
63
40 SERIES
40-1010
85, 189
40-1030
74
40-1060-2
74
40-1060-4
74
40-1061-1.3-1
80
40-1061-1.3-2
80
40-1061-1.3-4
80
40-1061-1.3-8
80
40-1062-1.3-10
80
40-1061-16
80
40-1070
77
40-1072M
77
40-1074
29, 89
40-1075
29, 89
40-1090
77
40-1093
77
40-1094
77
40-1095
78
40-1096
78
40-2551
78
40-281H
61
40-283HD
61
40-40AN2420
83
40-40AN2440
83
40-40VC01
87
40-40VH01
79
40-40VH02
79
40-YD02A
57
40-40YE01D
56
40-40YH01
79
40-4140
91
40-480
61
40-481
61
40-482
62
40-502
96
40-503
96
40-511
96
40-512
96
40-513
96
40-521
96
40-523
96
40-5526
60
40-560
95
40-561
95
40-562
95
40-563
95
40-565
98
40-566
96
40-567
96
40-568
96
40-569
96
40-580
95
40-581
95
40-582
95
40-583
95
40-584
95
40-585
95
40-586
95
40-587
95
200
CALRAD
Numerical Index
201
40-588
40-589
40-593
40-594
40-595
40-596
40-600
40-601
40-602
40-605
40-606
40-608
40-609
40-610
40-611
40-612
40-613
40-614
40-615
40-615-W
40-616
40-620
40-621
40-622
40-6220
40-623
40-625
40-626
40-627
40-628
40-629
40-629-BU
40-629-WH
40-629-YL
40-630
40-632
40-634
40-635
40-635A
40-636
40-637
40-637-S
40-644
40-647
40-648
40-649
40-650
40-650A
40-651
40-652
40-654
40-655
40-656
40-657
40-658
40-659
40-660
40-661
40-663A
40-664
40-665
40-666
40-667
40-668
40-670
40-671
40-672
40-673
40-674
40-675
40-676
40-678
40-682
40-683
40-687
40-688
40-689
40-690
40-691
40-692
40-6920
40-693
40-6930
40-694
40-6950
40-695A
40-696
40-697
40-698
40-699
40-700
40-705
40-706
40-707
40-708
40-710
40-711
40-7110
40-712
40-715
95
95
95
95
97
97
95
95
95
95
95
96
96
96
96
96
96
96
97
97
97
97
97
97
85
97
98
97
97
97
97
97
97
97
96
97
98
95
95
97
97
97
70
70
70
70
100
100
98
100
100
99
99
99
99
99
99
99
100
99
99
99
99
99
100
100
100
100
98
98
100
98
100
100
97
97
97
97
95
95
93
97
93
97
93
160
160
97
98
96
96
96
96
96
96
95
95
85
95
98
40-720PHD
62, 79
40-750
99
40-751
99
40-752
99
40-753-GY
99
40-755
99
40-756
99
40-758
100
40-760
98
40-761
98
40-762
98
40-763
98
40-764
98
40-765
98
40-768
100
40-769
100
40-803
68
40-804M
64
40-809-8
65
40-812
65
40-812-5
65
40-813
68
40-814
59
40-816M
59
40-817M
59
40-8180
91
40-8188
91
40-822-200
88
40-822-350
88
40-824-200
88
40-824-350
88
40-825-8
91
40-827M
66
40-828-200
88
40-828-350
88
40-829-2
90
40-829-4
90
40-829-8
90
40-829R-4
90
40-829R-8
90
40-830M
68
40-838-BNC
65
40-838-RCA
65
40-839
66
40-841M
67
40-844M
58
40-848M
58
40-849M
58
40-851VC
70
40-880-A
62, 86
40-881
75, 86
40-882
75
40-883
75, 94
40-884
86, 94
40-885
87
40-886
75, 87
40-888
63, 86
40-889
88
40-930M
66
40-936B
64
40-937B
57
40-939B
57
40-940M
67
40-948M
67
40-963M
60
40-964M
60
40-967M
81
40-968M-4
82
40-968M-8
82
40-970
84
40-973
84
40-975
84
40-977
84
40-979
84
40-991
81
40-992-1.3
81
40-998-HS
81
40-CDL-160ETH 69
40-CPHD-1
94
40-CVO1A
72
40-CW01A
72
40-DA01
64, 72
40-DA02
64, 72
40-DCT-1
70
40-DCT-2 12, 71, 120
40-DCT-4
71
40-DCT-9
71
40-HW01
30, 89
40-KM01
73, 155
40-UE04H
73, 155
40-UE02
73, 155
40-VKM01
73
40-VSRGB
62
40-YS04D
59
40-YW01
72
40-YW01D
26, 63
42SERIES
42-AC-1
42-CAR-1
42-CAR-2
101
101
101
40 Series to 55 Series
42-100-1.5M
42-100-2M
42-105
42-107-RT-RT
42-107-ST-ST-3
42-107-ST-RT-2
42-107-ST-RT-3
42-115
42-130
42-160
45 SERIES
42-165
45-601
45-602
45-603
45-606
45-607
45-611
45-650-12
45-650-15
45-650-18
45-650-24
45-650-3
45-650-4.5
45-650-6
45-650-7.5
45-650-9
45-698
45-699
45-700
45-701
45-702
45-703
45-704
45-705
45-706
45-707
45-708
45-709
45-710
45-711
45-712
45-713
45-714
45-715
45-716
45-720
45-720L
45-721
45-721L
45-722
45-722L
45-723
45-723L
45-726
45-726L
45-727
45-727L
45-728
45-734
45-739
45-740
45-741
45-742A
45-746
45-746-2.1
45-748
45-749
45-751
45-752
45-752A
45-753
45-753A
45-754
45-754A
45-755
45-756
45-757
45-757-2.1
45-757-2.5
45-758
45-759
45-760
45-761
45-761-2.1
45-762
45-763
45-763-2.5
45-763-S
45-764
45-765
45-766
45-767
45-767-2.1
45-768
45-768-2.5
45-769
45-772
45-773
45-774
101
101
101
101
101
101
101
101
101
101
101
103
103
103
104
104
103
104
104
104
104
104
104
104
104
104
106
106
105
105
105
105
105
105
105
105
105
105
105
105
106
106
106
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
109
109
107
107
109
102
102
106
106
102
103
103
103
103
102
102
103
102
102
102
102
105
105, 192
102
102
102
102
102
102
102
102
102
102
102
102
102
102
103
102
102
102
45-774-50
45-775
45-775-50
45-776
45-776-2.5
45-777
45-778
45-780
45-781
45-781A
45-782
45-782A
45-783
45-783A
45-784
45-784A
45-785A
45-786
45-787
45-790
45-791
45-792
45-793
45-795
45-796
45-797
45-798
45-799
45-801
45-810
45-811
45-812
45-813
45-815
45-816
45-817
45-818
45-820
45-821
45-822
45-824
45-840
45-900
45-901
45-902
45-903
45-904
45-905
55 SERIES
102
102
102
102
102
102
109
109
109
109
109
109
109
109
109
109
109
109
109
104
104
109
109
104
104
104
104
104
109
104
104
104
104
104
104
104
104
106, 181
106, 181
106
106
104
108
108
108
108
108
108
55-1000
55-1000B-100
55-1000B-1000
55-1000B-9
55-1000B-12
55-1000B-15
55-1000B-35
55-1000B-50
55-1000B-75
55-1001
55-1002
55-1003G-10
55-1003G-3
55-1003G-6
55-1004G-15
55-1005
55-1007
55-1008
55-1010G
55-1011G
55-1013G
55-1015G
55-1016G-3
55-1016G-6
55-1016G-10
55-1016G-15
55-1016G-25
55-1018G
55-1020G
55-1021G
55-1022G
55-1025
55-1026
55-1027
55-1050-1
55-1050-2
55-500-1
55-500-2
55-500-3
55-500-4
55-500-5
55-501-1
55-501-2
55-501-3
55-501-4
55-501-5
55-502-1
55-502-2
55-502-3
55-502-4
55-502-5
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
129
129
129
131
131
131
127
127
120
120
120
120
120
120
120
120
120
120
120
120
120
120
120
55-502-50
12, 120
55-503-1
120
55-503-2
120
55-503-3
120
55-503-4
120
55-503-5
120
55-503-S-1
120
55-503-S-2
120
55-503-S-3
120
55-503-S-4
120
55-503-S-5
120
55-504-1
120
55-504-2
120
55-504-3
120
55-504-4
120
55-504-5
120
55-505-2
116
55-505-3
116
55-505-4
116
55-505-5
116
55-506-2
116
55-506-3
116
55-506-4
116
55-506-5
116
55-507-2
119
55-507-3
119
55-507-4
119
55-507-5
119
55-508-2
119
55-508-3
119
55-508-4
119
55-508-5
119
55-509-12
117
55-509-6
117
55-510-10
117
55-510-12
117
55-510-6
117
55-520-GN-2
120
55-520-GN-3
120
55-520-GN-4
120
55-520-GN-5
120
55-520-PR-3
120
55-520-PR-4
120
55-520-RD-2
120
55-520-RD-3
120
55-520-RD-4
120
55-520-RD-5
120
55-520-YL-2
120
55-520-YL-3
120
55-520-YL-4
120
55-520-YL-5
120
55-610-10
117
55-610-100
117
55-610-12
117
55-610-15
117
55-610-25
117
55-610-3
117
55-610-33
117
55-610-35
117
55-610-50
117
55-610-500
117
55-610-6
117
55-610B
136
55-611-10
117
55-611-100
117
55-611-12
117
55-611-15
117
55-611-20
117
55-611-25
117
55-611-250
117
55-611-3
117
55-611-33
117
55-611-35
117
55-611-50
117
55-611-500
117
55-611-6
117
55-611-RCA-10 117
55-611-RCA-100 117
55-611-RCA-12 117
55-611-RCA-15 117
55-611-RCA-20 117
55-611-RCA-25 117
55-611-RCA-3
117
55-611-RCA-35 117
55-611-RCA-50 117
55-611-RCA-6
117
55-611B
136
55-612-10
112
55-612-10-WH
112
55-612-100
112
55-612-12
112
55-612-12-WH
112
55-612-15
112
55-612-15-WH
112
55-612-25
112
55-612-25-WH
112
55-612-250
112
55-612-3
112
55-612-3-WH
112
55-612-30
112
55-612-35
112
55-612-50
112
55-612-6-INCH
112
55-612-6
112
55-612-6-WH
112
55-612-75
112
55-612-HDTV-10 112
55-612-HDTV-100 112
55-612-HDTV-12 112
55-612-HDTV-25 112
55-612-HDTV-3 112
55-612-HDTV-35 112
55-612-HDTV-50 112
55-612-HDTV-6 112
55-612-HDTV-75 112
55-612-S-10
112
55-612-S-100
112
55-612-S-12
112
55-612-S-25
112
55-612-S-3
112
55-612-S-35
112
55-612-S-50
112
55-612-S-75
112
55-612-S-6
112
55-612-SP
63, 111
55-612B
136
55-613-12
113
55-613M-10
113
55-613M-100
113
55-613M-15
113
55-613M-25
113
55-613M-3
113
55-613M-35
113
55-613M-50
113
55-613M-6
113
55-613M-75
113
55-614-10
112
55-614-100
112
55-614-12
112
55-614-25
112
55-614-3
112
55-614-35
112
55-614-50
112
55-614-6
112
55-614-75
112
55-614-EI-100PP 110
55-614-EI-12PP 110
55-614-EI-15PP 110
55-614-EI-25PP 110
55-614-EI-35PP 110
55-614-EI-50PP 110
55-614-EI-75PP 110
55-614-HDTV-10 112
55-614-HDTV-100 112
55-614-HDTV-12 112
55-614-HDTV-25 112
55-614-HDTV-3 112
55-614-HDTV-35 112
55-614-HDTV-50 112
55-614-HDTV-6 112
55-614-HDTV-75 112
55-614-S-10
112
55-614-S-100
112
55-614-S-12
112
55-614-S-25
112
55-614-S-3
112
55-614-S-35
112
55-614-S-100
112
55-614-S-50
112
55-614-S-6
112
55-614-S-75
112
55-615B
135
55-615-3
116
55-615-6
116
55-615-10
116
55-615-12
116
55-615-15
116
55-615-20
116
55-615-25
116
55-615-330
116
55-616-12
117
55-616-25
117
55-616-6
117
55-617-12
118
55-617-5
118
55-617-7
118
55-617-9
118
55-618-12
117
55-618-25
117
55-618-6
117
55-620-1
111
55-620-3
111
55-620-6
111
55-621
111
55-621-1
111
55-621-10
111
55-621-12
111
55-621-3
111
55-621-6
111
55-622
111
CALRAD
Numerical Index
55 Series
55-624-HDTV-12 113
55-624-HDTV-25 113
55-624-HDTV-3
113
55-624-HDTV-35 113
55-624-HDTV-50 113
55-624-HDTV-6
113
55-625-10
113
55-625-12
113
55-625-15
113
55-625-20
113
55-625-25
113
55-625-3
113
55-625-35
113
55-625-50
113
55-625-6
113
55-625-HDTV-10 113
55-625-HDTV-12 113
55-625-HDTV-15 113
55-625-HDTV-25 113
55-625-HDTV-3
113
55-625-HDTV-35 113
55-625-HDTV-50 113
55-625-HDTV-6
113
55-625D-10
113
55-625D-10-WH 113
55-625D-12
113
55-625D-12-WH 113
55-625D-15
113
55-625D-20
113
55-625D-25
113
55-625D-25-WH 113
55-625D-3
113
55-625D-3-WH
113
55-625D-35
113
55-625D-50
113
55-625D-6
113
55-625D-6-WH
113
55-625D-HDTV-10 113
55-625D-HDTV-12 113
55-625D-HDTV-15 113
55-625D-HDTV-25 113
55-625D-HDTV-3 113
55-625D-HDTV-35 113
55-625D-HDTV-50 113
55-625D-HDTV-6 113
55-626-10-WH
114
55-626-12-WH
114
55-626-15-WH
114
55-626-25-WH
114
55-626-3-WH
114
55-626-6-WH
114
55-626-HD-HS-50 114
55-626-HD-HS-75 114
55-626-HD-HS-100 114
55-626A
114
55-626A-50
114
55-627-1
115
55-627-10
115
55-627-12
115
55-627-15
115
55-627-2
115
55-627-20
115
55-627-25
115
55-627-3
115
55-627-30
115
55-627-35
115
55-627-50
115
55-627-6
115
55-628-10
115
55-628-12
115
55-628-15
115
55-628-25
115
55-628-3
115
55-628-35
115
55-628-50
115
55-628-6
115
55-630-100
125
55-630-12
125
55-630-25
125
55-630-3
125
55-630-50
125
55-630-6
125
55-630-75
125
55-631-100
125
55-631-12
125
55-631-25
125
55-631-3
125
55-631-50
125
55-631-6
125
55-631-75
125
55-632-100
125
55-632-12
125
55-632-25
125
55-632-3
125
55-632-50
125
55-632-6
125
55-632-75
125
55-633-12
125
55-633-25
125
55-633-3
125
55-633-6
125
55-634-12
125
55-634-25
125
55-634-3
125
55-634-6
125
55-635-12
125
55-635-25
125
55-635-3
125
55-635-6
125
55-636-HS-1.3-10 115
55-636-HS-1.3-3
115
55-636-HS-1.3-6
115
55-637-HS-1
115
55-637-HS-1.5
115
55-637-HS-10
115
55-637-HS-12
115
55-637-HS-15
115
55-637-HS-20
115
55-637-HS-25
115
55-637-HS-3
115
55-637-HS-30
115
55-637-HS-35
115
55-637-HS-6
115
55-639
115
55-640-1.5
125
55-640-100
125
55-640-12
125
55-640-25
125
55-640-3
125
55-640-50
125
55-640-6
125
55-640-75
125
55-641-1.5
125
55-641-100
125
55-641-12
125
55-641-25
125
55-641-3
125
55-641-50
125
55-641-6
125
55-641-75
125
55-642-1.5
125
55-642-100
125
55-642-12
125
55-642-25
125
55-642-3
125
55-642-50
125
55-642-6
125
55-642-75
125
55-643A-HS-1
114
55-643A-HS-10
114
55-643A-HS-12
114
55-643A-HS-15
114
55-643A-HS-3
114
55-643A-HS-6
114
55-643B-HS-1
114
55-643B-HS-10
114
55-643B-HS-12
114
55-643B-HS-15
114
55-643B-HS-3
114
55-643B-HS-6
114
55-644A-HS-1
114
55-644A-HS-10
114
55-644A-HS-12
114
55-644A-HS-15
114
55-644A-HS-2
114
55-644A-HS-3
114
55-644A-HS-6-INCH 114
55-644A-HS-6
114
55-644B-HS-1
114
55-644B-HS-10
114
55-644B-HS-12
114
55-644B-HS-15
114
55-644B-HS-2
114
55-644B-HS-3
114
55-644B-HS-6-INCH 114
55-644B-HS-6
114
55-646-HD1.3-1
115
55-646-HD1.3-10
115
55-646-HD1.3-12
115
55-646-HD1.3-15
115
55-646-HD1.3-3
115
55-646-HD1.3-6
115
55-647-1.4-10
115
55-647-1.4-12
115
55-647-1.4-25
115
55-647-1.4-3
115
55-647-1.4-35
115
55-647-1.4-6
115
55-648
115
55-650-100
127
55-650-150
127
55-650-25
127
55-650-50
127
55-650-75
127
55-655-100
128
55-655-12
128
55-655-15
128
55-655-25
128
55-655-35
128
55-660-10
129
55-660-100
55-660-25
55-660-50
55-661-10
55-661-100
55-661-25
55-661-50
55-670-10
55-670-18
55-670-25
55-675-15
55-675-20
55-675-25
55-700-10
55-700-10-WH
55-700-12
55-700-12-WH
55-700-15
55-700-15-WH
55-700-20
55-700-20-WH
55-700-25
55-700-25-WH
55-700-250-WH
55-700-3
55-700-3-WH
55-700-6
55-700-6-WH
55-705-1
55-705-10
55-705-12
55-705-15
55-705-20
55-705-25
55-705-250
55-705-3
55-705-30
55-705-330
55-705-50
55-705-500
55-705-6
55-705-BK-250
55-705-BK-500
55-705B
55-710-10
55-710-12
55-710-15
55-710-20
55-710-25
55-710-3
55-710-6
55-715-10
55-715-12
55-715-15
55-715-20
55-715-25
55-715-250
55-715-3
55-715-30
55-715-50
55-715-500
55-715-6
55-715-BK-500
55-715B
55-716-10
55-716-12
55-716-25
55-716-250
55-716-3
55-716-6
55-716B
55-717-12
55-717-15
55-717-16
55-717-25
55-717-3
55-717-6
55-717A-12
55-717A-15
55-717A-25
55-717A-3
55-717A-6
55-720G
55-720G-1
55-720G-2
55-720G-3
55-720G-6
55-721G-1
55-721G-2
55-721G-3
55-730
55-730RT
55-731
55-731RT
55-732
55-732RT
55-739
55-740G
55-741G
55-741G-1.5
129
129
129
129
129
129
129
129
129
129
129
129
129
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
136
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
136
121
121
121
121
121
121
136
121
121
121
121
121
121
121
121
121
121
121
129
129
129
129
129
129
129
129
133
133
133
133
133
133
119
118
119
119
55-741G-6
119
55-742
119
55-742-1.5
119
55-742-3
119
55-742-6
119
55-742F-P
119
55-743
119
55-743-1
119
55-743-10
119
55-743-3
119
55-743-6
119
55-744
119
55-744-5
119
55-750G
122
55-751G
122
55-753G
122
55-754G
122
55-755G
122
55-760G
129
55-761G
129
55-763G
129
55-764G
129
55-765G
129
55-770G-1
118
55-770G-10
118
55-770G-100
118
55-770G-1000
118
55-770G-12
118
55-770G-15
118
55-770G-20
118
55-770G-25
118
55-770G-3
118
55-770G-30
118
55-770G-50
118
55-770G-6
118
55-770G-75
118
55-770GB
136
55-770GR-10
118
55-770GR-100
118
55-770GR-12
118
55-770GR-15
118
55-770GR-25
118
55-770GR-3
118
55-770GR-50
118
55-770GR-500
118
55-770GR-6
118
55-771G-12
118
55-771G-25
118
55-771G-3
118
55-771G-330
118
55-771G-6
118
55-771GB
136
55-772G-10
118
55-772G-100
118
55-772G-12
118
55-772G-15
118
55-772G-20
118
55-772G-25
118
55-772G-250
118
55-772G-3
118
55-772G-50
118
55-772G-6
118
55-772G-75
118
55-773G-10
119
55-773G-25
119
55-773G-6
119
55-774G-A
119
55-774G-B
119
55-774G-C
119
55-780
107, 135
55-781
107, 135
55-782-1
107, 135
55-782-1.5 107, 135
55-782-12
107, 135
55-782-2
107, 135
55-782-3
107, 135
55-782-6
107, 135
55-782RT-1.5107, 135
55-782RT-12 107, 135
55-782RT-12-SHG107
55-782RT-25-SHG107
55-782RT-6-SHG 107
55-782RT-3 107, 135
55-782RT-6 107, 135
55-783
107, 135
55-784
107, 135
55-785-3
107, 135
55-785-6
107, 135
55-786-10
135
55-786-12
135
55-786-15
135
55-786-25
135
55-786-3
135
55-786-6
135
55-787-100
135
55-787-50
135
55-787-75
135
55-787A-10
135
55-787A-100
135
55-787A-15
135
55-787A-25
135
55-787A-50
135
55-787A-6
135
55-787A-75
135
55-788-1
107, 134
55-788-2
134
55-788-3
134
55-788-6-INCH10, 134
55-788A
107, 134
55-788B
107, 134
55-790
127
55-790-PS-BK
127
55-790-PS-W
127
55-790-WH
127
55-791
127
55-791-PS-BK
127
55-791-PS-WH
127
55-791-WH
127
55-792
127
55-792-PS-BK
127
55-792-PS-WH
127
55-792-WH
127
55-793
127
55-793-PS-BK
127
55-793-PS-WH
127
55-793-WH
127
55-794
127
55-794-PS-BK
127
55-794-PS-WH
127
55-794-WH
127
55-795
127
55-795-PS-BK
127
55-795-PS-WH
127
55-795-WH
127
55-796
127
55-796-PS-BK
127
55-796-PS-WH
127
55-796-WH
127
55-797
127
55-797-PS-BK
127
55-797-PS-WH
127
55-797-W
127
55-798
127
55-800G
122
55-802G
122
55-803G
122
55-806G
122
55-808G
122
55-809G
122
55-812G
122
55-814G
122
55-815G
122
55-818G
122
55-820G
122
55-821G
122
55-830
134
55-831
134
55-834
134
55-837
133
55-838
133
55-838-RT
133
55-838B-3
133
55-839
133
55-839-RT
133
55-840-100
128
55-840-1000
128
55-840-25
128
55-840-50
128
55-840-500
128
55-841-100
128
55-841-1000
128
55-841-25
128
55-841-50
128
55-841-500
128
55-842-100
128
55-842-1000
128
55-842-25
128
55-842-50
128
55-842-500
128
55-843-100
128
55-843-50
128
55-843-500
128
55-844-100
128
55-844-50
128
55-844-500
128
55-845-100
128
55-845-500
128
55-846-2.5-100 128
55-846-2.5-25
128
55-846-2.5-50
128
55-847-100
128
55-847-50
128
55-848-100
128
55-848-50
128
55-849-2
128
55-849-4
128
55-850-2
128
55-850-4
128
55-851-2
128
55-851-4
128
55-852-3
55-852RR
55-852RT
55-853
55-853G-6
55-853RR
55-853RT
55-854
55-854A
55-854G
55-856
55-857
55-858
55-859
55-860
55-862-12
55-862-3
55-862-6
55-862B
55-862B-1.5
55-862B-12
55-862B-15
55-862B-20
55-862B-25
55-862B-250
55-862B-3
55-862B-50
55-862B-6
55-862B-75
55-863B-12
55-863B-3
55-863B-6
55-864B-12
55-864B-3
55-864B-6
55-865
55-866-1
55-866-10
55-866-100
55-866-12
55-866-15
55-866-20
55-866-25
55-866-3
55-866-35
55-866-50
55-866-6
55-866-RCA-1
55-866-RCA-12
55-866-RCA-15
55-866-RCA-20
55-866-RCA-25
55-866-RCA-3
55-866-RCA-35
55-866-RCA-50
55-866-RCA-6
55-866B
55-866F-10
55-866F-12
55-866F-25
55-866F-3
55-866F-6
55-867B-12
55-867B-3
55-867B-6
55-868B
55-868B-12
55-868B-3
55-868B-6
55-869B-12
55-869B-3
55-869B-6
55-870-10
55-870-10-WH
55-870-12
55-870-12-WH
55-870-25
55-870-25-WH
55-870-250
55-870-250-WH
55-870-3
55-870-3-WH
55-870-35
55-870-35-WH
55-870-50
55-870-50-WH
55-870-6
55-870-6-WH
55-871-10
55-871-100
55-871-12
55-871-15
55-871-20
55-871-25
55-871-3
55-871-30
55-871-35
55-871-50
55-871-55
55-871-6
131
131
131
131
131
131
131
131
131
131
131
131
131
131
122
124
124
124
136
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
124
123
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
136
111
111
111
111
111
133
133
133
136
119
119
119
133
133
133
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
202
CALRAD
Numerical Index
55-871A-10
55-871A-10-WH
55-871A-12
55-871A-12-WH
55-871A-25
55-871A-25-WH
55-871A-250-BK
55-871A-3
55-871A-3-WH
55-871A-35
55-871A-35-WH
55-871A-50
55-871A-50-WH
55-871A-6
55-871A-6-WH
55-871F-12
55-871F-25
55-871F-6
55-872-12
55-872-15
55-872-20
55-872-25
55-872-250
55-872-3
55-872-35
55-872-50
55-872-6
55-873-BNC-12
55-873-BNC-20
55-873-BNC-25
55-873-BNC-3
55-873-BNC-6
55-873-RCA-12
55-873-RCA-20
55-873-RCA-25
55-873-RCA-3
55-873-RCA-35
55-873-RCA-50
55-873-RCA-6
55-874
55-875-12
55-875-15
55-875-20
55-875-3
55-875-6
55-876
55-877-10
55-877-12
55-877-15
55-877-20
55-877-25
55-877-3
55-877-50
55-877-6
55-877-75
55-877-8
55-877G
55-878G-2
55-878-3
55-878G-3
55-879-12
55-879-15
55-879-2
55-879-20
55-879-25
55-879-3
55-879-50
55-879-6
55-879G-6
55-880G-10
55-881G-20
55-882
55-882-1
55-882-2
55-882-2-PO
55-882-PO
55-883-PO
55-884-PO
55-882-W
55-883
55-883-W
55-884
55-884-W
55-885
55-885-W
55-886
55-886-W
55-887
55-887-W
55-888
55-888-W
55-890-12
55-890-25
55-890-3
55-890-6
55-894
55-895
55-896
55-897-1000
55-897-12
203
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
116
111
111
111
111
111
111
111
111
111
111
111
111
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
127
127
127
126
126
126
126
127
127
127
127
127
127
127
127
127
127
127
127
127
126
126
126
126
132
133
130
132
132
55-897-2
132
55-897-20
132
55-897-25
132
55-897-3
132
55-897-4
132
55-897-50
132
55-897-6
132
55-897B
136
55-897G-15
132
55-897G-RT-6
132
55-897RT-6
132
55-898
132
55-899-1
133
55-899-10
133
55-899-12
133
55-899-25
133
55-899-3
133
55-899-6
133
55-902
55, 133
55-904
134
55-906
134
55-906A
134
55-908
134
55-908A
134
55-909
132
55-910
122
55-911
134
55-912
130
55-913
130
55-914-10
130
55-914-3
130
55-914-6
130
55-915
122
55-916
122
55-916-100
122
55-916-50
122
55-918
122
55-919
122
55-920-100
132
55-920-12
132
55-920-25
132
55-920-50
132
55-920-6
132
55-921-10
132
55-921-12
132
55-921-15
132
55-921-25
132
55-921-3
132
55-921-6
132
55-922
131
55-922-RT
131
55-923
124
55-924
124
55-925
122
55-926
122
55-927
122
55-927-RT
122
55-928
122
55-930
122
55-931
122
55-932
122
55-933
122
55-934
122
55-935
122
55-936-10
130
55-936-3
130
55-936-6
130
55-937
132
55-938
132
55-939
132
55-940
132
55-941
132
55-942
132
55-943
132
55-943-50
132
55-944-2.5
133
55-944-3.5
133
55-944-RT
133
55-946
133
55-946-RT
133
55-947
132
55-948
130
55-949
132
55-950
131
55-951
130
55-952
130
55-953
132
55-954-BK
131
55-954-BU
131
55-954-YL
131
55-955
129
55-956
129
55-957
130
55-958
129
55-959
130
55-960
130
55-961
132
55-962
122
55-964
130
55-965
132
55-966
55-967
55-969
55-970
55-971
55-972
55-973
55-974-10
55-974-3
55-974-6
55-975
55-976
55-976-RT
55-978
55-978-RT
55-979
55-980
55-981
55-982
55-983
55-984
55-985
55-986
55-987
55-988
55-988-6
55-989
55-990
55-991
55-996
55-997
55-998
55-999
60 SERIES
55 Series to 72 Series
122
123
130
131
130
134
129
131
131
131
134
131
131
131
131
123
122
122
122
122
122
123
131
130
124
124
124
124
124
55, 134
133
124
124
60-118
60-121
60-122
60-125
60-127
60-129
60-130
60-133
60-134
60-136
60-137
60-140
60-142
60-144
60-148
60-149
60-150
60-151
60-152
60-153
60-154
60-155
60-156
60-158
60-159
60-160
60-161
60-163
60-165
60-166
60-167
60-168
60-169
60-171
60-172
60-175
60-180
60-181
60-182
60-187
60-188
60-190
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
138
65-263
65-264
65-266
65-270
65-295A
65-308
139
139
139
139
140
140
70-392-100
70-392-1000
70-392-25
70-392J-100
70-392J-1000
70-392J-25
70-393-100
70-393-1000
70-393-25
70-394-100
70-394-1000
70-394-YL-25
70-394-YL-100
70-394-YL-1000
70-394-25
70-395-100
145
145
145
145
145
145
145
145
145
145
145
145
145
145
145
145
65 SERIES
70 SERIES
70-395-25
70-396
70-397-BK
70-397-IV
70-397-SL
70-397-W
70-402
70-402-W
70-403-AL
70-403-ALS
70-403-BR
70-403-S
70-403-WS
70-404-W
70-404-S
70-404-WS
70-405
70-405-W
70-406
70-406-50
70-407
70-407-D
70-408
70-408-W
70-410-ALS
70-410-ID
70-410-S
70-410-WD
70-410-WS
70-411
70-411-W
70-413
70-413-W
70-414
70-414-W
70-415
70-415-W
70-416-8
70-416-SL
70-416-BK
70-416-IV
70-416-W
70-417
70-418-IV
70-419
70-419-W
70-423
70-424
70-425
70-426-S
70-426-W
70-426-WS
70-427
70-427-M
70-427-W
70-428-IV
70-429-BK
70-429-IV
70-429-SL
70-429-W
70-430
70-431
70-432
70-433
70-434
70-434-IV
70-435
70-440
70-441
70-442
70-443
70-444
70-445
70-446
70-447
70-448
70-449
70-450
70-451
70-452
70-453
70-454
70-460
70-461
70-462-50
70-465
70-465-50
70-466
70-467
70-480
70-487
70-489
70-491
70-493
70-494
70-495
70-496
70-496R
70-496R-UL
70-497
145
147
147
147
147
147
143
143
141
141
141
141
141
141
141
141
144
144
147
147
144
144
144
144
141
141
141
141
141
143
143
143
143
143
143
146
146
147
147
147
147
147
144
147
146
146
144
144
144
141
141
141
141
141
141
147
147
147
147
147
147
147
147
147
147
147
147
147
147
147
146
146
147
147
147
147
147
147
147
147
147
147
147
147
147
147
147
147
147
143
144
144
144
144
144
146
146
146
146
146
70-497R
146
70-497R-UL
146
70-497R-25
146
70-497R-100
146
70-498
144
70-498R-25
146
70-498R-100
146
70-499
146
70-499R
146
70-499RS-UL
146
70-505
146
70-508
146
70-509
146
70-510
146
70-511
146
70-512
145
70-513
145
70-514R
146
70-516
146
70-521
143
70-530-S
141
70-530-W
141
70-530-WS
141
70-531-S
141
70-531-W
141
70-531-WS
141
70-532
144
70-532-D
144
70-534-ALS
141
70-534-ID
141
70-534-S
141
70-534-W
141
70-534-WD
141
70-534-WS
141
70-535
141
70-536
141
70-537
141
70-539
144
70-540-BK
147
70-540-IV
147
70-540-SL
147
70-540-W
147
70-541-BK
147
70-541-BK-1000 147
70-541-IV
147
70-541-IV-1000 147
70-541-SL
147
70-541-SL-1000 147
70-541-W
147
70-541-W-1000 147
70-544-IV-100
147
70-544-IV-1000 147
70-544-SL
147
70-544-SL-1000 147
70-547-IV-100
147
70-547-IV-1000 147
70-547-SL-100
147
70-547-SL-1000 147
70-550
146, 152
70-551
146
70-552
141
70-553A
34, 143
70-554
144
70-556-P
34, 143
70-557-P
34, 143
70-558
34, 143
70-559
34, 143
70-564
143
70-568
34, 143
70-569
34, 143
70-570-ID
141
70-570-WD
141
70-571-ID
141
70-585
147
70-650
145
70-651
145
72 SERIES
72-100-AL
72-100-BK
72-100-IV
72-100-WH
72-100T
72-101-BK
72-101-IV
72-101-WH
72-102-AL-E
72-102-AL-E90
72-102-BK-E
72-102-BK-E90
72-102-BU-E
72-102-BU-E90
72-102-GN-E
72-102-GN-E90
72-102-IV-E
72-102-IV-E90
72-102-OR-E
72-102-OR-E90
72-102-RD-E
72-102-RD-E90
72-102-WH-E
148
148
148
148
147
148
148
148
148
148
148
148
148
148
148
148
148
148
148
148
148
148
148
72-102-WH-E90
72-102-YL-E
72-102-YL-E90
72-103-AL-E
72-103-BK-E
72-103-BU-E
72-103-GN-E
72-103-IV-E
72-103-OR-E
72-103-RD-E
72-103-WH-E
72-103-YL-E
72-104-BK
72-104-BU
72-104-GN
72-104-GY
72-104-IV
72-104-OR
72-104-RD
72-104-WH
72-104-YL
72-105-BK
72-105-BU
72-105-IV
72-105-OR
72-105-RD
72-105-WH
72-105-YL
72-106-WH-E
72-107-WH
72-108-WH
72-109
72-109-CAT6
72-110-1-BK
72-110-1-BU
72-110-1-GN
72-110-1-GY
72-110-1-RD
72-110-1-WH
72-110-1-YL
72-110-10-BK
72-110-10-BU
72-110-10-GN
72-110-10-GY
72-110-10-RD
72-110-10-YL
72-110-100-BK
72-110-100-BU
72-110-100-GN
72-110-100-GY
72-110-100-RD
72-110-100-YL
72-110-14-BK
72-110-14-BU
72-110-14-GN
72-110-14-GY
72-110-14-RD
72-110-14-YL
72-110-25-BK
72-110-25-BU
72-110-25-GN
72-110-25-GY
72-110-25-RD
72-110-25-YL
72-110-3-BK
72-110-3-BU
72-110-3-GN
72-110-3-GY
72-110-3-RD
72-110-3-WH
72-110-3-YL
72-110-5-BK
72-110-5-BU
72-110-5-GN
72-110-5-GY
72-110-5-RD
72-110-5-WH
72-110-5-YL
72-110-50-BK
72-110-50-BU
72-110-50-GN
72-110-50-GY
72-110-50-RD
72-110-50-YL
72-110-7-BK
72-110-7-BU
72-110-7-GN
72-110-7-GY
72-110-7-RD
72-110-7-YL
72-111-10-BK
72-111-10-BU
72-111-10-GN
72-111-10-GY
72-111-10-RD
72-111-10-WH
72-111-10-YL
72-111-100-BK
72-111-100-BU
72-111-100-GN
148
148
148
148
148
148
148
148
148
148
148
148
150
150
150
150
150
150
150
150
150
151
151
151
151
151
151
151
148
151
151
151
151
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
152
153
153
153
153
153
153
153
153
153
153
CALRAD
72 Series to 75 Series
72-111-100-GY 153
72-111-100-RD 153
72-111-100-WH 153
72-111-100-YL
153
72-111-15-BK
153
72-111-15-GY
153
72-111-25-BK
153
72-111-25-BU
153
72-111-25-GN
153
72-111-25-GY
153
72-111-25-RD
153
72-111-25-WH
153
72-111-25-YL
153
72-111-3-BK
153
72-111-3-BU
153
72-111-3-GN
153
72-111-3-GY
153
72-111-3-RD
153
72-111-3-WH
153
72-111-3-YL
153
72-111-5-BK
153
72-111-5-BU
153
72-111-5-GN
153
72-111-5-GY
153
72-111-5-RD
153
72-111-5-WH
153
72-111-5-YL
153
72-111-50-BK
153
72-111-50-BU
153
72-111-50-GN
153
72-111-50-GY
153
72-111-50-RD
153
72-111-50-WH
153
72-111-50-YL
153
72-111-7-BK
153
72-111-7-BU
153
72-111-7-GN
153
72-111-7-GY
153
72-111-7-RD
153
72-111-7-WH
153
72-111-7-YL
153
72-111-75-BK
153
72-111-75-BU
153
72-111-75-GN
153
72-111-75-GY
153
72-111-75-RD
153
72-111-75-WH
153
72-111-75-YL
153
72-119-4
156
72-119-6
156
72-120-10
137, 156
72-120-12
156
72-120-15
137, 156
72-120-6
137, 156
72-120K
150
72-120K-S
150
72-121-10
137, 156
72-121-12
137, 156
72-121-15
137, 156
72-121-6
137, 156
72-122-10
137, 156
72-122-12
137, 156
72-122-15
137, 156
72-122-6
137, 156
72-122K
150
72-122K-S
150
72-123
156
72-124
156
72-125-10
137, 156
72-125-12
156
72-125-15
137, 156
72-125-3
156
72-125-6
137, 156
72-125K
150
72-125K-W
150
72-125K-S
150
72-125K-S-2
150
72-126-10
137, 156
72-126-12
156
72-126-15
137, 156
72-126-3
156
72-126-6
137, 156
72-126K
150
72-126K-S
150
72-127-10
137, 156
72-127-15
137
72-127-3
156
72-127-6
137, 156
72-127-6-INCH 156
72-128
137, 155
72-128-26
137, 155
72-130
196
72-131
137, 155
72-132
137, 155
72-135-3
156
72-135-6
156
72-135-15
156
72-140
155
72-142
155
72-171
153
72-172
72-173
72-190-10
72-190-6
72-191-6
72-191-10
72-191-15
72-193
72-194-6
72-194-10
72-195-10
72-195-6
72-196-10
72-196-6
72-205-BK
72-205-BU
72-205-GN
72-205-IV
72-205-OR
72-205-PU
72-205-RD
72-205-WH
72-205-YL
72-210-AL
72-210-IV
72-210-WH
72-211-IV
72-211-WH
72-213-AL
72-213-IV
72-213-WH
72-217-IV
72-217-WH
72-225
72-226-12
72-226-16
72-226-24
72-226-48
72-230-1
72-230-1-AL
72-230-1-IV
72-230-2
72-230-2-AL
72-230-2-IV
72-230-3
72-230-3-AL
72-230-3-IV
72-230-4
72-230-4-AL
72-230-4-IV
72-230-6
72-230-6-AL
72-230-6-IV
72-231-1
72-231-2
72-231-3
72-231-4
72-233-1
72-233-1-IV
72-233-2
72-233-2-IV
72-233-3
72-233-3-IV
72-233-4
72-233-4-IV
72-233-6
72-233-6-IV
72-234
72-236-WH
72-239
72-240
72-241
72-242
72-244
72-245
72-246
72-247
72-248
72-250-BU
72-250-GY
72-250-S
72-250-WH
72-251
72-252
72-253
72-254
72-255
72-256
72-257
72-258
72-259
72-260-3
72-260-6
72-261-3
72-261-6
72-262-3
72-263-3
72-264-3
72-264-6
72-270
153
153
156
156
155
155
155
154
156
156
156
156
156
156
150
150
150
150
150
150
150
150
150
149
149
149
149
149
151
151
151
151
151
156
156
156
156
156
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
151
152
151
152
152
152
152
152
152
152
152
151
156
156
156
156
156
154
154
154
154
154
154
154
154
137, 154
137, 154
137, 154
154
137, 154
137, 154
137, 154
137, 154
153
72-300-BK
148
72-300-BU
148
72-300-GN
148
72-300-IV
148
72-300-OR
148
72-300-RD
148
72-300-WH
148
72-300-YL
148
72-300G-BK
148
72-300G-BU
148
72-300G-GN
148
72-300G-IV
148
72-300G-OR
148
72-300G-RD
148
72-300G-WH
148
72-300G-YL
148
72-304-6-BK
149
72-304-6-BU
149
72-304-6-GN
149
72-304-6-IV
149
72-304-6-OR
149
72-304-6-PU
149
72-304-6-RD
149
72-304-6-WH
149
72-304-6-YL
149
72-304G-6-BK
149
72-304G-6-BU
149
72-304G-6-GN
149
72-304G-6-IV
149
72-304G-6-OR
149
72-304G-6-PU
149
72-304G-6-RD
149
72-304G-6-WH
149
72-304G-6-YL
149
72-304-BK
149
72-304-BU
149
72-304-GN
149
72-304-IV
149
72-304-OR
149
72-304-PU
149
72-304-RD
149
72-304-WH
149
72-304-YL
149
72-304G-BK
149
72-304G-BU
149
72-304G-GN
149
72-304G-IV
149
72-304G-OR
149
72-304G-PU
149
72-304G-RD
149
72-304G-WH
149
72-304G-YL
149
72-306
148
72-305-E
148
72-307-BK
149
72-307-BU
149
72-307-GN
149
72-307-IV
149
72-307-RD
149
72-307-WH
149
72-307-YL
149
72-308-BK
148
72-308-BU
148
72-308-GN
148
72-308-IV
148
72-308-RD
148
72-308-WH
148
72-308-YL
148
72-308G-BK
148
72-308G-BU
148
72-308G-GN
148
72-308G-IV
148
72-308G-RD
148
72-308G-WH
148
72-308G-YL
148
72-310-BK
149
72-310-BU
149
72-310-GN
149
72-310-IV
149
72-310-RD
149
72-310-WH
149
72-311G
149
72-312G
149
72-313G
149
72-314G
149
72-320
149
72-320-BK
149
72-320-BU
149
72-320-GN
149
72-320-IV
149
72-320-RD
149
72-320-WH
149
72-320-YL
149
72-330-BK
149
72-330-RD
149
72-350
103, 147
72-400-AL
148
72-400-BK
148
72-400-BU
148
72-400-GN
148
Numerical Index
72-400-IV
72-400-OR
72-400-RD
72-400-WH
72-400-YL
70-401-WH
72-497R-100
72-497R-25
72-498R-100
72-498R-25
72-FIR
72-UC-320
75 SERIES
148
148
148
148
148
148
150
150
150
150
154
154
75-R21-RD
165
75-R21-WH
165
75-R21-YL
165
75-450
161
75-451
161
75-452
161
75-452F-3
161
75-452F-4
161
75-452F-5
161
75-452F-6
161
75-453
161
75-454
161
75-469
161
75-471
161
75-472
161
75-479
159
75-480
157
75-480-3
157
75-481
157
75-481-3
157
75-486
160
75-488
160
75-489-ID
141, 162
75-489-IV
141, 162
75-489-W
141, 162
75-489-WD 141, 162
75-489-IV-2 141, 162
75-489-WH-2 141, 162
75-491
157
75-493
141, 161
75-493-2
141, 161
75-493-ID
141, 162
75-493-SS 141, 162
75-493-W
141, 161
75-493-WD 141, 162
75-493-WH-2 141, 161
75-494-IV
161
75-494-W
161
75-496
160
75-498
157
75-498-BK
157
75-498-D
157
75-498-D-BK
157
75-498-Q
157
75-499
157
75-500
157
75-502
161
75-503
157
75-504
159
75-505
157
75-505G
157
75-507
158
75-508
157
75-508G
157
75-509
157
75-509G
157
75-510
162
75-510-RG11
162
75-510G
162
75-511
162
75-511G
162
75-512
162
75-513
162
75-514
167
75-515
167
75-516
167
75-516G
167
75-517
166
75-517G
166
75-518
162
75-518G
162
75-519
163
75-520
163
75-520-1/2
163
75-520-1D
163
75-520-2D
163
75-520DD-WH
163
75-520-WH
163
75-520G
163
75-520G-1/2
163
75-521
166
75-521-3/8
166
75-521-50
166
75-522
163
75-523
163
75-524
167
75-525
163
75-526
166
75-527
166
75-528
163
75-528G
163
75-529
162
75-530
163
75-530G
163
75-531
163
75-531G
163
75-532
163
75-532G
163
75-533
162
75-533F-PS
164
75-533FG-PS
164
75-533G
162
75-533G-PS
164
75-533G-PS-BNC 164
75-533G-PSBNCRA 164
75-533G-PS-PO
164
75-533G-PS-RA
164
75-533G-PS-RCA 164
75-533G-PSRCARA 164
75-533-PS
164
75-533-PS-BNC
164
75-533-PS-BNCRA 164
75-533-PS-PO
164
75-533-PS-RA
164
75-533-PS-RCA162, 164
75-533-PS-RCARA 164
75-533-SN59
162
75-533-SN6
162
75-534
162
75-534F-PS
164
75-534FG-PS
164
75-534G
162
75-534G-PL
162
75-534G-PS
164
75-534G-PS-BNC 164
75-534G-PSBNCRA 164
75-534G-PS-PO
164
75-534G-PS-RA
164
75-534G-PS-RCA 162
75-534G-PSRCARA 164
75-534-PL
162
75-534-PS
164
75-534-PS-BNC164, 166
75-534-PS-BNCRA 164
75-534-PS-PO
164
75-534-PS-RA
164
75-534-PS-RCA162, 164
75-534-PS-RCARA 164
75-534-PSRCA-174 164
75-534Q
162
75-534Q-PS
164
75-534Q-PS-BNC 164
75-534Q-PS-RCA 162
75-534-QS
162
75-534-SN6
162
75-534-WP
162
75-535
163
75-535-2
163
75-535-PO
163
75-536
167
75-536-RG58
167
75-537
162
75-537-RG6
162
75-537G
162
75-538
162
75-538G
162
75-539
163
75-540
166
75-541
166
75-542
165
75-542G
165
75-543
166
75-543G
166
75-544
167
75-545
167
75-546
167
75-546G
167
75-547
87, 88, 167
75-547G
167
75-548
167
75-548-S
167
75-548G
167
75-549
165
75-549G
165
75-550
165
75-551
165
75-552
166
75-553
167
75-554
166
75-555
165
75-555-20
165
75-555-TFE
165
75-556
163
75-557
167
75-558
167
75-559
166
75-559-75
166
75-559-ST
166
75-559-ST-75
166
75-560
160
75-561
166
75-562
167
75-563
167
75-564
167
75-565
163
75-565-PO
163
75-566
166
75-567
163
75-568
163
75-568HQ
163
75-569
160
75-570
169
75-571
169
75-572
169
75-573
169
75-574
169
75-575
169
75-576
169
75-577
169
75-579
168
75-580
168
75-583
168
75-584
168
75-585
168
75-586
168
75-587
168
75-588
168
75-589
168
75-590
168
75-591
168
75-592
168
75-593
168
75-594
168
75-595
168
75-596
168
75-598
160, 164
75-599A
160, 164
75-600
167
75-600-1
167
75-601
167
75-601-1
167
75-602
167
75-602-1
167
75-604
163
75-605-BK-100 157
75-605-BK-25
157
75-605-W-100
157
75-605-W-25
157
75-606-BK-100 157
75-606-BK-25
157
75-606-W-100
157
75-606-W-25
157
75-607
165
75-608
162
75-608G
162
75-608S-RG-59 162
75-608S-RG6
162
75-609
165
75-609-TFE
165
75-610
165
75-611
165
75-612
165
75-613
165
75-614
165
75-615
169
75-615-BK
169
75-616
169
75-617
169
75-618
169
75-620
166
75-621
166
75-622
166
75-623
166
75-624
166
75-625
163
75-626
163
75-628
166
75-628-50
166
75-629
167
75-630
168
75-631
168
75-635A
163
75-635A-BK
163
75-635A-BU
163
75-635A-GN
163
75-635A-RD
163
75-635A-WH
163
75-635A-YL
163
75-635AG-BK
163
75-635AG-BU
163
75-635AG-GN
163
75-635AG-RD
163
75-635AG-WH
163
75-635AG-YL
163
75-635G
163
75-640
169
75-641
169
204
CALRAD
Numerical Index
205
75-642
169
75-645
166
75-646
166
75-650-BK-100 157
75-650-BK-25
157
75-650-W-100
157
75-650-W-25
157
75-651-W-100
157
75-651-W-25
157
75-652-W-100
157
75-652-W-25
157
75-653-W-100
157
75-653-W-25
157
75-654-W-100
157
75-654-W-25
157
75-655-W-100
157
75-655-W-20
157
75-656-BK-100 157
75-656-BK-25
157
75-656-W-100
157
75-656-W-25
157
75-657-BK-100 157
75-657-BK-25
157
75-679
166
75-680
165
75-681
165
75-682
165
75-683
165
75-684
165
75-685
167
75-686
165
75-687
165
75-687-A
165
75-688
167
75-690
166
75-691
166
75-692
167
75-693
166
75-694
167
75-695
56, 167
75-696
166
75-696K-S
164
75-697
166
75-698
163
75-699
167
75-705A
159
75-710
158
75-711
158
75-712
158
75-713-16
158
75-713-2
158
75-713-3
158
75-713-4
158
75-713-6
158
75-713-8
158
75-714-3
158
75-715
158
75-716
158
75-717
158
75-720-10
159
75-720-12
159
75-720-16
159
75-720-20
159
75-720-3
159
75-720-6
159
75-720-8
159
75-724
161
75-724-MS
161
75-724-PO
161
75-725
159
75-726
159
75-727-12
158
75-727-16
158
75-727-24
158
75-728
160
75-729
160
75-730-2
159
75-730-4
159
75-731-2
159
75-731-4
159
75-735-IV
162
75-735-W
162
75-736-IV
162
75-736-W
162
75-750-1
163
75-750-1/2-1
163
75-750-1/2-2
163
75-750-2
163
75-750-3
163
75-750G-1
163
75-750G-1/2-1
163
75-750G-1/2-2
163
75-750G-2
163
75-755
162
75-756
162
75-760
169
75-761
169
75-762
169
75-763
169
75-764
169
75-765
169
75-766
169
75-767
75-768
75-780-RG-174
75-780-RG-58
75-780-RG-59
75-800G-50
75-800G-75
75-801G-50
75-801G-75
75-802G-75
75-803G-75
75-804
80 SERIES
80-403
80-404
80-405
80-407
80-408
80-410
80-411
80-412
80-413
80-505
80-506
80-507
80-508
80-510
80-566
80-574
80-575-H
80-575-L
80-575-M
80-575-P
85 SERIES
85-559
85-560
85-561
85-565-ID
85-565-WD
85-567
85-569
85-571
85-572
85-574
85-575
85-577
85-578
85-579
85-580
85-590
85-591
85-592
85-593
85-594
85-595
85-596
85-597
85-598
85-599
85-660
85-663
90 SERIES
169
169
164
164
164
165
165
165
165
165
165
161
171
171
170
171
171
171
171
171
11, 171
11, 170
11, 170
11, 170
170
170
145, 171
170
11, 170
11, 170
11, 170
11, 170
172
172
172
23, 172
23, 172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
172
90-600
90-600-S
90-601
90-602
90-604
90-605
90-606
90-607
90-608
90-610
90-611
90-612
90-613
90-614
90-615
90-616
90-617
90-617-6
90-618
90-618-RT
90-619
90-620
90-630-BK-100
90-630-GY-100
90-631-BK-100
90-631-GY-100
90-632-BK-50
90-632-GY-50
90-635-BK
90-635-BK-150
90-635-GY-150
90-701-XLR-RA
90-702
90-730-BK
90-730-RD
90-732
90-740
90-741
90-745
90-746
179
179
179
179
179
181
180
181
181
180
180
180
180
180
180
180
180
181
181
181
181
180
183
183
183
183
183
183
183
183
183
184
184
175
175
174
175
175
174
174
75 Series to 99 Series
90-747
174
90-751
174
90-755
174
90-756
175
90-757
175
90-757G
175
90-758
175
90-758G
175
90-764
140, 173
90-765
140, 173
90-766
140, 173
90-767
140, 173
90-768
140, 173
90-770
140, 173
90-771
140, 173
90-771-BK 140, 173
90-771-RD 140, 173
90-772-2.5
173
90-772-4
173
90-772-6.5
173
90-772-8
173
90-772M
173
90-773
173
90-774
173
90-775
173
90-777
173
90-779
173
90-780
174
90-781
140, 173
90-783
174
90-783-UL
174
90-784
176
90-785
176
90-786
176
90-787
179
90-787-BU
179
90-787-GN
179
90-787-WH
179
90-794
176
90-795
176
90-796
176
90-797
176
90-799
43, 175
90-800
43, 175
90-803
177
90-804
178
90-805
178
90-811
174
90-818
174
90-819
176
90-828
177
90-830
182
90-831
182
90-832
182
90-833
182
90-860
182
90-861
182
90-862
182
90-838
174
90-842
176
90-843
176
90-844
177
90-850
178
90-853
178
90-856
179
90-867A
183
90-868
183
90-880
176
90-881
176
90-882
176
90-883
176
90-900
178
90-900R
178
90-900T
178
90-903
178
90-905
177
90-906
177
90-908
177
90-912
177
90-913
183
90-914
183
90-920
178
90-921
178
90-923
178
90-924
178
90-925
178
90-926
178
90-927-12
177
90-927-8
177
90-928-8
177
90-930-A
177
90-936
176
90-937
176
90-945
161
90-1000
184
90-1000-BAT
184
92 SERIES
92-100
92-101
92-102
92-103
92-110
185
185
185
185
185
92-111
92-115
92-116
92-120-BL
92-120-GN
92-120-RD
92-120-WH
92-120-YL
92-125
92-152
92-152-2
92-153
92-160
92-161
92-163
92-164
92-165
92-166
92-167
92-169
92-170-KIT
92-200
92-201
92-203-BK
92-203-BU
92-203-GY
92-203-RD
92-203-WH
92-300
92-301
92-322
92-324
92-325
92-326
92-340
92-341
95 SERIES
185
185
185
185
185
185
185
185
185
186
186
186
186
186
186
186
186
186
186
186
187
184
184
184
184
184
184
184
184
184
184
184
184
184
184
184
95-1038
189
95-1039
189
95-1040
56, 189
95-1041
72, 189
95-1044-BNC
56, 189
95-1044-RCA
56, 189
95-1045
189
95-1046
72, 189
95-1062-BK
196
95-1062-BK-KIT
196
95-1062-BK-RS232 196
95-1062-WH
196
95-1062-WH-KIT
196
95-1062-WH-RS232 196
95-1140
55
95-1144
55
95-1145
55
95-1601
188
95-2020
195
95-2021
195
95-2024A
195
95-2025
195
95-2026
195
95-403
190
95-405
190
95-405-C
190
95-455
189
95-460
189
95-464
189
95-470
188
95-600
188
95-601
188
95-602
188
95-702
194
95-724A
191
95-770
196
95-770-SNAP
196
95-771
196
95-772
196
95-773
196
95-777
197
95-780
198
95-781
198
95-783
198
95-783-P
198
95-785
198
95-786
198
95-788
198
95-790
196
95-791
196
95-792-GN
197
95-792-OR
197
95-793
198
95-794
198
95-795
198
95-795-UL
198
95-796
197
95-800
188
95-801
188
95-802
188
95-820
192
95-821
192
95-823
193
95-824
193
95-830
194
95-840
95-845
95-846
95-847B
95-848
95-850
95-869B
95-875
95-882
95-884
95-888
95-889
95-890
95-893
95-894
95-898
95-899
95-900
95-902
95-904
95-906
95-908
95-909
95-911
95-914
95-920
95-923
95-925
95-926
95-927
95-950
191
192
192
191
192
193
194
194
193
193
193
193
193
192
192
190
190
193
193
191
190
192
192
193
190
190
192
194
194
194
193
95-960
99-1218B
99-1218C
99-1218F
99-1224B
99-1224F
99-1236B
99-1236C
99-1236F
99-1258B
99-1258F
99-1272F
99-3812B
99-3812F
99-3818B
99-3818C
99-3818F
99-3824B
99-3824C
99-3824F
99-3836B
99-3836C
99-3836F
99-3848B
99-3858F
99-3872F
99-7548B
99-A10036B
99-A10048B
99-A1224B
99-A1236B
99-A1248B
99-A3424B
99-A3436B
99-A3448B
99-A3472B
99-A3824B
99-A3836B
99-A3848B
99-A3872B
99-A5836B
99-A5848B
99-F12F
99-F18F
99-F24F
99-F36F
99-F58F
99-F72F
99-H3858F
189
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
179
99 SERIES
CALRAD
Alphabetical Index
AC OUTLET ACCESSORIES
AC Jacks, Plugs, Adapters ....................................197-198
AC Outlet Strips ............................................................198
AC Surge Protectors AC, TV, Telephone .....................197
ADAPTERS
AC & DC Power .....................................................102-104
Audio ..............................................................48-49, 51-55
Cigarette Lighter Jacks & Plugs ....................106, 179-181
Networking.....................................................148-150, 153
R.F. ....................................................................... 139-164
Telephone..............................................................118-123
Video .................................................................... 133-146
XLR.................................................................................49
AMPLIFIERS
Audio and Public Address .....................................194-195
HDMI Amplifiers..............................................................80
ANTENNAS & ACCESSORIES
F.M. Dipole ...................................................................161
Splitters & Baluns ..................................................157-160
RF Switches..................................................................160
Telescoping ..................................................................161
AUDIO ACCESSORIES
Adapters .............................................................7-8, 48-55
Audio Attenuator, Mixers & Preamps ........................10-11
Audio Switchers ............................................................. 70
Cleaning Accessories ............................................170-171
Digital Amplifiers & Converters ..................................11-12
Headphones ..............................................................13-14
Isolation & Line Matching Transformers ...........................6
RCA & BNC Patch Panels ..............................................11
Toslink Switcher, Converters & Amplifiers ................12, 48
Toslink Adapters & Cables ..............................48, 119-120
Wireless Microphones ...................................................1-2
BATTERY HOLDERS ...........................................173-174
BELLS
Alarm Bells....................................................................193
BINDING POSTS ...................................................25, 175
CABLES
AC..................................................................107,134- 135
Audio .....................................................................111-136
BNC .......................................................................125-126
Bulk Audio & Video ................................................128,136
Cigarette Lighter ....................................................179-181
Component Video..........................................111, 116-117
Digital.....................................................................114-119
DIN................................................................................134
DVI ................................................................................113
Firewire ................................................................137, 156
HDMI .....................................................................114-115
HDTV .....................................................................112-118
Microphone ....................................................................7-8
Midi ...............................................................................134
RF ..........................................................................125-127
RGB, RGB+HV .............................................................117
VGA, SVGA cables........................................110, 112-113
SVHS Cables................................................................118
Speaker ................................................................123, 128
Telephone .....................................................................147
Toslink ...................................................................119-120
USB ...............................................................137, 154,156
Video ..............................................111-119, 121, 124-127
CABLE TIES ................................................................182
CB ACCESSORIES
Connectors ......................................................44, 167-168
Microphones .....................................................................5
Speakers ...................................................................17-18
CHASSIS BOXES ........................................................176
CLIP LEAD SETS ........................................................173
COMPUTER CONNECTORS .....................46-47, 50, 150
CONNECTORS
Audio Plugs & Jacks .................................................35-46
Banana Plugs..................................................................42
Battery ...................................................................173-174
BNC...............................................................................165
Computer ............................................................ 46,47, 50
Coaxial Power.................................................................42
DIN............................................................................44, 48
HDTV..............................................................................36
Microphone.................................................... 37-38, 41-45
RF ..........................................................................162-167
SVHS ...................................................................38, 40-41
Telephone..............................................................144-146
Video ...............................................34-36, 38-41, 162-164
XLR............................................................................45-46
CONTROLS
Desk Top ........................................................................24
L-Pads ............................................................................25
Pontentiometers..............................................................20
Slide ................................................................................21
Rotary .............................................................................21
Designer Style Volume controls ................................22-23
206
CALRAD
Alphabetical Index
NETWORK CAT 5, CAT5e PRODUCTS ..............148-156
CONVERTERS\SCALERS
Component\Composite...................................................78
HDMI...............................................................................78
DIN COUPLERS & CABLES .........................................48
DRILL BITS ..................................................................179
EARPHONES .................................................................14
ELECTRICAL TAPE ....................................................179
FOOT SWITCH...............................................................98
FUSE HOLDERS..........................................................174
PILLOW SPEAKERS ...................................................17
PLUGS
Audio ........................................................................ 34-45
Computer .................................................................44-45
DIN ............................................................................40-41
HDTV..............................................34-36, 44-45, 139, 142
Microphone ................................................................41-44
Telephone..............................................................121-122
Video, RCA, SVHS, BNC.....34-36, 38-41, 44-45, 141-144
HDMI CABLE TESTER................................................139
POWER SUPPLIES
AC..........................................................................102-104
Alarm ............................................................................192
DC .........................................................................102-104
Inverters ........................................................................108
Power Strips .................................................................198
Variable AC & DC ........................................104, 106, 107
HUM ELMINATORS.......................................................84
PRE-AMPLIFIERS .....................................11-12, 147,175
HEADPHONES
Junction Boxes ...............................................................15
Monaural .........................................................................13
Stereo ........................................................................13-14
iPOD ACCESSORIES..................................................101
RELAYS ..................................................................98,194
RUBBER FEET ............................................................176
IR DISTRIBUTION.................................................186-187
SCREW DRIVERS & TOOLS ...............................176-177
KEY SWITCHES ............................................................57
SECURITY EQUIPMENT
Control Panels ..............................................................188
Camera Mounts & Housings..................................167-168
Cat 5 Video transmission adapters...............................189
Composite Video Balun ................................................189
Digital Timers.........................................................191-192
Home & Office Security .........................................188-193
Key Pads ......................................................................192
Motion Detectors ...................................................189-190
Sirens & Bells .........................................................18, 193
Switches ..................................................................99-100
Wireless Audio / Video transmitters ..............168-169, 170
KNOBS & DIALS .........................................................172
LED's (Light Emitting Diodes) ...............................184-185
L.E.D DESKTOP & GOOSENECK LAMPS,
FLASHLIGHTS ....................................................184-185
METERS
Panel Type....................................................................138
Test Meters ...................................................................139
207
PANEL METERS..........................................................138
MICROPHONES
Cables...............................................................................8
C.B. ...................................................................................5
Dynamic.........................................................................3-5
Electret ......................................................................3-4, 9
Goosenecks......................................................................9
Holders ......................................................................10-11
Lapel ..............................................................................3-4
Miniature ...........................................................................3
Mixers ........................................................................10-11
Paging...............................................................................4
Stands .........................................................................9-10
Wind Screens ...................................................................5
Wireless .........................................................................1-2
SPEAKERS
Attenuators ................................................................22-24
Background Music .....................................................18-19
Brackets ..........................................................................19
Grilles..............................................................................17
Line Matching Transformers..........................6, 22-23, 105
Miniature .........................................................................16
Outdoor......................................................................18-19
Public Address ................................................................19
Switchers .......................................................................70
Weatherproof .............................................................18-19
Wire ......................................................................123, 128
CALRAD
Alphabetical Index
SWITCHES
Audio...............................................................................70
Alarm .......................................................................99-100
Lighted ............................................................................95
Magnetic ..................................................................99-100
Push-Button ...............................................................97-98
RF .................................................................................160
Rocker ............................................................................95
Slide ................................................................................97
Speaker ..........................................................................70
Toggle........................................................................95-96
Toslink Fiber-Optic..........................................................48
VGA Switchers...........................................................90-91
Video .........................................................................59-68
Pattern Generators/HDTV...............................................94
Splitters & Balun Transformers................................57-159
SVHS to Composite Adapters ........................................48
VGA, SVGA Cables ...................................................91-93
Video Converters, Switchers & Amplifiers .................59-74
Video Over Cat 5 Baluns ...................26, 29-30, 63, 72, 77
VOLUME CONTROLS
Desktop.....................................................................24, 70
Standard & Designer Style Volume Controls.......21-23, 32
WALL MOUNT BRACKETS...........................................34
WIND SCREENS ..............................................................5
TELEPHONE ACCESSORIES
Adapters, Couplers ................................................143-146
Cables & Wire ...............................................................147
Jacks.....................................................................143, 146
Plugs .............................................................................146
Wall Plates....................................................................141
Wire ..............................................................................147
TERMINAL STRIPS ..............................................151-152
TEST CLIPS & LEADS .........................................140,173
TEST METERS.............................................................139
TOOLS ......................146,152,161,164,176-179, 182, 183
TOUCHSCREENS........................................................196
TRANSFORMERS
Foreign Travel.......................................................104, 109
Line-Matching ...............................................................105
Miniature Audio .............................................................105
Power ....................................................................102-105
Power Inverters.............................................................108
TV ACCESSORIES ...............................................157-160
UTILITY BOXES...........................................................176
VIDEO ACCESSORIES
Cables ................................................86-98, 100, 110-112
Component Video over Cat 5 baluns....................26,63,72
Connectors & Adapters .................................35-37, 48, 50
Digital to Analog Converter.............................................70
N Connectors................................................................169
PAL Connectors & Adapters .........................................168
208
