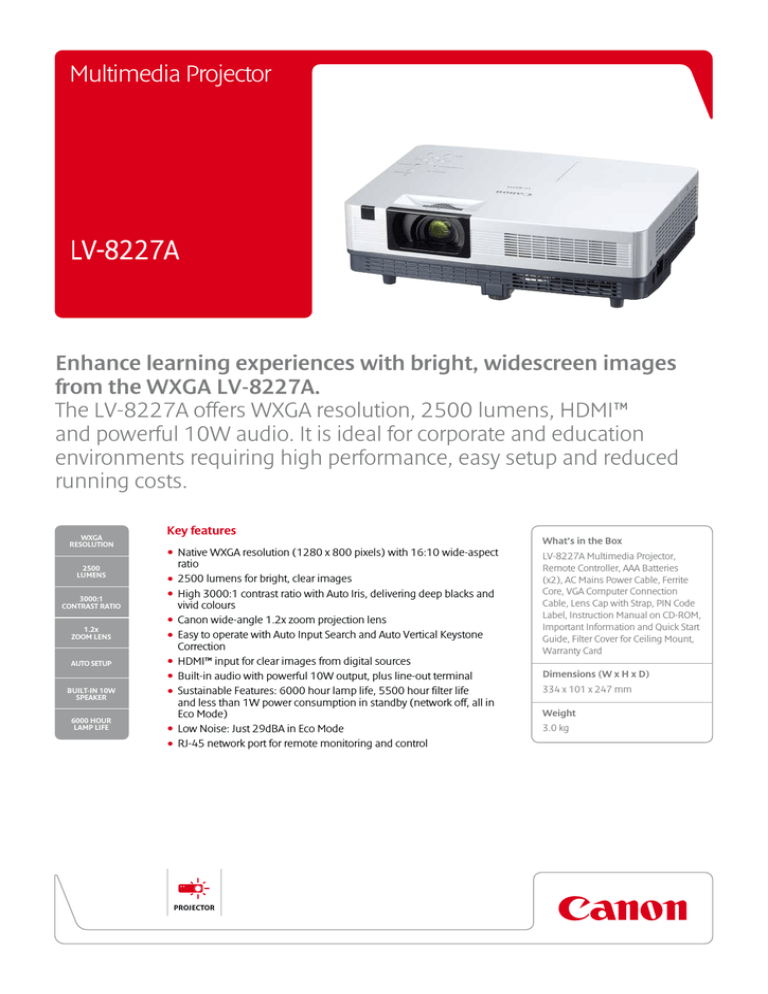

Multimedia Projector
LV-8227A
Enhance learning experiences with bright, widescreen images
from the WXGA LV-8227A.
The LV-8227A offers WXGA resolution, 2500 lumens, HDMI™
and powerful 10W audio. It is ideal for corporate and education
environments requiring high performance, easy setup and reduced
running costs.
WXGA
Resolution
2500
lumens
3000:1
Contrast ratio
1.2x
zoom lens
AUTO SETUP
BUILT-IN 10W
SPEAKER
6000 HOUR
LAMP LIFE
Key features
WXGA resolution (1280 x 800 pixels) with 16:10 wide-aspect
• Native
ratio
• 2500 lumens for bright, clear images
igh 3000:1 contrast ratio with Auto Iris, delivering deep blacks and
•Hvivid
colours
• Canon wide-angle 1.2x zoom projection lens
asy to operate with Auto Input Search and Auto Vertical Keystone
•ECorrection
•HDMI™ input for clear images from digital sources
•Built-in audio with powerful 10W output, plus line-out terminal
ustainable Features: 6000 hour lamp life, 5500 hour filter life
•Sand
less than 1W power consumption in standby (network off, all in
Eco Mode)
Low Noise: Just 29dBA in Eco Mode
RJ-45 network port for remote monitoring and control
•
•
projector
What’s in the Box
LV-8227A Multimedia Projector,
Remote Controller, AAA Batteries
(x2), AC Mains Power Cable, Ferrite
Core, VGA Computer Connection
Cable, Lens Cap with Strap, PIN Code
Label, Instruction Manual on CD-ROM,
Important Information and Quick Start
Guide, Filter Cover for Ceiling Mount,
Warranty Card
Dimensions (W x H x D)
334 x 101 x 247 mm
Weight
3.0 kg
LV-8227A
Specifications
MULTIMEDIA PROJECTOR
Product Class PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
Ultra-Portable
Transmissive LCD, Poly-silicon TFT Active Matrix
0.59” diagonal, 3 panels
16:10
1280 x 800 (WXGA), 1024000 pixels
OPTICS
Lamp Type
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
215W NSHA
F2.00 – F2.15; f=18.38 – 22.06mm
1.2x Manual
Manual
13 : 1 (fixed)
IMAGE AND AUDIO
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Digital Video Scan Systems
Component Video Scan Systems
Video / S-Video Colour Systems
Display Modes
Image Enhancement
Built-in Speaker
2500 lumens
85%
3000:1 (Auto Iris enabled & lamp dimmer function)
1.2m – 11.1m (3.1m – 3.7m for 100” image)
40” – 300” (862 x 538mm – 6462 x 4039mm)
0.5x – 4x
Vertical: Manual +/-30° ; Auto +/-20°
(WUXGA/UXGA/SXGA+/SXGA) / WXGA / XGA / SVGA / VGA
(WUXGA/UXGA/SXGA+/SXGA) / WXGA / XGA / SVGA / VGA / MAC
1080p / 1080i / 720p / 575p / 480p
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Presentation, Standard, High Contrast, Cinema, Blackboard (green),
Colour board (red, blue, yellow, green), User 1 – 4
10-bit Colour Reproduction (1.07 billion colours) or
8-bit(16.7 million colours) for analogue RGB
10.0W RMS, Monaural
PORTS AND CONNECTORS
Digital Video and Audio Input
Analogue RGB Input 1
Analogue RGB Input 2
Analogue RGB Output
S-Video Input
Composite Video Input
Audio Input 1
Audio Input 2
Audio Input 3
Audio Output
Service Port / Projector Control
Network Port
HDMI™ V1.3 (with Deep Colour)
Mini D-Sub 15-pin (Component Video via optional cable /
S-Video via optional cable / SCART-RGB via optional cable)
–
–
Mini D-Sub 15-pin (shared with RGB input 1 via optional cable)
RCA x1
3.5mm stereo mini-jack (input for RGB 1 / Microphone)
RCA x2 (L/R) (input for Composite Video)
–
3.5mm stereo mini-jack (variable level)
Mini D-Sub 9-pin (RS-232c)
RJ-45
1x Mechanical foot, 10° maximum image elevation
–
MECHANISMS
Front Elevation Mechanism
Rear Adjustment Mechanism
RATINGS
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
334mm x 101mm x 247mm
3.0kg
100V – 240V AC, 50/60Hz
Lamp Mode – High / Normal / Eco: 270W / 250W / 185W
Standby: 9.6W / Standby (LAN off): 0.5W
Lamp Mode – High / Normal / Eco: 36.4dBA / 34.4dBA / 29dBA
+5°C to +35°C
-10°C to +60°C
3 years
All data is based on Canon’s standard testing method. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice.
™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in
their markets and/or countries.
Connectivity
7
2
1
8
3
1
HDMI™ V1.3 (with Deep Colour): Digital Video / Digital Audio / Digital RGB input.
2
Mini D-Sub 15-pin: Analogue RGB Input 1 / Component Input (with optional adapter cable) /
S-Video Input (with optional adapter cable) / SCART RGB Input (with optional adapter cable).
3
RCA x1: Composite Video Input.
4
3.5mm mini-jack: Stereo Audio Input 1 (for PC or Video equipment connected to port 2) /
Microphone Input.
5
4
6
5
RCA x2 (L/R): Stereo Audio Input 2 (for Composite Video Input).
6
3.5mm mini-jack: Stereo Audio Output (Variable level).
7
Mini D-Sub 9-pin: Control Port (RS-232c).
8
RJ-45: Network Connection.
