HP rp5700 Long Lifecycle Desktop PC

HP rp5700 Long Lifecycle Desktop PC

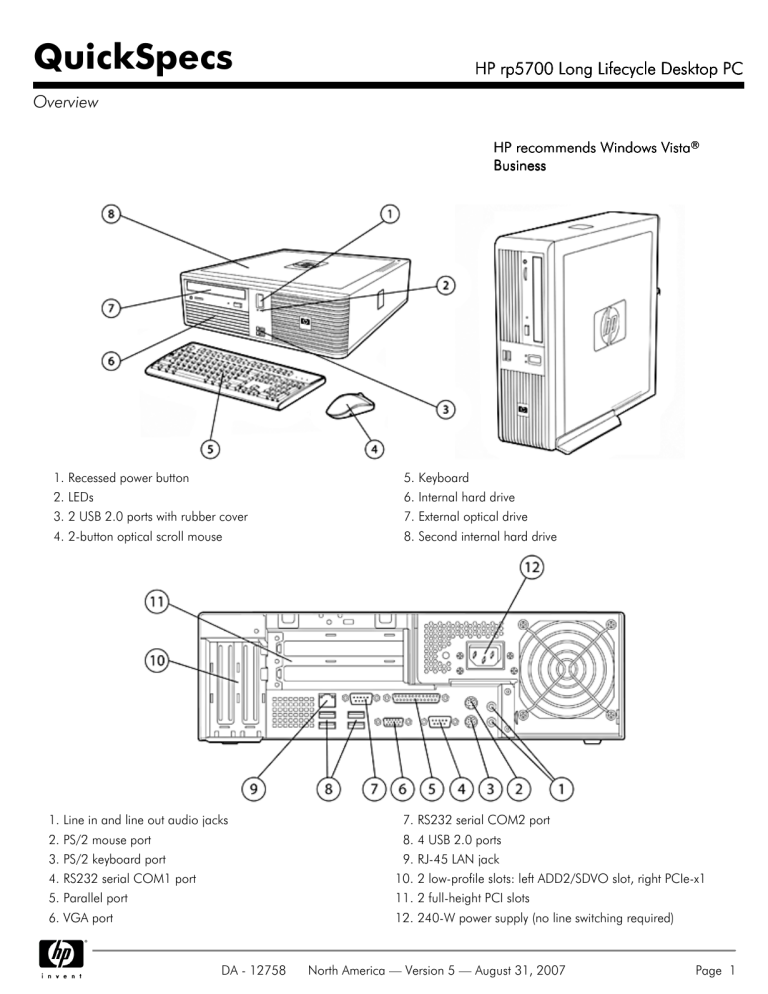

QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Overview
HP recommends Windows Vista®
Business
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
Recessed power button
LEDs
2 USB 2.0 ports with rubber cover
2-button optical scroll mouse
Line in and line out audio jacks
PS/2 mouse port
PS/2 keyboard port
RS232 serial COM1 port
Parallel port
VGA port
DA - 12758
5.
6.
7.
8.
7.
8.
9.
10.
11.
12.
Keyboard
Internal hard drive
External optical drive
Second internal hard drive
RS232 serial COM2 port
4 USB 2.0 ports
RJ-45 LAN jack
2 low-profile slots: left ADD2/SDVO slot, right PCIe-x1
2 full-height PCI slots
240-W power supply (no line switching required)
North America — Version 5 — August 31, 2007
Page 1
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Overview
At A Glance
Intel® Core 2 Duo, Intel Pentium® Dual-Core, and Intel Celeron® processors
One of the following operating systems:
Genuine Windows® XP Professional
Genuine Windows Vista Business 32-bit edition
FreeDOS
Intel Q963 chipset with Intel GMA 3000 and support for dual independent displays
Dual Channel, PC2-5300, DDR2 system memory
Integrated Broadcom 5755 NIC 10/100/1000 with integrated TPM
SMART III Serial ATA 3.0Gb/s Hard Drives
RAID level 0, 1, 5 and 10 support
Manageability tools
Energy Star compliance with energy-saving features
Protected by HP Services, including a 3-3-3, standard warranty. Certain restrictions and exclusions apply.
5 year long life-cycle business desktop PC
80 PLUS® highly efficient power supply rating
ENERGY STAR 4.0 compliant. Certain system configurations may not be ENERGY STAR 4.0 compliant.
EPEAT Rated – GOLD
DA - 12758
North America — Version 5 — August 31, 2007
Page 2
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available
configuration choice specified in the body of this document and may include references to modules that are out of date and no
longer available.
Operating System –
One of the following
Preinstalled
Supported
DA - 12758
Genuine Windows XP Professional SP2
Genuine Windows Vista Business 32-bit edition
FreeDOS
Genuine Windows 2000 (limited support)
North America — Version 5 — August 31, 2007
Page 3
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Value-added Software (not HP ProtectTools Security Software Suite*
included with FreeDOS)
HP Client Management Solutions (visit
Not all software included http://www.hp.com/go/easydeploy)
with all models.
HP Backup and Recovery Manager
HP Insight Diagnostics
Computer Setup Utility
Symantec AntiVirus with 60 day Live Update
Subscription
Intervideo WinDVD (supplied with DVD drive)
Microsoft Office 2007 Basic*
Microsoft Office 2007 Professional*
Microsoft Office 2007 Small Business*
Microsoft Internet Explorer
HP Open View Radia Management Agent
Altiris Deployment Solution Agent
SoftThinks
Roxio Easy Media Creator (included with DVD
drives)
Sun Java Runtime Environment
Vista Easy Setup
* Sold separately.
Value-added Services and HP Stable Platform Program with Product Change
Features
Notification
Business-to-Business Portals
Factory Express Deployment and Lifecycle Services
(sold separately)
TPM 1.2 Vista Bit-Locker Ready
Service and Support
On-site Warranty and ServiceNOTE 1This three-year, limited warranty and service offering delivers three
years of on-site, next business-dayNOTE 2 service for parts and labor and includes free telephone
supportNOTE 3 24 x 7. Global coverageNOTE 2 ensures that any product purchased in one country and
transferred to another non-restricted country will remain fully covered under the original warranty and
service offering.
NOTE 1:
1 Certain restrictions and exclusions apply.
NOTE 2:
2 On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider. Global service response times are based on commercially reasonable best effort.
NOTE 3:
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software.
Dimensions and Weight
Chassis Dimensions
3.94 x 13.4 x 15 in (10 x 34 x 38 cm)
(HxWxD)
System weight*
18.64 lb (8.433 kg)
System volume
approximately 13 liters (13.74 quarts)
Shipping weight*
26.52 lb (11.998 kg)
Shipping box dimensions 23.38 x 19.68 x 9.00 inches (59.38 x 49.99 x 22.85 cm)
Monitor weight supported 77 lb (35 kg) maximum
* Configured with 2 hard drives, 1 optical drive, no diskette drive, and tower stand.
Power Supply
240W custom power supply active PFC. 80 PLUS® rating efficiency. No line switching required.
DA - 12758
North America — Version 5 — August 31, 2007
Page 4
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Ports
USB
Serial
6 USB 2.0 (2 front, 4 rear)
2 RS232 individually configurable to power 5V & 12 V. COM1 can be
configured for 5V, 9V, and 12V
1
2
1
2, line in and line out
RJ-45
available via HP ADD2 SDVO DVI-D Adapter
Parallel
PS/2
Video
Audio
NIC
Support for MultiMonitor*
* The rp5700 supports normal (or non-reversed) layout (Advanced Digital Display 2) adapter cards
inserted into the SDVO (Serial Digital Video Output) connector on the system board. This connector has
the physical appearance of a PCIe- x16 connector; however, conventional PCIe cards are not supported
in this connector.
Chipset
Intel Q963 with ICH8-RAID
Processor and
Speed*
One of the following
Intel Celeron Processor:
Intel Celeron Processor 440 (2-GHz, 800-MHz FSB, 512-KB Cache)
Intel Core2 Duo Processors:
Intel Core2 Duo E6400e Processor (2.13-GHz, 2-MB L2 cache, 1066-MHz FSB)
Intel Pentium Dual-Core Processors:
Intel Pentium Dual-Core E2160 Processor (1.80-GHz, 1-MB L2 cache, 800-MHz FSB)
* Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family,
not across different processor families.
Memory
DDR2 SYNCH DRAM NON-ECC MEMORY
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes.
This chart does not represent all possible memory configurations. The Intel Q963 Express chipsets
support non-ECC DDR2 PC2-5300 (667-MHz)
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds.
For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If
speeds are mixed, speed will default to the slowest DIMM.
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (1 x 512 MB)
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (2 x 256 MB)
768-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (1x256,1 x 512 MB)
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (1 x 1 GB)
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (2 x 512 MB)
2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (1 x 2 GB)
2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (2 x 1 GB)
3-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (3 x 1 GB)
4-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (2 x 2 GB)
8-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non ECC (4 x 2 GB)
DA - 12758
North America — Version 5 — August 31, 2007
Page 5
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Maximum Memory
Supports up to 8 GB of DDR2 Synch DRAM.
Slot 1 is black and must always be populated. Not all memory configurations possible are represented
below.
NOTE: Above 4 GB, all memory may not be available due to system resource requirements.
DIMM Size
Slot
Channel A
512 MB
1 GB
1 GB
2 GB
2 GB
2 GB
3 GB
3 GB
4 GB
8 GB
Slots
PCI
SDVO/ADD2
Storage
Internal bays
External bay
Hard Drive Interfaces
Supported
Hard Drive Controller
Supported
Serial-ATA connectors
Hard Drive –
One of the following
Removable Storage –
One of the following
DA - 12758
Channel B
1 (black)
2 (white)
3 (black)
512 MB
1 GB
512 MB
512 MB
1 GB
1 GB
2 GB
512 MB
512 MB
512 MB
1 GB
2 GB
2 GB
1 GB
1 GB
1 GB
1 GB
2 GB
2 GB
2 GB
2 full-height, half-length PCI, 1 low-profile PCIe-1x
1
4 (white)
512 MB
1 GB
2 GB
2 3.5-inch ATA hard drive
1 5.25-inch optical drive
2 Serial ATA interfaces with RAID controller option. Supports RAID 0, 1, 5
and 10.
SATA 3.0 Gb/s and 1.5 Gb/s
3
80-GB, 160-GB, 250-GB SATA 3.0 Gb/s, 7200 rpm
80-GB, 160-GB, 250-GB SATA 3.0 Gb/s, 7200 rpm with RAID 1
16X/48X SATA DVD-ROM
SATA DVD+/-RW LightScribe Drive (Double Layer/Dual Format)
16X SATA SuperMulti LightScribe Drive
North America — Version 5 — August 31, 2007
Page 6
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Front View
Diskette Drives
3.5-inch Serial ATA Hard Drive
Optical Drive Bay or Carrier for
Hard Drive
Quantity Supported
0
3
1
Position
0
1, 2*, 3
2
Controller
N/A
SATA
SATA
* Requires optional Hard Drive Carrier
Security
TPM 1.2 Embedded Security Chip integrated with Broadcom NIC
HP ProtectTools Security Software Suite with BIOS Configuration (serial, parallel, USB enable/disable),
Credential Manager, Smart Card Manager (sold separately), Embedded Security
HP Desktop Security Lock Kit (lock and cable) (sold separately)
Security cable with Kensington lock (sold separately)
Wall Mount/Security Sleeve (sold separately)
Security loop hole
0.212 inch (0.538 cm)
diameter
NIC
Broadcom 5755 10/100/1000 NIC with TPM 1.2
Communications
HP Wireless A+G PCI Adapter Card (optional)
2006 Agere PCI 56K International SoftModem (optional)
Graphics
Integrated Intel Graphics Media Accelerator 3000. Support for dual display via optional HP ADD2
SDVO DVI-D Adapter and optional NVIDIA Quadro NVS 280 64-MB PCI dual head VGA
Audio
Intel integrated high-definition audio with 2-channel Realtek ALC262 codec and internal amplified
chassis speaker
DA - 12758
North America — Version 5 — August 31, 2007
Page 7
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Standard and Configurable Components
Input/Output Devices
Keyboard –
One of the following
Mouse –
One of the following
Miscellaneous
PS/2 keyboard (standard)
USB keyboard
No keyboard optional
PS/2 optical scroll mouse (standard)
USB scroll mouse
Optical scroll mouse
No mouse optional
Tower stand (standard)
DA - 12758
North America — Version 5 — August 31, 2007
Page 8
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
After-Market Options
Communications
HP Wireless A+G PCI Adapter
Modem RJ11 Telecoms Adapter Kit
2006 Agere PCI 56K International SoftModem
EA118AA
DC131C
EK694AA
Graphics
HP ADD2 SDVO DVI-D Adapter
NVIDIA Quadro NVS 280 PCI Graphics Card
DVI to DVI Cable
DY674A
DY599A
DC198A
Hard Drives
HP 80-GB SATA 3.0 Gb/s
PY276AA
HP 160-GB SATA 3.0 Gb/s
HP 250-GB SATA 3.0 Gb/s
HP 3.5-inch Removable SATA Hard Drive Carrier (inserts into optical drive bay for
non-HP hard drive support)
PY277AA
PY278AA
DS710B
Optical Drives
16X SATA SuperMulti LightScribe Drive
SATA DVD+/-RW (DL/DF) LightScribe Drive
16X/48X SATA DVD-ROM
GF343AA
AH048AA
AH047AA
Input/Output Devices
HP PS/2 Keyboard
HP USB Keyboard
HP USB Smart Card Keyboard
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2- Button Optical Scroll Mouse (Carbonite/Silver)
DT527A
DT528A
ED707AA
EY703AA
DC172B
Memory (DIMMs)
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC
2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC
PX975AA
PX976AA
PX977AA
DA - 12758
North America — Version 5 — August 31, 2007
Page 9
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
After-Market Options
Monitors
HP L1506 15-inch TFT Flat Panel Monitor – Analog only
HP L1706 17-inch TFT Flat Panel Monitor – Analog only
HP L1740 17-inch TFT Flat Panel Display – Analog/Digital
HP L1755 17-inch TFT Flat Panel Display – Analog/Digital
HP L1906 19-inch TFT Flat Panel Display – Analog only
HP L1940T 19-inch TFT Flat Panel Display – Analog/Digital
HP L1955 19-inch TFT Flat Panel Display – Analog/Digital
HP LP2065 20-inch TFT Flat Panel Display – Analog/Digital
HP L5006tm 15-inch LCD Touchscreen Monitor
HP s7540 17-inch (16.0 vis) CRT Monitor
PX848AA
PX849AA
PL766AA
PL777AA
PX850AA
EM869AA
PD974AA
EF227A4
RB146AA
PF997AA
HP v7650 17-inch (16.0 vis) Flat-face CRT Monitor
PF996AA
Security
Kensington Security Lock Kit
HP Business PC Security Lock Kit
Wall Mount/Security Sleeve
PC766A
PV606AA
GF344AA
Software
HP ProtectTools (1 user)
Microsoft Office 2007 Basic
Microsoft Office 2007 Pro
Microsoft Office 2007 SBE
RG984AA
RU054AV
RU055AV
RU056AV
DA - 12758
North America — Version 5 — August 31, 2007
Page 10
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2-cm (4-in) clearance on front side and power supply side of the computer to permit the required airflow.
If within an enclosure, the front side should be 100% open. The clearance between the system and the cabinet must be at least
10 mm (0.4 inch) on the sides and top and at least 50-mm (2-inch) clearance in the rear with power supply venting area
100% open per the above bullet.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
Temperature Range
Operating: 50° to 104 F (10° to 40° C)*
Non-operating: -22° to 140° F(-30° to 60° C)
Relative Humidity
Operating: 20% to 85% (non-condensing at ambient)
Non-operating: 5% to 90% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
(unpressurized)
Non-operating: 30,000 ft (9144 m)
*NOTE:
NOTE: Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct
sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options
installed.
Power Supply
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency Range
Rated Input Current
Heat Dissipation
Power Supply Fan
Energy Star 3.0 Compliant
Energy Star 4.0 Compliant
FEMP Standby Power Compliant
(<2W in S5 – Power Off)**
Power Consumption in ES Mode –
Suspend to RAM (S3)
(Instantly Available PC)
Processor/Cache Memory Power Down (S3)
240-watt – 80 Plus* power supply – Active PFC
*This alternate 80% efficient power supply is a requirement for US Energy Star 4.0 compliance
in conjunction with a select range of processors and modules.
90 to 264 VAC
100 to 240VAC
50/60 Hz
47 – 63 Hz
5 A @ 90 VAC (3.5 A @ 90 VAC with 80% efficient power supply*)
Standard power supply:
Typical 340 btu/hr (86 kg-cal/hr)
Maximum 1260 btu/hr (397 kg-cal/hr)
80 Plus power supply:
Typical 273 btu/hr (69 kg-cal/hr)
Maximum 1024 btu/hr (258 kg-cal/hr)
80 mm variable speed fan
Yes
Yes (not standard)
Yes
<3W
<3W
DA - 12758
North America — Version 5 — August 31, 2007
Page 11
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications
Optical Drive Spins Down When
TBD
Not In Use
Environmental and Mechanical
http://env-webserver.ccm.cpqcorp.net/EMESC/default.htm
Engineering Support Center
(EMESC) – Intranet Web Site only
NOTES:
NOTES
* This 80% efficient power supply is a requirement for US Energy Star 4.0 compliance in conjunction with a select range of
processors and modules.
** Power consumption in the Off/Apparent Off mode is measured and reported with the network interface controller "Wake on LAN"
feature disabled in F10 Setup (default is "enabled").
ROM BIOS Information
Key features of the HP BIOS in the rp5700 include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Business Desktop
computer into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and
advanced change notification.
Security – HP BIOS offers a robust and flexible set of security features to help the system administrator secure their systems
from removal of sensitive data, help prevent access by unauthorized users, subversion of OS security policies, removal of
hardware, flash of rogue BIOS images, and attacks on BIOS settings.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies to
assist in operating the HP Business Desktop computer in any enterprise environment.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS
updates from within DOS (Flashlite), BIOS updates from within Windows (HPQFlash, SSM), HP Client Manager, and fail-safe
recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is
available from within the BIOS software and from the HP support website.
Additional HP BIOS Features
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made
to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. Provides power
conservation features under Windows XP.
Ability to disable the internal speaker
Ability to disable USB ports
DA - 12758
North America — Version 5 — August 31, 2007
Page 12
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications
Other Features
ACPI-Ready Hardware
Description
Advanced Configuration and Power Management Interface (ACPI).
SMBIOS Ver. 2.4
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and
peripherals in a low-power or powered-off state without affecting other elements of the
system.
System Management BIOS, previously known as DMI BIOS, for system management
information
Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers and mobile
computers more inherently manageable right out of the box and over the network
Power button acts as both an on/off button and suspend-to-sleep button
Wired for Management Support
Dual-State Power Button
Serviceability Features of System
Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)
Diagnostic LED Explanation Table
Number of 1-second red LED blinks followed by 2-second pause, then repeats:
2-processor thermal protection activated
3-processor not installed
4-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy
Replacement
Flash Recovery with Video
3.3V Aux Power LED on System PCA
Processor ZIF Socket for easy
Upgrade
Over-Temp Warning on Screen
Clear Password Jumper
DIMM Connectors for easy Upgrade
(Requires IM Agents)
Restore CD
Clear CMOS Jumper
NIC LEDs (integrated) (Green &
Amber)
Serviceability Features of Chassis
Dual Color Power LED – To indicate
normal operations and fault
conditions
Front power switch
DA - 12758
Color coordinated cables and
connectors
Tool-less removal of hood power
supply, slot cover, hard drive and
optical drive
System memory can be upgraded
without removing any internal
components
North America — Version 5 — August 31, 2007
Page 13
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications
Feature
ASF 2.0 support (Alert Standard
Format)
Towerable
Drive Self Tests (DPS)
DPS Access through F10 Setup
during Boot
SMART Technology
(Self-Monitoring, Analysis and
Reporting Technology)
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning
with Defect Reallocation
Description
Industry-standard specification for network alerting and remote control in operating systemabsent environments
Product can be oriented as a tower using standard tower stand (in addition to desktop
orientation)
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every sector of
the hard drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through a Windowsbased diagnostics utility or through the computer's setup procedure. It produces an
evaluation on whether the hard drive is the source of the problem and needs to be
replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain types of
failures.
Allows hard drives to monitor their own health and to raise flags if imminent failures were
predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure
DA - 12758
North America — Version 5 — August 31, 2007
Page 14
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Audio
High Definition Audio
Type
High Definition Stereo Codec
Audio Jacks
Integrated
Yes – Realtek ALC262 codec
Line-In (64-K ohm Input Impedance)
Line-Out * (200 ohms Output Impedance, expects at least a 10-K
ohm load)
* Internal speaker amplifier is for internal speaker only. External speakers need to be powered externally.
Sampling
8 kHz – 192 kHz
Wavetable Syntheses (software)
Yes – OS soft wavetable
Analog Audio
Yes
Number of Channels on Line-Out Stereo (Left & Right channels)
(mono/stereo)
Internal Audio Speaker Power
1.5 W
Rating
Internal Speaker
Yes
External Speaker Jack (Line-Out)
Yes
DA - 12758
North America — Version 5 — August 31, 2007
Page 15
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Communications
Serial Ports
All serial (COM) ports can be custom configured in either standard mode or powered mode. By
repositioning the jumpers (provided) on the system board and on the COM port PCI add-in card (some
models), each COM power can achieve power on pin 1 or pin 9. The illustration and table below
indicate the COM port assignments and voltage supported for each COM port.
COM port assignment
1
2
Description
COM1 (yellow)
COM2
Standard Mode
Yes
Yes
+5V
Yes
Yes
+9V
Yes
No
+12V
Yes
Yes
The following illustrations show how to position the jumpers on the system board and on the COM port
PCI add-in card (available on some models) to achieve power on pin 1 or pin 9.
P16 and P127 are located on the system board behind the COM1 port.
DA - 12758
North America — Version 5 — August 31, 2007
Page 16
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Communications
P17 and J4 are located on the optional COM port card
DA - 12758
North America — Version 5 — August 31, 2007
Page 17
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Communications
Integrated Broadcom
5755 Gigabit Ethernet
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
Network transfer mode
Network transfer rate
Environmental
DA - 12758
RJ-45
Broadcom 5755 PCI-Express LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
PCI-E
Single channel, PCI-E
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
1.33 watts @ +3.3V AUX supply with 5V tolerance
Yes
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
32° to 131°F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
North America — Version 5 — August 31, 2007
Page 18
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Communications
Management capabilities ASF 2.0, ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt
utility
ASF 2.0
Alerting
2006 Agere PCI 56K
Data Transmission
International SoftModem
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/12,000/
9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
DA - 12758
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and
CardBus support
Complies with PCI low profile specifications–6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
North America — Version 5 — August 31, 2007
Page 19
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Communications
Other
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
DA - 12758
North America — Version 5 — August 31, 2007
Page 20
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Graphics
Integrated Graphics
Graphic Controller
Media Accelerator 3000 Bus type
RAMDAC
Memory
Controller clock speed
Overlay planes
Maximum Color Depth
Maximum vertical refresh
rate
Multi-display Support
Graphics/Video API
Support
Resolutions Supported1
Integrated GMA 3000
Integrated
Single 400 MHz integrated
UMA with DVMT 4.0 support for frame buffer sizes 8-256 MB
667 MHz
One 16-bit video overlay plane
32 bpp
85 Hz
One VGA and one DVI-D in conjunction with an ADD2 card, clone and
extended desktop modes are enabled by the addition of the HP ADD2 DVI-D
adapter
DirectX 9.0c, WGF 1.0, DirectX VA 2.0, Shader Model 3.0, OpenGL 1.5
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
Maximum Refresh Rate (Hz)
Digital Monitor
Analog Monitor
85
60
85
60
85
60
85
60
85
60
85
60-R2
85
60-R2
60
N/A
NOTES:
NOTES
1 Modes listed are supported with a single active display. The supported mode list for multiple active
displays is a subset of this list. Not all modes will support video playback and some supported modes
may use software MC (motion compensation) rather than hardware MC. Not all modes will support 3D
acceleration depending on the system configuration (e.g., resolution selected, size of frame buffer,
number of installed memory modules, etc.).
2 -R denotes reduced blanking timings (some digital monitors may not support reduced blanking
timings).
Other resolutions and refresh rates may be selectable but are not recommended.
DA - 12758
North America — Version 5 — August 31, 2007
Page 21
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Graphics
Optional ADD2 SDVO
DVI-I/TV-Out Adapter
Form Factor
Low-profile card (full-height (ATX) and low-profile brackets included in kit)
Yes
Dual head support
Mechanically compliant with PCI-E standard
Host Interface Connector
Complies with the Intel ADD2 and Intel Serial Digital Video Output
(SDVO) specifications
165 MHz maximum
Dot Clock
Supports display modes that require up to 165-MHz bandwidth on the link, as
Display Modes
shown in the following table.
Resolutions Supported
Resolutions
60-Hz LCD
60-Hz
75-Hz
85-Hz
Blanking
5% reduced
GTF
GTF
GTF
640 x 480 VGA
Yes
Yes
Yes
Yes
800 x 600 SVGA
Yes
Yes
Yes
Yes
1024 x 768 XGA
Yes
Yes
Yes
Yes
1280 x 1024 SXGA
Yes
Yes
No
No
1600 x 1200 UXGA
Yes
Yes
No
No
Color Depth
All modes support 8-bpp, 16-bpp, and 24-bpp color depths (up to 16.7
million colors)
Optional NVIDIA Quadro Form Factor
NVS 280 64MB PCI Dual Graphic Controller
Head
Bus type
RAMDAC
Memory
Connector
Dimensions
Controller clock speed
Color depth
Overlay planes
Maximum vertical refresh
rate
Multi-monitor support
Dual DVI Support
High-definition Video
Processor (HDVP)
Low profile (both ATX and low profile brackets included)
Integrated Quadro 280 2D graphics processor unit (GPU)
PCI
Dual 350 MHz integrated
64 MB DDR with frame buffer and texture storage
Single high-density DMS-59 Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
250 MHz
32 bpp maximum
One 16-bit video overlay plane
85 Hz
Dual analog or digital monitors
Yes (with kit DL139A)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
Available graphics drivers Microsoft Windows 2000 (Service Pack 4 or greater), Windows XP Home,
Windows XP Professional (Provides full native Dual View mode, Span or Big
Desktop mode, and Clone mode)
NOTE: HP qualified drivers may be preloaded or available from the HP support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 12758
North America — Version 5 — August 31, 2007
Page 22
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Graphics
Analog Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1200
1920 x 1440
2048 x 1536
Digital Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
DA - 12758
Maximum Refresh Rate
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
85 Hz
75 Hz
60 Hz
Maximum Refresh Rate
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz (primary only)
North America — Version 5 — August 31, 2007
Page 23
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Hard Drives
Serial ATA 1.5-Gb/s Hard 250 GB
Drives (7200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160-GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12758
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
163,928,604,672 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
7,200 rpm
320,173,056
41° to 131°F (5° to 55°C)
North America — Version 5 — August 31, 2007
Page 24
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Hard Drives
80-GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12758
80,026,361,856 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
2.0 ms
Average
9.3 ms
Full-Stroke
21 ms
7,200 rpm
156,301,488
41° to 131°F (5° to 55°C)
North America — Version 5 — August 31, 2007
Page 25
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Input/Output Devices
USB Keyboard
Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
System interface
ESD
EMI – RFI
Electrical
Microsoft PC 99 – 2001
Languages
Keycaps
Switch actuation
Switch life
Mechanical
Environmental
Approvals
Ergonomic compliance
DA - 12758
104, 105, 106, 107, 109 layout
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
–22° to 140° F (–
–30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
North America — Version 5 — August 31, 2007
Page 26
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Input/Output Devices
PS/2 Keyboard
Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
System interface
ESD
EMI – RFI
Electrical
Microsoft PC 99 – 2001
Languages
Mechanical
104, 105, 106, 107, 109 layout
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
PS/2 6-pin mini din connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Keycaps
Switch actuation
Switch life
Environmental
Approvals
Ergonomic compliance
DA - 12758
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
–22° to 140° F (–
–30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
North America — Version 5 — August 31, 2007
Page 27
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Input/Output Devices
HP PS/2 Scroll Mouse
Dimensions
Weight
Environmental
1.5 x 2.5 x 4.6 in (3.8 x 6.3 x 11.6 cm)
4.44 oz (126 g)
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
–22° to 140° F (–
–30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, 6 surfaces
Operating shock
80 g, 6 surfaces
Non-operating shock
2 g peak acceleration
Operating vibration
Non-operating vibration 4 g peak acceleration
Drop (out-of-box)
Drop (out-of-box)
Electrical
Mechanical
Scroll wheel
Regulatory approvals
DA - 12758
Operating voltage
Power consumption
System consumption
ESD
EMI-RFI
Microsoft
PC99 – 2001
Resolution
Tracking speed
Acceleration
Switch actuation
Switch life
26 in (66 cm) on carpet, 6-drop sequence
1 m on asphalt tile over concrete, 6-drop
sequence
5 VDC ± 10%
15 mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
400 ± 20% DPI
10 in/s (25.4 cm/s) maximum
100 in/s/s (2.54 m/s/s)
65 g nominal peak force
1,000,000 operations (using Hasco modified
tester)
Switch type
Low force micro-switches
Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s
Cable length
6 ft (1.8 m)
Microsoft PC99 – 2001 Mechanically compliant
Width
8 mm
Diameter
0.99 in (25.2 mm)
Maximum rotation speed 30 mm/s
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,
BSMI, C-Tick, MIC
North America — Version 5 — August 31, 2007
Page 28
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Input/Output Devices
USB Scroll Mouse
Environmental
Operating temperature
Non-operating
temperature
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop (out-of-box)
Electrical
Operating voltage
Power consumption
System consumption
ESD
EMI-RFI
Microsoft
PC99 – 2001
Resolution
Tracking speed
Acceleration
Switch actuation
Switch life
Mechanical
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, 6 surfaces
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
26 in (66 cm) on carpet, 6-drop sequence
1 m on asphalt tile over concrete, 6-drop
sequence
5 VDC ± 10%
15 mA
USB Type-A plug connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
400 ± 20% DPI
10 in/s maximum
100 in/s
65 g nominal peak force
1,000,000 operations (using Hasco modified
tester)
Switch type
Low force micro-switches
Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s
Cable length
6 ft (1.8 m)
Microsoft PC99 – 2001 Mechanically compliant
Width
8 mm
Diameter
0.99 in (25.2 mm)
Maximum rotation speed 30 mm/s
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,
BSMI, C-Tick, MIC
Scroll wheel
Regulatory approvals
USB Optical Scroll Mouse Dimensions (H x L x W)
Weight
Cable length
DA - 12758
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
North America — Version 5 — August 31, 2007
Page 29
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Optical Storage
SATA DVD+/-RW
LightScribe Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (HxWxD)
Weight (maximum)
Write speeds
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 4X
DVD-R DL
Read speeds
Access time
(typical reads, including
settling)
Power
DVD-R
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
CD-RW
Random
Full Stroke
Source
DC Power Requirement
DC Current
Environmental conditions Temperature
(operating - nonRelative humidity
condensing)
Maximum wet bulb
temperature
DA - 12758
Up to 16X
Up to 6X
Up to 48X
Up to 32X
Up to 4X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
North America — Version 5 — August 31, 2007
Page 30
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Optical Storage
SATA DVD-ROM Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
Removable Storage –
Media Compatibility –
DVD-ROM
Access times
(typical reads, including
setting)
Power
Environmental
(all conditions noncondensing)
DA - 12758
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
Up to 4X
DVD-RAM
CD-ROM, CD-R
Up to 48X
Up to 32X
CD-RW
Media (READ ONLY – drive is not write capable)
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
2 MB (minimum)
Cache Buffer
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
SATA DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
DC Current
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
41° to 122° F (5° to 50° C)
Temperature
10% to 90%
Relative Humidity
86° F (30° C)
Maximum Wet Bulb
Temperature
North America — Version 5 — August 31, 2007
Page 31
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Environmental Data
Eco-Label Certifications
and declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
US Energy Star
US Federal Energy Management Program (FEMP)
IT ECO declaration
EPEAT Rated – GOLD*
* The rp5700 Long Lifecycle Desktop PC and rp5700 Point of Sale System are in compliance with the
IEEE 1680 (EPEAT) standard at the Silver level (see http://www.epeat.net)
Select U.S. configurations of the rp5700 Long Lifecycle Desktop PC are in compliance with the IEEE
1680 (EPEAT) standard at the GOLD level (see http://www.epeat.net)
Energy Consumption
(in accordance with US
Energy Star test method)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
115 VAC
62.9 W
3.1 W
230 VAC
61.8 W
3.4 W
100 VAC
63.1 W
3W
1.06 W
1.35 W
1.04 W
115 VAC
214.614 BTU/hr
10.577 BTU/hr
3.616 BTU/hr
230 VAC
210.861 BTU/hr
11.6 BTU/hr
4.606 BTU/hr
100 VAC
215.297 BTU/hr
10.236 BTU/hr
3.548 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
Declared Noise Emissions
Sound Power
Sound Pressure
(in accordance with
(LWad, bels)
(LpAm, decibels)
System Fan Off
ISO 7779 and ISO 9296)
Idle
3.81
28.2 dB(A)
Fixed Disk
(random writes)
Optical Drive
(sequential reads)
4.02
30.2 dB(A)
4.9
44.3 dB(A)
Longevity and Upgrading This product can be upgraded, possibly extending its useful life by several years. Upgradeable features
and/or components contained in the product include:
Higher endurance capacitors for longer life.
Higher temperature rated capacitors for longer life and reliability
Improved gold plating on connectors, ports, and add-in cards for longer life and reliability
Over current protection using polyfuses for USB, serial, PS/2, and video ports for improved
reliability and hardware protection
On-board thermal sensors for improved reliability and thermal protection
More stringent thermal and humidity testing inside a special cabinet to simulate a thermally harsh
POS environment
Batteries
Spare parts are available throughout the warranty period and or for up to 5 years after the end of
production.
This product complies with ISO standards:
DA - 12758
North America — Version 5 — August 31, 2007
Page 32
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Environmental Data
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5 ppm by weight
Cadmium greater than 10 ppm by weight
Lead greater than 15 ppm by weight.
Additional Information
Material Usage
Battery size: CR2032 (coin cell)
Battery type: Lithium/Manganese Dioxide
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –
2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level (see
http://www.epeat.net)
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
The rp5700 Long Lifecycle Desktop PC contains an average of 10% post-consumer recycled
plastic
This product is >91% recyclable when properly disposed of at end of life.
1407 g
Packaging Materials
Corrugated Paper
290 g
EPE Foam
63.5 g
LDPE Bag
127.01 g
HIPS Cushion
The EPE foam packaging material is made from no consumer recycled content.
The corrugated paper packaging materials contain at least 25% recycled content.
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
DA - 12758
North America — Version 5 — August 31, 2007
Page 33
QuickSpecs
HP rp5700 Long Lifecycle Desktop PC
Technical Specifications - Environmental Data
Packaging
End-of-life Management
and Recycling
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental
Information
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system requirements, visit
http://www.windowsvista.com/systemrequirements.
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U. S. registered trademarks of
Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States
and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not
be liable for technical or editorial errors or omissions contained herein.
DA - 12758
North America — Version 5 — August 31, 2007
Page 34
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
