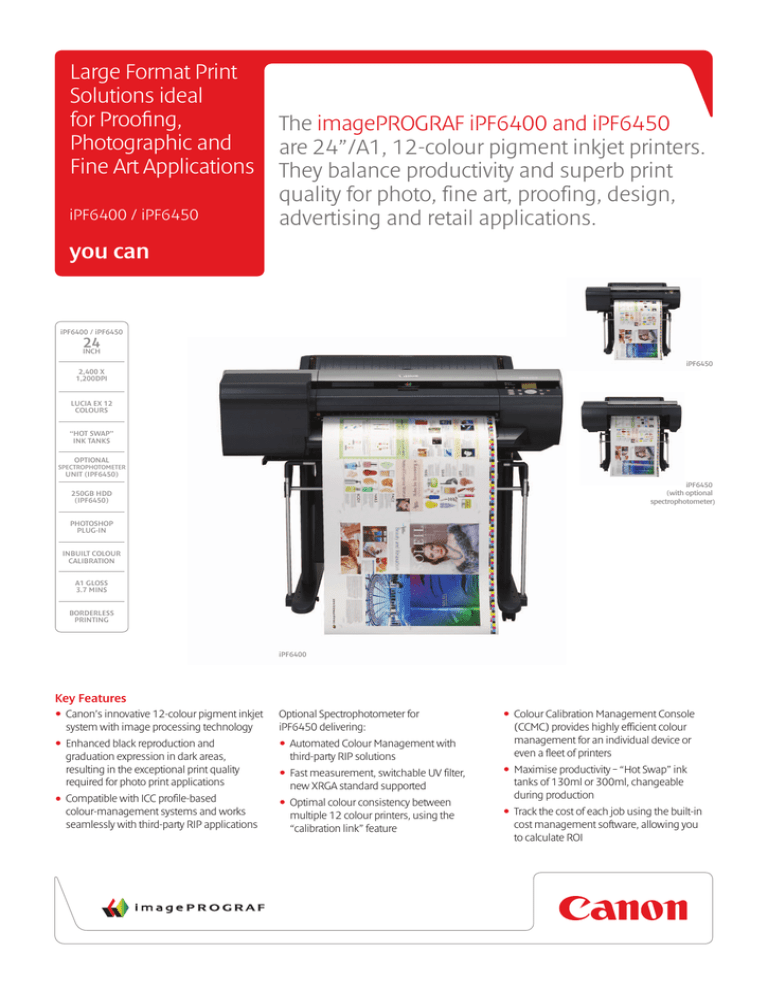

Large Format Print
Solutions ideal
for Proofing,
Photographic and
Fine Art Applications
iPF6400 / iPF6450
The imagePROGRAF iPF6400 and iPF6450
are 24”/A1, 12-colour pigment inkjet printers.
They balance productivity and superb print
quality for photo, fine art, proofing, design,
advertising and retail applications.
you can
iPF6400 / iPF6450
24
INCH
iPF6450
2,400 X
1,200DPI
LUCIA EX 12
COLOURS
“HOT SWAP”
INK TANKS
OPTIONAL
SPECTROPHOTOMETER
UNIT (IPF6450)
iPF6450
(with optional
spectrophotometer)
250GB HDD
(IPF6450)
PHOTOSHOP
PLUG-IN
INBUILT COLOUR
CALIBRATION
A1 GLOSS
3.7 MINS
BORDERLESS
PRINTING
iPF6400
Key Features
anon’s innovative 12-colour pigment inkjet Optional Spectrophotometer for
•Csystem
with image processing technology
iPF6450 delivering:
nhanced black reproduction and
utomated Colour Management with
•Egraduation
•Athird-party
expression in dark areas,
RIP solutions
resulting in the exceptional print quality
ast measurement, switchable UV filter,
•Fnew
required for photo print applications
XRGA standard supported
ompatible with ICC profile-based
•Ccolour-management
O
ptimal
consistency between
• multiple colour
systems and works
12 colour printers, using the
seamlessly with third-party RIP applications
“calibration link” feature
olour Calibration Management Console
•C(CCMC)
provides highly efficient colour
management for an individual device or
even a fleet of printers
aximise productivity – “Hot Swap” ink
•Mtanks
of 130ml or 300ml, changeable
•
during production
Track the cost of each job using the built-in
cost management software, allowing you
to calculate ROI
Specifications: imagePROGRAF iPF6400 / iPF6450
PRINTER MODEL
imagePROGRAF iPF6400
Printer Type
Print Technology
Number of Nozzles
Print Resolution
Nozzle Pitch
Ink Droplet Size
Ink Capacity
Ink Type
Printing Speed
(A1 Roll, Full Colour Image)
OS Compatibility
Printer Languages
Standard Interfaces
Standard Memory
Hard Drive
PRINTER MODEL
imagePROGRAF iPF6450
12 Colour – 24"/609.6mm
Canon Inkjet on demand 6 colours integrated type
(6 chips per print head x 2 print heads)
Physical Dimensions (W x D x H) / Weight
Main unit and Printer Stand
2,400 x 1,200 dpi
Main unit with Printer Stand
and Spectrophotometer
1,200 x 2 includes non-firing nozzle detection
and compensation system
4 Picoliter per colour
Pigment Ink: LUCIA EX·12-colour ink
BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
Plain Paper: 1.2min (Fast mode) / 2.1min (Standard mode)
Coated Paper: 2.2min (Standard mode) / 4.0min
(High quality mode)
Glossy Photo Paper: 3.7min (Standard mode) / 5.0min
(High quality mode)
Power Supply
Power Consumption
Operating Environment
Noise Level (Approx.)
Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit),
Macintosh OSX 10.5.8-10.7.x
Regulations
GARO (Graphic Arts language with Raster Operations)
Environment Certificates
USB 2.0 High-Speed
Ethernet 10/100/1000 Base-T/TX
384 MB
384 MB
N/A
250 GB
Large LCD: 160 x 128 dots, Key x 13, LED x 5
Displayable language on LCD
US-English, French, German, Italian, Spanish, Chinese
(Simplified), Korean, Russian, Japanese (Kanji)
Spectrophotometer unit
N/A
1,227 (W) x 875 (D) x 1001
(H) mm
Weight: Approx. 91kg
(excluding consumables)
Print Head
Ink Tank
Roll paper and manual feed from top: 203.2mm (8inch)
- 610mm (24inch)
Manual feed from front: 250mm - 610mm (24inch)
AC 100 - 240 V (50-60 Hz)
Operation: 100W or less
Power off (standby): 0.5 W or less
(In compliance with ErP Directive Lot.6)
Temperature: 15 - 30°C, Humidity: 10 - 80 % (Condensation free)
Operation: Approx. 47 dB
Standby: 35 dB or less
Acoustic power: 6.4 Bels Based on ISO 7779
Europe: CE mark, Germany: TUV, Russia: Gost-R, Other Countries:
CB Certification
ENERGY STAR (WW), RoHS directive, IT ECO Declaration (Europe),
WEEE, ErP Lot 6 (Europe)
ST-28
RH2-25 (2-inch core roll holder with 3-inch paper tube
attachment and borderless print spacer)
N/A
SU-21
CONSUMABLES
PAPER HANDLING
Maintenance Cartridge
PF-05
PFI-106 (130ml) - BK, MBK, C, M, Y, PC, PM, GY, PGY, R,G,B
PFI-206 (300ml) - BK, MBK, C, M, Y, PC, PM, GY, PGY, R,G,B
MC-16
Roll Unit: 0.07 - 0.8mm
Manual feed from top: 0.07 - 0.8mm
Manual feed from front: 0.5 - 1.5mm
Minimum Printable Length
Roll: 203.2mm (8inch)
Manual feed from top: 279.4mm (11inch)
Manual feed from front: 350mm
Maximum Printable Length
18m (varies according to the OS and application)
Manual feed from top: 1.6m
Manual feed from front: 914mm
Margins
(Top, Bottom, Sides)
1,227(W) x 751(D) x 1001(H) mm
Weight: Approx. 70kg (excluding consumables)
OPTIONS
Printer Stand
Roll Holder
US-English, Japanese
Media Thickness
Main unit with Auto Roll Feed Unit (standard):
1,227 (W) x 702 (D) x 344 (H) mm
POWER AND OPERATING
REQUIREMENTS
Bundled Starter Ink: 90ml
Sales Ink: 130ml and 300ml
Language on operation panel
Media Width
imagePROGRAF iPF6450
Weight: Approx. 54kg (excluding consumables and Printer Stand)
Total: 30,720 – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
2,560 nozzles for each colour x 6 colours x 2 print heads
OPERATION PANEL
Display
imagePROGRAF iPF6400
DIMENSIONS AND WEIGHT
TECHNOLOGY
Recommended Area:
Roll paper: Top: 20mm, Bottom: 5mm, Side: 5mm
Manual feed from top: Top: 20mm, Bottom: 23mm, Side: 5mm
Manual feed from front: Top: 20mm, Bottom: 23mm,
Side: 5mm
Printable Area:
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper borderless print: Top: 0mm, Bottom: 0mm,
Side: 0mm
Manual feed from top: Top: 3mm, Bottom: 3mm (*1),
Side: 3mm
*
1:Bottom margin for art paper: 23mm
Manual feed from front: Top: 3mm, Bottom: 23mm, Side: 3mm
Maximum Media Roll
Diameter
Paper Feed Method
Media Feed Capacity
Borderless Printing Width
(Roll Only)
150.0mm
Roll Paper:
One Roll (top-loading [front operation possible], front output)
Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output
Manual Feed: 1 Sheet, Roll Feed: 1 Roll
10” (254mm), B4 (257mm), 14” (356mm), 16” (407mm), A2
(420mm), A2+/17” (432mm), B2 (515mm),
A1 (594mm), 24” (610mm)
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods.
This leaflet and the specifications of the product have been developed prior to the date of product launch.
Final are subject to change without notice.™ and ®: All company and/or product names are trademarks and/or
registered trademarks of their respective manufacturers in their markets and/or countries.
Canon recommends you use Canon Media for the best results. Please check media (paper) compatibility list to
see which variety of paper/media is recommended.
Genuine Canon ink cartridges are developed together with Canon large format printers as an important part of the
large format printer printing system. Advanced technologies achieved by our research and development activities are
incorporated into these ink cartridges. For optimum performance of Canon large format printers, Canon recommends
use of genuine Canon ink cartridges.
Canon Inc.
Canon (UK) Ltd
Canon Ireland
canon.com
Woodhatch
Reigate
Surrey RH2 8BF
Telephone no 01737 220000
Facsimile 01737 220022
canon.co.uk
3006 Lake Drive
Citywest, Saggart
Co.Dublin, Ireland
Telephone No: 01 2052400
Facsimile No: 01 2052525
canon.ie
Canon Europe
canon-europe.com
09/12/v1
UK English edition 0170W866
© Canon Europa N.V., 2012
