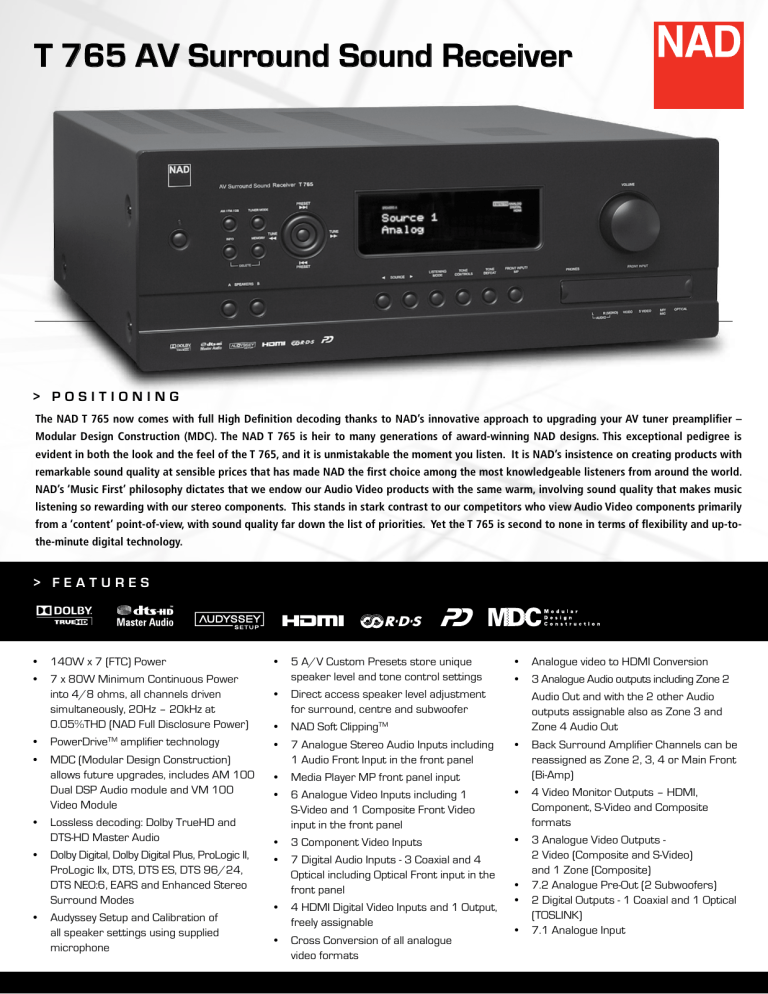

T 765 AV Surround Sound Receiver

T 765 AV Surround Sound Receiver
T 765 AV Surround Sound Receiver
> POSITIONING
The NAD T 765 now comes with full High Definition decoding thanks to NAD’s innovative approach to upgrading your AV tuner preamplifier –
Modular Design Construction (MDC). The NAD T 765 is heir to many generations of award-winning NAD designs. This exceptional pedigree is
evident in both the look and the feel of the T 765, and it is unmistakable the moment you listen. It is NAD’s insistence on creating products with
remarkable sound quality at sensible prices that has made NAD the first choice among the most knowledgeable listeners from around the world.
> NAD’s
FEA
TURES
‘Music First’ philosophy dictates that we endow our Audio Video products with the same warm, involving sound quality that makes music
listening so rewarding with our stereo components. This stands in stark contrast to our competitors who view Audio Video components primarily
from a ‘content’ point-of-view, with sound quality far down the list of priorities. Yet the T 765 is second to none in terms of flexibility and up-tothe-minute digital technology.
> FEATURES
• 140W x 7 (FTC) Power
• 7 x 80W Minimum Continuous Power
into 4/8 ohms, all channels driven
simultaneously, 20Hz – 20kHz at
0.05%THD (NAD Full Disclosure Power)
• PowerDrive
TM
amplifier technology
• MDC (Modular Design Construction)
allows future upgrades, includes AM 100
Dual DSP Audio module and VM 100
Video Module
• Lossless decoding: Dolby TrueHD and
DTS-HD Master Audio
• Dolby Digital, Dolby Digital Plus, ProLogic II,
ProLogic IIx, DTS, DTS ES, DTS 96/24,
DTS NEO:6, EARS and Enhanced Stereo
Surround Modes
• Audyssey Setup and Calibration of
all speaker settings using supplied
microphone
• 5 A/V Custom Presets store unique
speaker level and tone control settings
• Analogue video to HDMI Conversion
• Direct access speaker level adjustment
for surround, centre and subwoofer
• NAD Soft ClippingTM
• 7 Analogue Stereo Audio Inputs including
1 Audio Front Input in the front panel
• 3 Analogue Audio outputs including Zone 2
Audio Out and with the 2 other Audio
outputs assignable also as Zone 3 and
Zone 4 Audio Out
• Media Player MP front panel input
• Back Surround Amplifier Channels can be
reassigned as Zone 2, 3, 4 or Main Front
(Bi-Amp)
• 6 Analogue Video Inputs including 1
S-Video and 1 Composite Front Video
input in the front panel
• 4 Video Monitor Outputs – HDMI,
Component, S-Video and Composite
formats
• 3 Component Video Inputs
• 3 Analogue Video Outputs - 2 Video (Composite and S-Video) and 1 Zone (Composite)
• 7.2 Analogue Pre-Out (2 Subwoofers)
• 2 Digital Outputs - 1 Coaxial and 1 Optical
(TOSLINK)
• 7.1 Analogue Input
• 7 Digital Audio Inputs - 3 Coaxial and 4
Optical including Optical Front input in the
front panel
• 4 HDMI Digital Video Inputs and 1 Output,
freely assignable
• Cross Conversion of all analogue video formats
> FEATURES CONTINUED
• Speaker A + B switching (Speakers B stereo only)
• RDS FM and AM Tuner
• Zone 2 A/V line level Output with independent source and volume selection
• 40 direct access presets that can be a mix of your favourite AM,
FM and XM (or DAB) stations
• ZR 4 second Zone remote included with discrete codes for independent zone
• iPod Ready – just add NAD IPD 2 Dock for iPod (iPod Menu on
OSD and Front Panel Display)
• Zone 3 and Zone 4 Audio Output with independent source and volume selection
• XM Ready – just add outboard XM module (North American version)
• DAB Ready – just add outboard NAD DB 1 module (Europe and Asia)
• IR input
• HTR 3 Illuminated Learning Remote Control
• 3 x IR outputs
• RS-232 port interface for advanced control systems
• 3 x 12V output triggers, 1 x 12V input
> DETAILS
Modular Design Construction
NAD has developed a unique new architecture that keeps pace with the fast
changing world of digital formats by allowing connectivity and feature upgrades
as new technology becomes available. This prevents premature obsolescence by
keeping pace with the latest developments in high performance audio and video
formats. Dealer installed hardware and software can add new connectivity and
features at a future date, allowing your T 765 to grow as your needs and tastes
develop. Most AV receivers require complete replacement with a new model to get
the latest features. With NAD you only replace the module you want to upgrade
– not the entire AV receiver!
Audio Performance
Today’s advanced Surround Sound receivers require quality in the digital decoding
stages, the video processing section, and in the power amplifier design for the best
overall performance. The T 765 is an excellent example of the NAD Design Team’s
expertise in all three areas. Not only that, but we have made many ergonomic
refinements to simplify operation and make it more enjoyable to get all the
performance from this magnificently capable receiver.
The AM 100 Audio Module uses the latest Dual Core Floating Point DSP
technology. NAD was able to include the newest surround formats from Dolby
and DTS, as well as NAD’s own highly regarded music surround mode - EARS. The
EARS circuit (Enhanced Ambient Recovery System) is now optimized for 7-channel
surround. Unlike the typical artificially enhanced DSP modes like ‘Club’, ‘Stadium’,
and ‘Church’, EARS uses DSP technology to extract the natural ambience of the
recording. This is redirected to the surround channels to create natural surround
sound from any 2-channel source. This induces a warm natural reverberant effect
without the hollow ‘BOING’ of artificial reverb. The surround mode of the source
material is automatically detected via the digital inputs of the T 765, and the most
advanced form of decoding is switched in. Conversion of the encoded digital
bitstream is performed with high resolution and extremely linear D/A Converters
carefully selected for their performance capabilities.
NAD’s reputation for producing power amplifiers that are both potent and
musical is upheld in fine manner with the T 765. Boasting a minimum of 80 watts
continuous power per channel, the T 765 can easily fill a room with lifelike sound
levels. NAD’s exclusive PowerDriveTM amplifier technology automatically adjusts
the power supply settings of the amplifier to the needs of the loudspeaker. This
ensures remarkably dynamic and distortion-free performance with any type of
loudspeaker, even demanding 4 ohm designs. Many less advanced receivers
prohibit the use of 4 ohm speakers. With PowerDriveTM, the performance is always
optimized for the actual operating condition and as a result, the amplifier exhibits
very low distortion and good current drive in the real world. Explosive musical
dynamics are effortlessly handled without added distortion.
Credit for the sound of NAD’s components rests squarely with our unique design
approach and our experienced and very talented design team. Most companies
design their products to a technical specification and a price point. While this
sounds logical enough, it does not address the way the product will actually be
used by the eventual owner. You don’t listen to specifications; you listen to music
and sound. While NAD products exhibit excellent technical measurements, we
have relied on our own ears and listening experience to determine the final design
of our products. Because of our unique design approach, NAD’s sound is simply
more ‘real’ sounding, adding enjoyment and excitement to your favourite films and
music recordings.
Video Performance
Employing the very latest generation of advanced HDMI Receiver and Transmitter
chips in the VM 100 video module ensures compatibility with the broad range
of HD digital video sources and displays available today. NAD engineers have
utilized a powerful FPGA with our own custom software to process the video
signal, enabling the conversion of analogue video to digital video and allowing a
single cable connection to your TV for all sources while maintaining the source’s
native resolution. Interlaced video is converted to progressive scan over HDMI
allowing for complete compatibility with the latest HD TVs. NAD’s clear and simple
T 765 AV Surround Sound Receiver
On Screen Display is available on all Video Monitor outputs, and all audio formats
including High Bit Rate audio from Blu-ray players, are supported by the VM 100.
Luxurious Simplicity
All the capability and flexibility in the world is quite useless if the receiver becomes
too complicated to be operated by every member of the family. NAD has taken
special measures to make operation of the T 765 as logical and straightforward as
possible.
Initial system setup is best accomplished using your television monitor and the clear
and simple On Screen Display (OSD), which can be configured to also give status
updates as settings are changed in everyday use. Once the T 765 is informed of your
specific system setup, all settings are stored in a non-volatile memory making this a
one time task. The informative front panel display indicates complete information
about the source being listened to or watched including selected surround mode and
volume setting. The front panel display can be easily customized by renaming inputs
and even determining what information you prefer to have displayed and when to
display it.
Automatic Audio Setup is available using the supplied calibrated microphone.
Simply place the microphone in the listening position and select Audyssey Setup
and the system automatically detects which speaker is connected, chooses the ideal
crossover point to the subwoofer, checks speaker phasing, and adjusts the levels and
delays. These adjustments are made to a level of accuracy that would be difficult to
duplicate by ear alone.
The T 765 tuner section can store a mix of your 40 favourite AM, FM and XM (or
DAB) stations for immediate recall. These presets can be custom named. And if your
selected FM station supports the Radio Data System (RDS), it will automatically
stream information about the station and music being played. We also include a
‘Digital Broadcast Ready’ socket on the rear panel for adding outboard DAB or XM
modules. All the control software for these formats is included, just plug in the
module and start enjoying the clear sound and expansive content selection available
with Digital Radio Broadcast.
Five independent ‘Audio Video Presets’ can store speaker level and tone control
settings for instant recall, making it easy to custom tailor your system for different
types of program material. Encoded surround modes like Dolby Digital and DTS are
automatically selected if the program is so encoded. The T 765 also remembers your
last used settings when switched in and out of Standby mode.
The included HTR 3 remote handset is in itself an engineering tour de force. Able to
control up to eight different components, the device key illuminates to clearly show
what device is being controlled. It has illuminated buttons for easy operation in a
low light environment, and the length of time the buttons are illuminated can be
easily adjusted. Remote commands for products not already included in the HTR 3’s
memory can be easily ‘taught’ to the HTR 3. And the HTR 3’s Macro function allows
up to 64 individual commands to be triggered by pressing just two keys. With this
feature, all of the commands required for watching a DVD, for example, are executed
automatically by the HTR 3’s Macro function.
Summary
The T 765 offers remarkable performance and flexibility in a compact and simple to
operate package. This multi-channel powerhouse will bring your favourite music
and movies to life in your home entertainment room with an absolute minimum of
fuss and a maximum of pure enjoyment.
> SPECIFICATIONS
DIMENSIONS AND WEIGHT
POWER AMPLIFIER SECTION
Minimum continuous Power (FTC)
140W
Dimensions (W x H x D)
435 x 170 x 431mm (Gross)
Power output, Stereo Mode
120W
Net Weight
19.8kg
(ref. 4/8Ω, both channels driven
Shipping Weight
24.7kg
at rated distortion)
Simultaneous Full Disclosure Power 7 x 80W
(ref. 4/8Ω, all channels driven
at rated distortion)
* Gross dimensions include feet, extended buttons and rear panel terminals.
IHF dynamic power, 8Ω
160W
Note: Installers should allow a minimum clearance of 55mm for
IHF dynamic power, 4Ω
260W
wire/cable management.
IHF dynamic power, 2Ω
360W
Rated THD
<0.08% (ref. 20Hz – 20kHz)
IM distortion, rated power
<0.08% Damping factor, 8Ω
>60
Input sensitivity and impedance 1.1V / 50kΩ
Frequency response
±0.8dB (ref. 20Hz – 20kHz)
Signal/Noise ratio
>92dB (ref. rated power, 8Ω, A-weighted)
>82dB (ref. 1W, 8Ω, A-weighted)
PREAMPLIFIER SECTION
Input sensitivity and impedance
350mV / 50kΩ
Frequency response
±0.5dB (ref. 20Hz – 20kHz)
Signal/Noise ratio
>88dB (ref. 2V, A-weighted)
AM BAND
Frequency range
530kHz - 1710kHz (120V version only, 10kHz steps)
531kHz - 1602kHz (230V version only, 9kHz steps)
Usable sensitivity
30dBu
Signal/Noise ratio
>38dB Total Harmonic Distortion
<3%
Loop sensitivity 20dB S/N
66dBu
FM BAND
Usable sensitivity, Mono
<16.1dBf
Signal/Noise ratio, Mono
60dB
Signal/Noise ratio, Stereo
55dB
Total Harmonic Distortion, Mono
0.25%
Total Harmonic Distortion, Stereo
0.5%
Channel Separation, 1kHz
40dB
Frequency response
±1.5dB (ref. 30Hz – 15kHz)
RDS decode sensitivity
28dBu
T 765 AV Surround Sound Receiver
> REAR LINE DRAWING
NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics
International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written
permission of NAD Electronics International. © 06/09 NAD Electronics International.
www.NADelectronics.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
