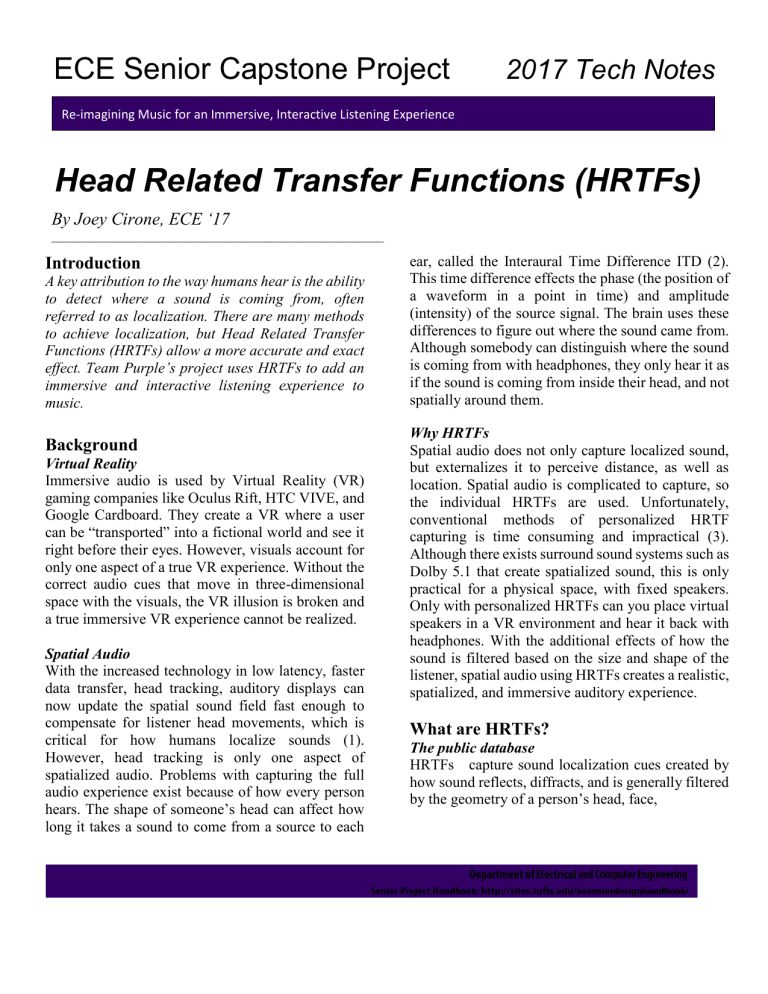

ECE Senior Capstone Project
2017 Tech Notes
Re-imagining Music for an Immersive, Interactive Listening Experience
Head Related Transfer Functions (HRTFs)
By Joey Cirone, ECE ‘17
_____________________________________________________
Introduction
A key attribution to the way humans hear is the ability
to detect where a sound is coming from, often
referred to as localization. There are many methods
to achieve localization, but Head Related Transfer
Functions (HRTFs) allow a more accurate and exact
effect. Team Purple’s project uses HRTFs to add an
immersive and interactive listening experience to
music.
Background
Virtual Reality
Immersive audio is used by Virtual Reality (VR)
gaming companies like Oculus Rift, HTC VIVE, and
Google Cardboard. They create a VR where a user
can be “transported” into a fictional world and see it
right before their eyes. However, visuals account for
only one aspect of a true VR experience. Without the
correct audio cues that move in three-dimensional
space with the visuals, the VR illusion is broken and
a true immersive VR experience cannot be realized.
Spatial Audio
With the increased technology in low latency, faster
data transfer, head tracking, auditory displays can
now update the spatial sound field fast enough to
compensate for listener head movements, which is
critical for how humans localize sounds (1).
However, head tracking is only one aspect of
spatialized audio. Problems with capturing the full
audio experience exist because of how every person
hears. The shape of someone’s head can affect how
long it takes a sound to come from a source to each
ear, called the Interaural Time Difference ITD (2).
This time difference effects the phase (the position of
a waveform in a point in time) and amplitude
(intensity) of the source signal. The brain uses these
differences to figure out where the sound came from.
Although somebody can distinguish where the sound
is coming from with headphones, they only hear it as
if the sound is coming from inside their head, and not
spatially around them.
Why HRTFs
Spatial audio does not only capture localized sound,
but externalizes it to perceive distance, as well as
location. Spatial audio is complicated to capture, so
the individual HRTFs are used. Unfortunately,
conventional methods of personalized HRTF
capturing is time consuming and impractical (3).
Although there exists surround sound systems such as
Dolby 5.1 that create spatialized sound, this is only
practical for a physical space, with fixed speakers.
Only with personalized HRTFs can you place virtual
speakers in a VR environment and hear it back with
headphones. With the additional effects of how the
sound is filtered based on the size and shape of the
listener, spatial audio using HRTFs creates a realistic,
spatialized, and immersive auditory experience.
What are HRTFs?
The public database
HRTFs capture sound localization cues created by
how sound reflects, diffracts, and is generally filtered
by the geometry of a person’s head, face,
and pinna (external part of the ear) before entering
the ear canal (4,5). Even though general geometric
models can capture most of the filtering effects for
the HRTFs, small variations of the pinna can produce
large changes in the HRTFs (4). The Center for
Image Processing and Integrated Computing (CIPIC)
public database contains many HRTF responses with
varied head and ear measurements that can be used
to match an individual.
The Captured Data
Specifically, HRTFs consist of three parameters in
spherical coordinates; azimuth (measured clockwise)
φ, elevation θ, and either time or frequency (6). Using
these parameters, you can apply the specific HRTF
filter for a sound at the specific azimuth, elevation,
and frequency to make the sound appear as it is
coming from that location in space. The following
figure illustrates these three parameters in a 3D
space.
Figure 1: Azimuth, Elevation, and Sound Location
Parameters of HRTF
Measuring HRTF’s
As stated earlier, personalized HRTFs are a difficult
and time consuming measurement to capture. It is
measured as a transfer function (relationship between
any output and input) from the sound source (input)
to the microphones placed inside the ears (output).
The individual subject sits in an anechoic chamber
(an echo-free room designed to isolate sound
reflection from the individual) with microphones in
both ears. Speakers rotate around the subject, playing
a reference sound at specific angles and recording the
received sound from the microphones in the ear, until
all angles are captured. These relationships between
the reference sound, and the sound being recorded
after it reflects around the subject’s head and ear at
various angles make up the HRTF. The following
picture is of an HRTF measurements system at
Microsoft Research (7).
Figure 2:
https://www.engadget.com/2016/11/02/microsoftexclusive-hololens-spatial-sound/, 4:54
Generic & Personalized HRTFs
Generic HRTFs are created by averaging existing
HFTFs or by measuring the data from a dummy in
Generic HRTFs are created by averaging existing
HFTFs or by measuring the data from a dummy in
place of an individual. However, generic HRTFs may
not sound realistic to all individuals because of the
variation of pinna geometries. Personalized HRTFs
refer to using existing HRTF measurements, found in
public databases such as CIPIC, and matching
geometric characteristics to a subject with similar
dimensions such as the shape of the pinna (8). This
method can be practically used by taking pictures of
the subject and matching it to a database of HRTFs
(9). The use of an existing HRTF database eliminates
the need to do the time-consuming measurement on
every new individual who would like to experience
localization.
Using Spatial Audio
The HRTF process chain
Because of the way HRTFs are measured, the audio
must have added room effects such as reverb and
early reflections (sounds that arrive to the listener
after reflecting once or twice from walls, ceilings,
and floors) to make it sound realistic. The output
sound from the HRTF would be what it would sound
like if sound was playing in an echo-less room
(anechoic chamber). You would be able to tell where
2
the location of the sound was, but it would not sound
realistic. This is because the HRTF does not capture
the effect of the rooms reverb and other
characteristics that define how the sound
reverberates from the environment in which it was
produced. The HRTF is simply applied to a mono
sound source (same audio in both left and right ears)
as a filter at the specific location (azimuth and
elevation) to where you want the sound to come
from.
Other Techniques
There are various other techniques to capture similar
spatialized audio. The simplest technique that many
VR companies use is the amplitude panning method
(6). Amplitude levels of the left and right channels of
stereo audio (corresponding to left and right earbuds
or headphone cups) are varied to suggest a sound
source that is localized toward the left or right.
However, this approach to spatialization only
captures localization cues in a 2D plane and cannot
replicate if a sound is in the front or back. Another
method is recording sounds using two microphones
inside a dummy head. This technique is called
binaural audio and is best show by this virtual
barbershop video. Another method, called
Ambisonics, is a recording technique that captures
spatialized sound in a 3D area which can be
formatted for headphones, 5.1, and 7.1 surround
sound. The problem with this method, is that you
would need to have Ambisonics recordings for all
sounds which is not practical. This demo from
RealSpace 3D Audio uses a combination of all these
techniques to create a realistic sound experience.
Use in Project
re-imagining music for an immersive, interactive
listening experience.
References
1. Brungart, D. S., Kordik, A. J., & Simpson, B. D.
(2006, January). Effects of Headtracker Latency in
Virtual Audio Displays
2. Virtual Acoustics and Audio Engineering. Retrieved
October 12, 2016, from
http://resource.isvr.soton.ac.uk/FDAG/VAP/index.htm
3. Rund F (2012). Alternatives to HRTF Measurement.
IEEE
4. Algazi V. R. (2001). The CIPIC HRTF Database.
IEFE Workshop on Applications of Signal Processing to
Audio and Acoustics 2001.
5. Mokhtari P (2008). Computer Simulation of HRTFs
for Personalization of 3D Audio. 2008 Second
International Symposium on Universal Communication.
6. Schissler C (2016). Efficient HRTF-based Spatial
Audio for Area and Volumetric Sources. IEEE
Transactions on Visualization and Computer Graphics.
22(4), 1356-1366.
7. https://www.engadget.com/2016/11/02/microsoftexclusive-hololens-spatial-sound/
8. Rund F (2012). Alternatives to HRTF Measurement.
IEEE
9. Torres-Gallegos E (2015). Personalization of headrelated transfer functions (HRTF) based on automatic
photo-anthropometry and inference from a database.
Applied Acoustics. 97, 84-95.
For our project, HRTFs are used to enhance the
spatialization for the music. By adding HRTFs to our
audio processing chain, we can make the sound seem
as if it is in front of you, referred to as externalization,
instead of coming from inside you head. Combined
with our head tracking module, we use the HRTF
algorithms to make the audio sound as if it is in a 3D
space when the user moves their head. In the future,
instead of using a generic HRTF algorithm, we can
pick a more personalized HRTF based on a simple
measurement, such as head width, and match the
HRTF from the CIPIC database. The use of more
personalized HRTFs in our project is the next step to
3
