HP JE221A Datasheet

HP JE221A Datasheet

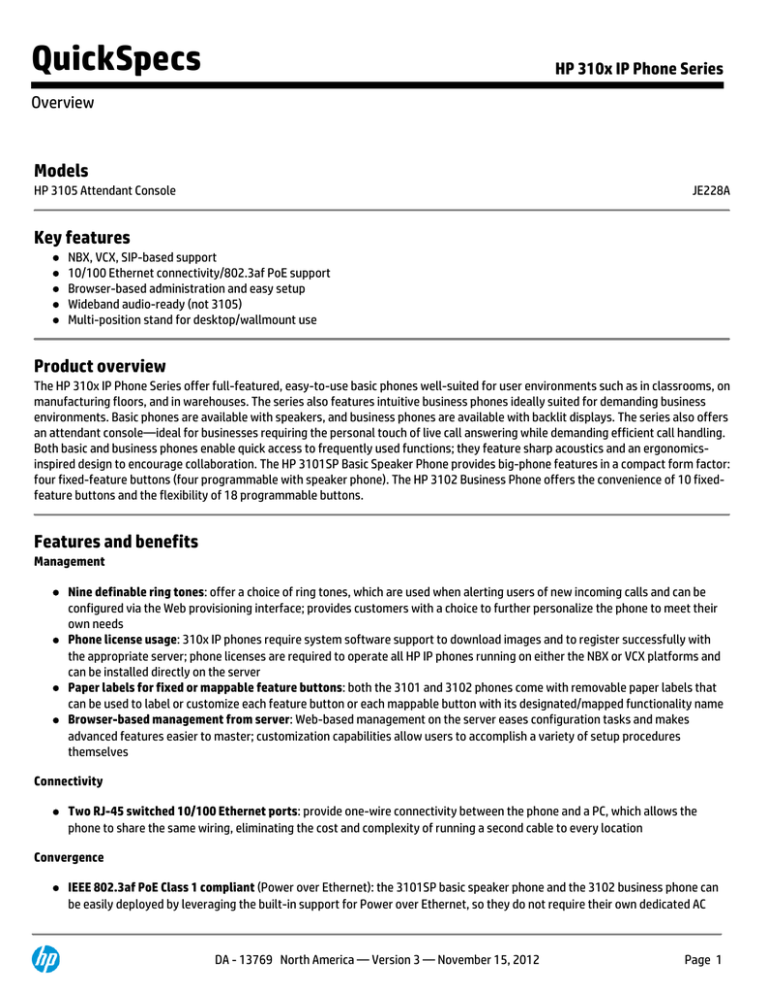

HP 310x IP Phone Series
HP 3105 Attendant Console
Key features
NBX, VCX, SIP-based support
10/100 Ethernet connectivity/802.3af PoE support
Browser-based administration and easy setup
Wideband audio-ready (not 3105)
Multi-position stand for desktop/wallmount use
Product overview
The HP 310x IP Phone Series offer full-featured, easy-to-use basic phones well-suited for user environments such as in classrooms, on
manufacturing floors, and in warehouses. The series also features intuitive business phones ideally suited for demanding business
environments. Basic phones are available with speakers, and business phones are available with backlit displays. The series also offers
an attendant console—ideal for businesses requiring the personal touch of live call answering while demanding efficient call handling.
Both basic and business phones enable quick access to frequently used functions; they feature sharp acoustics and an ergonomicsinspired design to encourage collaboration. The HP 3101SP Basic Speaker Phone provides big-phone features in a compact form factor:
four fixed-feature buttons (four programmable with speaker phone). The HP 3102 Business Phone offers the convenience of 10 fixedfeature buttons and the flexibility of 18 programmable buttons.
Features and benefits
Nine definable ring tones: offer a choice of ring tones, which are used when alerting users of new incoming calls and can be
configured via the Web provisioning interface; provides customers with a choice to further personalize the phone to meet their
own needs
Phone license usage: 310x IP phones require system software support to download images and to register successfully with
the appropriate server; phone licenses are required to operate all HP IP phones running on either the NBX or VCX platforms and
can be installed directly on the server
Paper labels for fixed or mappable feature buttons: both the 3101 and 3102 phones come with removable paper labels that
can be used to label or customize each feature button or each mappable button with its designated/mapped functionality name
Browser-based management from server: Web-based management on the server eases configuration tasks and makes
advanced features easier to master; customization capabilities allow users to accomplish a variety of setup procedures
Two RJ-45 switched 10/100 Ethernet ports: provide one-wire connectivity between the phone and a PC, which allows the
phone to share the same wiring, eliminating the cost and complexity of running a second cable to every location
IEEE 802.3af PoE Class 1 compliant (Power over Ethernet): the 3101SP basic speaker phone and the 3102 business phone can
be easily deployed by leveraging the built-in support for Power over Ethernet, so they do not require their own dedicated AC
DA - 13769 North America — Version 3 — November 15, 2012
Page 1
HP 310x IP Phone Series
power adapter, avoiding wiring clutter and enabling quick setup
Technical features
Flexible date/time display: allows administrators or users to configure date/time displays on the phones using the Web
provisioning interface, which provides displays based on user preference or location preference
Hands-free installation: allows the system to work in a mode where the system's only configuration is done by the
administrator, with the phone's configuration automatically detected (phone number, download address, etc.) just by plugging
in the phone; this is accomplished using MAC address provisioning
Automatic software updates: With the VCX IP Telephony solution, Session Initiation Protocol (SIP)-based 3101, 3102, and 3105
IP phones support automatic detection of phone software update version; this allows software upgrades to be delivered
automatically to phones without the need to reboot phones; upgrade detection is polled in a random manner on 30-minute
Automatic profile updates: when connected to a VCX IP Telephony solution, 3101, 3102, and 3105 IP phones support the ability
to automatically update the phone profile without logout or login when any administrative changes are made
Volume control: volume settings can be adjusted on all 310x IP phones for speaker, handset, and ringers
DTMF Monotone: VCX IP Telephony solution supports a user-configurable setting for DTMF or monotone feedback to dialpad
presses; DTMF Monotone on the phone is considered a security feature to prevent malicious parties from decoding the tones
Acoustic echo cancellation: cancels acoustic echo for the delay of up to 80 ms; phone cancels local echo generated by feedback
from the handset earpiece to the handset microphone
Phone mobility and roaming: allows system administrator to determine whether end users can move their stations;
phones/soft clients can be locked to a physical switch port (using MAC address) or to a specific IP subnet; end users can move
their phones to any location that has IP access to the user's telephony server, regardless of geographic location; hot desking is
supported with VCX when logging into a different VCX region or branch that is configured for Global Directory
Phone characteristics
Wide range of codecs support: support for G.711, ADPCM, and G.729A/B on NBX platforms and G.722, G.711, and G.729 on VCX
platforms allows the phone to negotiate high-fidelity or lower-bandwidth codecs during call setup, giving it flexibility in voice
quality and network bandwidth usage
Fixed-feature buttons: 3101 phones support 5 fixed-feature buttons, 3102 phones support up to 10, and 3105 attendant
consoles support 4; Hold and Message buttons are clearly distinguished to help users handle calls professionally; dedicated
Mute, Speaker, and Volume buttons allow for efficient call handling
Three softkeys below liquid crystal display (LCD): an intuitive display with three softkeys and a four-way cursor controller
provides instant access to the location's user directory and call logs
Four-way navigation control: phones include three softkeys and four-way cursor for seamless menu manipulation and data
Phone handset support for G.722 wideband audio: anticipates evolving standards with a wideband audio-ready handset
RJ-9 headset jack: allows industry-standard RJ-9-compatible wired and wireless headsets and handset lifters to be connected
for easy call handling and convenience; allows for easy connection of the HP 3101 and 3102 handsets
Two-line, 160x33 pixel 3.4 inch LCD: both the 3101 and 3102 phones have a two-line display, allowing for a varied number of
simultaneous calls at any time, depending on if they're connected to the NBX or VCX; the LCD supports two character lines and is
capable of displaying 24 characters
Adaptive jitter buffer: media and packet-processing technology in the 310x phones allow them to reduce interruption or delay
in the voice audio packets, which significantly improves overall voice quality
Support of IP-ToS, IEEE 802.1p, and VLAN: the 3101 phone supports various Quality of Service (QoS) settings that help ensure
signaling and media VoIP voice packets receive the preferential treatment they require on the network, increasing total voice
quality; options include IP Type of Service (ToS), IEEE 802.1p priority tag based on IP address, and traffic directing on a perVLAN-segment basis
DHCP Option 184: 310x phones can receive their IP telephony server IP address from DHCP by using DHCP Option 184; when the
DA - 13769 North America — Version 3 — November 15, 2012
Page 2
HP 310x IP Phone Series
phone boots up, it's already autopopulated with the primary (and secondary if it's VCX) SIP server information, making phone
setup easier
Support for NBX and VCX platforms: 310x IP phones are capable of being discovered with the NBX server and registering with
the VCX SIP server and downloading their phone profile from the server
Support for silence suppression: 310x phones support silence supression with the use of G.729b Codec; this is used to prevent
transmission of voice packets over the network when one of the parties involved in a call is not speaking, reducing bandwidth
usage and providing a major benefit
Support for speaker phone: the 3101 phones with a half-duplex speaker improve voice communications by allowing a two-way
speaker phone for convenient hands-free telephony services; the 3102 delivers the audio performance of a high-quality, fullduplex speaker phone
Warranty and support
1-year warranty: with advance replacement and 30-calendar-day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP; to reach our support centers,
refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase,
refer to www.hp.com/networking/warrantysummary
Software releases: to find software for your product, refer to www.hp.com/networking/support; for details on the software
releases available with your product purchase, refer to www.hp.com/networking/warrantysummary
DA - 13769 North America — Version 3 — November 15, 2012
Page 3
HP 310x IP Phone Series
Technical Specifications
HP 3105 Attendant Console (JE228A)
Physical characteristics
2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE
802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
7.5(d) x 10.3(w) x 3.2(h) in. (19.05 x 26.16 x 8.13 cm)
1.74 lb. (.79 kg), Fully loaded attendant console, handset, and cord
Rests on multi-angle desk stand or wallmount
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative
5% to 85%, non-condensing
Electrical characteristics Voltage
120-240 VAC
Maximum power rating
50 / 60 Hz
Phone characteristics
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
UL 1950; ICES-003; HAC (Hearing Aid Compatibility)
Max. calls (lines)
Programmable lighted
50 (100 with shift button)
Fixed feature buttons
Four-way navigation
Display type
Display backlit
Number of display lines
Characters per display
line (max.)
Display size
Display pixel resolution
Desk stand
Yes - multi-angle, acts as wallmount also
Platforms Supported
Default ringtones
ICES-003 (Canada); FCC Part 15
Web-based administration on server only (phone licenses required)
For Emissions: HP 3101 Basic Phone (JE221A) and HP 3105 Attendant Console (JE228A) are FCC Part 15,
Class A. HP 3102 Business Phone (JE223A) is FCC Part 15, Class B.
• Phone licenses are required to operate all HP IP phones on NBX or VCX platforms.
DA - 13769 North America — Version 3 — November 15, 2012
Page 4
HP 310x IP Phone Series
Technical Specifications
3-year, parts only, global next-day advance exchange (UW129E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.
Standards and protocols General protocols
IEEE 802.1p Priority
IEEE 802.3af Power over Ethernet
DA - 13769 North America — Version 3 — November 15, 2012
Page 5
HP 310x IP Phone Series
HP 310x IP Phone Series
Power Supply
HP 90/240V-24VDC Phone Power Supply (AA)
HP 90/240V-24VDC Phone Power Supply (CN)
HP 90/240V-24VDC Phone Power Supply (ME)
HP 90/240V-24VDC Phone Power Supply (SA)
HP 90/240V-24VDC Phone Power Supply (UK)
Power cords
HP 90/240V-24VDC Power Cord
To learn more, visit: www.hp.com/networking
© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13769 North America — Version 3 — November 15, 2012
Page 6
