Atdec TH-FM flat panel desk mount Datasheet

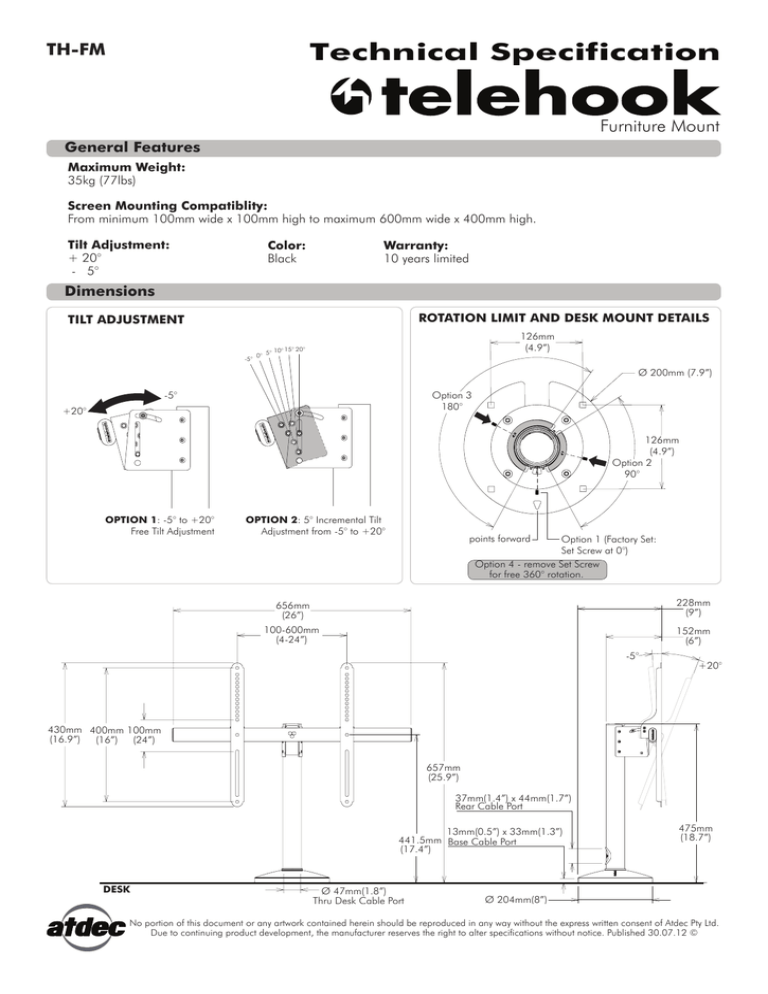

Technical Specification
TH-FM
Furniture Mount
General Features
Maximum Weight:
35kg (77lbs)
Screen Mounting Compatiblity:
From minimum 100mm wide x 100mm high to maximum 600mm wide x 400mm high.
Tilt Adjustment:
+ 20°
- 5°
Color:
Black
Warranty:
10 years limited
Dimensions
ROTATION LIMIT AND DESK MOUNT DETAILS
TILT ADJUSTMENT
-5°
126mm
(4.9”)
10° 15° 20°
0° 5°
Ø 200mm (7.9”)
-5°
Option 3
180°
+20°
126mm
(4.9”)
Option 2
90°
OPTION 1: -5° to +20°
Free Tilt Adjustment
OPTION 2: 5° Incremental Tilt
Adjustment from -5° to +20°
points forward
Option 1 (Factory Set:
Set Screw at 0°)
Option 4 - remove Set Screw
for free 360° rotation.
656mm
(26”)
228mm
(9”)
100-600mm
(4-24”)
152mm
(6”)
-5°
+20°
430mm 400mm 100mm
(16.9”) (16”) (24”)
657mm
(25.9”)
37mm(1.4”) x 44mm(1.7”)
Rear Cable Port
13mm(0.5”) x 33mm(1.3”)
441.5mm Base Cable Port
(17.4”)
DESK
Ø 47mm(1.8”)
Thru Desk Cable Port
475mm
(18.7”)
Ø 204mm(8”)
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 30.07.12 ©
