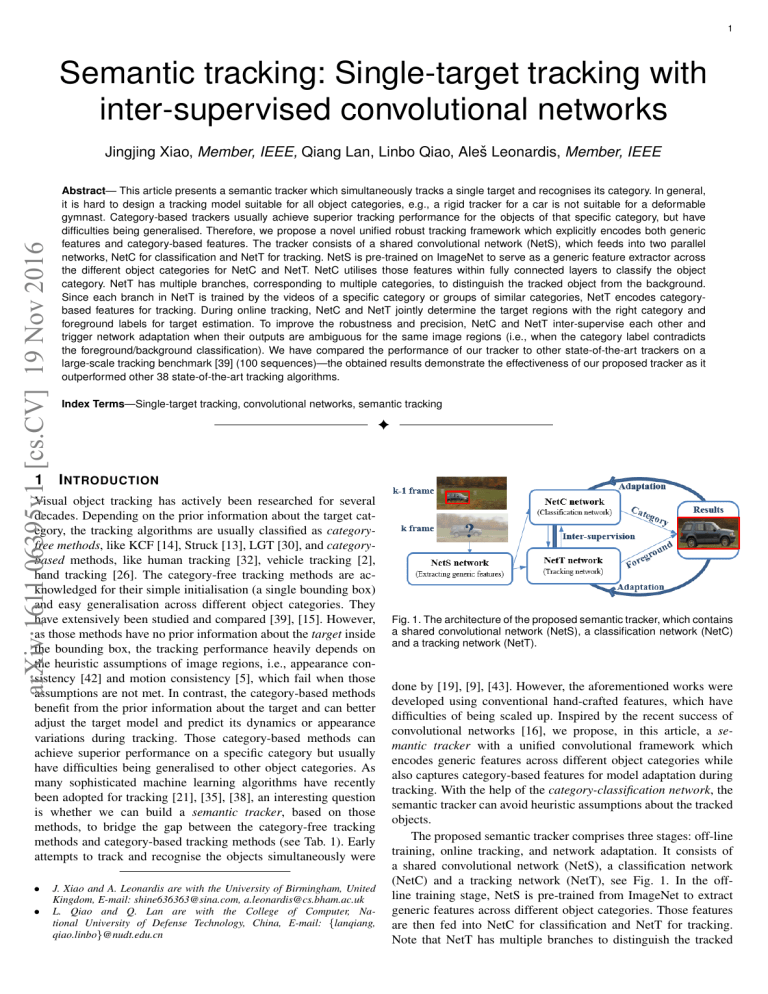

Semantic tracking: Single-target tracking with
inter-supervised convolutional networks
arXiv:1611.06395v1 [cs.CV] 19 Nov 2016
Jingjing Xiao, Member, IEEE, Qiang Lan, Linbo Qiao, Aleš Leonardis, Member, IEEE
1
Abstract— This article presents a semantic tracker which simultaneously tracks a single target and recognises its category. In general,
it is hard to design a tracking model suitable for all object categories, e.g., a rigid tracker for a car is not suitable for a deformable
gymnast. Category-based trackers usually achieve superior tracking performance for the objects of that specific category, but have
difficulties being generalised. Therefore, we propose a novel unified robust tracking framework which explicitly encodes both generic
features and category-based features. The tracker consists of a shared convolutional network (NetS), which feeds into two parallel
networks, NetC for classification and NetT for tracking. NetS is pre-trained on ImageNet to serve as a generic feature extractor across
the different object categories for NetC and NetT. NetC utilises those features within fully connected layers to classify the object
category. NetT has multiple branches, corresponding to multiple categories, to distinguish the tracked object from the background.
Since each branch in NetT is trained by the videos of a specific category or groups of similar categories, NetT encodes categorybased features for tracking. During online tracking, NetC and NetT jointly determine the target regions with the right category and
foreground labels for target estimation. To improve the robustness and precision, NetC and NetT inter-supervise each other and
trigger network adaptation when their outputs are ambiguous for the same image regions (i.e., when the category label contradicts
the foreground/background classification). We have compared the performance of our tracker to other state-of-the-art trackers on a
large-scale tracking benchmark [39] (100 sequences)—the obtained results demonstrate the effectiveness of our proposed tracker as it
outperformed other 38 state-of-the-art tracking algorithms.
Index Terms—Single-target tracking, convolutional networks, semantic tracking
F
I NTRODUCTION
Visual object tracking has actively been researched for several
decades. Depending on the prior information about the target category, the tracking algorithms are usually classified as categoryfree methods, like KCF [14], Struck [13], LGT [30], and categorybased methods, like human tracking [32], vehicle tracking [2],
hand tracking [26]. The category-free tracking methods are acknowledged for their simple initialisation (a single bounding box)
and easy generalisation across different object categories. They
have extensively been studied and compared [39], [15]. However,
as those methods have no prior information about the target inside
the bounding box, the tracking performance heavily depends on
the heuristic assumptions of image regions, i.e., appearance consistency [42] and motion consistency [5], which fail when those
assumptions are not met. In contrast, the category-based methods
benefit from the prior information about the target and can better
adjust the target model and predict its dynamics or appearance
variations during tracking. Those category-based methods can
achieve superior performance on a specific category but usually
have difficulties being generalised to other object categories. As
many sophisticated machine learning algorithms have recently
been adopted for tracking [21], [35], [38], an interesting question
is whether we can build a semantic tracker, based on those
methods, to bridge the gap between the category-free tracking
methods and category-based tracking methods (see Tab. 1). Early
attempts to track and recognise the objects simultaneously were
•
•
J. Xiao and A. Leonardis are with the University of Birmingham, United
Kingdom, E-mail: [email protected], [email protected]
L. Qiao and Q. Lan are with the College of Computer, National University of Defense Technology, China, E-mail: {lanqiang,
qiao.linbo}@nudt.edu.cn
Fig. 1. The architecture of the proposed semantic tracker, which contains
a shared convolutional network (NetS), a classification network (NetC)
and a tracking network (NetT).
done by [19], [9], [43]. However, the aforementioned works were
developed using conventional hand-crafted features, which have
difficulties of being scaled up. Inspired by the recent success of
convolutional networks [16], we propose, in this article, a semantic tracker with a unified convolutional framework which
encodes generic features across different object categories while
also captures category-based features for model adaptation during
tracking. With the help of the category-classification network, the
semantic tracker can avoid heuristic assumptions about the tracked
objects.
The proposed semantic tracker comprises three stages: off-line
training, online tracking, and network adaptation. It consists of
a shared convolutional network (NetS), a classification network
(NetC) and a tracking network (NetT), see Fig. 1. In the offline training stage, NetS is pre-trained from ImageNet to extract
generic features across different object categories. Those features
are then fed into NetC for classification and NetT for tracking.
Note that NetT has multiple branches to distinguish the tracked
2
TABLE 1
Relationships among category-free, category-based methods and the proposed semantic tracking. Category-based methods and the proposed
semantic tracking encompass off-line category-specific training processes whereas the category-free methods do not. During online tracking, only
the category-based methods know the target category from the initialisation stage while the proposed semantic tracking algorithm simultaneously
recognises and tracks the target on-the-fly.
Methods
Off-line category-specific training
Category-free tracker
Category-based tracker
Proposed semantic tracker
No
Yes
Yes
object from the background. Since each branch is trained by the
videos of a specific object category, this enables each branch
in NetT to learn the category-specific features related to both
foreground and background, e.g., when tracking a pedestrian, it
is more likely to learn the features of a car in the background than
features of a fish. During online tracking, NetC first recognises the
object category and activates the corresponding branch in NetT.
Then, NetT is automatically fine-tuned for that particular tracking
video by exploiting the foreground and the background sample
regions in the first frame. When a new image frame arrives, the
algorithm samples a set of image regions and each sample is fed
through both NetC and NetT. The regions with the right category
and the foreground label are used for target estimation (i.e., the
location and the size of the target bounding box). Note that the
target appearance often changes during the tracking, therefore it
is extremely crucial for a tracker to adapt the model accordingly.
To improve the robustness and precision, NetC and NetT intersupervise each other and trigger network adaptation when their
outputs are ambiguous (i.e., not consistent) for several image
regions, e.g., when an image region is classified as a non-target
category from NetC but as foreground from NetT or as a target
category from NetC and background from NetT. The samples
with consistent labellings are used to update the networks which
also results in a reduced number of ambiguous sample regions.
We have evaluated the contribution of each key component to
the overall performance on OTB tracking benchmark [39] (100
sequences), and also compared the whole algorithm to the other
state-of-the-art single-target tracking algorithms. The experimental results demonstrate the effectiveness of our algorithm as it
outperformed other 38 state-of-the-art tracking algorithms not
only overall, but also on the sub-datasets annotated with specific
attributes.
Different from conventional category-free and category-based
trackers, the main contributions of our semantic tracker can be
summarised as:
1)
2)
3)
Our tracker simultaneously tracks a single target and
recognises its category using convolutional networks,
which alleviates the problems with heuristic assumptions
about the targets;
A novel unified framework with NetS network, which extracts generic features across different object categories,
combined with NetC and NetT networks which encode
category-based features;
NetC and NetT jointly determine image samples for
estimation of the target, and inter-supervise each other
by triggering network adaptation to improve robustness
and precision.
The rest of the paper is organised as follows. We first review
related work in Sec. 2. The details of the proposed method are
Online tracking: target category
Initialization
Output
Unknown
Unknown
Known
Known
Unknown
Known
provided in Sec. 3. Sec. 4 presents and discusses the experimental
results on a tracking benchmark [39]. Sec. 5 provides concluding
remarks.
2
R ELATED WORK
Conventional tracking algorithms can be classified as categorybased trackers and category-free trackers. Category-based tracking is targeted at some particular applications, e.g., Vondrak et
al. [32] tracked a human body by considering physical plausibility,
Oikonomidis et al. [26] tracked a hand with 26-DOF hand model,
where Newtonian physics was applied to approximate the rigidbody motion dynamics. The mentioned works demonstrate that
prior information about the target can significantly help the tracking algorithms to achieve more accurate and robust results. However, the existing category-based (articulate/rigid/dynamic) models
and corresponding (physical/common-sense) constraints often suit
that particular category and have difficulties being generalised.
In contrast, category-free tracking is acknowledged for its simple
initialisation (one bounding box) and easy generalisation across
different object categories, as has extensively been demonstrated
in [39], [15]. Early category-free trackers [25], [23], [6], [1]
built the methods on a single feature, which is prone to failure
when the applied feature endures large variations. To alleviate
the problems of using a single feature, later works [40], [33],
[42], [20] adaptively fused multiple features using sophisticated
machine learning algorithms to build a target model to achieve
robust tracking. However, in general, it is hard to design a model
suitable for all different object categories, e.g., a rigid tracker for a
car is not suitable for a deformable gymnast. Therefore, semantic
information about the target category becomes essential to enable
a tracker to optimize the model during tracking.
Recent works [35], [18], [21] began to exploit intrinsic information about the tracked objects, with an attempt to overcome the
semantic gap and assist in developing robust tracking algorithms.
Lee et al. [19], Fan et al. [9] and Yun and Jing [43] tried to track
and recognise the objects simultaneously, however, these works
were based on hand-crafted features, which hampered them to be
scaled-up.
Inspired by the recent success of convolutional networks,
Wang et al. [35] conducted an in-depth study on the properties of
convolutional neural network features (CNN) [16] which showed
that the top layers encode more semantic features and serve as
category detectors, while lower layers carry more fine-grained
details and can better discriminate the target from the background.
Therefore, [35] jointly used those layers with a switch mechanism
during the tracking. A similar work was done by Ma et al. [21],
where they exploited CNN features [28] trained on ImageNet [8]
to improve tracking accuracy and robustness. Different from [35],
where the tracking algorithm was switching between the layers
3
with semantic information and fine-grained information, [21]
fused features from hierarchical layers to conduct a coarse-tofine tracking strategy. However, both trackers, [21], [35], were
off-line pre-trained on ImageNet images [8] and then directly
used for on-line tracking, without any online fine-tuning of the
network structure for a specific tracking task. The realisation that
purely using target images for training is not optimal since a
target in one video can be part of the background in another, let
to the use of videos to train the trackers. Wang et al. [34] pretrained a two-layer CNN based tracker from video sequences, and
proposed a domain adaptation method which effectively adapted
the pre-learned features according to the specific target during
online tracking. Wang et al [36] also proposed a sequence-trained
network with generic feature extraction layers from VGG network [28] and two-layer adaptation network. A similar work was
done by Nam et al. [24], who also proposed a video-trained CNN
network with a shared network and multi-branches to distinguish
the object from the background. However, all the mentioned videotrained trackers [34], [36], [24] did not explicitly exploit the
semantic information of the target, i.e., object category. Without
knowing the category of the object, it is highly probable that
the tracker will learn false positives, and will have difficulties
recovering from the failures. In addition, the afore mentioned
trackers triggered the network adaptation in a heuristic way with
pre-defined time intervals, causing inadequate adaptation which
potentially resulted in either model drifting or outdated models. In
contrast, our proposed semantic tracker significantly deviates from
the aforementioned related works in several aspects including the
network structure, initialisation procedure, target estimation and
online adaptation, summarised as: 1) we clearly define the shared
network NetS for extraction of generic features, followed by the
networks NetT and NetC for category-based features extraction.
This also brings more intuitive understanding about what we have
learnt in each network part; 2) NetT is explicitly trained with
multiple branches encoding category-based features, where the
corresponding branch is activated by classification network NetC;
3) the samples for the target estimation are jointly decided by the
outputs from both NetC and NetT; 4) the network adaptation of
NetC and NetT is conducted in an inter-supervised manner when
their outputs for the same image region are in contradiction, i.e.,
a sample is classified by NetT as foreground but not correctly
recognised by NetC or vice-versa; this step ensures a proper
network updating pace, avoiding heuristics; 5) the proposed work
simultaneously tracks the target and recognises its category.
3
T HE PROPOSED TRACKER
In this section, we first introduce the structure of the proposed
tracker model (Sec. 3.1). Then, we explain the off-line training
process, which constructs the tracker using ImageNet [8] and
tracking videos [15] (Sec. 3.2). The network intialisation, target
estimation and network online adaptation are explained in Sec. 3.3.
3.1
Tracker model
Recent research has shown the relationship between the human
vision system and deep hierarchies in computer vision [17].
CNNs, being partly inspired by these ideas, are acknowledged
for their outstanding representation power and have extensively
been studied in [16], [28]. Therefore, we also build our semantic
tracker based on CNN components, but propose a new architecture
illustrated in Fig. 2.
Recent research [21] has shown that shallow layers in CNN
contain more generic information while deep layers are more related to semantic information. Thus, our tracker consists of shared
convolutional layers to extract generic features in the shallow
network (NetS), followed by NetC network for classification and
NetT network for extracting category-based features for tracking.
Note that NetS extracts generic features across different object
categories, where those features have some common properties,
e.g., robustness to scale and orientation changes, and illumination
variations [24], which can be useful for other higher level tasks.
Therefore, those extracted generic features are fed into NetC
and NetT for more semantic related tasks. NetC is a multiclass classification network to recognise the object category. NetT,
which is a binary classification network, aims at distinguishing
foreground region (target) from the background. Considering that
the images of tracked objects of the same category often contain
characteristic features both in terms of the foreground as well as
the background, but which are different from other categories,
e.g., when tracking a pedestrian it is more likely to have cars in
the background than fish, NetT comprises multiple category-based
branches, and each branch is particularly trained from the videos
that contain the same object category. During on-line tracking,
NetC and NetT inter-supervise each other by triggering network
adaptation to improve robustness and precision, shown in Fig. 1.
The details of the network structure are shown in Tab. 2.
3.2
Off-line training
NetS for generic features extraction. With extensive CNN-based
studies for object classification, several representative models have
been proposed and made publicly available, e.g., AlexNet [16],
GoogleNet [29], VGGNet [28] etc. Rather than training the model
from scratch, we transfer knowledge from a pre-trained model into
NetS to extract generic features. A pre-trained model VGG-f [4]
is explicitly chosen, because 1) it is trained from a tremendous
dataset ImageNet [8]; 2) it achieves comparable performance
with the fastest speed [31]. Our NetS has the same structure as
the first three convolutional layers in VGG-f [4] except that the
input image size is adapted (107*107). Since our training dataset
is substantially smaller than ImageNet, the shared convolutional
layers (NetS) are kept fixed to avoid the over-fitting problem.
NetC for classification. NetC aims at recognising the object’s
category with two fully connected layers. When training NetC
with our dataset, NetS first extracts generic features and those
features are then fed into NetC network for fine-tuning. Note that
the object in the video often undergoes significant deformations
and suffers from a poor field of view and partial occlusions. In
addition, the generated image samples during tracking might only
cover the target partially or the target is not centralised inside the
bounding boxes. Therefore, to improve the performance of our
classification network NetC, we also prepared training samples
with noisy bounding boxes, denoted as:
n
n
Xc,k
= Xk + ∆Xc,k
(1)
n
where Xk is the target ground truth at k -th frame, and ∆Xc,k
n
is the perturbation of the n-th sampled region Xc,k . Specifically,
we generated 50 object samples with significant overlap ratio (0.8)
with the ground truth bounding boxes from each frame. To balance
the distribution of different target status, those samples are shuffled
during training. Note that NetC is trained as a multi-classification
network to classify the object regions into different categories by
4
Fig. 2. The architecture of the proposed semantic tracker, which contains a shared convolutional network (NetS), providing inputs to two networks
(NetC and NetT) with fully connected layers. The green arrows indicate NetC for categorising the tracked object. The red arrows indicate NetT for
tracking, which comprises multiple branches, and each branch is particularly trained for specific object categories.
TABLE 2
The structure of the proposed semantic tracker. In the convolutional layers, the first number indicates the receptive field size as “num x size x size”,
followed by the convolution stride “str.”, spatial padding “pad”, local response normalisation “lrn”, and the max-pooling down-sampling factor.
Structure
Input
images
(107*107)
NetS shared network
conv1
conv2
conv3
64*11*11,
str.4, pad 0,
lrn, *2 pool
256*5*5
str.1, pad 2
lrn, *2 pool
Stochastic Gradient Descent (SGD) method with the learning rate
0.0001 and 128 batch size. The objective function for training
NetC network is denoted as:
< Ŵc , B̂c >= arg min
1
Nc
Nc
X
n
n
||fc (Xc,k
) − lc,k
||2
(2)
n=1
where Ŵc and B̂c are the weights and biases of the NetC network,
n
n
and f (Xc,k
) is the predicted label while lc,k
is the ground truth
n
label of the n-th image region Xc,k at frame k .
NetT for tracking. NetT is a binary classification network
with multiple branches corresponding to different object categories, aiming at distinguishing the foreground (object) image
regions from the background image regions. Note that the object in
one video might become background in another video, but videos
belonging to the same category share some intrinsic categorybased features in both foreground and background. Therefore, the
category-based branch in NetT can extract the target features with
discriminative semantic information. In NetT, each branch has
two fully connected layers to further process the generic features
from NetS. In each frame of the training videos, we use the same
training samples in NetC as positive (target) samples for NetT to
preserve training consistency. Beside the positive samples that are
the same as used in NetC training, we also generate 200 samples
with overlap ratio below 0.2 as negative (background) samples for
the training. NetT is trained to classify the positive object regions
from negative object regions also using SGD method with the
learning rate 0.0001 and 128 batch size, where the learnt weights
256*3*3
str.1,
pad 1
NetC network
fc4 c
fc5 c
256, relu, dropout 8, soft-max
NetT network
fc4 t
fc5 t
256, relu, dropout 2, soft-max
are denoted as < Ŵt , B̂t >. The whole process of the training
procedure is explained below:
Algorithm 1: off-line training
1: Input: the categorised training sequences from VOT benchmark [15].
n }
2: Prepare the training dataset {Xc,k
n=1...Nc for NetC (50 samples
n }
each frame) and {Xt,k
n=1...Nt for NetT (50 positive samples and
200 negative samples per frame).
3: Shuffle the whole NetC training dataset, and the NetT training datasets.
4: Train the NetC with the NetC training dataset by SGD, where the low
level features are extracted from NetS.
5: Train the multi-branch NetT network with the NetT training datasets
by SGD, where the low level features are also extracted from NetS.
6: Output: the weights and bias < Ŵc , B̂c > for the trained NetC network
and < Ŵt , B̂t > for the NetT network.
3.3
Online tracking
During the online tracking stage, the algorithm first takes several
image regions around the target’s position in the previous frame,
and feeds them into our network to estimate the target’s bounding
box. NetS extracts the low-level generic features for NetC and
NetT. Then NetC and NetT jointly determine the image regions for
target estimation, and inter-supervise each other while updating.
Initialisation. Given a bounding box in the first frame, we
apply the pre-trained NetS and NetC to assign the content of the
bounding box to the corresponding NetT branch. To improve the
recognition accuracy, we sample the image regions closely around
the ground truth (0.8 overlap). If the majority of bounding boxes
have the same category label, that category will be regarded as
the true object category and activate the corresponding branch
5
in NetT. Note that the same type of the target (e.g., a car) can
appear different in different videos, thus we need to fine-tune the
activated branch in NetT for a particular tracking video. Therefore,
the algorithm samples the image regions around the target for
training based on the overlap with the ground truth. For positive
(foreground) samples, we initially select 500 image regions with
the overlap over 0.8 in the first frame. For negative (background)
samples, we initially select 5000 image regions with the overlap
below 0.2. Those samples, classified as other categories, will
be treated as negative samples. The generated foreground and
background samples are used to fine-tune NetT at the first frame
through 30 iterations with the learning rate 0.001.
To improve the tracking accuracy, we need to train the model
to estimate the size of the target and adjust the bounding box
scale. This is achieved by learning the correspondence between the
extracted features and the target size. Recent detection works [12],
[27] have explored the regression capabilities of the rich hierarchical features, which separate the tasks of associating category
probabilities and bounding boxes estimation. Inspired by those
regression-based object detectors, we apply the same regression
technique [12] (derived from [10]) to estimate the scale of the
bounding boxes during tracking, aiming at improving the tracking
accuracy. To obtain the linear functions gx (.), gy (.), gw (.), gh (.)
that map the features extracted from NetS to the bounding box
centre (identified with subscripts x and y ) and scale (subscript w
is width and h is height), we train the bounding box regressors in
the first frame as:

gx (N etS(X1n )) =


 g (N etS(X n )) =
y
1
n
g
(N
etS(X
)) =

w
1


n
gh (N etS(X1 )) =
n
n
)/X1,w
(X1,x − X1,x
n
n
(X1,y − X1,y )/X1,h
n
log(X1,w /X1,w
)
n
log(X1,h /X1,h )
(3)
where X1,x , X1,y , X1,w , and X1,h are the center (x and y axis
coordinates), width and height of the ground truth bounding box
n
n
n
n
, and X1,h
are
, X1,w
, X1,y
X1 at the first frame, while X1,x
the corresponding values of the generated bounding box X1n .
N etS(X1n ) denotes the features extracted from NetS. To learn
the transformation from the generated bounding box to the ground
truth bounding box, 10.000 samples are generated and the linear
functions are learnt by least squares estimates. During online
tracking, those learnt bounding box regressors will be used to
improve the bounding box scale estimation every frame.
Semantic tracking. From the second frame onwards, the
algorithm generates Nf (Nf = 256) candidate image regions
subjected to a Gaussian distribution around the previous target
position, denoted as:
Xkn = X̂k−1 + ∆Xkn
(4)
where X̂k−1 is the estimated target position at k − 1 frame,
and ∆Xkn is the perturbation of the sampled region Xkn .
∆Xkn ∼ N (0, R) is a zero-mean Gaussian noise with a constant
variance-covariance matrix R.
Then, the tracker extracts generic features from each sample
by NetS, and feeds those features into NetC for the classification
(to determine the category) and NetT for the tracking (to determine
foreground/background), denoted as:
fc (Xkn ) : N etS(Xkn ) → N etC
ft (Xkn ) : N etS(Xkn ) → N etT
(5)
fc (Xkn )
Xkn
where
is the output of the image sample
from NetC
network, and ft (Xkn ) is the output of NetT network. Note that
no matter how the target appearance changes, the category of the
object should remain the same. Therefore, after NetC classifies
the samples and assigns them category labels, only the samples
labelled as the original category will be treated as potential target
samples. The value of fc (Xkn ) is 1 when the recognised content
of the bounding box is consistent with the active branch in NetT.
If not, the value becomes 0. The value of ft (Xkn ) ranges between
0 and 1, which denotes the likelihood of the sample being a
foreground sample. Since NetC and NetT simultaneously classify
each sample, there are four different combinations of labels which
guide the further process, shown in Tab. 3.
Samples classified as the original category from NetC and
foreground from NetT are regarded as type I samples. Since type
I samples obtain consistent (positive) labellings from NetC and
NetT, they are regarded as highly trustable target samples and are
used to estimate the target, defined as:
X̂kn = arg max f (Xkn ), f (Xkn ) = fc (Xkn )ft (Xkn )
(6)
Note that, to improve the robustness of the tracker, instead of
using the sample with the highest score in Eq. 6, we choose Ntop
samples with highest scores for bounding boxes regression. The
bounding box regressors learnt in the initialization stage (Eq. 3)
are applied to estimate the object scale from selected n-th image
region X̂kn .

n
n
n
n

 X̃k,x = gt (N etS(X̂k,x ))X̂k,w + X̂k,x

 X̃ n = g (N etS(X̂ n ))X̂ n + X̂ n
t
k,y
k,y
k,h
k,y
(7)
n
n
n

X̃
=
exp(g
(N
etS(
X̂
)))
∗
X̂
t

k,w
k,w
k,w


n
n
n
X̃k,h
= exp(gt (N etS(X̂k,h
))) ∗ X̂k,h
where subscripts x, y, w, h have the same meaning as in Eq. 3 for
the selected bounding box X̂kn at frame k . The final estimation of
the target X̂k utilises the expectation operator over the rescaled
samples X̃kn computed by Eq. 7, denoted as:
X̂k =
Ntop
1 X
f (X̃kn )X̃kn
Ntop n=1
(8)
where f (X̂kn ) is the score computed from Eq. 6. Ntop is the
number of selected Type I samples with highest scores.
Inter-supervised network adaptation. To handle appearance
variations of the target during tracking, it is important to be able
to update the NetC and NetT networks accordingly. There are
two essential questions about the network adaptation: 1) when to
update and 2) how to update. Ideally, NetC and NetT should obtain
consistent conclusions about the same image region, that means
that a foreground region should also have the right category label.
If not, such ambiguous situations indicate that NetC and NetT
need to be re-trained with the newest samples, at which point the
network adaptation is triggered.
Note that the type IV samples (the same as the type I samples
in Tab. 3) also obtain consistent labellings (in the case of the
type IV they are negative) from both networks. Those samples
with consistent labellings are used for later network adaptation
when ambiguities occur as a result of NetC and NetT outputting
contradictory results (type II and type III samples). As shown
in Tab. 3, the algorithm detects ambiguous samples (AS) when
inconsistent labellings arise from the outputs of NetC and NetT,
i.e., type II and type III samples. An increasing number of AS
6
TABLE 3
Possible outcomes based on the results of NetC classification network (original/other object category) and NetT tracking network
(foreground/background) of each sample.
Sample
Type I
Type II
Type III
Type IV
NetC
Original
Original
Other
Other
NetT
Foreground
Background
Foreground
Background
Outcome
For target estimation; For online updating (a positive sample)
indicates that the current networks have difficulties consistently
classifying the incoming samples and should be updated. Since
NetC is not thoroughly pre-trained with fine-grained information,
it may misclassify the object under some (new) conditions. Also,
the initially trained foreground/background boundary of NetT
may not be reliable any more. Therefore, both NetC and NetT
need to be updated with the most recent consistent samples. To
update the networks, NetC and NetT use the consistent samples
during the process, i.e., type I and type IV samples. While it is
straightforward to use type I and type IV samples to update NetT,
type IV samples do not have a validated category label to train a
specific category in NetC. Therefore, type I samples are used to
train the original category in NetC while type IV samples are used
to train the category X (unknown category, explained in Sec. 4.1.1)
to update NetC, denoted as:
(
P tr
n
n
< Ŵc , B̂c >= arg min N1tr N
n=1 ||fc (Xtr,k ) − lc,k ||2
P
N
tr
n
n
< Ŵt , B̂t >= arg min N1tr n=1
||ft (Xtr,k
) − lt,k
||2
(9)
where < Ŵc , B̂c > and < Ŵt , B̂t > are the weights and biases
n
of NetC and NetT, {Xtr,k
}n=1...Ntr are the type I and type IV
n
n
samples used for training, lc,k
and lt,k
are the corresponding
ground truth labels. After one round of adaptation, the updated
NetC and NetT will jointly be used to classify the ambiguous samples again. The newly classified type I or IV samples originating
from previous AS will be added into the training pool for the next
training iteration. It is expected that the newly trained networks
NetC and NetT will produce increasingly consistent labellings
for the image regions, which indeed happens, as the number of
ambiguous samples is reduced by updated networks. Therefore,
we use this as the stopping criterion for the adaptation, i.e., when
the number of AS stops decreasing or is sufficiently small (0.2 in
practice). The process of online tracking is explained below:
Algorithm 2: online tracking
1: Input: the ground truth of the target in the first frame.
2: Initialise the tracker by recognising the target’s category with NetC,
activating corresponding branch in NetT and fine-tuning the NetT
network with image regions.
3: Train the bounding box regressors, Eq. 3.
4: For frame = 2: Nf
5:
Generate candidate images samples with respect with Eq. 4
6:
Categorise each sample with NetC network and classify the samples
into the foreground and background with NetT network.
7:
Choose image samples in terms of Eq. 6 for estimation.
8:
Estimate the target position and scale, Eq. 7, Eq. 8.
9:
Calculate the number of AS samples NAS .
10: While NAS > threshold
11:
Fine-tune the NetC and NetT with type I and type IV samples.
12:
Categorise each sample with NetC network and NetT network.
13:
Calculate the number of AS samples NAS .
14:
End
15: End
16: Output: the estimated object position and scale.
An ambiguous sample
For online updating (a negative sample)
4
E XPERIMENTAL RESULTS
In this section, we first explain the implementation details of
the tracker. Then, we evaluate the tracker from four aspects: the
effectiveness of the tracker sub-components, the qualitative performance compared to other CNN-based trackers, the quantitative
performance compared to all other state-of-the-art trackers and
the failure cases of the proposed tracker. Finally, we present some
ideas for future work 1 .
4.1
Implementation details
In this section, we provide the details about the datasets, evaluation
metrics, as well as training and running speed.
4.1.1
Datasets
Training dataset - To train the tracker we use the sequences
from VOT [15], explicitly excluding the sequences that also appear
in OTB [39], which is used as the test dataset. The training dataset
was, for the purpose of constructing NetT branches, classified into
8 categories according to the tracked objects, namely, pedestrians,
faces, cars, animals, balls, motorbikes, dolls and a category X
(which comprises of the targets that do not fall into any of the 7
categories).
Test dataset - The algorithm is tested on a large scale tracking
benchmark OTB [39] which has 100 sequences, and each sequence
has several tracking attributes to facilitate evaluation. The features
of the training dataset and the test dataset are listed in Tab. 4.
4.1.2
Evaluation metrics
We report the results of one pass evaluation (OPE) based on the
evaluation protocol proposed in OTB [39]. Note that there are two
criteria used in the OTB, namely overlap and centre-error. In our
experiment, we only use the overlap (success plot) rather than the
centre-error (precision plot) in tracking evaluation since the centre
distance is: 1) susceptible to subjective bounding box annotations;
2) unreliable in cases when a tracker completely loses a target [3].
Therefore, we use the area under curve (AUC) of the success plot
to rank the trackers.
The overlap ϕk at frame k is defined by using the trackeroutput bounding box X̂k and ground-truth bounding box XkG in
Eq. 10:
ϕk =
|X̂k ∩ XkG |
|X̂k ∪ XkG |
(10)
where ∩ and ∪ represent the intersection and union of two regions
and | • | is the region size measured by pixels number.
In the success plot, the x-axis depicts a set of thresholds for the
overlap to indicate the tracking success. The success ratio is the
1. The code will be released upon acceptance of the paper.
7
TABLE 4
The features of the training dataset and the test dataset. The training dataset is obtained from VOT [15], explicitly excluding test sequences. The
test dataset [39] consists of 100 sequences.
Categories
Training
No.of Seq
set
No. of frames
Test
No.of Seq
set
No. of frames
Pedestrians
17
5975
36
16258
Faces
3
441
23
11306
Cars
6
3216
12
11223
Animals
13
5412
5
1705
number of correctly tracked frames divided by the total number of
frames for a more comparable evaluation, Eq. 11.
4.1.3 Speed
The proposed algorithm was implemented in Matlab2014a (linked
to some C components) using an Intel i7-4710MQ CPU and
Nvidia Quadro K1100M GPU, giving the average training speed
of 289.5 bbps (bounding boxes per second) and the test speed of
189.2 bbps.
4.2
Category X
11
3110
15
9263
Full algorithm [0.572]
Baseline+NetC [0.530]
Baseline [0.495]
0.8
(11)
where τ denotes the threshold of the overlap, and Nf is the
total number of frames. A failure is detected when the overlap
(computed in Eq. 10) is below the defined threshold τ .
Dolls
1
326
7
8893
Success plots of OPE
Success rate
f
||{k|ϕk > τ }k=1
||
Nf
Motorbikes
3
695
2
392
1
N
Pτ (X̂k , XkG ) =
Balls
4
949
None
None
0.6
0.4
0.2
0
0
0.2
0.4
0.6
0.8
1
Overlap threshold
Evaluation of the sub-components of the tracker
In this section, we describe how we evaluated the contributions
of the key components of the proposed method (i.e., NetC, NetT
branches and adaptation) to the overall performance. In the first
experiment, we designed our baseline algorithm to only apply
the shared network NetS which fed into one branch of NetT.
Since NetC was not used to classify the tracked category, the
branch of pedestrian category in NetT was manually chosen as
the pedestrian category dominates the test dataset. Note that the
baseline algorithm fine-tunes NetT based on the initial bounding
box. In the second experiment, we combined the baseline model
with NetC to activate the corresponding (category-based) branch
in NetT. In this stage, we also adapt the triggered NetT in
the first frame while no inter-supervised adaptation takes place
between the networks during tracking. This experiment shows
how much the semantic (category) information can improve the
performance. Finally, we performed the experiment with enabled
inter-supervision between NetC and NetT to observe further improvements of the performance, as shown in Fig. 3.
It is interesting to note that the baseline algorithm which uses
the pedestrian branch of the NetT network for all testing videos
(64% of the sequences, in fact, belong to other, non-pedestrian
categories) still shows a relatively strong performance. For example, despite using a non-optimal NetT branch (i.e., pedestrian)
for most of the sequences, it still performs favourably compared
to DST [41] (0.498, ranked 6th) and DSST [7] (0.475, ranked
7th) in the overall evaluation. This relatively strong performance
can be attributed to the NetT fine-tuning initialisation step which
adapts the branch for a particular tracking video. Adding NetC to
the baseline algorithm results in significant improvements, which
demonstrates the effectiveness of the semantic information. This
can also be observed in Fig. 3 (bottom), which shows that for
a deforming target, the baseline tracker gradually drifts to the
background while both NetC enhanced baseline algorithm and the
Fig. 3. Top: Evaluation of the sub-components of the tracker. The performance score (AUC value) for each tracker is shown in the legend.
Bottom: Tracking results shown on a frame from the “Diver” sequence
when using the baseline, baseline+NetC and the full algorithm.
full algorithm can track the diver robustly. The adaptation process,
by inter-supervision between NetC and NetT further advances the
overall performance (shown in Fig. 3 plots).
4.3 Qualitative comparison among CNN-based trackers
We compare our tracker to other methods [21], [37] which also
have the same major component, i.e., CNN, as our proposed
semantic tracker. Ma et al. [21] utilised the pre-trained VGG
model (from ImageNet) as a feature extractor, together with
the kernelised correlation filter tracking framework. Since HCF
tracker [21] only utilised the off-line trained model, a comparison
between our work and HCF demonstrates the effectiveness of the
online learning part for the proposed tracker. Note that the scale of
HCF tracker [21] is not adapted, thus this comparison also shows
the advantages of applying the bounding box adaptation for our
tracker. Different from HCF [21], Wang et al. [37] utilised the
8
CNN for online learning which also distinguished the foreground
target from a background like our NetT network. A comparison
to DLT [37] (its performance is shown in Fig. 4) demonstrates
a superior performance of our tracker due to the semantic information and inter-supervised network adaptation jointly from NetC
and NetT.
In the sequences containing objects with significant scale
variations, e.g. freeman4, doll, HCF [21] tracker fails in tracking
the object accurately. This is because HCF tracker cannot adapt the
scale of the template. In contrast, our approach which implements
scale adaptation can successfully deal with this problem. Note
that HCF still exhibits the advantage of using the sophisticated
features learned from ImageNet in the sequence skiing, compared
to the online trained DLT [37] tracker. This is because DTL
tracker online trains the network purely based on the tracking
results without additional supervision. When the target appearance
changes dramatically, e.g., significant illumination conditions in
sequence singer2 and a partial occlusion in lemming, DTL tracker
will gradually learn the background information and incorporate
it into the model which will finally result in a failure. In contrast,
our tracker benefits from the semantic knowledge about the target
category, which provides more reliable training data to update the
network in a robust way.
4.4
Overall performance comparison
We evaluated our proposed tracker by comparing it to 29 original
trackers in OTB [39] and additional 9 recently published trackers,
namely, CCT [45], LCT [22], KCF [14], MEEM [44], DSST [7],
TGPR [11], DST [41], and CNN-based trackers HCF [21] and
DLT [37]. The AUC score of the top 10 trackers in terms of
the success plots are shown in Tab. 5, which shows the results
obtained on 1) the whole dataset and 2) sub-datasets annotated
with specific attributes, i.e., deformation (39 sequences), scale
variation (61 sequences), illumination variation (35 sequences),
low resolution (9 sequences), out-of-view (14 sequences) and
fast motion (37 sequences). As shown in Tab. 5, the proposed
semantic tracker outperforms all other 38 state-of-the-art trackers,
not only overall, but also on the sub-datasets annotated with
specific attributes, namely IV, SV, DEF, FM, OV and LR.
4.5
Failure cases
It is also important to identify and analyse the failure cases of
the designed algorithm. We show two such examples in Fig. 5.
Even though our tracker has achieved superior performance both
overall and on the sub-sequences with annotated attributes, it still
has difficulties tracking objects in scenes with camouflage. In
such cases, semantic information only about the target itself is
not sufficient to distinguish the object from the background which
has an identical appearance as the target. To tackle these types of
problems, the tracker should also exploit the semantic information
contained in the scene [41].
features and category-specific features. During online tracking,
consistent outputs of NetC and NetT jointly determine the sample
regions with the right category and foreground labels for target
estimation, while inconsistencies in the outputs of NetC and NetT
trigger adaptation of the networks. The extensive experiments have
shown that our tracker outperforms 38 state-of-the-art tracking
algorithms tested on a large scale tracking benchmark OTB [39]
with 100 sequences. Note that our current work only considers the
semantic information of the objects, and that a lack of contextual
semantic information may cause tracking difficulties/failures in
highly cluttered scenes or when tracking objects without distinguishing features, such as translucent objects, as mentioned
in [41]. Therefore, in future, we will also exploit contextual
semantic information and improve the performance of the tracker
in cases of camouflage. In addition, our ongoing work will also
focus on scaling up the proposed semantic tracker to a larger
number of categories. This requires the tracker to construct multibranches of NetT network in a more automatic, self-organised,
way.
ACKNOWLEDGEMENT
We acknowledge MoD/Dstl and EPSRC for providing the grant
to support the UK academics (Ales Leonardis) involvement in
a Department of Defense funded MURI project. This work was
also supported by EU H2020 RoMaNS 645582 and EPSRC
EP/M026477/1.
R EFERENCES
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
5
C ONCLUSIONS
In this paper, we proposed a new single target semantic tracker
which intertwines the processes of target classification and target
tracking. This is achieved by a novel network structure which
comprises of different CNNs, i.e., a shared convolutional network
(NetS), a classification network (NetC) and a tracking network
(NetT). These networks are trained to encompass both generic
[15]
[16]
[17]
A. Adam, E. Rivlin, and I. Shimshoni. Robust fragments-based tracking
using the integral histogram. In CVPR, 2006.
X. Cao, C. Gao, J. Lan, Y. Yuan, and P. Yan. Ego motion guided particle
filter for vehicle tracking in airborne videos. Neurocomputing, 2014.
L. Čehovin, A. Leonardis, and M. Kristan. Visual object tracking
performance measures revisited. IEEE TIP, 2016.
K. Chatfield, K. Simonyan, A. Vedaldi, and A. Zisserman. Return of
the devil in the details: Delving deep into convolutional nets. In BMVC,
2014.
J.-N. Chi, C. Qian, P. Zhang, W. Xiao, and L. Xie. A novel elm based
adaptive kalman filter tracking algorithm. Neurocomputing, 2014.
D. Comaniciu, V. Ramesh, and P. Meer. Real-time tracking of non-rigid
objects using mean shift. In CVPR, 2000.
M. Danelljan, G. Häger, F. Khan, and M. Felsberg. Accurate scale
estimation for robust visual tracking. In BMVC, 2014.
J. Deng, W. Dong, R. Socher, L.-J. Li, K. Li, and L. Fei-Fei. Imagenet:
A large-scale hierarchical image database. In CVPR, 2009.
J. Fan, X. Shen, and Y. Wu. What are we tracking: a unified approach of
tracking and recognition. IEEE TIP, 22(2):549–560, 2013.
P. F. Felzenszwalb, R. B. Girshick, D. McAllester, and D. Ramanan.
Object detection with discriminatively trained part-based models. IEEE
TPAMI, 32(9):1627–1645, 2010.
J. Gao, H. Ling, W. Hu, and J. Xing. Transfer learning based visual
tracking with gaussian processes regression. In ECCV, 2014.
R. Girshick, J. Donahue, T. Darrell, and J. Malik. Rich feature hierarchies
for accurate object detection and semantic segmentation. In CVPR, 2014.
S. Hare, A. Saffari, and P. H. Torr. Struck: Structured output tracking
with kernels. In ICCV, 2011.
J. F. Henriques, R. Caseiro, P. Martins, and J. Batista. High-speed
tracking with kernelized correlation filters. IEEE TPAMI, 2015.
M. Kristan, J. Matas, A. Leonardis, T. Vojir, R. Pflugfelder, G. Fernandez,
G. Nebehay, F. Porikli, and L. Cehovin. A novel performance evaluation
methodology for single-target trackers. IEEE TPAMI.
A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification
with deep convolutional neural networks. In NIPS, 2012.
N. Kruger, P. Janssen, S. Kalkan, M. Lappe, A. Leonardis, J. Piater, A. J.
Rodriguez-Sanchez, and L. Wiskott. Deep hierarchies in the primate
visual cortex: What can we learn for computer vision? IEEE TPAMI,
35(8):1847–1871, 2013.
9
Fig. 4. Qualitative results of the CNN based trackers ( red: ours; yellow: HCF [21]; blue: DLT [37].) on sequences: (a) freeman4; (b) doll; (c) skiing;
(d) singer2; (e) lemming.
Fig. 5. Two examples of failure cases of the semantic tracker. The blue bounding boxes indicate the (annotated) ground truth, while the red bounding
boxes were output by our semantic tracker.
[18] K. Lebeda, S. Hadfield, and R. Bowden. Exploring causal relationships
in visual object tracking. In ICCV, 2015.
[19] K.-C. Lee, J. Ho, M.-H. Yang, and D. Kriegman. Visual tracking and
recognition using probabilistic appearance manifolds. Computer Vision
and Image Understanding, 99(3):303–331, 2005.
[20] H. Li, Y. Li, and F. Porikli. Deeptrack: Learning discriminative feature
representations online for robust visual tracking. IEEE TIP, 25(4):1834–
1848, 2016.
[21] C. Ma, J.-B. Huang, X. Yang, and M.-H. Yang. Hierarchical convolutional features for visual tracking. In ICCV, 2015.
[22] C. Ma, X. Yang, C. Zhang, and M.-H. Yang. Long-term correlation
tracking. In CVPR, 2015.
[23] X. Mei and H. Ling. Robust visual tracking using L1 minimization. In
ICCV, 2009.
[24] H. Nam and B. Han. Learning multi-domain convolutional neural
networks for visual tracking. In CVPR, 2016.
[25] K. Nummiaro, E. Koller-Meier, and L. Van Gool. An adaptive colorbased particle filter. Image and vision computing, 2003.
[26] I. Oikonomidis, N. Kyriazis, and A. A. Argyros. Tracking the articulated
motion of two strongly interacting hands. In CVPR, 2012.
[27] J. Redmon, S. Divvala, R. Girshick, and A. Farhadi. You only look once:
Unified, real-time object detection. 2016.
[28] K. Simonyan and A. Zisserman. Very deep convolutional networks for
large-scale image recognition. In ICLR, 2014.
10
TABLE 5
The AUC score of OPE [39] success plots for the top 10 compared trackers. The best tracker is in bold, while the second best is denoted with *. IV:
illumination variation; OPR: out-of-plane rotation; SV: scale variation; OCC: occlusion; DEF: deformation; MB: motion blur; FM: fast motion: IPR: in
plane rotation; OV: out of view; BC: background clutter; LR: low resolution.
Ours
HCF
LCT
CCT
MEEM
DST
DSST
KCF
Struck
TGPR
Overall
0.572
0.562*
0.562
0.549
0.530
0.498
0.475
0.475
0.459
0.458
IV
0.577
0.540
0.556*
0.533
0.521
0.456
0.486
0.474
0.430
0.448
OPR
0.544*
0.531
0.547
0.519
0.530
0.461
0.465
0.463
0.435
0.456
SV
0.562
0.486
0.500*
0.486
0.479
0.402
0.414
0.396
0.406
0.405
OCC
0.514
0.520
0.515*
0.482
0.512
0.461
0.446
0.456
0.405
0.430
DEF
0.573
0.525*
0.507
0.514
0.496
0.498
0.433
0.455
0.403
0.460
[29] C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Erhan,
V. Vanhoucke, and A. Rabinovich. Going deeper with convolutions. In
CVPR, 2015.
[30] L. Čehovin, M. Kristan, and A. Leonardis. Robust visual tracking using
an adaptive coupled-layer visual model. IEEE TPAMI, 2013.
[31] A. Vedaldi and K. Lenc. Matconvnet: Convolutional neural networks for
matlab. In Proceedings of the 23rd ACM International Conference on
Multimedia, pages 689–692. ACM, 2015.
[32] M. Vondrak, L. Sigal, and O. C. Jenkins. Dynamical simulation priors
for human motion tracking. IEEE TPAMI, 2013.
[33] D. Wang, H. Lu, Z. Xiao, and M.-H. Yang. Inverse sparse tracker with a
locally weighted distance metric. IEEE TIP, 24(9):2646–2657, 2015.
[34] L. Wang, T. Liu, G. Wang, K. L. Chan, and Q. Yang. Video tracking
using learned hierarchical features. IEEE TIP, 24(4):1424–1435, 2015.
[35] L. Wang, W. Ouyang, X. Wang, and H. Lu. Visual tracking with fully
convolutional networks. In ICCV, 2015.
[36] L. Wang, W. Ouyang, X. Wang, and H. Lu. Stct: Sequentially training
convolutional networks for visual tracking. CVPR, 2016.
[37] N. Wang and D.-Y. Yeung. Learning a deep compact image representation for visual tracking. In NIPS, 2013.
[38] X. Wang, M. Valstar, B. Martinez, M. H. Khan, and T. Pridmore. Trictrack: Tracking by regression with incrementally learned cascades. In
ICCV, 2015.
[39] Y. Wu, J. Lim, and M.-H. Yang. Object tracking benchmark. IEEE
TPAMI, 2015.
[40] Y. Wu, M. Pei, M. Yang, J. Yuan, and Y. Jia. Robust discriminative
tracking via landmark-based label propagation. IEEE TIP, 24(5):1510–
1523, 2015.
[41] J. Xiao, L. Qiao, R. Stolkin, and A. Leonardis. Distractor-supported
single target tracking in extremely cluttered scenes. In ECCV, 2016.
[42] J. Xiao, R. Stolkin, and A. Leonardis. Single target tracking using
adaptive clustered decision trees and dynamic multi-level appearance
models. In CVPR, 2015.
[43] X. Yun and Z.-L. Jing. Kernel joint visual tracking and recognition
based on structured sparse representation. Neurocomputing, 193:181–
192, 2016.
[44] J. Zhang, S. Ma, and S. Sclaroff. Meem: Robust tracking via multiple
experts using entropy minimization. In ECCV, 2014.
[45] G. Zhu, J. Wang, Y. Wu, and H. Lu. Collaborative correlation tracking.
In BMVC, 2015.
Jingjing Xiao received her Bachelor and Master degree from College of Mechatronics Engineering and Automation, National University of
Defence Technology, China, in 2010 and 2012,
respectively. She holds a PhD degree from University of Birmingham in 2016. She received the
best poster award in the BMVA summer school
in 2014. Currently, she is a research fellow in
the University of Birmingham, U.K..Her research
interests include single object tracking, multiobject tracking with computer vision.
MB
0.577*
0.585
0.533
0.541
0.556
0.512
0.467
0.459
0.456
0.429
FM
0.589
0.578*
0.560
0.571
0.557
0.513
0.452
0.465
0.469
0.421
IPR
0.532
0.559
0.557*
0.516
0.529
0.491
0.485
0.465
0.447
0.462
OV
0.516
0.474
0.452
0.430
0.488*
0.437
0.374
0.393
0.359
0.373
BC
0.516
0.585
0.550*
0.521
0.519
0.487
0.477
0.497
0.427
0.428
LR
0.568
0.388
0.399
0.432*
0.382
0.318
0.314
0.290
0.313
0.344
Qiang Lan received the M.S. and B.S. degrees
in computer science from the National University of Defense Technology (NUDT), Changsha,
China. He continues his PhD degree in computer
science and technology in NUDT. His research
topics are about high performance computing
and computation optimization in convolutional
neural network.
Linbo Qiao received the M.S. and B.S. degrees
in computer science from the National University of Defense Technology (NUDT), Changsha,
China, where he is currently pursuing the PhD
degree in computer science and technology. His
research interests include machine learning, online and distributed computation.
Aleš Leonardis is Professor at the School of
Computer Science, University of Birmingham
and co-Director of the Centre for Computational
Neuroscience and Cognitive Robotics. He is also
Professor at the FCIS, University of Ljubljana
and adjunct professor at the FCS, TU-Graz. His
research interests include robust and adaptive
methods for computer vision, object and scene
recognition and categorization, statistical visual
learning, 3D object modelling, and biologically
motivated vision.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
