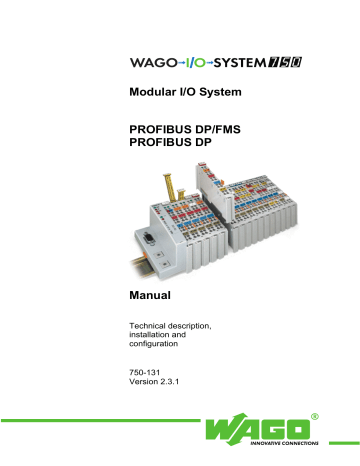

Modular I/O System
PROFIBUS DP/FMS
PROFIBUS DP
Manual
Technical description,
installation and
configuration
750-131
Version 2.3.1
ii • General
Copyright ã 1997-2001 by WAGO Kontakttechnik GmbH
All rights reserved.
WAGO Kontakttechnik GmbH
Hansastraße 27
D-32423 Minden
Phone: +49 (0) 571/8 87 – 0
Fax:
+49 (0) 571/8 87 – 1 69
E-Mail: [email protected]
Web:
http://www.wago.com
Technical Support
Phone: +49 (0) 571/8 87 – 5 55
Fax:
+49 (0) 571/8 87 – 4 30
E-Mail: [email protected]
Every conceivable measure has been taken to ensure the correctness and completeness of this documentation. However, as errors can never be fully excluded we would appreciate any information or ideas at any time.
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally trademark or patent protected.
Modular I/O System
PROFIBUS
TABLE OF CONTENTS • iii
TABLE OF CONTENTS
Section 1:
Explanations
Section 2:
System Description PROFIBUS, Configuration,
Initial Starting, Diagnosis
Section 3:
Digital Inputs
750-400, 750-401, 750-402, 750-403, 750-405, 750-406,
750-410, 750-411, 750-408, 750-409, 750-412, 750-413,
750-414, 750-415
750-404
Section 4:
Digital Outputs
750-501, 750-502, 750-504, 750-516, 750-519
750-506
750-509
750-511
750-512, 750-513, 750-514, 750-517
Section 5:
Analog Inputs
750-452, 750-454, 750-482, 750-484
750-456,
750-461, 750-481
750-462, 750-469
750-465, 750-466, 750-486,
750-467, 750-468, 750-487, 750-488
750-472, 750-474
750-476, 750-478
Section 6:
Analog Outputs
750-550, 750-580
750-552, 750-554, 750-584
750-556
Section 7:
End- and Supply Terminal Blocks
750-600, 750-614, 750-616
750-601, 750-602, 750-609, 750-610, 750-611, 750-612,
750-613, 750-615
750-622
Section 8:
SSI Encoder Interface, Quadrature Encoder Interface
750-630, 750-631
Section 9:
RS232, TTY, RS485
750-650, 750-651, 750-653
Section 0:
Application in Explosive Environments
Modular I/O System
PROFIBUS
iv • Notes
Modular I/O System
PROFIBUS
IMPORTANT!
For fast, trouble free installation and start up of the devices described in this manual, the
user should carefully read and follow the advice and explanations offered in this guide.
Explanation of symbols used:
The EXCLAMATION POINT symbol is used when:
a) improper handling could cause damage or destruction of the hard- or software
b) possible injury to persons when interfacing to dangerous process peripherals.
The FINGER symbol describes routines or gives advice for the efficient use of the
devices and optimal use of the software.
FUNCTION The FUNCTION symbol refers to helpful notes which are necessary for correct
function. These remarks should be followed.
The QUESTION MARK gives an explanation of terms.
The symbol BOOKS gives references to additional literature, manuals and data sheets.
The user is most important to us:
We place great importance on the quality and user-friendliness of our manuals. Should
you have any ideas or suggestions for improvement to the contents or graphical design,
we would be glad to receive your proposals.
Notice:
This manual, including all illustrations, is copyrighted. Any use of this manual beyond
the terms of copyright is not allowed. The reproduction, translation, or use of the
electronic and mechanical information is subject to written authorization from WAGO
Kontakttechnik GmbH. Violations will be prosecuted. WAGO Kontakttechnik GmbH
reserves the right of alternation and changes. All rights in case of granting patents or
protective rights are reserved to WAGO Kontakttechnik GmbH.
In the case of non-WAGO products no reference to patent rights is given, but their
existence is noted. The use of the products described in this manuals exclusively
intended for experts trained in PLC programming or electrical engineering, who are
familiar with the national electrical standards in force. WAGO Kontakttechnik GmbH
and overseas subsidiaries will not accept any liability for faulty actions and damages
which occur on WAGO or non-WAGO products when disregarding the information
given in this manual. Any change made in WAGO hard or software (for example entries
in a register) will result in an exclusion of liability on the part of WAGO Kontakttechnik
GmbH.
PROFIBUS / General information
16.06.1999
1
:$*2Ç,2Ç6<67(0
Table of contents chapter 2
1 The WAGO I/O SYSTEM
1
2 Buscoupler, Profibus DP/FMS
4
2.1 Buscoupler-Hardware
2.2 Supply voltage - Electronics
2.3 Supply voltage - Field Side
2.4 Bus connection and station address
4
3 Enclosure and technical data
10
4 PROFIBUS
12
4.1 Interface Modules
4.2 Configuration software
12
5 Configuration of the fieldbus node in the master
controller
13
5.1 Master file of devices
5.2 TYPE File
5.3 Parameterization of the Fieldbus Station
5.4 Example of application
13
6 Buscoupler startup and troubleshooting
6.1 Further Diagnostic functions
23
26
7 General conditions
29
7.1 Transport and storing conditions
7.2 Mechanical and climatic conditions
7.3 Class of protection and degree of protection
7.4 Electromagnetic compatibility
7.5 Power supply
7.6 Certificates
29
29
30
31
31
31
8 The Status Byte for PROFIBUS
32
5
6
8
12
15
16
18
PROFIBUS / General information
16.06.1999
:$*2Ç,2Ç6<67(0
1
The WAGO I/O System
The WAGO I/O SYSTEM consists of various components which are capable of
providing modular and application specific fieldbus nodes for various fieldbusses.
I11.1 Setting up a fieldbus node with the WAGO I/O SYSTEM
General remark:
A fieldbus node consists in principle of a fieldbus coupler at the front end, a number of
special function modules and a termination module which is placed at the other end.
1 - Buscoupler
The Buscoupler forms the link between the fieldbus and the field devices with their I/O
functions. All control functions required for the faultless operation of the I/O functions
are carried out by the coupler. The connection to different fieldbus systems is
established by each of the corresponding Buscouplers, e.g. for PROFIBUS, INTERBUS
S, II/O LIGHTBUS, CAN, ModBus etc. In this way a change of the fieldbus system is
possible.
2 - Function modules
In the function modules, the incoming process data ais converted. Corresponding to the
different requirements, special function modules are available for a variety of functions.
There are digital and analog inputs and outputs and modules for special functions. The
modules are described in the following chapters.
3 - Termination module
A termination module is needed for faultless operation of the node. The termination
module is always placed as the last module in order to obtain a termination of the
fieldbus node. This module has no I/O function.
PROFIBUS / Introduction
16.06.1999
1
:$*2Ç,2Ç6<67(0
Assembly of the WAGO I/O System
All components of the system can be snapped directly on a carrier rail according to EN
50022 (DIN 35).
When snapping the analog or digital components onto the rail, no special sequence must
be observed. The secure positioning and connection of the individual function modules
and the coupler is provided by a snap-in system. This snap-in system provides automatic
interlocking onto the DIN rail assembly. It is always possible to remove a function
module or the Buscoupler from the assembly by pulling the orange pull-tab.
Please note, that the power supply of the field side as well as the data transmission are
interrupted. It has to be ensured that the interruption of PE will not put personnel or
equipment in danger.
With a CAGE CLAMP, conductors with a cross section of 0.08 to 2.5mm2 /AWG 18-14
can be connected. Vibration proof, fast and maintenance-free. You simply introduce a
screwdriver or an operating tool into the operating slot under the clamping unit. The
CAGE CLAMP spring is pressed down. You can now introduce the wire into the
clamping unit. Withdraw the operating tool and the conductor is automatically clamped.
PROFIBUS / Introduction
16.06.1999
2
:$*2Ç,2Ç6<67(0
The clamping force adjusts automatically to the conductor cross section. The flat
clamping face of the CAGE CLAMP spring presses the conductor against the current
bar without damage. Any deformation or movement of the conductor is compensated,
thus eliminating the risk of a loose connection. The contact point between conductor
and CAGE CLAMP is well protected against corrosive deterioration. This connection is
made fast and, furthermore, it is maintenance-free. There is no need for costly periodical
examination of the connections.
The supply modules of the WAGO I/O system are partly equipped with a fuse holder.
This fuse holder can be pulled out in order to break the circuit of the following modules.
To do so, you first have to insert a screwdriver into one of the slots on both sides in
order to pull out the front side of the fuse holder.
The front side now being hinged down makes it possible to remove or to insert the fuse.
After that, you lift up the front side again and push the fuse holder back into its original
position.
PROFIBUS / Introduction
16.06.1999
3
:$*2Ç,2Ç6<67(0
2
Buscoupler - PROFIBUS DP/FMS
2.1
Buscoupler - Hardware
Ill. 2 Top view of the WAGO 750-301 PROFIBUS coupler DP/FMS
The 750-301 Profibus coupler consists of two major electronic sub systems:
left side:
This housing contains the electronics for the coupling to the bus, the processor
and the fieldbus connection. (ill. 2.1)
right side:
This housing contains the DC to DC converter and power distribution for the internal K
bus, local processor and external 24 V DC connections to other discrete I/O modules.
Illustration 2.2 identifies the 24 V DC connection points to supply voltage to I/O
modules. Illustration 2.3 identifies the ground connection.
PROFIBUS / Buscoupler
16.06.1999
4
:$*2Ç,2Ç6<67(0
2.2
Supply Voltage - Electronics
Ill. 3: Termination points for the power supply and the internal electronics
The nominal operating voltage of the Buscoupler and the control electronics in the
function modules is 5 V DC. The supply is connected to the first two CAGE CLAMPS
at the top of the coupler as seen in Ill. 3.
The 24 V DC supply voltage is converted by an internal voltage regulator (DC/DC
converter) and fed to the electronics (5 V DC). The electrical isolation of the external
bus system is made by utilizing an optocoupler.
Please note that the power connection for the control electronics in the function modules
is made automatically by the data contacts of the following module when it is snapped
on the assembly (ill. 3.1). The power supply to the attached I/O modules is provided by
gold-plated self-cleaning slide contacts. If an attached module is taken out of the
existing configuration, the connection via the K bus is broken and the coupler is able to
detect this.
WARNING
If a module is taken out of the existing configuration, there may be undefined states.
You should disconnect the power supply when changing anything in the configuration.
PROFIBUS / Buscoupler
16.06.1999
5
:$*2Ç,2Ç6<67(0
2.3
Supply Voltage - Field Side
Ill. 4: Termination points for the supply voltage - field side
The connection of the field side supply voltage is electrically isolated from the internal
electronics. Field side connection points have two CAGE CLAMPS which are always
connected to a power jumper contact (P.J.C.). In this way, the power supply is taken to
different points of the configuration.
It is possible to supply the following at the termination points (Ill. 4):
Volts: 24 V DC - Amps: 10 A DC
WARNING!
120 and 230 V AC can only be supplied via modules 750-609, 750-611 and 750-612!
The supply modules which are permanently integrated on the buscouplers, can be
supplied with 24 V DC only. The current on the power contacts should be max. 10 A.
The voltage is automatically supplied when the function modules are snapped together.
Self-cleaning power jumper contacts (P.J.C.s) ensure safe connections (Ill. 4). Female
contacts (current supply) are integrated in the buscoupler and I/O housings. The male
contacts on the buscoupler and I/O housings supply the voltage to the I/O modules when
inserted together from left to right.
The ground (earth) contact makes first and breaks last conforming to electrical standards
and can be used as protective grounding.
FUNCTION!
Depending on the I/O function, some modules do not have P.J.C.s. It is important to
note this when assembling a node. Many modules require field side power, many do
not. Please review the circuit diagrams of the individual modules. An additional power
supply module may be necessary.
PROFIBUS / Buscoupler
16.06.1999
6
:$*2Ç,2Ç6<67(0
When using the supply module 750-601/602, the field supply from the bus coupler is
interrupted. From that point a new power supply connection is necessary to provide DC
to any additional I/O modules.
WARNING!
The ground ( earth) field side contact should be disconnected when testing the isolation.
Otherwise the results could be wrong or the module could be destroyed.
PROFIBUS / Buscoupler
16.06.1999
7
:$*2Ç,2Ç6<67(0
2.4
Bus connection and station (Node) address
Ill. 5: Bus connection, setting of station (Node) address
Fieldbus connection:
The PROFIBUS interface is provided by D SUB connection according to US Standard
EIA RS-485, utilizing standard twisted pair cabeling.
7HUPLQDWLRQ
7HUPLQDWLRQ
220
390
390
220
390
9
390
9
1RGH
1RGH
1RGH
Ill. 6: Cabling of PROFIBUS DP/FMS
The following table shows the cabling of the D SUB connector:
Pin
3
5
6
8
Signal
RxD(TxD)-P
GND
Vcc
RxD(TxD) N
PROFIBUS / Buscoupler
16.06.1999
description
send (receive) signal
earth (ground)
voltage supply
send (receive) signal
8
:$*2Ç,2Ç6<67(0
All nodes are cabled in parallel. In order to guarantee data integrity to each node a
terminating resistor (the value depends on the resistance of the cable, e.g. 220 Ω) must
be placed across the data transmission lines at both master and slave points. Two 390 Ω
bias resistors must be connected with the 220 Ω resistor as shown in ill.6.
Station address:
The desired node address is set by means of the two encoding switches located on the
buscoupler. The address is adjustable in the range of 0....99.
The value of the switch at the bottom must be multiplied with 10, the value of the
switch at the top must be added and this number is the value of the address.
PROFIBUS / Buscoupler
16.06.1999
9
:$*2Ç,2Ç6<67(0
Configuration Interface
The configuration interface used for the communication with
WAGO-I/O-CHECK or for firmware upload is located behind the cover flap.
Configuration
interface
Fig. X-1: Configuration interface
g01xx06e
The communication cable (750-920) is connected to the 4-pole header.
Warning
The communication cable 750-920 must not be connected or disconnected
while the coupler/controller is powered on!
PROFIBUS
9a
WAGO-I/O-SYSTEM 750
3 The Enclosure and Specifications
SYSTEM DATA:
750-301
96 with repeater
approx. 6000
(depends on Master)
750-323
Max. no. of nodes
96 with repeater
Max. no. I/O points
approx. 6000
(depends on
Master)
Transmission medium
shielded 2-wire Cu cable according to PROFIBUS Standard
(EN 50170)
Max. length of bus
200 ... 2000 m 100 m ... 1200 m
100 ... 1200 m
line
depends on Baud rate
depends on Baud
/ on the cable
rate / on the cable
Baud rate
9.6 kBaud...
9.6 kBaud...
9.6 kBaud...
1.5 MBaud
12 MBaud
12 MBaud
PROFIBUS / Enclosure and specifications
16.06.1999
750-303
96 with repeater
approx. 6000
(depends on Master)
10
:$*2Ç,2Ç6<67(0
TECHNICAL DATA:
number of function modules
digital peripheral signals
analog peripheral signals
configuration possibility
Bus connection
voltage supply
input current
Internal Current
power jumper contacts
Maximum current supplied to K-bus
contacts for internal module use
voltage power jumper contacts
current power jumper contacts
data contacts
750-301
analog / digital
64
256
122
750-303
750-323
analog / digital
digital
64
64
256
256
depends on protocol
--DP: 64
DP/FMS: 321)
via PC or control
via PC or control
--1 D-SUB with protection against vibration
24V DC (18 - 30V DC)
105 mA typ.
105 mA typ.
85 mA typ.
900 mA max.
900 mA max.
500 mA max.
500 mA
blade/spring contact
slide contact, self-cleaning
1.75A
0.75A
24V DC
10A DC
slide contacts, 1.5u hard gold-plated,
self-cleaning
<1V with 64 wired special function modules
Polycarbonate, Polyamide 6.6
standard markers WAGO series 247/248
marker cards 8 x 47mm
CAGE CLAMP; 0.08mm2 -2.5mm2
IEC 68-2-6 / IEC 68-2-27
any position
IP 20
500 V system / supply
0° C... +55° C
51 x 65* x 100 (*from upper edge of DIN 35 rail)
voltage drop via data contacts
housing material
marking
wire range
vibration and shock resistance
mounting position
type of protection
Isolation
Operating temperature
Dimensions (mm) W x H x L
1)
Default
PROFIBUS / Enclosure and specifications
16.06.1999
11
:$*2Ç,2Ç6<67(0
4 Profibus
The PROFIBUS-Specification (DIN 19245 part 1, 2) specifies the technical and
functional features for the networking of distributed field automation devices.
PROFIBUS distinguishes Master and Slave devices. The WAGO PROFIBUS couplers
belong to the Slave device catagory and transfer or accept messages to/from the Master.
With PROFIBUS DP Mono- or Multi-Master systems can be utilized. Thus a high
degree of flexibility can be obtained for the system configuration. A maximum of 126
devices (including Master) can be connected. The WAGO PROFIBUS coupler address
switches can be set to addresses between 0 and 99. 0,1 & 2 are typically reserved for
Master devices.
4.1
Interface Modules
The operation of the Master is carried out in most cases via a central control, like a PLC,
PC, or NC. The connection to the remote stations is made via interface modules.
Siemens PLC interface modules are:
- Siemens IM308B (Sinec L2DP) 1.5 MBaud
- Siemens IM308C (DP) 12 MBaud
- Siemens CP5431 (DP and FMS) 1.5 MBaud
Attention:
Note that IM308B allows only 32 input and output Bytes. Moreover it has to be noted
that the present versions of analog function modules must be considered as Input/Output
devices and therefore Input/Output addresses must both be entered per channel under
the 308B whereas the IM308C & CP5431 supports 244 Input and 244 Output Bytes.
The exact configuration description follows in the next chapters.
4.2
Configuration software
In order to make a connection between the PLC and the remote stations, the interface
modules must be configured with the individual node/station data.
The following software packages are available from Siemens:
- for IM308C the software COMWIN / Proficom (executable under WINDOWS 3.1,
Win95)
- for IM308B the software COMET200 (executable under DOS)
PROFIBUS / Profibus
16.06.1999
12
:$*2Ç,2Ç6<67(0
5
Configuration of the fieldbus node in the master connection
5.1
Master file of devices
The features of the devices are documented by the manufacturers under PROFIBUS DP in
the form of a master file of devices.
Structure, contents and coding of this device master file are standardized so that replacing
of any DP slaves with other devices from different manufacturers is possible.
The PUO (PROFIBUS User Organization) / PTO (PROFIBUS Trade Organization) updates
the device master file of all listed manufacturers.
The data in the device master file is read by the respective configuration software and the
corresponding settings are transmitted. The necessary entries and sequences of operation
are stated in the respective software user manuals. The necessary data is made available to
the master in the form of identification bytes.
An identification byte has the following format:
7
6
5
4
3
2
1
0
data length
00 =1 byte or word
01 =2 bytes or words
.
.
15 =16 bytes or words
In- and Output
00 = specific identification formats
01 = Input
02 = Output
11 = In- and Output
Format
0 = byte structure
1 = word structure
Consistency over
0 = byte or word
1 = total length
Table 1: description of format - identification bytes
PROFIBUS / Configuration
16.06.1999
13
:$*2Ç,2Ç6<67(0
Explanation:
Digital I/O’s have data placement inconsistancy because each bit includes its own
independend data.
Analog I/O’s have consistancy because the whole byte/word contains complete
information for the respective I/O module.
The WAGO PROFIBUS coupler is configured by identification bits/words for each
signal channel. When configuring the system care should given so that the analog
modules are configured from left to right byte by byte. This is critical to the proper
operation of the Master. After completion of the analog channels the digital modules can
be placed in any order.
The projected length of the data stream is determined by the amount of modules present.
Differing data legths will cause the buscoupler to reject that information.
The following table shows the possible identification bytes, as given the Device Master
File:
Module:
Format
8 Bit Digital Input
16 Bit Digital Input
8 Bit Digital Output
16 Bit Digital Output
8 Bit Digital In-/Output
16 Bit Digital In-/Output
16 Bit Analog Input
16 Bit Analog Output
32 Bit Analog Input
32 Bit Analog Output
16 Bit Analog In-/Output
32 Bit Analog In-/Output
10 Byte FIFO
2 Byte String
4 Byte String
Byte
Byte
Byte
Byte
Byte
Byte
Word
Word
Word
Word
Byte
Byte
Byte
Byte
Byte
Consistancy
Over
Byte
Byte
Byte
Byte
Byte
Byte
Total Length
Total Length
Total Length
Total Length
Total Length
Total Length
Total Length
Total Length
Total Length
Coding
DEC.
16
17
32
33
48
49
208
209
224
225
177
179
57
177
179
Coding
HEX.
0x10
0x11
0x20
0x21
0x30
0x31
0xD0
0xD1
0xE0
0xE1
0xB1
0xB3
0x39
0xB1
0xB3
Table 2: Device Master File - File of identification bytes.
PROFIBUS / Configuration
16.06.1999
14
:$*2Ç,2Ç6<67(0
5.2
TYPE File
For the configuration of the Master node IM308C and IM308B, so-called TYPE files are
used.
The structure, contents and coding are Siemens specific and are supported by WAGO.
The respective TYPE file (IM308B, C) will be found on the diskette with the Device
Master File.
The following menu displays illustrate the entries as they are shown in COMWIN after
copying the WAGO TYPE File (IM308C):
Ill. 7:1: Screen Example
PROFIBUS / Configuration
16.06.1999
15
:$*2Ç,2Ç6<67(0
5.3
Parameterization of the Fieldbus Station
Apart from the configuration described in the previous chapter, a stacking of the byte
protocol is required before a data exchange between the Master and Slaves can be made.
The parameter record of the WAGO fieldbus coupler comprises 32 parameterization
bytes, the first 7 bytes being reserved for the DP-log. By means of the following user
parameters, different operating modes of the coupler can be set. The table below shows
the possible user parameters as well as their value ranges and the default setting.
Byte No.
Bit N0.
value
0
0-7
-
1
0-7
1-255
Watchdog-Factor 1
2
0-7
1-255
Watchdog-Factor 2
3
0-7
0-150
Min TSDR
4
0-7
183
ID of vendor (high byte)
5
0-7
80
ID of vendor (low byte)
6
0-7
Tabelle 3.1
Status of the station (see DIN 19245-3)
Group (see DIN 19245-3)
Available part of the parameterization of the buscoupler 750-301
Byte No.
Bit No.
value
0
0-7
-
1
0-7
1-255
Watchdog-Factor 1
2
0-7
1-255
Watchdog-Factor 2
3
0-7
0-255
Min TSDR
4
0-7
183
ID of vendor (low byte)
5
0-7
81
ID of vendor (high byte)
6
0-7
Tabelle 3.2
PROFIBUS / Configuration
16.06.1999
description
description
Status of the station (see DIN 19245-3)
Group (see DIN 19245-3)
Available part of the parameterization of the buscoupler 750-303
16
:$*2Ç,2Ç6<67(0
%\WH1R
%LW1R
YDOXH
UHVHUYHG
UHVHUYHG
UHVHUYHG
UHVHUYHG
UHVHUYHG
%\WH636,QWHUIDFHGHDFWLYDWHG
%\WH636,QWHUIDFHDFWLYDWHG
UHVHUYHG
UHVHUYHG
&\FOLF5HVHWZKHQHUURUGHDFWLYDWHG
&\FOLF5HVHWZKHQHUURUDFWLYDWHG
GHVFULSWLRQ
$XWRPDWLFGLDJQRVWLFVGHDFWLYDWHG
$XWRPDWLFGLDJQRVWLFVDFWLYDWHG
&/($5QRWHYDOXDWHG
&/($5QRWHYDOXDWHG
UHVHUYHG
UHVHUYHG
UHVHUYHG
3URFHVVLPDJHIRUSURJUDPPHGFRQILJXUDWLRQ
FRPSOH[PRGXOHVDUHVHHQLQWKHSURFHVVLPDJHRQO\ZLWKWKHLUXVHGGDWD5HDOB&IJB'DWD
LQIRUPDWLRQRIFRPSOH[PRGXOHVDUHVHHPLQWKHDXWRPDWLFSURFHVVLPDJH5HDOB&IJB'DWD
,17(/IRUPDWIRUDXWRPDWLFSURFHVVLPDJH
$XWRPDWLFSURFHVVLPDJH
027252/$IRUPDWIRUDXWRPDWLFSUR]HVVLPDJH
UHVHUYHG
UHVHUYHG
UHVHUYHG
5HDFWLRQRIILHOGEXV%XVFRXSOHULPDJHIRUILHOGEXVHUURUOHDYLQJRI'3GDWDH[FKDQJH&OHDU
'DWD
GDWDH[FKDQJHRQILHOGEXVLVVWRSSHG
RXWSXWVJRWRVWDWH
RXWSXWVNHHSH[LVWLQJVWDWH
5HDFWLRQRIILHOGEXV%XVFRXSOHULPDJHIRUILHOGEXVHUURU
'3GDWDH[FKDQJHLVOHIW
LQSXWVJRWRVWDWH
LQSXWVNHHSH[LVWLQJVWDWH
UHVHUYHG
0D[LPDO'3'LDJQRVWLFVOHQJWK
%\WH
%\WH
%\WH
%\WH
%\WH
%\WH
%\WH
UHVHUYHG
WLPHRIF\FOXVIRUDFWXDOLVDWLRQRIDXWRPDWLFPRGXOHGLDJQRVWLFV[PV
UHVHUYHG
Table 4: Parameters of the WAGO PROFIBUS-coupler ( Default = fat )
PROFIBUS / Configuration
16.06.1999
17
:$*2Ç,2Ç6<67(0
5.4 Example of application
Subject: Integration of the modules into the PROFIBUS message
Ill.9: Example of Configuration
The PROFIBUS station is composed as follows:
function module
1; digital input
1; digital input
2; digital input
2; digital input
3; supply of potential
4; analog input
4; analog input
5; supply of potential
6; digital output
6; digital output
7; digital output
7; digital output
8; digital output
8; digital output
9; digital output
9; digital output
10; supply of potential
11; analog output
11; analog output
12; analog input
12; analog input
13; analog output
13; analog output
14; analog output
14; analog output
15; supply of potential
16; digital output
16; digital output
17; end module
process image inputs
I10.0
I10.1
I10.2
I10.3
-----IW 130
IW 132
------
------
process image outputs
------
-----Q10.0
Q10.1
Q10.2
Q10.3
Q10.4
Q10.5
Q10.6
Q10.7
-----QW130
QW132
IW134
IW136
QW134
QW136
IW138
IW140
------
------
-----Q11.0
Q11.1
------
Table 5: Assignment - Process Image
PROFIBUS / Configuration
16.06.1999
18
:$*2Ç,2Ç6<67(0
The process image Input/Output addresses shown can be selected within the allowable
range. The configuration of I/O modules in the software package is shown by the
examples in tables 2 and 3.
ATTENTION:
For Siemens S7 you have to use the function modules SFC14 and SFC15 if the data length is
more than 4 Byte.
1) Comwin
NOTE!
After copying the WAGO type file into the Siemens directory comwin20\typdat5x, the
type file is registered by the program via the menu item ‘read in type file’.
After allocation of the station address, configure Wincom by selecting others on the
software menu. “Others” corresponds to the utilization of the WAGO product 750-301.
Ill.10: Integration of the WAGO I/O SYSTEM in PROFIBUS
By double clicking on the station icon OTHERS, the menu is obtained by which the
slave parameters can be set.
Ill. 11: Menu - Slave parameters
PROFIBUS / Configuration
16.06.1999
19
:$*2Ç,2Ç6<67(0
In order to integrate the I/O functions, only one configuration must be utilized. When
selecting the function CONFIGURATION the following menu appears:
Ill. 12: Configuration Menu screen
As described earlier, the stacking of the byte data stream is started by channel (0) which
must be analog I/O first from left to right of the bus coupler.
ATTENTION!
With the present Buscoupler firmware version the analog functions are defined as Input
and Outputs! The length and format are defined with 2 bytes. The correct configuration
can be seen in Ill. 12. Table 3, section 4 conforms to these requirements.
Once the analog functions and modules have been selected and configured the DI/DO
modules can be configured. The order of whether DI or DO comes first is not critical.
The placement of digitial I/O and contruction of the serial data byte stream correlates to
directly to I/O physical placement.
Ill. 13: Menu - Identification
After completion of the software I/O configuration, save your cofiguration and leave the
menu. More nodes can now be configured.
PROFIBUS / Configuration
16.06.1999
20
:$*2Ç,2Ç6<67(0
2) COMET200
The existing Mastercards IM308B and CP5431 have been replaced by a new master type
IM308C. This type will compensate for the limitations of the Input/Output-addressing.
Up to now the IM308B is very common, so the configuration of this master is shown on
the following pages.
The first step is to copy the type-file from the WAGO-Disc (find this enclosed in the
Buscoupler) into the directory ....\COMET200. After the program is downloaded and the
requested language is chosen the screen will show the following picture:
Ill. 14: ET200 - Main Menu
When the program file is selected the system parameters have to be configured with
function key F1:
Ill. 15: System Parameters
PROFIBUS / Configuration
16.06.1999
21
:$*2Ç,2Ç6<67(0
When using the WAGO I/O-System it is necessary to insert “DP-NORM”. The baud
rate can be selected with function key F7. All other options remain the same. Press the
function key F6 to return and save all configuration settings.
The next step is to program the I/O configuration. This option is to be selected with the
menu which was shown in picture 1 via function key F2.
Ill. 16: Selection I/O Modules
Select the type of the I/O module with function key F7. If the WAGO type was copied
into the correct directory the program will have access to the WAGO specific I/O
technical data. The respective address assignment of the individual I/O points is made
after saving the configuration with function key F6.
Ill. 17: Allocation of Addresses
PROFIBUS / Configuration
16.06.1999
22
:$*2Ç,2Ç6<67(0
6
Buscoupler startup and troubleshooting
After configuration of the master connection and electrical installation of the fieldbus
node/station, operation of the system can begin.
After power to the Buscoupler and I/O modules has been applied, the Buscoupler
verifies all internal functions, components and the communication interface by an
internal diagnostic routine. Then the function modules and the existing configuration is
determined. At the same time a hidden file is stored. It consists of an input and an
output area which is located on the fieldbus RAM of the log chip. During the power up
phase the ‘I/O ERR’ LED flashes with an increased frequency. After a faultless power
up the fieldbus coupler enters the state ‘fieldbus start’. The green LED ‘RUN’ indicates
that the Bus is operating normally.
In case of a fault the red ‘I/O ERR’ LED will continue flashing.
By counting the number and frequency of flashes the fault can be easily identified
quickly and accurately. A varying number of flashes and frequencies defines the fault.
The table below describes the fault condition based on the counted number of ‘I/O
ERR’ LED flashes.
I/ORUN
I/OERR
1. sequence
2. sequence
3. sequence
3. blinking
sequence
error code
error argument
1
-
Invalid fieldbus coupler /
Turn off the power supply of the node, exchange
controller parameter checksum fieldbus coupler and turn the power supply on again.
1
Internal buffer overflow during Turn off the power supply of the node, reduce number
inline code generation
of I/O modules and turn the power supply on again. If
the error still exists, exchange the bus coupler.
2
I/O module(s) with
unsupported data type
Detect faulty I/O module as follows: turn off the
power supply. Place the end module in the middle of
the fieldbus node. Turn the power supply on again.
– If the LED is still blinking, turn off the power supply
and place the end module in the middle of the first half
of the node (towards the coupler).
– If the LED doesn’t blink, turn off the power supply
and place the end module in the middle of the second
half of the node (away from the coupler).
Turn the power supply on again. Repeat this
procedure until the faulty I/O module is detected.
Replace the faulty I/O module.
Ask about a firmware update for the fieldbus coupler.
6
The I/O module configuration
after an internal bus reset
(AUTORESET) differs from
the one after the last coupler
boot-up
Restart the fieldbus coupler by turning the power
supply off and on again.
PROFIBUS / Startup
description
2.
2. blinking
sequence
14 1)
2004-02-27
1.
remedy
Maximum number of Gateway Turn off the power supply of the node, reduce number
or Mailbox I/O modules
of Gateway or Mailbox I/O modules and turn the
exceeded
power supply on again.
23
WAGO!I/O!SYSTEM
PROFIBUS / Startup
2004-02-27
3
-
Internal bus communication
malfunction; faulty device
can’t be detected
If the fieldbus node comprises internal system supply
modules (750-613), make sure first that the power
supply of these modules is functioning. This is
indicated by the status LEDs. If all I/O modules are
connected correctly or if the fieldbus node doesn’t
comprise 750-613 modules you can detect the faulty
I/O module as follows: turn off the power supply of
the node. Place the end module in the middle of the
fieldbus node. Turn the power supply on again.
– If the LED is still blinking, turn off the power supply
and place the end module in the middle of the first half
of the node (towards the coupler).
– If the LED doesn’t blink, turn off the power supply
and place the end module in the middle of the second
half of the node (away from the coupler).
Turn the power supply on again. Repeat this
procedure until the faulty I/O module is detected.
Replace the faulty I/O module. If there is only one I/O
module left but the LED is still blinking, then this I/O
module or the coupler is defective. Replace defective
component.
4
-
Error in internal bus data
communication or interruption
of the internal bus at the
coupler
Turn off the power supply of the node. Connect a
process data module to the coupler and observe the
error argument indicated after the fieldbus coupler
power-on. If no error argument is gven by the I/OLED, replace the coupler. Otherwise detect the faulty
I/O module as follows: turn off the power supply of
the node. Place the end module in the middle of the
fieldbus node. Turn the power supply on again.
– If the LED is still blinking, turn off the power supply
and place the end module in the middle of the first half
of the node (towards the coupler).
– If the LED doesn’t blink, turn off the power supply
and place the end module in the middle of the second
half of the node (away from the coupler).
Turn the power supply on again. Repeat this
procedure until the faulty I/O module is detected.
Replace the faulty I/O module. If there is only one I/O
module left but the LED is still blinking, then this I/O
module or the coupler is defective. Replace defective
component.
N 2)
Interruption of the internal bus
after the nth I/O function
module
Turn off the power supply of the node, exchange the
(n+1)th process data module and turn the power supply
on again.
5
N 2)
Turn off the power supply of the node and replace nth
Error in register
communication during internal process data module and turn the power supply on
bus initialisation
again.
6
-
Too little configuration data for Check and correct the node design in respect of node
the existing node
configuration
N (0<N<65) 2)
Invalid configuration data; nth
configuration byte is defective
Check and correct the node design in respect of node
configuration
65 1)
Too much configuration data;
maximum number of bytes
exceeded
Choose the standard module for the configuration of
complex modules. If this error occurs during boot-up
of the coupler, reduce number of complex I/O
modules and correct the node design in respect of
node configuration.
24
WAGO!I/O!SYSTEM
7 3)
N 2)
Turn off the power supply of the coupler and remove
Fieldbus coupler doesn’t
support nth process data module nth process data module and turn the power supply on
again.
8
N 2)
Invalid parameter data (n-1)th
parameter byte defective
Check and correct the node design in respect of
parameters
10
1
The I/O module assembly is
too large for the input process
image of the coupler
Turn off the power supply of the node, reduce number
of input modules and turn the power supply on again.
2
The I/O module assembly is
Turn off the power supply of the node, reduce number
too large for the output process of output modules and turn the power supply on again.
image of the coupler
1)
does not apply to 750-323, 2) The number of blinks (N) indicates the position of the I/O module. I/O modules that don’t
handle process data are not counted, 3) only applies to 750-323
Table 5: Diagnosis LEDs - on modules
After elimination of the fault, the Buscoupler can only be set to the normal working
condition by another POWER ON sequence.
The green I/O LED flashes when accessing the I/O modules internal data channels.
After being switched on, the Buscoupler queries the configuration of the bus modules
but does not carry out a data exchange with the I/O modules. This means that the red
I/O LED will extinguish after a faultless startup. The green I/O LED will indicate when
data is being exchanged by the Profibus network.
Further diagnostic functions are supplied by PROFIBUS DP:
Type of diagnostic
station related
module related
channel related
Messages concerning the general operational mode of a station such as
overtemperature or undervoltage
These messages indicate that within a defined I/O module, diagnostics are
available.
These messages indicate the cause of the fault related to an individual
Input/Output (channel), such as short-circuit at Output 2.
Table 6: Diagnostic Functions - PROFIBUS
Starting with the 3rd quarter of ‘96, all WAGO PROFIBUS couplers support the device
related diagnostic functions of PROFIBUS DP. (The evaluation of individual diagnostic
data).
PROFIBUS / Startup
2004-02-27
25
WAGO!I/O!SYSTEM
The fieldbus LEDs show the operating conditions of the fieldbuses. The functions of
PROFIBUS are indicated by the LEDs ‘RUN’, ‘BF’, and ‘DIA’. The fourth LED
available has no significance.
If the LED ‘BF’ does not flash after calling the response monitoring, the cause may be a
paramatarization or diagnostic fault.
If there are only digital inputs connected to buscoupler 750-323 you have to make sure
that via the user parameter „process image actualization free-running“ (byte 16, bit 6=1)
is enabled. The transmission type cyclus synchronous only works with at least one
digital output.
If only inputs are connected, the I/O Run LED lightens after Power On.
581
%XV)DXOW
%)
',$
1RW6LJQLILFDQW
,2581
,2(55
/('V
PHDQLQJ
581
%)
,2581
RII
RII
RII
RQ
RQ
RII
UHPHG\
WHVWWKHYROWDJHVXSSO\
QRIXQFWLRQ
H[FKDQJHFRXSOHU
3RZHU/('21FRXSOHU
GHIHFWLYH
3RZHU/('2))QRVXSSO\
FRXSOHUKDVOHIWLQLWLDOL]DWLRQDQG 6WDUW352),%860DVWHU
LVUHDG\IRUSDUDPHWHUL]DWLRQDQG
FRQILJXUDWLRQ
HUURULQSDUDPHWHUL]DWLRQ DQGRU ORRN
IRU
WKH
SURMHFWLQJ
FRQILJXUDWLRQ
FKHFNWKHGHFLPDOVZLWFK
ZURQJVWDWLRQDGGUHVV
EUHDN LQ WKH FRQQHFWLRQ WR WKH FKHFNWKHEXVFDEOH
PDVWHUVKRUWFLUFXLWZLUHEUHDN
RQ
RII
RQ
581
RQ
&/($5
LQSXWVDUHUHDGDQGRXWSXWVVHW
LQSXWVDUHUHDGRXWSXWVDUHZULWWHQ
RQ
RII
3/&VWRSSHGDQRWKHU
VWDWLRQGRHVQRWZRUN
Table 7: Diagnostic LEDs - Fieldbus
PROFIBUS / Startup
16.06.1999
25
:$*2Ç,2Ç6<67(0
6.1
Further Diagnostic functions
The buscouplers 750-301 and 750-303 support external diagnostic information in
addition to the 6 Byte standard diagnostics. The additional diagnostic functions are
„gerätebezogen“.The length of those data can be parameterized via the fieldbus and has
58 Byte maximum length.
Structure of diagnosis:
The diagnostic messages of the buscoupler and the modules have a structure of 8 Byte.
So a maximum number of 7 additional diagnostic messages can be transmitted. The
following table shows the structure for complex bus modules and buscouplers. The
variable N means the number of the station diagnosis (N=1,2..7).
Byte No.
Bit No.
value
meaning
n*8
0-7
1-64
number of module
n*8+1
0-7
1-4
number of channel
n*8+2
0-7
0-254
SPS process image Byte-Offset low (0xFF: no assignment)
n*8+3
0-7
0-254
SPS process image Byte-Offset high (0xFF: no assignment)
n*8+4
0-7
0-7
n*8+5
0-7
-
Status Byte of the module
n*8+6
0-7
0
reserved
n*8+7
0-7
0
reserved
PROFIBUS / Startup
16.06.1999
SPS process image Bit-Offset (0xFF: no assignment)
26
:$*2Ç,2Ç6<67(0
Byte No.
Bit No.
value
meaning
n*8
0-7
0
reserved
n*8+1
0-7
0
reserved
n*8+2
0-2
Initialization error
0
1
Error reading the EEPROM
1
1
Overflow of internal buffer for Inline Code
2
1
Error checking the programmed process image
3
1
Error reading the module types on the internal bus
4
1
connected module is not supported
5
1
too many configuration data
6
1
sum of output data too big
7
1
sum of input data too big
3-7
0
reserved
n*8+3
error on internal bus
0
1
too many errors sending a command on the internal bus
1
1
too many timeouts doing the commands
2
1
too many errors receiving the input data
3
1
too many errors sending the output data
4
1
Error at reset of internal bus
5
1
general error on internal bus
6
0
reserved
7
0
reserved
n*8+4
0-7
-
error in testing internal bus reset
n*8+5
0-7
n*8+6
0-6
1-64
7
0
reserved
0-7
0
reserved
n*8+7
not supported module at reset of internal bus (reserved)
module number of first unsupported module (reserved)
Internal bus specific buscoupler diagnosis
PROFIBUS / Startup
16.06.1999
27
:$*2Ç,2Ç6<67(0
Byte No.
Bit No.
n*8
0-7
0
reserved
n*8+1
0-7
255
reserved
n*8+2
0-1
2-7
n*8+3
Error at User Parameter Data
0
no Error
1
not all parameter are stored in EEPROM
2
reserved
3
error in Byte or Word of User-Parameter Data
0
reserved
0-2
3-7
n*8+4
value meaning
first Byte or Word of User Parameter Data with error
0
Byte 0
1
Byte 1, 2
2
Byte 3, 4
3
Byte 5, 6
4
Byte 7, 8
5
Byte 9, 10
6
Byte 11, 12
7
Byte 13, 14
0
reserved
0-1
Error in configuration data
0
no Error
1
too less configuration data
2
error in configuration data
3
module not supported
2-7
0
reserved
0-6
0-63
7-8
0
reserved
n*8+6
0-7
0
reserved
n*8+7
0-7
0
reserved
n*8+5
first Byte or Word of configuration data with error
PROFIBUS-DP specific buscoupler diagnosis
PROFIBUS / Startup
16.06.1999
28
:$*2Ç,2Ç6<67(0
7
General conditions
This chapter describes the general conditions for error-free running of the
:$*2Ç,2Ç6<67(0
7.1
Transporting and storing conditions
The following declarations concern modules which are transported and stored in the
original package.
Condition
Free fall
Temperature
Relative humidity
allowed values
≤ 1m
-40° to +70° C
5 to 95% (without condensation)
7.2 Mechanical and climatic conditions
The modules of the :$*2Ç,2Ç6<67(0 are not allowed to be operated without
taking suitable actions
- in places with strong conditions e.g. very dusty rooms or corroding atmosphere
- in place with high concentrations of ionisation
The temperature should be in a range between 0° C and +55° C. The relative humidity
should be in a range of 5 to 95% (without condensation).
The modules should be placed horizontal for better heat dissipation.
The concentration of SO2 must be below 25 ppm with a relative humidity of < 75%. The
concentration of H2S must be below 10 ppm with the same humidity.
The mechanical conditions are given as sinusoidal oscillations.
Frequency range (Hz)
10 ≤ f < 57
57 ≤ f ≤ 150
continuous
0.0375 mm amplitude
0.5 g constant acceleration
sometimes
0.075mm amplitude
1 g constant acceleration
For stronger impulses and oscillations, the acceleration and the amplitude should be
reduced by suitable actions. The following table shows the type of test for the
mechanical conditions.
PROFIBUS / General conditions
16.06.1999
29
:$*2Ç,2Ç6<67(0
Test for
Oscillations
Impulse
7.3
Test sequence
Remarks
Test for oscillations Type of oscillation: sweep with a rate of
IEC 68, part 2-6
change of 1 octave per minute
10 Hz ≤ f < 57 Hz, const. amplitude
0,075mm
57 Hz ≤ f ≤ 150 Hz, const. acceleration
1g
period of oscillation: 10
sweep per axis in each of the 3 vertical
axes
Test for impulses
Type of impulse: half sinusoidal
IEC 68, part 2-27
Intensity of impulses: 15 g peak value,
11 ms maintenance time
route of impulses: 2 impulses in each of
the 3 vertical axes
Class of protection and degree of protection
The class of protection is IP2X (IEC 529), i.e. protection against touch with a standard
test object. There is also protection against solid bodies greater than 12 mm. There is no
special protection against water.
PROFIBUS / General conditions
16.06.1999
30
:$*2Ç,2Ç6<67(0
7.4
Electromagnetic compatibility
Method of measurement
Interference with narrow-band conducted
disturbance
Interference with impulse groups
Discharge of static electricity
Interference with electromagnetic fields
Interference field strength
Disturbance
EN 50082-2, A
EN 50082-2, B
EN 50082-2, B
EN 50082-2, A
EN 55011
These requests for electromagnetic compatibility are fulfilled by all modules of
:$*2Ç,2Ç6<67(0(except for 750-630 and 750-631).
7.5
Power supply
If non-stabilized power supply is used for the supply of the buscoupler, it must be
stabilized by a capacity ( 200 µF per 1 A load current).
For the :$*2Ç,2Ç6<67(0a filter module has been developed (288-824).
This module serves as a filter module for non-stabilized 24 V DC power supplies if the
specified voltage deviation is not met.
Reasons for the deviations may be voltage jumps in the primary circuit, overloads in the
secondary circuit or the switching of undampened inductances and capacitances.
7.6
Certificates
The modules of :$*2Ç,2Ç6<67(0 have passed the conformance test of UL.
Look for listing mark on product.
The Profibus coupler 750-301 and 750-303 are certified of PNO with Z00241 and
Z00242.
The Interbus coupler 750-304 has passed the relevant tests in accordance with the
Interbus conformance requirements (number 111).
The DeviceNet coupler 750-306 has succesfully passed through the conformance test of
Open DeviceNet Vendors Association Europe.
PROFIBUS / General conditions
16.06.1999
31
:$*2Ç,2Ç6<67(0
8
The Statusbyte for PROFIBUS
The use of PROFIBUS allows for several modules of the :$*2Ç,2Ç6<67(0 the
overlay of an additional statusbyte. This statusbyte allows the indication of e.g. underor overrange.
For this reason in the configuration another data bus width must be chosen. For the
modules for which a statusbyte is possible the configuration and the data format are
described in the following chapter.
2 / 4-channel analog input modules 0-20 mA, 4 - 20 mA
(750-452...455, 750-482, 750-484):
The statusbyte contains the following Bits:
Statusbyte
Bit 7 Bit 6
0
ERROR
Bit 5 Bit 4 Bit 3 Bit 2
x
x
x
x
Bit 1
Overrange
Bit 0
Underrange
For the modules 4-20 mA (750-454, 750-455 and 750-484), underrange indicates a
broken wire. For the modules with 0-20 mA 0 mA is an allowed value, a broken wire
can not be detected.
ID Code: 0xD2 (210)
(3 words, only inputs, consistent over all Bytes)
or 2*ID Code 064 / 130 (configuration via PN)
Input values:
Byte
D0
D1
D2
D3
D4
D5
PROFIBUS / Statusbyte
16.06.1999
Description
Statusbyte
Input byte1
Input byte0
Statusbyte
Input byte1
Input byte0
32
:$*2Ç,2Ç6<67(0
2-channel analog input modules 0-20 mA, 4 - 20 mA, single ended
(750-465, 750-466, 750-486):
The statusbyte contains the following Bits:
Statusbyte
Bit 7 Bit 6
0
ERROR
Bit 5 Bit 4 Bit 3 Bit 2
x
x
x
x
Bit 1
Overrange
Bit 0
Underrange
For the modules 4-20 mA (750-466 and 750-486), underrange indicates a broken wire.
For the modules with 0-20 mA 0 mA is an allowed value, a broken wire can not be
detected.
ID Code: 0xD2 (210)
(3 words, only inputs, consistent over all Bytes)
or ID Code 064 / 130 (configuration via PN)
Input values:
Byte
D0
D1
D2
D3
D4
D5
PROFIBUS / Statusbyte
16.06.1999
description
Statusbyte
Input byte1
Input byte0
Statusbyte
Input byte1
Input byte0
33
:$*2Ç,2Ç6<67(0
Input module for PT 100
(750-461)
The statusbyte contains the following Bits
Statusbyte
Bit 7 Bit 6
0
ERROR
0
general
error
Bit
ERROR
Overrange
Underrange
Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
x
x
x
x
Overrange
x
x
x
x
broken wire
Bit 0
Underrange
short-circuit
Function
General error occurs. This Bit is set if overrange or underrange
are set.
The level is low. This error indicates a broken wire.
The level is high. This error indicates a short-circuit.
ID Code: 0xD2 (210)
(3 words, only inputs, consistent over all Bytes)
Input values:
Byte
D0
D1
D2
D3
D4
D5
PROFIBUS / Statusbyte
16.06.1999
description
Statusbyte
Temperature, input byte1
Temperature, input byte0
Statusbyte
Temperature, input byte1
Temperature, input byte0
34
:$*2Ç,2Ç6<67(0
Input module for thermocouples
(750-462, 750-469)
The statusbyte contains the following bits:
Statusbyte
Bit 7 Bit 6
0
ERROR
0
general
error
Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
x
x
x
x
Overrange
x
x
x
x
x
Bit 0
Underrange
x
In case of a general error, bit 6 is set. Bit 0 and bit 1 specify the type of error (s. table). A
detection of broken wire or short-circuit is impossible. In this case the bits toggle
randomly. Short-circuit is equivalent to 0V and thus a possible value of the measuring
range.
Bit
ERROR
Overrange
Underrange
Funktion
General error occurs. This Bit is set if overrange or underrange
are set.
The level is low.
The level is high.
ID Code: 0xD2 (210)
(3 words, only inputs, consistent over all Bytes)
input values:
Byte
D0
D1
D2
D3
D4
D5
PROFIBUS / Statusbyte
16.06.1999
description
Statusbyte
Temperature, input byte1
Temperature, input byte0
Statusbyte
Temperature, input byte1
Temperature, input byte0
35
:$*2Ç,2Ç6<67(0
SSI-Interface
(750-630/000 004, 750-630/000 005, 750-630/000 007)
The statusbyte contains the following bits:
Statusbyte
Bit 7 Bit 6
0
ERROR
0
general error
Bit
ERROR
SSI_IN_E
FRAME_E
Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
x
x
x
x
FRAME_E
x
x
x
x
frame error
Bit 0
SSI_IN_E
wrong data level
Function
A general error occured. This bit is set if SSI_IN_E or
FRAME_E are set 0.
Wrong level on the data line in release state. The level is low.
The error indicates a broken wire or a lost supply. Exchanged
data lines can also cause this error.
A data transmission ended with the wrong level. The level was
not low. This error indicates a broken wire in the clock line.
ID Code: 0x40 und 0x84 (064 und 132)
(5 Byte, only inputs, consistent over all Bytes)
input values:
Byte
D0
D2
D3
D4
D5
description
Statusbyte
Sensor values, input byte 3
Sensor values, input byte 2
Sensor values, input byte 1
Sensor values, input byte 0
The default parameter for 750-630/000-004 is 24 Bit Sensor with status, for 750630/000-005 is 15 Bit Sensor with status.
Configuration without statusbyte
For the configuration without statusbyte the analog input modules (750-452...750-469)
and the analog output modules (750-550...750-557) have to be configured with one
input (output) word per channel.
PROFIBUS / Statusbyte
16.06.1999
36
:$*2Ç,2Ç6<67(0
Digital Inputs (24 V AC/DC, 120 V AC, 230 V AC, 48 V DC)
PN: 750-400...415
Technical description
The supply is applied by a series-connected termination to each I/O module for the
respective operating voltage. Power connections are made automatically from module to
module when snapped onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
All 2-channel digital inputs are 4-conductor devices allowing the direct connection of 4conductor sensors with the terminations V+, 0V, ground and signal.
The 4-channel digital inputs are suitable for the direct connection of two 3-conductor
sensors (V+, 0V, signal). The power distribution module 750-614 is available for the
connection of more sensors to V+ and 0V.
The modules 750-408 and 750-409 are low-side switching.
A 2-wire proximity switch can be connected to the modules 750-410 and 750-411.
RC filters are series-connected to the 5, 24 and 48 V versions for noise rejection and
switch debouncing. They are available with time constants of 3.0 ms and 0.2 ms.
The standard numerical assignment for bus operations is from left to right, starting with
the LSB. The positions of the different I/O modules in the configured node/station are
selectable by the user. A block type configuration is not necessary.
The Input module can be connected to all buscouplers of the WAGOÇI/OÇSYSTEM.
Digital Inputs 750-400...415
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of inputs
Input filter
Nominal voltage
Signal voltage (0)
Signal voltage (1)
Input current (internal)
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm) WxHxL
Item Number 750Number of inputs
Input filter
Nominal voltage
Signal voltage (0)
Signal voltage (1)
Input current (internal)
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
400
401
402
403
2
4
0.2 ms
3 ms
0.2 ms
24V DC (-15%/+20%)
-3V...+5V DC (std. EN 61131 Typ 1)
15V...30V DC (std. EN 61131 Typ 1)
2.5 mA max.
5 mA max.
5 mA typ.
500 V system/power supply
2
4
no address or configutation adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of carrier rail)
3 ms
405
406
2
10 ms
230 V AC
120 V AC
(-15%/+10%)
(15%/+10%)
0 V...40 V
0 V..20 V
AC
AC
79 V...1.1 UN 79 V...1.1
AC
UN AC
2 mA
6.5 mA typ. 4.5 mA typ.
4 kV system/power supply
410*
411*
2
3 ms
0.2 ms
24V DC (-15%/+20%))
-3 V ... +5 V DC (std.
EN 61131 Type 2)
11 V ... 30 V DC (std.
EN 61131 Type 2)
2.5 mA max.
8 mA typ.
500 V system/power
supply
2
no address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
*) 2 - wire proximity switch, current without load max. 2 mA
Digital Inputs 750-400...415
2
:$*2Ç,2Ç6<67(0
Item Number 750Number of inputs
Input filter
Nominal voltage
Signal voltage (0)
Signal voltage (1)
Input current (internal)
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Item Number 750Number of inputs
Input filter /
Conversion time
Nominal voltage
Signal voltage (0)
Signal voltage (1)
Input current (internal)
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Digital Inputs 750-400...415
408
409
4
412
413
2
3 ms
0,2 ms
3 ms
0,2 ms
24V DC (-15% / +20%)
48 V DC (-15% / +20%)
15 V...30 V DC
-6 V ... +10 V DC
-3 V...5 V DC
34 V ... 60 V DC
10 mA max.
5 mA max.
3.5 mA typ.
500 V system/power supply
4
2
no address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5 mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
414
4
0.2 ms
415
4
20 ms
5 V DC
24 V AC/DC
(-15%/+20%)
0...0.8 V DC
-3...+5 V DC
0...+5 V AC
2.4 V...5 V DC
11 ... 30 V DC
10 ... 27 V AC
5 mA
10 mA
50 µA typ.
7.5 mA DC
7.6 9.5 mA AC
500 V system/power supply
500V system/power
supply
50 V channel/channel
4
4
no address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5 mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
3
:$*2Ç,2Ç6<67(0
Counter modules
PN 750-404, 750-404/000-001, 750-404/000-002
750-404/000-003, 750-404/000-004
Up/Down Counter 100 kHz, 750-404
Technical Description:
Attention! The description that is in the I/O ring binder data pages (88-530/013-600
dated 7/96) is not correct. The bottom contacts are additional outputs.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The described configuration is counter with up/down input.
The following description is preliminary and is applicable to the factory configuration.
The counter module is able to run with all WAGOÇI/OÇSYSTEM bus-couplers
(except for the economy type).
Counter Module 750-404
1
:$*2⇓,2⇓6<67(0
Technical Data:
Item Number: 750Number of outputs
Output current
Number of counter
Input current (internal)
Nominal voltage
Signal voltage (0)
Signal voltage (1)
Switching rate
Output current
Counter size
Isolation
Bit width
Configuration
Operating temperature
Wire connection
Size (mm)WxHxD
Counter Module 750-404
404, 404/000-001
404/000-004
404/000-002
2
0.5 A
1
70 mA
24 V DC (-15% +20%)
-3V.....+5V DC
+15V...+30V DC
100 kHz
10 kHz max.
5 mA typ.
32 Bit
500 V system/power supply
32 Bit (8 Bit verification; 8 bit not used)
none, optional with software parameter
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2⇓,2⇓6<67(0
Organization of the in- and output data:
The counter begins processing with pulses at the CLOCK input. The changes from 0 V
to 24 V are counted.
The counter counts up, if the input U/D is set at 24 V. With an open circuit input or 0 V
the counter counts backwards.
The two bottom contacts each include another output. These outputs are activated
through bits in the control byte.
The control byte has the following bits:
Control Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
x
Set Counter
Block Counter
Output value at
output O2
Output value at
output O1
x
x
The status byte has the following bits:
Status Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
x
x
Counter is Counter is actual signal at
set
blocked
O2
Bit 2
Bit 1
Bit 0
actual signal
at O1
actual signal at
input U/D
actual signal at
input CLOCK
With the control and status-byte the following tasks are possible:
Set the counter: Put Bit 5 into the control byte. The counter with the 32 bit value is
loaded into output bytes 0-3. As long as the bits are set, the counter can stop and
information is stored. The ensuing data of the counter will be conveyed to the status
byte.
Blocking the counter: Bit 4 is set into the control byte, then the count process is
suppressed. Bit 4 in the status byte communicates the suppression of the counter.
Set the outputs: Bits 2 and 3 set the additional two outputs of the counter module.
The result of the counter is in binary.
Counter Module 750-404
3
:$*2⇓,2⇓6<67(0
An example:
The counter is set with “Set Counter” to the value 0x0000.0000
- 0X1X.XXXX, 0x00, 0x00, 0x00, 0x00 are carried over as output value
(carry over the control-byte and the new counter position),
-wait until the input value is 0X1X.XXXX, 0x00, 0x00, 0x00, 0x00
(the status-byte shows the loading feedback) ,
-carry over 0x00, 0x00, 0x00, 0x00, 0x00 as output value (release counter).
Wait for the first and further counting pulse
-the input value is XX00.XXXX, 0x00, 0x00, 0x00, 0x00 (no counting pulse received)
-the input value is XX00.XXXX, 0x00, 0x00, 0x00, 0x01 (1 counting pulse received)
-the input value is XX00.XXXX, 0x00, 0x00, 0x00, 0x02 (2 counting pulses received)
-.................
-the input value is XX00.XXXX, 0xFF, 0xFF, 0xFF, 0xFF (maximum counting position
is reached)
-the input value is XX00.XXXX, 0x00, 0x00, 0x00, 0x00 (a further counting pulse
causes an overflow)
-the input value is XX00.XXXX, 0x00, 0x00, 0x00 0x01, (a further counting pulse is
received)
Notes:
Counter Module 750-404
0x23 is a value in hexadecimal form
0101.1001 is a value in binary form
“X” is used if the value at this position is without any significance.
4
:$*2⇓,2⇓6<67(0
Counter with enable input 750-404/000-001
Technical description:
The counter module also can be ordered as counter with enable input (750-404/000001).
The counter begins processing with pulses at the CLOCK input. The changes from 0 V
to 24 V are counted.
The counter counts down if the input U/D is set at 24 V. With an open circuit input or 0
V the counter counts up.
The data format of the module is 4 bytes data and a control/status byte. The module is a
32 Bit counter. The ID Code os 180 (0xB4). The format of input and output data is the
same as 750-404.
The counter module is able to run with all WAGOÇI/OÇSYSTEM bus-couplers
(except for the economy type).
Counter Module 750-404
5
:$*2⇓,2⇓6<67(0
Peak Time Counter 750-404/000-002
Technical data
The counter module also can be ordered as peak time counter with 750-404/000-002.
This description is only intended for hardware version X X X X 0 0 0 1- - - -. The
serial number can be found on the right side of the module.
The counter begins processing with pulses at the CLOCK input. The changes from 0 V
to 24 V are counted.
The counter counts up if the input U/D is set at 24 V. With an open circuit input or 0 V
the counter counts backwards.
The two bottom contacts each include another output. These outputs are activated
through bits in the control byte.
The counter module is able to run with all WAGOÇI/OÇSYSTEM bus-couplers
(except for the economy type).
Counter Module 750-404
6
:$*2⇓,2⇓6<67(0
Organization of the in- and output data:
The counter begins processing with pulses at the CLOCK input for a special time span.
The time span is predefined as 10 s. The state of the counter is stored in the processs
image until the next period. After the recording the counting starts again at 0.
The activation of the counting and the synchronisation with the SPS is made by a
handshake in the control and status byte.
The end of thre counting period and thus the new process data is signaled by a toggel bit
in the status byte.
The control byte has the following bits:
Control Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
0
start of the
periodic
counting
0
Output value at
output O2
Output value at
output O1
0
0
The status byte has the following bits:
Status Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
0
counting
started
0
actual signal at
O2
actual signal
at O1
actual signal at
input U/D
Toggelbit for
end of the
record
Counter Module 750-404
7
:$*2⇓,2⇓6<67(0
Frequency Counter Module, 750-404/000-003
Status CLOCK
Status Gate
Q2
Q1
O1
O2
G
Clk
+E2
Clock
Gate
+ +
24V 24V
24V
- 0V-
0V
0V
power jumper
contacts
O1
O2
Q1
Q2
S
S
O1Q1
O2
Q2
750-404
000-003
Technical Description
The counter module 750-404/000-003 measures the period of the 24 V DC input signal
at the CLOCK terminal and converts it into a corresponding frequency value. The
measurement is enabled if the GATE terminal is an open circuit input or 0V. To disable
processing, the GATE input is to be set to 24 V DC.
The terminals O1 and O2 work as binary outputs. Each output can be activated via
specific bits in the CONTROL byte.
The high states of the input and output channels are each indicated by a LED.
To recognize low frequency or near zero frequency signals, the maximum time between
two data updates is parameterizable.
Counter Module 750-404
8
:$*2⇓,2⇓6<67(0
Technical Data:
Item-No.: 750Supply Voltage
Input Voltage (low)
Input Voltage (high)
Input Current
Min. Pulse Width
Output Current
Voltage Drop
Frequency Range:
Integration time = 1 period
Integration time = 4 periods
Integration time = 16 periods
Measuring Error:
Range 0.1 - 100 Hz
Range 1 - 1000Hz
Range 10 - 10000Hz
Data Format:
Process Image
Internal Bit Width
Input Current (internal)
Operating Temperature
Wire Connection
Size (mm) WxHxD
404/000-003
24V DC (-15%/+20%)
-3V - 5V DC
15V - 30V DC
5mA typ. at 24V DC
10µs
0.5A (short circuit protection)
0.6V DC max. at 0.5A
0.1 100Hz, Resolution 0.001Hz
1 - 1,000Hz, Resolution 0.01Hz
10 - 10,000Hz, Resolution 0.1Hz (1Hz)
< ± 0.05%
< ± 0.05 %
< ± 0.2 %
5 Byte In- and Output
8 Bit CONTROL/STATUS + 32 Bit DATA
80mA max. at 5V DC
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of carrier rail)
Frequency Range:
Integration time = 1 period
Integration time = 4 periods
Integration time = 16 periods
Measuring Error:
Range 0.1 8000Hz
Range 0.25 - 32000Hz
Range 1
- 100000Hz
Counter Module 750-404
0.1 - 8,000Hz, Resolution 0.001Hz
0.25 - 32,000Hz, Resolution 0.01Hz
1
- 100,000Hz, Resolution 0.1Hz (1Hz)
< ± 1%
< ± 1.5 %
< ± 1.5 %
9
:$*2⇓,2⇓6<67(0
Functional description
The counter module acquires the time between one or more rising edges of the CLOCK
input signal and calculates the frequency of the applied signal.
The calculation and process image update are initiated every 1st, every 4th or every 16th
rising edge depending on the integration time selected via the CONTROL byte. The first
detection of a rising edge starts the cyclic period measurement and cannot provide a
valid frequency value. In this case the module will send 0xFFFFFFFFH for input
information. The same input value is returned when a static high or static low signal is
applied to the CLOCK input.
If there are no signal changes seen at the CLOCK input, the module can be forced to
update the process image after defined parameterizable time spans. In this state the
module will send the non valid value 0xFFFFFFFFH too.
The following figures illustrate a process data cycle.
73
7
,1387)5(4
'$7$9$/,'
352&(66'$7$
[))))))))
''
''
[))))))))
''
'' ''
'' ,QSXW'DWD
73 I FXUUHQWSHULRG
7
0D[LPXPGDWDKROGWLPHSDUDPHWHUL]DEOH
Figure 2: Timing diagram for process data update sequence
(integration time = 1 period)
7
73
,1387)5(4
'$7$9$/,'
352&(66'$7$
[))))))))
''
''
[))))))))
'' ,QSXW'DWD
73 I FXUUHQWSHULRG
7
0D[LPXPGDWDKROGWLPHSDUDPHWHUL]DEOH
Figure 3: Timing diagram for process data update sequence
(integration time = 4 periods)
Counter Module 750-404
10
:$*2⇓,2⇓6<67(0
Structure of CONTROL and STATUS byte
CONTROL Byte
E
5(*B5(4 E
E
E
79'5(4
E
6(7B4
E
6(7B4
5(*B5(4 15':5
5(*B$
5(*B$
5(*B$
5(*B$
E
E
5$1*(B6(/
5$1*(B6(/
5(4
5(4
5(*B$
5(*B$
Bit
Description
5(*B5(4
5(*B$$
79'5(4
6(7B4
6(7B4
5$1*(B6(/5(4
5$1*(B6(/5(4
$FFHVVWRWKHUHJLVWHUVWUXFWXUHLVUHTXHVWHGEEFRQWDLQWKHDGGUHVVRIWKHUHJLVWHU
5HJLVWHUDGGUHVV
5HTXHVWWRFKDQJHWKHPD[LPXPWLPHZLWKRXWYDOLGGDWD
&RQWURO2XWSXW44RII4RQ
&RQWURO2XWSXW44RII4RQ
6HOHFWLRQRIWKHLQWHJUDWLRQWLPHDQGWKHUHSUHVHQWDWLRQRIPHDVXUHGIUHTXHQF\YDOXH
6HOHFWLRQRIWKHLQWHJUDWLRQWLPHDQGWKHUHSUHVHQWDWLRQRIPHDVXUHGIUHTXHQF\YDOXH
STATUS Byte
Counter 750-404
E
5(*B$&. E
E
67B*$7(
E
79'$&.
E
67B4
E
67B4
5(*B$&. 5(*B$
5(*B$
5(*B$
5(*B$
E
E
5$1*(B6(/
5$1*(B6(/
$&.
$&.
5(*B$
5(*B$
Bit
Description
5(*B$&.
5(*B$$
67B*$7(
79'$&.
67B$
67B$
5$1*(B6(/$&.
5$1*(B6(/$&.
$FNQRZOHGJPHQWWRWKHUHJLVWHUUHTXHVWEEFRQWDLQWKHDGGUHVVRIWKHUHJLVWHU
5HJLVWHUDGGUHVV
6WDWHRI*$7(LQSXW HQDEOHG GLVDEOHG
$FNQRZOHGJPHQW79'FKDQJHG
6WDWHRIRXWSXW4
6WDWHRIRXWSXW4
$FNQRZOHGJPHQWWR5DQJH6HOHFWLRQ)UHTXHQF\YDOXHVDUHYDOLG
$FNQRZOHGJPHQWWR5DQJH6HOHFWLRQ)UHTXHQF\YDOXHVDUHYDOLG
11
:$*2Ç,2Ç6<67(0
Structure of Input and Output data
The input data contain the CLOCK frequency as a binary value. The representation
depends on the RANGE_SEL bits in the CONTROL byte. Even the method of
measuring is selected via these bits. The following table illustrates the different modes.
5$1*(B6(/
5$1*(B6(/
0HWKRGRIPHDVXUHPHQW
5HSUHVHQWDWLRQRIPHDVXULQJYDOXH
,QWHJUDWLRQRYHUSHULRG
,QWHJUDWLRQRYHUSHULRGV
,QWHJUDWLRQRYHUSHULRGV
,QWHJUDWLRQRYHUSHULRGV
)UHTXHQF\LQ+]
)UHTXHQF\LQ+]
)UHTXHQF\LQ+]
)UHTXHQF\LQ+]
Attention:
When a new frequency range is requested, the application has to wait for valid data until
the RANGE_SEL ACK bits contain the new frequency range. The maximum delay can
be calculated using the following formula
TDmax= 2 *
number of periods to be integrated
actual frequency
If the gate is enabled the input data contains the last valid frequency value. In this state
the application cannot request a new range.
The valid frequency range stretches from 0.1 Hz (100D) up to
10 kHz (100000D).
To recognize static CLOCK signals, a watchdog timer is implemented. The default
value for the timer is 10s. The timer resets on every Power On.
The application is able to change the watchdog time during operation by using the
CONTROL byte.
This can be initiated by writing the corresponding value into the output bytes
OUTPUT_DATA 1 and OUTPUT_DATA 0 before setting the TVD REQ bit in the
CONTROL byte.
The success of the parameter transfer is acknowledged by the module via the TVD ACK
bit in the STATUS information.
Attention:
The range of the watchdog timer stretches from 0 to 16383ms (0x0000H to 0x3FFFH) in
steps of 1ms per digit.
Values which raise the permitted range of the watchdog timer are masked with 0x3FFF.
If the maximum possible frequency of the different ranges is raised (see the table with
maximum frequency ratings), the module will return the non valid data 0xFFFFFFFFH.
Counter 750-404
12
:$*2Ç,2Ç6<67(0
Organization of the in- and output data for Profibus
With this kind of data formation four data-bytes and one additional control-/status-byte
are given out by the module. The module supplies 32 bit counter-outputs.
An identification of 1 times 180 (0xB4hex) is used.
Output value of the control unit:
Byte
D0
D1
D2
D3
D4
Identification
Control Byte
Output Byte 3
Output Byte 2
Output Byte 1
Output Byte 0
Input value of the control unit:
Byte
D0
D1
D2
D3
D4
Identification
Status Byte
Input Byte 3
Input Byte 2
Input Byte 1
Input Byte 0
The input-bytes 0 to 3 form the 32 bit counter-output. In the output-bytes 0 to 3 the
initial value of the counter can be set.
Counter 750-404
13
:$*2Ç,2Ç6<67(0
Digital Outputs (Standard)
PN 750-501...504, 516, 519
Technical description:
The power supply is provided by a series-connected supply module for the respective
operating voltage. Power connections are made automatically from module to module
via the internal P.J.C.s when snapped onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
For the digital outputs (without diagnostic) four-conductor devices (V+; 0 V; signal;
ground) are standard. In case of 12 mm wide 4-channel digital output modules it is not
possible to use 4-conductor devices. 4 signal outputs, 2xV+ and 2x0V are provided.
All digital outputs are short-circuit protected.
In case of overloads a supply module with fuse (750-601) must be connected on the
line side to protect the output modules.
The module 750-516 is low-side switching. The indicated output values have been
determined for 100% duty cycle. However, in case of the 2 A versions it is possible to
operate single channels at higher load currents, however always verify that the total
current does not exceed 3.5 A per module. Example: 2x2A (standard); 1x3.0A; 1x0.5A
(total current: 3.5 A) The standard numerical assignment for bus operations is from left
to right, starting with the LSB. The positions of the different I/O modules in the
configured node/station are selectable by the user. A block type configuration is not
necessary.The Output module can be connected to all buscouplers of the
WAGOÇI/OÇSYSTEM.
Digital Outputs 750-501...504,516, 519
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of outputs
Kind of load
Nominal voltage
Output current (DC)
Current consumption
(internal)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Item Number 750Number of outputs
Kind of load
Nominal voltage
Output current (DC)
Current consumption
(internal)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
*) low-side switching
Item Number 750Number of outputs
Kind of load
Nominal voltage
Output current (DC)
Current consumption
(internal)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Digital Outputs 750-501...504,516, 519
501
502
2
resistive, inductive, lamps
24V DC (-15% / +20%)
0,5 A
2A
7 mA
500 V system / power supply
2
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
504
516*)
4
resistive, inductive, lamps
24V DC (-15% / +20%)
0,5 A
15 mA
500 V system / power supply
4
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
519
4
resistive, inductive, lamps
5 V DC
20 mA
16 mA
500 V system / power supply
4
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
Digital Outputs (Standard with diagnostics)
PN 750-506
Technical description:
The power supply is provided by a series-connected supply module for the respective
operating voltage. Power connections are made automatically from module to module
via the internal P.J.C.s when snapped onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
Using the digital outputs with diagnostic bit outputs (750-506) allows verification of the
I/O channel by the connected bus. Example: a short-circuit at the output or an open
circuit will set the appropriate error bit true indicating I/O failure. In this configuration
the function module includes 2 digital outputs and 2 separate digital inputs. For the
digital outputs with diagnostic four-conductor devices (V+; 0V; signal; ground) are
standard. All digital outputs are short-circuit protected.
In case of overloads a supply module with fuse (750-601) must be connected on the
line side to protect the output modules.
The standard numerical assignment for bus operations is from left to right, starting with
the LSB. The positions of the different I/O modules in the configured node/station are
selectable by the user. A block type configuration is not necessary. When using I/O
modules with diagnostics, the existing inputs must be considered accordingly in the
configuration of the Node/station. The Output module can be connected to all
buscouplers of the WAGOÇI/OÇSYSTEM.
Digital Outputs 750-506
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of outputs
Current consumption (internal)
Nominal voltage
Kind of load
Output current (DC)
Diagnostics
Current consumption (internal)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
506
2
15 mA
24V DC (-15%/+20%)
resistive, inductive, lamps
0.5 A
open circuit, overload
15 mA typ. + load
500 V system / power supply
4 in, 4 out
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of carrier rail)
The output bits control the state of the outputs.
function
Bit 3
no function
Bit 2
no function
Bit 1
controls O2
Bit 0
controls O1
Bit 0
diagnostics O1
The input bits show the state of the outputs.
function
output follows
output bit
no load is
connected
short circuit
power supply
too low*
Bit 3
diagnostics O2
Bit 2
diagnostics O2
0
0
Bit 1
diagnostics
O1
0
0
1
0
1
1
1
0
1
1
1
0
1
0
*The diagnostic bits refer to a hysteresis: If the voltage of the field side is higher than
11V in the falling circle, they are switched on. If the voltage is lower than 15,5 V in the
growing circle, they are switched off.
Digital Outputs 750-506
2
:$*2Ç,2Ç6<67(0
Digital Outputs (Solid State Relay)
PN 750-509
Technical Description
The power supply for the solid state relay module is connected by a series-connected
supply module for the respective operating voltage of 230 V. Power connections are
made automatically from module to module via the internal P.J.C.s when snapped onto
the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The power supply of the control side is not made via the power jumper contacts but
directly from the electronics. The respective output contacts of the switching element
are therefore always positioned at the field side. One termination point of these contacts
must be directly connected to the power supply. For the digital outputs four-conductor
devices (V+; 0V; signal; ground) are standard. All digital outputs are short-circuit
protected. In case of overloads a supply module with fuse (750-609) must be
connected on the line side to protect the output modules.
The standard numerical assignment for Bus operation is from left to right, starting with
the LSB. The positions of the different inputs in the configured station are via the user’s
choice. A block type assembly is not necessary. The Output module can be connected to
all buscouplers of the WAGOÇI/OÇSYSTEM.
Digital Outputs 750-509
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of outputs
Current consumption (internal)
Switching voltage
Switched current
Speed of operation
Volume resistance
Impulse current
Overvoltage protection
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Digital Outputs 750-509
509
2
10 mA
0 V...230 V AC/DC
300 mA AC max.
1.65 ms typ., 5 ms max.
2.1 Ω typ., 3.2 Ω max.
0.5 A (20 s), 1.5 A (0.1 s)
>+/- 380 V (suppressor diode)
1.5 kV system / power supply
2
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
Pulsewidth Module
PN 750-511
Technical Description:
This description is for hard and software version X X X X 2 B 0 2- - - - . The part
number is displayed on the right side of the module.
The initial pre-programmed base frequency is for 250 Hz. The resolution is 10 Bits and
the pulsewidth is modulated.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The following description is preliminary and is applicable to the factory configuration.
The pulsewidth output module 750-511 produces a binary modulated signal of 24 V.
The connection of the consuming device should be made via the „O“ and 0 V (common)
contacts of the module. The distribution of the 24 V DC is made via the power jumper
contacts. If galvanic isolation is desired, a new power feed via a 750-602 is required.
The PWM module can be connected to all buscouplers of the WAGOÇI/OÇSYSTEM
(except for the economy type).
Pulsewidth Module 750-511
1
:$*2Ç,2Ç6<67(0
Technical Data:
Part Number 750Number of outputs
Current consumption (internal)
Nominal voltage
Load type
Output current
Pulse frequency
Duty cycle
Resolution
Isolation
Configuration
Current Consumption (field
side)
Internal bit width per channel
Operating temperature
Wire connections
Dimension (mm)BxHxT
Preset Frequency
Pulsewidth Module 750-511
511
2
70 mA typical (internal)
24V DC (-15% +20%)
ohmic, inductive
0.1 A, short circuit protected
1 Hz...20kHz
0%...100% (Ton > 750 ns, Toff > 500 ns)
10 Bit max.
500 V system/power Supply
none, optional with software parameter
15 mA typ.
16 Bit Data + 8 Bit Control/Status
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
250 Hz Switching Frequency
2
:$*2Ç,2Ç6<67(0
Formation of on/off times
The programming of the on/off times occur with the resolution of 10 bits. The five LSB
of the 16 bit value can be zeros or one. The MSB will hold the sign and is preset to the
null state.
Duty Cycle
%
100
Increments
1023
Binary
Value
0111 1111 1111 1111
Hex.
7F FF
Dec.
32767
100
1023
0111 1111 1111 0000
7F E0
32752
50
511
0011 1111 1111 1111
3F FF
16383
25
255
0001 1111 1111 1111
1F FF
8191
12.5
127
0000 0001 0000 0000
01 00
256
0.1955
2
0000 0000 0100 0000
00 40
16
0.0977
1
0000 0000 0010 0000
00 20
32
0
0
0000 0000 0001 1111
00 1F
31
0
0
0000 0000 0000 0000
0
0
Table 1: Value Formation
24V
0%
24V
0V
24V
t
50%
0V
24V
0V
t
25%
0V
t
100%
t
Ill. 1: On/Off time relationships for Table 1.
Pulsewidth Module 750-511
3
:$*2Ç,2Ç6<67(0
Process Image Formation for Profibus
The process image of the 750-511 appears with 6 bytes of input and 6 bytes of output
data. The byte allocation for the preset duty cycle has the following modes of formation:
Output values:
D0
D1
D2
D3
D4
D5
Function
Control Byte
Output Byte 1
Output Byte 0
reserved
Output Byte 3
Output Byte 2
Input values:
D0
D1
D2
D3
D4
D5
Out(In)put byte 0
Out(In)put byte 1
Pulsewidth Module 750-511
Function
Status Byte
Input Byte 1
Input Byte 0
reserved
Input Byte 3
Input Byte 2
Low Byte
High Byte
4
:$*2Ç,2Ç6<67(0
Digital Outputs (Relay)
PN 750-512...514, 517
Technical description:
The power supply for the relay coils is not made via the power jumper contacts but
directly from the electronics. The respective output contacts of the switching element
are therefore always positioned at the field side.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
Version 1: non-floating (750-512)
The power supply is made via a series-connected supply terminal block for the
respective operating voltage. Power connections are made automatically from module to
module when snapped onto the DIN rail. One termination point of these contacts must
be directly connected to the power supply.
Version 2: isolated outputs (750-513, 750-514)
These I/O modules are not provided with integrated power jumper contacts. Care should
be taken to supply each isolated module with separate power supply connections.
The standard numerical assignment for Bus operation is from left to right, starting with
the LSB. The positions of the different inputs in the configured station are via the user’s
choice. A block type configuration is not necessary. The output module can be
connected to all buscouplers of the WAGOÇI/OÇSYSTEM.
Digital Outputs 750-512-514,517
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Type of contact
Current consumption (internal)
Switching voltage
Switching power
512
513
2 make contacts
100 mA max.
30 V DC; 250V AC
60 W; 500 VA
cos ρ =0,4, L/Rmax=7 ms
max
Switching current
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Item Number 750Type of contact
Current consumption (internal)
Switching voltage
Switching power
Switching current
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
*ohmic load
1)
in design
Digital Outputs 750-512-514,517
2 A AC/ DC
4 kV system/power supply
2
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
5171)
514
2 changeover
70 mA max.
30 V DC; 125 V AC
30 W; 62.5 VA
0.5 A AC/ 1 A DC
1.5 kV system/power
supply
80 mA max.
250 V AC
1500 VA*
1 A AC
4 kV system/ power
supply
2
without address or configuration adjustment
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
Relays in the modules 750-512 and 750-513:
6ZLWFKLQJFDSDFLW\
10
@
$
>
W
Q
H
U
U
X
F
AC ohmic
DC ohmic
AC inductive, cosϕ=0.4
1
G
H
K
F
W
L
DC inductive
L/R=7ms
Z
6
0,1
10
100
1000
6ZLWFKHGYROWDJH>[email protected]
7\SLFDOHOHFWULFDOOLIHWLPH
1,E+06
V
H
K
F
W
L
Z
V
I
R
U
H
E
30 V DC ohmic
120 V AC ohmic
250 V AC ohmic
30 V DC inductive,
L/R = 0.7ms
1,E+05
P
X
1
120 V AC inductive,
cosϕ=0.4
1,E+04
0,1
1
6ZLWFKHGFXUUHQW>[email protected]
Digital Outputs 750-512-514,517
10
250 V AC inductive,
cosϕ=0.4
3
:$*2Ç,2Ç6<67(0
2 Channel Analog Inputs 0-20 mA / 4-20 mA
(Differential Inputs)
PN 750-452, 454, 750-482, 750-484
Technical Description
This description is only intended for hardware version X X X X 2 A 0 0 - - - -. The
serial number can be found on the right side of the module.
The input channels are differential inputs and they have a common ground potential.
The inputs are connected to +I and -I. The shield is connected to „S“. The connection is
made automatically when snapped onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type)
Analog Inputs 750-452, 454,482,484
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Voltage
Signal current
Resistance
Resolution
Isolation
Conversion time
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
Analog Inputs 750-452, 454,482,484
452
454
482
2
484
2
via system voltage
70 mA
70 mA
35 V max.
0-20mA
4-20mA
0-20mA
4-20mA
50 Ω typ.
12 Bit
500 V System/Power supply
2 ms typ.
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits.
The following table will explain the numerical format. (750-452, 454). The 3 least
significant Bits are not taken into account.
Input current Input current
0-20 mA
4-20 mA
20
20
0111 1111 1111 1000
Hex.
7F F8
Dec.
32760
10
12
0100 0000 0000 0000
40 00
16384
5
8
0010 0000 0000 0000
20 00
8192
2.5
6
0001 0000 0000 0000
10 00
4096
0.156
4.125
0000 0001 0000 0000
01 00
256
0.01
4.0078
0000 0000 0001 0000
00 10
16
0.005
4.0039
0000 0000 0000 1000
00 08
8
0
4
0000 0000 0000 0111
00 07
7
0
4
0000 0000 0000 0000
0
0
Analog Inputs 750-452, 454,482,484
Binary Value
3
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 3 least significant Bits are reserved for diagnostic and status purposes. (750-482,
484)
Input current
4-20 mA
Binary value
> 20
0101 0000 0000 0
20
0101 0000 0000 0
16
Hex.
Dec.
50 01
20481
000
50 00
20480
0100 0000 0000 0
000
40 00
16384
12
0011 0000 0000 0
000
30 00
12288
8
0010 0000 0000 0
000
20 00
8192
4.0078
0001 0000 0000 1
000
10 08
4104
4
0001 0000 0000 0
000
10 00
4096
4
0001 0000 0000 0
011
10 03
4099
Analog Inputs 750-452, 454,482,484
X : without meaning
F : short circuit or
F : open circuit
Ü : overflow
XFÜ
001
4
:$*2Ç,2Ç6<67(0
Input current
0-20 mA
Binary value
> 20
0100 0000 0000 0
20
0100 0000 0000 0
10
X : without meaning
F : short circuit
open circuit
Ü : overflow
XFÜ
001
Hex.
Dec.
40 01
16385
000
40 00
16384
0010 0000 0000 0
000
20 00
8192
5
0001 0000 0000 0
000
10 00
4096
2.5
0000 1000 0000 0
000
08 00
2048
1.25
0000 0100 0000 0
000
04 00
1024
0.625
0000 0010 0000 0
000
02 00
512
0.0976
0000 0000 0000 1
000
00 08
8
0
0000 0000 0000 0
000
00 00
0
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Inputs 750-452, 454,482,484
5
:$*2Ç,2Ç6<67(0
2 Channel Analog Inputs +/- 10 V
(Differential Inputs)
PN 750-456, 750-456/000-001
Technical Description
This description is only intended for hardware version X X X X 2 A 0 0 - - - -. The
serial number can be found on the right side of the module.
The input channels are differential inputs and they have a common ground potential.
The inputs are connected to +I and -I. The shield is connected to „S“. The connection is
made automatically when snapped onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type)
Analog Inputs 750-456
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Overvoltage protection
Signal voltage
Resistance
Resolution
Isolation
Conversion time
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
456, 456/000-001
2
via system voltage (DC DC converter)
65 mA
35 V max.
+/- 10 V
570 kΩ
12 Bit
500 V System/Power supply
2 ms typ.
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
Attention:
The value of the input signal should be in a range of 0V to 10V or even no signal.
Analog Inputs 750-456
2
:$*2Ç,2Ç6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits
and the 3 LSBs are not taken into account. The following table will explain the
numerical format.
Input voltage
±10V
> 10 V
Status
0111 1111 1111 1111
Hex.
7F FF
Dec.
32767
42
10
0111 1111 1111 XXXX
7F FX
32760
0
5
0100 0000 0000 XXXX
40 0X
16384
0
2,5
0010 0000 0000 XXXX
20 0X
8192
0
1,25
0001 0000 0000 XXXX
10 0X
4096
0
0,0781
0000 0001 0000 XXXX
01 0X
256
0
0,0049
0000 0000 0001 XXXX
00 1X
16
0
0
0000 0000 0000 XXXX
00 0X
0
0
-2,5
1110 0000 0000 XXXX
E0 0X
57344
0
-5
1100 0000 0000 XXXX
C0 0X
49152
0
-7,5
1010 0000 0000 XXXX
A0 0X
40960
0
-10
1000 0000 0000 XXXX
80 0X
32768
0
< -10 V
1000 0000 0000 0000
80 00
32768
41
Analog Inputs 750-456
Binary value
3
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
Siemens format. The measured value is represented by the most significant 12 Bits. The
3 least significant bits are reserved for diagnostic and status purposes. (750-456/000001).
Input voltage
±10V
Binary value
>10
0111 1111 1111 1
10
0111 1111 1111 1
5
X : without
meaning
F : short circuit
or
F : open circuit
Ü : overflow
XFÜ
001
Hex.
Dec.
7F F9
32761
000
7F F8
32760
0110 0000 0000 0
000
60 00
24576
2,5
0101 0000 0000 0
000
50 00
20480
1,25
0100 1000 0000 0
000
48 00
18432
0,0049
0100 0000 0000 1
000
40 08
16392
0
0100 0000 0000 0
000
40 00
16384
-2,5
0011 0000 0000 1
000
30 08
12296
-5
0010 0000 0000 0
000
20 00
8192
-7,5
0001 0000 0000 0
000
10 00
4096
-10
0000 0000 0000 1
000
00 00
8
<-10
0000 0000 0000 0
001
00 01
1
If you hve questions about the formatting of this data, please contact WAGO for
the I/O System technical support.
Analog Inputs 750-456
4
:$*2Ç,2Ç6<67(0
Input for PT 100
PN 750-461, 750-461/000-002, 750-461/000-003, 750-481
Technical description:
This description is only intended for hardware version X X X X 3 A 0 2 - - - -. The
serial number can be found on the right side of the module.
The described configuration is PT 100. The following description is preliminary and is
applicable only to the factory configuration.
The inputs are connected to +I and -I. The shield is connected to „S“. The connection is
made automatically when snapped onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
The PT100 module can be connected to all buscouplers of the
:$*2Ç,2Ç6<67(0 (except for the economy type)
Input for PT100 750-461, 481
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of inputs
Input current (internal)
Voltage supply
Sensor types
Wire connection
Temperature range
Resolution
Isolation DC/DC
Measuring current
Bit width per channel
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Presetting
461, 481, 461/000-002, 461/000-003
2
65 mA
via system voltage
PT100, PT 200, PT 500, PT1000, Ni100, Ni120, Ni1000
2-conductor, 3-conductor (presetting)
PT: -200°C..+850°C Ni:-60°C...250°C
0.1°C over the whole area
400V system / power supply
0.5mA type
16 bits: data; 8 bits: control/status
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
3-conductor PT100
The function module 750-461 allows the direct connection of PT- or Ni-resistance
sensors. The module is suitable for 2- or 3-wire RTDs. Connection is made according to
the above wiring diagram.
Linearization is accomplished over the entire measurement range by a microprocessor.
The temperature ranges of the above listed RTD types is available to the user. The
temperature ranges of the sensors are represented with a resolution of 1 bit per 0.1° C in
one word (16 bits). Resulting from this, 0°C corresponds to the hexadecimal value 0000
and 100°C is 03E8 (dez.1000). Temperatures below 0° are represented in two’s
complement with a leading ‘1’.
The function module works in the defined temperature range for the PT100 sensors of
-200°C to +850°C. The voltage resolution is represented with 16 bits. An A/D
converter and processor converts the voltage value to a numerical value proportional to
the temperature of the selected resistance temperature sensor.
A short circuit or an interruption of the RTD wire is transmitted to the bus module and
indicated by the red error LED. The green LED identifies that the module is
communicating properly with the connected Buscoupler.
Input for PT100 750-461, 481
2
:$*2Ç,2Ç6<67(0
The numerical format
All temperature values will be shown in a unit numerical format. If the mode
‘DEFAULT’ is selected each bit corresponds to 0.1°C. The possible numerical range
refers to the standardized temperature range of the used sensors. The following table
will explain the numerical format on a preset PT100. In the third column the numerical
format for PT1000 (750-461/000-003) is explained.
Temperature
°C
Voltage
(Ohm)
>400
Voltage
(Ohm)
Binary Value
850
390.481
1384,998
100
138.506
25.5
Hex.
Dec.
0010 0001 0011 0100
2134
8500
1099,299
0000 0011 1110 1000
03E8
1000
109.929
1000,391
0000 0000 1111 1111
00FF
255
0.1
100.039
1000
0000 0000 0000 0001
0001
1
0
100
999,619
0000 0000 0000 0000
0000
0
-0.1
99.970
901,929
1111 1111 1111 1111
FFFF
-1
-25.5
90.389
184,936
1111 1111 0000 0001
FF01
-255
-200
18.192
1111 1000 0011 0000
F830
-2000
<18
1000 0000 0000 0000
8000
-32767
Table 1
Input for PT100 750-461, 481
3
:$*2Ç,2Ç6<67(0
The numerical format for 750-461/000-002
All temperature values will be shown in a unit numerical format. Each bit corresponds
to 0.1°C. The following table will explain the numerical format for 750-461/000-002.
Voltage
(Ohm)
10
0000 0000 0110 0100
Hex.
00 64
Dez.
100
100
0000 0011 1110 1000
03 E8
1000
200
0000 0111 1101 0000
07 D0
2000
300
0000 1011 1011 1000
0B B8
3000
400
0000 1111 1010 0000
0F A0
4000
500
0001 0011 1000 1000
13 88
5000
1000
0010 0111 0001 0000
27 10
10000
1200
0010 1110 1110 0000
2E E0
12000
Input for PT100 750-461, 481
Binary value
4
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 4 least significant Bits are reserved for diagnostic and status purposes. (750-481)
Temp.
°C
Ohm
Binary value
X : without meaning
F : short circuit or
F : open circuit
Ü : overflow
XFÜ
001
Hex.
Dec.
FF F9
65529
>400
1111 1111 1111 1
883
400
0111 1111 1111 1
000
7F F8
32866
560
300
0110 0000 0000 0
000
60 00
24576
266
200
0100 0000 0000 0
000
40 00
16384
0
100
0010 0000 0000 0
000
20 00
8192
-125
50
0001 0000 0000 0
000
10 00
4096
-185
25
0000 0101 0000 0
000
500
1280
-200
20
0000 0100 0000 0
000
400
1024
<-200
0
0000 0000 0000 0
001
1
1
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Input for PT100 750-461, 481
5
:$*2Ç,2Ç6<67(0
Input for Thermocouple Modules
PN 750-462, 750-469, 750-462/000-XXX
Technical description:
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The
serial number can be found on the right side of the module.
The following description is preliminary and is applicable only to the factory
configuration.
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The thermocouple module can be connected to all buscouplers of the
:$*2Ç,2Ç6<67(0 (except for the economy type)
Input for thermocouple modules 750-462,469
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of inputs
Voltage supply
Sensor types
Cold junction compensation
Measuring accuracy
Resolution
Isolation DC/DC
Input current (internal)
Bit width per channel
Configuration
Operating temperature
Connection technique
Dimensions (mm)WxHxL
Presetting
462, 469
2 (differential input, max. +/- 3.5V)
via system voltage
J, K, B, E, N, R, S, T, U, L, mV Messung
on each module
<25 µV, typ. 15 µV
0.1°C per Bit
500V system / power supply
65 mA max.
16 Bit: data; 8 Bit: control/status*
(detection of broken wire 750-469)
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
-100°C / +1370°C, Typ K
The function module 750-462 permits the direct connection of thermocouple sensors.
The module is suitable for 2 or 3-wire thermocouples. For the 2-wire connection
technique, connect the thermocouple wires between TC- and TC+ . For the 3-conductor
technique the shield is also connected. The operation of grounded sensors is provided by
means of internal electrical isolation.
The function module 750-469 alos detects a broken wire. You can find the PNs for the
different sensor types for 750-462 in the following table.
Warning: Both inputs are referenced to a common potential (not isolated)!
The linearization is provided over the complete range by a microprocessor. The
temperature ranges of the sensors are represented with a resolution of 1 bit per 0.1°C in
one word (16 Bit). Thus, 0°C corresponds to the value 0000, and 25.5°C correspond to
the value 0 x 00FF. Temperatures below 0°C are represented in two’s complement with
a leading ‘1’.
Within the whole range of all thermocouples, the function module works like a ‘µV
meter’. The voltage resolution is represented with 16 bits. A processor converts the
voltage value into a numerical value proportional to the measured temperature of the
selected type of thermocouple.
In order to compensate the offset voltage at the clamping point, a cold junction
thermocouple compensation calculation is carried out. The circuit contains a
temperature measuring sensor at the ‘CAGE CLAMP’ connection and considers the
temperature offset voltage when calculating the measured value.
Input for thermocouple modules 750-462,469
2
:$*2Ç,2Ç6<67(0
Temperature Ranges of the connectable sensors:
L
-25°C....+900°C
K
-100°C...1370°C (Default)
J
-100°C...+1200°C
750-462/000-006
E
-100°C...1000°C
750-462/000-008
T
-100°C...+400°C
750-462/000-002
N
-100°C...+1300°C
750-462/000-009
U
-25°C...+600°C
750-462/000-011
B
600°C...+1800°C
750-462/000-007
R
0°C...+1700°C
750-462/000-010
S
0°C...+1700°C
750-462/000-001
mV-Meter
-120 mV...+120 mV
750-462/000-003
Table 1: Temperature ranges of the connectable sensors
Attention: The range of the mV Meter is 0 to 120mV at the moment!
750-469/000-006
750-469/000-008
750-469/000-002
750-469/000-009
750-469/000-011
750-469/000-007
750-469/000-010
750-469/000-001
750-469/000-003
LED functions:
green LED: Function
ON: Normal
OFF: Watchdog-Timer Overflow
If the PLC does not transmit processing data for 100 ms the green LED
stops lightning.
red LED: Error
ON: Over- or underrange or broken wire (bei 750-469)
OFF: voltage is in the measuring range
Input for thermocouple modules 750-462,469
3
:$*2Ç,2Ç6<67(0
The numerical formats
All temperature values are represented in a uniform numerical format. In the default
setting (type K) one Bit corresponds to 0.1°C. The output value corresponds to the
temperature range of each sensor as defined according to standards. By using a
configuration tool, the output formats can be chosen. The linearization can be switched
off and the building of the reference temperature can be switched off also. The
following table identifies the numerical format on the default range (type K).
Temp.
°C
850
Voltage
(uV)
35314
100
Binary Value
0010 0001 0011 0100
Hex.
2134
Dec.
8500
4095
0000 0011 1110 1000
03E8
1000
25,5
1021
0000 0000 1111 1111
00FF
255
0,1
4
0000 0000 0000 0001
0001
1
0
0
0000 0000 0000 0000
0000
0
-0,1
-4
1111 1111 1111 1111
FFFF
-1
-25,5
-986
1111 1111 0000 0001
FF01
-255
-100
-3553
1111 1100 0001 1000
FC18
-1000
Table 2: Numerical formats
Input for thermocouple modules 750-462,469
4
:$*2Ç,2Ç6<67(0
2 Channel Analog Input 0-20 mA / 4- 20 mA
single ended
PN 750-465, 750-466, 750-486, 750-465/000-001
Technical Description
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The
serial number can be found on the right side of the module.
The input channels are single ended and they have a common ground potential.
The inputs are connected to +I. Via 24 V / 0 V a sensor can be provided directly from
the module. Power connections are made automatically from module to module when
snapped onto the DIN rail.
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type)
Analog Inputs 750-465,466,486
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Overvoltage protection
Signal current
Resistance
Resolution
Isolation
Conversion time
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
Analog Inputs 750-465,466,486
465
465/000-001
466
486
2
24 V DC (-15% / +20%) via power jumper contacts
75 mA typ.
35 V max.
0-20mA
4-20mA
50 Ω typ.
12 Bit
500 V system/power supply
2 ms typ.
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits.
The following table will explain the numerical format. (750-465, 466). The 3 LSBs are
not taken into account.
Input current Input current
0-20mA
4-20mA
>20,5
>20,5
Binary value
0111 1111 1111 1111
Hex.
7F FF
Dec. Status LED
32767
42
on
20
20
0111 1111 1111 1111
7F FF
32767
0
off
10
12
0100 0000 0000 0XXX
40 00
16384
0
off
5
8
0010 0000 0000 0XXX
20 00
8192
0
off
2,5
6
0001 0000 0000 0XXX
10 00
4096
0
off
0,156
4,125
0000 0001 0000 0XXX
01 00
256
0
off
0,01
4,0078
0000 0000 0001 0XXX
00 10
16
0
off
0,005
4,0039
0000 0000 0000 1XXX
00 08
8
0
off
0
4
0000 0000 0000 0XXX
00 00
7
0
off
0
3,5 - 4
0000 0000 0000 0000
0
0
0
off
0
0 - 3,5
0000 0000 0000 0000
0
0
41
on
(4 -20
A)
Analog Inputs 750-465,466,486
3
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 3 least significant Bits are reserved for diagnostic and status purposes. (750465/000-001).
Input Binary value
current
0-20mA
X : without meaning
Hex.
F : short circuit or
F : open circuit
Ü : overflow
XFÜ
0100 0000 0000 0
001
4001
Dec.
Status
LED
16385
42
on
20
0100 0000 0000 0
000
4000
16384
0
off
10
0010 0000 0000 0
000
2000
8192
0
off
5
0001 0000 0000 0
000
1000
4096
0
off
2,5
0000 1000 0000 0
000
0800
2048
0
off
1,25
0000 0100 0000 0
000
0400
1024
0
off
0,625
0000 0010 0000 0
000
0200
512
0
off
0,0976
0000 0000 0000 1
000
0008
8
0
off
0
0000 0000 0000 0
000
0000
0
0
off
>20,5
Analog Inputs 750-465,466,486
4
:$*2Ç,2Ç6<67(0
750-466/000-200 or 750-486:
Input Binary value
current
4-20mA
>20,5
X : without meaning
F : short circuit or
Hex. Dec.
F : open circuit
Ü : overflow
XFÜ
0101 0000 0000 0
001
40 01 16385
Status
LED
42
on
20
0101 0000 0000 0
000
50 00 20480
0
off
16
0100 0000 0000 0
000
40 00 16384
0
off
12
0011 0000 0000 0
000
30 00 12288
0
off
8
0010 0000 0000 0
000
20 00
8192
0
off
4,0078
0001 0000 0000 1
000
1008
4104
0
off
4
0001 0000 0000 0
000
1000
4096
0
off
<3,5
0001 0000 0000 0
011
1003
4099
0
on
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Inputs 750-465,466,486
5
:$*2Ç,2Ç6<67(0
2 / 4 Channel Analog Inputs 0-10 V
single ended
PN 750-467, 468, 487, 488
Technical Description
This description is only intended for hardware version X X X X 2 A 0 0 - - - -. The
serial number can be found on the right side of the module.
The input channels are single ended and they have a common ground potential.
The inputs are connected to +I and M. The shield is connected to „S“. The connection is
made automatically when snapped onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type)
Analog Inputs 750-467,468,487,488
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Overvoltage protection
Signal voltage
Resistance
Resolution
Isolation
Conversion time
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
Analog Inputs 750-467,468,487,488
467
2
468
487
488
4
2
4
via system voltage (DC DC converter)
60 mA
60 mA
60 mA
60 mA
35 V max.
0-10 V
133 kΩ typ.
12 Bit
500 V system/power supply
2 ms typ.
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits.
The following table will explain the numerical format. (750-467, 468). The 3 LSBs are
not taken into account.
Input voltage
0-10V
> 10
0111 1111 1111 1111
Hex.
7F FF
Dec.
32767
Status
42
10
0111 1111 1111 1XXX
7F F8
32760
0
5
0100 0000 0000 0XXX
40 00
16384
0
2,5
0010 0000 0000 0XXX
20 00
8192
0
1,25
0001 0000 0000 0XXX
10 00
4096
0
0,0781
0000 0001 0000 0XXX
01 00
256
0
0,0049
0000 0000 0001 0XXX
00 10
16
0
0,0024
0000 0000 0000 1XXX
00 08
8
0
0
0000 0000 0000 0XXX
00 07
7
0
0
0000 0000 0000 0XXX
0
0
0
Analog Inputs 750-467,468,487,488
Binary value
3
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 3 least significant Bits are reserved for diagnostic and status purposes. (750-487,
488)
Input
voltage
0-10V
Binary value
>10
0101 0000 0000 0
10
0101 0000 0000 0
5
X : without
meaning
F : short circuit or
F : open circuit
Ü : overflow
XFÜ
001
Hex.
Dec.
Status
50 01
20481
42
000
50 00
20480
0
0011 0000 0000 0
000
30 00
12288
0
2,5
0010 0000 0000 0
000
20 00
8192
0
1,25
0001 1000 0000 0
000
18 00
6144
0
0,0049
0001 0000 0000 1
000
10 08
4104
0
0
0001 0000 0000 0
000
10 00
4096
0
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Inputs 750-467,468,487,488
4
:$*2Ç,2Ç6<67(0
2 Channel Analog Input 0-20mA / 4-20mA
single ended
PN 750-472, 750-472/000-200, 750-474, 750-474/000-200
Technical description:
This description is only intended for hardware and software version X X X X 0 2 0 2- - -. The serial number can be found on the right side of the module.
The input channels are single ended and they have a common ground potential.
The inputs are connected to +I. Via 24 V / 0 V a sensor can be provided directly from
the module. Power connections are made automatically from module to module when
snapped onto the DIN rail.
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2-channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4-channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type).
Analog Inputs 750-472, 474
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Overvoltage protection
Internal current
Input signal
Input current
Resistance
Input voltage
Resolution
Input filter
Noise rejection at sampling
frequency
472
472/000-200
2
24 V DC (-15% / +20%) via power jumper contacts
24 V max.
75 mA typ.
0-20mA
4-20mA
< 38 mA at 24 V
50 Ω
non-linear/overload protection: U=1,2 V DC+160Ω*Imess
internal 16 Bit, 15 Bit via fieldbus
50 Hz
< -100 dB
Noise rejection below
sampling frequency
Transition frequency
Isolation
Conversion time
Bit width per channel
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Analog Inputs 750-472, 474
474
474/000-0200
< -40 dB
13 Hz
500 V system/power supply
80 ms typ.
16Bit: Data; optional 8Bit: Control/Status
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0,08 to 2,5mm2
12 x 64* x 100
*from upper edge of the carrier rail
2
:$*2Ç,2Ç6<67(0
The numerical format
The resolution of 750-472 and 750-474 are 15 Bit.
Input current Input current
Binary value
0-20mA
4-20mA
>20,5
>20,5
0111 1111 1111 1111
Hex.
7F FF
Dec.
32767
Status
42
LED
on
20
20
0111 1111 1111 1111
7F FF
32767
0
off
10
12
0100 0000 0000 0000
40 00
16384
0
off
5
8
0010 0000 0000 0000
20 00
8192
0
off
2,5
6
0001 0000 0000 0000
10 00
4096
0
off
0,156
4,125
0000 0001 0000 0000
01 00
256
0
off
0,01
4,0078
0000 0000 0001 0000
00 10
16
0
off
0,005
4,0039
0000 0000 0000 1000
00 08
8
0
off
0
4
0000 0000 0000 0000
00 00
7
0
off
0
3,5 - 4
0000 0000 0000 0000
0
0
0
off
0
0 - 3,5
0000 0000 0000 0000
0
0
41
on
(4-20
A)
Analog Inputs 750-472, 474
3
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 Bit indication of the measured value it is possible to use the
„Siemens format“. The measured value is represented by the most significant 12 Bits.
The 3 least significant Bits are reserved for diagnostic and status purpose (750-472/000200, 750-474/000-200). The numerical format for 750-472/000-200 is equivalent to S5
463, 750-474/000-200 equivalent to S5 460/465.
Input Binary value
current
4-20mA
X : without meaning
F : short circuit or
Hex.
F: open circuit
Ü : overflow
XFÜ
0111 1111 1111 1
001
7F F9
Dec.
Status
LED
32761
42
on
31,99
0111 1111 1111 0
000
7F F0
32752
0
off
20,5
0101 0010 0000 0
001
52 00
20992
0
off
20
0101 0000 0000 0
000
50 00
20480
0
off
16
0100 0000 0000 0
000
40 00
16384
0
off
12
0011 0000 0000 0
000
30 00
12288
0
off
8
0010 0000 0000 0
000
20 00
8192
0
off
4,0078
0001 0000 0000 1
000
10 08
4104
0
off
4
0001 0000 0000 0
000
10 00
4096
0
off
3,5
0000 1110 0000 0
011
0E 00
3584
0
on
0
0000 0000 0000 0
000
00 00
0
0
on
32
Analog Inputs 750-472, 474
4
:$*2Ç,2Ç6<67(0
Input Binary value
current
0-20mA
X : without meaning
F : short circuit or
F: open circuit
Ü : overflow
XFÜ
0110 0000 0000 0
001
Hex.
Dec.
Status
LED
6001
24577
42
on
29,98
0101 1111 1111 1
000
5F F8
24568
0
on
20,5
0100 0001 1001 1
000
41 98
16762
0
on
20
0100 0000 0000 0
000
4000
16384
0
off
10
0010 0000 0000 0
000
2000
8192
0
off
5
0001 0000 0000 0
000
1000
4096
0
off
2,5
0000 1000 0000 0
000
0800
2048
0
off
1,25
0000 0100 0000 0
000
0400
1024
0
off
0,625
0000 0010 0000 0
000
0200
512
0
off
0,00976 0000 0000 0000 1
000
0008
8
0
off
000
0000
0
0
off
30
0
0000 0000 0000 0
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Inputs 750-472, 474
5
:$*2Ç,2Ç6<67(0
2-Channel Analog Input
± 10 V, 16 Bit, single ended
0 -10 V, 16 Bit, single ended
750-476
750-478
Function clamp and variants
Item-No.
750-476
750-476/000-200
750-478
750-478/000-200
Analog Inputs 750-476, 478
4;13614<<<
Description
2-Channel Analog Input
± 10 V, single ended
2-Channel Analog Input
± 10 V, single ended
with status infomation within the data word
Identification
2 AI ± 10 V DC
16 Bit s.e.
2 AI ± 10 V DC
16 Bit s.e.
S5-466
2-Channel Analog Input
0-10 V, single ended
2-Channel Analog Input
0-10 V, single ended
with status infomation within the data word
2 AI 0-10 V DC
16 Bit s.e.
2 AI 0-10 V DC
16 Bit s.e.
S5-466
1
:$*2®,22®6<67(0
Technical description
This description is only intended for hardware and software version
X X X X 0 4 0 1 - - - - .The serial number can be found on the right side of the module.
The input channels are single ended and they have a common ground potential.
The inputs are connected to I and 0V.
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2-channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4-channel
modules).
The input module can be connected to all buscouplers of the :$*2®,22®6<67(0
(except for the economy type).
Analog Inputs 750-476, 478
4;13614<<<
2
:$*2®,22®6<67(0
Technical Data
Item Number
Number of channels
Nominal voltage
Overvoltage resistance
Internal current
consumption
Input signal
Input impedance
Overvoltage protection
Resolution
Input filter
Noise rejection at sampling
frequency
Noise rejection below
sampling frequency
Transition frequency
Isolation
Wandlungszeit
Bitwidth per channel
Configuration
Operating temperature
Wire connection
Dimensions (mm)WxHxL
Analog Inputs 750-476, 478
4;13614<<<
750-476
750-476/000-200
750-478
750-478/000-200
2
via system voltage (DC/DC)
24 V max.
75 mA typ.
+/- 10 V
0 - 10 V
130 kΩ typ.
24 V protected against polarity reversal
15 Bit + sign
50 Hz
< -100 dB
< -40 dB
13 Hz
500 V system/power supply
80 ms typ.
16Bit: Data;
optional 8Bit: control/status
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0,08 bis 2,5mm2
12 x 64* x 100
* from upper edge of the carrier rail
3
:$*2®,22®6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution for 750-476
and 750-478 is 15 Bit plus sign.
750-476, -478
Input voltage
0-10V
±10V
Binary
Hex.
Dec.
Status
(hex)
LED
error
I (1,2)
>11
>11
0111 1111 1111 1111
0x7FFF
32767 0x42
on
>10,5
>10,5
0111 1111 1111 1111
0x7FFF
32767 0x42
off
10
10
0111 1111 1111 1111
0x7FFF
32767 0x00
off
5
5
0100 0000 0000 0000
0x4000
16384 0x00
off
2,5
2,5
0010 0000 0000 0000
0x2000
8192 0x00
off
1,25
1,25
0001 0000 0000 0000
0x1000
4096 0x00
off
0,0781
0,0781
0000 0001 0000 0000
0x0100
256 0x00
off
0,049
0,049
0000 0000 0001 0000
0x0010
16 0x00
off
0,0003
0,0003
0000 0000 0000 0001
0x0001
1 0x00
off
0
0
0000 0000 0000 0000
0x0000
0 0x00
off
<-0,5
0000 0000 0000 0000
0x0000
0 0x41
off
<-1
0000 0000 0000 0000
0x0000
0 0x41
on
-5
1100 0000 0000 0000
0xC000
49152 0x00
off
-10
1000 0000 0000 0000
0x8000
32768 0x00
off
<-10,5
1000 0000 0000 0000
0x8000
32768 0x41
off
<-11
1000 0000 0000 0000
0x8000
32768 0x41
on
Analog Inputs 750-476, 478
4;13614<<<
Value
4
:$*2®,22®6<67(0
Numerical format with status information
For fieldbus master, which evaluates status information in the data word, e.g. from
Siemens, a variant of the function clamp is available.
The format containes the status in Bit B0 .. B2.
The digitalized measuring value is placed at the position Bit B3 .. B15. The numerical
format is equivalent to S5 466.
750-476/000-200
Input
Value
Status LED
error
voltage
Binary
Hex.
Dec.
I (1,2)
*)
±10 V
XEO
> 11
0011 1111 1111 1 0 0 1
0x3FF9 16377 0x42
on
> 10,5
0011 1111 1111 1 0 0 1
0x3FF9 16377 0x42
off
10
0011 1111 1111 1 0 0 0
0x3FF8 16376 0x00
off
5
0010 0000 0000 0 0 0 0
0x2000 8192 0x00
off
2,5
0001 0000 0000 0 0 0 0
0x1000 4096 0x00
off
1,25
0000 1000 0000 0 0 0 0
0x0800 2048 0x00
off
0,0781
0000 0000 1000 0 0 0 0
0x0080
128 0x00
off
0,0049
0000 0000 0000 1 0 0 0
0x0008
8 0x00
off
0
0000 0000 0000 0 0 0 0
0x0000
0 0x00
off
-5
1110 0000 0000 0 0 0 0
0xE000 57344 0x00
off
-10
1100 0000 0000 0 0 0 0
0xC000 49152 0x00
off
< -10,5
1100 0000 0000 0 0 0 1
0xC001 49153 0x41
off
< -11
1100 0000 0000 0 0 0 1
0xC001 49153 0x41
on
*)
X : without meaning, E : short circuit or open circuit, O : overflow
750-478/000-200
Input
Value
Status LED
error
voltage
Binary
Hex.
Dec.
I (1,2)
*)
0-10 V
XEO
> 11
0111 1111 1111 1 0 0 1
0x7FF9 32761 0x42
on
> 10,5
0111 1111 1111 1 0 0 1
0x7FF9 32761 0x42
off
10
0111 1111 1111 1 0 0 0
0x7FF8 32760 0x00
off
5
0100 0000 0000 0 0 0 0
0x4000 16384 0x00
off
2,5
0010 0000 0000 0 0 0 0
0x2000 8192 0x00
off
1,25
0001 0000 0000 0 0 0 0
0x1000 4096 0x00
off
0,0781 0000 0001 0000 0 0 0 0
0x0100
256 0x00
off
0,049
0000 0000 0001 0 0 0 0
0x0010
16 0x00
off
0,024
0000 0000 0000 1 0 0 0
0x0008
8 0x00
off
0
0000 0000 0000 0 0 0 0
0x0000
0 0x00
off
< -0,5
0000 0000 0000 0 0 0 1
0x0001
1 0x41
off
< -1
0000 0000 0000 0 0 0 1
0x0001
1 0x41
on
*)
X : without meaning, E : short circuit or open circuit, O : overflow
Analog Inputs 750-476, 478
4;13614<<<
5
:$*2®,22®6<67(0
Status byte
Structure of the status byte:
bit
meaning
• ERROR
• Overrange
• Underrange
Analog Inputs 750-476, 478
4;13614<<<
7
0
6
ERROR
5
4
3
2
res. res. res. res.
1
Overrange
0
Underrange
error at the input channel.
exceed the allowable measuring range.
fall below the allowable measuring range.
6
:$*2®,22®6<67(0
2 Channel Analog Outputs 0-10 V
PN 750-550, 750-580
Technical Description
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The
serial number can be found on the right side of the module.
The output signal of 750-550/551 is a 0-10 V signal. Sensors may be connected to „O“
and to the common ground.
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The output module can be connected to all buscouplers of the
:$*2Ç,2Ç6<67(0 (except for the economy type)
Analog Outputs 750-550,580
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Voltage supply
Signal voltage
Resistance
Resolution
Isolation
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
550, 580
2
via system voltage (DC DC converter)
65 mA
via system voltage (DC-DC)
0-10 V
> 5 kΩ
12 Bit
500 V system/power supply
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits.
The 3 LSBs are not taken into account. The following table will explain the numerical
format. (750-550).
Output voltage 0-10 V
Binary Value
Hex.
Dec.
10
0111 1111 1111 1111
7F F8
32767
5
0100 0000 0000 0000
40 00
16384
2.5
0010 0000 0000 0000
20 00
8192
1.25
0001 0000 0000 0000
10 00
4096
0.0781
0000 0001 0000 0000
01 00
256
0.0049
0000 0000 0001 0000
00 10
16
0.0024
0000 0000 0000 1000
00 08
8
0
0000 0000 0000 0111
00 07
7
0
0000 0000 0000 0000
0
0
Analog Outputs 750-550,580
2
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 3 least significant Bits are reserved for diagnostic and status purposes. (750-580)
Output
voltage
0-10 V
> 10
Binary value
Hex.
Dec.
0101 0000 0000 XXXX
50 01
20481
10
0100 0000 0000 XXXX
40 00
16384
7.5
0011 0000 0000 XXXX
30 00
12288
5
0010 0000 0000 XXXX
20 00
8192
2.5
0001 0000 0001 XXXX
10 08
4104
1.25
0000 1000 0000 XXXX
800
2048
0
0000 0000 0000 XXXX
0
0
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Outputs 750-550,580
3
:$*2Ç,2Ç6<67(0
2 -Channel Analog Outputs 0-20 mA / 4-20 mA
PN 750-552, 554, 584
Technical Description
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The
serial number can be found on the right side of the module.
The output signal of 750-552...555, 584 is a 0-10 mA or 4-20 mA signal. Sensors may
be connected to „O“ and to the common ground (0V).
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
Power connections are made automatically from module to module when snapped onto
the DIN rail. For a self-supporting function, the power supply has to be connected by an
input module (e.g. 750-602).
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The output module can be connected to all buscouplers of the
:$*2Ç,2Ç6<67(0 (except for the economy type)
Analog Outputs 750-552, 554, 584
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Current consumption
(internal)
Nominal voltage
Signal current
Resistance
Resolution
Isolation
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
552
554
2
60 mA max.
584
24 V DC (-15% /+20%) via power jumper contacts
0-20mA
4-20mA
4-20mA
<500 Ω
12 Bit
500 V system/power supply
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of carrier rail)
The numerical format
All analog values will be shown in a unit numerical format. The following table will
explain the numerical format. (750-552/554). The 3 LSBs are not taken into account.
Output
Output
Binary Value
current 0-20 current 4-20
Hex.
Dec.
20
20
0111 1111 1111 1111
7F FF
32767
10
12
0100 0000 0000 0000
40 00
16384
5
8
0010 0000 0000 0000
20 00
8192
2.5
6
0001 0000 0000 0000
10 00
4096
0.156
4.125
0000 0001 0000 0000
01 00
256
0.01
4.0078
0000 0000 0001 0000
00 10
16
0.005
4.0039
0000 0000 0000 1000
00 08
8
0
4
0000 0000 0000 0111
00 07
7
0
4
0000 0000 0000 0000
0
0
Analog Outputs 750-552, 554, 584
2
:$*2Ç,2Ç6<67(0
The numerical format for Siemens
In addition to the full 16 bit indication of the measured value it is possible to use the
‘Siemens format’. The measured value is represented by the most significant 12 Bits.
The 4 least significant Bits have no function. (750-584)
Output
current 4-20
mA
20
Binary value
Hex.
Dec.
0100 0000 0000 XXXX
40 00
16384
16
0011 0000 0000 XXXX
30 00
12288
12
0010 0000 0000 XXXX
20 00
8192
8
0001 0000 0000 XXXX
10 00
4096
4.015
0000 0000 0001 XXXX
00 10
16
4
0000 0000 0000 XXXX
00 00
0
If you have questions about the formatting of this data, please contact WAGO for
I/O System technical support.
Analog Outputs 750-552, 554, 584
3
:$*2Ç,2Ç6<67(0
2 Channel Analog Outputs +/- 10 V
PN 750-556
Technical Description
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The
serial number can be found on the right side of the module.
The output signal of 750-556 is a +/- 10 V signal. Sensors may be connected to „O“ and
to the common ground (0V).
The shield is connected to „S“. The connection is made automatically when snapped
onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power
supply is made by the data contacts with a DC-DC converter. The modules can work
self-supporting.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The input module can be connected to all buscouplers of the :$*2Ç,2Ç6<67(0
(except for the economy type)
Analog Outputs 750-556
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Number of channels
Nominal voltage
Current consumption
(internal)
Signal voltage
Resistance
Resolution
Isolation
Bit width per channel
Operating temperature
Configuration
Wire connection
Dimensions
(mm)WxHxL
Analog Outputs 750-556
556
2
via system voltage (DC DC converter)
65 mA
+/- 10 V
> 5 kΩ
12 Bit
500 V System/Power supply
16 Bit Data, 8 Bit Control/Status
0°C....+55°C
none, optional via software parameter
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
The numerical format
All analog values will be shown in a unit numerical format. The resolution is 12 Bits
and the 3 LSBs are ignored. The following table will explain the numerical format.
Input voltage +/- 10 V
Analog Outputs 750-556
Binary Value
10
0111 1111 1111 1111
Hex.
7F FF
Dec.
32767
5
0100 0000 0000 0000
40 00
16384
2.5
0010 0000 0000 0000
20 00
8192
1.25
0001 0000 0000 0000
10 00
4096
0.0781
0000 0001 0000 0000
01 00
256
0.0049
0000 0000 0001 0000
00 10
16
0.0024
0000 0000 0000 1111
00 0F
15
0
0000 0000 0000 0000
0
00
-2.5
1110 0000 0000 0000
E0 00
57344
-5
1100 0000 0000 0000
C0 00
49152
-7.5
1010 0000 0000 0000
A0 00
40960
-10
1000 0000 0000 0000
80 00
32768
3
:$*2Ç,2Ç6<67(0
End module, Potential multiplication module,
Separation module
PN750-600, 750-614, 750-616, 750-616/030-000
Technical Description
After the fieldbus node is assembled with the correct buscoupler and selected I/O
modules, the end module is snapped onto the assembly. It completes the internal data
circuit and ensures correct data flow.
The potential multiplication module allows additional + and - voltage connection points
(up to 4 additional). This eliminates external terminal blocks.
Technical Data:
Item Number 750Voltage
Current on contacts
Operating temperature
Wire connection
Dimensions (mm) WxHxL
600
-
max. 10 mA
0 °C ... + 55 °C
CAGE CLAMP; 0,08 to 2,5 mm²
12 x 64 x 100, (from the upper edge of the carrier rail)
End module, Potential multiplication 750-600,614,616
614
24 V - 230 V AC/DC
1
:$*2Ç,2Ç6<67(0
Separation module
Technical description:
Use of this module allows increased air- and creepage distances between different field
voltages within a node.
There are two different types of the separation module. With PN 750-616 you get a
module without printing. PN 750-616/030-000 looks like the right one in the above
picture.
Technical Data:
Item No.
750-616, 750-616/030-000
Dimensions (mm) W x H x L
12 x 64* x 100, (*from the upper edge of the carrier rail)
End module, Potential multiplication 750-600,614,616
2
:$*2Ç,2Ç6<67(0
Supply modules
PN750-601, 602, 609, 610, 611, 612, 613, 615
Technical Description
The supply module provides I/O module power through the power jumper contacts.
Maximum current supply to all connected modules is 10 A. Maximum current supply to
the modules with fuse holder is 6.3 A. Should higher currents be necessary, intermediate
supply modules may be added in the assembly.
The modules 750-601, 609, 615, 610 and 611 are additionally equipped with a fuse
holder. The change of the fuse is very easy by drawing out the fuse holder and changing
the fuse. A blown fuse is indicated by a LED.
The modules 750-610 and 611 send information about the status of the supply module
to the fieldbus coupler through two input bits.
Bit1
Bit2
Description
0
0
voltage < 15 V DC
1
0
fuse blown
0
1
fuse o.k., voltage o.k.
Using the supply modules you have to look for the allowed voltage. The following table
shows the voltage for the supply modules.
The supply module 750-613 supplies the field side and te internal databus system
voltage. The internal system voltage can supply 2 A max. If the sum of the internal
current consumption exceeds 2 A, an additional supply module must be added.
Supply modules 750-601,602, 609,615,610,611,613
1
:$*2Ç,2Ç6<67(0
Technical Data:
Item Number 750Voltage
602
24 V DC
Current via contacts
Operating temperature
Wire connection
Dimensions (mm) W x H x L
612
613
0 - 230 V AC/DC 24 V DC
(-15%/+20%)
max. 10 A
0 °C ... + 55 °C
CAGE CLAMP; 0,08 to 2,5 mm²
12 x 64 x 100, (from the upper edge of the carrier rail)
internal current 750-613: max. 2 A
Item Number 750Voltage
601
24 V DC
Current via contacts
Fuse
Operating temperature
Wire connection
Dimensions (mm) W x H x L
615
120 V AC
max. 6.3 A
5 x 20, 6.3 A
0 °C ... + 55 °C
CAGE CLAMP; 0,08 to 2,5 mm²
12 x 64 x 100, (from the upper edge of the carrier rail)
Item Number 750Number of inputs
Current consumption
Internal bitwidth
610
Voltage
Current via contacts
Fuse
Operating temperature
Wire connection
Dimensions (mm) W x H x L
24 V DC
Supply modules 750-601,602, 609,615,610,611,613
609
230 V AC
611
2
5 mA
2
230 V AC
max. 6.3 A
5 x 20, 6.3 A
0 °C ... + 55 °C
CAGE CLAMP; 0,08 to 2,5 mm²
12 x 64 x 100, (from the upper edge of the carrier rail)
2
:$*2Ç,2Ç6<67(0
Binary spacer module
PN 750-622
1XPEHURILQSXWVRURXWSXWV
,QSXWVRU2XWSXWV
:$*2
9
ON
1 23 45
9
Technical description
The binary spacer module reserves bit-addresses in the WAGO buscoupler.
The number of in or outputs can be chosen by two DIP switches. 2, 4, 6 or 8 bits are
possible (1, 2, 3 or 4-channel modules). A third DIP Switch chooses inputs or outputs.
The kind of configuration is indicated by means of 3 LEDs even if there is no voltage
applied.
The binary spacer module works like a supply module. The power supply must be made
for the following modules.
Binary spacer module 750-622
1
:$*2⇓,2⇓6<67(0
Technical Data
Item number 750Number of in- or outputs
Nominal voltage
Internal current consumption
Voltage (field side)
Current via power jumper
contacts
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm) WxHxL
622
2, 4, 6 or 8
5 V DC internal
10 mA max.
24 V DC (-15%/+20%)
10 A max.
500 V system/power supply
2, 4, 6 oder 8
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0.08 to 2.5mm2
12 x 64* x 100 (*from upper edge of the carrier rail)
The DIP switches and LEDs are used as follows. When the switch is OFF the LED is
also OFF (dark green symbol). When the switch is ON the LED lightens (yellow
symbol).
ON
12345
;
;
'RQ·WFDUH
2))
,QSXWV
21
2XWSXWV
2)) 2))
%LW[%LW
21
2))
%LW[%LW
2)) 21
%LW[%LW
21
%LW[%LW
21
Examples:
ON
12345
6 binary outputs (3x 2-channel output modules)
ON
12345
Binary spacer module 750-622
4 binary inputs (2x 2-channel input modules)
2
:$*2⇓,2⇓6<67(0
SSI Encoder Interface
PN 750-630, 750-630/000-001, 750-630/000-006
Technical Description:
This technical description is only valid for hardware and software versions
X X X X 2 B 0 2----. The product series number is printed on the right side of the
module.
The operational mode of the module is factory preset to discern a 24 bit absolute
encoder Graycode signal transmitted at 125kHz.
The following description is preliminary and is applicable to the factory configuration.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The SSI Interface is able to run with all WAGOÇI/OÇSYSTEM bus-couplers (except
for the economy type).
SSI encoder 750-630
1
:$*2Ç,2Ç6<67(0
Technical Data:
Series 750
Encoder connections
Current consumption
(internal)
Power supply
Sensor power supply
Baud rate
Data field width
Signal output (clock)
Signal input (positional)
Output data format
Bit width
Configuration
Signal isolation
Temperature range
Wire connection
Dimensions (mm) WxHxL
Default Configuration
SSI encoder 750-630
630
630/000-001
630/000-006
Data Input: D+; D-; Clock Output: CI+; CI85mA typ.
24V DC (-15%/+20%)
24V DC via power jumper contacts
max. 1 MHz
32 Bit
differential RS 422
differential RS 422
Graycode / Dualcode
32 Bit: Data; 8 Bit: Control/Status
none, optional via software parameter
500 V system/power supply
0°C....+55°C
CAGE CLAMP; 0.08 x 2.5mm2
AWG 28-14
12 x 64* x 100 (*from upper edge of carrier rail)
125 kHz
125 kHz
250 kHz
Graycode
Binary
Graycode
24 Bit Data
24 Bit Data
24 Bit Data
Resolution
Resolution
Resolution
2
:$*2Ç,2Ç6<67(0
Terminal Configuration:
Input
Signal D+ and Signal DSignal Cl+ and Signal CL+24 V DC
0 V DC
Type
Input, RS422
Output, RS422
Input
Input
Function
Positional data from encoder, Graycode.
Clock signal output for communications interface.
24 V DC supply voltage to module, field connection.
0 V DC supply voltage return to module, field
connection.
The use of this module in conjunction with a SSI encoder provides direct positional
information rather than the type of data resultant from incremental type encoders.
Absolute encoders are comprised of several data disks which generate a data
word which is unique through out the 360 degrees of rotation. The data format
is a modified binary pattern in either Graycode or Dualcode.
The resolution of the sensor depends upon the configuration of the sensor and
the physical number of revolutions in the motion profile. Since the basis of the
encoder is to provide absolute positional information based upon a mechanical
configuration limited to one revolution or less. The maximum resolution of this
module is 24 bit.
The frequency of the data signal input to the SSI module is maintained at 125 kHz.
Listed below are the recommended cable lengths for the various clock signal Baud
rates.
Baud rate
100 kHz
200 kHz
300 kHz
400 kHz
SSI encoder 750-630
Maximum
cable length
400 meters
200 meters
100 meters
50 meters
3
:$*2Ç,2Ç6<67(0
Organization of the in- and output data for Profibus
Input positional data word structure:
The module is seen like an analog input with 2 x 16 Bit input data. The ID is 209 (0xD1
hex). (1 double word, only inputs, consistent)
Inputs:
Double
Word
D0
SSI encoder 750-630
Data Word Designation
Positional data,
Input byte
High Byte 0
Low Word
Positional data,
Input byte
Low Byte 1
Low Word
Positional data,
Input byte
High Byte 2
High Word
Positional data,
Input byte
Low Byte 3
High Word
4
:$*2Ç,2Ç6<67(0
Quadrature Encoder Interface
PN 750-631, 750-631/000-001
Technical Description:
This technical description is only valid for hardware and software versions X X X X 2 B
0 1----. The product series number is printed on the right side of the module.
The described operational mode is 4 times or quadrature sampling.
The following description is preliminary and is applicable to the factory configuration.
Attention:
The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)!
A module which needs all contacts (e.g. 2 channel digital) may not be connected to the
right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel
modules).
The Quadrature Encoder Interface is able to run with all WAGOÇI/OÇSYSTEM buscouplers (except for the economy type).
Quadrature Encoder 750-631
1
:$*2Ç,2Ç6<67(0
Technical Data:
Series 750Encoder connections
Current consumption
(internal)
Sensor supply voltage
Data word
Maximum frequency
Counter modes
Data latch word
Commands
Supply voltage
Current consumption
Sensor
Bit width
Configuration
Operational temperature
Wire connection
Dimensions (mm) WxHxL
Default configuration
Quadrature Encoder 750-631
631
631/000-001
A, A(inv.); B, B(inv.); Index, Index(inv.)
25 mA
5 V DC
16 Bit Binary
1 MHz
1-2-4 times sampling
16 Bit
read, reset, start
24 V DC (-15%/+20%)
85mA Field (without sensor)
0.1 A (without sensor load)
1 x 32 Bit: Data; 8 Bit:Control/Status
none, optional via software parameter
0°C....+55°C
CAGE CLAMP; 0.08 x 2.5mm2
AWG 28-14
24 x 64* x 100 (*from upper edge of the carrier rail)
4 times sampling
1 time sampling
2
:$*2Ç,2Ç6<67(0
Operational Characteristics:
The quadrature encoder interface accepts up to two input signals for the counting
increment. The index pulse may also be considered should the control configuration
require. There is also a Latch and Gate input available on the module for added
functionality.
The quadrature encoder provides two signals that are shifted 90 degrees from each
other, signals A and B. In order to achieve a better common mode noise rejection ratio,
the output signals from the encoder are transmitted via a differential signal. Their
complement signals, A(inv.) and B(inv.) are also transmitted. A directional
determination may be made by which signal leads. If the A signal leads, the direction is
considered to be forward. If the B signal leads, the direction is considered to be reverse.
By exchanging the A and A(inv.) the phase relationship will be changed by 180 degrees,
thus allowing the direction to be preset via the wiring configuration.
Most quadrature encoders have an Index signal, or Z rev, as well as the incremental
signal. This signal provides one pulse per revolution with a duration equal to an
incremental pulse.
The inputs to the quadrature encoder module must be supplied from an encoder with
Line Driver Outputs for proper operation. The 5 Volt DC output may be used to power
the encoder. The 24 Volt DC input supply must be provided from an external power
supply.
The Gate and Latch inputs are 24 Volt DC.
Module Inputs and Outputs
Connection
Type
Signal A and Signal Input,
A(inv.)
TTL
Signal B and Signal Input,
B(inv.)
TTL
Signal C and Signal Input,
C(inv.)
TTL
Shield
Input
Sensor 0V DC
Output
Sensor +5V DC
Output
+24V DC
Input
0V DC
Input.
Gate
Input,
24V DC
Latch
Input,
24V DC
Function
Incremental pulse signals for channel A
Incremental pulse signals for channel B
Index pulse signals
Shield connection for encoder wiring
Supply return for encoder supply
5 Volt DC supply for encoder
24 Volt DC supply, field connection
Supply return, field connection
24 Volt DC input for gate signal
24 Volt DC input for Latch signal
The Input Gate stops the counter. Only 0 V or an open connection initialize the counter.
24 V stops the counting process.
Quadrature Encoder 750-631
3
:$*2Ç,2Ç6<67(0
The input Latch controls the overtaking of the actual counter value into the
Latchregister. This input is activated by teh control bit EN_LATEXT („1“). EN_LACT
has to be deactivated („0“). The first change from 0 V to 24 V at the Latch input takes
the actual counter value into the Latchregister.
The control byte contains the information as listed below.
Control Byte Configuration
Bit 7 Bit 6 Bit 5
0
x
CFAST_M
0
x
Operation
Mode
Bit 4
x
x
Bit 3
x
x
Bit 2
CNT_SET
Counter Set
Bit 1
EN_LATEXT
Release Latch
Bit 0
EN_LATC
Release Index
Pulse
Please note Bit 7 is a reserved bit and must always be set to 0. It is responsible for
register communication which is not decribed in this chapter.
Bit
CFAST_M
Function
Fast mode operation. Only the counter module function will be
operable. All other control bits will be ignored.
The counter module will be preset to a count value with a rising
edge.
0=The external latch input is deactivated.
1=The module will latch in the counter data on the first rising edge.
Other changes have no effect.
0=Latching data with the Index pulse is deactivated.
1=The Index pulse will latch in the counter data on the first
rising edge. Other changes have no effect.
CNT_SET
EN_LATEXT
EN_LACT
The status byte contains the information as listed below.
Status Byte Configuration
Bit 7 Bit 6 Bit 5 Bit 4
Bit 3
Bit 2
0
x
x
OVERFLOW UNDERFLOW CNTSET_ACC
0
x
x
Bit
OVERFLOW
UNDERFLOW
CNTSET_ACC
LATEXT_VAL
LACT_VAL
Quadrature Encoder 750-631
Counter
Overflow
Counter
Underflow
Counter Set
Acknowledge
Bit 1
LATEXT_
VAL
External
Latch Ack.
Bit 0
LATC_
VAL
Latched
Data Set
Function
The Overflow bit will be set if the counter value rolls over from 65535 to
0. This bit will automatically be reset if the counter passes through more
than one third of the count range, 21845 to 21846, or if an Underflow
occurs.
The Underflow bit will be set if the counter value rolls back from 65535
to 0. This bit will automatically be reset if the counter passes through
more than two thirds of the count range, 43690 to 43689, or if an
Overflow occurs.
The Counter Set Acknowledge but is set when a valid counter value is
preset to the module.
The Latch External Valid Acknowledge bit is set when a counter
value is latched into the module via the Latch input.
The Latch Index Pulse Valid Acknowledge bit is set when a counter
value is latched into the module via the Index pulse.
4
:$*2Ç,2Ç6<67(0
It is possible to process and/or check the below listed actions via the control and status
bits.
Extending the 16 bit counting range: The internal counting range is 16 bits or a
maximum value of 65535. Should the application require an extended count range the
location-difference-integration method may be employed. This method uses the control
system to store the interrogated counter value. Any new interrogated value will have the
previously stored counter value subtracted from it. This value will then be added to an
accumulated register value. It is assumed that the counter difference of the two
interrogated values is smaller than 16 bits therefore overflows need not be considered.
Another method calculates the extended counter range via the underflow and overflow
status bits. The interrogated value is either added or subtracted to the accumulation
register depending upon the status of the overflow or underflow bits.
Set Counter Position: The presetting of the counter is possible via the CNT_SET bit.
The desired preset is loaded into the data register and the CNT_SET bit is set from 0 to
1. The CNTSET_ACC bit will be set to 1 when the preset value is loaded into the count
register.
Maintaining the Present Counter Position: The counter present value may be
maintained or latched via the external Latch input. First the external latch must be
enabled via the EN_LATEXT bit. Once the input is enabled, the data will be latched
into the counter module upon a 0 to 1 transition. Upon completion of the latch process
the external latch valid bit LATEXT_VAL will be set to 1.
Maintaining a Reference Point: The storage of a present counter value may also
accomplished via the Index pulse from the encoder. First the index latch enable bit must
be set, EN_LACT, to a value 1. The counter present value will be latched upon the low
to high transition of the Index input. Upon completion of the data latch process the
Index Latch Valid bit, LACT_VAL will be set to 1.
Quadrature Encoder 750-631
5
:$*2Ç,2Ç6<67(0
Organization of the in- and output data for Profibus
The ID is 181 (0xB5 hex). (6 Bytes, consistent)
Outputs:
Byte
D0
D1
D2
D3
D4
D5
function
control byte
set counter-Byte1
set counter-Byte0
-
Inputs:
Byte
D0
D1
D2
D3
D4
D5
Quadrature Encoder 750-631
function
Status byte
counter byte 1
counter byte 0
Latch value-Byte1
Latch value-Byte0
6
:$*2Ç,2Ç6<67(0
RS232C Interface, TTY Interface -20 mA Current Loop
RS485C Interface
PN 750-650, 750-651, 750-653, 750-650/000-001
Technical Description:
This technical description is only valid for hardware and software versions X X X X 2 C
0 3----. The product series number is printed on the right side of the module.
The operational mode described below is the presetting.
The following description is preliminary and is applicable to the factory configuration.
Many other operational modes are possible (please contact WAGO for the
corresponding settings).
Attention:
Some modules do not provide all power jumper contacts (e.g. 4-channel)! A module
which needs all contacts (e.g. 2 channel digital) cannot be connected to the right hand
side of modules which do not have 3 power jumper contacts.
The interface module is able to run with all WAGOÇI/OÇSYSTEM buscouplers
(except for the economy type).
RS232,TTY,RS485 750-650,651,653
1
:$*2Ç,2Ç6<67(0
Technical Data:
Series 750Transmission channel
Transmission rate
Bit skew
Bit transmission
Resistance
Current consumption
(internal)
Transmission length
Input buffer
Output buffer
Voltage supply
Isolation
Bit width internal
Configuration
Operating temperature
Wire connection
Dimensions(mm) W x H x
L
Factory preset
Baud rate
Bit width internal
RS232,TTY,RS485 750-650,651,653
650,650/000-001 651
2 (1/1), T x D and R x D, full
duplex
1200 - 19200 baud
<3%
2 x 20 mA
passive
< 500 Ω
50 mA max.
653
2, autom.
Send/Receive
acc. to ISO 8482/
DIN 66259 T 4
-
max. 15 m RS
max. 1000 m
max. 500 m twisted
232 cable
twisted pair
pair
128 bytes
16 bytes
via internal system supply
500 V System/Supply
1 x 40 bit, 1 x 8 bit Control/Status
none, parameter configuration with software
0 °C ... + 55 °C
CAGE CLAMP; 0,08 bis 2,5 mm²
12 x 64* x 100 (*from upper edge of the carrier rail)
9600 baud
1 x 24 bit in/out, 1 x 8 bit Control/Status
2
:$*2Ç,2Ç6<67(0
Description of RS 232:
The interface module is designed to operate with all WAGO I/O fieldbus couplers. The
serial interface module allows the connection of RS 232-Interface devices to the WAGO
I/O SYSTEM. The RS 232 Interface module can provide gateways within the fieldbus
protocol. This allows serial equipment such as printers, barcode readers, and links to
local operator interfaces to communicate directly by the fieldbus protocol with the PLC
or PC Master.
This module supports no higher level of protocol. Communication is made completely
transparent to the fieldbus allowing flexibility in further applications of the serial
interface module. The communication protocols are configured at the Master PLC or
PC.
The 128 byte input buffer provides for high rates of data transmission. When using
lower rates of transmission speed you can collect the received data, with less priority,
without loosing data.
The 16 byte output buffer provides for faster transmission of larger data strings.
FUNCTION The data transmission takes place at 9.600 baud (default value). 1 startbit, 8 databits and 1
stopbit will be transmitted. No parity is available. The user controls data via the RTS and
CTS signals. These signals are generated in the module depending on the loading status of
the buffers. These controls can be deactivated by means of an external jumper. RTS and
CTS are to be connected.
For testing purposes the Windows 3.11 terminal emulation can be used. A cable with a 9pole sub-D socket is required. Pin 5 is connected to input M. Pin 2 is connected to TxD and
Pin 3 to RxD. RTS and CTS of the module are connected. A hardwarehandshake between
terminal emulation and SPS is not possible though.
Figure 2: Data Word Signal
RS232,TTY,RS485 750-650,651,653
3
:$*2Ç,2Ç6<67(0
Description of TTY:
The interface module is designed to operate with all WAGO I/O fieldbus couplers. The
TTY interface module allows the connection of TTY-Interface devices to the WAGO
I/O SYSTEM. The TTY Interface module can provide gateways within the fieldbus
protocol. This allows serial equipment such as printers, barcode readers, and links to
local operator interfaces to communicate directly by the fieldbus protocol with the PLC
or PC Master.
This module supports no higher level of protocol. Communication is made completely
transparent to the fieldbus allowing flexibility in further applications of the serial
interface module. The communication protocols are configured at the Master PLC or
PC.
FUNCTION
The 128 byte input buffer provides for high rates of data transmission. When using
lower rates of transmission speed you can collect the received data, with less priority,
without loosing data.
The 16 byte output buffer provides for faster transmission of larger data strings.
The data transmission takes place at 9600 baud (default value). 1 startbit, 8 databits and 1
stopbit will be transmitted. No parity is available. The drivers are high ohmic. The control
of data is made by the user software.
The TTY Interface is passive in sending and receiving , thus having no current sources.
For data conversion an active partner is needed or an additional current source has to be
connected.
FXUUHQWVRXUFH
FXUUHQWVRXUFH
UHFHLYHU
P$
P$
ZLWKFXUUHQWVRXUFH
P$
TxD TxD
+
-
TxD TxD
+
-
UHFHLYHU
TxD TxD
+
-
WUDQVPLWWHU
RxD RxD
+
-
UHFHLYHU
FXUUHQWVRXUFH
WUDQVPLWWHUZLWK
P$
FXUUHQWVRXUFH
P$
RxD RxD
+
-
:$*2
:$*2
WUDQVPLWWHU
:$*2
SRLQWWRSRLQWFRQQHFWLRQ
SRLQWWRSRLQWFRQQHFWLRQZLWKSDVVLYH
EXVFRQQHFWLRQZLWKDFXUUHQWVRXUFH
ZLWKDFWLYHSDUWQHUV
SDUWQHUVDQGDGGLWLRQDOFXUUHQWVRXUFHV
DQGDSDVVLYHPRGXOH
RS232,TTY,RS485 750-650,651,653
RxD RxD
+
-
4
:$*2Ç,2Ç6<67(0
Description of RS 485:
The interface module is designed to operate with all WAGO I/O fieldbus couplers. The
serial interface module allows the connection of RS485 or RS488-Interface devices to
the WAGO I/O SYSTEM. The RS485/RS488 Interface module can provide gateways
within the fieldbus protocol. This allows serial equipment such as printers, barcode
readers, and links to local operator interfaces to communicate directly by the fieldbus
protocol with the PLC or PC Master.
This module supports no higher level of protocol. Communication is made completely
transparent to the fieldbus allowing flexibility in further applications of the serial
interface module. The communication protocols are configured at the Master PLC or
PC.
The 128 byte input buffer provides for high rates of data transmission. When using
lower rates of transmission speed you can collect the received data, with less priority,
without loosing data.
The 16 byte output buffer provides for faster transmission of larger data strings.
FUNCTION The data transmission takes place at 9,600 baud (default value). 1 startbit, 8 databits and 1
stopbit will be transmitted. No parity is available. The drivers are high ohmic. The control
of data is made by the user software.
The interface module can be used for bus connections as well as for point to point
connections. With bus connections, modules that are not connected to the power supply can
also be wired. They do not disturb the bus connection.
UHFHLYHU
WHUPLQDWLRQ
TxD TxD
+ -
RxD RxD
+ -
RxDRxD
+ -
WUDQVPLWWHU
M
M
M
S
S
S
M
S
WUDQVPLWWHUDQG
WUDQVPLWWHUQG
WUDQVPLWWHUDQG
UHFHLYHU
UHFHLYHU
UHFHLYHU
:$*2
:$*2
SRLQWWRSRLQWFRQQHFWLRQ
RS232,TTY,RS485 750-650,651,653
WHUPLQDWLRQ
TxD TxD
+ -
EXVFRQQHFWLRQ
5
:$*2Ç,2Ç6<67(0
Structure of input and output data:
The module is a combined analog input and output module with 2 x 16 bit input and
output data. The transfer of the data to be transmitted and the received data is made via
up to 3 output and 3 input bytes. One control byte and one status byte are used to control
the floating data.
Requests are indicated by a change of a bit. An assigned bit indicates execution by
adopting the value of the request bit.
Up to 3 characters which have been received via interface can be stored in the input
bytes 0 to 2. The output bytes will contain the characters to be sent.
The control byte consists of the following bits:
Control Byte
Bit 7
0
Constant
value
must
always
be 0.
Bit 6
Bit 5
Bit 4
OL2
OL1
OL0
Frames available in output
area, OL2 is always 0.
eg. OL2, OL1, OL0 = 0,1,1
3 characters should be sent
and put into the output.
Bit 3
0
Constant
value must
always be 0.
Bit 2
IR
Initialization
request
Bit 1
RA
Reception
acknowledgement
Bit 0
TR
Transmission
request
Bit 2
IA
Initialization
acknowledgement
Bit 1
RR
Reception
request
Bit 0
TA
Transmission
acknowledgement
The status byte consists of the following bits:
Status Byte
Bit 7
0
Constant
value
must
always
be 0.
Bit 6
Bit 5
Bit 4
IL2
IL1
IL0
Frames available in input
area, IL2 is always 0. eg.
IL2,IL1,IL0 = 0,1,0
2 characters were received
and reside in input 0 and input
1.
RS232,TTY,RS485 750-650,651,653
Bit 3
BUF_F
Input buffer
is full.
6
:$*2Ç,2Ç6<67(0
The PLC is able to control transmission and reception of data by means of the control
byte and the status byte.
Initialization of the module:
•
•
•
•
set IR in the control byte
transmit/receive functions are blocked
output/input buffers are erased
serial interface module will load its configuration data
Transmitting data:
• TR≠TA: put characters into output byte 0 to 2
• amount of characters is specified in OL0 to OL2
• TR is inverted and read out
• characters are put into output buffer if TR=TA
Receiving data:
• RR≠RA: in input byte 0 to 2 characters are available
• amount of characters is specified in IL0 to IL2
• charactersin IL0 to IL2 are read out
• RA is inverted and read out
• all characters are read when RR=RA
The transmitting and receiving of data can be done simultaneously. The initialization
request has prioirity and will stop transmitting and receiving of data immediately.
Message: input buffer full (Bit 3)
Input buffer is full. Data which are received now are lost.
RS232,TTY,RS485 750-650,651,653
7
:$*2Ç,2Ç6<67(0
Examples:
The module is initialized.
- The initialization bit in the control byte is set.
Output byte 0
0x00
Control byte Output byte 2
0000.0100 0x00
Output byte 1
0x00
- After the initialization has been executed, the status byte will give back 000.0100.
Input byte 0
XX
XX
Status byte
0XXX.X0XX
0XXX.X1XX
Input byte 2
XX
XX
Input byte 1
Module is still being reset
XX
Initialization completed
XX
Sending of the data string “Hello”:
- The first 3 characters and the buffer length of 3 are transmitted.
Output byte 0
‘H’ (0 x 48)
Control byte
0011.0000
Output byte 2
‘l’ (0 x 6C)
Output byte 1
‘e’ (0 x 65)
- The transmission request bit (TR) is inverted.
Output byte 0
‘H’
Control byte
0011.0001
Output byte 2
‘l’
Output byte 1
‘e’
- As soon as TR=TA, the rest of the data can be sent.
Input byte 0
XX
XX
Status byte
0XXX.XXX
0
0XXX.XXX
1
Input byte 2
XX
Input byte 1
The data is still being transferred.
XX
XX
XX
Data transfer completed.
- The last 2 characters and the buffer length of 2 are transmitted.
Output byte 0
‘l’
Control byte
0010.0001
Output byte 2
XX
Output byte 1
‘o’ (0 x 6F)
- The transmission request bit (TR) is inverted.
Output byte 0
‘l’
RS232,TTY,RS485 750-650,651,653
Control byte
0010.0000
Output byte 2 Output byte 1
XX
‘o’
8
:$*2Ç,2Ç6<67(0
- As soon as TA = TR, the data has been transferred to the output buffer.
Input byte 0 Status byte
Input byte 2 Input byte 1
The data is still being transferred.
XX
0XXX.XXX1 XX
XX
Data transfer completed.
XX
0XXX.XXX0 XX
XX
Receiving the character chain “WAGO”
- As soon as RA≠RR, the input bytes contain data.
Output byte 0
XX
Input byte 0
XX
‘W’ (0 x 57)
Control yte
Output byte 2
0XXX.000X XX
Status byte
Input byte 2
0XXX.0X0X XX
0011.0X1X ‘G’ (0 x 47)
Output byte 1
XX
Input byte 1
XX
‘A’ (0 x 41)
No received data available.
The information is in the input bytes.
- After the 3 characters have been processed, RA is inverted.
Output byte 0
XX
Control byte Output byte 2
0XXX.001X XX
Output byte 1
XX
- If RA≠RR, the receiving of additional characters will continue.
Input byte 0
XX
‘O’ (0 x 4F)
Status byte
Input byte 2
0XXX.0X1X XX
0001.0X0X XX
Input byte 1
No received data available.
XX
The information is in the input bytes.
XX
- After the characters have been processed, RA is inverted.
Output byte 0
XX
Control byte
0XXX.000X
Output byte
XX
Output byte
XX
Notes:
0 x 23 is a hexadecimal value
0101.1001 is a binary value
An X indicates that this particular value has no importance.
XX indicates that the whole value has no importance.
Status Indicators:
The 3 green LEDs have the following function:
Function
Output Status TxD
RS232,TTY,RS485 750-650,651,653
Non-Function
Input Status RxD
9
:$*2Ç,2Ç6<67(0
Structure of the in and output data for Profibus
The ID is 179 (hex: 0xB3), (consistent 4 Byte) or 2 x ID 177 (hex: 0xB1), (2x consistent
2 Byte).
Outputs:
Byte
D0
D1
D2
D3
Description
Output byte0
Control byte
Output byte2
Output byte1
Inputs:
Byte
D0
D1
D2
D3
Description
Input byte0
Status byte
Input byte2
Input byte1
The RS232 module is also available with a data format of 5 Bytes (item-no. 750650/000-001) The ID Code is 181 (hex.: 0xB5) (consistent 6 Bytes).
Outputs:
Byte
D0
D1
D2
D3
D4
D5
Description
Control byte
Output byte0
Output byte1
Output byte2
Output byte3
Output byte4
Inputs:
Byte
D0
D1
D2
D3
D4
D5
Description
Status byte
Input byte0
Input byte1
Input byte2
Input byte3
Input byte4
RS232,TTY,RS485 750-650,651,653
10
:$*2Ç,2Ç6<67(0
Data exchange module
PN 750-654
Technical Description
This technical description is only valid for hardware and software versionx X X X X 2
C 0 0 - - - -. The product series number is printed on the right side of the module.
The operational mode described below is for the factory preset mode.
The following description is preliminary and is applicable to the factory configuration.
Many other operational modes are possible (please contact WAGO for the
corresponding settings.)
Attention:
Some modules do not provide all power jumper contacts (e.g. 4-channel)! A module
which needs all contacts (e.g. 2-channel digital) cannot be connected to the right hand
side of modules which do not have 3 power jumper contacts.
The data exchange module is able to run with all :$*2Ç,2Ç6<67(0
buscouplers (except for the economy type).
Data exchange module 750-654
1
:$*2Ç,2Ç6<67(0
Technical Data
Series 750-
654
Transmission channel
Transmission rate
TxD and RxD, full duplex, 2 channel
62500 Baud
Bit transmission
via 2 twisted pair with differential signals
120 Ω
Resistance of cable
Current Consumption (internal)
Transmission length
Input buffer
Output buffer
Voltage supply
Isolation
Bit width internal
Configuration
Operating temperature
Wire connection
Dimensions (mm) W x H x L
Factory preset
internal bit width
Data exchange module 750-654
65 mA max.
max. 100 m twisted pair
128 Byte
16 Byte
via internal system
500 V System/Supply
1 x 40 bits, 1 x 8 bits control/status
none, parameter configuration with software
0 °C ... + 55 °C
CAGE CLAMP; 0.08 to 2.5 mm²
12 x 64* x 100 (*from upper edge of the carrier rail)
1 x 32 bits in/out, 1 x 8 bits control/status
2
:$*2Ç,2Ç6<67(0
Description of data exchange module
The data exchange module allows the exchange of 4 (5) bytes between different fieldbus
systems via multiplexing of a serial connection. The delay which is caused by the
multiplexor is < 5ms. The integrated watchdog function switches all outputs to zero if
there is no valid information for more than 200 ms via the multiplex connection.
The 128 bytes input buffer provides for high rates of data transmission. When using
lower rates of transmission speed you can collect the received data, with less priority,
without loosing data.
The 16 byte output buffer provides for faster transmission of larger data strings.
The data exchange module is connected peer-to-peer. For the wiring of the serial
multiplex connection the RxD and TxD cables are crossed. The following illustrations
show the peer-to-peer connection and the internal structure of the data exchange
module.
TxD TxD
+
-
TxD TxD
+
-
RxD RxD
+
-
RxD RxD
+
-
M
M
M
M
S
S
S
S
:$*2
:$*2
SHHUWRSHHUFRQQHFWLRQ
Input byte0
7 6 5 4 3 2 1 0
9
N
Internal
control system
RxD+
Input byte1
N
7 6 5 4 3 2 1 0
RxD-
Input byte2
TxD+
7 6 5 4 3 2 1 0
(1
Input byte3
TxDM
7 6 5 4 3 2 1 0
S
Input byte4
7 6 5 4 3 2 1 0
Output byte0
7 6 5 4 3 2 1 0
Output byte1
7 6 5 4 3 2 1 0
Output byte2
7 6 5 4 3 2 1 0
Output byte3
7 6 5 4 3 2 1 0
Data exchange module 750-654
Output byte4
Control byte
Statusbyte
7 6 5 4 3 2 1 0
7 6 5 4 3 2 1 0
7 6 5 4 3 2 1 0
3
:$*2Ç,2Ç6<67(0
Structure of input and output data:
The module is a combined special function input and output module with 1 x 32 (40) Bit
input and output data. The tranfer of the data to be transmitted and the received data is
made via up to 5 input and 5 output Bytes. One control byte and one status byte are used
to control the floating data.
The control byte consists of the following bits:
Control byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
Constant value
always must be 0
The status byte consists of the following bits:
Status byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
RCVT1
RCVT2
CHK
OVR
PAR
Constant
value
always
must be
0.
Module is in timeout.
All output bits are set
to 0 (watchdog).
The receiver is in
timeout.
Checksum
error.
Buffer
Pariry error or
overflow wrong data in
a frame.
The PLC is able to control transmission and reception of data by means of the control
byte and the status byte.
Control of the multiplex connection: In the process image of the transmitting
buscoupler one Bit is set to „1“ for the whole time. As long as this Bit is „1“ in the
receiving coupler, further input Bits can be evaluated. If the Bit is „0“ the multiplex
connection has been disrupted. The further Bits are also 0 because of the watchdog.
Control of the multiplex connection with acknowledge: If the transmitting
buscoupler gets an acknowledge from the receiving buscoupler, the received bit must be
transfered as an output bit to the process image. The transmission is successful as long
as the Bit is „1“.
Handshake: If a serial data exchange should be made with the data exchange module,
the handshake can be made via „Toggle Bits“. Therefore an input bit and an output bit
are reserved. As soon as those bits are different from each other, a request from the
opposite module is made. As soon as the request is executed the output bit is toggled.
Data exchange module 750-654
4
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for Profibus (from firmware WH)
The ID 179 (hex: 0xB3), ( Data consistence over 4 Byte) is used.
Outputs
Byte
D0
D1
D2
D3
Description
Output byte0
Output byte1
Output byte2
Output byte3
Inputs
Byte
D0
D1
D2
D3
Description
Input byte0
Input byte1
Input byte2
Input byte3
For the ID 188 (hex.: 0xBC), Data consistence over 6 Byte is used, input and output data
are now as follows:
Outputs
Byte
D0
D1
D2
D3
D4
D5
Description
Control byte
Output byte0
Output byte1
Output byte4
Output byte2
Output byte3
Inputs
Byte
D0
D1
D2
D3
D4
D5
Description
Statusbyte
Input byte0
Input byte1
Input byte4
Input byte2
Input byte3
For a S7 PLC the function code SFC14 and SFC15 must be used because the data length
is more than 4.
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for InterBus S (from firmware
WF)
The module is a combined special function input and output module with 2 x 16 Bit inand output data.
Input
Word
n (Bit0-Bit15)
n+1 (Bit16-Bit31)
Description
High
Input byte0
Input byte2
Low
Input byte1
Input byte3
Description
High
Output byte0
Output byte2
Low
Output byte1
Output byte3
Output
Word
n (Bit0-Bit15)
n+1 (Bit16-Bit31)
Attention:
For Interbus S the data is written in Motorola format (high Byte first). In connection
with other fieldbus systems the Bytes in the data word are changed.
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for DeviceNet (from firmware
306V2.2)
The module has 6 Bytes input and output data in the Poll I/O data. Consumed (Tx for
the Scanner) and produced (Rx for the Scanner) data size are each 6 Byte more.
Input
Byte
D0
D1
D2
D3
D4
D5
Description
Control byte
Input byte1
Input byte0
Input byte4
Input byte3
Input byte2
Output
Byte
D0
D1
D2
D3
D4
D5
Description
Status byte
Input byte1
Input byte0
Input byte4
Input byte3
Input byte2
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Structure of the in- and output data for DeviceNet (from firmware
306V3.0)
The module has 4 Bytes input and output data in the polled I/O data.
Input
Byte
D0
D1
D2
D3
Description
Input byte0
Input byte1
Input byte2
Input byte3
Output
Byte
D0
D1
D2
D3
Description
Input byte0
Input byte1
Input byte2
Input byte3
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for Modbus (from firmware V2.3)
The module is a combined special function input and output module with 2 x 16 Bit inand output data.
Input
Word
n (Bit0-Bit15)
n+1 (Bit16-Bit31)
Description
High
Input byte0
Input byte2
Low
Input byte1
Input byte3
Description
High
Output byte0
Output byte2
Low
Output byte1
Output byte3
Output
Word
n (Bit0-Bit15)
n+1 (Bit16-Bit31)
Attention:
For Interbus S the data is written in Motorola format (high Byte first). In connection
with other fieldbus systems the Bytes in the data word are changed.
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for CanOpen (from firmware WI)
The module is in the list with Index 0x2400 (input) and Index 0x2500 (output). The
module has 2 subindexes.
2 Byte special modules, Inputs
Idx
2400
SIdx
0
....
n
Name
special 2 byte input
....
Input byte0, Input
byte1
Type
Unsigned8
....
Unsigned16
Attrib.
ro
....
ro
n+1
Input byte2, Input
byte3
Unsigned16 ro
....
....
....
....
0xFF 0xFF. Special input Unsigned16 ro
Default
none
....
none, 0x0
for WD
error
none, 0x0
for WD
error
....
none
Description
number of 2 Byte channels
....
1. and 2. Input byte
3. and 4. Input byte
....
255. Input channel
2 Byte special modules, Outputs
Idx
2500
SIdx
0
Name
special 2 byte
output
....
....
n
Output byte0,
Output byte1
n+1 Output byte2,
Output byte3
....
....
0xFF 0xFF. special
output
Type
Unsigned8
Attrib. Default
ro
none
Description
number of 2 Byte channels
....
....
Unsigned16 rw
....
none
....
1. and 2. Output byte
Unsigned16 rw
none
3. and 4. Output byte
....
....
Unsigned16 rw
....
none
....
255. Outputkanal
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for CAL (from firmware WE)
Mode class 4:
The data is in the 2 Byte objects #BK_AI2W0_XXX, #BK_AI2W1_XXX and
#BK_A02W0_XXX. Each module has 2 values.
Input
Mux
n
n+1
Content
Input byte0, Input byte1
Input byte2, Input byte3
Description
1. and 2. Input byte
3. and 4. Input byte
Content
Output byte0, Output byte1
Output byte2, Output byte3
Description
1. and 2. Output byte
3. and 4. Output byte
Output
Mux
n
n+1
Mode class 0:
The description of the data is the same as for class 4 mode. The data is put into objects
No.1, No.2 and No.3 (read/write 2 Byte analog).
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the registers. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Structure of the in- and output data for LIGHTBUS (from firmware
WD)
Input
Word
n
n+1
n+2
n+3
Content
High
Input byte0
Input byte3
Low
Statusbyte
Input byte1
Input byte4
Input byte2
Description
Content
High
Output byte0
Output byte3
Low
Statusbyte
Output byte1
Output byte4
Output byte2
Statusword
1. and 2. Input byte
5.Input byte
3. and 4. Input byte
Output
Word
n
n+1
n+2
n+3
Description
Statusword
1. and 2. Output byte
5.Output byte
3. and 4. Output byte
Attention:
The control byte allows the changing of the registers of the module. It must always be 0
in order to avoid a change in the register. A wrong mapping can change the function of
the module!
Data exchange module 750-654
5
:$*2Ç,2Ç6<67(0
Application in Explosive Environments
Foreword
• 1
Ex-1 Application in Explosive Environments
Ex-1.1 Foreword
Today’s development shows that many chemical and petrochemical
companies have production plants, production, and process automation
machines in operation which use gas-air, vapor-air and dust-air mixtures
which can be explosive. For this reason, the electrical components used in
such plants and systems must not pose a risk of explosion resulting in injury to
persons or damage to property. This is backed by law, directives or
regulations, on a national and international scale. WAGO-I/O-SYSTEM 750
(electrical components) is designed for use in zone 2 explosive environments.
The following basic explosion protection related terms have been defined.
Ex-1.2 Protective measures
Primarily, explosion protection describes how to prevent the formation of an
explosive atmosphere. For instance by avoiding the use of combustible
liquids, reducing the concentration levels, ventilation measures, to name but a
few. But there are a large number of applications, which do not allow the
implementation of primary protection measures. In such cases, the secondary
explosion protection comes into play. Following is a detailed description of
such secondary measures.
Ex-1.3 Classification meeting CENELEC and IEC
The specifications outlined here are valid for use in Europe and are based on
the following standards: EN50... of CENELEC (European Committee for
Electrotechnical Standardisation). On an international scale, these are reflected
by the IEC 60079-... standards of the IEC (International Electrotechnical
Commission).
Ex-1.3.1
Divisions
Explosive environments are areas in which the atmosphere can potentially
become explosive. The term explosive means a special mixture of ignitable
substances existing in the form of air-borne gases, fumes, mist or dust under
atmospheric conditions which, when heated beyond a tolerable temperature or
subjected to an electric arc or sparks, can produce explosions. Explosive zones
have been created to describe the concentrations level of an explosive
atmosphere. This division based on the probability of an explosion occurring
is of great importance both for technical safety and feasibility reasons,
knowing that the demands placed on electrical components permanently
employed in an explosive environment have to be much more stringent than
those placed on electrical components that are only rarely and, if at all, for
short periods, subject to a dangerous explosive environment.
WAGO-I/O-SYSTEM 750
Modular I/O-System
2 •
Application in Explosive Environments
Classification meeting CENELEC and IEC
Explosive areas resulting from gases, fumes or mist:
• Zone 0 areas are subject to an explosive atmosphere
(> 1000 h /year) continuously or for extended periods.
• Zone 1 areas can expect the occasional occurrence of an explosive
atmosphere (> 10 h ≤ 1000 h /year).
• Zone 2 areas can expect the rare or short-term occurrence of an explosive
atmosphere (> 0 h ≤ 10 h /year).
Explosive areas subject to air-borne dust:
• Zone 20 areas are subject to an explosive atmosphere
(> 1000 h /year) continuously or for extended periods.
• Zone 21 areas can expect the occasional occurrence of an explosive
atmosphere (> 10 h ≤ 1000 h /year).
• Zone 22 areas can expect the rare or short-term occurrence of an explosive
atmosphere (> 0 h ≤ 10 h /year).
Ex-1.3.2
Explosion protection group
In addition, the electrical components for explosive areas are subdivided into
two groups:
Group I:
Group I includes electrical components for use in fire-damp
endangered mine structures.
Group II:
Group II includes electrical components for use in all other
explosive environments. The group is further subdivided by
pertinent combustible gases in the environment.
Subdivision IIA, IIB and IIC takes into account that
different materials/substances/gases have various ignition
energy characteristic values. For this reason the three subgroups are assigned representative types of gases:
•
•
•
IIA – Propane
IIB – Ethylene
IIC – Hydrogen
WAGO-I/O-SYSTEM 750
Modular I/O-System
Application in Explosive Environments
Classification meeting CENELEC and IEC
Minimal ignition energy of representative types of gases
Explosion group
I
IIA
IIB
IIC
Gases
Methane
Propane
Ethylene
Hydrogen
Ignition energy (µJ)
280
250
82
16
Hydrogen being commonly encountered in chemical plants, frequently the
explosion group IIC is requested for maximum safety.
Ex-1.3.3
Unit categories
Moreover, the areas of use (zones) and the conditions of use (explosion
groups) are subdivided into categories for the electrical operating means:
Unit
categories
Explosion
group
Area of use
M1
I
Fire-damp protection
M2
I
Fire-damp protection
1G
II
Zone 0 Explosive environment by gas, fumes or mist
2G
II
Zone 1 Explosive environment by gas, fumes or mist
3G
II
Zone 2 Explosive environment by gas, fumes or mist
1D
II
Zone 20 Explosive environment by dust
2D
II
Zone 21 Explosive environment by dust
3D
II
Zone 22 Explosive environment by dust
WAGO-I/O-SYSTEM 750
Modular I/O-System
• 3
4 •
Application in Explosive Environments
Classification meeting CENELEC and IEC
Ex-1.3.4
Temperature classes
The maximum surface temperature for electrical components of explosion
protection group I is 150 °C (danger due to coal dust deposits) or 450 °C (if
there is no danger of coal dust deposit).
In line with the maximum surface temperature for all ignition protection types,
the electrical components are subdivided into temperature classes, as far as
electrical components of explosion protection group II are concerned. Here the
temperatures refer to a surrounding temperature of 40 °C for operation and
testing of the electrical components. The lowest ignition temperature of the
existing explosive atmosphere must be higher than the maximum surface
temperature.
Temperature classes
Maximum surface
temperature
Ignition temperature
of the combustible materials
T1
450 °C
> 450 °C
T2
300 °C
> 300 °C ≤ 450 °C
T3
200 °C
> 200 °C ≤ 300 °C
T4
135 °C
> 135 °C ≤ 200 °C
T5
100 °C
>100 °C ≤ 135 °C
T6
85°C
> 85 °C ≤ 100 °C
The following table represents the division and attribution of the materials to
the temperature classes and material groups in percent:
Temperature classes
T1
T2
T3
26.6 %
25.5 %
42.8 %
94.9 %
T4
T5
T6
Total*
4.9 %
0%
0.2 %
432
Explosion group
IIA
IIB
IIC
Total*
80.2 %
0.7 %
436
18.1 %
*
Ex-1.3.5
Number of classified materials
Types of ignition protection
Ignition protection defines the special measures to be taken for electrical
components in order to prevent the ignition of surrounding explosive
atmospheres. For this reason a differentiation is made between the following
types of ignition protection:
WAGO-I/O-SYSTEM 750
Modular I/O-System
Application in Explosive Environments
Classification meeting CENELEC and IEC
• 5
Identification
CENELEC
standard
IEC
standard
Explanation
Application
EEx o
EN 50 015
IEC 79-6
Oil encapsulation
Zone 1 + 2
EEx p
EN 50 016
IEC 79-2
Overpressure
encapsulation
Zone 1 + 2
EEx q
EN 50 017
IEC 79-5
Sand encapsulation
Zone 1 + 2
EEx d
EN 50 018
IEC 79-1
Pressure resistant
encapsulation
Zone 1 + 2
EEx e
EN 50 019
IEC 79-7
Increased safety
Zone 1 + 2
EEx m
EN 50 028
IEC 79-18
Cast encapsulation
Zone 1 + 2
EEx i
EN 50 020 (unit)
EN 50 039 (system)
IEC 79-11
Intrinsic safety
Zone 0 + 1 + 2
EEx n
EN 50 021
IEC 79-15
Electrical components
for zone 2 (see below)
Zone 2
Ignition protection “n“ describes exclusively the use of explosion protected
electrical components in zone 2. This zone encompasses areas where
explosive atmospheres can only be expected to occur rarely or short-term. It
represents the transition between the area of zone 1, which requires an
explosion protection and safe area in which for instance welding is allowed at
any time.
Regulations covering these electrical components are being prepared on a
world-wide scale. The standard EN 50 021 allows electrical component
manufacturers to obtain certificates from the corresponding authorities for
instance KEMA in the Netherlands or the PTB in Germany, certifying that the
tested components meet the above mentioned standards draft.
Type “n” ignition protection additionally requires electrical components to be
marked , with the following extended identification:
• A – non spark generating (function modules without relay /without
switches)
• AC – spark generating, contacts protected by seals (function modules with
relays / without switches)
• L – limited energy (function modules with switch)
i
Further information
For more detailed information please refer to the national and/or international
standards, directives and regulations!
WAGO-I/O-SYSTEM 750
Modular I/O-System
6 •
Application in Explosive Environments
Classifications meeting the NEC 500
Ex-1.4 Classifications meeting the NEC 500
The following classifications according to NEC 500 (National Electric Code)
are valid for North America.
Ex-1.4.1
Divisions
The "Divisions" describe the degree of probability of whatever type of
dangerous situation occurring. Here the following assignments apply:
Explosion endangered areas due to combustible gases, fumes, mist and dust:
Ex-1.4.2
Division 1
encompasses areas in which explosive atmospheres are to be expected
occasionally (> 10 h ≤ 1000 h /year) as well as continuously and long-term
(> 1000 h /year).
Division 2
encompasses areas in which explosive atmospheres can be expected rarely
and short-term (>0 h ≤ 10 h /year).
Explosion protection groups
Electrical components for explosion endangered areas are subdivided in three
danger categories:
Class I (gases and fumes):
Group A (Acetylene)
Group B (Hydrogen)
Group C (Ethylene)
Group D (Methane)
Class II (dust):
Group E (Metal dust)
Group F (Coal dust)
Group G (Flour, starch and cereal dust)
Class III (fibers):
No sub-groups
WAGO-I/O-SYSTEM 750
Modular I/O-System
Application in Explosive Environments
Classifications meeting the NEC 500
Ex-1.4.3
Temperature classes
Electrical components for explosive areas are differentiated by temperature
classes:
Temperature classes
Maximum
surface temperature
Ignition temperature
of the combustible materials
T1
450 °C
> 450 °C
T2
300 °C
> 300 °C ≤ 450 °C
T2A
280 °C
> 280 °C ≤ 300 °C
T2B
260 °C
> 260 °C ≤ 280 °C
T2C
230 °C
>230 °C ≤ 260 °C
T2D
215 °C
>215 °C ≤ 230 °C
T3
200 °C
>200 °C ≤ 215 °C
T3A
180 °C
>180 °C ≤ 200 °C
T3B
165 °C
>165 °C ≤ 180 °C
T3C
160 °C
>160 °C ≤ 165 °C
T4
135 °C
>135 °C ≤ 160 °C
T4A
120 °C
>120 °C ≤ 135 °C
T5
100 °C
>100 °C ≤ 120 °C
T6
85 °C
> 85 °C ≤ 100 °C
WAGO-I/O-SYSTEM 750
Modular I/O-System
• 7
8 •
Application in Explosive Environments
Identification
Ex-1.5 Identification
For Europe
According to CENELEC and IEC
Unit category
Explosion protection group
Community symbol for
explosion protected
electrical components
II 3 G
KEMA 01ATEX1024 X
EEx nA II T4
Temperature class
Approval body and/or number of
the examination certificate
Explosion protection group
E = conforming with European standards
Ex = explosion protected component
Extended identification
n = Type of ignition
ITEM-NO.:750-400
2DI 24V DC 3.0ms
Hansastr. 27
D-32423 Minden
0.08-2.5mm2
0V
24V
24246
2101--02----03
CL I DIV 2
24V DC
Grp. A B C D
AWG 28-14
op temp code T4A
55°C max ambient
LISTED 22ZA AND 22XM
Ex-1.5.1
DI1
Di2
II 3 G
KEMA 01ATEX1024 X
EEx nA II T4
PATENTS PENDING
Fig. 1-1: Example for lateral labeling of bus modules
(750-400, 2 channel digital input module 24 V DC)
g01xx03e
WAGO-I/O-SYSTEM 750
Modular I/O-System
Application in Explosive Environments
Identification
Ex-1.5.2
• 9
For America
According to NEC 500
Area of application (zone)
Explosion protection group
(condition of use category)
CL I DIV 2
Grp. ABCD
optemp code T4A
Explosion group
(gas group)
Temperature class
2DI 24V DC 3.0ms
Hansastr. 27
D-32423 Minden
2
0.08-2.5mm
0V
24V
24246
4100--02----03
CL I DIV 2
24V DC
Grp. A B C D
AWG 28-14
op temp code T4A
55°C max ambient
LISTED 22ZA AND 22XM
ITEM-NO.:750-400
DI1
Di2
II 3 G
KEMA 01ATEX1024 X
EEx nA II T4
PATENTS PENDING
Fig. 1-2: Example for lateral labeling of bus modules
(750-400, 2 channel digital input module 24 V DC)
WAGO-I/O-SYSTEM 750
Modular I/O-System
g01xx04e
10 •
Application in Explosive Environments
Installation regulations
Ex-1.6 Installation regulations
In the Federal Republic of Germany, various national regulations for the
installation in explosive areas must be taken into consideration. The basis
being the ElexV complemented by the installation regulation DIN VDE
0165/2.91. The following are excerpts from additional VDE regulations:
DIN VDE 0100
installation in power plants with rated voltages up to
1000 V
DIN VDE 0101
installation in power plants with rated voltages above
1 kV
DIN VDE 0800
installation and operation in tele-communication plants
including information processing equipment
DIN VDE 0185
lightning protection systems
The USA and Canada have their own regulations. The following are excerpts
from these regulations:
NFPA 70
National Electrical Code Art. 500 Hazardous Locations
ANSI/ISA-RP
12.6-1987
Recommended Practice
C22.1
Canadian Electrical Code
WAGO-I/O-SYSTEM 750
Modular I/O-System
Application in Explosive Environments
Installation regulations
• 11
Danger
For the use of WAGO-I/O SYSTEM 750 (electrical operating means) with Ex
approval the observance of the following points is mandatory:
i
•
The electrical operating means are exclusively suitable for applications in
explosion endangered areas (Europe Group II, Zone 2 or America: Class I,
Division 2, Group A, B, C, D) or in non explosion endangered areas!
•
Ensure that only approved modules of the electrical operating means will
be used. Replacement of components can jeopardize the suitability of the
system in explosion endangered zones!
•
Only disconnect and/or connect electrical operating means when the
voltage supply is isolated or when a non-explosive atmosphere has been
ascertained!
•
Adhere to the specified data regarding voltage supply and fusing. (See
data on the fuse holder)!
Further Information
Proof of certification is available on request.
Also take note of the information given on the module technical information
sheet.
WAGO-I/O-SYSTEM 750
Modular I/O-System
WAGO Kontakttechnik GmbH
Postfach 2880 • D-32385 Minden
Hansastraße 27 • D-32423 Minden
Phone:
05 71/8 87 – 0
Fax:
05 71/8 87 – 1 69
E-Mail:
[email protected]
Internet:
http://www.wago.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
