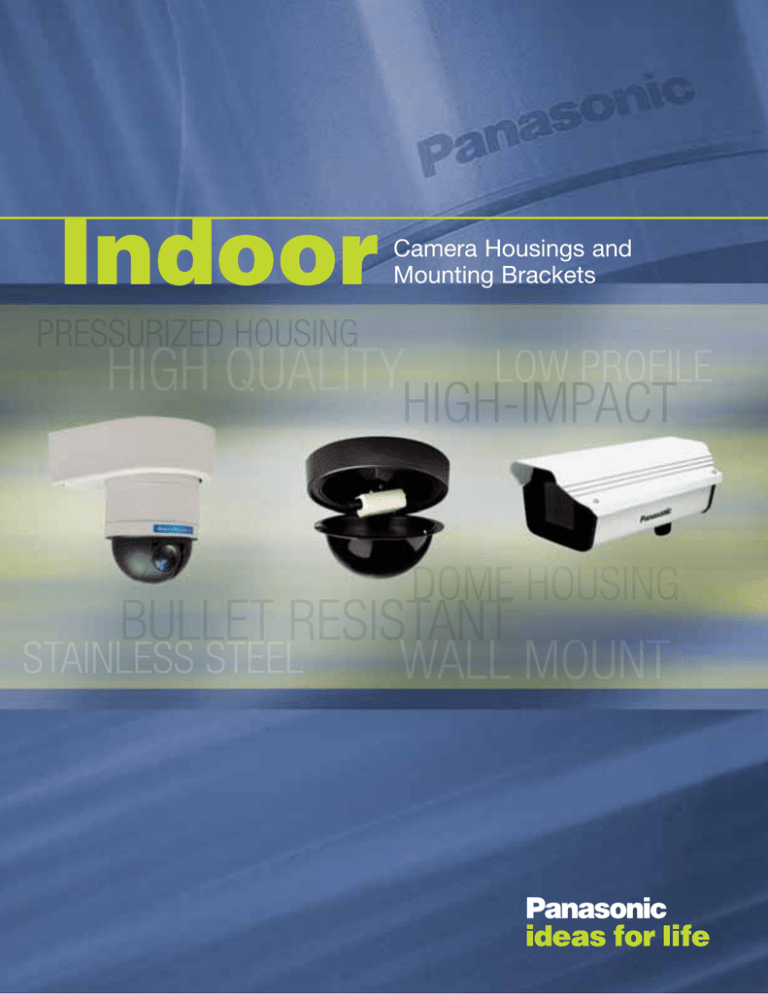

Indoor
Camera Housings and
Mounting Brackets
D O M E
H O U S I N G S
PSMD12
Indoor Surface Dome Housing
I
I
I
I
I
12" dome
Accommodates a standard body fixed camera up to 8" in length
Housing constructed of ABS plastic
Tinted acrylic dome
Designed for Panasonic’s standard body 1/3" cameras with
Panasonic Fixed-Focal Lens Series (camera not included)
PICSD
Indoor In-Ceiling Dome Housing
I
I
I
I
Opaque liner combined with lower tinted
dome hides camera position
Small size 5.9" bubble
Steel upper housing
Designed for Panasonic PTZ dome cameras WV-CS574 and WV-NS324
PIFIXD
Indoor Half Dome Housing
I
I
I
I
Opaque liner combined with lower tinted
dome hides camera position
Small size 5.9" bubble
Steel upper housing
Designed for Panasonic 1/2 body fixed cameras
Indoor Housings and Mounting Brackets
I N D O O R
Indoor Housings and Mounting Brackets
I N D O O R
F I X E D
H O U S I N G S
PDM9
Indoor Drop Ceiling Mount
I
I
I
Designed for discreet indoor surveillance; mounts into
a standard 2' x 2' or 2' x 4' suspended ceiling
Can be used alone or in conjunction with the entire ceiling tile
Designed for WV-CS954 Series and WV-CS574 cameras
PID9
Indoor In-Ceiling Dome Housing
I
I
I
Opaque liner combined with lower tinted dome hides camera position
Steel upper housing
Designed for Panasonic CS dome cameras WV-CS574 and WV-CS954
PPEH8
Plastic Wedge Housing
I
I
I
I
I
I
I
Off-white, high-impact polycarbonate housing and window
Easy installation for any type of ceiling
Tamper-resistant fasteners
Molded-in hinge to allow easy access from below
Fully adjustable camera bracket for top or bottom mounting
Right-angle BNC connector included for longer length cameras
Designed for Panasonic 1/2 body fixed cameras
PRC201C
Recessed Ceiling Housing
I
I
I
I
I
Designed for use in 2' x 2' suspended ceiling applications
Housing manufactured from high-impact white plastic
Viewing window manufactured from high-grade optically clear acrylic
Unit is fully adjustable for 360º positioning
Accommodates a standard body fixed camera up to 8" in length
WV-7110A
Indoor Housing
I
I
I
I
Dust-proof indoor housing
Mounting from top or bottom
Direct wiring
Accommodates a standard body fixed camera up to 8" in length
P R E S S U R I Z E D
H O U S I N G S
PPH14
Indoor Pressurized Housing
I
I
Accommodates a lens and camera combination with a total length of 14"
Designed for Panasonic’s standard body 1/3" cameras with Panasonic
Fixed-Focal length cameras or motorized zoom lens
PPFD9C
Pressurized Dome Housing
I
I
I
I
I
I
I
I
Constructed of durable engineered plastic top, 94 VO with UV protected and acrylic lower dome
Meets DE and IP67 standards
Pressurized indicator
50 W heater turns on at 40º F and off at 60º F
Power and video surge protector
Weighs 8 lbs. (without camera)
13.0"H x 11.5"W x 11.5"D
Designed for Panasonic WV-CS954, WV-CS324 and WV-CS574 cameras
I N D O O R / O U T D O O R
F I X E D
H O U S I N G S
POH1000
Outdoor Housing
I
I
I
I
I
10" indoor/outdoor aluminum housing for all Panasonic
standard body cameras and all current Panasonic
vari-focal and fixed lenses
Lightweight aluminum chassis
Side hinges for ease of access when focusing and adjusting
Terminal block interface for easy connection
Provision for optional heater/blower and sun shield
Optional Accessories
PHK10 – Heater kit
PBK10 – Blower kit
PSS10 – Sunshield, also performs as hanging mount
POH1000HB
Outdoor Housing
Includes same features as POH1000, plus:
I Built-in 24VAC heater/blower
POH1500
Outdoor Housing
I
I
I
I
I
I
Optional Accessories
PHK10 – Heater kit
15" indoor/outdoor aluminum housing for all Panasonic
PBK10 – Blower kit
standard body cameras and all current Panasonic
PSS15 – Sunshield, also performs as hanging mount
vari-focal and fixed lenses
Lightweight aluminum chassis
Side hinge for ease of access when adjusting and servicing camera
Dual conduit opening on housing bottom, sealed with rubber grommets
Terminal block interface for easy connection
Provision for optional heater/blower and sun shield
POH1500HB
Outdoor Housing
Includes same features as POH1500, plus:
I Built-in 24VAC heater/blower
M O U N T I N G
B R A C K E T S
PCMA474F
WV-Q118
Corner Mount Adapter
Wall Mount Bracket
I
I
I
I
Rugged corner adapter
Tamper-proof screws for
complete protection
Durable powder coat finish
Designed for WV-CW474AF and
WV-CW244F cameras
WV-Q117
Suspended Ceiling
Installation Bracket
I
Designed for WV-CS954 and
WV-CS574 cameras
I
Designed for WV-CS954 and
WV-CS574 cameras
WV-Q116
Embedded Ceiling
Installation Bracket
I
Designed for WV-CS954 camera
WV-Q106
WV-Q105
Embedded Ceiling Mount
Direct Ceiling
Installation Bracket
I
Designed for WV-CS574 camera
I
Designed for WV-CS954
and WV-CS574 cameras
PWM9
Wall Mount Bracket
I
I
Mounts to a flat wall and
has a 1" cable opening
Designed for indoor use,
supports the WV-CS954,
WV-CS574 and WV-NS324
dome cameras (not included)
PHM5
Indoor/Outdoor Hanging
Mount Bracket
I
I
I
Designed for pendant mounting
from a flat surface
Pipe extension (not included)
Designed for WV-CS954 /
WV-CS574 Series
PUM8
Indoor Wall/Ceiling
Mount Bracket
I
I
For wall mount applications
or can be quickly converted
for ceiling mounting
Designed for Panasonic’s
standard body cameras with
a maximum camera and lens
length of 8" and a maximum
weight of 3 lbs.
WV-831P
Wall Mount Bracket
I
I
I
I
Medium weight, indoor/
outdoor, universal head
Mounts on wall
Holds up to 20 lbs.
Designed for most Panasonic
camera and indoor housings
WV-7015
Wall Mount Bracket
I
I
I
I
I
Medium-duty
Mounts on flat surface
Multi-directional mounting head
Holds up to 9 lbs.
Designed for WV-7110A and
WV-7120D housings
WV-7010
Ceiling Mount Bracket
I
I
I
I
I
Medium-duty
Mounts on flat surface
Multi-directional mounting head
Holds up to 9 lbs.
Designed for WV-7110A /
WV -7120D housings
Indoor Housings and Mounting Brackets
I N D O O R
Panasonic System Solutions Company
Unit of Panasonic Corporation of North America
Security Systems
One Panasonic Way, Panazip 2H-2, Secaucus, NJ 07094
TOLL-FREE Phone: 1-877-733-3689 • TOLL-FREE Fax: 1-866-808-9115
www.panasonic.com/security
Product specifications are subject to change without notice.
©2006 Panasonic Corporation of North America. All rights reserved.
Mounting equipment shown in this brochure is made available as an option to cameras.
February 2006
