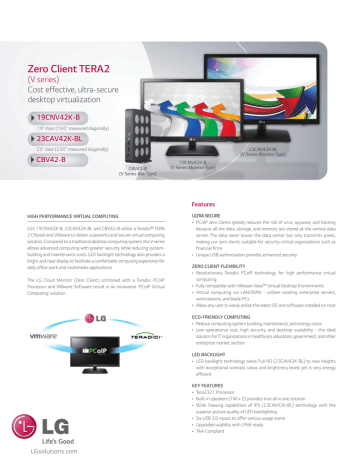

Zero Client TERA2
(V series)
Cost effective, ultra-secure
desktop virtualization
 19CNV42K-B
 23CAV42K-BL
 CBV42-B
19" class (19.0" measured diagonally)
23" class (23.0" measured diagonally)
23CAV42K-BL
(V Series Monitor Type)
CBV42-B
(V Series Box Type)
19CNV42K-B
(V Series Monitor Type)
Features
HIGH PERFORMANCE VIRTUAL COMPUTING
LG’s 19CNV42K-B, 23CAV42K-BL and CBV42-B utilize a Teradici® TERA
2 Chipset and VMware to deliver a powerful and secure virtual computing
solution. Compared to a traditional desktop computing system, the V series
allows advanced computing with greater security while reducing systembuilding and maintenance costs. LED backlight technology also provides a
bright and clear display to facilitate a comfortable computing experience for
daily office work and multimedia applications.
The LG Cloud Monitor (Zero Client) combined with a Teradici PCoIP
Processor and VMware Software result in an innovative ‘PCoIP Virtual
Computing’ solution.
ULTRA SECURE
• PCoIP zero clients greatly reduces the risk of virus, spyware, and hacking
because all the data, storage, and memory are stored at the central data
center. The data never leaves the data center but only transmits pixels,
making our zero clients suitable for security critical organizations such as
financial firms
• Unique USB authorization provides enhanced security
ZERO CLIENT FLEXIBILITY
• Revolutionary Teradici PCoIP technology for high performance virtual
computing
• Fully compatible with VMware View™ Virtual Desktop Environments
• Virtual computing via LAN/WAN - utilizes existing enterprise servers,
workstations, and blade PCs
• Allow any user to easily utilize the latest OS and software installed on host
ECO-FRIENDLY COMPUTING
• Reduce computing system building, maintenance, and energy costs
• Low operational cost, high security, and desktop scalability - the ideal
solution for IT organizations in healthcare, education, government, and other
enterprise market sectors
LED BACKLIGHT
• LED backlight technology takes Full HD (23CAV42K-BL) to new heights
with exceptional contrast ratios and brightness levels yet is very energy
efficient
KEY FEATURES
• Tera2321 Processor
• Built-in speakers (1W x 2) provides true all in one solution
• Wide Viewing capabilities of IPS (23CAV42K-BL) technology with the
superior picture quality of LED backlighting
• Six USB 2.0 inputs to offer various usage scene
• Upgraded usability with UPoE ready
• TAA Compliant
LGsolutions.com
 19CNV42K-B
 23CAV42K-BL
 CBV42-B
Zero Client TERA2
(V series)
Cost effective, ultra-secure
desktop virtualization
19" class (19.0" measured diagonally)
23" class (23.0" measured diagonally)
5.2”
19CNV42K-B
1.9”
0.7”
17.4”
100mm
100mm
12.0”
14.6”
10.4”
INPUT
(SIGNAL)
Model
OUTPUT
(SIGNAL)
DVI
INPUT
AUDIO
Mic In
OUTPUT
AUDIO
Headphone Out
POWER
Type
5.2”
1.9”
21.5”
Others
100mm
Normal On (Typ)
100mm
DC Off (Max)
FREQUENCY H-Frequency (Analog)
V-Frequency (Digital)
SPEAKER
8.9”
CBV42-B
1.2”
2.8”
0.3”
DC-IN
LAN
DVI-D OUT
CABINET
10/100 /1000
Yes
Yes
100~240V
24W (D-Sub)
29W (Cloud)
17W (D-Sub)
22W (Cloud)
6W
0.5W(D-sub)/7W(Cloud)
N/A
0.5W(D-sub)/0.5W(Cloud)
0.5W
30~66kHz
30~68kHz
57~63Hz
Yes (1W x 2)
N/A
N/A
N/A
N/A
Yes
N/A
Yes
Yes
Color
Black Hairline
Black Texture
17.4" x 14.6" x 8.9" 21.5" x 15.3" x 8.9"
7.5” x 5.7” x 2.8”
DVI-I OUT
5V
Set (with Stand)
(WxHxD)
0.1A
7.3”
Weight
CBV42-B
Set (without Stand)
(WxHxD)
Weight
10.0 Ibs.
12.3 Ibs.
1.5 Ibs.
17.4” x 12.0” x 1.9”
21.5" x 13.1" x 1.9"
7.3” x 5.7” x 1.2”
5.1 lbs.
7.4 Ibs.
1.5 lbs.
1
DC-IN
LAN
DVI-D OUT
DVI-I OUT
Box (WxHxD)
5V
PANEL
10/100 /1000
6 (4 Back, 2 Side)
UPoE available with
AUPoE* Adapter
5.7”
1
10/100 /1000
Built-in Speaker
IPS
SPECIAL
FEATURES
2.0 USB Input (6)
7.5”
3.4”
Jack Panels
19CNV42K-B
23CAV42K-BL
No
DVI-D, DVI-I
Adapter (19V DC)
Power Save/Sleep
Mode (Max)
13.1”
15.3”
CBV42-B
Yes (Dual)
Input
0.7”
10.4”
23CAV42K-BL
Yes
INTERACTIVE USB 2.0
8.9”
23CAV42K-BL
19CNV42K-B
D-Sub
20.0” x 14.7” x 8.2” 24.3” x 15.9” x 7.8”
10.5” x 7.8” x 6.1”
0.1A
Model
19CNV42K-B
23CAV42K-BL
CBV42-B
TAA Complaint
Yes
Yes
No
Panel Size (measured
19" (19.0”)
23" (23.0")
diagonally)
N/A
Panel Type
TN
AH-IPS
Processor
Teradici Tera2321 PCoIP Chip
RAM
512MB
Protocol
PCoIP
Networking
10 / 100 / 1000
Color Depth
16.7M
N/A
Pixel Pitch(mm)
0.2835(H)×0.2835(V) 0.2652(H)×0.2652(V)
Aspect Ratio
16:10
16:9
Resolution
1440 x 900
1920 x 1080
1920 x 1200 (DVI)
Brightness (Typ)
250 cd/m2
1,000:1(Typ) 5,000,000:1(DFC)
Contrast Ratio
Response Time (on/off)
5ms
14ms (GTG)
Viewing Angle (CR≥10)
170°/160°
178°/178°
Surface Treatment
Non-Glare
Weight
VESA Standard
Mount Interface
Stand
13.2 lbs.
2.9 lbs.
Yes
Base detachable, Tilt (Yes / -5º (front) ~15º
(rear)), Swivel (90º), Height (130mm), Pivot
Base detachable
STANDARD UL(cUL)
CERTIFICATION TUV-Type
FCC-B, CE
RoHS
Yes
Yes
No
Yes
Yes
3-Year Limited Warranty (Parts/Labor/Backlight)
WARRANTY
7 19192 19161 7
UPC
ACCESSORIES
16.3 Ibs.
100mm x 100mm
7 19192 19162 4
Power Cord
7 19192 19183 9
Yes
D-Sub
Yes
No
*AUPoE sold separately
Built-in
Speaker
UPoE
Ready
(6 ea)
LG Electronics U.S.A., Inc.
HE B2B Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Contact your LG Regional Sales Representative:
Education Computing Experts: 800.897.8788
LGsolutions.com
SPEC_CNV42K_CAV42K_CBV42B_071336_PR
Screen images are simulated. Dimensions and weights are approximate. Design, features
and specifications subject to change without notice.
© Copyright 2013 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a registered
trademark of LG Corp. f-Engine is a trademark of LG Electronics, Inc. PCoIP and PC-over-IP are
registered trademarks of Teradici Corporation in the United States and/or other countries.
VESA is a trademark of Video Electronics Standards Association. All other product and brand
names are trademarks or registered trademarks of their respective companies.
Printed in the USA. October 2013
