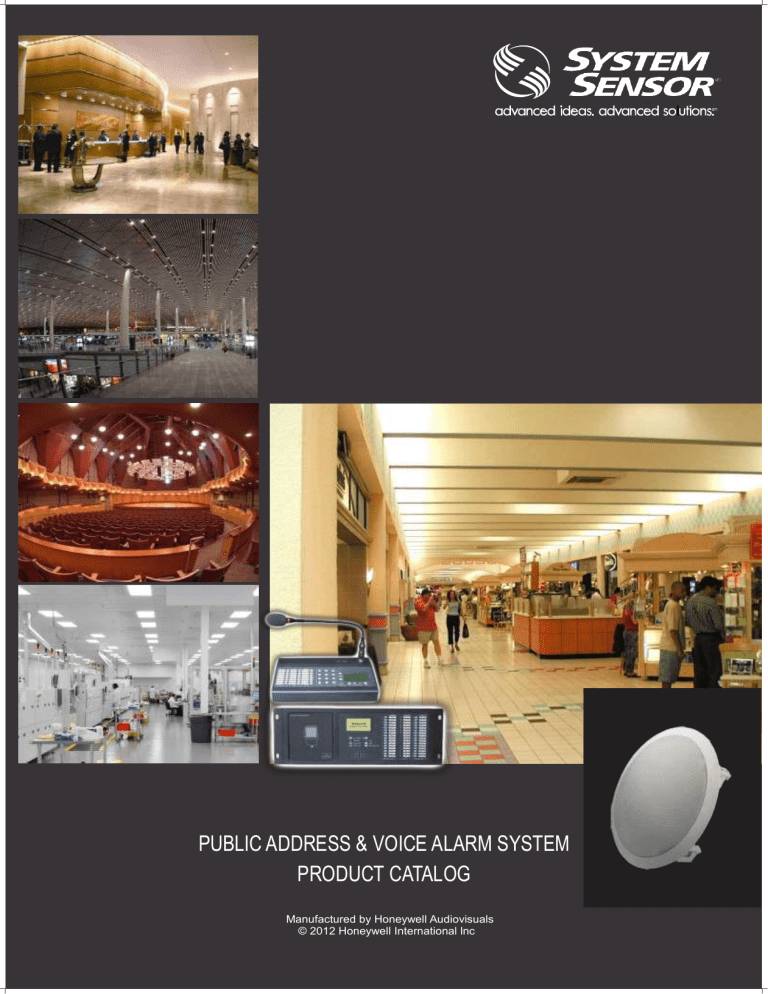

PUBLIC ADDRESS & VOICE ALARM SYSTEM

PRODUCT CATALOG

Manufactured by Honeywell Audiovisuals

© 2012 Honeywell International lnc

Extending leadership into acoustic excellence!

System Sensor is a global leader of fire detection and notification d e v i c e s , s p e c i a l i z i n g i n s m o k e d e t e c t i o n a n d n o t i f i c a t i o n technology. System Sensor places a premium on research and development, resulting in products that are reliable, sophisticated and designed for real-world applications. With sales, service and manufacturing facilities throughout the Americas, Europe and

Asia, System Sensor's high-quality, innovative products are the most comprehensive in the industry.

The System Sensor Public Address & Voice Alarm products are manufactured by Honeywell Audiovisuals. Honeywell Audiovisuals is specializes in acoustics and public address. System Sensor range manufactured by Honeywell Audiovisuals provides customers value for money public address for all occasions where sound is used for entertainment, emergency message communication or creating lifestyle environments. System Sensor Public Address also r e p r e s e n t s c u t t i n g - e d g e i n n o v a t i o n , s u p e r i o r q u a l i t y a n d uncompromising safety. No matter whether you are looking for e x t r a o r d i n a r y s o u n d p e r f o r m a n c e , e a s y i n s t a l l a t i o n a n d maintenance, cost effectiveness, best in class reliability or just one handsome looking design, System Sensor always has a product for your requirement.

With an experienced team of experts researching, developing and testing in our fully equipped anechoic rooms, our loudspeakers adopt internationally recognized industry standards to ensure the h i g h r e l i a b i l i t y a n d e x c e l l e n t p e r f o r m a n c e e v e n i n e x t r e m e conditions, such as fire. Moreover, System Sensor makes it possible for a perfect combination of appealing design, superior sound reproduction and easy installation that are in the best interest of our customers.

The System Sensor Public Address & Voice Alarm Portfolio which comprises of the Empertech Public Address products and the

EVACPro Voice alarm controllers are sure to meet all your Public

Address & Voice Alarm needs.

Contents

EVACPRO Digital Voice Alarm Controller

SS-EVA LCP

SS-EVA LPS

Audio Sources

KB-F508R, KB-DV, KB-MP3

All-in-one PA

KB-D5060, KB-D5120, KB-D5240, KB-D5300

Compact Amplifiers

KB-C30PT, KB-C60PT

Amplifiers

KB-S200P, KB-S300P, KB-S600P, KB-S1000P

SS-AMP120, SS-AMP240

SS-AMP360, SS-AMP480, SS-AMP660

SS-AMP1000, SS-AMP1500

Microphones

KB-500WL, MC-Z20, MC-Z50

Speakers

Ceiling Speakers

SS-CP06, SS-CL06E

SS-CL06

TF-20C, TF-218, ETF-221

ETF-223, SS-EVA18, EHB-910B/W

Wall Mount Speakers

SS-WM06, SS-EVA19

EWS-102, EWS-105B, EWS-105W, WS-03, HS-267

HS-268, EHS-250, EHB-907, HB-D907

Column Speakers

CS-511H, CS-512H, CS-513H, CS-514H

CK-311, CK-312, CK-313, CK-314

Hi-fidelity Speakers

EWS-206W/4, EWS-206W/5, EWS-206W/6, EWS-206W/8

EWS-206B/4, EWS-206B/5, EWS-206B/6, EWS-206B/8

Accessories

VC-05R / VC-05RF, VC-30W / VC-30WF, VC-60W / VC-60WF, VC-120W / VC-120WF

11

12

13

14

15

16

17

18

19

20

1

2

3

4

5

6

7

8

9

10

EVACPRO Digital Voice Alarm Controller

SS-EVA LCP

The Local Control Panel (SS-EVALCP) is a 16 speaker circuit digital voice alarm controller which includes a digital signal processor, audio storage for pre-recorded messages, audio matrix, amplifier monitoring and control, fire alarm inputs, loudspeaker output connection terminals and audio source connection ports for auxiliary inputs.

The Local Control panel is the interface between field devices such as loudspeakers and local audio sources.

The SS-EVALCP is a cost effective solution for requirements less that 16 loudspeaker circuits(zones).

The unit has 16 emergency inputs and 16 loudspeaker circuits (zones).

The unit also can store and play pre recorded emergency messages to alert or evacuate various fire zones. The user-friendly Windows based SS-EVAConfig software assists the easy commissioning and diagnosis of the system.

16 Zone Digital Voice Alarm Controller

EN60849 Compliant

Monitored Emergency Push To Talk Paging Microphone

LCD Display with scroll buttons

Power and Fault status LED indications

Monitor Loudspeaker

8 Audio source (BGM) selection switches and status indicators

8 Pre-recorded Message selection switches and status indicators

16 Fire Alarm Input Status Indicators

16 Speaker circuit selection switches and status indicators

19”4U rack mount type

PC Interface for Program upload and system diagnostic

Fault signal to fire alarm panel and reset signal from fire alarm panel

Monitor and Control 16 fire alarm inputs and 16 speaker circuits

SPECIFICATIONS

AC Supply Voltage

AC Supply Fuse

DC Supply Voltage

Power Dissipation

Dimensions (H x W x D)

Weight

Temperature Range (Storage and Operating)

Analog Audio Input (Audio1-Audio8)

Frequency Response

SS-EVALPS Audio Input

PTT Microphone Input

System Fault Output

System Reset Input

Control Mode

SS-EVA LCP

AC 220V-240V 50/60Hz

3A

21 to 27.6V

<35W

483 (W) x 175 (H) x 475 (D) mm

14.96 Kg

0 o

C to +50 o

C

330mV,10K ohms

100Hz-20KHz

Digital Audio

5mV,600 ohms

NC

NO

RS-232/RS-485

01

SS-EVA LPS

The Local Paging Station (SS-EVALPS) is the remote operating unit that shall connect with the SS-EVALCP using a standard CAT5 or equivalent cable up to a maximum distance of 300 meters.

The SS-EVALPS's front panel is a cloned copy of the SS-

EVALCP front panel except for the Fire Alarm input status indications. The SS-EVALPS is an optional unit, which will allow the operator to make announcements, monitor and control all SS-EVALPS functions remotely, including reading the network real time data and event log.

The SS-EVALPS is equipped with a monitored gooseneck microphone along with a red colored light ring showing

“ready to speak” on pressing the “MIC ON” switch.

The SS-EVALPS's front panel is equipped with power ON and fault indicators, BGM and audio source selection switches, function selection switches, LCD display with scroll up/down switches, Mode selection switch and Enter switch, all call selection switch, Reset/off switch, and Mic

ON/Off switch. 16 speaker circuit (zones) selection switches with status indication is also available for easy selection of speaker circuits.

The rear side of the SS-EVALPS is equipped with a Power

ON switch and a RJ45 socket for connecting to the SS-

EVALCP.

Local paging Station for SS-EVALCP

Connected with and monitored by SS-EVALCP

Monitored Gooseneck Paging Microphone

LCD Display with scroll buttons

Unit can be used to read system data and event log

Power and Fault status LED indications

8 Audio source (BGM) selection switches and status indicators

8 Pre-recorded Message selection switches and status indicators

16 Speaker circuit selection switches and status indicators

Power ON and Fault indication LED's

Table top Installation

Contact for More details [email protected]

02

SPECIFICATIONS

DC Supply Voltage

DC Supply Fuse

Power Dissipation

Frequency Response

LPS Audio Input

Microphone Input

Storage temperature

Operating temperature

Humidity

Weight

Dimensions (H x W x D)

SS-EVA LPS

21 to 27.6V

(Powered from SS-EVALCP)

0.5A

<10W

100Hz-20KHz

Digital Audio

5mV, 600 ohms

0 o

~ 60 o

C

0 o

~ 50 o

C

0 ~ 90%

2.04 Kg

68 (H) x 290 (W) 160 (D) mm

Audio Sources

KB-F508R

The AP-F508R is an AM/FM stereo digital tuner that provides advanced technology and convenient use for a public address background music source.

Main features are:

Station memory stores up to 60 channels

Manual/automatic tuning

Fast channel scan

Stereo/mono mode selection

Color signal level&function LCD display

Previous and next station selection

RCA audio output jacks

Attractive 1U rack mount case

KB-DV

With original splendid fluorescence dynamic screen on aluminum panel, this AP-DV DVD player provides you super decoding solution and strong

Disc correction function. Its main features are:

Full functional infra-red leisurely remote controlling operation

Support DVD, VCD, CD, HDCD, DIVX, SVCD,

MPEG4, Mp3, WMA, CDR/RW format disc and auto play function

Easy USB input and mono audio output

With 19" rack mount bracket

KB-MP3

128*64 LCD for easy control

With built-in monitor speaker

Support MP3/WMA/WAV format and 32 level volume control

Removable USB storage up to 1GB

Short Circuit timer signal to turn other units on/off

Short Circuit alarm signal input to activate the recorded alarm message.

2 AC power output sockets up to 1000W, manual or auto timer control

REAR PANEL

03

SPECIFICATIONS

Antenna Input

Audio Output

Frequency Response

S/N Ratio

THD

Frequency Range

Station Memory

Dimensions

KB-F508R

75 ohms

Better than 500 mV, 10k ohms

20 Hz - 20 kHz (+/- 3dB)

AM: less than 40dB; FM: less than 45dB

Less than 0.01% at 1kHz

AM: 522 kHz-1620 kHz; FM: 87mHz-108mHz

60 Channels

51(H) x 483(W) x 255(D) mm

SPECIFICATIONS

Antenna Input

Video Output

Frequency Response

S/N Ratio

THD

Distortion and Noise

Indicator

Dimensions

KB-DV

1.5 V

1VP-P

20 Hz - 20 kHz

Better than 80dB

Less than 0.01% at 1 kHz

Less than -60dB at 1 kHz

LCD display

65(H) x482 (W) x240 (D) mm

SPECIFICATIONS

Line in (REC)

Mic in (REC)

Line Out

S/N Ratio

File Format

Volume adjust range

Port

Display

Power consumption

Dimensions

KB-MP3

10k ohm 330 mV, Unbalanced

10k ohm <

10k ohm _

>75dB

Support MP3/WMA/WAV, Voice files

32 Level volume control (0 ~ 32)

USB 1.1

LCD display of menu

10 ~ 15 W

89(H) x483 (W) x382 (D) mm

All-in-one PA

KB-D5060 KB-D5120 KB-D5240 KB-D5300

Features

Controls:

Front : 6 Channel Volume Control, Chime & Siren

Switch, 5 Zone Speaker Selector & 7 band EQ Control

Rare : Priority & Phantom Power Switch for Channel 1

& 2 Trim Pot Control for 6 Input Channel, Level Control for Chime & Siren

Telephone Paging Input

Connectors:

Input: Channel 1 : 1/4 Phone Jack, XLR Jack

Electronically Balanced

Channel 2 -5: Combo Jack Electronically Balanced

Channel 6 : Dual RCA Phone Jack 1/4 Phone Jack

Amp & Link : 1/4 Phone Jack

Output : Speaker Output: Euro Block Terminal

Pre-amp & Link: 1/4 Phone Jack

Indicator:

Power, -20 dB, -10 dB, -6 dB, 0 dB, +3 dB & Protect

Protection: Output Current Limiting, Thermal

Protection & DC offset Protection Cooling :

Convection Cooling

Optional: Rack Mount Kit, Tuner & CD Module

SPECIFICATIONS

Rated Power (RSM)

Channel 1-5

Input Sensitivity/Impedance

Channel 6

Tele-paging

Amp In, Link In

Output Level/Impedance

Speaker Output

Pre-amp Out, Link Out

04

Frequency Response (-3 dB)

T.H.D. (1kHz, Rated Power)

Signal to Noise Ratio

Graphic Equalizer

Power Source

Net Weight

Dimension (W x H x D)

Contact for more details [email protected]

TUNER/MP3/USB/SD MODULE

KB-AS20

KB-AS30

OPTIONAL MODULES FOR KB-5060/ 5120/5240/5300 SERIES

FM

Frequency Range

Channel Step

87.5 Mhz ~ 108 Mhz

50 kHz

Intermediate Frequency 10.7 Mhz

Sensitivity

Stereo Seperation

Signal to Noise Ration

AM

Frequency Range

Channel Step

Intermediate Frequency

Sensitivity

Stereo Seperation

Signal to Noise Ration

Mp3 PLAYER

Frequency Range

Channel Seperation

Signal Noise Ratio

Output

Impedance

2 uV @ S/N 30 dB

30 dB

60 dB

522 kHz ~ 1620 kHz

User selectable for US/Europe

450 kHz

20 uV @ S/N 20 dB

30 dB

50 dB

20 Hz ~ 20 kHz

50 dB

60 kHz

1 Volt

> 10k

KB-D5060

60 W

KB-D5120

120 W

-54 dB to -10 dB Variable/ 20 k ohm balanced

-34 dB to +10 dB Variable/ 47 k ohm Unbalanced

0 dB / 600 ohm Balanced

0 dB / 10 k ohm

KB-D5240

240 W

100 V (165 ohm), 70 V (83 ohm),

25 V (10.4 ohm), 15.5 V (4 ohm),

0 dB / 600 ohm

50 Hz - 20 kHz

<1 %

> 100 dB

+/- 12 dB 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz

Ac 100-240 V, 50/60 Hz

8.7 kg

420 x 88 x 320 mm

9.7 kg

10.8kg

KB-D5300

300 W

11.9 kg

Compact Amplifiers

KB-C30PT/C60PT

30W/60W MIXER AMPLIFIER WITH TUNER,

MP3 AND USB

There commercial-grade mixer amplifiers with built-in MP3 /TUNER are designed to provide a big impact in sound reproduction and to produce the best and highest quality audio.

Highly flexible mixer amplifiers for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses etc.

30W/60W amplifier

100V, 70V and 4-16Ohms output 2

Auxiliary switchable CD/AUX

4pin phoenix connector for both balanced mic or Tel in

6.35mm jack unbalanced microphone input

With equalization function

Music on hold

Built-in tuner

Built-in USB port

Contect us [email protected]

REAR PANEL

SPECIFICATIONS KB-C30PT KB-C60PT

Rated Power Output 30 W

Speaker Output

S/N Ratio Mics

S/N Ratio Aux

Tone Controls

100 V (334 ohms), 70 V(164 ohms),

4,8,16 ohms

> 60dB

> 70dB

150 Hz, 1 KHz, 6KHz, + 10dB

60 W

{

AVX inputs : 200mv

CD inputs : 500mv

Output 775 Mv , 0dB , XLR and phone jack

Frequency Response

THD

Power Requirements

100 - 20,000 Hz

< 0.5% at Rated Power

220-240V AC or 120V AC

Dimensions

Net Weight

Color

90(H) x 270(W) x 260(D) mm

4.3 kg

Black

5.8 kg

5

Mixer Amplifiers

KB-S200P/KB-S300P/KB-S600P/KB-S1000P

5-INPUT MIXER AMPLIFIERS

Highly flexible mixer amplifiers for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.

Main features are:

3 microphone and 2 auxiliary inputs

1 line output

100V, 70V and 4-16 Ohms transformerisolated speaker outputs

FRONT PANEL

Automatic mute function for paging and announcements

Individual input gain controls with master volume control

Bass and treble tone controls

REAR PANEL

LED level meter

Speaker output short circuit protection

SPECIFICATIONS

Rated Power Output

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Tone Controls

Controls

Cooling

Indicators

Protection

Power Consumption

Power Requirments

Dimensions

Built-in Dimensions

Carton Dimensions

Net Weight

Gross Weight

Finish

KB-S200P

70 W

Less than 3 dB (no load to full load)

70 ohms (70V)

143 ohms (100V)

Low impedance: 4-16 ohms

KB-S300P

130 W

KB-S600P

260 W

KB-S1000P

360 W

38 ohms (70V)

77 ohms (100V)

19 ohms (70V)

39 ohms (100V

14 ohms (70V)

28 ohms (100V)

Low impedance: 4-16 ohms Low impedance: 4-16 ohms Low impedance : 4-16 ohms

MIC 1, 2, 3: 600 ohms, 5-8 mV, unbalanced, phone jack; AUX 1, 2: 10k ohms, 300mV, unbalanced, RCA jack

600 ohms, >13 V, RCA jack

60 - 15,000 Hz, +/- 3dB

Less than 1% at 1kHz (1/3 Rated Power)

Line : 75db , Mic : 60db

BASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB)

5 input gain, 1 treble, 1 bass, 1 mute, and power switch

Internal 12VDC fan, extensive heat sinking

Power indicator LED, LED output level meter +1db, -5db, -10db, -13db, -17db

AC Fuse: 4A AC Fuse: 4A

Current limiter, short circuit and thermal protection circuits

150 W

220-240V AC, 50/60 Hz

89(H) x 483(W) x 366(D) mm

2 U rack 19 inch

185(H) x 520(W) x 435(D) mm

10.04 kg

11.72 kg

Panel: steel plate, black

Case: steel plate, black

300 W

11.36 kg

13.02 kg

AC Fuse: 8A

550 W

13.68 kg

15.32 kg

AC Fuse: 8A

750 W

14.08 kg

15.70 kg

6

Booster Amplifiers

SS-AMP120 SS-AMP240

SINGLE CHANNEL POWER AMPLIFIERS

These commercial-grade power amplifiers efficiently deliver up to 240 watts of clean, reliable audio for the most demanding public address and voice alarm applications.

Rugged and over-built to give years of dependable service, they are equipped with massive toroidal power transformers, extensive heat-sinking and fan cooling, protective circuits such as over temperature, short circuit, RFI and soft start.

100V, 70V and 4 Ohms transformerisolated speaker outputs

Balanced XLR input with XLR parallel link-out connector

400Hz high pass filter

Ground Selector Switch : Frame/float

Adjustable input gain from -12dB to 0dB

SPECIFICATIONS

Rated Power Output

Gain Control

Speaker Output

Frequency Response

THD

S/N Ratio

Controls

Cooling

Power Consumption

Power Requirments

07

Dimensions

Built-in Dimensions

Carton Dimensions

Net Weight

Finish

REAR PANEL

SS-AMP-120

120 W

-12 dB to 0

41 ohms 70V

83 ohms 100V

Low impedance: 4 ohm

60 - 20K Hz, +/- 3dB

Less than 1.0% at 1kHz (1/2 Rated output)

Better than 90 dB

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

260 W

220-240V AC, 50/60 Hz

24V DC

89(H) x 483(W) x 377(D) mm

2 U rack 19 inch

185(H) x 520(W) x 435(D) mm

13 kg

Panel: aluminum, black

Case: steel plate, black

SS-AMP-240

240 W

21 ohms 70V

41 ohms 100V

Low impedance: 4 ohms

500 W

17.66 kg

SS-AMP360 SS-AMP480 SS-AMP660

POWER AMPLIFIERS

These commercial-grade power amplifiers efficiently deliver up to 660 watts of clean, reliable audio for public address applications.

They are ruggedly to give years of reliable service.

T h e y a r e e q u i p p e d w i t h t o r o i d a l p o w e r transformers, extensive heat-sinking, fan cooling and protective circuits.

100V, 70V and 4-16 Ohms transformerisolated speaker outputs

Combination XLR/RCA Line In and Line Out connectors

LED status indicators

Speaker output short circuit protection

SPECIFICATIONS

Rated Power Output

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Slew Rate

Controls

Cooling

Indicators

Protection

Power Consumption

Power Requirements

Dimensions

Net Weight

Gross Weight

FRONT PANEL

REAR PANEL

SS-AMP360

360 W

SS-AMP480

480 W

Less than 3 dB (no load to full load)

13.6 ohms 70V

27.8 ohms 100V

Low impedance: 4 ohms

10.7 ohms (70V), balanced

Less than 1V, unbalanced, 10 k ohm, XLR and phone jack

21.7 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

10 k ohm, 1V, XLR and phone jack

50-20k Hz

Less than 0.5% at 1kHz (1/3 Rated Power)

> 80 dB

15V/uS

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

Power, Clip, Signal, Protect, and Temp LEDs

AC Fuse: 10A AC Fuse: 12A

Current limiter, short circuit and thermal protection circuits

485 W 620 W

220 VAG ± 10 % 50 - 60 Hz

88(H) x 430(W) x 483(D) mm

15.5 kg

17.1 kg

18.1 kg

19.7 kg

08

SS-AMP660

660 W

7.4 ohms (70V), balanced

15.1 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

AC Fuse: 15A

880 W

20.1 kg

21.7 kg

SS-AMP1000 SS-AMP1500

POWER AMPLIFIERS

When more power is required, these high power amplifiers provide up to 1500 watts into low impedance and 70 / 100 V speaker loads.

They are ruggedly designed to give years of reliable service, they are equipped with toroidal power transformers, extensive heat-sinking, fan cooling and protective circuits.

100V, 70V and 4-16 Ohms transformer isolated speaker outputs

Combination XLR/RCA Line In and Line Out connectors

LED status indicators

Speaker output short circuit protection

REAR PANEL

SPECIFICATIONS SS-AMP1000 SS-AMP1500

Rated Power Output 1000 W

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Slew Rate

Controls

Cooling

Indicators

Protection

Less than 3 dB (no load to full load)

4.9 ohms (70V), balanced

10.0 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

Less than 1V, unbalanced, XLR and phone jack

1V unblanced, XLR and phone jack

50 - 18,000 Hz, +/- 1.5 dB

Less than 0.5% at 1kHz (1/3 Rated Power)

Better than 85 dB

40V/uS

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

Power, Clip, Signal, Protect, and Temp LEDs

AC Fuse: 20A

Current limiter, short circuit and thermal protection circuits

1500 W

3.3 ohms (70V), balanced

6.7 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

AC Fuse: 25A

2300 W Power Consumption

Power Requirements

Dimensions

Net Weight

Gross Weight

1750 W

220 VAG ± 10 % 50 - 60 Hz

133(H) x 486(W) x 483(D) mm

25 kg

27.5 kg

27 kg

30 kg

9

Microphones

KB-500WL

740-820MHZ WIRELESS MICROPHONE SYSTEM

High carrier frequency for superior reception

Includes receiver and two microphones, clip and handheld optional

Dual-channel, user-selectable frequency

100 meters service range

MC-Z20

2-TONE CHIME MICROPHONE

Built-in 2-tone chime

Red LED indicator

Push to talk switch

XLR connector

REAR

SPECIFICATIONS

Frequency Response

Sensitivity

Impedance

Controls

Cable

Power Requirements

Dimensions

Net Weight

MC-Z20

40 Hz-16 kHz

-43dB +/-2dB

200 ohms

ON/OFF switch

10 meters

12V DC

43 x 20 x 7.5 cm

1.05 kg

SPECIFICATIONS

Frequency Response

Dynamic Range

Distortion S/N

Ratio Service

Range

Operating Temperature

Carrier Frequency Range

MICROPHONE:

Frequency Stable Range

Carrier Output Power

Pre-Emphasis

RFI Suppression

Radio Frequency Type

Frequency Range

Microphone Type

Power Requirements

De-Emphasis

Power Consumption

Dimensions

Weight

RECEIVER:

Sensitivity

Output Impedance

Output Level

Power Requirements

Power Consumption

Weight

KB-500WL

50 Hz-18 kHz+/-3dB

>110dB

<0.5%

>102dB

100 meters

5 to 45 degrees C

740~820 MHz

0.005%

<30 mW

75us

>40dB

UHF

50 kHz

Dynamic

3V battery

75us

45 mA

420(L)*220(W)*44(H)

235 g

2 micro V

600 ohms

0~800 mV

DC 16 V

5 W

3.5 kg

10

MC-Z50

DESKTOP MICROPHONE

High sensitivity, excellent frequency response

Attractive black ABS base

ON/OFF switch

XLR connector

REAR

SPECIFICATIONS

Frequency Response

Sensitivity

Impedance

Controls

Cable

Power Requirements

Dimensions

Net Weight

MC-Z50

50 Hz-15 kHz

-45dB +/-2dB

600 ohms

ON/OFF switch

10 meters

1.5V DC

44.5 x 25 x 6.5 cm

1.11 kg

Speakers

Ceiling Speakers

SS-CP06

SS-CL06E

SPECIFICATIONS

Speaker unit Rated power Transformer power Sensitivity

SPL 1m/6 W, 2k Hz

Frequency response (-10 dB)

Dispersion angle (-6 dB)

Dimensions

Weight

Material

Color

Hole cutout

SS-CP06

4.5 “

3W, 100V line transformer

1.5W-3W

92 dB

97 dB

120 Hz ~15K Hz

160°

ø175 x 65mm

0.56 Kg

ABS

RAL 9003

ø150 mm

SPECIFICATIONS

Speaker unit Rated power Transformer power

Sensitivity

SPL 6 W/1m, 2k Hz

Frequency response (-10 dB)

Dispersion angle (-6 dB)

Dimensions

Weight

Material

Color

Hole cutout

SS-CL06E

5 “

6W, 100V line transformer

3W - 6W

90 dB

98 dB

80 Hz ~20K Hz

160°

ø180 x 55mm

0.6 Kg

Steel

RAL 9003

ø150 mm

11

SS-CL06

SPECIFICATIONS

Speakers Rated

Power Input

Impedance

Power taps @70V

Power taps @100V

SPL1W \ 1m

SPL1M \ W max

Frequency response(effective)

Dispersion angle

Dimensions

Hole cut-out size

Weight

Material

Color

SS-CL06

5"

6 W

1.7 K

3 W

6 W

88 dB

95.8 dB

85 Hz~20 KHz

160

3.3 K

1.5 W

3 W

Ø180 × 55 mm

Ø150 mm

0.68 Kg

Metal

Similar RAL9010

6.7 K

0.75 W

1.5 W

12

TF-20C

TF-218

ETF-221

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

TF-20C

3/6 W

100 V

92dB

< 3 %

150Hz-15KHz

Dia 150 mm

Dia 180 mm

Ceiling

Rugged thermoplastic

0.68 Kg

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

TF-218

3/6 W

100 V

90dB

< 3 %

110Hz-13KHz

Dia 95 mm

Dia 103 mm

Ceiling

Plastic

0.42 Kg

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

ETF-221

2.5/5/10 W

100 V

93dB

< 3 %

110 Hz-13 KHz

Dia 200 mm

Dia 230 mm

Ceiling

Rugged thermoplastic

1.38 Kg

13

ETF-223

SS-EVA18

(EVAC Ceiling Speaker with fire dome)

SPECIFICATIONS

Power

Input Voltage

Sensitivity

THD

Freq. Response

Hole Cutting Size

Product Size

Installation

Enclosure Material

Weight

ETF-223

20 W

100 V

95dB

< 1.8 % at 100 - 8 kHz

100 Hz-15 KHz

Dia 204 mm

Dia 240 x 151 mm (H)

Ceiling

Rugged thermoplastic

1.98 Kg

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

SS-EVA18

3/6 W

100 V

92dB

< 3 %

180 Hz-20 KHz

Dia 200 mm

Dia 228 x 133 mm

Ceiling

Metal

1.57 Kg

EHB-910B (Black) / EHB-910W (White)

Ip55, Pendant Speaker

Ideal for station, Hotel, and market.

Paper cone coated with Damp to produce clear sound.

Easy installation.

ABS enclosure.

With 4 full range speaker.

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Distortion

Freq. Response

Size Installation

Enclosure Material

Weight

Line Load Resistance

Dispersion Angle

EHB-910B (Black)

EHB-910W (White)

5/10 W

70/100 V

+

< 3 %

150Hz-15 KHz

Dia 180 x 700 mm

Hang

ABS

1.28 Kg

614 ohms

100 degrees

14

Speakers

Wall Mount Speakers

SS-WM06

SS-EVA19

(EVAC Wall Mount Speaker with metal enclosure)

SPECIFICATIONS

Speakers Rated

Power Input

Impedance

Power taps @70V

Power taps @100V

SPL1W \ 1m max

SPL1M \ W

Frequency response(effective)

Dispersion angle

Dimensions

Weight

Material

Color

SS-WM06

6.5"

6 W 3 W

3.3 Kohm

1.5 W

3 W

104.6 dB

1.7 Kohm

3 W

6 W

96.8 dB

160 Hz~20 Khz X 110Hz ~ 13KHz

150

260 × 180 × 120 mm

1.08 Kg

ABS

Similar RAL9010

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Baffle Size

Installation

Enclosure Material

Weight

SS-EVA19

2 / 4 W

100 V

90 dB

< 3 %

150 Hz - 20 kHz

170 × 170 × 63 mm

Wall Mount

Metal

1.63 kg

15

EWS-102

EWS-105B

WS-03

HS-267

(IP66)

16

EWS-105W

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Dimension

Weight

Finish

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Size

Weight

EWS-102

10 W

100 V

92dB + / - 3db

< 5 %

110 Hz-13 KHz

345 x 240 x 100 mm

1.68 kg

SPECIFICATIONS

Rated Power

Maximum Power

Input Voltage/impedance

Sensitivity

THD

Frequency Response

Installation

Enclosure material

Product Size (mm)

Weight

Packing Dimensions (mm)

Speakers

EWS-105B / EWS-105W

25 W

30 W

70 V for H - 25 W / H -25 B

4 ohm for HR - 25 W / HR - 25 B

110 V for HI - 25 W / HI - 25 B

87 dB

< 5 %

50 Hz - 20 kHz ( + / - 3 dB)

Wall mounted

Rugged thermoplastic

320 x 230 x 155

3.2 kg

585 x 270 x 380

1” TREBLE, 5” BASS

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Size

Weight

Line Load Resistance

Vertical Dispersion

Horizontal dispersion

WS-03

0.15 W / 1.5 W

100 V

89 dB + / - 3 dB

< 3 %

150 Hz - 15 kHz

130 x 120 x 60 mm

0.4 kg

589 ohms

90 degrees

100 degrees

HS-267

15 W / 7.5 W

70 / 100 V

105 dB + / - 3 dB

< 5 %

250 Hz - 10 kHz

225 X 165 x 240 mm

1.38 kg

White

16

HS-268

(IP66)

EHS-250

(IP66)

EHB-907

(IP55)

HB-D907

(IP55)

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Freq. Response

Dimension

Weight

Finish

HS-268

15 / 30 W

70 / 100 V

105 dB + / - 3 dB

< 5 %

250 Hz - 10 kHz

285 X 210 X 290 mm

1.78 kg

White

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Dimension

Weight

Finish

Material

EHS-250

50 W

70 / 100 V

99 ± 3 dB

< 5 %

90 Hz - 20 kHz

363 x 253 x 310 mm

3.9 kg

White

Rugged thermoplastic

SPECIFICATIONS

Type

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Baffle size

Weight

Line Load Resistance

Dispersion angle

EHB-907 uni - directional

5 / 10 / 20 W

70 / 100 V

92 dB + / - 3 dB

< 5 %

150 Hz - 14 kHz

Dia 170 x 252 mm

2.82 kg

589 ohms

100 degrees

SPECIFICATIONS

Type

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Baffle size

Weight

Line Load Resistance

Dispersion angle

HB-D907 bi - directional

5 / 10 / 20 W

70 / 100 V

92 dB + / - 3 dB

< 5 %

150 Hz - 14 kHz

Dia 170 x 252 mm

3.4 kg

589 ohms

100 degrees

17

Speakers

Column Speakers

CS-511H CS-512H CS-513H CS-514H

Features:

The standard indoor / outdoor weatherproof speakers provide hi-fi sound quality. They are suitable for use at garden, swimming pool, stadium and tennis court.

Installation: wall mount

Enclosure: Aluminum, metal grille

4" full range speakers screw fixed rack adjustable rack

BROWN : 1K

YELLOW :COM

BLUE : 2K nut

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

CS-511H (IP44)

5 W / 10 W

100 V

90 dB

Freq. Response

Dimensions

140 Hz - 16 kHz

Weight

2.55 kg

Line Load Resistance

614 ohms

270 X 123 X 145 mm

Vertical Dispersion

Horizontal Dispersion

90 degrees

90 degrees

Color Champagne

Materials (enclosure and grille) Aluminum and iron

CS-512H (IP44)

10 W / 20 W

100 V

92 dB

140 Hz - 16 kHz

390 x 123 x 145 mm

4.1 kg

448 ohms

80 degrees

90 degrees

Champagne

Aluminum and iron

CS-511H CS-512H CS-513H CS-514H

CS-513H (IP44)

15 W / 30 W

100 V

93 dB

150 Hz - 18 kHz

505 x 123 x 145 mm

4.35 kg

345 ohms

80 degrees

90 degrees

Champagne

Aluminum and iron

CS-514H (IP44)

20 W / 40 W

100 V

95 dB

160 Hz - 18 kHz

620 x 123 x 145 mm

5.65 kg

256 ohms

80 degrees

256 ohms

Champagne

Aluminum and iron

CK-311 CK-312 CK-313 CK-314

Features:

The metal case makes it more durable beautiful shape and easy to install suitable for indoor/outdoor application, such as gym and conference room.

Enclosure: Aluminum, metal grille

2.5 "full range speakers with clear sound

SPECIFICATIONS CK-311 (IP44)

Rated Power

Line Voltage

Sensitivity

Freq. Response

Dimensions

Weight

5 W / 10 W

100 V

88 dB

140 Hz - 15 kHz

261 X 75 X 105 mm

1.22 kg

Line Load Resistance 640 ohms

Vertical Dispersion

Horizontal Dispersion

Color

90 degrees

100 degrees

White

Materials (enclosure and grille)

Aluminum and iron screw fixed rack adjustable rack

BROWN : 1K

YELLOW :COM

BLUE : 2K nut

CK-312 (IP44)

10 W / 20 W

100 V

88 dB

150 Hz - 15 kHz

402 x 75 x 105 mm

1.98 kg

486 ohms

90 degrees

110 degrees

White

Aluminum and iron

CK-311

CK-313 (IP44)

15 W / 30 W

100 V

90 dB

160 Hz - 15 kHz

550 x 75 x 105 mm

2.74 kg

358 ohms

90 degrees

110 degrees

White

Aluminum and iron

CK-312 CK-313

CK-314 (IP44)

20 W / 40 W

100 V

91 dB

160 Hz - 16 kHz

690 x 75 x 105 mm

3.52 kg

448 ohms

80 degrees

110 degrees

White

Aluminum and iron

CK-314

18

Speakers

Hi-fidelity Speakers

EWS-206W/4 EWS-206W/5 EWS-206W/6 EWS-206W/8

High sound quality with natural fidelity

Elegant design with ABS plastic

SCREW

SCREW

STAND

Switch for output power selection

SCREW

Easy mounting with flexible bracket

Available in Black or white

SPECIFICATIONS

Power

Line Voltage

Sensitivity

Distortion

Frequency Response

Product Size

Installation

Enclosure material

Weight

Dispersion Angle

Speakers

SCREW

EWS-206W/4

5/10/20 W

EWS-206W/5

10/20/40 W

EWS-206W/6

15/30/60 W

EWS-206W/8

20/40/80 W

100V/8 ohm

89dB +/- 1dB

Less than 3% at 100-8KHz

100V/8 ohm

89dB +/- 1dB

Less than 3% at 100-8KHz

100V/8 ohmV

90dB +/- 1dB

100V/8 ohm

90dB +/- 1dB

Less than 3% at 100-8KHz

80 Hz-18 KHz

250 x 160x 145 mm

Wall mounted

ABS

80 Hz-18 KHz

Wall mounted

ABS

302 x 172x 165 mm

Less than 3% at 100-8KHz

80 Hz-18 KHz

202 x 193x 344 mm

Wall mounted

ABS

80 Hz-18 KHz

Wall mounted

ABS

261 x 275x 455 mm

1.45 Kg

90 degrees x 80 degrees

3.4 Kg

90 degrees x 80 degrees

3.80 Kg

90 degrees x 80 degrees

7.46 Kg

90 degrees x 80 degrees

20mm x1 (TREBLE) 4"x1(BASS) 25mm x1 (TREBLE) 5.2"x1(BASS) 25mm x1 (TREBLE) 6.5"x1(BASS) 25mm x1 (TREBLE) 8"x1(BASS)

EWS-206B/4 EWS-206B/5 EWS-206B/6 EWS-206B/8

High sound quality with natural fidelity

Elegant design with ABS plastic

SCREW

SCREW

STAND

Switch for output power selection

SCREW

Easy mounting with flexible bracket

SPECIFICATIONS

Power

Line Voltage

Sensitivity

Distortion

Frequency Response

Product Size

Installation

Enclosure material

Weight

Dispersion Angle

Speakers

SCREW

Available in Black or white

EWS-206B/4

5/10/20 W

EWS-206B/5

10/20/40 W

EWS-206B/6

15/30/60 W

EWS-206B/8

20/40/80 W

100V/8 ohm

89dB +/- 1dB

Less than 3% at 100-8 KHz

80 Hz-18 KHz

100V/8 ohm

89dB +/- 1dB

Less than 3% at 100-8 KHz

80 Hz-18 KHz

100V/8 ohmV

90dB +/- 1dB

Less than 3% at 100-8 KHz

80 Hz-18 KHz

100V/8 ohm

90dB +/- 1dB

Less than 3% at 100-8 KHz

80 Hz-18 KHz

250 x 160x 145 mm

Wall mounted

ABS

1.45 Kg

90 degrees x 80 degrees

302 x 172x 165 mm

Wall mounted

ABS

3.4 Kg

90 degrees x 80 degrees

202 x 193x 344 mm

Wall mounted

ABS

3.80 Kg

90 degrees x 80 degrees

261 x 275x 455 mm

Wall mounted

ABS

7.46 Kg

90 degrees x 80 degrees

20mm x1 (TREBLE) 4"x1(BASS) 25mm x1 (TREBLE) 5.2"x1(BASS) 25mm x1 (TREBLE) 6.5"x1(BASS) 25mm x1 (TREBLE) 8"x1(BASS)

19

Accessories

VC-05R / VC-05RF

VC-30W / VC-30WF

VC-60W / VC-60WF

VC-120W / VC-120WF

20

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-05RF VC-05R

5 - step resistive, mono

6 watts

No

Step 1: OFF

Step 2: - 4 dB

Step 3: - 1 dB

Step 4: - 0.5 dB

Step 5: 0 dB

Yes

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 50 ( D ) mm

( V C -305 R ) 115 ( W ) x 70 ( H ) x 48 ( D ) mm

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-30WF VC-30W

5 - step auto transformer, mono

30 watts

No

Step 1: OFF

Step 2: - 17 dB

Step 3: - 11 dB

Step 4: - 4.5 dB

Step 5: 0 dB

Yes

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 62 ( D ) mm

( VC-3030W ) 115 ( W ) x 70 ( H ) x 64 ( D ) mm

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-60WF VC-60W

5 -step auto transformer, mono

60 watts

No

Step 1: OFF

Step 2: - 18 dB

Step 3: - 11 dB

Step 4: - 5 dB

Step 5: 0 dB

Yes

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 70 ( D ) mm

VC - 3060 W ) 115 ( W ) x 70 ( H ) x 74 ( D ) mm

MODEL

Type

Power Rating

24 VDC Override

Attenuation

VC-120WF

VC-120W

5 - step auto transformer, mono

120 watts

No Yes

Step 1: OFF

Step 2: - 17 dB

Step 3: - 11 dB

Step 4: - 5.5 dB

Step 5: 0 dB

Frequency Response

20 Hz - 20 kHz

Dimensions

86 ( W ) x 86 ( H ) x 50 ( D ) mm

Transformer Dimensions

70 ( W ) x 70 ( H ) x 28 ( D ) mm

( VC - 3120 W ) 115 ( W ) x 70 ( H ) x 74 ( D ) mm

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
