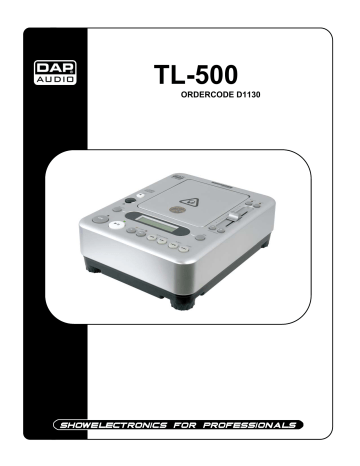

TL-500
ORDERCODE D1130
Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio TL-500 brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated show, this product provides the effect you need.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!
Dap Audio
Dap Audio TL-500™ Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations……………………………………………………………………………………..
2
2
3
Description..…..............................................................................……….………………………………….
Features and Overview ………………………………...….……………….………….………………….….
Backside…………………………………………………...…...….……………….…………………...….….
LCD……….........………………………………...…………………………………..…….............................
4
4
5
6
Installation........................................................……..……………………………….………………………..
7
Set Up and Operation......................................................................……..…………………………….……
7
Operations......................................................……..….................................................……..…………….
Opening and closing of the disc holder…………...........................……….……………………………….
Loading CD’s....................……….………………………….....................……….………………………….
Selecting Tracks….....................……….………………………….....................……….…………………..
Starting Playback.........……….………………………….....................……….……………………….…….
Stopping Playback......……….………………………….....................……….……………………….……..
Pausing......……….………………………….....................……….……………………….………………….
Cueing...……….………………………….....................……….……………………….……………………..
Auto Cue……….………………………….....................……….……………………….…………………….
Frame search.....……….………………………….....................……….……………………….……………
Scanning (Fast forward/Fast backward)……......................……….……………………….…………………
Time Display........……….………………………….....................……….……………………….………….
Pitch Bending……….………………………….....................……….……………………….……………….
Creating and Playing a Loop……..……….....................……….……………………….………………….
Switching between Single and Continuous Play Modes.......……….……………………….……………
7
7
7
7
7
8
8
8
8
8
8
8
9
9
9
Before switching off the power..............……..….......................................................……..……………..
CD’s............................……….……………………………..………………………………………………….
Precaution on storage..……..……………………….....................……….……………………….………...
10
10
10
Maintenance………..............................….......................................………..………….…….………….…… 11
Troubleshooting………..............................…................................………..………….…….………….…… 11
Product Specifications.................................................................……………….…….……………………
1
12
WARNING
CAUTION!
Keep this system away from rain and moisture!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
be qualified
follow the instructions of this manual
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
Before you initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Always disconnect power from the mains, when system is not used. Only handle the power-cord by
the plug. Never pull out the plug by tugging the power-cord.
Make sure you don’t use the wrong kind of cables or defective cables.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the system and the power-cord
from time to time.
2
•
•
•
•
•
•
•
•
•
•
Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
Extreme frequency boosts in connection with a high input signal level may lead to overdriving your
equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT
control.
To emphasize a frequency range, you don’t necessarily have to move its respective sliding control
upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next
piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve
(“headroom”)
Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same
electrical circuit to ensure the same phase!
If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !!
3
Description of the device
Features
The TL-500 is a CD-Player from DAP Audio.
• Pitch Bend: +/-8%, +/-12%, +/-16%
• Single/Continuous
• Elapsed, remain and total remain time display
• LCD screen
• Digital Output
• Search/Scan/Forward & Back Skip
• Instant start within 10msec
• 8x Oversampling
• Loop In/Out
• Mechanical Anti-Skip Protection
• Reads CD & CD-R Discs
• S/N ratio: 75dB
• Frequency response: +/-1.0dB
• Total Harmonic Distortion: 0.02%
• Channel separation: 75dB
• Output level: 2.0V+/-1dB
Fig. 1
4
(1) STOP: Stops the CD.
(2) OPEN/CLOSE: Press it to open and close the disc holder.
(3) LCD DISPLAY: Shows time (minutes, seconds, frame), and pitch information.
(4) SGL/CTN: Switches between Single or Continuous play modes.
(5) CUE INDICATOR: Red LED lights when cd player is in CUE Mode
(6) CUE -Used to recall and preview the cue point.
(7) PLAY/PAUSE INDICATOR: LED will glow when in PLAY Mode and flash when in PAUSE Mode.
(8) PLAY/PAUSE: Plays or pauses the CD. Autocue function sets the cue point automatically when this
button is used.
(9) LOOP IN INDICATOR: LED will flash each time the loop "IN" button is pressed, indicating the CUE Point
or loop starting point has been set.
(10) LOOP IN: This allows you to set the cue point without stopping the play back. This button sets the
beginning of a loop.
(11) LOOP OUT: Used to set the ending when looping music. The player will start to loop continuesly until
you press this button again to exit and reloop enable when you press this button once again.
(12) & (13): Press the button to forward or backward frame.
Scans forward or back through the current track. This unit has 3 scan speeds. Keep the button
hold for a few seconds the change the scan speed.
(14) B.SKIP: Use this button to go back to the beginning of the current track or select a previous track for
playing.
(15) F. SKIP: Use these button to skip to the next CD track.
(16) LOOP OUT INDICATOR: LED will flash each time the loop "OUT" button is pressed, indicating the cue
point or loop starting point has been set
(17) TIME: LCD display reads the time remaining or time elapsed or time total remaining, when pressing
this button.
(18) PITCH BEND (+ / -): Temporarily changes the pitch while button is pressed. Note; Maximum pitch on
this unit is 16%. If the pitch fader is already physically set to 16%, this function will not work. If the pitch
fader is physically set to 16%, the maximum pitch bend will be up to 16% only.
(19) PITCH FADER: Used to speed up or slow down current track. Note: The pitch adjustment will remain
even if a disc has been removed, and a new disc has been loaded.
(20) PITCH SELECT: Pressing the PITCH and 8,12,16% - (minus) buttons simultaneously changes the
pitch fader range between +/- 8, +/-12, and +/-16%.
(21) PITCH: Turns pitch fader ON and OFF.
(22) PITCH INDICATOR: LED will glow when the PITCH function is active.
(23) PITCH SELECT INDICATOR: This LED serves as a visual reminder of the selected PITCH Mode.
A flashing red LED will indicate +/- 8% pitch, a glowing red LED will indicate +/- 16% pitch and when the
LED is off, means +/- 12% pitch.
Fig. 2
5
(24) AUDIO OUT L / R: This stereo line output connects to the line input on any DJ mixer.
(25) DIGITAL OUTPUT: This coaxial (S/P DIF) digital output connects to any RCA S/P DIF input, as found
on most standard computer sound cards, CD burners or any other recording device with a digital input.
(26) FADER START: Connects to any DJ mixer equipped with a fader start input. This enables the user to
start the CD from the cue point, using the mixer’s cross or line fader, depending on the mixer.
(27) VOLTAGE SELECTOR: Used to select the unit’s voltage according to the local setting. Note: Be sure to
check the switch before powering the unit.
(28) AC IN: This is the connection for the supplied power cable.
(29) POWER: This button is used to turn the unit ON and OFF.
Fig. 3.
LCD
30) TIME BAR: shows TOTAL REMAIN, REMAIN or ELAPSE time depending on the setting of the TIME
button. This bar will start flashing when 15 seconds of a track remain and will begin to flash
rapidly,when three seconds of a track remain.
31) ELAPSE INDICATOR: the time defined refers to a single track's elapsed time.
32) TOTAL REMAIN INDICATOR: the time defined refers to a disc's total remaining time.
33) REMAIN INDICATOR: the time defined refers to a single track's remaining time.
34) PLAY: lit while the unit is playing a CD.
35) TRACK: shows the track that unit is playing with.
36) MINUTES METER: This meter will display the elapse, total, or remaining time in minutes.
37) SECONDS METER: This meter will display the elapse, total, or remaining time in seconds.
38) FRAME METER: This meter will display the elapse, total, or frames.
39) SINGLE INDICATOR: Shows that the unit is in single play mode, the unit will play a single and then
return to CUE mode. If the SINGLE indicator is not shown, the unit is in Continuous mode.
In Continuous mode the drive will play through all the tracks on the disc. Once all the tracks have ended
the unit will return to cue mode.
40) PITCH METER: This meter shows the pitch percentage being applied to playback by the PITCH fader.
If the meter reads 0 regardless of the PITCH fader’s position, the PITCH function is not activated.
6
Installation
TL-500 Installation
Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed..
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. The power supply is printed on the back of the device.
Do not attempt to operate a 120V specification product on 230V power, or vice versa.
CAUTION: The player will work normally when the unit is mounted with the front panel at 15 degrees of the
vertical plane. If the unit is tilted excessively, discs may not be loaded or unloaded properly. (Fig. 1)
The control panel’s LCD’s are designed to be clearly visible within the angles (Fig. 2). Mount the control unit
so that the visual angle is within the range.
Connections
1. Turn off the POWER switch.
2. Connect the RCA cable to the input of your mixer.
CAUTION:
Be sure that the power is off, when connecting the cables.
Operations
1. OPENING AND CLOSING OF THE DISC HOLDER
• Caution: Never open the tray door when a disk is spinning. Stop the playback first, then press the OPEN
button.
2. LOADING CD’s
• Hold the disc by the edges and place it in the disc holder. The cue point will be set to the music’s starting
point of the first track automatically.
CAUTION:
• Do not place any foreign objects in the disc holder and do not place more than one disc in the disc holder
at a time.
3. SELECTING TRACKS
• Press the SKIP-button to move to a higher or lower track.
• Hold the SKIP button to change tracks continuously at a higher speed.
• When a new track is selected during playback, playback begins as soon as the skip search operation is
completed.
• If the Skip-button
is pressed while at the last track, the first track is selected. In the same way,
If the Skip- button
is pressed while at the first track, the last track is selected.
4. STARTING PLAYBACK
• Press the PLAY/PAUSE button during the pause or cue condition to start playback, the PLAY indicator
lights.
• The point at which playback starts is automatically stored in the memory as the cue point. The pickup then
returns to the cue point when the CUE button is pressed. (Back CUE)
7
5. STOPPING PLAYBACK
There are three ways to stop playback:
1). Press the PLAY/PAUSE button during playback to pause at that point.
2). Press the CUE button during playback to return to the cue point and enter pause condition. (Back Cue)
3). Press the STOP button, playback stops
6. Pausing
• Press the PLAY/PAUSE button to switch between play and pause.
• The play indicator flashes when the pause mode is set.
• Playback resumes when the PLAY/PAUSE button is pressed again.
7. CUEING
• "Cueing" is the action of preparing for playback.
• Press CUE button, the player will enter CUE-Mode, the playback returns to cue point and enter pause
condition, the CUE indicator lights up and the PLAY indicator flashes. When PLAY/PAUSE button is
pressed, play starts from the cue point.
• When the track search operation is completed after pressing the SKIP buttons, the player automatically
finds the position at which the sound starts and cues there (Auto Cue).
• If the CUE button is pressed after the search operation or the scanning operation, the playback returns to
the cue point and enters pause condition.
• Fig. 7 shows the relationship between the PLAY and back CUE operations.
• CUE- point setting
A. Playback starts from pause or skip to a new track during play or pause. The beginning play point will be
set to the cue point.
B. Press the LOOP IN button during playback to set the new cue point ("CUE on the fly"). To return to Cue
point press Cue Button. This will return to point A or B above. The player has completed the cue or pause
operation and is waiting for the play start command. When the PLAY/PAUSE button is pressed, playback
starts.
When a new cue point is set, the cue indicator lights by flash for about 1 second.
NOTE: During cue mode, if the CUE button is pressed and hold, playback will start from the cue point,
when the button is released, the player will return to the cue mode automatically, it allows you to
check the cue point.
8. AUTO CUE
• When disk is loaded, the cue point is set to the first source of music. If track is changed before pressing
play, the cue point is changed to the new starting point.
9. FRAME SEARCH
• Frame search is a function for monitoring the sound at a certain section of the disc and manually changing
the position. Searching is used to set play start points with precision.
• Press the Search/Scan Button (12 or 13) to scan forward or back through the current track. Keep the
button hold for a few seconds the change the scan speed.
10. SCANNING (Fast forward/Fast backward)
• Scanning is a function for moving quickly forward or backward when the Search/Scan Button (12 or 13) is
pressed.
• This unit supports 3 different speeds.
11. Time Display
Press TIME button to select time display mode:
1. Elapsed time of a track (ELAPSED).
2. Remaining time of a track (REMAIN).
3. Remaining time of the disc (TOTAL REMAIN).
8
12. PITCH BENDING
The speed increases or decreases respectively while the PITCH BEND+ or PITCH BEND- button is
pressed. The extent, to which the speed changes, is proportionate to the amount of time the button is
pressed. For example, if the PITCH BEND+ button is pressed continuously, the speed increases
continuously. The pitch changes within a range of +/-8%, +/-12% or +/-16%.
Activating the Pitch Fader
To activate the PITCH fader (19), turn the pitch function on. Press the PITCH button (21) to turn on the pitch
function, when the pitch function is activated the PITCH LED (22) will light up. If the pitch function is not
activated neither the PITCH fader (19) nor the PITCH BEND buttons (18) will function.
Using the Pitch Slider
To use the PITCH fader (19) slide the fader up or down. Down will increase the pitch and up will decrease
the pitch. The PITCH PERCENTAGE INDICATOR (40) in the LCD (3) will detail the amount of pitch being
applied to the track. When the slider is in the center position, zero pitch is being applied to the track and the
PITCH PERCENTAGE INDICATOR (40) will read zero.
If the PITCH fader (19) is set to a 2% pitch gain the pitch bending process will begin at 2% and will continue
to the maximum of -/+16% and then return to the original 2% pitch when the button is released.
If the (+) PITCH BEND BUTTON (18) is held down continuously, the disc speed will increases and will
continue to increase until reaches a maximum of 16% speed gain.
13. CREATING AND PLAYING A LOOP
A loop is a sound clip that plays continuously between two points. You can use this loop to create a
dramatic effect into your mixing. This loop has no time limit and you could actually loop the entire disc
length. You create a loop between two continuous points of a disc. The following steps illustrate the
procedures for creating a loop:
1) Press the PLAY/PAUSE button (8) to activate playback mode.
2) Press the IN button (6). This will set a loops starting point. The IN button (6) LED will briefly indicating a
starting point has been set.
3) Press the OUT button (11) to set the ending point for your LOOP. The IN button LED (9) and
OUT button LED (16) will start flashing, indicating the LOOP mode has been activated.
LOOP INDICATORS
During a loop, the IN button LED (9) and OUT button LED (16) will begin to flash indicating the LOOP mode
has been activated. A loop will remain in memory until a new loop is made or the unit has been powered
down or disc is removed. When a loop remains in the memory, but has been deactivated, the IN button LED
(9) and OUT button LED (16) will light red.
EXITING A LOOP
To exit a LOOP when a loop is active, press the OUT button (11). The IN button (10) and OUT button (11)
LEDs will remain on, but they stop flashing. Music playback will resume its normal play. The IN button (10)
and OUT button (11) LEDs will remain on, to remind you that a loop is stored in memory.
REACTIVATING LOOP
To reactivate a LOOP that is stored in memory but is not playing, press the OUT button (11). The IN button
LED (9) and OUT button LED (16) will begin flashing, indicating the LOOP has been activated.
14. SWITCHING BETWEEN SINGLE AND CONTINUOUS PLAY MODES
This unit allows you to switch your play mode between single and continuous.
Continuous mode allows the seamless CD playback without interruption.
Single mode will play a track and cue to the next track when the previous track has ended. In certain
situations this may be useful to prevent unintentional playback of an unwanted track. To switch between the
playback modes press the SGL/CTN Button (4).
Mode Indicator: The "SINGLE" INDICATOR (39) will show in the LCD screen (3) when the unit is in
Playback Mode. When the unit is in Continuous Playback Mode the "SINGLE" INDICATOR (39) will turn off.
9
Before switching off the power
When you have finished using the CD player, before switching off the power, be sure that the disc holder
has been closed with the OPEN/CLOSE button.
CAUTION:
Do not forcibly close the disc holder when the power is off.
Do not switch off the power, when the disc holder is open.
Switch off the power after the disc holder has been closed with the OPEN/CLOSE button.
CD’s
1. Precautions on handling compact discs
• Do not allow fingerprints, oil or dust to get on the surface of the disc. If the disc is dirty, wipe it off with a soft
dry cloth.
• Do not use benzene, thinner, water, record spray, electrostatic-proof chemicals, or silicone-treated cloths
to clean discs.
• Always handle discs carefully to prevent damaging the surface; in particular when removing a disc from its
case or returning it.
• Do not bend the disc.
• Do not put the CD near heating sources.
• Do not enlarge the hole in the center of the disc.
• Do not write on the label (printed side) with a hard-tipped implement such as a pencil or ball point pen.
• Condensation will form if a disc is brought into a warm area from a colder one, such as outdoors in winter.
Do not attempt to dry the disc with a hair dryer, etc.
2. Precaution on storage
• After playing a disc, always unload it from the player.
• Always store the disc in the jewel case to protect from dirt or damage.
• Do not place discs in the following areas:
1. Areas exposed to face sunlight for a considerable time.
2. Areas subject to accumulation of dust or high humidity.
3. Areas are affected by heat from indoor heaters, etc.
10
Maintenance
The DAP Audio-CD-Player TL-500 requires almost no maintenance. However, you should keep the unit
clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in
liquid. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a
damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
DAP Audio-CD-Player TL-500
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
1. If the device does not operate properly, unplug the device.
2. Check power from the wall, all cables, connections, etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If nothing happens after 30 seconds, unplug the device.
5. Return the device to your DAP Audio dealer.
11
Product Specification
Model: Dap Audio TL-500
Power: 230V-50Hz (CE)
Powerconsumption: 15W
Playable Disc type: Standard 12cm and 8cm compact discs
Pitch control range: +/-8%, +/-12%, +/-16%
Pitch bend: +/-16%
Pitch accuracy: +/- 0.1%
Accessories: CA Cable (for left and right channels)
Dimensions: 274 x 216 x 87mm (LxWxH)
Weight: 1,6 kg
AUDIO SECTION
Quantization: 16-bit linear per channel
Sampling rate: 44,1 kHz at normal pitch
Oversampling rate: 8 times oversampling 1 bit D/A converter
D/A conversion 16-bit
Frequency response: +/- 1 dB 20 Hz – 20 KHz
Output level: 2.0V +/- 1dB
Load impedance: 47 KOhm
Design and product specifications are subject to change without prior notice.
12
2006 Dap Audio.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
