Panasonic TY-TPEN1PBU Datasheet

Panasonic TY-TPEN1PBU Datasheet

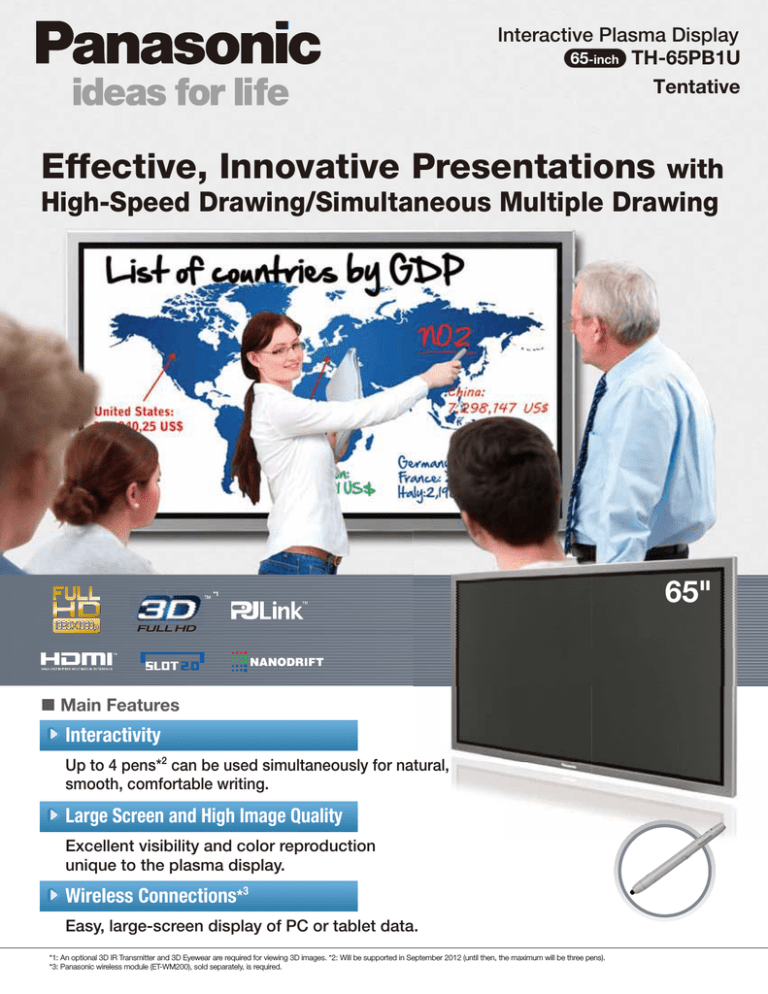

Interactive Plasma Display
65-inch TH-65PB1U
Effective, Innovative Presentations
High-Speed Drawing/Simultaneous Multiple Drawing
Main Features
Up to 4 pens*2 can be used simultaneously for natural,
smooth, comfortable writing.
Large Screen and High Image Quality
Excellent visibility and color reproduction
unique to the plasma display.
Wireless Connections*3
Easy, large-screen display of PC or tablet data.
*1: An optional 3D IR Transmitter and 3D Eyewear are required for viewing 3D images. *2: Will be supported in September 2012 (until then, the maximum will be three pens).
*3: Panasonic wireless module (ET-WM200), sold separately, is required.
High-Speed Drawing/Simultaneous Multiple Drawing
Excellent Writing Ease
A new electronic pen system has been developed
that takes advantage of plasma characteristics.
The pen's position is directly detected and
displayed from the light emitted from each of the
Full-HD resolution (1920 x 1080) pixels. This results
in fast,
ast, smooth, precise writing and drawin
Simultaneous Writing
by Up to 4 People
User-friendly Electronic Pen
for Easy Writing and Erasing
Because up to 4 pens can be individually
recognized, people can write with pens of different
colors and thicknesses simultaneously. Only the
pen is detected, so there are no errors caused by
contact with clothing or hands.
The special electronic pen has a selector button for
easy switching between 4 colors and the erasing
function. It can also be combined with application
software for a wide variety of operations.
* Will be supported in September 2012
(until then, the maximum will be three pens).
LED Color Indication Button
Color-Changing and
Eraser Button
Mouse Function Button
Power Switch
Drawing Menu
Display Button
207 mil pixels
(621 mil dots)
Screen Shade
Easy, Wireless Presentations from a PC or Tablet
Wireless Connection of the PC and Display.
Cable-Free Design for Flexible Seating Layouts
Display of Content in iOS
Devices on Large Screen
The data on your PC screen can be easily sent by wireless transmission. And there
is no need to switch cables each time the presenter changes. Multiple
Transmission Mode allows data from multiple PCs to be shown on a single screen,
or the data from one PC to be shown on up to 8 displays.
Wireless transmission is also possible from iOS
devices. Simply install an application (free of
charge) to display still-image slideshows and PDF
images from an iPad, iPhone, etc.
Multi-Live Mode
Multiple Transmission Mode
Up to 16 PC screens can be displayed.
Four-Window Multi Style
Four-Window Index Style
16-Window Index Style
Images from one PC
can be shown on up to
8 displays.
* Download the necessary
application from the App Store.
•App Store is a trademark of Apple Inc.
registered in the U.S. and other countries.
* Panasonic wireless module (ET-WM200), sold separately, is required.
Optional Accessories, Peripherals
Screen Size (Diagonal)
Effective Display Area (W x H)
Number of Pixels (H x V)
Contrast Ratio
Electronic Pen Detection System
Connection Terminal
Function Slot
Power Requirements
Power Consumption
Dimensions (W x H x D)
Full HD Plasma Display
64.7-inch (1,645 mm)
1,434 x 806 mm (56.4" x 31.7")
1,920 x 1,080 pixels
6,144 steps (equivalent)
Plasma light detection system
HDMI In, DVI-D In/Audio (L/R) In, Video In/Audio (L/R) In,
Component RGB In/Audio In, PC In/Audio In, LAN,
USB (for wireless module), Serial (RS232-C compatible),
3D Shutter Out (for 3D IR Transmitter)/DC 8 V Out, Speaker Out
SLOT2.0 x 1 (Vacant)
110-127 V AC, 50 Hz/60 Hz
555 W
1,554 x 925 x 99 mm (61.2" x 36.5" x 3.9")
Approx. 60.0 kg (132.3 lbs.)
Electric Pen
Wireless Module
Easy Wireless Stick
Mobile Stand
Wall-Hanging Bracket (Adjustable Angle Type)
Function Board
HD-SDI Terminal Board with Audio
HD-SDI Terminal Board
Dual Link HD-SDI Terminal Board
Dual HDMI Terminal Board
BNC Dual Video Terminal Board
DVI-D Terminal Board
* The dark-room contrast ratio of the panel unit that can be displayed simultaneously on the same screen.
Measured in "Dynamic" picture mode using a white signal in a 4 % window.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of May 15, 2012.
