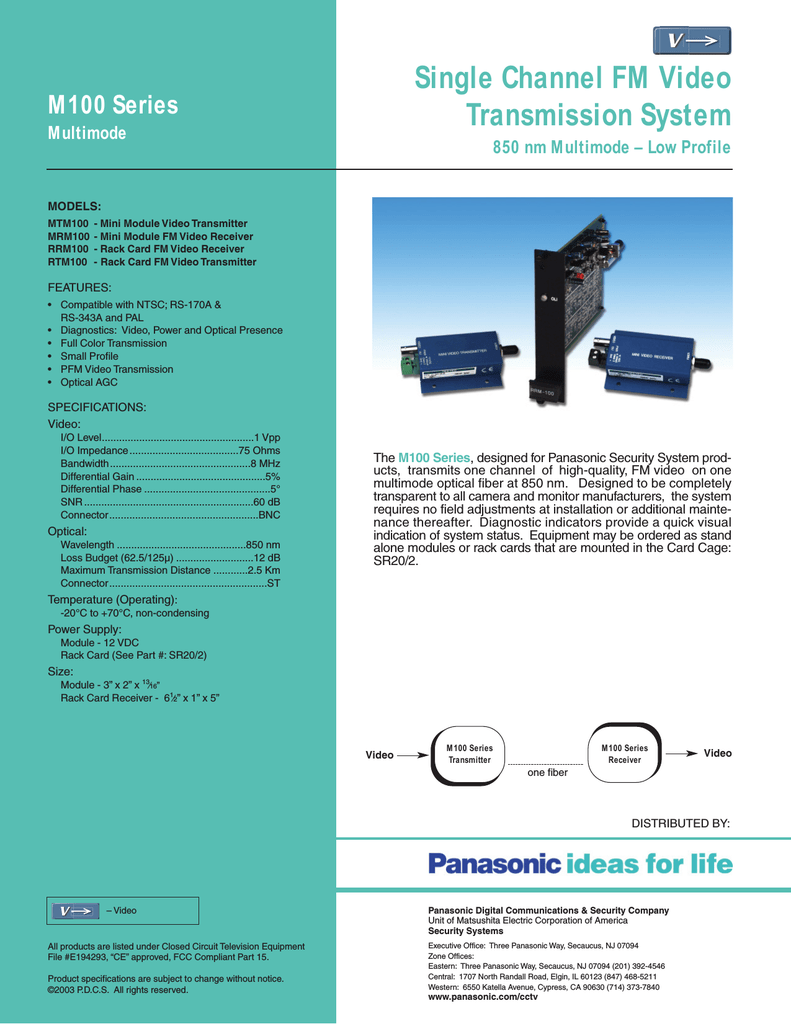

Panasonic MR440 Datasheet

Single Channel FM Video
Transmission System
M100 Series
Multimode
850 nm Multimode – Low Profile
MODELS:
MTM100
MRM100
RRM100
RTM100
- Mini Module Video Transmitter
- Mini Module FM Video Receiver
- Rack Card FM Video Receiver
- Rack Card FM Video Transmitter
FEATURES:
• Compatible with NTSC; RS-170A &
RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Small Profile
• PFM Video Transmission
• Optical AGC
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth.................................................8 MHz
Differential Gain .............................................5%
Differential Phase ............................................5°
SNR ...........................................................60 dB
Connector....................................................BNC
Optical:
Wavelength .............................................850 nm
Loss Budget (62.5/125µ) ...........................12 dB
Maximum Transmission Distance ............2.5 Km
Connector.......................................................ST
The M100 Series, designed for Panasonic Security System products, transmits one channel of high-quality, FM video on one
multimode optical fiber at 850 nm. Designed to be completely
transparent to all camera and monitor manufacturers, the system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. Equipment may be ordered as stand
alone modules or rack cards that are mounted in the Card Cage:
SR20/2.
Temperature (Operating):
-20°C to +70°C, non-condensing
Power Supply:
Module - 12 VDC
Rack Card (See Part #: SR20/2)
Size:
Module - 3” x 2” x 13⁄16”
Rack Card Receiver - 61⁄2” x 1” x 5”
Video
M100 Series
Receiver
M100 Series
Transmitter
Video
one fiber
DISTRIBUTED BY:
– Video
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Three Channel Video
Multimode FM
Transmission System
M30 Series
Multimode
MODELS:
RTM30 - Transmitter(Video Source) is compatible
with: M30 and M100 Series Recievers
RRM30 - Receiver(Control Site) is compatible with:
M30 and M100 Series Transmitters
FEATURES:
• Compatible with NTSC; RS – 170A &
RS –343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Economical
• FM Video Transmission
• Three Channels Per Card
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/0 Impedance.......................................75 Ohms
Bandwidth ..............................................10 MHZ
Differential Gain .......................................... 5%
Differential Phase ........................................... 3°
SNR ...........................................................60 dB
Connector....................................................BNC
Optical:
The M30 Series, designed for Panasonic Security System products, transmits and receives three channels of high-quality video
on three multimode optical fibers using FM transmission.This system is designed to be completely transparent to all camera and
monitor manufacturers. Products require no field adjustments at
installation or additional maintenance thereafter. Diagnostic
Indicators provide a quick visual indication of system status. The
M30 Series are ordered as rack cards and are mounted in the
Card Cage: SR20/2.
Wavelength .............................................850 nm
Loss Budget (62.5/125µ) ...........................12 dB
Maximum Transmission Distance ............2.5 Km
Connector.......................................................ST
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Rack Card – (see Part #: SR20/2)
Size:
Rack Card Requires one rack slot
61⁄ 2” x 1 “ x 5 “
Video 1
Video 2
Video 3
– Video
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
RRM30
RTM30
Three
Multimode
Fibers
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Video 1
Video 2
Video 3
Single Fiber Bi-Directional
Transceivers Low Profile
M1485 Series
Multimode
One-Way Video & Two-Way RS485
MODELS:
MTM1485 - Module Transmitter - Field Unit
MRM1485 - Module Receiver - Control Site
RTM1485 - Rack Card Transmitter - Field Unit
RRM1485 - Rack Card Receiver - Control Site
FEATURES:
•
•
•
•
•
Diagnostics: Data, Power and Optical Presence
Switch Selectable 2 Wire or 4 Wire
Switch Selectable Termination and Fail Safe Bias
Modules or Rack Cards
Single or Dual Fiber Alternative
SPECIFICATIONS:
Video:
I/O Level ....................................................1 Vpp
I/O Impedance .....................................75 Ohms
Bandwidth ................................................6 MHz
Differential Gain ............................................5%
Differential Phase ............................................3°
SNR ...........................................................55 dB
Connector....................................................BNC
Data:
Data Rate....................................up to 100 Kbps
Data Connector ..................5 pin screw terminal
Optical:
Wavelength ....................................850/1300 nm
Loss Budget (62.5/125µ) ...........................12 dB
Connector.......................................................ST
The M1485 Series, designed for Panasonic Security System
products, is a low cost, low profile video and bi-directional data
transceiver system.The system utilizes one or two multimode optical fibers. Designed to be completely transparent, this system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status.
Equipment maybe ordered as stand alone modules or rack cards
that are mounted in the Card Cage: SR20/2.
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Module Transmitter- 12 VDC: 10 VA
Rack Card Receiver - (See Part #: SR20/2)
Size:
Module - 41⁄4” x 41⁄4” x 11⁄8”
Rack Card requires one rack slot - 61⁄2” x 1” x 5”
Video
MTM1485
One or Two
Multimode
Fibers
Video
RRM1485
RS485
RS485
DISTRIBUTED BY:
– Dome Operation
– Video
– PS Data Link
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Single Fiber Bi-Directional
Transceivers Low Profile
M1600P Series
One-Way Video With Reverse
Panasonic Camera and PTZ Control
Multimode
MODELS:
MTM1600P - Module Transmitter - Video Source
MRM1600P - Module Receiver - Control Site
RTM1600P - Rack Card Transmitter - Video Source
RRM1600P - Rack Card Receiver - Control Site
FEATURES:
• Video with Reverse Panasonic
Camera and PTZ Control Over One
Multimode Optical Fiber
• Compatible with NTSC; RS-170A & RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Optical AGC
• Full Color Transmission
• PFM Video Transmission
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth.................................................8 MHz
Differential Gain .............................................5%
Differential Phase ............................................5°
SNR ...........................................................60 dB
Connector....................................................BNC
System Data Supports:
Full function Panasonic Up the Coax control protocol.
Optical:
Wavelength.............................................850/1300 nm
Loss Budget (62.5/125µ) ...........................12 dB
Maximum Transmission Distance ............1.6 Km
Connector.......................................................ST
The M1600P Series, designed for Panasonic Security System
products, transmits high-quality, simultaneous video with reverse
Panasonic Control Protocol on one multimode optical fiber.
Designed to be used with Panasonic products, these systems
require no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. Equipment may be ordered as stand
alone modules or rack cards that are mounted in the Card Cage:
SR20/2. Panasonic products provide full function Bi-directional
video, camera and PTZ control along with full contact closure and
video genlock.
Temperature (Operating):
-20°C to +70°C, non-condensing
Power Supply:
Module - 12 VDC
Rack Card - (See Part #: SR20/2)
Size:
Module - 33⁄4” x 15⁄ 16” x 57⁄ 8”
Rack Card requires one rack slot - 61⁄2” x 1” x 5”
Video
Gen Lock
Contact Closure
Contact Closure
Camera & PTZ
Control
M1600P
Series
Transceiver
One
Fiber
M1600P
Series
Transceiver
Video
Gen Lock
Contact Closure
Contact Closure
Camera & PTZ
Control
DISTRIBUTED BY:
– Video
– Up the Coax Control
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Single Fiber Four-Channel
FM Video System
404 Series
Multimode
MODELS:
MT404 - Module Transmitter - Video Source
MR404 - Module Receiver - Control Site
RT404 - Rack Card Transmitter - Video Source
RR404 - Rack Card Receiver - Control Site
FEATURES:
• Compatible with NTSC; RS-170A &
RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Real Time Video Transmission
• Modules or Rack Cards
• Compatible with 500 Series Audio/Data
Modulators & Demodulators
• PFM Transmission
• Drop & Insert Capability
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth ...............................................10 MHz
Differential Gain .............................................3%
Differential Phase ............................................2°
SNR ...........................................................55 dB
Connector ....................................................BNC
Optical:
Wavelengths..........................................1300 nm
Maximum Transmission Distance.............2.5 Km
Loss Budget (62.5/125µ)..............................6 dB
Connector .......................................................ST
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Module Transmitter 24 VAC Center Tap
Module Receiver 24 VAC Center Tap
Size:
Module Receiver - 87⁄8” x 51⁄2” x 11⁄8”
Module Transmitter - 87⁄ 8” x 51⁄2” x 11⁄8”
Rack Card Receiver requires 2 rack slots 8” x 5” x 2”
Rack Card Transmitter requires 2 rack slots 8” x 5” x 2”
Maximum 7 Rack Cards per SR20/2
– 4-Channel Video
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
The 404 Series, designed for Panasonic Security System products, transmits four channels of high-quality video on one
multimode optical fiber at 1300nm. Designed to be completely
transparent to all camera and monitor manufacturers, this system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. In addition, two sub-carriers can be
added to each video channel using the 500 Series modulators and
demodulators. Equipment may be ordered as stand alone modules or rack cards that are mounted in the Card Cage: SR20/2.
Video 1
Video 2
Video 3
Video 4
Video 1
Video 2
Video 3
Video 4
MR404
Receiver
MT404
Transmitter
One
Multimode
Fiber
VIDEO WITH 500 SERIES
MODULATORS AND DEMODULATORS
One Channel
Video
A, D or CC
A, D or CC
500
Series
Modulator
404
Series
Transmitter
One Channel
One
Fiber
404
Series
Receiver
500
Series
Demodulator
A = AUDIO
D = DATA
CC= CONTACT CLOSURE
MODULATORS AND DEMODULATORS
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Video
A, D or CC
A, D or CC
Single Fiber Four-Channel
FM Video System
440 Series
Multimode
MODELS:
MT440 - Module Transmitter - Video Source
MR440 - Module Receiver - Control Site
RT440 - Rack Card Transmitter - Video Source
RR440 - Rack Card Receiver - Control Site
FEATURES:
• Compatible with NTSC; RS-170A &
RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Real Time Video Transmission
• Modules or Rack Cards
• Compatible with 500 Series Audio/Data
Modulators & Demodulators
• PFM Transmission
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth ...............................................10 MHz
Differential Gain .............................................3%
Differential Phase ............................................2°
SNR ...........................................................55 dB
Connector ....................................................BNC
Optical:
Wavelengths..........................................1300 nm
Maximum Transmission Distance................5 Km
Loss Budget (62.5/125µ)............................12 dB
Connector .......................................................ST
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Module Transmitter 24 VAC Center Tap
Module Receiver 24 VAC Center Tap
The 440 Series, designed for Panasonic Security System products, transmits four channels of high-quality video on one
multimode optical fiber at 1300nm. Designed to be completely
transparent to all camera and monitor manufacturers, this system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. In addition, two sub-carriers can be
added to each video channel using the 500 Series modulators and
demodulators. Equipment may be ordered as stand alone modules or rack cards that are mounted in the Card Cage: SR20/2.
Video 1
Video 2
Video 3
Video 4
One
Multimode
Fiber
VIDEO WITH 500 SERIES
MODULATORS AND DEMODULATORS
Size:
Module Receiver - 87⁄8” x 51⁄2” x 11⁄8”
Module Transmitter - 87⁄ 8” x 51⁄ 2” x 11⁄8”
Rack Card Receiver requires 2 rack slots 8” x 5” x 2”
Rack Card Transmitter requires 2 rack slots 8” x 5” x 2”
Maximum 7 Rack Cards per SR20/2
Video 1
Video 2
Video 3
Video 4
MT440
Receiver
MT440
Transmitter
One Channel
Video
A, D or CC
A, D or CC
500
Series
Modulator
440
Series
Transmitter
One Channel
One
Fiber
440
Series
Receiver
500
Series
Demodulator
A = AUDIO
D = DATA
CC= CONTACT CLOSURE
MODULATORS AND DEMODULATORS
DISTRIBUTED BY:
– 4-Channel Video
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Video
A, D or CC
A, D or CC
Single Fiber Eight-Channel
FM Video System
880 Series
Multimode
MODELS:
MRT880 - Video Transmitter
MRR880 - Video Receiver
FEATURES:
• Compatible with NTSC; RS-170A &
RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Real Time Video Transmission
• Compatible with 500 Series Audio/Data
Modulators & Demodulators
• PFM Transmission
• Wall or Rack Mount
SPECIFICATIONS:
Video:
I/O Level ................................................... 1 Vpp
I/O Impedance .................................... 75 Ohms
Bandwidth ............................................. 10 MHz
Differential Gain ........................................... 3%
Differential Phase ........................................... 2°
SNR ......................................................... 55 dB
Connector .................................................. BNC
Optical:
Wavelength ................................. 1300/1550 nm
Maximum Transmission Distance .............. 5 Km
Loss Budget (62.5/125µ)........................... 12 dB
Connector ......................................................ST
The 880 Series, designed for Panasonic Security System products, transmits eight channels of high-quality video on one
multimode optical fiber. Designed to be completely transparent to
all camera and monitor manufacturers. This system requires no
field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of
system status. In addition, two sub-carriers can be added to each
video channel using the 500 Series modulators and demodulators.
Equipment may be mounted as stand alone modules or rack units
by the position of the mounting brackets.
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Universal Power Input
85 to 264 VAC, 47 to 63 Hz
40 Watts Max.
Size:
Video 1
Video 2
Video 3
Video 4
MRT880
Series
Transmitter
One
Multimode
Fiber
Video 8
Video 1
Video 2
Video 3
Video 4
MRR880
Series
Receiver
Video 8
1RU High x 19” Wide x 12” Deep
VIDEO WITH 500 SERIES
MODULATORS AND DEMODULATORS
One Channel
Video
A, D or CC
A, D or CC
500
Series
Modulator
One Channel
MRT880
Transmitter
MRR880
Receiver
One
Fiber
500
Series
Demodulator
A = AUDIO
D = DATA
CC= CONTACT CLOSURE
MODULATORS AND DEMODULATORS
DISTRIBUTED BY:
– 8-Channel Video
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
Video
A, D or CC
A, D or CC
Single Fiber Four-Channel
FM Video System
8485 Series
Multimode
With Bi-Directional RS485 or RS422 and RS232
MODELS:
MTX8485 - Video/Data Transmitter/Data Receiver
MRX8485 - Video/Data Receiver/Data Transmitter
FEATURES:
•
•
•
•
•
•
•
Compatible with NTSC; RS-170A & RS-343A and PAL
Diagnostics: Video, Data, Power and Optical Presence
Switch Selectable 2 Wire or 4 Wire RS485
Switch Selectable RS485 or (1) RS422 and (1) RS232
Full Color Transmission
Real Time Video Transmission
Compatible with 500 Series Audio/Data
Modulators & Demodulators
• PFM Transmission
• Wall or Rack Mount
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth...............................................10 MHz
Differential Gain ............................................3 %
Differential Phase ...........................................2 °
SNR ...........................................................55 dB
Connector....................................................BNC
Data:
Data Rate......................................up to 50 Kbps
Data Connector .................8 Pin Screw Terminal
Optical (Fiber 62.5/125µ):
Wavelength ....................................850/1300 nm
Loss Budget: Video/Data (1300 nm) ..........12 dB
Loss Budget: Return Data (850 nm) ..........20 dB
Maximum Transmission Distance ................5 km
Connector.......................................................ST
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Universal Power Input
85 to 264 VAC, 47 to 63 Hz
40 Watts Max.
Size:
The 8485 Series, designed for Panasonic Security System products, transmits four channels of high-quality video with switch
selectable bi-directional RS485 data or bi-directional RS422 and
RS232 on a single multimode optical fiber. Included in the circuit
design is a switch selectable 2 or 4 wire configuration and the ability to select data line termination. Designed to be completely
transparent to all camera and monitor manufacturers, this system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. In addition, two sub-carriers can be
added to each video channel using the 500 Series modulators and
demodulators. Equipment may be mounted as stand alone modules or rack units by the position of the mounting brackets.
Video
Video
Video
Video
MTX8485
MTX8485
Multimode
Fiber
Video
Video
Video
Video
RS485
or
RS422
RS485
or
RS422
RS232
RS232
1RU High, 19” Wide, 12” Deep
DISTRIBUTED BY:
– Dome Operation
– 4 Channel Video
– PS Data Link
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
8885 Series
Multimode
Single Fiber Eight-Channel
FM Video System
With Bi-Directional RS485 or RS422 and RS232
MODELS:
MTX8885 - Video/Data Transmitter/Data Receiver
MRX8885 - Video/Data Receiver/Data Receiver
FEATURES:
•
•
•
•
•
•
•
Compatible with NTSC; RS-170A & RS-343A and PAL
Diagnostics: Video, Data, Power and Optical Presence
Switch Selectable 2 Wire or 4 Wire RS485
Switch Selectable RS485 or (1) RS422 and (1) RS232
Full Color Transmission
Real Time Video Transmission
Compatible with 500 Series Audio/Data
Modulators & Demodulators
• PFM Transmission
• Wall or Rack Mount
SPECIFICATIONS:
Video:
I/O Level.....................................................1 Vpp
I/O Impedance ......................................75 Ohms
Bandwidth...............................................10 MHz
Differential Gain ............................................3 %
Differential Phase ...........................................2 °
SNR ...........................................................55 dB
Connector....................................................BNC
Data:
Data Rate......................................up to 50 Kbps
Data Connector .................8 Pin Screw Terminal
Optical (Fiber 62.5/125µ):
Wavelength ...........................850/1300/1550 nm
Loss Budget: Video/Data (1300/1550 nm)...12 dB
Loss Budget: Return Data (850 nm) ..........20 dB
Maximum Transmission Distance ................5 km
Connector.......................................................ST
Temperature (Operating):
-40°C to +75°C, non-condensing
Power Supply:
Universal Power Input
85 to 264 VAC, 47 to 63 Hz
40 Watts Max.
Size:
1RU High, 19” Wide, 12” Deep
The 8885 Series, designed for Panasonic Security System products, transmits eight channels of high-quality video with switch
selectable bi-directional RS485 data or bi-directional RS422 and
RS232 on a single multimode optical fiber. Included in the circuit
design is a switch selectable 2 or 4 wire configuration and the ability to select data line termination. Designed to be completely
transparent to all camera and monitor manufacturers, this system
requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status. In addition, two sub-carriers can be
added to each video channel using the 500 Series modulators and
demodulators. Equipment may be mounted as stand alone modules or rack units by the position of the mounting brackets.
Video
Video
Video
Video
Video
Video
Video
Video
RS485
or
RS422
MTX
8885
Multimode
Fiber
MTX
8885
Video
Video
Video
Video
Video
Video
Video
Video
RS485
or
RS422
RS232
RS232
DISTRIBUTED BY:
– Dome Operation
– 8 Channel Video
– PS Data Link
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv
SR20/2 Series
Fiber Equipment Rack
Subrack
MODELS:
SR20/2 - Equipment Rack
FEATURES:
• 19” EIA Subrack Frame
• Rear Power Bus to all plug-in cards
• Blank panels available for 1, 2, and
4 slots
• 100W DC Power Supply included
The SR20/2 Series, designed for Panasonic Security System
products, Fiber Equipment Subrack is a system that can be configured with any combination of products including transmitters,
receivers or transceivers.
The 100 W power supply features a universal power input of 85 to
264 VAC with no switch selection required, high efficiency and current limiting.
POWER SUPPLY FEATURES:
•
•
•
•
Universal Power Input 85 to 264 VAC
Detachable AC line cord
100 Watt Switching Power Supply
Blank Panels Available for 1, 2 or 4 slots
NO. OF
MODEL PLUG-IN
NUMBER CARDS WEIGHT
SR20/2
14
41/5 lbs
DIMENSIONS
W
H
D
19”
51/4”
75/8”
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems
All products are listed under Closed Circuit Television Equipment
File #E194293, “CE” approved, FCC Compliant Part 15.
Product specifications are subject to change without notice.
©2003 P.D.C.S. All rights reserved.
Executive Office: Three Panasonic Way, Secaucus, NJ 07094
Zone Offices:
Eastern: Three Panasonic Way, Secaucus, NJ 07094 (201) 392-4546
Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211
Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840
www.panasonic.com/cctv

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
