Panasonic PBRH10 Datasheet

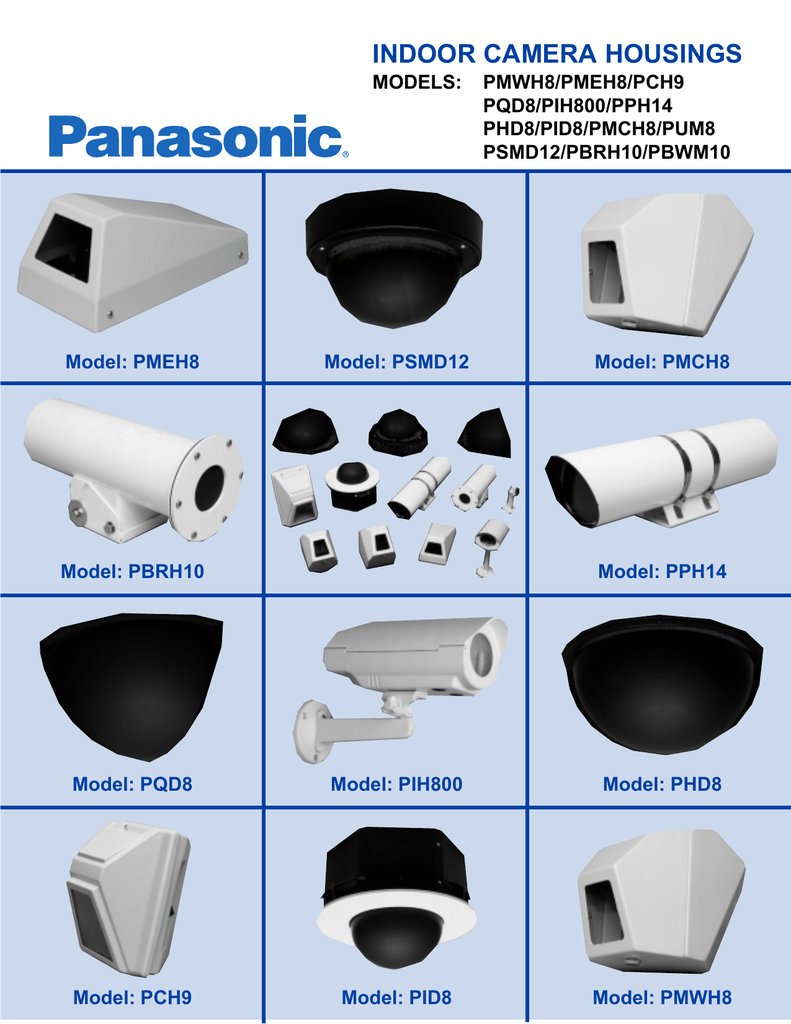

INDOOR CAMERA HOUSINGS
MODELS:
Model: PMEH8
Model: PSMD12
Model: PBRH10
PMWH8/PMEH8/PCH9
PQD8/PIH800/PPH14
PHD8/PID8/PMCH8/PUM8
PSMD12/PBRH10/PBWM10
Model: PMCH8
Model: PPH14
Model: PQD8
Model: PIH800
Model: PHD8
Model: PCH9
Model: PID8
Model: PMWH8
PBRH10 Outdoor Bullet Resistant Housing
The PBRH10 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Vari-Focal Lens Series.
This ballistic rated
housing features 7
gauge strength
and durability and
is designed and
constructed to
meet or exceed a
Level II protection
per UL standard
752.
PBWM10, Wall Mount Bracket (optional)
OUTLINE DRAWING
PIH800 Indoor Housing
The PIH800 housing has been designed and
engineered for Panasonic’s standard body
1/3 cameras with Panasonic Fixed Focal Lens
Series. The housing body and viewing window
are made from
high impact Lexan
plastic. The
adjustable camera
bracket will support
camera and lens
combinations up
to 8”. J Bracket
included.
OUTLINE DRAWING
PPH14 Pressurized Housing
The PPH14 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Length
cameras or
Motorized Zoom
Lens. The
enclosure can
accommodate a
lens and camera
combination with a
total length of 14”.
OUTLINE DRAWING
PHD8 Half Dome Housing
The PHD8 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens
Series. The housing
accommodates
standard body fixed
cameras up to 8” in
length. Unit will be
constructed with an
18 gauge steel back
and a tinted acrylic
dome designed for
wall applications.
OUTLINE DRAWING
PSMD12 Indoor Surface Housing
The PSMD12 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens
Series. A 12” dome
accommodates
standard body fixed
camera up to 8” in
length. Unit will be
constructed ABS
plastic housing with
a tinted acrylic
dome.
OUTLINE DRAWING
PQD8 Quarter Dome Housing
The PQD8 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens
Series. The housing
accommodates
standard body fixed
camera up to 8” in
length. Unit will be
constructed with an
18 gauge steel back
and a tinted acrylic
dome designed for
corner applications.
OUTLINE DRAWING
PCH9 Indoor Corner Housing
The PCH9 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Vari-Focal Lens Series.
The enclosure
accommodates a
standard body
fixed camera up to
9.5” in length. Unit
will be constructed
of ABS plastic with
a stainless steel
hinge and an
acrylic window.
OUTLINE DRAWING
PMCH8 Metal Indoor Corner Housing
The PMCH8 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens
Series. The housing
accommodates
standard body
fixed camera up to
8” in length. Unit will
be constructed of
14 gauge steel
designed for
corner mount
applications.
OUTLINE DRAWING
PMWH8 Metal Indoor Wall Housing
The PMWH8 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens
Series. The housing
accommodates
standard body fixed
camera up to 8” in
length. Unit will be
constructed of 14
gauge steel
designed for wall or
ceiling applications.
OUTLINE DRAWING
PMEH8 Metal Wedge Housing
The PMEH8 housing has been designed and
engineered for Panasonic’s standard body 1/3
cameras with Panasonic Fixed Focal Lens Series.
The enclosure
accommodates
standard body fixed
camera up to 8” in
length. Unit will be
constructed of 14
gauge low profile
wedge housing with
18 gauge base
designed for surface
mount applications.
OUTLINE DRAWING
PID8 Indoor Domed Housing
The PID8 housing has been designed and engineered
for Panasonic’s standard body 1/3 cameras with
Panasonic Fixed Focal Lens Series. A 7” dome
accommodates standard
body fixed camera up to
8” in length. An opaque
liner combined with the
lower tinted dome hides
the direction of the
camera. The upper body
is made of steel. A 19
gauge steel, white
powder coat trim is
included.
OUTLINE
DRAWING
PUM8 Indoor Wall
Mount Bracket
PBWM10 Bullet
Resistant Wall Mount
The PUM8 bracket has been designed and
engineered for Panasonic’s standard body
cameras with a maximum camera and lens
length of 8” and a maximum weight of 3 lbs.
Bracket is
designed for us
in wall mount
applications or
can be quickly
converted for
ceiling
mounting.
The PBWM10 Bracket has been designed and
engineered for use with Panasonic’s PBRH10
Outdoor Bullet Resistant Housing.
