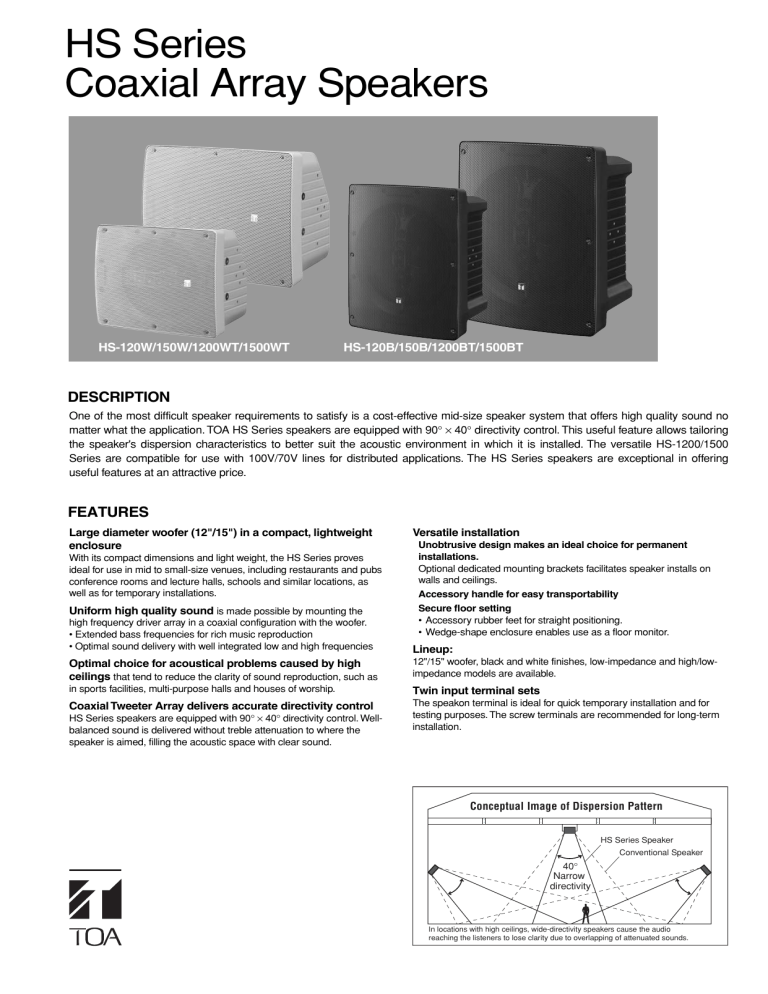

HS Series Coaxial Array Speakers

HS Series Coaxial Array Speakers
HS Series
Coaxial Array Speakers
HS-120W/150W/1200WT/1500WT
HS-120B/150B/1200BT/1500BT
DESCRIPTION
One of the most difficult speaker requirements to satisfy is a cost-effective mid-size speaker system that offers high quality sound no
matter what the application. TOA HS Series speakers are equipped with 90° × 40° directivity control. This useful feature allows tailoring
the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-1200/1500
Series are compatible for use with 100V/70V lines for distributed applications. The HS Series speakers are exceptional in offering
useful features at an attractive price.
FEATURES
Large diameter woofer (12"/15") in a compact, lightweight
enclosure
With its compact dimensions and light weight, the HS Series proves
ideal for use in mid to small-size venues, including restaurants and pubs
conference rooms and lecture halls, schools and similar locations, as
well as for temporary installations.
Versatile installation
Unobtrusive design makes an ideal choice for permanent
installations.
Optional dedicated mounting brackets facilitates speaker installs on
walls and ceilings.
Accessory handle for easy transportability
Secure floor setting
• Accessory rubber feet for straight positioning.
• Wedge-shape enclosure enables use as a floor monitor.
Uniform high quality sound is made possible by mounting the
high frequency driver array in a coaxial configuration with the woofer.
• Extended bass frequencies for rich music reproduction
• Optimal sound delivery with well integrated low and high frequencies
Lineup:
Optimal choice for acoustical problems caused by high
ceilings that tend to reduce the clarity of sound reproduction, such as
12"/15" woofer, black and white finishes, low-impedance and high/lowimpedance models are available.
in sports facilities, multi-purpose halls and houses of worship.
Twin input terminal sets
Coaxial Tweeter Array delivers accurate directivity control
The speakon terminal is ideal for quick temporary installation and for
testing purposes. The screw terminals are recommended for long-term
installation.
HS Series speakers are equipped with 90° × 40° directivity control. Wellbalanced sound is delivered without treble attenuation to where the
speaker is aimed, filling the acoustic space with clear sound.
Conceptual Image of Dispersion Pattern
HS Series Speaker
Conventional Speaker
40°
Narrow
directivity
In locations with high ceilings, wide-directivity speakers cause the audio
reaching the listeners to lose clarity due to overlapping of attenuated sounds.
HS-120B/120W
Polar Response (Horizontal)
Polar Response (Vertical)
0°
10
30°
0°
10
330°
0
30°
-10
60°
300°
60°
-40
240°
-10
0
240°
150°
500Hz
400Hz
315Hz
330°
0
30°
300°
60°
-40
-10
0
240°
150°
330°
0
30°
60°
300°
-20
270°
0
150°
240°
10
180°
0
-30
-20
240°
10
180°
8000Hz
6300Hz
5000Hz
270°
-40
240°
-20
120°
0
150°
16000Hz
12500Hz
10000Hz
240°
-10
-10
150°
240°
10
180°
0
240°
10
180°
8000Hz
6300Hz
5000Hz
16000Hz
12500Hz
10000Hz
Impedance vs. Frequency
SPL vs. Frequency
110
200
100
Impedance (ohm)
100
90
SPL (dB)
-40
90°
-30
120°
300°
-20
-40
240°
330°
0
-30
270°
-10
-10
60°
300°
-40
-20
4000Hz
3150Hz
2500Hz
-10
-20
-30
240°
0°
10
30°
90°
120°
0
10
180°
330°
270°
-30
150°
60°
-40
240°
150°
2000Hz
1600Hz
1250Hz
-30
90°
-40
-20
240°
-10
300°
240°
-10
0
-40
-40
-20
120°
0°
10
30°
-30
90°
-30
240°
10
180°
330°
0
-20
-30
-40
0
150°
4000Hz
3150Hz
2500Hz
-10
-10
120°
240°
0°
10
0°
10
270°
90°
-10
0
300°
-40
-20
120°
330°
0
-30
-30
240°
1000Hz
800Hz
630Hz
-20
-40
10
180°
2000Hz
1600Hz
1250Hz
60°
270°
-10
10
180°
300°
-40
-20
120°
30°
90°
-30
240°
240°
-10
-20
-40
-20
330°
0
60°
0
0°
10
-30
270°
-30
60°
300°
240°
10
180°
-10
90°
-40
30°
30°
-40
270°
150°
500Hz
400Hz
315Hz
0°
10
330°
0
240°
10
180°
-30
90°
-20
120°
-10
0
150°
1000Hz
800Hz
630Hz
-20
-30
150°
240°
-10
-20
120°
0
0°
10
-10
-30
240°
-10
10
180°
0°
10
270°
90°
-40
-20
120°
-10
10
180°
-40
270°
-30
240°
300°
-20
-40
-20
120°
60°
-30
90°
-30
-20
300°
-20
-40
330°
0
-10
-40
270°
-30
30°
-30
90°
-40
60°
60°
-40
270°
30°
300°
-30
90°
0°
10
330°
0
-10
-20
-30
150°
30°
-10
-20
120°
0°
10
330°
0
80
70
50
10
5
60
1
20
50
50
100
500
1k
5k
10k
20k
1k
5k
10k
20k
Hor.
Ver.
Frequency (Hz)
40
30
20
50
100
500
1k
5k
10k
20k
Frequency (Hz)
Beamwidth vs. Frequency
200
Phase vs. Frequency
Beamwidth (deg)
180
Phase (deg)
90
0
100
50
-90
-180
20
50
100
500
1k
Frequency (Hz)
Dovoz, distribuce a prodej v ČR:
AUDIO DIGITAL s.r.o.
www.audiodigital.cz
5k
10k
20k
10
20
50
100
500
Frequency (Hz)
HS-150B/150W
Polar Response (Vertical)
Polar Response (Horizontal)
0°
10
30°
30°
-10
60°
300°
60°
-40
-10
0
240°
150°
500Hz
400Hz
315Hz
330°
0
30°
300°
60°
-40
-10
0
240°
150°
330°
0
30°
60°
300°
-20
270°
60°
240°
0
150°
240°
10
180°
0
240°
-40
-30
240°
-20
120°
240°
-10
0
150°
16000Hz
12500Hz
10000Hz
150°
240°
10
180°
0
240°
10
180°
8000Hz
6300Hz
5000Hz
16000Hz
12500Hz
10000Hz
Impedance vs. Frequency
SPL vs. Frequency
110
200
100
Impedance (ohm)
100
90
SPL (dB)
270°
90°
-10
10
180°
8000Hz
6300Hz
5000Hz
300°
-20
-40
-20
120°
330°
0
-30
270°
-10
-10
60°
300°
-30
240°
4000Hz
3150Hz
2500Hz
-10
-40
-20
120°
30°
90°
-30
-20
240°
0°
10
330°
-20
-40
0
10
180°
-40
270°
-30
150°
2000Hz
1600Hz
1250Hz
-30
90°
-40
240°
-10
300°
240°
-10
0
-40
-40
-20
120°
0°
10
30°
-30
90°
-30
240°
10
180°
330°
0
-20
-30
-40
0
150°
4000Hz
3150Hz
2500Hz
-10
-10
150°
240°
0°
10
0°
10
270°
90°
-10
0
300°
-40
-20
120°
330°
0
-30
-30
240°
1000Hz
800Hz
630Hz
-20
-40
10
180°
2000Hz
1600Hz
1250Hz
60°
270°
-10
10
180°
300°
-40
-20
120°
30°
90°
-30
240°
240°
-10
-20
-40
-20
330°
0
60°
0
0°
10
-30
270°
-30
120°
300°
240°
10
180°
-10
90°
-40
60°
30°
-40
270°
150°
500Hz
400Hz
315Hz
0°
10
330°
0
240°
10
180°
-30
90°
-20
120°
-10
0
150°
1000Hz
800Hz
630Hz
-20
-30
30°
240°
-10
-20
150°
0
0°
10
-10
-30
240°
-10
10
180°
0°
10
270°
90°
-40
-20
120°
-10
10
180°
-40
270°
-30
240°
300°
-20
-40
-20
120°
60°
-30
90°
-30
240°
300°
-20
-40
-20
120°
60°
330°
0
-10
-40
270°
-30
30°
-30
90°
-40
60°
300°
-40
270°
0°
10
330°
0
-30
90°
30°
30°
-10
-20
-30
150°
330°
0
-10
-20
120°
0°
10
0°
10
330°
0
80
70
50
10
5
60
1
20
50
50
100
500
1k
Frequency (Hz)
5k
10k
20k
40
30
20
50
100
500
1k
5k
10k
20k
Frequency (Hz)
Beamwidth vs. Frequency
200
Phase vs. Frequency
Beamwidth (deg)
180
Phase (deg)
90
0
100
50
-90
-180
20
50
100
500
1k
Frequency (Hz)
5k
10k
20k
10
20
50
100
500
1k
Frequency (Hz)
5k
10k
20k
Hor.
Ver.
HS-1200BT/1200WT
Polar Response (Horizontal)
Polar Response (Vertical)
0°
10
30°
30°
-10
60°
300°
60°
-40
-10
0
240°
150°
500Hz
400Hz
315Hz
330°
0
30°
300°
60°
-40
-10
0
240°
150°
330°
0
30°
60°
300°
-20
270°
60°
240°
0
150°
240°
10
180°
0
240°
-40
-30
240°
-20
120°
240°
-10
0
150°
16000Hz
12500Hz
10000Hz
150°
240°
10
180°
0
240°
10
180°
8000Hz
6300Hz
5000Hz
16000Hz
12500Hz
10000Hz
Impedance vs. Frequency
SPL vs. Frequency
110
200
100
Impedance (ohm)
100
90
SPL (dB)
270°
90°
-10
10
180°
8000Hz
6300Hz
5000Hz
300°
-20
-40
-20
120°
330°
0
-30
270°
-10
-10
60°
300°
-30
240°
4000Hz
3150Hz
2500Hz
-10
-40
-20
120°
30°
90°
-30
-20
240°
0°
10
330°
-20
-40
0
10
180°
-40
270°
-30
150°
2000Hz
1600Hz
1250Hz
-30
90°
-40
240°
-10
300°
240°
-10
0
-40
-40
-20
120°
0°
10
30°
-30
90°
-30
240°
10
180°
330°
0
-20
-30
-40
0
150°
4000Hz
3150Hz
2500Hz
-10
-10
150°
240°
0°
10
0°
10
270°
90°
-10
0
300°
-40
-20
120°
330°
0
-30
-30
240°
1000Hz
800Hz
630Hz
-20
-40
10
180°
2000Hz
1600Hz
1250Hz
60°
270°
-10
10
180°
300°
-40
-20
120°
30°
90°
-30
240°
240°
-10
-20
-40
-20
330°
0
60°
0
0°
10
-30
270°
-30
120°
300°
240°
10
180°
-10
90°
-40
60°
30°
-40
270°
150°
500Hz
400Hz
315Hz
0°
10
330°
0
240°
10
180°
-30
90°
-20
120°
-10
0
150°
1000Hz
800Hz
630Hz
-20
-30
30°
240°
-10
-20
150°
0
0°
10
-10
-30
240°
-10
10
180°
0°
10
270°
90°
-40
-20
120°
-10
10
180°
-40
270°
-30
240°
300°
-20
-40
-20
120°
60°
-30
90°
-30
240°
300°
-20
-40
-20
120°
60°
330°
0
-10
-40
270°
-30
30°
-30
90°
-40
60°
300°
-40
270°
0°
10
330°
0
-30
90°
30°
30°
-10
-20
-30
150°
330°
0
-10
-20
120°
0°
10
0°
10
330°
0
80
70
50
10
5
60
1
20
50
50
100
500
1k
Frequency (Hz)
5k
10k
20k
40
30
20
50
100
500
1k
5k
10k
20k
Frequency (Hz)
Beamwidth vs. Frequency
200
Phase vs. Frequency
Beamwidth (deg)
180
Phase (deg)
90
0
100
50
-90
-180
20
50
100
500
1k
Frequency (Hz)
Dovoz, distribuce a prodej v ČR:
AUDIO DIGITAL s.r.o.
www.audiodigital.cz
5k
10k
20k
10
20
50
100
500
1k
Frequency (Hz)
5k
10k
20k
Hor.
Ver.
HS-1500BT/1500WT
Polar Response (Vertical)
Polar Response (Horizontal)
0°
10
30°
30°
-10
60°
300°
60°
-40
-10
0
240°
150°
500Hz
400Hz
315Hz
330°
30°
-10
300°
60°
-40
-10
0
240°
150°
330°
0
30°
60°
300°
-20
270°
60°
240°
0
150°
240°
10
180°
0
240°
-40
-30
240°
-20
120°
240°
-10
0
150°
16000Hz
12500Hz
10000Hz
150°
240°
10
180°
0
240°
10
180°
8000Hz
6300Hz
5000Hz
16000Hz
12500Hz
10000Hz
Impedance vs. Frequency
SPL vs. Frequency
110
200
100
Impedance (ohm)
100
90
SPL (dB)
270°
90°
-10
10
180°
8000Hz
6300Hz
5000Hz
300°
-20
-40
-20
120°
330°
0
-30
270°
-10
-10
60°
300°
-30
240°
4000Hz
3150Hz
2500Hz
-10
-40
-20
120°
30°
90°
-30
-20
240°
0°
10
330°
-20
-40
0
10
180°
-40
270°
-30
150°
2000Hz
1600Hz
1250Hz
-30
90°
-40
240°
-10
300°
240°
-10
0
-40
-40
-20
120°
0°
10
30°
-30
90°
-30
240°
10
180°
330°
0
-20
-30
-40
0
150°
4000Hz
3150Hz
2500Hz
-10
-10
150°
240°
0°
10
0°
10
270°
90°
-10
0
300°
-40
-20
120°
330°
0
-30
-30
240°
1000Hz
800Hz
630Hz
-20
-40
10
180°
2000Hz
1600Hz
1250Hz
60°
270°
-10
10
180°
300°
-40
-20
120°
30°
90°
-30
240°
240°
-10
-20
-40
-20
330°
0
60°
0
0°
10
-30
270°
-30
120°
300°
240°
10
180°
-10
90°
-40
60°
30°
-40
270°
150°
500Hz
400Hz
315Hz
0°
10
330°
0
240°
10
180°
-30
90°
-20
120°
-10
0
150°
1000Hz
800Hz
630Hz
-20
-30
30°
240°
-10
-20
150°
0
0°
10
0
-30
240°
-10
10
180°
0°
10
270°
90°
-40
-20
120°
-10
10
180°
-40
270°
-30
240°
300°
-20
-40
-20
120°
60°
-30
90°
-30
240°
300°
-20
-40
-20
120°
60°
330°
0
-10
-40
270°
-30
30°
-30
90°
-40
60°
300°
-40
270°
0°
10
330°
0
-30
90°
30°
30°
-10
-20
-30
150°
330°
0
-10
-20
120°
0°
10
0°
10
330°
0
80
70
50
10
5
60
1
20
50
50
100
500
1k
Frequency (Hz)
5k
10k
20k
40
30
20
50
100
500
1k
5k
10k
20k
Frequency (Hz)
Beamwidth vs. Frequency
200
Phase vs. Frequency
Beamwidth (deg)
180
Phase (deg)
90
0
100
50
-90
-180
20
50
100
500
1k
Frequency (Hz)
5k
10k
20k
10
20
50
100
500
1k
Frequency (Hz)
Dovoz, distribuce a prodej v ČR:
AUDIO DIGITAL s.r.o.
www.audiodigital.cz
5k
10k
20k
Hor.
Ver.
HS-120B/120W/1200BT/1200WT
HS-1500B/1500W/1500BT/1500WT
APPEARANCE AND DIMENSIONAL DIAGRAM
APPEARANCE AND DIMENSIONAL DIAGRAM
320
451
400
560
448
361
Front View
Side View
Rear View
120
120
Side View
Rear View
2–M8
Figure of the unit installed
241
176
60
°
2–M8
60
°
Front View
Bottom View
Figure of the unit installed
Bottom View
Optional Brackets for HS-120/1200 Series
For wall/ceiling mount
HY-1200HB
Optional Brackets for HS-150/1500 Series
For wall/ceiling mount
HY-1200HW
HY-1200VB
HY-1200VW
HY-1500HB
[Ceiling installation]
HY-1500HW
HY-1500VB
HY-1500VW
[Ceiling installation]
HY-1200HB/
HY-1200HW
HY-1200VB/
HY-1200VW
[Wall installation]
HY-1500VB/
HY-1500VW
HY-1500HB/
HY-1500HW
[Wall installation]
HY-1200VB/
HY-1200VW
HY-1500VB/
HY-1500VW
HY-1200HB/
HY-1200HW
HY-1500HB/
HY-1500HW
The following brackets allow a speaker's horizontal angle to be adjusted.
For ceiling mount
HY-C0801*
Impedance Change
For wall mount
(HS-1200BT/1200WT/1500BT/1500WT)
HY-C0801W*
Rotary switch
[Rear]
HY-W0801*
HY-C0801/
HY-C0801W
Wall/ceiling
mount
bracket
Dovoz, distribuce a prodej v ČR:
AUDIO DIGITAL s.r.o.
*To be used in conjunction with HY-1200/1500 Series brackets.
www.audiodigital.cz
HY-W0801W*
HY-W0801/
HY-W0801W
Wall/ceiling
mount
bracket
Rotary switch
The figure represents factory-preset position.
ARCHITECTURAL AND ENGINEERING SPECIFICATIONS
HS-120B/120W
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The continuous pink
noise shall be 100 W at 8 ohms and continuous program
power rating of 300 W at 8 ohms. The speaker shall feature
a 30 cm (12") woofer and a 6-balanced-dome tweeters array
with a 90° × 40° dispersion. Frequency response shall be 80
to 20k Hz, with crossover at 3k Hz. Sensitivity shall be rated
at 97 dB (1 W, 1 m). The speaker system shall be designed
for both fixed installation uses and on-the-road and shall be
capable of being easily carried with an accessory handle. Its
built-in overload protection circuitry for tweeter shall cut off a
signal when an excessive input signal is received. Input
connections shall be via a speakon connector or screw
terminal.
The speaker system shall weigh 8.5 kg and shall have
dimensions of 361(W) × 448(H) × 320(D) mm. The operating
temperature range shall be between -10°C and +50°C. The
speakers shall be easily mounted in vertical or horizontal
positions, with a wide range of optional brackets.
HS-150B/150W
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The continuous pink
noise shall be 100 W at 8 ohms and continuous program
power rating of 300 W at 8 ohms. The speaker shall feature a
38 cm (15”) woofer and a 6-balanced-dome tweeters array
with a 90° × 40° dispersion. Frequency response shall be 70
to 20k Hz, with crossover at 3k Hz. Sensitivity shall be rated
at 98 dB (1 W, 1 m). The speaker system shall be designed
for both fixed installation uses and on-the-road and shall be
capable of being easily carried with an accessory handle. Its
built-in overload protection circuitry for tweeter shall cut off a
signal when an excessive input signal is received. Input
connections shall be via a speakon connector or screw
terminal.
The speaker system shall weigh 12 kg and shall have
dimensions of 451(W) × 560(H) × 400(D) mm. The operating
temperature range shall be between -10°C and +50°C. The
speakers shall be easily mounted in vertical or horizontal
positions, with a wide range of optional brackets.
The two-way speaker system shall be a TOA model HS120B/HS-120W or approved equivalent.
The wall/ceiling-mount bracket shall be TOA model HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW.
The ceiling-mount bracket used in conjunction with HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
TOA model HY-C0801/ HY-C0801W.
The wall-mount bracket used in conjunction with HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
TOA model HY-W0801/HY-W0801W.
The two-way speaker system shall be a TOA model HS150B/HS-150W or approved equivalent.
The wall/ceiling-mount bracket shall be TOA model HY1500HB/HY-1500HW/HY-1500VB/HY-1500VW.
The ceiling-mount bracket used in conjunction with HY1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-C0801/ HY-C0801W.
The wall-mount bracket used in conjunction with HY1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-W0801/HY-W0801W.
HS-1200BT/1200WT
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The speaker shall be
compatible with low and high impedance speaker systems
and include a built-in 100V matching transformer. The rear
panel shall have screwdriver-adjustable tap settings of: 60W,
30W, 15W and 8 ohms. The rated input shall be 60W, the
continuous pink noise shall be 100W at 8 ohms and
continuous program shall be 300W at 8 ohms. The speaker
shall feature a 30 cm (12”) woofer and a 6-balanced-dome
tweeters array with a 90° × 40° dispersion. Frequency
response shall be 70 to 20k Hz, with crossover at 3k Hz.
Sensitivity shall be rated at 97 dB (1 W, 1 m). The speaker
system shall be designed for both fixed installation uses and
on-the-road and shall be capable of being easily carried with
an accessory handle. Its built-in overload protection circuitry
for tweeter shall cut off a signal when an excessive input
signal is received. Input connections shall be via a speakon
connector or screw terminal.
The speaker system shall weigh 10 kg and shall have
dimensions of 361(W) × 448(H) × 320(D) mm. The operating
temperature range shall be between -10°C and +50°C. The
speakers shall be easily mounted in vertical or horizontal
positions, with a wide range of optional brackets.
HS-1500BT/1500WT
The speaker shall be the two-way speaker with a sealed box
enclosure with polypropylene and a protective punched front
grill with a surface-treated steel plate. The speaker shall be
compatible with low and high impedance speaker systems
and include a built-in 100V matching transformer. The rear
panel shall have screwdriver-adjustable tap settings of: 60W,
30W, 15W and 8 ohms. The rated input shall be 60W, the
continuous pink noise shall be 100W at 8 ohms and
continuous program shall be 300W at 8 ohms. The speaker
shall feature a 38 cm (15”) woofer and a 6-balanced-dome
tweeters array with a 90° × 40° dispersion. Frequency
response shall be 60 to 20k Hz, with crossover at 3k Hz.
Sensitivity shall be rated at 98 dB (1 W, 1 m). The speaker
system shall be designed for both fixed installation uses and
on-the-road and shall be capable of being easily carried with
an accessory handle. Its built-in overload protection circuitry
for tweeter shall cut off a signal when an excessive input
signal is received. Input connections shall be via a speakon
connector or screw terminal.
The speaker system shall weigh 14 kg and shall have
dimensions of 451(W) × 560(H) × 400(D) mm. The operating
temperature range shall be between -10°C and +50°C. The
speakers shall be easily mounted in vertical or horizontal
positions, with a wide range of optional brackets.
The two-way speaker system shall be a TOA model HSThe two-way speaker system shall be a TOA model HS1200BT/HS-1200WT or approved equivalent.
1500BT/HS-1500WT or approved equivalent.
The wall/ceiling-mount bracket shall be TOA model HYThe wall/ceiling-mount bracket shall be TOA model HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW.
1500HB/HY-1500HW/HY-1500VB/HY-1500VW.
The ceiling-mount bracket used in conjunction with HYThe ceiling-mount bracket used in conjunction with HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-C0801/HY-C0801W.
TOA model HY-C0801/HY-C0801W.
The wall-mount bracket used in conjunction with HYThe wall-mount bracket used in conjunction with HY1200HB/HY-1200HW/HY-1200VB/HY-1200VW shall be
1500HB/HY-1500HW/HY-1500VB/HY-1500VW shall be
TOA model HY-W0801/HY-W0801W.
TOAv ČR:
model HY-W0801/HY-W0801W.
Dovoz, distribuce a prodej
AUDIO DIGITAL s.r.o.
www.audiodigital.cz
SPECIFICATIONS
Model No.
Enclosure
Rated Input
Power Handling Capacity
Rated Impedance
Sensitivity
Frequency Response
Crossover Frequency
Directivity Angle
Speaker Component
Input Terminal
Operating Temperature
Finish
Enclosure:
Punched net:
Dimensions
Weight
Accessories
Options Mounting bracket:
Ceiling mount bracket:
Wall mount bracket:
Speaker stand:
HS-120B
Input Terminal
Operating Temperature
Finish
Enclosure:
Punched net:
Dimensions
Weight
Accessories
Options Mounting bracket:
Ceiling mount bracket:
Wall mount bracket:
Speaker stand:
HS-1200BT
HS-1200WT
Sealed type
—
60W (High impedance)
Continuous pink noise: 100W, Continuous program: 300W
8Ω
8Ω
100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)
70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)
97dB (1W, 1m)
80 – 20,000Hz
70 – 20,000Hz
3kHz
Horizontal: 90°, Vertical: 40°
Low frequency: 30cm (12") cone-type,
High frequency: Balanced dome tweeter × 6
NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9mm
–10°C to +50°C
Polypropylene, black
Polypropylene, white
Polypropylene, black
Polypropylene, white
Surface-treated steel plate, black
Surface-treated steel plate, white
Surface-treated steel plate, black
Surface-treated steel plate, white
361 (W) × 448 (H) × 320 (D)mm
8.5 kg
10 kg
Handle × 1, Handle fitting bracket × 2, Handle mounting screw × 2, Rubber foot × 2, Rubber foot mounting screw × 2
HY-1200VW (for vertical speaker mounting)
HY-1200VB (for vertical speaker mounting)
HY-1200VW (for vertical speaker mounting)
HY-1200VB (for vertical speaker mounting)
HY-1200HB (for horizontal speaker mounting) HY-1200HW (for horizontal speaker mounting) HY-1200HB (for horizontal speaker mounting) HY-1200HW (for horizontal speaker mounting)
HY-C0801
HY-C0801W
HY-C0801
HY-C0801W
HY-W0801
HY-W0801W
HY-W0801
HY-W0801W
ST-33B
ST-33B
ST-33B
ST-33B
Model No.
Enclosure
Rated Input
Power Handling Capacity
Rated Impedance
Sensitivity
Frequency Response
Crossover Frequency
Directivity Angle
Speaker Component
HS-120W
HS-150B
HS-150W
HS-1500BT
HS-1500WT
Sealed type
—
60W (High impedance)
Continuous pink noise: 100W, Continuous program: 300W
8Ω
8Ω
100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)
70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)
98dB (1W, 1m)
70 – 20,000Hz
60 – 20,000Hz
3kHz
Horizontal: 90°, Vertical: 40°
Low frequency: 38cm (15") cone-type,
High frequency: Balanced dome tweeter × 6
NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9mm
–10°C to +50°C
Polypropylene, black
Polypropylene, white
Polypropylene, black
Polypropylene, white
Surface-treated steel plate, black
Surface-treated steel plate, white
Surface-treated steel plate, black
Surface-treated steel plate, white
451 (W) × 560 (H) × 400 (D)mm
12 kg
14 kg
Handle × 1, Handle fitting bracket × 2, Handle mounting screw × 2, Rubber foot × 2, Rubber foot mounting screw × 2
HY-1500VW (for vertical speaker mounting)
HY-1500VB (for vertical speaker mounting)
HY-1500VW (for vertical speaker mounting)
HY-1500VB (for vertical speaker mounting)
HY-1500HB (for horizontal speaker mounting) HY-1500HW (for horizontal speaker mounting) HY-1500HB (for horizontal speaker mounting) HY-1500HW (for horizontal speaker mounting)
HY-C0801
HY-C0801W
HY-C0801
HY-C0801W
HY-W0801
HY-W0801W
HY-W0801
HY-W0801W
ST-33B
ST-33B
ST-33B
ST-33B
TOA Corporation
Dovoz, distribuce a prodej v ČR:
AUDIO DIGITAL s.r.o.
www.audiodigital.cz
www.toa.jp
Specifications are subject to change without notice.
Printed in Japan (0803) 833-61-655-30 U
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
