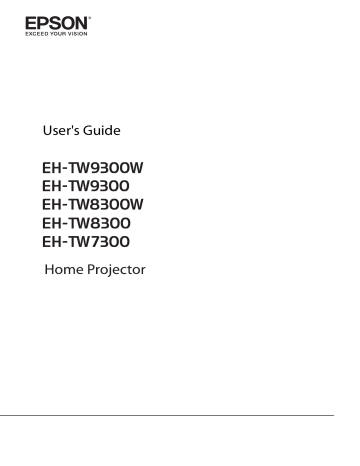

User's Guide Organization of the Guide and Notations in the Guide Using Each Guide The guides for this projector are organized as shown below. Safety Instructions/Support and Service Guide Contains information on using the projector safely, as well as a support and service guide, troubleshooting check lists, and so on. Make sure you read this guide before using the projector. User's Guide (this guide) Contains information on setting up and basic operations before using the projector, using the Configuration menu, and handling problems and performing routine maintenance. 3D Glasses User's Guide Contains information on handling the 3D Glasses and warnings and so on. WirelessHD Transmitter User's Guide (EH-TW9300W/EH-TW8300W only) Contains information on handling the WirelessHD Transmitter and warnings and so on. Quick Start Guide Contains information on the procedures for setting up the projector. Read this first. 1 Organization of the Guide and Notations in the Guide Notations Used in This Guide Safety Indications The documentation and the projector use graphical symbols to show how to use the projector safely. The following shows the symbols and their meanings. Please understand and respect these caution symbols in order to avoid injury to persons or property. Warning This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. Caution This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. General Information Indications Attention Indicates procedures which may result in damage or malfunctions to occur. c s Menu Name Indicates additional information and points which may be useful to know regarding a topic. Indicates a page where detailed information regarding a topic can be found. Indicates Configuration menu items. Example: Image - Color Mode Button Name Indicates the buttons on the remote control or the control panel. Example: button About the Use of "This Product" or "This Projector" As well as the main projector unit, supplied items or optional extras may be referred to using the phrase "this product" or "this projector". 2 Contents Remote Control Operating Range . . . . . . . . . . . 23 Organization of the Guide and Notations in the Guide Operating range (left to right) . . . . . . . . . . . . 24 Operating range (top to bottom) . . . . . . . . . . 24 Using Each Guide . . . . . . . . . . . . . . . . . . . . . 1 Notations Used in This Guide . . . . . . . . . . . 2 Basic Operations Safety Indications . . . . . . . . . . . . . . . . . . . . . . . 2 Projecting Images . . . . . . . . . . . . . . . . . . . 25 General Information Indications . . . . . . . . . . . . . 2 About the Use of "This Product" or "This Projector" Turning On the Projector . . . . . . . . . . . . . . . . . 25 2 If the target image is not projected . . . . . . . . 26 Using the Home Screen . . . . . . . . . . . . . . . . . . 26 Introduction Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Part Names and Functions . . . . . . . . . . . . . 6 Adjusting the Projected Image . . . . . . . . 28 Front/Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Displaying the Test Pattern . . . . . . . . . . . . . . . . 28 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 9 Lens Adjustment Function (Focus, Zoom, Lens Shift) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting the focus . . . . . . . . . . . . . . . . . . . 29 Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Adjusting the projection size (Zoom Adjustment) . . . . . . . . . . . . . . . . . . . . . . . . 29 Preparing Adjusting the position of the projected image (Lens Shift Adjustment) . . . . . . . . . . . 30 Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting the Projector's Tilt . . . . . . . . . . . . . . . 31 Projected Image and Position of Projector . . . . . 14 Correcting Keystone Distortion . . . . . . . . . . . . . 31 Installing in parallel with the screen . . . . . . . . 14 Hiding the Image Temporarily . . . . . . . . . . . . . . 31 Installing the projector horizontally by adjusting the height of either side . . . . . . . . . 14 Adjusting the Image Various Setting Methods . . . . . . . . . . . . . . . . . 15 Placing on a table and projecting . . . . . . . . . 15 Adjusting the Image . . . . . . . . . . . . . . . . . 32 Suspending from the ceiling and projecting . . 15 Selecting the Projection Quality (Color Mode) . . 32 Projection Distance and Lens Shift Maximum Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Switching the Screen Between Full and Zoom (Aspect) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Connecting a Device . . . . . . . . . . . . . . . . . 19 Adjusting the Sharpness . . . . . . . . . . . . . . . . . . 34 Removing the Terminal Cover . . . . . . . . . . . . . . 19 Adjusting Image Resolution (Image Enhancement) . . . . . . . . . . . . . . . . . . . . . . . . . 35 Connecting Video Equipment . . . . . . . . . . . . . . 19 Setting Auto Iris . . . . . . . . . . . . . . . . . . . . . . . . 36 Connecting a Computer . . . . . . . . . . . . . . . . . . 19 Setting Frame Interpolation . . . . . . . . . . . . . . . 36 Connecting External Equipment . . . . . . . . . . . . 20 Adjusting the Color . . . . . . . . . . . . . . . . . . 37 Connecting to the Trigger Out port . . . . . . . . 20 Adjusting the Color Temp. . . . . . . . . . . . . . . . . 37 Connecting WirelessHD devices (EHTW9300W/EH-TW8300W only) . . . . . . . . . . . 20 Adjusting the RGB (Offset and Gain) . . . . . . . . . 37 Connecting to the LAN port . . . . . . . . . . . . . 21 Adjusting Hue, Saturation, and Brightness . . . . . 37 Attaching the Wireless LAN unit . . . . . . . . . . . . 21 Adjusting the Gamma . . . . . . . . . . . . . . . . . . . 39 Connecting an HDMI Cable Clamp . . . . . . . . . . . 22 Select and adjust the correction value . . . . . . 39 Preparing the Remote Control . . . . . . . . 23 Adjust while viewing the image . . . . . . . . . . 39 Installing the Remote Control Batteries . . . . . . . 23 Adjust using the gamma adjustment graph . . 40 3 Contents Changing the Picture in Picture settings . . . . 66 Viewing the Image at the Saved Image Quality (Memory Function) . . . . . . . . . . . 41 Saving a Memory . . . . . . . . . . . . . . . . . . . . . . . 41 Using the Projector on a Network Loading, Deleting, and Renaming a Memory . . . 41 Projecting Using Wired LAN . . . . . . . . . . 67 Selecting Wired Network Settings . . . . . . . . . . . 67 Useful Functions Projecting Using Wireless LAN . . . . . . . . 69 Enjoying 3D Images . . . . . . . . . . . . . . . . . . 43 Selecting Wireless Network Settings Manually . . 69 Preparing to View 3D Images . . . . . . . . . . . . . . 43 Selecting the Computer's Wireless LAN Settings . 71 If the 3D image cannot be viewed . . . . . . . . . 43 Using 3D Glasses . . . . . . . . . . . . . . . . . . . . . . . 44 Selecting wireless network settings in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Charging the 3D Glasses . . . . . . . . . . . . . . . . 44 Selecting wireless network settings in OS X . . 71 Pairing 3D Glasses . . . . . . . . . . . . . . . . . . . . 45 Setting Up Wireless Network Security . . . . . . . . 72 Wearing 3D Glasses . . . . . . . . . . . . . . . . . . . 45 Projecting in Epson iProjection . . . . . . . . . . . . . 72 Reading the indicator on the 3D Glasses . . . . 45 Operating using a smartphone (remote control function) . . . . . . . . . . . . . . . . . . . . . 73 Converting 2D Images to 3D . . . . . . . . . . . . . . . 46 Warnings Regarding Viewing 3D Images . . . . . . 47 Configuration Menu Connecting with WirelessHD (EHTW9300W/EH-TW8300W Only) . . . . . . . . 49 Configuration Menu Functions . . . . . . . . 76 Installing the WirelessHD Transmitter . . . . . . . . 49 Configuration Menu Operations . . . . . . . . . . . . 76 WirelessHD Transmitter part names . . . . . . . . 50 Configuration Menu Table . . . . . . . . . . . . . . . . 77 WirelessHD Transmitter connection example and signal flow . . . . . . . . . . . . . . . . 51 Image menu . . . . . . . . . . . . . . . . . . . . . . . . 77 Setting the WirelessHD Transmitter . . . . . . . . 56 Settings menu . . . . . . . . . . . . . . . . . . . . . . . 80 Projecting Images . . . . . . . . . . . . . . . . . . . . . . 56 Extended menu . . . . . . . . . . . . . . . . . . . . . . 83 WirelessHD Settings Menu . . . . . . . . . . . . . . . . 58 Network menu . . . . . . . . . . . . . . . . . . . . . . . 86 WirelessHD Transmission Range . . . . . . . . . . . . 59 Info menu . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Operating the Remote Control . . . . . . . . . . . . . 60 Reset menu . . . . . . . . . . . . . . . . . . . . . . . . . 91 Signal menu . . . . . . . . . . . . . . . . . . . . . . . . 78 Remote Control Operating Range . . . . . . . . . . . 60 Troubleshooting Switching the Input and Output . . . . . . . . . . . . 60 Switching the target image . . . . . . . . . . . . . . 61 Problem Solving . . . . . . . . . . . . . . . . . . . . . 92 Switching the image source . . . . . . . . . . . . . 62 Reading the Indicators . . . . . . . . . . . . . . . . . . . 92 Using the HDMI Link Function . . . . . . . . 63 Indicator status during an error/warning . . . . 92 HDMI Link Function . . . . . . . . . . . . . . . . . . . . . 63 Indicator status during normal operation . . . . 93 HDMI Link Settings . . . . . . . . . . . . . . . . . . . . . . 63 When the Indicators Provide No Help . . . . . . . . 94 Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Check the problem . . . . . . . . . . . . . . . . . . . . 94 Projecting Two Different Images Using Picture in Picture . . . . . . . . . . . . . . . . . . . . 65 Problems relating to images . . . . . . . . . . . . . 95 Types of Screen that can be Displayed Simultaneously . . . . . . . . . . . . . . . . . . . . . . . . 65 Problems with the remote control . . . . . . . . . 99 Problems when projection starts . . . . . . . . . . 98 Problems with the control panel . . . . . . . . . . 99 Projecting on a Picture in Picture . . . . . . . . . . . . 65 Problems with 3D . . . . . . . . . . . . . . . . . . . . 99 Starting and exiting Picture in Picture . . . . . . 65 4 Contents Problems with HDMI . . . . . . . . . . . . . . . . . 100 Maximum radio-frequency power transmitted . 127 Problems with WirelessHD (EH-TW9300W/ EH-TW8300W only) . . . . . . . . . . . . . . . . . . . 101 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 General Notes . . . . . . . . . . . . . . . . . . . . . . 129 Network problems . . . . . . . . . . . . . . . . . . . 102 General Notice . . . . . . . . . . . . . . . . . . . . . . . . 130 About Event ID . . . . . . . . . . . . . . . . . . . . . . . . 103 Maintenance Maintenance . . . . . . . . . . . . . . . . . . . . . . . 105 Cleaning the Parts . . . . . . . . . . . . . . . . . . . . . 105 Cleaning the air filter . . . . . . . . . . . . . . . . . 105 Cleaning the main unit . . . . . . . . . . . . . . . . 106 Cleaning the lens . . . . . . . . . . . . . . . . . . . . 107 Cleaning the 3D Glasses . . . . . . . . . . . . . . . 107 Replacement Periods for Consumables . . . . . . 107 Air filter replacement period . . . . . . . . . . . . 107 Lamp replacement period . . . . . . . . . . . . . . 107 Replacing Consumables . . . . . . . . . . . . . . . . . 108 Replacing the air filter . . . . . . . . . . . . . . . . . 108 Replacing the lamp . . . . . . . . . . . . . . . . . . 109 Resetting lamp hours . . . . . . . . . . . . . . . . . 110 Panel Alignment . . . . . . . . . . . . . . . . . . . . 112 Color Uniformity . . . . . . . . . . . . . . . . . . . 114 About PJLink . . . . . . . . . . . . . . . . . . . . . . . 116 Appendix Optional Accessories and Consumables . . . . . . . . . . . . . . . . . . . . . . . 117 Optional Items . . . . . . . . . . . . . . . . . . . . . . . . 117 Consumables . . . . . . . . . . . . . . . . . . . . . . . . . 117 Supported Resolutions . . . . . . . . . . . . . . 118 Computer Signals (Analog RGB) . . . . . . . . . . . 118 HDMI1/HDMI2 Input Signal . . . . . . . . . . . . . . . 118 3D Input Signal HDMI . . . . . . . . . . . . . . . . . . . 118 3D Input Signals MHL (via a WirelessHD Transmitter*) . . . . . . . . . . . . . . . . . . . . . . . . . 119 WirelessHD Input Signal*1*2 . . . . . . . . . . . . . . 119 WirelessHD Input Signal MHL*1*2 . . . . . . . . . . 119 Specifications . . . . . . . . . . . . . . . . . . . . . . 121 Appearance . . . . . . . . . . . . . . . . . . . . . . . . 124 List of Safety Symbols . . . . . . . . . . . . . . . 125 5 Introduction Part Names and Functions Front/Top Name a Lamp cover b Air exhaust vent Function Open when replacing the projector's lamp. s p.109 Exhaust vent for air used to cool the projector internally. Caution While projecting, do not put your face or hands near the air exhaust vent, and do not place objects that may become warped or damaged by heat near the vent. Hot air from the air exhaust vent could cause burns, warping, or accidents to occur. c Lens shutter Links to the projector's power on/off function, and automatically opens and closes the shutter. s p.25 d Lens e Air intake vent Images are projected from here. Air filter cover f Remote receiver g Control panel Intake vent for air used to cool the projector internally. When replacing the air filter, open this cover and remove the air filter. s p.108 Receives signals from the remote control. s p.23 Operates the projector. s p.7 6 Introduction Control Panel When the Illumination function is set to Off, all indicators are off under normal projection conditions. s Extended - Operation - Illumination p.83 Buttons/Indicators Function a Flashes to indicate warm-up in progress or cool-down in progress. Shows the projector's status through a combination of other indicators lit and flashing. s p.92 b Flashes orange when it is time to replace the lamp. Shows the projector's errors through a combination of other indicators lit and flashing. s p.92 c Flashes orange if the internal temperature is too high. Shows the projector's errors through a combination of other indicators lit and flashing. s p.92 d Displays and closes the Configuration menu. On the Configuration menu, you can make adjustments and settings for Signal, Image, Input Signal, and so on. s p.76 e Selects functions and settings when a menu is displayed. s p.76 f Control panel cover Cover for the control panel. When you want to use the control panel, grip the knob and slide the cover open. g Selects the adjustment value for the keystone correction and for menu items. s p.31 h Selects adjustment values for menu items. s p.76 7 Introduction Buttons/Indicators Function i Returns to the previous menu level when a menu is displayed. s p.76 j Changes the adjustment items for the motorized lens function. The adjustment items are as follows. • Focus s p.29 • Zoom s p.29 • Lens shift s p.30 k Changes to the image from each input port. s p.26 l Turns the projector on or off. s p.25 Lit when the projector is on. Shows the projector's errors through a combination of other indicators lit and flashing. s p.92 8 Introduction Remote Control The remote control varies depending on the projector model you are using. This examples in this section are for the remote control for the EH-TW9300W/EH-TW8300W. Button Function a Turns the projector on. s p.25 b Displays and closes the Home screen. s p.26 c Changes to the image from each input port. s p.26 is only available for the EH-TW9300W/ EH-TW8300W. d Performs operations such as play, stop, and volume adjustment for connected devices that meet the HDMI CEC standards. s p.63 e • When HDMI Link is On s Settings - HDMI Link - HDMI Link p.80 Displays the device connections list. • When HDMI Link is Off s Settings - HDMI Link - HDMI Link p.80 Displays the HDMI link settings menu. s p.63 f Changes the adjustment items for the motorized lens function. The adjustment items are as follows. • Focus s p.29 • Zoom s p.29 • Lens shift s p.30 9 Introduction Button Function g Selects menu items and adjustment values. s p.76 h The adjustment value returns to its default value when pressed while the menu's adjustment screen is displayed. s p.76 i Displays and closes the Configuration menu. On the Configuration menu, you can make adjustments and settings for Signal, Image, and so on. s p.76 j Saves, loads, or erases a memory. s p.41 k Sets the strength for Frame Interpolation. s p.36 l Adjusts the hue, saturation, and brightness for each RGBCMY color. s p.37 m Performs the function assigned to the user button. s p.80 n (EH-TW9300W/EH-TW8300W only) This is the button for controlling the WirelessHD Transmitter. Turns on the WirelessHD Transmitter, or switches the input and output. Make sure you point the remote control at the WirelessHD Transmitter when performing operations. s p.49 o Changes the 3D format. This projector supports the following 3D formats. • Frame Packing • Side by Side • Top and Bottom s p.43 p Selects the aspect mode according to the input signal. s p.33 q Displays and closes the test pattern. s p.28 r Loads the lens position registered as Memo‐ ry1 or Memory2 in the Save Lens Position. s p.41 s t Returns to the previous menu level when a menu is displayed. s p.76 A When a menu is displayed, it accepts and enters the current selection and moves to the next level. s p.76 10 Introduction Button Function B Displays the Image Enhancement menu. s p.35 C Changes the Color Mode. s p.32 D Allows you to simultaneously project two image sources, one in the main screen and the other in the sub screen. (Picture in Picture) s p.65 Press and hold the button to swap the main or sub screen image sources. E Temporarily stops projection. To turn the image back on, press this button again. s p.31 F The remote control buttons light up for approximately 10 seconds. This is useful when operating the remote control in the dark. G Turns the projector off. s p.27 11 Introduction Rear Name a Security slot ( Function ) The security slot compatible with the MicroSaver security system manufactured by Kensington. For more details, visit the homepage of Kensington at http://www.kensington.com/. b Power inlet c Remote receiver Connect the power cord. s p.25 d Opt.HDMI port e HDMI1 port Connects the power supply port for the optical HDMI cable. f HDMI2 port g USB port The HDMI1 port supports HDCP 2.2. Receives signals from the remote control. s p.23 Connects HDMI compatible video equipment and computers. s p.19 Connects the optional Wireless LAN unit. It is also used when updating the firmware. s p.21 h Service port i LAN port Service port. This is not normally used. j PC port k RS-232C port Connects to the RGB output port on a computer. s p.19 l Trigger Out port Connects with external devices such as motorized screens. s p.20 Connects a LAN cable to connect to a network. s p.21 When controlling the projector, connect the projector to a computer with an RS-232C cable. This port is for control use and should not normally be used. 12 Introduction Base LENS Name a Ceiling mount fixing points b c Function Attaches the optional ceiling mount here when suspending the projector from a ceiling. s p.117 Use the four ceiling mount fixing points for or depending on the installation environment. Use the fixing points when installing next to a wall in a small room. d Rear foot e Cable cover fixing screw Remove this when using the f Front adjustable foot When set up on a surface such as a table, extend the foot to adjust horizontal tilt. s p.31 g Screw holes for anamorphic lens Screw holes for attaching the anamorphic lens. ceiling mount fixing points. Screw holes for attaching the cable cover. 13 Preparing Installing Projected Image and Position of Projector Install the projector as follows. Installing in parallel with the screen If the projector is installed at an angle to the screen, keystone distortion occurs in the projected image. Adjust the projector's position so that it is installed in parallel with the screen. c If the projector cannot be installed in front of the screen, you can adjust the position of the image by using lens shift. s p.30 Installing the projector horizontally by adjusting the height of either side If the projector is tilted, the projected image is also tilted. Install the projector horizontally so that both sides are at the same height. If the projector cannot be installed horizontally, you can adjust the projector's tilt with the front foot. s p.31 14 Preparing Various Setting Methods Warning • A special method of installation is required when suspending the projector from a ceiling (ceiling mount). If it is not installed correctly, it could fall causing an accident and injury. • If you use adhesives, lubricants, or oil on the ceiling mount fixing points to prevent screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount. This could cause serious injury to anyone under the projector and also damage the projector. • Do not install it on an unstable shelf or in a place out of load range. Otherwise, it could fall or topple causing an accident and injury. • When installing it in a high position such as on a shelf, take measures against falling by using wires to ensure the safety in an emergency, such as an earthquake, and prevent accidents. If it is not installed correctly, it could fall causing an accident and injury. • Do not block the air intake vent and air exhaust vent of the projector. Blocking its air intake vent and air exhaust vent may trap heat inside causing fire. Attention • Do not setup the projector in locations subject to high humidity and dust, or in locations subject to smoke from fires or tobacco smoke. • Do not use the projector installed vertically. Doing so could cause a malfunction. • Clean the air filter once every three months. Clean it more often if the environment is particularly dusty. s p.105 Placing on a table and projecting You can install the projector on a table in your living room or on a low shelf to project images. Suspending from the ceiling and projecting You can suspend the projector from the ceiling with the optional ceiling mount to project images. 15 Preparing c When suspending from the ceiling and projecting, set Projection to Front/Ceiling or Rear/ Ceiling. s Extended - Projection p.83 Projection Distance and Lens Shift Maximum Values The size of the projection increases as the projector is moved away from the screen. Use the table below to setup the projector at the optimum position from the screen. The values given here are for your reference only. The maximum lens shift adjustment values are shown in the following table. c The projected image becomes smaller after correcting distortion. Increase the projection distance to fit the projected image to the screen size. When adjusting the projection position vertically in lens shift A : B : E F : : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is raised to its highest level) Distance from the center of the lens to the bottom edge of the projected image (when lens shift is lowered to its lowest level) Projection distance from the projector to the screen Size of the projected image 16 Preparing When adjusting the projection position horizontally in lens shift C D E F : : : : Lens center movement distance when the projector is moved (when lens shift is set to maximum left) Lens center movement distance when the projector is moved (when lens shift is set to maximum right) Projection distance from the projector to the screen Size of the projected image Unit: cm 16:9 Screen Size F WxH Lens Shift Maximum Values* Projection Distance (E) Minimum (Wide) Maximum (Tele) Distance (A) Distance (B) Distance (C, D) 50" 111 x 62 148 313 29 91 52 60" 133 x 75 178 376 35 109 63 80" 177 x 100 239 503 46 146 83 100" 221 x 125 300 630 58 182 104 150" 332 x 187 452 947 86 273 156 200" 443 x 249 604 1264 115 364 209 250" 553 x 311 756 1582 144 455 261 300" 664 x 374 908 1899 173 547 * Vertical and horizontal lens shift cannot both be set to their maximum values. s p.30 Installation example (with 16:9 screen size and 100") Side view 17 313 Preparing Overhead view 18 Preparing Connecting a Device Attention • Make cable connections before connecting to a power outlet. • Check the shape of the cable's connector and the shape of the port, and then connect. If you force a connector of a different shape into the port, it could cause damage and a malfunction to occur. Removing the Terminal Cover Depending on the model you are using, the projector may have a terminal cover for the connector section on the rear to improve the overall appearance of the projector. Remove the terminal cover before connecting any cables. There are gaps at the bottom of the terminal cover that allow you to pull the cover forward and lift it from the grooves at the top. When reattaching, first insert the protruding sections into the grooves at the top. Connecting Video Equipment To project images from DVD/Blu-ray players, connect to the projector using one of the following methods. When using a commercially available HDMI cable c • When using the power supply port for an optical HDMI cable, connect it to the Opt.HDMI port. • When projecting images in HDCP 2.2, connect to the HDMI1 port. • This projector does not have a built-in speaker. Connect the projector to your AV system to listen to audio from connected equipment. Connecting a Computer To project images from a computer, connect the computer using one of the following methods. 19 Preparing When using a commercially available computer cable When using a commercially available HDMI cable Connecting External Equipment Connecting to the Trigger Out port To connect external devices such as motorized screens, connect a mini-jack stereo cable (3.5 mm) to the Trigger Out port. When set to on, a signal (12 V DC) is output from this port to communicate the projector's status (On or Off) to connected devices such as electric screens. c When using the Trigger Out port, set Trigger Out to Power (EH-TW9300W/EH-TW9300 only) or On (EH-TW8300W/EH-TW8300/EH-TW7300 only). s Extended - Operation - Trigger Out p.83 Connecting WirelessHD devices (EH-TW9300W/EH-TW8300W only) The projector receives transmissions from the WirelessHD Transmitter, and projects the images. s p.49 Change the projected image by pressing the control panel. c button on the remote control or the button on the • When receiving WirelessHD images, make sure WirelessHD is set to On. sSettings - WirelessHD - WirelessHD p.80 • You can change which device is displayed by selecting a device from Device Connections in HDMI Link. sSettings - HDMI Link - Device Connections p.80 Connecting Smartphones or Tablets You can connect MHL compatible smartphones or tablets to the WirelessHD Transmitter. Use an MHL compatible cable to connect the micro USB port of smartphones and tablets to the HDMI4 port on the WirelessHD Transmitter. 20 Preparing You can operate smartphones or tablets from the projector remote control. You can also view video and listen to music while charging a smartphone or tablet. Attention • Make sure the connection cable supports the MHL standards. During charging, the smartphone or tablet could generate heat, cause a liquid leak, explode or generate other conditions that could result in a fire. • When a connection is made using an MHL-HDMI conversion adapter, it may not be possible to charge or control the device from the remote control. c Some devices use more power during video playback than what is supplied and will therefore not enable charging during video playback or other operations. Connecting to the LAN port Connect to a network router, a hub, and so on, with a 100BASE-TX or 10BASE-T LAN cable. You can operate the projector or check its status over a network from a computer or a smart device. c To prevent malfunctions, use a category 5 or higher shielded LAN cable. Attaching the Wireless LAN unit To use the wireless LAN function, attach an optional Wireless LAN unit (ELPAP10). Connect the Wireless LAN unit to the USB port. 21 Preparing You can use one of the following methods to project over wireless LAN. For more details, see the download page. • Projecting four screens simultaneously When using EasyMP Multi PC Projection, you can display up to four separate screens from the projector from up to 50 computers connected to the network. Download EasyMP Multi PC Projection from the following Web site. http://www.epson.com • Projecting images from a mobile terminal via a network By installing "Epson iProjection" on a smartphone or tablet, you can wirelessly project data on your device. s p.72 c • When not using the wireless LAN function with the Wireless LAN unit kept inserted, set Wireless LAN Power to Off. This can prevent unauthorized access from outsiders. s p.86 • When using Epson iProjection or EasyMP Multi PC Projection in Quick, we recommend making security settings. s p.89 Connecting an HDMI Cable Clamp If the HDMI cable is thick and hangs down, make sure you secure it to the cable holder with an HDMI clamp so that the cable's weight does not disconnect it from the port. 22 Preparing Preparing the Remote Control Installing the Remote Control Batteries Attention • Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way. • You cannot use other batteries except for the AA size manganese or alkaline. a Remove the battery cover. b Replace the old batteries with new batteries. c While pushing the battery compartment cover catch, lift the cover up. Reattach the battery cover. Press the cover until it clicks into place. c Check the polarity of the batteries (+) and (-) before installing. If delays in the responsiveness of the remote control occur or if it does not operate, it probably means that the batteries are becoming flat. When this happens, replace them with new batteries. Have two AA size manganese or alkaline batteries ready. Remote Control Operating Range The operation range for the WirelessHD Transmitter differs. s p.60 23 Preparing Operating range (left to right) Operating range (top to bottom) 10m 30° 60° 30° 10° 30° 30° 30° 30° 10m 10m 24 10m Basic Operations Projecting Images Turning On the Projector a Connect the equipment to the projector. b Connect using the power cord supplied. d Press the button on the remote control or the button on the control panel to turn on the projector. Remote control Control panel The projector's power indicator turns blue. This indicates that the projector is receiving power, but is not yet turned on (it is in standby mode). c The lens shutter opens, and projection starts. Turn on the connected equipment. The (operation indicator) flashes blue as the projector warms up. Once the projector is warmed up, the operation indicator stops flashing and turns blue. c When Direct Power On is set to On, you can start projecting by simply connecting the power cord to the projector without having to press any buttons. s Extended Operation - Direct Power On p.83 Warning • Do not look into the lens during projection. The powerful light emitted could cause damage to eyesight. • Do not stand in front of the lens during projection. Clothes could be damaged due to the high temperature. c • This projector provides a Child Lock function to prevent children from accidentally turning the power on and a Control Panel Lock function to prevent accidental operations and so on. s Settings - Lock Setting - Child Lock/Control Panel Lock p.80 • This projector provides an Auto Setup function to automatically select the optimum settings when the input signal for the connected computer image changes. s Signal - Auto Setup p.78 • When using at an altitude of 1500 m or more, set High Altitude Mode to On. s Extended - Operation - High Altitude Mode p.83 25 Basic Operations If the target image is not projected If the image is not projected, you can change the source using one of the following methods. Remote control Press the button for the target port. Control panel Press the Press the button and select the target port. button to confirm the selection. Using the Home Screen The Home screen feature allows you to easily select an image source and access useful functions. Press the button on the remote control to display the Home screen. Under the following conditions, the Home screen is displayed automatically when the projector is turned on. • Home Screen Auto Disp. is set to On. s Extended - Home Screen - Home Screen Auto Disp. p.83 • There are no signals from any sources. a Selects the source you want to project. b Displays the QR code and connects wirelessly to a smartphone or tablet. s p.72 c Displays the Configuration menu. s p.76 d Performs menu options assigned to Home Screen in the Extended menu. s Extended - Home Screen p.83 e Sets the 3D function. s Video - 3D Setup p.78 f Selects the Color Mode. s p.32 26 Basic Operations c The Home screen disappears after 10 minutes of inactivity. Turning Off a Turn off the connected equipment. b Press the button on the remote control or the button on the control panel. Remote control c Press the button again. Projection ends, and the lens shutter closes automatically. Control panel The operation indicator flashes and the projector begins to cool down. d Wait until cool-down is complete. e Disconnect the power cord. A confirmation message is displayed. 27 When cool-down is complete, the operation indicator stops flashing. Basic Operations Adjusting the Projected Image Displaying the Test Pattern When adjusting the zoom/focus or the projection position just after setting up the projector, you can display a test pattern instead of connecting video equipment. Press the button on the remote control to display the test pattern. The standard for horizontal lines at the top and bottom uses 2.40:1 CinemaScope. When you select Color Isolation while projecting images, the color selected from R (red), G (green), or B (blue) is projected (EH-TW9300W/EH-TW9300 only). Press the button again to end the test pattern display. Lens Adjustment Function (Focus, Zoom, Lens Shift) To adjust the focus, zoom, or lens shift, press the button on the remote control or the the control panel, and then select the item you want to adjust. Remote control button on Control panel The adjustment items switch as shown in the following table. 1 Focus adjustment Adjust Focus is displayed on the screen. Adjusts the focus of the projected image. s p.29 2 Zoom adjustment Adjust Zoom is displayed on the screen. Adjusts the size of the projected image. s p.29 3 Lens shift adjustment Adjust Lens Shift is displayed on the screen. Adjusts the position of the projected image. s p.30 To finish making adjustments, press the c button in Lens shift adjustment. You can register the results of lens adjustment to the memory (Save Lens Position). You can load the lens position that you registered from the remote control or the Configuration menu. 28 Basic Operations Adjusting the focus a Press the b Press the buttons to adjust the focus. c Press the button three times to finish making adjustments. button on the remote control. Adjust Focus is displayed on the screen. Adjusting the projection size (Zoom Adjustment) a Press the b Press the buttons to adjust the size of the projected screen. c Press the button twice to finish the adjustment. button on the remote control twice. Adjust Zoom is displayed on the screen. 29 Basic Operations Adjusting the position of the projected image (Lens Shift Adjustment) If the projector cannot be installed directly in front of the screen, you can adjust the position of the image by using lens shift. a Press the b Use the Adjust Lens Shift is displayed on the screen. buttons to adjust the position of the image. You can move the image within the range indicated by the dotted line in the following figure. c c button on the remote control three times. Hold down the buttons to return the image to the central position vertically and horizontally. The position where the image stops is the center. Press the button to finish the adjustment. c moves in the opposite direction to the direction pressed with the When the following message is displayed when you change to Adjust Lens Shift, the image buttons. When Front/Ceiling or Rear/Ceiling is set for Projection, select Inverted. s Extended Projection p.83 Caution • When transporting the projector, set the lens position to the center. If you transport the projector when the lens is not in the central position, the lens shift mechanism could be damaged. • Do not put your finger in the moving parts of the projector's lens. Otherwise an injury could occur. c lens shift to adjust the projection position. When you cannot install the projector directly in front of the screen, it is recommended that you use 30 Basic Operations Adjusting the Projector's Tilt If the projected image is horizontally tilted (the left and right sides of the projected image are at different heights) when the projector is setup on a table, adjust the front foot so that both sides are level with each other. Correcting Keystone Distortion You can use the buttons on the control panel to correct keystone distortion. Open the control panel cover at the side to operate the control panel. s p.7 Press the or buttons to display the adjustment gauges. When the gauges are displayed, press the and buttons to perform vertical correction. When the top or bottom is too wide c • When you correct keystone distortion, the projected image may be reduced. Increase the projection distance to fit the projected image to the screen size. • You can make keystone settings from the Configuration menu. s Settings - Keystone p.80 • You can make effective corrections within a projection angle of 30° top to bottom. Hiding the Image Temporarily You can use this to temporarily hide the image on the screen. Press the c button to show or hide the image. For movies, because the movie continues to play even when it is hidden, you cannot return to the point at which you hid the image using the button. 31 Adjusting the Image Adjusting the Image Selecting the Projection Quality (Color Mode) You can obtain the optimum image quality to suit your surroundings when projecting. The brightness of the image varies depending on the mode selected. a Press the c b button. • You can make settings from the Configuration menu. s Image - Color Mode p.77 • If you press the button, you can also make settings from the Home screen. s p.26 Select Color Mode. Use the selection. buttons to select a mode, and then press the button to confirm the Choices when projecting 2D images Mode Application Dynamic This is the brightest mode. Best for prioritizing brightness. Bright Cinema Best for projecting vivid images. Natural Best for faithfully reproducing the color of the source image. We recommend selecting this mode when performing color adjustment for the image. s p.37 Cinema Best for enjoying content such as movies. Digital Cinema Projects images in the Digital Cinema color space. Best for prioritizing colors. Choices when projecting 3D images Mode Application 3D Dynamic A dedicated 3D mode best for prioritizing brightness. 3D Cinema A dedicated 3D mode best for enjoying content such as movies. 32 Adjusting the Image Switching the Screen Between Full and Zoom (Aspect) You can change the input signal's type, aspect ratio, and resolution to match the Aspect of the projected image. The available settings vary depending on the image signal currently being projected. c a Note that using the aspect ratio function of the projector to reduce, enlarge, or split the projected image for commercial purposes or for public viewing may infringe upon the rights of the copyright holder of that image based on copyright law. Press the b button. Use the buttons to select the setting name, and then press the button to confirm the selection. menu. c Configuration Aspect p.78 You can make settings from the s Signal - c You may not be able to change the Aspect depending on the input signal. By normally selecting Auto, the optimum aspect is used to display the input signal. Change the setting if you want to use a different aspect. The table below shows the image projected on a 16:9 screen. Input Image Setting Name Normal Full Zoom 4:3 Images 16:9 Images When projecting 16:9 images, Full and Zoom cannot be selected. Images Recorded Using Squeeze Letterbox Images* 33 Adjusting the Image Input Image Setting Name Normal Full Matches the vertical size of the projection panel. The aspect ratio differs depending on the input image. Uses the entire projection panel. The aspect ratio differs depending on the input resolution. Zoom Retains the aspect ratio of the input signal, and matches the horizontal size of the projection panel. The top and bottom of the image may be truncated. * The letterbox image used in this explanation is a 4:3 aspect ratio image displayed in 16:9 with black margins at the top and bottom for subtitle placement. The margins at the top and bottom of the screen image are used for subtitles. Notes For EH-TW9300W/EH-TW9300, you can also set Anamorphic Wide and Horiz. Squeeze. Set Anamorphic Wide and attach a commercially available anamorphic lens to enjoy DVDs, Blu-rays, and so on of images recorded at Cinema Scope size. Horiz. Squeeze stretches the horizontal aspect of the input signal. This allows you to project across the full width of the screen when using a commercially available anamorphic lens. c • If Anamorphic Wide is selected when Overscan is set, the image may be truncated. Set Overscan to Off. s Signal - Overscan p.78 • When projecting 3D images in Anamorphic Wide, only 1080p/24 Hz/frame packing signals are supported. • When a 4K image signal is being input, you can only select Normal, Anamorphic Wide, and Horiz. Squeeze. Adjusting the Sharpness You can make the image clearer. The following shows the setting items and procedures. Standard Enhances the outlines for the projected image overall. When adjusting Stand‐ ard, the adjustment values for Thin Line Enhancement and Thick Line En‐ hancement are also adjusted at the same time. Thin Line Enhancement Details such as hair and patterns on clothing are enhanced. Thick Line Enhancement Rough parts such as outlines for entire subjects or the background are enhanced, making the overall image clearer. a Press the c button. The image is enhanced when moved to the right (positive) and softer when moved to the left (negative). The Configuration menu is displayed. b Use the buttons to select the item, and then use the buttons to make the adjustments. Select Image - Sharpness. The Sharpness adjustment screen is displayed. Press the button to return the adjustments to their default values. 34 Adjusting the Image d Press the menu. button to exit the Adjusting Image Resolution (Image Enhancement) You can adjust the resolution of the image using the Image Enhancement function. The following content can be adjusted. 4K Enhancement is a function that projects an image at a doubled resolution by diagonally shifting 1 pixel in increments of 0.5 pixels. 4K Enhancement A high-resolution image signal is projected in fine detail. Image Preset Mode Select the settings prepared in advance as the settings for Noise Re‐ duction, MPEG Noise Reduction, Super-resolution, and Detail En‐ hancement. Noise Reduction (This can only be set when Image Processing is set to Fine.) Smoothes out rough images. MPEG Noise Reduction (This can only be set when Image Processing is set to Fine.) You can reduce dot and block noise that occurs in outlines when projecting MPEG movies. Fine Line Adjust: Enhances the contrast and the outlines of complicated images. Super-resolution Soft Focus Detail: Enhances the contrast and the outlines for smooth backgrounds. Detail Enhancement Enhances the contrast in an image to create a more emphatic texture and material feel. Strength: The larger the value, the stronger the contrast. Range: The larger the value, the wider the range of detail enhancement becomes. a Press the c b button. You can make settings from the Configuration menu. s Image Image Enhancement p.77 35 Use the buttons to select the item you want to adjust, and then press the button to confirm the selection. Adjusting the Image c d Use the buttons to make adjustments. Press the item. Press the menu. button to exit the button to adjust another button to return the Press the adjustments to their default values. Setting Auto Iris By automatically setting the luminance according to the displayed image, you can enjoy deep and rich images. You can select the luminance adjustment tracking for changes in brightness in the displayed image from Normal to High Speed. Press the button to display menus in the following order. Image - Auto Iris Use the press the c buttons to select the item, and then button to confirm the selection. Depending on the image, you may hear the Auto Iris operating, but this is not a malfunction. Setting Frame Interpolation You can play fast moving images smoothly by automatically producing intermediate frames between the original frames. Frame Interpolation is available under the following conditions. • When Image Processing is set to Fine. s Signal - Advanced - Image Processing p.78 • When the source is HDMI1, HDMI2, or WirelessHD (EH-TW9300W/EH-TW8300W only). • When inputting 2D signals* or 3D signals (1080p 24 Hz). s p.118 * This is unavailable when a 4K signal is being input. When 4K Enhancement is set to On, this is only enabled when 1080p 24Hz signals are being input. s Image - Image Enhancement - 4K Enhancement p.77 a Press the c b button. You can make settings from the Configuration menu. s Image Frame Interpolation p.77 36 Use the buttons to select the item, and then press the button to confirm the selection. Adjusting the Image Adjusting the Color Adjusting the Color Temp. You can adjust the overall tint of the image. Make adjustments if the image is a little too blue or too red and so on. Press the button to display menus in the following order. Image - Color Temp. - Color Temp. buttons to make adjustments. Use the Blue tints grow stronger as the value is increased, and red tints grow stronger as the value is reduced. c Press the button to return the adjustments to their default values. Adjusting the RGB (Offset and Gain) You can adjust the brightness of dark areas (Offset) and bright areas (Gain) for R (red), G (green), and B (blue). Press the button to display menus in the following order. Image - Color Temp. - Customized Use the buttons to select the item, and then use the buttons to make the adjustments. The image becomes brighter when moved to the right (positive) and darker when moved to the left (negative). Offset When the image is made brighter, shading for the darker sections is more vividly expressed. When the image is made darker, the image appears more full-bodied but shading for the darker sections is harder to distinguish. Gain When the image is made brighter, the bright sections become whiter and shading is lost. When the image is made darker, shading for the bright sections is more vividly expressed. c Press the button to return the adjustments to their default values. Adjusting Hue, Saturation, and Brightness You can adjust the hue, saturation, and brightness for each of the R (red), G (green), B (blue), C (cyan), M (magenta), and Y (yellow) colors. Hue Adjusts the overall color of the image to be blue, green, or red. Saturation Adjusts the overall vividness of the image. Brightness Adjusts the overall color brightness of the image. 37 Adjusting the Image a Press the c b button. c Use the buttons to select Hue, Saturation, or Brightness. d Use the buttons to make adjustments. You can make settings from the Configuration menu. s Image Advanced - RGBCMY p.77 Use the buttons to select the color you want to adjust, and then press the button to confirm the selection. Press the color. button to adjust another button to return the Press the adjustments to their default values. e 38 Press the menu. button to exit the Adjusting the Image Adjusting the Gamma You can adjust slight coloration differences that may occur due to the device being used when the image is displayed. You can set it by using one of the following three methods. • Select and adjust the correction value • Adjust while viewing the image • Adjust using the gamma adjustment graph c When a 3D signal or HDR signal is being input, you cannot select Adjust it from the image. Select and adjust the correction value a b Press the button to display menus in the following order. Image - Advanced - Gamma Use the buttons to select the correction value, and then button to confirm the press the selection. The larger the value, the lighter the dark portions of the image become, but bright areas may appear discolored. The upper part of the gamma adjustment graph becomes rounded. The smaller the value, the darker the bright portions of the image become. The lower part of the gamma adjustment graph becomes rounded. c • The horizontal axis of the gamma adjustment graph shows the input signal level, and the vertical axis shows the output signal level. • Select Reset to return the adjustments to their default values. Adjust while viewing the image Select a point on the image where you want to adjust the brightness, and adjust only the selected tone. 39 Adjusting the Image a Press the button to display menus in the following order. Image - Advanced - Gamma Customized - Adjust it from the image b Move the cursor on the projected image to the part where you want to change the brightness, and then press the button. c Use the buttons for adjustments, and then press the button to confirm the selection. d When Do you want to continue adjusting the setting? is displayed, select Yes or No. To adjust another location, select Yes, and repeat the procedure from step 2. Adjust using the gamma adjustment graph Select a tone point on the graph and make adjustments. a Press the button to display menus in the following order. Image - Advanced - Gamma Customized - Adjust it from the graph b Use the buttons to select the tone you want to adjust from the graph. c 40 Use the buttons to adjust the brightness, and then press button to confirm the the selection. Adjusting the Image Viewing the Image at the Saved Image Quality (Memory Function) Saving a Memory By using the memory function, you can register the following adjustment values, and then load them when necessary. • Image setting from the Configuration menu • Lens Adjustment Function (Focus, Zoom, Lens Shift) adjustment values s p.28 a Make the settings or adjustments you want to register. b Press the c Use the buttons to select Save Memory or Save Lens Position, and then press the button to confirm the selection. d button. Use the buttons to select the memory name to be saved, button to and then press the confirm the selection. The current projector settings are saved to the memory. If the mark on the left of the memory name is turned aqua, it means the memory has already been registered. When you select a registered memory, a message is displayed asking you to confirm that you want to overwrite the memory. If you select Yes, the previous content is erased and the current settings are saved. Save Memory: Registers the Image settings Save Lens Position: Registers the adjustment value for the lens adjustment function Loading, Deleting, and Renaming a Memory You can load, delete, and rename registered memories. Press the button, and then select the target function on the screen displayed. Press the buttons on the remote control to load the lens position from the Save c Lens Position registered in Memory1 or Memory2. 41 Adjusting the Image Function Explanation Load Memory Loads the saved memory. When you select a memory and press the button, the settings applied to the current image are replaced with the settings from the memory. Erase Memory Erases the registered memory. When you select a memory name and press button, a message is displayed. Select Yes, and then press the the button to erase the selected memory. Rename Memory Changes the memory name. Select the memory name you want to button. Enter the memory name using change, and then press the the soft keyboard. s p.87 When you have finished, move the cursor over Finish, and then press the button. Load Lens Position Loads the registered lens position memory. When you select the lens position name and press the button, the adjustment value for the selected lens position memory is applied. Erase Lens Position Erases the registered lens position memory. When you select a lens position name and press the button, a message is displayed. Select Yes, and then press the button to erase the selected lens position memory. Rename Lens Position Changes the lens position memory name. Select the lens position memory name you want to change, and then press the button. Enter the lens position memory name using the soft keyboard. s p.87 When you have finished, move the cursor over Finish, and then press the button. 42 Useful Functions Enjoying 3D Images Preparing to View 3D Images Check the following before viewing 3D images. • When the source is HDMI1, HDMI2, or WirelessHD (EH-TW9300W/EH-TW8300W only). • Set 3D Display to Auto or 3D. When this is set to 2D, change to Auto or 3D. s Signal - 3D Setup - 3D Display p.78 • Pair 3D Glasses. s p.45 This projector supports the following 3D formats. • Frame Packing • Side by Side • Top and Bottom If the 3D image cannot be viewed The projector automatically projects a 3D image when detecting a 3D format. Some 3D TV broadcasts may not contain 3D format signals. If this happens, follow the steps below to set the 3D format. a Press the button to display menus in the order Signal - 3D Setup. b Set 3D Display to 3D. c c Press the button to set the 3D format on the AV device. • If you are using a device or cable that does not support 3D images, 3D projection cannot be performed. • For details on 3D format settings on the AV device, see the documentation supplied with the AV device. • When the 3D format has not been correctly set up, an image will not be correctly projected as shown below. • If a 3D image is not projected correctly even when a 3D format is set, the synchronization timing for • • • • the 3D Glasses may be inversed. Inverse the synchronization timing using Inverse 3D Glasses. s Signal - 3D Setup - Inverse 3D Glasses p.78 How a 3D image is perceived varies depending on the individual. When you start projecting a 3D image, a warning about viewing 3D images is displayed. You can turn off this warning by setting 3D Viewing Notice to Off. s Signal - 3D Setup - 3D Viewing Notice p.78 During 3D projection, the following Configuration menu functions cannot be changed. Aspect (set to Normal), Noise Reduction (set to Off), Overscan (set to Off), 4K Enhancement, Superresolution, Image Processing, Advanced - Sharpness, Picture in Picture How the 3D image is viewed may change depending on the temperature of the surroundings and how long the lamp has been used. Refrain from using the projector if the image is not projected normally. 43 Useful Functions Using 3D Glasses Use the supplied or optional 3D Glasses (ELPGS03) to view 3D images. s p.117 c The 3D Glasses come with protective stickers. Remove the protective stickers before use. Charging the 3D Glasses The following charging methods are available, depending on the model of 3D Glasses being used. If you have a WirelessHD Transmitter, you can use it to charge the glasses. If you do not have a WirelessHD Transmitter, you can charge by using a USB Charging Adapter (ELPAC01). Charging using the WirelessHD Transmitter c Use the USB cable to connect the 3D Glasses to the WirelessHD Transmitter. When a cable is connected to the HDMI4 port, the WirelessHD Transmitter cannot charge 3D glasses. Charging using the USB Charging Adapter Use the USB charging cable to connect the 3D Glasses to the USB Charging Adapter, and then connect the USB Charging Adapter to an electrical outlet. 44 • You can only charge the 3D Glasses ELPGS03. • Make sure you use the USB cable supplied for the 3D glasses. • You can use the glasses for approximately three hours after charging for just three minutes. A full charge takes 50 minutes and the glasses can be used for approximately 40 hours. • You can also charge by connecting the 3D Glasses to the projector. When using the projector to charge the 3D Glasses, connect the USB charging cable to the USB port on the projector (you can only charge when the projector is turned on). Useful Functions Attention • Only connect to an electrical outlet that uses the voltage displayed on the adapter. • Note the following points when handling the USB cable. - You should not bend, twist, or pull the cable with too much force. - You should not modify the cable. - You should not perform wiring near an electric heater. - You should not use the cable if it is damaged. Pairing 3D Glasses To view 3D images, you first need to pair the 3D Glasses with the projector. Press the [Pairing] button for a while on the 3D Glasses to start pairing. See the User's Guide for the 3D Glasses for more information. c • When using the 3D Glasses for the first time, pairing is performed when the 3D Glasses are turned on. You do not need to perform pairing if 3D images can already be viewed correctly. • Once pairing has been performed, you can view 3D images the next time the devices are turned on. • You can perform pairing within a range of three meters from the projector. While pairing is being performed, make sure you stay within a range of three meters from the projector. Otherwise, pairing will fail. • If synchronization cannot be performed within 30 seconds, pairing is automatically canceled. When pairing is cancelled, 3D images cannot be viewed because pairing fails. Wearing 3D Glasses a b Turn on the 3D Glasses by sliding the [Power] switch to On. The indicator turns on for several seconds, and then turns off. Put on the 3D Glasses and enjoy the show. c • When you have finished using the 3D Glasses, turn them off by sliding the [Power] switch to Off. • If the 3D Glasses are not used for at least 30 seconds, they turn off automatically. To turn the 3D Glasses back on, slide the [Power] switch to Off, and then slide it back to On. Reading the indicator on the 3D Glasses You can check the status of the 3D Glasses by whether its indicator is lit or flashing. 45 Useful Functions Indicators Status Flashing red quickly twice; repeated 5 times Weak battery Lit red Charging Lit green Charging completed Flashes green and red in turn Pairing Lit green for 10 seconds and then turns Power on or pairing succeeded off Converting 2D Images to 3D You can convert 2D images from HDMI1, HDMI2, or WirelessHD (EH-TW9300W/EH-TW8300W only) to 3D. a Press the button to display menus in the order Signal - 3D Setup. b Set 3D Display to Auto. c Select 2D-to-3D Conversion, and button to confirm then press the the selection. c d Select the strength of the 3D effect, and then press the button to confirm the selection. If Image Processing is set to Fast, you cannot adjust 2D-to-3D Conversion. s Signal - Advanced Image Processing p.78 46 Useful Functions Warnings Regarding Viewing 3D Images Note the following important points when viewing 3D images. Warning Disassembling or remodeling • Do not disassemble or remodel the 3D Glasses. This could cause a fire to occur or the images to appear abnormal when viewing, causing you to feel unwell. Storage locations • Do not leave the 3D Glasses or the supplied parts within reach of children. They could be accidentally swallowed. If anything is accidentally swallowed, contact a doctor immediately. Heating • Do not place the 3D Glasses in a fire, on a heat source, or leave them unattended in a location subject to high temperatures. Because this device has a built-in rechargeable lithium battery, it could cause burns or a fire if it ignites or explodes. Charging • When charging, connect the supplied cable to the USB port designated by Epson. Do not charge using other devices as it may cause the battery to leak, overheat, or explode. • Only use the supplied charging cable to charge the 3D Glasses. Otherwise, it could overheat, ignite, or explode. Caution 3D Glasses • Do not drop or press too forcefully on the 3D Glasses. If the glass sections and so on are broken, an injury could occur. Store the glasses in the soft glasses case. • Be careful of the edges of the frame when wearing the 3D Glasses. If it pokes your eye and so on, an injury could occur. • Do not place your finger in any of the moving sections (such as the hinges) of the 3D Glasses. Otherwise an injury could occur. Caution Wearing 3D Glasses • Make sure you wear the 3D Glasses correctly. • • • • • Do not wear the 3D Glasses upside down. If the image is not displayed correctly into the right and left eyes, it could cause you to feel unwell. Do not wear the glasses unless you are viewing a 3D image. How a 3D image is perceived varies depending on the individual. Stop using the 3D function if you feel strange or cannot see in 3D. Continuing to view the 3D images could cause you to feel unwell. Stop wearing the 3D Glasses immediately if they seem abnormal or a malfunction occurs. Continuing to wear the 3D Glasses could cause an injury or cause you to feel unwell. Stop wearing the 3D Glasses if your ears, nose, or temples become red, painful, or itchy. Continuing to wear the 3D Glasses could cause you to feel unwell. Stop wearing the 3D Glasses if your skin feels unusual when wearing the glasses. In some very rare cases the paint or materials used in the 3D Glasses could cause an allergic reaction. 47 Useful Functions Caution Viewing Time • When viewing 3D images, always take periodic breaks during extended viewing. Long periods of viewing 3D images may cause eye fatigue. The amount of time and frequency of such breaks varies from person to person. If your eyes still feel tired or uncomfortable even after taking a break from viewing, stop viewing immediately. Caution Watching 3D Images • If your eyes feel fatigued or uncomfortable when viewing 3D images, stop viewing immediately. Continuing to view the 3D images could cause you to feel unwell. • When viewing 3D images be sure to always wear 3D Glasses. Do not attempt to view 3D images without 3D • • • • • Glasses. Doing so could cause you to feel unwell. Do not place any breakable or fragile objects around you when using 3D Glasses. 3D images may cause you to move your body involuntarily, resulting in damage to nearby items or personal injury. Only wear 3D Glasses when viewing 3D images. Do not move around while wearing 3D Glasses. Your vision may appear darker than normal, causing you to fall or injure yourself. Try to stay as level with the viewing screen as possible when viewing 3D images. Viewing 3D images at an angle reduces the 3D effect and may cause you to feel unwell due to unintended color changes. If using 3D Glasses in a room with fluorescent or LED lighting, you may see flashing or flickering throughout the room. If this should occur, reduce the lighting until the flickering goes away or turn off the lights completely when viewing 3D images. In some very rare cases, this flickering could trigger seizures or fainting for some individuals. If you begin to feel uncomfortable or unwell at any time when viewing 3D images, stop immediately. Stay at least three times the height of the screen away from the screen when viewing 3D images. The recommended viewing distance for an 80-inch screen is at least 3 meters, and at least 3.6 meters for a 100-inch screen. Sitting or standing any closer than the recommended viewing distance may result in eye fatigue. Caution Health Risks • You should not use 3D Glasses if you are sensitive to light, have a heart condition, or are unwell. Doing so could aggravate your pre-existing conditions. Caution Recommended Age of Use • The minimum recommended age to view 3D images is six years old. • Children under the age of six are still developing and viewing 3D images may cause complications. Consult your doctor if you have any concerns. • Children viewing 3D images through 3D Glasses should always be accompanied by an adult. It is often difficult to tell when a child is feeling tired or uncomfortable, which could result in them feeling suddenly unwell. Always check with your child to ensure that they are not experiencing any eye fatigue during viewing. 48 Useful Functions Connecting with WirelessHD (EH-TW9300W/ EH-TW8300W Only) Installing the WirelessHD Transmitter You can use the supplied WirelessHD Transmitter to wirelessly receive image and sound data. This is useful when the projector cannot be setup near your AV devices as you can connect the devices to the projector without using cables. You can use the WirelessHD Transmitter in the following ways. • You can connect up to four AV devices at the same time, and switch images using the remote control. • As well as the projector, you can connect another monitor device, such as a television, to the HDMI Out port, and then switch the output using the remote control. • This allows other monitor devices such as TVs connected to the HDMI Out port to project images from the connected AV device, even if the projector is off. • You can connect smart devices and tablets that support MHL, and then project images from the connected MHL device. You can also operate MHL devices from the projector's remote control, as well as charge the MHL device. • You can split the HDMI signal that is being input into the WirelessHD Transmitter into image and audio, and output to other devices. • Even for AV devices that do not support HDCP 2.2, you can output audio by connecting to the HDMI Out port on the WirelessHD Transmitter. 49 Useful Functions WirelessHD Transmitter part names Front Rear Name Function a t button Turns the transmitter on or off. button for the WirelessHD This performs the same function as the Transmitter control on the lower section of the remote control. b button Changes to the image from each input port. button for the WirelessHD This performs the same function as the Transmitter control on the lower section of the remote control. c button Switches the output image to the projector or the device connected to the HDMI Out port. button for the WirelessHD This performs the same function as the Transmitter control on the lower section of the remote control. d Main power switch e AC adapter port Turns the main power for the transmitter on or off. f HDMI Out port Connects to a monitor device, such as a television. You can switch the output button on the remote control or the button image using the on the WirelessHD Transmitter. g Optical Audio-Out port Connects to an audio device equipped with an optical digital audio input port. h HDMI Input port Connects to the AV device you want to playback. You can switch the input image using the Input button. Connects the AC adapter. The HDMI4 port of the unit meets the MHL standards. You can play content from MHL compatible smart devices or tablets connected with an MHL cable. i 3D Glasses charging port j Setup button Connects a USB cable to charge the 3D Glasses. k On/Standby indicator (blue) This flashes while the WirelessHD Transmitter is starting up, and remains lit while operating. This is the button on the back of the WirelessHD Transmitter. It is used for setting the WirelessHD Transmitter. Since this is already set when the transmitter is shipped, it should not normally be used. 50 Useful Functions Name l WiHD indicator (blue) Function Indicates the communication status for the WirelessHD. • Lit when wirelessly transmitting images to the projector. • Off when outputting to the HDMI Out port. m Link indicator (blue) Indicates the connection status with the projector. • Turns on when connected to the projector. • Flashes when searching for a projector. • Flashes slowly when standing by in power saving status. n TV indicator (blue) o HDMI1 to 4 indicators (blue) c Lit when a monitor device such as a TV is selected as the output. The indicator for the source currently being projected is lit. • The antennas are built-into the front of the projector and the WirelessHD Transmitter. Make sure the antennas face each other (face the front) when setting up the devices. Also, do not place any object over the front side of the projector and WirelessHD Transmitter. • Place the WirelessHD Transmitter on a level surface facing towards the projector. • You can view the signal strength from the WirelessHD settings menu. s Settings - WirelessHD Video Reception p.80 WirelessHD Transmitter connection example and signal flow c • When outputting audio from devices connected to the Optical Audio-Out port or the HDMI Out port, set the output audio in Audio Out Device. s p.63 • You can output images from the projector or a monitor device such as TV. You can switch the output image using the button on the remote control or the button on the WirelessHD Transmitter. s p.61 • When inputting images from HDMI Input1 or HDMI Input2 port, if noise is generated by monitors such as televisions or if the audio is lost, try connecting to the HDMI Input3 or HDMI Input4 port. 51 Useful Functions Connection example 1: Viewing without an AV amplifier (audio is output from the Optical AudioOut port) Audio is output from the sound bar connected to the Optical Audio-Out port. Use a commercially available optical digital cable to connect to the sound bar. c • When connecting a device, such as a sound bar, to the Optical Audio-Out port on the WirelessHD Transmitter, check that Audio Out Device is set to WiHD Transmitter (Optical). s Settings - HDMI Link - Audio Out Device p.80 • The following conditions must be met when you want to output images from monitor devices such as TVs that support 18 Gbps transmission band signals such as 4k60p 4:4:4 24 bit. - Connect the monitor device to the HDMI Out port with a Premium HDMI cable. - Connect the AV device to the HDMI Input1 or HDMI Input2 port. • You cannot output some audio from the Optical Audio-Out port due to restrictions in audio standards*. - Lossless audio - Lossy high-bandwidth audio - Immersive audio * As of 2016/07. This will be changed in the future. 52 Useful Functions Connection example 2: Viewing without an AV amplifier (audio is output from the HDMI Out port) Audio is output from the sound bar and so on connected to the HDMI Out port. In this situation, you can even output audio from AV amplifiers or sound bars that do not support HDCP 2.2. c When connecting a device, such as a sound bar, to the HDMI Out port on the WirelessHD Transmitter, check that Audio Out Device is set to WiHD Transmitter (HDMI). s Settings - HDMI Link - Audio Out Device p.80 53 Useful Functions Connection example 3: Viewing with a connected AV amplifier Connect using an AV amplifier. Audio is output from the AV amplifier. 54 Useful Functions Connection example 4: Viewing with a connected smart device Connect an MHL cable to the HDMI4 port. 55 Useful Functions Setting the WirelessHD Transmitter a c b c Set up the WirelessHD Transmitter connected to the projector so that they are facing each other. s p.49 Using an HDMI cable, connect the AV device you want to use to the Input port on the WirelessHD Transmitter. You can connect up to four multi-media players. • The antennas are built-into the front of the projector and the WirelessHD Transmitter. Make sure the antennas face each other (face the front) when setting up the devices. Also, do not place any object over the front side of the projector and WirelessHD Transmitter. • Place the WirelessHD Transmitter on a level surface facing towards the projector. Connect the WirelessHD Transmitter to an electrical outlet using the supplied AC adapter. c • You can connect another monitor device, such as a television, to the HDMI Out port on the WirelessHD Transmitter. You can switch between output images using the remote control. s p.61 • The HDMI4 port of the WirelessHD Transmitter supports the MHL input signal. You can play content from MHL compatible smart devices or tablets connected with an MHL cable. • If the following message is displayed when you connect an MHL device, the device has been connected to a port other than the HDMI4 port, or the connected device is not compatible with MHL. "No Signal" • You can use the HDMI link function even when using the WirelessHD Transmitter. s p.63 Projecting Images a Start playback on the AV device, and then turn on the projector and the WirelessHD Transmitter. The On/Standby indicator on the WirelessHD Transmitter turns on. 56 Useful Functions b Check the status of the WiHD indicator on the WirelessHD Transmitter. If the WiHD indicator is on, go to the next step. If the indicator is off, press the WirelessHD Transmitter. button on the remote control or the button on the Make sure you point the remote control at the WirelessHD Transmitter when using the on the remote control. Remote control c button WirelessHD Transmitter Check the status of the Link indicator on the WirelessHD Transmitter. If the WirelessHD Transmitter is connected to the projector, the Link indicator turns on. c • If the indicator does not turn on, check that the projector has been prepared correctly and that it is turned on. • You can view the signal strength while images are being projected from the WirelessHD settings menu. s Settings - WirelessHD - Video Reception p.80 57 Useful Functions d If projection does not start, press the source. button on the remote control to change the Make sure you point the remote control at the projector when using the control. button on the remote Projection starts. e When connecting two or more AV devices to the WirelessHD Transmitter, press the button to switch images. s p.62 c • When receiving WirelessHD images, make sure WirelessHD is set to On from the Configuration menu. s Settings - WirelessHD - WirelessHD p.80 • Make sure you turn off the WirelessHD Transmitter if it is not going to be used for an extended period. WirelessHD Settings Menu a Press the b Select Settings - WirelessHD, and button to confirm then press the the selection. c button. The Configuration menu is displayed. Make settings for each of the displayed functions. The WirelessHD settings screen is displayed. Available functions on the WirelessHD settings menu Function Explanation Connected Device Displays the available WirelessHD device that can be connected. The device name and MAC address (device number) are displayed. The MAC address is displayed on the label on the base. WirelessHD Enables or disables the WirelessHD function. Video Reception Displays the reception for the image being projected. Reset Resets WirelessHD settings to their default settings. 58 Useful Functions c Even when the WirelessHD Transmitter and the projector are connected, 0% is displayed as the Video Reception when no image signal is being input. Check the communication status by viewing the Link indicator. s p.50 WirelessHD Transmission Range The following shows the communication range of the WirelessHD Transmitter. Make sure you set up the WirelessHD Transmitter so that it faces the projector. Horizontal Vertical direction (suspended from a ceiling) c Vertical direction (placed on a table and so on) • The wireless transmission range varies depending on the placement and material of the surrounding furniture and walls. The values given here are for your reference only. • The projector cannot communicate through walls. • The antennas are built-into the front of the projector and the WirelessHD Transmitter. Make sure the • • • • antennas face each other (face the front) when setting up the devices. Also, do not place any object over the front side of the projector and WirelessHD Transmitter. Do not install the transmitter on a metal shelf. The metal may make the signal unstable. Install on a shelf made from wood etc. When checking operations, place the projector and the WirelessHD Transmitter close to each other, and make sure there are no other projectors operating in the vicinity. Depending on the reception strength, the image's color information may be automatically discarded to avoid any interruptions and maintain a constant connection. To avoid any deterioration in image quality, adjust the position of the WirelessHD Transmitter so that the Video Reception is as strong as possible. Reception sensitivity varies depending on the resolution of the input image. Therefore, you may not be able to achieve the same reception sensitivity when inputting a 1080p image and when inputting a 4K image. 59 Useful Functions Operating the Remote Control Name Function a Turns the power for the WirelessHD Transmitter on or off. b Switches the output image between a monitor device, such as a television, connected to the HDMI Out port on the WirelessHD Transmitter and the projector. s p.61 c Switches the image source for the AV device connected to the WirelessHD Transmitter. s p.62 c Point the remote control towards the WirelessHD Transmitter. Remote Control Operating Range The following shows the operating range between the remote control and the WirelessHD Transmitter. Operating range (left to right) Operating range (top to bottom) Switching the Input and Output With the WirelessHD Transmitter, you can connect and switch between up to four multi-media players (input devices to be played back) and one monitor device (a monitor device displaying an image, such as a television). Point the remote control at the WirelessHD Transmitter and press its devices and its button to switch between output devices. 60 button to switch between input Useful Functions Switching the target image You can switch between a monitor device, such as a television, connected to the HDMI Out port on the WirelessHD Transmitter and the projector. a Turn on the projector or the monitor device, such as a television. b Turn on the WirelessHD Transmitter. c Point the remote control at the WirelessHD Transmitter, and then press the on the remote control or the button on the WirelessHD Transmitter. The On/Standby indicator on the WirelessHD Transmitter turns on. Remote control button WirelessHD Transmitter Depending on the output target, the indicators on the WirelessHD Transmitter indicate the following status. The output target projected last time is projected the next time the projector is turned on. WiHD indicator On: The image is being output to the projector. TV indicator On: The image is being output to the monitor device. 61 Useful Functions c You can switch to the other monitor device even when the projector is off. Switching the image source Use the button on the remote control to switch the image source for the AV device connected to the WirelessHD Transmitter. 62 Useful Functions Using the HDMI Link Function HDMI Link Function When an AV device that meets the HDMI CEC standards is connected to the projector's HDMI port, you can perform linked operations such as linked power on and volume adjustment for the AV system from one remote control. Also, when projecting images in WirelessHD, you can use the HDMI link function (EHTW9300W/EH-TW8300W only). c • As long as the AV device meets the HDMI CEC standards, you can use the HDMI link function even if the AV system in-between does not meet the HDMI CEC standards. • Up to 3 multi-media players that meet the HDMI CEC standards can be connected at the same time. Connection Example Projector Amplifier Multi-media players and so on HDMI Link Settings When HDMI Link is set to On, you can perform the following operations. s Settings - HDMI Link - HDMI Link p.80 • Input Change Link Changes the input source of the projector to HDMI when content is played back on the connected device. • Connected Devices Operations Using the projector's remote control, you can perform operations such as Play, Stop, Fast Forward, Rewind, Next Chapter, Previous Chapter, Pause, Volume Adjustment, and Audio Mute. You can also select the following functions from the HDMI Link screen. Function Explanation Audio Out Device* Selects which device outputs audio. WiHD Transmitter (Optical): Select this to output audio from the device connected to the Optical Audio-Out port on the WirelessHD Transmitter. Also select this when outputting audio from an AV amplifier that supports the HDMI CEC standards. WiHD Transmitter (HDMI): Select this to output audio from the device connected to the HDMI Out port on the WirelessHD Transmitter. Power On Link When Power On Link is set, operations are linked as shown below. • When the projector is turned on, the connected devices are also turned on. • Also, when the connected devices are turned on and content is played back, the projector turns on. However, the projector does not turn on when connected to the WirelessHD Transmitter even when the connected device is turned on. 63 Useful Functions Function Power Off Link Explanation When Power Off Link is set to On, when the projector is turned off, the connected devices are also turned off. • This only works when the connected device's CEC power link function is enabled. • Note that depending on the status of the connected device (for example, if it is recording), the device may not power off. Link Buffer If HDMI Link is not working correctly, you may be able to improve it by changing the settings. * EH-TW9300W/EH-TW8300W only. c To use the HDMI Link function, you must configure the connected device. See the documentation supplied with the connected device for more information. Connecting You can check the connected devices that are available for HDMI Link, and select on the device you want to project the image from. Devices that can be controlled by HDMI Link automatically become the selected device. Before displaying the list of connected devices, check that HDMI Link is set to On. s Settings - HDMI Link - HDMI Link p.80 a b Press the button, and then select Device Connections. Select the device you want to operate using the HDMI Link function. The Device Connections list is displayed. Devices that have an aqua icon to their left are linked by HDMI Link. If the device name cannot be determined this field is left blank. c • If the cable does not meet the HDMI standards, operations are not possible. • Some connected devices or functions of those devices may not operate properly even if they meet the HDMI CEC standards. See the documentation and so on supplied with the connected device for more information. 64 Useful Functions Projecting Two Different Images Using Picture in Picture Types of Screen that can be Displayed Simultaneously Two different image sources can be projected, one in the main screen (large screen) and the other in the sub screen (small screen). You can view the sub screen while viewing the main screen. Combinations of input sources for Picture in Picture projection HDMI1 HDMI1 HDMI2 WirelessHD* PC - - - - - - - - - HDMI2 WirelessHD* LAN PC - - - - - LAN - - - - - * EH-TW9300W/EH-TW8300W only. Projecting on a Picture in Picture Starting and exiting Picture in Picture Press the button on the remote control while the projector is projecting. The currently input image is displayed on a Picture in Picture. Main screen: The current image Sub screen: The source different from the main screen Press the c button again to end the Picture in Picture display. • You may not be able to display 3D or 4K images depending on the Picture in Picture requirements. • You can switch the displays between the main and the sub screen by holding down the button. • If the source being input is not supported, nothing is displayed. 65 Useful Functions Changing the Picture in Picture settings Use the Picture in Picture menu to change the size or position of the sub screen. a b Press the button on the remote control while the projector is projecting. Make settings for each of the displayed functions. The Picture in Picture menu is displayed. Available functions on the Picture in Picture menu Function Explanation Subscreen Size Selects the sub screen size using Small and Large. Subscreen Position Changes the sub screen position using Top Right, Bottom Right, Top Left, and Bot‐ tom Left. Subscreen Source* Selects which source is displayed as the sub screen. Swap Main/Sub Switches the main and sub screens. Exit Picture in Picture Exits the Picture in Picture display. * EH-TW9300W/EH-TW8300W only. 66 Using the Projector on a Network Projecting Using Wired LAN You can send images to your projector through a wired network. To do this, connect the projector to your network, and then set up your projector and computer for network projection. When using EasyMP Multi PC Projection, you can display up to four separate screens from the projector from up to 50 computers connected to the network. Download EasyMP Multi PC Projection from the following Web site. http://www.epson.com Selecting Wired Network Settings Before you can project from computers on your network, you need to select network settings on the projector. c LAN. Before making settings, connect a LAN cable to the LAN port, and connect the projector to the wired a Press the b Select Basic, and then set the following as necessary. • Projector Name: Enter a name up to 16 alphanumeric characters long to identify the projector over the network. • PJLink Password: Set a password to use when you control the projector using compatible PJLink software. You can enter up to 32 single-byte alphanumeric characters. • Remote Password: Set a password to use when you operate the projector from a smartphone or a tablet. You can enter up to 8 single-byte alphanumeric characters. • Display LAN Info.: Set the display format for the projector's network information. c c button to display menus in the order Network - Network Configuration. Use the displayed keyboard to enter the name, passwords and keyword. Press the buttons on the remote control to highlight characters, and then press the button to enter them. Select Wired LAN, and then press the button. 67 Using the Projector on a Network d Select the basic options as necessary. • If your network uses DHCP, set DHCP to On. • If you are not using DHCP, set DHCP to Off, and then enter the projector's IP Address, Subnet Mask, and Gateway Address. e When you have finished making settings, select Complete and follow the on-screen instructions to save your settings and exit the menus. f Press the button on the remote control. The settings are complete when you see the correct IP address on the LAN standby screen. c To prevent the IP address from being displayed on the LAN standby screen or the Home screen, set IP Address Display to Off. s Network - Network Configuration - Wired LAN p.89 68 Using the Projector on a Network Projecting Using Wireless LAN You can project images from smartphones, tablets, and computers over wireless LAN. To project over wireless LAN, you need to make wireless network settings for the projector and the connected device in advance. You can use one of the following methods to project over wireless LAN. • When using EasyMP Multi PC Projection, you can display up to four separate screens from the projector from up to 50 computers connected to the network. Download EasyMP Multi PC Projection from the following Web site. http://www.epson.com • When using Epson iProjection, you can project images from smartphones and tablets. s p.72 Selecting Wireless Network Settings Manually Before you can project from your wireless network, you need to select network settings for the projector. a Press the b Use the c Select Network Configuration, and then press the button to display menus in the order Network - Wireless LAN Power. buttons to select On, and then press the 69 button. button. Using the Projector on a Network d Select Basic, and then set the following as necessary. • Projector Name: Enter a name up to 16 alphanumeric characters long to identify the projector over the network. • PJLink Password: Set a password to use when you control the projector using compatible PJLink software. You can enter up to 32 single-byte alphanumeric characters. • Remote Password: Set a password to use when you operate the projector from a smartphone or a tablet. You can enter up to single-byte 8 alphanumeric characters. • Display LAN Info.: Set the display format for the projector's network information. c Use the displayed keyboard to enter the name, passwords and keyword. Press the buttons on the remote control to highlight characters, and then press the button to enter them. e Select Wireless LAN, and then press the f Select the Connection Mode setting. button. • Quick: Lets you quickly connect to multiple smartphones, tablets, or computers directly using wireless communication. When you select Quick, go to step 10. • Advanced: Lets you connect to multiple smartphones, tablets, or computers over a wireless network access point. When you select Advanced, go to step 7. g Select Network Configuration - Wireless LAN - Search Access Point, to select the access point you want to connect to. c If you need to assign the SSID manually, select SSID to enter the SSID. 70 Using the Projector on a Network h Assign an IP address to the projector as necessary. • If your network uses DHCP, select IP Settings to set the DHCP setting to On. • If you are not using DHCP, select IP Settings to set the DHCP setting to Off, and then enter the projector's IP Address, Subnet Mask, and Gateway Address. i When you have finished selecting settings, select Complete and then follow the on-screen instructions to save your settings and exit the menus. j Press the button on the remote control. The settings are complete when you see the correct IP address on the LAN standby screen. When you have finished making wireless settings for your projector, you need to make wireless settings on the connected device. Then start the network software to send images to your projector through a wireless network. c To prevent the SSID and IP address from being displayed on the LAN standby screen or the Home screen, set SSID Display and IP Address Display to Off. s Network - Network Configuration Wireless LAN p.88 Selecting the Computer's Wireless LAN Settings Before connecting to the projector, select the correct wireless network on your computer. Selecting wireless network settings in Windows a To access your wireless utility software, double-click the network icon on the Windows taskbar. b When connecting in Advanced connection mode, select the network name (SSID) of the network the projector is connecting to. c Click Connect. Selecting wireless network settings in OS X a Click the AirPort icon on the menu bar at the top of the screen. 71 Using the Projector on a Network b When connecting in Advanced connection mode, make sure AirPort is turned on and select the network name (SSID) of the network the projector is connecting to. Setting Up Wireless Network Security You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network: • WPA2 security • WPA/WPA2 security a Press the - Security. b Select the security settings to match your network settings. c When you have finished making settings, select Complete and follow the on-screen instructions to save your settings and exit the menus. button to display menus in the order Network - Network Configuration Projecting in Epson iProjection You can display a QR code on the screen and use it to connect a smartphone or tablet using the Epson iProjection app. c • You can download Epson iProjection free of charge from App Store or Google Play. Any fees incurred when communicating with the App Store or Google play are the responsibility of the customer. • When using Epson iProjection in Quick connection mode, we recommend making security settings. s p.72 a Press the b Use the c Display the Network Configuration - Basic - Display LAN Info. menu. button to display menus in the order Network - Wireless LAN Power. buttons to select On, and then press the 72 button. Using the Projector on a Network d Use the e Press the button on the remote control or select Display the QR Code in the projector's Network menu to display the QR code. c buttons to select Text & QR Code, and then press the button, you can also display the QR code from the Home screen. s p.26 • If you press the • If the projector is already receiving an image signal over the network, the QR code is not button. Select Display the QR Code from the displayed even if you press the Network menu to display the QR code. button. • To hide the QR code, press the f Start Epson iProjection on your smartphone or tablet. g Tap h Tap Connect on the menu. i Tap Read QR code on the application screen. on the application screen. The menu is displayed. The projector search screen is displayed. Your camera starts and the preview screen is displayed. c j button. When the projector you want to connect to is displayed in the list on the projector search screen, select the projector and tap Connect to connect. Read the projected QR code on your smartphone or tablet. Read the code from in front of the screen so that the QR code fits into the guide. If you are too far from the screen, the code may not be read. When a connection is established, the image from the connected device is displayed. Tap Photos, Documents, or Web Page on the menu, and select the file you want to project. Operating using a smartphone (remote control function) By using Epson iProjection, you can operate the projector from a smartphone or tablet. Tap in Epson iProjection to display the menu. Tap Remote on the menu to display the following screen. 73 Using the Projector on a Network c When Remote Password is set, you need to enter the password. Once the password has been recognized, you do not need to enter it from the second time. Button Function a Displays the menu. b Turns the projector on or off. c Changes to the image from each input port. s p.26 d Sets the image quality using the on-screen instructions. e Saves, loads, erases, or rename a memory. s p.41 f Turns HDMI Link on or off. s p.63 g When HDMI Link is On, you can perform operations such as Play, Stop, Fast Forward, Rewind, Next Chapter, Previous Chapter, and Pause. h Sets the Color Mode, Frame Interpolation, Image Enhance‐ ment, Color Temp., Gamma, RGBCMY,Lens Iris, Power Con‐ sumption, and Auto Iris. i Sets the 3D Display, 3D Format, 2D-to-3D Conversion, 3D Depth, Diagonal Screen Size, and 3D Brightness. j Adjusts the focus, zoom, and lens shift. You can also register the lens position (Memory function) or display a test pattern (Pattern function). k Sets the Aspect, Image Processing, Keystone, Picture in Picture, Reset All, Reset Memory, Reset Lens Position, Lens Shift, Zoom, Focus, and Test Pattern. l When HDMI Link is set to On, you can adjust the volume. m When HDMI Link is set to On, you can turn the image and audio on/ off temporarily. s p.31 74 Using the Projector on a Network Button Function n Opens the touch pad screen. You can operate the Configuration menu by touching your touch pad. o Selects the projector you want to control. 75 Configuration Menu Configuration Menu Functions Configuration Menu Operations On the Configuration menu, you can make adjustments and settings for Signal, Image, Input Signal, and so on. a Press the Remote control c button. Control panel Use the buttons to select the sub menu on the right, and then press the button to confirm the selection. The Configuration menu is displayed. b Use the buttons to select the top menu on the left, and button to confirm then press the the selection. The adjustment screen for the selected function is displayed. When you select the top menu on the left, the sub menu on the right changes. d Use the adjust the settings. buttons to Ex.) Adjustment bar Ex.) Choices The line at the bottom is a guide for operations. Press the button on an item displaying this icon to change to the selection screen for that item. Press the button to return to the previous level. e 76 Press the menu. button to exit the Configuration Menu c For items adjusted using an adjustment bar, such as the brightness level, you can press the button while the adjustment screen is displayed to return the adjustment value to its default value. Configuration Menu Table If there is no image signal being input, you cannot adjust items related to the Image or Signal in the Configuration menu. Note that the items displayed for the Image, Signal, and Info vary depending on the image signal being projected. Image menu Function Color Mode Menu/Settings Explanation Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, 3D Dynamic, 3D Cinema Select a color mode based on your surroundings and the image you are projecting. s p.32 Brightness Adjusts the brightness when the image appears too dark. Contrast Adjusts the contrast between light and shade in the images. By increasing the contrast, the images become vivid. Color Saturation Adjusts the color saturation for the images. Tint Adjusts the tint for the images. Sharpness Adjusts the image sharpness. Color Temp. Color Temp. Adjusts the tint for the images. The image is tinted blue for high values, and tinted red for low values. Skin Tone Adjusts the skin tone. The image becomes greener when set to a positive value and redder when set to a negative value. Customized Adjusts the offset and gain for each R, G, and B color. Frame Interpo- Off, Weak, Normal, Strong lation*1 Image Enhancement*2 Adjusts the smoothness of movement of the image. 4K Enhancement On, Off You can project at a doubled resolution. Image Preset Mode Off, Preset 1 to Preset 5 Select the settings prepared in advance as the settings for Noise Reduction, MPEG Noise Reduction, Super-resolution, and Detail Enhancement. Noise Reduction Adjusts the roughness of the image. MPEG Noise Reduction Smoothes out rough images in MPEG format. Super-resolution Fine Line Adjust, Soft Focus Detail Adjusts the amount of enhancement for complicated images and backgrounds. Creates a more emphatic texture and material feel of the image. Detail Enhancement 77 Configuration Menu Function Advanced Menu/Settings Gamma RGBCMY R/G/B/C/M/Y Deinterlacing Explanation 2, 1, 0, -1, -2, Customized*3, Reset Performs gamma adjustments. You can select a raw value or adjust using a custom value. s p.39 Hue, Saturation, Brightness Adjusts the hue, saturation, and brightness for each R, G, B, C, M, and Y color. s p.37 Off, Video, Film/Auto (This can only be set when Image Pro‐ cessing is set to Fine or when receiving 480i, 576i, or 1080i signal input from the HDMI1, or HDMI2 ports or from WirelessHD.) Converts the signal from interlaced (i) to progressive (p) using a method appropriate for the image signal. • Off: This is ideal for dynamic motion images. • Video: This is ideal for viewing general video images. • Film/Auto: Performs the optimal conversion for film, CG, or animation input signals. EPSON Super White*1 On, Off Set this to On if you are experiencing bright over exposure of whites in your image. When set to On, HDMI Video Range settings are disabled. Lens Iris*4 Adjusts the amount of light entering the lens with the lens diaphragm, which adjusts the contrast of the image. Power Consumption High, Medium, ECO You can set the lamp brightness to one of three settings. Select ECO if the images being projected are too bright. When ECO is selected, power consumption during projection decreases, and fan rotation noise is reduced. Auto Iris Off, Normal, High Speed You can change the luminance adjustment tracking for changes in brightness in the displayed image. s p.36 Reset Yes, No Resets the adjustment values of Image set in the current Color Mode to the default settings. *1 Only when an HDMI1 or HDMI2 image signal is being input. *2 Only when an HDMI1, HDMI2, or PC image signal is being input. *3 Settings are saved for each type of input source or Color Mode. *4 EH-TW9300W/EH-TW9300/EH-TW8300W/EH-TW8300 only. Signal menu The Signal menu cannot be set when a LAN image signal is being input. 78 Configuration Menu Function 3D Setup*1 Menu/Settings Explanation 3D Display Auto, 3D, 2D To view 3D images, set this to Auto or 3D. s p.43 3D Format Side by Side, Top and Bottom Sets the 3D format for the input signal. 2D-to-3D Conversion Off, Weak, Medium, Converts 2D images to 3D images. Strong 3D Depth -10 - 10 Sets the depth for the 3D image. Diagonal Screen Size 60 - 300 Sets the projection size for the 3D image. By matching this to the actual size, you can achieve the optimum 3D effect. 3D Brightness Low, Medium, High Sets the brightness for the 3D image. Inverse 3D Glasses Yes, No Reverses the synchronization timing for the left/ right shutters on the 3D Glasses and the left/right images. Enable this function if the 3D effect is not displayed correctly. 3D Viewing Notice On, Off Turns the notice that appears when viewing 3D content on or off. Aspect*2 Auto*1, Normal, Full, Zoom, Anamorphic Wide*3, Horiz. Squeeze*3 Selects the aspect mode. s p.33 Tracking*2 *4 Varies depending on the input signal. Adjusts computer images when vertical stripes appear in the images. Sync.*2 *4 0 - 31 Adjusts computer images when flickering, fuzziness, or interference appear in the images. • Adjusting the Brightness, Contrast, or Sharp‐ ness may cause flickering or fuzziness. • When adjusting Sync. after adjusting the Track‐ ing, you can create a more vivid image. Position*2 *4 Adjusts the display position up, down, left, and right when a part of the image is missing so that the whole image is projected. Auto Setup*4 On, Off Sets whether or not to automatically adjust the image whenever the input signal is changed. When enabled, the Tracking, Position, and Sync. are automatically configured. Overscan*1 *2 Auto, Off, 4%, and 8% Changes the output image ratio (the range of the projected image). • Off, 4%, 8%: Sets the range of the image. When set to Off, the entire range of the image is projected. Depending on the image signal, you may notice noise at the top and bottom of the image. • Auto: Automatically sets to Off or 8% depending on the input signal. Covers part of the image with a blank (black screen). You can set the top, bottom, left, or right of the image. Blanking 79 Configuration Menu Function Advanced Reset Menu/Settings Explanation HDMI Video Range*1 *2 Auto, Normal, Expanded (This can only be set when EPSON Super White is set to Off.) When set to Auto, the video level for the DVD input signal to the HDMI1 or HDMI2 ports is automatically detected and set. If you experience under or overexposure when set to Auto, set the video level of the projector to match that of the DVD/Blu-ray disc player's video level. Your player may be set to Normal or Expand. Color Space*1 Auto, BT.709, BT. 2020 Sets the conversion system for the color space. Dynamic Range*1 Auto, SDR, HDR When receiving an HDR (High Dynamic Range) Mode1, HDR signal, use this when HDR information is not disMode2, HDR played correctly in the image signal. Mode3, HDR Mode4 Image Processing Fine, Fast*1 *4 Improves the response speed for images projected at high-speed, such as games. Yes, No Resets all Signal settings except for Diagonal Screen Size, 3D Viewing Notice, and Aspect. *1 Only when an HDMI1, HDMI2, WirelessHD image signal is being input. *2 Settings are saved for each type of input source or signal. *3 EH-TW9300W/EH-TW9300 only. *4 Only when a PC image signal is being input. Settings menu Function Menu/Settings Keystone Keystone Picture in Picture - Explanation -60 - 60 Corrects keystone distortion. s p.31 Starts the Picture in Picture display. s p.65 80 Configuration Menu Function HDMI Link Menu/Settings Explanation Device Connections - Displays a list of devices connected from the HDMI1 or HDMI2 ports, or from WirelessHD*. HDMI Link On, Off Enables or disables the HDMI Link function. Audio Out Device WiHD Transmitter (Optical)*, WiHD Transmitter (HDMI)* Selects which device outputs audio. s p.63 Power On Link Off, Bidirectional, Device - Sets the link function when the power > PJ, PJ -> Device is turned on. • When linking operations to the connected device and turning on the projector, select Bidirectional or Device -> PJ. • When linking power on for the projector to the connected device, select Bidirectional or PJ -> Device. WirelessHD* Power Off Link On, Off Sets whether or not to power off connected devices when the projector is turned off. Link Buffer On, Off If HDMI Link is not working correctly, you may be able to improve it by changing the settings. Connected Device - Displays the available WirelessHD device that can be connected. WirelessHD On, Off Enables or disables the WirelessHD function. Indicates the connection status with the WirelessHD Transmitter. While connected, Transmitter detected is displayed. Video Reception Reset Yes, No Resets WirelessHD settings to their default settings. Note that even if you reset the projector, the WirelessHD Transmitter settings are not reset. To reset the WirelessHD Transmitter, press the Setup button on the base for 5 seconds or more. s p.49 81 Configuration Menu Function Lock Setting Menu/Settings Explanation Lens Lock On, Off When set to On, the focus, zoom, and lens shift settings are locked at their current settings. If you press the button when Lens Lock is set to On, is displayed on the screen. Child Lock On, Off button on the proThis locks the jector's control panel to prevent children from turning on the projector by accident. You can turn on the power when locked by holding down the button for approximately three seconds. You can still turn off the debutton, or perform vice using the operations with the remote control as usual. If changed, this setting is enabled after you power off the projector and the cool-down process is complete. Note that even if Child Lock is set to On, the projector still turns on when the power cord is connected if Direct Power On is set to On. Control Panel Lock Full Lock, Partial Lock, Off Full Lock: Disables all of the projector's buttons. Partial Lock: Disables all of the projector's buttons except for the button. is displayed on the screen if buttons are pressed while the projector is locked. To unlock, press and hold the button on the control panel for at least 7 seconds. If changed, this setting is enabled once you close the Configuration menu. User Button Fine/Fast, 3D Display, 2D-to-3D Conversion, Brightness Control, Info, Display the QR Code 82 Select a Configuration menu item to assign to the button on the remote control. By pressing the button, the assigned menu item selection/adjustment screen is displayed, allowing you to make onetouch settings/adjustments. Configuration Menu Function Memory Reset Menu/Settings Explanation Load Memory Memory1 to Memory10 Loads the settings saved in Save Memory to adjust the image. Save Memory Memory1 to Memory10 Saves the settings made in Image to a memory. Erase Memory Memory1 to Memory10 Erases a saved memory. Rename Memory Memory1 to Memory10, Changes the saved memory name. Default, DVD, VCR, SDTV, HDTV, Cinema, Sports, Music, Anime, Game, Customized Load Lens Position Memory1 to Memory10 Loads the settings created in Save Lens Position allowing you to adjust the lens position. Save Lens Position Memory1 to Memory10 Registers the adjustment values for zoom, focus, and lens shift that were created using the lens adjustment function as the lens position. Erase Lens Position Memory1 to Memory10 Erases the registered lens position. Rename Lens Position Memory1 to Memory10 Changes the name registered for the lens position. Yes, No Resets all Settings except for Audio Out Device, Power On Link, Power Off Link, User Button, and Memory. * EH-TW9300W/EH-TW8300W only. Extended menu Function Home Screen Menu/Settings Explanation Home Screen Auto Disp. On, Off Selects whether or not to display the Home screen automatically when the projector turns on. The Home screen is not displayed when the selected source has an image signal when the projector turns on. Custom Function 1 Power Consumption, Auto Iris, Key- Select the function assigned to the stone, Info Home screen. Custom Function 2 83 Configuration Menu Function Display Menu/Settings Explanation Menu Position - Sets the position where the menu should be displayed. Messages On, Off Sets whether or not to display the following messages (On or Off). • Item names for image signals, color modes, and aspect ratios. • If the internal temperature is rising when no image signal is being input or an unsupported signal is detected. Display Background Black, Blue, Logo Selects the screen status when no image signal is being input. Startup Screen On, Off Sets whether or not to show a startup screen when projection begins (On or Off). If changed, this setting is enabled after you power off the projector and the cool-down process is complete. Standby Confirmation On, Off Sets whether or not to display a standby confirmation message (On or Off). s p.27 Panel Alignment - s p.86 Color Uniformi- Color Unity formity On, Off Adjustment Level Projection Enables or disables Color Uniformity. There are eight levels from white, through gray, and up to black. You can adjust each level individually. Start Adjustments Red, Green, Blue Starts making Color Uniformity adjustments. Reset Yes, No Resets all adjustments and settings for Color Uniformity to their default values. Front, Front/Ceiling, Rear, Rear/Ceiling 84 Change this setting depending on how the projector is installed. Configuration Menu Function Operation Menu/Settings Explanation Direct Power On On, Off You can set up the projector so that projection starts as soon as the power cord is plugged in without any button operations. Note that when this is set to On, projection starts if power is restored after a blackout or other power outage and the power cord is still plugged into the projector. Sleep Mode On, Off If the set time is exceeded and no signal is input, the projector is automatically turned off and enters standby mode. When in standby mode, press button on the remote control the button on the control panor the el to start projection. Sleep Mode Timer 1 - 30 Sets the interval for Sleep Mode. Illumination On, Off Set this to Off if the light from the indicators on the control panel bother you when watching a movie in a dark room. When set to Off, the WiHD transmitter indicator also turns off while standing by. Trigger Out Off, Power, Anamorphic Wide*1 On, Off*2 Set the Trigger Out function to communicate the projector's power on status and so on to external devices. When set to Off, no voltage is output from the Trigger Out port. When set to On or Power, voltage is output from the Trigger Out port when the projector is on. If you change this setting, the new setting will take effect the next time you turn the projector on. For Anamorphic Wide, when the projector is on and Aspect is set to Anamorphic Wide or Horiz. Squeeze, voltage is output from the Trigger Out port. If you change this setting, the new setting will take effect the next time you turn the projector on. High Altitude Mode Standby Mode On, Off Set this to On if you are using the projector above an altitude of 1500 meters. Communication Off, Communication On Communication On indicates that the projector can be monitored over a network when the projector is in standby mode. 85 Configuration Menu Function Menu/Settings Explanation Language - Selects the display language. Reset Yes, No Resets all Extended settings except for Memory, Projection, High Alti‐ tude Mode, Standby Mode, and Language. *1 EH-TW9300W/EH-TW9300 only. *2 EH-TW8300W/EH-TW8300/EH-TW7300 only. Panel Alignment menu Menu/Settings Panel Alignment Explanation Panel Alignment On, Off Enables or disables Panel Alignment. Select Color R, B Select the color to correct. Pattern Color R/G/B, R/G, G/B Select the pattern used for correction. Start Adjustments - Starts Panel Alignment. s p.112 Memory Load Panel Alignment Memory1, Memory2, Memory3 Loads settings saved using the Save Panel Alignment function. Save Panel Alignment Memory1, Memory2, Memory3 Saves the settings made in Panel Alignment to a memory. Erase Panel Alignment Memory1, Memory2, Memory3 Erases memories registered using the Panel Alignment function. Rename Panel Alignment Memory1, Memory2, Memory3 Renames Panel Alignment memories. Reset Yes, No Resets the correction value. Network menu Function Menu/Settings Explanation Wireless LAN Power On, Off Sets whether or not to use a wireless LAN (On or Off). Net. Info. - Wireless LAN - Displays the following network settings. • • • • • • • • • • • 86 Connection Mode Wireless LAN system Antenna Level Projector Name SSID DHCP IP Address Subnet Mask Gateway Address MAC Address Region Code Configuration Menu Function Menu/Settings - Net. Info. - Wired LAN Explanation Displays the following network setting status information. • • • • • • Projector Name DHCP IP Address Subnet Mask Gateway Address MAC Address Display the QR Code - Displays network information for the projector with a QR code. Network Configuration - Displays the screen to set the network. s p.88 Notes on operating the Network menu Basic operations are made in the same way as when using the Configuration menu. However, be sure to select the Complete menu to save your settings when done. Yes: No: Cancel: Saves the settings and exits the Network menu. Exits the Network menu without saving the settings. Continues displaying the Network menu. Soft Keyboard Operations In the Network menu, the soft keyboard appears when you need to enter numbers and characters. Press the buttons on the remote control or the buttons on the control panel to select keys, button to input them. Press Finish to confirm your input, or Cancel to cancel your and then press the input. CAPS key: SYM1/2 key: Switches between uppercase and lowercase letters. Switches the symbol keys. 87 Configuration Menu Basic menu Function Menu/Settings Explanation Projector Name Up to 16 alphanumeric Enter a name to identify the projector over a network. characters PJLink Password Up to 32 alphanumeric Set a password to use when you control the projector using characters compatible PJLink software. s p.116 Remote Password Up to 8 alphanumeric characters Set a password to use when you operate the projector from a smartphone or a tablet. Display LAN Info. Text & QR Code, Text Set the display format for the projector's network information. Wireless LAN menu Function Menu/Settings Explanation Connection Mode Quick, Advanced Determines how the wireless LAN is connected. Quick: Lets you connect to multiple smartphones, tablets, or computers directly using wireless communication. Use EasyMP MultiPC Projection to connect in this connection mode. The projector acts as an easy access point. (We recommend limiting the number of devices to six or less to maintain the projection performance.) Advanced: Lets you connect to multiple smartphones, tablets, or computers over a wireless network access point. Channel 1ch, 6ch, 11ch (This can only be set when Connection Mode is set to Quick.) Select the frequency bandwidth used by the wireless LAN. SSID Up to 32 alphanumeric (This can only be set when Connection Mode is set to Ad‐ characters vanced.) Enter an SSID. When an SSID is provided for the wireless LAN system in which the projector participates, enter the SSID. Search Access Point To Search View (This can only be selected when Connection Mode is set to Advanced.) Search for available wireless network access points. indicates currently connected access points. indicates the access points where security is set. If you select an access point which has security, Security menu appears. s p.89 IP Settings (This can only be set when Connection Mode is set to Ad‐ vanced.) DHCP Sets whether or not to use DHCP (On or Off). If this is set to On, you cannot set any more addresses. IP Address Inputs the IP address for the projector. The following IP addresses cannot be used. 0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255) Subnet Mask Inputs the subnet mask for the projector. The following subnet masks cannot be used. 0.0.0.0, 255.255.255.255 Gateway Address Inputs the gateway IP address of the projector. The following gateway addresses cannot be used. 0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255) 88 Configuration Menu Function Menu/Settings Explanation SSID Display On, Off Sets whether or not to display the SSID on the LAN Standby screen and the Home screen (On or Off). IP Address Display On, Off Sets whether or not to display the IP address on the LAN Standby screen and the Home screen (On or Off). Security menu Function Menu/Settings Explanation Security No, WPA2-PSK, WPA/ WPA2-PSK Sets the security. In Quick, WPA2-PSK is selectable. In Advanced, WPA2PSK/WPA/WPA2-PSK is selectable. Passphrase From 8 to 32 singlebyte alphanumeric characters Inputs the passphrase. It is recommended to change the passphrase periodically for the purpose of security. Wired LAN menu Function Menu/Settings Explanation DHCP On, Off Set whether or not (On/Off) to use DHCP. If this is set to On, you cannot set any more addresses. IP Address 0 to 255 characters Enter the IP address assigned to the projector. You can enter a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used. 0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255) Subnet Mask 0 to 255 characters Enter the projector's subnet mask. You can enter a number from 0 to 255 in each field of the address. However, the following subnet masks cannot be used. 0.0.0.0, 255.255.255.255 Gateway Address 0 to 255 characters Enter the projector's gateway IP address. You can enter a number from 0 to 255 in each field of the address. However, the following gateway addresses cannot be used. 0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255) IP Address Display On, Off Set to Off to prevent the IP address from being displayed on the Net. Info. - Wired LAN screen. 89 Configuration Menu Others menu Function Menu/Settings Explanation AMX Device Discovery On, Off When you want to allow the projector to be detected by AMX Device Discovery, set this to On. Set this to Off if you are not connected to an environment controlled by a controller from AMX or AMX Device Discovery. Control4 SDDP On, Off When you want to allow the projector to be detected by Control4 SDDP, set this to On. Set this to Off if you are not connected to an environment controlled by a controller from Control4 or Control4 SDDP. Reset menu Function Explanation Reset network settings. You can reset all adjustment values for Network to their default settings. Info menu Function Projector Info Version Menu/Settings Explanation Lamp Hours Displays the cumulative lamp operating time*. Source Displays the current input source. Input Signal Displays the input signal setting of the current input source. Resolution Displays the resolution. Scan Mode Displays the scan mode. Refresh Rate Displays the refresh rate. 3D Format Displays the 3D format of the signal input during 3D projection (Frame Packing, Side by Side, or Top and Bottom). Sync Info Displays the image signal information. This information may be needed if service is required. Color Depth Displays the color depth and color difference. Color Format Displays information on the color space and dynamic range. Status This is information about errors that have occurred on the projector. This information may be needed if service is required. Serial Number Displays the projector's serial number. Event ID The application error log appears. s p.103 Main Displays the firmware version of the projector. Video2 * The cumulative use time is displayed as "0H" for the first 10 hours. 10 hours and above is displayed as "10H", "11H", and so on. 90 Configuration Menu Reset menu Function Explanation Reset Lamp Hours Resets the cumulative lamp hours use time to 0 H. Reset when you replace the lamp. Reset Memory Resets all items for Memory to their default settings. Reset Lens Position Resets all settings saved using the Save Lens Position function. Reset All Resets all items in the Configuration menu to their default settings. The following adjustment values are not reset to their defaults: Memory, Panel Alignment, Color Uniformity, Lamp Hours, Language, and Network Settings. 91 Troubleshooting Problem Solving Reading the Indicators You can check the status of the projector from the flashing and lit the control panel. , (operation indicator), o and m on Refer to the following table to check the projector's status and how to remedy problems shown by the indicators. Indicator status during an error/warning : Lit Indicators Status : Flashing : Status maintained : Off Remedy Replace Lamp It is time to replace your lamp. Replace the lamp with a new lamp as soon as possible. s p.109 The lamp may explode if you continue to use it in this status. High Temp Warning You can continue projecting. If the temperature rises too high again, projection stops automatically. (blue)/(orange) • If the projector is installed next to a wall, make sure there is at (blue)/(orange) least 20 cm between the wall and the projector's exhaust vent. • If the air filter is clogged, clean it. s p.105 92 Troubleshooting Indicators Status Internal Error Remedy The projector has malfunctioned. Remove the power plug from the electrical outlet, and contact your local dealer or the nearest Epson repair center. s Epson Projector Contact List (blue)/(orange) Fan Error Sensor Error (blue)/(orange) Cinema Filter Error Auto Iris Error (blue)/(orange) Power Err. (Ballast) (blue)/(orange) Lamp Error There is a problem with the lamp, or it failed to turn on. Lamp Failure • Disconnect the power cord, and then check if the lamp is cracked. s p.109 If it is not cracked, reinstall the lamp and turn on the power. If reinstalling the lamp does not fix the problem, or if the lamp is cracked, remove the power plug from the electrical outlet, and contact your local dealer or the nearest Epson repair center. s Epson Projector Contact List • Check that the lamp cover has been properly closed. • If the air filter is clogged, clean it. s p.105 • When using at an altitude of 1500 m or more, set High Altitude Mode to On. s Extended - Operation - High Altitude Mode p.83 (blue)/(orange) High Temp Error (Overheating) (blue)/(orange) The internal temperature is too high. • The lamp turns off automatically and projection stops. Wait for about five minutes. When the fan has stopped, disconnect the power cord. • If the projector is installed next to a wall, make sure there is at least 20 cm between the wall and the projector's exhaust vent. • If the air filter is clogged, clean it. s p.105 • If turning the power back on does not clear the problem, stop using the projector and remove the power plug from the electrical outlet. Contact your local dealer or the nearest Epson repair center. s Epson Projector Contact List Indicator status during normal operation : Lit 93 : Flashing : Off Troubleshooting Indicators Status Standby condition Remedy When you press the button on the remote control, or the button on the control panel, projection starts after a short wait. Warm-up in progress Warm-up time is about 30 seconds. The power-off operation is disabled while the projector is warming-up. (blue) Cool-down in progress All operations are disabled while the projector is cooling-down. The projector enters standby condition when cool-down is complete. If for any reason the power cord is disconnected during cool-down, wait until the lamp has cooled down sufficiently (about 10 minutes), reconnect the power cord, and then press button on the remote control, or the button on the the control panel. Projection in progress The projector is operating normally. (blue) c • Under normal operating conditions, the o and m indicators are off. • When the Illumination function is set to Off, all indicators are off under normal projection conditions. s Extended - Operation - Illumination p.83 When the Indicators Provide No Help Check the problem Check the following table to see if your problem is mentioned, and go to the appropriate page for information on handling the problem. Problem Problems relating to images Page No images appear. p.95 Projection does not start, the projection area is completely black, or the projection area is completely blue. Moving images being projected from a computer are not projected. p.96 "Not supported" is displayed. p.96 "No Signal" is displayed p.96 Images are fuzzy or out of focus. p.96 Interference or distortion appears in the images. p.97 The image is truncated (large) or small, or only a part of the image is projected. p.97 Image colors are not right. p.97 The whole image appears purplish or greenish, images are black & white, or colors appear dull.* Images appear dark. p.98 Projection stops automatically. p.98 94 Troubleshooting Problem Page Problems when projection The projector does not turn on. starts p.98 Problems with the remote The remote control does not respond. control p.99 Problems with the control panel Cannot make settings on the control panel. p.99 Problems with 3D Cannot project correctly in 3D. p.99 Problems with HDMI HDMI Link does not function. p.100 The device name is not displayed under device connections. p.101 Problems with WirelessHD Cannot project WirelessHD images. Network problems p.101 Interference, distortion, or interruption appear in WirelessHD. p.101 Half of the image on the left or right stops projecting or the image is doubled up. p.102 Cannot access the network via wireless LAN. p.102 The image contains static during network projection. p.102 * Because color reproduction differs between monitors and computer LCD screens, the image projected by the projector and the color tones displayed on the monitor may not match, however this is not a fault. Problems relating to images No images appear Check Remedy Is the projector turned on? Press the button on the remote control or the on the control panel. Is the power cord connected? Connect the power cord. Are the indicators switched off? Disconnect and then reconnect the projector's power cord. Check that pressing the power button after connection supplies the projector with power. Is an image signal being input? Check that the connected device is turned on. When Messag‐ es is set to On from the Configuration menu, image signal messages are displayed. s Extended - Display - Messages p.83 button Are the Configuration menu settings correct? Reset all of the settings. s Reset - Reset All Config p.91 (Only when projecting computer image signals) If the connection is made while the power is already turned on, the Fn key (Function key) that changes the computer's image signal to external output may not work. Turn off the power for Was the connection made while the power of the computer and the projector and then turn it back on again. the projector or the computer was already turned on? 95 Troubleshooting Moving images are not displayed Check Remedy (Only when projecting computer image signals) Depending on the computer's specifications, moving images may not be displayed when the computer is set to external output and to the LCD monitor output at the same time. Is the computer's image signal set to external Change it so that the image signal is set to external output only. output and to output to the LCD monitor at For the computer's specifications, see the documentation supthe same time? plied with the computer. "Not supported" is displayed Check Remedy (Only when projecting computer image signals) Check the image signal being input in Resolution from the Configuration menu, and check that it corresponds to the projector's resolution. s Info - Projector Info p.90 Do the image signal's frequency and resolution correspond to the mode? s p.118 "No Signal" is displayed Check Remedy Are the cables connected correctly? Check that all the cables required for projection are securely connected. s p.19 Is the correct image input port selected? Change the image with the source buttons on the remote control, or the button on the control panel. s p.26 Is the connected device turned on? Turn on the device. (Only when projecting computer image signals) Change it so that the image signal is set to external output, and not just the computer's LCD monitor. For some models, when the image signals are output externally, they no longer appear on the LCD monitor. For the computer's specifications, see the documentation supplied with the computer. Are the image signals being output to the projector? If the connection is made while the power of the projector or the computer is already turned on, the Fn key (Function key) that changes the computer's image signal to external output may not work. Turn the power for the computer and the projector off and then back on again. Images are fuzzy or out of focus Check Remedy Has the focus been adjusted? Adjust the focus. s p.29 Is the projector at the correct distance? Check the recommended projection range. s p.16 96 Troubleshooting Check Has condensation formed on the lens? Remedy If the projector is suddenly taken from a cold environment to a warm environment, or if sudden ambient temperature changes occur, condensation may form on the surface of the lens, and this may cause the images to appear fuzzy. Set the projector up in the room about one hour before it is used. If the projector is wet from condensation, turn off the projector, disconnect the power cord, and leave it for a while. Interference or distortion appear in images Check Remedy Are the cables connected correctly? Check that all the cables required for projection are securely connected. s p.19 Is an extension cable being used? If an extension cable is used, electrical interference may affect the signals. (Only when projecting computer image signals) The projector uses automatic adjustment functions to project at the optimum status. However, depending on the signal, some may not be adjusted correctly even after performing self correcAre the Sync. and Tracking settings adjusted tions. If this happens, adjust the Tracking and Sync. settings correctly? from the Configuration menu. s Signal - Tracking/Sync. p.78 (Only when projecting computer image signals) Set the computer so that the signals being output are compatible with the projector. s p.118 Is the correct resolution selected? Part of the image is truncated (large) or small Check Remedy Is the correct Aspect selected? Select the aspect mode to match the input signal in Aspect from the Configuration menu. s Signal - Aspect p.78 Is the image Position adjusted correctly? Adjust the Position setting from the Configuration menu. s Signal - Position p.78 (Only when projecting computer image signals) Set the computer so that the signals being output are compatible with the projector. s p.118 Is the correct resolution selected? Image colors are not right Check Are the cables connected correctly? Is the contrast adjusted correctly? Remedy Check that all the cables required for projection are securely connected. s p.19 For the PC port, make sure the connector is the same color as the cable port. s p.19 Adjust the Contrast setting from the Configuration menu. s Image - Contrast p.77 Is the color adjusted correctly? Adjust the Advanced setting from the Configuration menu. s Image - Advanced p.77 97 Troubleshooting Check Remedy (Only when projecting images from a video device) Adjust the Color Saturation and Tint settings from the Configuration menu. s Image - Color Saturation/Tint p.77 Are the color saturation and tint adjusted correctly? Images appear dark Check Remedy Is the image brightness set correctly? Adjust the Brightness setting from the Configuration menu. s Image - Brightness p.77 Is the contrast adjusted correctly? Adjust the Contrast setting from the Configuration menu. s Image - Contrast p.77 Is it time to replace the lamp? When the lamp is nearly ready for replacement, the images become darker and the color quality becomes poorer. When this happens, replace the lamp with a new lamp. s p.109 Projection stops automatically Check Is Sleep Mode enabled? Remedy If the set time is exceeded and no signal is input, the lamp is automatically turned off and the projector enters standby mode. The projector returns from standby status when you press the button on the remote control or the button on the control panel. If you want to disable Sleep Mode, change the setting to Off. s Extended - Operation - Sleep Mode p.83 Problems when projection starts The projector does not turn on Check Remedy Is the power turned on? button on the remote control or the Press the on the control panel. Is Child Lock set to On? When Child Lock is set to On from the Configuration menu, hold down the button on the control panel for approximately three seconds, or perform operations from the remote control. s Settings - Lock Setting - Child Lock p.80 Do the indicators turn on and off when the power cord is touched? Turn off the projector, and then disconnect and reconnect the projector's power cord. If the problem continues, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest projector information center. s Epson Projector Contact List Are the lamp cover and lamps installed correctly? If the lamp or lamp cover is installed incorrectly, the projector cannot be turned on. Check how it is installed. s p.109 98 button Troubleshooting Problems with the remote control The remote control does not respond Check Remedy Is the remote control light-emitting area Point the remote control towards the remote receiver. Also, pointing towards the remote receiver on the check the operating range. s p.23 projector during operation? Is the remote control too far from the projec- Check the operating range. s p.23 tor? Is direct sunlight or strong light from fluores- Set the projector up in a location where strong light does not cent lamps shining onto the remote receiver? shine onto the remote receiver. Are the batteries dead or have the batteries been inserted correctly? Make sure the batteries are inserted correctly or replace the batteries with new ones if necessary. s p.23 Is the remote control pointed at the WireMake sure you point the remote control at the WirelessHD TranslessHD Transmitter when operating the Wire- mitter when using the WirelessHD Transmitter control button on lessHD Transmitter control button? (EHthe remote control. s p.60 TW9300W/EH-TW8300W only) Problems with the control panel Cannot make settings on the control panel Check Remedy Is Control Panel Lock set to Full Lock or Par‐ When Control Panel Lock is set to Full Lock in the Configuration menu, all button operations on the control panel are disatial Lock? bled; when Partial Lock is set, only the button on the control panel is available. Perform operations from the remote control. s Settings - Lock Setting - Control Panel Lock p.80 Problems with 3D Cannot project correctly in 3D Check Remedy Are the 3D Glasses turned on? Turn on the 3D Glasses. Is a 3D image being projected? If the projector is projecting a 2D image, or if an error occurs on the projector that prevents the 3D image from being projected, you cannot view 3D images even if you are wearing the 3D Glasses. Is the input image in 3D? Check that the input image is 3D compatible. Since most TV broadcasts do not contain a 3D format signal, 3D reception must be set manually. Is 3D Display set to 2D? If 3D Display is set to 2D from the Configuration menu, the projector does not automatically change to 3D even when a 3D image is input. Set 3D Display to 3D or Auto. s Signal - 3D Set‐ up - 3D Display p.78 99 Troubleshooting Check Is 3D Format set correctly? Remedy Unless the 3D format of the AV device and 3D Format of the projector are the same, part of the image may not be displayed. Check that the projector's 3D Format setting matches the 3D format setting for the AV device. s Signal - 3D Setup - 3D For‐ mat p.78 When changing the 3D Format, set 3D Display to 3D, and then button. press the Are you viewing within the reception range? If the distance between the projector and the 3D Glasses exceed 10 m, the connection may be lost. Move the 3D Glasses closer to the projector. Has pairing been performed correctly? Perform pairing. s p.45 Are there any devices that cause radio wave interference in the vicinity? When using other devices at the same time with the frequency band (2.4 GHz) such as Bluetooth communication devices, wireless LAN (IEEE802.11b/g), or microwave ovens, radio wave interference may occur, the image may be interrupted, or communication may not be possible. Do not use the projector near these devices. Problems with HDMI HDMI Link does not function Check Remedy Are you using a cable that meets the HDMI standards? Operations are not possible with cables that do not meet the HDMI standards. Does the connected device meet the HDMI CEC standards? If the connected device does not meet the HDMI CEC standards, it cannot be operated even if it is connected to the HDMI port. See the documentation and so on supplied with the connected device for more information. Also, press the button, and then check if the device is available under Device Connections. s p.64 Are the cables connected correctly? Check that all the cables required to use HDMI Link are securely connected. s p.63 Is the power for the amplifier or DVD recorder Put each device in standby status. See the documentation and and so on turned on? so on supplied with the connected device for more information. If you have connected a speaker and so on, set the connected equipment to PCM output. Was a new device connected, or was the con- If the CEC function for a connected device needs to be set again, nection changed? for example when a new device is connected or the connection is changed, you may need to restart the device. Are many multi-media players connected? Up to 3 multi-media players that meet the HDMI CEC standards can be connected at the same time. 100 Troubleshooting The device name is not displayed under Device Connections Check Does the connected device meet the HDMI CEC standards? Remedy If the connected device does not meet the HDMI CEC standards, it is not displayed. See the documentation and so on supplied with the connected device for more information. Problems with WirelessHD (EH-TW9300W/EH-TW8300W only) Cannot project WirelessHD images Check Remedy Does the cable connecting the supplied Wire- If the cable does not meet the HDMI standards, operations are lessHD Transmitter meet the HDMI standnot possible. ards? Is WirelessHD set to Off? When WirelessHD is set to Off from the Configuration menu, projection is not possible for WirelessHD input signals. Set Wire‐ button. s Settings lessHD to On, and then press the WirelessHD - WirelessHD p.80 Are signals being received within the WirelessHD transmission range? Check the range within which the WirelessHD's transceiver can communicate, and view within that range. s p.59 Is the supplied WirelessHD Transmitter turned on? Check the power lamp on the WirelessHD Transmitter. If there is no power being supplied, make sure the connector for the AC adapter is securely connected, and then turn on the power switch. Is the WirelessHD indicator for the supplied WirelessHD Transmitter off? The WirelessHD cannot communicate with the projector. Check the range within which the WirelessHD's transceiver can communicate, and setup within that range. Is the Link indicator for the supplied WirelessHD Transmitter off? No signal is output from the AV device connected to the WirelessHD Transmitter. Check that the cables from the AV device and the WirelessHD Transmitter are securely connected. Are the projector and the WirelessHD Transmitter facing the correct way? Setup the projector and the WirelessHD Transmitter so that they are facing each other. Interference, distortion, or interruption appear in WirelessHD Check Are signals being received within the WirelessHD transmission range? Remedy Check the range within which the WirelessHD's transceiver can communicate, and view within that range. s p.59 Are there any obstructions between the Wire- Because WirelessHD communicates using a tight beamed eleclessHD Transmitter and the projector? tromagnetic wave, if there are any people or objects and so on obstructing the communication path, this could have an adverse affect on the image. Make sure that there are no obstacles between the WirelessHD Transmitter and the projector within the WirelessHD transmission range. s p.59 101 Troubleshooting Check Is the reception too low? Remedy If the transmissions are not strong enough, communication may be unstable. Check Video Reception as you set up the transmitter as it is sometimes possible to improve the strength of the transmission by moving the WirelessHD Transmitter or changing its direction. s Settings - WirelessHD - Video Reception p.80 Transmission strength may differ depending on the surroundings, or they may be unstable. While checking Video Recep‐ tion, setup the transmitter in a location where the number displayed remains steady. s Settings - WirelessHD - Video Re‐ ception p.80 Half of the image on the left or right stops projecting or the image is doubled up Check Is the reception too low? Remedy Check Video Reception as you set up the transmitter as it is sometimes possible to improve the strength of the transmission by moving the WirelessHD Transmitter or changing its direction. s Settings - WirelessHD - Video Reception p.80 Network problems Cannot access the network via wireless LAN Check Remedy Is Wireless LAN Power set to Off? Set Wireless LAN Power to On in the Configuration menu. If this is already set to On, set Wireless LAN Power to Off, and then set it to On again. s Network - Wireless LAN Power p.86 Is the passphrase correct? Note that the passphrase is case sensitive; upper case and lower case letters are treated as different characters. If you have forgotten your passphrase, set a new one. s Network - Network Configuration - Security - Passphrase p.89 Have you checked the Event ID? Check the Event ID number and perform the following steps. s Info - Projector Info - Event ID p.90 s p.103 The image contains static during network projection Check Remedy Are there any obstacles between the access point and the connected device? Check for any obstacles between the access point, the mobile device, the computer, and the projector, and change their positions to improve communication. Is the distance between the access point and Make sure that the access point, the mobile device, the computthe connected device too far? er, and the projector are not too far apart. Move them closer together and try to connect again. 102 Troubleshooting Check Remedy Are there any Bluetooth devices or microwave oven in the vicinity? If the wireless connection is slow or your projected image contains noise, check for interference from other equipment, such as a Bluetooth device or microwave. Move the interfering device farther away or expand your wireless bandwidth. Are too many devices connected? Reduce the number of connected devices if the connection speed declines. About Event ID Check the event ID and perform the remedy given below. If you cannot resolve the problem, contact your local dealer or the nearest Epson repair center. s Epson Projector Contact List Event ID Cause Remedy 0022 0027 0028 0029 0030 0031 0035 0434 0481 0482 0485 Network communication is unstable. Check the network communication status, and reconnect after waiting for a while. 0432 0435 Failed to start the network software. Restart the projector. 0433 An image that was transferred cannot be reproduced. Restart the network software. 0484 Communications was cut off from the computer. 04FE The network software ended unexpectedly. Check the status of network communications. Wait for a while and then try connecting again. 0479 04FF A system error occurred in the projector. Restart the projector. 0891 The same SSID access point cannot be found. Set the computer, the access point, and the projector to the same SSID. 0892 WPA and WPA2 authentication type mismatch. Check the setting of wireless LAN security to see if it is correct. 0894 Communications was cut off because a connection was made to the wrong access point. Check with the network administrator and follow their instructions. 0898 Failed to acquire the DHCP. Check that the DHCP server is operating correctly. Turn off DHCP if it is not being used. s Network - Network Configuration - Wire‐ less LAN - IP Settings - DHCP p.86 103 Troubleshooting Event ID 0020 0026 0032 0036 0037 0038 0899 Cause Remedy Other connection errors If restarting the projector or network software does not solve the problem, contact your local dealer or the nearest address provided in the Epson Projector Contact List. s Epson Projector Contact List 104 Maintenance Maintenance Cleaning the Parts You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate. Warning Do not use sprays that contain flammable gas to remove dirt and dust from the projector's lens, air filter, and so on. The projector may catch fire due to the high internal temperature of the lamp. Cleaning the air filter Clean the air filter if dust has accumulated on the air filter or when the following message is displayed. "The projector is overheating. Make sure nothing is blocking the air vent, and clean or replace the air filter." Attention • If dust collects on the air filter, it can cause the internal temperature of the projector to rise, and this can lead to problems with operation and shorten the optical engine's service life. It is recommended that you clean the air filter at least once every three months. Clean them more often than this if using the projector in a particularly dusty environment. • Do not rinse the air filter in water. Do not use detergents or solvents. • Lightly brush the air filter to clean it. If it is brushed too strongly, dust will be ground into the air filter and cannot be removed. a Press the button on the remote button on the control or the control panel to turn off the power, and then disconnect the power cord. b Remove the air filter cover. c Hook your finger into the tab on the air filter cover, and remove it from the lens side. 105 Remove the air filter. Grip the knob in the center of the air filter and pull it out. Maintenance d Hold the air filter with the surface facing down and tap it 4 or 5 times to remove the dust. f Install the air filter. g Install the air filter cover. Grip the air filter by the knob in the center and insert it at an angle. Turn it over and tap the other side in the same way. Secure the tab on the outside first, and then secure the tab on the lens side. Attention If the air filter is hit too hard, it may become unusable due to deformities and cracks. e Remove any dust remaining on the air filter by using a vacuum cleaner from the front side. Cleaning the main unit Before cleaning, make sure you unplug the charging adapter from the outlet. Clean the projector's surface by wiping it gently with a soft cloth. If it is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent, and then firmly wring the cloth dry before using it to wipe the surface. Attention Do not use volatile substances such as wax, alcohol, or thinner to clean the projector's surface. The quality of the case may change or the paint may peel off. 106 Maintenance Cleaning the lens Before cleaning, make sure you unplug the charging adapter from the outlet. After manually opening the lens shutter, carefully wipe away any dirt on the lens with a cloth for cleaning glasses and so on. After cleaning, close the lens shutter. Attention Do not rub the lens with harsh materials or handle the lens too roughly as it can easily become damaged. Cleaning the 3D Glasses Use a commercially available cloth for cleaning glasses to gently wipe off dirt from the lens. Attention • Do not rub the lenses of the glasses with harsh materials or handle the lenses too roughly as they can easily become damaged. • When maintenance is necessary, disconnect the USB Charging Adapter from the electrical outlet, and check that all cables have been disconnected. c The 3D Glasses contain rechargeable batteries. Observe local regulations when you dispose of them. Replacement Periods for Consumables Air filter replacement period • If the message is displayed even though the air filter has been cleaned s p.105 Lamp replacement period • The following message is displayed when projection starts: "It is time to replace your lamp. Please contact your Epson projector reseller or visit www.epson.com to purchase." • The projected image gets darker or starts to deteriorate. 107 Maintenance c • The lamp replacement message is set to appear after 3400 H in order to maintain the initial brightness and quality of the projected images. The message display time changes depending on the usage situation, such as the color mode setting and so on. If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. When the lamp replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working. • Depending on the characteristics of the lamp and the way it has been used, the lamp may become darker or stop working before the lamp warning message appears. You should always have a spare lamp unit ready in case it is needed. Replacing Consumables Replacing the air filter c Dispose of used air filters properly in accordance with your local regulations. • Filter frame: Polypropylene • Filter: Polypropylene a Press the button on the remote button on the control or the control panel to turn off the power, and then disconnect the power cord. b Remove the air filter cover. c Remove the old air filter. d Install the new air filter. Grip the knob in the center of the air filter and pull it out. Hook your finger into the tab on the air filter cover, and remove it from the lens side. 108 Grip the air filter by the knob in the center and insert it at an angle. Maintenance e Install the air filter cover. Secure the tab on the outside first, and then secure the tab on the lens side. Replacing the lamp Warning When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector that has been suspended from the ceiling, you should always assume that the lamp is cracked, and remove the lamp cover with care. When you open the lamp cover, small shards of glass could fall out. If any shards of glass get into your eyes or mouth, contact a doctor immediately. Caution • Do not touch the lamp cover immediately after turning off the projector as it is still hot. Wait until the lamp has cooled down sufficiently before removing the lamp cover. Otherwise, you could get burnt. • We recommend the use of genuine EPSON option lamps. The use of non-genuine lamps may affect projection quality and safety. Any damage or malfunction caused by the use of non-genuine lamps may not be covered by Epson's warranty. a Press the button on the remote button on the control or the control panel to turn off the power, and then disconnect the power cord. b Loosen the lamp cover fixing screw. c 109 Remove the lamp cover. Slide the lamp cover straight forward and remove it. Maintenance d Loosen the two lamp fixing screws. g Tighten the two lamp fixing screws. e Remove the old lamp. h Replace the lamp cover. f Install the new lamp. i Tighten the lamp cover fixing screw. Raise the handle on the lamp, and then pull it straight up. Insert the lamp in the correct direction, and then lower the handle. Slide the cover back into place. Warning Do not disassemble or remodel the lamp. If a modified or disassembled lamp is installed in the projector and used, it could cause a fire, electric shock, or an accident. Caution • Make sure you install the lamp and lamp cover securely. If they are not installed correctly, the power does not turn on. • The lamp contains mercury (Hg). Dispose of used lamps in accordance with your local laws and regulations on disposing of fluorescent tubing. Resetting lamp hours After replacing the lamp, make sure you reset the lamp hours. 110 Maintenance The projector records how long the lamp is turned on and a message and indicator notify you when it is time to replace the lamp. a Turn on the power. b Press the c Select Reset - Reset Lamp Hours. d button. Use the buttons to select Yes, and then press the button to execute. The lamp hours are reset. The Configuration menu is displayed. A reset confirmation message is displayed. 111 Maintenance Panel Alignment Adjusts the pixel color shift of the LCD display. You can adjust the pixels horizontally and vertically by 0.125 pixel within a range of ±3 pixel. c a b • Image quality may decline after performing LCD alignment. • Images for pixels that extend beyond the edge of the projected screen are not displayed. d Press the button while projecting, and then select Display from Extended. Select Panel Alignment, and then button. press the e c Select the color you want to adjust. (1) Select Select Color, and then press the button. (2) Select R (red) or B (blue), and then press the button. (3) Press the button to return to the previous screen. Select the grid color displayed when making adjustments from Pattern Color. (1) Select Pattern Color, and then press button. the (2) Select a combination of R (red), G (green), and B (blue) for the grid color. R/G/B: Displays a combination all three colors; red, green and blue. The actual color of the grid is white. Enable Panel Alignment. R/G: This is available when R is selected from Select Color. Displays a combination of two colors; red and green. The actual color of the grid is yellow. (3) (1) Select Panel Alignment, and then press the button. (2) Select On, and then press the button. button to return to the Press the previous screen. (3) 112 G/B: This is available when B is selected from Select Color. Displays a combination of two colors; green and blue. The actual color of the grid is cyan. Press the button to return to the previous screen. Maintenance f h Select Start Adjustments, and then press the button. When the message is displayed, press the button again. When you have adjusted all four corners, select Exit, and then press the button. Adjustments start. Adjustments are performed in four corners starting from the top-left corner. c g The image may become distorted while adjusting. The image is restored once adjustments are complete. If you feel you still need to make adjustments after correcting all four points, select Select intersection and adjust and then continue making adjustments. Use the , , , and buttons to make adjustments, and then press the button to move to the next adjustment point. 113 Maintenance Color Uniformity If colors in the projected image are uneven, you can adjust the color tone of the whole image in Color Uniformity. c a b The color tone may not be uniform even after performing color uniformity. Press the button while projecting, and then select Display from Extended. Select Color Uniformity, and then button. press the The following screen is displayed. Adjustment Level: There are eight levels from white, through gray, and up to black. You can adjust each level individually. Start Adjustments: Starts making color uniformity adjustments. Reset: Resets all adjustments and settings for Color Uniformity to their default values. The image may become distorted while adjusting Color Uniformity. The image is restored once adjustments are complete. c Select Color Uniformity, and then press the button. d Set this to On, and then press the button. f Use the buttons to set the adjustment level. g Press the button to return to the previous screen. h Select Start Adjustments, and then press the button. i Select the area you want to adjust, and then press the button. Adjust the outer areas first, and then adjust the whole screen. Color Uniformity: Turns color uniformity on or off. c e Select Adjustment Level, and then button. press the 114 Maintenance j Use the buttons to select the color you want to adjust, and then use the buttons to adjust. Press the button to weaken the color tone. Press the button to strengthen the color tone. 115 k Return to step 5 and adjust each level. l To complete the adjustment, press the button. Maintenance About PJLink PJLink Class1 was established by the JBMIA (Japan Business Machine and Information System Industries Association) as a standard protocol for controlling network-compatible projector's as part of their efforts to standardize projector control protocols. The projector complies with the PJLink Class1 standard established by the JBMIA. You need to make network settings before you can use PJLink. See the following for more information on network settings. s p.86 It complies with all commands except for the following commands defined by PJLink Class1, and agreement was confirmed by the PJLink standard adaptability verification. URL: http://pjlink.jbmia.or.jp/english/ • Non-compatible commands Mute settings Function PJLink Command Image muting set AVMT 11 Audio muting set AVMT 21 • Input names defined by PJLink and corresponding projector sources Source PJLink Command PC INPT 11 HDMI1 INPT 32 HDMI2 INPT 33 WirelessHD* INPT 34 LAN INPT 52 * EH-TW9300W/EH-TW8300W only • Manufacturer name displayed for "Manufacture name information query" EPSON • Model name displayed for "Product name information query" EPSON TW9300 EPSON TW9300W EPSON TW8300 EPSON TW8300W EPSON TW7300 116 Appendix Optional Accessories and Consumables The following optional accessories/consumables are available for purchase if required. This list of optional accessories/consumables is current as of: April 2016. Details of accessories are subject to change without notice. Varies depending on country of purchase. Optional Items Name Ceiling mount* Model No. ELPMB22 Explanation Use when installing the projector on a ceiling. ELPMB30 Ceiling pipe 450 (450 mm white)* ELPFP13 Ceiling pipe 700 (700 mm white)* ELPFP14 Use when installing the projector on a high ceiling. RF system 3D Glasses ELPGS03 Use when viewing 3D images. Cable cover ELPCC05 Use this when installing the projector on a ceiling to cover the cables and improve the overall appearance. Do not attach the cable cover when the cable is secured with an HDMI cable clamp. USB Charging Adapter ELPAC01 Use when charging the 3D Glasses. Computer cable (1.8 m) ELPKC02 Use when projecting a computer's screen. Computer cable (3.0 m) ELPKC09 Computer cable (20.0 m) ELPKC10 Wireless LAN unit ELPAP10 Use when connecting an external device to the projector via a wireless LAN to project images. * Special expertise is required to suspend the projector from a ceiling. Contact your local dealer. Consumables Name Model No. Explanation Lamp unit ELPLP89 Use as a replacement for used lamps. (1 lamp) Air filter ELPAF39 Use as a replacement for used air filters. (1 air filter) 117 Appendix Supported Resolutions Computer Signals (Analog RGB) Signal Refresh Rate (Hz) Resolution (dots) VGA 60 640 x 480 SVGA 60 800 x 600 XGA 60 1024 x 768 SXGA 60 1280 x 960 60 1280 x 1024 60 1280 x 768 60 1366 x 768 60 1280 x 800 60 1600 x 900 WXGA WXGA++ HDMI1/HDMI2 Input Signal Signal Refresh Rate (Hz) Resolution (dots) VGA 60 640 x 480 SDTV (480i) 60 720 x 480 SDTV (576i) 50 720 x 576 SDTV (480p) 60 720 x 480 SDTV (576p) 50 720 x 576 HDTV (720p) 50/60 1280 x 720 HDTV (1080i) 50/60 1920 x 1080 HDTV (1080p) 24/30/50/60 1920 x 1080 4K x 2K 24/25/30/50/60 3840 x 2160 4K x 2K 24/50/60 4096 x 2160 3D Input Signal HDMI Signal Refresh Rate Resolution (dots) (Hz) 3D Format Frame Packing Side by Side Top and Bottom HDTV (720p) 50/60 1280 x 720 HDTV (1080i) 50/60 1920 x 1080 - - HDTV (1080p) 50/60 1920 x 1080 - - HDTV (1080p) 24 1920 x 1080 118 Appendix 3D Input Signals MHL (via a WirelessHD Transmitter*) Signal Refresh Rate Resolution (dots) (Hz) 3D Format Frame Packing HDTV (720p) 50/60 1280 x 720 - HDTV (1080i) 50/60 1920 x 1080 - HDTV (1080p) 50/60 1920 x 1080 - HDTV (1080p) 24 1920 x 1080 - Side by Side Top and Bottom - - * HDMI4 port only WirelessHD Input Signal*1*2 Signal Refresh Rate (Hz) Resolution (dots) SDTV (480i) 60 720 x 480 SDTV (576i) 50 720 x 576 SDTV (480p) 60 720 x 480 SDTV (576p) 50 720 x 576 HDTV (720p) 50/60 1280 x 720 HDTV (1080i) 50/60 1920 x 1080 HDTV (1080p) 24/30 1920 x 1080 4K x 2K 24/25/30/50/60 3840 x 2160 4K x 2K 50/60 4096 x 2160 4K x 2K (SMPTE) 24 4096 x 2160 *1 When projecting in WirelessHD, the following signals do not support Deep Color. 2D: 1080p 60/50 Hz 3D: 1080p 24 Hz frame packing/720p 50/60 Hz frame packing/1080p 60/50 Hz side by side *2 When projecting in WirelessHD, the following signals are not supported. 4K x 2K: 50/60 Hz 4K x 2K (SMPTE): 24 Hz WirelessHD Input Signal MHL*1*2 Signal Refresh Rate (Hz) Resolution (dots) SDTV (480i) 60 720 x 480 SDTV (576i) 50 720 x 576 SDTV (480p) 60 720 x 480 SDTV (576p) 50 720 x 576 HDTV (720p) 50/60 1280 x 720 HDTV (1080i) 50/60 1920 x 1080 HDTV (1080p) 24/30/50/60 1920 x 1080 119 - Appendix Signal 4K x 2K Refresh Rate (Hz) 24/25/30 Resolution (dots) 3840 x 2160 4K x 2K (SMPTE) 24 4096 x 2160 *1 HDMI4 port only *2 When projecting in WirelessHD, the following signals are not supported. 4K x 2K(SMPTE): 24 Hz 120 Appendix Specifications Product name EH-TW9300W/EH-TW9300/EH-TW8300W/EH-TW8300/EH-TW7300 Appearance 520 (W) x 170 (H) x 450 (D) mm (not including adjustable foot) Panel Size 0.74" wide Display method Polysilicon TFT active matrix Resolution 1920 (W) x 1080 (H) x 3 Focus adjustment Motorized Zoom adjustment Motorized (Approx. 1 to 2.1) Lamp (light source) UHE lamp 250 W, Model No.: ELPLP89 Lamp replacement time 3400 hours Power supply 100 - 240 V AC ±10%, 50/60 Hz, 3.8 - 1.7 A Power consumption 100 to 120 V area Rated power consumption: 373 W Standby power consumption (Communication On): 2.3 W Standby power consumption (Communication Off): 0.27 W 220 to 240 V area Rated power consumption: 355 W Standby power consumption (Communication On): 2.4 W Standby power consumption (Communication Off): 0.35 W Operating altitude Altitude 0 to 3,000 m Operating temperature +5 to +35°C * (No condensation) Storage temperature -10 to +60°C (No condensation) Mass Approx. 11 kg * The operating temperature is +5 to +30°C at an altitude of 2287 to 3000m. Connectors PC port 1 Mini D-Sub15-pin (female) blue HDMI port 2 For HDMI HDCP2.2 (HDMI1 port only), for CEC signals, for 3D signals, Deep Color RS-232C port 1 Mini D-Sub 9-pin (male) Trigger Out port 1 Stereo mini jack (3.5Φ) LAN port 1 RJ-45 Service port* 1 USB connector (Type B) USB port* 1 USB connector (Type A) USB port (for Opt.HDMI power supply)* 1 * Supports USB 2.0. However, USB ports are not guaranteed to operate all devices that support USB. This product is also designed for IT power distribution system with phase-to-phase voltage 230V. 121 Appendix Обладнання відповідає вимогам Технічного регламенту обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні. Angle of tilt If you use the projector tilted at an angle of more than 3°, it could be damaged or cause an accident. 122 Appendix DECLARATION of CONFORMITY According to 47CFR, Part 2 and 15 Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal Computers We: Located at: Tel: Epson America, Inc. 3840 Kilroy Airport Way MS: 3-13 Long Beach, CA 90806 562-981-3840 Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR 2.909. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade Name: EPSON Type of Product: LCD Projector Model: H710C/H711C/H713C/H714C/H715C FCC Compliance Statement For United States Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. 123 Appendix Appearance Units: mm 520 260 6.6 96.1 192.7 a Center of lens Distance from center of lens to suspension bracket fixing point 434 67 LENS 85.75 60 49.6 160.6 M4x9 160 160 450 a b 150 300 124 110 Appendix List of Safety Symbols The following table lists the meaning of the safety symbols labeled on the equipment. Symbol mark Approved standards Meaning IEC60417 No. 5007 "ON" (power) To indicate connection to the mains. IEC60417 No. 5008 "OFF" (power) To indicate disconnection from the mains. IEC60417 No. 5009 Stand-by To identify the switch or switch position by means of which part of the equipment is switched on in order to bring it into the standby condition. ISO7000 No. 0434B IEC3864-B3.1 Caution To identify general caution when using the product. IEC60417 No. 5041 Caution, hot surface To indicate that the marked item can be hot and should not be touched without taking care. IEC60417 No. 6042 ISO3864-B3.6 Caution, risk of electric shock To identify equipment that has risk of electric shock. IEC60417 No. 5957 For indoor use only To identify electrical equipment designed primarily for indoor use. IEC60417 No. 5926 Polarity of d.c. power connector To identify the positive and negative connections (the polarity) on a piece of equipment to which a d.c. power supply may be connected. --IEC60417 No. 5001B Battery, general On battery powered equipment. To identify a device for instance a cover for the battery compartment, or the connector terminals. IEC60417 No. 5002 Positioning of cell To identify the battery holder itself and to identify the positioning of the cell(s) inside the battery holder. --IEC60417 No. 5019 Protective earth To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth electrode. IEC60417 No. 5017 Earth To identify an earth (ground) terminal in cases where neither the symbol is explicitly required. 125 Appendix Symbol mark Approved standards Meaning IEC60417 No. 5032 Alternating current To indicate on the rating plate that the equipment is suitable for alternating current only; to identify relevant terminals. IEC60417 No. 5031 Direct current To indicate on the rating plate that the equipment is suitable for direct current only; to identify relevant terminals. IEC60417 No. 5172 Class II equipment To identify equipment meeting the safety requirements specified for Class II equipment according to IEC 61140. ISO 3864 General prohibition To identify actions or operations that are prohibited. ISO 3864 Contact prohibition To indicate injury that could occur due to touching a specific part of the equipment. --- Never look into the projection lens while the projector is on. --- To indicate that the marked item don't place anything on projector. ISO3864 IEC60825-1 Caution, laser radiation To indicate the equipment has a laser radiation part. ISO 3864 Disassembly prohibition To indicate a risk of injury, such as electric shock, if the equipment is disassembled. --- Never look into the lens while the LED for lighting is on. IEC60417 No. 5266 Standby, partial standby To indicate that part of the equipment is in the ready status. ISO3864 IEC60417 No. 5057 Caution, movable parts To indicate that you must keep away from movable parts according to protection standards. 126 Appendix Maximum radio-frequency power transmitted Models H711B WiT4-G0 WirelessHD Transmitter 60.16275-60.95725 GHz - 32dBm e.i.r.p. WirelessHD Receiver 60.16275-60.95725 GHz 27dBm e.i.r.p. - 4k Wireless Transmitter 60.16275-60.95725 GHz - 32dBm e.i.r.p. 4k Wireless Receiver 60.16275-60.95725 GHz 27dBm e.i.r.p. - 127 Appendix Glossary This section briefly explains the difficult terms that are not explained in context in the text of this guide. For details, refer to other commercially available publications. Aspect Ratio The ratio between an image's length and its height. Screens with a horizontal:vertical ratio of 16:9, such as HDTV screens, are known as wide screens. SDTV and general computer displays have an aspect ratio of 4:3. HDCP HDMI ™ HDCP is an abbreviation for High-bandwidth Digital Content Protection. It is used to prevent illegal copying and protect copyrights by encrypting digital signals sent over DVI and HDMI ports. Because the HDMI port on this projector supports HDCP, it can project digital images protected by HDCP technology. However, the projector may not be able to project images protected with updated or revised versions of HDCP encryption. An abbreviation for High Definition Multimedia Interface. This is the standard by which HD images and multichannel audio signals are digitally transmitted. ™ HDMI is a standard aimed at digital consumer electronics and computers. By not compressing the digital signal, the image can be transferred at the highest quality possible. It also provides an encryption function for the digital signal. HDTV An abbreviation for High-Definition Television. This refers to high-definition systems which satisfy the following conditions. • Vertical resolution of 720p or 1080i or greater (p = Progressive, i = Interlace) • Screen aspect of 16:9 Dolby Digital audio reception and playback (or output) Interlace Transmits information needed to create one screen by sending every other line, starting from the top of the image and working down to the bottom. Images are more likely to flicker because one frame is displayed every other line. MHL An abbreviation for Mobile High-definition Link, which is a standard high-definition interface that enables high-speed transfer of video signals on mobile devices. It is a standard targeting smartphones and tablets that transfers uncompressed digital signals without loss of quality and also enables simultaneous charging of such devices. Pairing Register devices in advance when connecting with Bluetooth devices to ensure mutual communication. SDTV An abbreviation for Standard Definition Television. This refers to standard television systems which do not satisfy the conditions for HDTV High-Definition Television. SVGA A screen size standard with a resolution of 800 (horizontal) x 600 (vertical) dots. SXGA A screen size standard with a resolution of 1,280 (horizontal) x 1,024 (vertical) dots. VGA A screen size standard with a resolution of 640 (horizontal) x 480 (vertical) dots. XGA A screen size standard with a resolution of 1,024 (horizontal) x 768 (vertical) dots. YCbCr In component image signals for SDTV, Y is the brightness, while Cb and Cr indicate the color difference. YPbPr In component image signals for HDTV, Y is the brightness, while Pb and Pr indicate the color difference. 128 Appendix General Notes All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions. Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation. The contents of this guide may be changed or updated without further notice. Illustrations in this guide and the actual projector may differ. Restriction of Use When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automotive etc.; disaster prevention devices; various safety devices etc; or functional/ precision devices etc, you should use this product only after giving consideration to including fail-safes and redundancies into your design to maintain safety and total system reliability. Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or medical equipment related to direct medical care etc, please make your own judgment on this product’s suitability after a full evaluation. 129 Appendix General Notice EPSON and ELPLP are the trademarks or registered trademarks of Seiko Epson Corporation. Mac and OS X are trademarks of Apple Inc. Windows and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. HDMI and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing LLC. PJLink trademark is a trademark applied for registration or is already registered in Japan, the United States of America and other countries and areas. ® The Bluetooth word mark and logo are registered trademarks of Bluetooth SIG, Inc., and the Seiko Epson Corporation uses these marks under license. Other trademarks or trade names are the property of their respective owners. MHL, the MHL logo, and Mobile High-Definition Link are trademarks, registered trademarks, or service marks of MHL and LLC in the United States and/or other countries. ™ and WPA2™ are registered trademarks of the Wi-Fi Alliance. WPA App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. "QR Code" is a registered trademark of DENSO WAVE INCORPORATED. "CINEMASCOPE" is a registered trademark of Twentieth Century Fox Film Corporation. Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. ©SEIKO EPSON CORPORATION 2016. All rights reserved. Indication of the manufacturer and the importer in accordance with requirements of directive 2011/65/ EU (RoHS) Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan Telephone: 81-266-52-3131 Importer: SEIKO EUROPE B.V. Address: Azië building, Atlas ArenA, Hoogoorddreef 5, 1101 BA Amsterdam Zuidoost The Netherlands Telephone: 31-20-314-5000 130 Index Connection Mode ......................................... 88 Contrast ............................................................ 77 Control Panel ..................................................... 7 Control panel lock ......................................... 82 Control4 SDDP ................................................ 90 Cool-down ....................................................... 27 3 3D brightness ................................................. 3D display ......................................................... 3D format ......................................................... 3D Glasses ........................................................ 3D Glasses charging port ........................... 3D images ........................................................ 3D settings ....................................................... 3D viewing notice ......................................... 79 79 79 44 50 43 79 79 D DHCP .................................................................. Direct power on ............................................. Display ............................................................... Display Background ..................................... Display LAN Info. ........................................... Display the QR Code .................................... Displaying the test pattern ........................ Dynamic Range .............................................. A Adjust focus ..................................................... 29 Adjusting RGB ................................................. 37 Adjusting the focus ...................................... 29 Adjusting the tilt ............................................ 31 Advanced .................................................. 78, 80 Air filter ........................................................... 105 Air filter cover ............................................... 105 Air filter replacement period .................. 107 AMX Device Discovery ................................. 90 Appearance ................................................... 124 Aspect ......................................................... 33, 79 Auto iris ...................................................... 36, 78 Auto setup ....................................................... 79 88 85 84 84 88 87 28 80 E Error/Warning indicators ............................ 92 Event ID .......................................................... 103 Extended menu .............................................. 83 F Fine Line Adjust ...................................... 35, 77 Focus .................................................................. 96 Frame Interpolation ..................................... 77 Frame interpolation ..................................... 36 Full ...................................................................... 33 B Basic menu ....................................................... 88 Blanking ............................................................ 79 Brightness .......................................... 37, 77, 78 G C Gain ............................................................. 37, 78 Gamma .............................................................. 39 Gateway Address ........................................... 88 CEC standards ................................................. 63 Channel ............................................................. 88 Child lock .......................................................... 82 Cleaning the 3D Glasses ........................... 107 Cleaning the air filter ................................. 105 Cleaning the lens ........................................ 107 Cleaning the main unit ............................. 106 Color Depth ..................................................... 90 Color Format ................................................... 90 Color mode ............................................... 32, 77 Color saturation ............................................. 77 Color Space ...................................................... 80 Color Temp. ..................................................... 77 Color Uniformity ................................... 84, 114 Configuration menu ..................................... 76 Connected Device .................................. 58, 81 Connecting ...................................................... 19 Connecting a computer .............................. 19 Connecting to the Trigger Out port ....... 20 Connecting video equipment ........... 19, 20 H HDMI 1 to 4 indicators ................................. 50 HDMI Link ......................................................... 81 HDMI link .......................................................... 63 HDMI port ......................................................... 63 High altitude mode ...................................... 85 Home Screen ................................................... 83 Home screen ................................................... 26 Hue .............................................................. 37, 78 I Illumination ..................................................... Image ................................................................. Image Enhancement .................................... Image enhancement .................................... Image menu .................................................... Indicators .......................................................... 131 85 32 77 35 77 92 Index Info menu ......................................................... Inverse 3D Glasses ......................................... IP Address ......................................................... IP Address Display ......................................... IP Settings ........................................................ 90 79 88 89 88 Power ................................................................. Power consumption ..................................... Power supply .................................................. Projection ......................................................... Projection size ................................................ Projector Info .................................................. Projector name ............................................... K Keystone .................................................... 31, 80 Keystone distortion ...................................... 31 R Remote Control ................................................ 9 Remote control .............................................. 23 Remote Password .......................................... 88 Replacement periods for consumables ............................................................................. 107 Replacement time ...................................... 107 Replacing consumables ........................... 108 Replacing the air filter ............................... 108 Replacing the lamp .................................... 109 Reset ....................................... 78, 80, 81, 83, 86 Reset all ............................................................. 91 Reset lamp hours ................................. 91, 110 Reset Lens Position ....................................... 91 Reset memory ................................................. 91 Reset menu ............................................... 90, 91 RGBCMY ..................................................... 37, 78 L Lamp cover ............................................... 6, 109 Lamp cover fixing screw ........................... 109 Lamp replacement period ....................... 107 LAN port ............................................................ 21 Language ......................................................... 86 Lens shift .......................................................... 30 Link indicator .................................................. 50 Load Lens Position ........................................ 83 Load memory .................................................. 41 Lock setting ..................................................... 82 M Memory ............................................................. Memory function ........................................... Menu .................................................................. Messages .......................................................... Model Name .................................................... 27 78 25 84 29 90 88 83 41 76 84 84 S Saturation .................................................. 37, 78 Save Lens Position ........................................ 83 Save memory .................................................. 41 Search Access Point ...................................... 88 Security ............................................................. 89 Security menu ................................................ 89 Settings menu ................................................ 80 Sharpness .................................................. 34, 77 Signal menu .................................................... 78 Sleep mode ...................................................... 85 Soft Focus Detail ..................................... 35, 77 Soft Keyboard ................................................. 87 Source ................................................................ 26 Specifications ............................................... 121 SSID .................................................................... 88 SSID Display ..................................................... 89 Standby Mode ................................................ 85 Startup Screen ................................................ 84 Sub menu ......................................................... 76 Subnet Mask .................................................... 88 Supported resolutions .............................. 118 Sync. ................................................................... 79 N Network information ................................... 87 Network menu ............................................... 86 Noise .................................................................. 97 O Offset .......................................................... 37, 78 On/Standby indicator .................................. 50 Operating range ............................................ 23 Operating time ............................................ 110 Operation ......................................................... 85 Others menu ................................................... 90 Overscan ........................................................... 79 P Pairing ............................................................... 45 Panel Alignment ............................ 84, 86, 112 Passphrase ....................................................... 89 Picture in Picture ........................................... 65 PJLink .............................................................. 116 PJLink Password ............................................. 88 Position ............................................................. 79 T Tint ...................................................................... 77 132 Index Top menu ......................................................... Tracking ............................................................ Transmission range ...................................... TV indicator ..................................................... 76 79 59 50 U User button ...................................................... 82 V Version .............................................................. 90 Video Reception ..................................... 58, 81 W WiHD indicator ............................................... 50 Wired LAN menu ........................................... 89 Wireless LAN menu ....................................... 88 Wireless LAN Power ...................................... 86 WirelessHD ................................................ 49, 81 Z Zoom .................................................................. 33 Zoom adjustment ......................................... 29 133
