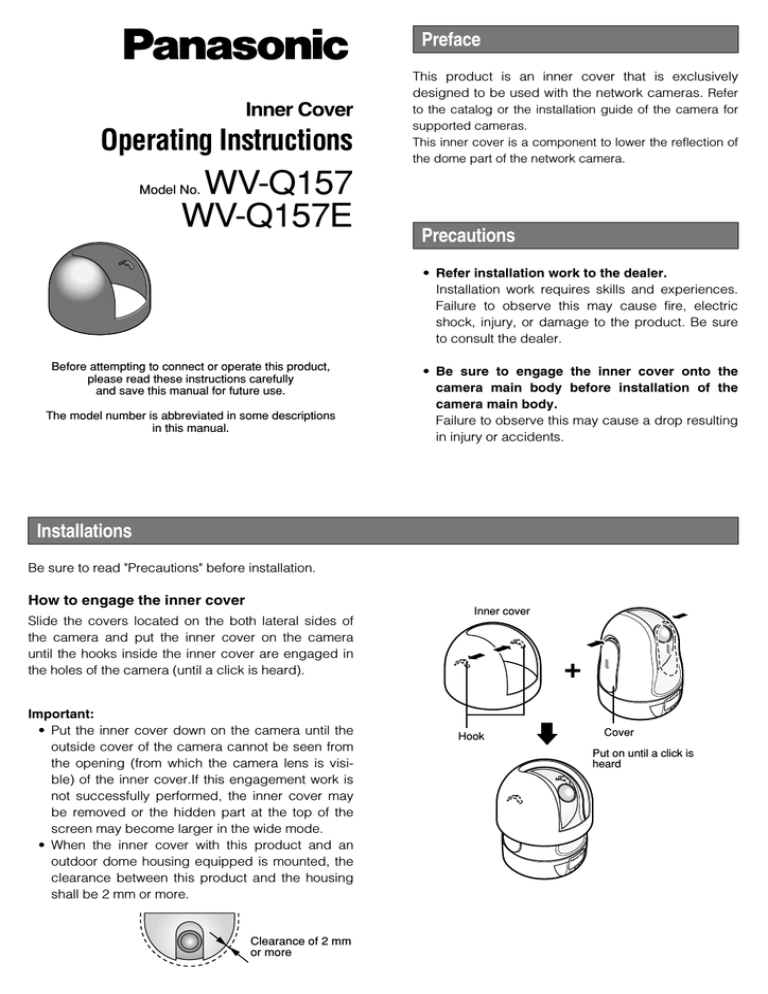

Preface
This product is an inner cover that is exclusively
designed to be used with the network cameras. Refer
Inner Cover
Operating Instructions
WV-Q157
WV-Q157E
to the catalog or the installation guide of the camera for
supported cameras.
This inner cover is a component to lower the reflection of
the dome part of the network camera.
Model No.
Precautions
• Refer installation work to the dealer.
Installation work requires skills and experiences.
Failure to observe this may cause fire, electric
shock, injury, or damage to the product. Be sure
to consult the dealer.
Before attempting to connect or operate this product,
please read these instructions carefully
and save this manual for future use.
The model number is abbreviated in some descriptions
in this manual.
• Be sure to engage the inner cover onto the
camera main body before installation of the
camera main body.
Failure to observe this may cause a drop resulting
in injury or accidents.
Installations
Be sure to read "Precautions" before installation.
How to engage the inner cover
Slide the covers located on the both lateral sides of
the camera and put the inner cover on the camera
until the hooks inside the inner cover are engaged in
the holes of the camera (until a click is heard).
Important:
• Put the inner cover down on the camera until the
outside cover of the camera cannot be seen from
the opening (from which the camera lens is visible) of the inner cover.If this engagement work is
not successfully performed, the inner cover may
be removed or the hidden part at the top of the
screen may become larger in the wide mode.
• When the inner cover with this product and an
outdoor dome housing equipped is mounted, the
clearance between this product and the housing
shall be 2 mm or more.
Clearance of 2 mm
or more
Inner cover
+
Hook
Cover
Put on until a click is
heard
How to remove the inner cover
• Press the inner cover from the front and rear sides
inward (at the same vertical position as the hooks)
to bend the cover and remove the inner cover
from the camera.
Specifications
Ambient temperature
Dimensions
Height
Mass
Press from the front and rear sides
inward to bend
Standard Accessories
–10 °C to +50 °C
Diameter 118 mm
80.2 mm
approx. 50 g
Operating Instructions (this document).................1 pc.
For U.S. and Canada:
For Europe and other countries:
Panasonic System Communications Company of North America,
Unit of Panasonic Corporation of North America
http://panasonic.net
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A.
Importer's name and address to follow EU rules:
Panasonic Canada Inc.
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg F.R.Germany
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
© Panasonic System Networks Co., Ltd. 2012
Ns1010-3012
3TR006656DZA
Printed in China
