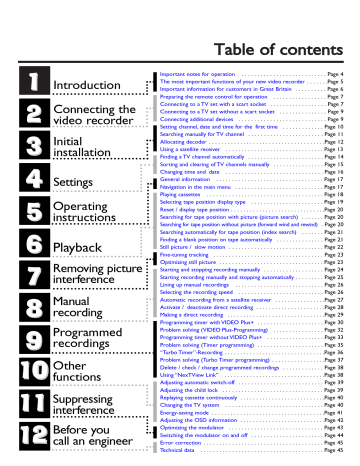

Table of contents
1 Introduction
Connecting the
2 video recorder
Initial
3 installation
4 Settings
Operating
5 instructions
6 Playback
Removing picture
7 interference
Manual
8 recording
Programmed
9 recordings
10 Other
functions
11 Suppressing
interference
Before you
12 call an engineer
Important notes for operation . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
The most important functions of your new video recorder . . . . . . .Page 5
Important information for customers in Great Britain . . . . . . . . . . Page 6
Preparing the remote control for operation . . . . . . . . . . . . . . . . . Page 7
Connecting to a TV set with a scart socket . . . . . . . . . . . . . . . . . . Page 7
Connecting to a TV set without a scart socket . . . . . . . . . . . . . . . Page 9
Connecting additional devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Setting channel, date and time for the first time . . . . . . . . . . . . . Page 10
Searching manually for TV channel . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Allocating decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Using a satellite receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Finding a TV channel automatically . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Sorting and clearing of TV channels manually . . . . . . . . . . . . . . . . Page 15
Changing time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Navigation in the main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Playing cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Selecting tape position display type . . . . . . . . . . . . . . . . . . . . . . . Page 19
Reset / display tape position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 20
Searching for tape position with picture (picture search) . . . . . . . Page 20
Searching for tape position without picture (forward wind and rewind) . Page 20
Searching automatically for tape position (index search) . . . . . . . Page 21
Finding a blank position on tape automatically . . . . . . . . . . . . . . . Page 21
Still picture / slow motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
Fine-tuning tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23
Optimizing still picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23
Starting and stopping recording manually . . . . . . . . . . . . . . . . . . . Page 24
Starting recording manually and stopping automatically . . . . . . . . . Page 25
Lining up manual recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
Selecting the recording speed . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
Automatic recording from a satellite receiver . . . . . . . . . . . . . . . .Page 27
Activate / deactivate direct recording . . . . . . . . . . . . . . . . . . . . . .Page 28
Making a direct recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 29
Programming timer with VIDEO Plus+ . . . . . . . . . . . . . . . . . . . . . Page 30
Problem solving (VIDEO Plus-Programming) . . . . . . . . . . . . . . . . Page 32
Programming timer without VIDEO Plus+ . . . . . . . . . . . . . . . . . . Page 33
Problem solving (Timer programming) . . . . . . . . . . . . . . . . . . . . . Page 35
“Turbo Timer”-Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 36
Problem solving (Turbo Timer programming) . . . . . . . . . . . . . . . . .Page 37
Delete / check / change programmed recordings . . . . . . . . . . . . . Page 38
Using “NexTView Link” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 38
Adjusting automatic switch-off . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 39
Adjusting the child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 39
Replaying cassette continuously . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 40
Changing the TV system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 40
Energy-saving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 41
Adjusting the OSD information . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 42
Optimizing the modulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 43
Switching the modulator on and off . . . . . . . . . . . . . . . . . . . . . . . Page 44
Error correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 45
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 45
VR 210/07
Operating Instructions
with
Remote control
You
will
find
explanations for the
controls
and
the
displays on your video
recorder on the second
to last page of these
operating instructions.
TV
STANDBY/ON m
TIP
MUTE y
CHILD LOCK u
MONITOR
EJECT J
0-9
TIMER k
TURBO TIMER
MENU
OK
SELECT
CLEAR / CL
; P+ / = PS+ P / QS-
H
PLAY G
I
STOP h
RECORD n
INDEX E
STILL R
4
4
4
4
4
4
REMOTE
Accessories
Operating instructions
Quick Start Guide
Remote control
Batteries
Aerial cable
Mains cable
CONTROL
TV / QSTV / S+ P
TV / ;P+
TV / =PTV / MUTE y
TV / STANDBY/ON m
2
ä Call up additional functions (see below)
ä Switch set on/off
ä Interrupt function
ä Interrupt programmed recording
ä Additional TV function only (see below)
ä Activate / deactivate child lock
ä Change between TV reception and video
recorder reception
ä Eject inserted cassette
ä Enter data
ä Select programme number
ä Programme recordings
ä Check / change recordings
ä Delete recordings
ä Programme Turbo Timer recordings
ä Switch main menu on/off
ä Store
ä Confirm
ä Select function
ä Delete entry
ä Delete programmed recording
ä Select next / previous menu point
ä Select next / previous programme number
ä Select input field
ä In STOP or STANDBY mode: Rewind
ä In playback mode: Fast reverse
ä Play back recorded cassette
ä In STOP or STANDBY mode:Wind forward
ä In playback mode: Fast forward
ä Stop tape
ä Start manual recording
ä With H or I: Search for index
marking
ä Stop tape and show still picture
Additional TV functions
ä
ä
ä
ä
ä
ä
Reduce TV volume
Increase TV volume
Select next TV programme number
Select previous TV programme number
Switch sound on/off
Switch TV on/off
ENGLISH
1 Introduction
Welcome to the family of owners of
Philips VHS video recorders.
Thank you for choosing to buy our product. Please wait at
least three hours after transporting the appliance before
starting installation. The set needs this time in order to
become acclimatised to its new environment (temperature, air
humidity, etc.).
Your Philips Team hopes that
you will enjoy using your new
video recorder.
This product complies with the requirements of Directive 73/23/EEC + 89/336/EEC + 93/68 EEC.
Important notes for operation
You should not under any circumstances open the set yourself.You
would expose yourself to the risk of an electric shock from the
hazardous high voltage inside.
When the appliance is connected to the power supply, there are some
components which are constantly operational.To switch off the video
recorder completely, you must disconnect it from the power supply.
The video recorder does not contain any components that can be
repaired by the customer.
!
Make sure that air can circulate freely through the ventilation slots on
the video recorder.
Make sure that no objects or liquids enter the video recorder. If liquid is
spilt into it, disconnect the video recorder immediately from the power
supply and call the After Sales Service for advice.
The video recorder should not be used immediately after transportation
from a cold to a hot area or vice versa, or in conditions of extreme
humidity.
These operating instructions have been printed on non-polluting paper.
Please deposit old batteries at the relevant collection points.
Please make use of the facilities available in your country for disposing
of the video recorder packaging in a way that helps to protect the
environment.
This electronic device contains many materials which can be recycled.
Please enquire about the possibilities for recycling your old set.
IMPORTANT
NOTES FOR OPERATION
4
ENGLISH
The most important functions of your new video recorder
Your Philips video recorder can be used, not only for recording and playing back VHS
cassettes, but it also has a whole range of special functions which will make day-to-day
use of your new video recorder easier for you.
Plug in and off you go - getting started with your new video recorder just couldn’t be simpler. Once you
have connected the cables, you will immediately see text on the screen which will assist you at all stages
of operation.
The Easylink function guarantees the best possible connection between your video recorder and other
Home Cinema devices.
Philips has developed a system which makes it possible for you to get the best possible playback quality
from video cassettes. Interference on old, often-played tapes is minimized, and in new or high quality
cassettes, details are even clearer.
The precision mechanism developed by Philips guarantees short rewind times and, by automatically
detecting the length of the tape, makes operation as easy as possible for the user.
The simple programming system for video recorders revolutionized the video world when it was
introduced. Instead of having to enter many different details (date, starting time, finish time,
programme), which was often tiresome and liable to errors, all you have to do is enter a number, up
to nine digits long, which can be found in any TV programme listing. Once you have done that, all the
relevant details for the recording are stored.
VIDEO Plus+ and PlusCode are registered trademarks of the Gemstar Development Corporation.
The VIDEO Plus+ system is manufactured under licence from the Gemstar Development Corporation.
So that you can identify your machine in the event of theft, enter the serial number (PROD. NO)
here.You will find it on the type plate on the back of the set.
MODEL NO.
VR 210/07
PROD. NO.
..............................
If you have any problems using the video recorder, please read the corresponding
chapters in this instruction manual. If you have any questions, there is also a customer
support service available in your country. You can find the telephone number in the
guarantee information enclosed in the packaging. Please have your model number
(MODEL NO.) and production number (PROD. NO.) ready.
ENGLISH
5
THE
MOST IMPORTANT FUNCTIONS
Important information for customers in Great Britain
This set is fitted with an approved moulded 13 amp plug.To change the fuse in this plug or to
attach a different plug, please proceed as follows:
1
Take off the fuse cover and remove the old fuse
2
Insert a new fuse. Suitable fuses are those of the type BS 1362 3A,A.S.T.A.- or
BSI-approved
3
Close the fuse cover
If the attached plug does not meet your requirements, you can cut it off and replace with a
suitable plug. Please observe the following conditions:
If your new plug uses a built-in fuse, this should be a 3A fuse.
If your new plug does not contain a built-in fuse, please do not use any fuses in your fusebox with a rating
of more than 5A.
Please destroy the old, cut-off plug so that it cannot be used elsewhere.
!
4
Connect the blue cable (neutral “N”) to the terminal in the plug which is
marked with the letter “N” or coloured black
5
Connect the brown cable (live, “L”) to the terminal in the plug which is
marked with the letter “L” or coloured red
6
Do not in any circumstances connect either of the two cables to the terminal
in the plug which is marked with the letter “E”, the symbol “ \” or coloured
green or green / yellow
Before you refit the plug cover, make sure, that the grip at the bottom of the plug is clamped
over the plastic cover of the lead, not just over the two wires.
IMPORTANT INFORMATION FOR CUSTOMERS IN GREAT BRITAIN
6
ENGLISH
2 Connecting the video recorder
Preparing the remote control for operation
1
Take the remote control of the video recorder
and the enclosed batteries (2 batteries).
2
Open the battery compartment, insert the
batteries as shown and then close the battery
compartment.The remote control is now ready
to use.
Connecting to a TV set with a scart socket
Aerial cable
1
Mains cable
What is a scart cable?
The scart or Euro-AV cable serves as the universal
recording and playback connector for picture-, soundand control signals.With this type of connection, there
is practically no loss of quality during the signal transfer.
We recommend that you use a scart cable (available
from specialist stores) when using this video recorder.
Scart cable
ENGLISH
Have the following cables ready: An aerial cable
(enclosed), a mains cable (enclosed) and a scart
cable
2
Switch off your TV set
3
Remove the aerial cable plug from the back of
your TV set and insert it into the aerial
socket 2 on the back of the video recorder
4
Take the enclosed aerial cable and connect
the appropriate ends to the aerial socket of
your TV set and to the TV socket 3 on the
back of the video recorder
7
REMOTE CONTROL / CONNECTION (TV WITH
PARDON?
SCART SOCKET)
5
XT1
AV1 E
Take a scart cable and connect one end to the
scart socket on the back of your TV set and
the other to the scart socket AV1 EXT1 on
the back of the video recorder.
8 My TV set has more than one scart socket.
4 Then you have a more modern TV set. Please check
first (with the aid of the operating instructions for
the TV set), which of the available scart sockets is
intended for use with the video recorder.
PROBLEM
6
Take the enclosed mains cable and connect
the appropriate ends to the mains socket 4
on the back of the video recorder and the
other to the nearest free socket
7
Your set should automatically switch over to
the programme number allocated to video
recorder operation (usually: EXT, 0 or AV).You
will see the welcome screen.
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
8 I can not see the welcome screen, only the mes ssage “EASYLINK IS LOADING DATA FROM TV”
CONTINUEPOK
4 Congratulations! Your TV set supports the Easylink
function. It automatically sends the settings for the
available TV channels and the time and date
information straight to the video recorder.As soon
as the transfer is complete, the current settings for
year, month, date and time appear on the screen
(see left). Correct and/or confirm with the arrow
keys ;P+, =P-, S+ P and QS- or with the
PROBLEM
number keys 0-9 and confirm with OK.
8 My screen is still blank
4 If a TV set receives a signal via the scart socket, it
usually switches automatically to the
corresponding programme number. This
automatic function might be adversely affected.
Please switch manually to the corresponding
programme number (usually: EXT, 0 or AV)
4 Check the cable connections
PROBLEM
8
CONNECTION (TV WITH A
SCART SOCKET)
You can find more details in the chapter “Initial
Installation”
8
ENGLISH
Aerial cable
Mains cable
Connecting to a TV set without a scart socket
1
Have the following cables (provided with your
new video recorder) ready: 1 aerial cable and
1 mains cable
2
Switch off your TV set
3
Remove the aerial cable plug from the back of
your TV set and insert it into the aerial
socket 2on the back of the video recorder
4
Take the enclosed aerial cable and connect
the appropriate ends to the aerial socket of
your TV set and to the TV socket 3 on the
back of the video recorder
5 Take the enclosed mains cable and connect
the appropriate ends to the mains socket 4
on the back of the video recorder and the
other to the nearest free socket
6
Switch on your TV set and select on your TV
set the programme number which will in
future be used for operation with the
Videorecorder
7
On your TV change the settings of this
programme number until you see the
adjacent welcome screen clearly and in
colour on the screen
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
8 There is no test image
4 Your video recorder “broadcasts” on the
frequency 583MHz (CH35) in the UHF range (ultra
high frequency). Repeat the matching of the
selected programme numbers on the TV set.
4 Check the cable connections
PROBLEM
CONTINUEPOK
8
AV2 EXT2
ENGLISH
You can find more details in the chapter “Initial
Installation”
Connecting additional devices
Additional devices, such as a decoder, camcorder, satellite receiver, etc., can be
connected to the scart socket AV2 EXT2 on the back of the video recorder.
You will need a scart cable for this (available from specialist stores).
9
CONNECTION (TV WITHOUT SCART SOCKET) / ADDITIONAL DEVICES
3 Initial installation
Setting channel, date & time for the first time
If your TV set supports the Easylink function and you have already
corrected and/or confirmed the settings for year, month, date and time,
you can skip this section.Your video recorder has already stored all the
necessary details. Please continue by reading the section “Finding TV
channels manually”.
1
Using the OK button activate the automatic
initial installation
“Aim” correctly
Always point the remote control at the video recorder
and not at the TV set.
AUTO INSTALL
2
SEARCHING
00 TV CHANNELS FOUND
hhhh_______________
PLEASE WAIT...
TIP
The set seeks out and stores all available TV
channels as well as time and date.
This procedure may take several minutes. As
soon as all the data has been stored, the
screen will show the message “STORED”.
The Teletext clock resets automatically
If a TV channel which has Teletext is stored as
programme number P01, the video recorder
automatically takes in the date and time from the text
function. The change from summer to winter time
and vice versa should also occur automatically.
3
TIP
The initial setting of channel, date and time is
completed
8 The time is not shown in the display of the video
recorder (“-:-”) or is shown incorrectly
4 While initial installation was going on, the set was
unable to recognise the time. Please read the
paragraph in Section 4 “Setting the time and
date” to correct this problem
SETTING
CHANNEL, DATE AND TIME
10
PROBLEM
ENGLISH
Searching manually for TV channel
In exceptional cases, it may happen that on initial installation the
set does not find all the available TV channels. In this case, the
missing TV channels must be searched for and stored manually. If
your TV set supports the Easylink function, you can start the
automatic transfer of the channel data as follows.
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
MANUAL SEARCH
PROGRAMME NUMBER
S-CHANNEL
CHANNEL NUMBER
DECODER
TV SYSTEM
NICAM
QP01P
NO.
21
OFF
AUTO
ON
EXITPMENU
STOREPOK
1
Switch on the TV set and - if necessary select the programme number set for video
recorder operation
2
Press the MENU button on the remote
control.The on-screen menu appears
3
Use = P- or ; P+ to select the option
“MANUAL SEARCH”
4
Confirm with OK
5
Use S+ P or QS - to select the
programme number (e.g.: “P 01”), which you
want to manually allocate to a TV channel
6
If you are looking for a special channel, use
= P- or ; P+ to select the option
“S-CHANNEL” and use S+ P or QS to activate the “YES” setting. To search for a
“normal” channel, the “NO” setting must be
selected.
What is a channel, or a special channel?
TV channels are transmitted on precisely-defined
frequency ranges.These ranges are also referred to as
“channels”. Each channel has its own TV station
allocated to it. Most cable and satellite TV providers
supply tables of channel allocations. Special channels
(hyperband channels) are transmitted on special
frequencies.
7
ENGLISH
PARDON?
Use =P- or ;P+ to select the option
“CHANNEL NUMBER” and use S+ P or QSto enter the number of the TV-Channel required
11
SEARCHING
MANUALLY FOR TV CHANNEL
8 I don’t know the channels for my TV stations
4 No problem. Hold down the button S+ P to
start the automatic channel search. A changing
channel number will appear on screen. Continue
the automatic channel search until you have found
the desired TV station.
PROBLEM
8
Press OK to store the TV channel found.The
screen will briefly show “STORED”
8 I cannot find the TV channels from my satellite
receiver
4 These do not have to be stored as actual TV
channels.On your video recorder, select programm
number “E2”. Individual TV channels must be
selected on the actual satellite receiver itself
9
PROBLEM
Finish manual sorting of TV channels by
pressing the MENU button or return to
step 3 to allocate additional TV channels
Allocating decoder
If your TV set supports the Easylink function you must allocate the
decoder directly to the TV set. If necessary, you should refer to the
instructions for your TV set for assistance.
1
Use =P- and ;P+ or the number keys 0-9 to
select the TV channel, which will in future be
automatically decoded by your decoder
What is a decoder?
Like a deciphering machine, a decoder (available in TV
and video stores) deciphers the TV channels for which
additional charges must be paid. Without the
appropriate decoder, you will receive these TV
channels distorted.
ALLOCATING
DECODER
12
PARDON?
ENGLISH
2
Press the MENU button
3
The on-screen menu appears. Use the buttons
to select =P- and ;P+ the menu point
“MANUAL SEARCH” and confirm with OK
What is an on-screen menu?
The on-screen menu takes the mystery out of using
your new video recorder. All settings and recording
steps can be done easily via the on-screen menu by
following the corresponding instructions on the
screen
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
4
Use =P- or ;P+ to select the option
“DECODER”
5
Using S+ P or QS- , activate the
setting “ON”. The display will show “DEC”
When selecting “OFF” the decoder will not be
allocated
6
Confirm with OK (screen will show
“STORED”) and leave the on-screen menu
with the MENU button
MANUAL SEARCH
PROGRAMME NUMBER
S-CHANNEL
CHANNEL NUMBER
DECODER
TV SYSTEM
NICAM
QP01P
NO.
21
OFF
AUTO
ON
EXITPMENU
STOREPOK
PARDON?
Check decoder allocation at a glance
There is no need to call up the on-screen menu to check
to which TV channel on the video recorder a decoder is
allocated. Simply use =P- and ;P+ to select a TV channel.
If “DEC” appears in the display, a decoder is allocated to
this channel.
TIP
Using a satellite receiver
Those TV channels which are received via a satellite receiver
connected (to the scart socket AV2 EXT2), can be viewed on the
video recorder on programme number “E2”. On the remote
control press the number button 0 and then the button =P- to
select this programme number. The TV channels of the satellite
receiver are selected not on the video recorder itself, but
directly on the satellite receiver.
ENGLISH
13
USING A
SATELLITE RECEIVER
4 Settings
Finding a TV channel automatically
On initial installation, the video recorder performs an automatic
channel search. If the channel assignments of your cable or
satellite TV provider change or if you are reinstalling the video
recorder, e.g. after moving house, you can start this procedure
again. The video recorder finds all the available TV channels and
stores the new settings. If your TV set supports the Easylink
function, you can start the automatic transfer of the channel data
as follows.
1
Switch on the TV set and - if necessary select the programme number set for video
recorder operation
2
Press the MENU button on the remote
control.The on-screen menu appears
3
Use =P- or ;P+ to select the option
“AUTO INSTALL” (automatic channel
search) and confirm with OK
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
Sequence of TV channels
If your TV set supports the Easylink function, the video
recorder stores the TV channels in the TV set’s usual
sequence. If your TV set does not support this function
the TV channels will be stored in the following sequence:
BBC1, BBC2, ITV, CH 4, CH 5, other.
OK
4
4 In exceptional cases, it may happen that the set
does not find all the available TV channels. In this
case, the missing TV channels must be searched
for and stored manually.You can look up how to
do this in the chapter “Initial installation”
(“Searching manually for TV channel”).
PROBLEM
SEARCHING
00 TV CHANNELS FOUND
hhhh_______________
PLEASE WAIT...
5
CHANNEL AUTOMATICALLY
The set seeks out and stores allavailable TV
channels. This procedure may take several
minutes. As soon as all the TV channels have
been stored, the screen will show the
message “STORED”.
8 The video recorder is not finding all the TV
channels
AUTO INSTALL
FINDING A TV
TIP
Finish with the button MENU
14
ENGLISH
Sorting and clearing of TV channels manually
After you have performed the automatic channel search you may
not agree with the sequence in which the individual TV channels
have been allocated to the programme positions of the video
recorder. You can use this function to individually sort the TV
channels found or to delete unwanted TV channels or those with
poor reception. If your TV set supports the Easylink function, you
will not need to rearrange the TV channels later. The sequence
corresponds to the channel assignment of your TV set.
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
Switch on the TV set and - if necessary select the programme number set for video
recorder operation
2
Press the MENU button on the remote
control. Das Bildschirmmenü erscheint
3
Use =P- or ;P+ to select the option
“TV CHANNEL ALLOC.” and confirm with OK
4
Use S+ P or QS- to select the TV
channel, to be allocated a programme position
5
Sorting:
OK
TV CHANNEL ALLOC.
ALLOCATE ON
TV CHANNEL
ALLOCATEPSELECT
Delete:
QP01P
BBC1
Press SELECT, to allocate the TV
channel to the programme
position set P 01
Delete the TV channel set with
CLEAR (CL)
6
Continue repeating the steps 4 and 5, to
allocate additional TV channels (P 02, P 03,...)
or to delete additional TV channels and
confirm with OK
7
Finish the manual sorting / deleting of TV
channels with the button MENU
STOREPOK
New sequence regardless of Easylink
If your TV set supports the Easylink function, you
cannot change the sequence of the TV channels on the
video recorder. If you do not agree with the sequence
of the channels,you must change the channel allocations
on the TV set and then start the automatic channel
search on the video recorder afresh.
ENGLISH
15
FOR
EXPERTS
SORTING AND CLEARING OF TV CHANNELS MANUALLY
Changing time and date
If the display shows an incorrect time or “--:--”, the time and
date must be reset manually.
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use =P- or ;P+ to select the option “CLOCK”
and confirm with OK
3
In the “YEAR” option – if the setting displayed
is incorrect - enter the number of the current
year using the number keys 0-9
OK
Enter the values correctly
Numbers less than 10 must be entered with an additional “0”.Therefore for “9” you must enter “09”.
4
Use =P- or ;P+ to select the option “MONTH”
and - if the setting displayed is incorrect enter the current month with the number
keys 0-9
5
Use =P- or ;P+ to select the option “DATE”
and - if the setting displayed is incorrect enter the current calendar date with the
number keys 0-9
6
Use =P- or ;P+ to select the option “TIME” and
- if the setting displayed is incorrect - enter the
current time with the number keys 0-9
7
Check the settings displayed for year, month,
date and time and store them by pressing OK
8
Leave the on-screen menu with the MENU
button
CLOCK
YEAR
MONTH
DATE
TIME
Q2000P
01
01
20:00
EXITPMENU
STOREPOK
TIP
The Teletext clock resets automatically
If you store a TV channel which has Teletext as
programme number P01, the video recorder
automatically takes in the date and time from the text
function. The change from summer to winter time
and vice versa should also occur automatically.
CHANGING TIME AND
DATE
16
TIP
ENGLISH
5 Operating instructions
General information
Switching on
If the video recorder is in standby mode, it can be switched on either by pressing
the standby button m, by pressing one of the number buttons 0-9 or by inserting
a cassette.
Automatic switch off
If the video recorder is not used for several minutes, it switches itself off
automatically. This function can be deactivated (e.g. if you want to use the video
recorder as a TV receiver).You can find out more about this in the chapter “Other
functions” (“Adjusting automatic switch off”).
Energy consumption
The video recorder should always be connected to the mains so as not to affect
programmed recordings and use of the TV set. Power consumption (in energy
saving mode) is less than 4W.
Saving energy
In standby mode, the display of the video recorder shows the current time.This
display can be deactivated manually, in order to reduce power consumption to a
minimum in standby mode.You can find the necessary steps in the section “Other
functions” (“Energy-saving mode”).
Emergency exit
The video recorder and the remote control have the option of an “Emergency
exit”.You can use the standby button m to interrupt any step during use. But even
without an “emergency brake” your new video recorder is safe: there is no risk
whatsoever of damaging the set by performing user steps incorrectly.
In the event of a power cut
Channel data are stored for around 1 year, time and timer data remain in the
memory of the video recorder for around 3 hours.
Navigation in the main menu
You can check and/or change many functions and settings of your
video recorder via the main menu. The individual functions are
selected as follows via the on-screen menu of the video recorder
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
ENGLISH
OK
Call up:
MENU
Select:
P+ or =P
P;P
Confirm:
OK
Enter:
0-9 or S+ P and QS-
Interrupt:
STANDBY/ON m
Abandon:
MENU
17
GENERAL
INSTRUCTIONS
/ NAVIGATION
6 Playback
Playing cassettes
1
Insert a VHS cassette in the cassette opening on
the front of the video recorder..The tape will be
caught and automatically placed in the correct
position.The display will show the symbol v
What does VHS mean?
v
The “Video Home System” (VHS) has become the
world-wide standard for recording and playback of
amateur video cassettes.The popular standard has since
been refined. Super-VHS (S-VHS) offers greater
sharpness and less noise, Digital-VHS (D-VHS) now only
works with digital picture and sound signals.Your video
recorder can only record and play standard VHS
cassettes.
P01
2
PARDON?
Press the playback button C to play the tape
8 Picture / sound quality is poor
4 Please read the section “Removing picture
interference” in this chapter.
4 When playing many rental videos or older, poorer
quality cassettes, it may not be possible to
completely filter out picture and sound
interference. There is nothing wrong with the
PROBLEM
video recorder.
?
3
Press the stop button h on the remote
control or the stop/eject cassette button
? on the front of the video recorder, to
stop playback
4
Press the Stop/Eject cassette button
?on the front of the video recorder, to
remove the tape
Automatic switch off
Many functions (pause, still picture, search, ...) switch
themselves off automatically after a short time in order
to protect the cassette and to save energy.
PLAYING
CASSETTES
18
TIP
ENGLISH
Selecting tape position display type
If the OK button is pressed during playback and recording, the
current tape position (hours : minutes : seconds) is shown in the
display.There are two different types of display available.
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
3
Use = P- or ; P+ to select the option
“COUNTER”
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
What types of display are available to me?
“LINEAR”:
The display shows the number of
minutes of tape already played
(00:00:00 - hours / minutes /
seconds)
“TIME LEFT”:
The display shows the playing time
remaining until the end of the
cassette (00:00 - hours / minutes)
OK
4
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
COUNTER
SAT RECORDING
REPEAT PLAY
DIRECT RECORD
ON
OFF
QT.LEFTP
OFF
OFF
OFF
OK
Use S+ P or QS- to select the
desired display type and confirm with OK.The
screen will show “STORED”
8 The counter stops running when unrecorded
places are found (“Linear” display type)
4 This is normal, and is necessary for technical
reasons.
8 The display shows a negative playing time
4 This may happen, for example, when you insert an
incompletely-rewound cassette into the video
recorder and rewind it to the start of the tape.
Since the display is automatically reset to
“00:00:00” when you insert a cassette, the
actual start of the cassette for the set is less than
zero - thus in the negative range. The tape
position is displayed with a minus sign “-”.
8 After inserting a cassette the video recorder
shows no remaining playing time
4 The set needs a little time to calculate the
remaining playing time. After a few seconds, the
display should change from --:-- to the
corresponding value
ENGLISH
PARDON?
19
SELECTING TAPE
PROBLEM
POSITION DISPLAY TYPE
Reset / display tape position
Call up: OK
CLEAR (CL) (only in the
Reset:
“LINEAR” display mode)
Automatic reset
Whenever a cassette is inserted the display is automatically reset to “00:00:00”.
TIP
Searching for tape position with picture
(picture search)
1
During playback press H (rewind) or I
(forward)
2
Interrupt the search wherever you like with
the Playback button G
Reduced quality
During picture search the picture quality is affected.
The sound is switched off.
Different search speeds
If you press H or I twice, the tape speed will
increase. If you press it again the speed is reduced to
normal once more.
TIP
Searching for tape position without picture
(forward wind and rewind)
1
Stop the tape with the Stop button h
2
Press H (rewind) or I (forward)
3
Interrupt the search wherever you like with
the Playback button G
Switching between rewind / forward wind and pictu re search (instant view)
When winding the tape backwards or forwards if you
hold down H (rewind) or I (forward wind), the
set will immediately switch without a break to picture search (with picture). When you release the
rewind or forward wind button the rewind or forward wind process (without picture) will continue
DISPLAY /
RESET
/
FIND TAPE POSITION
20
FOR
EXPERTS
ENGLISH
Searching automatically for tape position
(index search)
1
Insert a tape recorded on this video recorder
or on another set with index marking
What is an index marking?
At the start of each new recording the video recorder
automatically places a magnetic marking - similar to a
bookmark - at the appropriate place on the tape.
These positions can be found again quickly and easily
later by pressing a button.
2
Press the Index button E and then I
(next index marking) or H (previous index
marking)
3
The video recorder searches for the desired
index marking and automatically switches to
playback
PARDON?
8 The cassette is ejected
4 The video recorder was unable to find an index
marking on the tape inserted.
PROBLEM
Finding a blank position on tape automatically
1
Press the Index button E and then the Stop
button h
2
The video recorder searches for the next
blank part - longer than one minute - of the
tape and automatically switches to pause
8 The cassette is ejected
4 The video recorder was unable to find any blank
space on the tape inserted.
PROBLEM
ENGLISH
21
SEARCH
FOR TAPE POSITION
/
FIND BLANK PART OF TAPE
Still picture / slow motion
1
To stop the picture, press the Still button R
during playback
2
Keep R pressed down to play back the
picture in slow motion or press R several
times in succession in order to move the
picture forward frame by frame
8 The cassette is ejected
4 The video recorder was unable to find an index
marking on the tape inserted.
PROBLEM
Play compact VHS cassettes
You can, of course, also use this video recorder to play
back compact VHS cassettes. To do this, you will need
the appropriate cassette adapter. Its dimensions match
those of a normal VHS cassette. The adapter is
recognised and treated by the set as a VHS cassette.
STILL PICTURE
/
SLOW MOTION
22
FOR
EXPERTS
ENGLISH
7 Removing picture interference
Fine-tuning tracking
1
During playback, hold down the button =Por ;P+ until the display shows “TRAC”
What is tracking?
Tracking is the name given to the process of
optimizing picture and sound playback. During this
process the speed of the tape is adjusted in such a way
that all kinds of interference are removed or (in the
case of old VHS cassettes) minimised.
v TRAC
2
Hold down the button =P- or ;P+ until the
playback quality is at its best
3
Wait a few seconds until the message “TRAC”
disappears from the display
PARDON?
Tracking adjustment is retained
The adjustments made are stored until the cassette is
removed. After that, the standard tracking adjustment
is restored.
TIP
Optimizing still picture
1
When still picture is activated hold down the
button =P- or ;P+ until the optimal picture
quality is obtained. The display will show
“JITT”
8 I can’t get optimal quality
4 When using rental cassettes or older tapes, it may
not be possible to get rid of all interference
completely.
PROBLEM
v
JITT
2
Wait a few seconds until the message “JITT”
disappears from the display
Adjustment is retained
The adjustments made are stored until the cassette is
removed. After that, the standard adjustment is
restored.
ENGLISH
23
OPTIMIZING TRACKING /
TIP
STILL PICTURE
8 Manual recording
Starting and stopping recording manually
1
Switch on the TV set and - if necessary - select
the programme number set for video recorder
operation
2
Insert a cassette without erase protection
ä
What is erase protection?
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
3
PARDON?
Use the buttons =P- or ;P+ to select the
programme number, under which your video
recorder has stored the desired TV channel
8 I can’t find the TV channels from my satellite
receiver
8 I want to record from an additional device
4 Signals from additional devices - such as a
camcorder, other video recorder, PCs, etc. - are
received via the scart socket of the video recorder.
The programme numbers “E1” and “E2” are
allocated for these sources.
PROBLEM
Selecting the recording speed
You have the option of two playback and recording
speeds: Standard Play (SP) offers the usual, first-class
picture quality. By using Long Play (LP), you can (with
somewhat reduced picture quality) for example record
about 360 minutes of programmes on a 180 minute
cassette.This chapter explains how to set the desired
recording speed (“Selecting the recording speed”)
4
FOR
EXPERTS
Start recording by pressing the Record
button n (remote control or on front of set).
The display will show " ".
Display tape position
n
v
STARTING /
Press the button OK to display the current tape position (hours : minutes : seconds)
P 01
STOPPING RECORDING MANUALLY
5
TIP
End the recording by pressing the Stop
button h
24
ENGLISH
Starting recording manually /
stopping automatically
ä
1
Insert a cassette without erase protection
What is erase protection?
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
2
PARDON?
Use the buttons =P- or ;P+ to select the
programme number, under which your video
recorder has stored the desired TV channel
8 I can’t find the TV channels from my satellite
receiver
8 I want to record from an additional device
4 Signals from additional devices - such as a
camcorder, other video recorder, PCs, etc. - are
received via the scart socket of the video recorder.
The programme numbers “E1” and “E2” are
allocated for these sources.
PROBLEM
Selecting the recording speed
You have the option of two playback and recording
speeds: Standard Play (SP) offers the usual, first-class
picture quality. By using Long Play (LP), you can (with
somewhat reduced picture quality) for example record
about 360 minutes of programmes on a 180 minute
cassette.This chapter explains how to set the desired
recording speed (“Selecting the recording speed”)
3
FOR
EXPERTS
Press the Record button n several times. The
time faded in corresponds to the duration of
recording to be selected. Each time the Record
button is pressed again this is increased in
regular steps (30 minutes). Stop the adjustment
when you have reached the desired duration.
Recording will start.
Delete entry
The recording period displayed can be reset to
00:00:00 with the CLEAR (CL) button
ENGLISH
25
TIP
STARTING RECORDING MANUALLY / STOPPING AUTOMATICALLY
Lining up manual recordings
When you add a further recording to a cassette, which
already has a recording on it, a short blank (flicker) usually
appears between the old and the new recording.This is how
to avoid such an effect.
1
Look at the last minute of the old recording
(playback)
2
Press the Stop button h at the point where you
want the new recording to start (the display will
show 9)
3
Press the Record button n in the usual way to
start the new recording
MAIN MENU
Selecting the recording speed
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use =P- or ;P+ to select the option
“RECORD SPEED” and confirm with OK
3
Use PS+ or QS- to select the desired
recording speed (“SP” - Standard Play or
“LP” - Long Play)
Standard Play / Long Play
Standard Play (SP) offers the usual, first-class picture
quality. By using Long Play (LP), you can (with
somewhat reduced picture quality) for example
record about 360 minutes of programmes on a 180
minute cassette.
LINING UP RECORDINGS / RECORDING SPEED
4
Confirm with OK.The screen will show the
message “STORED”
5
Stop selection of recording speed with MENU
26
PARDON?
ENGLISH
Automatic recording from a satellite receiver
You can only use this function if you have a satellite receiver which
can control other devices via a scart cable
What is a scart cable?
The scart or Euro-AV cable serves as the universal
recording and playback connector for picture-, sound
and control signals.With this type of connection, there
is practically no loss of quality during transfer. We
recommend that you use a scart cable when using this
video recorder.
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
1
Insert a cassette without erase protection
2
Check that the satellite receiver is connected
to the scart socket EXT.2 AV 2 on the
back of the video recorder
3
Press the MENU button on the remote
control.The on-screen menu appears
4
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
5
Use =P- or ;P+ to select the option
“SAT RECORDING”
6
Use PS + or QS- to select the setting
“ON” to activate automatic recording from a
satellite receiver or “OFF” to deactivate it.
Confirm with OK. The screen will show the
message “STORED”
7
Programme the data on the satellite receiver
for the desired recording. If necessary, you
should refer to the instructions for your
satellite receiver for assistance.
8
SWITCH OF THE VIDEO RECORDER WITH THE
STANDBY/ON BUTTON m ! IF YOU DON’T DO
THIS , THE SET WILL NOT RECORD .
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
COUNTER
SAT RECORDING
REPEAT PLAY
DIRECT RECORD
ON
OFF
QT.LEFTP
OFF
OFF
OFF
PARDON?
OK
WHEN AUTOMATIC RECORDING HAS BEEN ACTIVATED
BY A SATELLITE RECEIVER,“x” WILL LIGHT UP IN THE
DISPLAY
ENGLISH
27
AUTOMATIC
RECORDING FROM A SATELLITE RECEIVER
Activate / deactivate direct recording
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
3
Use =P- or ;P+ to select the option
“DIRECT RECORD”
What is Direct Record?
The “Direct Record” function means you can record
in seconds when the video recorder is switched off.
When the record button is pressed, the video
recorder automatically recognises which TV channel
has been selected on the TV set and starts to record
the corresponding programme.
Requirement: 1. The TV set and video recorder are
connected with a scart cable! 2. The TV set supports
the “Easylink” function! 3. The “Direct Record”
function has been activated in the on-screen menu.
4. There is a cassette ready for recording in the
machine!
OK
4
PARDON?
Use S+ P or QS - to select the
setting “ON”, to allow direct recording, or
“OFF”, to deactivate this function
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
COUNTER
SAT RECORDING
REPEAT PLAY
DIRECT RECORD
8 I can´t select “ON” or “OFF”
ON
OFF
QT.LEFTP
OFF
OFF
OFF
OK
4 If the comment “N.ACT.” appears in the “DIRECT
RECORD” line, unfortunately your TV set does not
support the “Easylink” function. This means that
direct recordings are not possible.
PROBLEM
5
Confirm with OK
6
Leave the on-screen menu with the MENU
button
Switching off the video recorder!
The “direct record” function only works if the record
button n is pressed when the video recorder is
switched off.
ACTIVATE /
DEACTIVATE DIRECT RECORDING
28
TIP
ENGLISH
Making a direct recording
1
The “direct record” function must be activated
in the on-screen menu (see previous page). No
direct recordings can be made unless this
function has been activated
What is Direct Record?
The “Direct Record” function means you can record
in seconds when the video recorder is switched off.
When the record button is pressed, the video
recorder automatically recognises which TV channel
has been selected on the TV set and starts to record
the corresponding programme.
Requirement: 1. The TV set and video recorder are
connected with a scart cable! 2. The TV set supports
the “Easylink” function! 3. The “Direct Record”
function has been activated in the on-screen menu.
4. There is a cassette ready for recording in the
machine!
ä
2
Insert a cassette without erase protection
What is erase protection?
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
ENGLISH
PARDON?
PARDON?
3
Switch off the video recorder with the standby
button m
4
On the TV set, select the channel for the
programme you wish to record
5
Press the Record button n on the video
recorder. The video recorder recognises the TV
channel on the TV set and automatically records
the correct programme
6
End the recording by pressing the Stop button h
29
MAKING A
DIRECT RECORDING
9 Programmed recordings
Programming timer with VIDEO Plus+
1
Press the TIMER button k
What is a Timer?
The timer controls the programmed recordings of your
video recorder. Requirements for a timer which works
correctly:The clock in the video recorder must be corrrectly set or the reception of the TV signal must be as
free from interference as possible (for example, if there
is interference, the video recorder might not correctly
recognise the VPS signal of a TV channel).
VIDEO PLUS+
PLUSCODE NUMBER
543124---
REP.
PARDON?
ONCE
2
The VIDEO Plus screen will appear
What is VIDEO Plus+?
REP.PSELECT
STOREPOK
TIMER LISTPTIMER
A programming system which replaces the often
tiresome entry of date, starting time, finish time and
programme number by the simple entry of a number
up to nine digits long (which can be found in any TV
programme listing).
3
PARDON?
Use the 0-9 keys to enter the PlusCode
programming number of the TV programme
selected: Incorrect entries can be cancelled
with the CLEAR (CL) button
Daily / weekly recordings
If you like, you can use SELECT “ONCE” for one-off
recordings, “MO-FR” for recordings, which are
repeated daily (Mon-Fri) or “WEEK.” for recordings,
that are shown each week on the same day.
4
FOR
EXPERTS
Confirm with OK
8 I get the error message “SELECT PROG. NR. ”
4 You have entered a correct PlusCode
programming number - but automatic
recognition of the correct TV channel has failed.
Please enter the programme number under which
your video recorder has stored the
desired TV channel, using the buttons 0-9 and
PROBLEM
confirm with OK.
PROGRAMMING TIMER WITH VIDEO PLUS+
30
ENGLISH
5
TIMER
VPS
DATE REP. PROG. START PDC END
21 ONCE
01 20:00 * 21:30
REP.PSELECT
The details of the previously entered
VIDEO Plus recording are displayed. Use
S+ P or QS- to select the input fields and
- if necessary - change their content with 0-9
Activate VPS/ PDC
VPS- (Video Programming System) and PDC signals
(Programme Delivery Control) are transmitted by TV
channels at the start and end of transmissions and
ensure that programmes will be completely recorded,
even if they are rescheduled. In the input box,“START”
use SELECT to switch recognition of these signals on
(*) or off ( ).
STOREPOK
6
FOR
EXPERTS
Confirm with OK.The screen will show
“STORED”
Selecting the recording speed
You have the option of two playback and recording
speeds: Standard Play (SP) offers the usual, first-class
picture quality. By using Long Play (LP), you can (with
somewhat reduced picture quality) for example record
about 360 minutes of programmes on a 180 minute
cassette. This chapter explains how to set the desired
recording speed (“Selecting the recording speed” )
ä
7
FOR
EXPERTS
Insert a cassette without erase protection
What is erase protection?
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
8
PARDON?
SWITCH OFF THE VIDEO RECORDER WITH THE
STANDBY/ON BUTTON m ! IF YOU DON’T DO
THIS , THE SET WILL NOT RECORD .
The display will show “k”
YOU
WILL FIND TIPS FOR SOLVING
PROBLEMS TO DO WITH
VIDEO PLUS
RECORDING ON THE FOLLOWING PAGE .
ENGLISH
31
PROBLEM
PROGRAMMING TIMER WITH VIDEO PLUS+
Problem solving (VIDEO Plus-Programming)
PROBLEM
Error message:
“SELECT PROG. NR.“
Error message:
“PLUSCODE NUMBER
WRONG“
Error message:
“MO-FR PROGRAMMING NOT
POSSIBLE FOR WEEKEND”
Error message:
“SWITCH TO STANDBY TIMER RECORDING “
SOLUTION
A correct PlusCode programming number has been entered - but automatic
recognition of the correct TV channel has failed. Please enter the programme
number under which your video recorder has stored the desired TV channel,
using the buttons 0-9 and confirm with OK.
The Pluscode programming number entered is incorrect or does not match the
date entered. Please enter it again or finish with the STANDBY/ON m button.
The attribute “MO-FR” has been selected for a recording at the weekend.This is
only possible for recordings from Monday to Friday. Please enter it again or finish
with the STANDBY/ON m button.
A recording was programmed, but the video recorder was not switched into
timer mode with the standby m button. Press STANDBY/ON m in order to make
the programmed recording.Warning: if you do not do this, the video recorder will
not record.
Error message:
“NO CASSETTE “
A recording was programmed, but there is no cassette in the machine. Insert a
cassette ready for recording without erase protection.
Error message:
“ALL TIMERS OCCUPIED“
All the available memory locations in your video recorder for timer and VIDEO
Plus programming are full. Delete a programmed recording (see chapter “Delete
a programmed recording”).
“k” and “ v” are flashing
in the display of the video
recorder
A recording was programmed, but there is no cassette in the machine. Insert a
cassette ready for recording without erase protection.
A recording was programmed, but the video recorder was not switched into
timer mode with the standby m button. Press STANDBY/ON m in order to make
the programmed recording.Warning: if you do not do this, the video recorder will
not record.
Cassette is ejected
after programming
A cassette with erase protection was inserted. Please deactivate the erase
protection or insert another cassette which is ready for recording.
Cassette is ejected
during recording
The end of the tape was reached during a programmed recording.The recording
could not be completed satisfactorily.
The set cannot be used
during recording.
Once started, a recording can only be interrupted by pressing the STANDBY/ON
m button. WARNING: This will not only stop the recording, but it will also
delete the programmed recording from the memory of the video recorder.
Year/Month/Date/Time dis play appears
The time has not been set or not set correctly. After entering/confirming year,
month, date and time, you can continue programming.
PROBLEM
SOLVING
(VIDEO PLUS-PROGRAMMING)
32
ENGLISH
2x
TIMER
Programming timer without VIDEO Plus+
1
Press the TIMER k button twice
2
The Timer screen will appear
3
If necessary use =P- or ;P+ to select a free
memory location and confirm with TIMER k.
VPS
DATE REP. PROG. START PDC END
21 ONCE
01 20:00 * 21:30
REP.PSELECT
What is a memory location?
For technical reasons, your video recorder has access
to a limited number of “drawers” in which you can
store your programming requirements. “Drawers”
occupied by programme recording details are only
available for use again after the video recorder has
successfully completed a programmed recording or if
it has been manually deleted.Your video recorder can
store up to six timer programmings.
STOREPOK
4
PARDON?
Use S+ P or QS - to select the input
field “DATE” and enter the date of your
desired recording
Daily / weekly recordings
If you like, you can use SELECT “MO-FR” for recordings which are repeated daily or “WEEK.” (weekly)
for recordings which are repeated each week on the
same day.
5
Use S+ P or QS- to select the input
field “PROG.” and enter the programme number
under which the video recorder has stored the
desired TV channel
6
Use S+ P or QS- to select the input
field “START.” and enter the start time of the
desired recording
Activate VPS/ PDC
VPS (Video Programming Service) and PDC signals
(Programme Delivery Control) are transmitted by TV
channels at the start and end of transmissions and
ensure that programmes will be completely recorded,
even if they are rescheduled. In the input field,
“START” use SELECT to switch recognition of these
signals on (*) or off ( ).
ENGLISH
33
FOR
EXPERTS
FOR
EXPERTS
PROGRAMMING TIMER WITHOUT VIDEO PLUS
7
Use S+ P or QS- to select the input
field “END.” and enter the end time of the
desired recording
8
Check, whether the date, programme number
start and end times are correctly displayed on
the screen
9
Confirm with OK.The screen will show the
message “STORED”
Selecting the recording speed
You have the option of two playback and recording
speeds: Standard Play (SP) offers the usual, first-class
picture quality. By using Long Play (LP), you can (with
somewhat reduced picture quality) for example
record about 360 minutes of programmes on a 180
minute cassette. The previous chapter explains how
to set the desired recording speed (“Selecting the
recording speed” )
ä
0
FOR
EXPERTS
Insert a cassette without erase protection
What is erase protection?
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
A
PARDON?
SWITCH OFF THE VIDEO RECORDER WITH THE
STANDBY/ON BUTTON m ! IF YOU DON’T
DO THIS , THE SET WILL NOT RECORD .
The display will show “k”
YOU
WILL FIND TIPS FOR SOLVING
PROBLEMS TO DO WITH TIMER
RECORDING ON THE FOLLOWING PAGE .
PROGRAMMING TIMER WITHOUT VIDEO PLUS
34
PROBLEM
ENGLISH
Problem solving (Timer programming)
SOLUTION
PROBLEM
Error message:
“NO CASSETTE ”
Error message:
“SWITCH TO STANDBY TIMER RECORDING “
“k” and “v” are
flashing in the display
of the video recorder
A recording was programmed, but there is no cassette in the machine. Insert a
cassette ready for recording without erase protection.
A recording was programmed, but the video recorder was not switched into
timer mode with the standby button. Press STANDBY/ON m in order to make
the programmed recording.Warning: if you do not do this, the video recorder will
not record.
A recording was programmed, but there is no cassette in the machine. Insert a
cassette ready for recording without erase protection.
A recording was programmed, but the video recorder was not switched into
timer mode with the standby button. Press STANDBY/ON m in order to make
the programmed recording.Warning: if you do not do this, the video recorder will
not record.
Error message:
“ALL TIMERS OCCUPIED”
All the available memory locations in your video recorder for timer and VIDEO
Plus programming are full. Delete a programmed recording (see chapter “Delete
/ check programmed recordings”).
Cassette is ejected
during recording
The end of the tape was reached during a programmed recording.The recording
could not be completed satisfactorily.
Cassette is ejected
after programming
A cassette with erase protection was inserted. Please deactivate the erase
protection or insert another cassette which is ready for recording.
The set cannot be used
during recording.
Once started, a recording can only be interrupted by pressing the
STANDBY/ON m. WARNING: This will not only stop the recording, but it will
also delete the programmed recording from the memory of the video recorder.
Year/Month/Date/Time
display appears
The time has not been set or not set correctly. After entering/confirming year,
month, date and time, you can continue programming.
Recording via external sources
If you want to watch or record transmissions from a
satellite receiver, films from a video camera (or from
other external devices), connect the device to the
scart socket EXT1 AV1 or EXT2 AV2 and select the
programme number on your video recorder “E1” or
“E2”.
ENGLISH
35
PROBLEM
SOLVING
(TIMER
FOR
EXPERTS
PROGRAMMING)
“Turbo Timer”-Recording
With the Turbo Timer you can quickly and easily make
a programmed recording within the next 24 hours
without having to switch on the TV set.All you need to
do now is enter or confirm the desired programme
number and start and finish time in the video recorder.
k
k
k
20:00
1
Press the TURBO TIMER button on the
remote control.
2
The display shows the actual starting time, e.g.:
“START 20:00”. Change – if necessary – the
displayed start time with =P- or ;P+. Confirm
with TURBO TIMER
Activate VPS/ PDC
VPS (Video Programming Service) and PDC signals
(Programme Delivery Control) are transmitted by TV
channels at the start and end of transmissions and
ensure that programmes will be completely recorded,
even if they are rescheduled. Use SELECT to switch
VPS/PDC appears in
recognition of these signals on (V
the display) or off.
22:00
3
The display shows a suggestion for the end of
the recording e.g.: “END 22:00” (Start time
+ 2 hours). Change – if necessary – the
displayed start time with =P- or ;P+. Confirm
with TURBO TIMER
4
The display shows the programme number to
which the video recorder is currently set, e.g.:
“PROG. 01“. Change – if necessary – the displayed start time with =P- or ;P+. Confirm
with TURBO TIMER
01
“TURBO TIMER”-RECORDING
36
FOR
EXPERTS
ENGLISH
k
OK
5
The screen will briefly show “OK”.
6
Insert a cassette without erase protection
What is erase protection?
ä
VHS cassettes can be protected from over-recording by
breaking off a thin strip of plastic (arrow). This erase
protection can be overridden by sticking one or more
strips of adhesive tape tightly over the gap which has
been created.
7
SWITCH OFF THE VIDEO RECORDER
STANDBY/ON m BUTTON ! IF YOU
THIS , THE SET WILL NOT RECORD .
PARDON?
WITH THE
DON ’T DO
The display will show “k”
Problem solving (Turbo Timer programming)
PROBLEM
SOLUTION
Error message: “ CASS”,
“k” will blink in the display
A recording was programmed, but there is no cassette in the machine. Insert a
cassette ready for recording without erase protection.
Error message:
“FULL”
All the available memory locations in your video recorder for timer and VIDEO
Plus programming are full. Delete a programmed recording (see chapter “Delete
/ check programmed recordings”).
Cassette is ejected
during recording
The end of the tape was reached during a programmed recording.The recording
could not be completed satisfactorily.
Cassette is ejected
after programming
A cassette with erase protection was inserted. Please deactivate the erase
protection or insert another cassette which is ready for recording.
The set cannot be used
during recording.
Once started, a recording can only be interrupted by pressing the STANDBY/ON
m button. WARNING: This will not only stop the recording, but it will also
delete the programmed recording from the memory of the video recorder.
Error message:
“CLK”
The time has not been set or not set correctly. A Turbo Timer recording is not
possible. Please enter the correct time (Section “Changing time and date”).
ENGLISH
37
“TURBO TIMER”-RECORDING / PROBLEM
SOLVING
Delete / check / change programmed recordings
2x
1
Press the TIMER k button on the remote
control twice
2
Use the buttons =P- or ;P+ to select the
memory location in the display which you
want to check / change / delete
TIMER
What is a memory location?
VPS
DATE REP. PROG. START PDC END
21 ONCE
01 20:00 * 21:30
REP.PSELECT
For technical reasons, your video recorder has access
to a limited number of “drawers“ in which you can
store your programming requirements. “Drawers“
occupied by programme recording details are only
available for use again after the video recorder has
successfully completed a programmed recording or if
it has been manually deleted.
STOREPOK
3
Deleting:
Press CLEAR(CL) and finish
with the button OK.
Checking:
Press TIMER k, check the
stored details and (once you
have checked) end with OK
Changing:
Press TIMER k and use the
buttons 0-9 to enter the new
value(s). Confirm with OK and
activate the timer again with the
Standby button m.
PARDON?
Using “NexTView Link“
If your TV set supports the function “NexTView Link” there is
another way in which you can quickly and simply programme
recordings: With these TV sets, you can call up the transmission
schedule of the TV channel, mark the programmes to be
recorded and automatically transfer their details into the
memory of the video recorder. Please look in the instructions for
your TV set to find out whether and how you can benefit from
this function.
DELETE/CHECK/CHANGE
RECORDINGS, NEXTVIEW
LINK
38
ENGLISH
10 Other functions
Adjusting automatic switch-off
If the video recorder is not used for several minutes, it
switches itself off automatically. If you want to use the video
recorder as a TV receiver, you can deactivate the automatic
switch-off as follows:
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use =P- or ;P+ to select the option “AUTO
STANDBY” and confirm with OK
3
Use S+ P or QS - to select the
setting “OFF” (automatic switch-off
deactivated) or “ON” (automatic switch-off
activated) and confirm with OK. The screen
will show “STORED”
4
Complete the adjustment of automatic switchoff with the MENU button
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
Adjusting the child lock
You can prevent unauthorised use of your video recorder with
this function. Once it is activated, the buttons on the front of the
set are locked. Previously entered programmes will of course be
recorded.
ENGLISH
1
Press the CHILD LOCK u button for a few
seconds, until the display shows “u”.The child
lock is now activated. Switch off the video
recorder with the Standby button m on the
remote control. The set can now only be
switched on with the remote control. Put away
the remote control in a secure place.
2
To deactivate the child lock, press the CHILD
LOCK button u for a few seconds until
“u” disappears
39
AUTOMATIC
SWITCH-OFF
/ CHILD
LOCK
Replaying cassette continuously
This function can be used to play a tape over and over again. If the
end of the cassette or of the recording has been reached, the video
recorder automatically rewinds to the start of the tape and starts to
play back again.This function is activated or deactivated as follows:
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
3
Use = P- or ; P+ to select the option
“REPEAT PLAY”
4
Use S+ P or QS- to select the
setting “ON” (continuous playback) or “OFF”
(no continuous playback) and confirm with
OK.The screen will show “STORED”
5
Complete the adjustment of continuous
playback with the MENU button
6
Insert a cassette without erase protection
OK
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
COUNTER
SAT RECORDING
REPEAT PLAY
DIRECT RECORD
What is erase protection?
ON
OFF
QT.LEFTP
OFF
OFF
OFF
OK
VHS cassettes can be protected from over-recording
by breaking off a thin strip of plastic (arrow). This
erase protection can be overridden by sticking one or
more strips of adhesive tape tightly over the gap
which has been created.
7
PARDON?
Press playback button C to start the playback
or continuous playback (depending on the
setting)
Changing the TV system
When playing back cassettes which have been recorded with
signals from a different TV system there may be interference with
the colour. To deactivate the automatic change to a different TV
system, you must follow these steps.
REPLAYING CASSETTE CONTINUOUSLY / CHANGING TV SYSTEM
40
ENGLISH
TV systems
Other countries, other TV systems: In central Europe
transmissions are broadcast in the PAL-System (Phase
Alternation Line) Standard, while in France SECAM
(Sèquentiel à mèmoire) is used. In some countries
(USA and Japan), TV viewers receive their
programmes as an NTSC signal (National Television
System Committee). Many TV and video sets can
process and show several transmission systems,
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
During playback press the MENU button on the
remote control.The on-screen menu appears
2
Use = P- or ; P+ to select the option
“TV SYSTEM” and confirm with OK
3
Use S+ P or QS- to select the
desired TV system or “B/W” for black and
white playback and confirm with OK
OK
PARDON?
Reactivating automatic change-over
As soon as a cassette is ejected with the Stop/Eject
button ? on the front of the video recorder the
set switches automatically back to the “AUTO” settting (automatic switching). To change the setting
during playback, perform the steps 1-3 again and
select “AUTO”.
4
TIP
End the change-over to automatic TV system
changing with the MENU button
Energy-saving mode
To reduce the power consumption of the video recorder you can
switch the clock in the display on or off as follows:
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
1
Press the MENU button on the remote
control.The on-screen menu appears
2
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
3
Use =P- or ;P+ to select the option “CLOCK
DISPLAY”
Use S+ P or QS - to select the setting
“ON” or “OFF” and confirm with OK.The screen
will show “STORED”
OK
4
5
ENGLISH
Complete the adjustment of the clock display
with the MENU button
41
ENERGY-SAVING
MODE
Adjusting the OSD information
If this function is activated, the current operating
details of the video recorder will be briefly displayed
on the screen
What is an OSD?
The on-screen menu or OSD (“On Screen Display
takes the mystery out of using your new video
recorder. Using the main menu (MENU button on your
remote control), all settings and recording steps can be
done easily via the on-screen menu by
following the corresponding instructions on the screen.
MAIN MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
TV SYSTEM
SPECIAL SETTINGS
OK
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
COUNTER
SAT RECORDING
REPEAT PLAY
DIRECT RECORD
1
During playback press the MENU button on
the remote control. The on-screen menu
appears
2
Use = P- or ; P+ to select the option
“SPECIAL SETTINGS” and confirm with OK
3
Use =P- or ;P+ to select the option
“OSD”
4
Use S+ P or QS- to select the
setting “ON” (OSD information on) or “OFF”
(OSD information off) and confirm with OK
ON
OFF
QT.LEFTP
OFF
OFF
OFF
What goes on behind the settings?
OK
5
ADJUSTING THE OSD
INFORMATION
PARDON?
ON:
The corresponding symbol for each type of
operation (playback, recording, etc.) appears
briefly on the screen
OFF:
OSD information is not shown
TIP
Complete the adjustment of the OSD
information with the MENU button
42
ENGLISH
11 Suppressing interference
Optimizing the modulator
If the TV set and the video recorder are only connected with an
aerial cable - rather than with an additional scart cable - it may
happen that in certain reception locations the modulator
frequency of the video recorder is occupied by a TV channel.
Result: As soon as the video recorder is switched on, the
reception quality of the TV picture deteriorates. The following
steps will show you how to overcome this problem.
What is a modulator?
The purpose of this electronic assembly inside your
video recorder is to pass on the picture and sound
information read in from the video tape via an aerial
cable like a TV signal to the TV set. The modulator
frequency determines the frequency range in which
these signals are transmitted.
?
1
Switch the video recorder on and make sure
there is no cassette in the video recorder
2
Press at the same time the STOP button h
on the remote control and the STOP/EJECT
? button on the front of the video
recorder until the modulator frequency of
the set appears in the display (e.g.:“M583” for
583 MHz)
3
The video recorder will now transmit a test
image on this frequency
4
Use = P- or ; P+ to select the option
“OPTIMIZE FREQUENCY” and enter a new
frequency with the number buttons 0-9
M583
OPTIMIZE MODULATOR
OPTIMIZE FREQUENCY Q583P
MODULATOR
ON
EXITPMENU
TIP
STOREPOK
Which modulator frequency should I enter?
You can also make the video recorder search automatically for an appropriate frequency.To do so, simply hold
down the buttons S+ P. As soon as a free
frequency has been found, it will be shown in the display.
5
ENGLISH
PROBLEM
Tune the programme number of your TV set
allocated for video use to the new modulator
frequency until you see the test image
sharply and in colour
43
OPTIMIZING THE
MODULATOR
6
Confirm the new modulator frequency with
OK. In the display there will briefly appear “OK”.
7
Leave the on-screen menu with the MENU
button
Switching off the modulator
If you have connected the video recorder to the TV set
with a scart cable, you can switch off the modulator
when there is interference with the picture or sound
(see below).
FOR
EXPERTS
Switching the modulator on and off
If picture and sound interference cannot be removed by optimizing the
modulator, the integral modulator can be switched off.Warning: this is
only possible if you have connected the video recorder to the TV set
with a scart cable. It is not possible to operate with the modulator
switched off without a scart cable.
?
1
Switch the video recorder on and make sure
there is no cassette in the video recorder
2
Press at the same time the STOP button h
on the remote control and the STOP/EJECT
? button on the front of the video
recorder until the modulator frequency of
the set appears in the display (e.g.: “M583”
for 583 MHz)
3
The video recorder will now transmit a test
image on this frequency
4
Use = P- or ; P+ to select the option
“MODULATOR”
5
Use S+ P or QS- to select the
setting “ON” (Modulator on) or “OFF”
(Modulator off)
6
Confirm with OK. In the display there will
briefly appear “OK”
7
Leave the on-screen menu with the MENU
button
M583
OPTIMIZE MODULATOR
OPTIMIZE FREQUENCY Q583P
MODULATOR
ON
EXITPMENU
SWITCHING THE
STOREPOK
MODULATOR ON AND OFF
44
ENGLISH
12 Before you call an engineer
PROBLEM
POSSIBLE
CAUSE
/
SOLUTION
Set no longer reacts when
buttons are pressed
4 Mains power has been interrupted/ failed
4 A programmed recording is running. Interrupt with the standby button m
4 Child lock is activated: Switch this function off
4 Technical interference: Remove the mains plug from the socket and reinsert it
The set is still not reacting,
display shows e.g. „E000““
4 Remove the mains plug from the socket, hold down the standby button m on the front
of the video recorder and reinsert the mains plug. When “--:--” or „E1“ appears in
the display you can release m .Warning:All data memories of the set (TV channel, time,
timer) have been deleted!
Cassette is jammed
in video recorder
4 Do not use force! Briefly remove the mains plug and then reinsert it
Remote control
does not work
4 Aim the end of the remote control at the display of the video recorder
4 Remove the batteries from the remote control and wait a few seconds before replacing
them
4 Batteries weak or flat: Change the batteries
No playback from video
recorder
4 No recording on the cassette
4 Select the TV programme number allocated to video operation
4 Check that the TV channel number allocated to video operation is correct
4 Cable connection loose/missing: Check the connections
Poor quality playback
from video recorder
4 Check the TV to make sure that the programme number allocated to video operation
is correct
4 Cassette worn/faulty
4 Tracking not correctly adjusted: Carry out the “Optimize tracking” function
No recording possible
4 TV channel not stored or wrongly selected
4 Cassette with erase protection inserted
Programmed recording
not working
4 Wrong / incompletely programmed memory location
4 Time/date not set correctly
4 Cassette with erase protection inserted
Picture and/or sound
interference in TV
reception
4 Optimize the modulator or switch it off (when using a scart cable)
4 Check the aerial cable connection
TV reception still
not perfect
4The Department of Trade and Industry operates a specialist service to help TV licence
holders improve reception of BBC and ITC programmes and to prevent interference. If
your dealer cannot help, ask at a main Post Office for the booklet “How to improve
Television and Radio Reception“.
Dimensions in cm (W/H/D):
Energy consumption
Energy consumption (Low Power Standby)
Mains voltage:
Number of video heads:
Number of audio heads:
Rewind/forward wind speed:
Recording/playback speed (E240 cassette):
ENGLISH
TECHNICAL
45
DATA
38,0/9,3/26,0
12.5W
< 4W
198-264 V / 50 Hz
2
1
approx. 100 seconds (E180 cassette)
SP (Standard Play) 4 hours, LP (Long Play) 8 hours
PROBLEM
SOLVING
/ TECHNICAL
DATA
Notes
NOTES
46
ENGLISH
Video recorder / display
1
2
3
1 STANDBY/ON m
ä
ä
ä
2
3
4
5
ä
ä
ä
RECORD n
PROGRAMME PROGRAMME +
STOP/EJECT ?
ä
ä
6H
ä
ä
I
ä
ä
PLAY K
ä
Recording
in progress
k
Recording
programmed
4
5
6
Switch set on/off
Interrupt function
Interrupt programmed recording
Record
Select previous programme number / menu point
Select previous programme number / menu point
1x: Stop tape
2x: Eject tape
In STOP or STANDBY mode: Rewind tape
During playback: Reverse picture search
In STOP or STANDBY mode: Forward wind tape
During playback: Forward picture search
Play back recorded cassette
(No
function)
Timer:
Enter date
Timer:
Enter start
time
Timer:
Enter
programme
Timer:
Enter
finish time
Child lock
activated
VPS/PDC
signal
detected
Long Play
Current
operating
mode
Automatic
satellite receiver
recording
activated
ENGLISH
Tape
position
in seconds
Decoder
allocated
Cassette
inserted
Daily recording Weekly recording - Programme number
selected
- Tape position
selected
- Function
47
VIDEO
RECORDER
/
DISPLAY
3103 166 25041
0095/ω
VR 210/07
ENGLISH
D
QUICK HELP
8 My TV set has more than one scart
socket.
4 Then you have a more modern
TV set. Please check (with the aid of
the operating instructions for the
TV set) which of the scart sockets
on the set is intended for use with
a video recorder.
Quick
S ta rt G U I DE
8 I can’t see the welcome screen
Dear Philips customer,
(connection without scart cable)
4 Your video recorder “broadcasts“ on the frequency 583MHz
(CH35) in the UHF range (ultra high frequency). Repeat the
matching of the selected programme numbers on the TV set.
4 Check the cable connections
8 I cannot use the mains plug which has been fitted
4 The operating instructions for the video recorder explain in
detail how you should proceed if this happens.
8 There is interference with my picture / sound reception.
Of course you want to start using your new video recorder as
soon as possible. But please wait for at least three hours after
transporting the video recorder before starting installation.The
set needs this time in order to become acclimatised to its new
environment (temperature, air humidity, etc.). For your own
safety, please follow the safety instructions listed in the
Operating Instructions (page 4).
The following accessories are provided with the video
recorder:
4 The operating instructions for the video recorder explain in
detail how you should proceed if this happens.
3103 166 25051
0091/ω
Y
ou will find this and all other
functions of your new video
recorder explained in full in the
enclosed operating instructions.
Please take the time to read
through these instructions. If you
have
problems
using your video
recorder, please
contact
the
Customer
Call
Centre on telephone
number
0181-665-6350.
Your Philips Team hopes
that you will enjoy using
your new video recorder.
Operating instructions
Quick Start Guide
Remote control
(Symbol)
Batteries
Mains cable
Aerial cable
Please check the packaging to make sure all items
are present. If any parts are missing or damaged,
please contact your retailer immediately. Please
notice, that the package may include a scart cable.
A
PREPARING THE REMOTE CONTROL
1
Take the remote control and the enclosed
batteries
2
Open the battery compartment, insert the
batteries and close the battery compartment.
The remote control is now ready to use.
B
CONNECTING THE VIDEO
1
RECORDER
AERIAL CABLE
1 (IN
USE OR PROVIDED WITH
TV
SET )
l Switch off the TV set
l Remove the jack of the aerial cable from the back of the TV set
and insert it in the aerial socket 2 of the video recorder
2 A ERIAL
CABLE
2 (ENCLOSED)
l Connect the aerial socket of the TV set with the TV socket 3
of the Video recorder
3
4
2
1
3 SCART
CABLE (IF THE
TV
SET HAS A SCART SOCKET)
l Connect the scart socket of the TV set with the scart socket
AV1 EXT1 of the video recorder
4
AV1 EXT1
4 MAINS
CABLES (SUPPLIED )
l Connect the mains socket 4 of the video recorder with a
mains socket
C
ADJUSTING THE TV
SET
HAVE YOU CONNECTED A SCART CABLE?
YES
4
NO
8
l Your set should automatically switch over to the
programme number allocated to video recorder
operation. If it does not, select the corresponding
programme number manually (EXT, AV, 0, . . .)
l Switch on the TV set and on the TV set select the
programme number to be used for video recorder
operation
l You will see the welcome screen
(“CONGRATULATIONS. YOU NOW OWN A NEW PHILIPS
VIDEO RECORDER”)
l On the TV set the setting for this programme
number changes until the welcome screen
(“CONGRATULATIONS. YOU NOW OWN A NEW PHILIPS
VIDEO RECORDER”) is shown
D
SETTING
CHANNEL, DATE AND TIME
l Start the automatic initial installation with the OK
button (on the remote control)
l The video recorder automatically searches for all
available TV channels.This may take several minutes
l The screen shows the message “STORED”. The
initial setting is now complete.
AUTO INSTALL
SEARCHING
00 TV CHANNELS FOUND
hhhh_______________
PLEASE WAIT...
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
