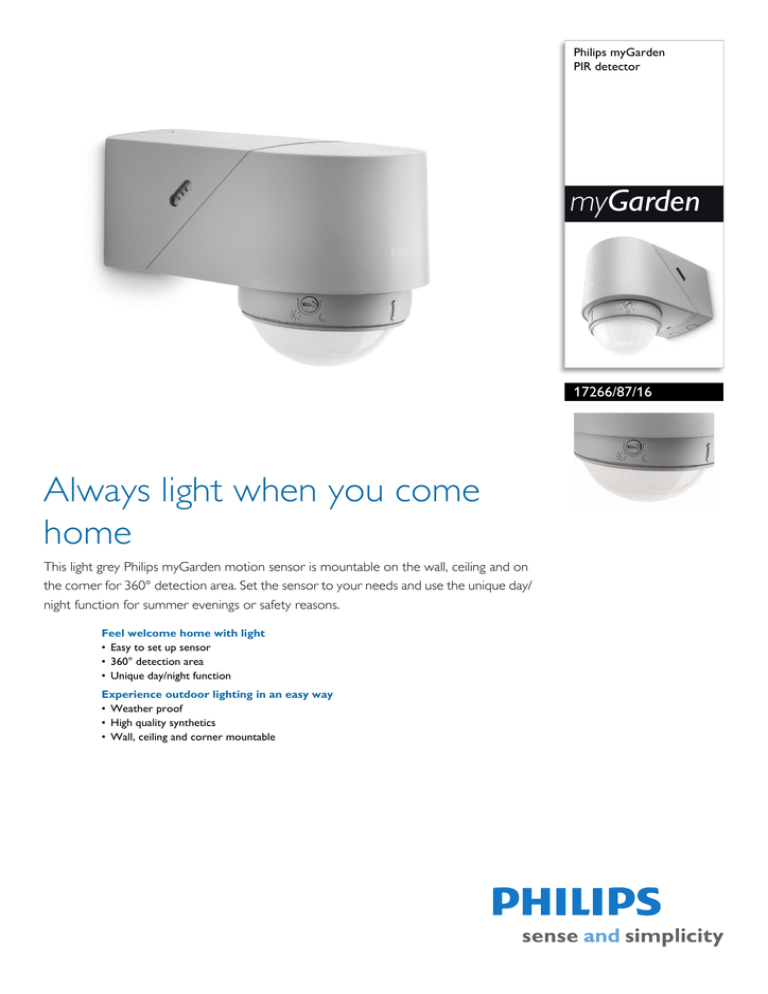

Philips myGarden
PIR detector
Always light when you come
This light grey Philips myGarden motion sensor is mountable on the wall, ceiling and on
the corner for 360° detection area. Set the sensor to your needs and use the unique day/
night function for summer evenings or safety reasons.
Feel welcome home with light
• Easy to set up sensor
• 360° detection area
• Unique day/night function
Experience outdoor lighting in an easy way
• Weather proof
• High quality synthetics
• Wall, ceiling and corner mountable
PIR detector
Easy to set up sensor
Unique day/night function
Design and finishing
• Material: synthetics
• Color: grey
Extra feature/accessory incl.
• Weatherproof
Product dimensions & weight
Height: 8.5 cm
Length: 15.8 cm
Width: 14 cm
Net weight: 0.300 kg
Technical specifications
A simple set up procedure makes it easy to select
when and for how long the automatic sensor
switches on the lamp(s).
Use the unique day/night function for long summer
evenings or for safety reasons.
360° detection area
This Philips motion sensor is mountable on the wall,
ceiling and on the corner.
Wall, ceiling and corner
High quality synthetics
This Philips PIR sensor is made specifically for
outdoor spaces. It's hard-wearing and built to last.
It's constructed from high quality synthetics.
Weather proof
• IP code: IP44, protection against objects bigger
than 1 mm, protection from splashed water
• Class of protection: II - double insulated
• Warranty: 2 year(s)
Packaging dimensions & weight
• Especially designed for: Garden & Patio
• Style: Functional
• Type: PIR detector
This Philips PIR sensor is mountable on the corner of
the wall for a 360° detection area.
This Philips PIR sensor is especially designed for
humid outdoor environments and has undergone
rigorous tests to ensure its water resistance. The IP
level is described by two figures: the first one refers
to the protection level against dust, the second
against water.This Philips PIR sensor is designed with
IP44: it is protected against splashing water, ideal for
general outdoor use.
Issue date 2013-03-24
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 9150 042 43301
EAN: 87 18291 47111 0
Height: 8.8 cm
Length: 15.9 cm
Width: 14.1 cm
Weight: 0.330 kg
