VCC-G60U21GE

VCC-G60U21GE Rev.900-681-32-00

English

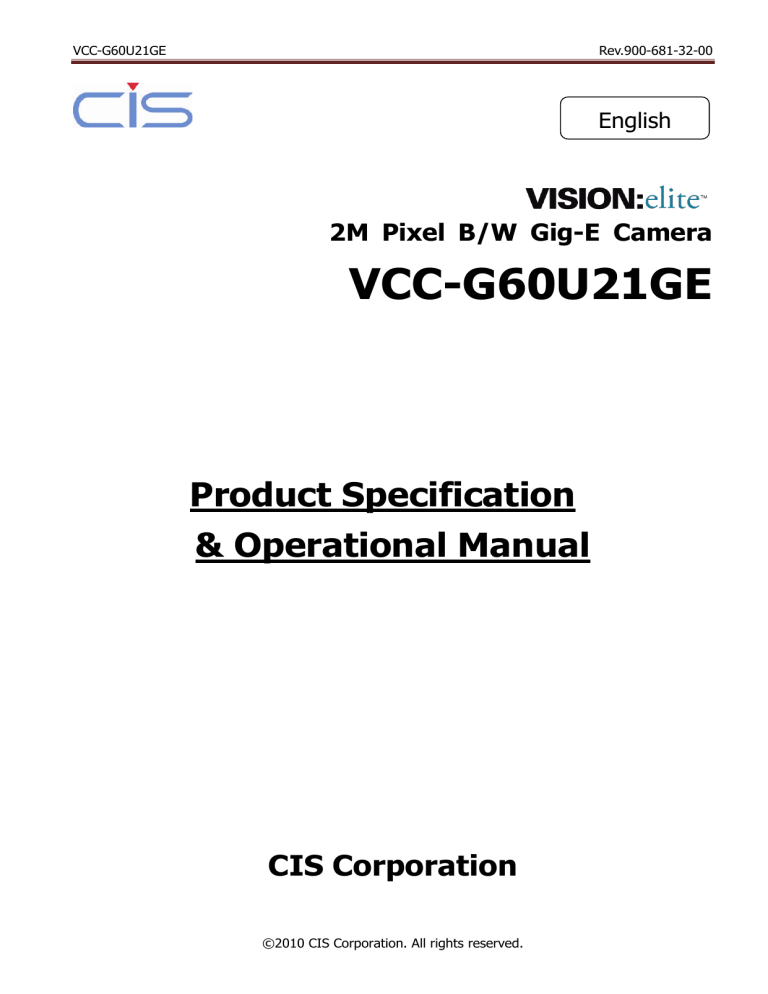

2M Pixel B/W Gig-E Camera

VCC-G60U21GE

Product Specification

& Operational Manual

CIS Corporation

©2010 CIS Corporation. All rights reserved.

VCC-G60U21GE Rev.900-681-32-00

Table of Contents

1. Scope of Application.......................................................................................................................... 3

2. Handling Precautions ........................................................................................................................ 3

3. Product Outline ................................................................................................................................. 4

4. Specification ..................................................................................................................................... 5

4.1. General Specification .................................................................................................................. 5

4.2. Camera Output Signal Specification .............................................................................................. 7

4.3. CCD Spectral Response (Representative Value) ............................................................................. 8

4.4. Image output format (Coyote Application Setting) ......................................................................... 8

5. Function Settings .............................................................................................................................. 9

6. External Connector Pin Assignment ................................................................................................... 11

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE) .................................................................. 11

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD) ..... 12

7. Timing Chart.................................................................................................................................... 13

7.1. Horizontal Synchronous Signals Timing ........................................................................................ 13

7.2. Full Frame Scan Mode Timing ..................................................................................................... 13

7.3. Standard Trigger Mode Timing .................................................................................................... 14

7.4. Pulse Width Trigger Timing ......................................................................................................... 15

7.5. Internal Trigger Timing ............................................................................................................... 16

8. Partial Scan Mode Details ................................................................................................................. 17

9. Remote Interface Function ............................................................................................................... 18

10. Initial Settings ............................................................................................................................... 19

11. CCD Optical Axis Accuracy .............................................................................................................. 20

12. Dimensions .................................................................................................................................... 21

13. Cases for Indemnity (Limited Warranty) ........................................................................................... 23

14. CCD Pixel Defect ............................................................................................................................ 24

15. Product Support ............................................................................................................................. 24

©2010 CIS Corporation. All rights reserved.

2

VCC-G60U21GE Rev.900-681-32-00

1. Scope of Application

This is to describe VCC-G60U21GE, 2M pixels Gig-E B/W CCD Camera. All specifications contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

 Do not use or store the camera in the following extreme conditions:

 Extremely dusty or humid places.

 Extremely hot or cold places (operating temperature –5℃ to +40℃)

 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

 Places subject to fluorescent light reflections.

 Places subject to unstable (flickering, etc.) lighting conditions.

 Places subject to strong vibration.

 Do not apply excessive force or static electricity that could damage the camera.

 Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera is not in use, put the lens cap on.

 Follow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

 Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

 Do not apply excessive voltage.(Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

 The voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power

supply voltage may cause noises on the video signals.

©2010 CIS Corporation. All rights reserved.

3

VCC-G60U21GE Rev.900-681-32-00

 The rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please avoide noises like chattering when rising.

9

8

7

12

11

10

10 20 30 40

Voltage Rising Time [ ms]

50 60 70

In case of abnormal operation, contact the distributor from whom you purchased the product.

3. Product Outline

VCC-G60U21GE is a Gigabit Ethernet interfaced, high-resolution industrial black and white video camera module utilizing a 1/1.8 type PS IT CCD. 2M pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution. At Full Frame Scan Mode, entire pixels can be read out within approx.

1/30s.

Features

High speed communication, maximum 108MB/s. (Comform to 1000BASE-T)

The maximum transmission distance is approx. 100m with cable more than CAT5e.

Camera settings can be set via LAN.

Software trigger input via LAN or hardware trigger input via 12pin connector at rear is selectable.

Shutter speed can be set from 1/30sec ~ 1/54,000sec by 1H.

At partial scan mode, both capturing start position and capturing width can be set by 3H.

Bundled Items

Camera iPORT Software Development Kit 2.4.1 build 921. ※

Gig-E Camera Control Software (CamCtlSetup.exe). ※

Start up manual ※

Please ask for the details or download it from our web.

©2010 CIS Corporation. All rights reserved.

4

VCC-G60U21GE Rev.900-681-32-00

4. Specification

4.1. General Specification

Item Specification

Pickup device Device Type 1/1.8 type Interline Transfer B/W CCD, Sony ICX274AL

Effective Pixel Number 1628 (H) x 1236 (V)

Unit Cell Size

4.40μm (H) x 4.40μm (V)

Chip Size 8.50mm (H) x 6.80mm (V)

Videooutput frequency Pixel Clock 72 MHz

Horizontal Frequency 37.5000kHz Pixel Clock: 1920CLK

Sync. system

Vertical Frequency

Internal Sync. System

Full Frame Scan Mode: 1252lines, approx 29.952Hz

Video output standard Gigabit Ethernet (Comform to 1000BASE-T) Trasferring speed: 108MB/s (max)

Resolution

Resolving power

Sensitivity

1200 TV lines

8bit / 10bit

F 5.6 2000 lx (Shutter speed 1/30s, Gain 0dB)

Minimum illumination F 1.4 2.0 lx (Shutter speed 1/30s, Gain Max +12dB)

Dust or stains in No dust or stain shall be detected on the testing screen with setting the camera optical system aperture at F16.

Power requirements

DC +12V ± 10% (Max voltage not to exceed +15V)

Power consumption 5.5 W (At DC +12V IN, normal mode, full frame scan mode or partial scan mode.)

Dimension Refer to overall dimension drawing (Clause 12)

55mm x 55mm x 60mm (excluding projection)

Approx. 190 g Mass

Lens mount C mount (Refer to overall dimension drawing)

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 11)

Gain variable range

0~12dB

Shutter speed variable range

1/30s (Off) ~1/54000s

Trigger shutter mode ・Standard Trigger Mode ・Pulse Width Trigger Mode ・Internal Trigger Mode

©2010 CIS Corporation. All rights reserved.

5

VCC-G60U21GE Rev.900-681-32-00

Item

Safety/Quality standards

Durability

Specification

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: EN 55022:2006 (Class A) for Emission

EN 61000-6-2:2005 for Immunity

FCC: TBD

98 m/s

2

(10.0G)

20~200 Hz

Vibration

Acceleration

Frequency

Direction XYZ 3 directions

Shock

Testing time 120 min for each direction

No mulfunction shall be occurred with 980m/s

2

(100G) for

±

X, ±Y, and ±Z, 6 directions. (without package)

Temperature Performance guaranteed temperature: 0℃~+40℃

Camera operation guaranteed temeprature: -5℃~+45℃

All the specifications specified in this manual is guaranteed

Operation environment

Storage environment under performance guaranteed temperature.

All the camera functions operate normally under operation guaranteed temperature

RH 20~80% with no condensation

Humidity

Temperature -25℃ ~ +60℃

Humidity

RH 20~80% with no condensation

LAN Card Intel PRO/1000 series

Recommended System

LAN Cable

OS

Memory

MOD-YSP-A1AS-SP series (Honda Tsushin Kogyo)

MV series (CEI)

Windows XP, Windows VISTA

Over 512 MB (over 1GB recommeded)

©2010 CIS Corporation. All rights reserved.

6

VCC-G60U21GE Rev.900-681-32-00

4.2. Camera Output Signal Specification

Item Specification

Video output data

Video out 1642 (H) x 1224 (V)

At Full Frame Scan Mode

Sync. Signal

I/O

LVAL output

FVAL output

DVAL output

SP (Exposure Signal)

LVTTL (3.3V Output)

LVTTL (3.3V Output)

LVTTL (3.3V Output)

LVTTL (3.3V Output)

HR10-10R-12PA

Output pin assignment is set via iPort SDK. Please refer to our VCC-G60/F60

GE series startup manual, section 5.7. Trigger Mode.

Trigger input

Polarity

Trigger Pulse width

POSI/NEGA Selectable

Min. over 2 HD ~ Max. under 2504 HD

Hardware Trigger input LVTTL (5.0V Tolerant) HR10-10R-12PA

Software Trigger input RJ-45

White Clip Level Digital 8bit : FFh

Video output Setup Level signal

Dark Shading

Digital 8bit

Digital 8bit

: 08h

: Under 08h for both horizontal and vertical

(Conditions: Gain 0dB)

5 secounds shall be waited after turning on power to get proper camera operation.

+3.3V

VCC

SN74LV125A(TI)

Vih : Vcc × 0.7(Min)

Vil : Vcc × 0.3(Max)

Voh : 2.48V(Min)

Vol : 0.44V(Max)

180Ω

180Ω

UDZS TE-17 6.2B

(ROHM)

TTL In(a)

TTL Out(b)

(a):0~3

(b):0~2

12 pins circular connector at rear GPIO interface

©2010 CIS Corporation. All rights reserved.

7

VCC-G60U21GE

4.3. CCD Spectral Response (Representative Value)

※ Lens charcteristics and luminous source charcteristics are not considered.

Rev.900-681-32-00

4.4. Image output format (Coyote Application Setting)

1-Tap, Grayscale

Area of interest Width : 1624 Height : 1224 Offset X : 0 Offset Y : 19

©2010 CIS Corporation. All rights reserved.

8

VCC-G60U21GE Rev.900-681-32-00

5. Function Settings

Camera functions can be set with serial communications.

Function Address Data

Gain 001

0:

1:

2:

3:

0 dB: Analog Fixed Gain

+3 dB: Analog Fixed Gain

+6 dB: Analog Fixed Gain

+12 dB: Analog Gain (+6dB) + Digital Gain (+6dB)

E-Shutter

Trigger Mode

Manual Analog Gain

Manual Shutter Control

Trigger Polarity

Output Data Select

3:

4:

5:

6:

7:

4:

0:

1:

2:

Manual Gain (Refer to Address 005 and 006)

1/30s(Off)

1/30s

1/60s

1/90s

1/120s

1/150s

1/200s

1/250s

002

13:

14:

15:

16:

0:

8:

9:

10:

11:

12:

1:

2:

1/500s

1/750s

1/1000s

1/1500s

1/2500s

1/5000s

1/10000s

1/54000s

Manual Shutter (Refer to Address 009 & 010)

Normal Mode (Trigger Mode Off)

004

013

3:

005&006 0~512:

Standard Trigger Mode (Shutter speed can be set with address 002.)

Pulse Width Trigger Mode (Shutter speed can be set with trigger pulse width.)

Internal Trigger Mode (Generates trigger signals in the camera.)

Trigger Cycle: Address 240, 241, 242, 243, 244, and 245.

Start/Stop: Address 246

0: 0dB~512: over +12dB (Log Linear)

With 10 bit data, 2LSB is invalid.

Set the address 001 data to 004.

1/30s (Off)~1/54000s

Set the address 002 data to 016.

009&010 0~1251: Address 009 MSB and address 010 LSB makes total 16 bit.

Shutter speed = (1251-(009&010)) x 26.27μs + 18.53μs

011

0:

1:

Max data = 1251

Positive Input

Negative Input

0:

1:

8bit Output Data

10bit Output Data

©2010 CIS Corporation. All rights reserved.

9

VCC-G60U21GE

Function

Rev.900-681-32-00

Gamma Mode

Partial Scan Mode

Partial Scan Start Position

Partial Scan Effective Line

Partial Scan Total Line

Internal Trigger Period 1

Internal Trigger Period 2

Internal Trigger Start/Stop

Address Data

014

015

016&017

0:

1:

0:

1:

0~407:

Gamma Off (1.0)

Gamma On (Option)

Full Frame Scan Mode

Partial Scan Mode

Set the address 015 data to 001.

Address 016 MSB and address 017 LSB makes total 16 bit.

Start Position: 3 H/step Min Data: 0 (0H)/Max Data : 407 (1221 H)

Start Position (016&017)+ Effective Line (019&020) <= 407

019&020

0~407:

Set the address 015 data to 001.

Address 019 MSB and address 020 LSB makes total 16 bit.

Effective Line: 3 H /step Min Data: 0 (3 H)/Max Data : 407 (1224 H)

Start Position (016&017)+ Effective Line (019&020) <= 407

Read Only

021&022

0~1251:

Total line number at Partial Scan Mode or Full Frame Scan Mode minus 1

is set

240~242

243~245

Trigger Period 1 = (Address 240 「MSB」- 241 – 242 「LSB」+1) x t t. = (1920/72M) x 19 = 506.667 μs

(240, 241, and 242) :1 (Min) ~ 131071 (Max)

Trigger Period 2 = (Address 243 「MSB」- 244 – 245 「LSB」+1) x t t. = (1920/72M) x 19 = 506.667 μs

(243, 244, and 245) :1 (Min) ~ 131071 (Max)

246

255

0: Internal Trigger Start

1: Internal Trigger Stop

Please set the data of address 004 to be 003.

Input 083 or 053 to save the data in EEP-ROM. Data Save

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

©2010 CIS Corporation. All rights reserved.

10

VCC-G60U21GE Rev.900-681-32-00

6. External Connector Pin Assignment

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)

Pin

No.

1 GND

2 Power In DC +12V

3 TTL In3

(LVTTL Input 5V Tolerant)

4 TTL Out2

(LVTTL 3.3V Output)

5 GND

6 TTL In2

(LVTTL input 5V Tolerant)

7 TTL Out1

(LVTTL 3.3V Output)

8 TTL In1

(LVTTL input 5V Tolerant)

9 TTL Out0

(LVTTL 3.3V Output)

10 TTL In0

(LVTTL Input 5V Tolerant)

11 NC

12 NC

Signals which can be controlled by GigE

Camera Control Software

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

TTL In(a) a:0~3・・・Trigger Input etc.

TTL Out(b) b:0~2・・・LVAL, FVAL, DVAL, SP, Pulse Generator etc.

Pin assignment and functions can be set arbitrarily via iPORT software.

Please refer to iPORT.Software.Coyote.pdf in¥Program Files¥Pleora Technologies Inc¥iPORT

Software¥Documentation.

©2010 CIS Corporation. All rights reserved.

11

VCC-G60U21GE Rev.900-681-32-00

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD)

LINK LED:

ACT LED:

Lighting-off

Lighting-on

Blinking

Lighting-off

Lighting-on

LINK(Green LED)

・・・

・・・

・・・

・・・

・・・

ACT( Yellow LED)

Unconnected to LAN

Connected to LAN

Transmitting the data

Unconnected or connected with 10Mbps/100Mbps

Connected with 1000Mbps

©2010 CIS Corporation. All rights reserved.

12

VCC-G60U21GE Rev.900-681-32-00

7. Timing Chart

7.1. Horizontal Synchronous Signals Timing

Video Output

LVAL Output

DVAL Output

296 CLK

296 CLK

FVAL Output

1 CLK

7.2. Full Frame Scan Mode Timing

Video Output

1224H

(CCD Read Out Signal)

1248

LVAL Output

1249 1250 1251 1252

DVAL Output

FVAL Output

1 2 3 4

9H

5

1920 CLK

28H

6 7

1624 CLK

CLK 72 MHz

8 9 10 11 12

19H

1224H

28 29 30 31

Total=1252H

©2010 CIS Corporation. All rights reserved.

13

VCC-G60U21GE Rev.900-681-32-00

7.3. Standard Trigger Mode Timing

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 0.96μs.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

Trigger input during the execution of exposure (exposure time) shall be ignored. (Refer to the “G” below.)

(Trigger Input)

19H 1224H

Video Output

LVAL Output

1

(CCD Read

Out Signal)

9

29 1252

DVAL Output

FVAL Output

1243H a b

0.96μ s nHD × 27.67μ s+18.53μ s

Standard Trigger Mode

(Trigger Input)

(E)

(Trigger Input)

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output

Delay(Fixed)

(Exposure Signal) b Exposure Time

(F)

Trigger invalid

(G)

SP Output

(Exposure Signal)

Video Output

Exposure Time (Register Set Value)

(E)

Exposure Time

(F)

(Register Set Value)

(Exposure Time)

(B)

(B)

(F)

DVAL Output

©2010 CIS Corporation. All rights reserved.

14

VCC-G60U21GE

7.4. Pulse Width Trigger Timing

Rev.900-681-32-00

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 0.96μs. Delay time, from detecting the trigger edge to completion of exposure, is 19.46μs.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. Please refer to the “C” below. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

(Trigger Input)

19H

1224H

Video Output

LVAL Output

(CCD Read

Out Signal)

1 9

29 1252

DVAL Output

FVAL Output

Pulse Width Trigger Mode

(Trigger Input)

(A)

(Trigger Input)

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output

Delay(Fixed)

(Exposure Signal)

(B)

1243H

Exposure Time

953

CLK b

450

CLK

Delay(Fixed)

Trigger invalid

(C) (D) a b

0.96μ s

19.49μ s

SP Output

(Exposure Signal)

(Exposure Time)

Exposure Time

(Pulse Width) (Pulse Width)

Exposure Time

(Pulse Width)

(B)

(Video Output(C))

(A)

(B)

(D)

Video Output

DVAL Output

©2010 CIS Corporation. All rights reserved.

15

VCC-G60U21GE

7.5. Internal Trigger Timing

With this mode, trigger signals can be generated in the camera.

Trigger cycle can be changed by the register settings.

Internal Trigger Period 1

Internal Trigger

Period 2

Internal Trigger Cycle 1=(Address240[MSB]・241・242[LSB]+1)×t

Internal Trigger Cycle 2=(Address243[MSB]・244・245[LSB]+1)×t t=(1920/72M)×19=506.667μs

(240&241&242, 243&244&245)):1(Min)~131071(Max)

Internal Trigger Mode Address: 004 Data: 003

Internal Trigger Start/Stop Address: 246 Data: 000 Stop

001 Start

Rev.900-681-32-00

Trigger Period 1> Trigger Period 2 (conditions to be met)

Internal Trigger Period settings shall be set when it is under Stop conditions (Address: 246 Data: 000).

If internal trigger period are set under Start conditions, trigger cycle right after changing the settings may not be reflected properly.

Frame rate of VCC-G60U21GE is 30fps (33.333ms). Internal Trigger Period, longer than 33.333ms,

should be set.

©2010 CIS Corporation. All rights reserved.

16

VCC-G60U21GE

8. Partial Scan Mode Details

Capturing start position and capturing width can be set by 3H via LAN.

1252 H

1224 H

Video Output

(Normal Scan)

19 H

LVAL Output

(Normal Scan)

9 H

Rev.900-681-32-00

VIDEO Output

(Partial Scan)

High Speed

Transmit Term

High Speed

Transmit Term

Y Offset

19H + Starting Position

(Address016&017)

Effective Line

(Address 019&020)×3+3H

LVAL Output

(Partial Scan)

9 H

Total Line(Address 021&022) + 1H

Reading out position register (Address 016 & 017): 0(0H) ~ 407(1221H) 3H/step

Effective line register (Address 019 & 020): 0(3H) ~ 407(1224H) 3H/step

Total line register (Address 021 & 022): 435H + (Effective line register × 2) + 2 (Read Only)

Note: Reading out position and effective line shall meet the following condition.

Reading out position register + Effective line register = < 407

Otherwise, the value, 407 – reading out position register, will be set to the effective line register.

<Example 1> Conditions: Reading out position register (Address 016 & 017) = 000

Effective Line Register

(Address 019&020)

Effective Lines Total Line Register

+ 1H

Frame Rates

0

159

255

341

407

3 H

480 H

768 H

1026 H

1224

438 H

756 H

948 H

1120 H

1252 H

86 fps

50 fps・

40 fps

33 fps

30 fps

©2010 CIS Corporation. All rights reserved.

17

VCC-G60U21GE Rev.900-681-32-00

9. Remote Interface Function

Through LAN, the camera can be controlled.

(1) The settings for RS-232C

Baud rate

Data

Stop bit

Parity

XOn/XOff

: 9600bps

: 8bit

: 1bit

: None

: Not controlled

(2) Control code

The total control code is 14 bits, which conforms to ASCII code.

The control code consists of camera No. process code, remote controller address, remote controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.

1 2 3 4 5 6

Camera No.

7th Byte

Process code

8 9 10

Remote controller address

11 12 13 14

Remote controller data CR

000000: fixed “R” Read mode

“W” Write mode

“C” Camera mode

Please refer to the address table of

Section 5. Function

Settings.

000~255

0 Dh

Camera No. is fixed with 6 bite numerical strings, “000000”.

Process code

Input any one of R, W, or C to the process code.

R (read mode) is to read the data of remote controller address.

Please be noted to set any dummy data (000~255) to 11 th

~13 th

, since a command shall consists of 14 bytes.

W (write mode) is to write the data to the remote controller address.

Please be noted that the data cannot be saved into EEPROM of the camera.

(Reboot the camera, and the data is reset to the initial setting.)

To save the data into EEPROM, please refer to Section 5. Function Settings.

C is the code to send the data back from the camera.

Note: Do not set code C when sending the data from PC side.

©2010 CIS Corporation. All rights reserved.

18

VCC-G60U21GE

Remote controller address

Rev.900-681-32-00

Note: Do not write the data into the address other than specified, since it may cause

the damages or malfunction of the camera.

Remote controller data

Set the decimal number (000~255) for the remote controller data. Please be noted to set any dummy data at read control mode.

CR

Be sure to input “CR” to confirm the end of the command.

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

10. Initial Settings

Gain

E-Shutter

Function

Trigger Mode

Trigger Polarity

Output Data Select

Partial Scan Mode

Partial Scan Total Lines

Address

001

002

004

011

013

0: 0dB

0: 1/30s (Off)

Data

0: Normal Mode (Trigger Mode Off)

0: Positive Input

0: 8 bit Output Data

015 0: Full Frame Scan Mode

021 & 022 1251: Read Only

©2010 CIS Corporation. All rights reserved.

19

VCC-G60U21GE

11. CCD Optical Axis Accuracy

Datum Plane B

55 11.1

Inclination of optical axis to datum plane B.

90

°±

0.

Inclination of optical axis to datum plane A.

Datum Plane

A

The center of effective pixels shall be within f 0.6? ? to the center of lens mount.

0.5

°

Inclination of effective pixels ?

to datum plane A shall be

?? ±0.5°

Datum plane A

*)Dimensions from datum plane A to the center of lens mount.

60

Rev.900-681-32-00

6.3

910-003-00-00

(Unit:mm)

©2010 CIS Corporation. All rights reserved.

20

VCC-G60U21GE

12. Dimensions

Rev.900-681-32-00

4-M3

Depth 4

55

28

±0.1

C M ou nt (

*)

0 -0

Under R1

11.1

4.5

±0.1

4-M3

Depth 4

60

2 MEGA PIXEL

52

6.3

*1) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B).

*2) Screw length from C mount lens surface shall be under 6mm. And protruding portion shall be

lesss than 10mm.

Product Name

Label Position

GigE

999-513-00-00(1/2)

(Unit:mm)

DC IN

©2010 CIS Corporation. All rights reserved.

21

VCC-G60U21GE Rev.900-681-32-00

(31)

(51)

(23)

(19)

CCXC-12PxxN

(SONY)

2 MEGA PIXEL

MOD-YSP-A1AS-SP()+

(HONDA TSUSHIN KOGYO)

Cable Reference Drawing

999-513-00-00(2/2)

(Unit:mm)

©2010 CIS Corporation. All rights reserved.

22

VCC-G60U21GE Rev.900-681-32-00

13. Cases for Indemnity (Limited Warranty)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases.

 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

 In case indirect, additional, consequential damages (loss of business interests, suspension of business activities) are incurred as result of malfunction or non-function of the equipment, we shall be exempted from responsibility for such damages.

 In case damage or losses are caused by failure to observe the information contained in the instructions in this product specification & operation manual.

 In case damage or losses are caused by use contrary to the instructions in this product specification

& operation manual.

 In case damage or losses are caused by malfunction or other problems resulting from use of equipment or software that is not specified.

 In case damage or losses are caused by repair or modification conducted by the customer or any unauthorized third party (such as an unauthorized service representative).

 Expenses we bear on this product shall be limited to the individual price of the product.

©2010 CIS Corporation. All rights reserved.

23

VCC-G60U21GE Rev.900-681-32-00

14. CCD Pixel Defect

CIS compensates the noticeable CCD pixel defects found at the shipping inspection prior to our shipment.

After our delivery however, CCD pixel defects might be noted with time of usage of the products.

Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from taking any responsibilities for them.

Should you have any questions on CCD pixel defects compensation, please contact us.

15. Product Support

When defects or malfunction of our products occur, and if you would like us to investigate on the cause and repair, please contact your distributors you purchased from to consult and coordinate.

©2010 CIS Corporation. All rights reserved.

24

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
