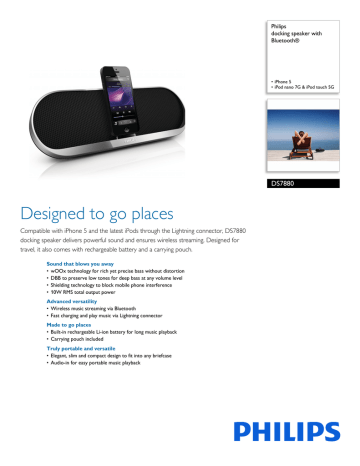

Philips DS7880/37 Datasheet

Philips DS7880/37 Datasheet
docking speaker with
• iPhone 5
• iPod nano 7G & iPod touch 5G
Designed to go places
Compatible with iPhone 5 and the latest iPods through the Lightning connector, DS7880
docking speaker delivers powerful sound and ensures wireless streaming. Designed for
travel, it also comes with rechargeable battery and a carrying pouch.
Sound that blows you away
• wOOx technology for rich yet precise bass without distortion
• DBB to preserve low tones for deep bass at any volume level
• Shielding technology to block mobile phone interference
• 10W RMS total output power
Advanced versatility
• Wireless music streaming via Bluetooth
• Fast charging and play music via Lightning connector
Made to go places
• Built-in rechargeable Li-ion battery for long music playback
• Carrying pouch included
Truly portable and versatile
• Elegant, slim and compact design to fit into any briefcase
• Audio-in for easy portable music playback
Docking speaker with Bluetooth®
iPhone 5 iPod nano 7G & iPod touch 5G
Play and charge via Lightning
Dynamic Bass Boost (DBB)
iPhone compatibility
• Compatible with: iPhone 5
iPod compatibility
• Compatible with: iPod nano 7th generation, iPod
touch 5th generation
Enjoy your favorite music while charging your iPod/
iPhone via the new Lightning connector! Just dock it
directly on the speaker to play your hand-picked tunes
in superb sound. It also charges your device quickly
while playing, so you don't have to work about the
battery running out.
wOOx technology
Bluetooth profiles: A2DP
Bluetooth range: line of sight, 10M or 30FT
Bluetooth version: 2.1
Audio in (3.5mm)
Dynamic Bass Boost maximizes your music enjoyment
by emphasizing the bass content of the music
throughout the range of volume settings - from low to
high – at the touch of a button! Bottom-end bass
frequencies usually get lost when the volume is set at
a low level. To counteract this, Dynamic Bass Boost
can be switched on to boost bass levels, so you can
enjoy consistent sound even when you turn down the
AUDIO-IN (3.5mm)
• Power supply: 100-240VAC, 50/60Hz
• Battery type: Li-ion (built-in)
• Operating time on battery: up to 8 hr
Output power (RMS): 10W
Sound Enhancement: Dynamic Bass Boost
Sound System: Stereo
Volume Control: Volume Control up/down
• Neodynium magnet system
wOOx technology is a revolutionary loudspeaker
concept that allows you to hear and feel profoundly
deep bass that is richer than any other audio system.
Special speaker drivers work in harmony with the
wOOx bass radiator, and precise tuning between the
main driver and the tweeter ensures smooth
transitions from low-mid to high frequencies. Dual
suspension and a totally symmetrical sandwich
construction deliver low and precise base without
noticeable distortion. wOOx produces exceptionally
deep and dynamic bass by using the speaker box full
volume to truly magnify the impact of the music.
Make one easy connection and enjoy all your music
from portable devices and computers. Simply plug
your device to the AUDIO-IN (3.5 mm) port on your
Philips set. With computers, the connection is typically
made from the headset output. Once linked, you can
enjoy your entire music collection directly, on a set of
superior speakers. Philips simply delivers better
Issue date 2013-05-21
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 001 03622
EAN: 00 60958 52341 47
Product dimensions (WxDxH): 381 x 44 x 107 mm
Packaging dimensions (WxDxH): 405 x 82 x 150 mm
Product weight: 0.58 kg
Weight incl. Packaging: 1.16 kg
