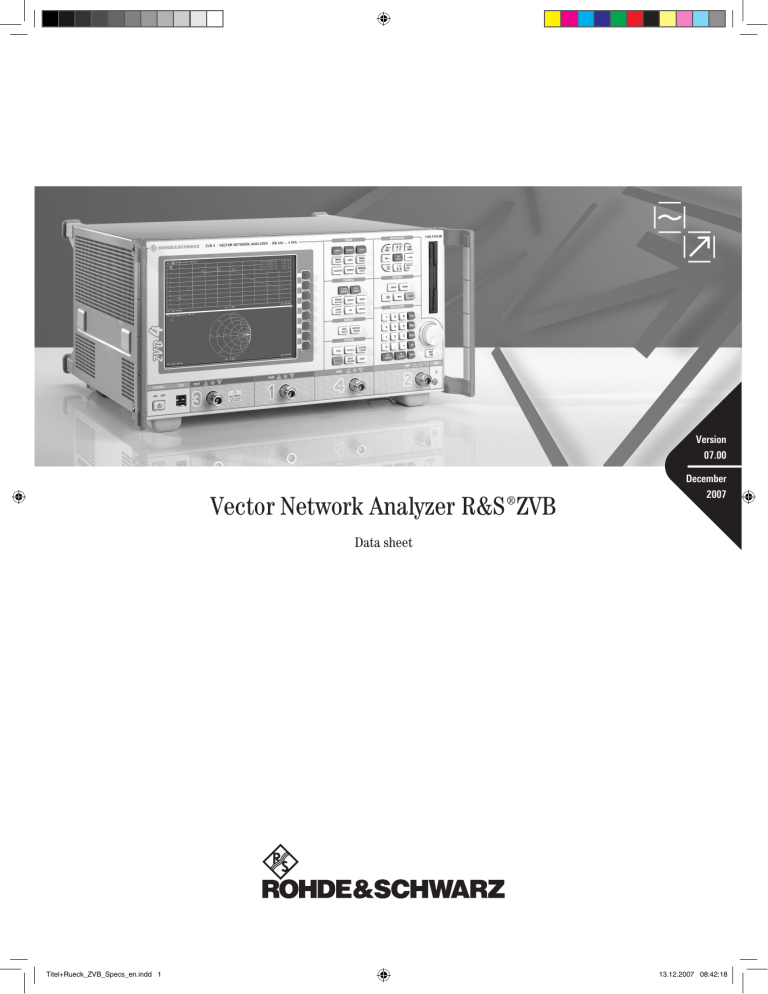

Vector Network Analyzer ¸ZVB

Data sheet

Version

07.00

December

2007

13.12.2007 08:42:18

MEASUREMENT RANGE .........................................................................................................................................................................3

MEASUREMENT SPEED ..........................................................................................................................................................................5

MEASUREMENT ACCURACY..................................................................................................................................................................6

EFFECTIVE SYSTEM DATA .....................................................................................................................................................................9

TEST PORT OUTPUT..............................................................................................................................................................................10

TEST PORT INPUT..................................................................................................................................................................................13

ADDITIONAL FRONT PANEL CONNECTORS ......................................................................................................................................14

DISPLAY ..................................................................................................................................................................................................14

REAR PANEL CONNECTORS................................................................................................................................................................14

OPTIONS .................................................................................................................................................................................................16

GENERAL DATA .....................................................................................................................................................................................17

ORDERING INFORMATION....................................................................................................................................................................18

2 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Specifications apply under the following conditions:

90 minutes warm-up time at ambient temperature, specified environmental conditions met, calibration cycle adhered to, and all internal adjustments performed. Data designated „overrange“ and data without tolerances: typical values only. Unless stated otherwise, specifications apply to test ports and a nominal source power of –10 dBm.

Measurement range

Impedance

Test port connector R&S

®

ZVB4 and R&S

®

ZVB8

R&S

®

ZVB14 and R&S

®

ZVB20

Number of test ports

Frequency range

Static frequency accuracy

R&S

®

ZVB4

R&S

®

ZVB8

R&S

®

ZVB14

R&S

®

ZVB20 without optional oven quartz

Frequency resolution

Number of measurement points

Measurement bandwidths

Dynamic range of the R&S

®

ZVB4 two-port model and the R&S

®

ZVB8 two-port model

(without optional step attenuators) with optional oven quartz per trace

1/2/5 steps from PORT 1 to PORT 2

300 kHz to 5 MHz

Dynamic range of the R&S

® model and the R&S

®

ZVB4 four-port

ZVB8 four-port model

(without optional step attenuators)

Dynamic range of the R&S

®

ZVB14

5 MHz to 100 MHz

100 MHz to 4 GHz

4 GHz to 7 GHz (R&S

®

ZVB8 only)

7 GHz to 7.5 GHz (R&S

®

ZVB8 only)

7.5 GHz to 8 GHz (R&S

®

ZVB8 only) from PORT 1 to PORT 2 and from PORT 3 to PORT 4 (for four-port models only)

300 kHz to 5 MHz

5 MHz to 100 MHz

100 MHz to 500 MHz

500 MHz to 4 GHz

4 GHz to 7 GHz (R&S

®

ZVB8 only)

7 GHz to 7.5 GHz (R&S

®

ZVB8 only)

7.5 GHz to 8 GHz (R&S

®

ZVB8 only) from PORT 1 to PORT 2 and from PORT 3 to PORT 4 (for four-port model only)

10 MHz to 100 MHz

100 MHz to 700 MHz

50 Ω type N, female

3.5 mm, male

2 or 4

300 kHz to 4 GHz

300 kHz to 8 GHz

10 MHz to 14 GHz

10 MHz to 20 GHz

8 × 10

–6

1 × 10

–7

1 Hz

2 to 20001

1 Hz to 500 kHz

>80 dB, typ. 100 dB

>100 dB, typ. 120 dB

>120 dB, typ. 130 dB

>117 dB, typ. 127 dB

>115 dB, typ. 120 dB

>108 dB, typ. 118 dB

>80 dB, typ. 100 dB

>100 dB, typ. 120 dB

>120 dB, typ. 130 dB

>123 dB, typ. 130 dB

>120 dB, typ. 130 dB

>115 dB, typ. 125 dB

>108 dB, typ. 125 dB

>80 dB, typ. 110 dB

>100 dB, typ. 130 dB

Dynamic range of the R&S

®

ZVB20

700 MHz to 8 GHz

8 GHz to 14 GHz from PORT 1 to PORT 2 and from PORT 3 to PORT 4 (for four-port model only)

>120 dB, typ. 133 dB

>110 dB, typ. 122 dB

10 MHz to 100 MHz

100 MHz to 700 MHz

700 MHz to 8 GHz

8 GHz to 20 GHz

>80 dB, typ. 110 dB

>100 dB, typ. 130 dB

>120 dB, typ. 133 dB

>110 dB, typ. 122 dB

The dynamic range is defined as the difference between the actually available maximum source power and the rms value of the data trace of the transmission magnitude, which is produced by noise and crosstalk with the test ports short-circuited. The specification applies at 10 Hz measurement bandwidth and without system error correction. The dynamic range can be increased by using a measurement bandwidth of 1 Hz.

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 3

Dynamic range in dB versus frequency in GHz of the R&S

®

ZVB4

Dynamic range in dB versus frequency in GHz of the R&S

®

ZVB8

Dynamic range in dB versus frequency in GHz of the R&S

®

ZVB14 (up to 14 GHz) and the R&S

®

ZVB20

4 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Measurement speed

Measurement time

Measurement time per point

Data transfer time for 201 measurements points, with span

100 MHz, 500 kHz measurement bandwidth, ALC and display switched off with center frequency 1.1 GHz with center frequency 5.1 GHz

500 kHz measurement bandwidth,

CW mode for 201 measurements points via IEC/IEEE bus via VX11 over 100 Mbit/s LAN via RSIB over 100 Mbit/s LAN

Time for measurement and data transfer for 201 measurements points, with start frequency 1 GHz, stop frequency 1.1 GHz,

500 kHz measurement bandwidth, and display switched off

(No additional time for data transfer is needed, as this occurs simultaneously during the measurement.)

Switching time between channels

Switching time between two preloaded instrument settings with no more than 2001 points with no more than 2001 points

<6 ms

<4.5 ms

<4.5 µs

<2.9 ms

<1.3 ms

<0.7 ms

<6 ms

<1 ms

<10 ms

Typical sweep times versus number of measurement points

Number of measurement points 51 101 201 401 801 1601

Start frequency 5 GHz, stop frequency 5.2 GHz, ALC off, and a measurement bandwidth of 100 kHz

With full one-port calibration or with correction switched off

With TOSM calibration

2.4 ms

4.7 ms

3.9 ms

8.6 ms

6.3 ms

16.4 ms

11 ms

32.4 ms

Start frequency 6 GHz, stop frequency 8 GHz, ALC off, and a measurement bandwidth of 100 kHz

With full one-port calibration or with correction switched off

With TOSM calibration

3.4 ms

5.3 ms

6.2 ms

9.8 ms

11 ms

18 ms

17.3 ms

33 ms

20.4 ms

65 ms

28.2 ms

63 ms

40.2 ms

170 ms

49 ms

160 ms

Start frequency 10 MHz, stop frequency 4 GHz (R&S

®

ZVB4), 8 GHz (R&S

®

ZVB8), 14 GHz (R&S

ALC off, and a measurement bandwidth of 100 kHz

®

ZVB14), or 20 GHz (R&S

®

ZVB20),

With full one-port calibration or with correction switched off

With TOSM calibration

8.4 ms

10.3 ms

12.6 ms

16.6 ms

19.5 ms

28 ms

30.5 ms

47 ms

53.2 ms

81 ms

88.2 ms

190 ms

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 5

Measurement accuracy

This data is valid between +18 °C and +28 °C, provided the temperature has not varied by more than 1 K after calibration. Validity of the data is conditional on the use of a suitable calibration kit. This calibration kit is used to achieve the effective system data specified below. Frequency points, measurement bandwidth, and sweep time have to be identical for measurement and calibration (no interpolation allowed).

Accuracy of transmission measurements

R&S

®

ZVB4 and R&S

®

ZVB8

300 kHz to 1 MHz +15 dB to –45 dB

1 MHz to 50 MHz

Above 50 MHz

+15 dB to –30 dB

–30 dB to –45 dB

+15 dB to +5 dB

+5 dB to –55 dB

–55 dB to –70 dB

–70 dB to –85 dB

R&S

®

ZVB14 and R&S

®

ZVB20

10 MHz to 50 MHz

50 MHz to 400 MHz

400 MHz to 700 MHz

700 MHz to 8 GHz

+15 dB to –30 dB

+15 dB to –30 dB

–30 dB to –45 dB

+15 dB to +5 dB

+5 dB to –35 dB

–35 dB to –50 dB

–50 dB to –65 dB

+15 dB to +5 dB

+5 dB to –55 dB

–55 dB to –70 dB

<1 dB or <6°

<0.2 dB or <2°

<1 dB or <6°

<0.2 dB or <2°

<0.1 dB or <1°

<0.2 dB or <2°

<1 dB or <6°

<1 dB or <6°

<0.2 dB or <2°

<1 dB or <6°

<0.2 dB or <2°

<0.1 dB or <1°

<0.2 dB or <2°

<1 dB or <6°

<0.2 dB or <2°

<0.1 dB or <1°

<0.2 dB or <2°

Above 8 GHz

–70 dB to –85 dB

+15 dB to +5 dB

+5 dB to –35 dB

–35 dB to –50 dB

<1 dB or <6°

<0.2 dB or <2°

<0.1 dB or <1°

<0.2 dB or <2°

–50 dB to –65 dB <1 dB or <6°

Specifications are based on a matched DUT, a measurement bandwidth of 10 Hz, and a nominal source power of –10 dBm.

Magnitude

Phase

10

1

0.1

0

0.01

-20 -40 -60 -80

Transmission coefficient in dB

-100

100

10

1

0

0.1

-20 -40 -60 -80

Transmission coefficient in dB

-100

Typical accuracy of transmission magnitude and transmission phase measurements of the R&S

®

ZVB4 and the R&S

®

ZVB8 in the frequency range from 300 kHz to 4 GHz

6 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Magnitude

10

1

0.1

0

0.01

-20 -40 -60 -80

Transmission coefficient in dB

-100

100

Phase

10

1

0

0.1

-20 -40 -60 -80

Transmission coefficient in dB

Typical accuracy of transmission magnitude and transmission phase measurements of the R&S

®

ZVB8 in the frequency range from 4 GHz to 8 GHz

-100

Magnitude

Phase

10

100

10 1

0.1

1

0

0.01

-20 -40 -60 -80

Transmission coefficient in dB

-100

0

0.1

-20 -40 -60 -80

Transmission coefficient in dB

-100

Typical accuracy of transmission magnitude and transmission phase measurements of the R&S

®

ZVB14 and the R&S

®

ZVB20 in the frequency range from 10 MHz to 700 MHz

10

1

0.1

0

0.01

-20 -40 -60 -80 -100

0

100

10

1

0.1

-20 -40 -60 -80 -100

Typical accuracy of transmission magnitude and transmission phase measurements of the R&S

®

ZVB14 (in the frequency range from

700 MHz to 14 GHz) and the R&S

®

ZVB20 (in the frequency range from 700 MHz to 20 GHz)

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 7

Accuracy of reflection measurements

R&S

®

ZVB4 and R&S

®

ZVB8

Above 300 kHz +10 dB to +3 dB

+3 dB to –15 dB

–15 dB to –25 dB

–25 dB to –35 dB

<0.6 dB or <4°

<0.4 dB or <3°

<1 dB or <6°

<3 dB or <20°

R&S

®

ZVB14 and R&S

®

ZVB20

10 MHz to 50 MHz +3 dB to –15 dB

–15 dB to –25 dB

<1 dB or <6°

<3 dB or <20°

Above 50 MHz +10 dB to +3 dB

+3 dB to –15 dB

–15 dB to –25 dB

–25 dB to –35 dB

<0.6 dB or <4°

<0.4 dB or <3°

<1 dB or <6°

<3 dB or <20°

Specifications are based on an isolating DUT, a measurement bandwidth of 10 Hz, and a nominal source power of –10 dBm.

Magnitude

Phase

0.05

0.04

0.03

0.02

0.01

0.00

0 0.2

0.4

0.6

0.8

Reflection coefficient (linear)

1

10

8

6

4

2

0

0 0.2

0.4

0.6

Reflection coefficient (linear)

0.8

1

Trace stability

Trace noise of S11 (rms)

Typical accuracy of reflection magnitude and reflection phase measurements of the R&S

®

ZVB4 in the frequency range from 300 kHz to 4 GHz, of the R&S

®

ZVB8 in the frequency range from 300 kHz to 8 GHz, of the R&S

®

ZVB14 in the frequency range from 50 MHz to 14 GHz, and of the R&S

®

ZVB20 in the frequency range from 50 MHz to 20 GHz

Temperature dependence at 0 dBm source power, 0 dB reflection, and 1 kHz measurement bandwidth

R&S

®

ZVB4 and R&S

®

ZVB8 above 300 kHz <0.004 dB, typ. 0.001 dB

R&S

®

ZVB14 and R&S

®

ZVB20

700 MHz to 8 GHz above 8 GHz at 0 dB transmission or reflection

<0.004 dB, typ. 0.001 dB

<0.015 dB, typ. 0.004 dB

<0.05 dB/K or <0.4°/K

8 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Effective system data

This data is valid between +18 °C and +28 °C, provided the temperature has not varied by more than 1 K after calibration. The data is based on a measurement bandwidth of 10 Hz and system error calibration by means of a suitable calibration kit. Frequency points, measurement bandwidth, and sweep time have to be identical for measurement and calibration (no interpolation allowed).

R&S

®

ZVB4 and R&S

®

ZVB8

Directivity

Source match

Reflection tracking

Load match

Transmission tracking

300 kHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

300 kHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

300 kHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

300 kHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

300 kHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

>46 dB, typ. 50 dB

>40 dB, typ. 50 dB

>40 dB, typ. 46 dB

>36 dB, typ. 40 dB

<0.04 dB, typ. 0.01 dB

<0.1 dB, typ. 0.01 dB

>46 dB, typ. 50 dB

>40 dB, typ. 46 dB

<0.06 dB, typ. 0.01 dB

<0.1 dB, typ. 0.05 dB

R&S

®

ZVB14 and R&S

®

ZVB20

Directivity

Source match

Reflection tracking

Load match

Transmission tracking

10 MHz to 700 MHz above 700 MHz

10 MHz to 700 MHz above 700 MHz

10 MHz to 700 MHz above 700 MHz

10 MHz to 700 MHz above 700 MHz

10 MHz to 700 MHz above 700 MHz

>36 dB, typ. 40 dB

>40 dB, typ. 50 dB

>30 dB, typ. 48 dB

>30 dB, typ. 48 dB

<0.3 dB, typ. 0.05 dB

<0.3 dB, typ. 0.05 dB

>36 dB, typ. 40 dB

>40 dB, typ. 50 dB

<0.2 dB, typ. 0.1 dB

<0.1 dB, typ. 0.05 dB

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 9

Test port output

Power range

(without optional step attenuators)

Power accuracy

(with ALC on and without power calibration)

Power linearity

Power resolution

Harmonics

(output power referenced to maximum specified output power)

R&S

®

ZVB4 and R&S

®

ZVB8

300 kHz to 50 MHz –40 dBm to +10 dBm, typ. –45 dBm to +14 dBm

50 MHz to 4 GHz –40 dBm to +13 dBm, typ. –45 dBm to +15 dBm

4 GHz to 7 GHz (R&S

®

ZVB8 only) –40 dBm to +10 dBm, typ. –45 dBm to +13 dBm

7 GHz to 8 GHz (R&S

®

ZVB8 only) –40 dBm to +8 dBm, typ. –45 dBm to +12 dBm

R&S

®

ZVB14 and R&S

®

ZVB20

10 MHz to 13 GHz –30 dBm to +10 dBm, typ. –40 dBm to +15 dBm above 13 GHz –30 dBm to +5 dBm, typ. –40 dBm to +10 dBm

R&S

®

ZVB4 and R&S

®

ZVB8 at –10 dBm in temperature range +18 °C to +28 °C

<2 dB above 50 MHz <0.8 dB, typ. 0.3 dB

R&S

®

ZVB14 and R&S

®

ZVB20 at –10 dBm in temperature range +18 °C to +28 °C

<3 dB above 50 MHz referenced to –10 dBm

<0.8 dB, typ. 0.3 dB

<2 dB in temperature range +18 °C to +28 °C

R&S

®

ZVB4 and R&S

®

ZVB8 above 50 MHz <0.8 dB, typ. 0.2 dB

R&S

®

ZVB14 and R&S

®

ZVB20 above 500 MHz <0.8 dB, typ. 0.2 dB

0.01 dB

R&S

®

ZVB4 and R&S

®

ZVB8

300 kHz to 50 MHz at –3 dB typ. <–30 dBc

50 MHz to 4 GHz at –5 dB <–20 dBc, typ. <–30 dBc

4 GHz to 7 GHz at –2 dB (R&S

®

ZVB8) <–20 dBc, typ. <–30 dBc

7 GHz to 8 GHz at 0 dB (R&S

®

ZVB8) <–20 dBc, typ. <–30 dBc

R&S

®

ZVB14 and R&S

®

ZVB20

10 MHz to 50 MHz at –3 dB

50 MHz to 13 GHz at 0 dB above 13 GHz at 0 dB typ. <–30 dBc

<–20 dBc, typ. <–30 dBc

<–20 dBc, typ. <–30 dBc

10 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Maximum output power in dBm versus frequency in GHz of the R&S

®

ZVB4

Maximum output power in dBm versus frequency in GHz of the R&S

®

ZVB8

Maximum output power in dBm versus frequency in GHz of the R&S

®

ZVB14 (up to 14 GHz) and the R&S

®

ZVB20

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 11

Output power accuracy in dB versus frequency in GHz of the R&S

®

ZVB4

Output power accuracy in dB versus frequency in GHz of the R&S

®

ZVB8

Output power accuracy in dB versus frequency in GHz of the R&S

®

ZVB14 (up to 14 GHz) and the R&S

®

ZVB20

12 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Test port input

Match

Maximum nominal input level

Power measurement accuracy

Receiver linearity without system error correction

R&S

®

ZVB4

300 kHz to 4 GHz

R&S

®

ZVB8

>16 dB

300 kHz to 7 GHz

7 GHz to 8 GHz

R&S

®

ZVB14 and R&S

®

ZVB20

>16 dB

>14 dB

10 MHz to 50 MHz

50 MHz to 2 GHz above 2 GHz

R&S

®

ZVB4 and R&S

®

R&S

®

ZVB14 and R&S

®

ZVB20

>10 dB

>12 dB

>8 dB

10 MHz to 8 GHz above 8 GHz

+10 dBm

0 dBm at –10 dBm without power calibration in temperature range +18 °C to +28 °C

10 MHz to 8 GHz above 8 GHz

(R&S

®

ZVB14 and R&S

®

ZVB20 only)

<1 dB

<2 dB referenced to –10 dBm in temperature range +18 °C to +28 °C

R&S

®

ZVB4 and R&S

®

ZVB8 for +20 dB to –60 dB

50 MHz to 4 GHz <0.1 dB

4 GHz to 6 GHz (R&S

®

ZVB8 only) <0.1 dB

6 GHz to 8 GHz (R&S

®

ZVB8 only) <0.2 dB

R&S

®

ZVB14 and R&S

®

ZVB20 for +20 dB to –30 dB

50 MHz to 700 MHz <0.1 dB for +20 dB to +10 dB

700 MHz to 8 GHz <0.3 dB for +15 dB to +10 dB above 8 GHz for +10 dB to –45 dB above 700 MHz

<0.3 dB

<0.1 dB

+27 dBm Damage level

Damage DC voltage

Noise level

30 V at 10 Hz measurement bandwidth

R&S

®

ZVB4 and R&S

®

ZVB8

300 kHz to 100 MHz <–70 dBm

100 MHz to 4 GHz

4 GHz to 8 GHz (R&S

®

ZVB8 only)

<–110 dBm

<–105 dBm

R&S

®

ZVB14 and R&S

®

ZVB20

100 MHz to 700 MHz

700 MHz to 8 GHz

<–70 dBm

<–105 dBm above 8 GHz

The noise level is defined as the rms value of the specified noise floor.

<–100 dBm

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 13

Additional front panel connectors

USB

(two) universal serial bus connectors for connecting USB devices (USB 1.1); two additional USB connectors at the rear panel

Display

Screen

Resolution

21 cm (8.4") diagonal color LCD

800 × 600 × 262144 (high color)

Rear panel connectors

IEC BUS

remote control in line with IEEE488, IEC60625; 24 pins

LAN 1

first local area network connector, 8 pins, RJ-45

LAN 2

USB

second local area network connector, 8 pins, RJ-45

(two) universal serial bus connectors for connecting USB devices (USB 1.1); two additional USB connectors at the front panel

10 MHz REF

Connector type

Input frequency

Maximum permissible deviation

Input power

Input impedance

Output frequency

Output frequency accuracy

Output power altenatively input or output for external frequency reference signal

DC MEAS 1 V

Connector type

Voltage range

Measurement accuracy

DC measurement input

Resolution

Sample rate

Input impedance

Damage voltage

DC MEAS 10 V

Connector type

Voltage range

Measurement accuracy

DC measurement input

Resolution

Sample rate

Input impedance

Damage voltage

BNC, female

10 MHz

1 kHz

0 dBm

±3 dB

50

Ω

10 MHz

80 Hz

–3 dBm

4-pin mini DIN, female

–1 V to +1 V

2.5 % of reading + 2.5 mV

3 MHz

>10 k Ω

30 V

4-pin mini DIN, female

–10 V to +10 V

2.5 % of reading + 25 mV

3 MHz

>10 k

Ω

30 V

±8 dB at 50 Ω

14 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

PORT BIAS

Connector type

Maximum nominal input voltage

Maximum nominal input current

Damage voltage

Damage current

MONITOR

DC bias input for PORT

BNC, female

30 V

200 mA

30 V

500 mA

IBM-PC-compatible VGA monitor connector, 15-pin D-Sub (for external monitor)

USER CONTROL

several control and trigger signals, 25-pin D-Sub, 3.3 V TTL for controlling external generators, for limit checks, sweep signals, etc

FOOT SWITCH 1 and FOOT SWITCH 2 pin 24 and pin 25 (inputs)

DRIVE PORT 1 to DRIVE PORT 4 pin 16 to pin 19 (outputs)

CHANNEL BIT 0 to CHANNEL BIT 3 control inputs indicate driving port

PASS 1 and PASS 2

BUSY

READY FOR TRIGGER

EXT GEN TRIGGER

EXT GEN BLANK

EXTERNAL TRIGGER pin 13 and pin 14 (outputs) pin 4 (output) pin 6 (output) pin 21 (output) pin 22 (input) pin 2 (input) pass/fail results of limit checks measurements running ready for trigger control signal for external generator handshake signal from external generator trigger input for analyzer

EXT TRIGGER

Connector type

TTL signal (edge-triggered)

Polarity (selectable)

Minimum pulse width

Input impedance trigger input for analyzer

BNC, female

3 V positive or negative

1 µs

>10 k Ω

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 15

Options

Generator step attenuators

Frequency range

Power range

Power accuracy

Power linearity

Match

Dynamic range

Direct generator/receiver access

Frequency range

Dynamic range

Receiver linearity

Power range

Match

Noise level extend the lower limit of the output power range of the R&S

®

ZVB4 or the R&S

®

ZVB8 by

70 dB

R&S

®

ZVB4

R&S

®

ZVB8

300 kHz to 4 GHz

300 kHz to 8 GHz upper limit is reduced by 8 dB, lower limit is extended by 70 dB at –10 dBm without power calibration above –30 dBm

–30 dBm to –70 dBm

–70 dBm to –100 dBm identical to specifications without optional step attenuators identical to specifications without optional step attenuators

<2 dB

<3 dB without system error correction

R&S

®

ZVB4

300 kHz to 2 GHz

2 GHz to 4 GHz

R&S

®

ZVB8

300 kHz to 2 GHz

>14 dB

>16 dB

>14 dB

2 GHz to 7 GHz

7 GHz to 8 GHz referenced to –10 dBm in temperature range +18 °C to +28 °C for +13 dB (typ. +20 dB) to –60 dB

50 MHz to 4 GHz

4 GHz to 6 GHz

6 GHz to 8 GHz

>16 dB

>14 dB

<0.1 dB

<0.1 dB

<0.2 dB is reduced by 8 dB

These options permit direct access to the internal source output as well as to the internal reference and measurement receiver inputs via the front panel connectors

(SMA) of the R&S

®

ZVB14 or the R&S

®

ZVB20.

R&S

R&S

®

®

ZVB14

ZVB20

10 MHz to 14 GHz

10 MHz to 20 GHz

R&S

®

ZVB14

10 MHz to 13 GHz is reduced by 2 dB

13 GHz to 14 GHz is reduced by 4 dB

R&S

®

ZVB20

10 MHz to 13 GHz

13 GHz to 20 GHz is reduced by 2 dB is reduced by 4 dB

R&S

®

ZVB14

10 MHz to 13 GHz

13 GHz to 14 GHz upper limit is reduced by 1 dB upper limit is reduced by 2 dB

R&S

®

ZVB20

10 MHz to 13 GHz

13 GHz to 20 GHz upper limit is reduced by 1 dB upper limit is reduced by 2 dB

R&S

®

ZVB20

16 GHz to 20 GHz is reduced by 1 dB

R&S

®

ZVB14

10 MHz to 13 GHz

13 GHz to 14 GHz is increased by 1 dB is increased by 2 dB

R&S

®

ZVB20

10 MHz to 13 GHz

13 GHz to 20 GHz is increased by 1 dB is increased by 2 dB

16 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

General data

Temperature loading

Damp heat

Mechanical resistance

Calibration interval

EMC

Safety

Power supply

Power consumption

Conformity mark

Dimensions (W × H × D)

Weight

Shipping weight operating temperature range storage temperature range vibration, sinusoidal vibration, random shock

RF emission other emissions and immunity

R&S

®

ZVB4 and R&S

®

ZVB8

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.14 and 11451010.20

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.17 and 11451010.23, or with four ports

R&S

®

ZVB4 and R&S

®

ZVB8

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.14 and 11451010.20

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.17 and 11451010.23, or with four ports

R&S

®

ZVB4 and R&S

®

ZVB8

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.14 and 11451010.20

R&S

®

ZVB14 and R&S

®

ZVB20 with two ports and order numbers

1145.1010.17 and 11451010.23, or with four ports

+5 °C to +40 °C

–40 °C to +70 °C in line with IEC 60068-2-1 and

IEC 60068-2-2

+40 °C at 95 % rel. humidity, in line with IEC 60068-2-30

5 Hz to 150 Hz, in line with IEC 60068-2-6

10 Hz to 300 Hz, in line with IEC 60068-2-64

40 g shock spectrum, in line with IEC 60068-2-27, MIL-STD 810

1 year in line with CISPR 11/EN 55011 group 1 class A for a shielded test setup in line with IEC/EN 61326, emission class B (residential environment), immunity industrial environment (excluding operating frequency) in line with IEC 61010-1, EN61010-1, and

UL 3111-1

100 V to 240 V (AC) with tolerance ±10 %,

50 Hz to 60 Hz with tolerance ±5 %, safety class I to VDE 411

450 W, typ. 350 W (standby: typ. 10 W)

VDE, GS, CSA, CSA-NRTL/C, CE

465.1 mm × 241.8 mm × 417.0 mm

(18.31 in × 9.52 in × 16.42 in)

465.1 mm × 241.8 mm × 417.0 mm

(18.31 in × 9.52 in × 16.42 in)

465.1 mm × 286.2 mm × 417.0 mm

(18.31 in × 11.27 in × 16.42 in)

18 kg (40 lb)

16 kg (35 lb)

20 kg (44 lb)

29 kg (64 lb)

30 kg (66 lb)

32 kg (71 lb)

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 17

Ordering information

Designation Type

Vector Network Analyzer, 4 GHz, 2 ports R&S

®

ZVB4 1145.1010.04

Vector Network Analyzer, 4 GHz, 4 ports R&S

®

ZVB4 1145.1010.06

Vector Network Analyzer, 8 GHz, 2 ports R&S

®

ZVB8 1145.1010.08

Vector Network Analyzer, 8 GHz, 4 ports R&S

®

ZVB8 1145.1010.10

Vector Network Analyzer, 14 GHz, 2 ports R&S

®

ZVB14 1145.1010.14

Vector Network Analyzer, 14 GHz, 2 ports R&S

®

ZVB14 1145.1010.17

Vector Network Analyzer, 14 GHz, 4 ports R&S

®

ZVB14 1145.1010.19

Vector Network Analyzer, 20 GHz, 2 ports R&S

®

ZVB20 1145.1010.20

Vector Network Analyzer, 20 GHz, 2 ports R&S

®

ZVB20 1145.1010.23

Vector Network Analyzer, 20 GHz, 4 ports R&S

®

ZVB20 1145.1010.25

Options

Direct generator/receiver access

R&S

®

ZVB14-B16 1164.1240.17 Direct Generator/Receiver Access for the

R&S

®

ZVB14 1145.1010.17 only

Direct Generator/Receiver Access for the

R&S

®

ZVB14 1145.1010.19 only

R&S

®

ZVB14-B16 1164.1240.19

R&S

®

ZVB20-B16 1164.1240.23 Direct Generator/Receiver Access for the

R&S

®

ZVB20 1145.1010.23 only

Direct Generator/Receiver Access for the

R&S

®

ZVB20 1145.1010.25 only

R&S

®

ZVB20-B16 1164.1240.25

Generator step attenuators

(for the R&S

®

ZVB4 and R&S

®

ZVB8 only)

Generator Step Attenuator for Port 1

Generator Step Attenuator for Port 2

Generator Step Attenuator for Port 3

Time Domain

Mixer and Harmonic Measurements

R&S

®

ZVB8-B21 1302.5480.02

R&S

®

ZVB8-B22 1302.5073.02

R&S

®

ZVB8-B23 1302.5496.02

R&S

®

ZVAB-K2 1164.1657.02

R&S

®

ZVB-K3 1164.1592.02

18 R&S

®

ZVB Vector Network Analyzer Version 07.00, December 2007

Version 07.00, December 2007 R&S

®

ZVB Vector Network Analyzer 19

Certified Quality System

ISO 9001

DQS REG. NO 1954 QM

Certified Environmental System

ISO 14001

DQS REG. NO 1954 UM

For product brochure, see PD 0758.1529.12 and www.rohde-schwarz.com

(search term: ZVB)

Titel+Rueck_ZVB_Specs_en.indd 2

www.rohde-schwarz.com

Europe: +49 1805 12 4242, [email protected]

USA and Canada: +1-888-837-8772, [email protected]

Asia: +65 65 130 488, [email protected]

13.12.2007 08:42:19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
