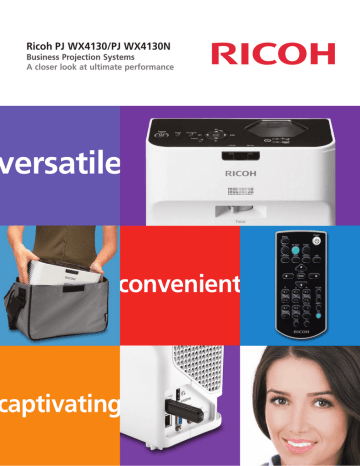

Ricoh PJ WX4130/PJ WX4130N
Business Projection Systems
A closer look at ultimate performance
versatile
convenient
captivating
Ricoh PJ WX4130/PJ WX4130N
Short-throw projection with far-reaching results.
The compact, easy-to-transport RICOH® PJ WX4130/
PJ WX4130N offers a breakthrough in short-throw
business projection systems. With its sleek, lightweight design, it can deliver full-size, high-quality
image projection even when placed within inches
from the wall. This ultra-short-throw projection
system makes it easy to conduct meetings almost
anywhere at any time. As a result, it is a valuable
addition to Ricoh’s Managed Document Services
(MDS) portfolio of products and solutions designed
to meet all of your print and communication needs.
The portable PJ WX4130/PJ WX4130N
projection system is specifically engineered
with an innovative upright design for easy
placement within inches from a screen or wall
to deliver shadow-free image projection in
even the most space-restricted environments.
ProjectSharePresentEnvision
Built to Innovate
The PJ WX4130/PJ WX4130N offers superior image clarity
and versatility at an affordable price to meet the precise
requirements in smaller classroom or business settings.
• Showcase your message in any room with ultra-short-throw projection that emits
sharp, brilliant images accurately at 48" to 80" display size when positioned within
a few inches from the wall.
• Enhance the user experience with a minimum brightness rating of at least 2,500
lumens with 1280 x 800 WXGA resolution—without noise, glare or shadows
that can detract from your presentation.
• Turn any standard whiteboard or smooth surface into an interactive showcase
where the presenter can use markers or a stylus to enhance the presentation.
• Project and view 3D images with the unique DLP Link Technology using the
optional 3D glasses for current and future applications.
• Produce crystal-clear audio via 2-watt, built-in speakers that accommodate the
smallest of rooms to larger corporate, classroom, tradeshow and retail environments.
• Mute the sound or freeze the action to highlight specific moments in your
presentation for seamless interactive audience participation.
As the ultimate short-throw projection system,
the PJ WX4130/PJ WX4130N can be placed
within about five inches from the wall for
unobstructed presentations with rich colors,
crisp lines and incredible resolution.
Easy to Use
With its lightweight design that’s easy to transport, the
PJ WX4130/PJ WX4130N simplifies on-the-go presentations
when conference rooms are limited.
• Move effortlessly from room to room with a compact system that can be transported
easily by hand. A permanent mount is not necessary.
• Begin presenting immediately. Tabletop installation requires no elaborate set up,
so users can simply set it down, plug it in and start the show.
• Ensure optimal clarity with Automatic Keystone Image Adjustment. The device
corrects image distortion automatically when the projector is placed on an angle
for properly squared images.
• Project presentations with the best possible image quality using the Auto Set
feature. This feature automatically adjusts for flickering and positioning so you
deliver the best possible presentation while on the go or in small meeting spaces.
• Protect the integrity of your presentations and limit user access by setting passwords
and eliminate inadvertent mistakes during presentations by activating the Key
Lock function.
• Gain peace of mind with long-lasting lamp life—up to 3,000 hours of brilliant
images and performance.
Create a virtual meeting room by
synchronizing a presentation directly with
multiple Apple® iPad® tablet devices using
a standard Wi-Fi connection and the Ricoh
TAMAGO Presenter application.
Connect for Optimal Performance
Streamline how you manage content and enhance the
impact of your presentations with feature-rich capabilities
that are integrated seamlessly with your network.
• Take your presentation wherever you go. Save files to a USB memory drive and
plug it into the USB terminal port for computer-free presentations. Users can
also project images stored on USB-compliant devices—including digital cameras—
directly to the screen using the USB terminal port.
• Use the convenient LAN connection to display movies in high-definition or to control
a networked computer for shared-use projectors (PJ WX4130N only). Presenters
can also take advantage of a closed captioning feature to reinforce their message.
• Maximize communication and display the same image at once to multiple projectors
(up to four projectors) for all participants to see (PJ WX4130N only).
• PJLink compatibility lets users manage settings or turn the power on or off
remotely—even other brands of network projectors—from your networked
computer (PJ WX4130N only).
• Access and print projector status and error reports from your desktop using
Ricoh's @Remote Intelligent Management Service.
Improving
User Environment
RICOH’s proven optical
technology increases devices’
illuminant efficiency (brighter
screen with the same light
source), making a smaller
footprint possible. This improves
the User Environment in green
(energy and resource saving)
as well as usability (noise and
heat reduction) aspects.
Ricoh PJ WX4130/PJ WX4130N
System Specifications
Model
Projector Part Number
Replacement Lamp Part Number
3D Glasses Type 1*1
System
Projection Method
Resolution
Liquid Crystal Panel
Size
Aspect Ratio
White Light Output (brightness)*2
Color Reproduction
Contrast Ratio
Size of Projected Image
Projection Distance
(from rear of unit to projection surface)
Lamp Type
Lamp Life
RGB Compatible
Real Display
Signals (analog, digital)
Compressed
Representation
Input Signals
Analog RGB Compatible
Horizontal
Vertical
Scanning Frequency*2
USB Memory Compatible File Format*3
Projection Lens
Interface
Supported OS
Zoom Ratio
Magnify
Zoom
Focus
Image Input
Audio Input
RS232C
USB
Wired LAN
Wireless LAN
Network Utility
JPEG Conversion Utility
Projector Management
Utility
Primary Features
Network Features
Software Utilities
Built-in Speaker
Dimensions (W x D x H) (Including protrusions)
Weight
Power Consumption
While Operating
Standby
Operating Environment
While Operating
Fan Noise
Power
Accessories Packaged
Cables
with Projector
CD-ROM
Carrying Case (W x D x H)
PJ WX4130N
431067
308942
308884
431069
308942
308884
Single chip DLP® system
Ultra short-focus lens/mirror projection
WXGA – 1280 x 800 dpi (1,024,000 Picture Elements)
0.65"
16:10
2,500 lm
16.77 million colors
2500:1
48" – 80"
4.6" to 9.8"
High-pressure mercury (Standard Mode: 225W; Economy Mode: 170W)
Standard Mode: 3,000 hours; Economy Mode: 4,000 hours
WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600 only), VGA (640 x 480), HDMI
UXGA (1600 x 1200), SXGA (1280 x 1024)
NTSC, PAL, SECAM, NTSC4, 43, PAL-M, PAL-N, PAL-60; Component Image (480ip, 576ip, 1080ip)
15 to 100 kHz
23 to 85 Hz
N/A
Still Image: JPEG
Moving Image: MPEG2
80% - 100%
100%, 125%, 150%, 175%, 200%
Digital
Manual
Mini D-sub 15 pin x 1, HDMI x 1, RCA pin x 1
3.5 mm diameter stereo mini pin jack x 1
USB-Type-minB x 1
N/A
USB 2.0 High-Speed Type A x 1
N/A
10/100/1000Base-TX Ethernet x 1 (RJ-45)
N/A
IEEE 802.11a/b/g/n compliant*4, Ad Hoc +
Infrastructure mode support, WPA/WPA2 Authentication,
WEP/TKIP/AES Encryption
N/A
Windows XP SP3 or later (Home/Professional),
Vista SP2 or later (Ultimate/Business/Home Premium/Home Basic)*5,
7 (Ultimate/Enterprise/Professional Home Premium)*5
N/A
Windows XP SP3 or later (Home/Professional),
Vista SP2 or later (Ultimate/Business/
Home Premium/Home Basic)*5,
7 (Ultimate/Enterprise/Professional Home Premium)*5
N/A
Windows XP SP3 or later (Home/Professional),
Vista SP2 or later (Ultimate/Business/Home Premium/Home Basic)*6,
7 (Ultimate/Enterprise/Professional Home Premium)*6
3D (DLP Link), Auto Keystone, Blackboard Mode, Carbon Meter,
@Remote (limited support), 3D (DLP Link), Blackboard Mode,
Closed Captioning, Economy Mode, Freeze, Key Lock, Mute
Carbon Meter, Closed Captioning, Economy Mode, Freeze,
(Blank Screen), Password Protection, Resize (Magnify), User Logo
Key Lock, Auto Keystone, Mute (Blank Screen),
Password Protection, Resize (Magnify), User Logo,
Digital Camera Projection (requires USB connection; JPEG only)
N/A
Network Projection (requires Network Utility), Projection Server
(requires JPEG Conversion Utility), Projector Management
(requires Projector Management Utility or @Remote),
Multi-screen Projection (requires LAN connection),
Mouse Remote Receiver, PJ Link, Slide Show Mode
N/A
Network Utility, JPEG Conversion Utility, Projector Management Utility
2W Mono
10.1" x 5.6" x 8.7" (257 x 144 x 221 mm)
Approx. 6.6 lb. (3.0 kg)
Standard Mode: 291 W or less; Economy Mode: 222 W or less
Standard Mode: 300 W or less; Economy Mode: 228 W or less
Regular Standby Mode: 0.17 W or less
Network Standby Mode: 0.46 W or less*7
Ambient temperature: 5 to 35 degrees Celsius; Humidity: 30 to 70% (no condensation)
Standard Mode: 38 dB; Low Power Mode: 32 dB
100 V - 240 V, 50/60 Hz
RGB cable (3m), 3-pin power cable (3m)
User’s Manual
User’s Manual, Network Utility Type A, JPEG Conversion Tool
Type A, Projector Management Utility
Exterior Size: 13.2" x 6.0" x 9.0" (335 x 152 x 229 mm)
Remote Control
1:
2:
3:
4:
PJ WX4130
Wireless Remote Control
Wireless Remote Control; Mouse Remote Receiver
Native support for Frame Sequential 3D format. Other sources may require a converter that is not provided from Ricoh.
Preset to this range of supported signals. Signals that are not preset may not display even if they are within this range.
When using the USB terminal for computer-free presentations, there is no guarantee the images will display. They may not display because of the file.
The 5.0G Hz band is not supported in the case of IEEE 802.11a/n ad hoc communication. 5: 32-bit/64-bit Operating Systems supported. 6: Not supported on 64-bit Operating Systems. 7: Only in case of wired LAN connection.
Warranty: The Ricoh PJ WX4130/PJ WX4130N is under warranty against defects for a period of three years from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted,
whichever comes first. Please refer to warranty documents shipped with the product for more details.
For maximum performance, we recommend using genuine Ricoh parts and consumables.
www.ricoh-usa.com
Ricoh Americas Corporation, Five Dedrick Place, West Caldwell, NJ 07006
Ricoh® and the Ricoh Logo are registered trademarks of Ricoh Company, Ltd. All other trademarks are the property of their respective owners. The content of this document, and the appearance,
features and specifications of Ricoh products and services are subject to change from time to time without notice. Products are shown with optional features. While care has been taken to ensure the
accuracy of this information, Ricoh makes no representation or warranties about the accuracy, completeness or adequacy of the information contained herein, and shall not be liable for any errors or
omissions in these materials. Actual results will vary depending upon use of the products and services, and the conditions and factors affecting performance. The only warranties for Ricoh products
and services are as set forth in the express warranty statements accompanying them.
R3317
